Coming off of a Flux Capacitor build I wanted to bring the Time Circuits to life. And I know a lot of people have done amazing versions with Arduino and 7-segment LED characters. But what I'm looking to do is something a bit more analog. I read that for the film the Time Circuits had a simple back-lit solution for the NOV and OCT characters because there were not solutions to do this as actual 7-digit LED characters. This got me to thinking. Could I do the entire thing with backlit characters? I recently bought a Cricut so I thought simply cutting the characters out of black vinyl and use a red plastic filter would give me the look. But one thing bothered me:

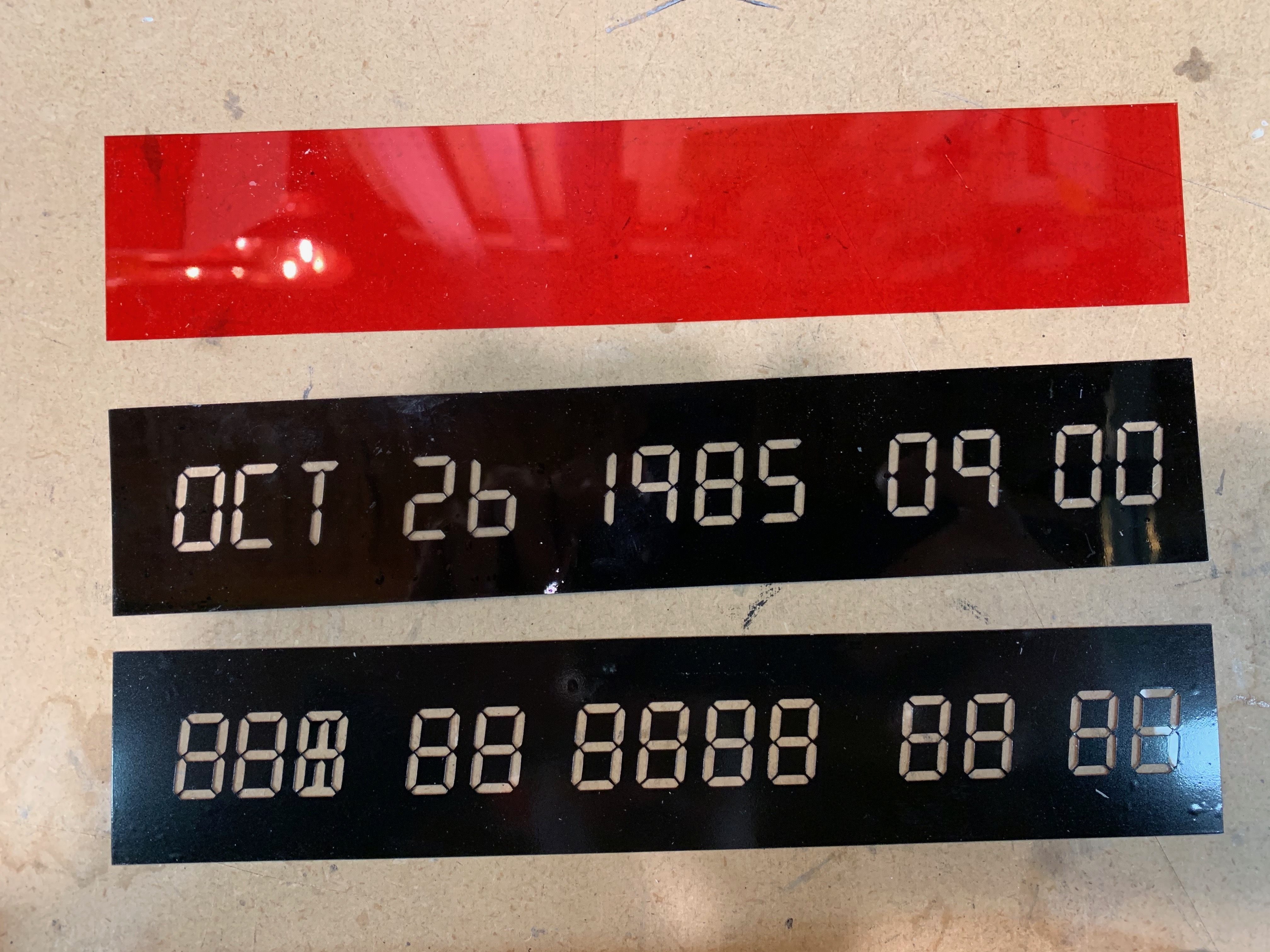

If you look closely at a 7-segment LED character, you see the illuminated segments, but you also see the UN-ILLUMINATED segments slightly. I wanted this depth. So, what I've landed on is a three layer approach:
1) Red filter sheet (and green and yellow for the other two)
2) The "Lit" segments cut out of a limo-dark window tint
3) All segments cut out of a black (opaque) vinyl

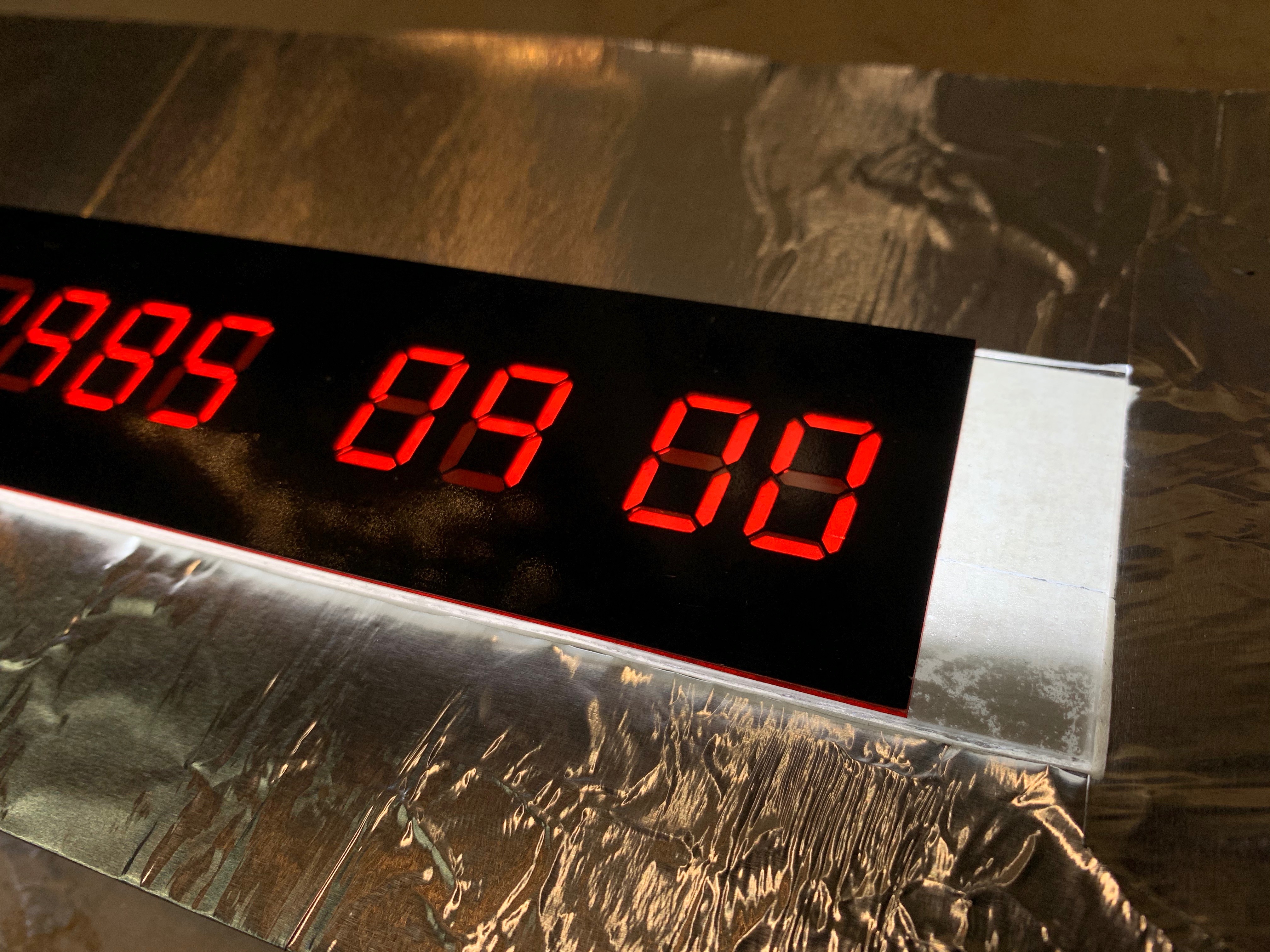

When I line all three of these up over a lightbox it looks really convincing.

I have the face plates being cut and bent at sendcutsend. From there I'll put all this together.

more to come ...


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Valor

Sr Member
RPF PREMIUM MEMBER

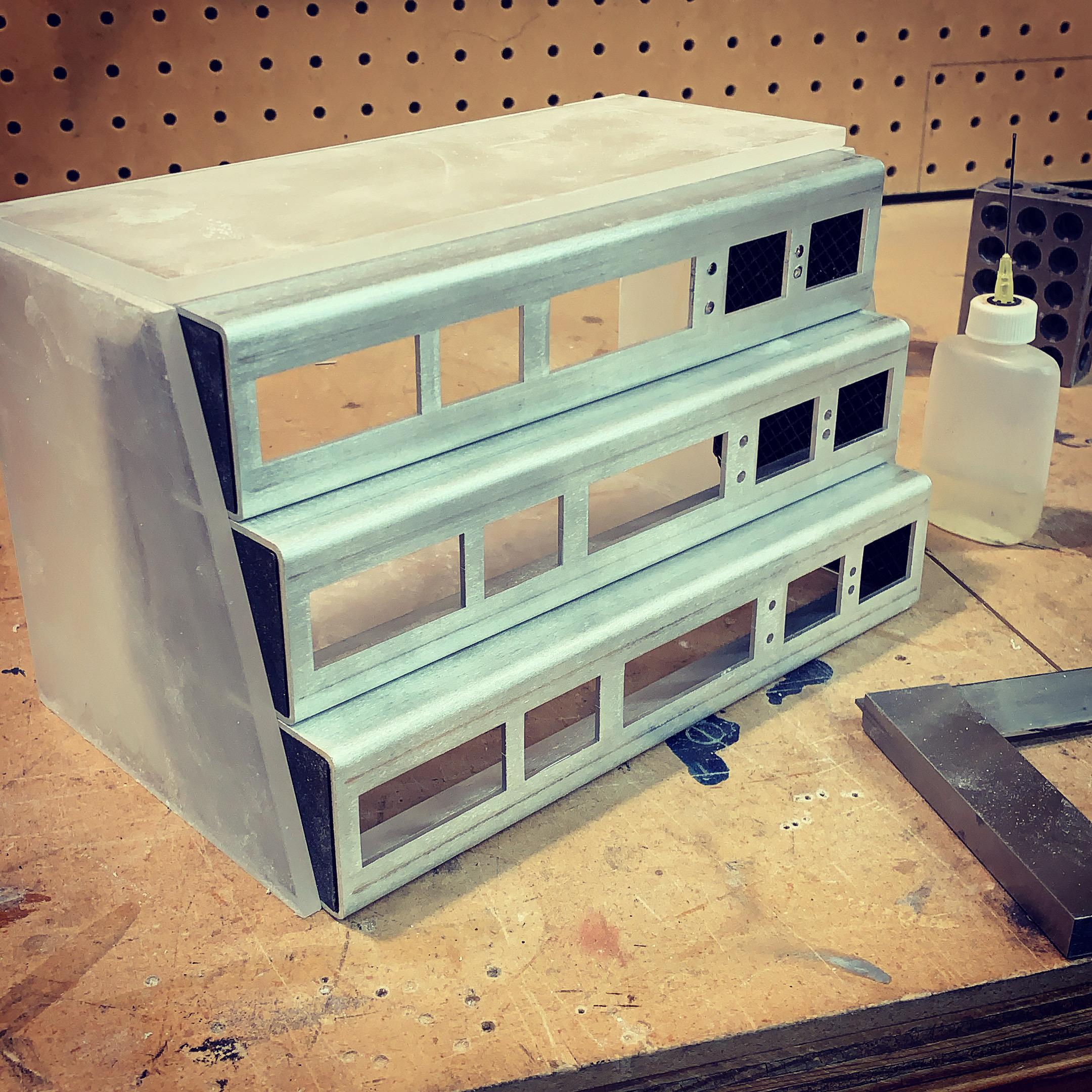

I started working on the enclosure ... I had two plans in my head. One is to use the original/accurate LMB Heeger cr852 electronics enclosure. My second plan which I'm showing here is to have the faces cut and bent from sendcutsend. I got those pieces today and whipped up a simple acrylic enclosure to hold them. Its not bad ... A tad off-accurate with the more rolled corners.

I also have the Heeger boxes on order ... so I might just scrap what you're seeing here. don't know yet.


13doctorwho

Sr Member
RPF PREMIUM MEMBER
Pretty cool. I'm curious... for the numbers why not use real 7 segment displays and just hard wire them to the numbers you chose? You're idea is clever and cheaper... I guess I kind of answered my own question. It really does look realistic. Great work.


Valor

Sr Member
RPF PREMIUM MEMBER
Pretty cool. I'm curious... for the numbers why not use real 7 segment displays and just hard wire them to the numbers you chose? You're idea is clever and cheaper... I guess I kind of answered my own question. It really does look realistic. Great work.
You nailed it. I'm clever, and cheap ... also I don't know how to program those. Nor do I really want that much functionality. I just want a lit display for my shelf. See? Clever and Cheap.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Valor

Sr Member
RPF PREMIUM MEMBER

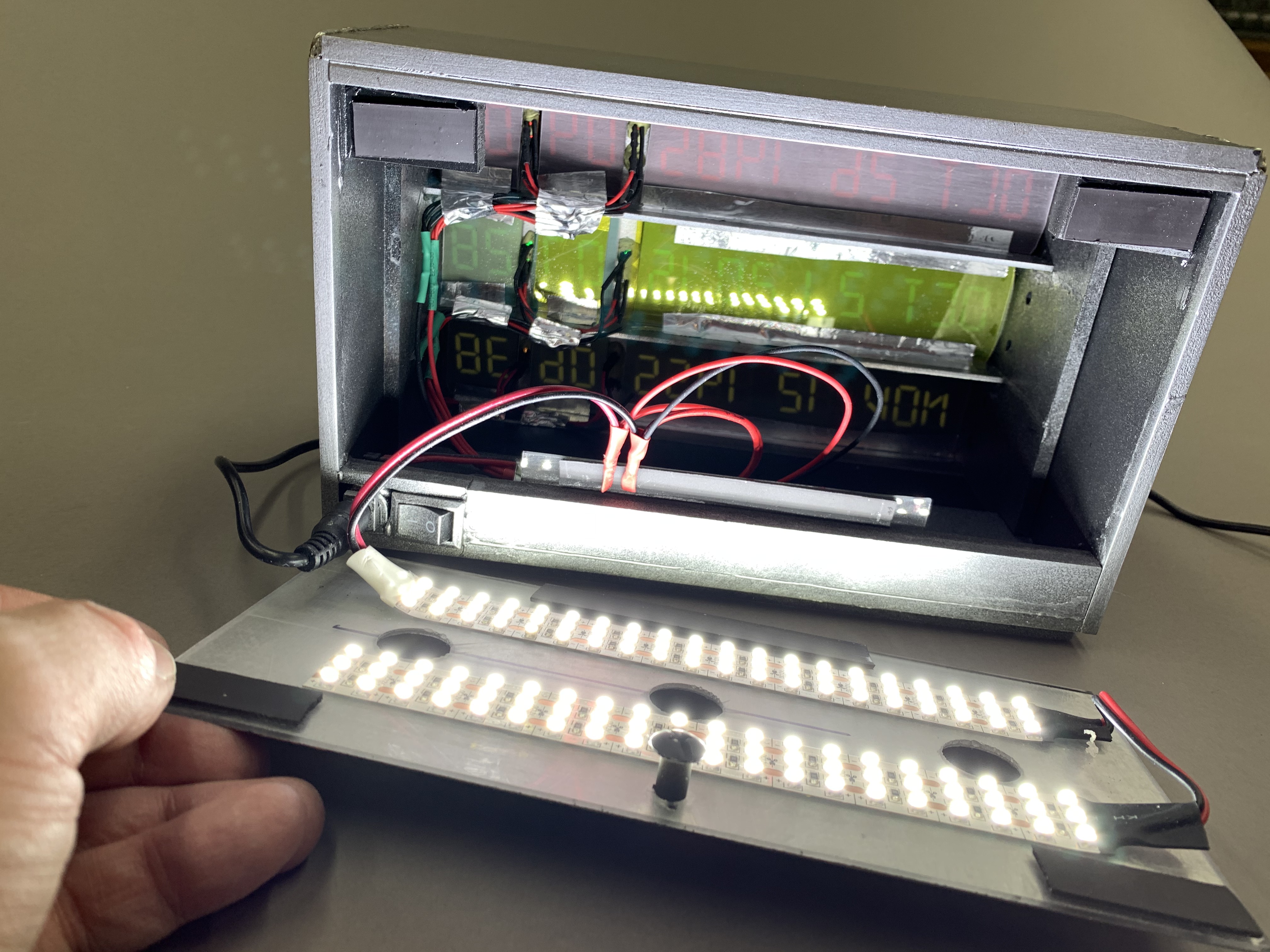

Okay, here' the final piece. Overall I'm really happy with the results. To get the effect of the 7-segment digits there are 5-6 layers of transparency. The digits are more clear in person. These photos are a bit blown out. It's essentially a big lightbox illuminated by two strips of 3-row LEDS.



Markus

Well-Known Member
Okay, here' the final piece. Overall I'm really happy with the results. To get the effect of the 7-segment digits there are 5-6 layers of transparency. The digits are more clear in person. These photos are a bit blown out. It's essentially a big lightbox illuminated by two strips of 3-row LEDS.
It looks fantastic! Congratulations!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Valor

Sr Member
RPF PREMIUM MEMBER

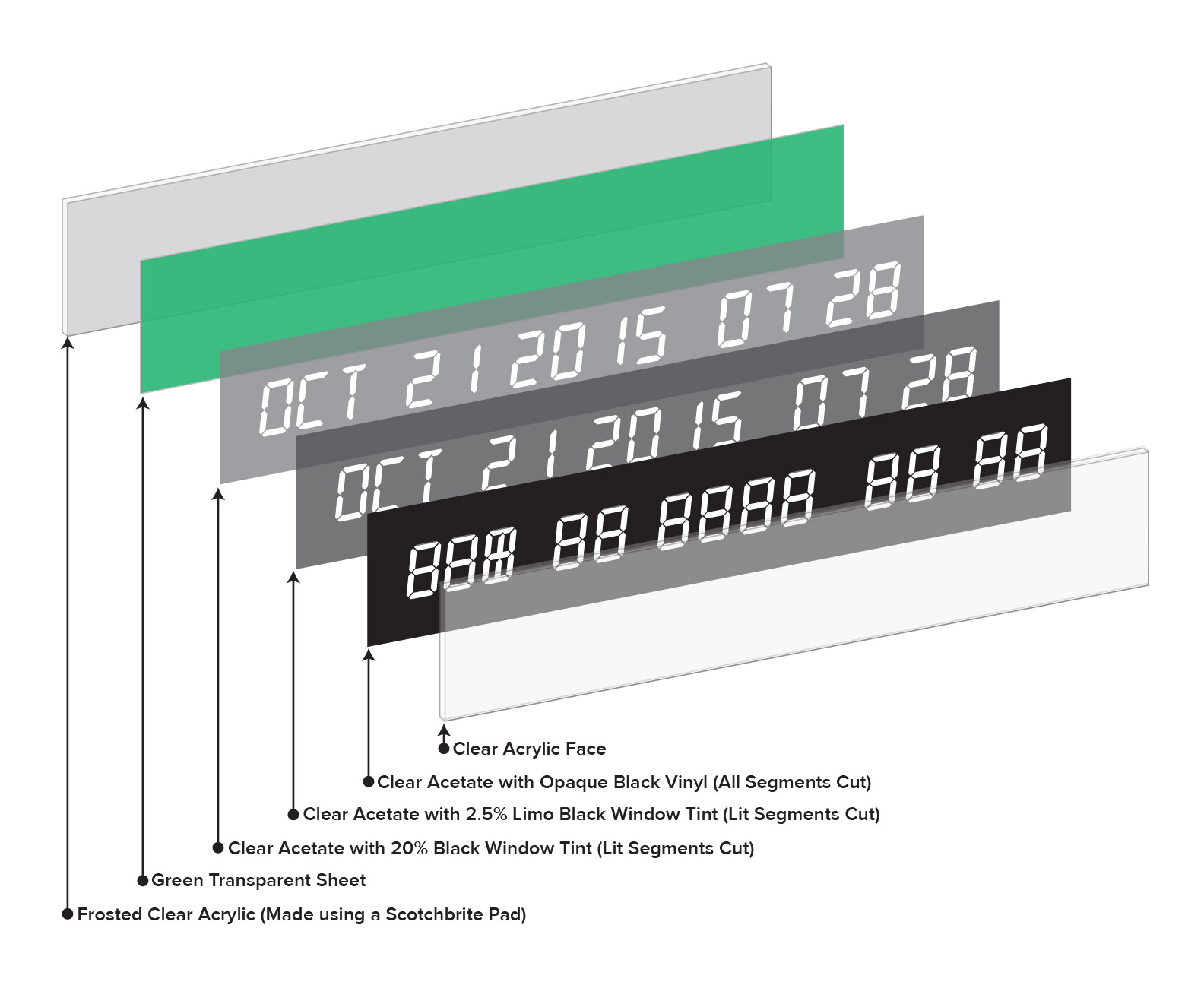

Okay, I wasn't happy with the contrast between the "Lit" segments and the "Unlit" segments. I wanted the Unlit to be darker. So, I bought some more window tint and did another layer of "Unlit" segments. It's tricky to photograph, but I feel like the effect is much more accurate. Maybe this only makes sense to me :)
