Another Snub-nosed Blade Runner blaster thread because... can you ever really have too many?

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Lowbeer

Active Member
RPF PREMIUM MEMBER
Not be that person (Ok I will be that person haha!), but whenever you complete and are satisfied with your build, are you planning on releasing the files or selling casts? I'd love to get my hands on a snub nose. I also discovered recently that Dave's kits are no longer available. Thanks!

Lol... right now all I'm focused on is seeing if what I spent all this time designing can actually even be built!

One of the pitfalls of programs like Fusion 360 seems to be how easy it is to design something incredibly complex that works in the computer, but that you can't actually produce with the tools at your disposal. Oh, to have a 1/4 million dollar six axis CNC mill of my own some day...

Lately I've mostly been continuing to fail at casting grips while also familiarizing myself with materials and processes I have little to no actual hands-on time with.

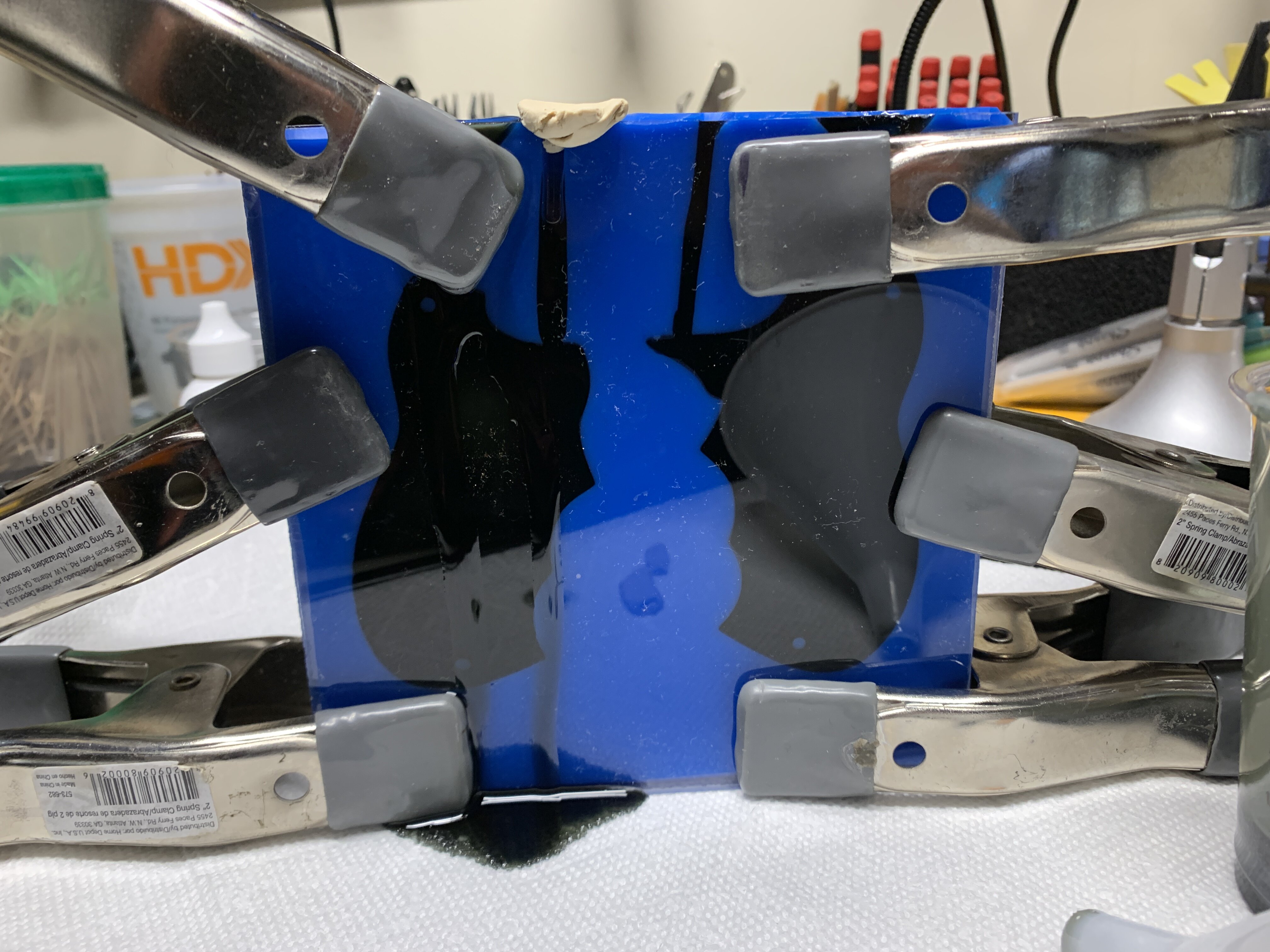

IMG_4897.JPG IMG_4899.JPG

My problems seem to be 3-fold:

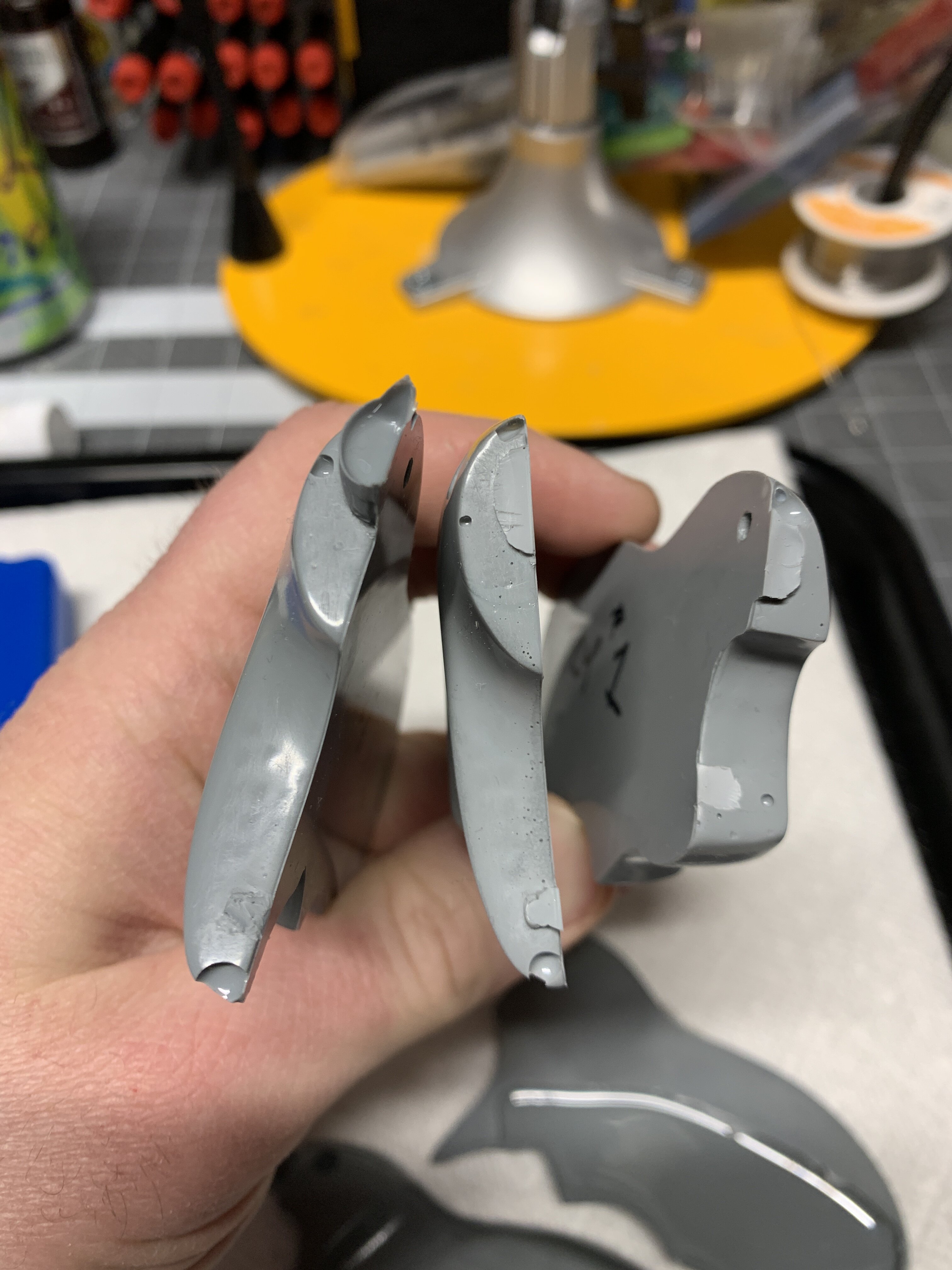

1.) The specific angle the grips are at in the mold I've made traps bubbles in a few locations no matter what I do:

IMG_4900.JPG IMG_4898.JPG

2.) The Smooth-cast 300 sets up too quickly for me to get the whole mess into the pressure chamber to get rid of the bubbles that way. I mean 3 minutes? Really?

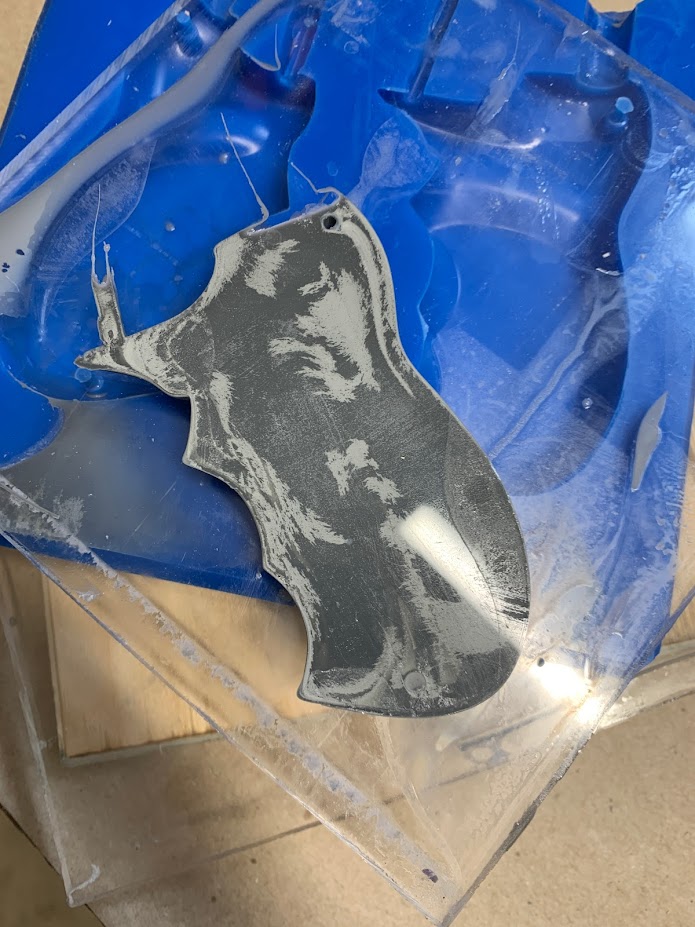

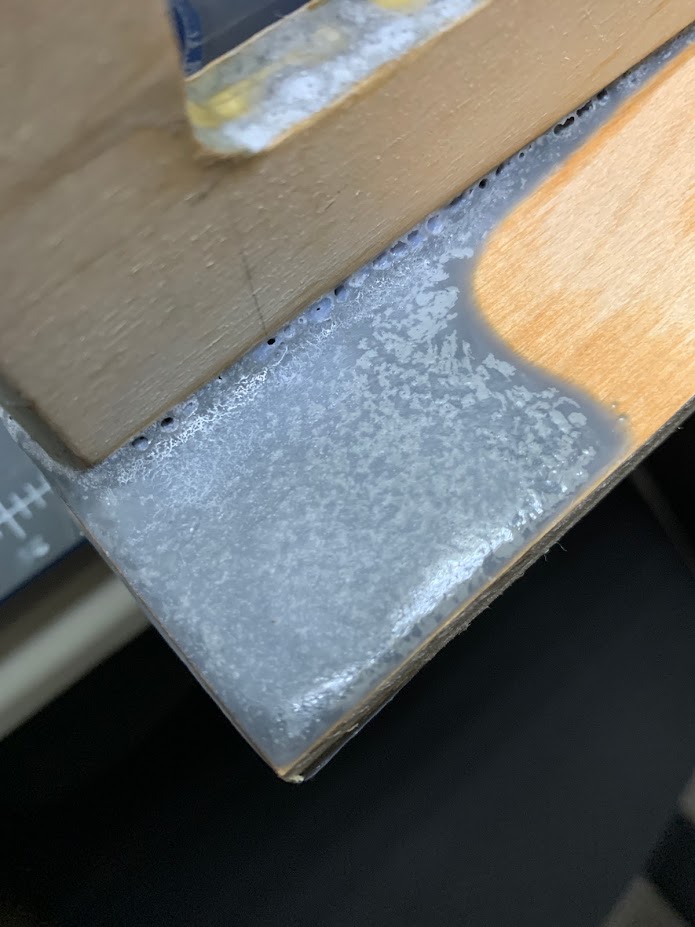

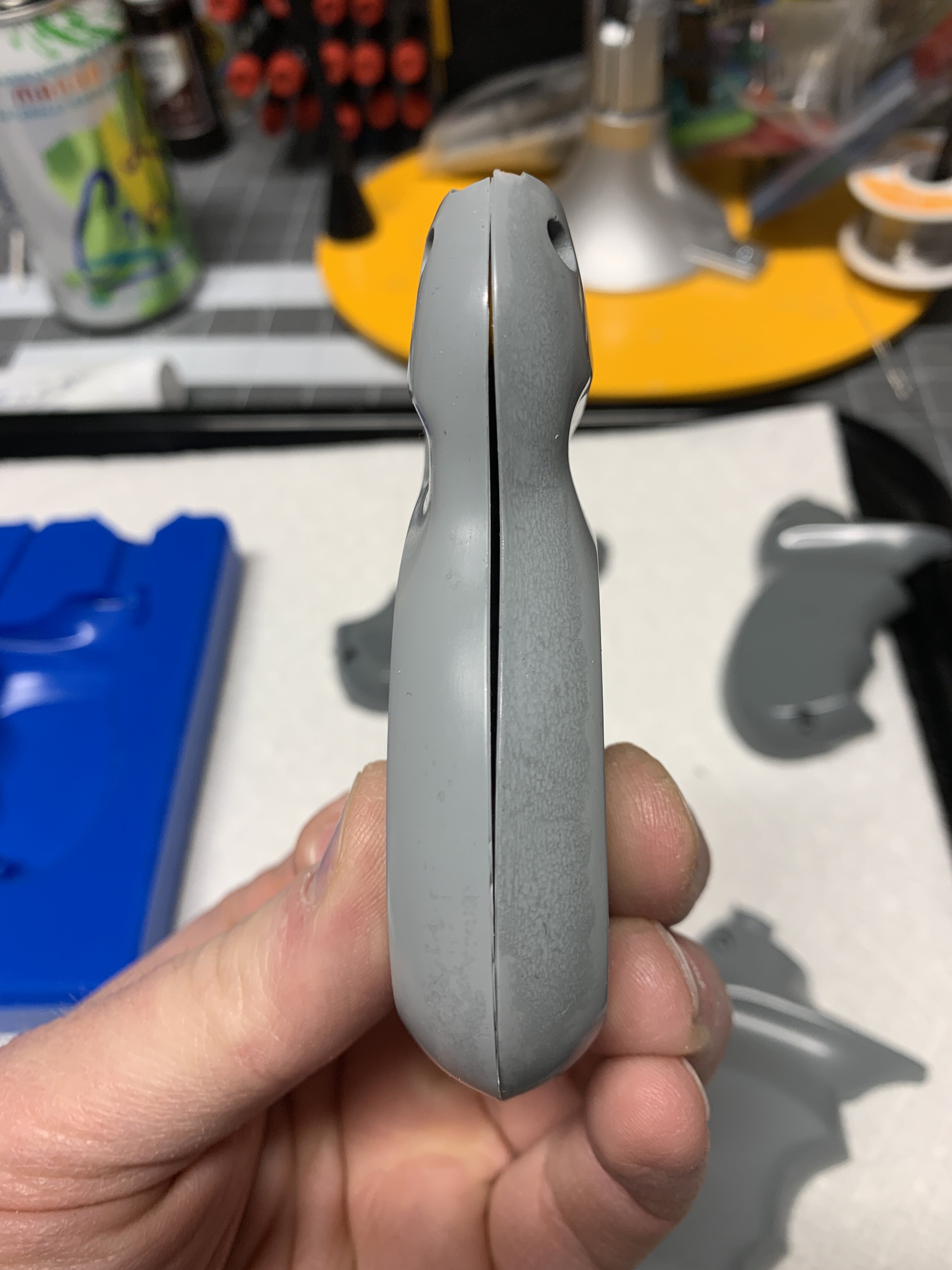

3.) The plexiglass "back plate" I'm using to get an ultra flat surface on the side of the grips that face the blaster (you can see it in the pic higher up in this post with the resin curing in it) is only 1/8" thick and distorts under the pressure of my clamps leading to this:


So I've ordered some Smooth-cast 310 which has an extra 18 minutes of pot life which should give me ample time to get the mold in the chamber and up to pressure before the resin begins to set. Unfortunately the trial size is backordered on Amazon for some reason so I won't be getting that until March 9th or so unless I want to pay Smooth-on $25 shipping on a $30 item.

I've also bought some 1/4" polycarbonate that I'm going to use as the backing for the next round of castings. Hopefully it's rigid enough to eliminate the distortion issue.

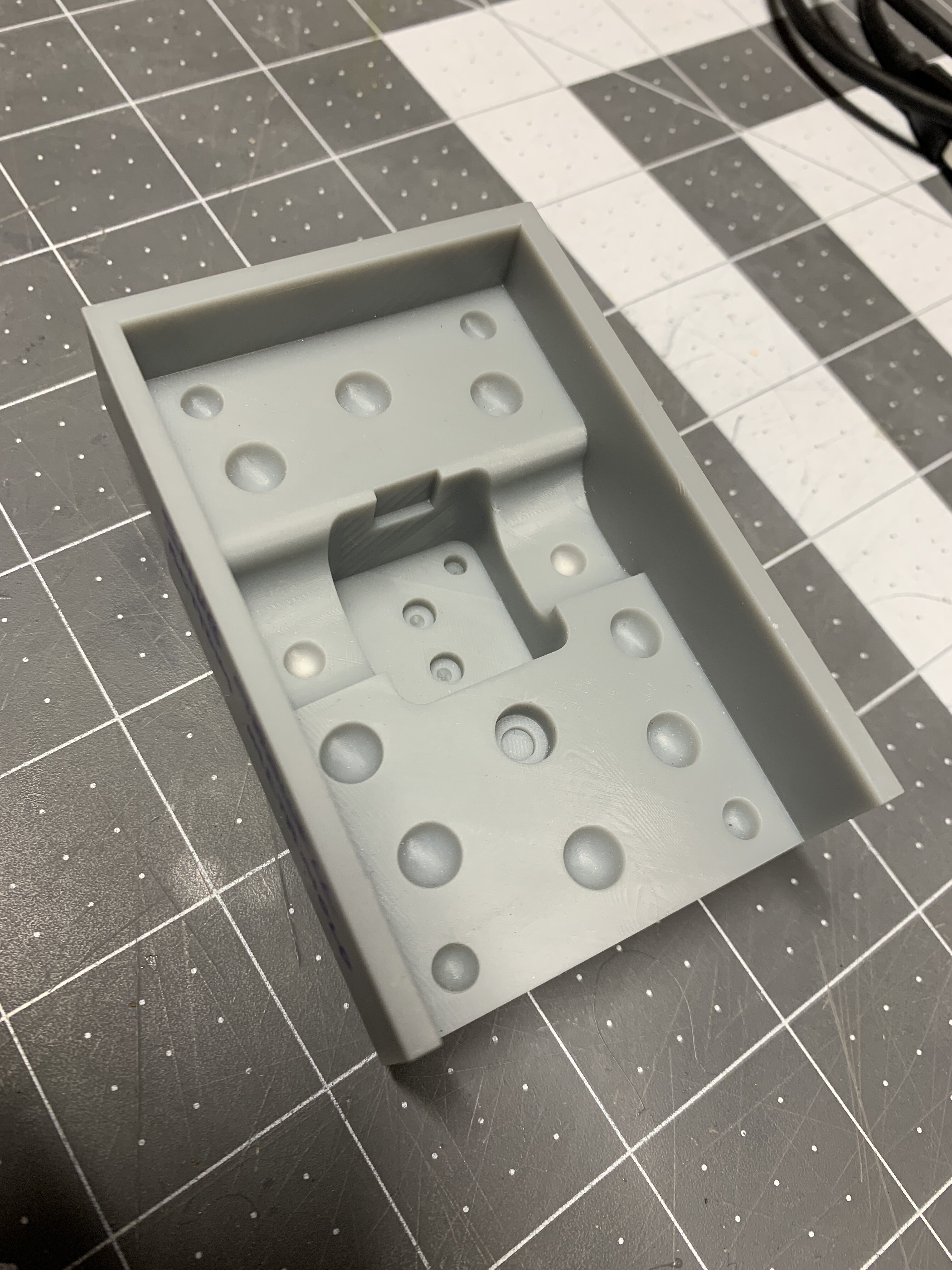

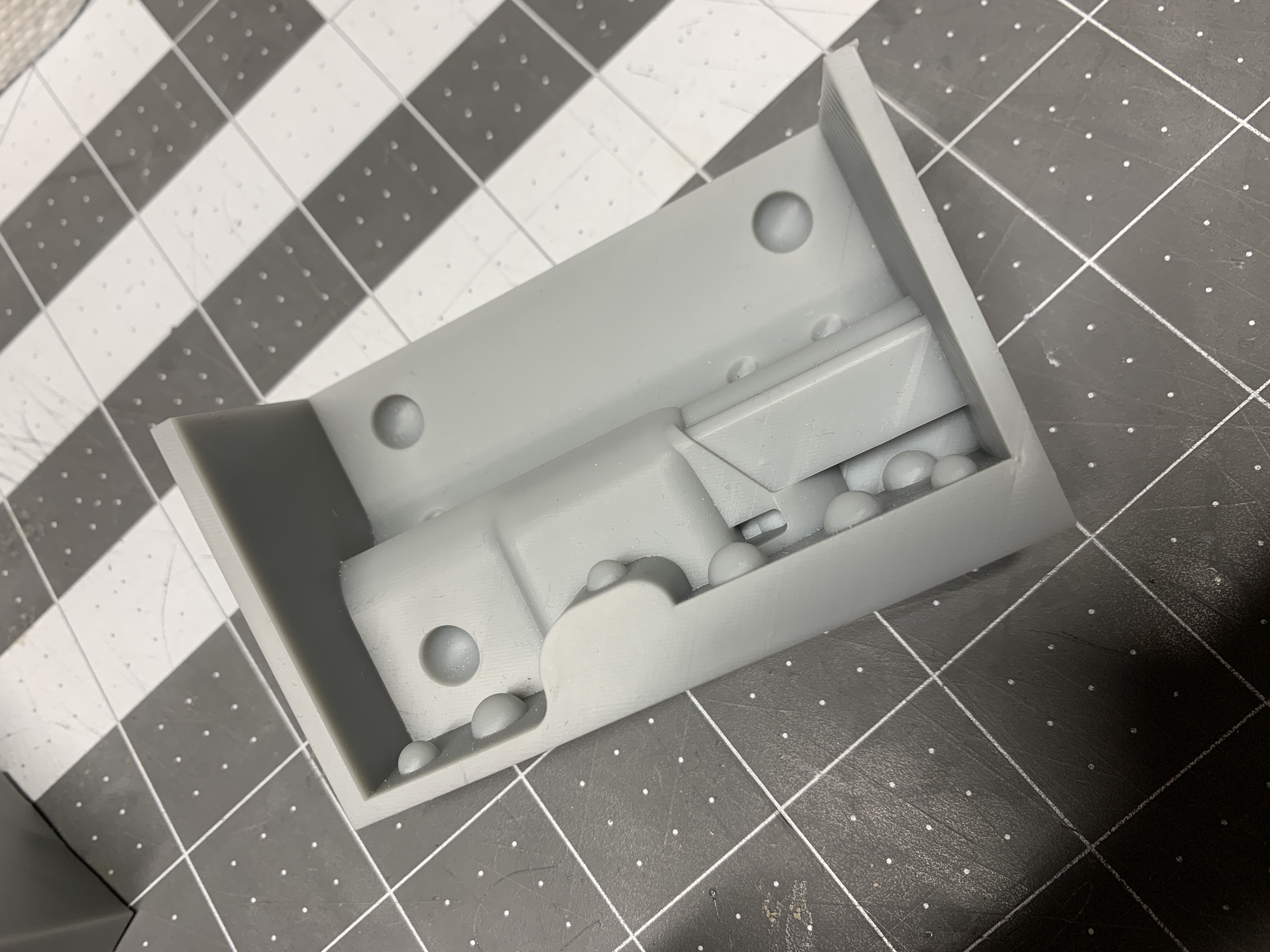

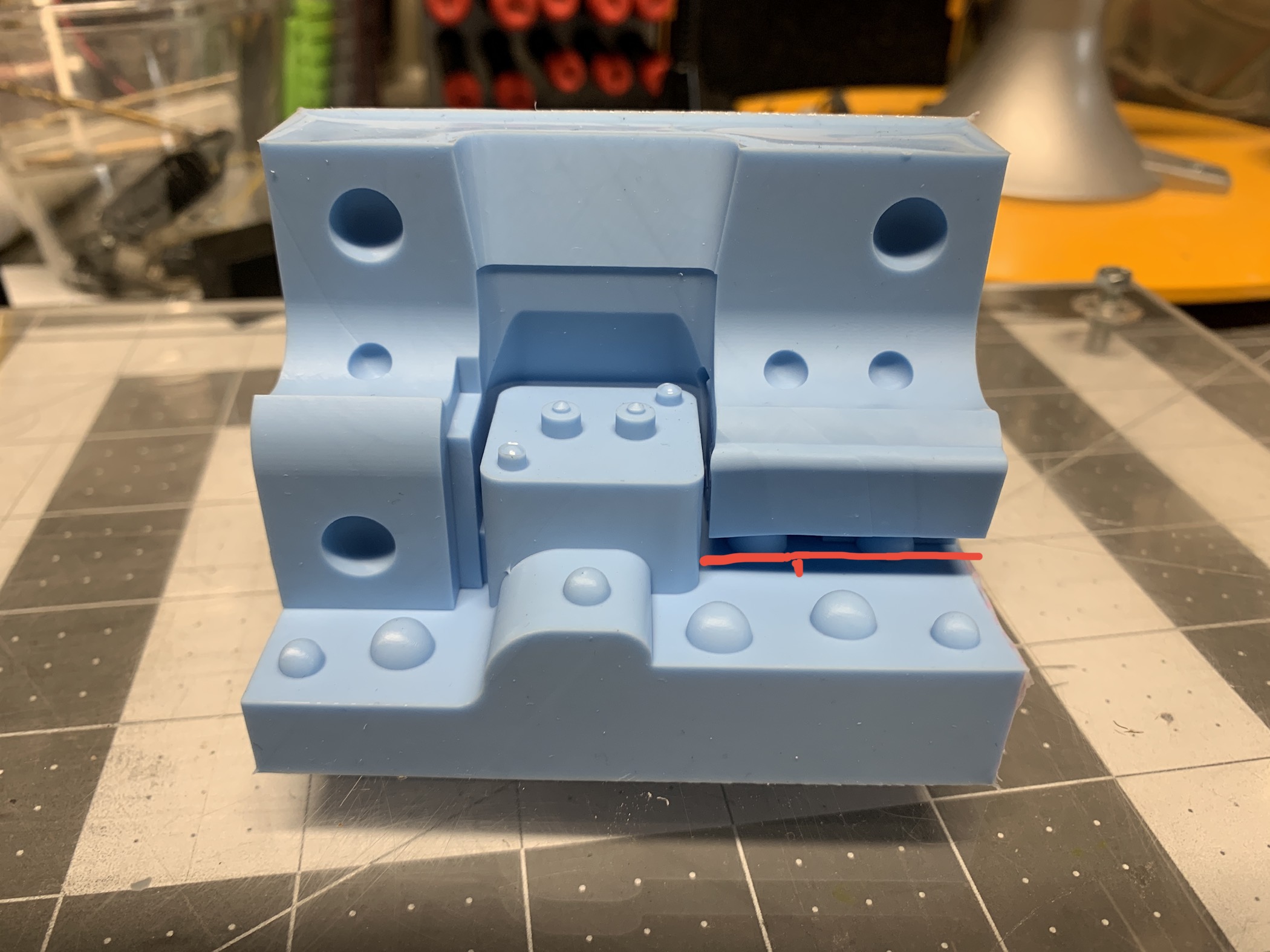

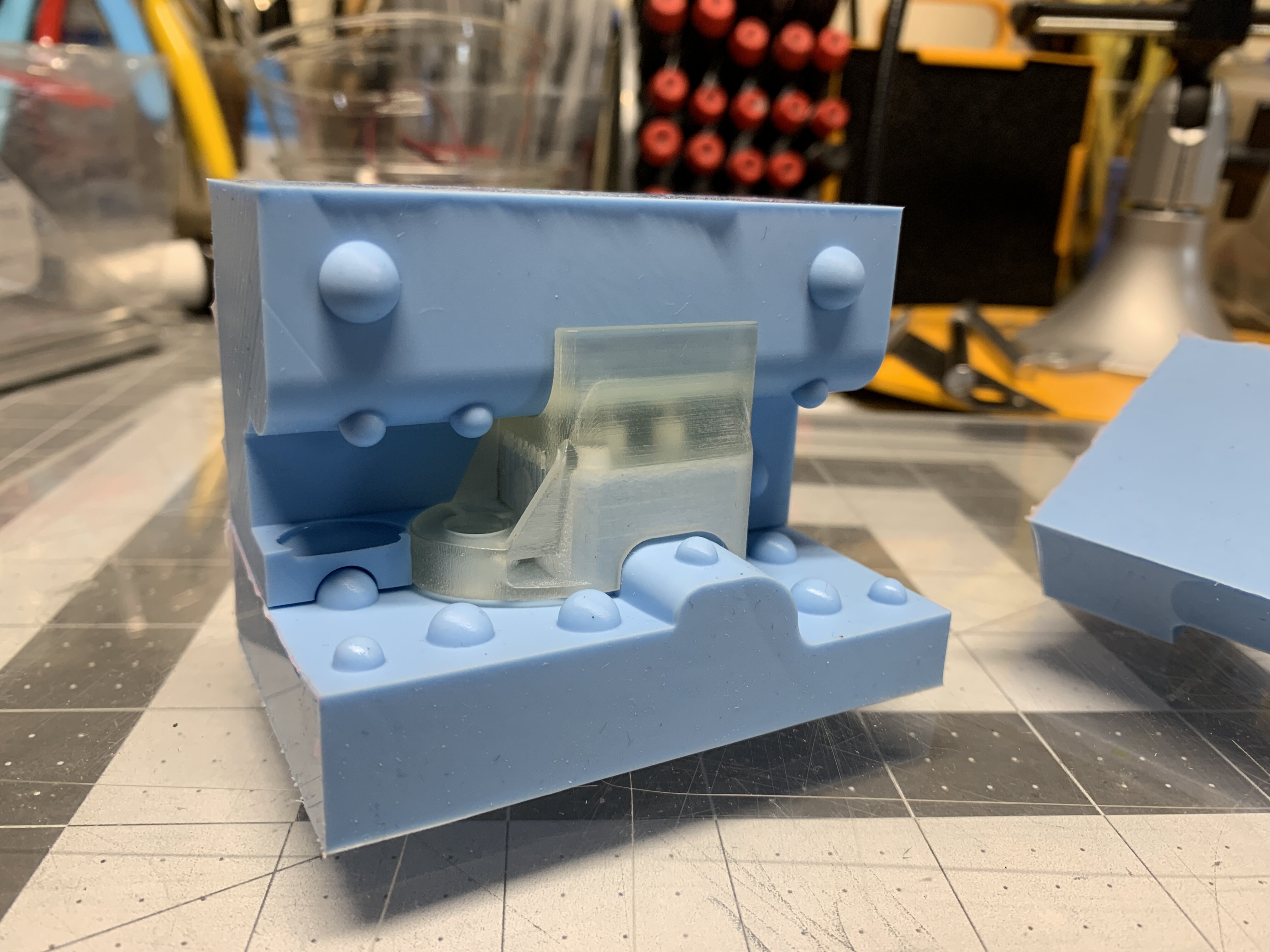

Finally I've also been exploring another idea Dave used in his original Snub build: 3D printing "metamolds". He did it on a much smaller scale there (with the binding post) but basically you design a multi-part mold in the computer, printing "negative" molds (I know, molds are negatives themselves... I don't know how better to explain it) then casting silicone into those. The end result is you can have really cleanly produced multi-part, interlocking molds that have never contained the actual piece being cast in them.

I'm hoping it'll help with some of the super complex shapes in this build like the receiver and the magazine well:

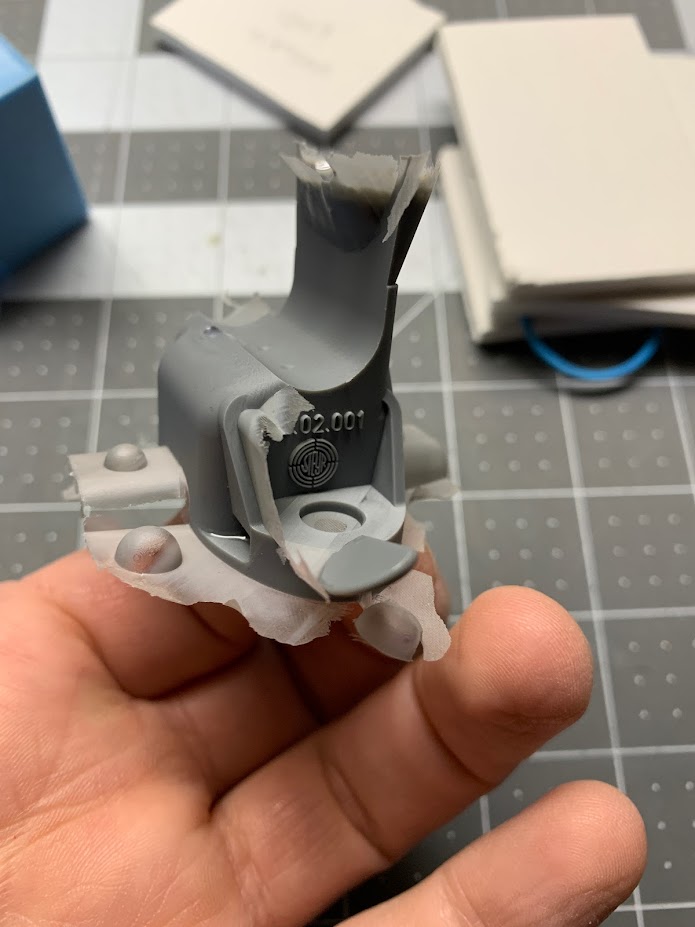

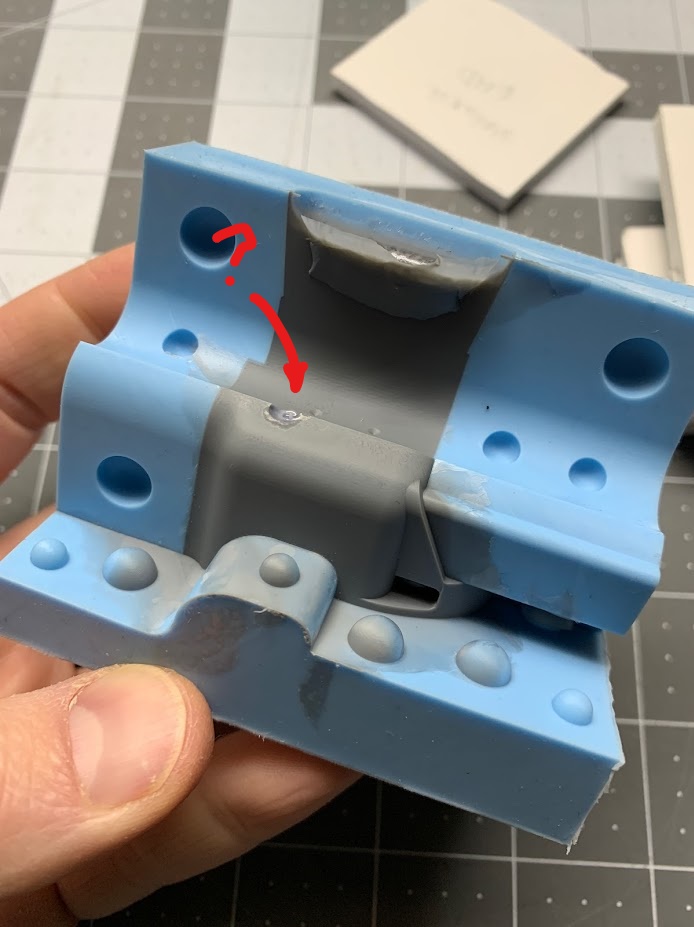

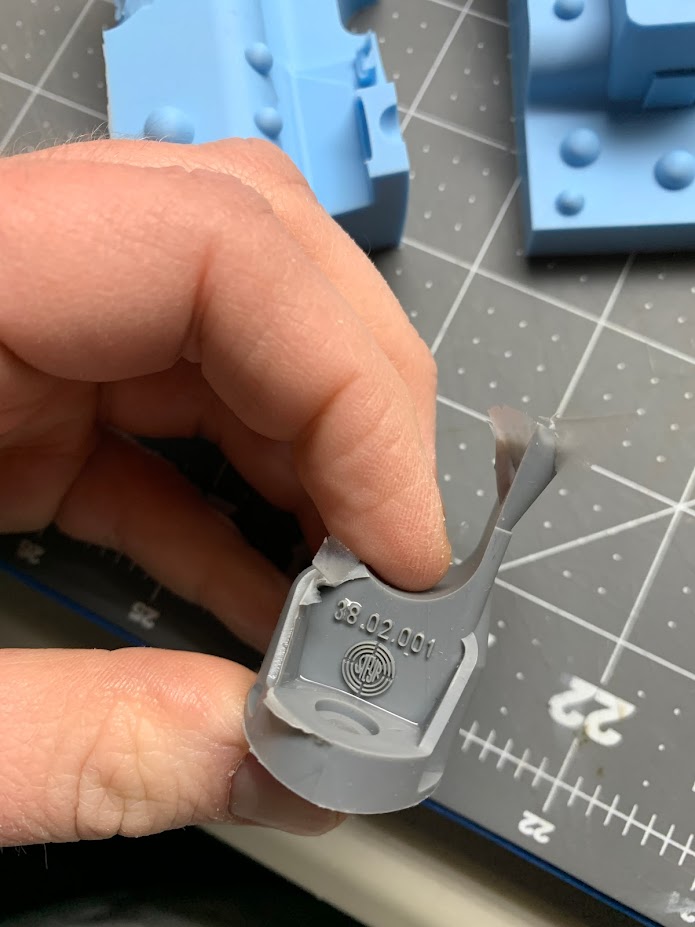

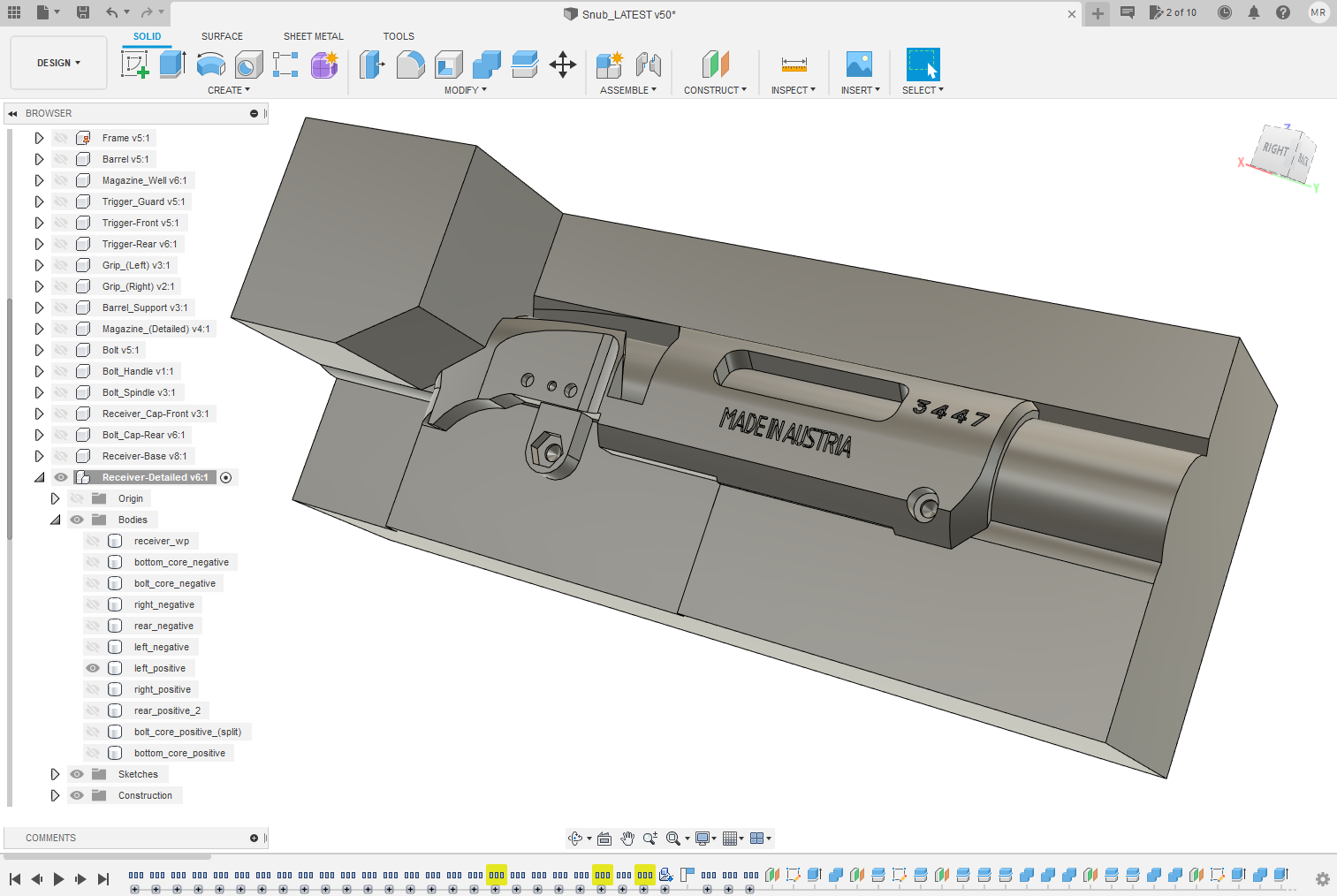

Screenshot 2021-02-18 113053.png Screenshot 2021-02-18 113510.png Screenshot 2021-02-18 113729.png


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
Those molds are great, albeit difficult to achieve...prepare yourself for a few fails;):( I don`t use plexi to put on top of my mold while the resin cures; I use a piece of glass (3mm thick) :) clamp it carefully is a useless statement at this point:p


Lowbeer

Active Member
RPF PREMIUM MEMBER
Finally, a success! Sort of... certainly a sign I'm getting slightly better at this, anyway.

So while I wait for the slower curing resin I ordered I figured I'd use some Smooth-cast 327 I have to try pressure casting another set of grip blanks. 327 has almost identical cure times to the 310 I'm waiting for, it's just the "clear" version.

I actually did an initial test with the 327 a few days ago using the old mold setup but it was a messy disaster because it's "arctic tundra" season here in the northeast US/my garage and it I didn't factor that into my cure times.

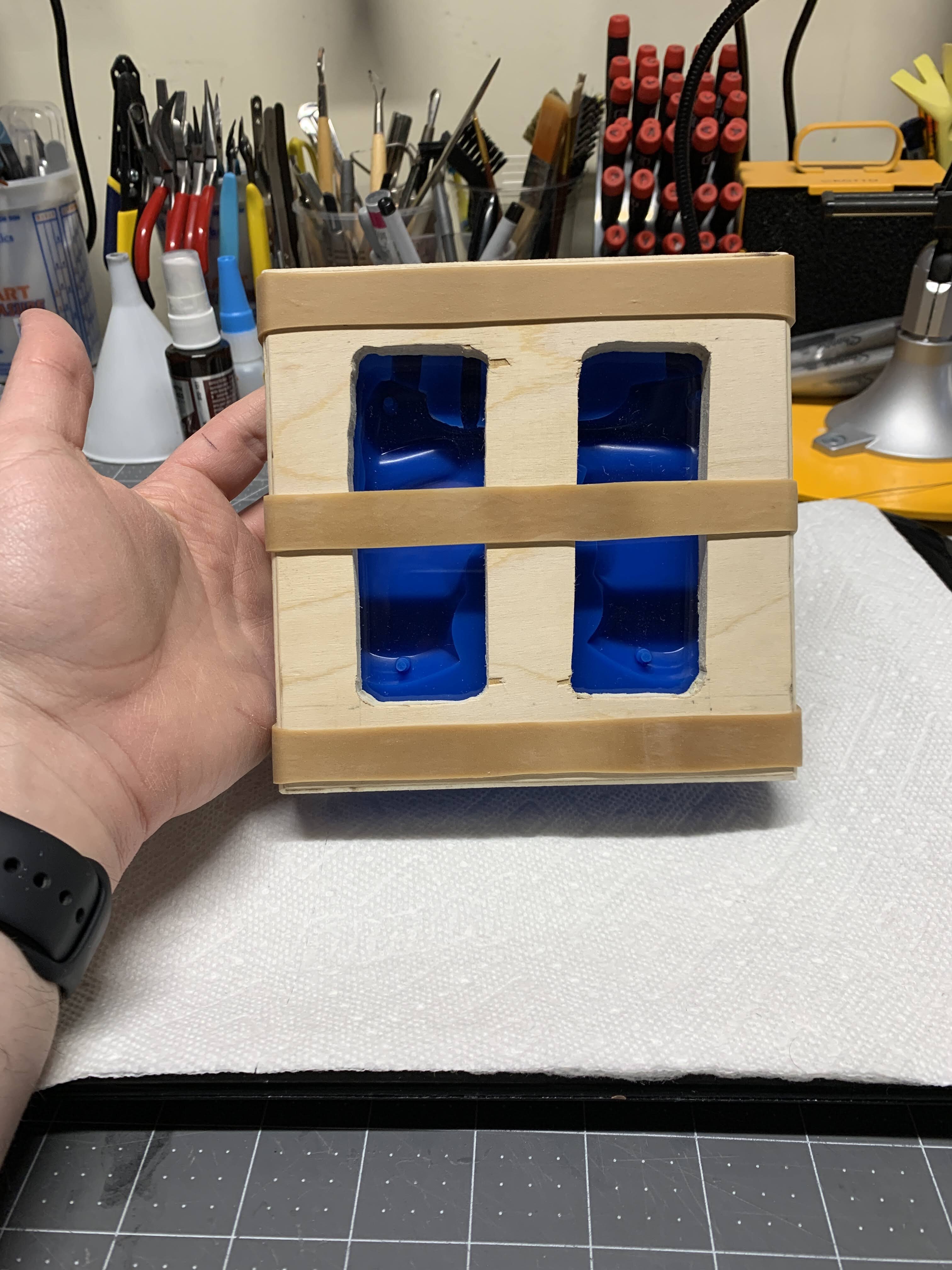

I mentioned in my last post the thin plexi warped under the pressure of the clamps I was using so I rebuilt the "mold sandwich" using thicker 5mm plexi and 3/8" plywood that I rounded off with my router so now not only is the whole setup more rigid, I can also use rubber bands instead of clamps and they won't keep snapping on me because of the sharp plexi edges.

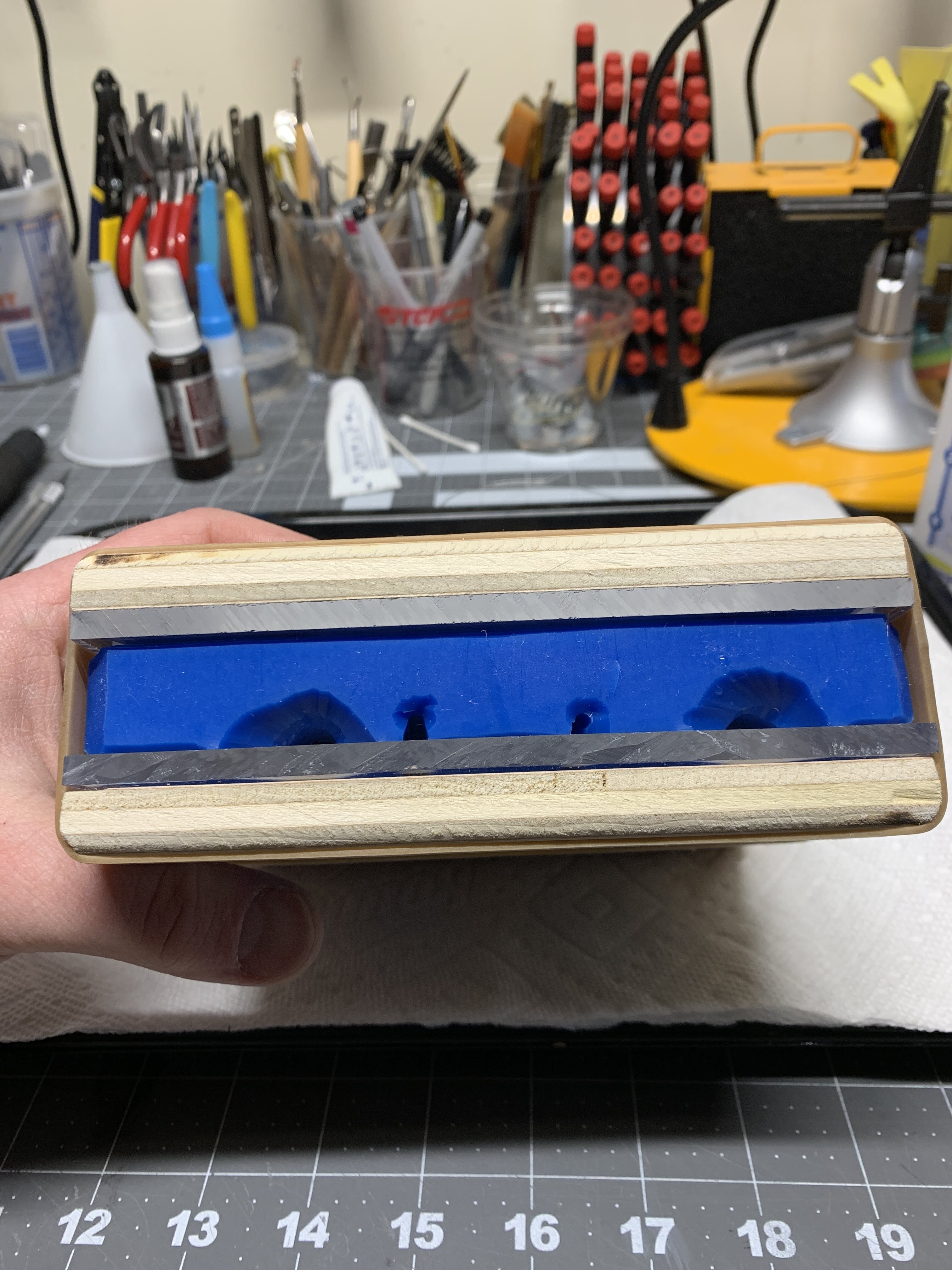

IMG_4937.jpg IMG_4936.jpg

I also cut windows into the front plywood piece so I could still see the resin filling the mold cavity.

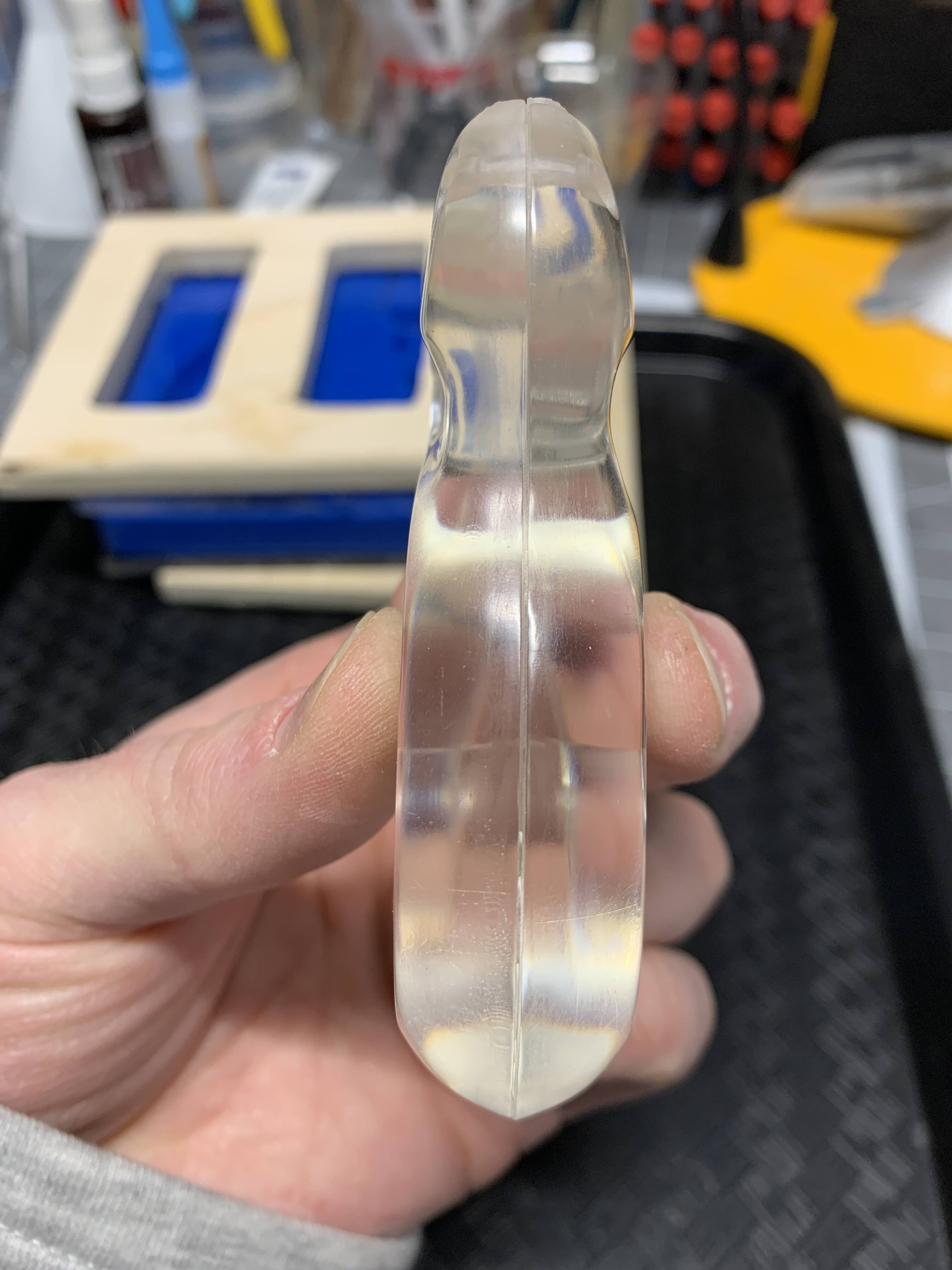

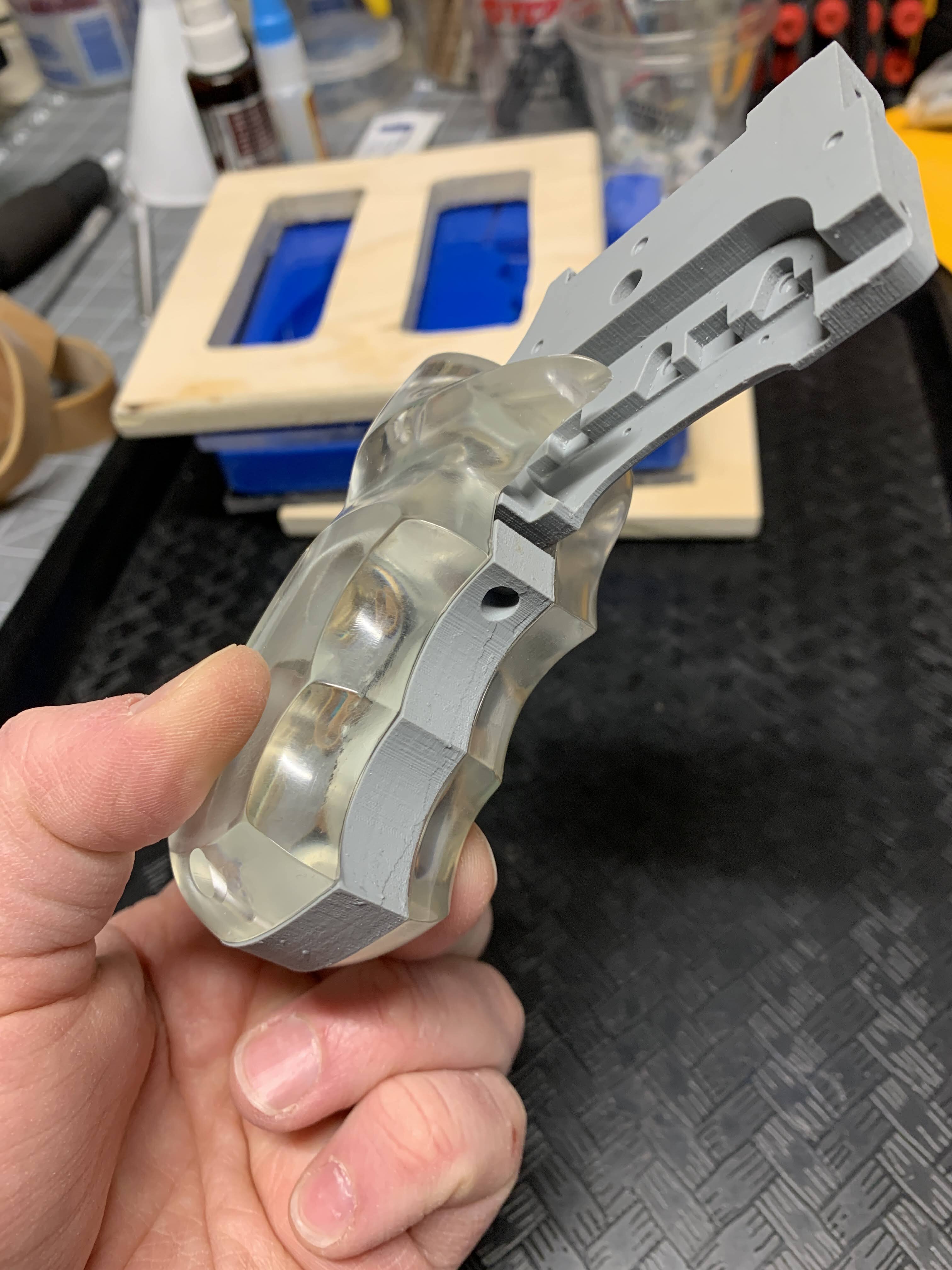

And the results:

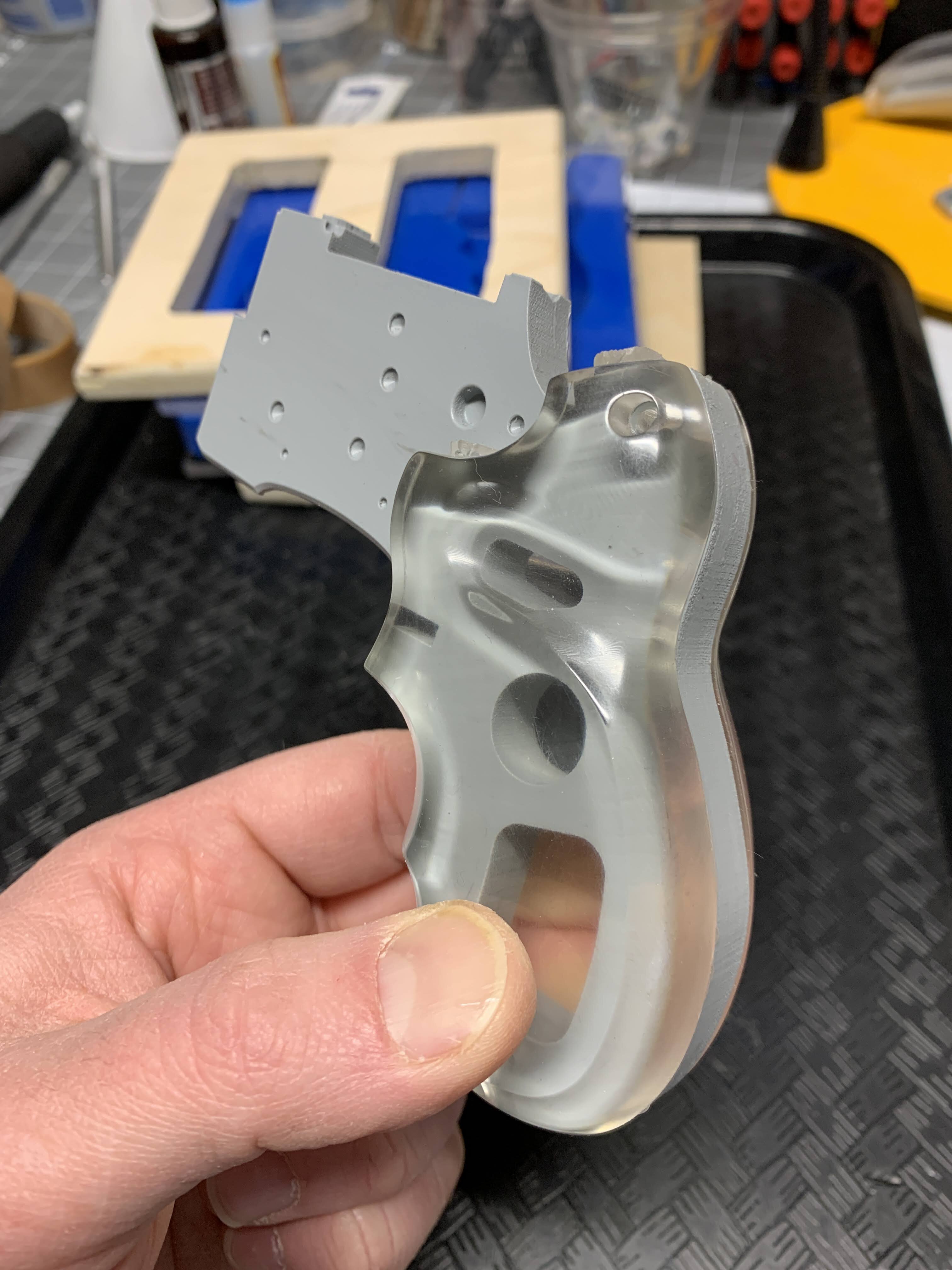

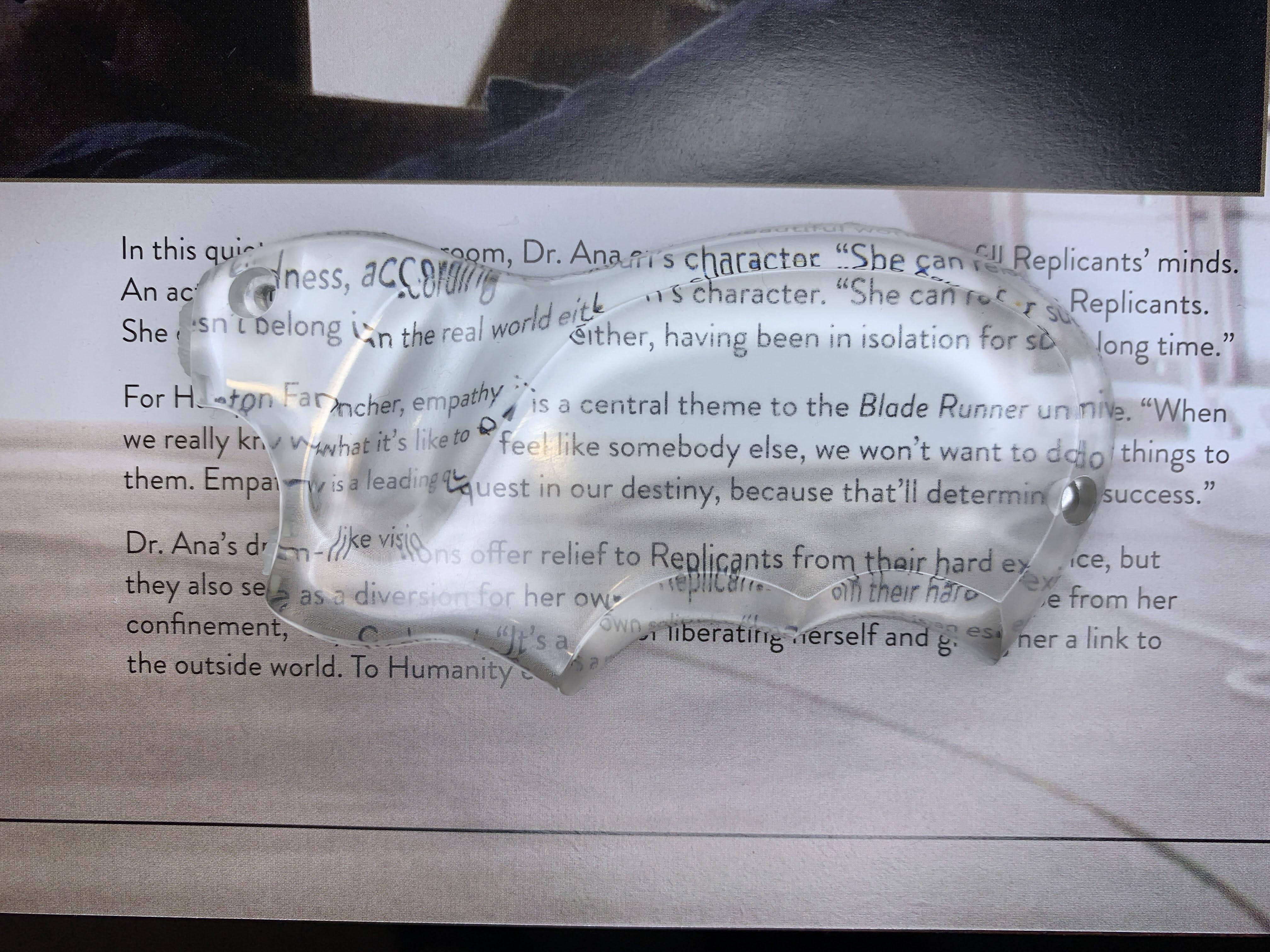

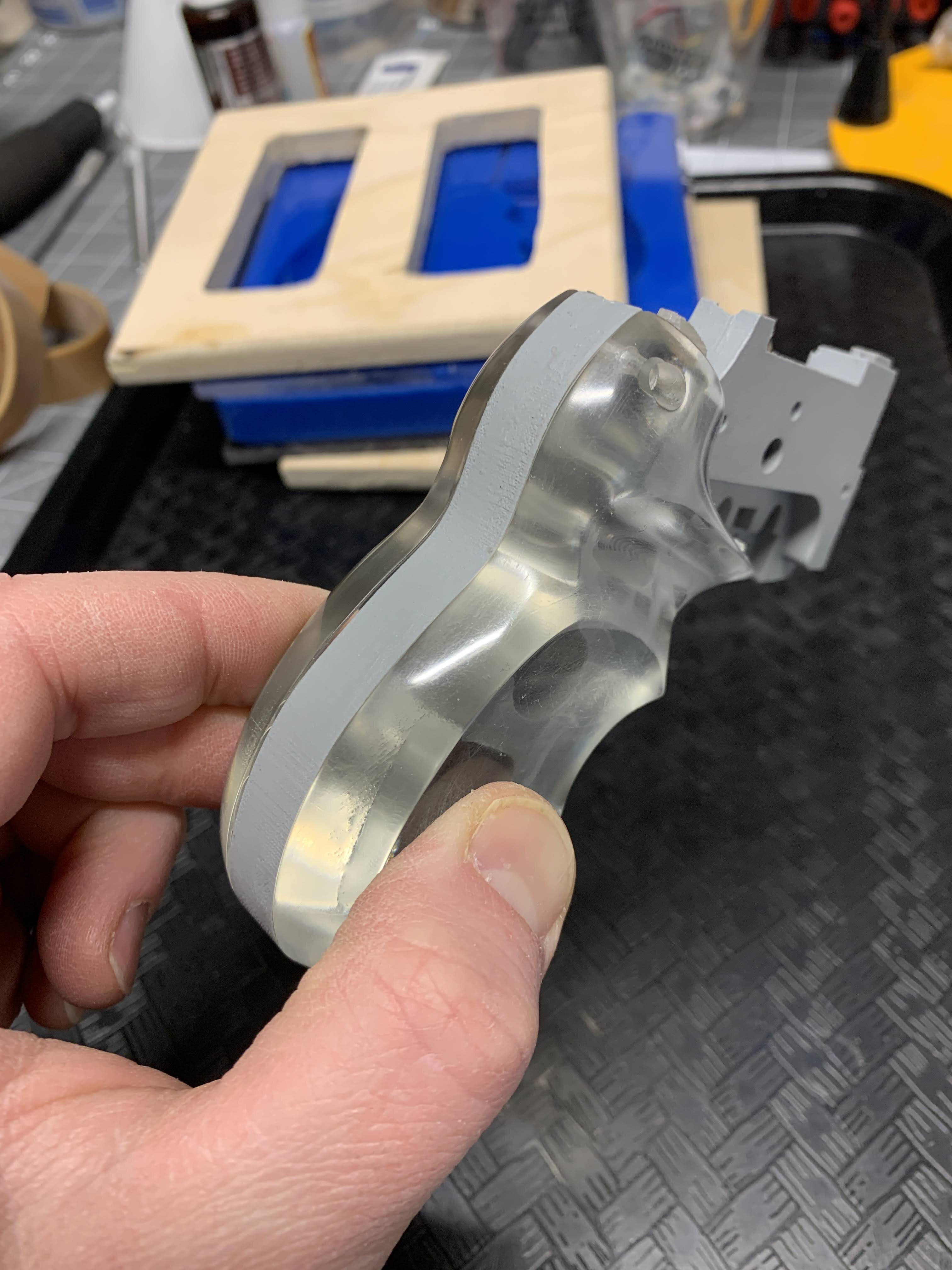

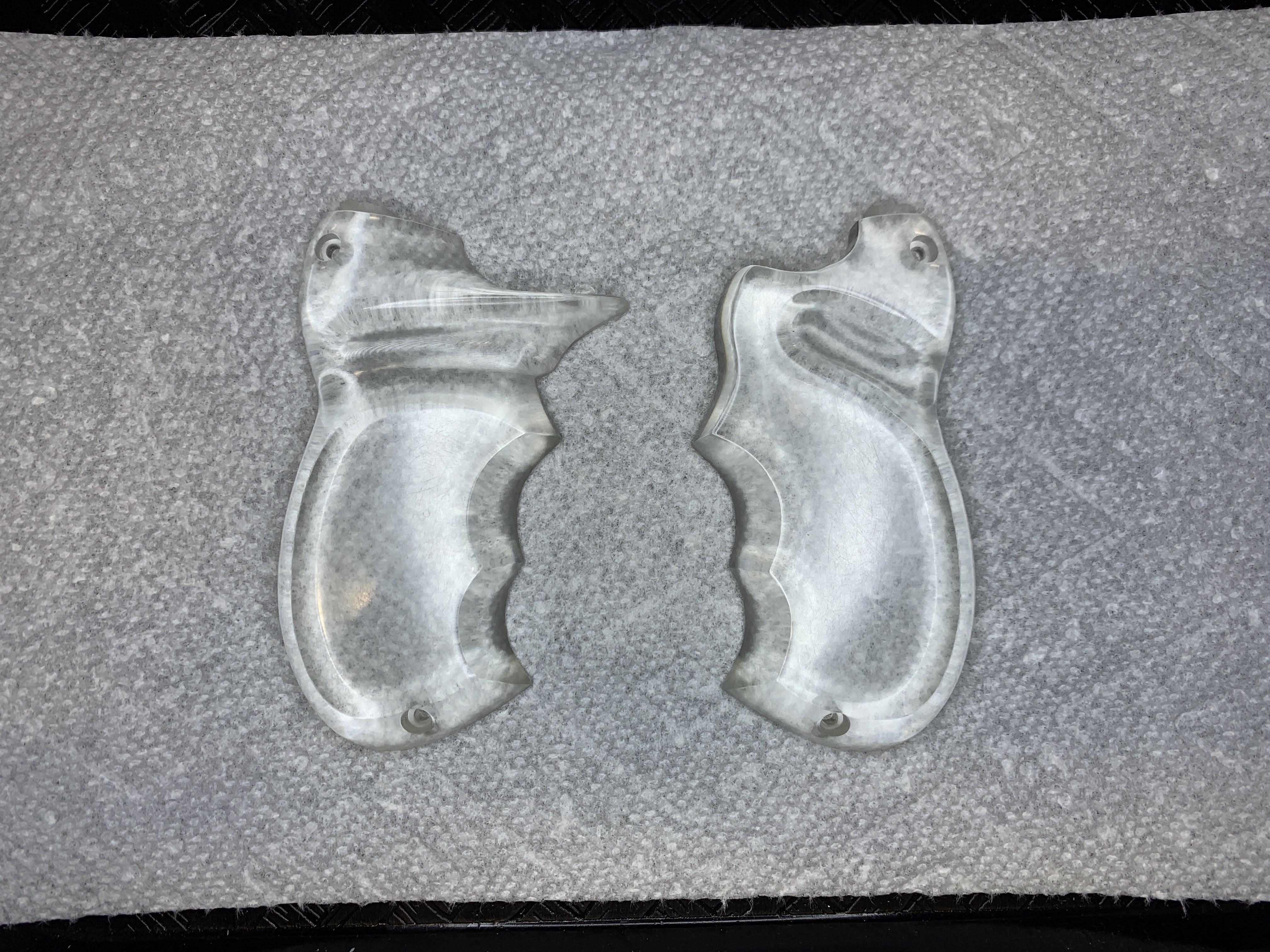

IMG_4942.jpg IMG_4944.jpg IMG_4948.jpg IMG_4943.jpg

IMG_4945.jpg IMG_4946.jpg IMG_4947.jpg

I'm SUPER psyched about this! These aren't practical as texturing blanks because they're clear, but now at least I've got some experience getting good, bubble-free casts out of the pressure pot.

Now I've just gotta see if my plan to use my Shaper Origin and some kind of jig is actually going to work for the checkering.

Speaking of... hey, veektohr as the one person one here I KNOW owns a set of stock checkering files, care to help a brother out with some measurements? I'm specifically looking for the angle of the file teeth themselves as well as the distance from point to point on the "double row" tool. Bonus points if you can provide that last measurement in metric.

I swear I tried to find this information on the internet before asking here...
