Heads up, it looks like your guys' inner o-rings (the ones between the middle and the ends) aren't lined up correctly. If this reference image is correct, they should be pushed farther from the center to right before the black rings:

Yeah I noted this...but since there’s no recess to hold the ring, in the area noted adjacent to the concentric rings, the “O” ring simply floats around in that general area. So, I made an artistic adaptation to roll my “O” rings into the recessed ring near the red button to hold them snug. I am sure the rings rolled up and down in that area during filming.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

mugatu

Sr Member
RPF PREMIUM MEMBER
Man those are gorgeous

aw were the center holes like a millimeter off, causing the center shift?
Tom, the bore through each half is sized with a little wiggle room for a threaded rod. I estimate on mine there is about 1-1.5mm clearance beyond the rod’s diameter the whole way around the rod’s circumference (meaning, if everything is centered, .5-.75mm gap around the threaded rod). I think the asymetrical nature of producing repros of a cast sort of lends itself to this imperfection, but it would probably be fixed (or made less noticeable) if a .5-.75mm thick sleeve or bushing could go around the rod at the “center” end of each half. I’m going to try wrapping masking tape around a paper sleeve and pushing that down into end of each half to see if that helps it any.

Last edited:

mugatu

Sr Member
RPF PREMIUM MEMBER
Okay, so I tried filling the gap by wrapping masking tape around the threads and although the pre-tightening wobbliness is practically eliminated, there is still a bit of mismatching due again probably to the nature of these replicas of a cast and not being machined.

The “gap” mentioned:

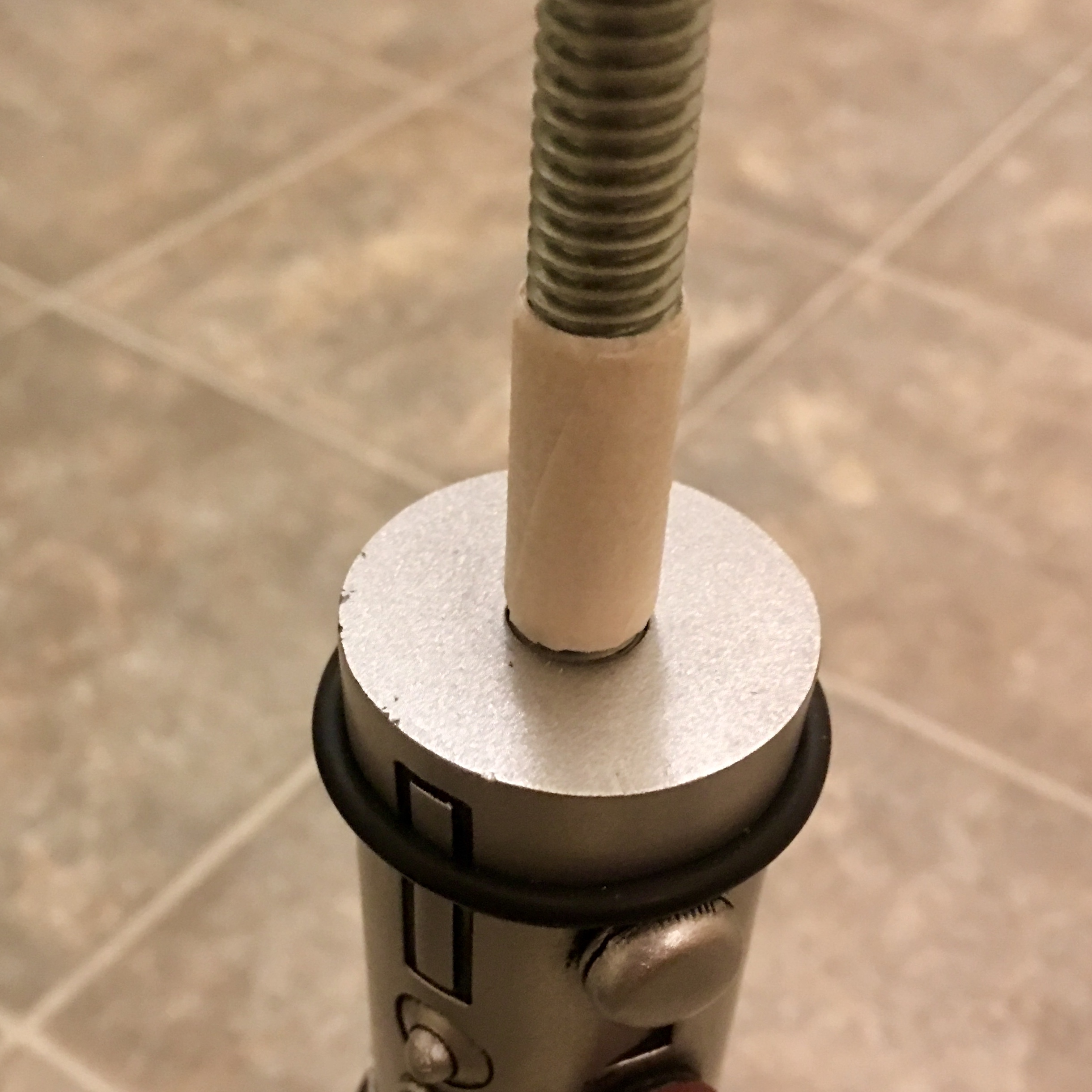

The tape filler wrapped around the threaded rod:


The two center ends together, separated by a washer:



You can see the misalignment most evidently where the blue arrows are:



So, it is what it is.
And “what it is” is the most accurate Darth Maul Hero Saber complete with asymmetry, just like the real props and costumes from the OT.
Dan, you really killed it.

I’m so glad I got two of these.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Gregatron

Sr Member
Put mine together today, and added the Covertec. Just waiting for replacement 3/8” discs for the endcaps from Anakin Starkiller, and it should be done!

I almost feel like there should be more to this build, but 80% of the work was done when it arrive at my door! About the only other tweak I can think of is finding a more accurate (?) shade of red for the buttons.


thd9791

Master Member
RPF PREMIUM MEMBER
neat! sorry, im just learning because I get fascinated with how props are assembled and this is like the only screen accurate one out there - wasn't getting critical :)


Halliwax

Legendary Member
RPF PREMIUM MEMBER
Got a new picture from
Another thread

Here is the saber that is blown apart in two, when Obi wan Slices it in half


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

E Williams

Sr Member
RPF PREMIUM MEMBER
You get 2-3 frames of a clear view of the lever - a few frames later it seems as though Park has squeezed it right as the sparks go off, but the motion and Obi-wan's lightsaber obscure whether the separation or sparks (or both?) occurred with the lever press:



PrinceZip

Active Member
RPF PREMIUM MEMBER
Maybe someone can make a 3d printed file for those exposed cross sections?
I think it'll be a relatively simple mod to AS's Maul kit if it's shared on shapeways


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

russellsch

Sr Member
Love that image! I've never gone frame by frame on the prequels, so as such, I've never seen that image before! (y)


Dann

Master Member
RPF PREMIUM MEMBER
Don’t tell me this.. anyone want to go in on a half kit with me?
Like, half a Maul hilt?


I've never seen that pyro stunt hilt before, either!

That's so cool, it reminds me of the telegraph button Graflex. Should that have been the activation switch on Maul's hilt, like for real?
