Anakin Starkiller’s Darth Maul Assembly Tutorial Thread

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Halliwax

Legendary Member
RPF PREMIUM MEMBER
Anakin Starkiller Darth Maul EP1 Tutorial

Video
Anakin Starkiller Darth Maul TPM Lightsaber

___Parts Needed___

3/8-16 threaded rod (little over 20" long)
Nylon washer (lowes
H#881539)
x2 3/8-16 nuts (used as a guide to cut the rod)



__Tools___

Hack saw
Sand paper (to de burr edge)
Old shoe lace ( to pull the O rings over the hilt)

__Weathering___

Chemical Aging

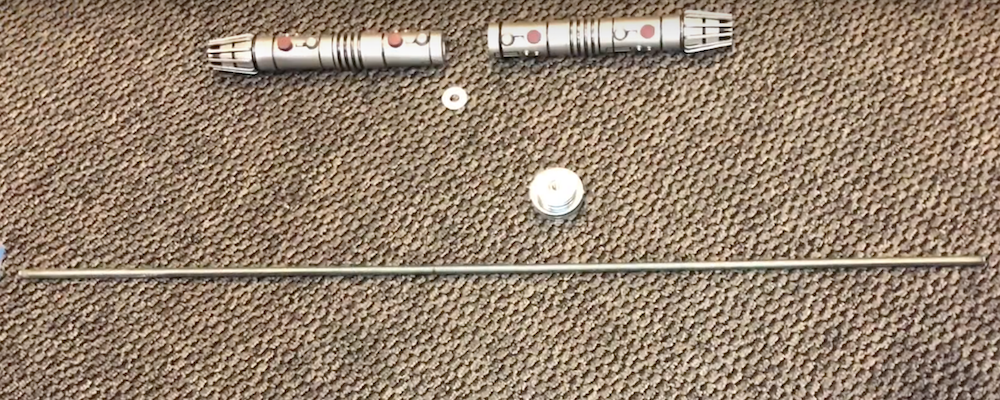

Ok gang! so this is long over due, but here goes nothing! First lets spread out our parts and get that 3/8-16 Thread rod ready to cut.
Screen Shot 2019-10-12 at 6.13.46 PM.png

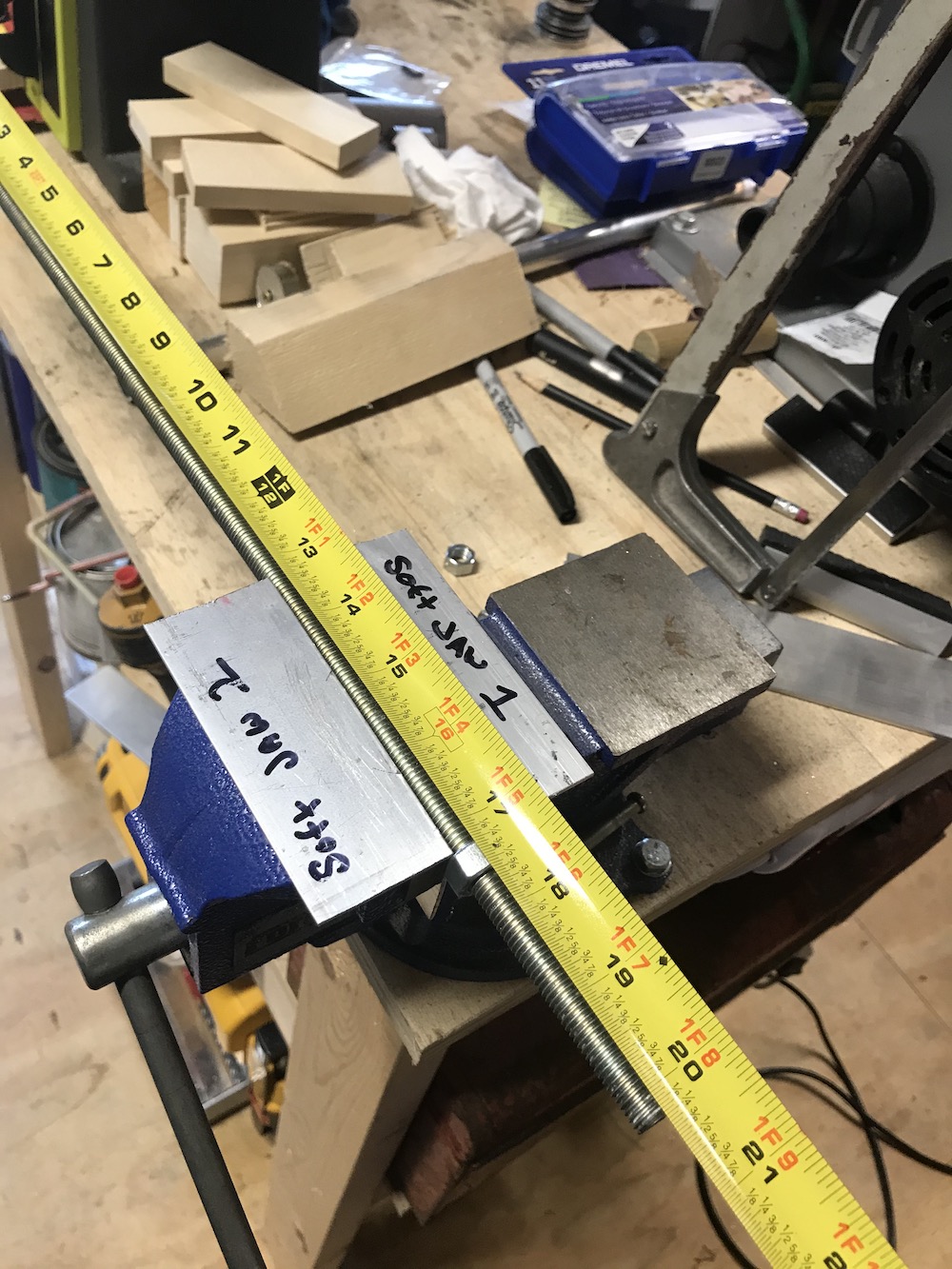

Next get the Ol' Tape measure out and mark it at 20-1/4" or 20-1/2" i ended up going 20-1/4", but wouldn't recommend going any longer then 20-1/2'!

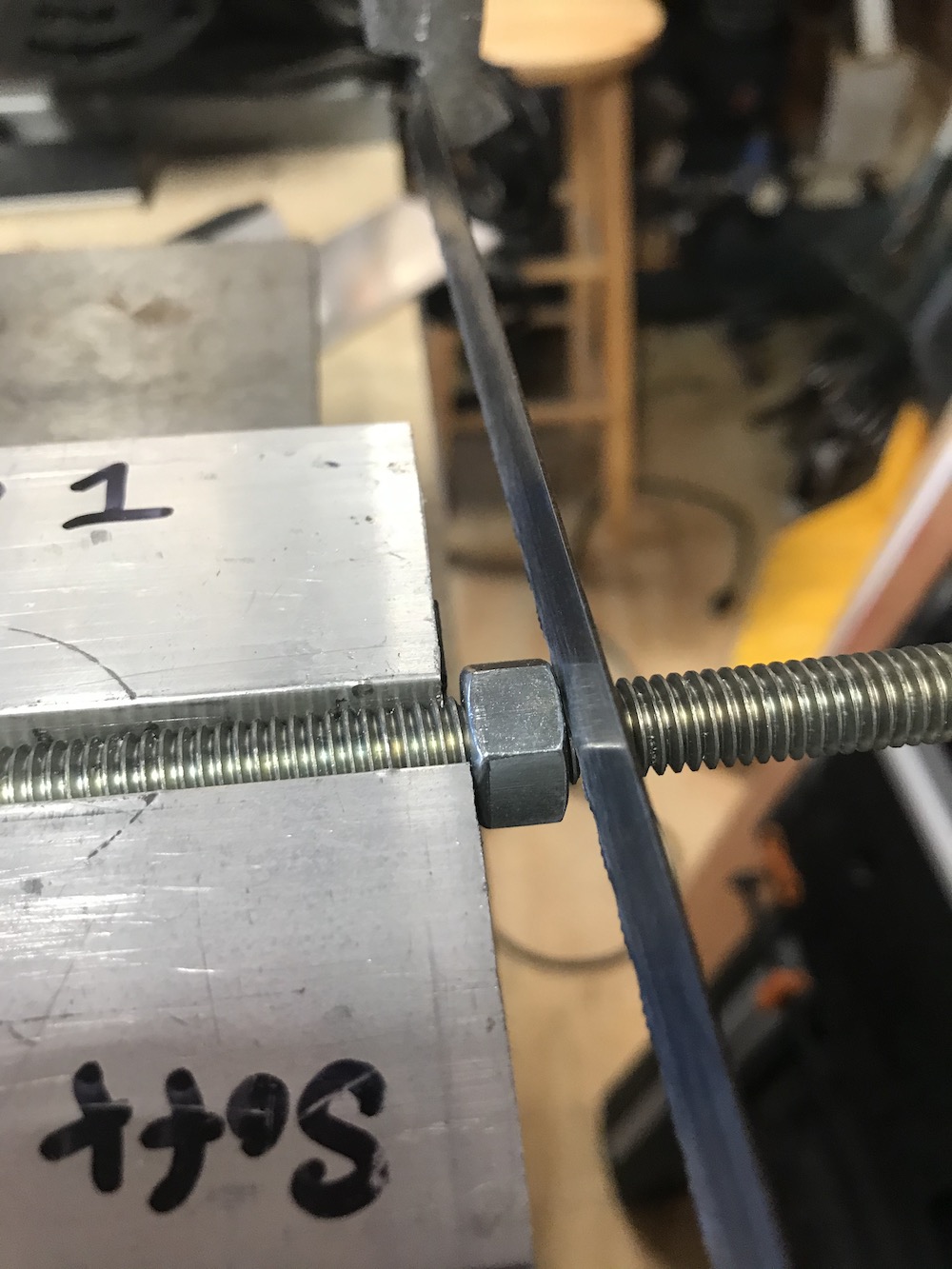

Next thread those x2 3/8-16 nuts we picked up before onto the edge of the rod, and leave the black line we just marked out so we can cut it off. we are going to use the nuts as a guide to help cut the rod.


after you are done cutting, unthread the nut(s). this actually helped re thread it a little bit, and then lightly brush the end with some 120 sand paper and you should be able to thread the nut back on with ease. MAKE SURE to test this with the nut first, you can easily ruin your emitter end cap if its not clean enough. just light sanding until you get it to thread on.

Ok so now all we have to do is assemble it! there is a certain order to the washers and I explain this better in the video, but here is a photo of them spread out, and numbered on the order. again this is easier to understand in the video

but from the emitter back, or like in the picture below, Emitter to the left the order goes

1Large, 2 Medium, 1 Large, 2 Medium, 1 Large, 1 Medium, 1Small, 1 Medium, 1 Small, 1 Medium, 1 Small, 1 Medium
Screen Shot 2019-10-12 at 6.23.49 PM.png


They should now look like this


Next we have to install the O-Rings, in the video i do with with fishing line, but if you have a shoe string or ribbon it goes pretty easy.

Screen Shot 2019-10-12 at 6.23.07 PM.png


If you watch the video its pretty simple, there is 5 O-rings, and there locations can be found here.
Oring location.JPG


Now just thread the ends on, leaving enough room on the another end of the other emitter.

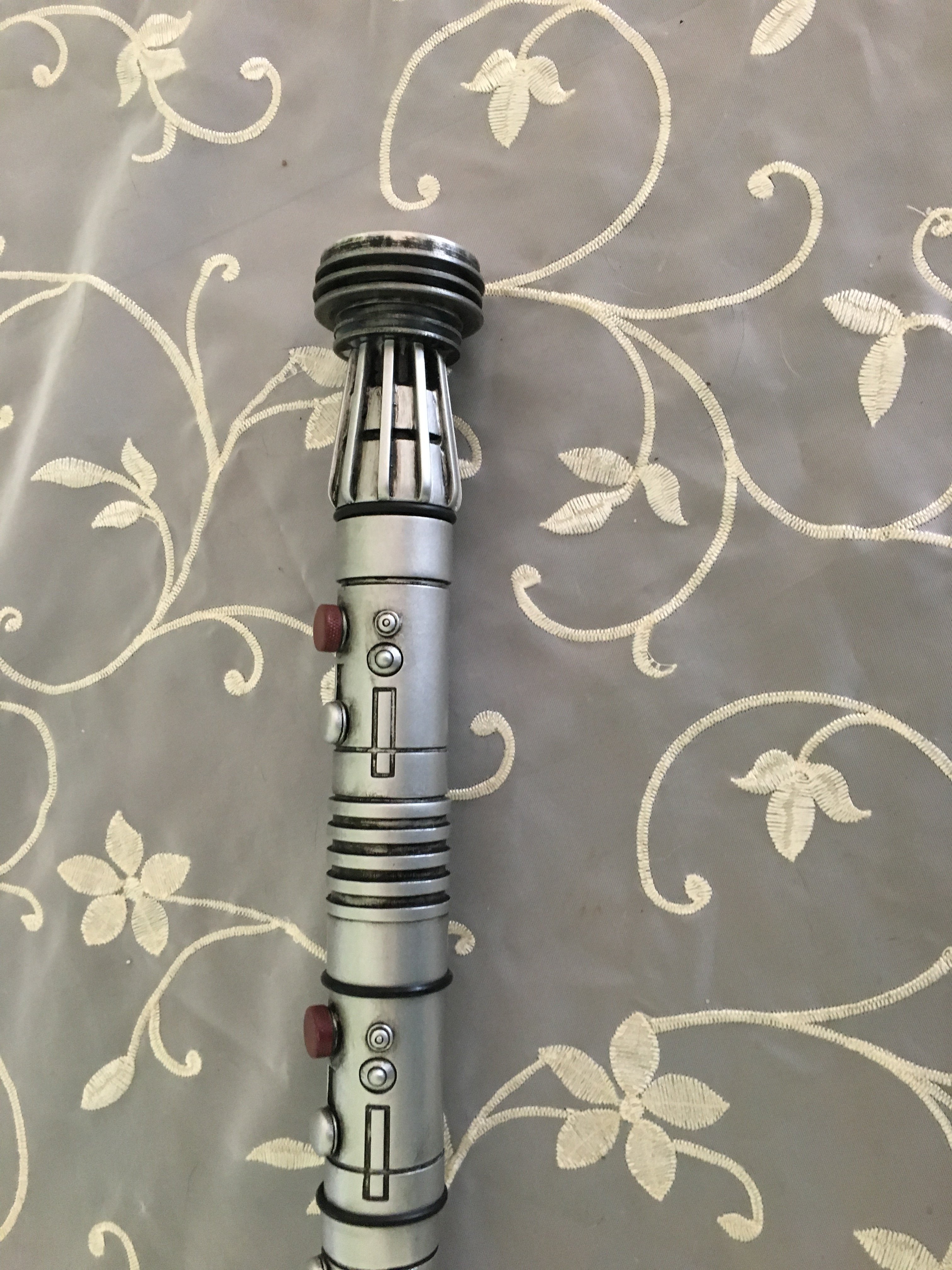

You Should now have a completed Darth Maul Double Bladed light saber!! Congratulations!!!



5-1-19

hey gang. I wanted to start this thread alittle early. I have yet to finish my written tutorial but the video is up

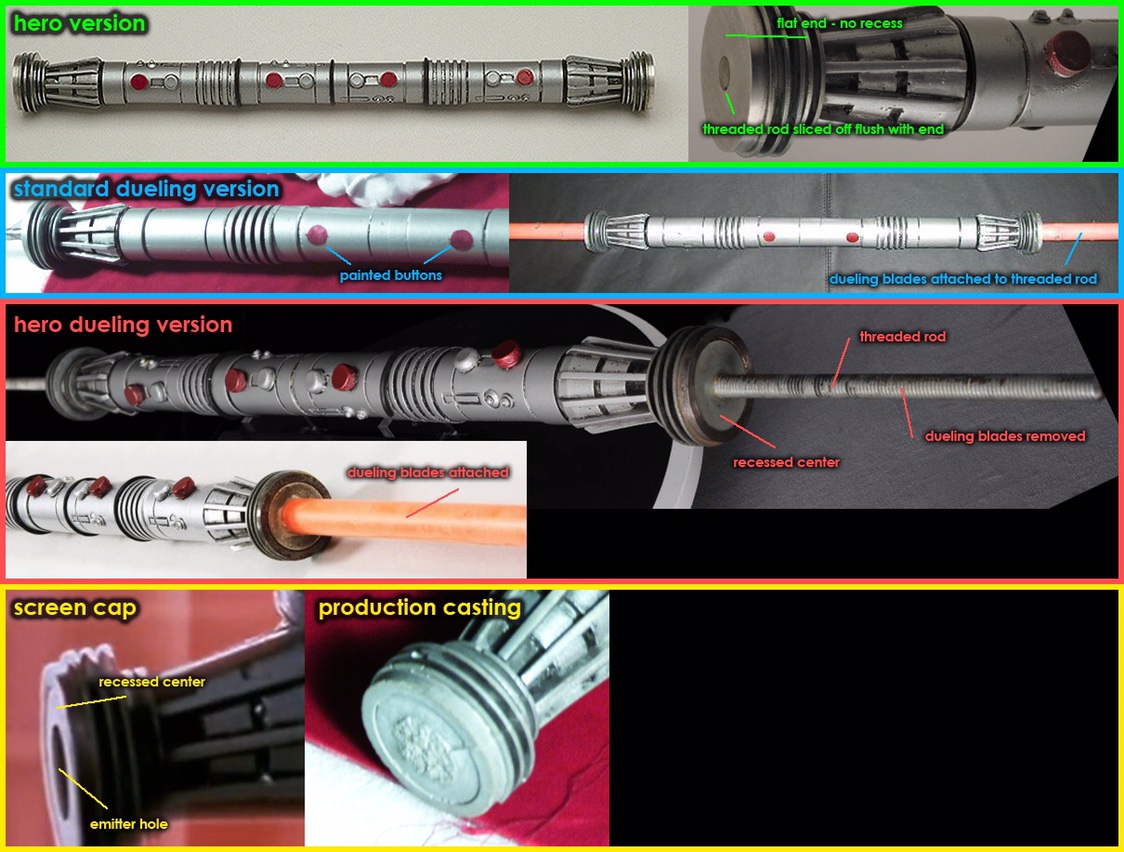

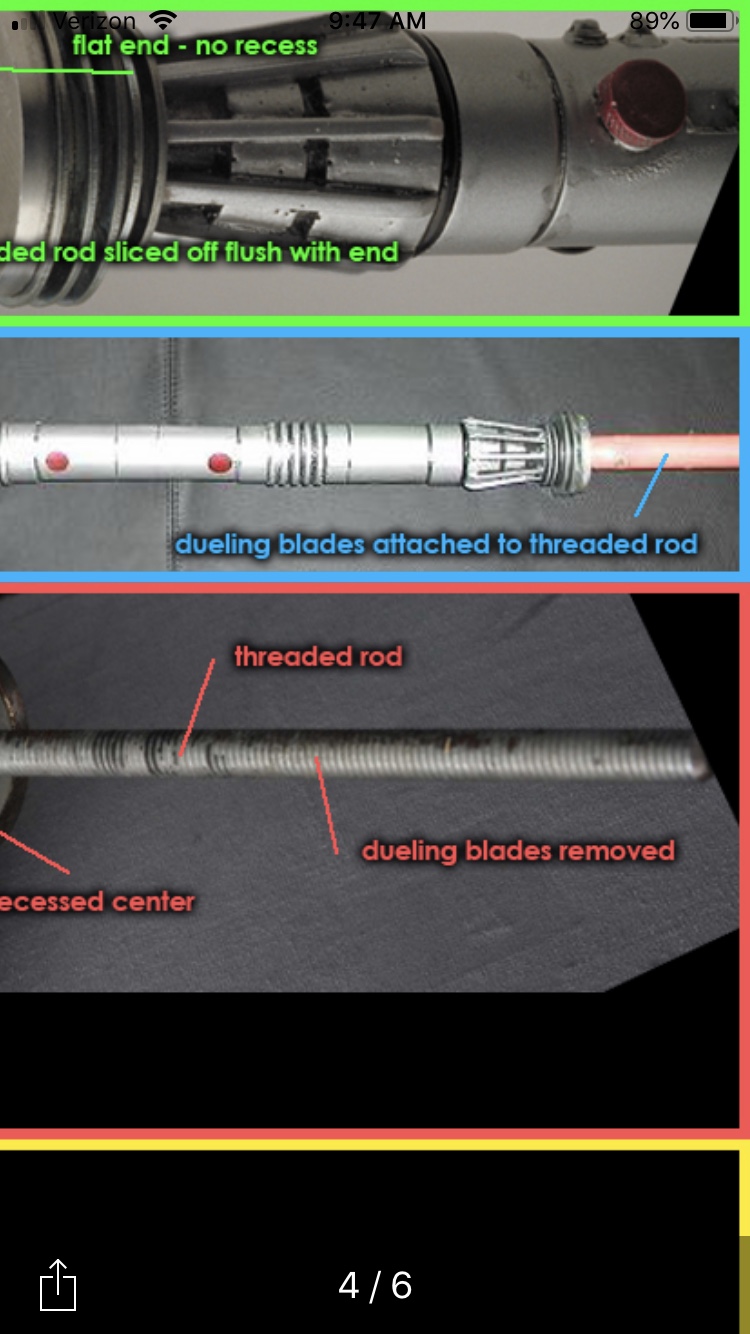

Until then here is some great reference of the original prop


I hope everyone will share their finished Maul sabers here, and share how and what you did for weathering

I got a covertec clip coming in the mail. Once I get it I can finish the written tutorial but until then we got a video of this tall boring guy blabber around while his 44lb beagle barks upstairs...

THIS THREAD IS A WORK IN PROGRESS

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Halliwax

Legendary Member
RPF PREMIUM MEMBER
Weathering The End Caps

Tools/Parts list

Chemical Aging acid A14
Steel wool 0000
320grit sand paper

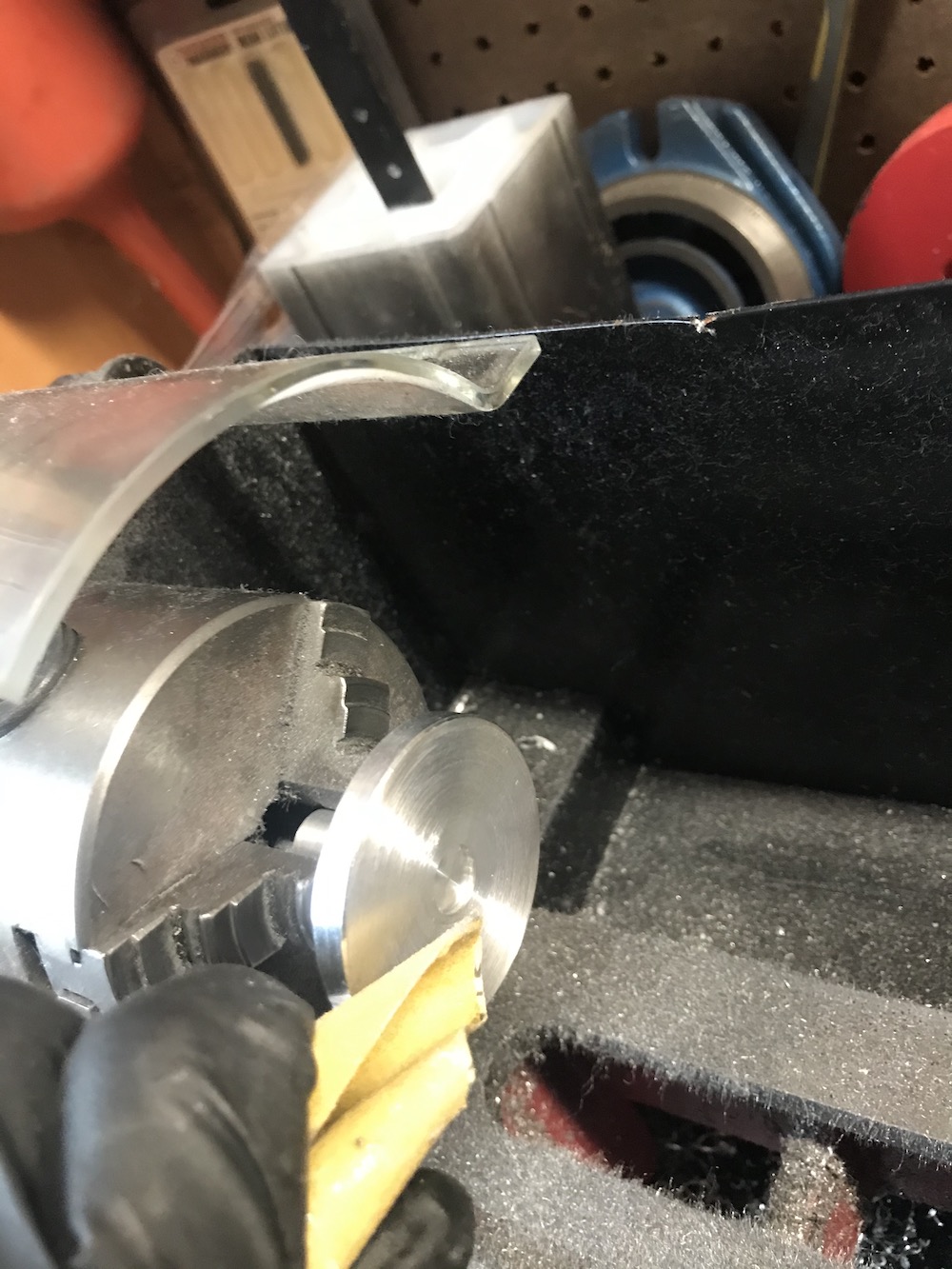

Ok Gang, so I aged my end caps today. Before i did anything, i threw the end caps in the lathe and spun them. Hitting them from the inside and pull out with the paper to simulation the machine tooling mark

you can do this same thing with a power drill if you have one!


Now with some machine marks in them, lets whip out that acid!!

Always be sure to wear protective gear! this stuff is no joke!


I scuffed everything up then threw it in the acid bath

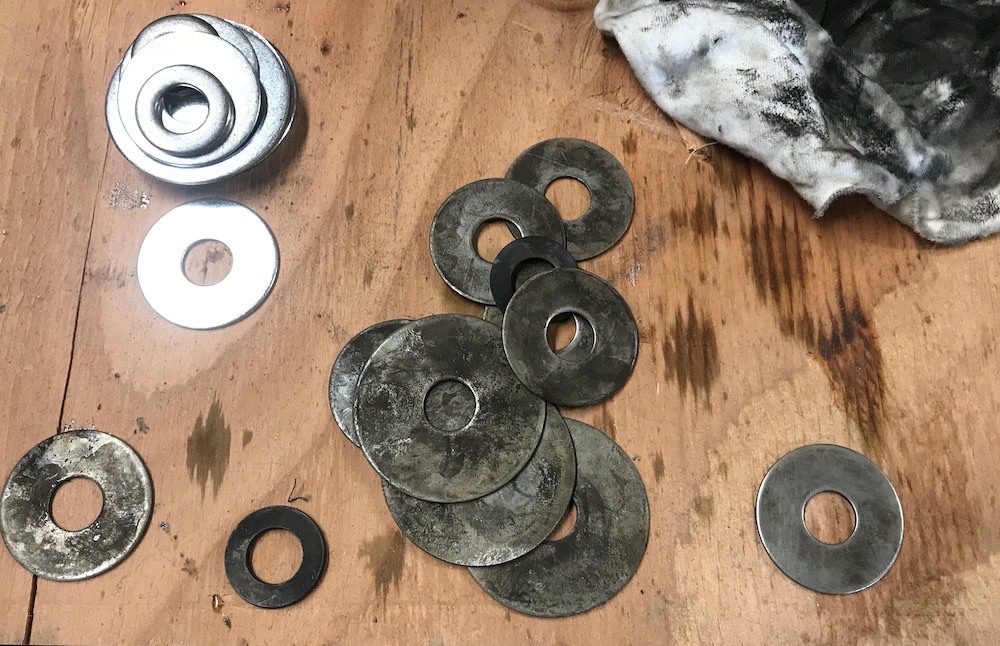

And after 5 mins of soaking...

acid 3.JPG

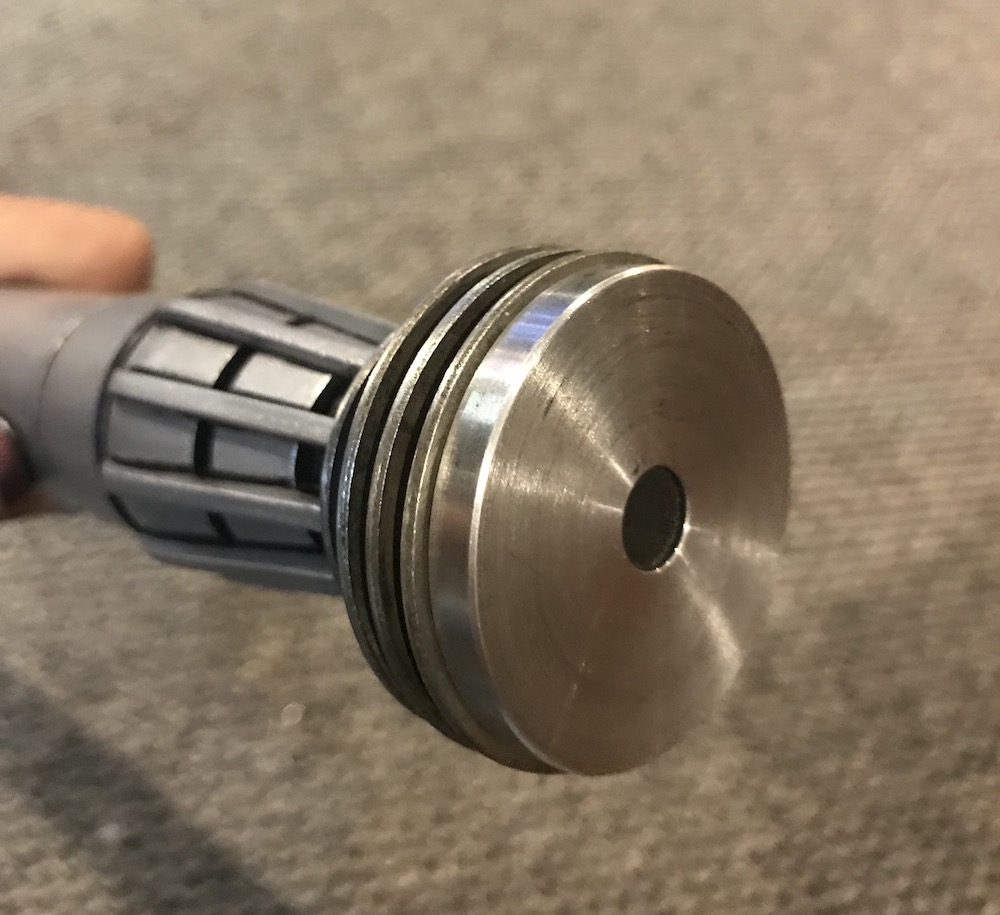

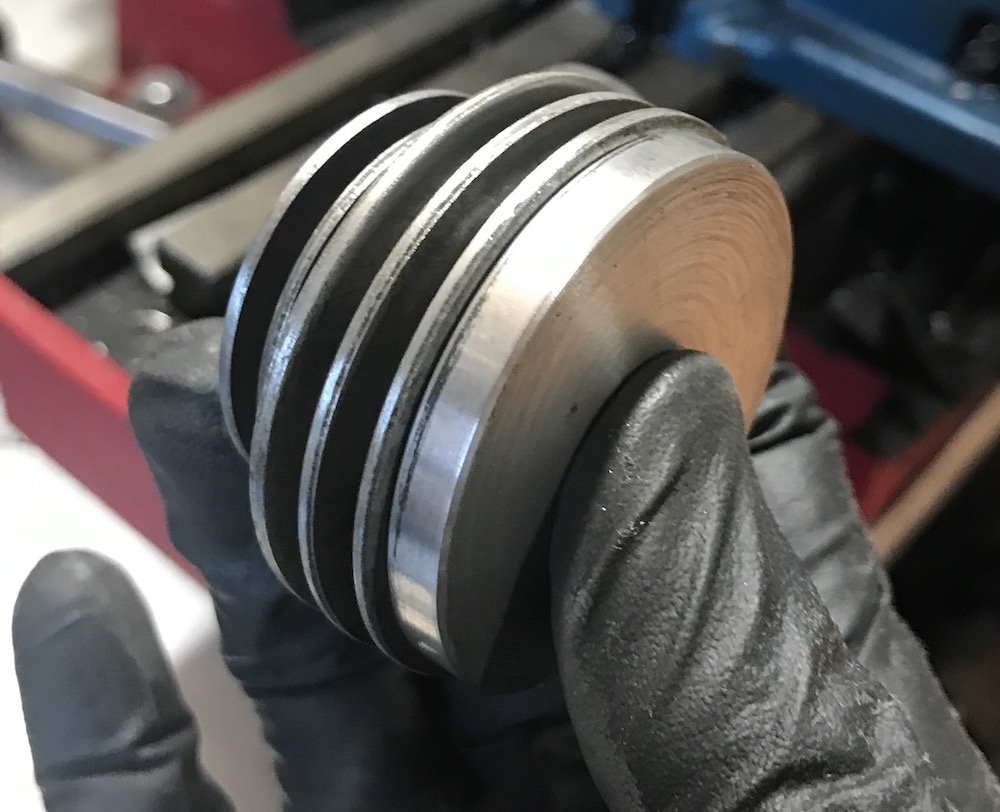

after drying it off , i buffed the one on the far right, this is what I'm going for

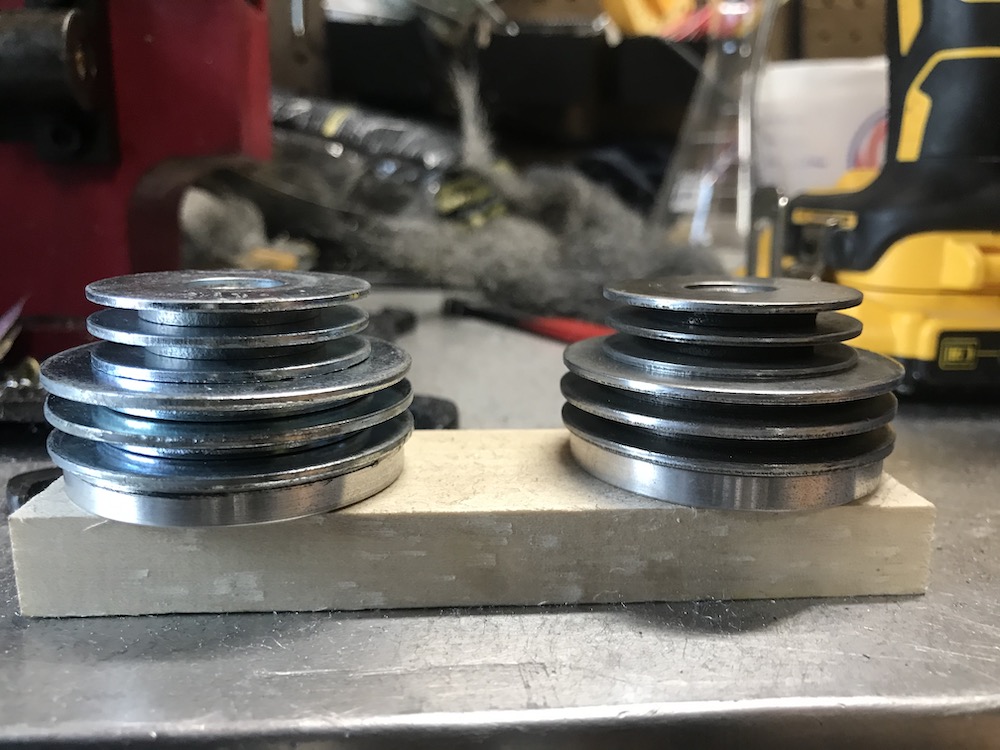

here's more comparisons


aged 2.JPG




Now just screw them on, and glue the little metal end caps in and your good to go!!






Last edited:

mugatu

Sr Member
RPF PREMIUM MEMBER
Danny, you are the man! Great video.
I am going to take my 1 back apart and use the 3/8 nylon washer for the middle like you suggested. I used the poor man’s washer (rolled up paper towel) so far and it just isn’t going to cut it.
Thanks for the video.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Halliwax

Legendary Member
RPF PREMIUM MEMBER
No problem guys! Thanks for the support, honestly Andy I like my nylon washer. But I think the rubber washer would work even better

Wish my Lowe’s had a rubber one my size so I could try it

I was hoping to have some of my friends working at Lowe’s that night but not a single one..


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER
Man those are gorgeous

aw were the center holes like a millimeter off, causing the center shift?

Also, halliwax, thats a thick nylon washer, is there a recess that it sits in? the two halves are flush with one another and I don't see where that washer ended up lol


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

mrwax

Well-Known Member
Heads up, it looks like your guys' inner o-rings (the ones between the middle and the ends) aren't lined up correctly. If this reference image is correct, they should be pushed farther from the center to right before the black rings:



Halliwax

Legendary Member
RPF PREMIUM MEMBER
Heads up, it looks like your guys' inner o-rings (the ones between the middle and the ends) aren't lined up correctly. If this reference image is correct, they should be pushed farther from the center to right before the black rings:

Mrwax good catch! This is a easy fix thankfully!


Collectorchris

Well-Known Member
RPF PREMIUM MEMBER
I did go with 2 rubber washers in the center and it went together very easily and lined up great.


Halliwax

Legendary Member
RPF PREMIUM MEMBER
I did go with 2 rubber washers in the center and it went together very easily and lined up great.
When I disassembly mine to take the photos for the tutorial I’m going to try the rubber washer. There is a Lowe’s in my brothers town, he’s suppose to grab me 1 for this weekend. I’m gonna have him grab a few extra now knowing this
