Duncanator

Sr Member

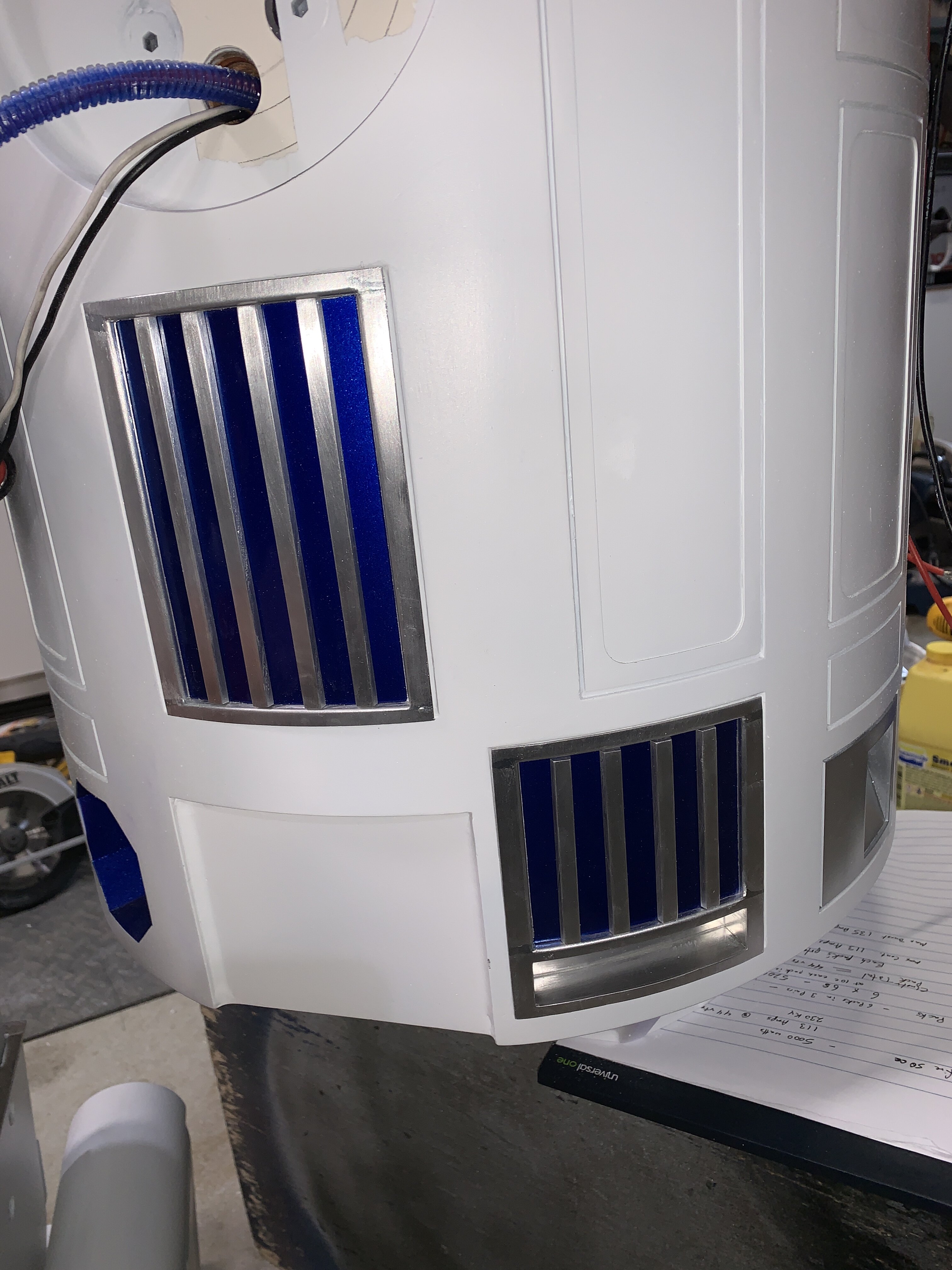

Ah - so I was wrong, then. The bars looked to me like they were supposed to be folded on the blueprints.
Well, blueprints are great and all, but things often change when it comes time to actually build things (if that was what the blueprint really intended).

I imagine the builders found it was a heck of a lot easier to do the edge folds on the back plate and then lay in the solid bars, rather than do a crazy number of back and forth bends to make all the "bars" as ridges on a single piece of sheet metal.

That'd be, like 20 bends on a little 4.5" piece of metal!
And there are 4 vents per robot!
And they made 6 robots for the first film!
That's almost 500 bends! Just for the vents! Oi!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

matty matt

Sr Member
I love the sheet metal construction on these parts. Just the way it should be done. And the trapezoid shape on the bars is news to me. What a great detail.


r2maker

Well-Known Member
RPF PREMIUM MEMBER
Well, blueprints are great and all, but things often change when it comes time to actually build things (if that was what the blueprint really intended).

ANH R2 is a bit special in that he was not built by prop guys. He was built by engineers.

In the past folks have tried to make light of the body blueprints, but have not yet been able to produce an incorrect dimension.

One thing we have to remember that is special about Dr. David Watling and Peteric Engineering is that these guys were PHD engineers and had WW2 era machinists working for them. David states that they build the body to the 2nd issue body blueprint.

One thing to note about the body blueprint is that it only dimensions the outer surfaces of things. Its does not call out any specific manufacturing technique. In fact when the blueprints were first drawn up, it was still thought that the bodies would be made out of fiberglass.

To NKGs comment, the dimensions should all be correct but the manufacturing method is not captured.


r2maker

Well-Known Member
RPF PREMIUM MEMBER
Well, blueprints are great and all, but things often change when it comes time to actually build things (if that was what the blueprint really intended).

It will be interesting as the project progresses to see if anything was changed. For the vents, showing that the trapezoidal details are actually on the real props, seems to be the first bit of public reinforcement that David did faithfully use the blueprints.


OB10

Sr Member
I've been sorta studying techniques for building homebuilt aircraft for a long time. (More finding and buying books, magazines, and articles than studying them in the depth like I should.) But when some of the reasonably detailed pics of the original R2s started appearing a few years ago with rivets holding the skin layers together, it made me think that some of the construction could probably or maybe was done using tradition metal aircraft fabrication techniques. You can build your own airplane at home if you have the space, the cash, a lot of time and persistence. And as I recall, Spitfires were more handbuilt than strict assembly line like in the US. So maybe some of the old metal aircraft builders, or at least a few of their techniques, were being used for some of R2... Just an idea I had. I've seen some AMAZING homebuilt aircraft, and I can imagine some of those metal bending, curving, shaping and riveting techniques being used to build an R2.

Even though CNC routed and laser cut parts are more affordable than even a few years ago, I'd still kinda like to try to build an R2 mostly all out of metal. Without having to wait for "someone to do a run on ______" or sending out an order to some jobber. Seems like it'd be quite a bit cheaper. Probably take waaay longer, too....

I should get some ambition together at some point....


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Duncanator

Sr Member
Just another comment about blueprints when it comes to Star Wars; and I can't say if this was true for the original trilogy, but the blueprints made during production of the prequels were drawn after the models were built. Initial designs were sketchy, so there was a lot of creative design that was figured out on-the-fly during the process of making the models - so it makes sense that to draw them after the fact due to the design not being complete until the model was done.

I wasn't privy to the set construction blueprints, but I imagine those WERE drawn before being built just because of the scale of the construction. Minor details might be tweaked; but for the most part, a set crew needed a clear set of plans to go on.

Of course the original aluminum R2's are a whole different animal, since they were farmed out to a vendor that was used to working from detailed plans, and thus couldn't (or wouldn't) work from the loose sketches that a production shop is used to.


Duncanator

Sr Member
I've been so happy with how the vents came out, that I'm thinking of offering them for sale. Maybe I should start an interest thread.

In the mean time, I wanted to get on to the lighting in R2's dome.

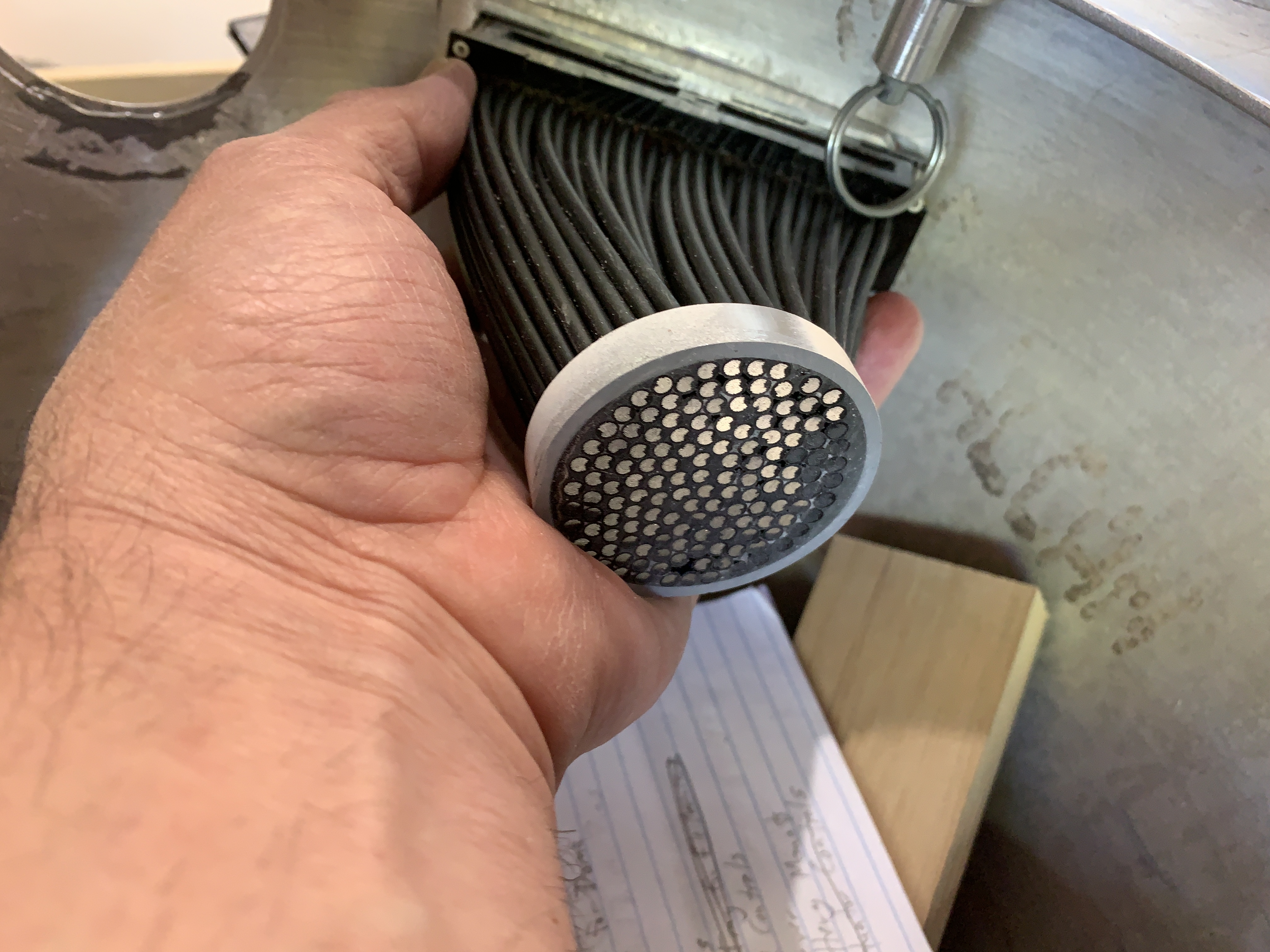

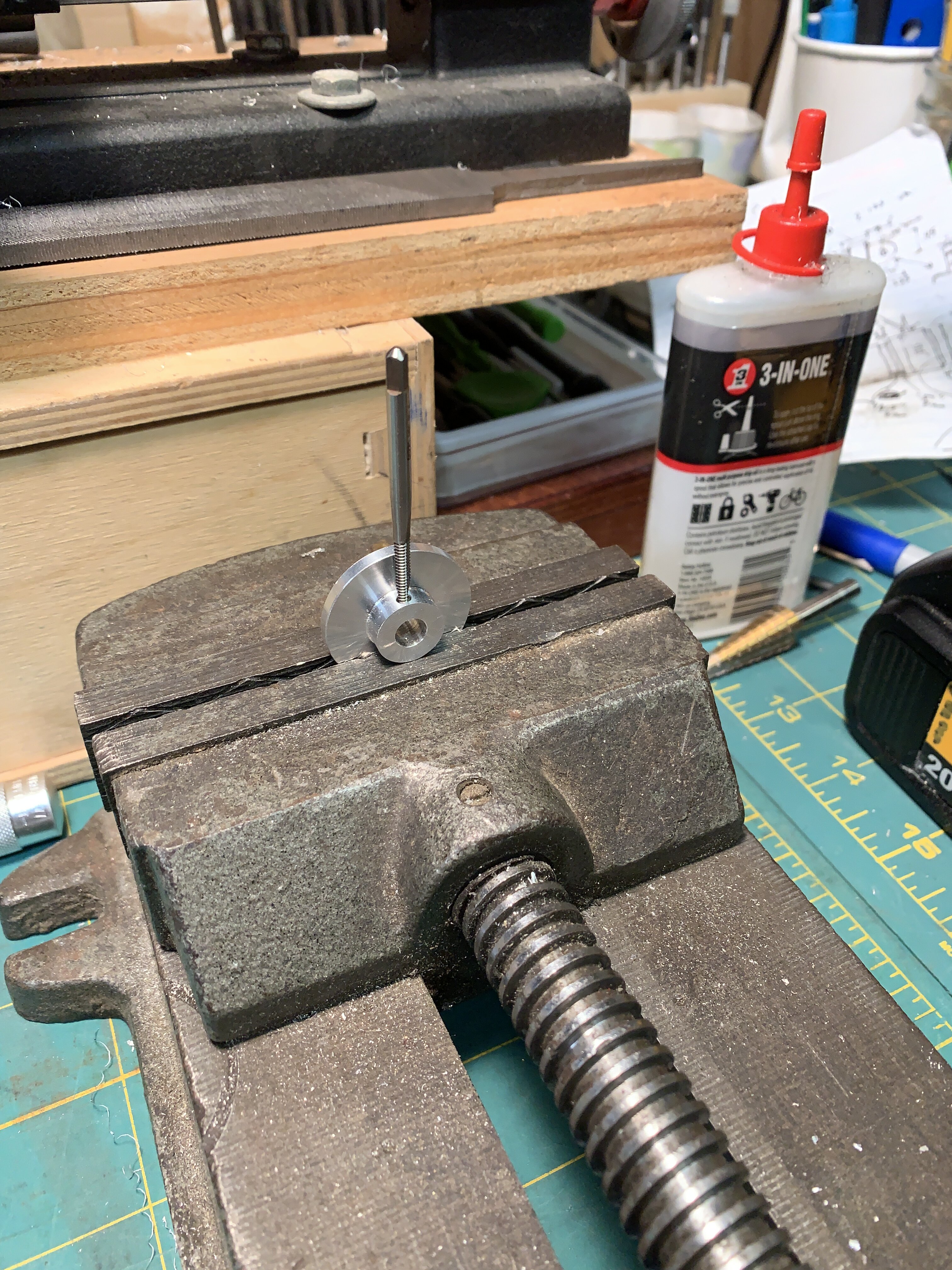

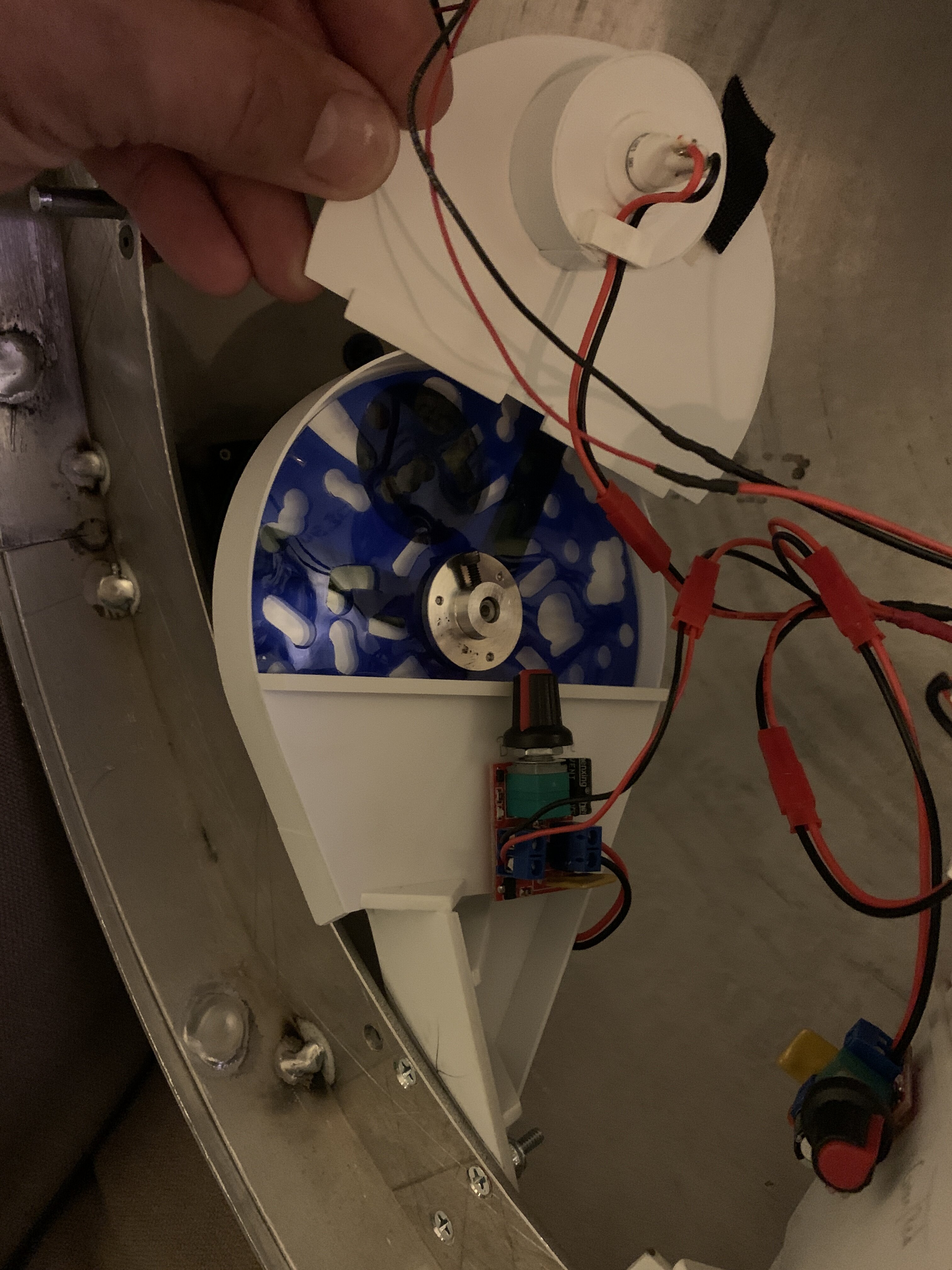

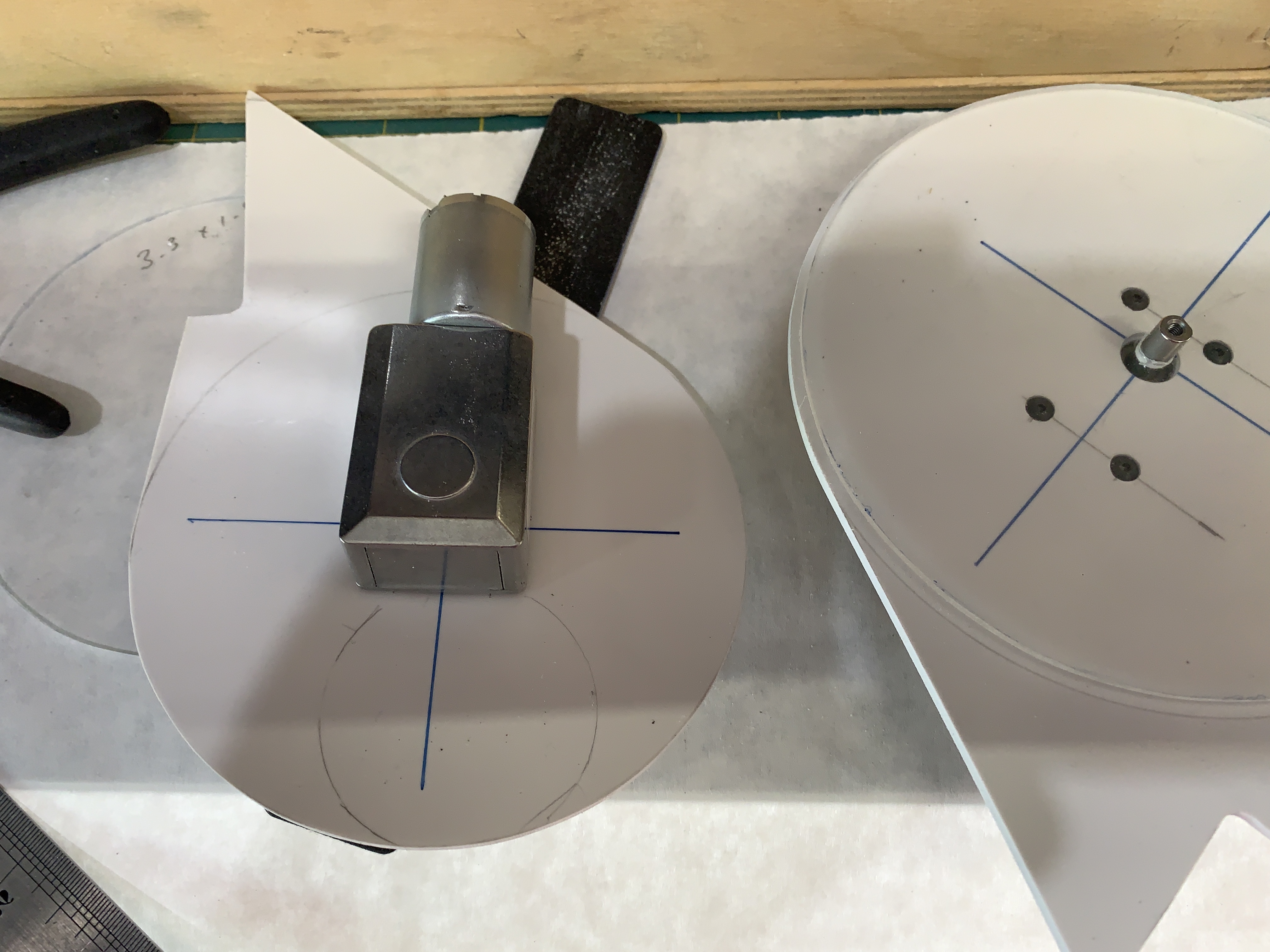

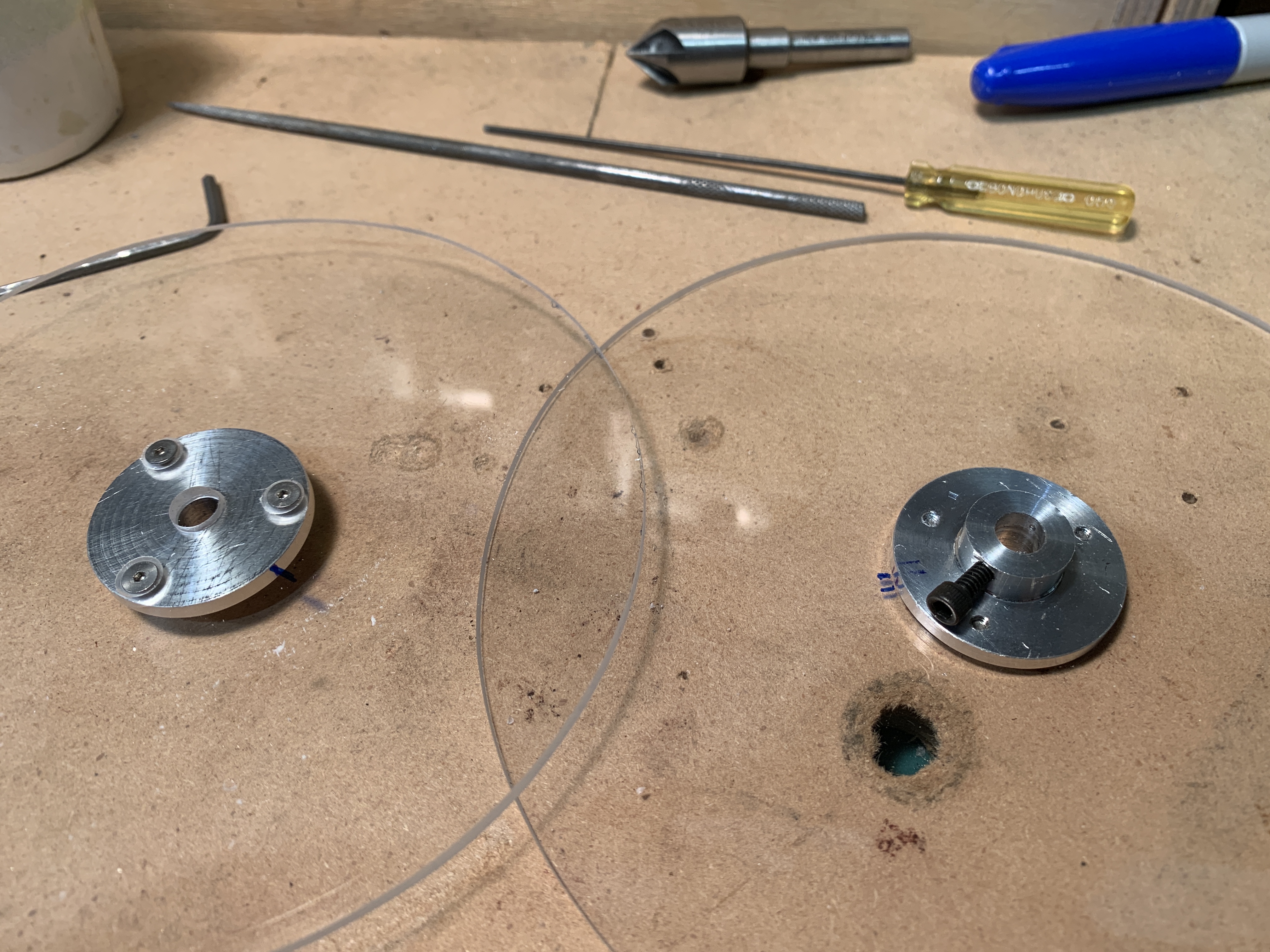

There are two types of lighting gags in the dome: the logic displays and the PSI flip-flop lights.

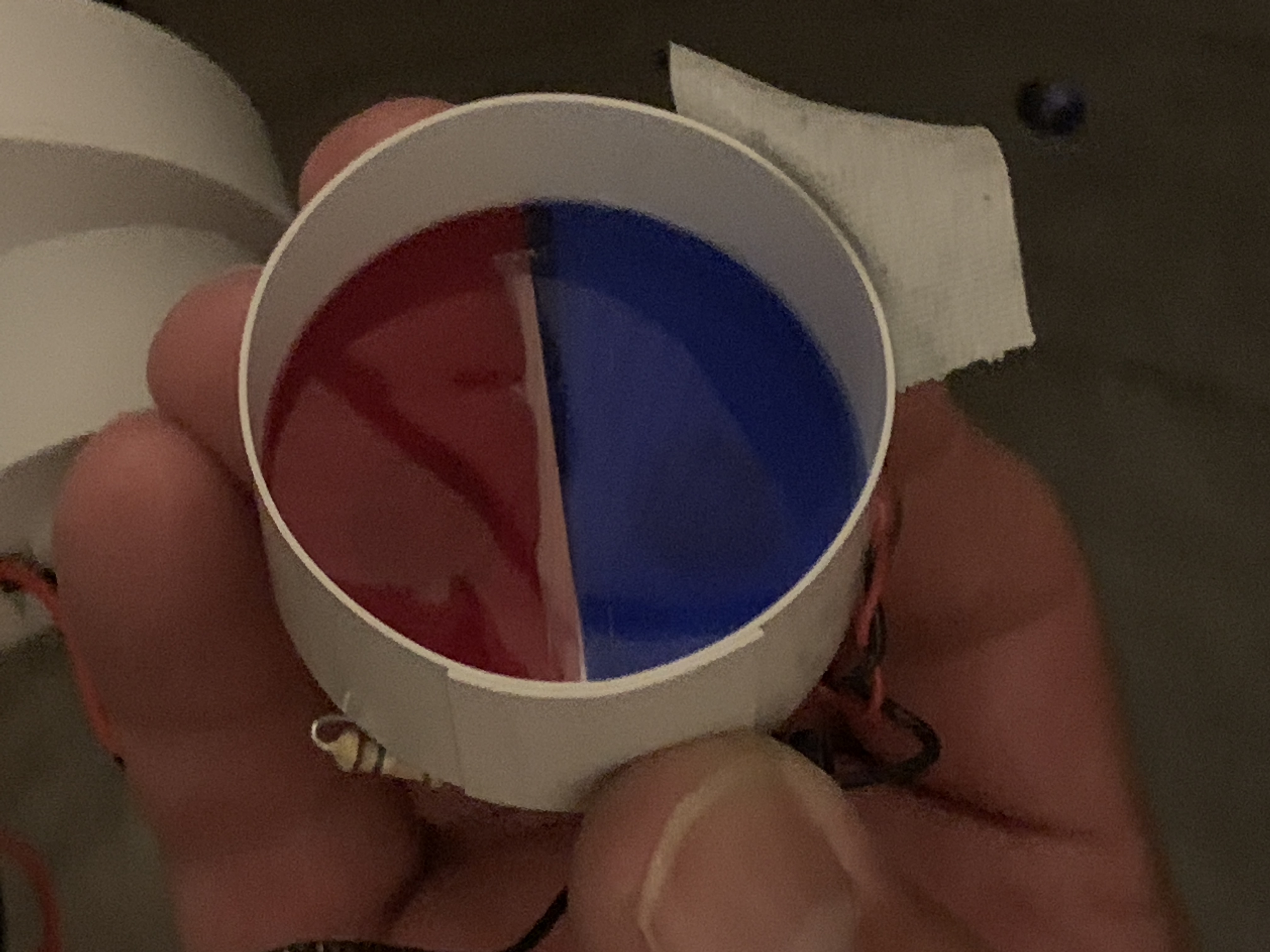

The flip-flop lights (as I like to call them) switch from one color to another and back again. I've heard that originally they had some sort of sliding mechanism to slide the colored gels back and forth to change the color. I can neither confirm nor deny whether that is how they were done; but by the time I got to work on the R2s, they were instead using a divided cup with two bulbs behind color gels in it that switched back and forth to change the light color.

The front flip-flop light is red/blue and the rear flip-flop light is green/orange. I used 12v LED auto turn signal bulbs on mine because they run cooler, last longer and use less power than incandescent bulbs. You can kinda see one under the orange lighting gel.

21.4 Red Blue PSI.jpg
21.4 Green Orange PSI.JPG

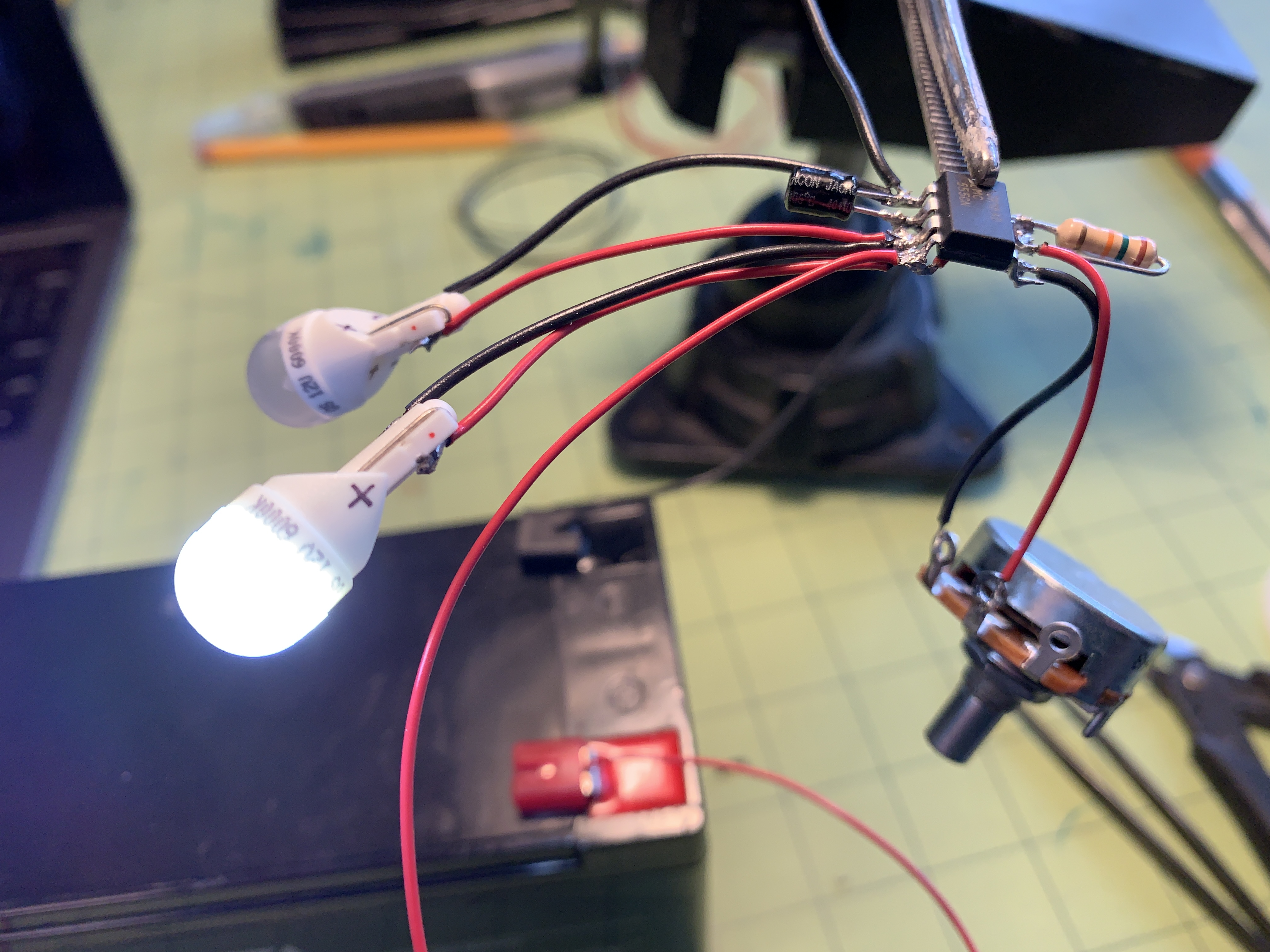

I poked around online and found a how-to on making a 555 flip-flop circuit to control the back and forth flashing of the lights.
It was super cheap to make and worked great! It even included a potentiometer to adjust the speed of the flip-flopping.

Exhibit B:

20.4 Flip Flop 4.JPG

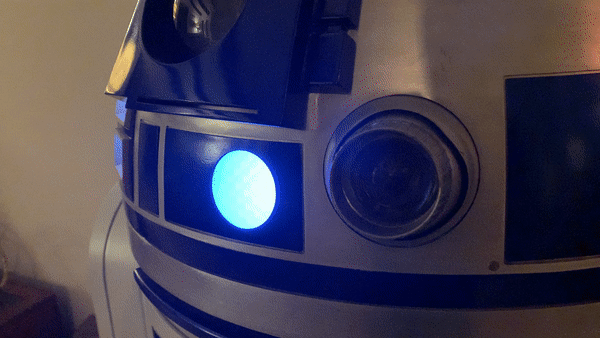

The video color doesn't look as saturated as it does in real life, but here we go!


Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

nkg

Sr Member
RPF PREMIUM MEMBER
Yes, the research we’ve done (especially Robert), and interviews and conversations that people have had with two surviving principals involved in making the original aluminium droid bodies, indicate that they did rely on the blueprints for much of the work. In fact, Peteric started work on the droids when the first batch of blueprints arrived, and then had to throw the work out and start again when the revised blueprints were shipped over.

The legs and feet were partial exceptions - as I recall they used models built at EMI Elstree to draw up interim drawings (now lost) for the dimensions, though of course those parts were drawn in the blueprints. The dome dimensions were also partly based on the plaster cast made at EMI of the original lamp housing from Lee Studios.

The ANH blueprints were reused for the pattern making of the Empire droids, and the difference between blueprint revisions seems to account for many of the differences between the droid generations, particularly the panel positions. :)
