SmilingOtter
Master Member
You should have seen my eyes light up when I saw the turret, just after wondering what the semicircular gap was for...
So does it elevate to provide a 360 degree firing arc, and retract for transport?
So does it elevate to provide a 360 degree firing arc, and retract for transport?
yuumi2891103
Master Member
Thank you for stopping by, SCUDMAN-san!
!......Thank you, joberg-san. This time I used a 0.3 mm wire covered with black vinyl coating. I wrapped around the thin steel rod.Looking more and more complete Katsu-san
Thank you!
Actually, I haven't think about the pop-up and elevating function for the turret until I read Tom-san's comment.
I thought it's interesting. The turret needs to elevate more than 20 mm and hold still at that place. Also, it needs to rotate 360 degrees. It may need appropriate friction on the axis of elevation and rotation.
Look around and seek for something I could use as usual.

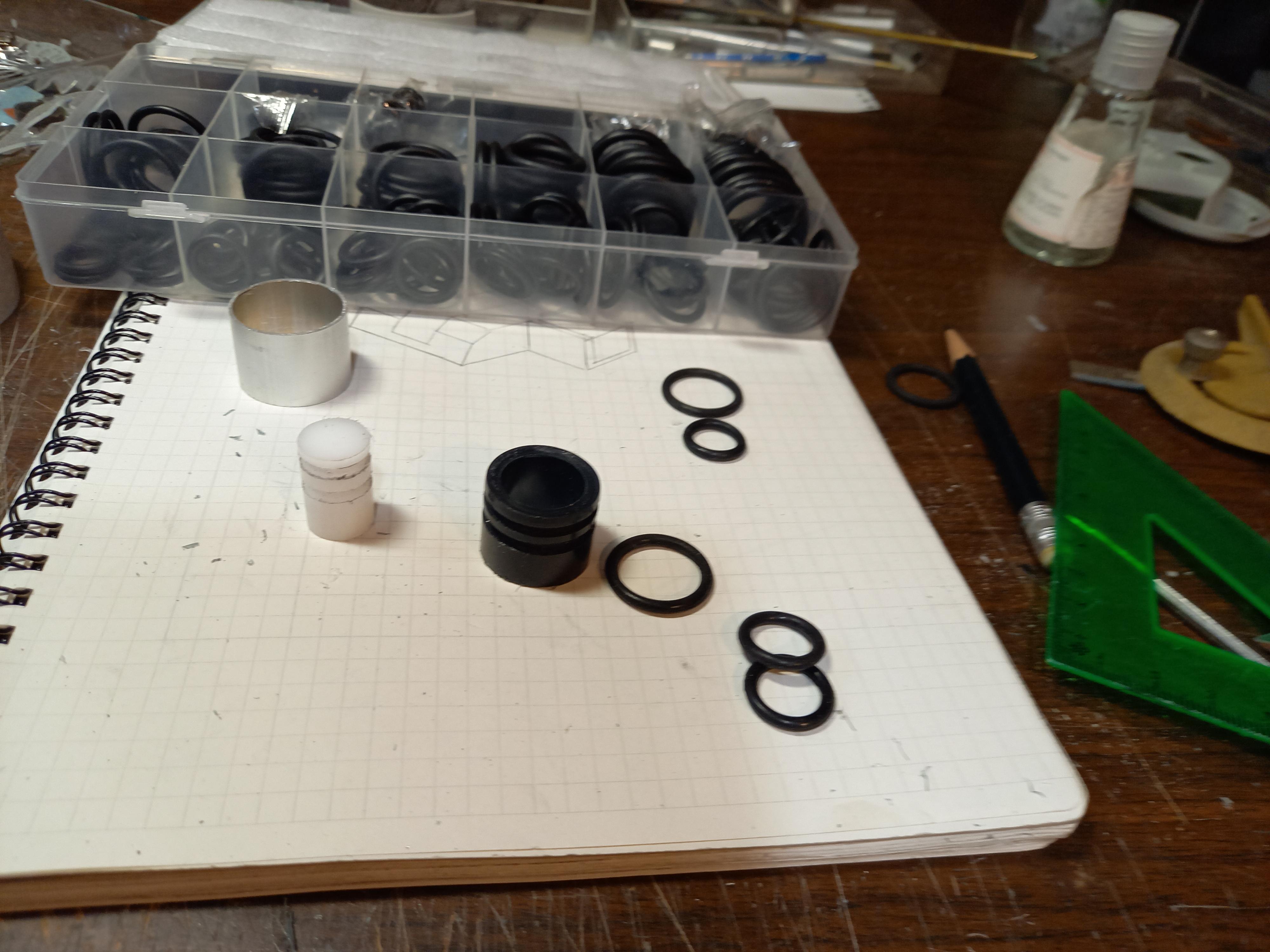

Water pipe, aluminum pipe, and O-rings.
I had cut them up and engraved a pair of the trench around for the O-rings.

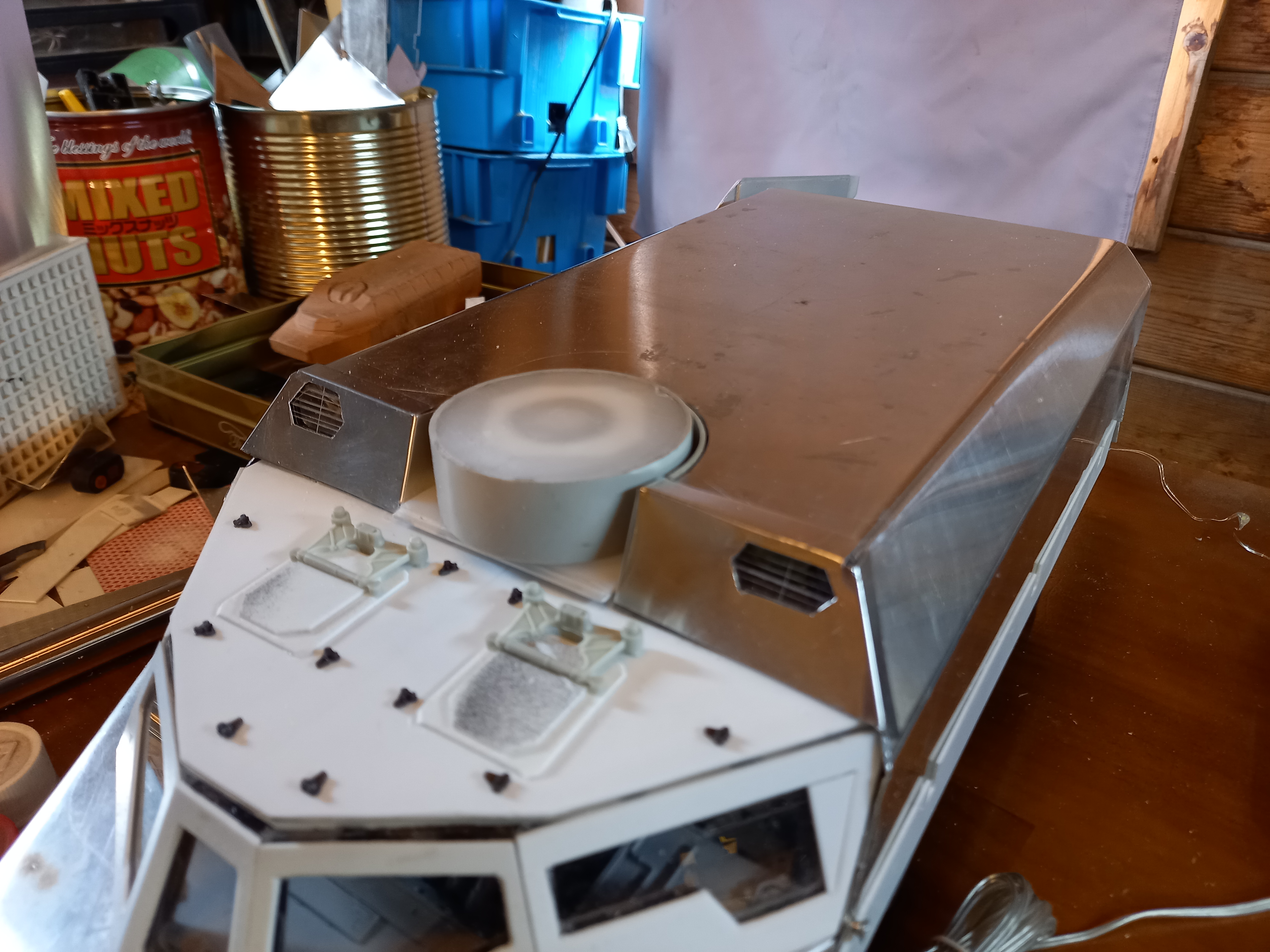

And put them on a turret basis.

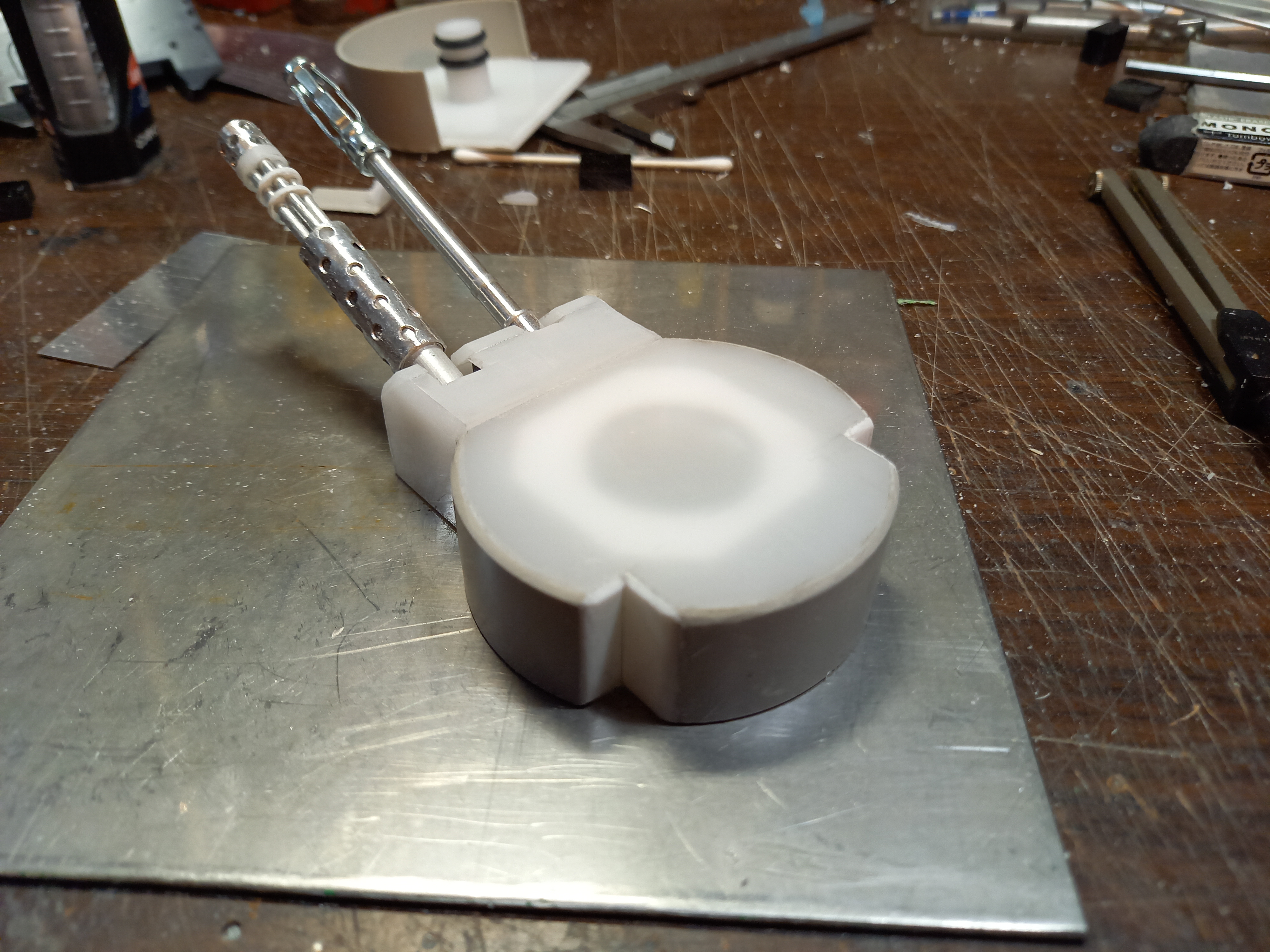

This turret will be a bit more complicated in shape later.
Poping up and rotate in good friction.
That was really fun to build. Thank you Tom-san!
katsu
SmilingOtter
Master Member
I have NO doubt that once you started playing with it, you would have come to the same conclusion.
Hagoth
Sr Member
Amphibian is fitting. Katsu did install two prop drives for going through water. Big tires help it float and provide high speed on land. Smaller ones provide great torque for heavy loads. And with reaction thrusters it can fly or at least fall with style. That turret can spit fire - maybe a flame thrower would be a fitting secondary. A highly evolved critter this is!
Did I just describe a dragon?
Did I just describe a dragon?
yuumi2891103
Master Member
Thank you, Tom-san. It has been complicated and stressful work till now. Designing, Fixing the fixtures, and wiring for lighting.
To play with the detailing and decorating is always fun.
Seeing the shape of the front, it makes me think that it could also be amphibian
Thank you! That what I intended to show.
Yes, Hagothg-san. I'm thinking about the container of the parachutes and landing thruster. Also, I'm thinking about the design of the dropship nose section. I am thinking that maybe the 'Gator' I build many years ago would be one of the ideas.
I'm really rubbish at keeping up to date...but all kinds of brilliance since I last looked...birthday greetings, great blossom and fantastic looking windshield
Thank you so much, Chuffy-san!

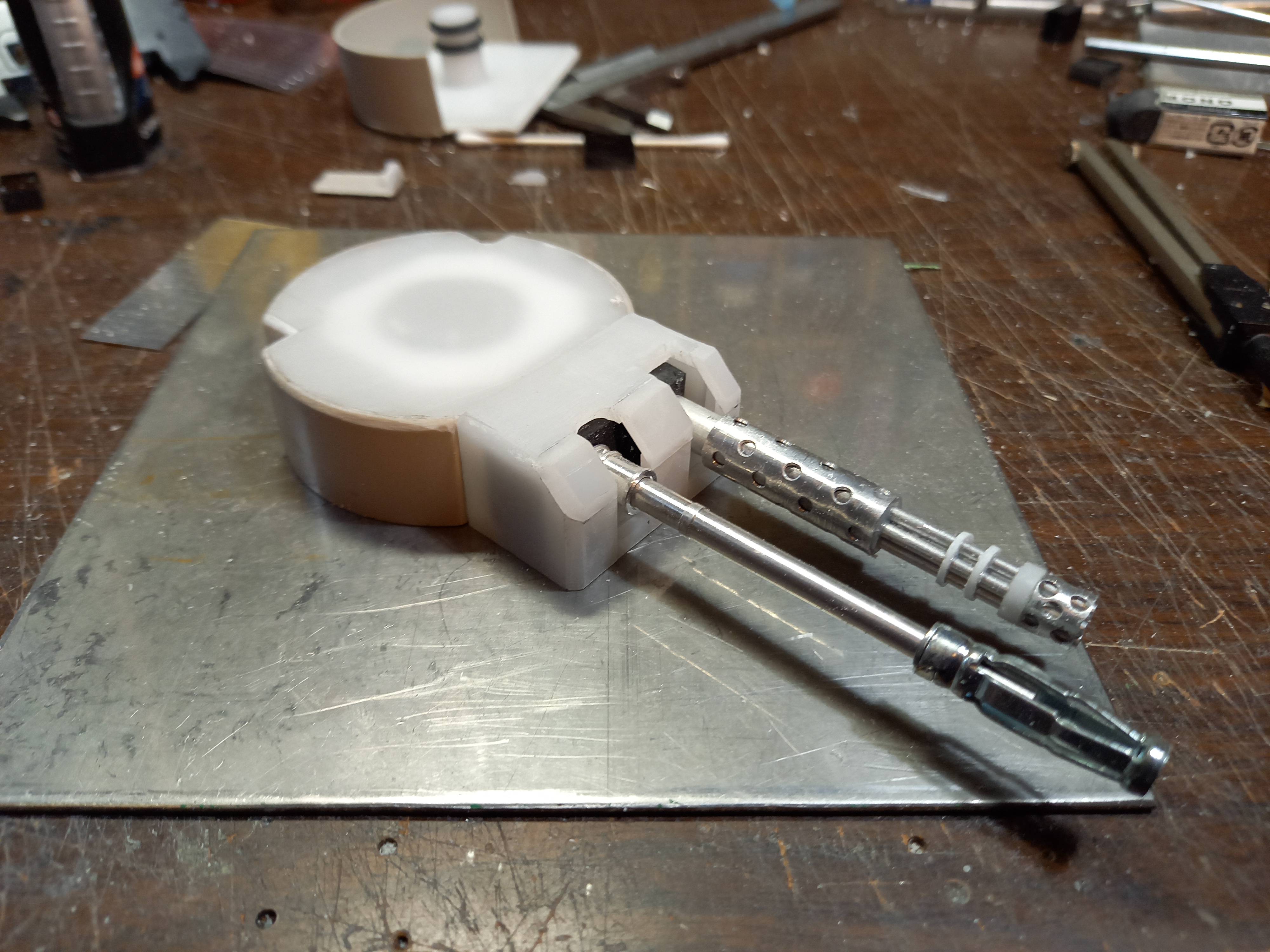

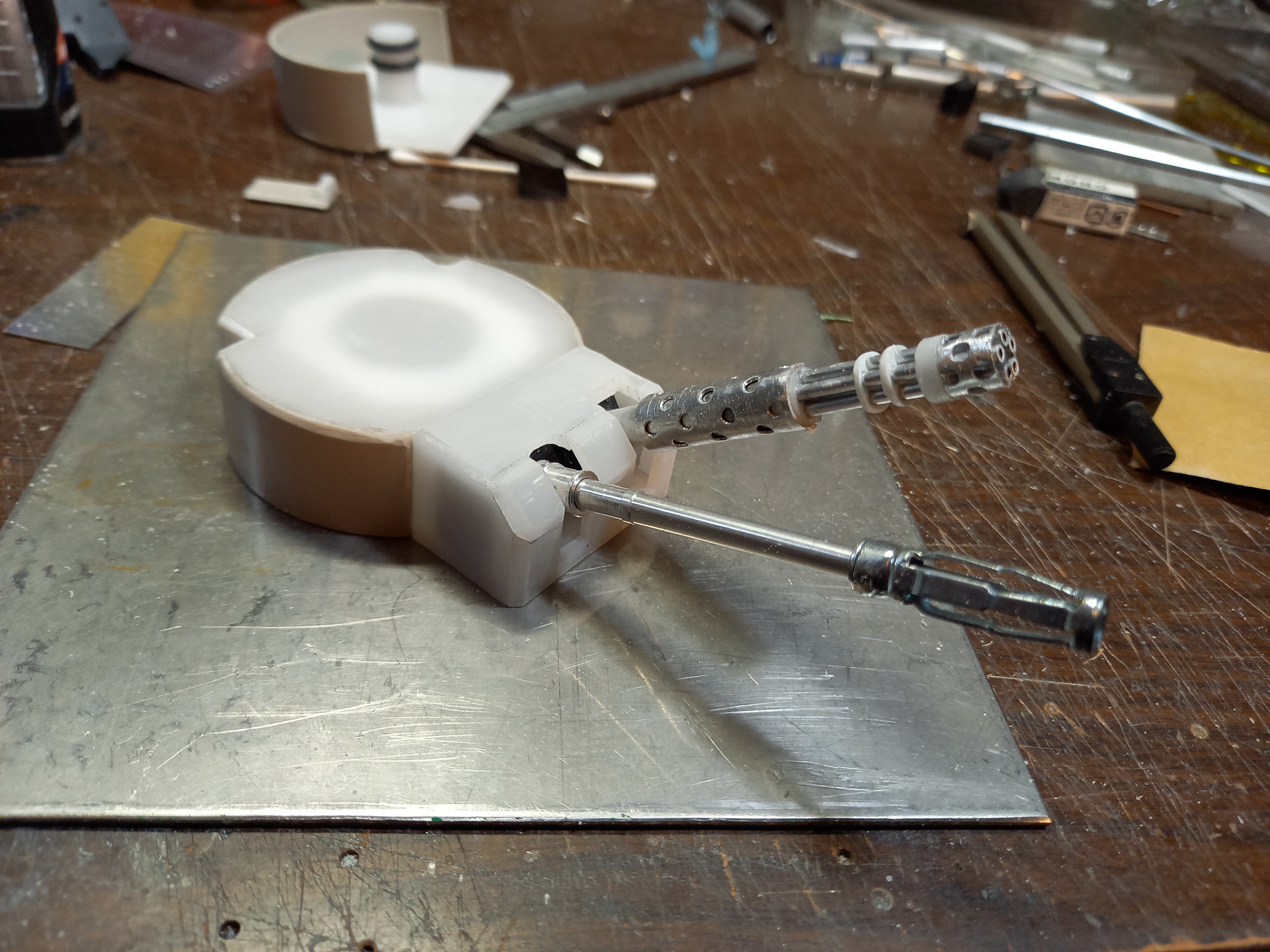

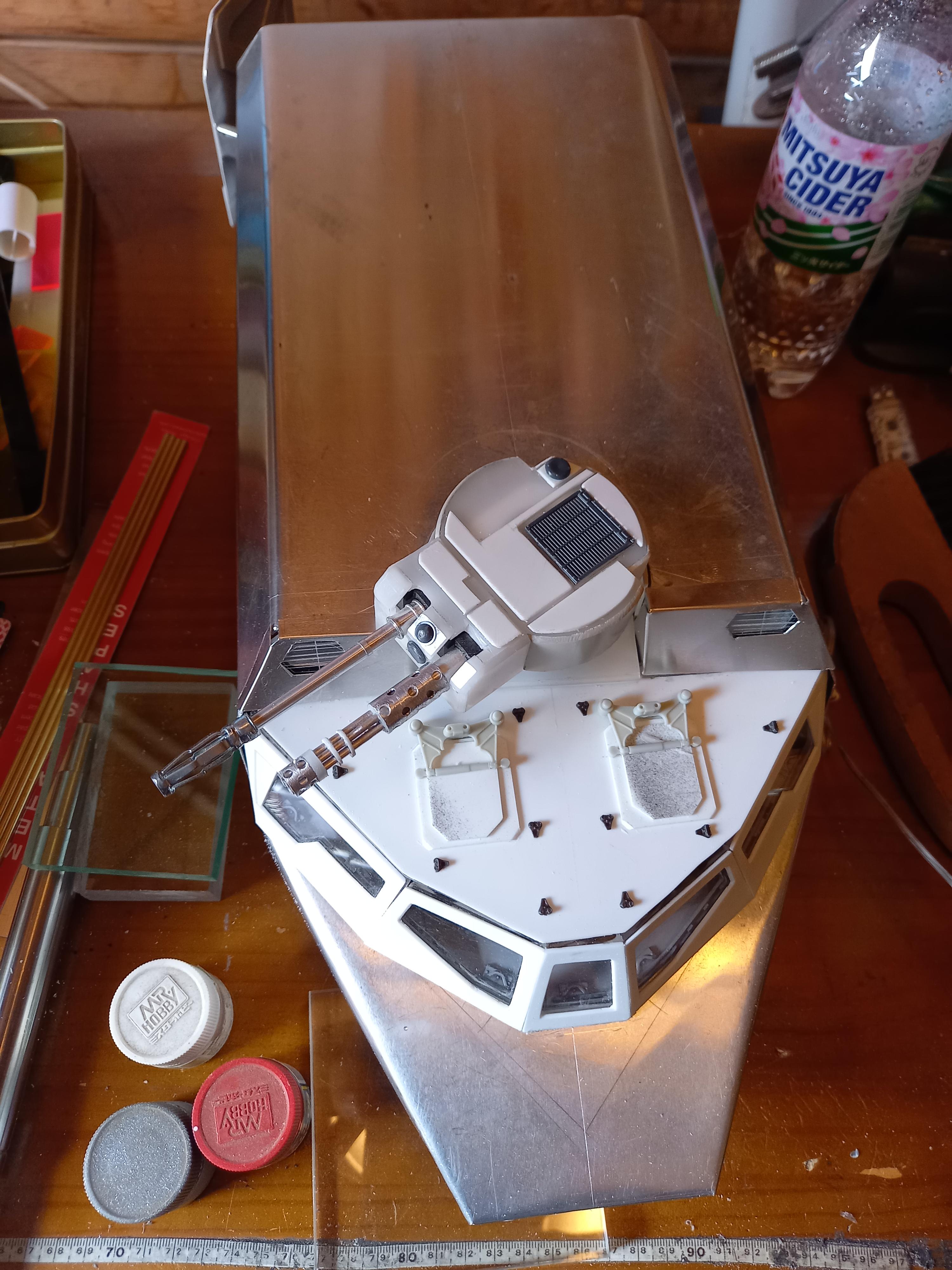

This time I am going to put a 40mm automatic cannon as the main weapon. So the flame thrower is almost identical in shape to the main gun. So, I decided to put a 5-barrel Gatling gun as a sub-weapon.
This time, I want a shroud- is this a right word?- around the barrels.
The cylinder with many holes around it. Smaller one and a large one.

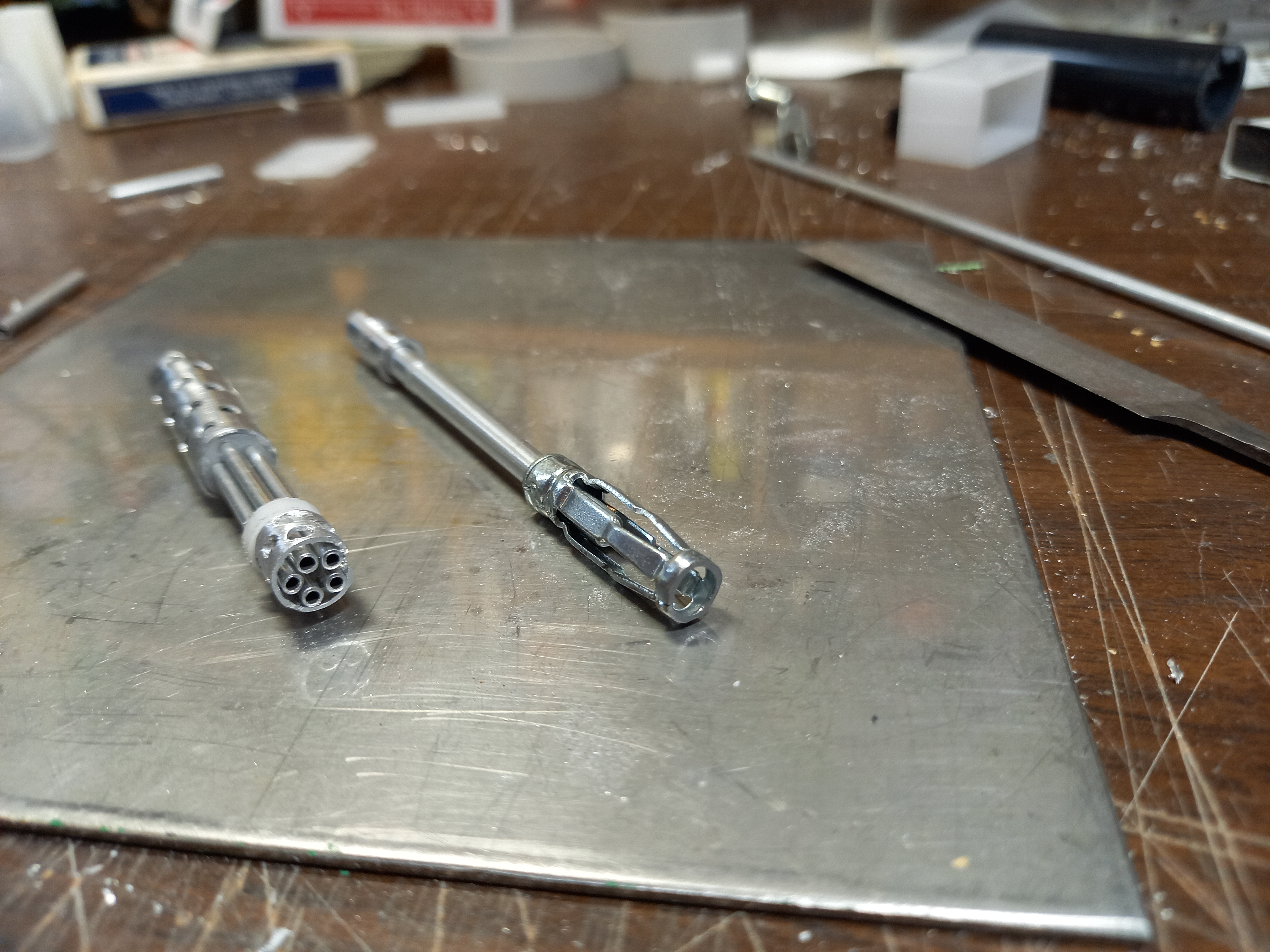

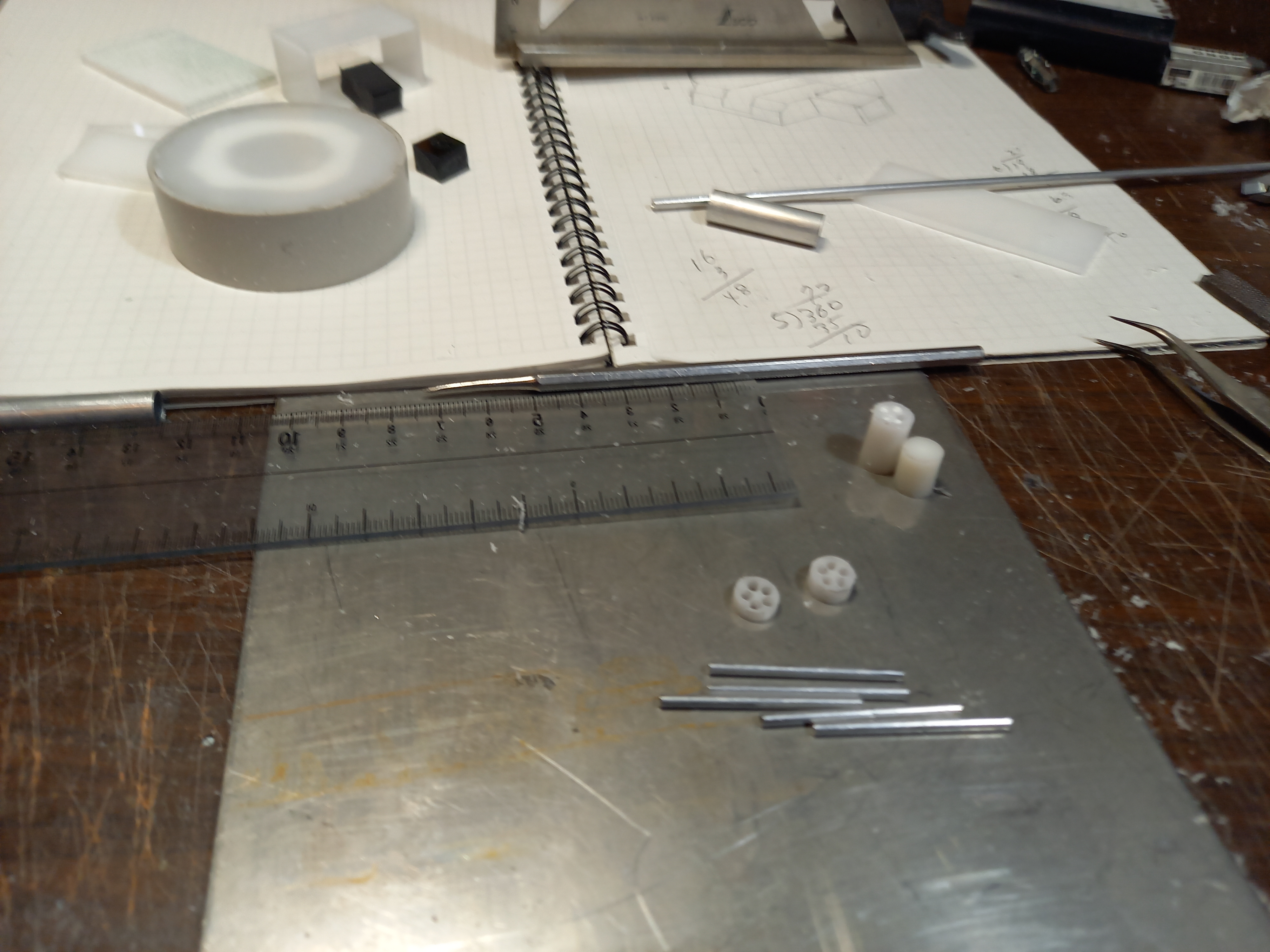

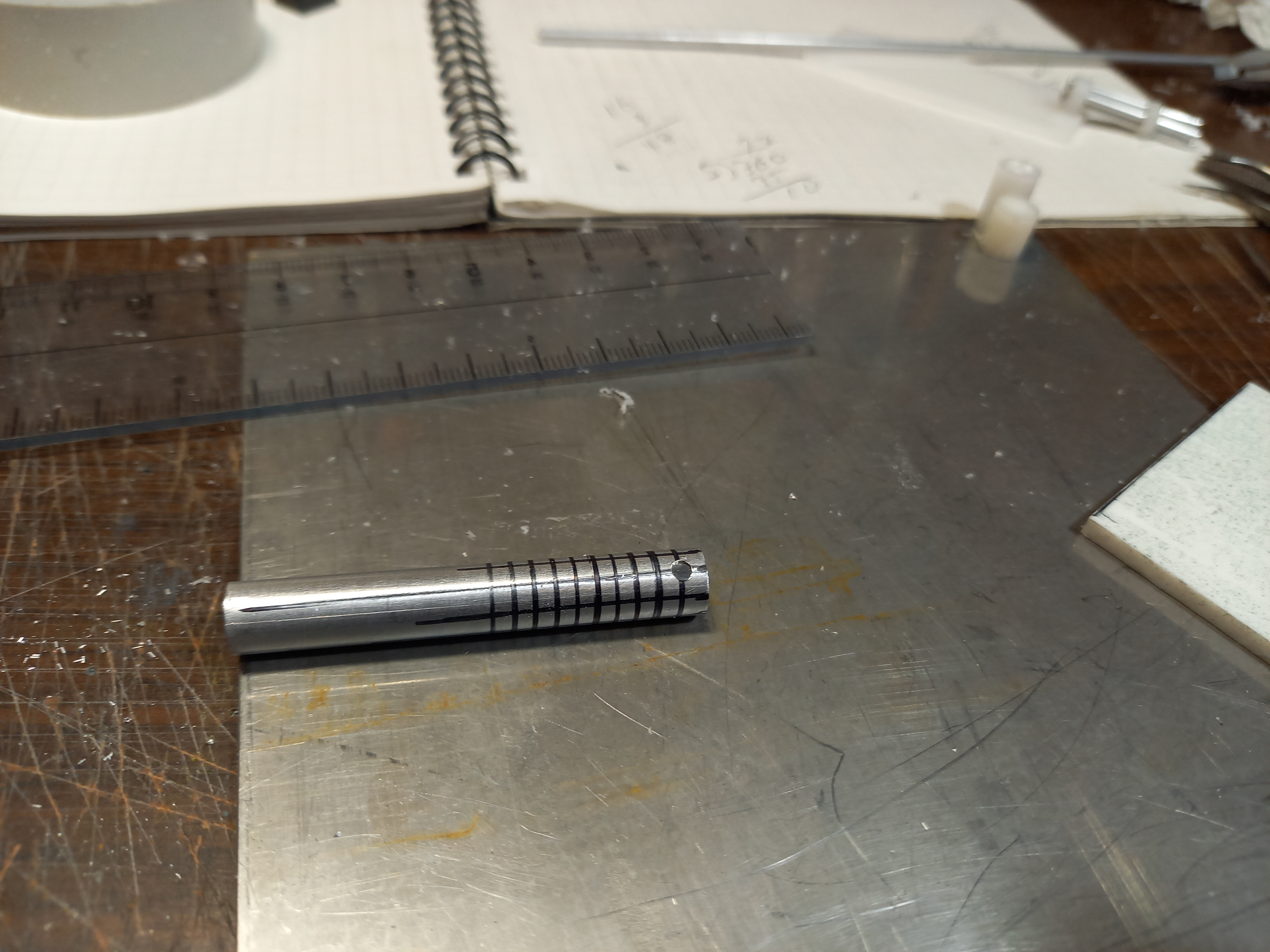

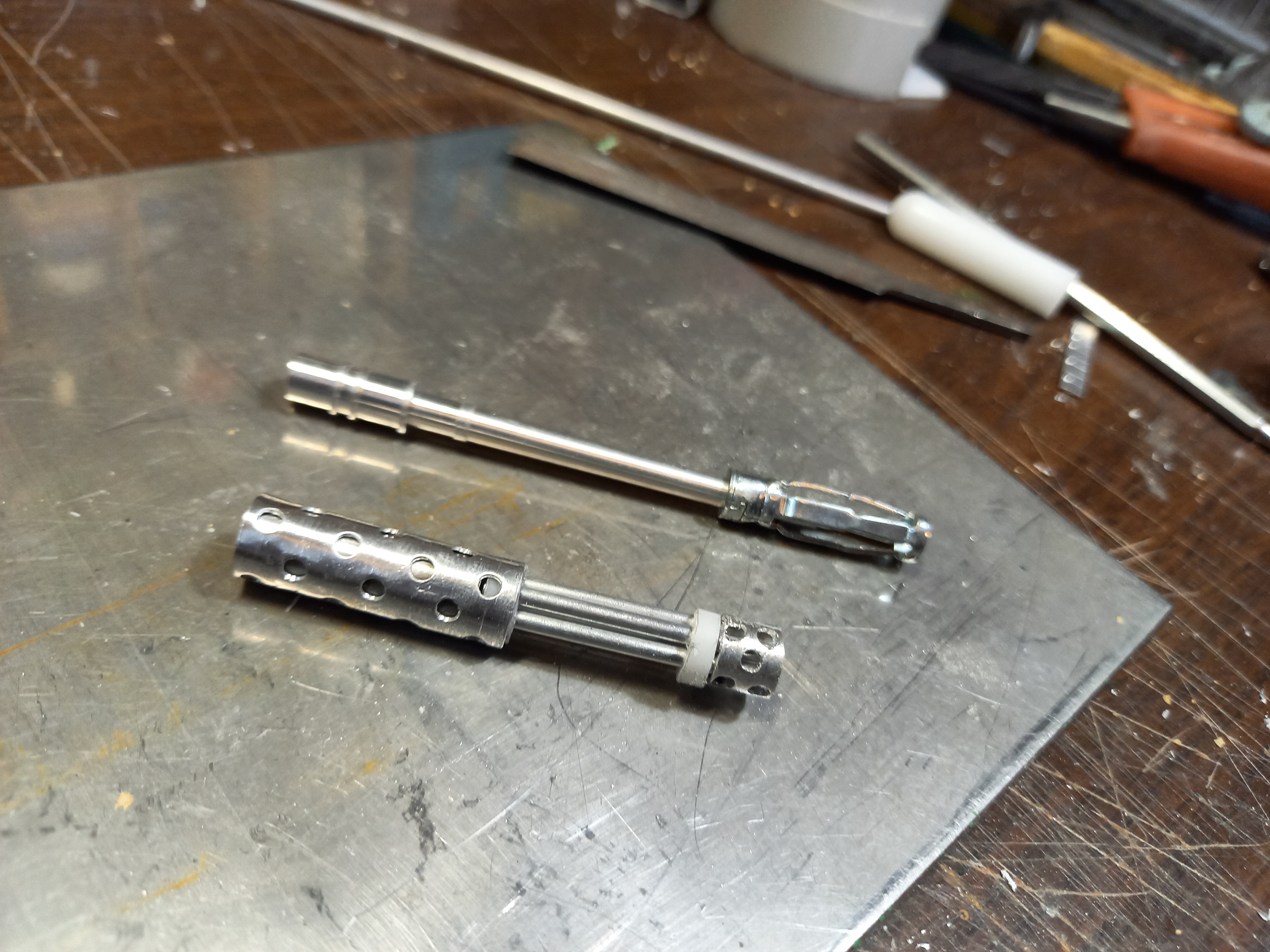

I made a smaller one with drilling holes on a tube. That was so difficult to make a hole in a straight line.
So I had to make it much longer than I needed and pick up a fair part.
I made a large one in a different way.
Drilling holes was easy but to curl it to the cylinder was a job.
I really hate drilling holes in the precise spots.
At the moment like this, I really think I wish I had a 3D printer.
With a barrel of 40mm cannon.
It took 4 and half hours.
OK, I made up my mind!
I am gonna put up cloud funding!
Target amount: $ 800.
Donator will have a right to get my sincere gratitude.
If anything, subject to stock, I will attach my wife's gratitude also.
...Nevermind
Thanks for looking!
katsu.
SmilingOtter
Master Member
Great work on the barrels. And "shroud" is exactly the right word.
yuumi2891103
Master Member
Thanks and your PM sent me was AWESOME!! We all should share that!
Thank you so much! That was sweet labor!
Thank you, Tom-san!

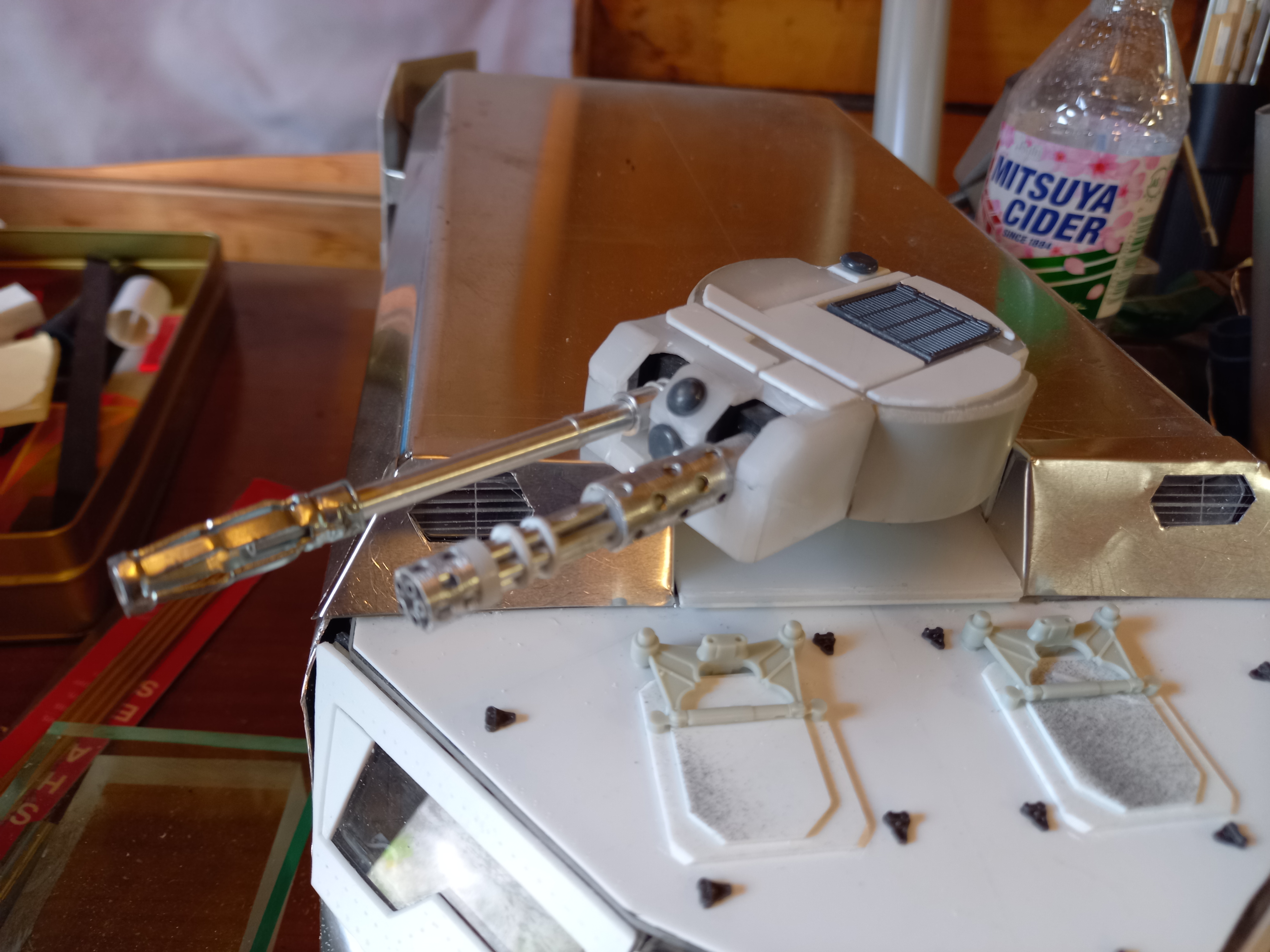

Continuing to build
A few more detailing and will be done.
Thanks for looking!
katsu
Hagoth
Sr Member
Love the turret! Wow, that looks really cool! I've noticed that wall anchor sleeves make really good gun tips and bombs in your projects.
Oh, and a wicked looking 40mm shell lying there.
One detail suggestion comes to mind. After the turret pops up an armor shield for the post needs to swing around from the back to protect the hydraulic lift. Could be as simple as a concentric half circle against the back turret well wall that spins around center post. Basically a double half cylinder wall.
Oh, and a wicked looking 40mm shell lying there.
One detail suggestion comes to mind. After the turret pops up an armor shield for the post needs to swing around from the back to protect the hydraulic lift. Could be as simple as a concentric half circle against the back turret well wall that spins around center post. Basically a double half cylinder wall.
