5 Foot Falcon Replica - ANH

Discussion in 'Studio Scale Models' started by t2sides, Oct 9, 2017.

  1. ixtore

    ixtore Active Member

    Trophy Points:
    361
    Astounding build. Amazing skill. Mind blowing.
    How much does she weigh in at?

  2. MangyDog

    MangyDog Active Member

    Trophy Points:
    487
    I think i may have slightly wet myself to the shear detail and scale :eek:

  3. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    LOL! Thanks guys!
    ixtore, I don't know how exactly much it weighs yet - but it feels quite heavy, maybe around 80lbs?

    Here's a quick update.
    1st few show the Hummel Part that goes on the engine upper and lower 'decks'. I originally took the two Hummel parts, glued them together and cast them. As I was getting ready to paint them, I realized the original had a pretty good little gap between them. So, I was able to break the original parts back to their two halves. I then molded and cast them up, put a .020 piece of styrene between them, and assembled each individually. Then, to match the original, they required a good chunk of the bottom be chopped off, to get the proper size/height to fit into the 88mm parts. It was a fun exercise getting those levels of details closer to the original.
    2nd set show the additional kit parts that are being added to the front port body wall. This adds back in several parts that were on the original during filming of ANH. (Still need to add Hasegawa Sherman part). Then a quick shot of primer, then the last pics show the parts applied to the port wall. Once the weathering gets painted in here, it's gonna start looking really close.
    Thanks,
    Sean

    Hummel1.jpg Hummel2.jpg
    PortWall1.jpg PortWall2.jpg
    PortWall3.jpg PortWall4.jpg

  4. Jkirkon

    Jkirkon Well-Known Member

    Trophy Points:
    986
    This is breathtaking!!

    It’s one thing to build from a kit...it’s another thing to painstakingly scratch build a model of this scale, and amazing detail. I can’t begin to tell you how impressive this model is.

  5. Axlotl

    Axlotl Master Member

    Trophy Points:
    3,165
    It's beautiful... :cry

  6. JediMichael

    JediMichael Sr Member

    Trophy Points:
    1,990
    I second that.

    And next up should be the double version......The 10 footer.....

  7. DARKSIDE72

    DARKSIDE72 Sr Member

    Trophy Points:
    2,105
    Sean,.... * son just....*! You're nailing this! Do the ANH SD next! Bring it home! Here if you need some help, you probably don't. But if you do just ask!

  8. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Unbelievable build! And the patience is up there too:cool A million WOWS to you and your skills:thumbsup

  9. 3DImpact

    3DImpact Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    662
    Yeah, I'm loving watching this progress. Hope to get to see it in person again when it's done.

    And... as far as Star Destroyers go - go for all 8 feet of the ESB version! I'd buy that for a dollar... :)

    Dan

  10. nkg

    nkg Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,341
    Super cool! Looks great seeing stuff like the McLaren triangular part that's now missing from the Falcon. I'm curious about the dome-shaped piece that covers where the holes for the carrying struts go, though.

    - nkg

  11. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    Amazing build. Do you plan to light it?

  12. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks again Fellas!!
    Faustus100 - Yes, I think the beginning of this thread shows the light tests. It's going to be exactly the same lighting look/diffuser as the original filming miniature.
    NKG - Thanks, that part, thanks to Tsophika, is the Nichimo Elefant.
    Dan - You guys are welcome ANYTIME again, love having you over!
    Jamie! Much appreciated - and yes, I've already got the Star Destroyer started - just stalled it for this baby! Looking forward to restarting and finishing that replica!

    Here's a quick paint update. I'm still working through 'experimenting', and right now, just the rear damage quadrant is getting close. I still have lighter filters to apply, much more weathering, and techniques to tone down the contrasts and bring it all together. But, at least you can see how it's starting to come together. :)


    Working through the battle damage weathering. This is the first layer.

    A wider shot with most of the area still working on to blend together and weather panels.

    The right side with just a few streaks, but haven't done much over there yet.


    And the full shot, the entire upper side needs filters/layers. Also tested out dirtying up one of the maintenance pits, this will get refined to bring it a little 'cleaner' and contrasty.

    nkg, Rick Deckard, peza and 6 others like this.
  13. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    Loops Amazing! How much so you recon she weighs?

  14. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Wow all around...this is a jewel of a model (even with all of the wear and tear)!!:thumbsup

  15. eagle1

    eagle1 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,195
    Mad paint skills going on there Sean, a sight to see!.
    You feeling like Joe right now I bet, masking tape & scissors in hand!. So close to the end, think I felt you steamroll me back there along with your speed haha.
    Awesome update as always!.

    Stu

  16. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    Man! I'd give anything for a pair of those seats!

  17. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks much everyone!!
    Faustus100, I think I mentioned this before, but she 'might' be around 60-80 lbs at this point?

    Another brief paint update today. Making progress on the bottom rear half. Still not done in this area, quite a bit more paint 'speckling' to do, and some more filters and oily areas, then it'll be on to refining the top half of the underside. The photos' colors are not quite as warm and show more contrast than in person, but you get the idea. One interesting thing that really shows off here, the gun platform and the jawbox are still completely base coat paint. You can see how adding the weathering and filters tone down the pure off-white, and makes the final base color that nice warm grime/gray color. It's really neat to see the color transform like that. Also added some of the under hull damage areas.



    maruska, kokkari, rbeach84 and 11 others like this.
  18. JamesM242

    JamesM242 Member

    Trophy Points:
    112
    Thanks for sharing! I love watching the details of your build.

  19. blackeagles

    blackeagles New Member

    Trophy Points:
    17
    Hello,
    very very nice.
    But I have questions,
    what is the internal diameter, because 3inch it is impossible for me to put the greeblies, it's too small...
    And what the ID's part tank.
    Thank you in advance for your answer info.jpg

  20. Stormy320

    Stormy320 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Some of you guys are just so talented.

    Fun to watch!

  21. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Hi Blackeagles,
    The internal diameter is closer to 3.5", the opening is 3". This will give you the extra diameter you need to make the greeblies fit!
    Thanks
    Sean



  22. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Hello,
    Sorry for the delay in updates. Been busy with life and work, but getting progress in between.
    Finished up the engine deck plate with the beautiful 3D printed Engine inserts and vintage KoolShade that covers them very much like the original. Also built up the Radar Dish, and got some more sidewall progress done.

    First up the Engine Deck - HUGE Thanks to Maruska, he did an Incredible job printing up the 'custom' engine fans, and they fit beautifully in the very well formed engine vent structures, which were mastered by Eagle1, couldn't have made this deck so accurately without their help!

    Here are the Engine Fans just mocked up in place (later centered)


    Here are all the Fans staged in place to ensure fit


    This was cool to see the fans through the Vents from this angle just like the filming miniature.

    And all the KoolShade installed with the various 'bent/damaged' vents.


    And here's a wide view of the overall rear with the engine plate installed. The whole Engine Plate comes off/on as needed with flush mount screws.


    Attached Files:

    Mike J., robn1, dirtydave and 4 others like this.
  23. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Next up is the Dish Assembly - It is elegantly designed by Maruska, including hardware in place that allows the base to rotate independently and the dish to rotate to any position desired. Exactly as the Original Filming Miniature. The first set of pics are the most of the raw original kit parts installed on primer, then the black primer, then the base white coat. I have a few additional parts (Vintage Shinano) that still need to go down, and this assembly will soon get the proper weathering and filters. However, as you will see, I completed the Dish with all the final weathering/scratches and finish, so it's nice and dirtied up compared to the A-Frame and Base.

    This first one shows the
    Dish50.jpg Dish51.jpg Dish52.jpg Dish53.jpg Dish54.jpg Dish55.jpg Dish56.jpg Dish57.jpg
    The Primer added

    Rear of the weathered dish, base still waiting for finish.


  24. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    A few more of the dish setup.

    Dish60.jpg Dish61.jpg Dish62.jpg Dish63.jpg
    These pics are the dish temporarily installed (iPhone pics come out way 'colder' than actual color). The color Hue is much warmer in person, and there is still quite a bit of finish painting, weathering and filters to add.

    Dish64.jpg Dish65.jpg Dish66.jpg

    Dish67.jpg Dish68.jpg

    Mike J., maruska, robn1 and 6 others like this.
  25. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    And lastly here's a few overall pics and the starboard side wall with several 'missing' parts on the current model added back in to reflect how this model looked for filming in 1976.

    Here's a pic of the underside, it's about 90% complete

    Full1.jpg Progress1.jpg Progress2.jpg Side1.jpg Side2.jpg
    Here's where we are at today. The Dish is a good example of what the technique of final finish/weathering that still needs to be applied to the entire model will look like.

    nkg, Mike J., kokkari and 14 others like this.
  26. nkg

    nkg Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,341
    Bloody spectacular!

  27. David3

    David3 Active Member

    Trophy Points:
    460
    Amazing and inspiring, t2sides.
    If there was a 2year long video of your build on this i'd savour every minute of it!
    Just a masterpiece!

  28. stevielewis

    stevielewis Well-Known Member

    Trophy Points:
    586
    Spectacular!

  29. SteveStarkiller

    SteveStarkiller Sr Member

    Trophy Points:
    1,730
    absolutely astounding, a dream come true!

  30. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    Oh My...

  31. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    735
    So beautiful. (Wipes tear from eye.)

  32. Jaitea

    Jaitea Master Member

    Trophy Points:
    2,690
    I love it

    J

  33. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320

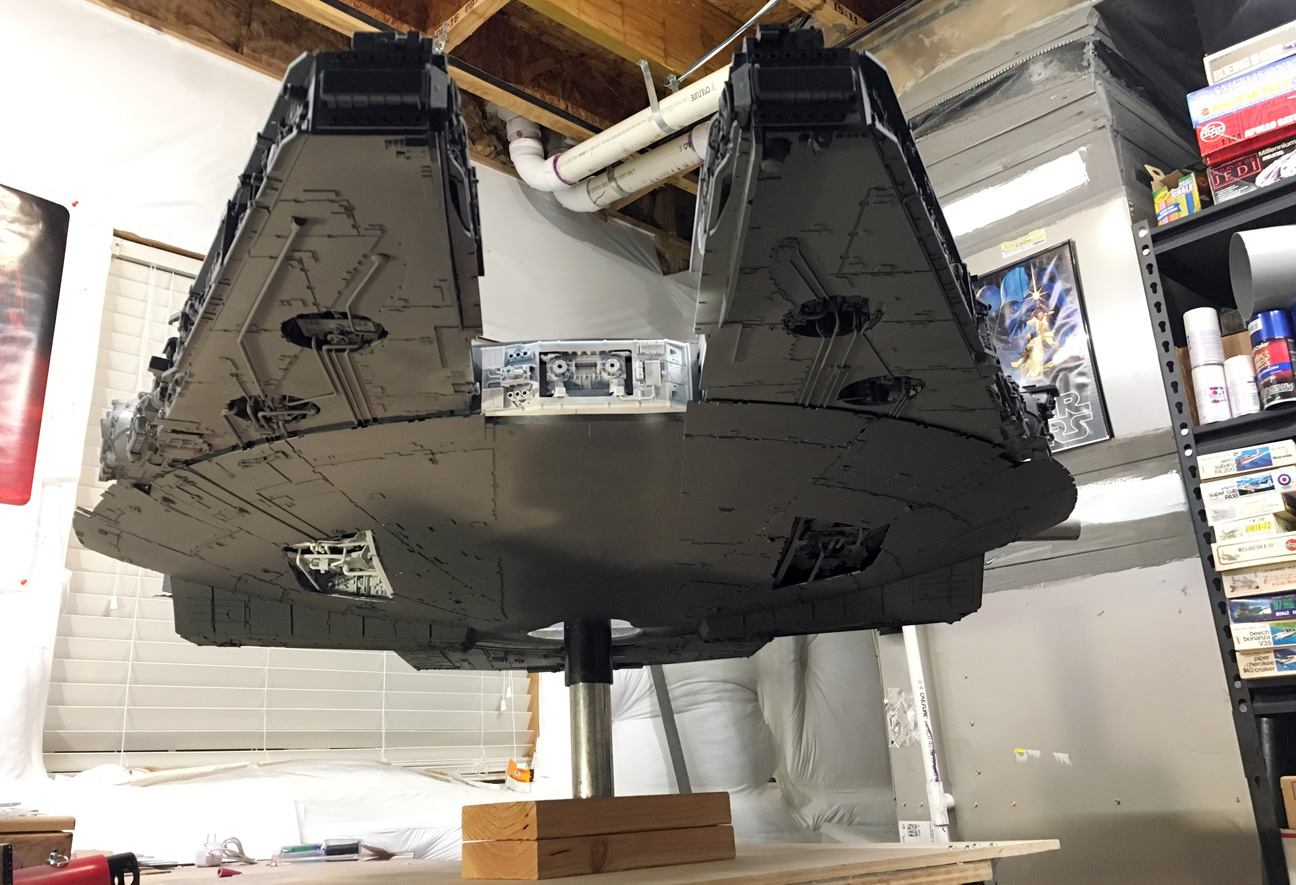

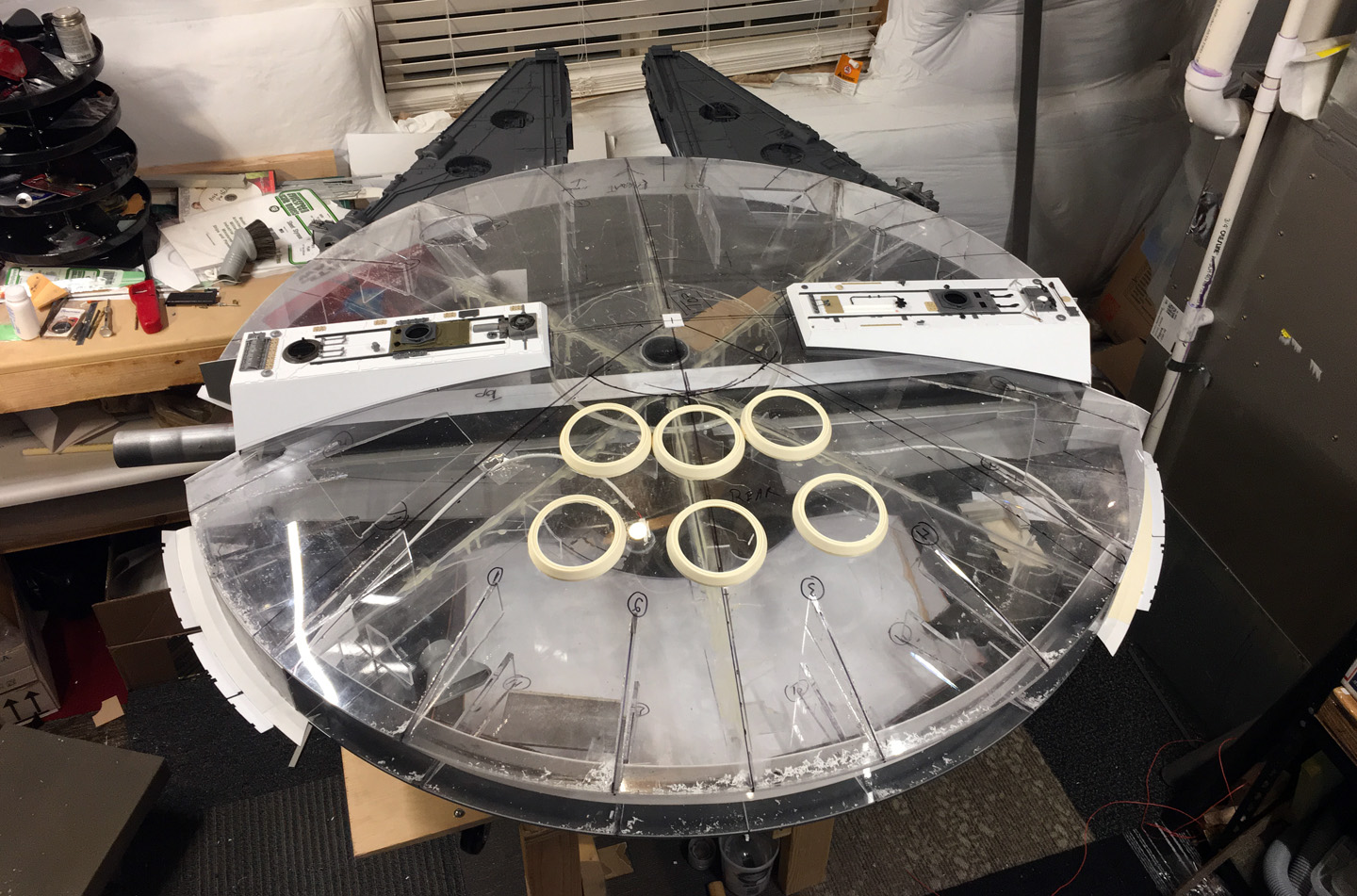

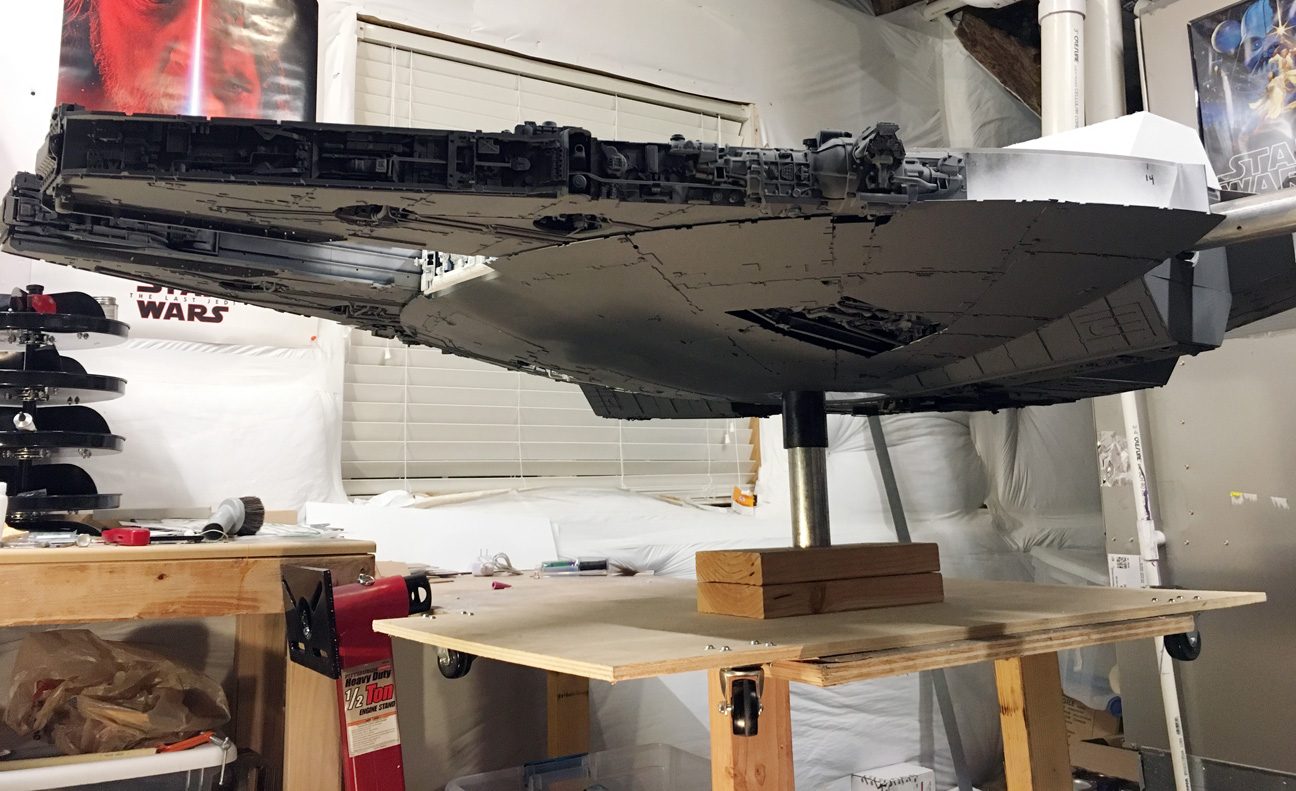

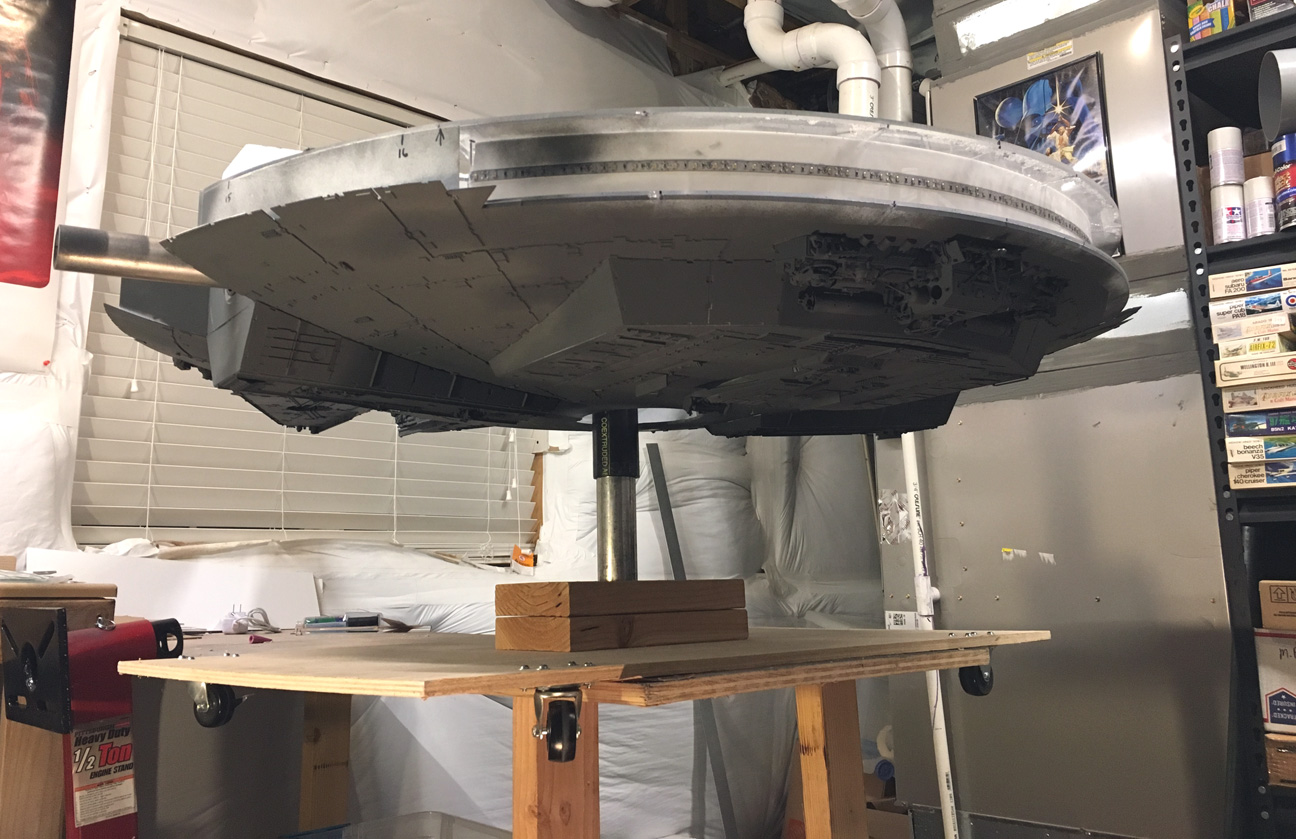

    Thanks !! Pulling back the curtain a bit, below are a few screen grabs that give examples of Andre's (VFXSup64) amazing Photogrammetry Solves (i.e. Mad Skills) he created that translated to Maruska's 3D model for printing. (You can Reference VFXSup64's incredible journey here: SW – ANH (5 Foot) - Studio Scale Millennium Falcon Build)

    IMG_9695.jpg IMG_9696.jpg IMG_9697.jpg IMG_9698.jpg


    Attached Files:

    kokkari and maruska like this.
  34. Lear60man

    Lear60man Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    One of the best things I did while painting my Dago was let it sit. This gives you a fresh set of eyes to come back in and say, 'Hey here are some parts that need a little more/less color/shading/weathering/scraping/etc. With that said, its coming along wonderfully

  35. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    What is this part? Looks great,but I don't remember it being on the original model. I have a totally different one

  36. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    This is what I have. Is my reference wrong?

  37. David3

    David3 Active Member

    Trophy Points:
    460
    Don't know the part but it is there on the opposite side if you flip the rectenna
    p65b.jpg P6130165_JPG.jpg

    greeble_gremlin likes this.
  38. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Hey Faustus,
    David3 is exactly right. The common reference used for the dish are the various pics as the model is today, not in the actual configuration when they filmed A New Hope. You can reference some of the "Chronicles" pics (as in the Black and White David3 inserted above) and various other vintage refs that show what you see today is both the Dish itself is rotated opposite of as-filmed, as well as the base itself. Notice the Harrier part in the base is 180 degrees out from what you see in current pics. So if you are going for the 'original' look, you'd want to flip your dish and rotate the base and orientation would match the pics of how I'm constructing mine. As for the parts, should be in the same Stug kit as the others on the dish.
    -Sean

    greeble_gremlin, nkg and swgeek like this.
  39. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    That's what I thought. Thanks for the info. Since mine is based o ne the ESB ship,I think I'll keep it that way lol.

    Last edited: Dec 8, 2018
  40. joberg

    joberg Master Member

    Trophy Points:
    2,900
    A thousand WOWS:cool:!!! I'm gobsmacked!

  41. greeble_gremlin

    greeble_gremlin Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    846
    Nice Updates!
    Great work as usual Sean!
    If I may ask, the Radar Dish base & A-Frame parts, were the machined or 3D Printed?
    If 3D printed do you know what type of 3D printer & material was used?
    Sorry for the pesky questions,
    Very interesting work

  42. maruska

    maruska Well-Known Member

    Trophy Points:
    635
    The dish base parts were printed on a 3DSystems sPro 60 HD-HS in SLS Nylon.

    belleauwood likes this.
  43. greeble_gremlin

    greeble_gremlin Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    846
    Thanks! Joshua,
    I use 3D systems printers a lot, though I haven't ha anything grown in SLS in a long time.
    It makes sense though, for suck large parts.

  44. maruska

    maruska Well-Known Member

    Trophy Points:
    635
    It was more for strength than anything. The forms are simple and easily sanded. Much more detail, and SLS probably wouldn’t have been our choice...

    ffoeg likes this.
  45. blastmaster

    blastmaster Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    Fantastic, words cannot do any justice, Love all of this!!!

  46. motionminded

    motionminded Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    So inspiring this build!

  47. JediMichael

    JediMichael Sr Member

    Trophy Points:
    1,990
    What would be really cool is to be able to get a pic with this actually next to the real model. Be hard to tell the difference.

  48. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    I don't think it would be that hard. T2sides is in better shape. No missing greeblies either

    maruska likes this.
  49. faustus100

    faustus100 Well-Known Member

    Trophy Points:
    746
    hey could you help me with these 3 ids they fell off the original and I see you have them. Thanks loads!

    Last edited: Jan 9, 2019
  50. Rick Deckard

    Rick Deckard Well-Known Member

    Trophy Points:
    716
    Hey Wayne:

    Parts 2 and 3 is just one piece and it is from the Bandai 1/48 Schwimmwagen... I don't know the part# 1...
