5 Foot Falcon Replica - ANH

Discussion in 'Studio Scale Models' started by t2sides, Oct 9, 2017.

  1. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks Flimzy!!

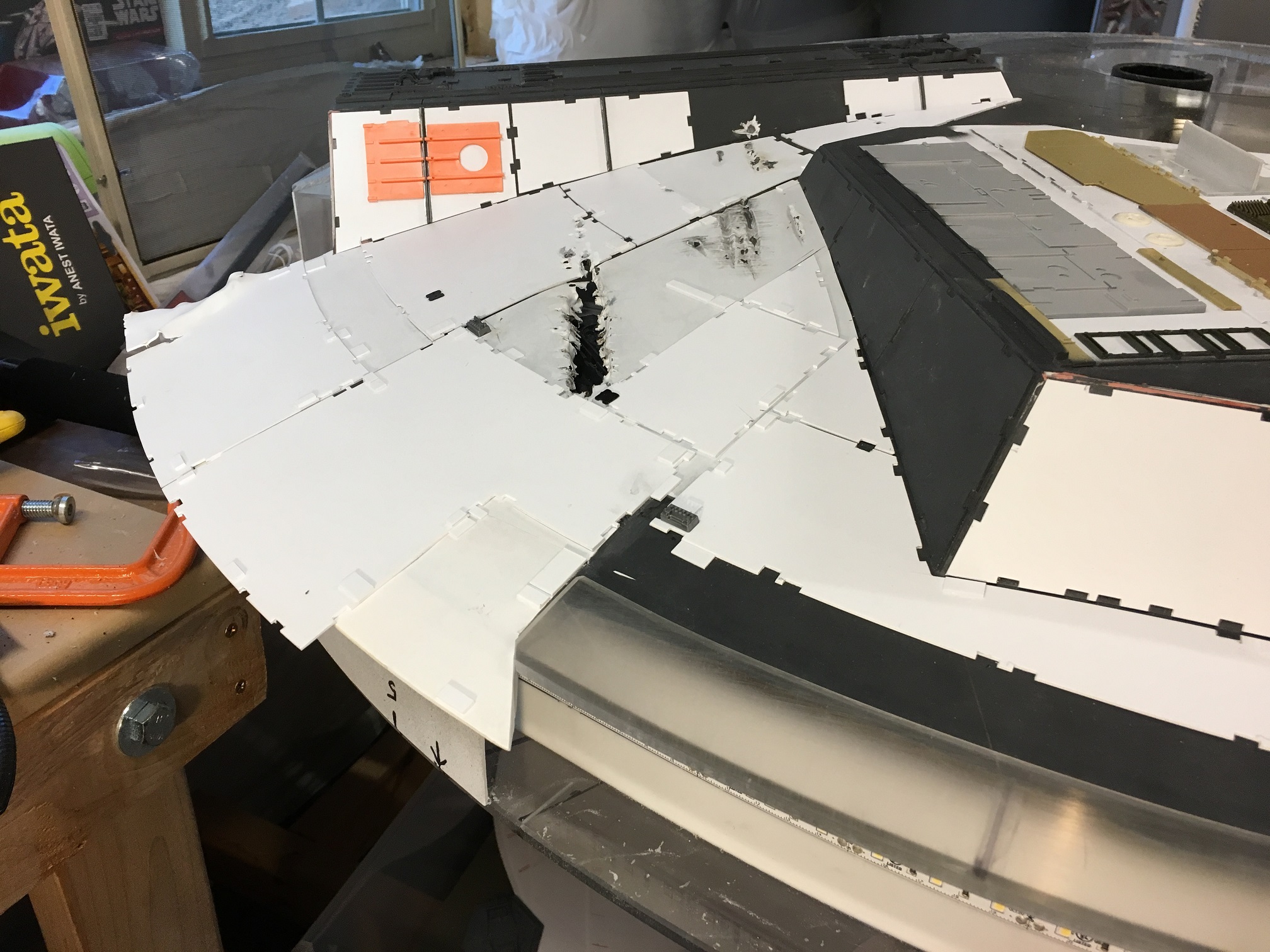

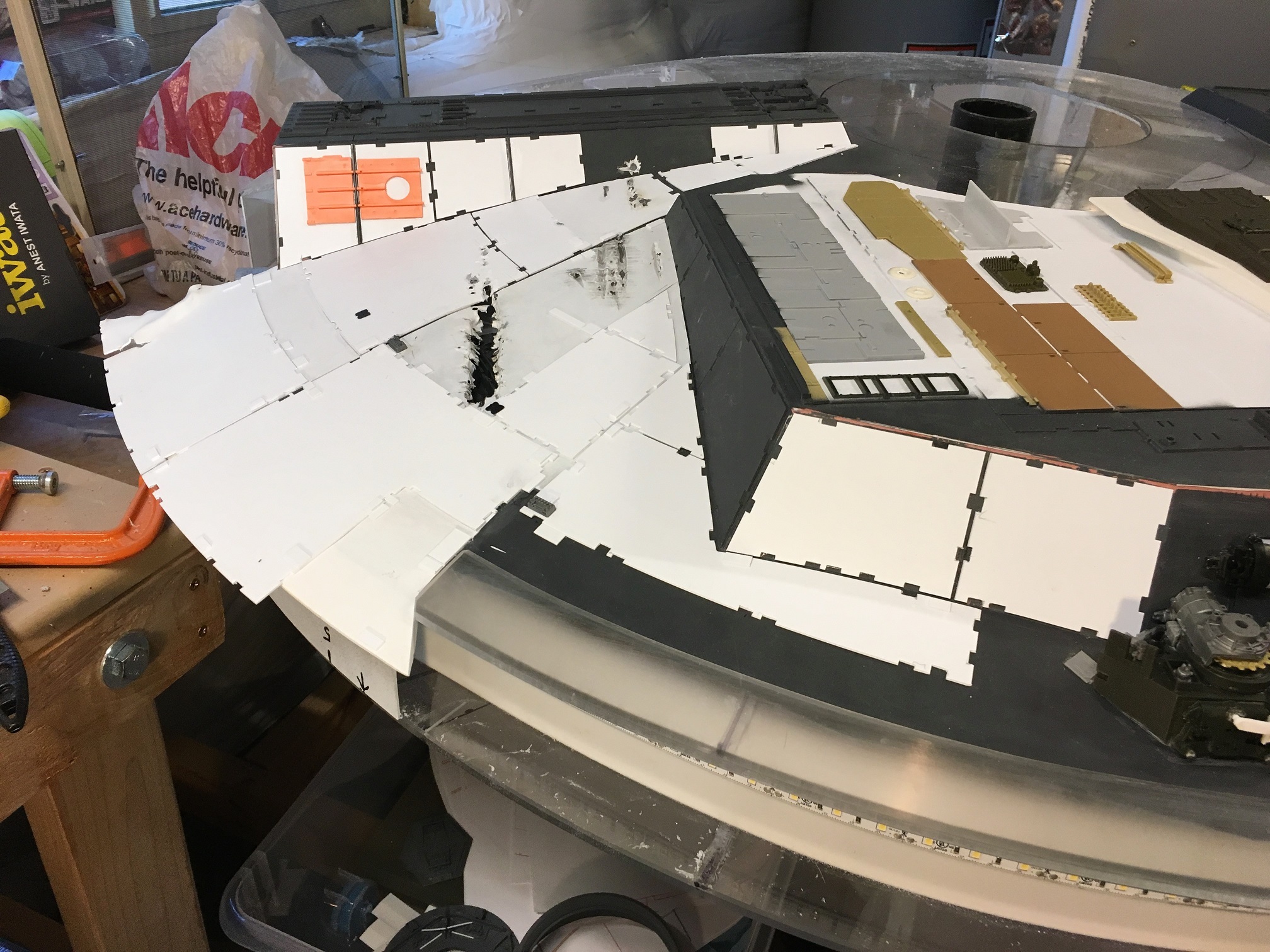

    Here's a quick update. Mostly completed Starboard Rear Pit panels. I still have a few minor tweaks to make, but it's close. My Plating is not 100% due to some early placement errors that I decided to live with. If I get ambitious enough, I can always pop off the styrene plates and redo them. It's at one of those points where you just decide to live with some compromises and small off-sets rather than laboring over trying to get every little nibble exactly in place. Also started on the side wall damage/weathering near the docking ring. I still have some styrene to chop off to make it look a bit more 'angled' as it goes up. But it's fun to melt the styrene and try to get approximate shapes/deformations.

    Piping installed into pit, along with the 'T' channels meeting the 8Rad part (Happy with the way/angle these came out)


    Starting on the damaged side wall

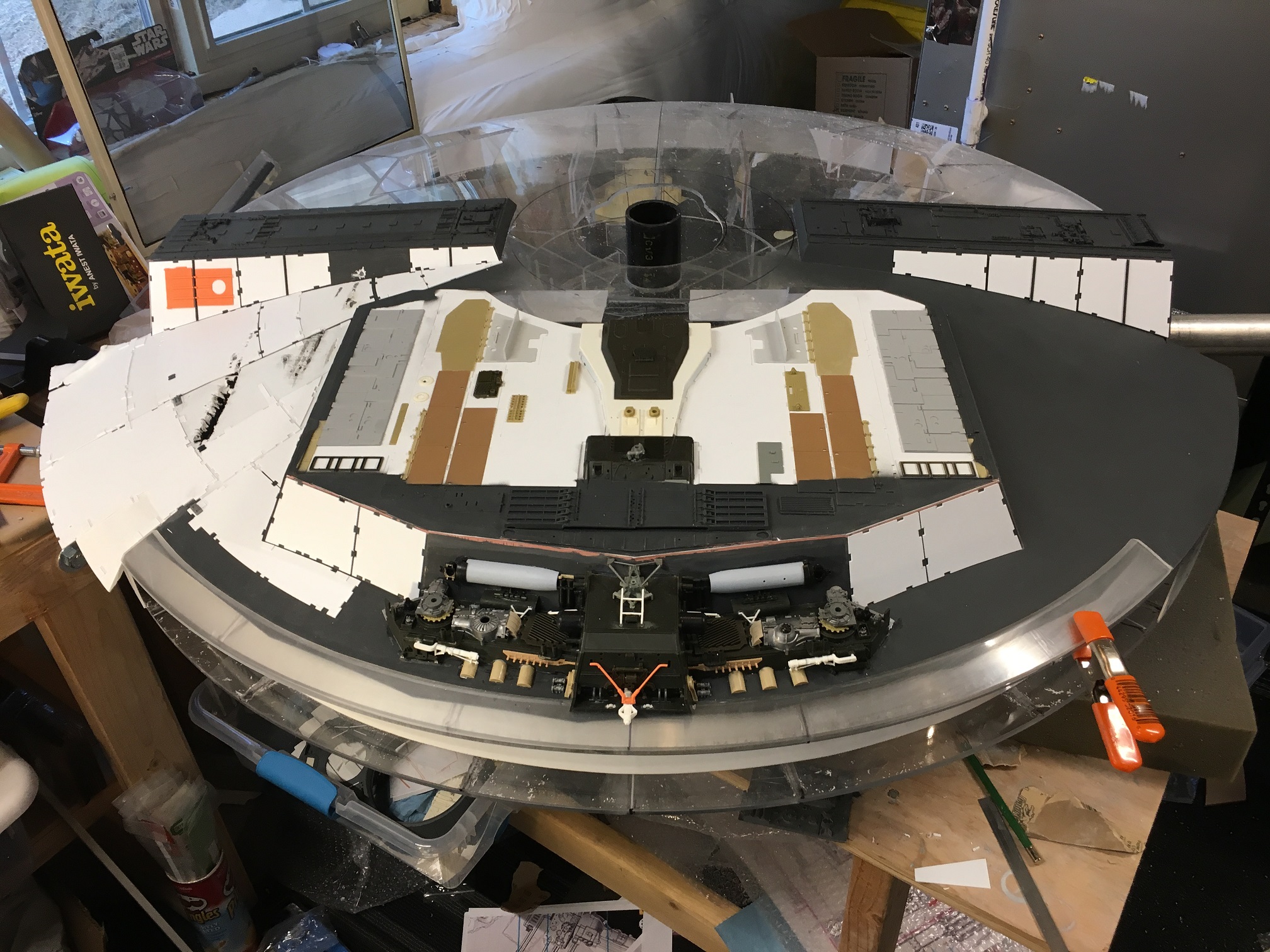

    Full view looking down

    And the long shot, the overlap on the rear quarter is looking just about right!

  2. JediMichael

    JediMichael Sr Member

    Trophy Points:
    1,990
    Most beautiful hunk of plastic we've ever seen.

  3. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320

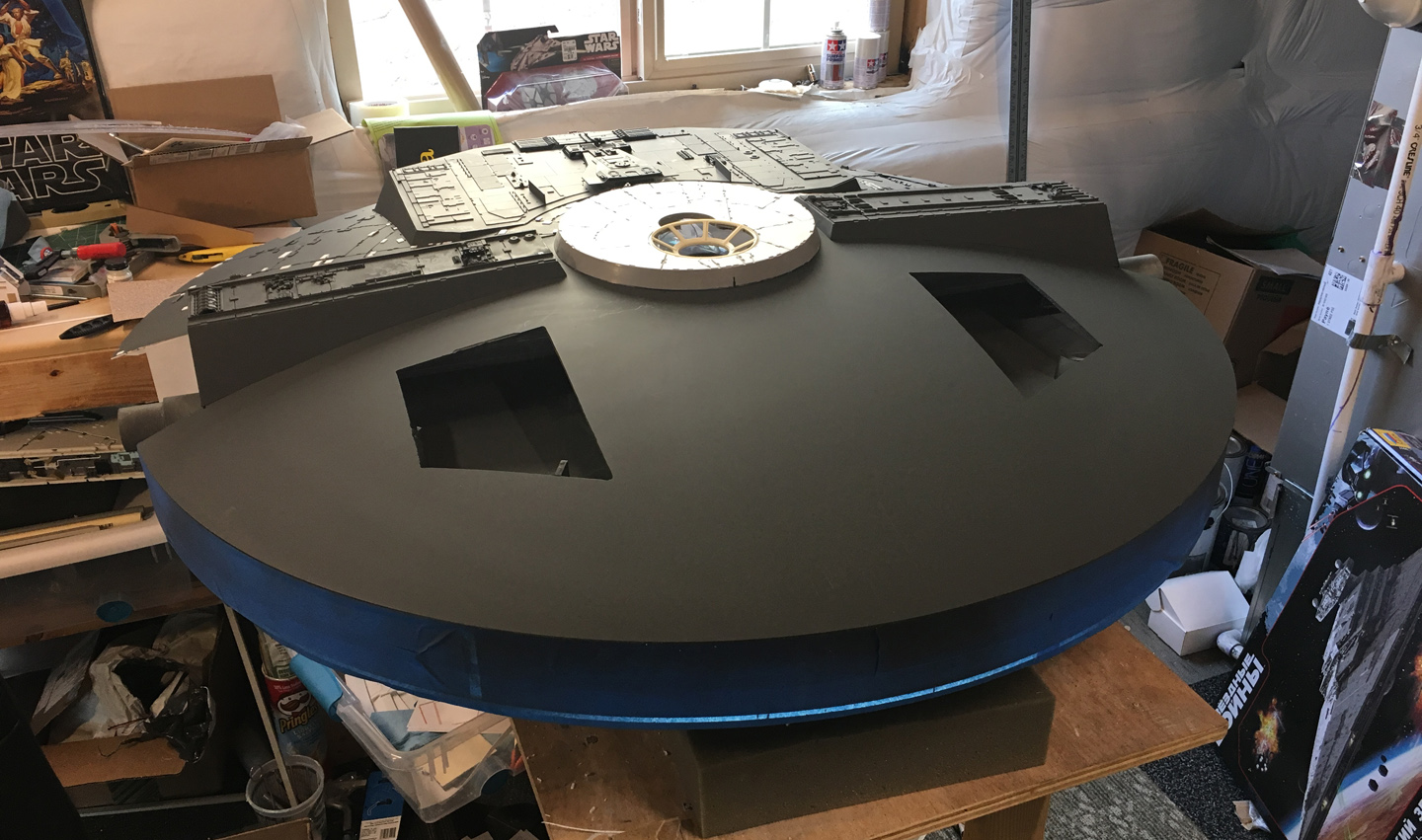

    A few updates from the weekend. Got started on the rear engine deck cover. Started off with adding the hull extension. It lined up very nicely. Then a modification to the Acrylic 'Lip', custom cut the cutout sections that are there on the original, and added the styrene plating. I haven't decided if I'll also add the taper right in the middle that would have accommodated the mounting pipe. Then placed the Lip on top of the extension, and finished adding the last of the plating. After that, it was on to a good coat of primer, and checking the overall fit on the hull. It's great seeing the side profile, the overhang looks just right! This was a big milestone as the radius and the curve had to be just right to fit the upcoming 'blades' that will go over the edge, and of course all the parts that are next to be added.

    Here's the hull extension, nicely lines up with the existing extension.
    And a full view of the hull extension
    Here's the 'lip extension' with the plating installed and the 'cutouts' into the acrylic.


    The final plating installed on the lip, glued to the engine deck

    The overhang looks just about right!

    The Engine deck lip with the plating installed
    [​IMG]

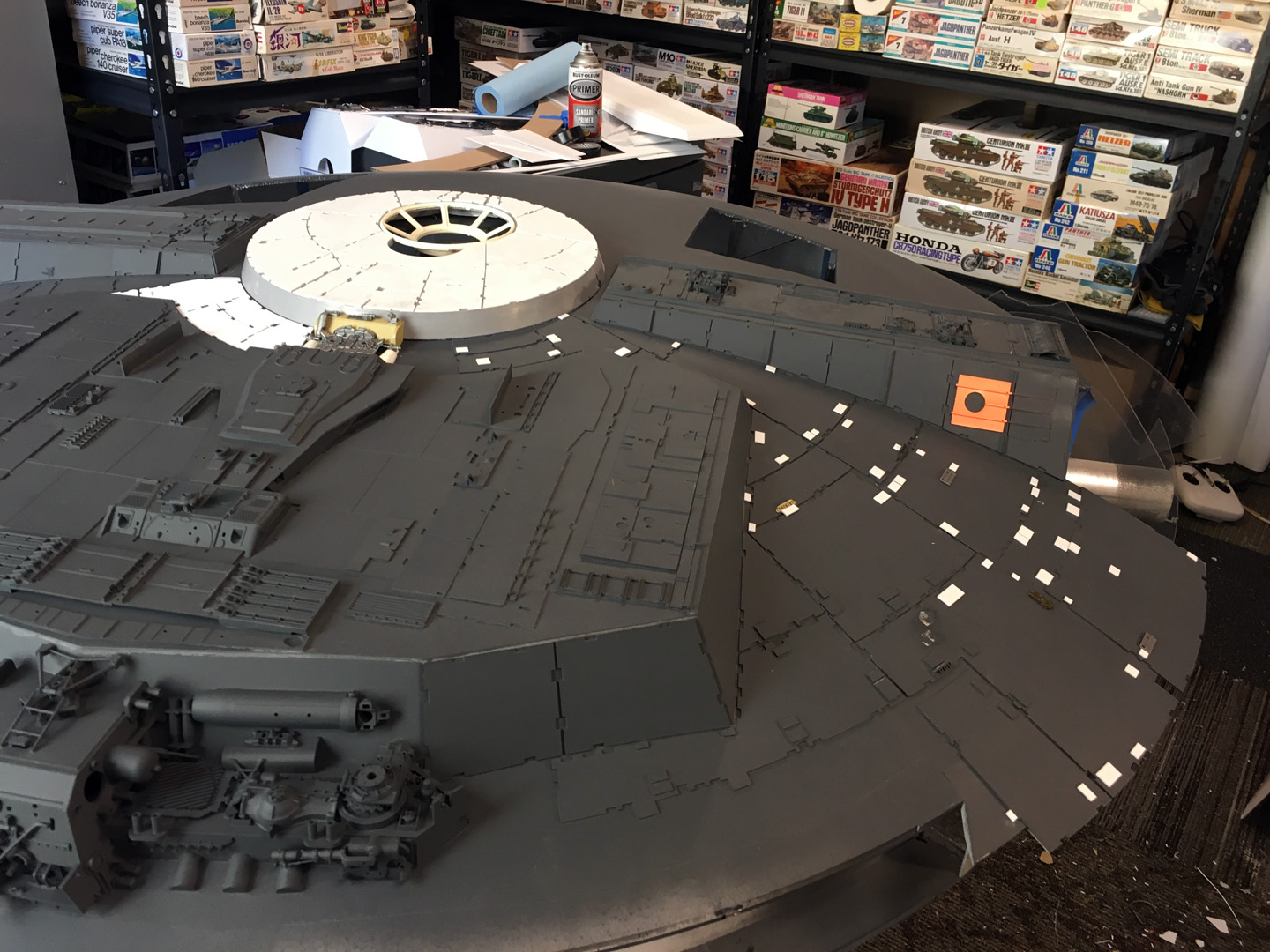

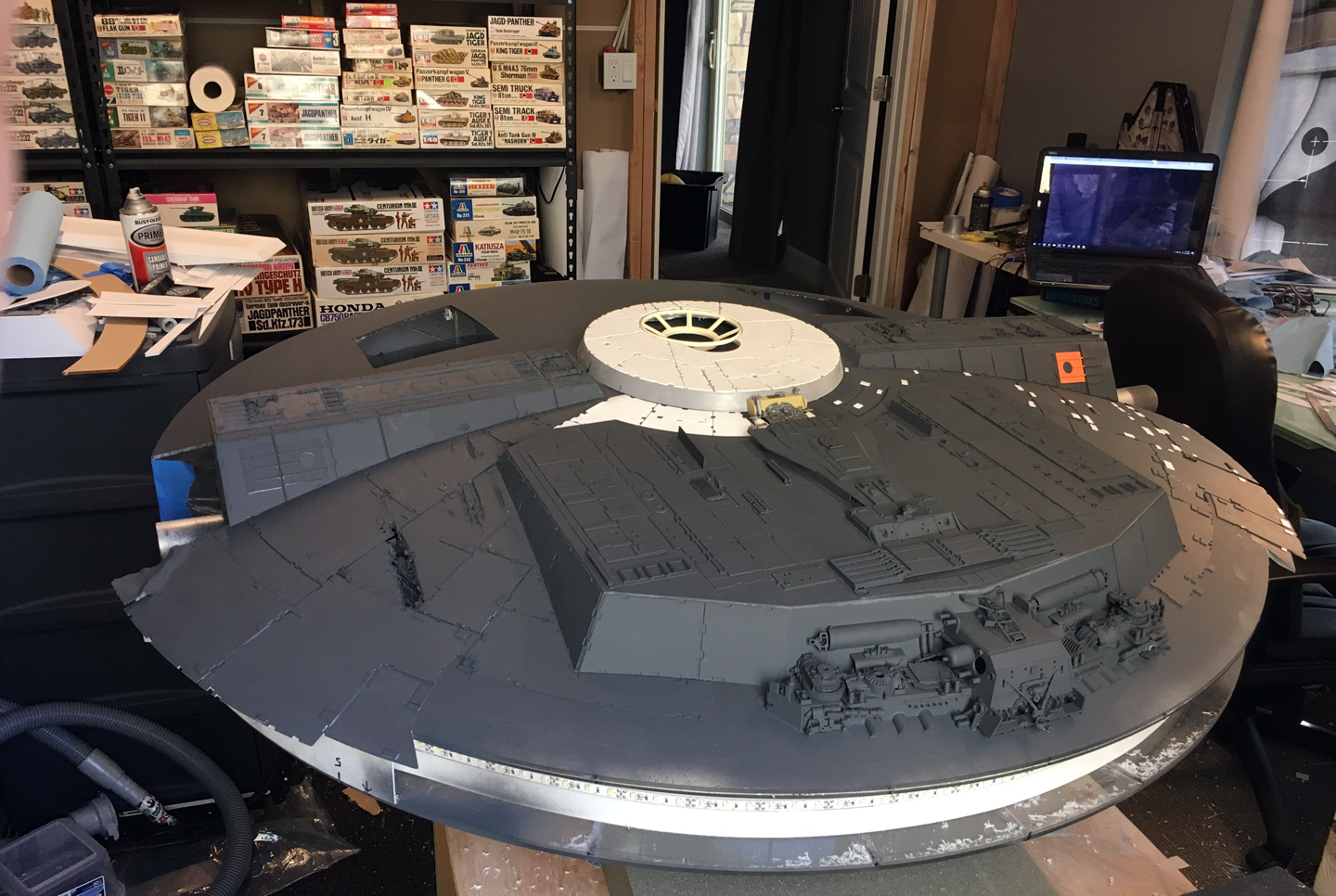

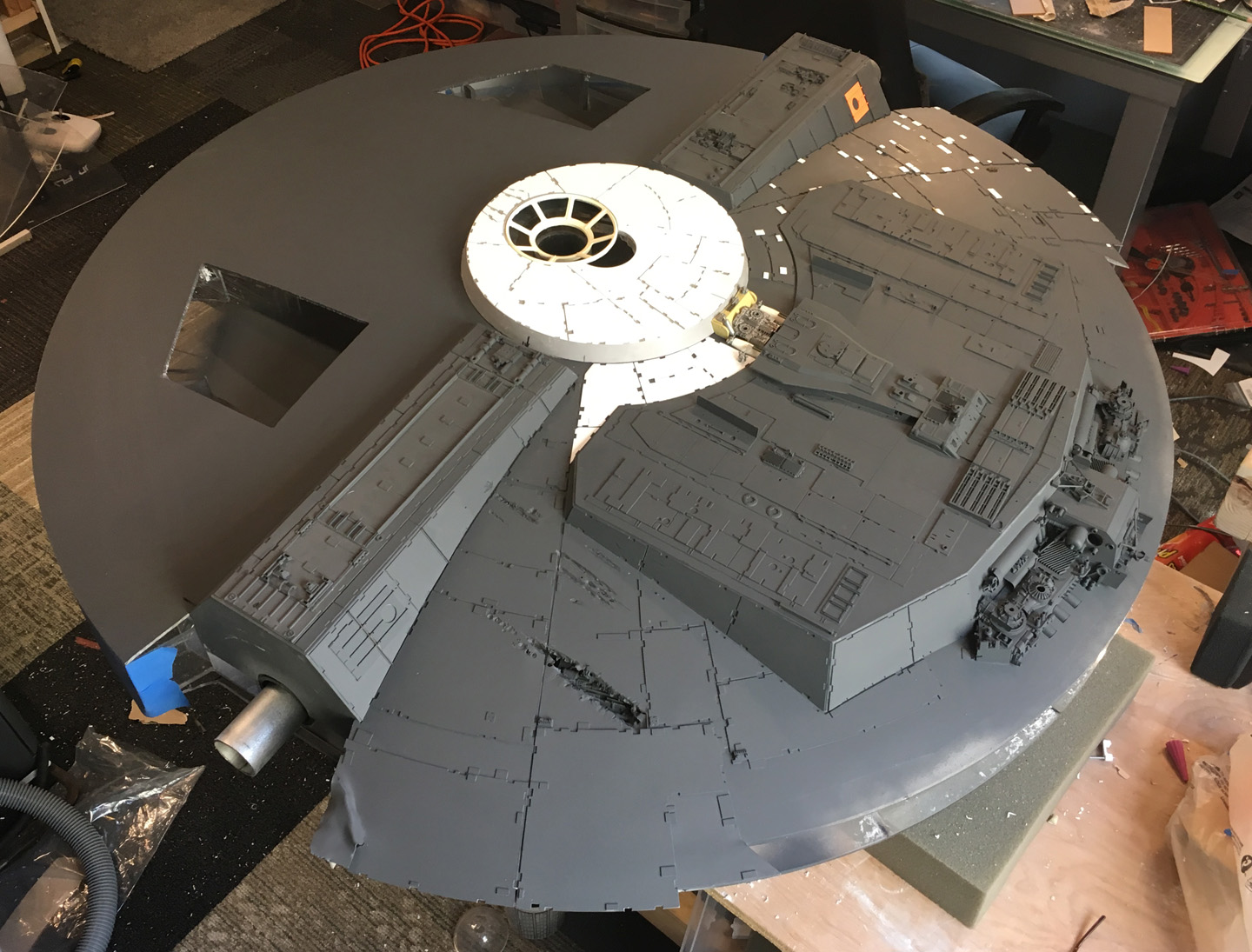

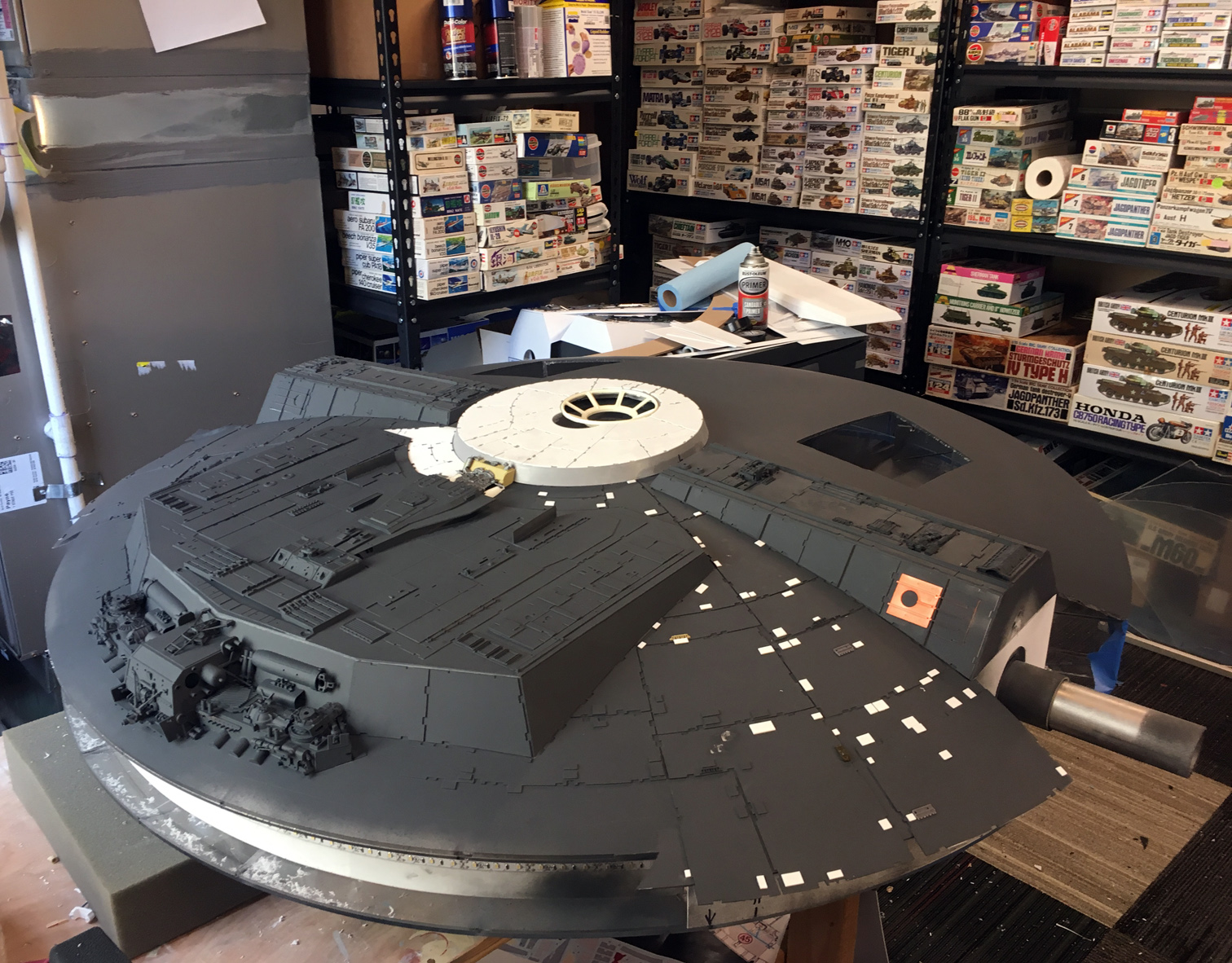

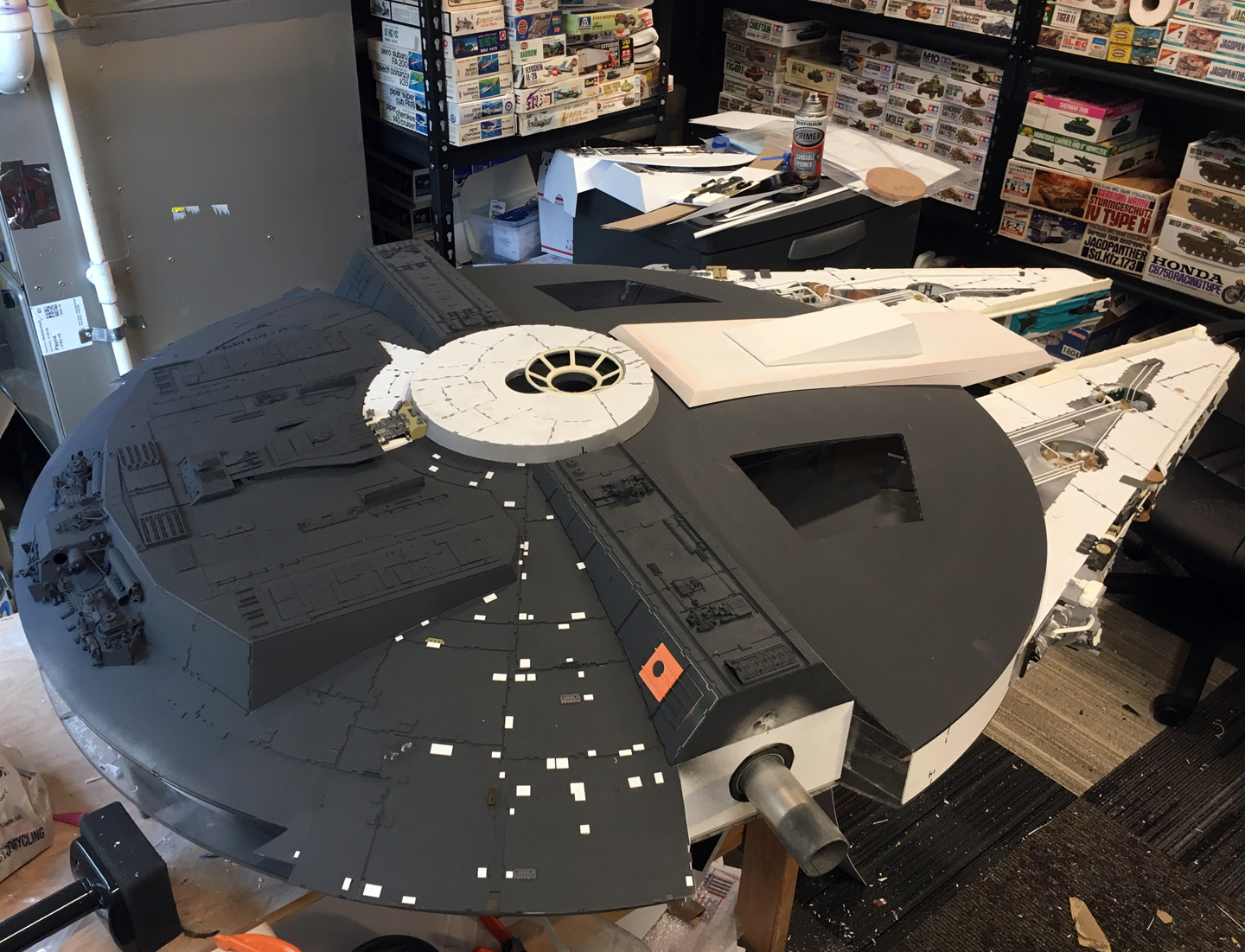

    Slapped some primer on the whole engine deck


    Attached Files:

  4. Lear60man

    Lear60man Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    Unbelieevable. At first I thought the side walls were a tad to tall, but nope. Once the plating is on, it closes the gap. Nerd porn like finding your first Playboy.

  5. Apophis

    Apophis Sr Member

    Trophy Points:
    1,036
    Looking great!

  6. 3DImpact

    3DImpact Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    662
    Very nice - progressing along beautifully!

    Dan

  7. EE89

    EE89 New Member

    Trophy Points:
    17
    Stunning!

    In my opinion, you should add the taper for the mounting pipe. :)

  8. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    THANKS much Fellas!! Yeah, it's also a bummer that the phone cam distorts it all a bit, looks really good in person, especiially those overhangs. They look even tighter and spot on in person!

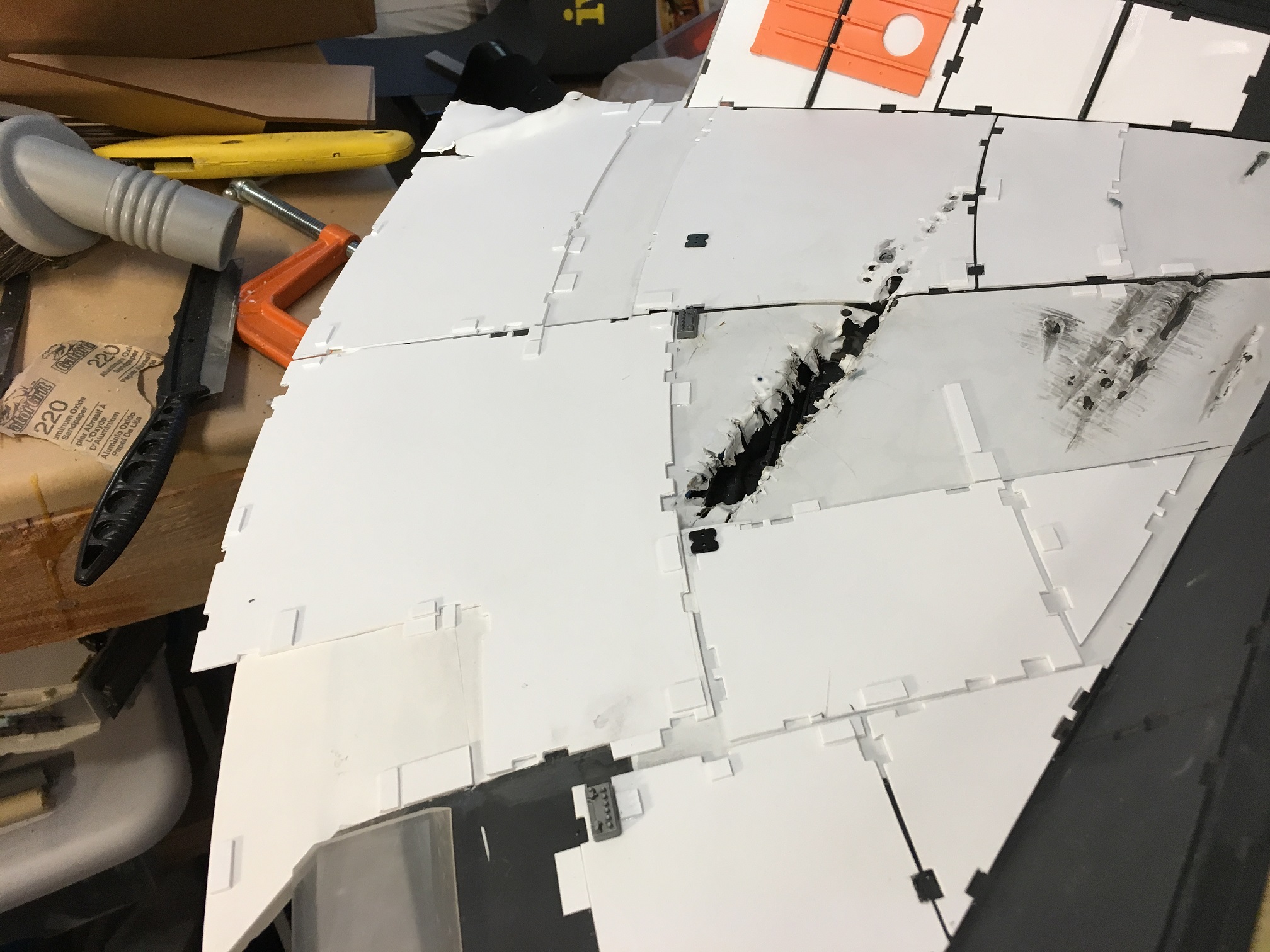

    So here's a bit more progress. Worked on the hull damage area on the front Starboard Side and some of the plating. I still have some minor tweaking to do in here, like widen up a couple of the holes a little bit and continue shaping to closely match the original filming miniature. It is so much fun melting and shaping the styrene though!

    Starting with the thin styrene sheet that gets melted into the holes I pre cut in the acrylic hull.


    Hull Plating cut/formed to match over the melted styrene holes.

    A few of the side views as the plating and overlaps start coming together.

    Side view before engine deck cover in place
    Engine deck on
    Side view with engine deck on with overhang.

  9. kokkari

    kokkari Sr Member

    Trophy Points:
    2,090
    Something that helps with the wide angle distortion of your camera is to step back with your phone/camera and zoom in a bit. 70mm focal length is a sweet spot and provides the least distortion.

    Makes my day every time I see one of your updates. You're living the dream for so many of us mate!

  10. dsp5500

    dsp5500 Well-Known Member

    Trophy Points:
    915
    Just caught up on the thread, Awesome!

  11. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Those holes are a thing of beauty!!

  12. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks Kokkari, dsp550 and joberg!!

    Ok, making good progress here on the Engine Deck, it's pretty much done. First set of pics are the build up of the deck. This took a LOT of time pulling all the right parts, but I feel pretty good that this is about 99% accurate to the original as it was back in 1976.

    SPECIAL THANKS for the ID help and overall support/help from Eagle1, Maruska, VFXSup67, GoldLeader and Tsophika!! Could not have got all these perfect details without you guys!!

    Starting to get pretty thin on my parts trees though, but thankfully, almost all of this is original styrene kit parts! Has been a goal to use as much as possible on this thing.

    So, here we go:

    Initial parts going down


    AND the final grouping/assembly of all the parts on the Engine Deck.

    NOTE - the BF-109 struts on the engine shovels are not glued down yet, so they are not 'straight'. But, Speaking of straight, I deliberately made some of the shovels at the end crooked to try and match the crookedness of the original.
    The KOOLSHADE in the one vent is a test, all 6 will have ORIGINAL classic KoolShade in them. Still have to get the little styrene chips installed on the vent rings too.


    And a couple more profiles - can't wait to put together the lower engine shovel plate, and get that nice little gap in there completed!

    And an underside shot...


    Have a REALLY COOL setup for the FANs coming that will go inside the 6 discs, will mimic the original with a cool little twist!


    Attached Files:

    Last edited: Mar 18, 2018
    Mike J., Sparky70, bigpetr and 13 others like this.
  13. DARKSIDE72

    DARKSIDE72 Sr Member

    Trophy Points:
    2,105
    Amazing to watch this come to fruition!!!:eek

  14. Lee S

    Lee S Sr Member

    Trophy Points:
    1,910
    Crazy!! Totally BAT S#!T CRAZY! Can't wait to see more :-D

  15. joewhite

    joewhite Sr Member

    Trophy Points:
    1,046
    So this is where all the Sealabs went. LOL! I wouldn't be brave enough to do that! Looks awesome!

    Joe

    Last edited: Mar 19, 2018
  16. Treadwell

    Treadwell Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,325
    So beautiful. There's a tear in me eye...

  17. bwize

    bwize Well-Known Member

    Trophy Points:
    815
    This is so awesome to watch come together. Such a beautiful piece of custom work. Absolutely breath taking!

  18. Treadwell

    Treadwell Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,325
    Last edited: Mar 19, 2018
  19. stevielewis

    stevielewis Well-Known Member

    Trophy Points:
    586
    Totally fantastic! It's amazing watching this build come together!

  20. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Incredible, awesome detail, can't wait to see it all painted up.

  21. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    THANKS a TON fellas!!! Much appreciated as always!! It's definitely a big, challenging build, but it's also coming together very nicely with minor adjustments along the way.

    Treadwell, it's actually the MPC 1/24 Hurricane underside wing cut up. (But the Shiden does offer up a few parts on the under side engine deck and in one of the front mandible pits.)

    Joewhite, those Sealab parts fall under the 1% non-kit parts actually! The Sealab parts are all the wonderful casts from Salzo, he just did a little extra on those and 'tinted' them in Sealab Orange!!! SO, they make you feel like you're putting down parts of a $600 kit!

    LeeS - I feel that way a lot of times when working on this monster!

    Darkside, always appreciate it with the amazing things you've done!!

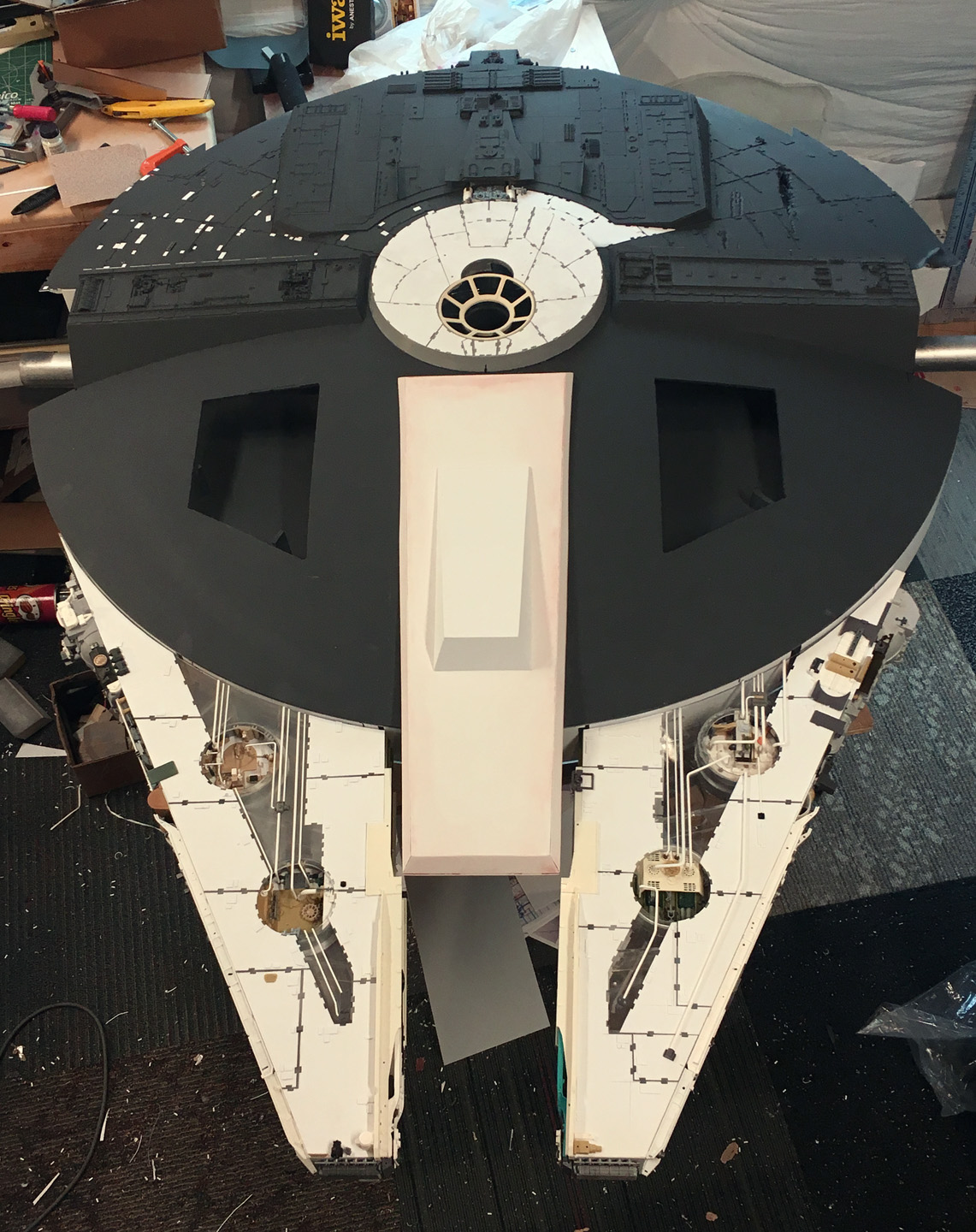

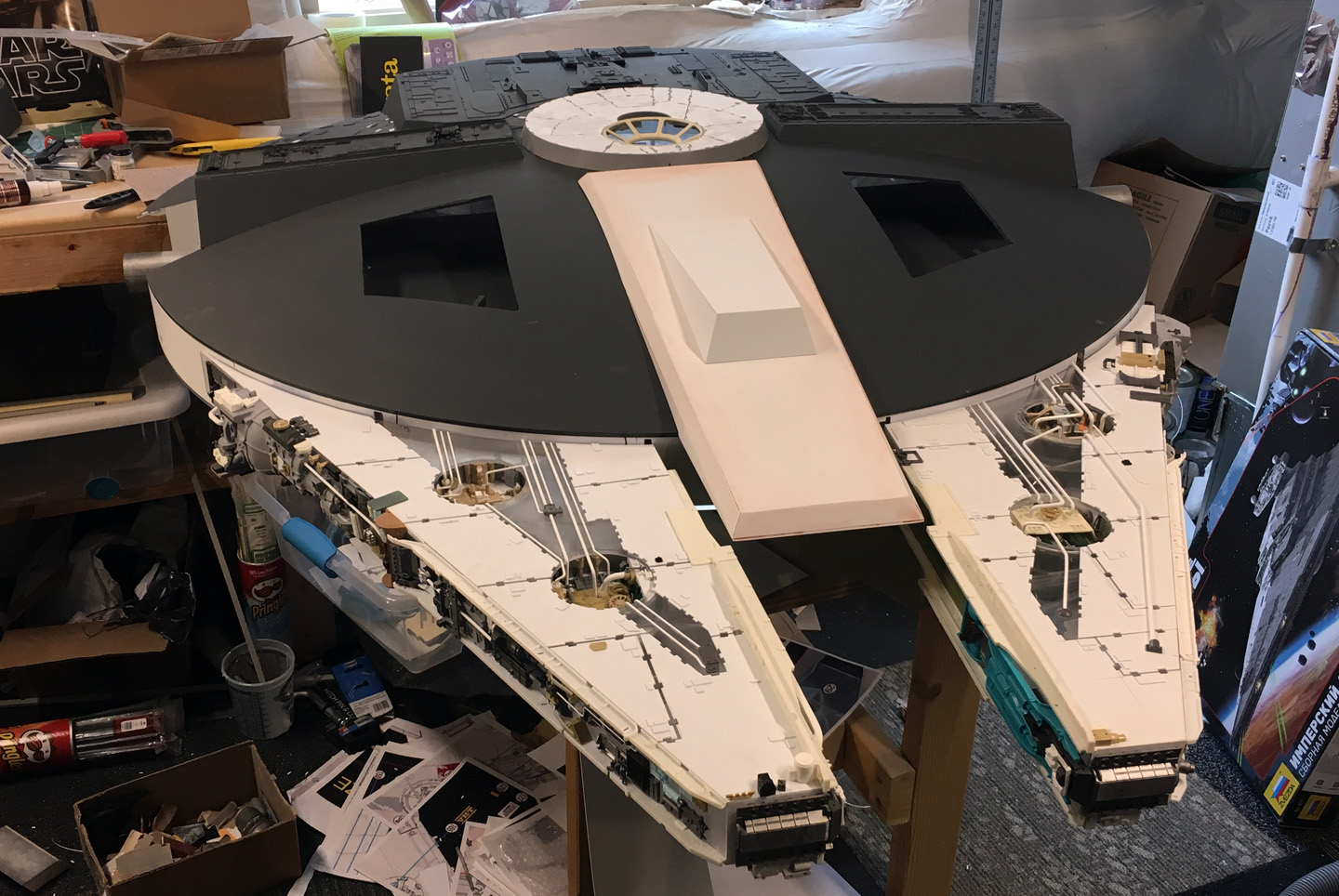

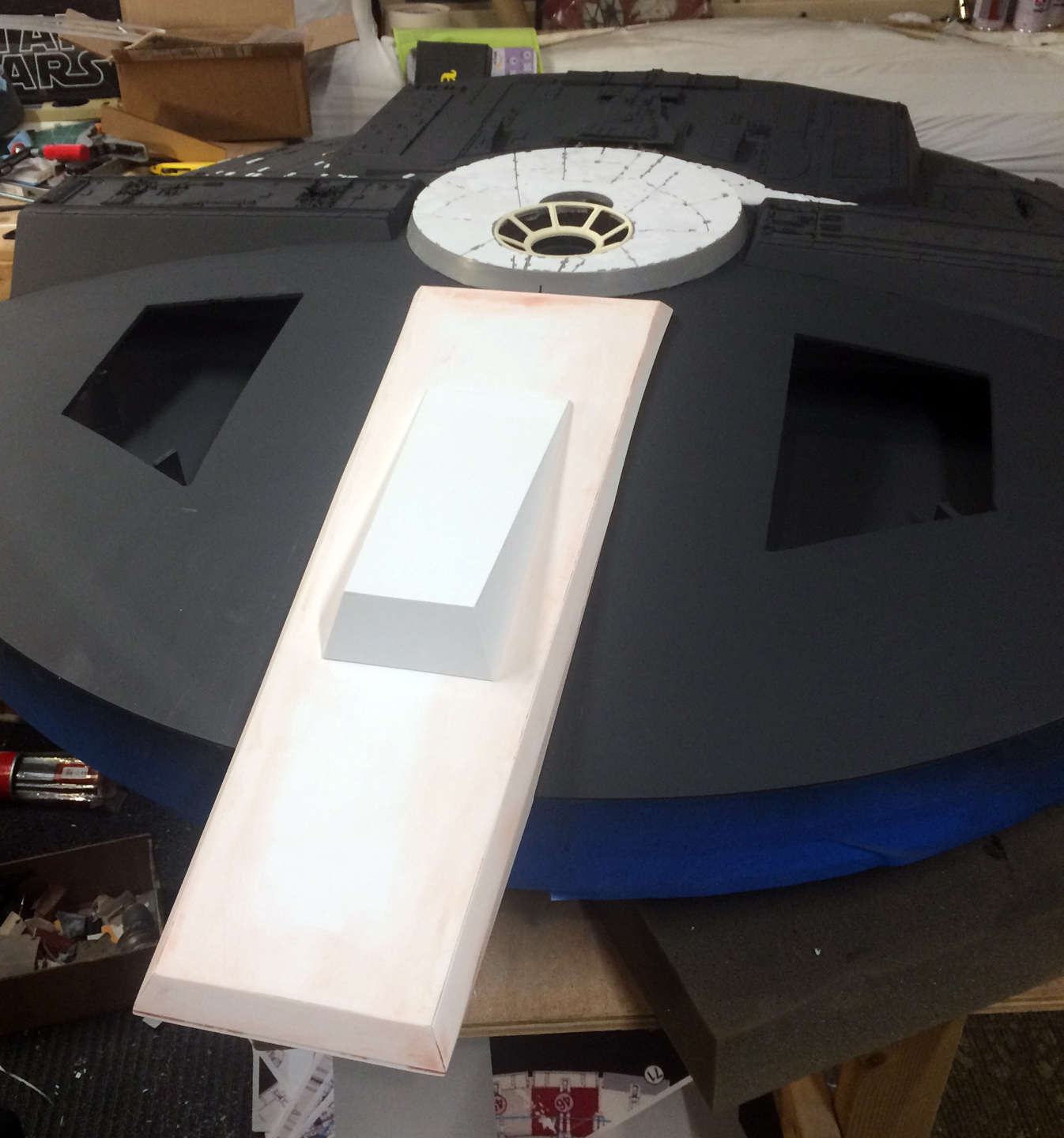

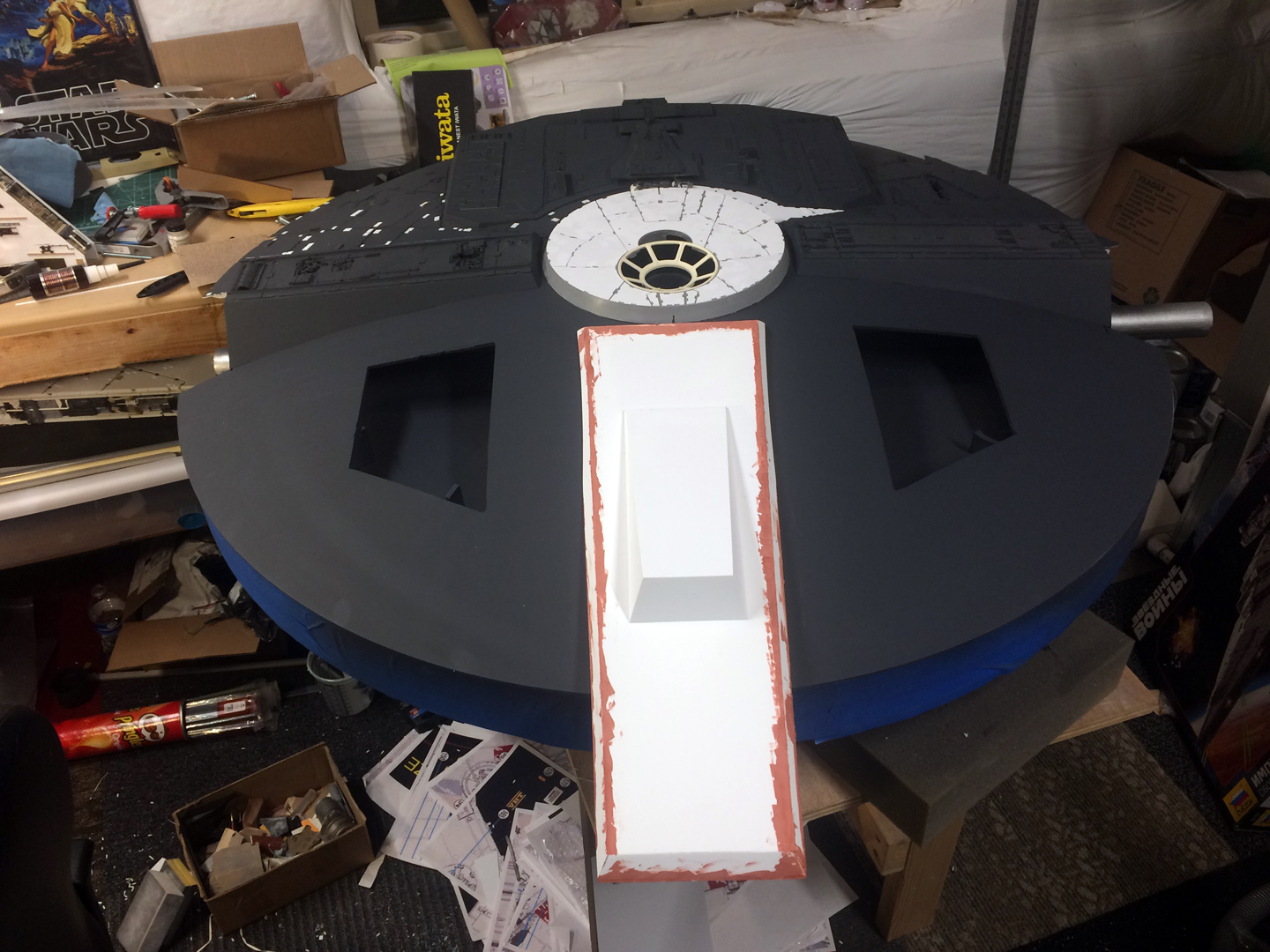

    Tonight the top Jawbox got trimmed down and primered. I had not yet finished the 'height' of the side walls, and more material needed to come off tapering to the back, I just needed to get the plating down to find the proper spot it will go down. So what looked like a slight angle of the jawbox at the front, when looking at the side, it's now pretty parallel as it is on the original. Pics to follow in a few days.

    Thanks again for the support!

    satyatriabadi and Treadwell like this.
  22. Captain Han Solo

    Captain Han Solo Sr Member

    Trophy Points:
    2,155
    AMAZING WORK sir!! Beautiful amazing work. Again, beautiful!

  23. scottjua

    scottjua Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,565
    sweet geezus this is awesome

  24. joewhite

    joewhite Sr Member

    Trophy Points:
    1,046
    I figured this may be the case, lol! Yeah, they look amazing! I have a kit but don't think I'll ever cut it up.....I'll just make copies of parts. Thanks for sharing your build with us.

    Joe

  25. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Man, that build is giving me goose bumps every time I see the next update:cool...don't know how much more I can take:D

  26. superjedi

    superjedi Sr Member

    Trophy Points:
    1,730
    Amazing! I wish I had space to display something like this, but I can enjoy it vicariously.

    E3kehoe likes this.
  27. eethan

    eethan Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,062
    This is the very first time I see that world out of a Tool song :lol :thumbsup

    that Falcon is so impressive, amazing job t2sides, I'm really thrilled each time I see an update :thumbsup

  28. superjedi

    superjedi Sr Member

    Trophy Points:
    1,730
    Oh, I'm sure you must have seen that word at least 46 and 2 times before. ;)

    eethan likes this.
  29. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Cheers Fellas!! Thanks.

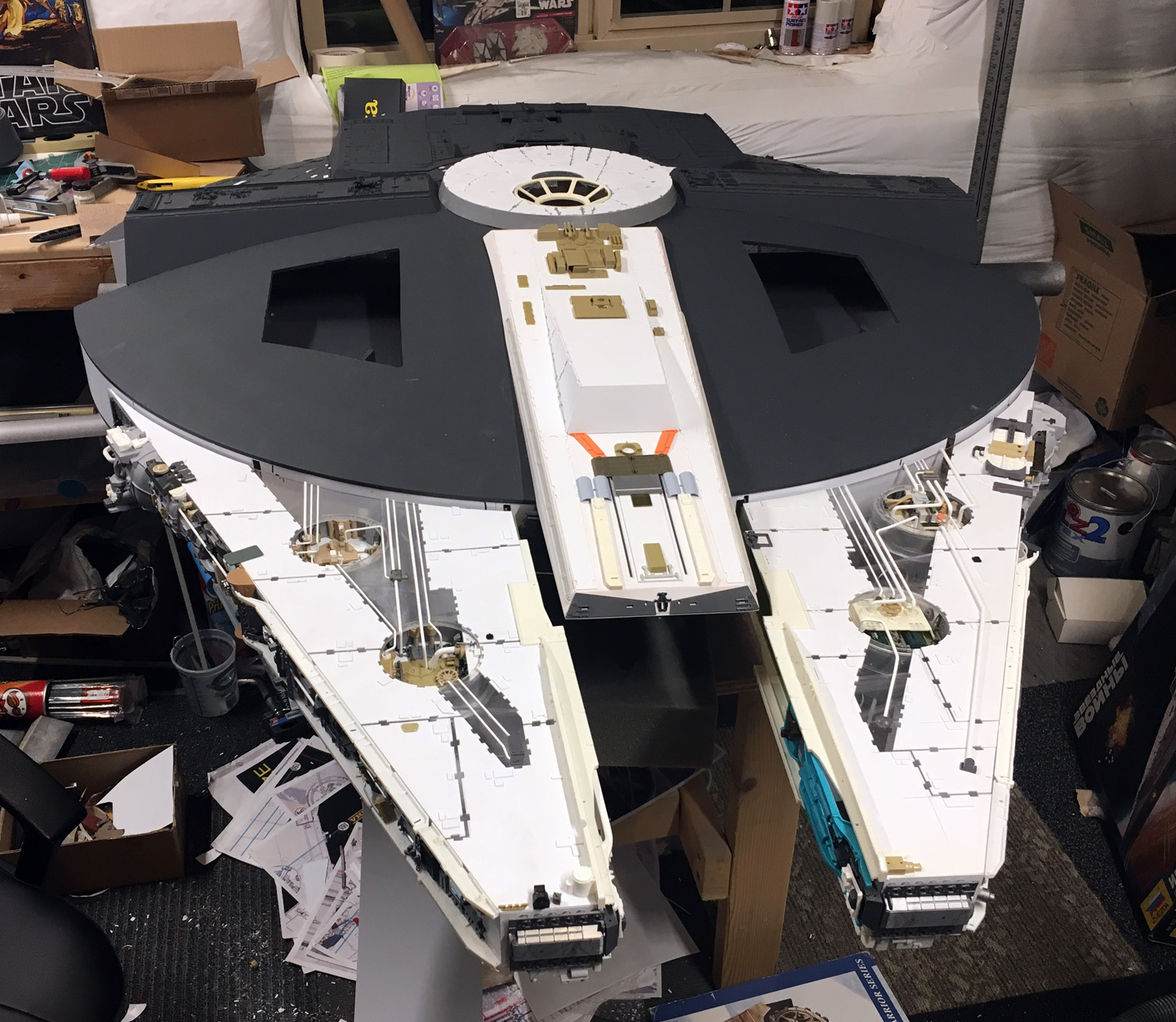

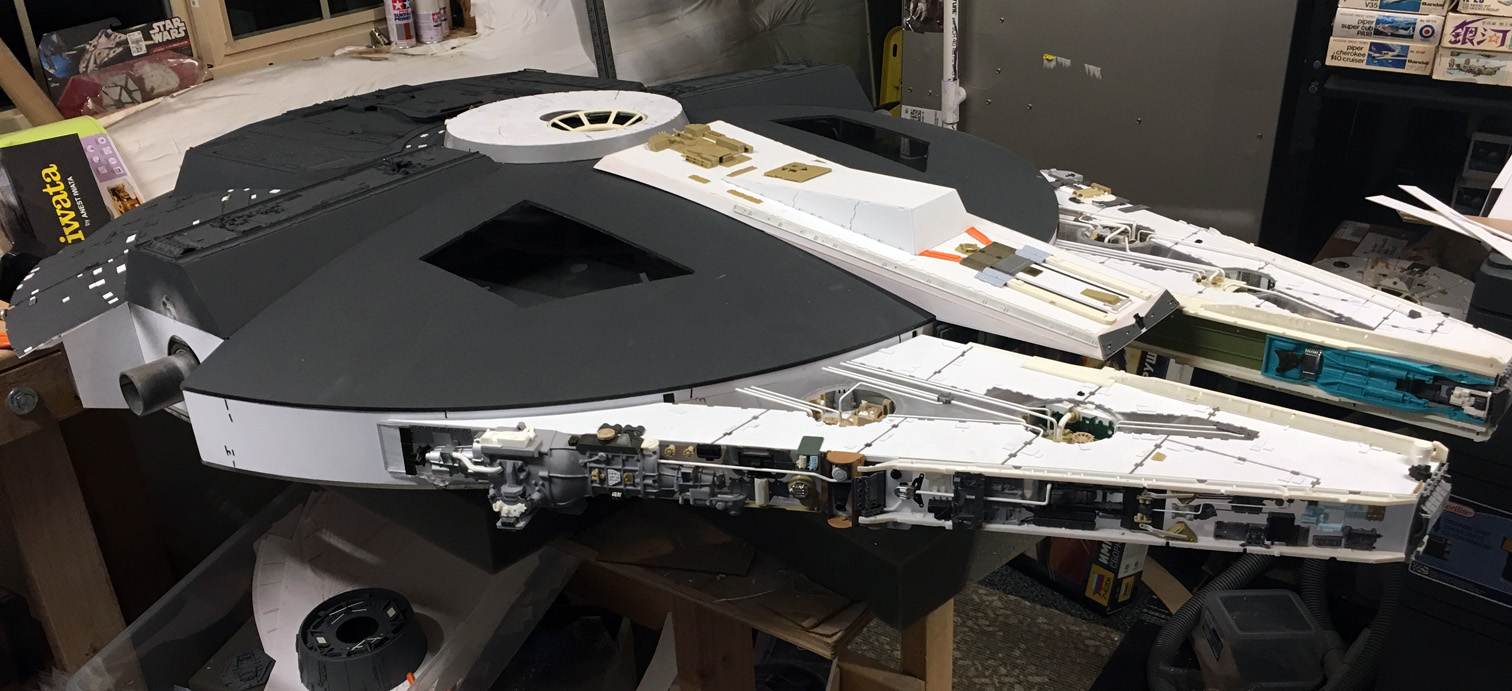

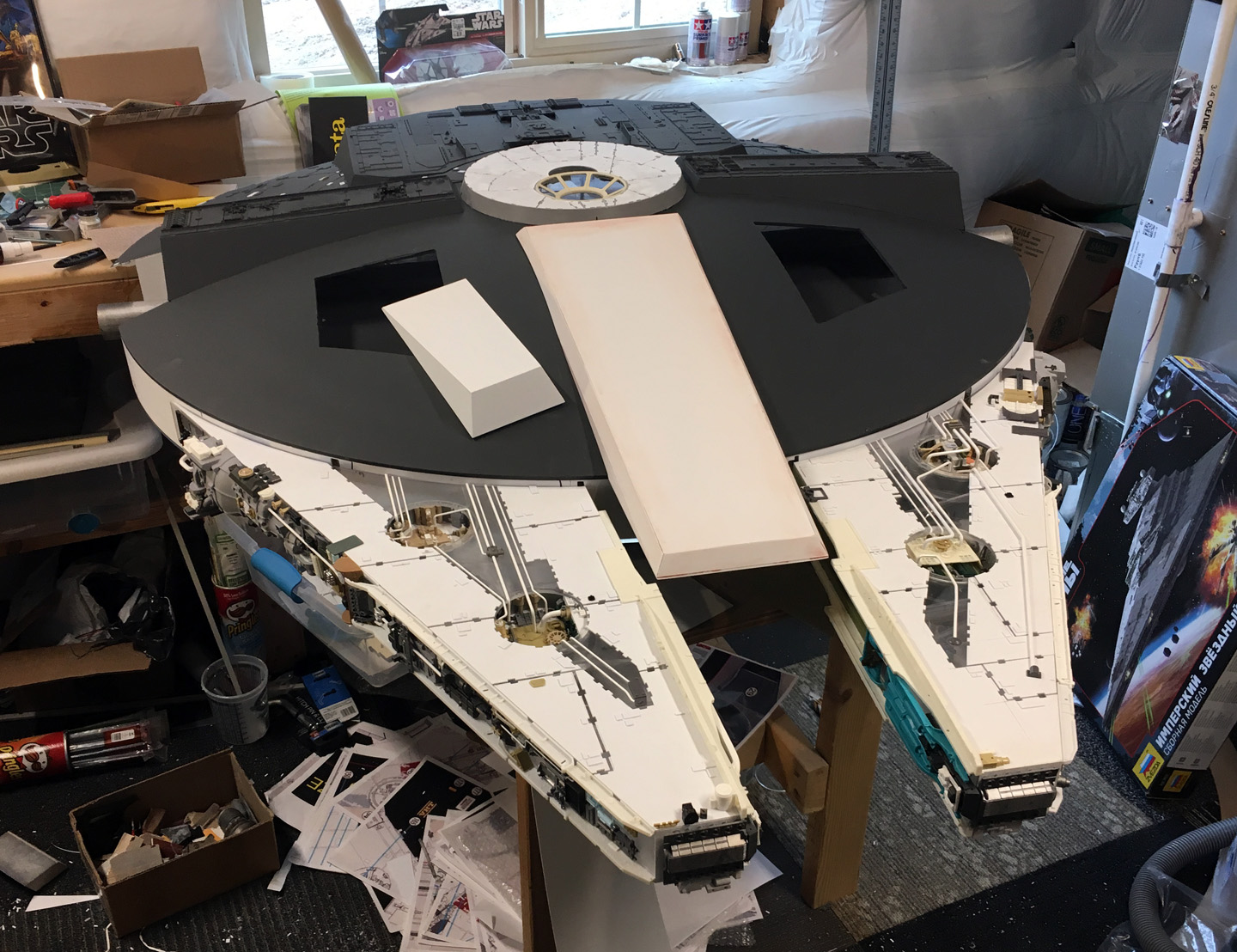

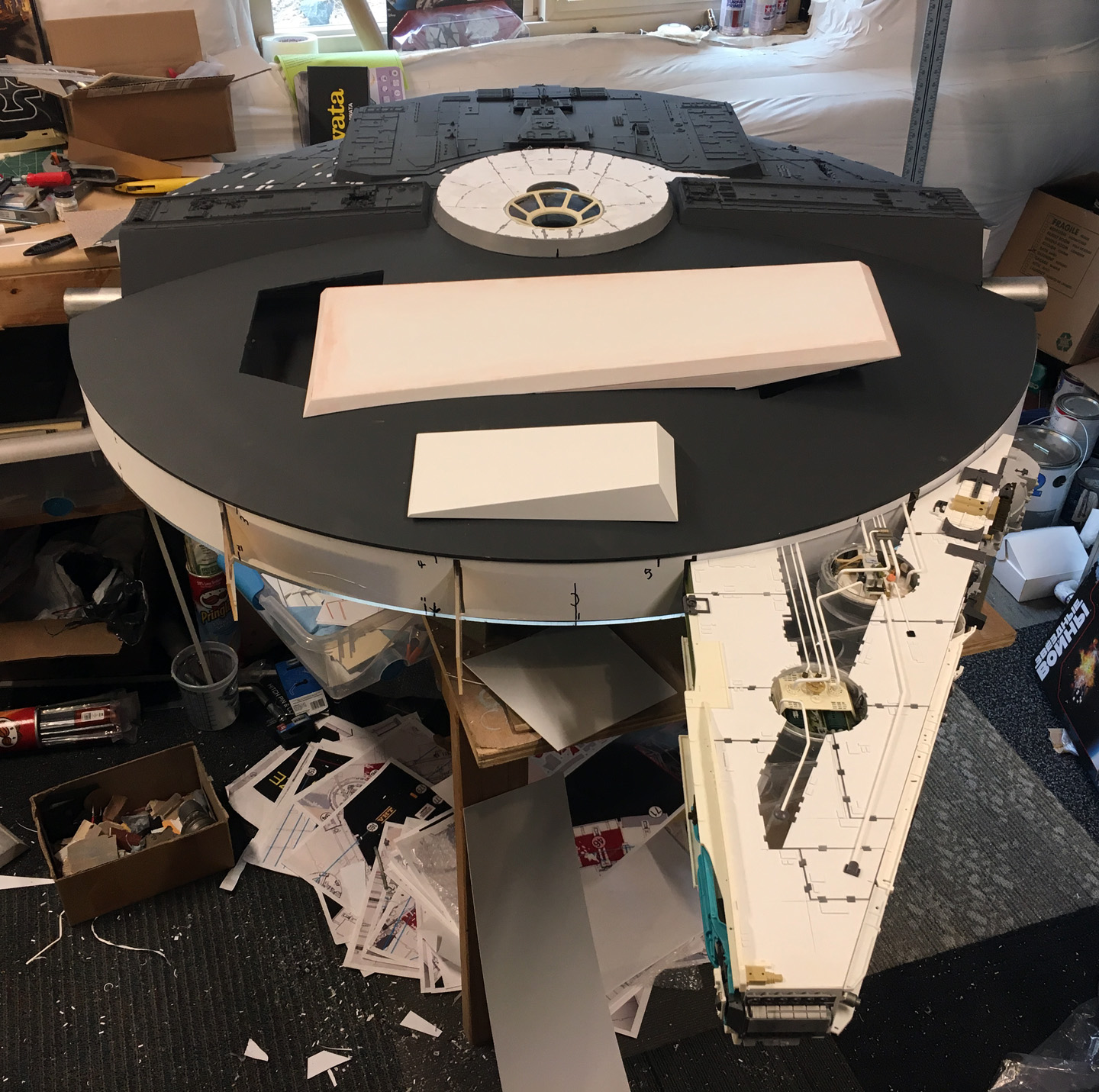

    Quick mid week update - primered the jawbox, and finished the plating for the front/port quarter. Still have some styrene chips to add, but good to go. I'm most happy with the way the big Mclaren Cockpit tub/seat and the big Panther box came out into the plating. Was always worried about this area coming together, and it all fit seamlessly!

    Added the piping, angles matched up pretty well.

    Mclaren and Panther part nicely fit!

    peza, Digital Mayhem, robn1 and 8 others like this.
  30. eagle1

    eagle1 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,195
    Well... you already know how much this build is stunning us Sean, simply incredible your progress & skill!. So happy to be sharing this build journey with you, ughhhhh...what can I say that hasn't been said before haha.

  31. Scott Graham

    Scott Graham Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,635
    I wish I could zip through builds with as much confidence that you’re showing. A truly awesome build!

  32. turambar

    turambar New Member

    Trophy Points:
    3
    I would like to be the 185 th member you give you the feedback of an amazing work. I wish I was beware of it earlier.
    Nearly finished with my convertion of a FineMolds ESB-style Falcon into a 5-footer (as much as I am able to) all those pictures would have been a fantastic help.
    But they are still . . .

  33. Sparky70

    Sparky70 Jr Member

    Trophy Points:
    92
    Superb build! I've got to ask, I'm also building a 5' although I've got 99.99% of the engine deck parts, I noticed you've managed to find a part that's been a mystery to me for what seems like forever, the part that sits in front of the Fokker gun, the cylindrical piece with the bits sticking out on each side. A pointer towards where to find this would be a massive help, understand if you can't though.
    All the best with your awesome Falcon :thumbsup

    Rich

  34. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    You guys are awesome!! Thanks much for the kind comments!!

    So got the acrylic cockpit tube on - the LAST big milestone of construction!! It went together quite nicely and looks just about right. After dry fitting/sanding, I then filled the remaining gap with some bondo. Then it'll get some primer, and the plating. She's starting to look like a complete Falcon! Very excited to get this area done, and keep moving on. Sparky70, I'll get back to ya!

    Clear Tube dry fit test


    Sanded down and ready to be bonded.

    Bonded down with some Bondo for the gaps.

    rbeach84, Kyuzo, peza and 15 others like this.
  35. eagle1

    eagle1 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,195
    Whoa!!...there it is...the cockpit & tunnel, in place & yep...looking most awesome Sean!.
    You got that fitting so we'll, no easy feat & one I'm dreading haha. Can't wait to see you plate over the Messer pit & complete that quarter, again you get it done so fast & clean!.

  36. kamandi

    kamandi Active Member RPF PREMIUM MEMBER

    Trophy Points:
    461
    That is a joy to look at

  37. stevielewis

    stevielewis Well-Known Member

    Trophy Points:
    586
    That is a work of beauty!

  38. moffeaton

    moffeaton Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,860
    You frosted those parts fast!! Looks gorgeous!

  39. joberg

    joberg Master Member

    Trophy Points:
    2,900
    That tube/cockpit is already looking good. Eager to see the next update!!

  40. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks much guys!!! Appreciate it!

    Just a very minor update, didn't get any build time in the last week, but these WONDERFULLY detailed 'fans' arrived this weekend. These are the ingenious creation of Maruska, who custom created them to meet the limited depth of my deck (I chose not to cut out the holes), and did some foreshortening to make the fans appear to have the correct depth. One is customized with the very funny 'fan' comment, the other 5 are the same amazing text! Thank You Maruska! What an amazing addition to this build!! (y)cheers


  41. Vidar 710

    Vidar 710 Active Member

    Trophy Points:
    211
    Looking great Sean! I read that you used some Bondo above. I’d like to suggest a product I have become ‘very’ fond of in my Large Excelsior build. You can see it in the reshaping of the bows on the Warp nacelles and Secondary hull. Now I use it in normal plastic modeling circumstances as well.
    Apoxie Sculpt... it is a two part epoxy putty product or paste product that is also considered an adhesive. It will stick to anything without attacking it like a Bondo or standard putty product would. You can use water or a thinning product they have on your hands to form it and Sculpt it into seams and large gaps with ‘NO’ shrinkage. You can smooth it in to the point that you may leave yourself with little to no sanding.

    btw, if you do end up needing to sand the Sculpt - it sands like a dream. The paste?... That stuff sets like stone and is a real bi-yatch to sand down.

    I LOVE this stuff!

    Tracy

    maruska likes this.
  42. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Love the fans (thank you Maruska:cool). A great add-on for sure!!

  43. 3DImpact

    3DImpact Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    662
    Wow - look at that deck! LOVE all the detail - this is really looking amazing! The cockpit tube really does make the difference...

    Dan

  44. Jaitea

    Jaitea Master Member

    Trophy Points:
    2,690
    .....Such a beautiful build

    J

  45. DRRNCharles

    DRRNCharles New Member

    Trophy Points:
    2
    Beauty Beast!

  46. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks again fellas!
    Tracy - Yeah, been using Apoxie Sculpt for years! You're right, it's a great product and does equally as good as Bondo. Depending on the project, I'll bounce between the products.

    -Sean

  47. asalaw

    asalaw Sr Member

    Trophy Points:
    1,681
    Just caught up with this thread. What an amazing build!!

  48. bwize

    bwize Well-Known Member

    Trophy Points:
    815
    This is a once in a life time build. I have discovered so many details about the 5 footer I have never noticed before and have implemented them on my Deago falcon build. Thanks so much for undertaking such an epic project and sharing the build process.

  49. t2sides

    t2sides Sr Member

    Trophy Points:
    1,320
    Thanks again for the kind comments!!!
    Going on Hiatus for a few weeks here, so one more minor update. Got the Cockpit tube primed, and added the plating between the docking arm and the cockpit tube, and added the plating to the docking ring arm. Started on the plating on the other side towards the last 'pit'. So great to have things line up so well, a testament to the amazing blueprints Maruska and VFXSup64 put together!!
    I also just mocked up one of the side resin inserts behind the cockpit in a few pics, so not the actual section that will go in there. Thanks again for looking!
    Sean

    Mocked up sidewall behind cockpit, and plating overhang looking about right.


    Xolin, stonky, stevielewis and 5 others like this.
  50. DARKSIDE72

    DARKSIDE72 Sr Member

    Trophy Points:
    2,105
    You know there are no words for sick, BAD * accomplishment Sean...I hope your getting some work out of Ryan!!!
