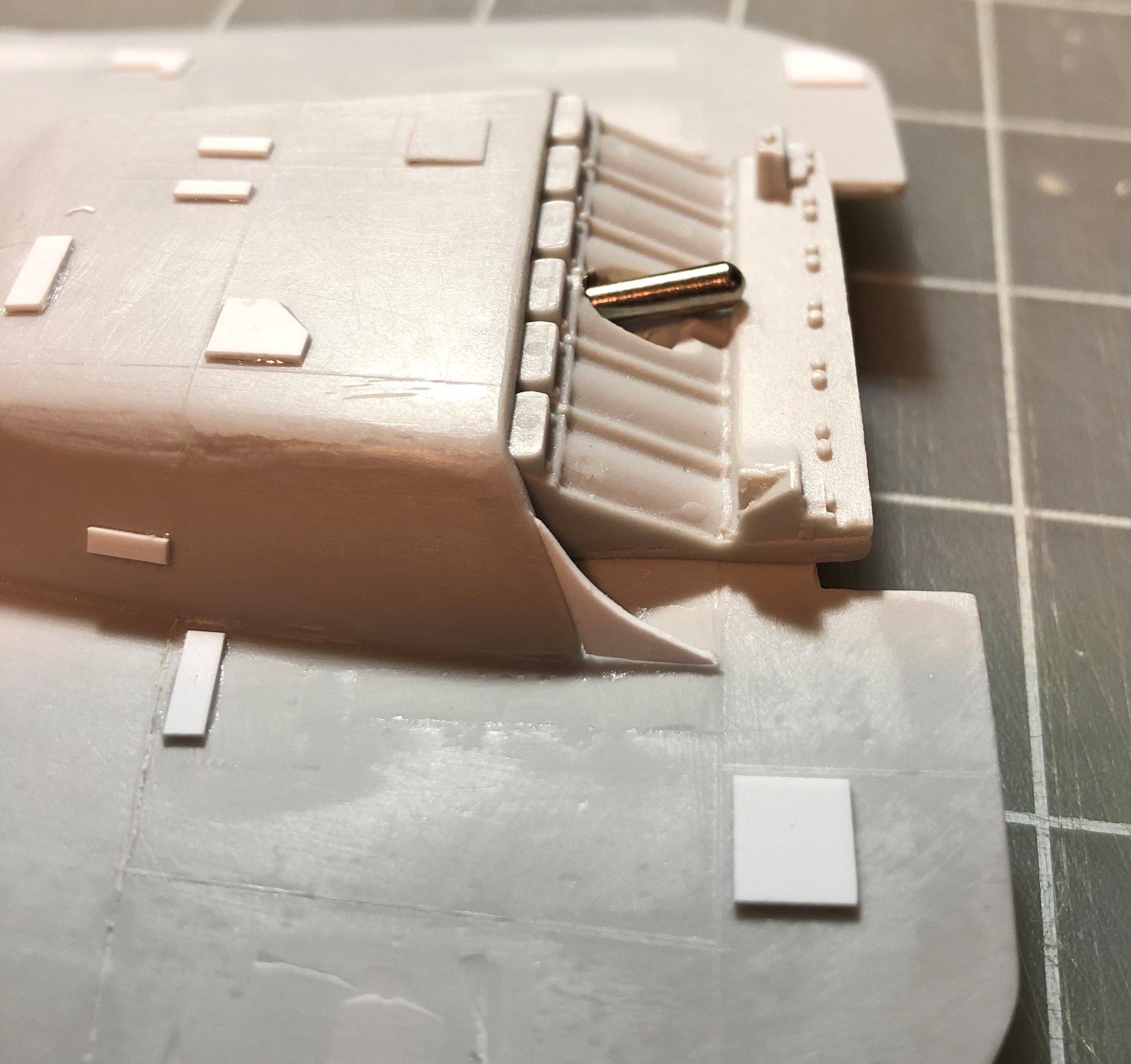

I took a break from the Y-Wing to take advantage of the good weather to do some painting on another project, but I'm back at it again this weekend.

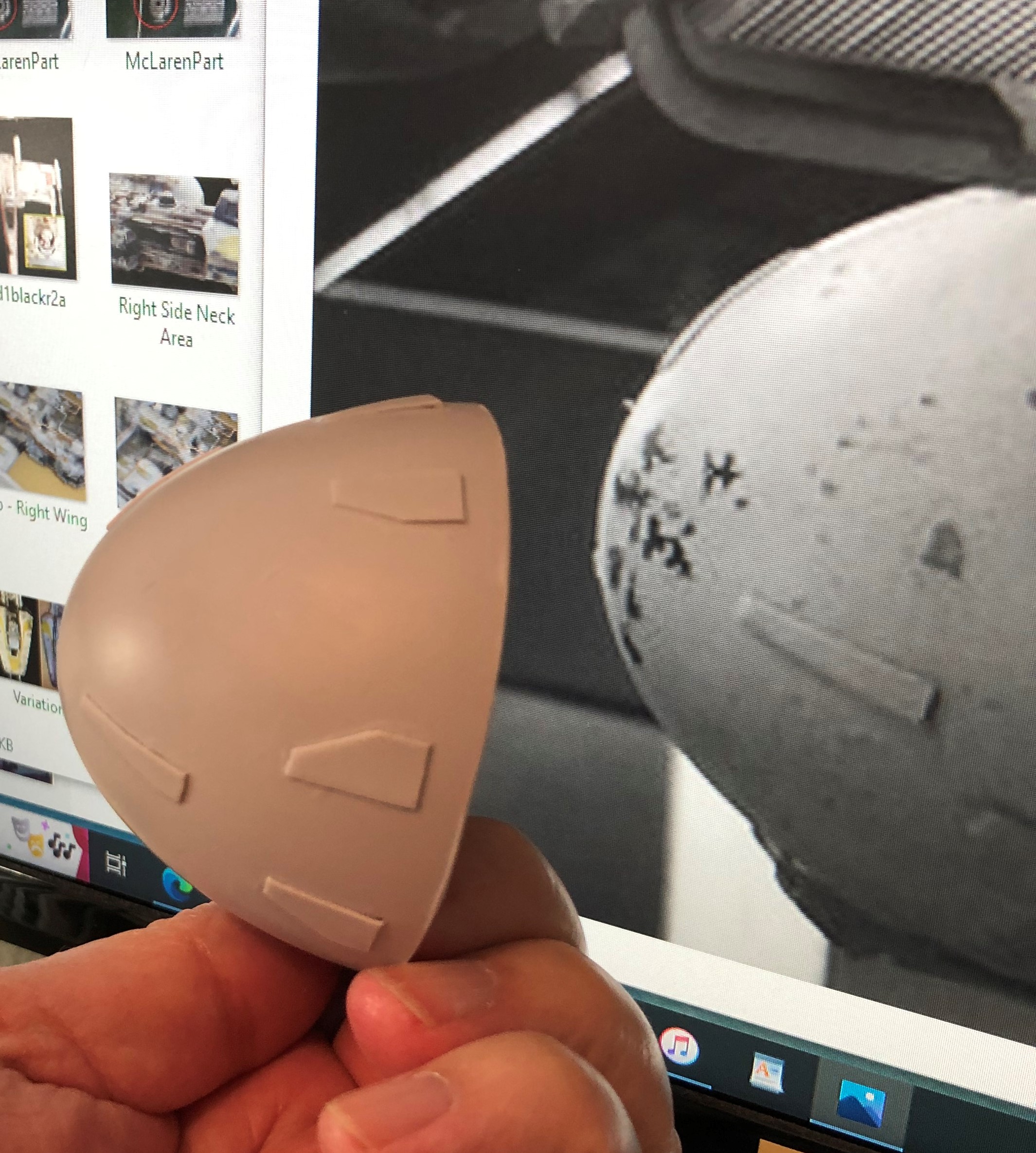

I was surprised to discover that after all that work completed last time, there were still panels that needed to be removed, including all of the patch panels on the canopy. The good news about the canopy is that only one panel needed to be added near the front.

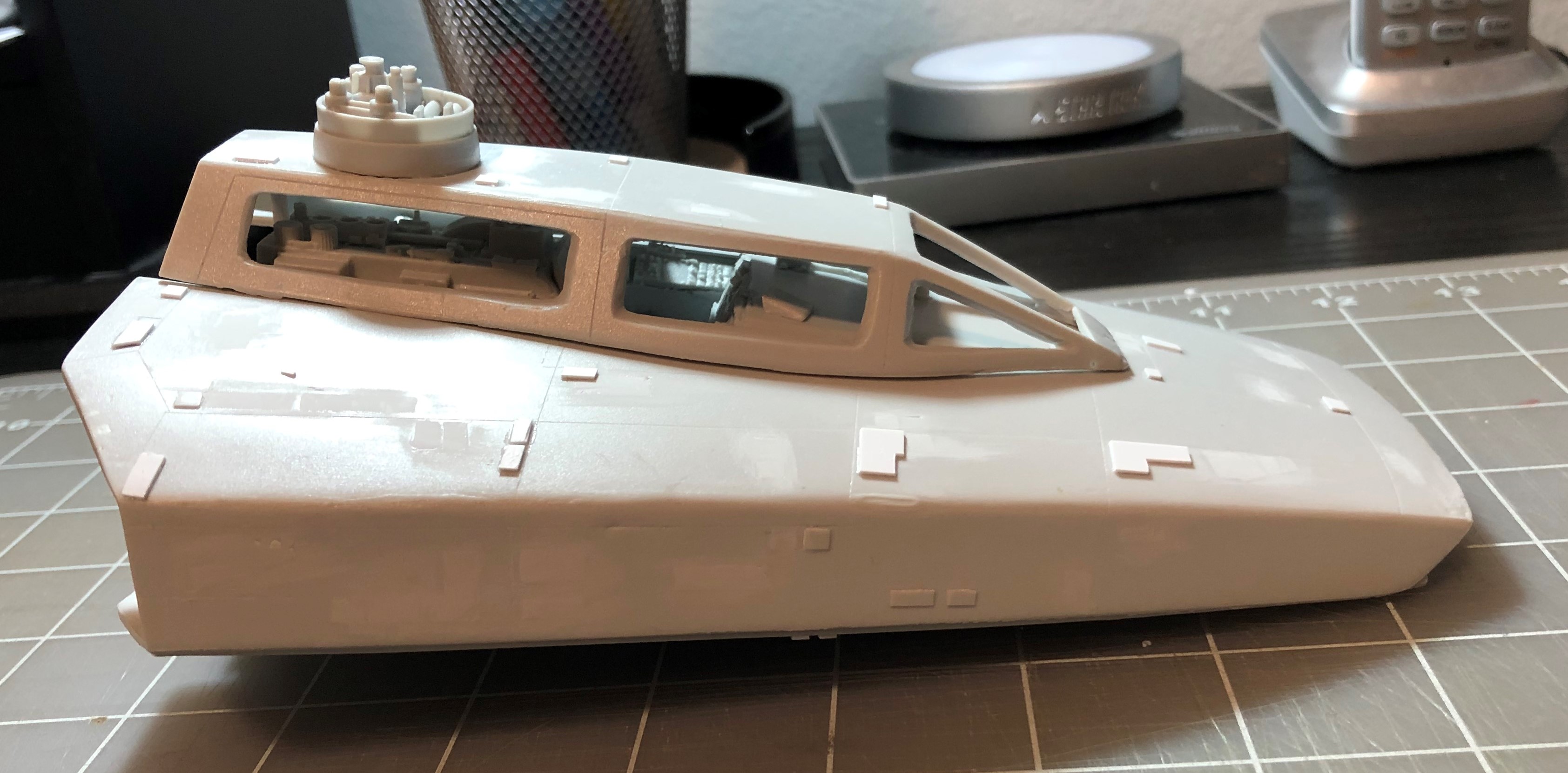

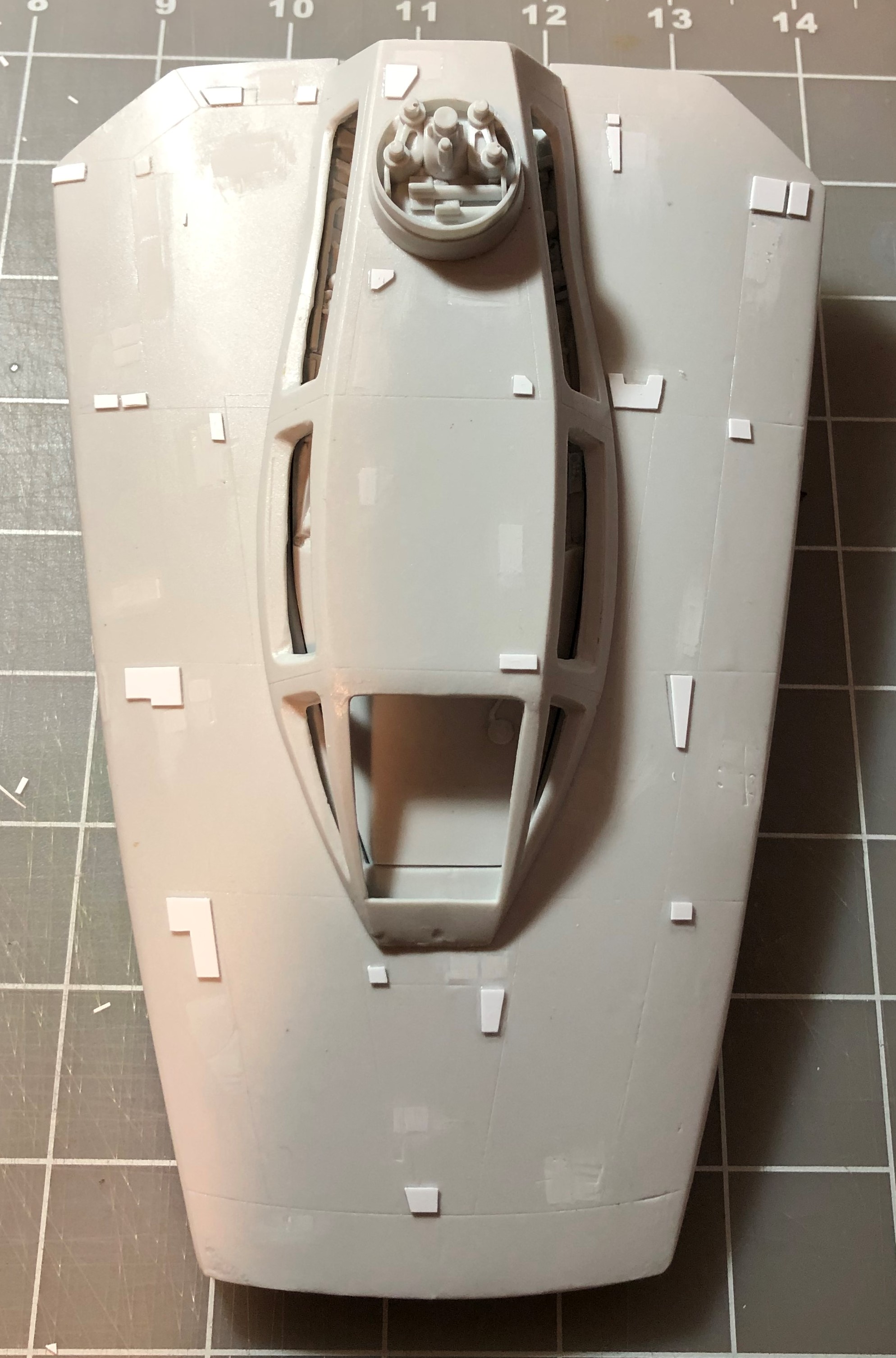

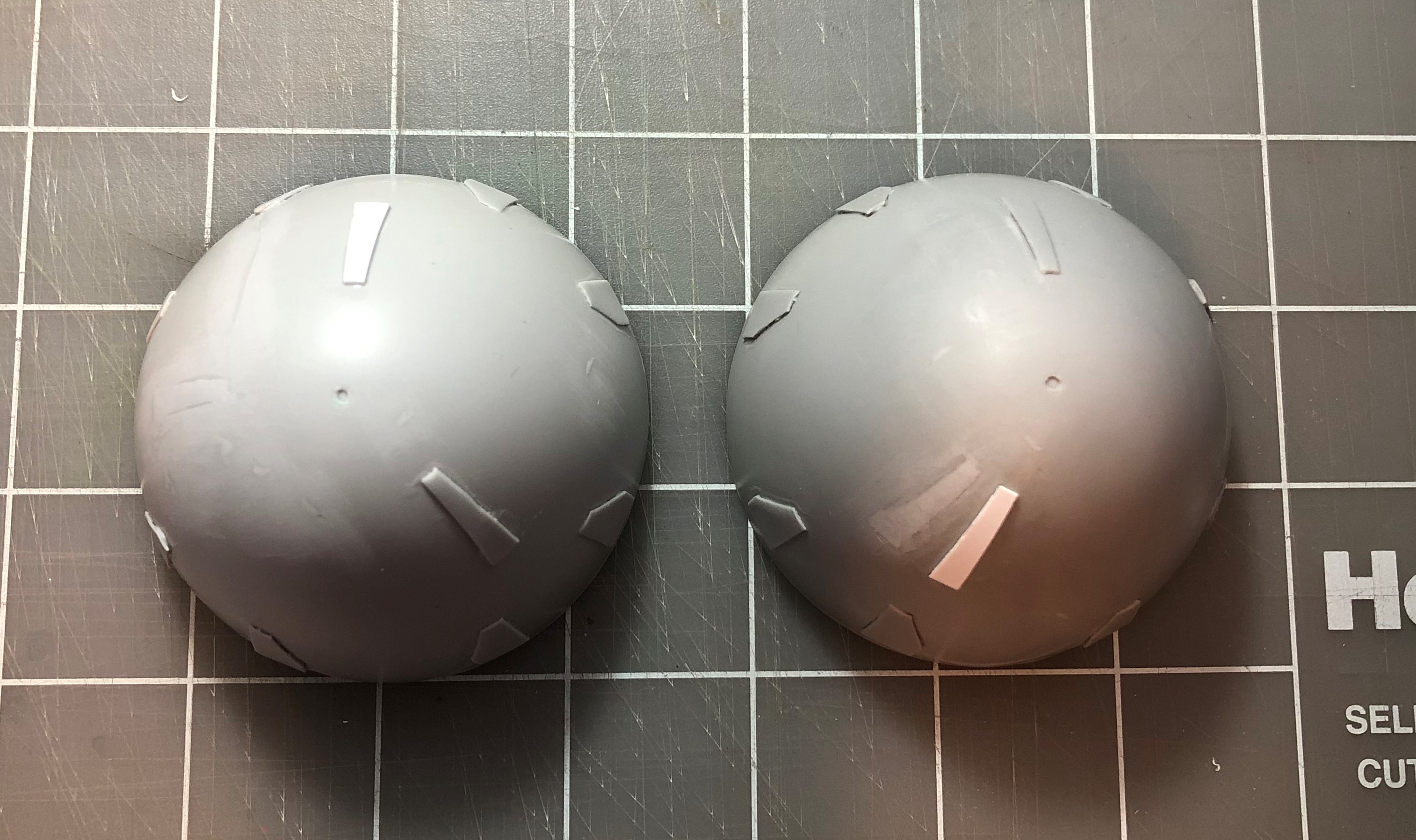

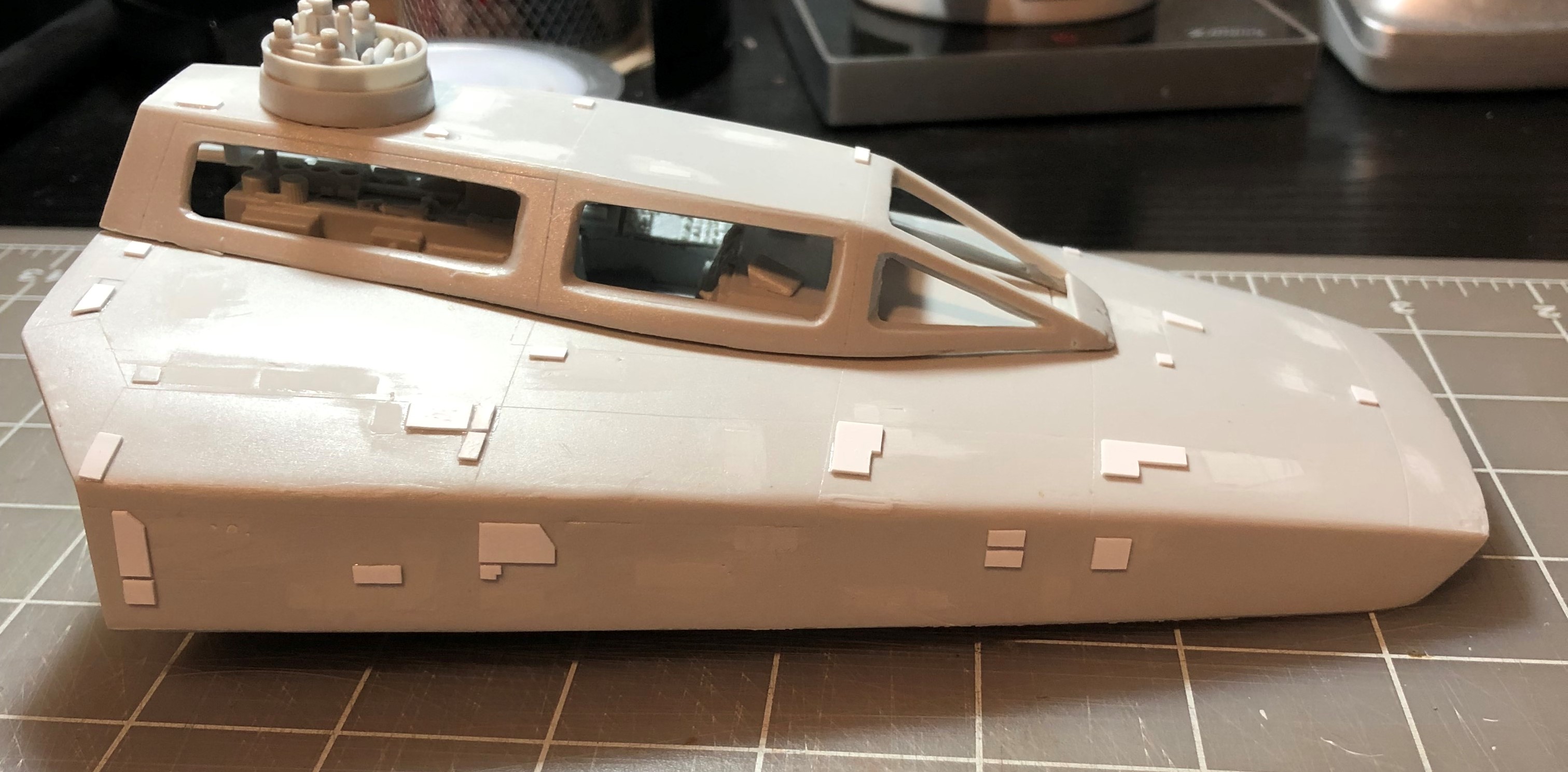

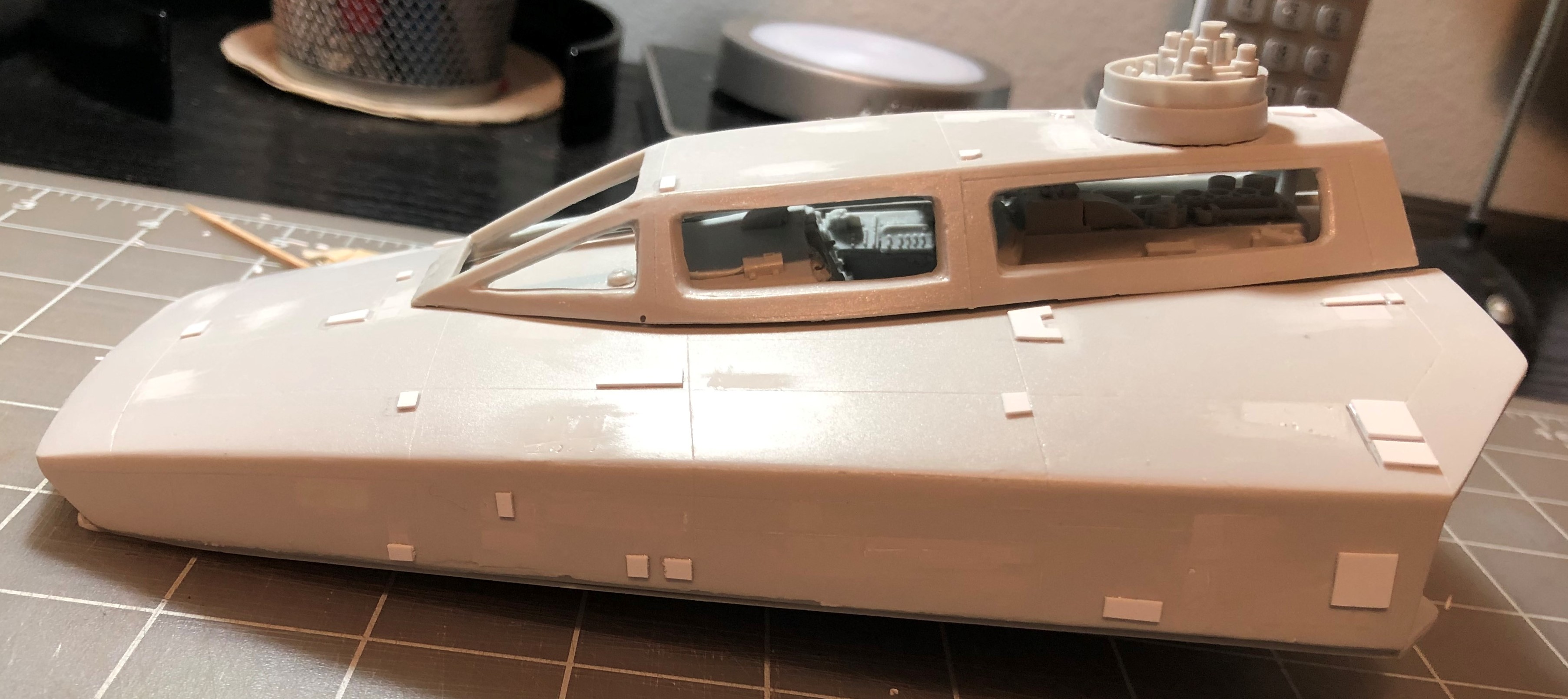

However, after adding all of the patch panels to the top of the forward section, I was surprised to discover just how many of them there were.

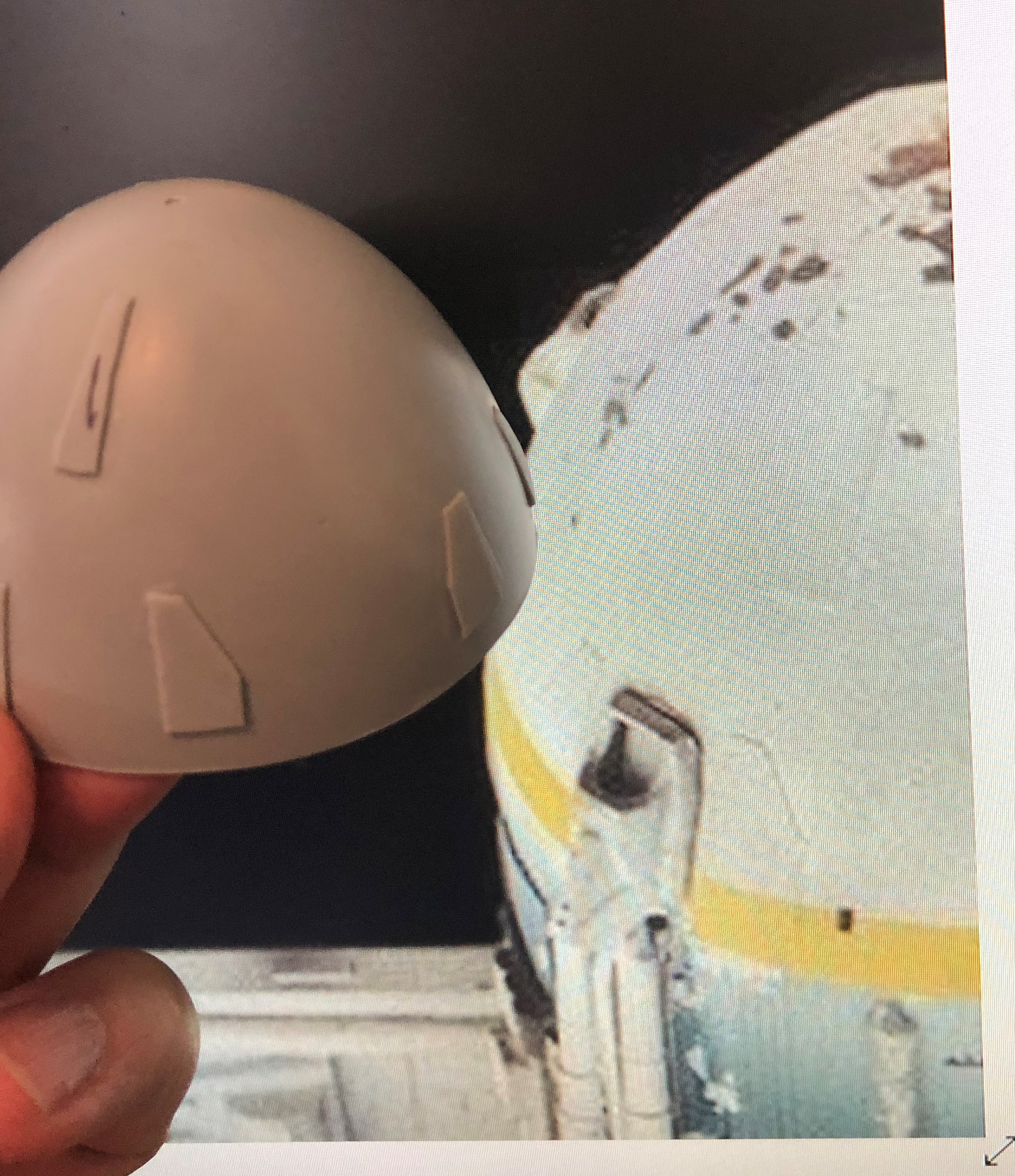

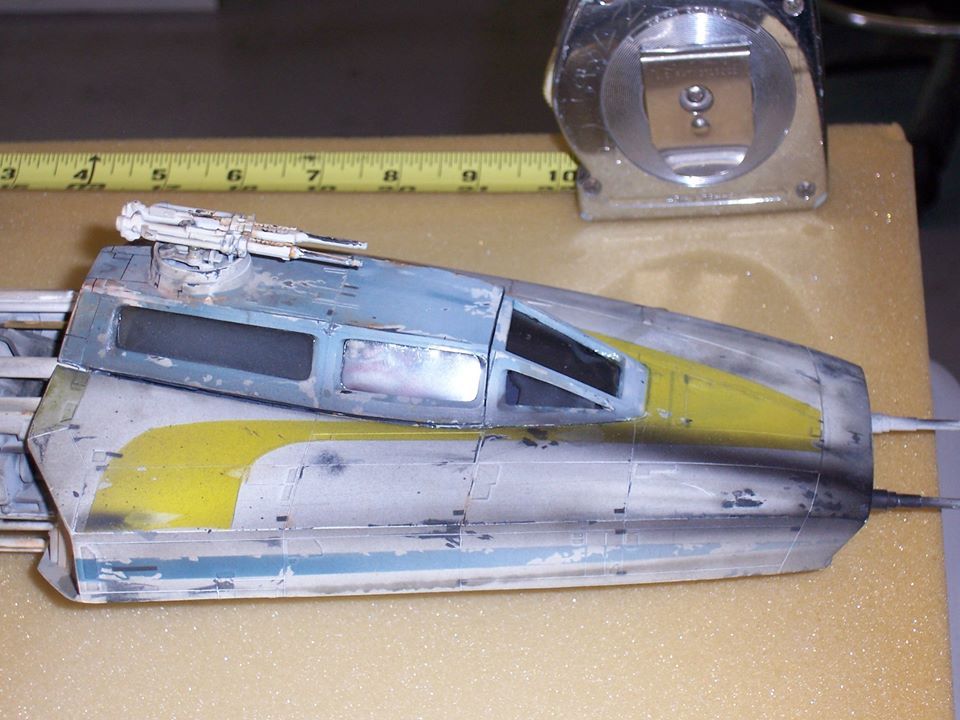

I studied several reference photos, but only two, high-res photos were really useful. Most of the reference photos don't clearly show the shadowy lines of the raised panels, so that makes this part of the project difficult:


Coming up, adding patch panels to the sides and underside of the forward section.


Corellianexports

Sr Member
RPF PREMIUM MEMBER
Some home repairs and upgrades have kept me busy for the last month or so, but I'm back on the Y-Wing. Today I looked over the work completed so far and double checked all available reference photos, adding a few, missing details on all sides of the forward fuselage:

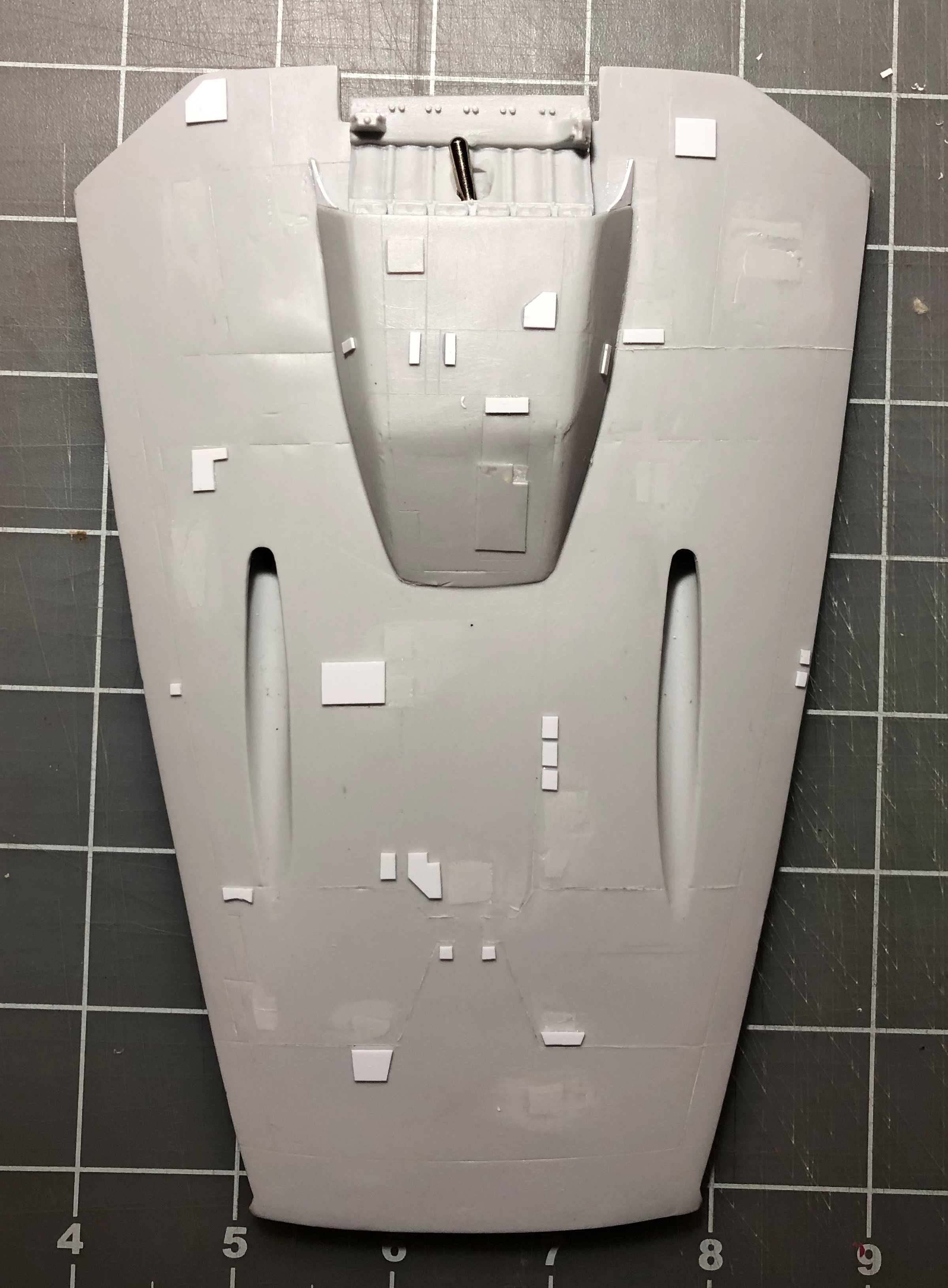

Bottom:

A couple of items I noticed that were missing, are the "arcs" or smooth transactions between the bottom of the base and the "switch box". I just used a couple of pieces of styrene with an arc cut into them. I will use some modeling puddy at some point to blend them into the main, body:


Left Side:

Right Side:


Unfortunately, the few reference photos that exist of the right side aren't high resolution enough to see any kind of raised details, so I had to leave this side mostly bare. The patch panels that I did leave are a combination of detailing seen on both the Red and Gold 2.

Up next, finishing off the detailing on the bottom and attaching the switch wires; then, engine assembly and detailing.

Last edited:

Corellianexports

Sr Member
RPF PREMIUM MEMBER

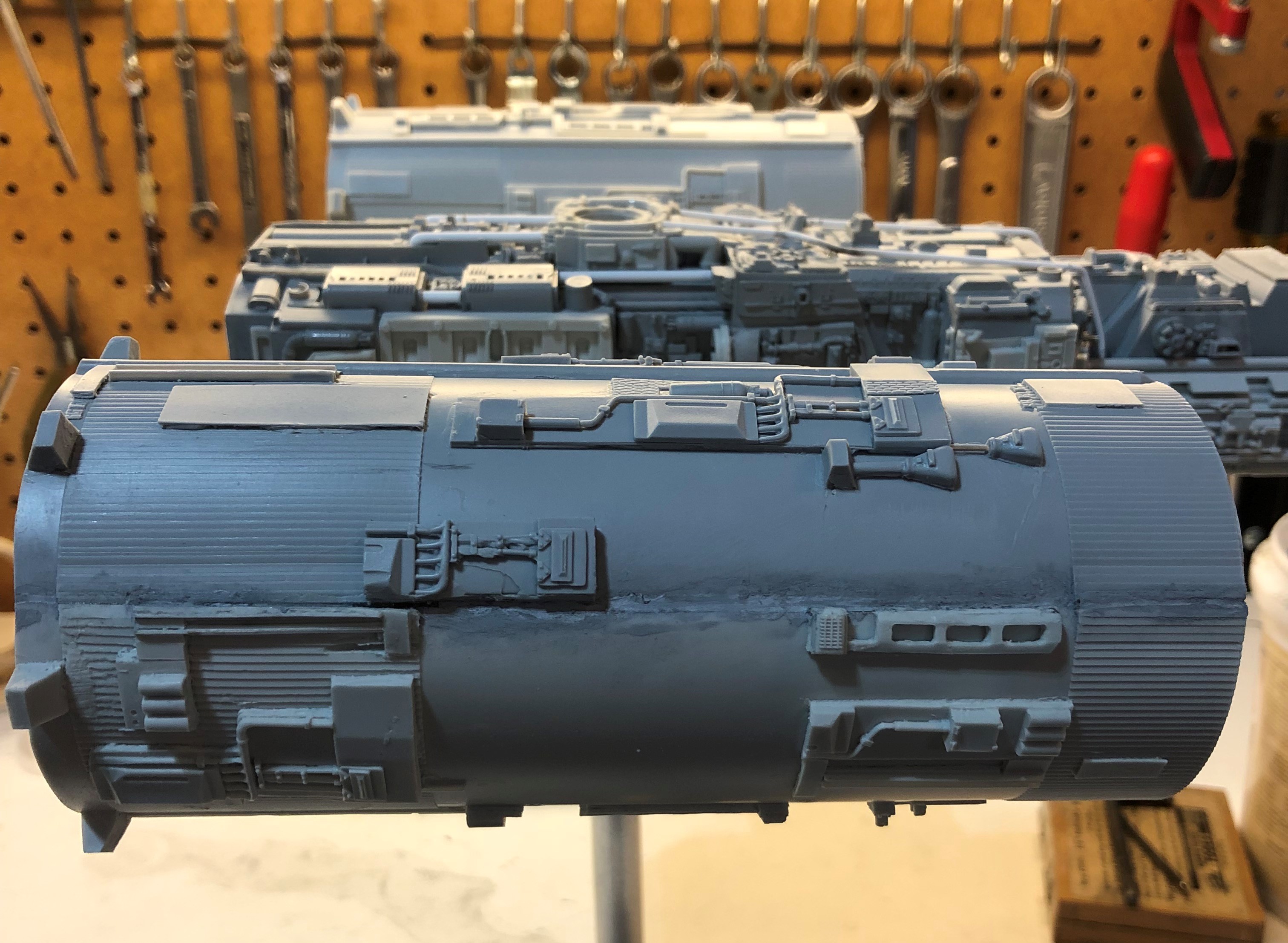

Before finishing the work on the forward fuselage, I wanted to make sure that I had all of the remaining, detail parts needed to finish the engines, which are basically the last major parts needed to finish off this model.

I spent about an hour looking through each reference photo and noticed that a couple of small details were missing from the Starboard engine.

Here's a shot of the bottom of the engine. The missing part is actually very common and it appears all over the main body:

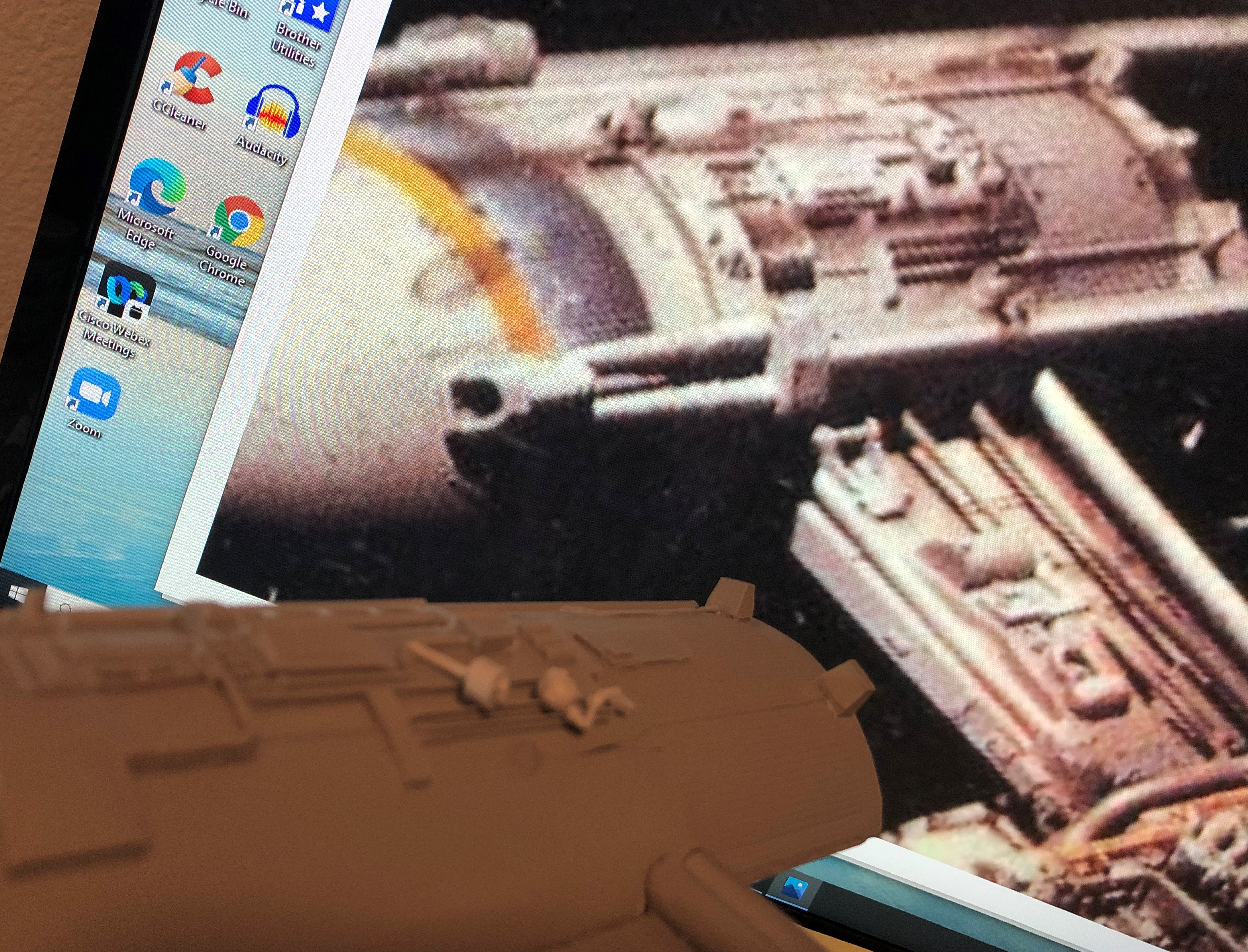

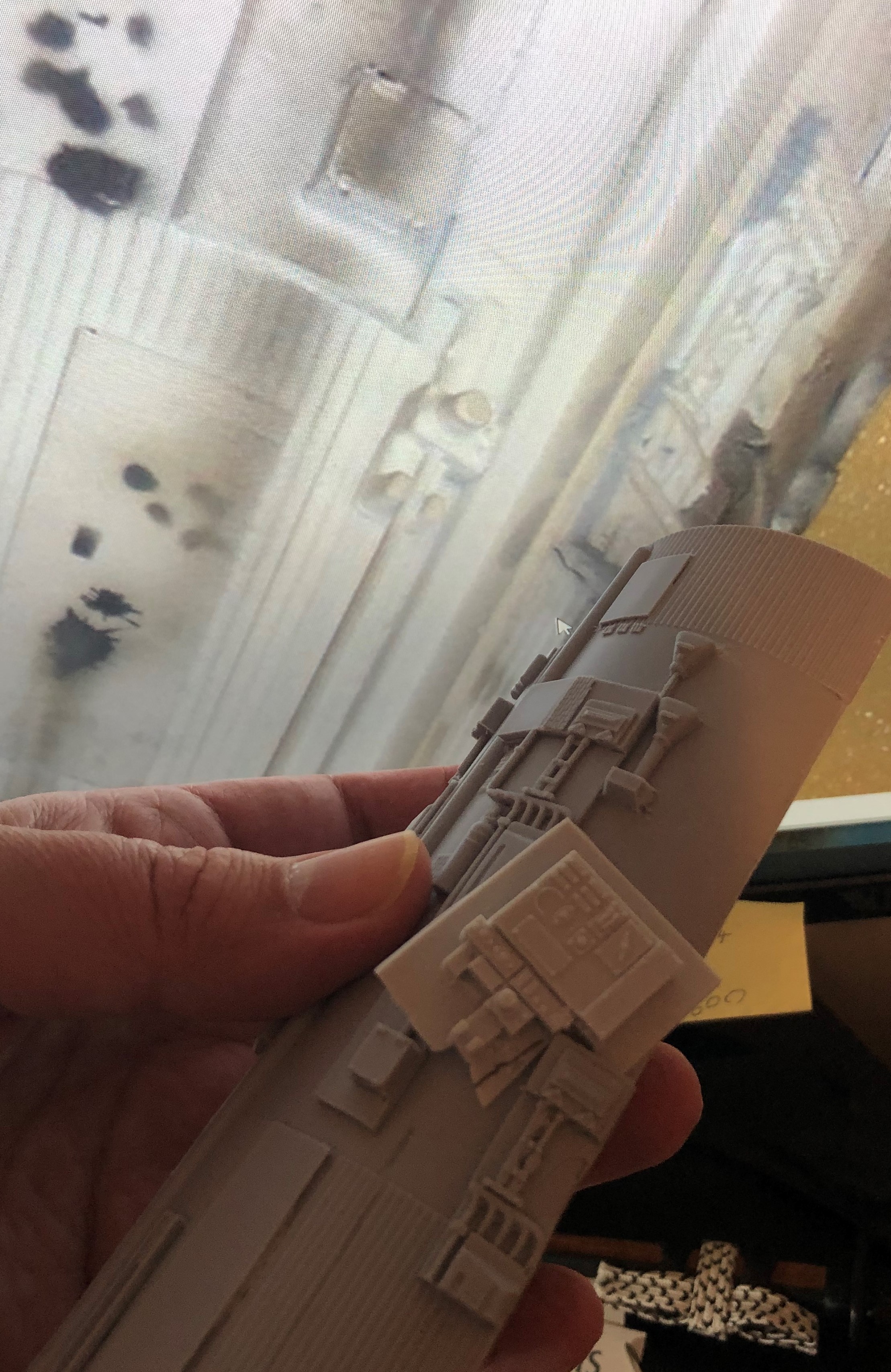

Here's a shot of the top of the engine. Originally, I thought a different part was used, but the photo isn't high resolution so the part isn't clearly shown:


The part does show up on the port engine, however. It is positioned next to a small rod that extends to the "fin" at the back of the engine.

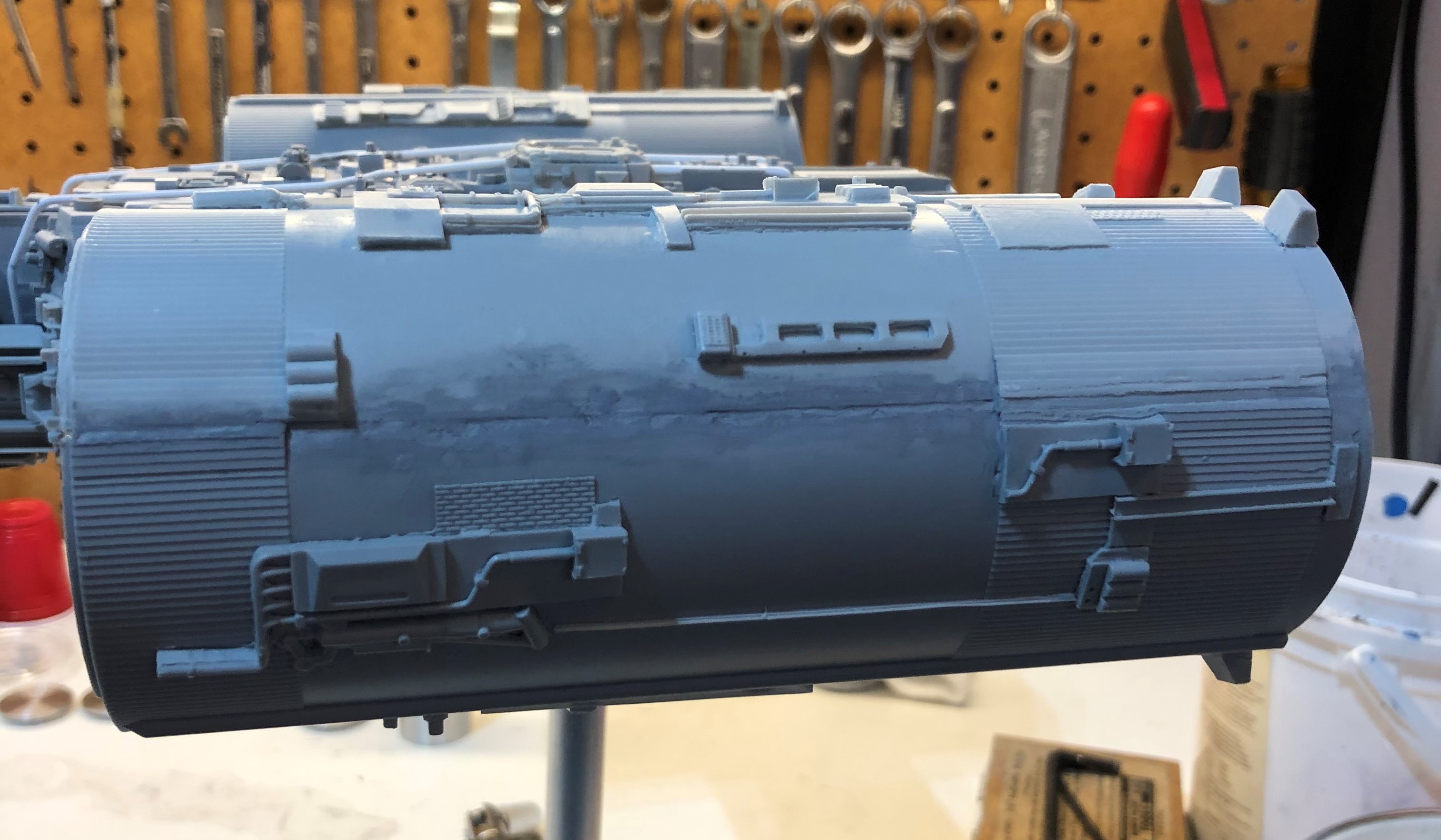

It's possible that because the rod fits on top of the part (bottom of the starboard engine) it was left off the engine to be attached later. Unfortunately, the directions for Gold Leader are missing the engine assembly. One set of parts that are included on both Red and Golder leader model kits (and on Gold 2) are the "panels" that are attached to the sides of both engines. This is how they are supposed to be positioned:

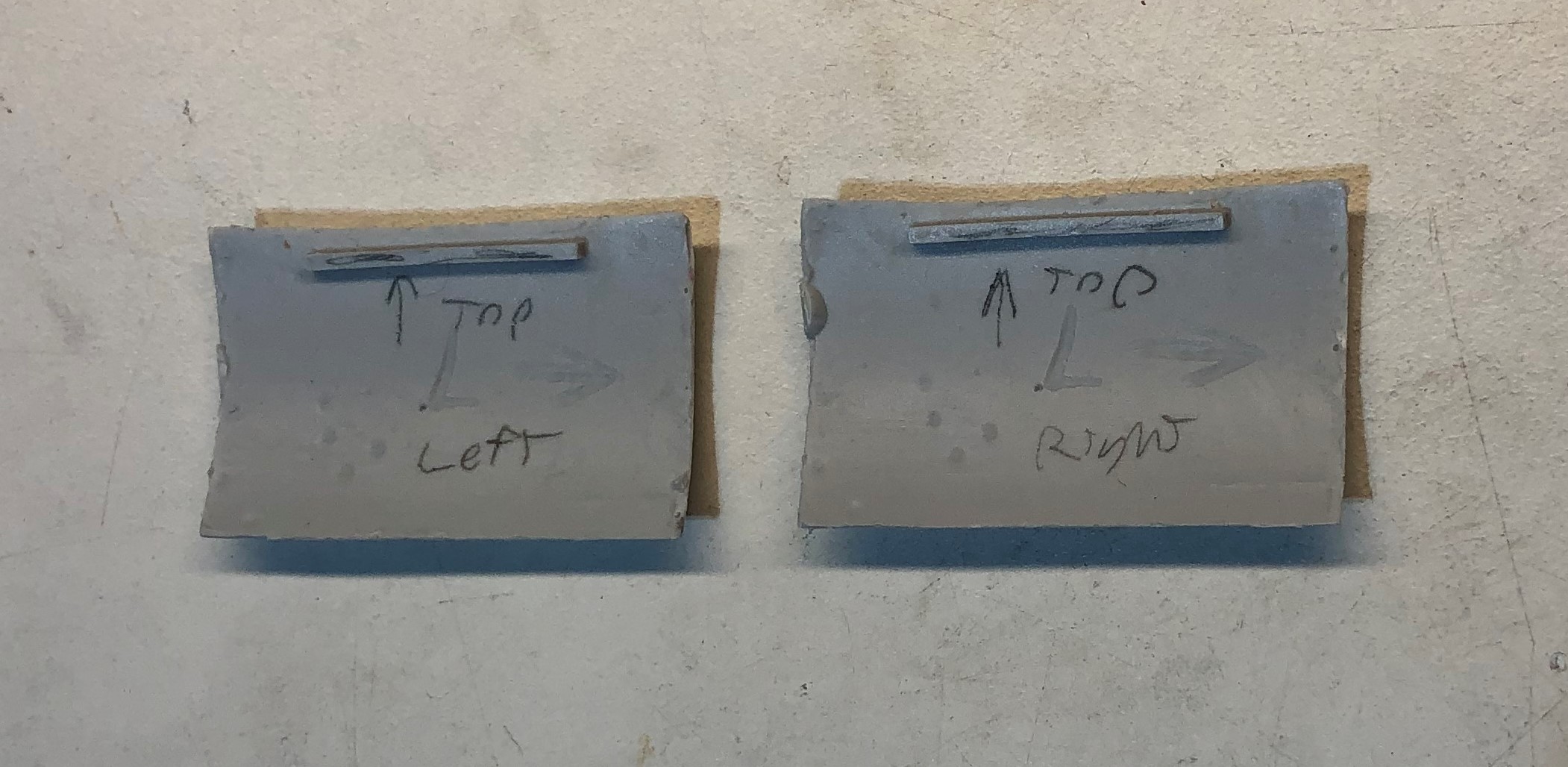

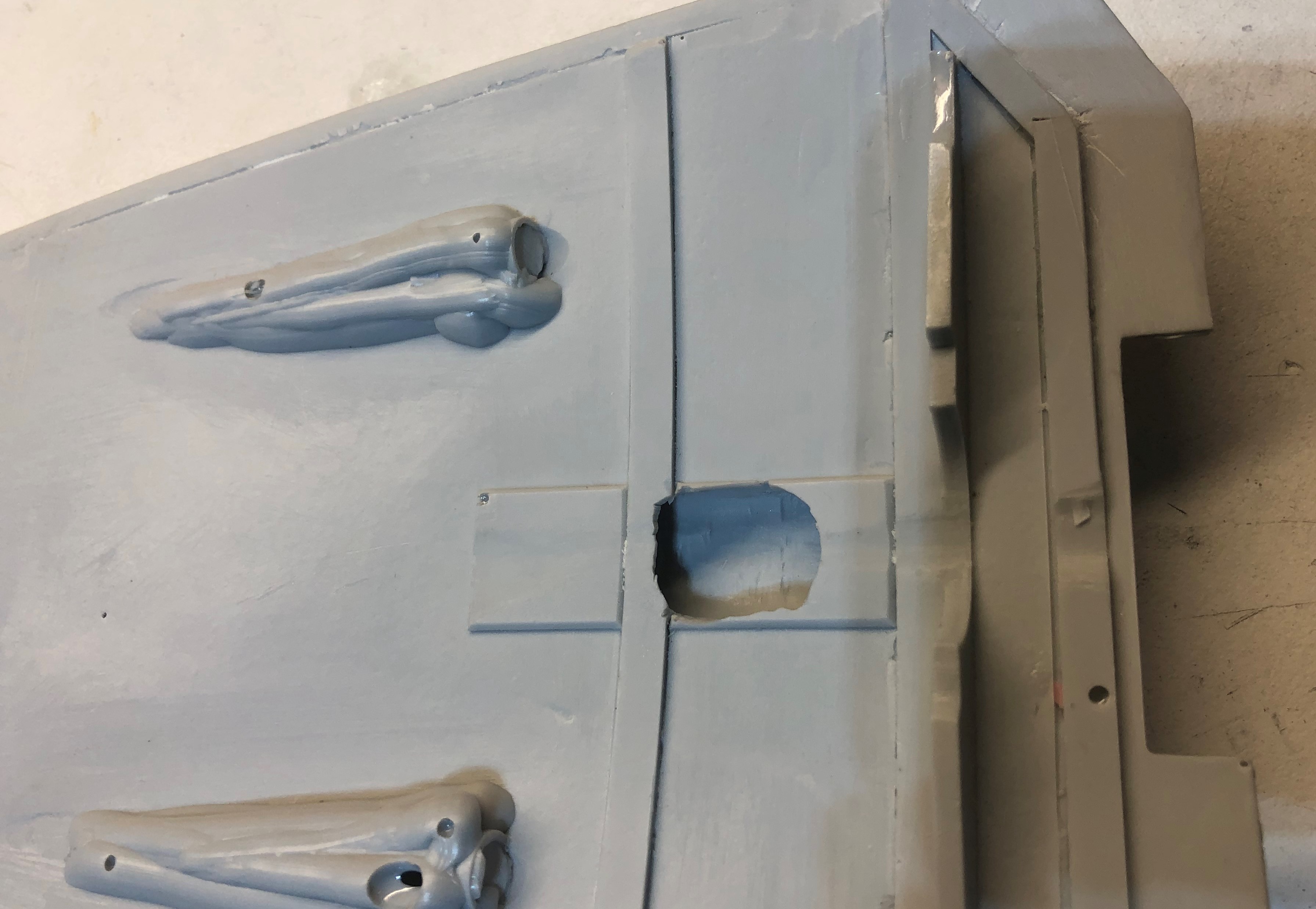

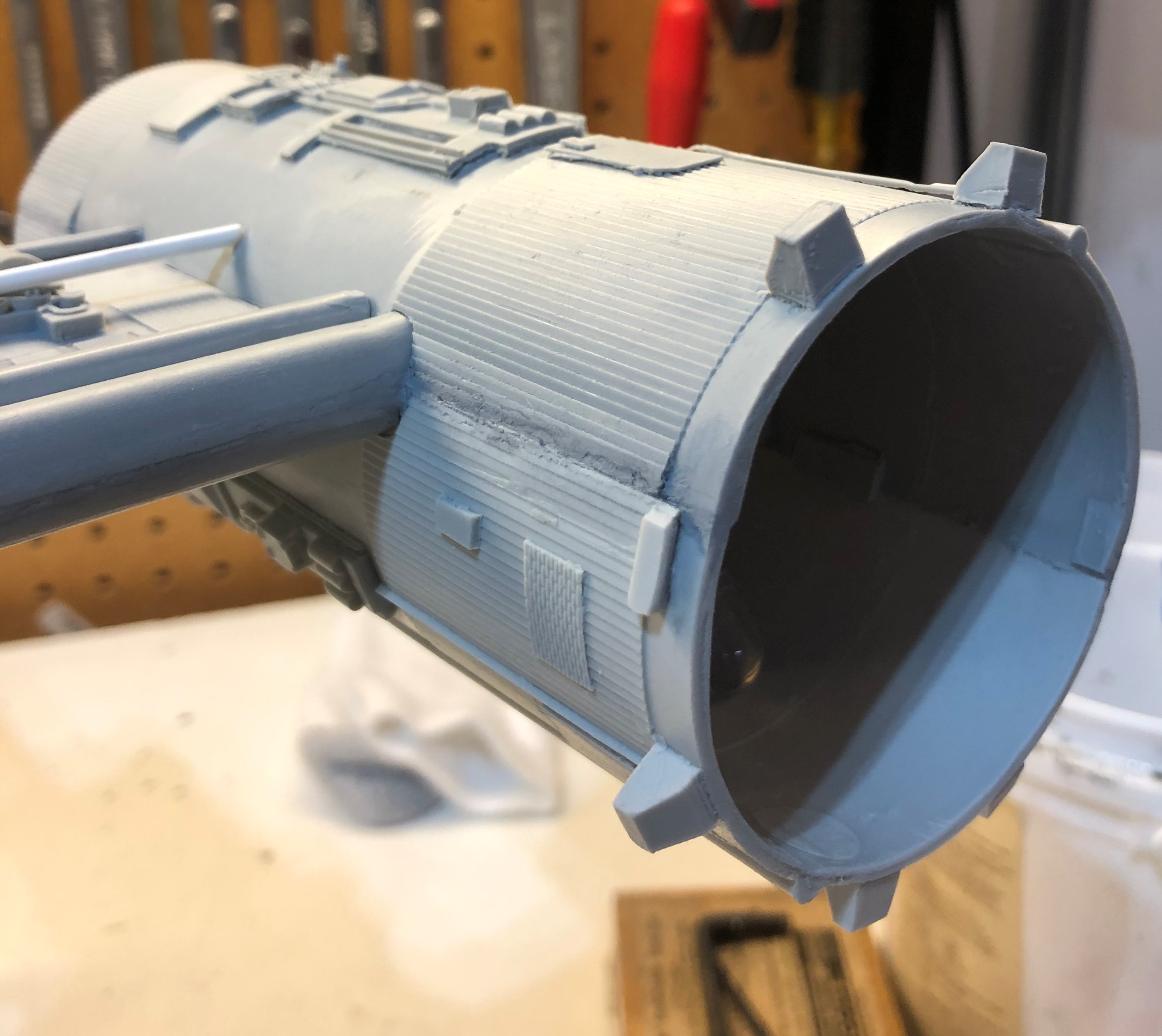

Originally, there were holes on the sides of the engines so that the model could be held up by a metal rod, so notches were added to the panels to keep them in place:

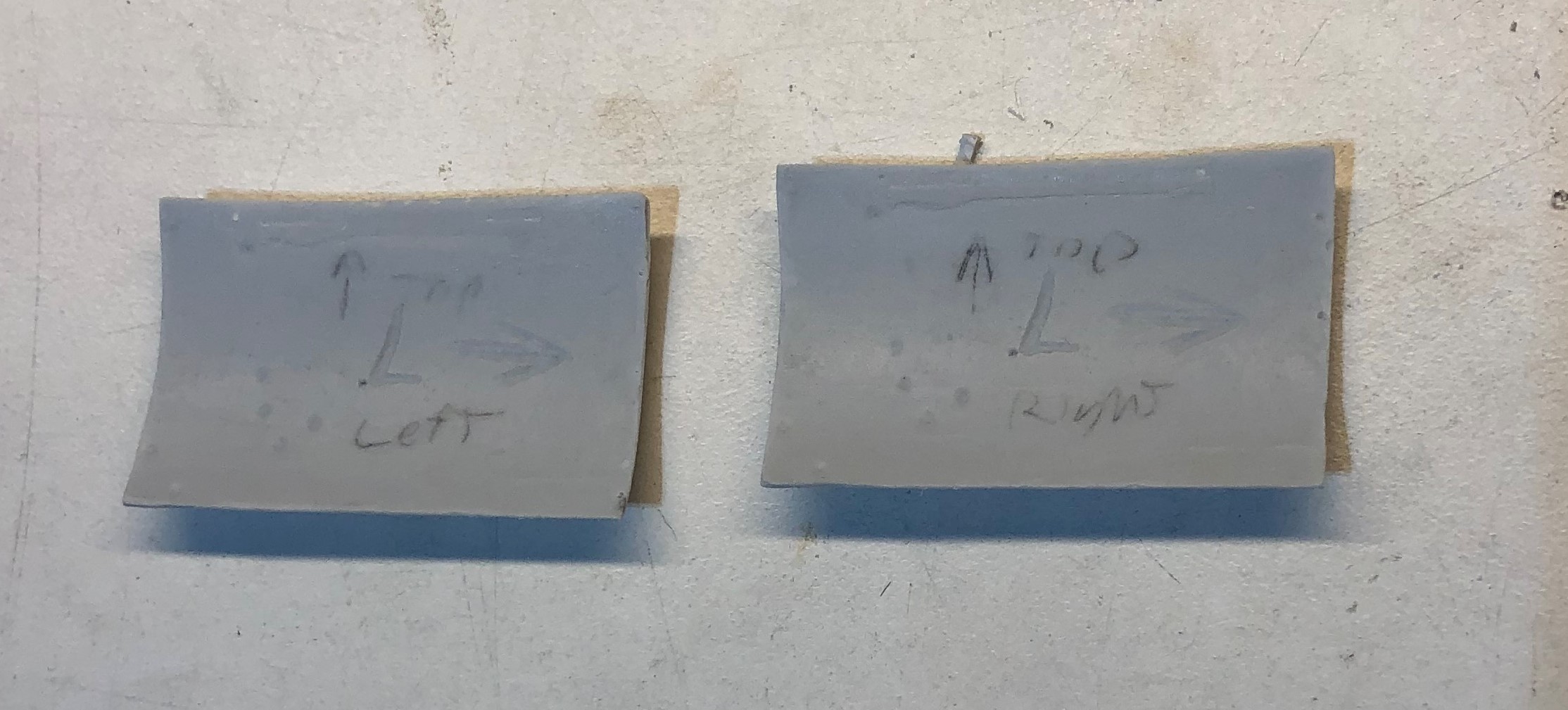

I won't be adding these holes to my model, so I remove the notches with a large X-acto knife, finally cleaning them up with some 220 gritt:

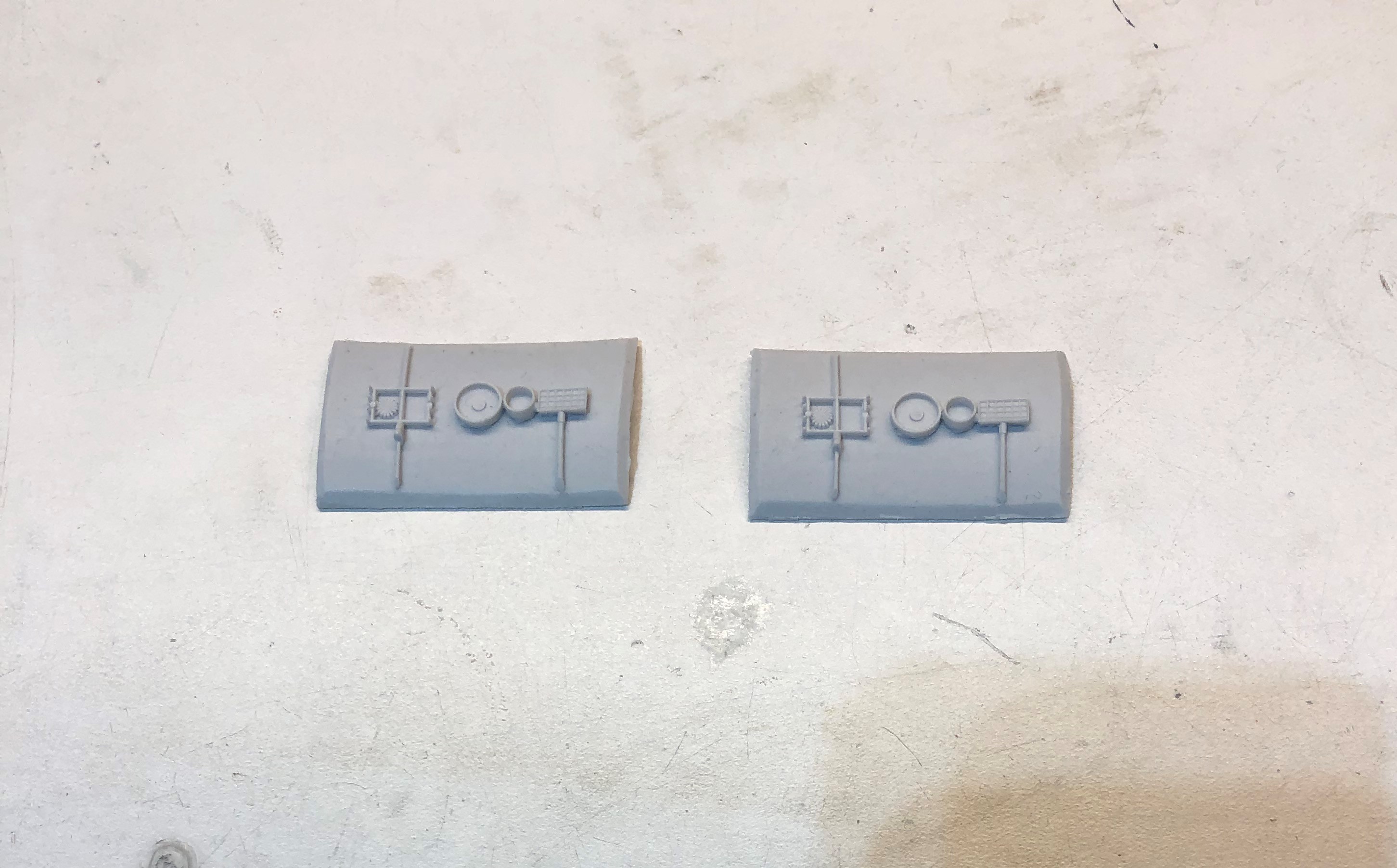

Getting back to the small, detailed parts for the starboard engine, I use a couple of "instrument panels" that were left over. They have the small parts that I need:

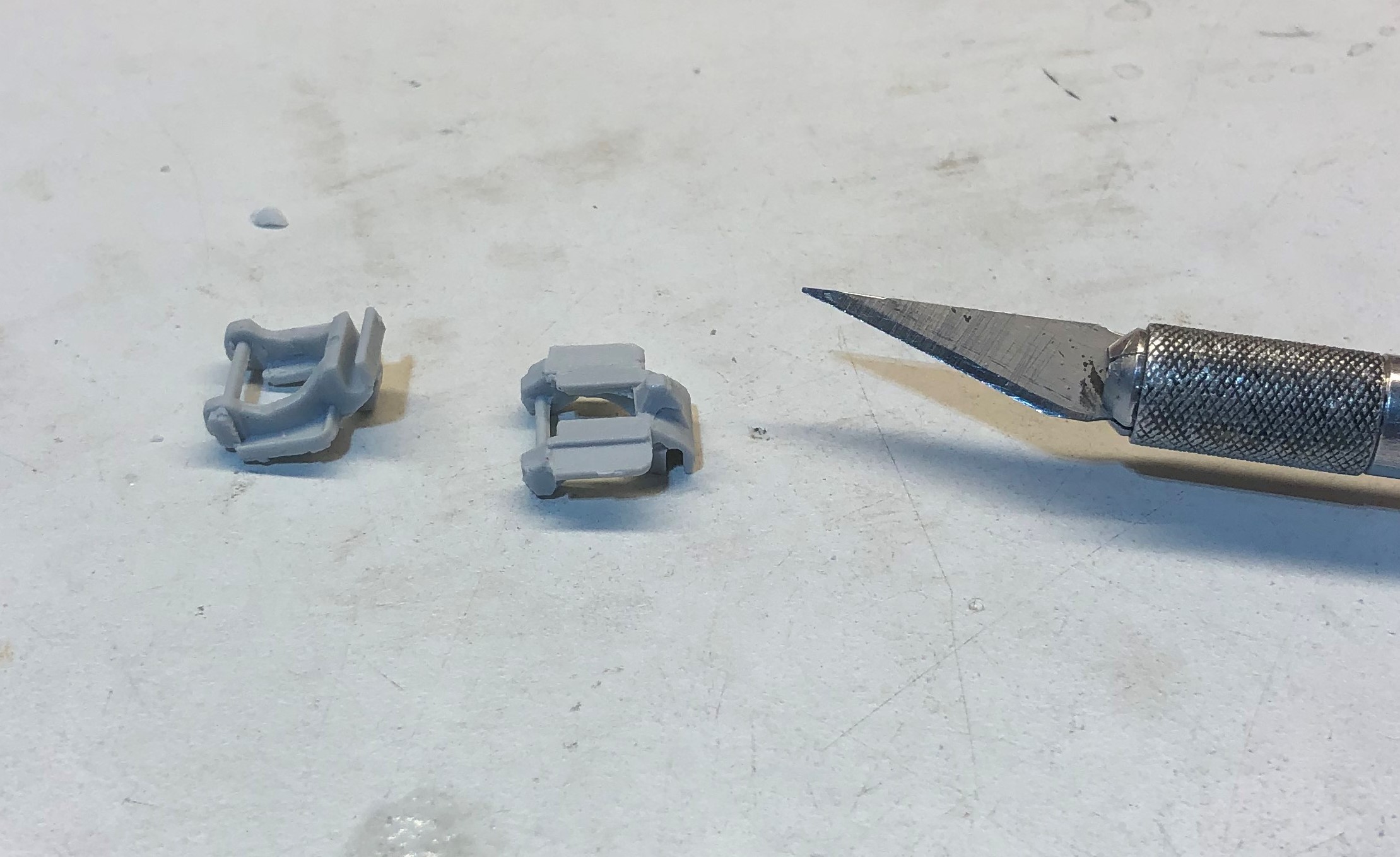

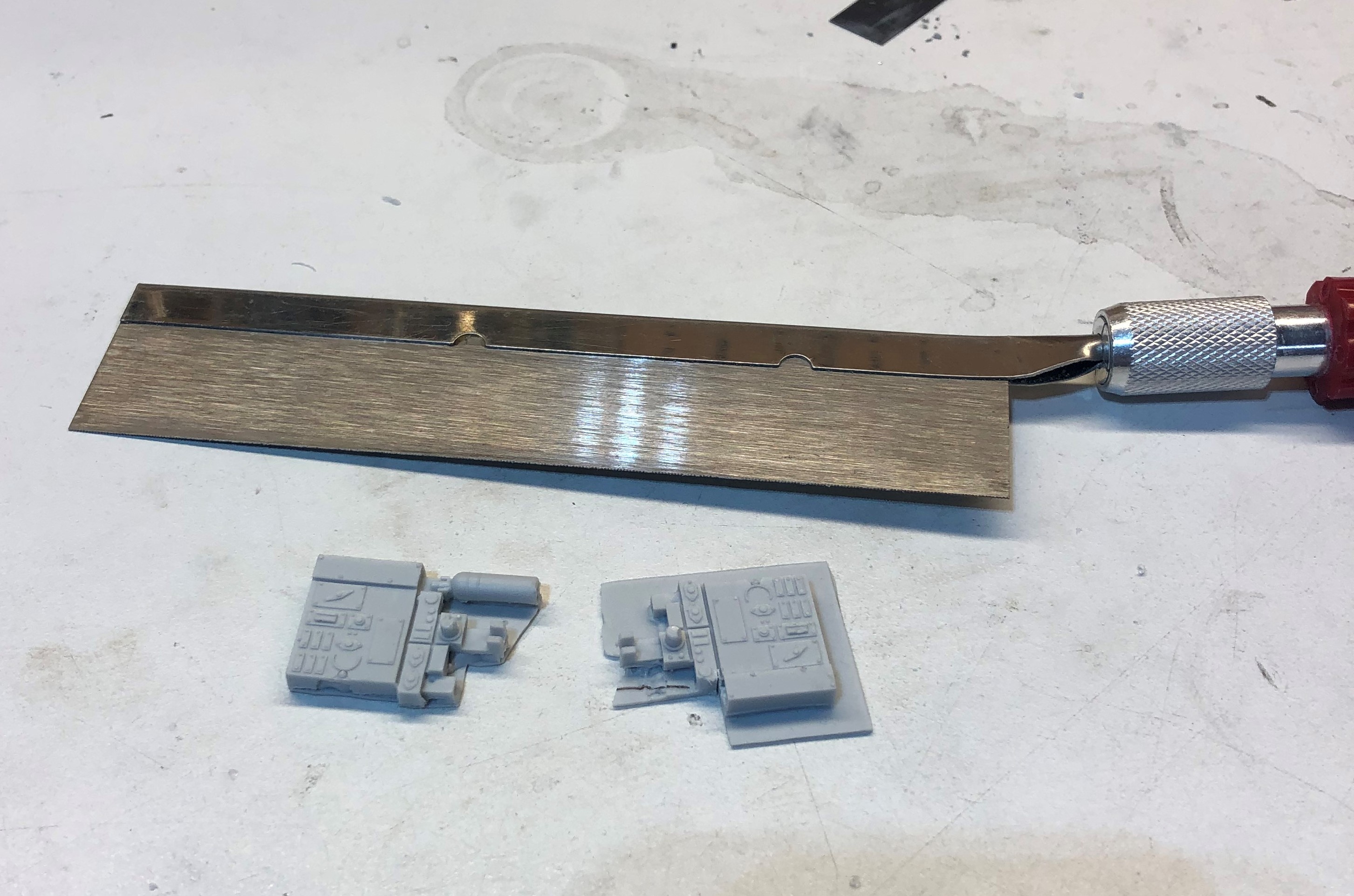

I use a X-acto knife saw to remove the small parts. I use a large X-acto knife and some 220 grit to clean them up a bit:

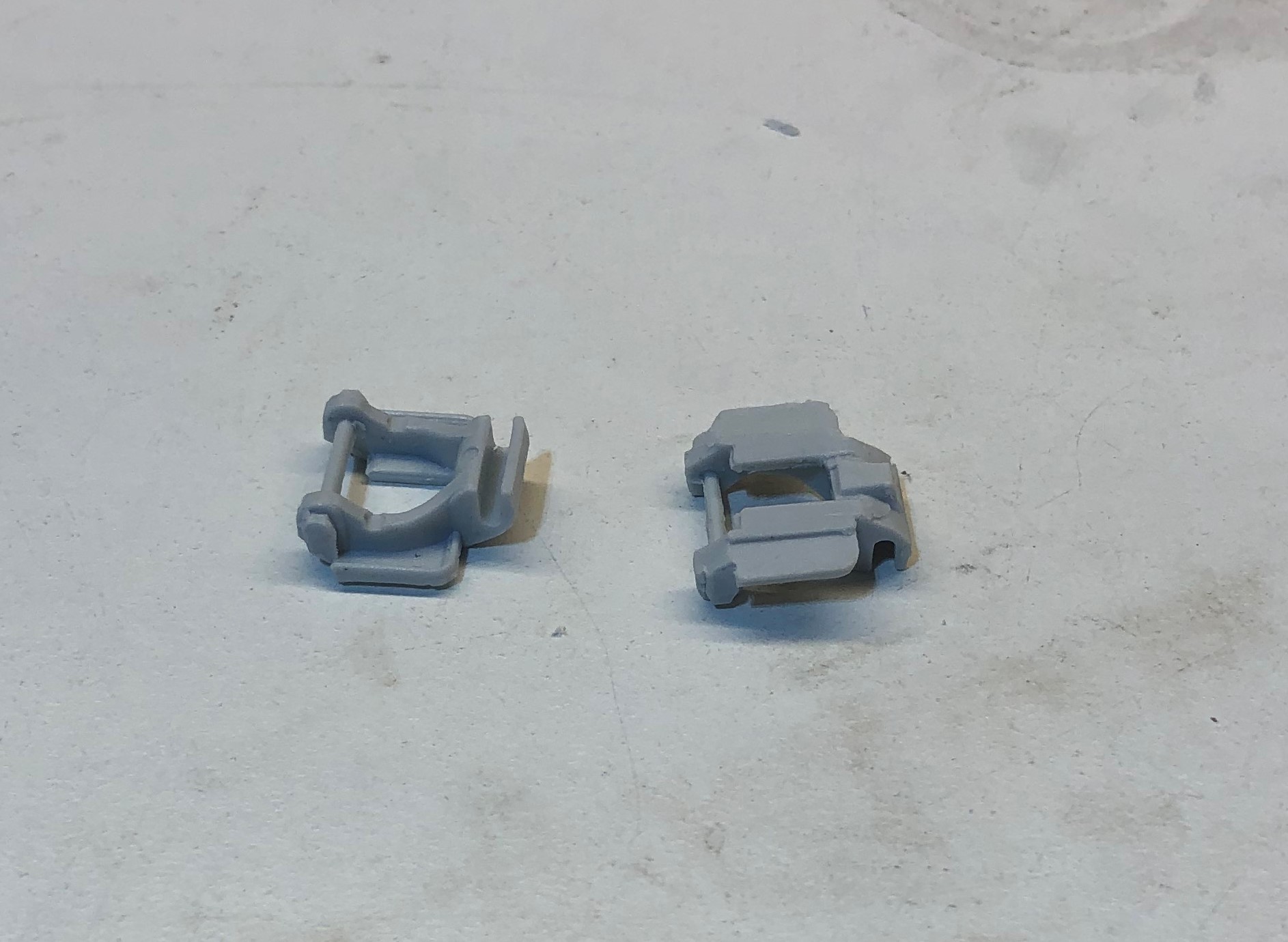

Looking through my parts bags, I came across some additional parts that actually need to be placed between the engines and the wings. I was surprised to find that these parts are only placed on the top of the wings, near the forward edge:

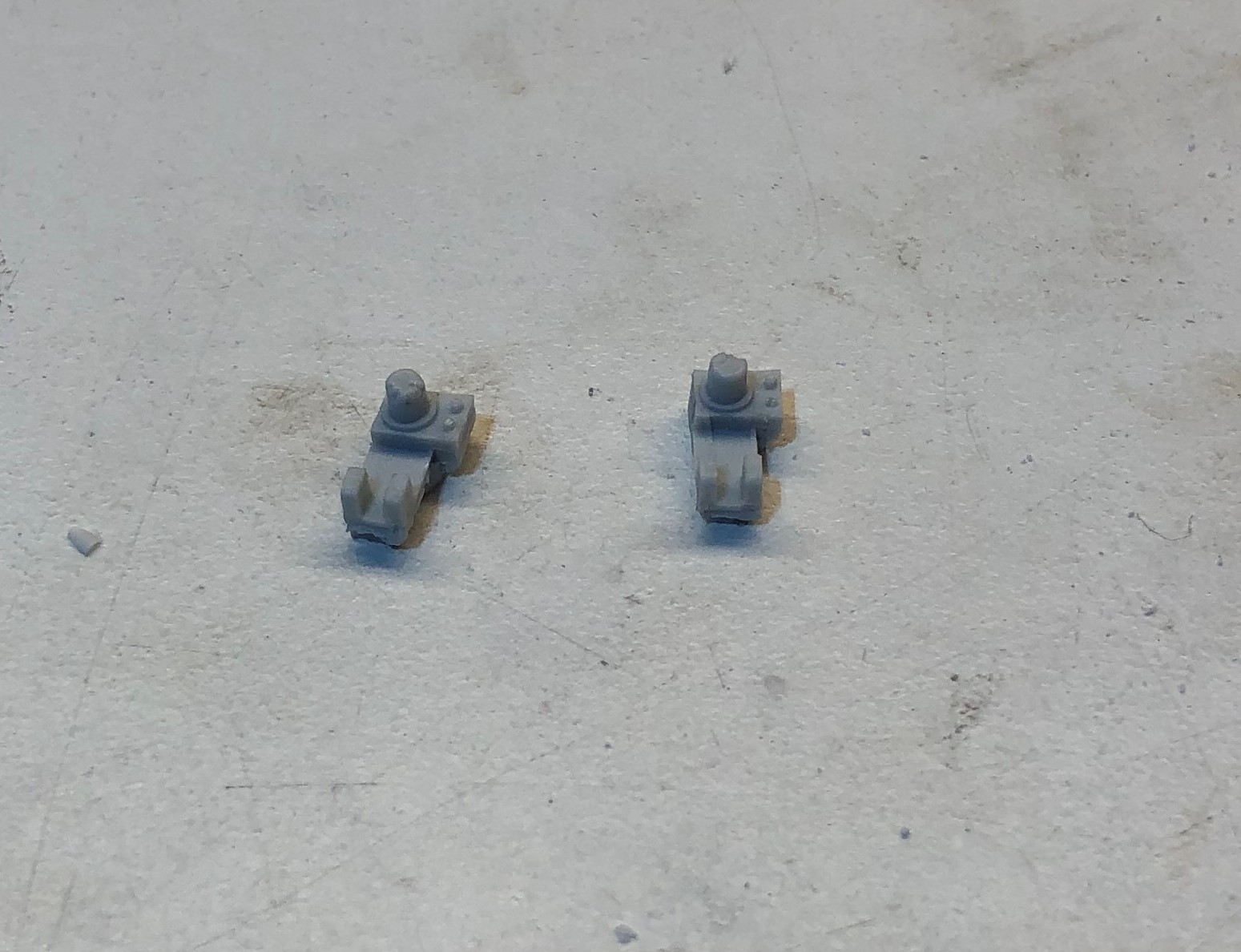

These parts need to sit flat on the wings, so the small, "nubs" will need to be removed:

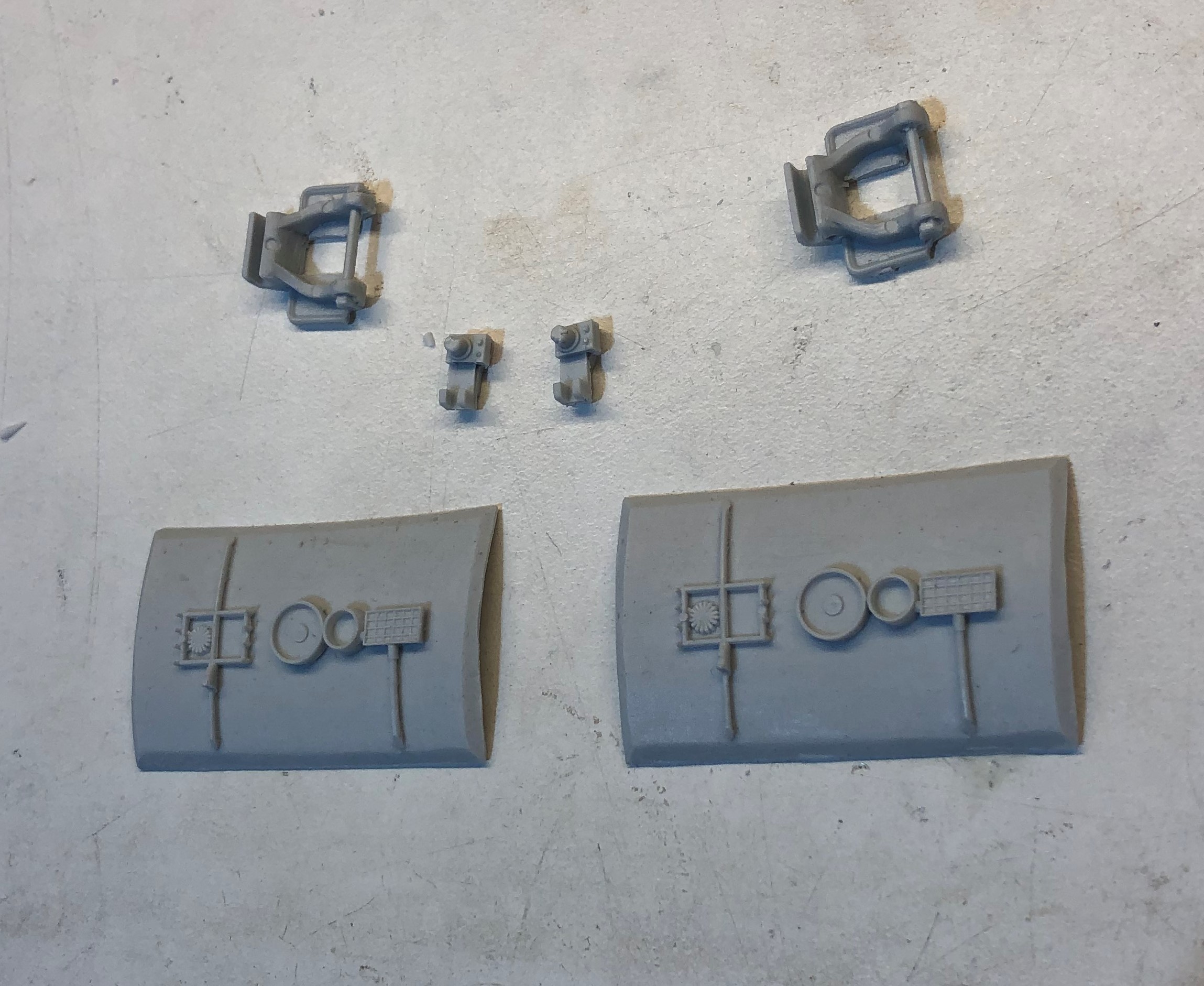

And that's it. With the exception of some tiny pipping, these are the only detailed parts that need to be added to the engines:


...and as usual, my hats off to Steve and his crew for their work on this model kit. I'm very impressed with the detailing on the engines and wings. I only wish we had more detailed reference photos. :)

Last edited:

Corellianexports

Sr Member
RPF PREMIUM MEMBER

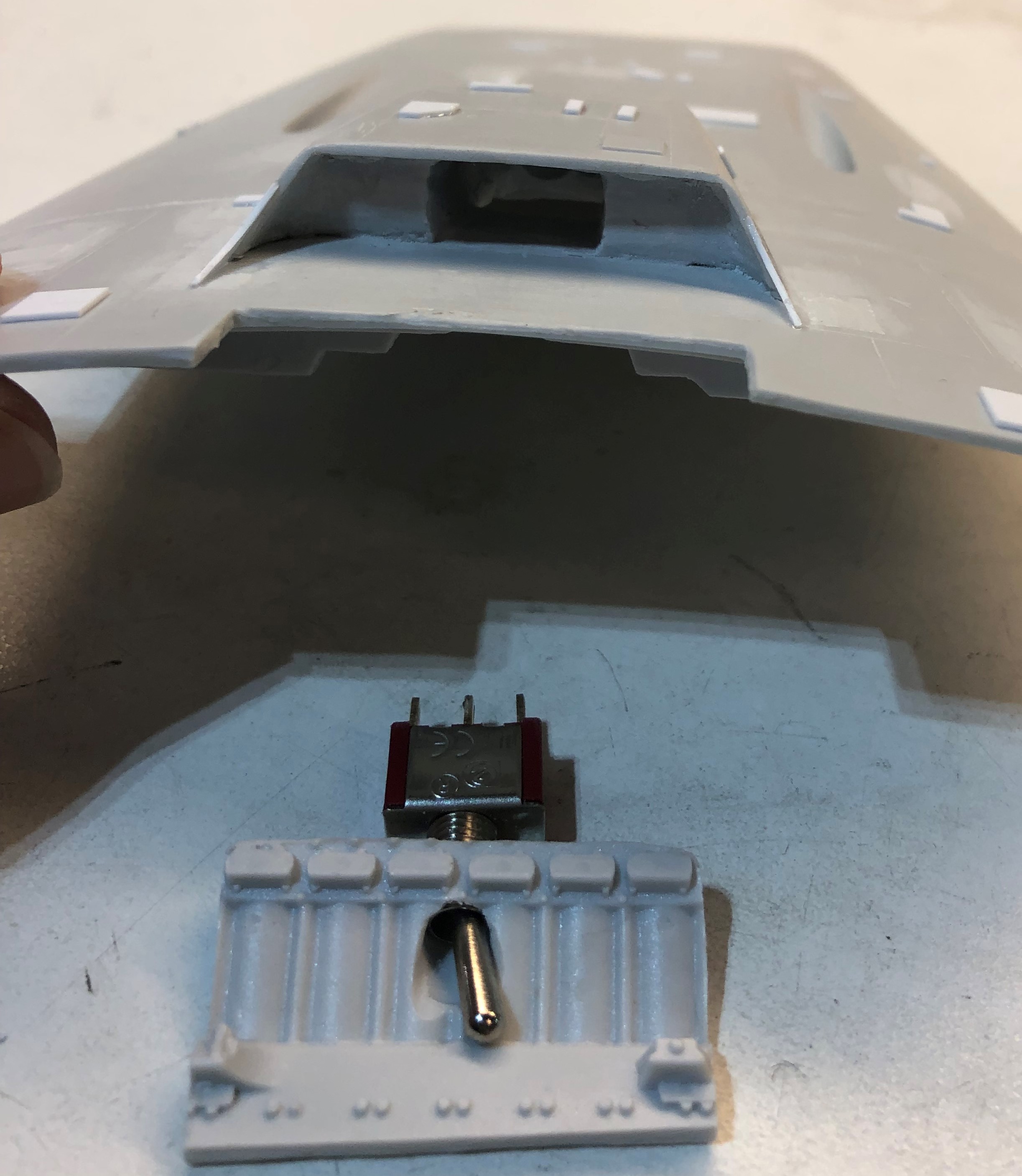

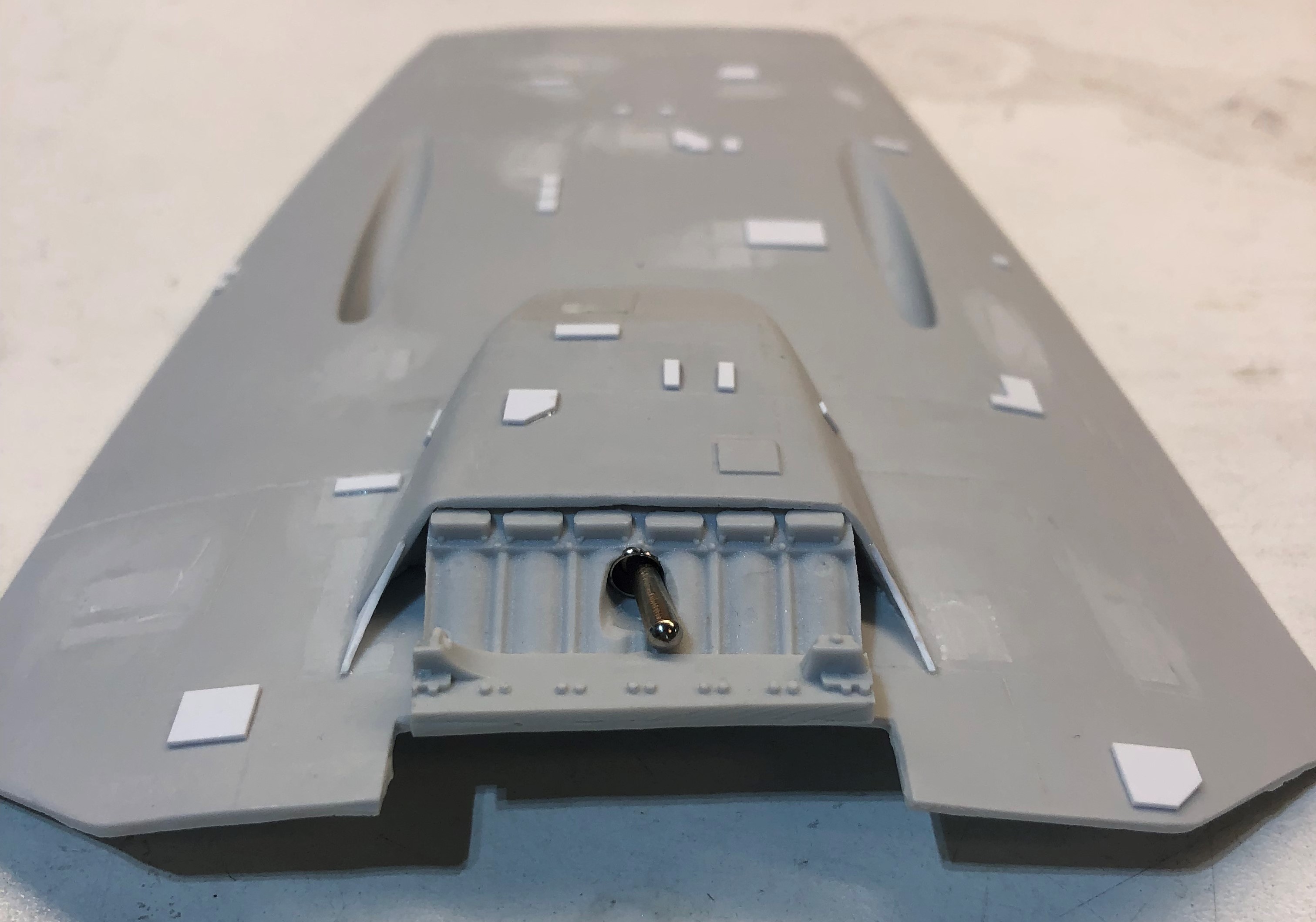

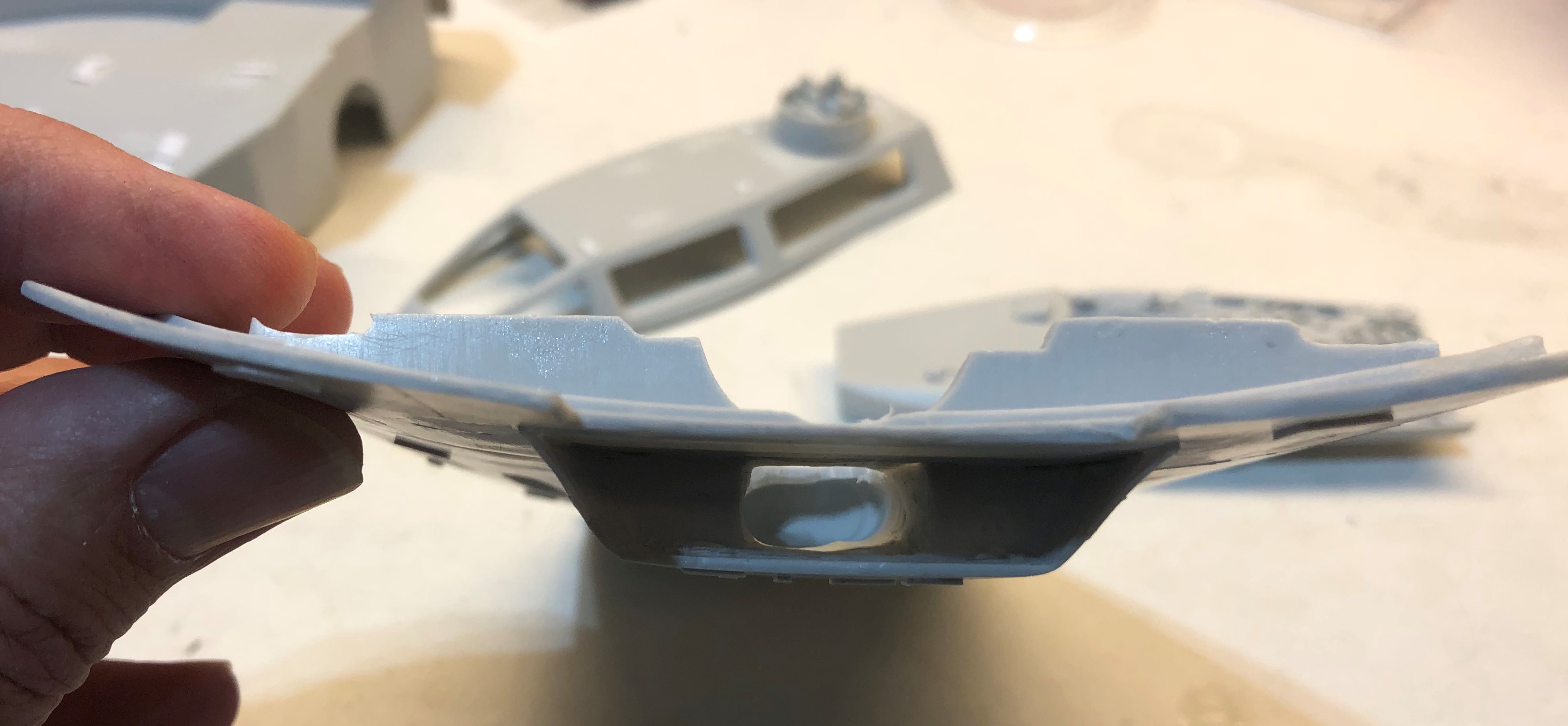

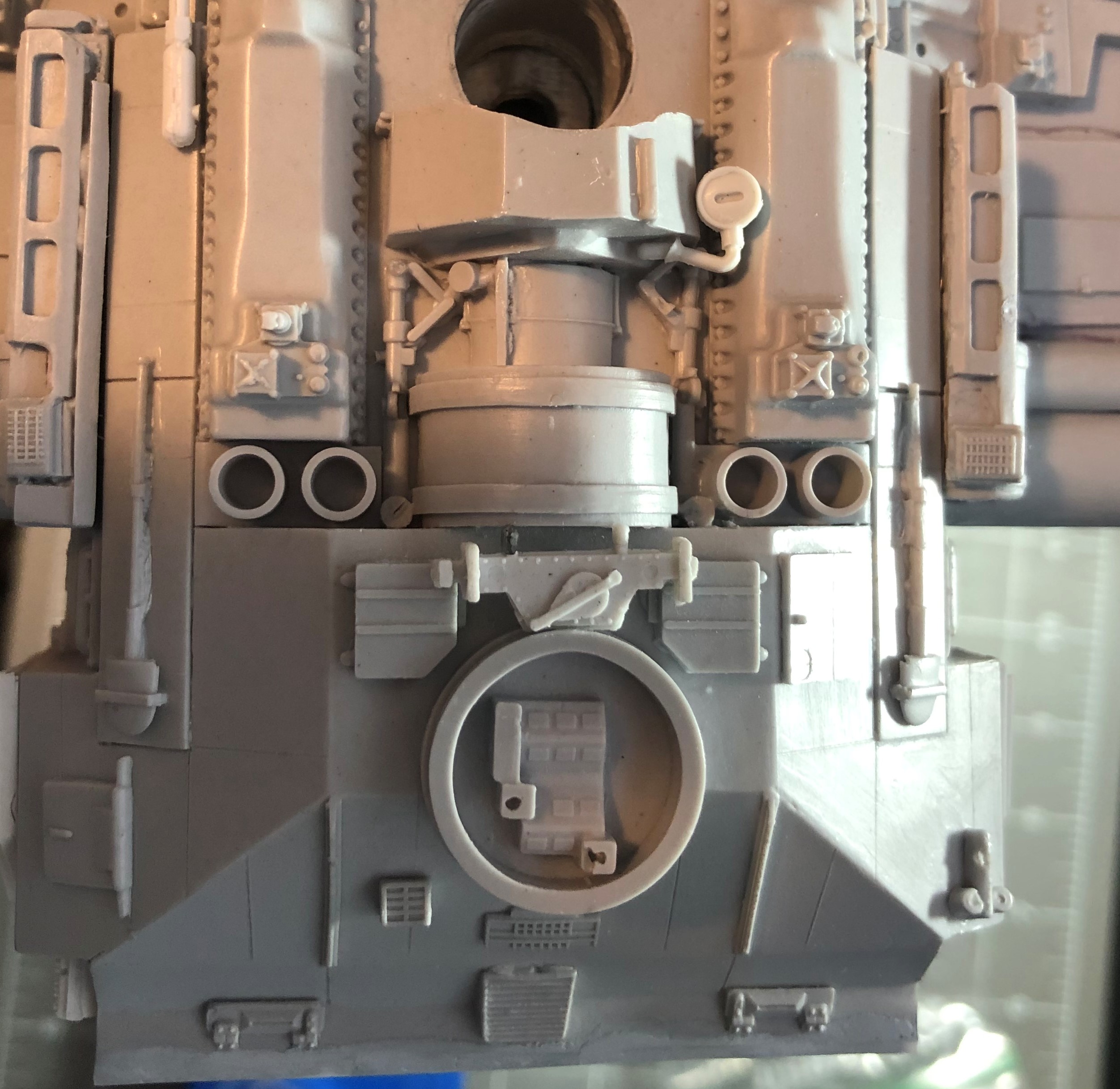

I was finally able to get back to the switch. The idea is to hollow out more of the forward fuselage to make room for the wires attached to the switch. Here's the bottom assembly:



With the switch removed:

I used a couple of different drill bits (one small and then one large - 1/4") to help deepen the hollowed out area:



The hole for the wires was widened a bit:

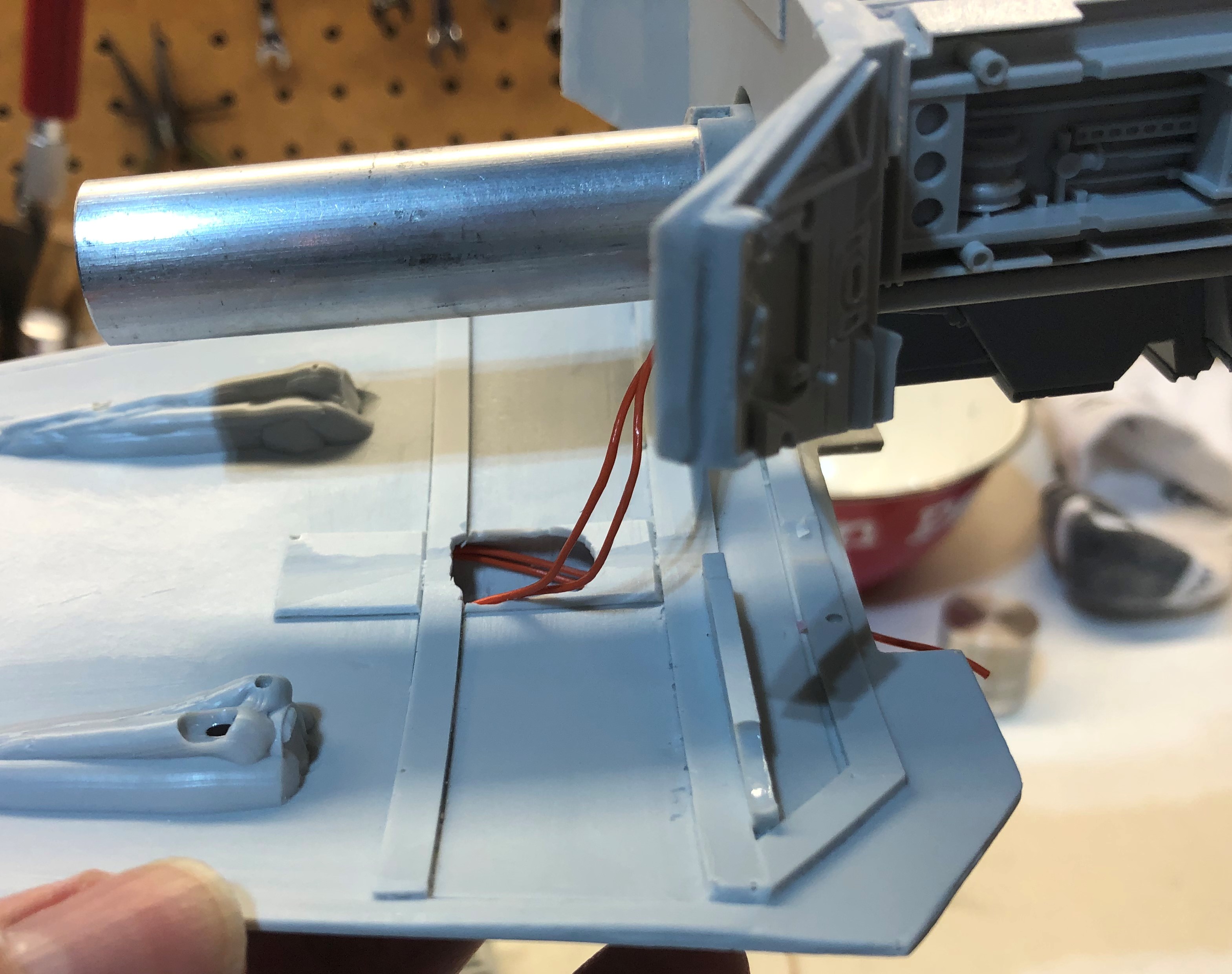

This is how the wires will fit. The idea is to add some length to the wires so that in the future, the switch can be easily replaced:

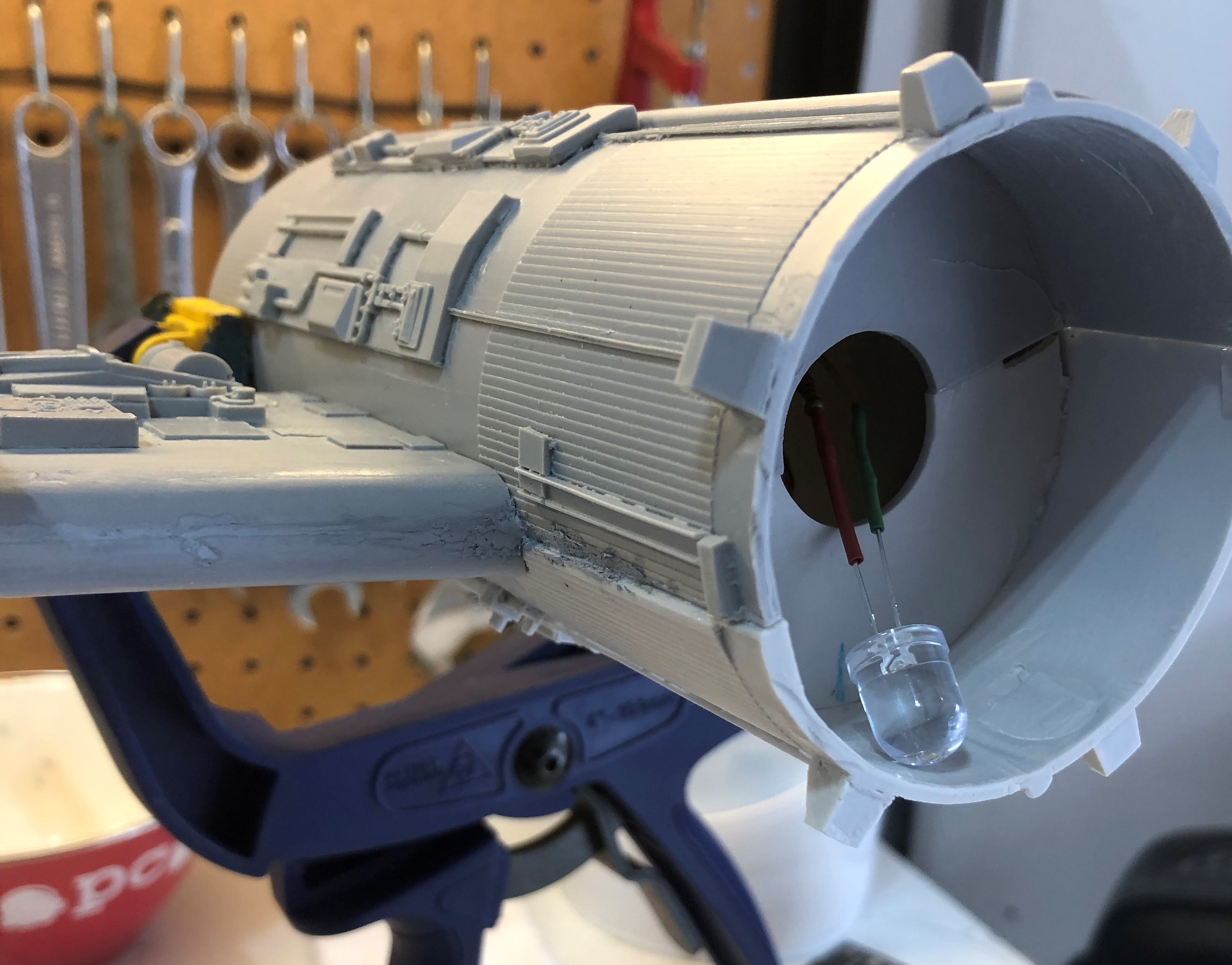

For testing purposes, the switch was attached and a small, 12v battery installed. The jumbo LEDs lit up perfectly, so we're all set. :)


Corellianexports

Sr Member
RPF PREMIUM MEMBER
This is a part that's given me a few headaches. The part (a jack) is from a JagD Tiger tank truck. Unfortunately, the kit only included one of these and a second one is needed for the right side. The killer is that it's the last, last, last detailed part I needed to finish the build, so it became a real thorn in my side. :p
Because I needed to make some molds back in November, I decided to make a mold of this part at the same time. The good news is that the mold came out perfectly, along with the pulls, which surprised me a little because the part has some very tiny details on it. The bad news is that one of the "pins" fell off during molding and so I had to cast some new ones and glue them on (each part). Because the part is more visual on the top of the model, I decided to use the original here, near the stern:

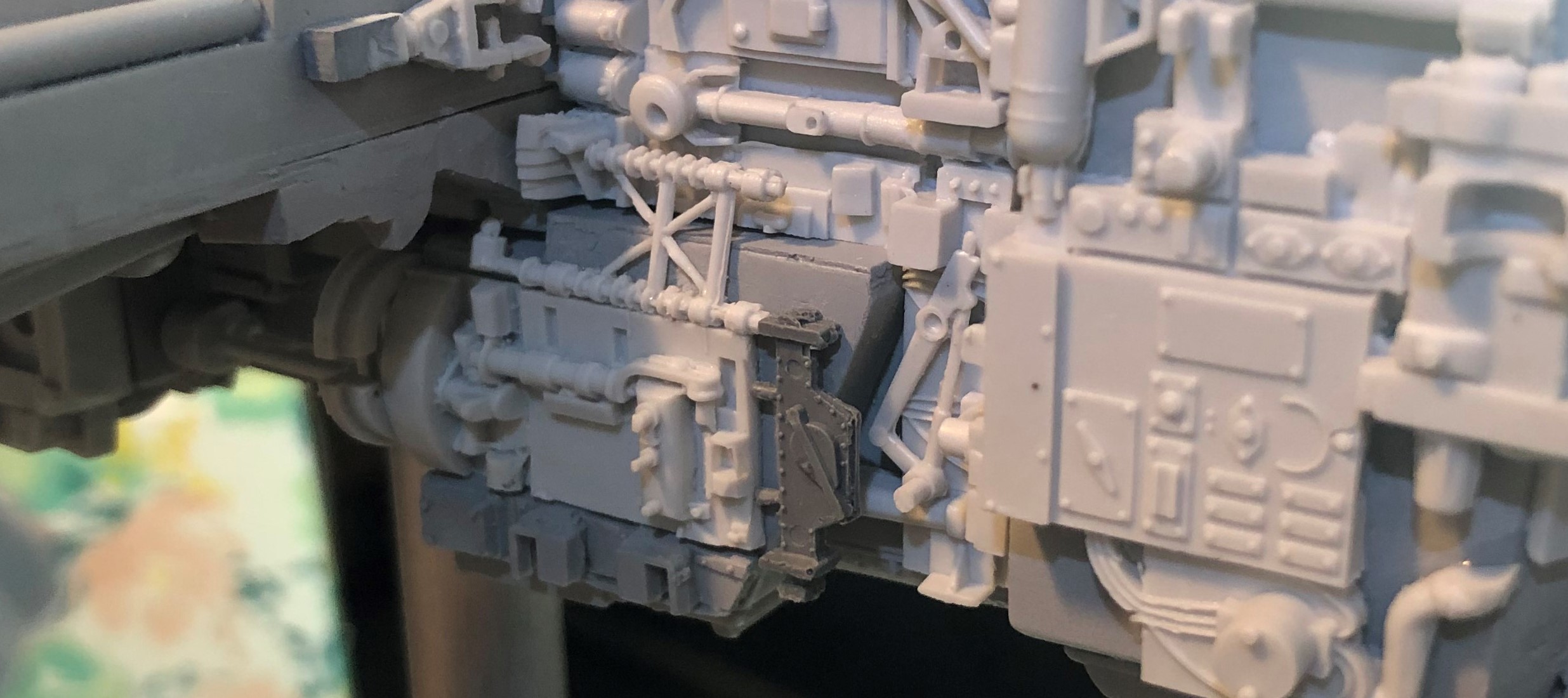

Here's the one I cast, on the right side, near the wing:


There's nothing like "tying up loose ends". :)
So with those minor details in place, time to move on to the engines.


Corellianexports

Sr Member
RPF PREMIUM MEMBER

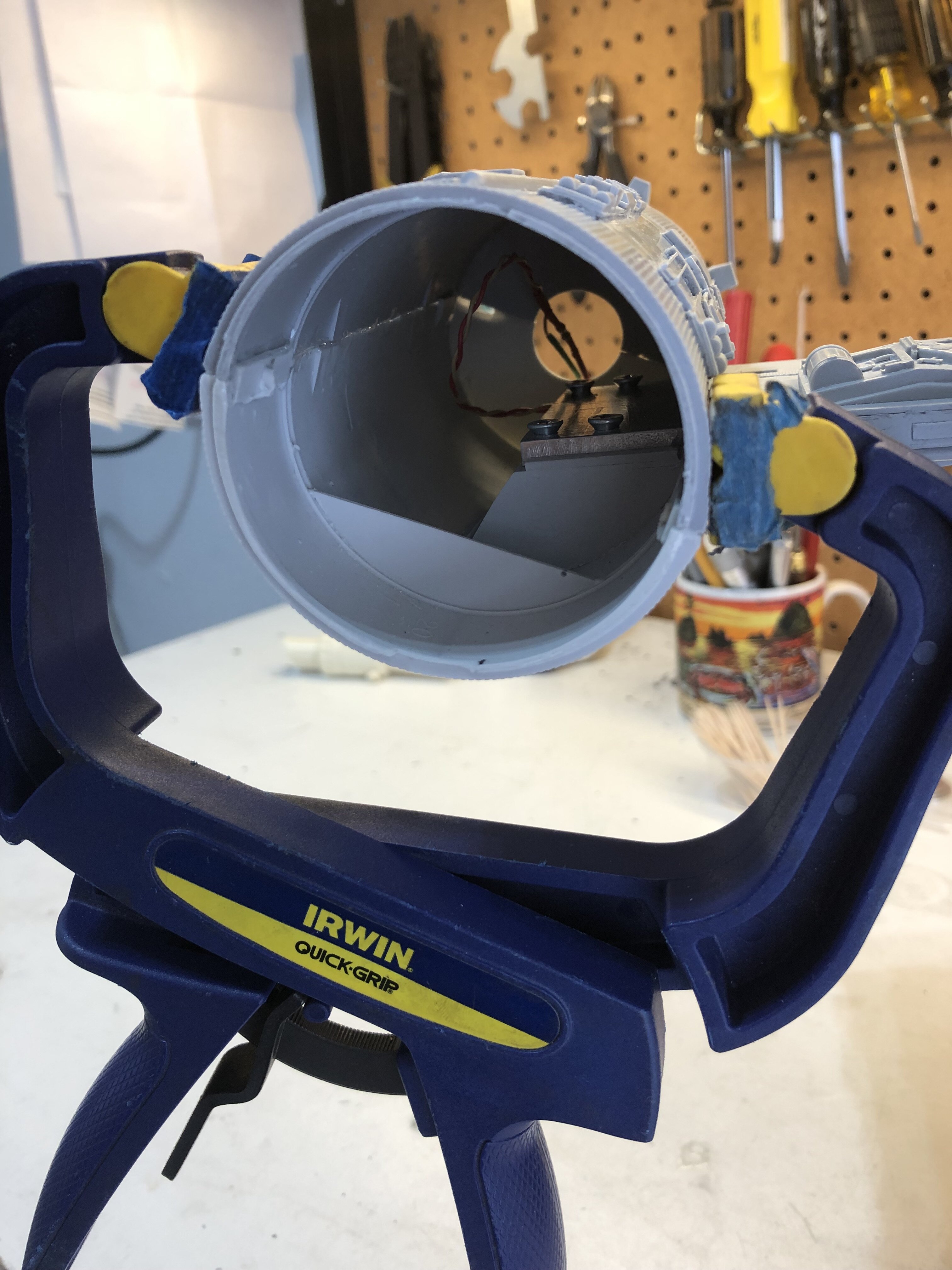

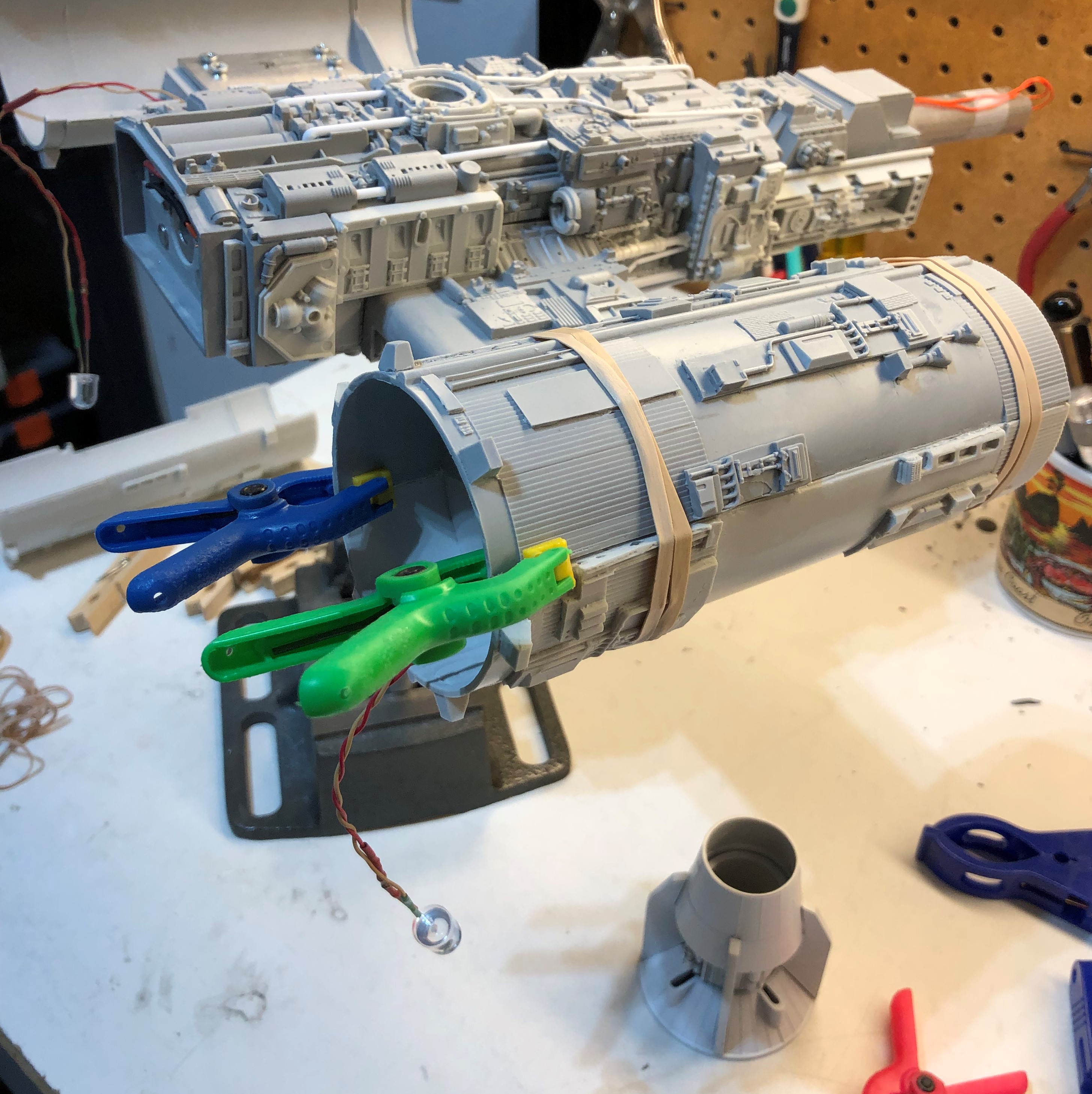

While waiting on some engine parts to dry, I decided to get started on the piping, beginning with the stern:

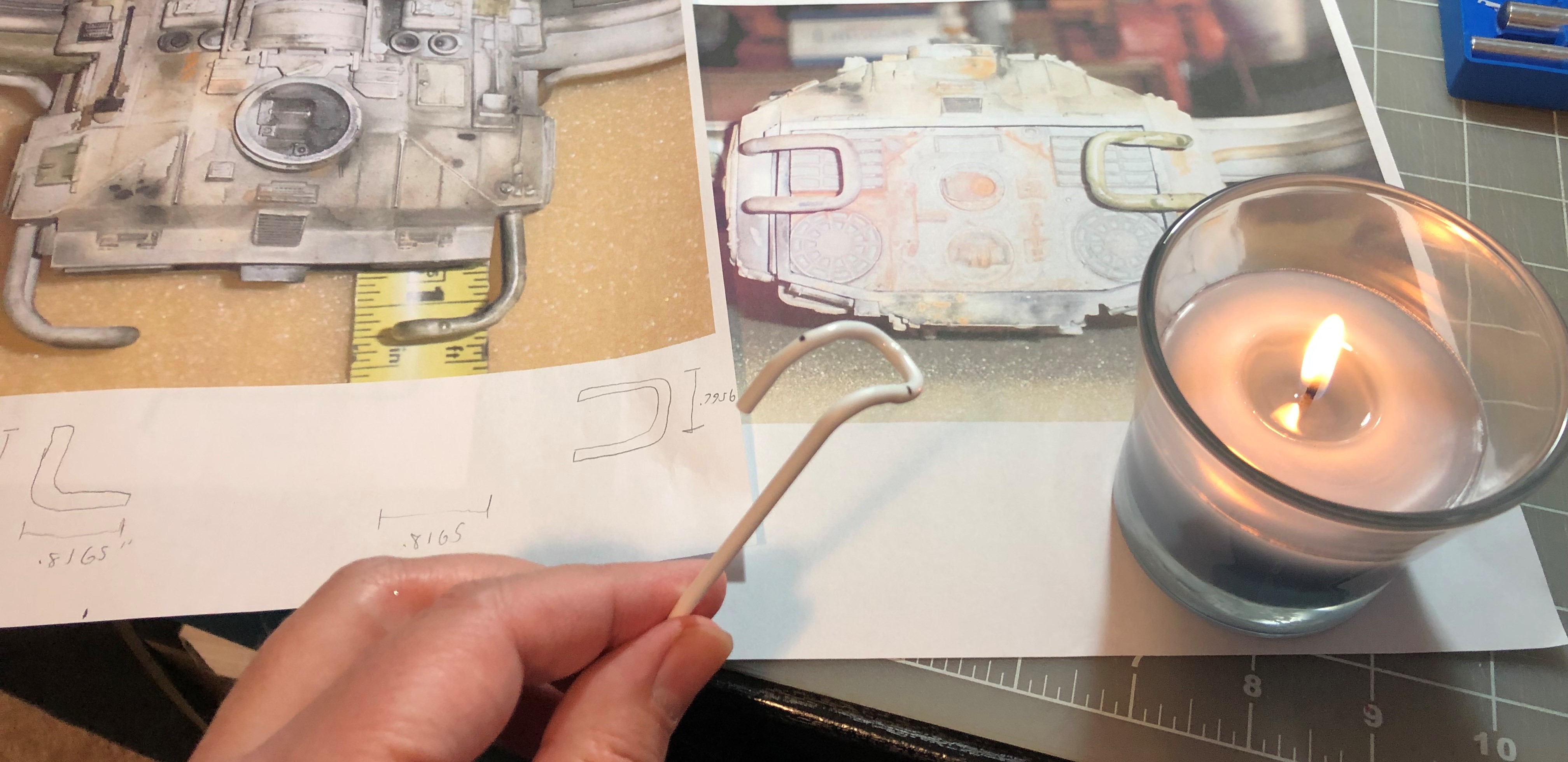

I scaled up the reference photos and marked the bent areas before using a candle to heat up the areas. A little tricky, but it came together quickly. Looking at the reference photos, it looks like these are held onto the fuselage with pins, so I will probably drill some small holes at some point. The pipes are 1/8" thick, so a 1/16" drill bit might do it.


Corellianexports

Sr Member
RPF PREMIUM MEMBER

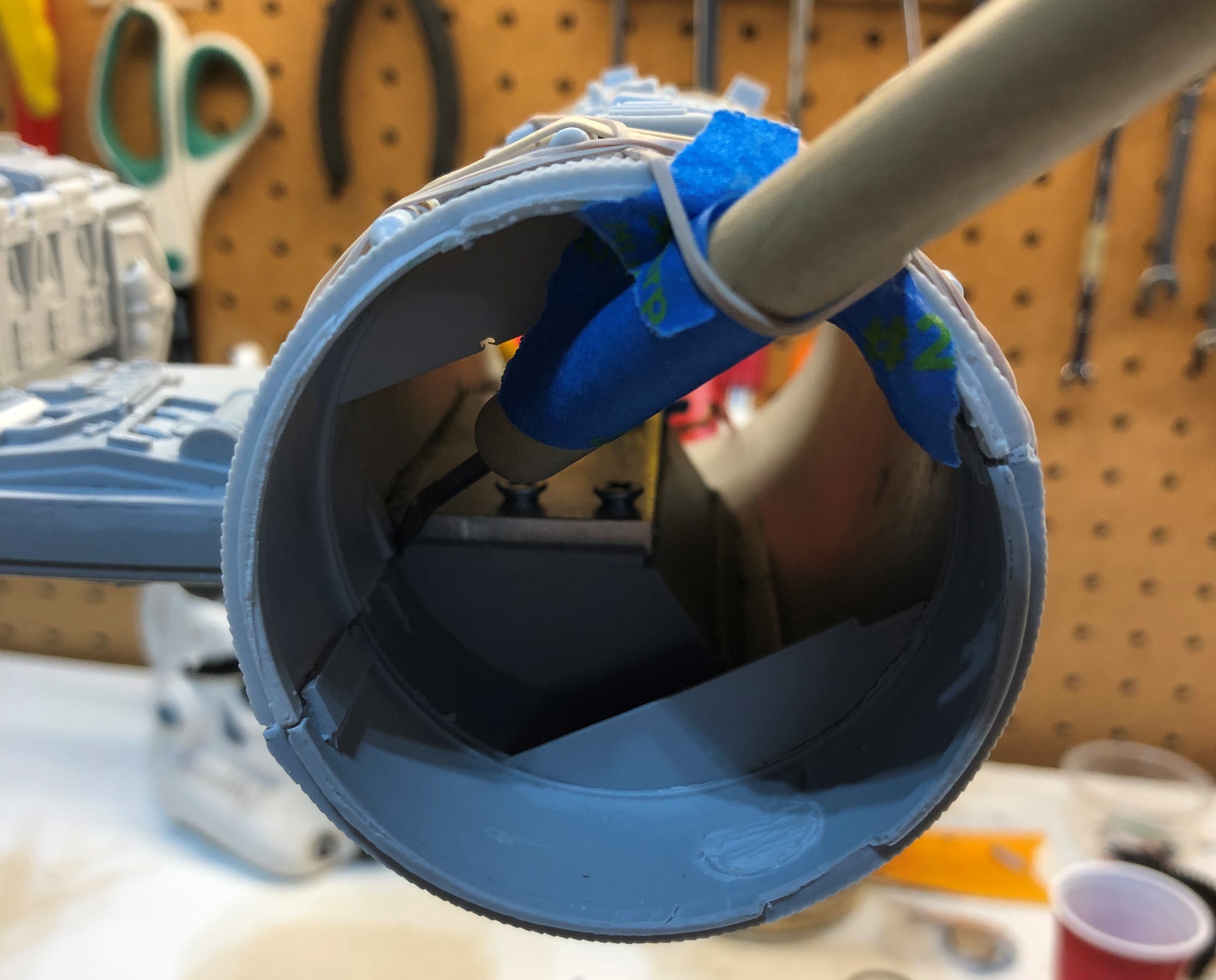

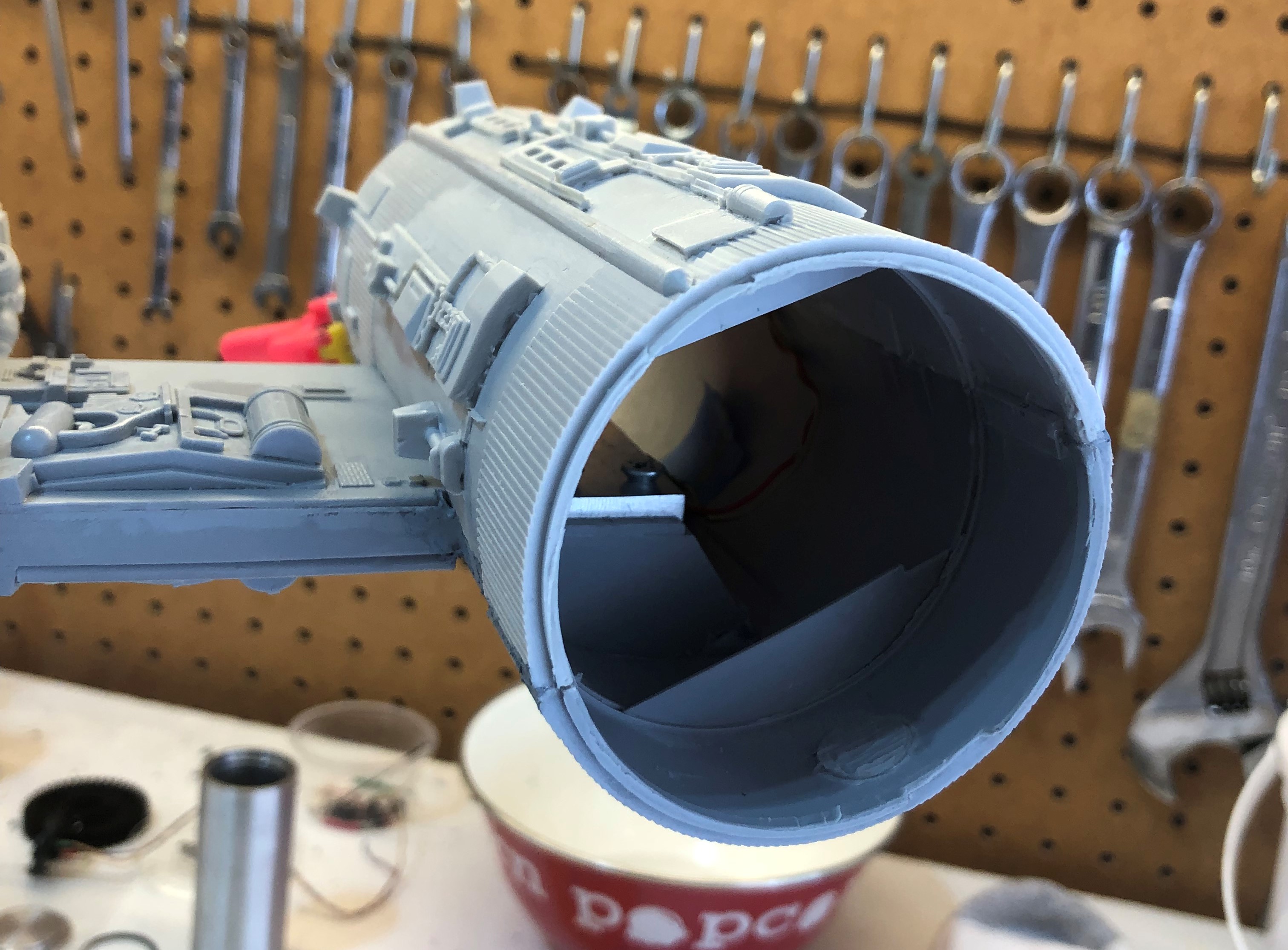

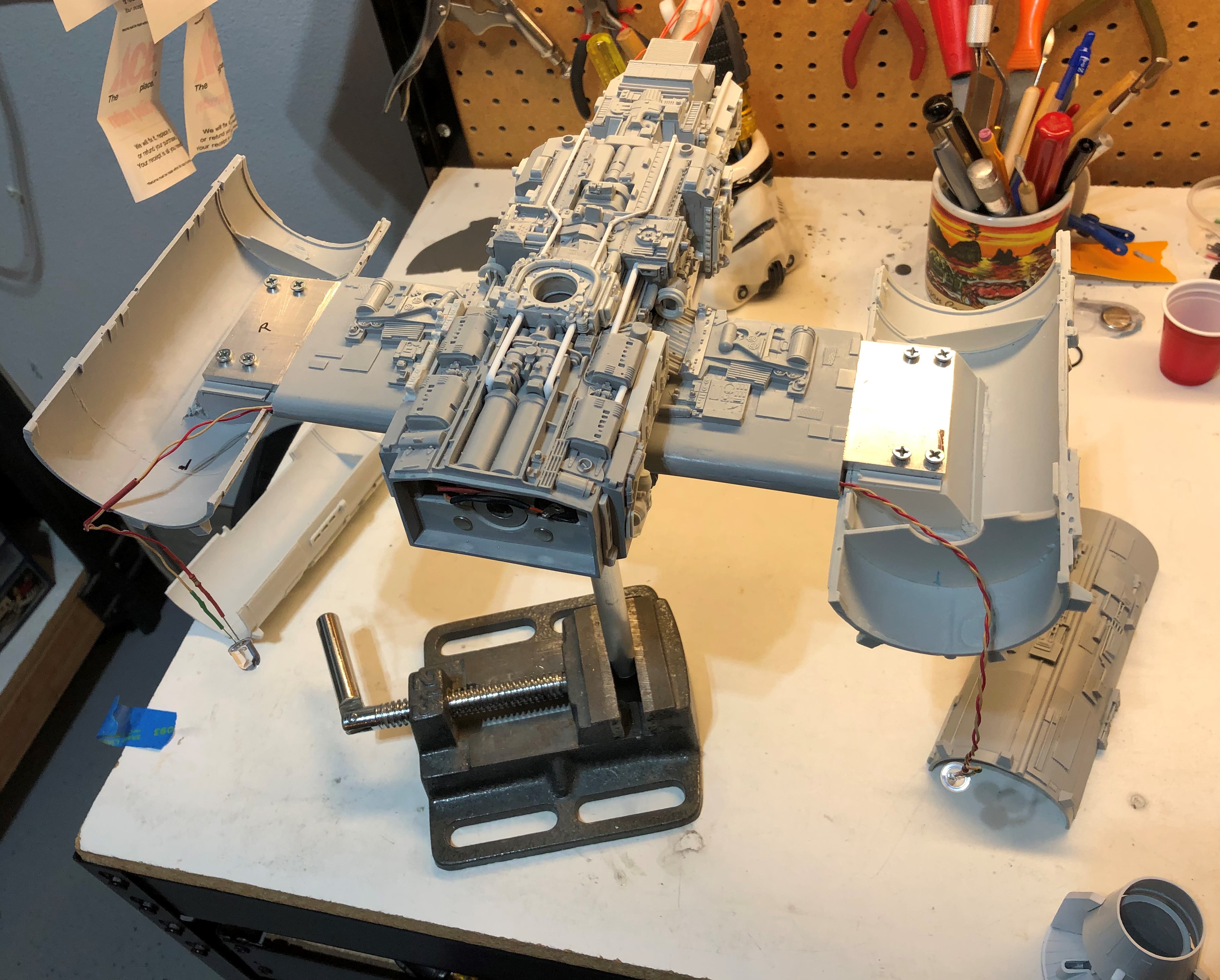

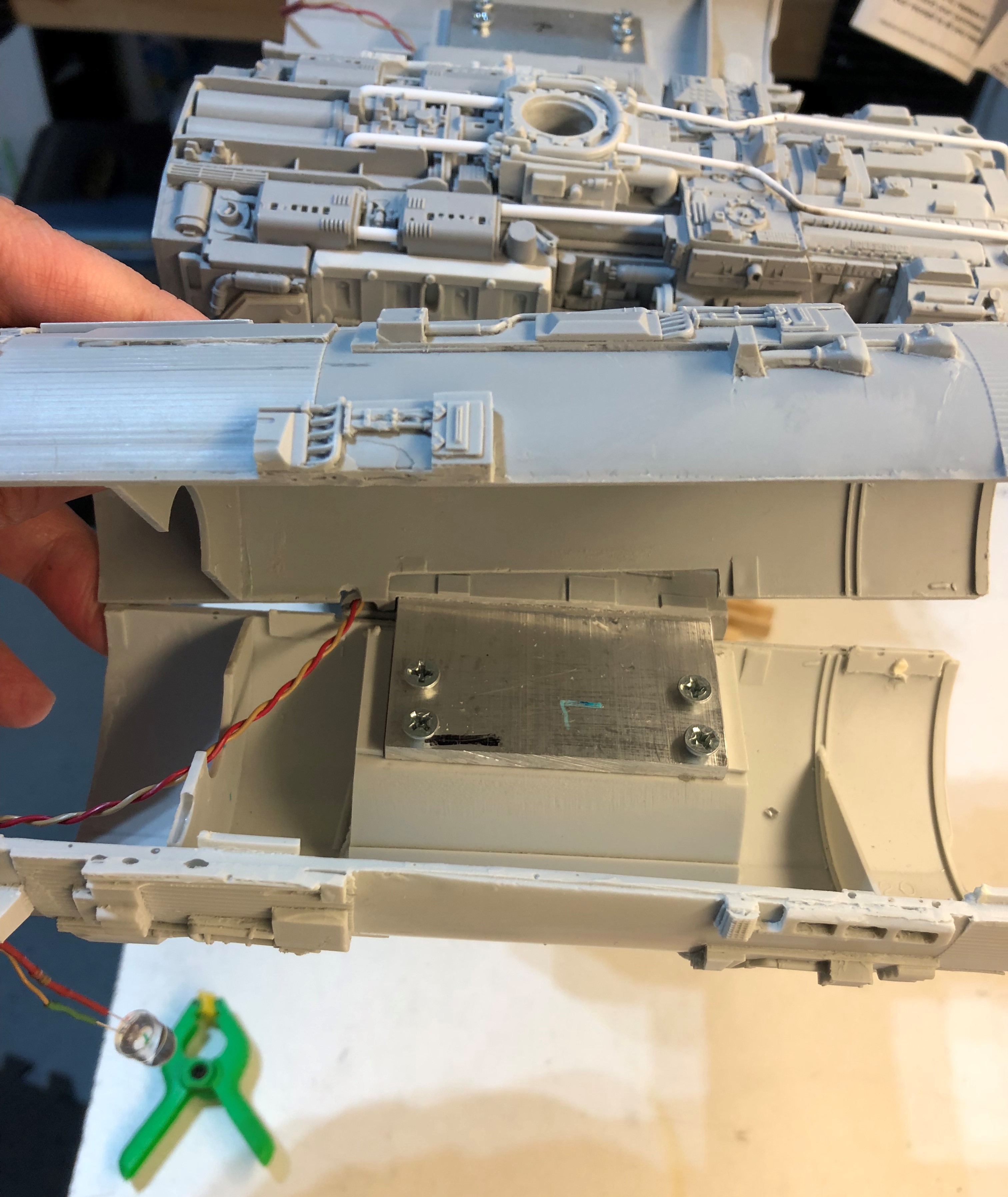

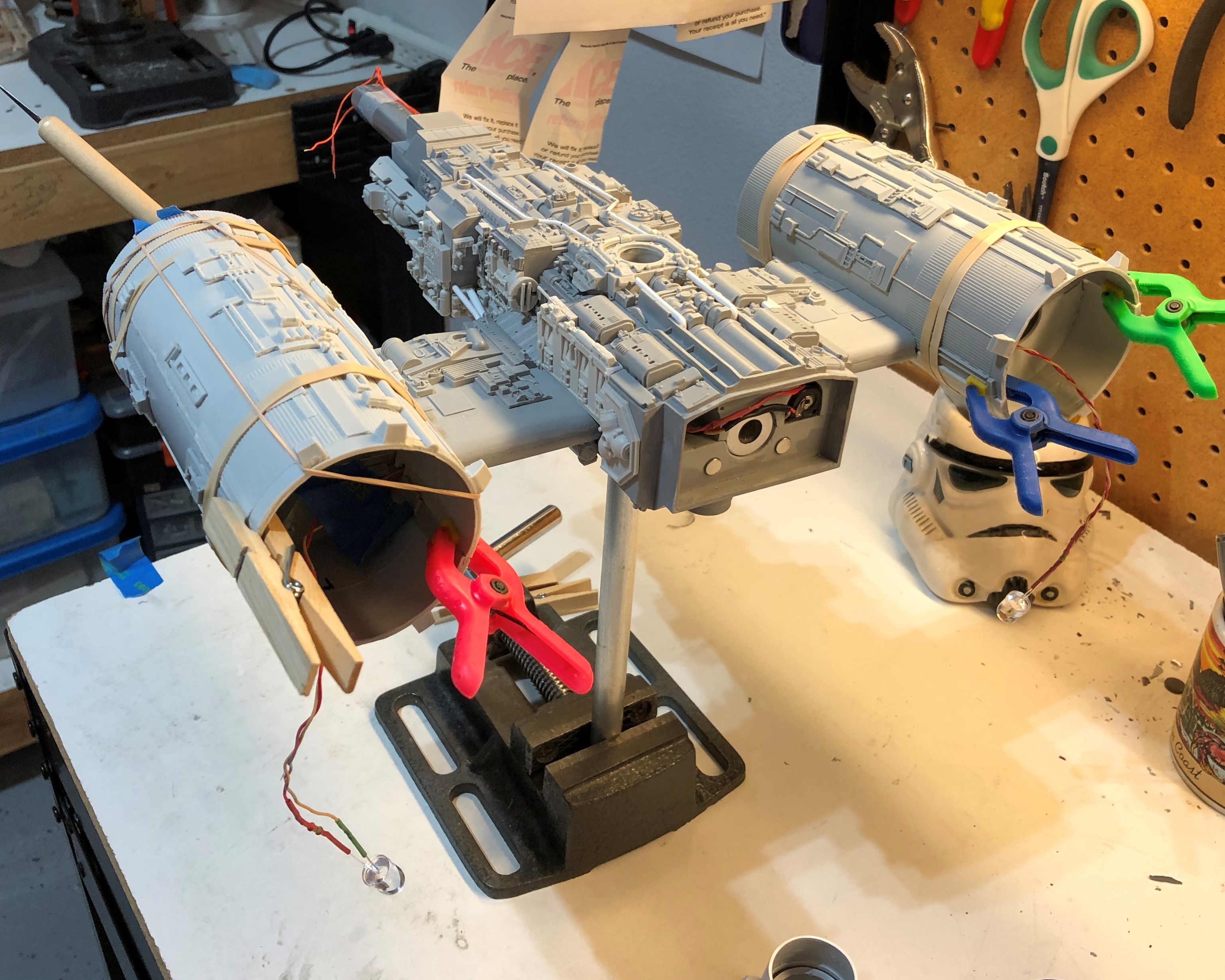

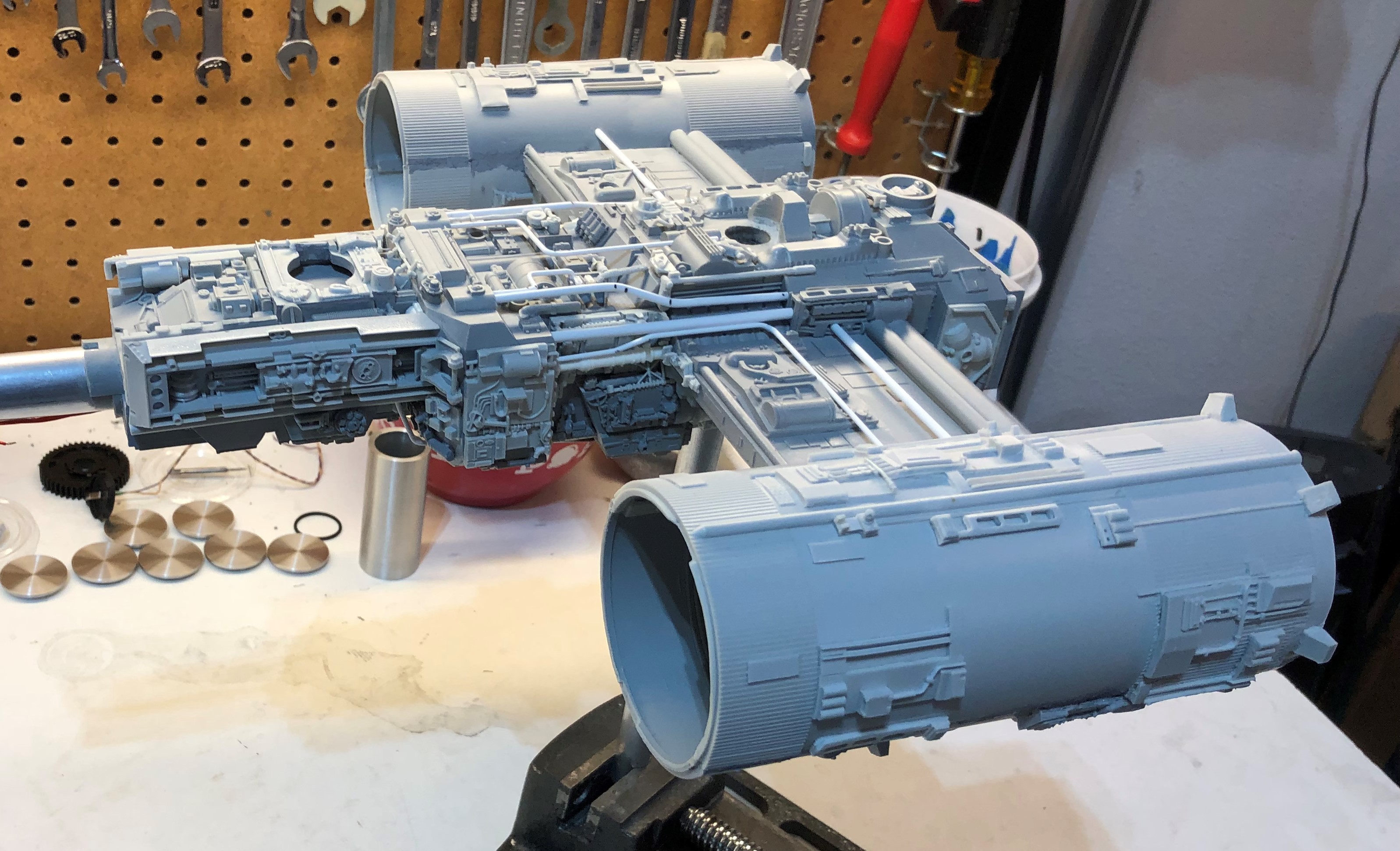

Before I can start assembling the engines, the thrusters will need to be cleaned up and painted. One reason is because they are deep inside the engines and could be difficult to paint after the fact.

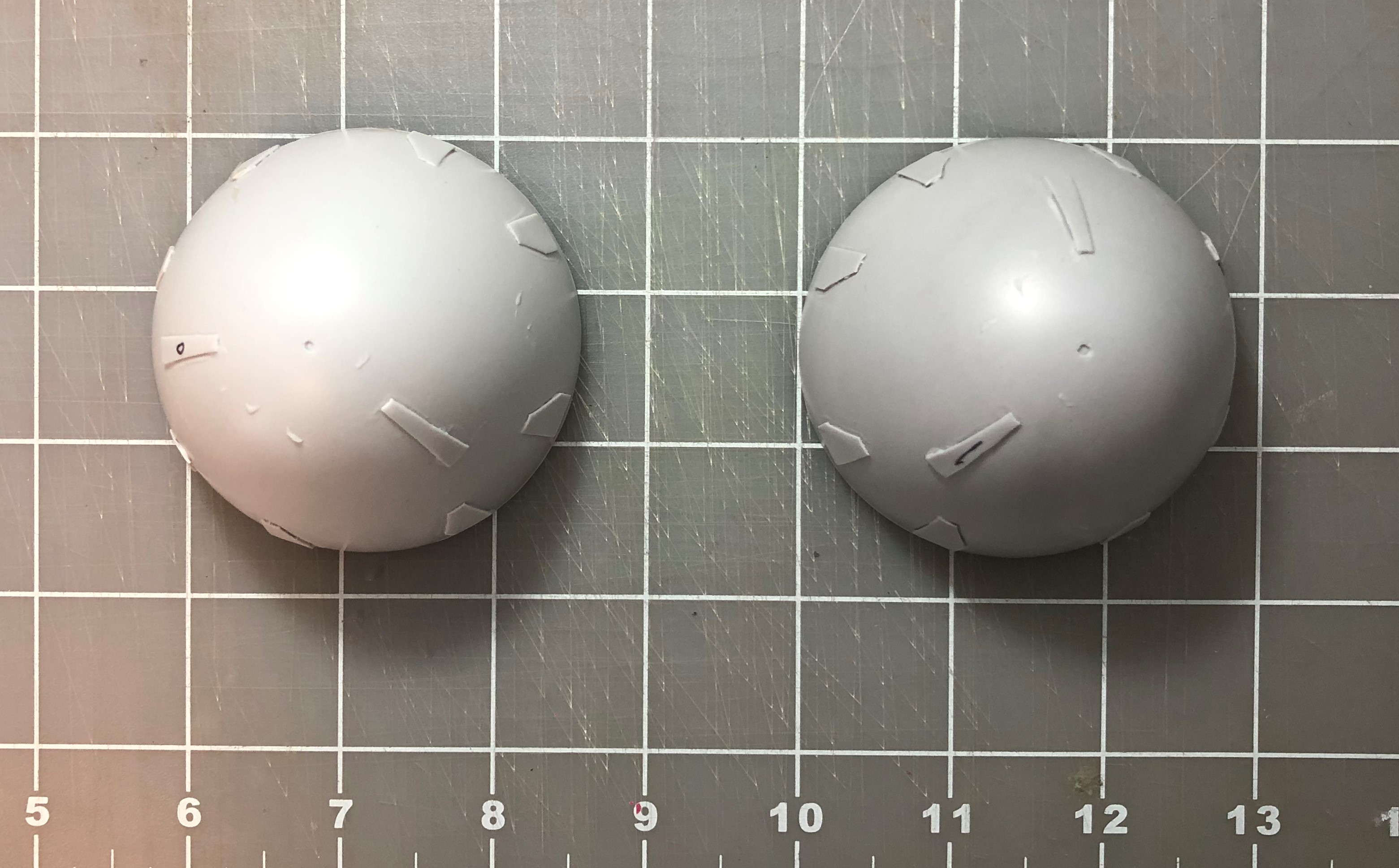

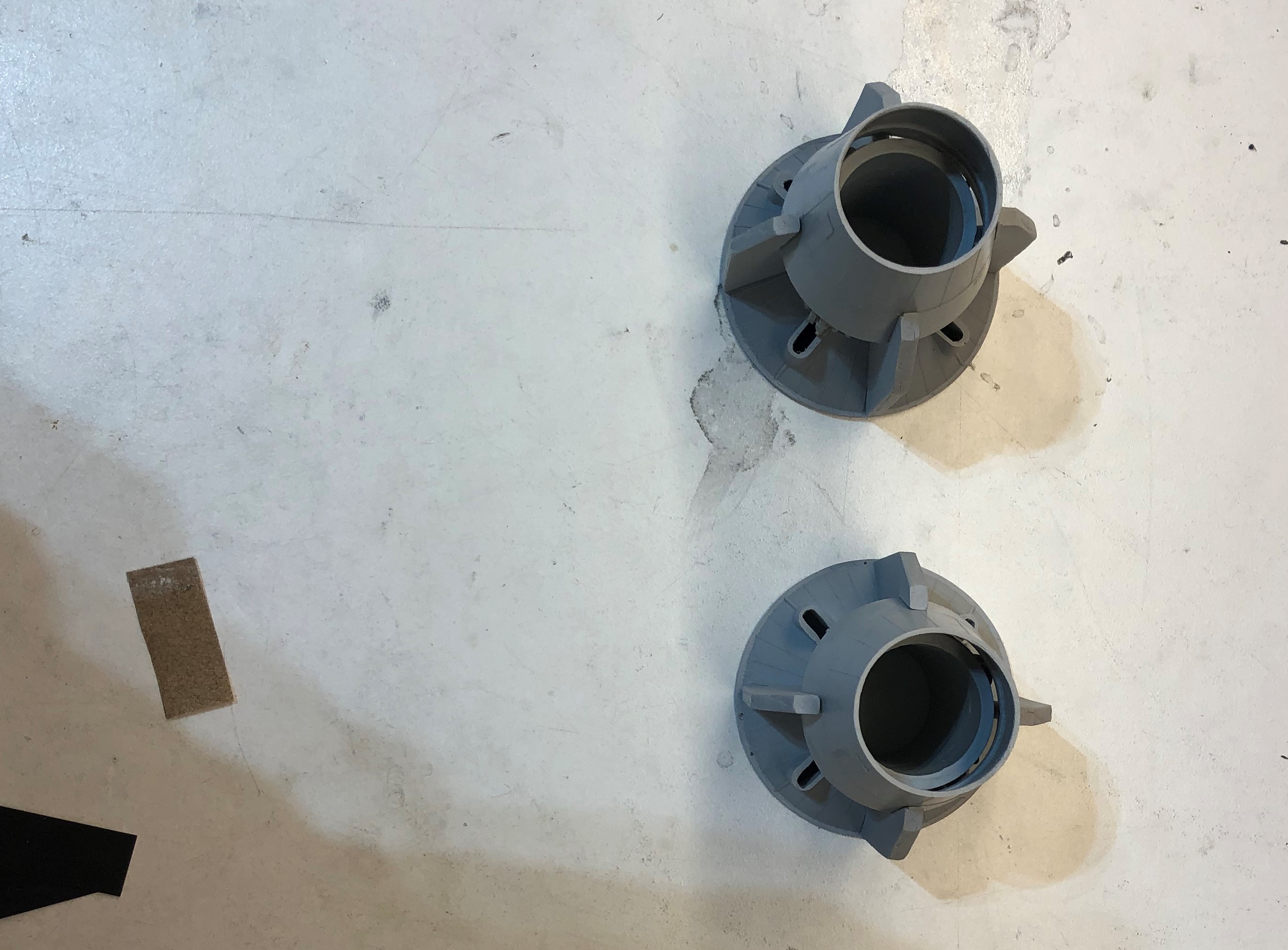

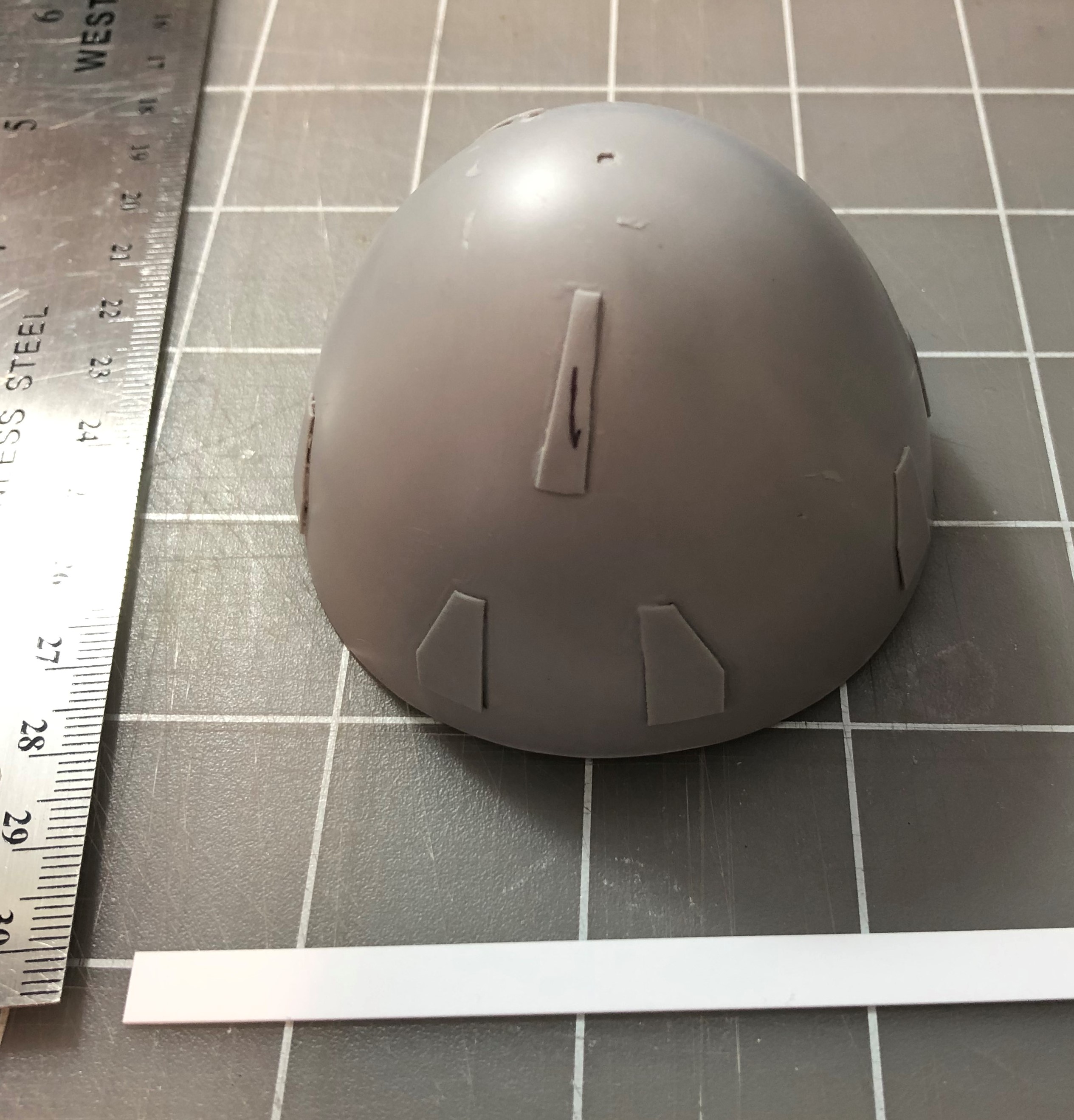

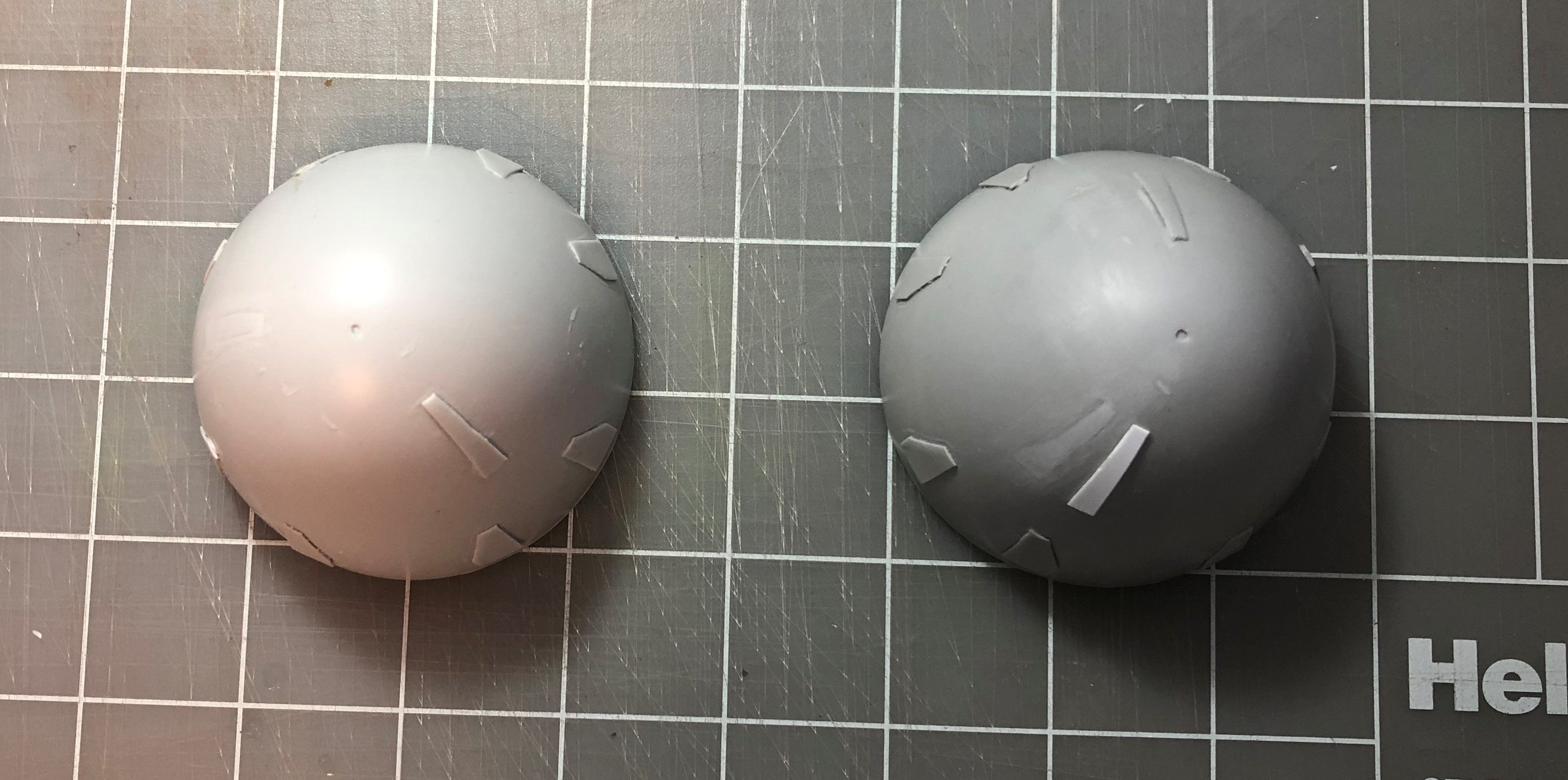

Here's a before photo after painting them with Tamiya light grey primer. They will need to be reinforced with contact cement and touched up with modelers puddy:



Corellianexports

Sr Member
RPF PREMIUM MEMBER

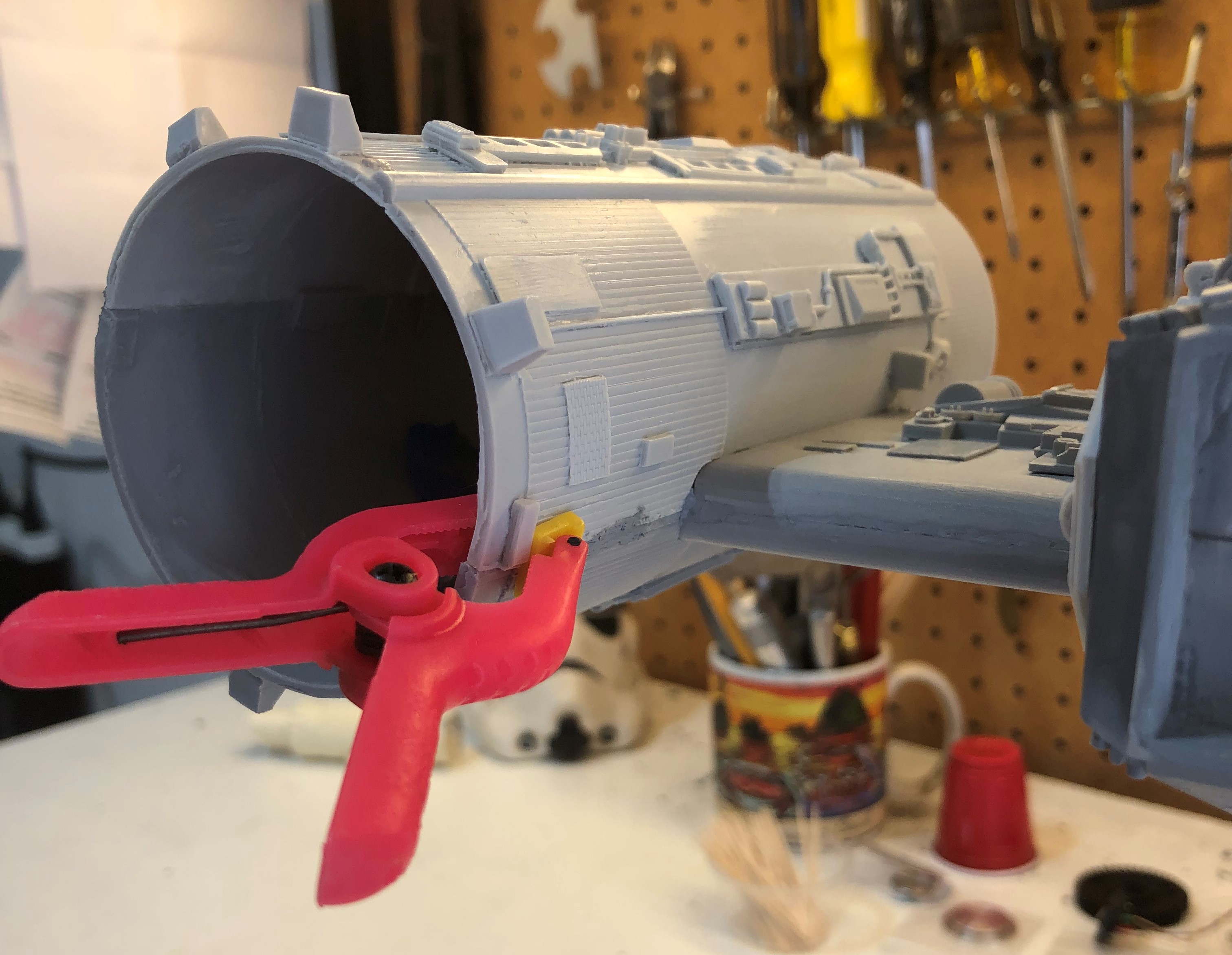

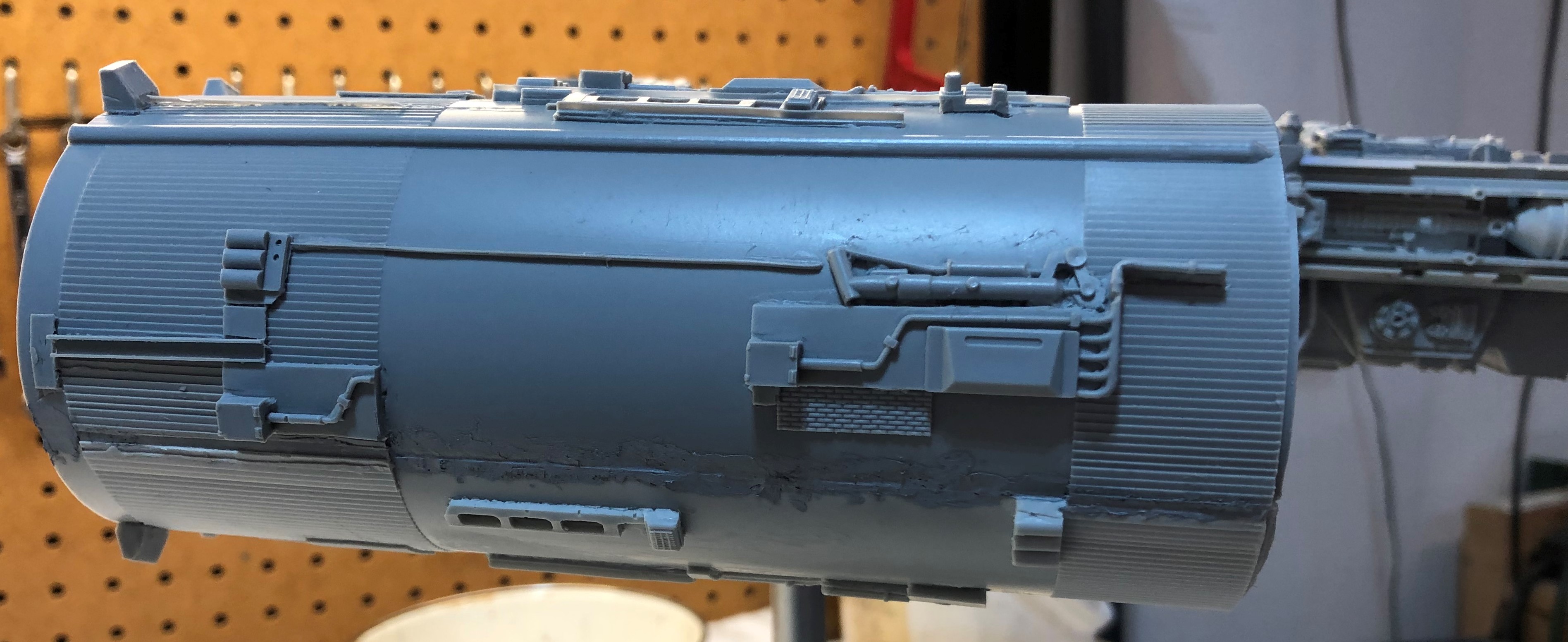

The weather has gotten colder, so I've had to put the painting on hold for at least a week or two. In the meantime, there's plenty of work to do with the piping. There's so much of it, it's hard to know exactly where to start, so since the top section of the engines are already attached, I decided to start at top. Something interesting I noticed is that the width of the pipes change from small to large moving from the center of the ship to the outer edges. The exception is the pipe on the wing, which is the smallest at .06". Medium is .1" and large is .125".

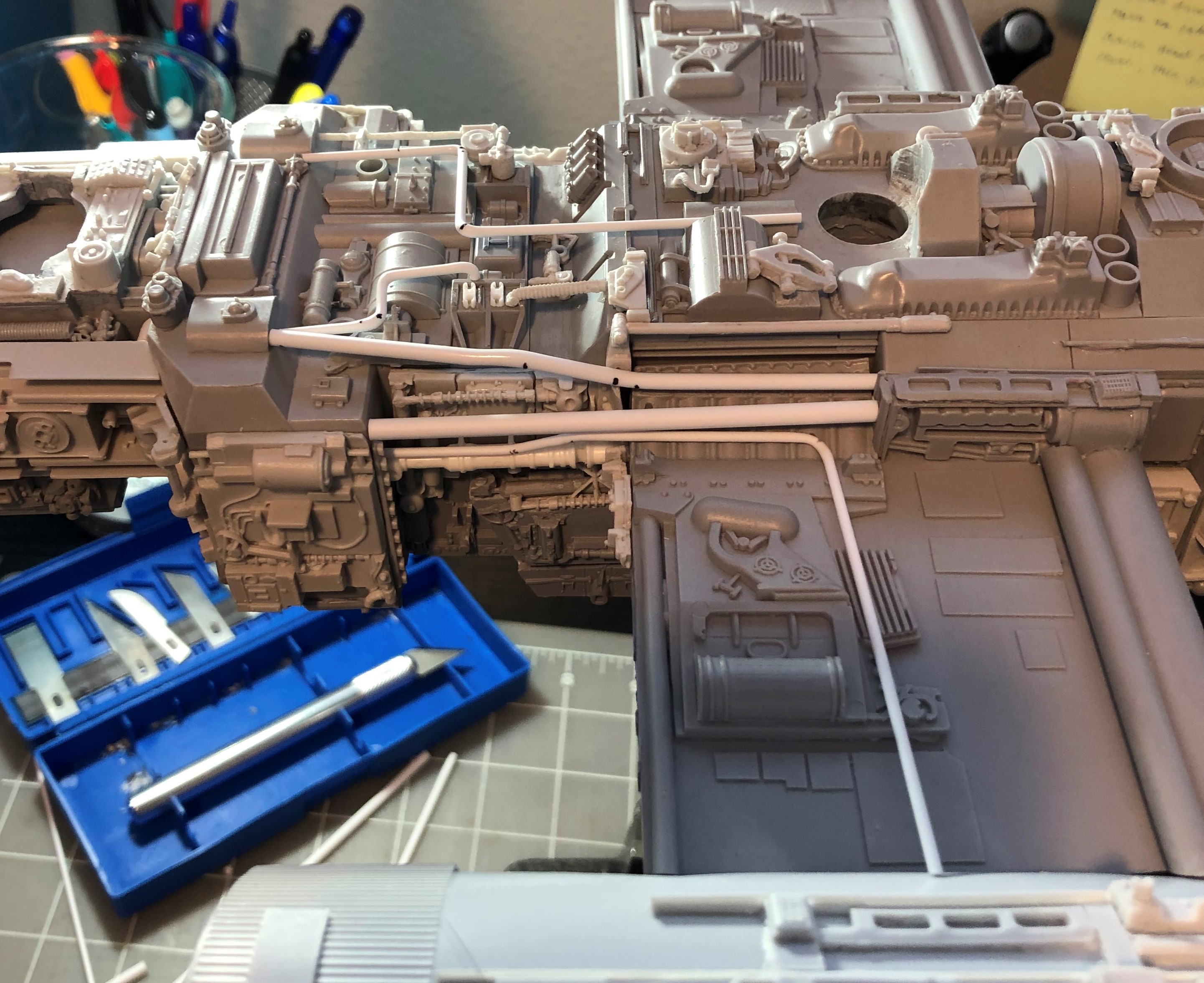

Here's a progress shot of the left side:



It was easier just to cut and bend the pipes first before attaching them. Since I'm starting from scratch today, I decided to start attaching them before moving on to more cutting and bending:


Last edited:

Corellianexports

Sr Member
RPF PREMIUM MEMBER

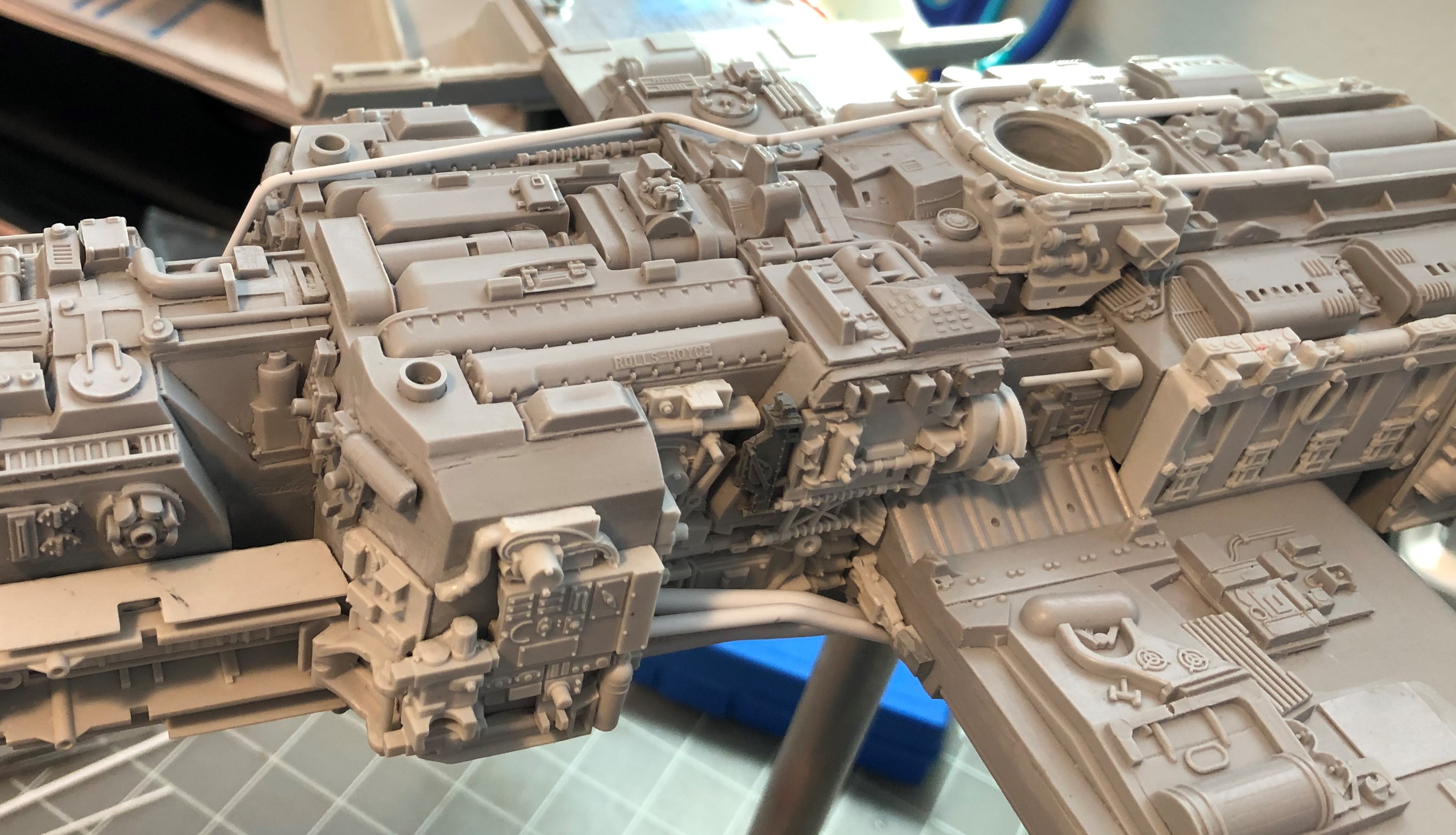

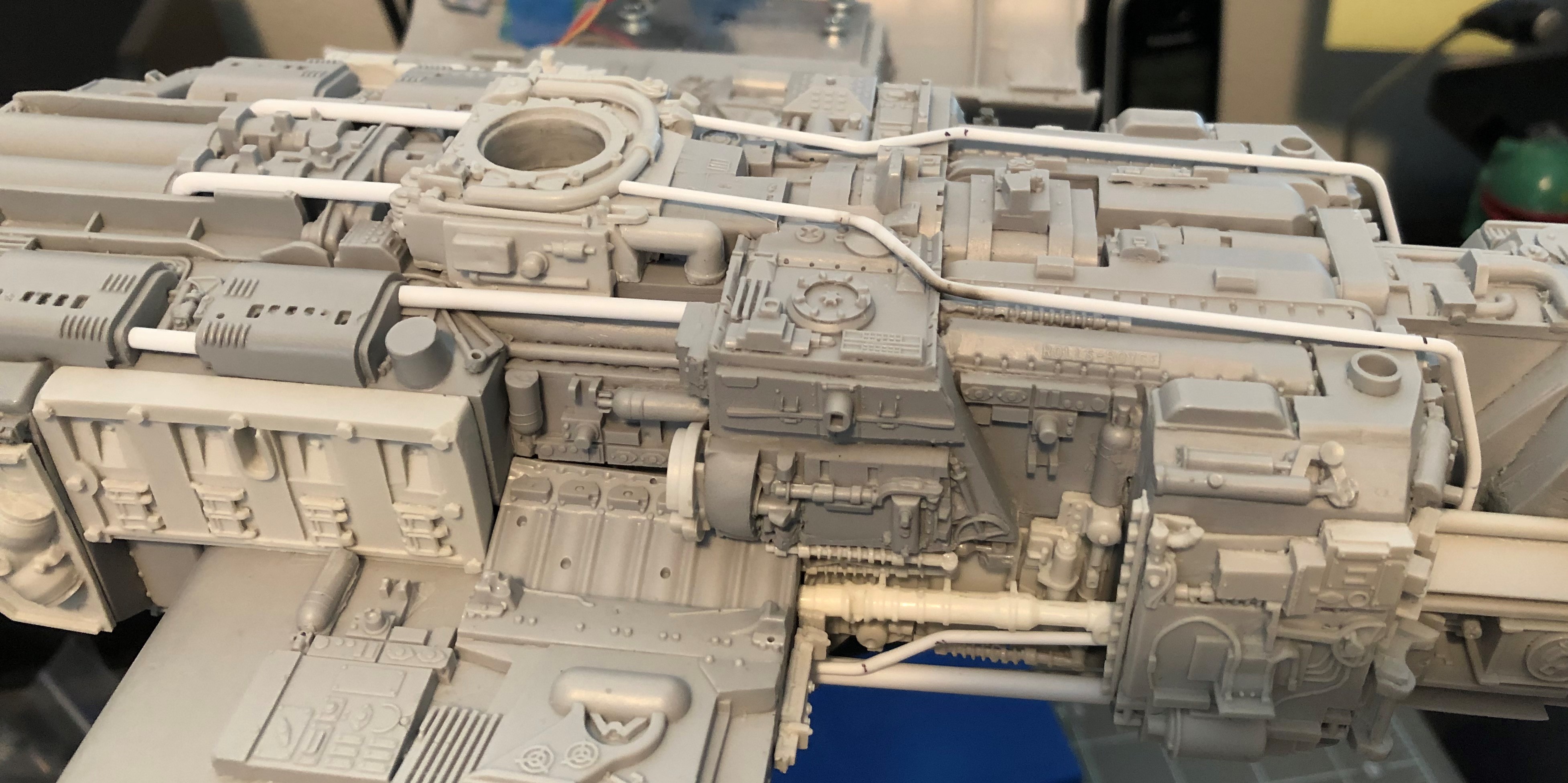

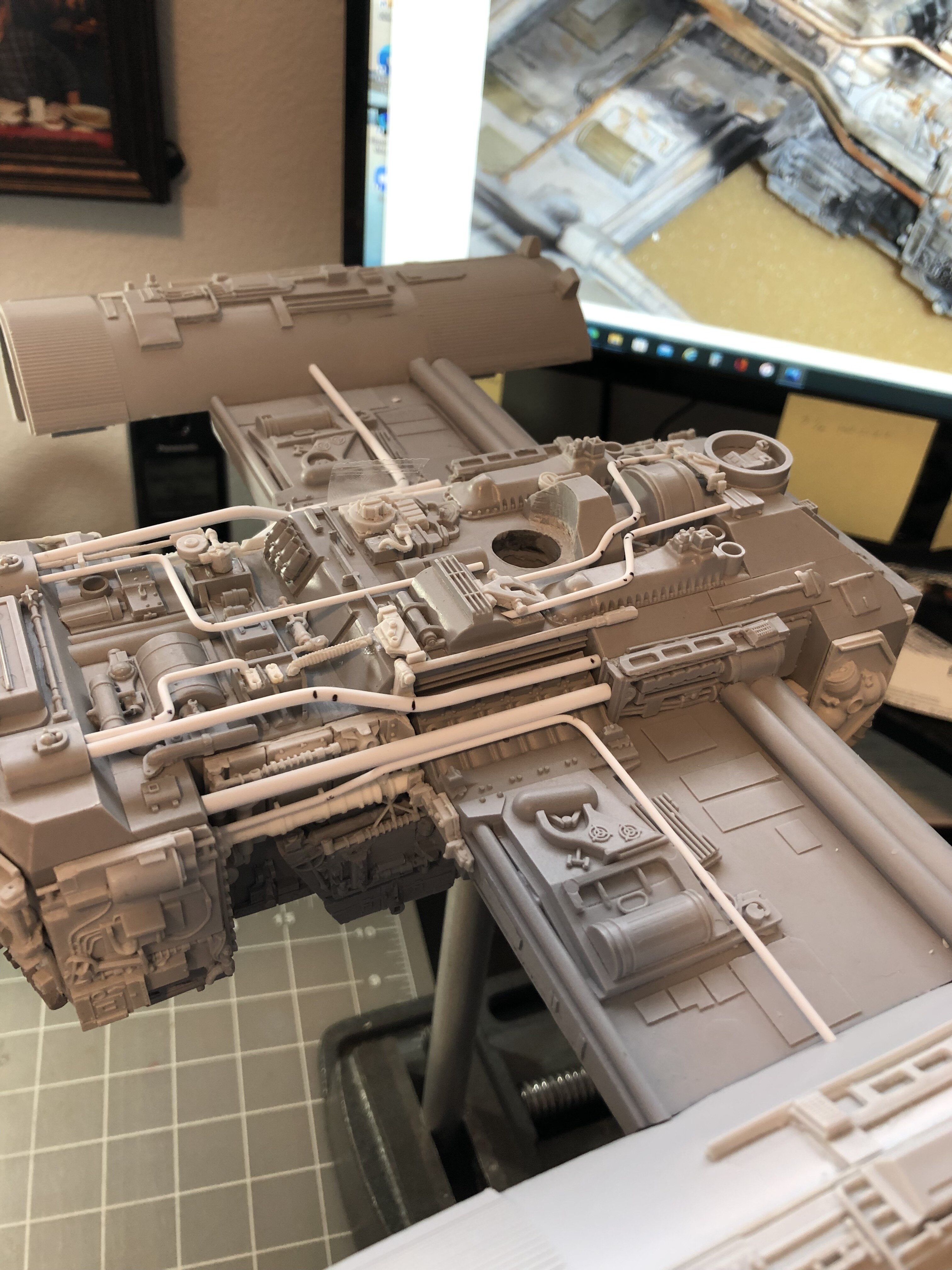

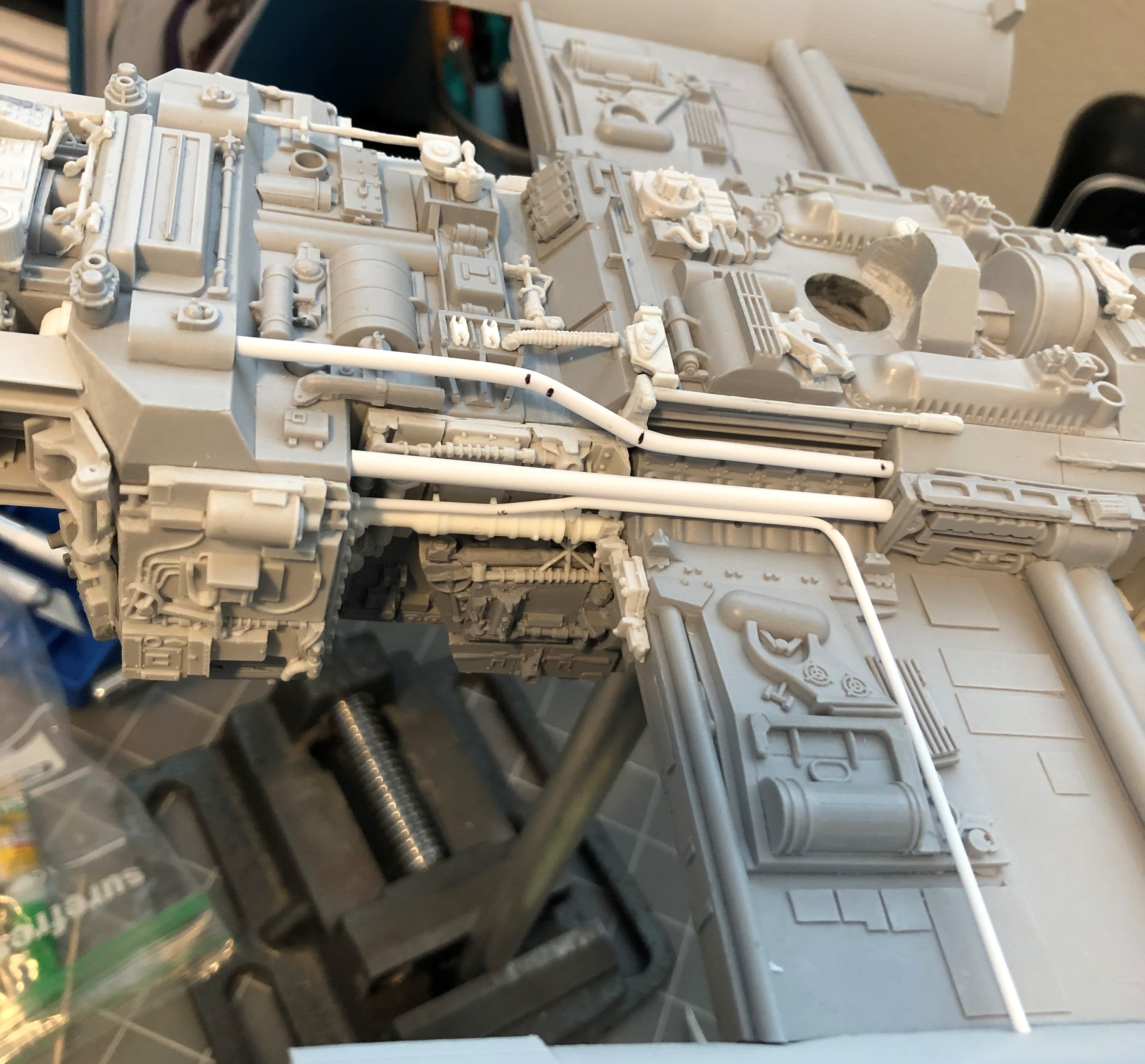

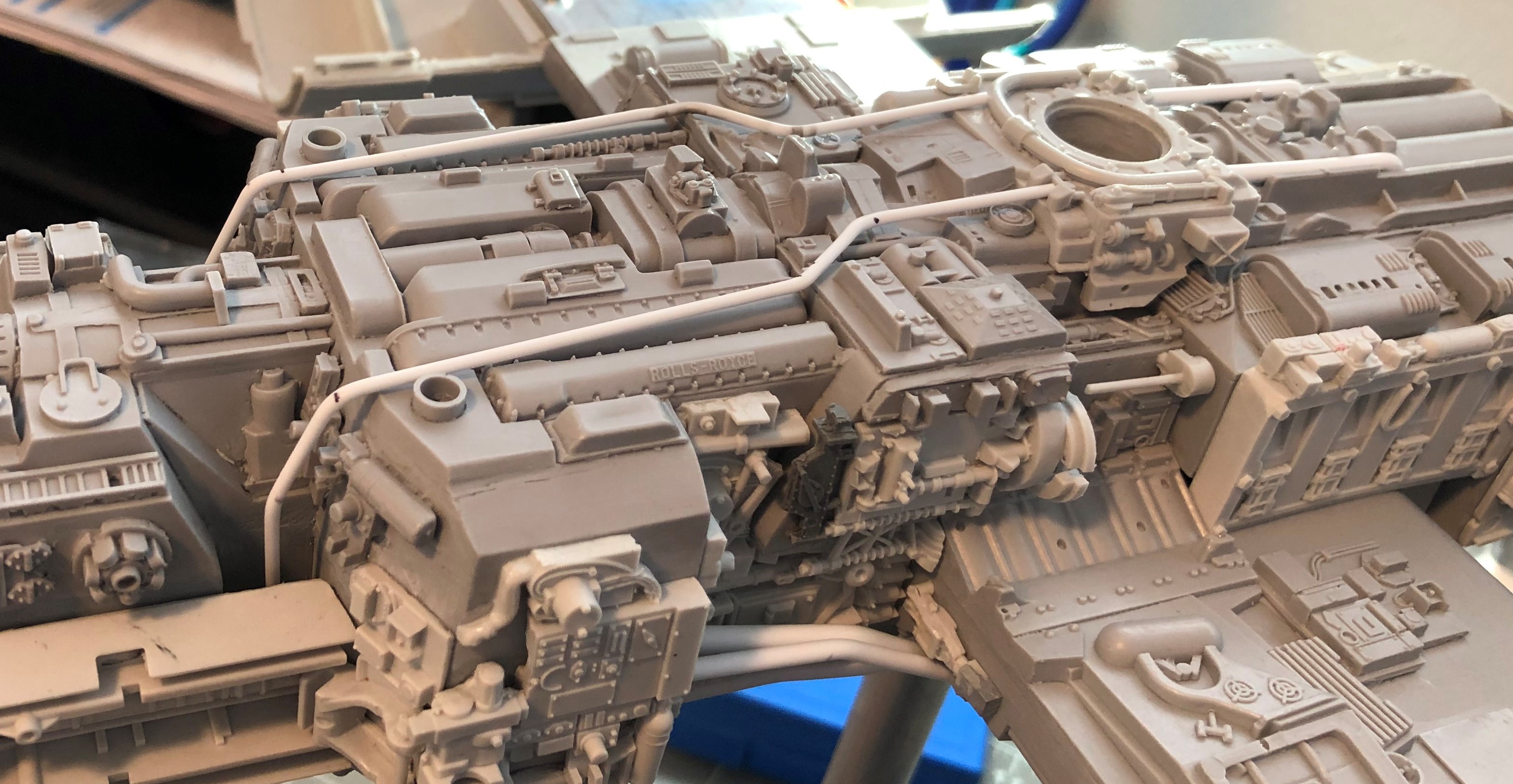

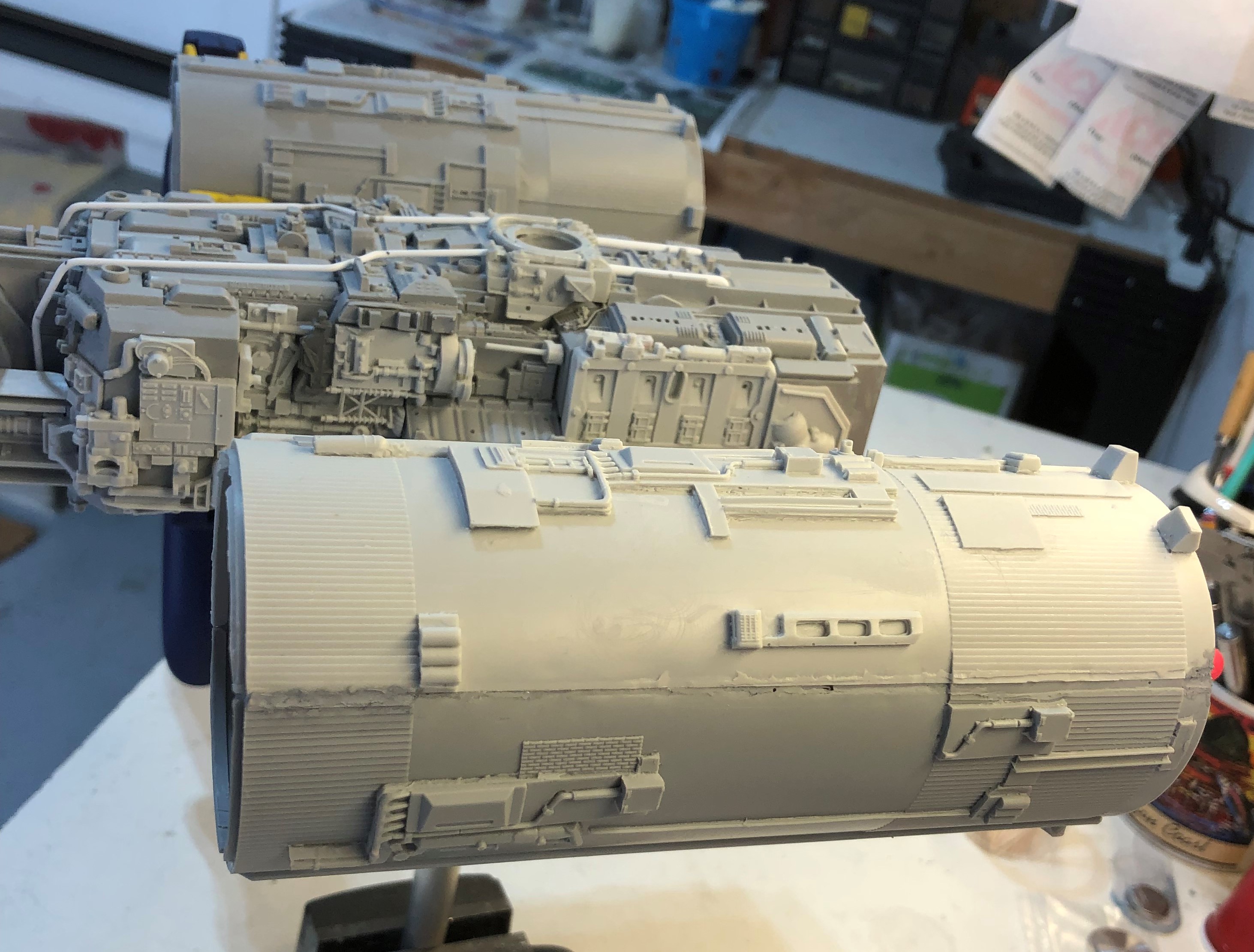

Last weekend I attached most of the pipes on the top, including the left side. Today I'm finishing off all of the pipes for the top section:

Pipes - Left Side Top.JPG

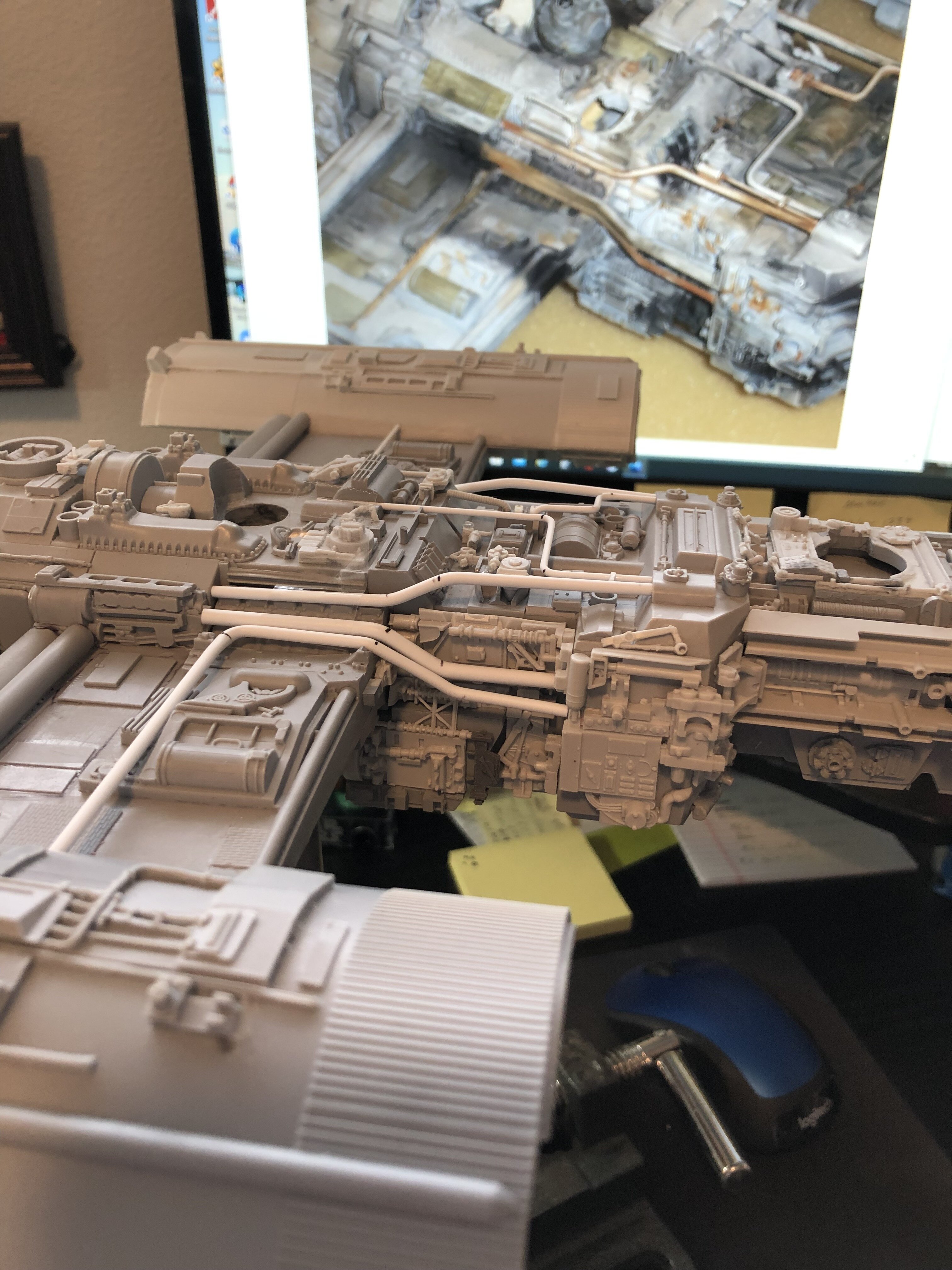

While making the pipes for the top, right side, I noticed a couple of parts that are missing, so I'll have to go through my bag of leftovers and see if I can get these parts installed. I'm scratching my head a bit because I'm not sure if these parts were added after the fact in post-production or if they simply fell off while filming, which is definitely possible considering all of the "stuff" on this model:

Pipes - Right Side Top.JPG

Up next, researching and placing the "missing" parts, then on to the bottom for more piping.


Corellianexports

Sr Member
RPF PREMIUM MEMBER

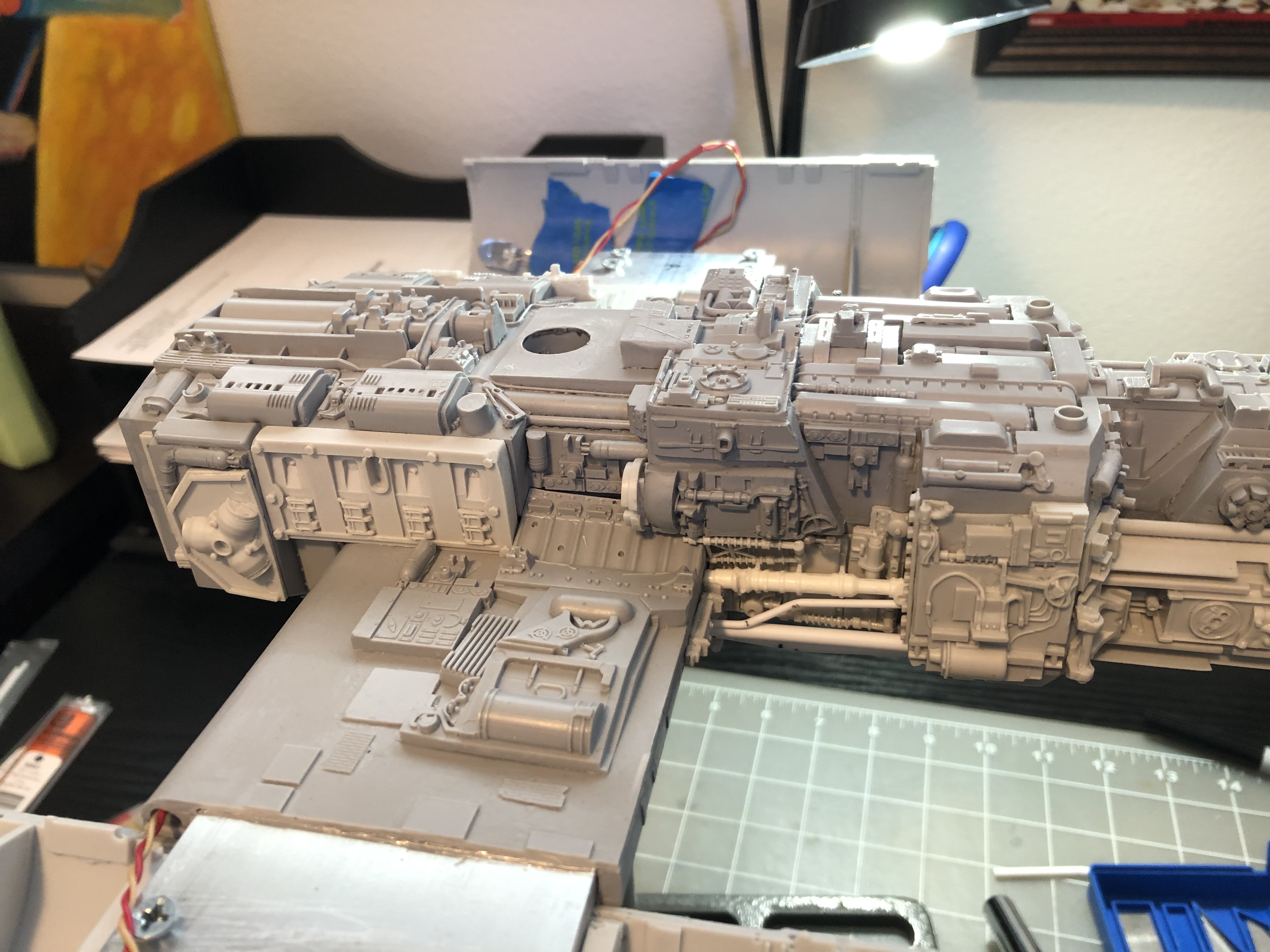

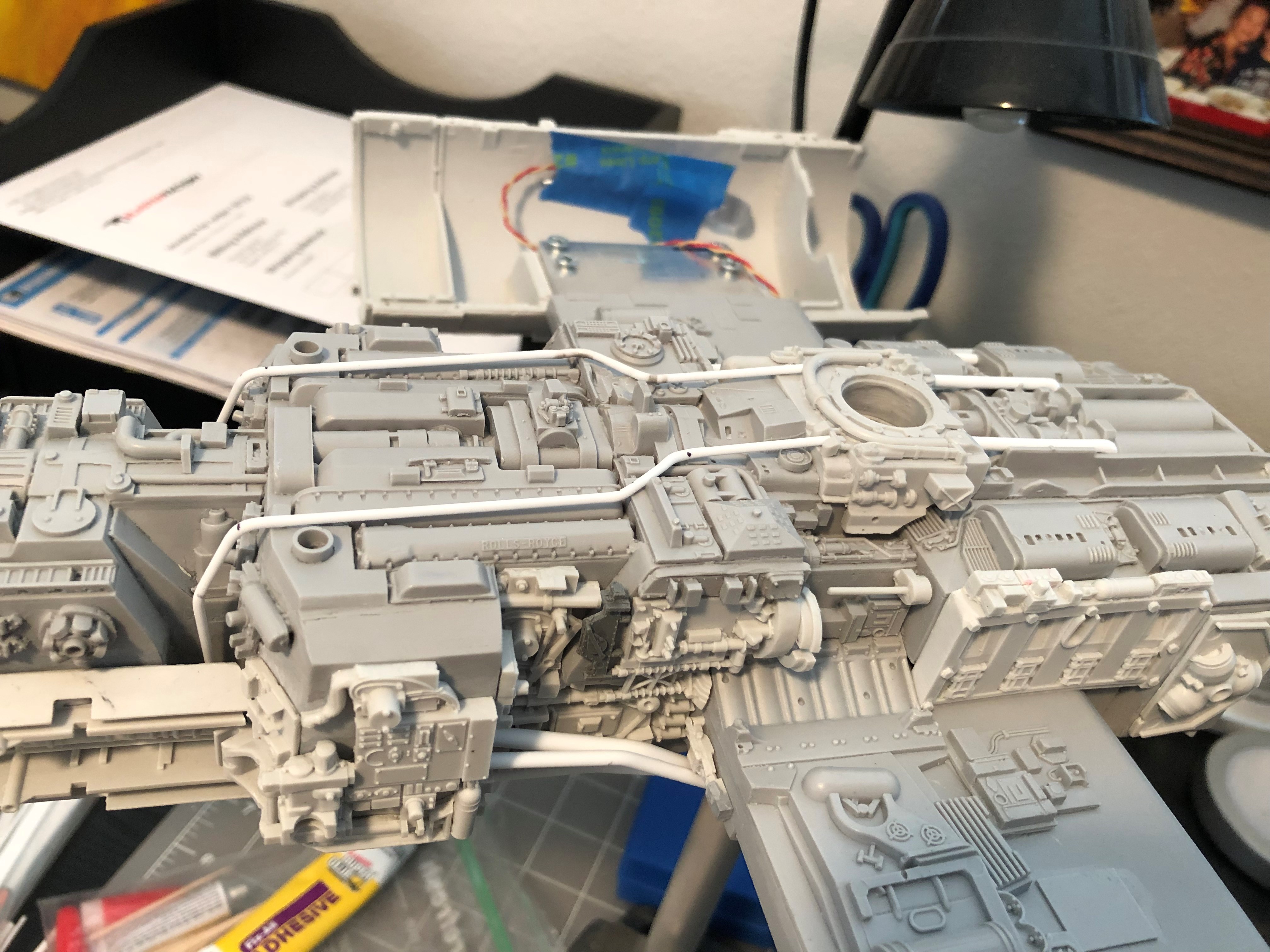

I checked through my leftovers and found an 8RAD part, which looks like a pair of handlebars or control arms and placed it behind the upper pipe. The other part is a McLaren "plug" part which attaches to one end of the lower and larger pipe. These parts are included with the kit.

I looked at some additional reference photos and found these parts are on the model, but I think I missed them because the original instructions for Gold Leader don't include piping, so these parts were ignored, possibly because they are so close to the piping:



To get the "plug" to fit correctly, some material needs to be removed from the side of the upper wing section, just below the sets of rectangular openings. The 8RAD part needs to be cut down a bit by removing the small "bolts" on the ends. I just glued it against the side of the fuselage and on top of the upper wing area.


Corellianexports

Sr Member
RPF PREMIUM MEMBER
Today I spent a little more time removing small bits of material from the upper part of the right or starboard wing. It looks as if there was some "undercut" left over from the mold, so this is what had to be removed:

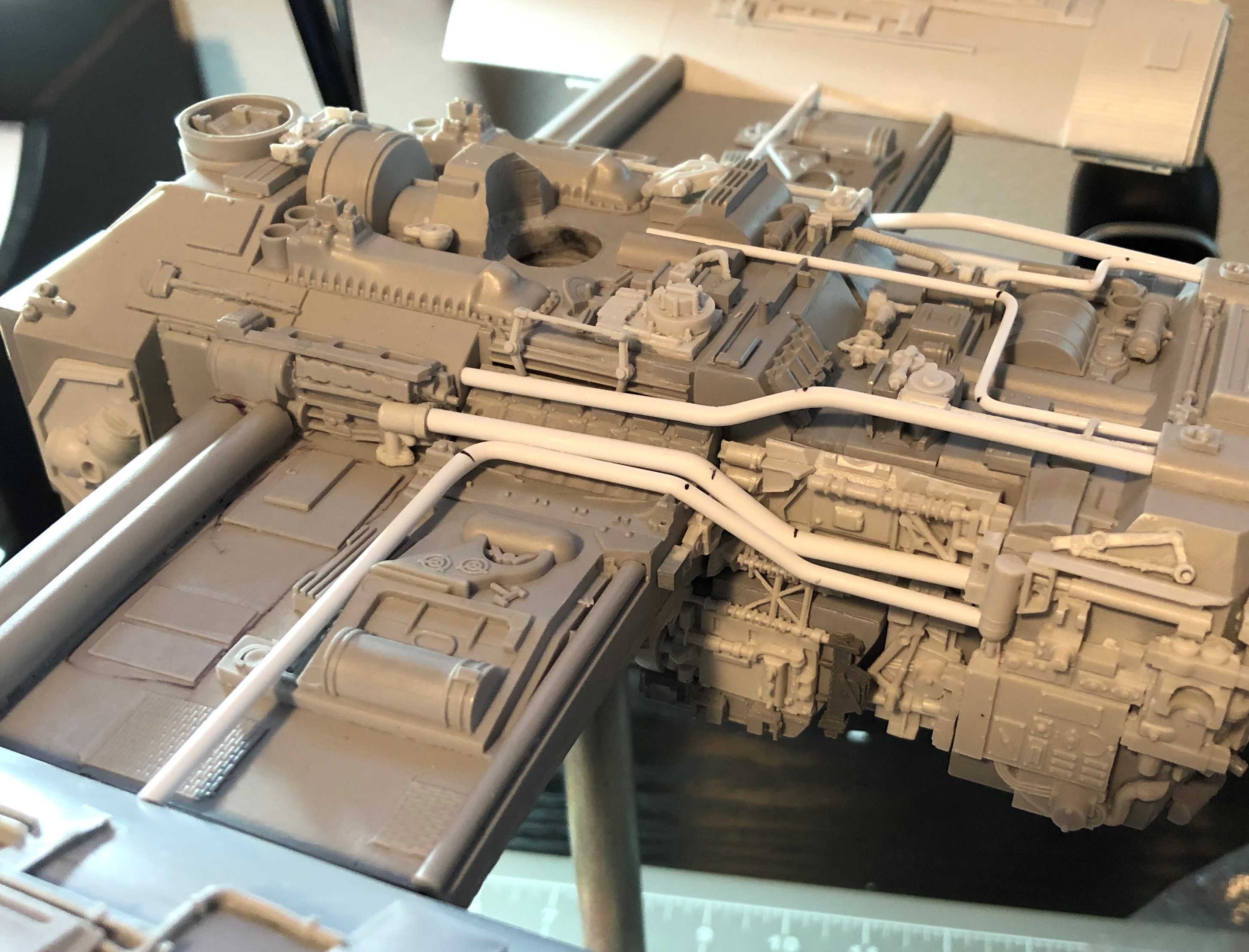

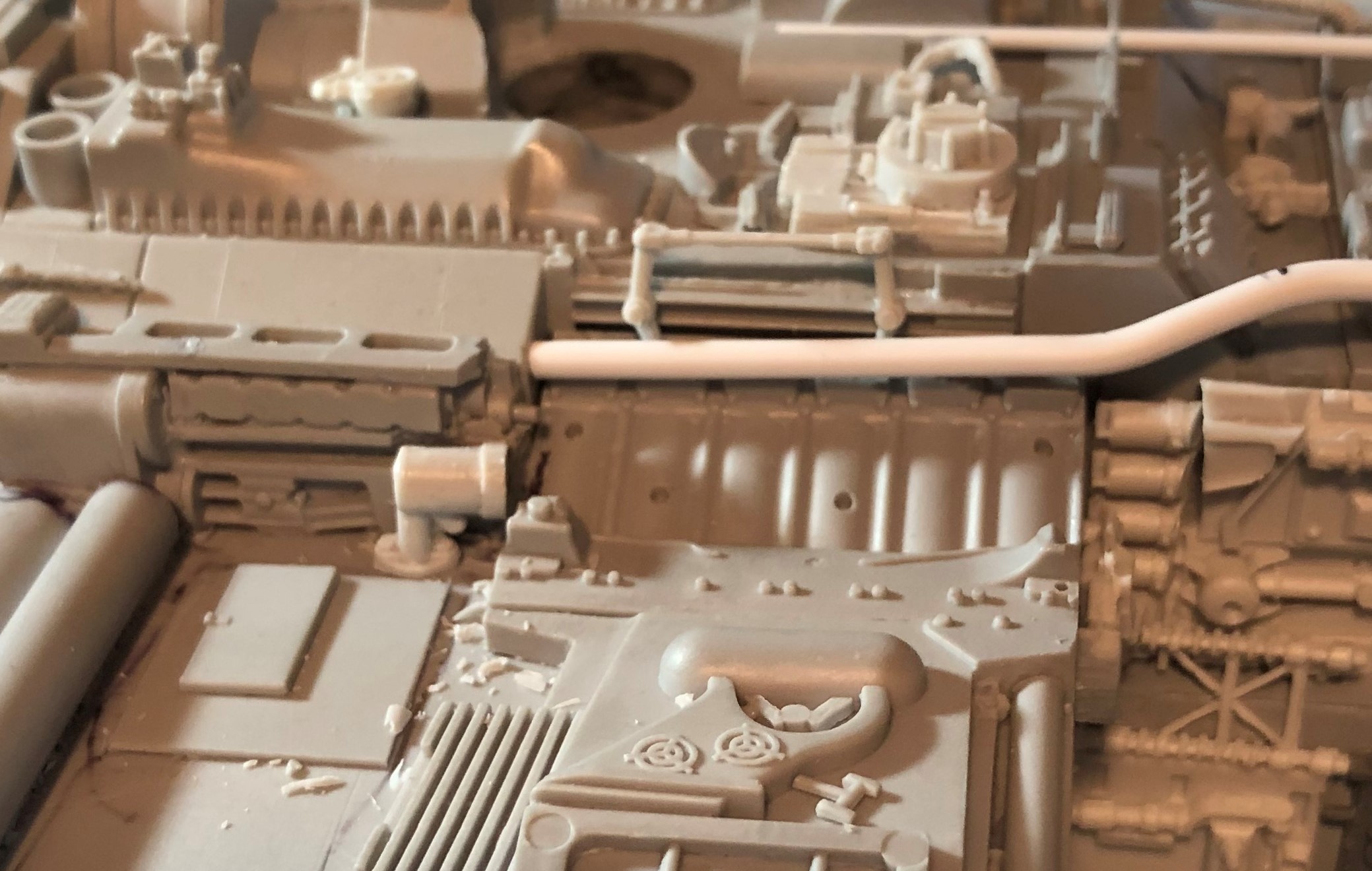

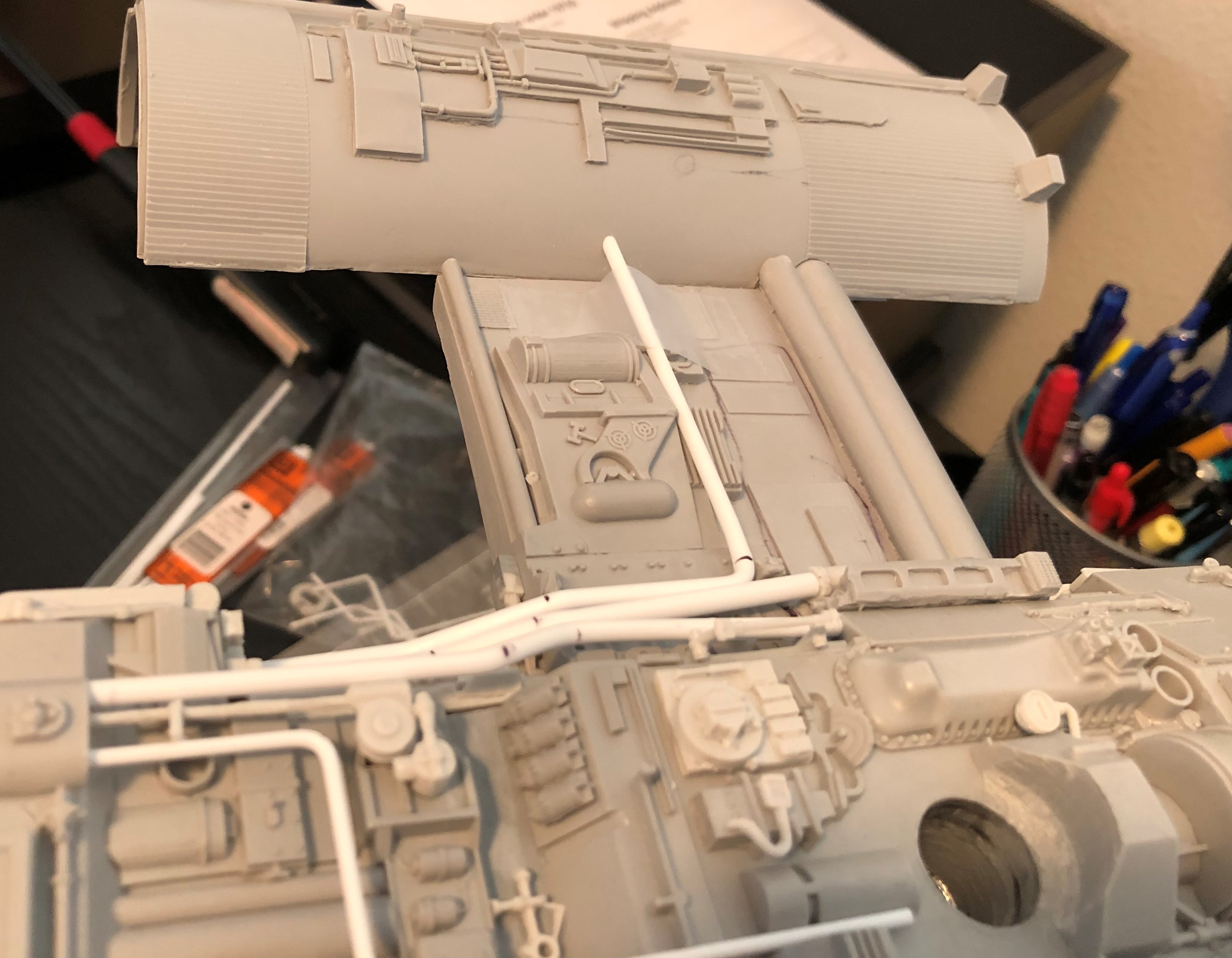

The "plug" was glued in place and then the two pipes were added. Based on the reference photo, the two pipes are actually glued together, probably to help stabilize them. I used some tape and a couple of toothpicks to help keep them in place. Lots of work!

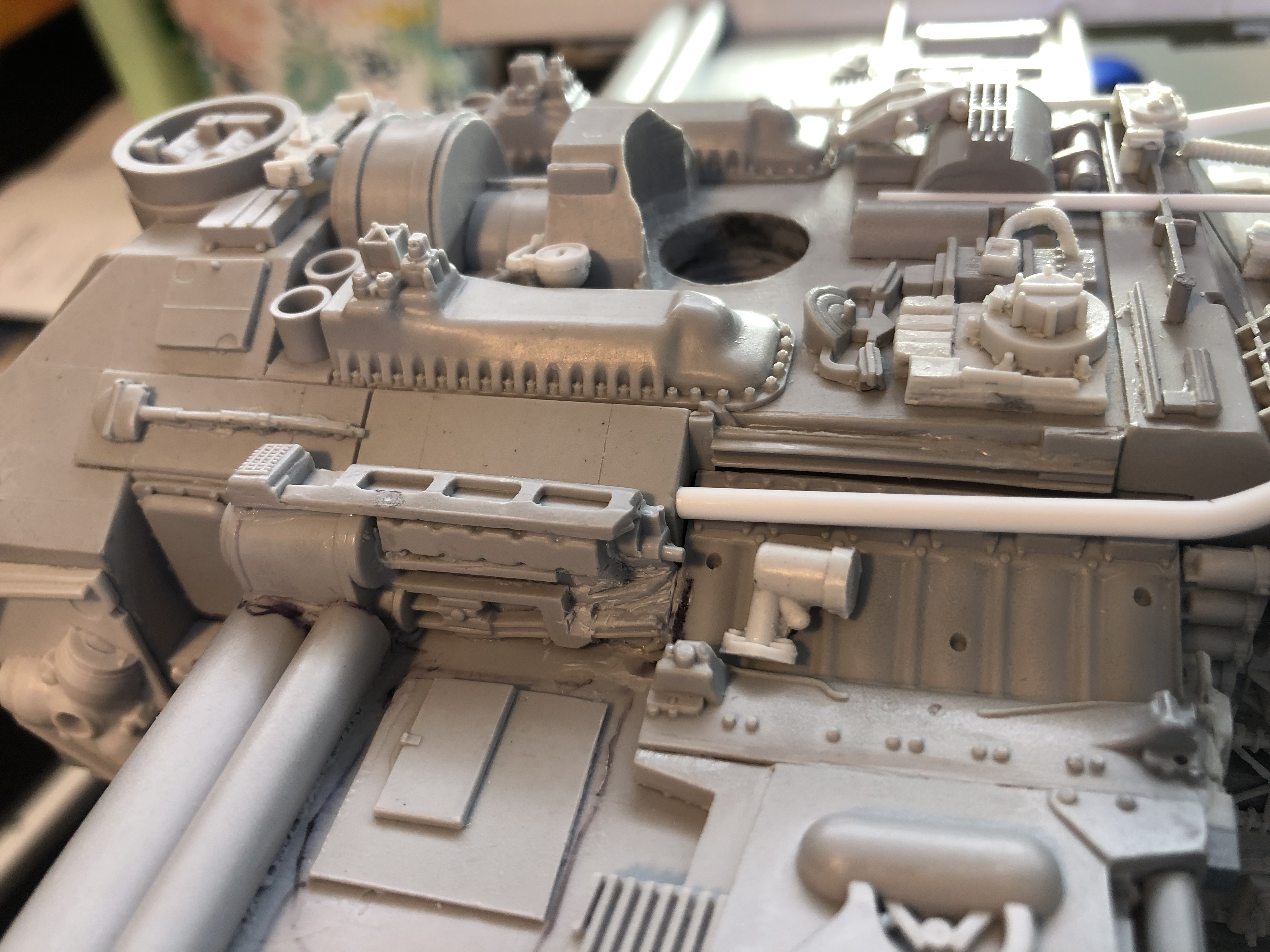

The second pipe is a little high on the engine, but I'm going to wait until the pipes are completely dry before cutting it down a bit. While waiting on the parts to dry, I looked over the top references and discover a straight pipe that needs to be placed on the left or port side.

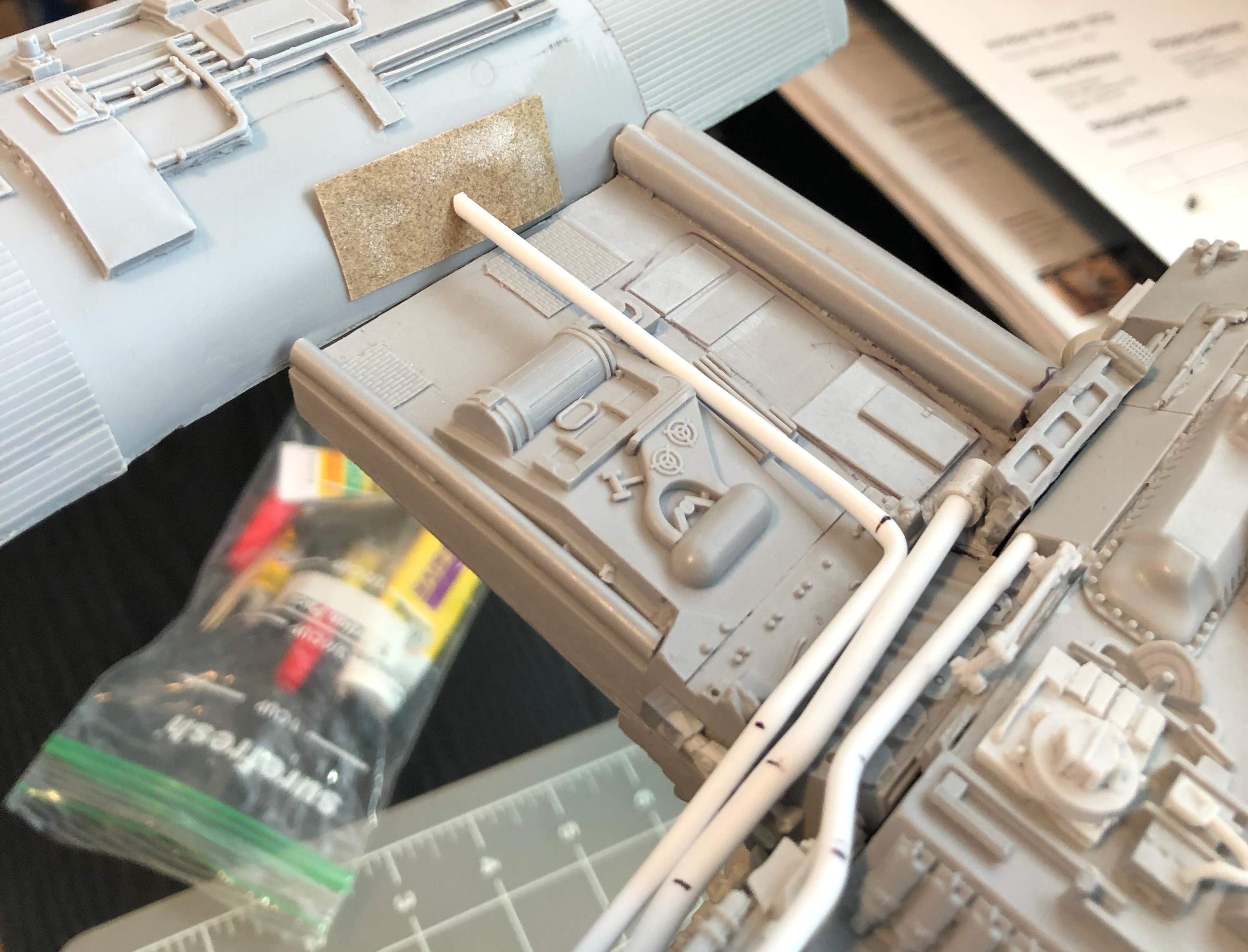

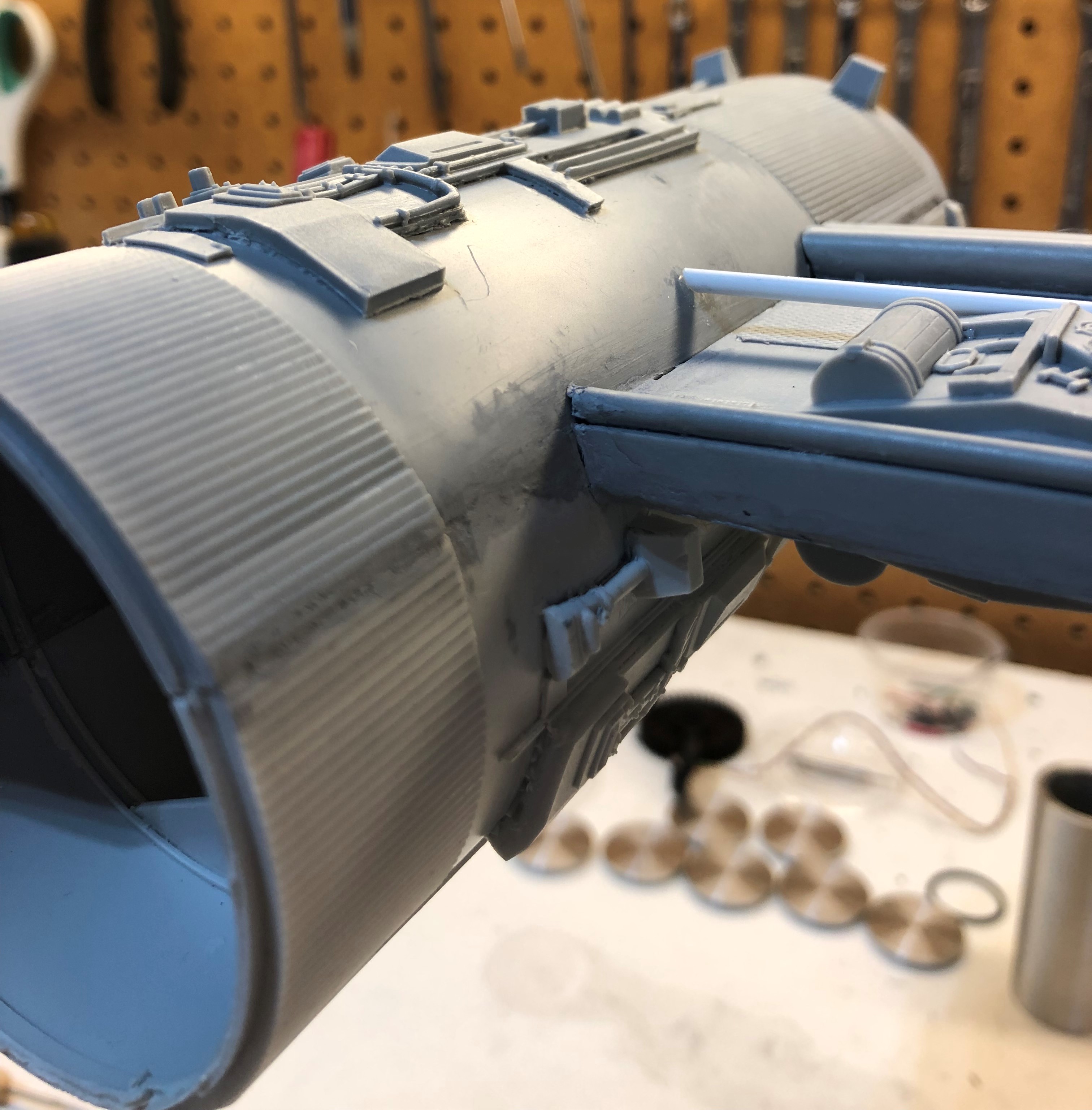

The pipe is actually embedded into the upper part of the wing. The model part isn't wide enough to fit the pipe, so I used a 7/64 drill bit to help create a slight, circular indentation within the part so that the end of the pipe fits:

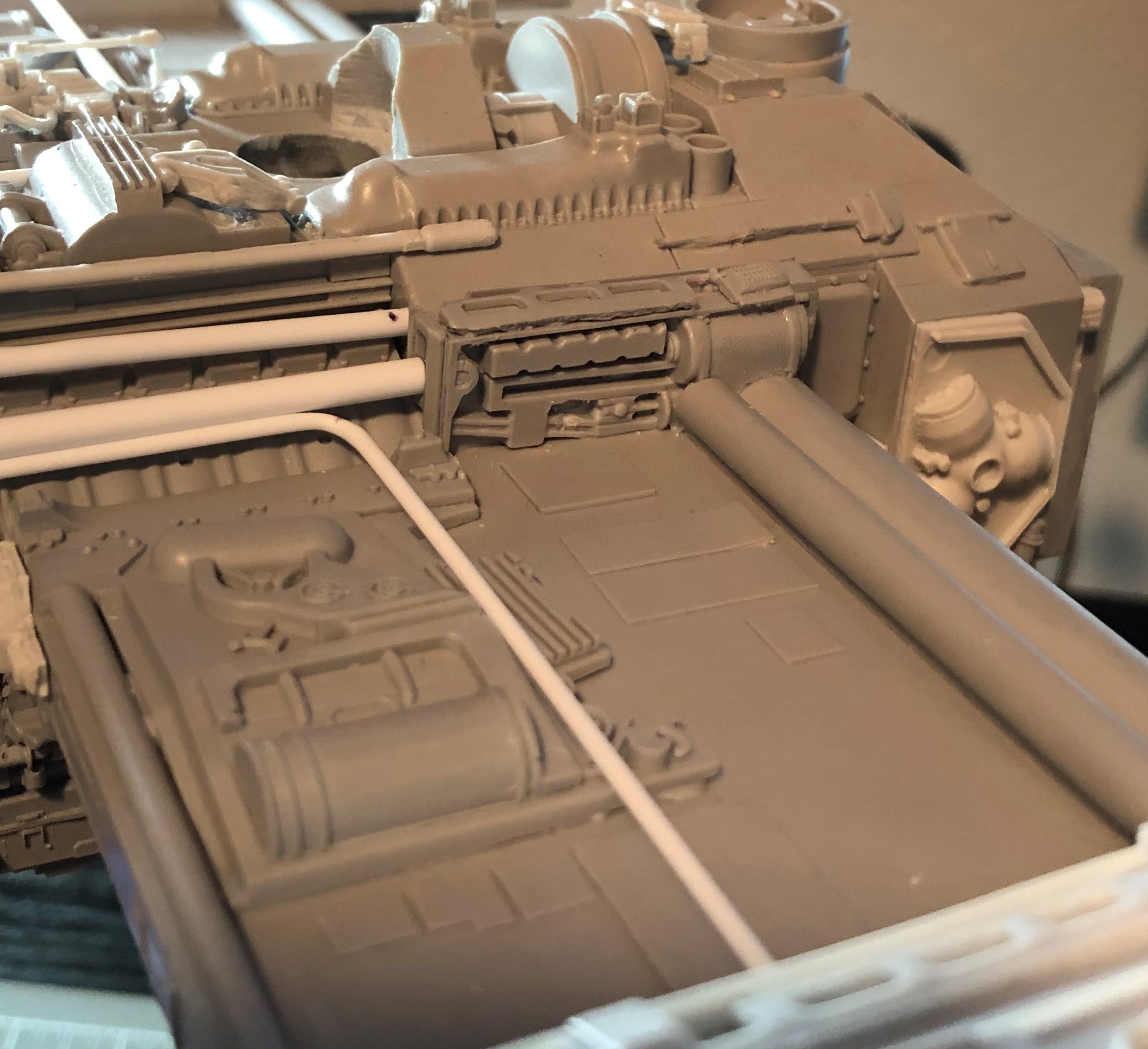

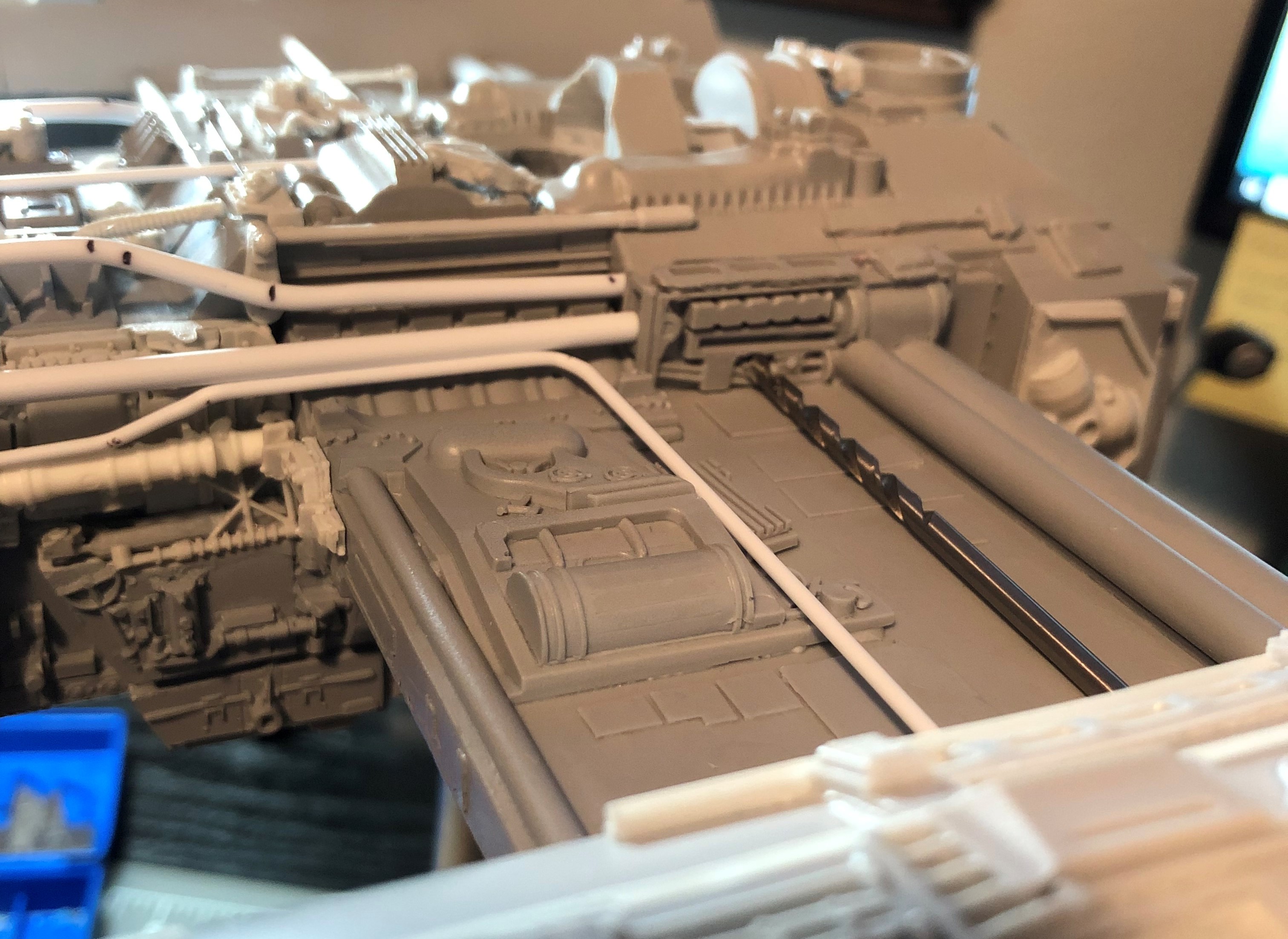

IMG_3316.JPG IMG_3317.JPG

I also trimmed one end of the pipe to help it fit. The other end is cut at an angle and viola! It sits straight, lined up with the larger pipes near the edge of the wing:


A nice, easy pipe. The previous two were tricky. :)

Next up, attaching pipes to the bottom and painting the thrusters.


Corellianexports

Sr Member
RPF PREMIUM MEMBER

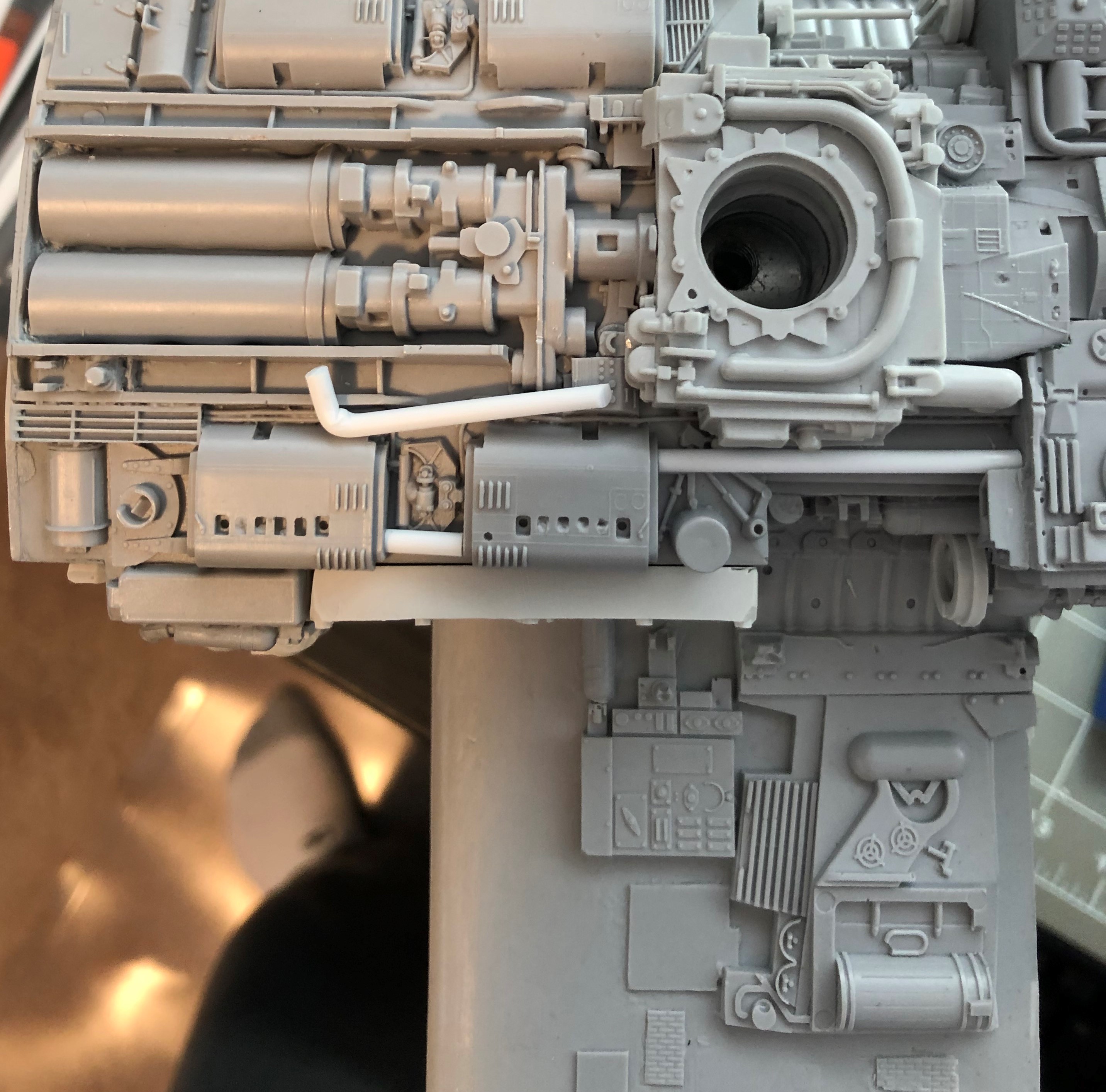

Before moving on to the bottom, I wanted to fix the pipe attached to the engine. It was a little too long, so I trimmed it a bit with a X-acto knife and then used some 220 to sand it down. I simply moved the pipe back and forth until it fit perfectly: nice and straight:



Finished:


Here's a shot of the bottom, left side, before adding the pipes. You'll also notice that the mount part is missing:



There are two, small horizontal pipes that start from the end of the model kit part (Harrier part) to the mount part. The part of the pipe that drops down fits perfectly between the part and the railing. The other end needs a little trimming to fit against the mount part:



Here it is, attached:


The other pipe didn't require any trimming because it fits against the mount part perfectly.

Last edited:

Corellianexports

Sr Member
RPF PREMIUM MEMBER

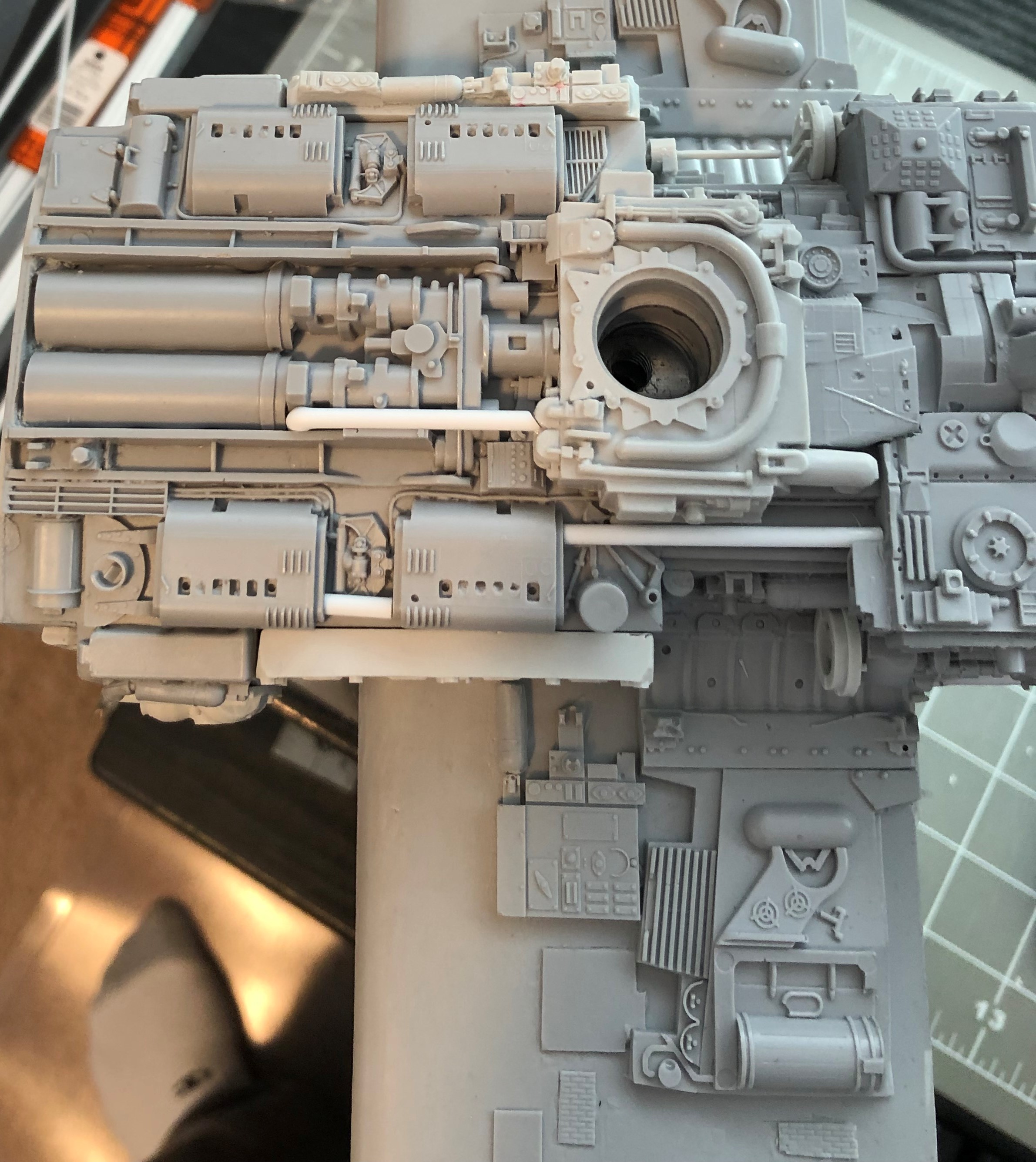

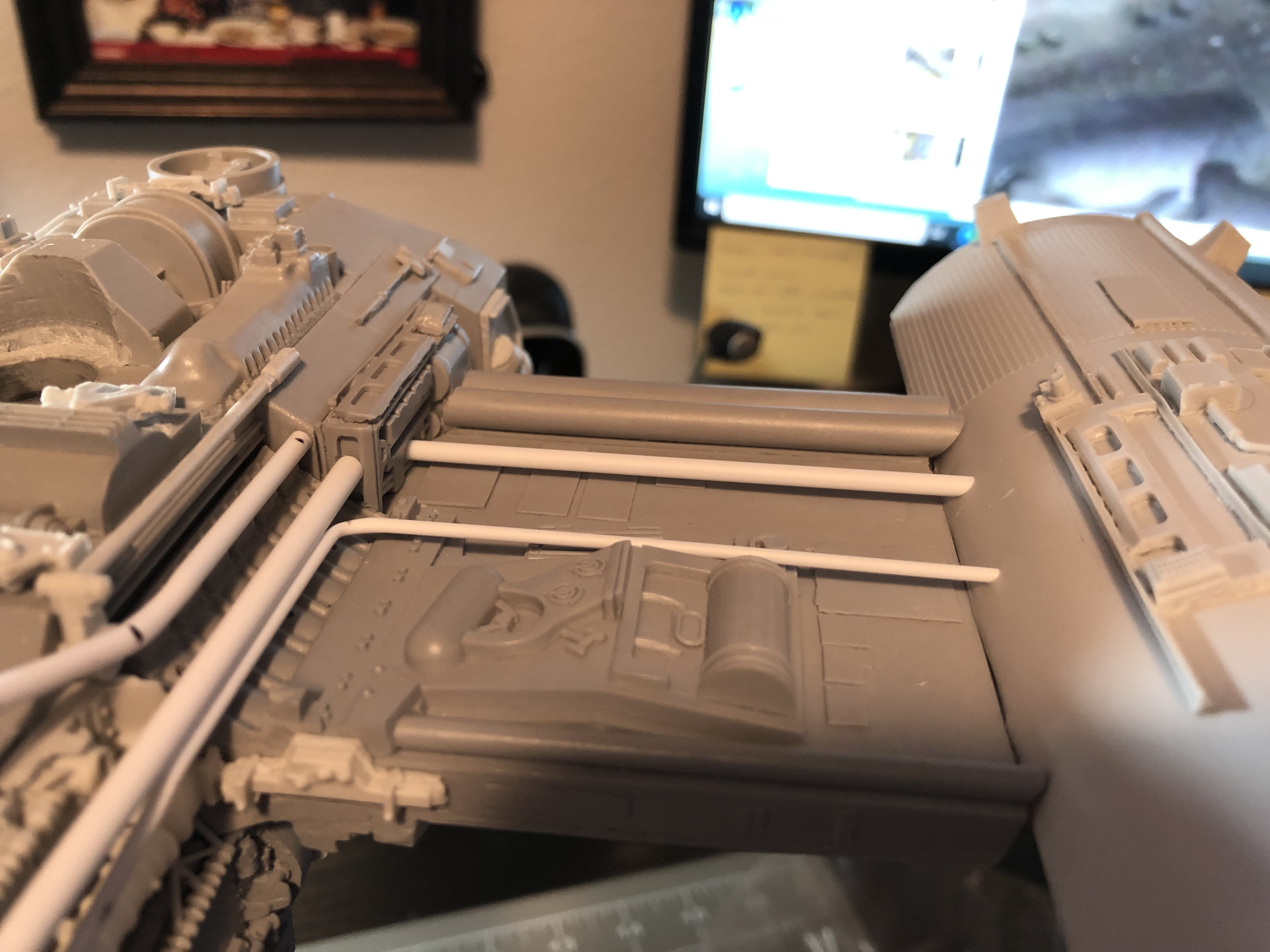

With the smaller pipes in place, I move on to the long, thin pipes. In fact, these pipes are the thinnest at just .06". Here's a shot of the bottom, left side:



After studying the reference pics, I noticed that these pipes were glued down to the body to create a certain amount of stability. They are not simply placed, free form like water pipes. Something difficult to see in the references is the angle of the pipes. They go from about a 60 degree angle to a straight line, centered within the hole in the body:

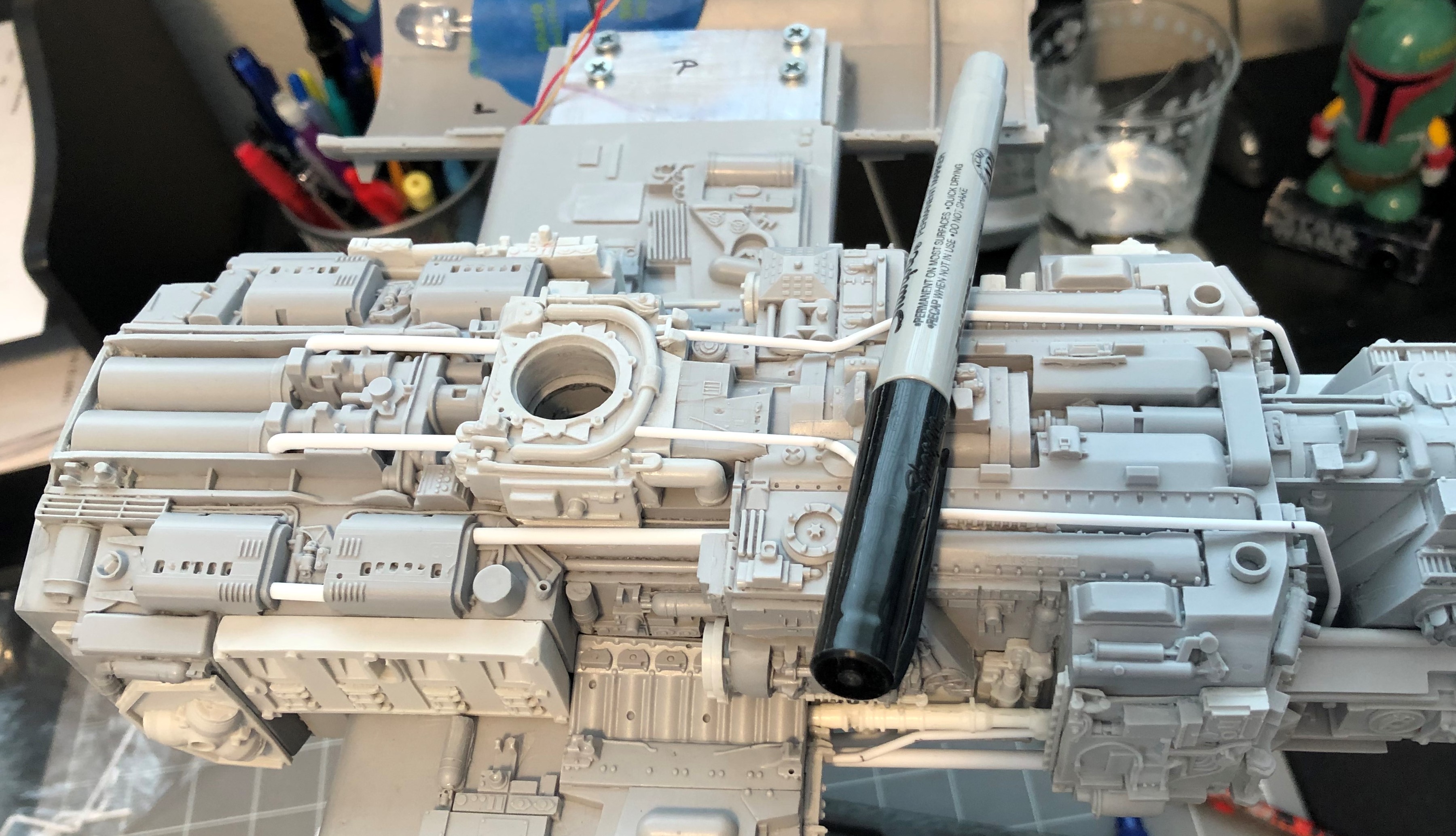

To help glue down the pipes to the body, I use a pen or a tube of glue to help keep them in place:


A final shot of the bottom right side:

Bottom Left side:

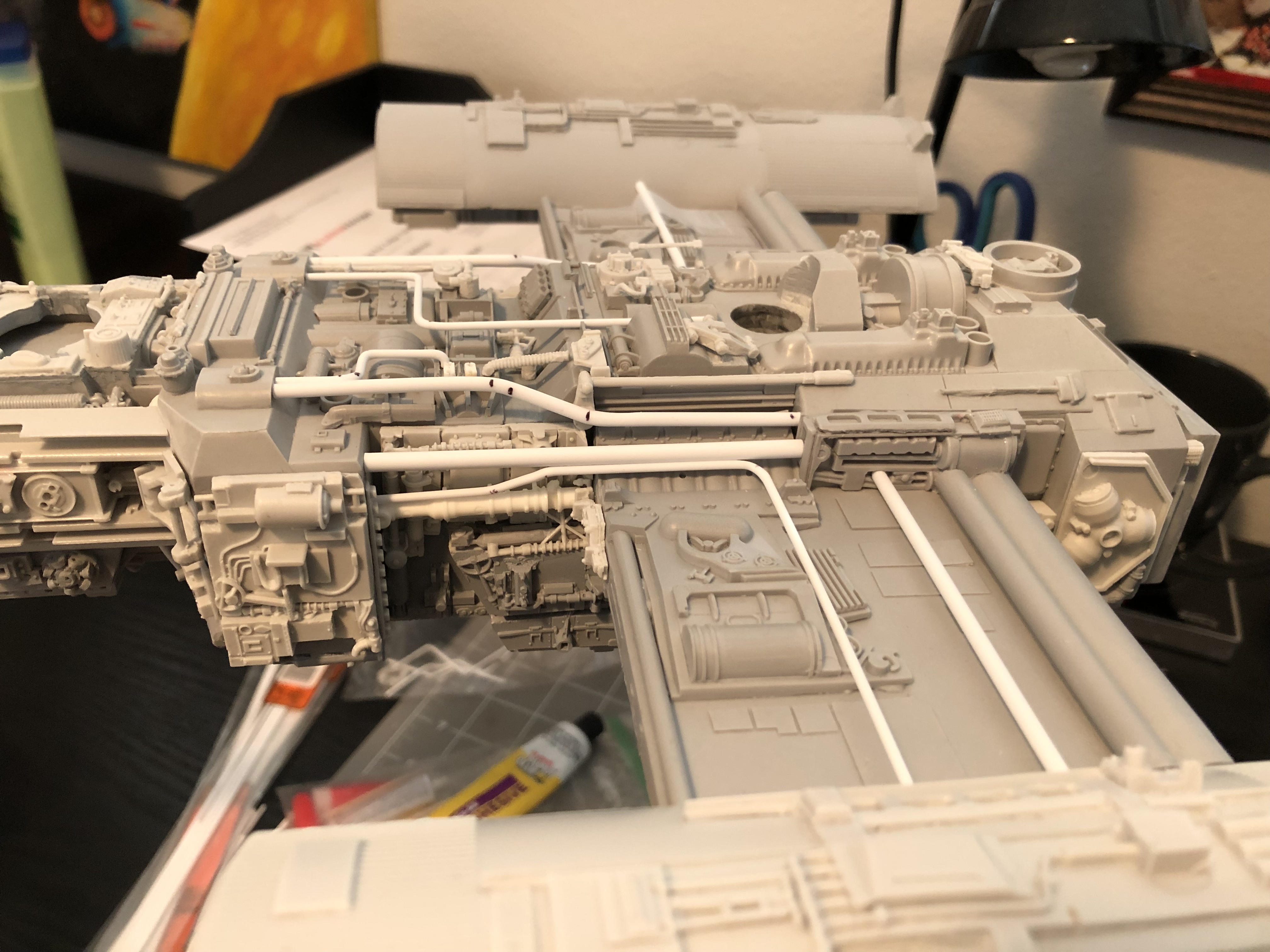

Top left side:
Top - Left.JPG

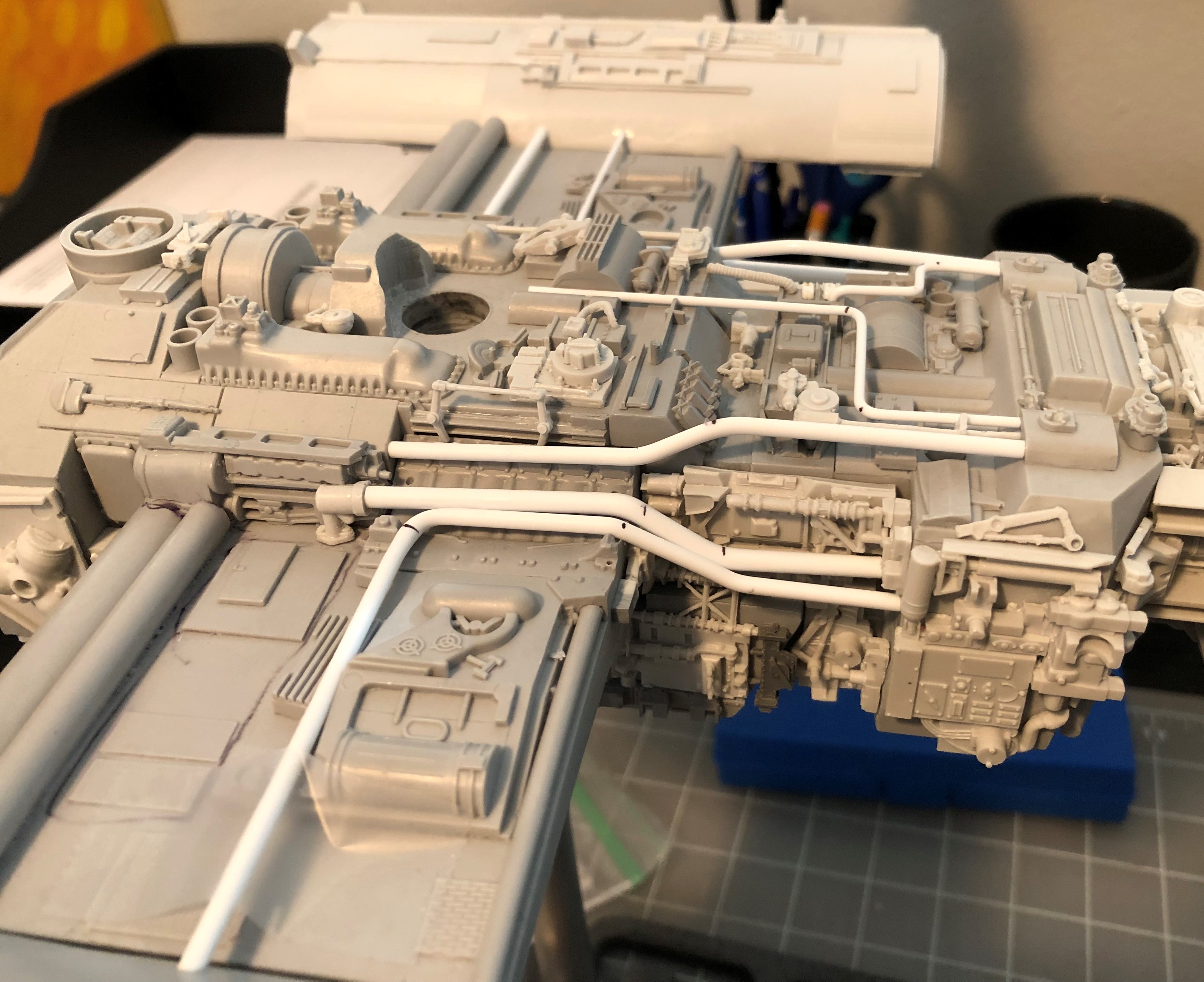

Top right side:

Top - Right.JPG

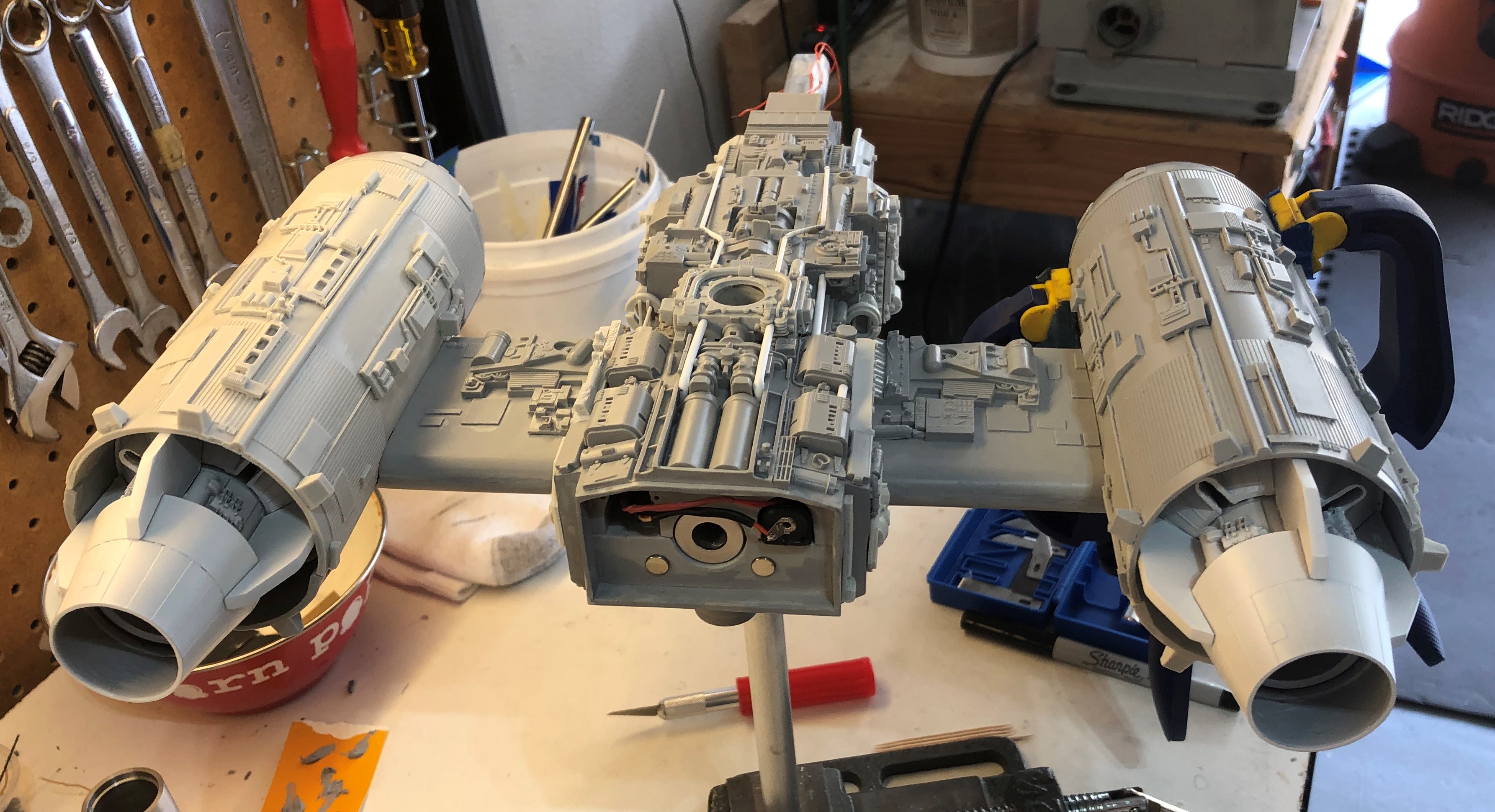

So that does it for all of the pipes that sit within the central section of the model. There are still some pipes that need to be added on the bottom, but they can't be placed until the engines are finished, so up next, I will start tackling the thrusters and engines. For now, I will be stowing away all of the pipe materials for a while. :)
