WOPR: War Games

[Ramjet]

I've been asked to help reverse engineer the WOPR computer prop from the movie War Games.

I started with a ton of screen caps, and roughed out the dimensions. The hard work is now in getting all the details in and creating a set of drawings the client can use to build a replica out of MDF.

The LED placement is about true to the original.



[feek61]

Cool project!!



[JPjunkie]

This will be a great project! I remember the BTS saying that it was run by an Apple II computer in the film.



[BajaTym]

One of the greatest movies of my childhood! Joshua is cool box of lights.



[p51]

My brother was an ICBM crewman and is now a GS civilian with Space Command and goes to Cheyenne Mountain often. He'd get a kick out of this.



[The Kaiser]

Yes! I can’t wait to see how this progresses.



[Ramjet]

I spent some time on the front panel today.



[p51]

Just don't feel bad if someone eventually says:



[mulishadan]

This looks great. I made this a while back.

WarGames DEFCON Display

A friend and I were watching WarGames starring Mathew Broderick a while back and came up with an idea to replicate the DEFCON meter shown in the movie and modify it to pull data from Weather Underground and display temperature in 10 degree increments (DEFCON 5 = 69 and below and DEFCON 1 is 100...

www.therpf.com



[ReplicaZero]

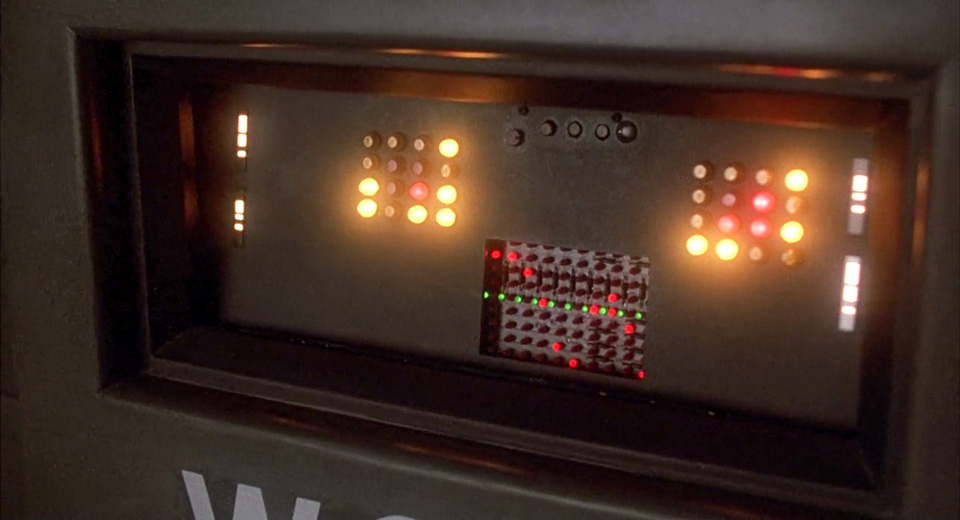

I spent some time on the front panel today.




View attachment 1732938
View attachment 1732941

Love this project and movie! Is the goal a life size version? Haha that would be wild! I think it would be cool to have a desktop or shoebox size of this, a really fun build. It could be the camera settings in the 3D software, but double check your proportions on the panel, I imagine its just sort of fish-eyeing a bit. The grid of holes feel small compared to the reference. Can't wait to see more!



[Ramjet]

The mounting holes on the panel are actually smaller than the panel lights that sit on the front, so good spotting!
Yes, the aim is a 1:1 for the client, but I'll use the files for a 3D print for the office desk.



[ReplicaZero]

Yes, the aim is a 1:1 for the client,

wowzer that will be a large build! Excited to see the results!
