harshnitz17

New Member
will this final & inclusive result also include the correct number & location/placement of the speed holes on the grip section? I have both a Parks & an 89sabers DV6, so there’s really not much a guy can do in regards to bolt placement up top.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Sym-Cha

Master Member

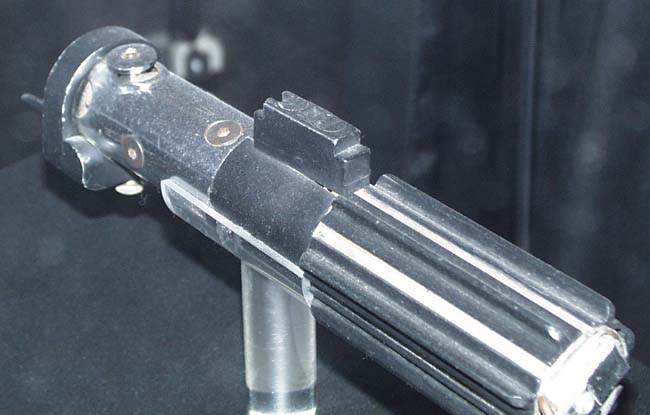

harshnitz17 ... if you take a look at the pictures in post #3 ... and compare them with the template I posted ... the only visible holes you can actually see are these :

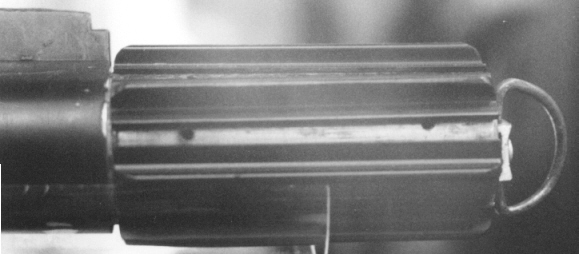

Even the ones on the other side of that grip are not visible :

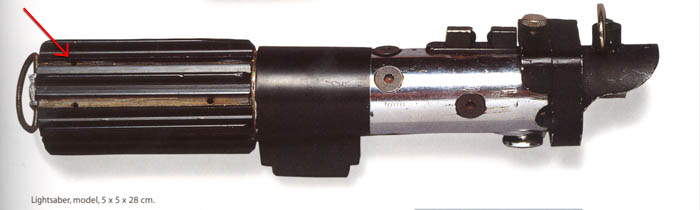

And the one hole here :



So as far as I'm convinced there are 3 holes visible between the grips ... all other holes are covered up by the T-track grips.

Chaim

Last edited:

roygilsing

Master Member
RPF PREMIUM MEMBER
Here it is people: my version of the template. Feel free to share it!

I've been reverse engineering the complete saber in 3D based on many images and I might even do a run of parts: shroud, control box, maybe more!

New page added to my website:

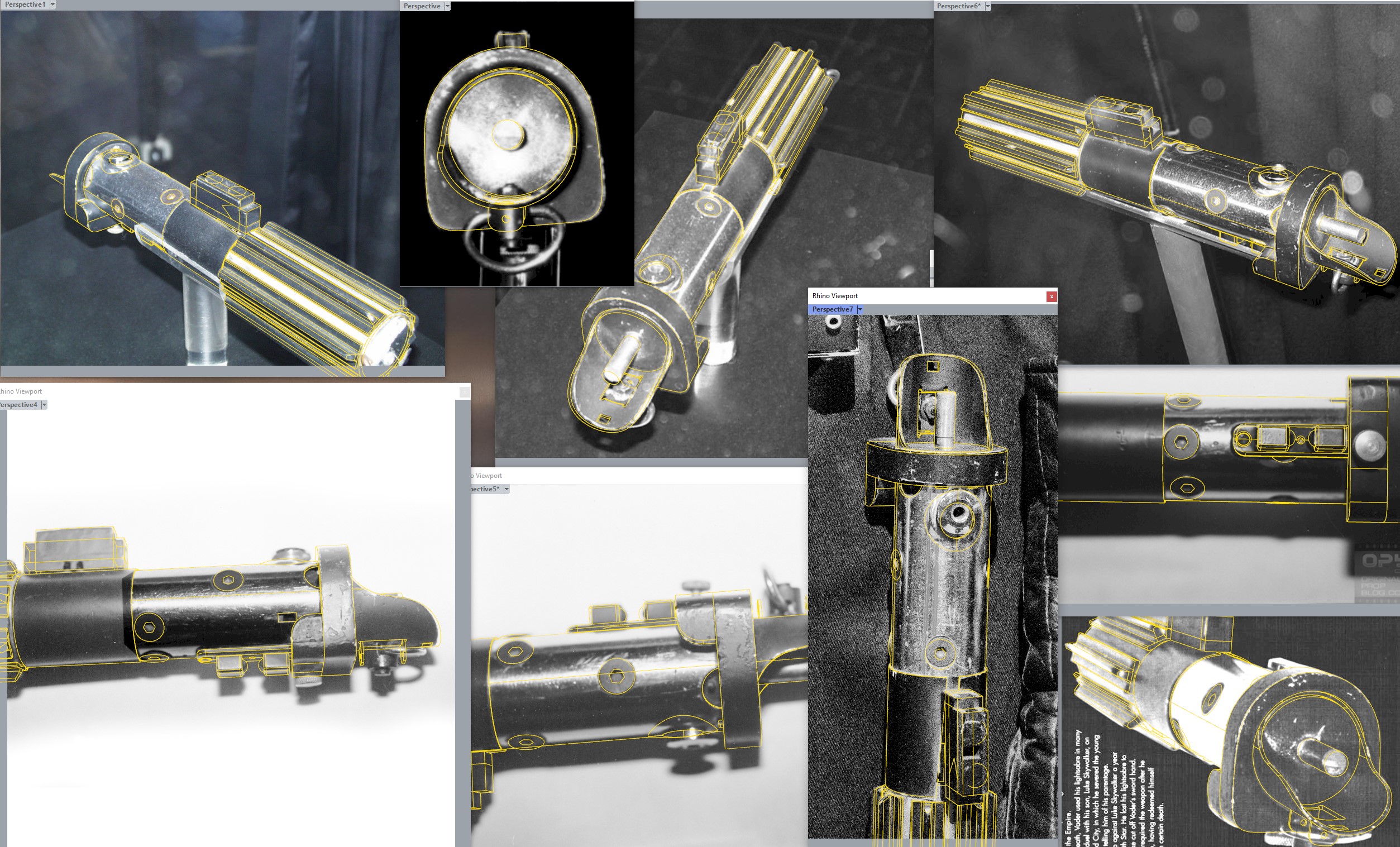

Here is the 3D perspective overlays:
DV-ROTJ Perspective Overlay WannaWanga.jpg

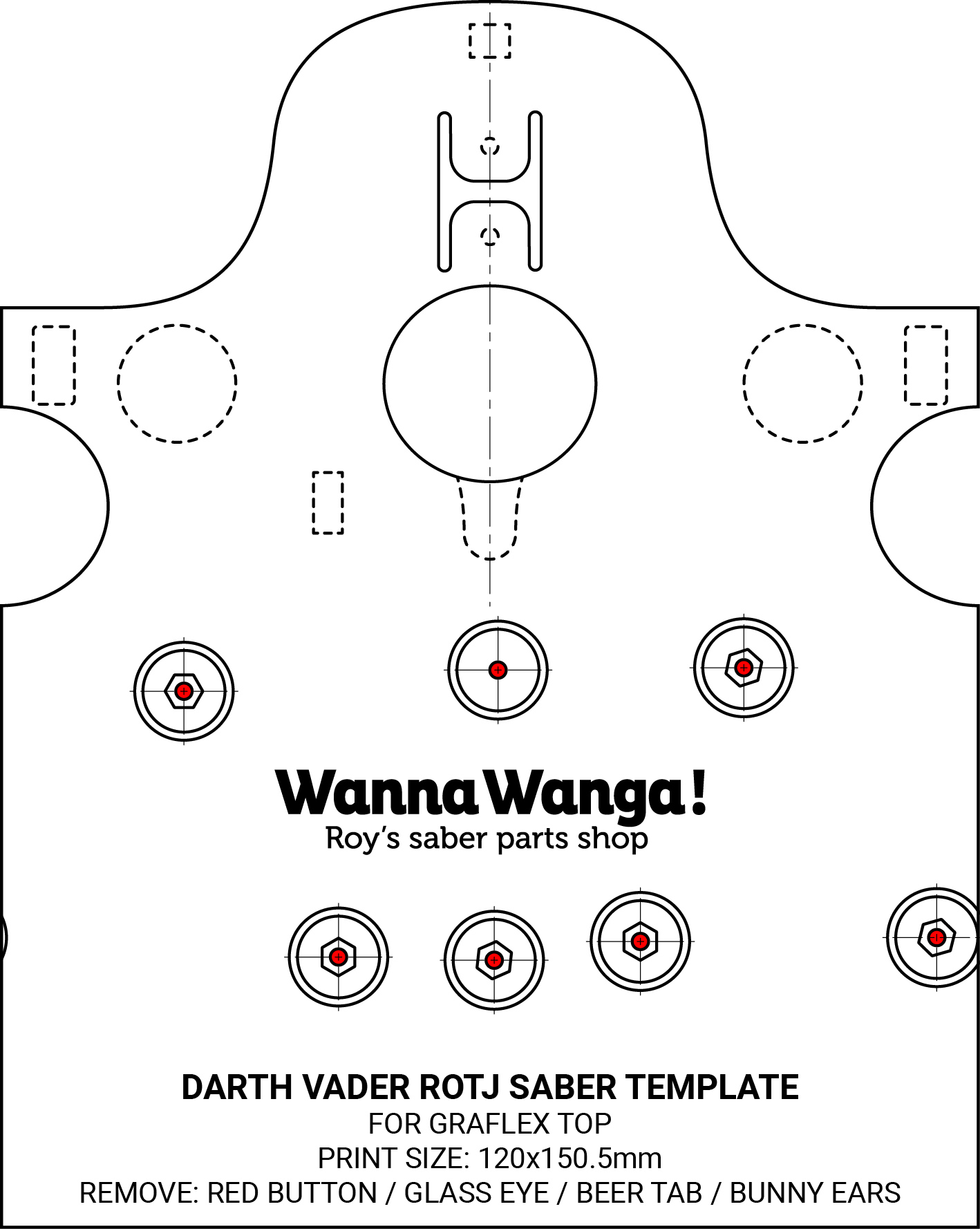

And here as a result is the template:


A PDF version can be found here:

Roy

Note: the twist position of the hex sockets of the bolds are also screen matched!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Fabian 71

Active Member
Here it is people: my version of the template. Feel free to share it!

I've been reverse engineering the complete saber in 3D based on many images and I might even do a run of parts: shroud, control box, maybe more!

New page added to my website:

Here is the 3D perspective overlays:
View attachment 1503573


And here as a result is the template:
View attachment 1503574

A PDF version can be found here:

Roy

Note: the twist position of the hex sockets of the bolds are also screen matched!
Roy, if one wants to make a scratch built replica of the upper tube how accurate is the Graflex template in profile and holes for bunny ears ,buttons and sockets placement? Thanks dude insane job!!! MOM saber template 2021 version!!!!!

Last edited:

thd9791

Master Member
RPF PREMIUM MEMBER
Here it is people: my version of the template. Feel free to share it!

I've been reverse engineering the complete saber in 3D based on many images and I might even do a run of parts: shroud, control box, maybe more!

New page added to my website:

Here is the 3D perspective overlays:
View attachment 1503573


And here as a result is the template:
View attachment 1503574

A PDF version can be found here:

Roy

Note: the twist position of the hex sockets of the bolds are also screen matched!
This is going to be a BIG help in stunt saber research, thank you!!!!! Those bolts don't seem to have been drilled at the same time, so this template is going to be great for matching along a timeline


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

roygilsing

Master Member
RPF PREMIUM MEMBER
Roy, if one wants to make a scratch built replica of the upper tube how accurate is the Graflex template in profile and holes for bunny ears ,buttons and sockets placement? Thanks dude insane job!!! MOM saber template 2021 version!!!!!
I'd say pretty accurate! They are based on my own 3D model and I've wrapped the template around a vintage Graflex and I think it's a good fit. The slots are missing in the drawing and the unfolded bunny ear lips are estimated since I haven't bend them down (yet).

Roy


thd9791

Master Member
RPF PREMIUM MEMBER
If it helps anyone..

the old photos of these props from the 90s ended up being accurate length wise for the ROTJ Luke sabers right?

The MoM Vader saber is clocked in at 28cm. That is the exact length of my ESB Hero, pulled tight, with a vintage kobold. I don't think the saber is lengthened anymore


Sym-Cha

Master Member
So I'm glad I asked roygilsing to do his magic and check my 'updated' template from Kal and boy it does not disappoint . . . Roy it has been a great privilage to experience your 3D work firsthand.

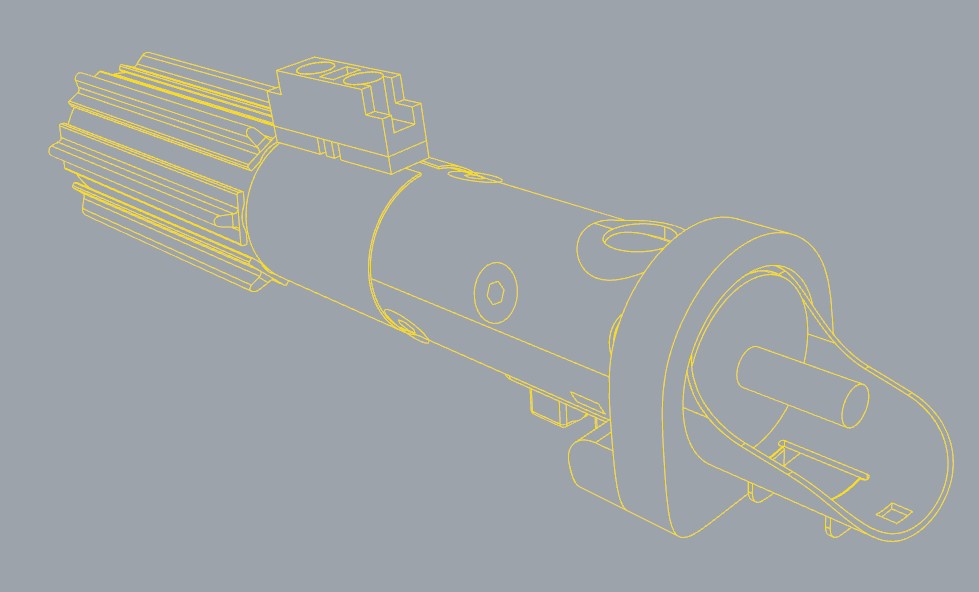

DV ROTJ Screenshot_1.jpg

Picture courtesy Roy Gilsing.

Looking forward to purchasing a more accurate shroud and controlbox from WannaWanga in time :)

Chaim

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Halliwax

Legendary Member
RPF PREMIUM MEMBER
So I'm glad I asked roygilsing to do his magic and check my 'updated' template from Kal and boy it does not disappoint . . . Roy it has been a great privilage to experience your 3D work firsthand.

View attachment 1503906
Picture courtesy Roy Gilsing.

Looking forward to purchasing a more accurate shroud and controlbox from WannaWanga in time :)

Chaim
would love for roy to do a run, maybe if we all pig pile?!?


Edraven99

Sr Member
RPF PREMIUM MEMBER
So I'm glad I asked roygilsing to do his magic and check my 'updated' template from Kal and boy it does not disappoint . . . Roy it has been a great privilage to experience your 3D work firsthand.

View attachment 1503906
Picture courtesy Roy Gilsing.

Looking forward to purchasing a more accurate shroud and controlbox from WannaWanga in time :)

Chaim

Hey Chaim,

Obi1Kenny actually updated his control box and mid hand last year at the direction of kurtyboy. I think he still might have a couple left.

But yes, we need an updated shroud. teecrooz and I found it to be a few mm off in its girth in our recent builds.
