Star Trek Geological Tricorder Build

[Captain Dunsel]

I’m about to start on a Star Trek Season 3 “Geological Tricorder” project…

I’m shocked to find that there really aren’t any builds of this model on the RPF.

Does anyone have an accurate build that they can post pictures of? I’m especially interested in seeing the construction of the “distress signal” blinking light box.

I’m planning on assembling a light box from soldered brass stock (that will be painted black with textured mylar applied), “milky” acrylic, and a blinking incandescent bulb.

I’m assuming the original employed a simple blinking incandescent bulb like the universal translator.



[Leinads]

I’m really looking forward to this. A novel build - yes! I think you may be right about the light assembly, especially if they already had them in the shop. Occam's razor.



[Ronldheld]

Will any TOS screencaps in trekcore help?



[Captain Dunsel]

Will any TOS screencaps in trekcore help?

Sure. I’ll take any reference available



[Ronldheld]

Off the top of my head look at the episode "that which survives"



[Captain Dunsel]

Off the top of my head look at the episode "that which survives"

Correct—but that’s also the ONLY episode in which this Tricorder appears (for a fleeting moment).



[Apollo]

I have seen copies of it but few and far between, sorry I can’t be of more help

I know yours will be awesome when it is finished though!



[Lost in Trek]

I built versions of each of the TOS tricorders, including the Geo. See this thread.

Lost in Trek's TOS Replica Collection

I've decided to photograph my TOS prop collection and thought I would create a thread to document. I'll be adding to this thread as I take pics, in batches. First up tricorders, all built up by me from parts I was able to collecct over several years. First up are replicas of Wah's two...

www.therpf.com



[Lost in Trek]

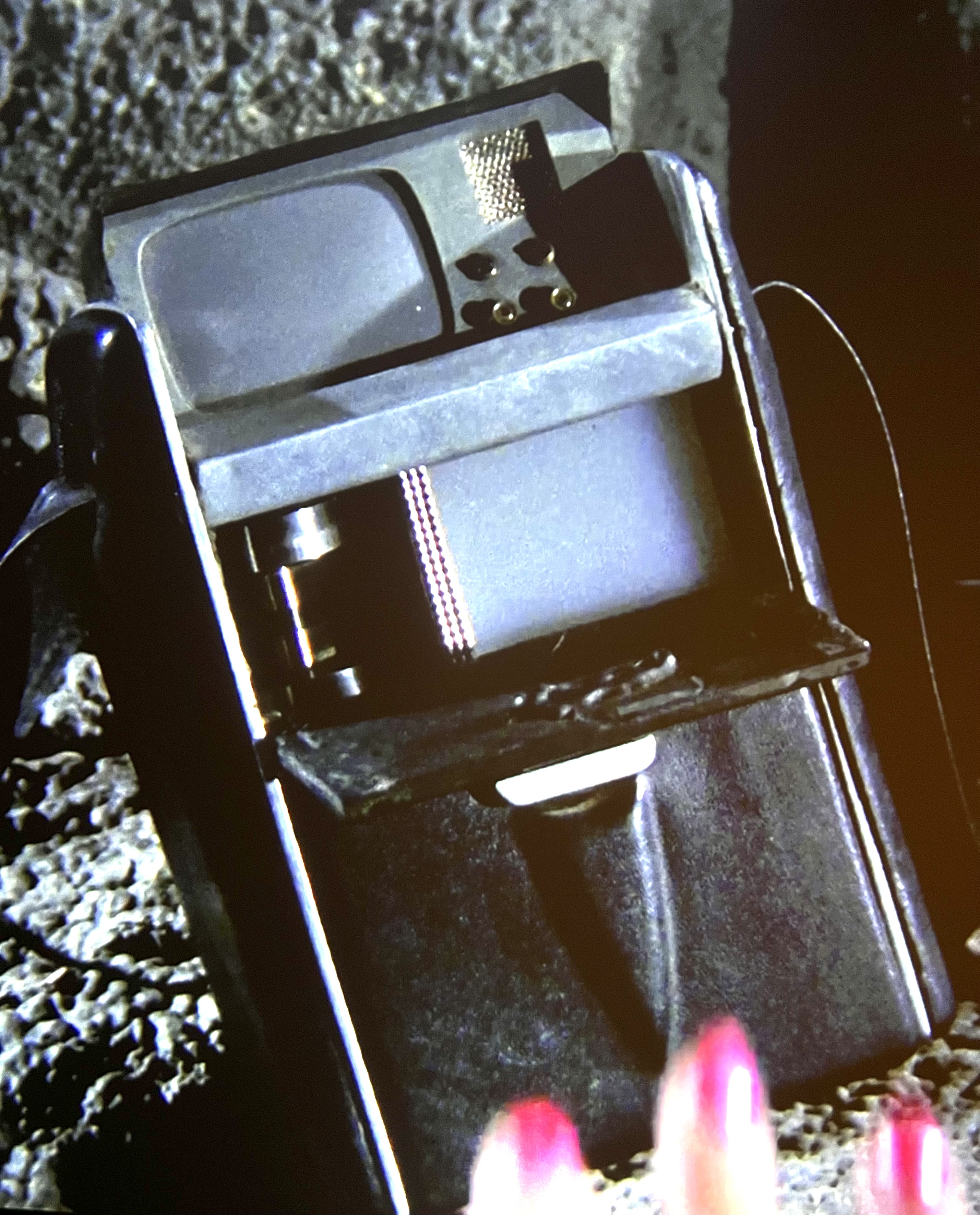

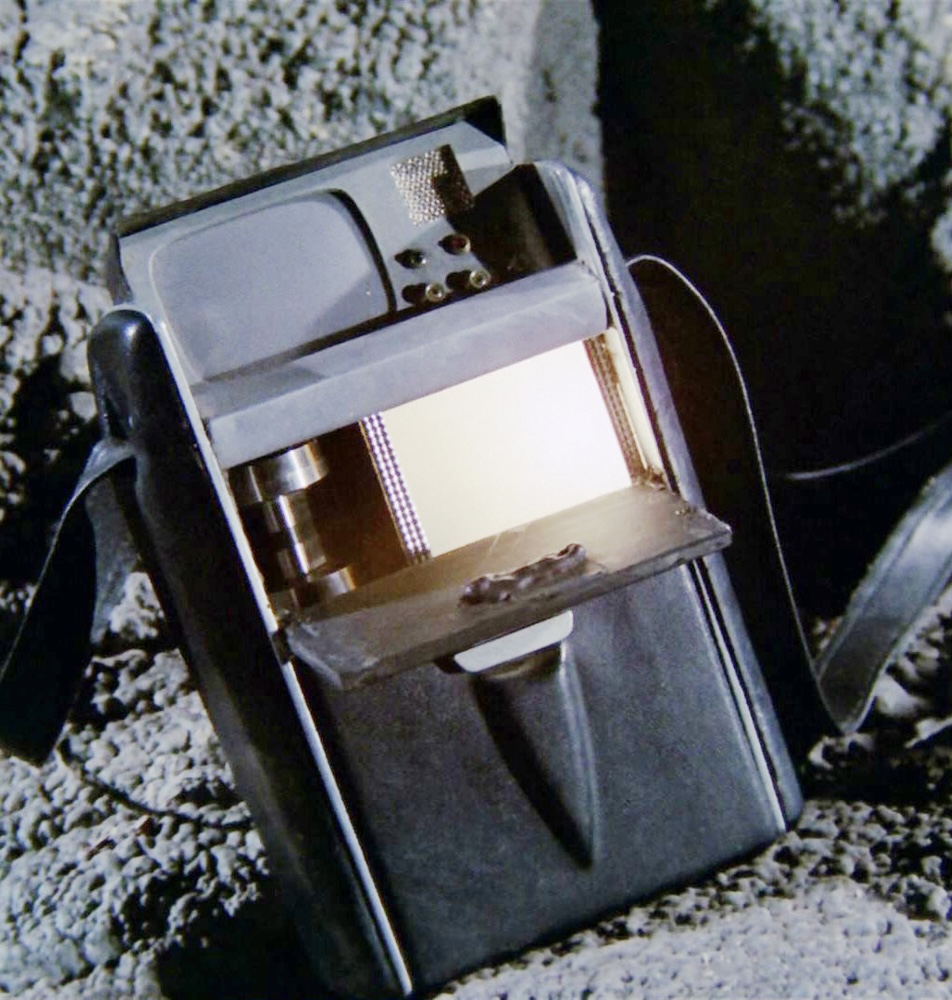

Here’s a pic.



[Captain Dunsel]

I built versions of each of the TOS tricorders, including the Geo. See this thread.

Lost in Trek's TOS Replica Collection

I've decided to photograph my TOS prop collection and thought I would create a thread to document. I'll be adding to this thread as I take pics, in batches. First up tricorders, all built up by me from parts I was able to collecct over several years. First up are replicas of Wah's two...

www.therpf.com

That is a beautiful build! Strange that your thread didn’t pull-up in my search.

Would you happen to have any pictures of the construction of the “distress signal” blinking box?



[Lost in Trek]

I’ll check. I rebuilt the middle section 3 times before I was happy with it.



[Captain Dunsel]

I’ll check. I rebuilt the middle section 3 times before I was happy with it.

Appreciated!



[Lost in Trek]

Only pic I could find of my Geo build…

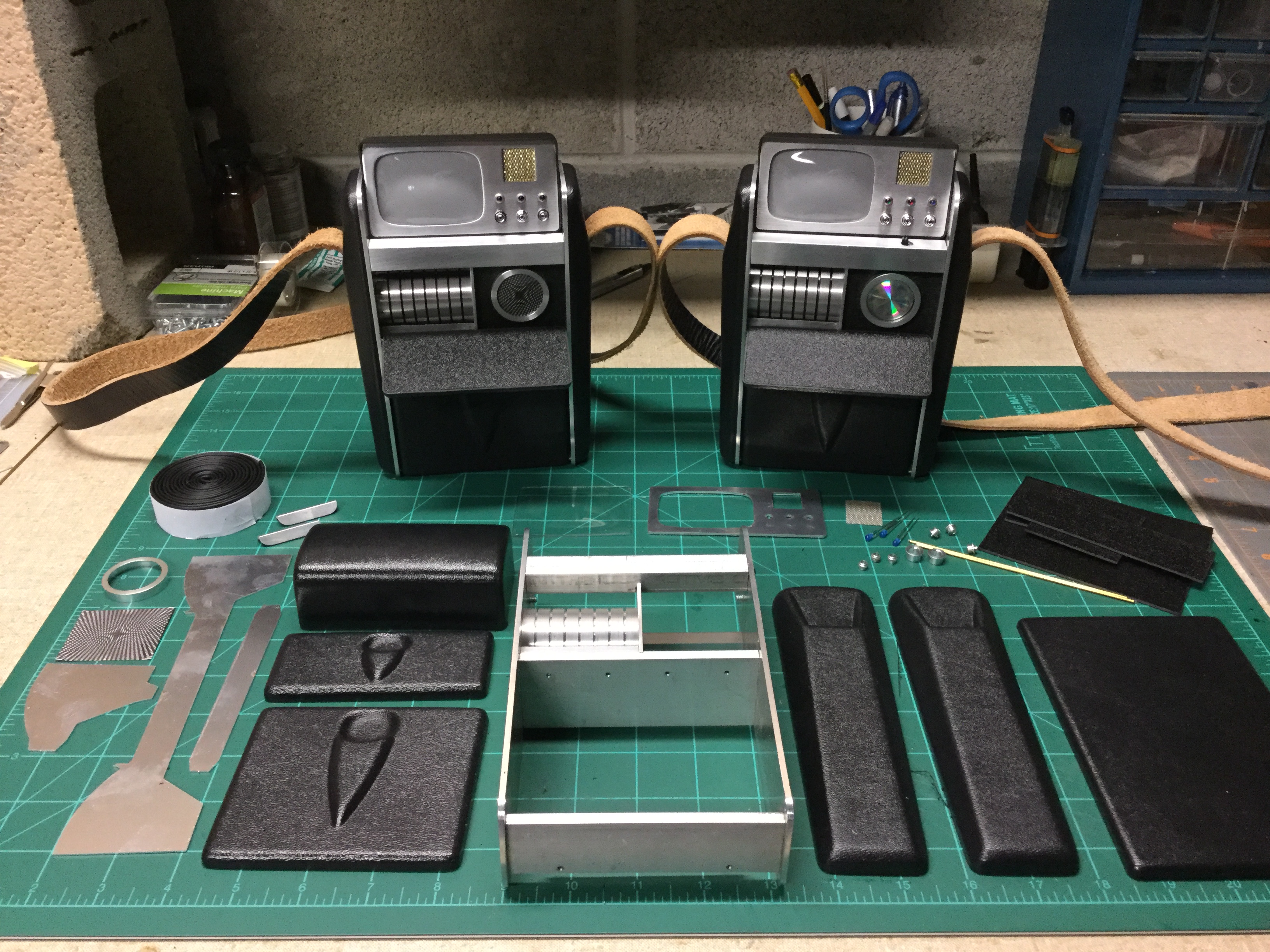

Also attached a pic of two trics I built along with the parts to build.



[Captain Dunsel]

Only pic I could find of my Geo build…

Also attached a pic of two trics I built along with the parts to build.

Ok, that does give me a little more insight regarding the size and certain details of the box since our Tricorder frames are identical.

Thank you, Larry!

One question: did you incorporate the blinking light? If so, LED or incandescent?



[Simonized]

You could always wait until someone finds the original in Wah Chang's sock drawer for reference



[Captain Dunsel]

You could always wait until someone finds the original in Wah Chang's sock drawer for reference

Yeah…they apparently gave away their limited amount of props like business cards to every guest star, regular player, gaffer, caterer, grip, director, producer, marketer, security guard, the guy that sold hot dogs with a cart outside the studio gates, and to the random passer-by within 50 yards of the studio, etc.

I’m sure the “original” will show up…



[Lost in Trek]

Ok, that does give me a little more insight regarding the size and certain details of the box since our Tricorder frames are identical.

Thank you, Larry!

One question: did you incorporate the blinking light? If so, LED or incandescent?

I did not… I tend not to put electronics in my props. I find I’ll play with them for a few days and then stop…



[finalfrontier]

Not to get off topic or Hijack the thread but any idea where I can find a Aluminum data drum for a classic build?

Looking forward to seeing progress on this!!



[Lost in Trek]

Not to get off topic or Hijack the thread but any idea where I can find a Aluminum data drum for a classic build?

Looking forward to seeing progress on this!!

Send me a pm. I might be able to help.



[Captain Dunsel]

I did not… I tend not to put electronics in my props. I find I’ll play with them for a few days and then stop…

Same
