Star Destroyer Devastator - ANH Style Replica
- Thread starter t2sides
- Start date
t2sides
Master Member
Thank You All!! Really appreciate it!
Wulf - It will be about 4' long, same as original.

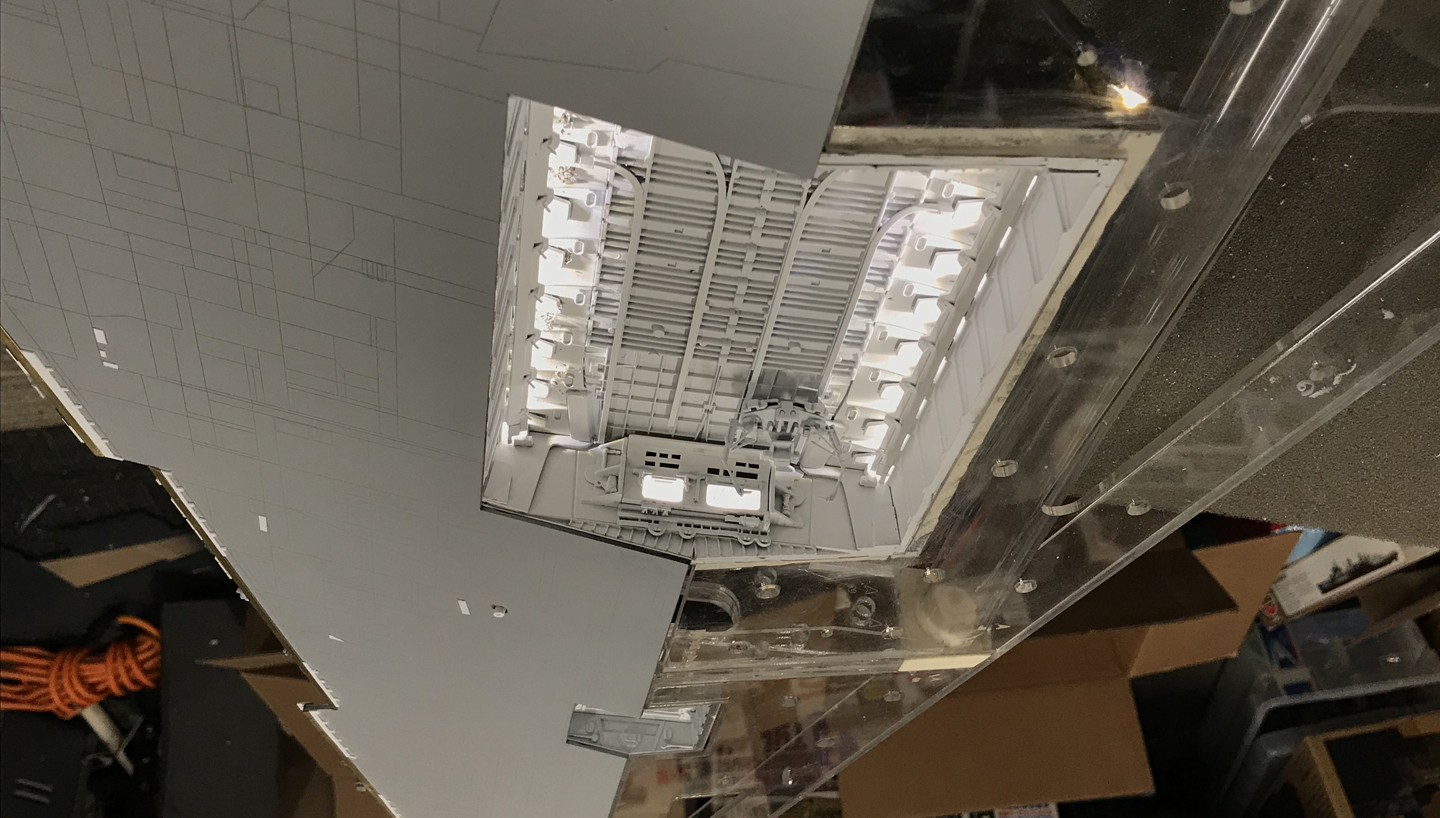

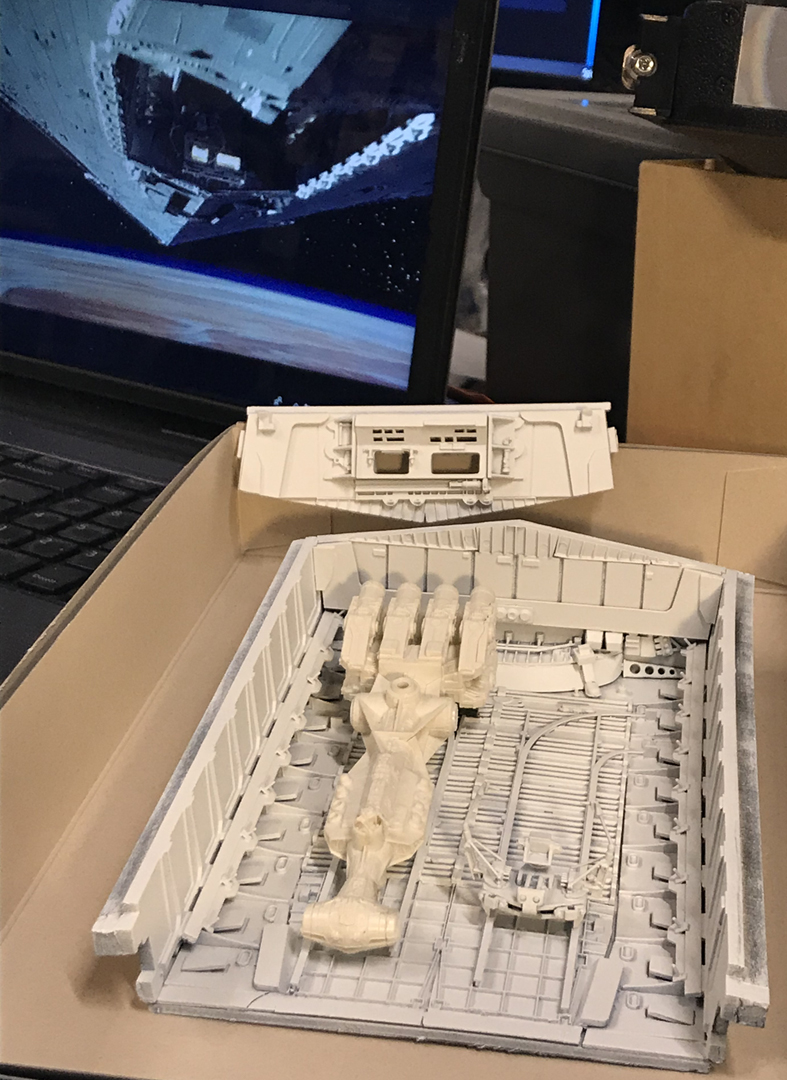

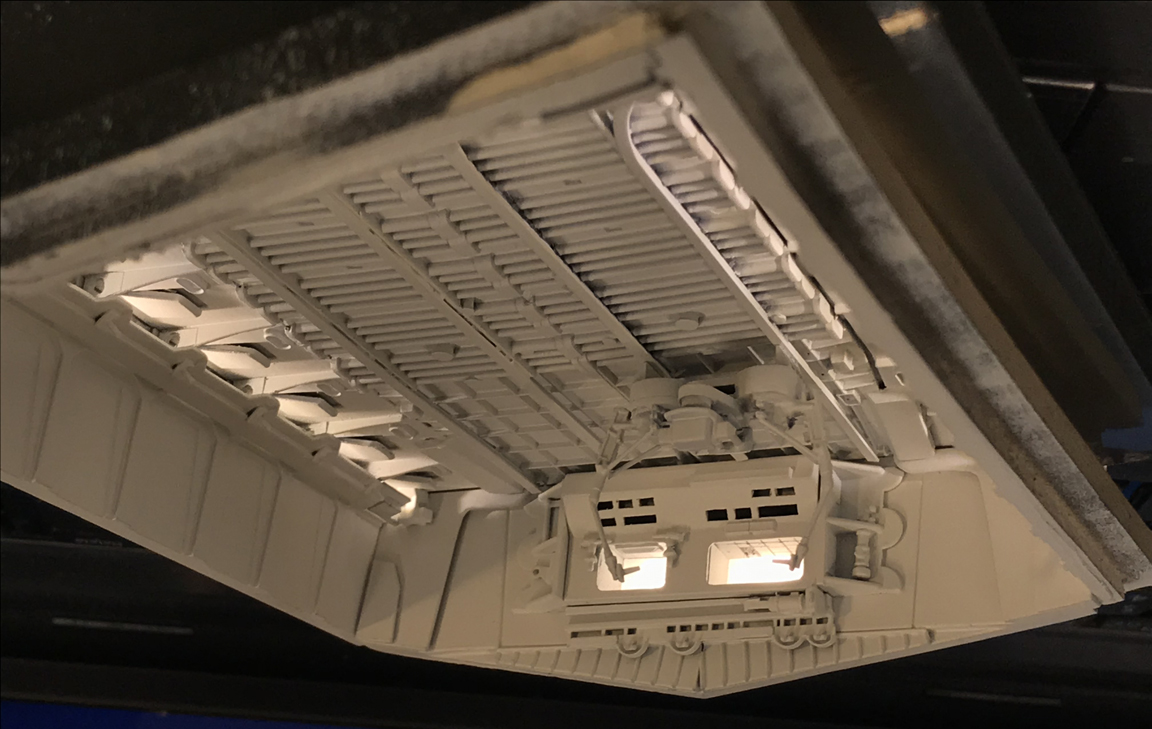

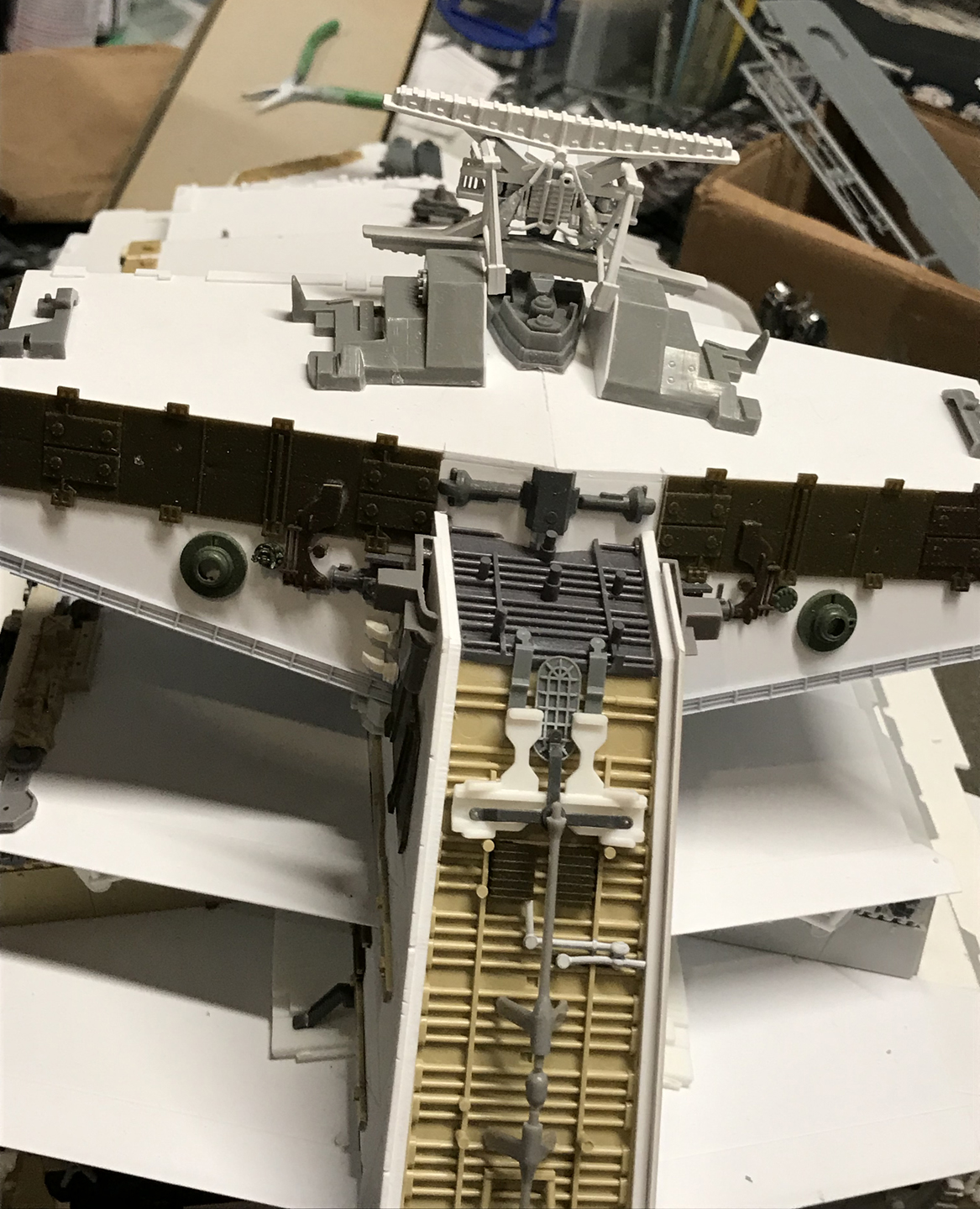

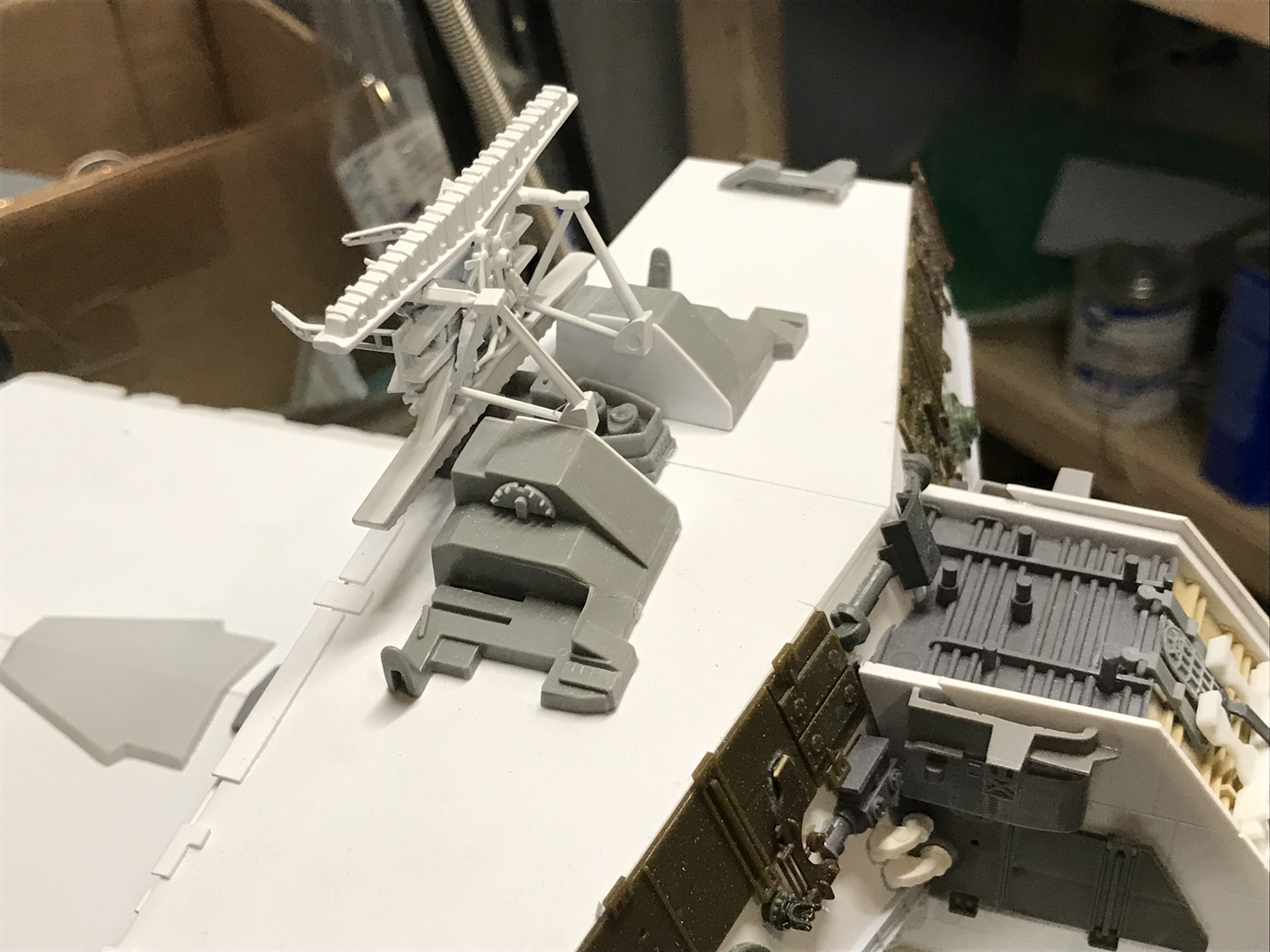

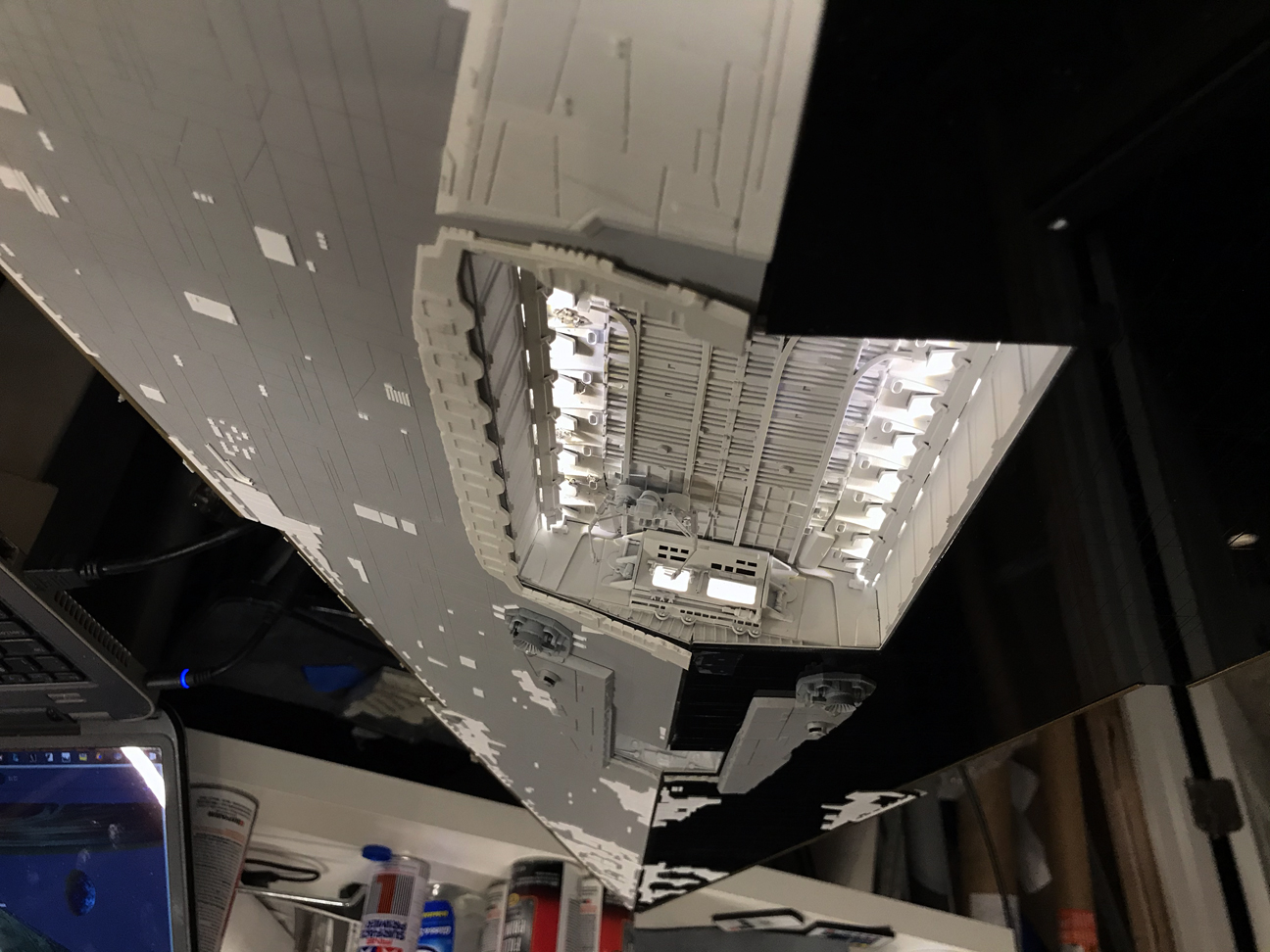

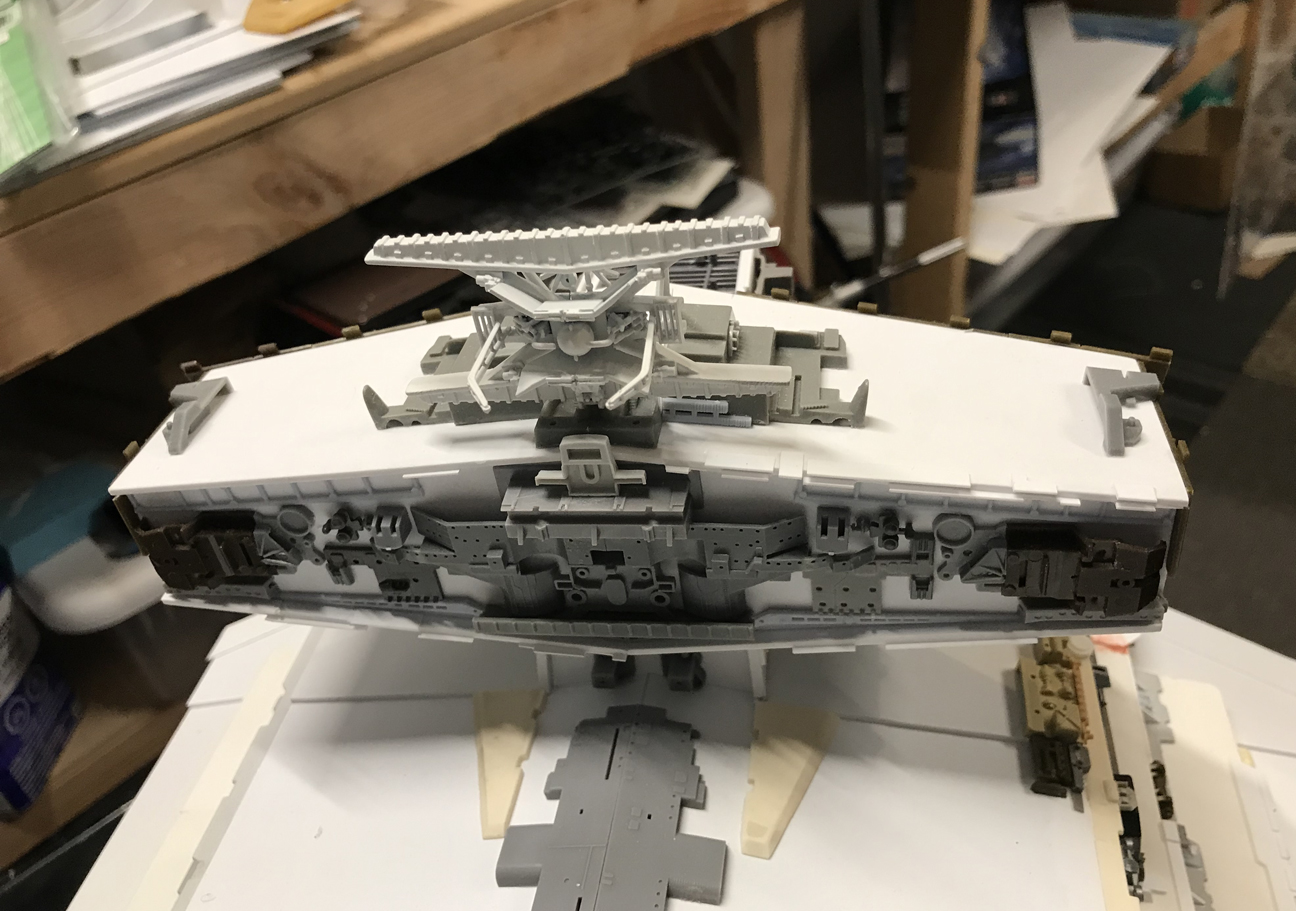

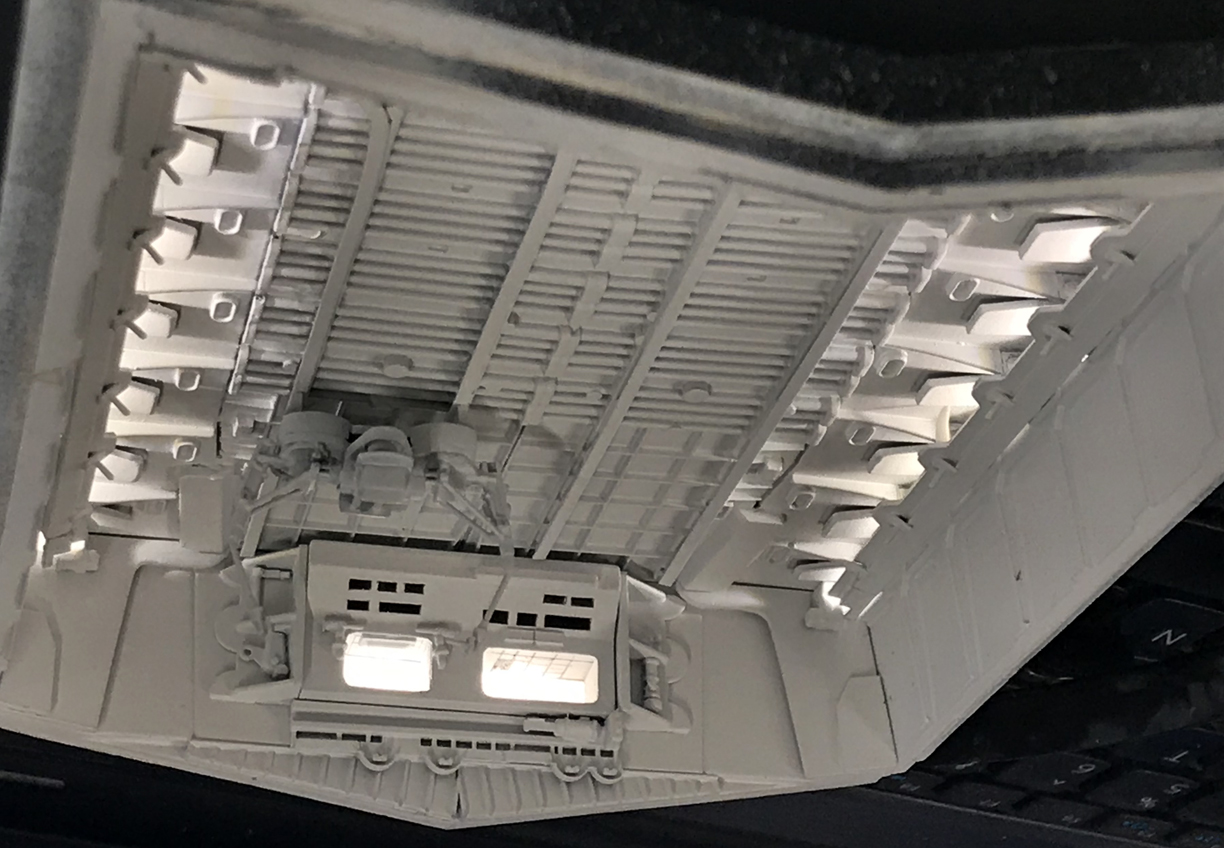

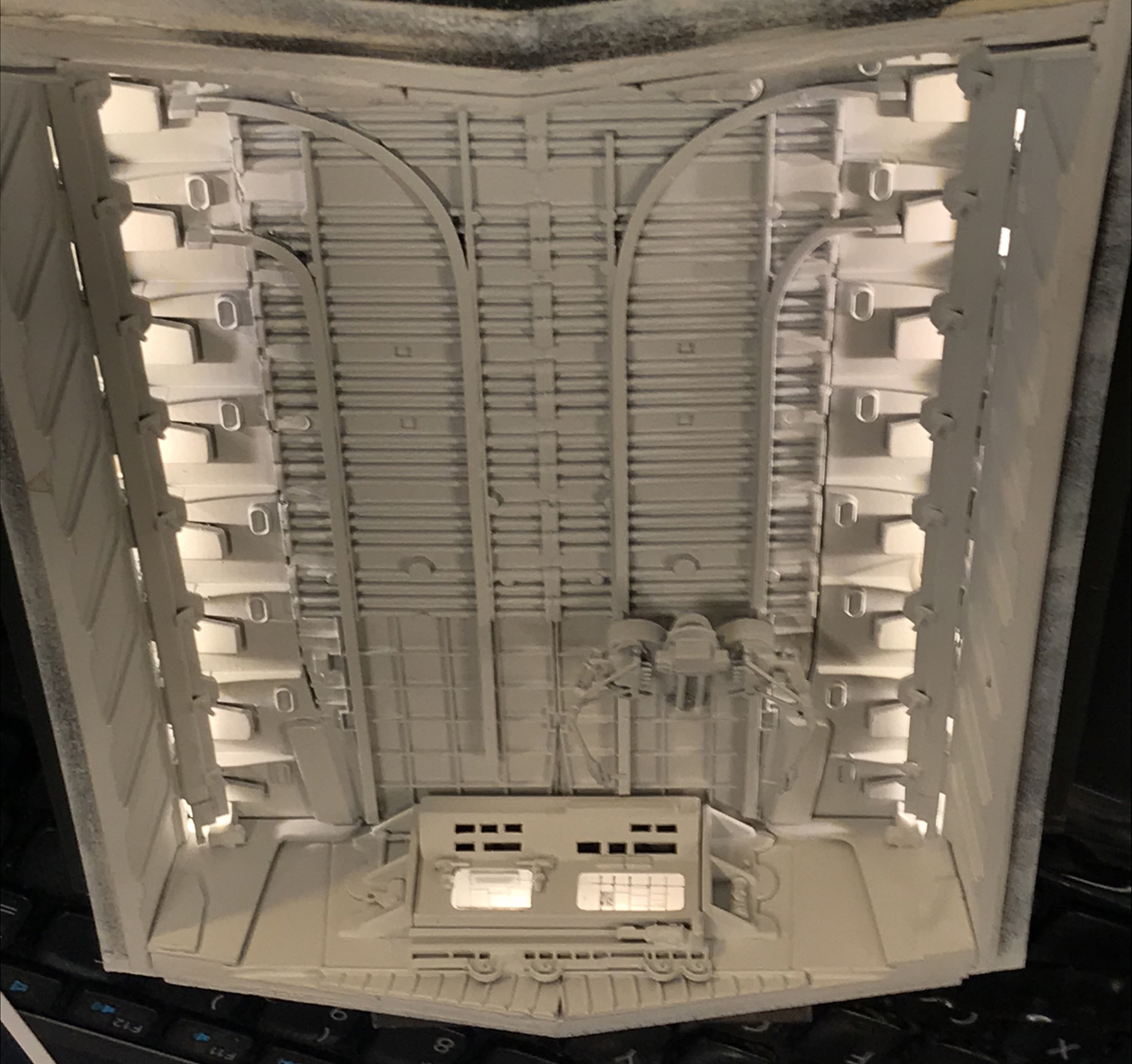

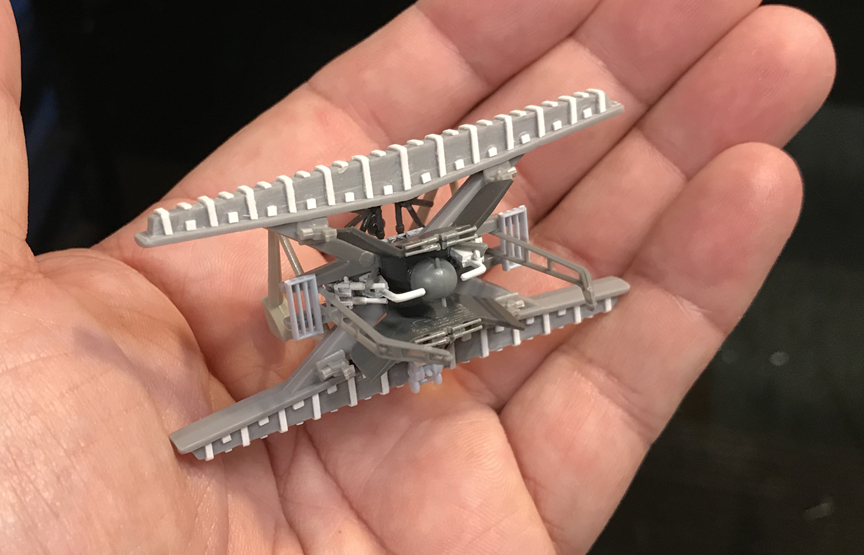

Here's a quick update on a couple areas. I scratch built the 'X Antenna' again, there were a few minor details like the ribs were too thick (.020 as opposed to .015 now), and I realized there are no ribs on the 'bottom/rear' of the antenna on the original, and I corrected a few more parts. So this should now pretty accurately reflect the original Antenna array. Also, I pretty much completed the hangar bay with lighting. It is set to a remote dimmer, so I can change the brightness quite a bit to adjust to room lighting. Funny thing, the Bandai Blockade Runner kit fits almost perfectly in the bay - so I'll be making some way to add/remove it in there.
Wulf - It will be about 4' long, same as original.
Here's a quick update on a couple areas. I scratch built the 'X Antenna' again, there were a few minor details like the ribs were too thick (.020 as opposed to .015 now), and I realized there are no ribs on the 'bottom/rear' of the antenna on the original, and I corrected a few more parts. So this should now pretty accurately reflect the original Antenna array. Also, I pretty much completed the hangar bay with lighting. It is set to a remote dimmer, so I can change the brightness quite a bit to adjust to room lighting. Funny thing, the Bandai Blockade Runner kit fits almost perfectly in the bay - so I'll be making some way to add/remove it in there.
Incredibly awesome!
TazMan2000
Master Member
Some really detailed scratch building there.
TazMan2000
TazMan2000
Just plain sexy with all of those kit parts... and the scratch-building is superb!
star-art
Sr Member

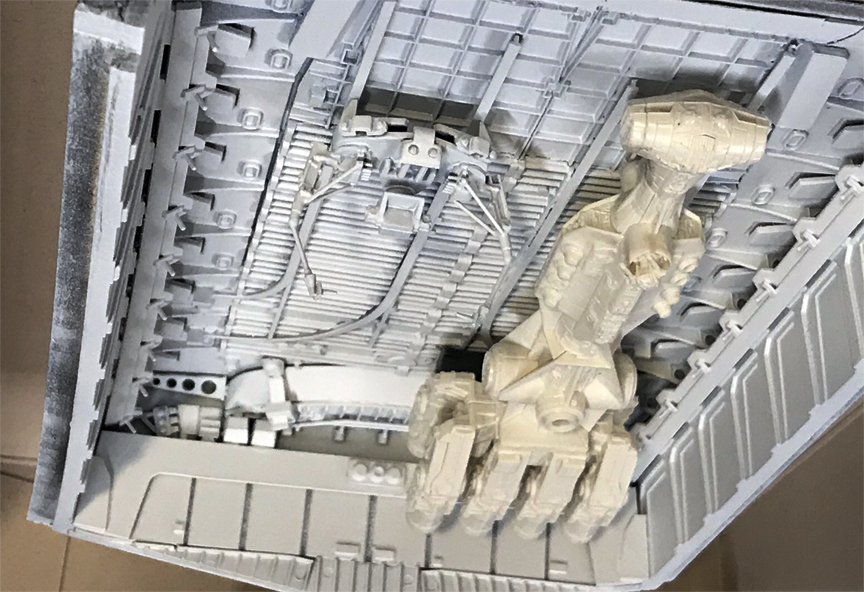

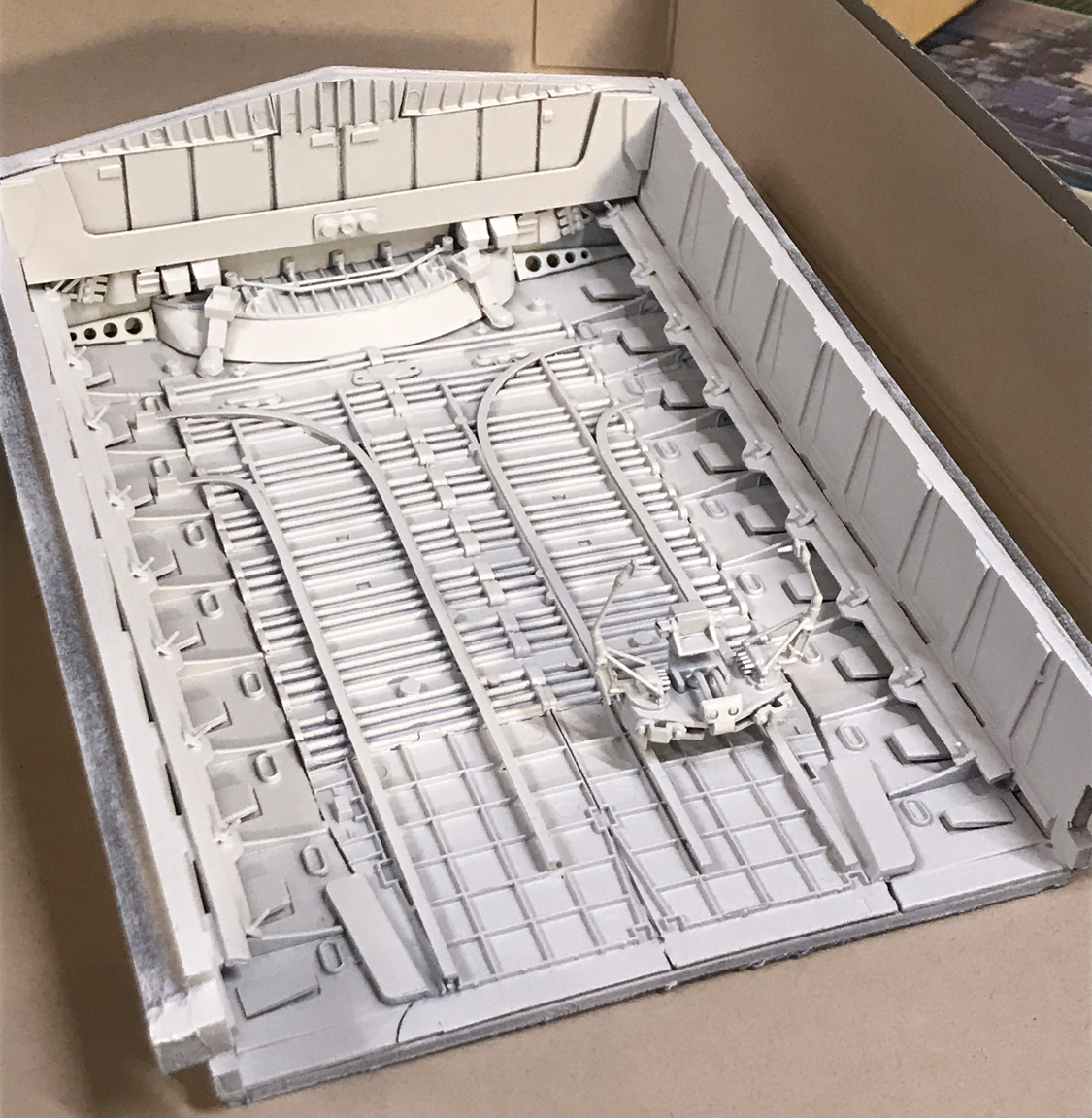

Most of the hangar is cast resin (from parts I designed in 3D that were based on an initial pattern put together by John Currila and revised by me). Sean did an excellent job of building things like the crane which is one part I did not include when I made the final patterns for this subject.
Last edited:
derekcwicks
New Member
This is unbelievable!!! I want to scratch build an accurate 'Devastator, but am finding it hard to find out what bash models were used. IS there somewhere that lists the models used to bash it? Thanks for any help people can give.
star-art
Sr Member
There are some threads to be found here in the studio-scale forum and on studioscalemodelers.com. If you're on Facebook you can see some photos of the pattern development work I did here:
www.facebook.com
Charles Adams
Charles Adams is on Facebook. Join Facebook to connect with Charles Adams and others you may know. Facebook gives people the power to share and makes the world more open and connected.
www.facebook.com
PHArchivist
Master Member
Ummm... WOW...!!!
t2sides
Master Member
Thanks very much!!! Appreciate all the kind comments!!
Been a little slow going, but progress continues. Scratch built up the engine bells with the L'Eggs Eggs and T channel - that was actually a lot of fun. Especially making the really thin outer 'ring'. Pretty ingenious the way the original model builders made this super thin styrene strip with little styrene rectangles, then glued it in just the right diameter to the T channels, leaving that really iconic gap between the egss and the ring.

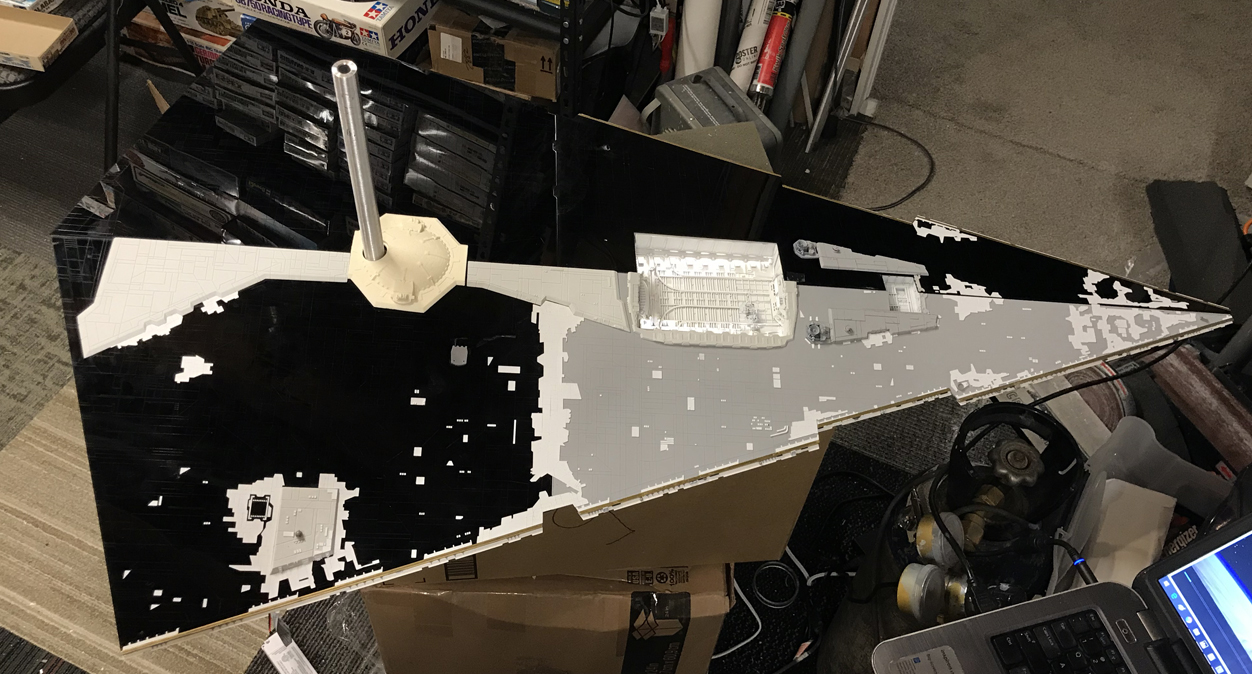

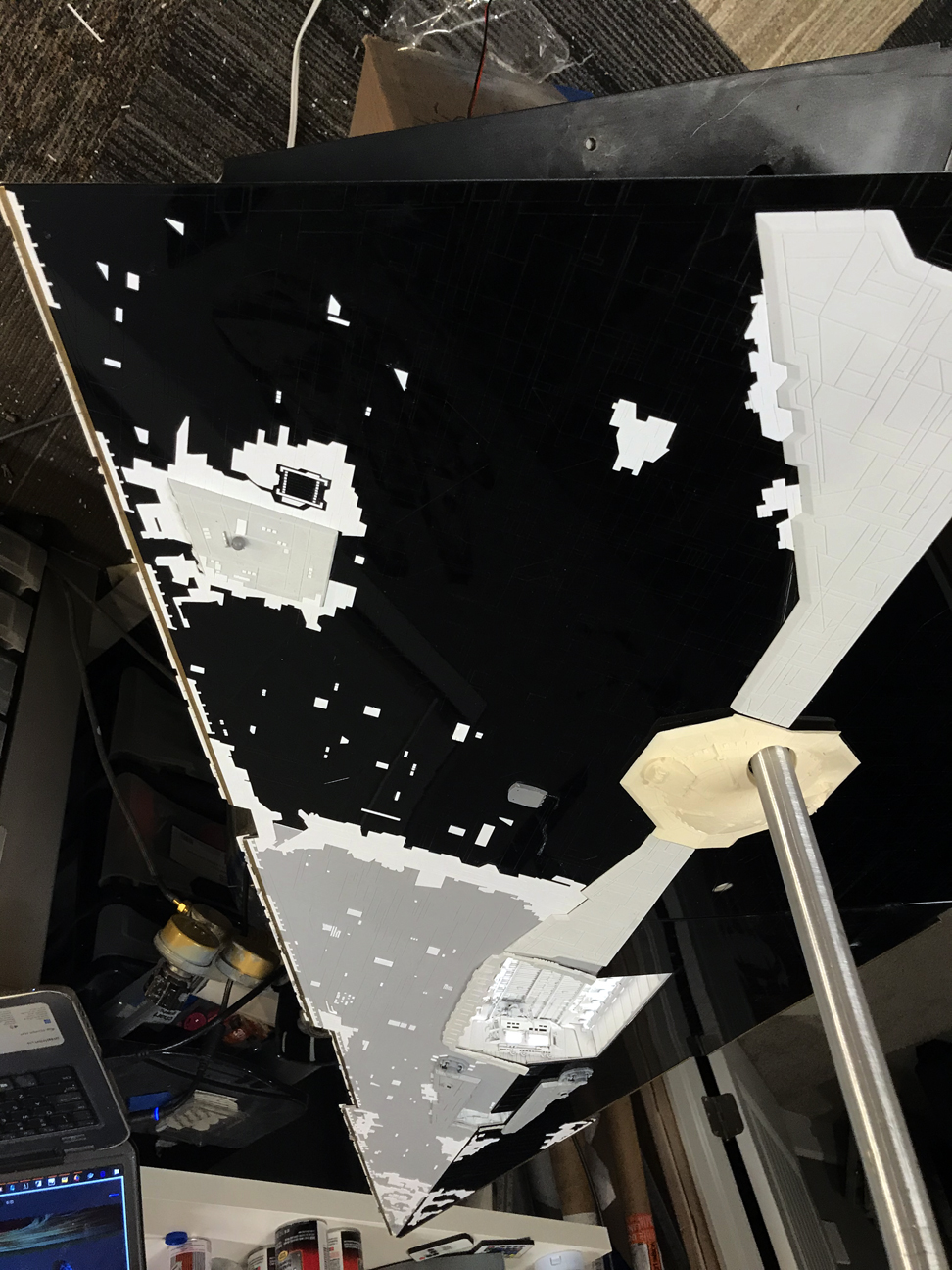

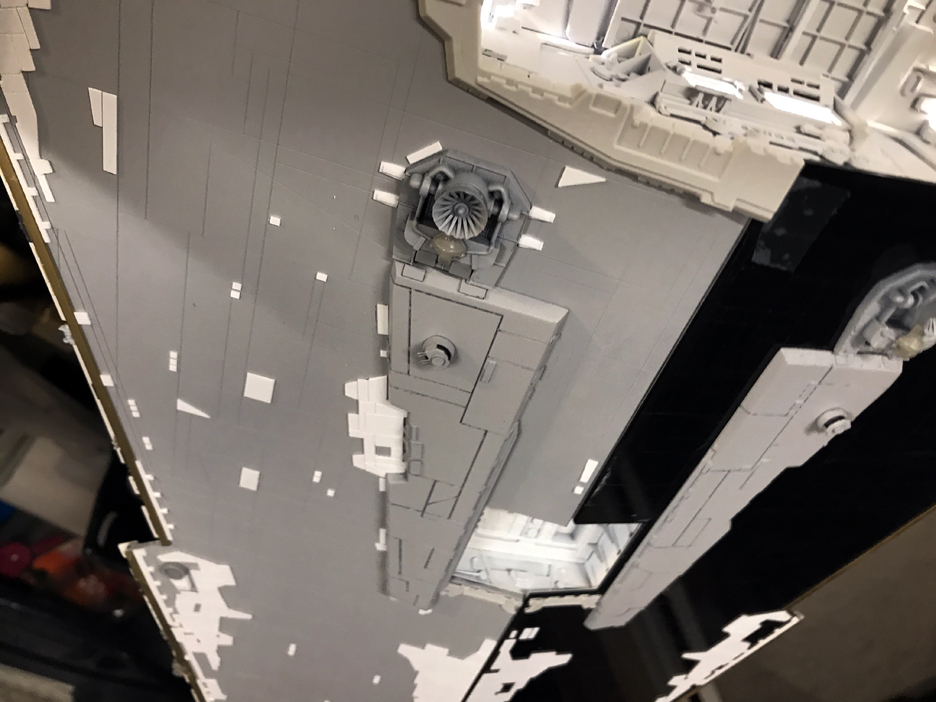

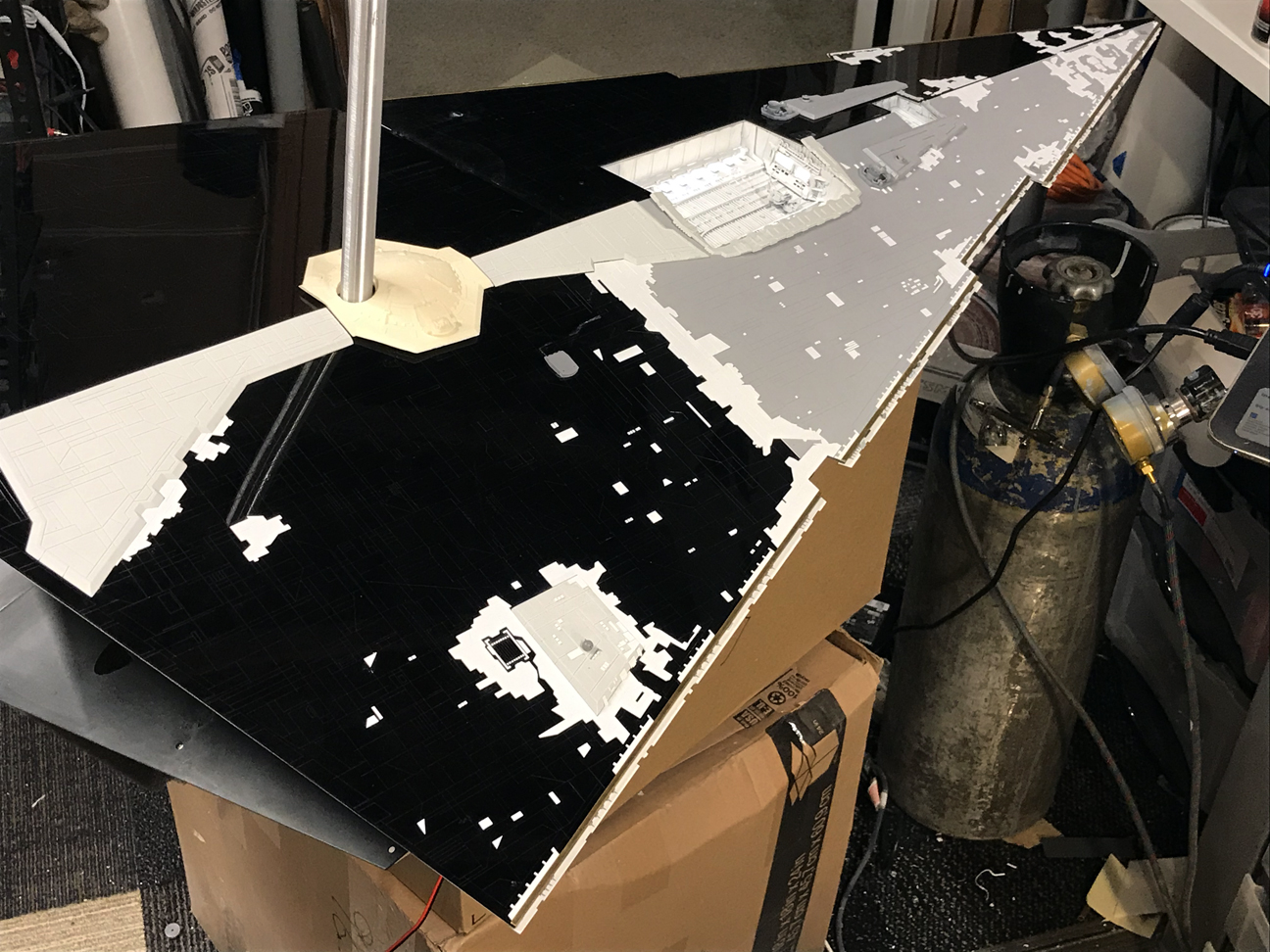

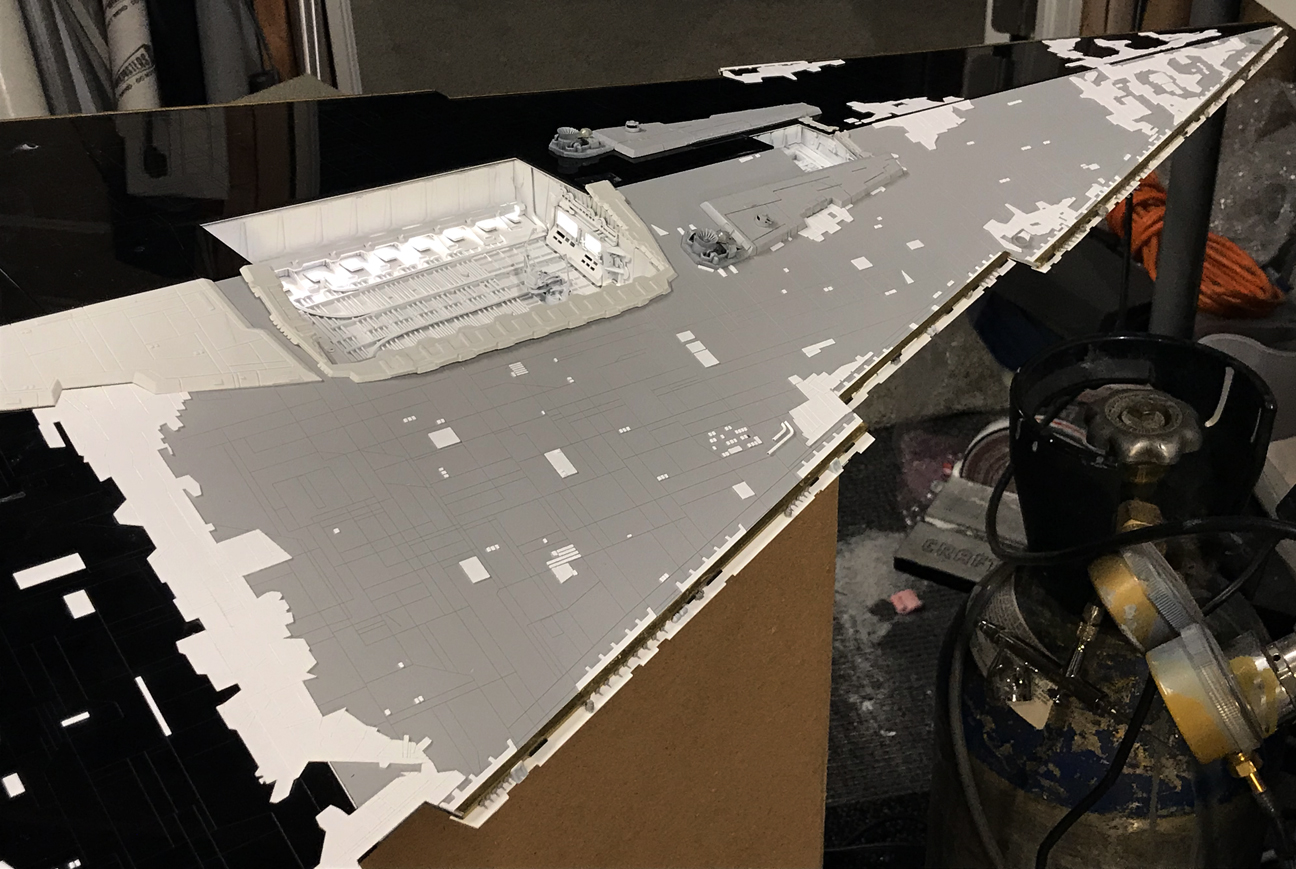

With those now done, moved back to the port body underside adding all the little chips, panels and such. A few parts are just placed on in these pics for size checking. It's really a Zen like effort hand cutting all those little chips. Should be moving onto the starboard side soon, then things will finish up pretty quick under here.
Engine Bells:

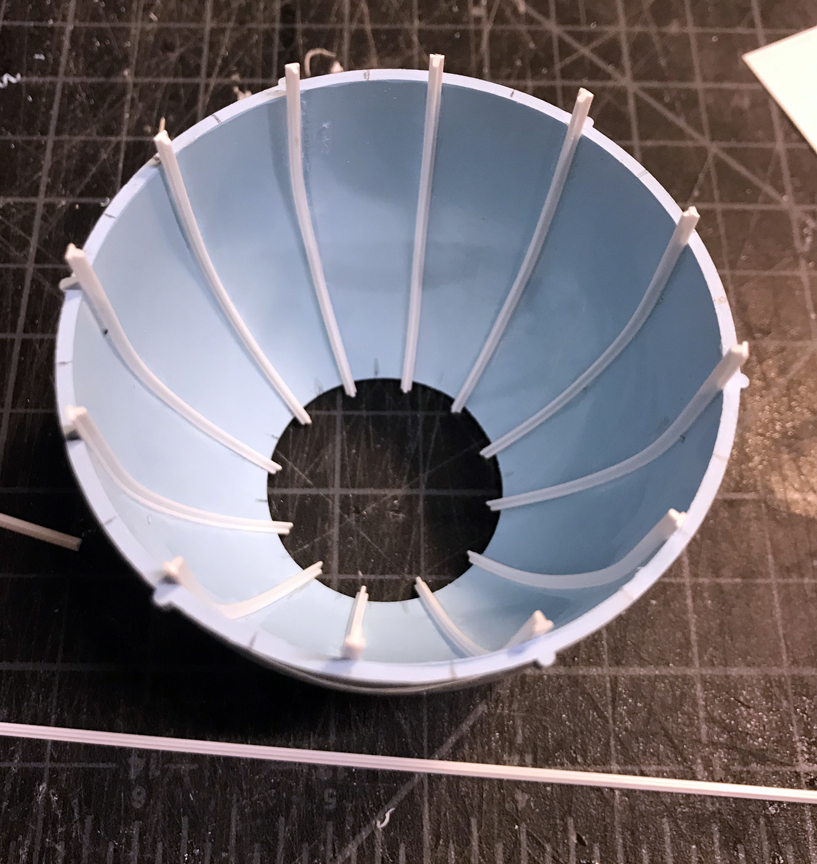

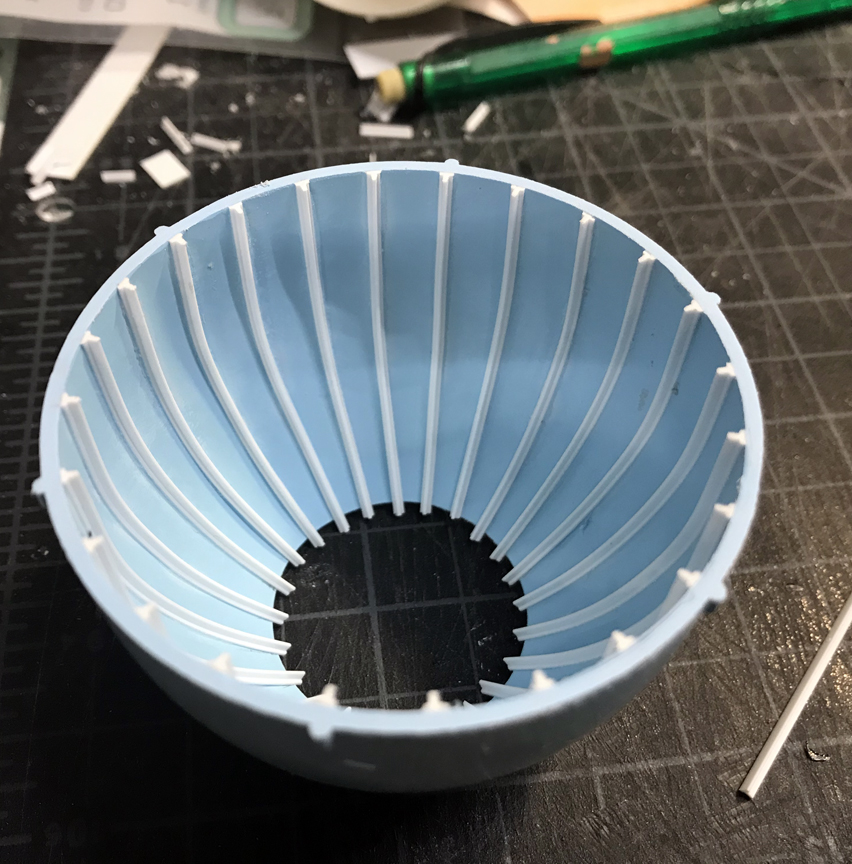

First set of 'T-Channel'
Second rows of T-Channels

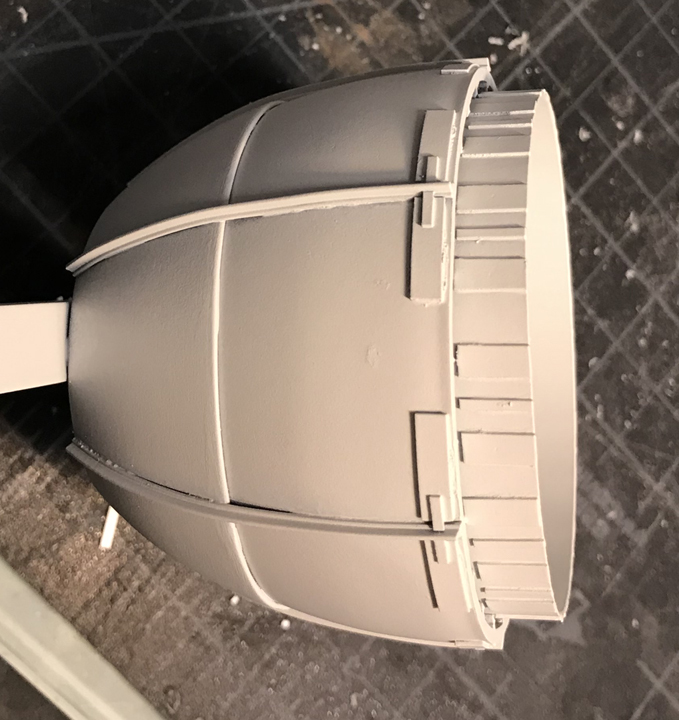

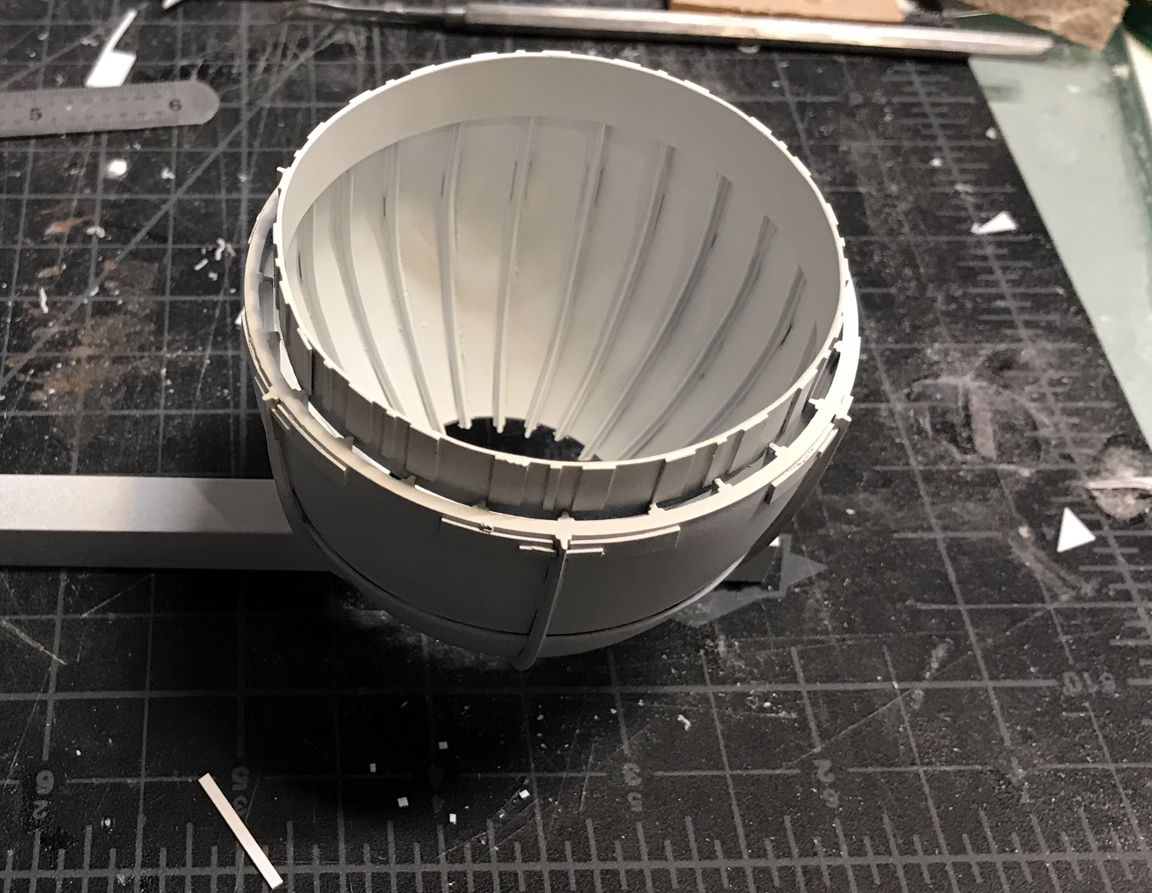

All 3 'bells' with the thin styrene ring

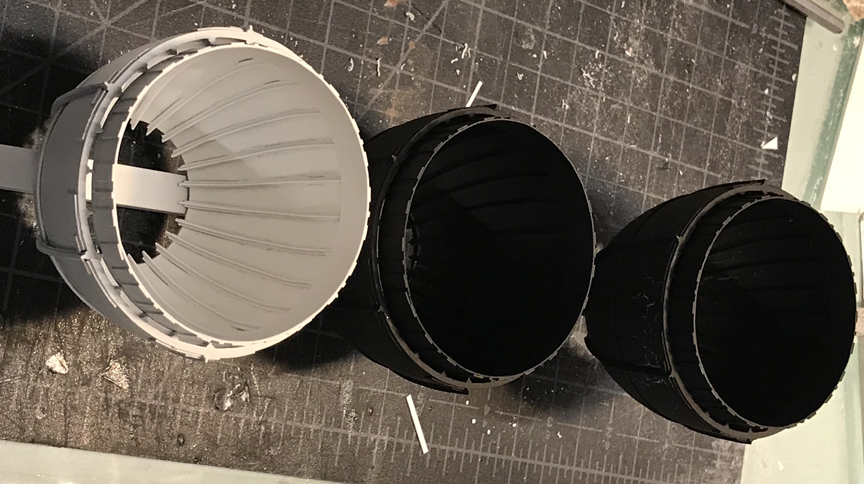

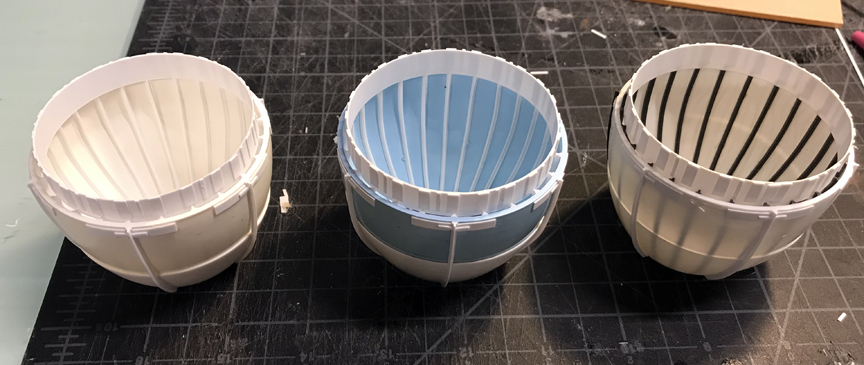

Two primered in black, and one painted in final white.
Painted Bell
Been a little slow going, but progress continues. Scratch built up the engine bells with the L'Eggs Eggs and T channel - that was actually a lot of fun. Especially making the really thin outer 'ring'. Pretty ingenious the way the original model builders made this super thin styrene strip with little styrene rectangles, then glued it in just the right diameter to the T channels, leaving that really iconic gap between the egss and the ring.
With those now done, moved back to the port body underside adding all the little chips, panels and such. A few parts are just placed on in these pics for size checking. It's really a Zen like effort hand cutting all those little chips. Should be moving onto the starboard side soon, then things will finish up pretty quick under here.
Engine Bells:
First set of 'T-Channel'
Second rows of T-Channels
All 3 'bells' with the thin styrene ring
Two primered in black, and one painted in final white.
Painted Bell
OlivierC
Well-Known Member
Probably because ILM barely make any model at all nowadays (and the few they make are mostly 3d prints)
But indeed, that's very impressive work, making those three bells with all the t-track evenly spaced must have taken forever
This is beautiful work!
Talaris
Active Member
I was pleasantly surprised to see that The Razorcrest from The Mandalorian is a motion captured model (there is a behind the scenes video on YouTube). I think they add digital motion blur that to me makes it still look like CGI, but I’m thankful they went this route all the same.
