Project Mercury Launch Complex and Atlas rocket

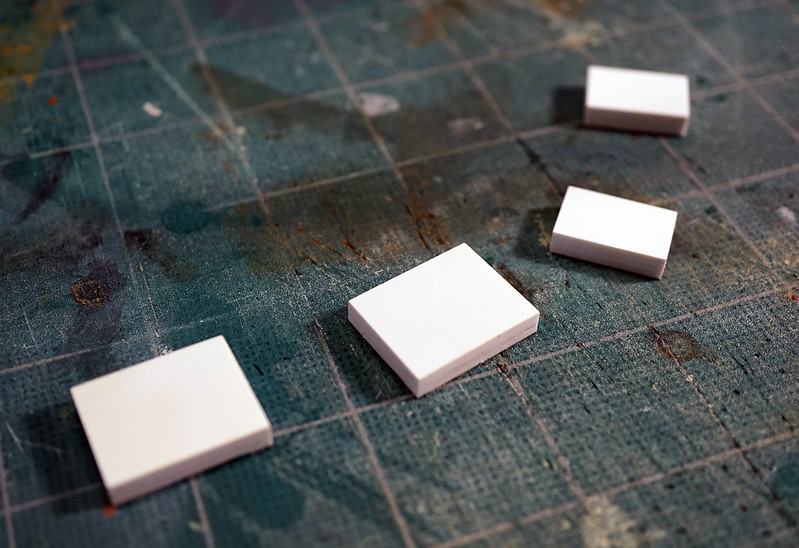

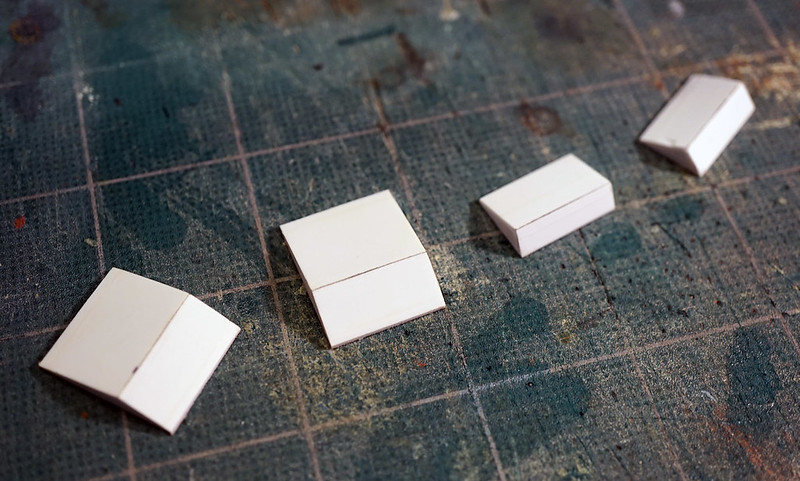

Today I worked on the attachment points for the open-web trusses. I started by laminating some styrene.



Which I then sawed, filed, and sanded into shape.

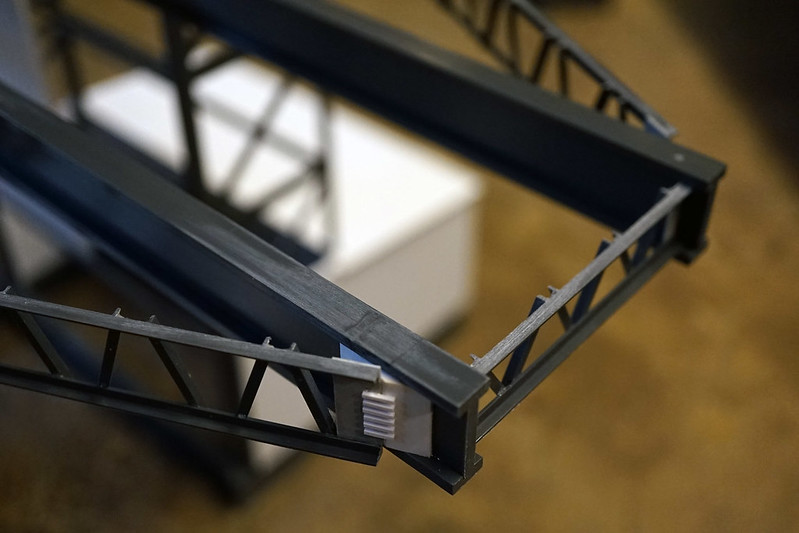

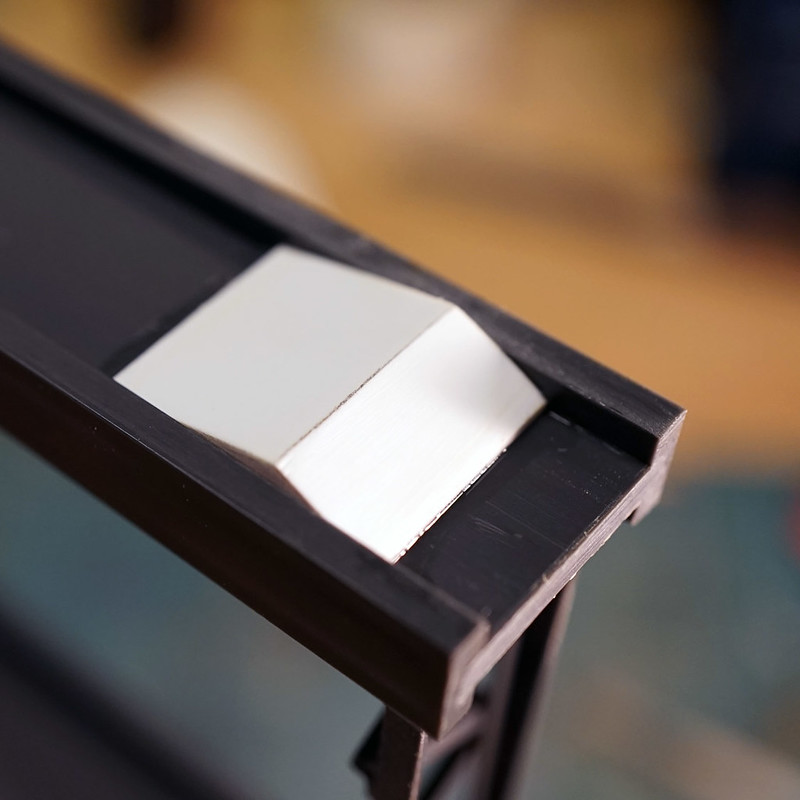

And glued in place.

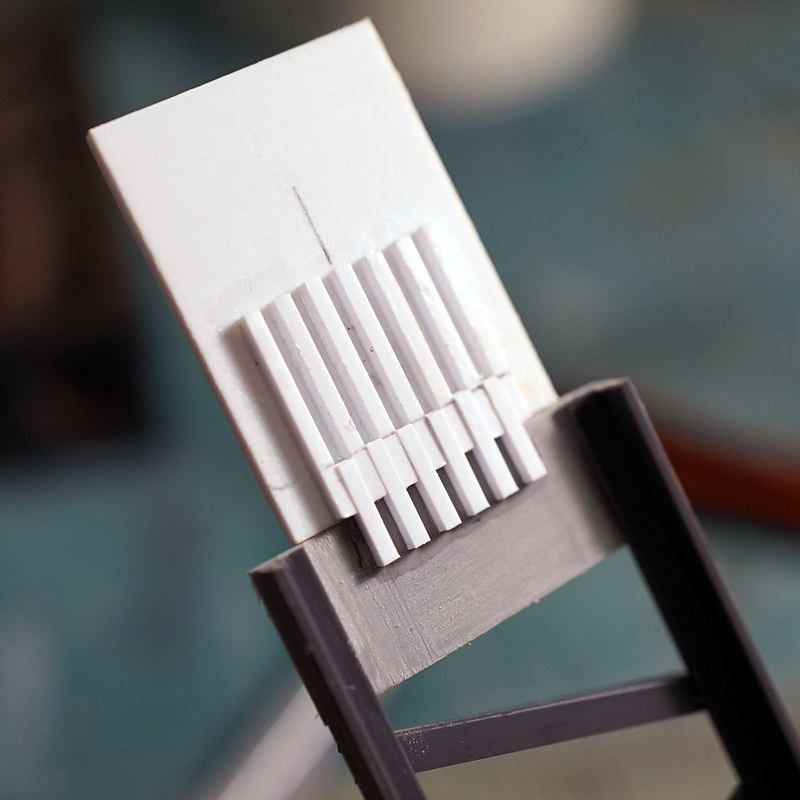

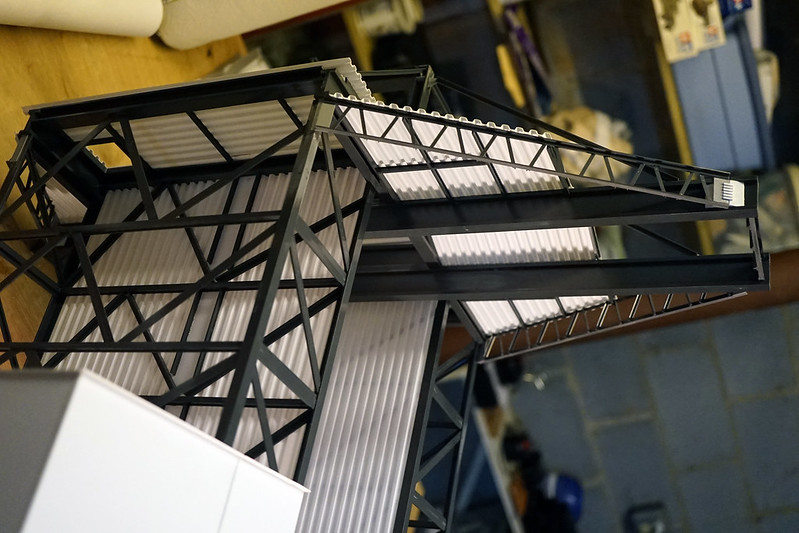

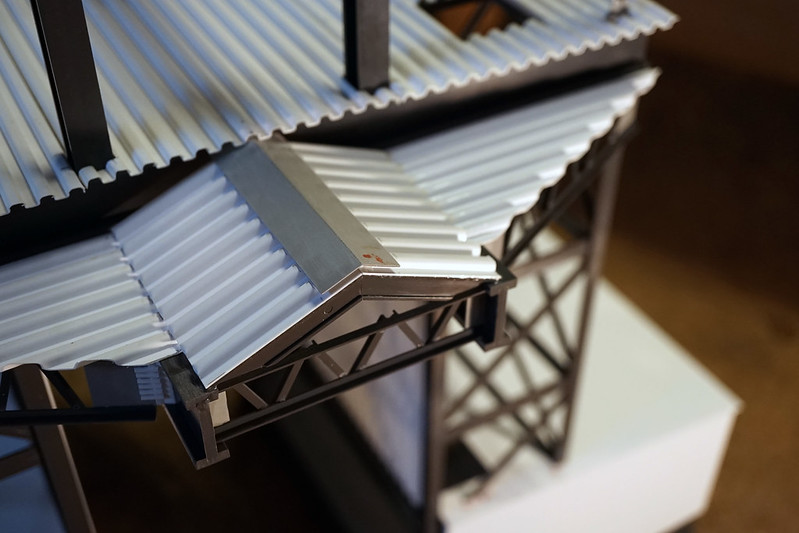

Then I turned my attention on the trusses themselves and made another little jig to keep these "fingers" aligned.


Last edited:
Looks amazing. I'm always jealous of folks who can make styrene look so good, I need to make I-beams for a Donkey Kong model and it's a nightmare.

So... This isn't one of those projects someone builds in their basement only to discover it's too big to get out the door?

DaveG, it does kind of look like Tri-X, doesn't it? Guess I'd better get used to seeing it in black and white since that's how we're shooting.

Stevielewis, thanks!

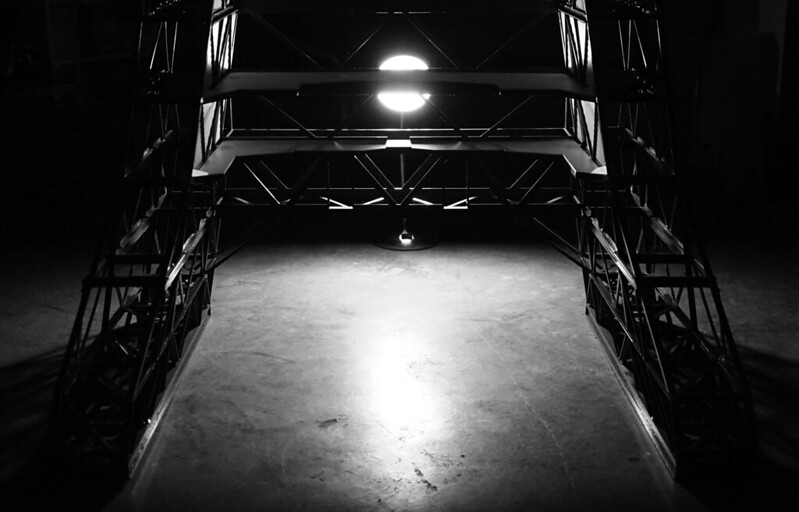

Now, Day 2

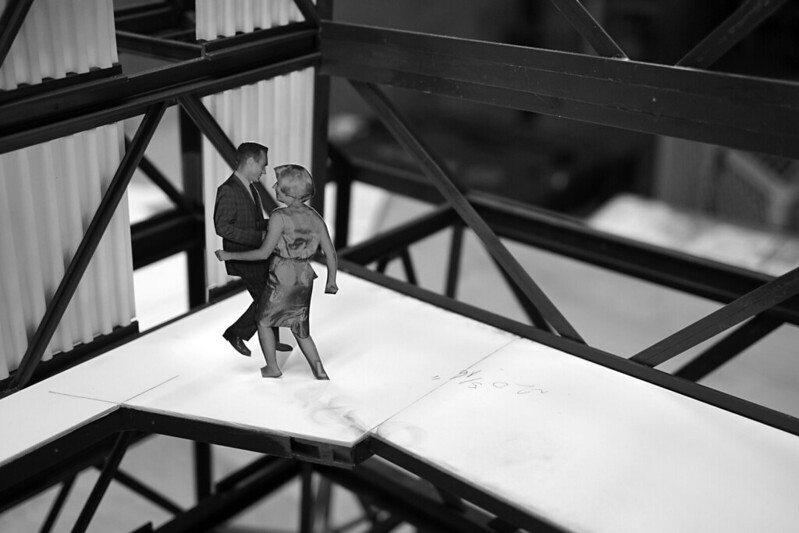

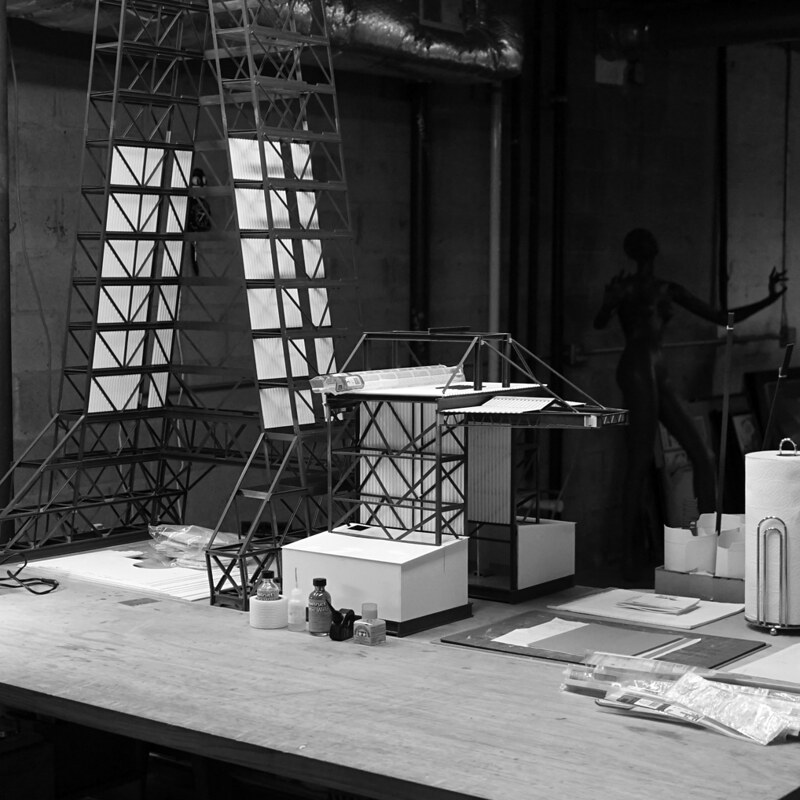

Scott Carpenter, his wife Rene, and Chubby Checker (not pictured) test the service tower's stability.

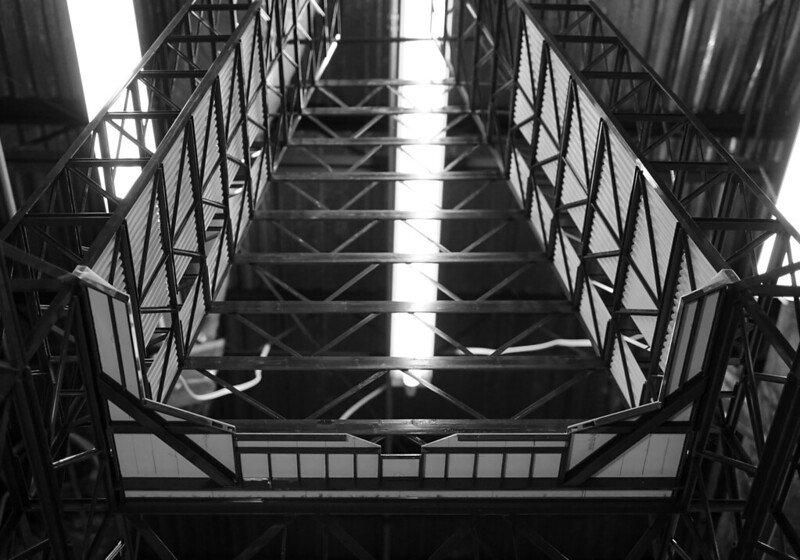

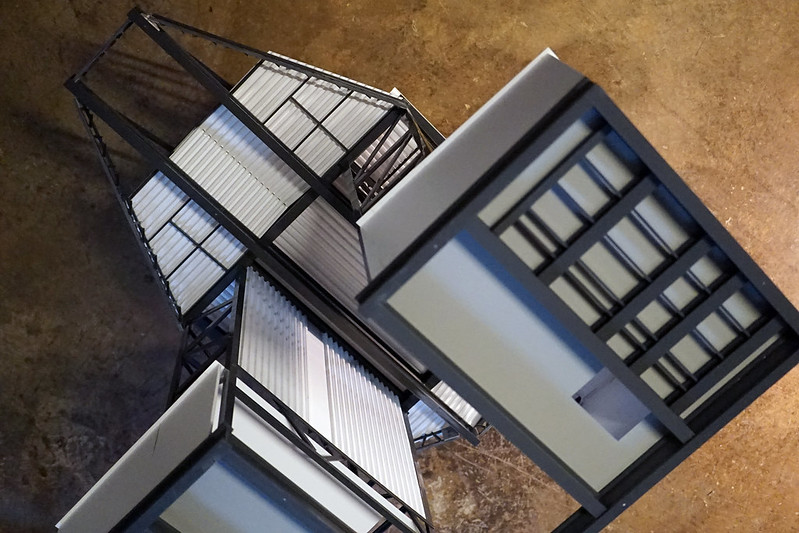

And station 27 is complete! #notarecognizer


Last edited:
And I thought that my Space Station was big;) Love the details and the work involve making that model! The B&W shots makes it even more "vintage".
