ORCA scratch build

[flimzy]



[Tommy]

Quite the project!

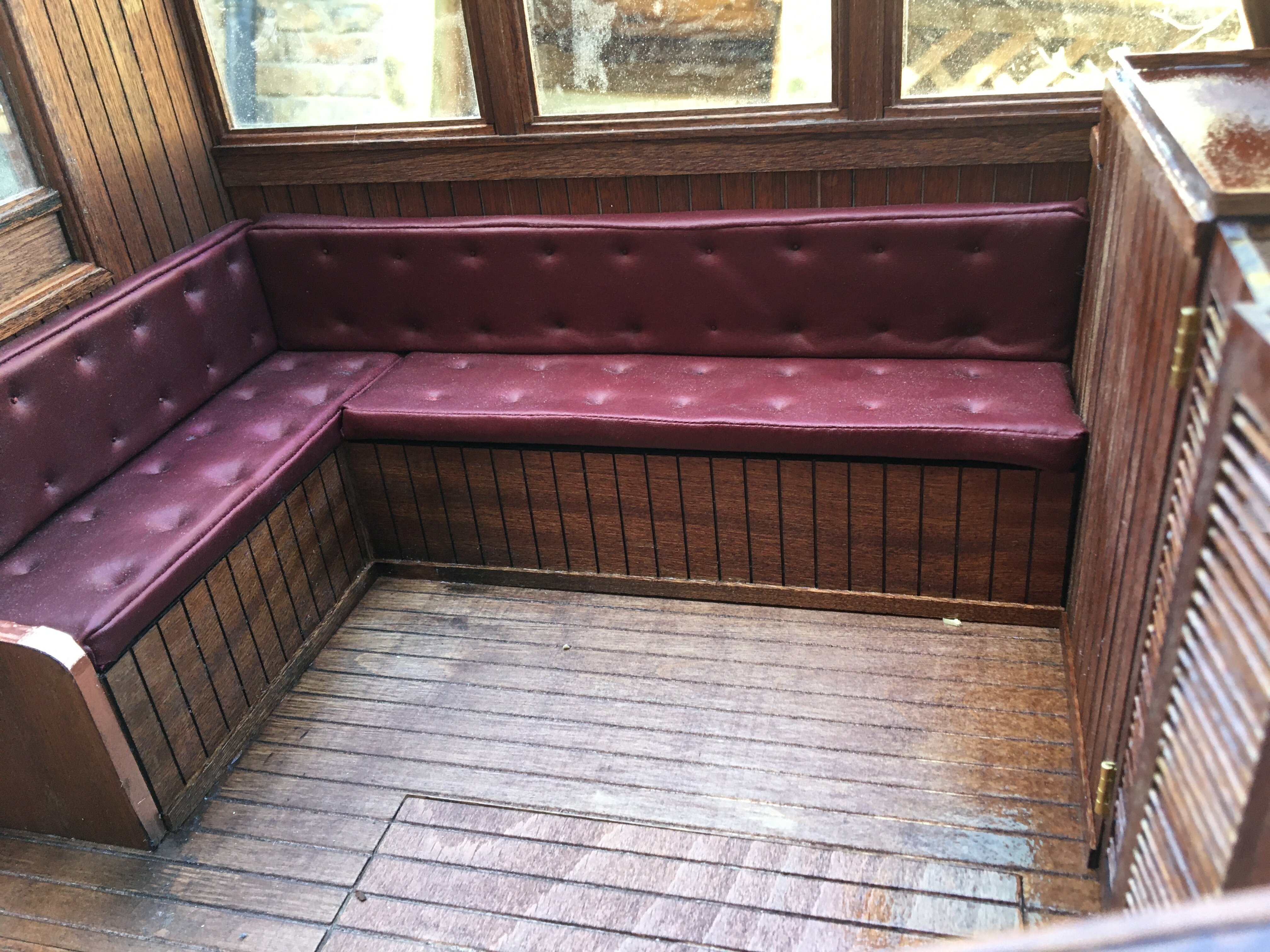

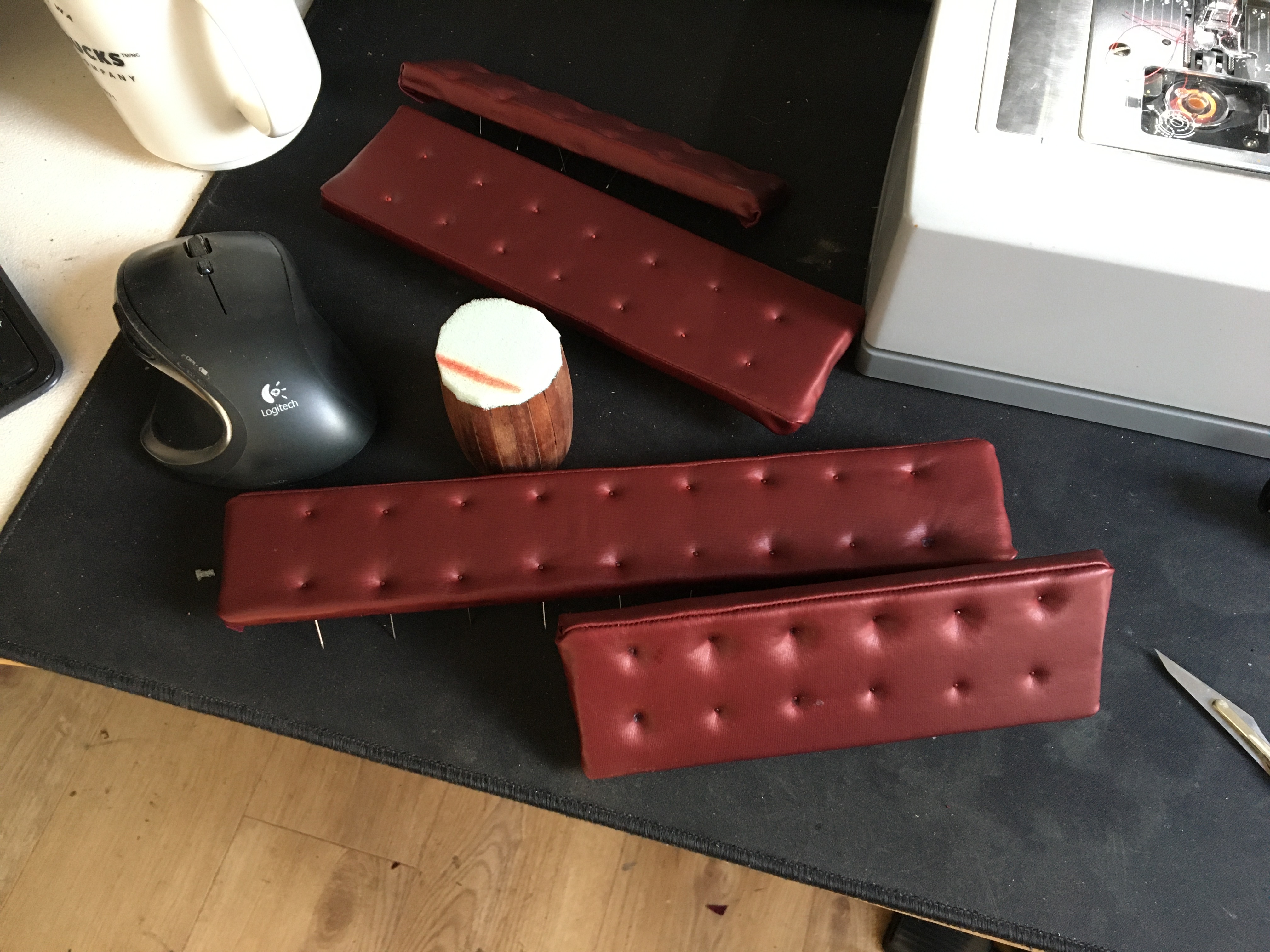

Not sure if you plan to permanently affix the seat cushions, but just to throw it out there since you're going for hyper-accuracy, removing them would likely reveal lids underneath for access to storage compartments within the benches.



[flimzy]



[chibobber]

Museum quality! fantastic to watch your skills.



[SERRASALMUS]

Je devais juste partager ce dW

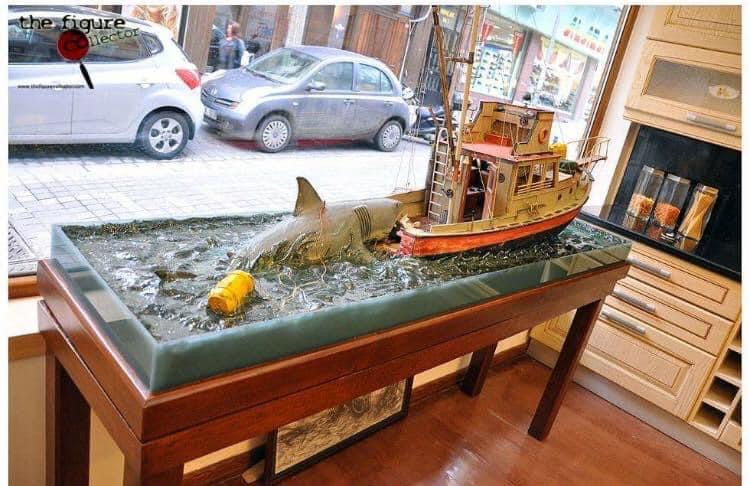

Je devais juste partager ce diorama
View attachment 1616450

WOOOOOW!!!! Can we see other pictures bro?



[SERRASALMUS]

View attachment 1621534

View attachment 1621534View attachment 1621535View attachment 1621536View attachment 1621537

Thanks bro to share with us your amazing project! WAAAAAAAAW!!!



[ID10T]

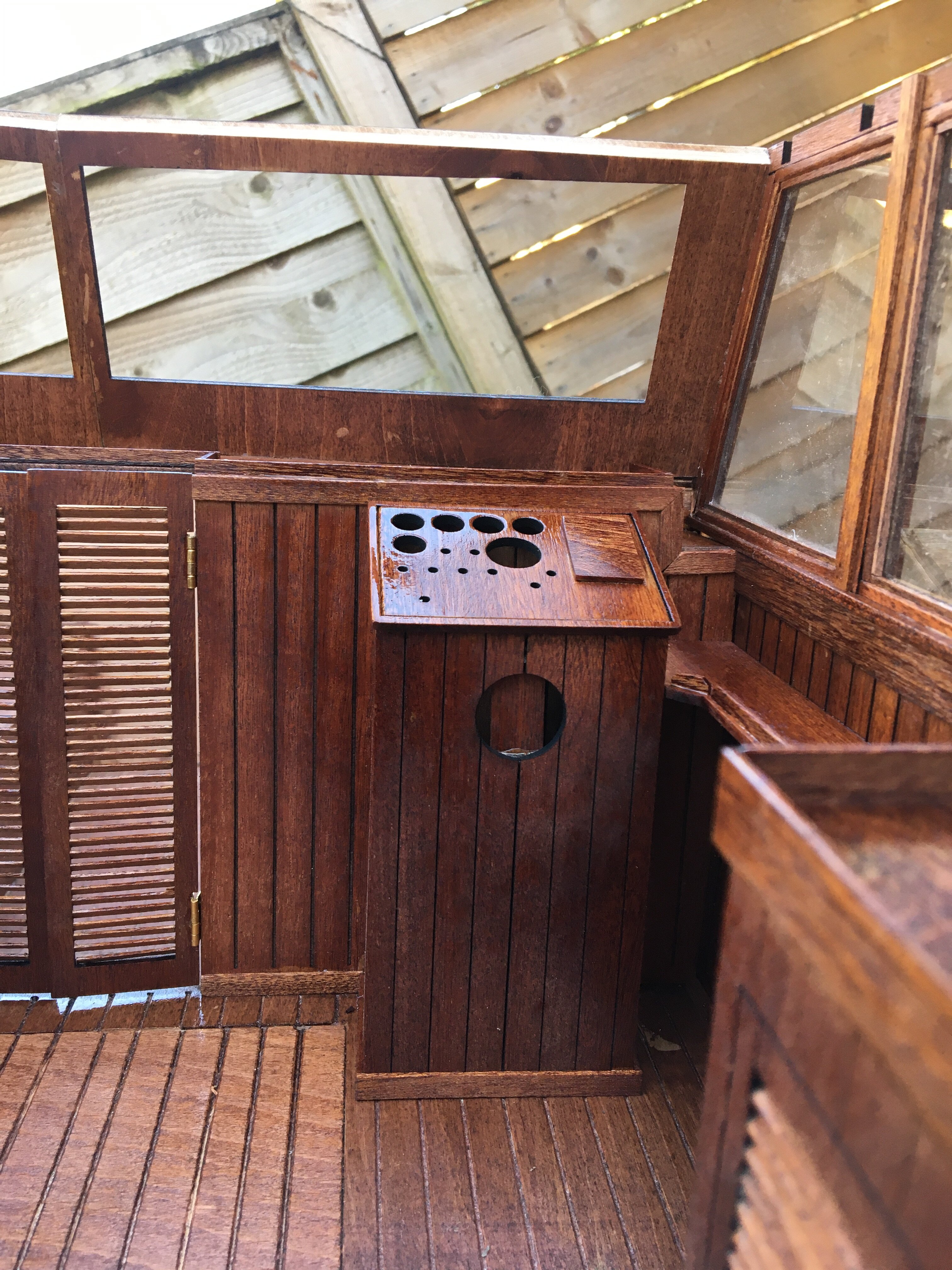

Probably rhetorical, but are you backlighting the gages?



[flimzy]

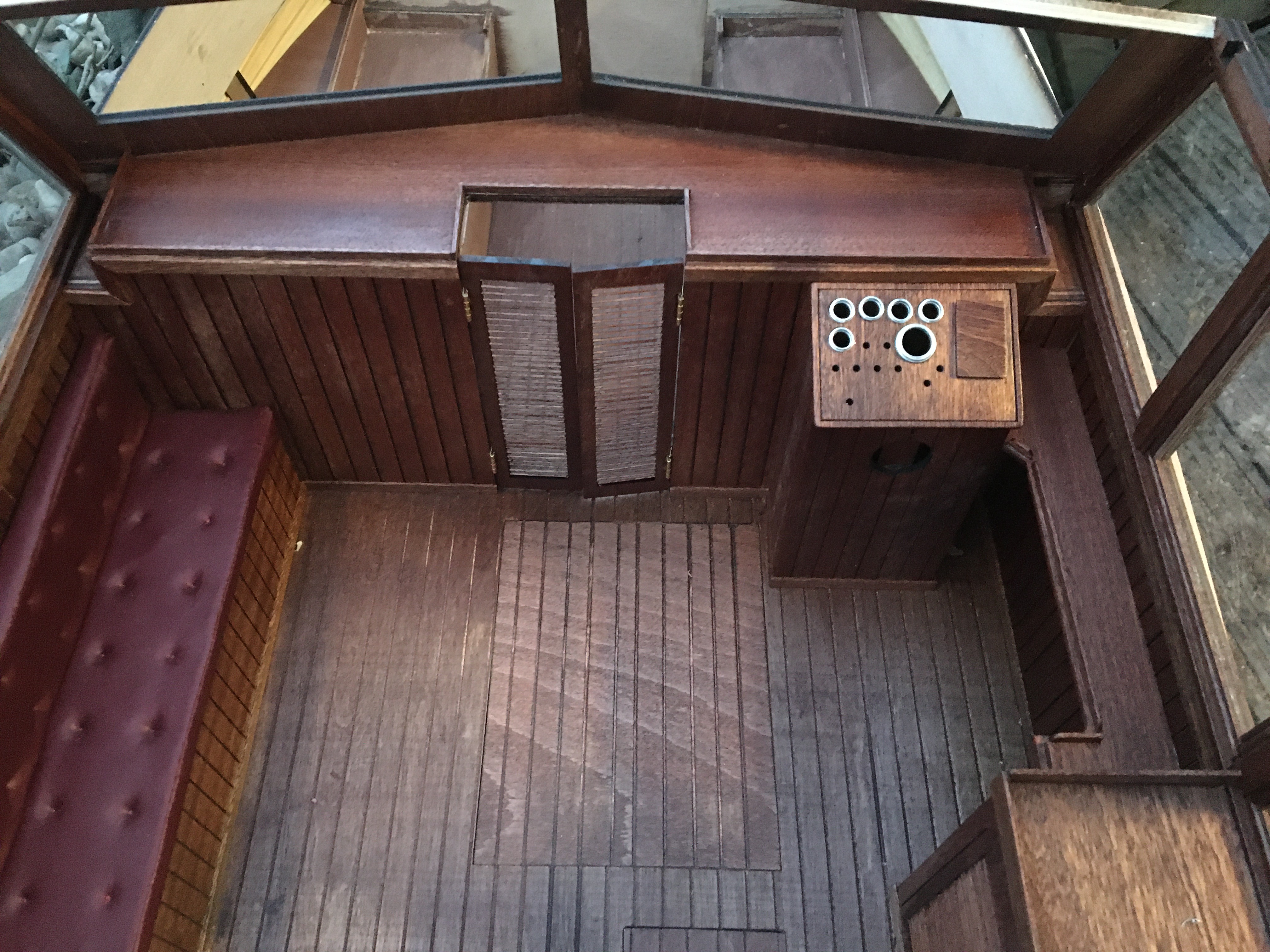

I am going to remake the trap doors with the grain going the right way, it was a mistake and bugs me.



[flimzy]

Probably rhetorical, but are you backlighting the gages?

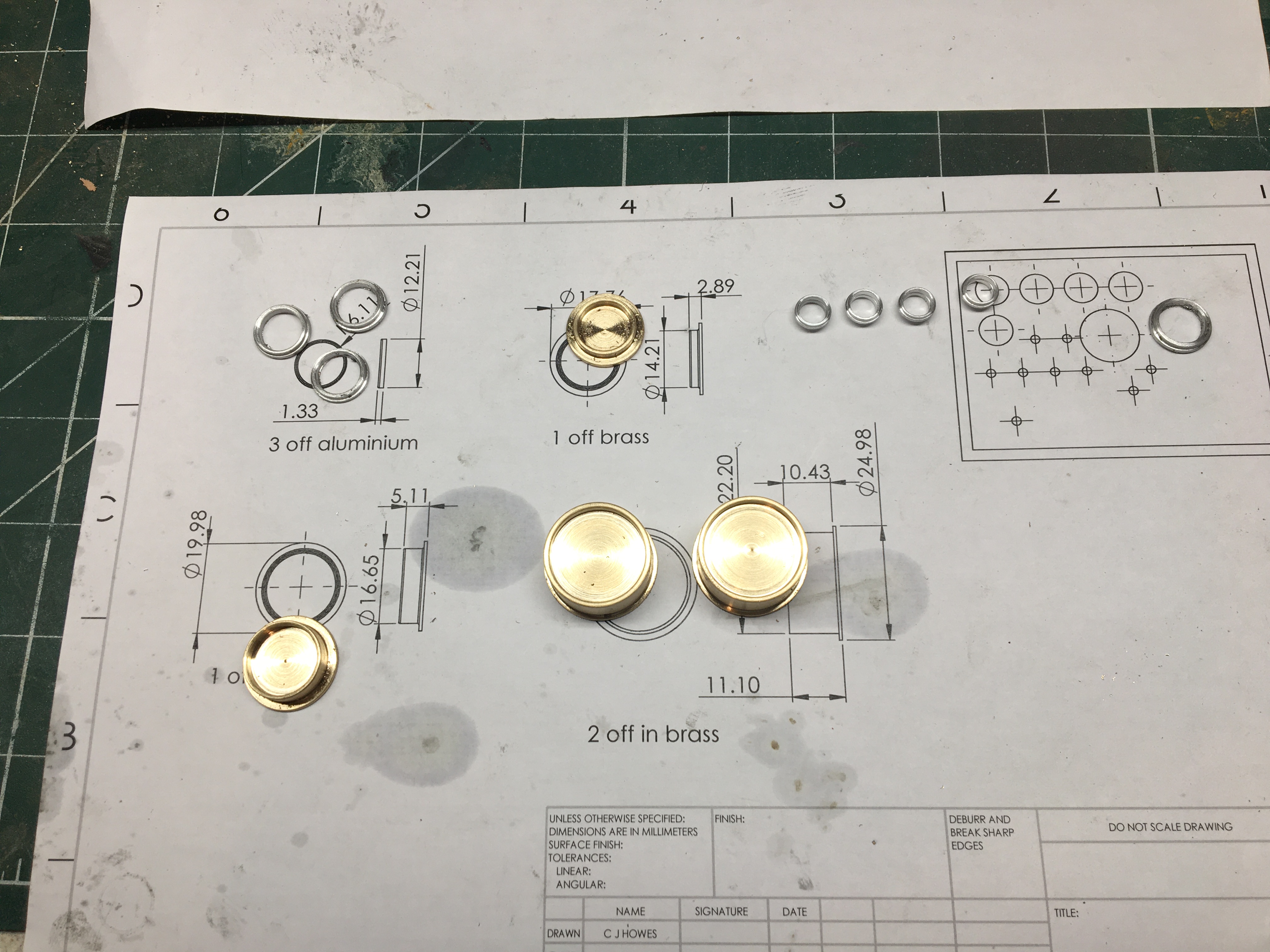

no, it's just easier to machine them thicker and drop them in to locate their position.



[MAKE BELIEVE]

Beautiful detailed job. Impressive work. You should do a 1X1 ORCA



[joberg]

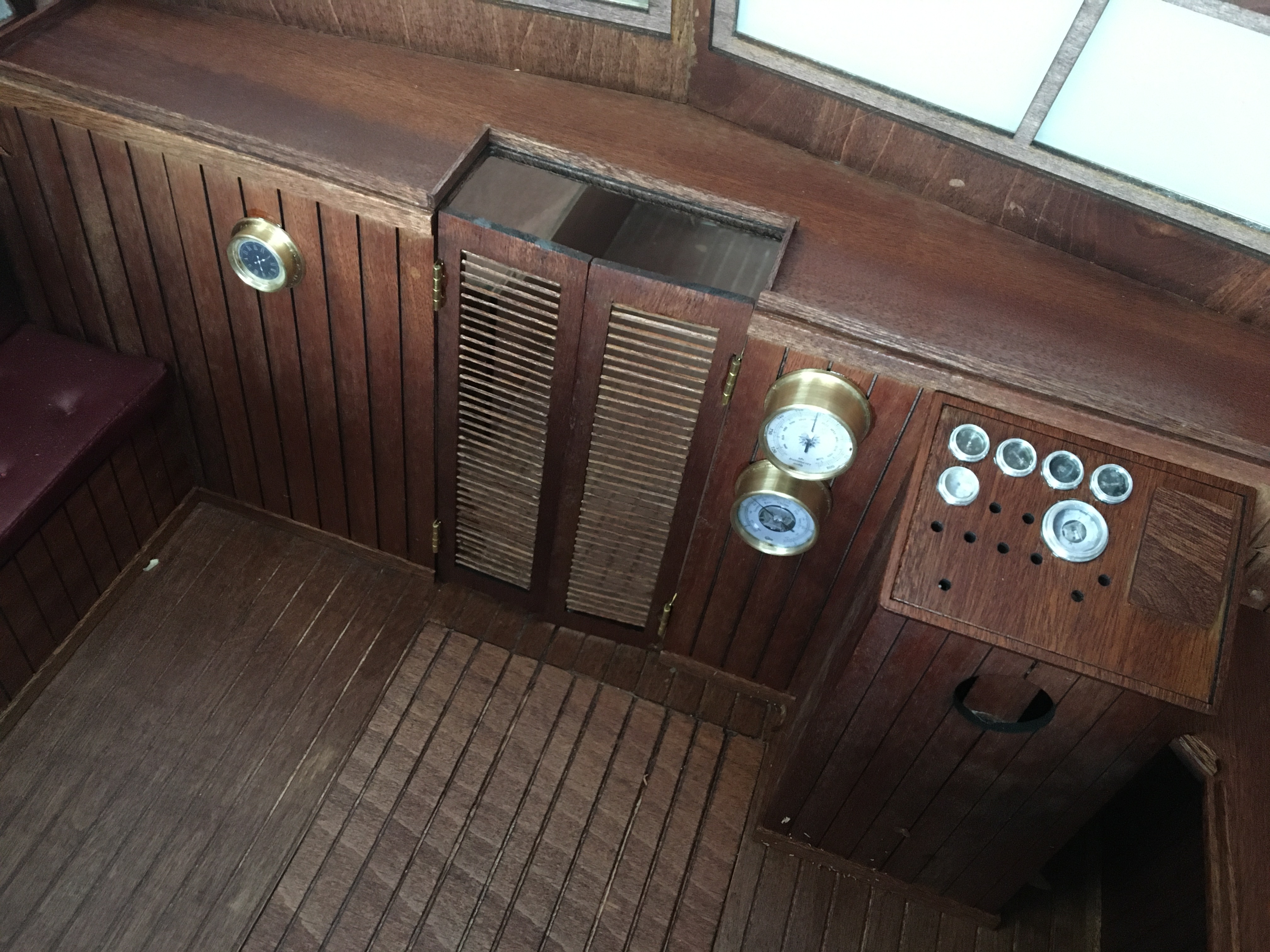

The gages and the details in them are sick



[flimzy]

forgot to take photos today. The radio control kit arrived so will start on that tomorrow.



[RayLuis]

forgot to take photos today. The radio control kit arrived so will start on that tomorrow.
View attachment 1621946

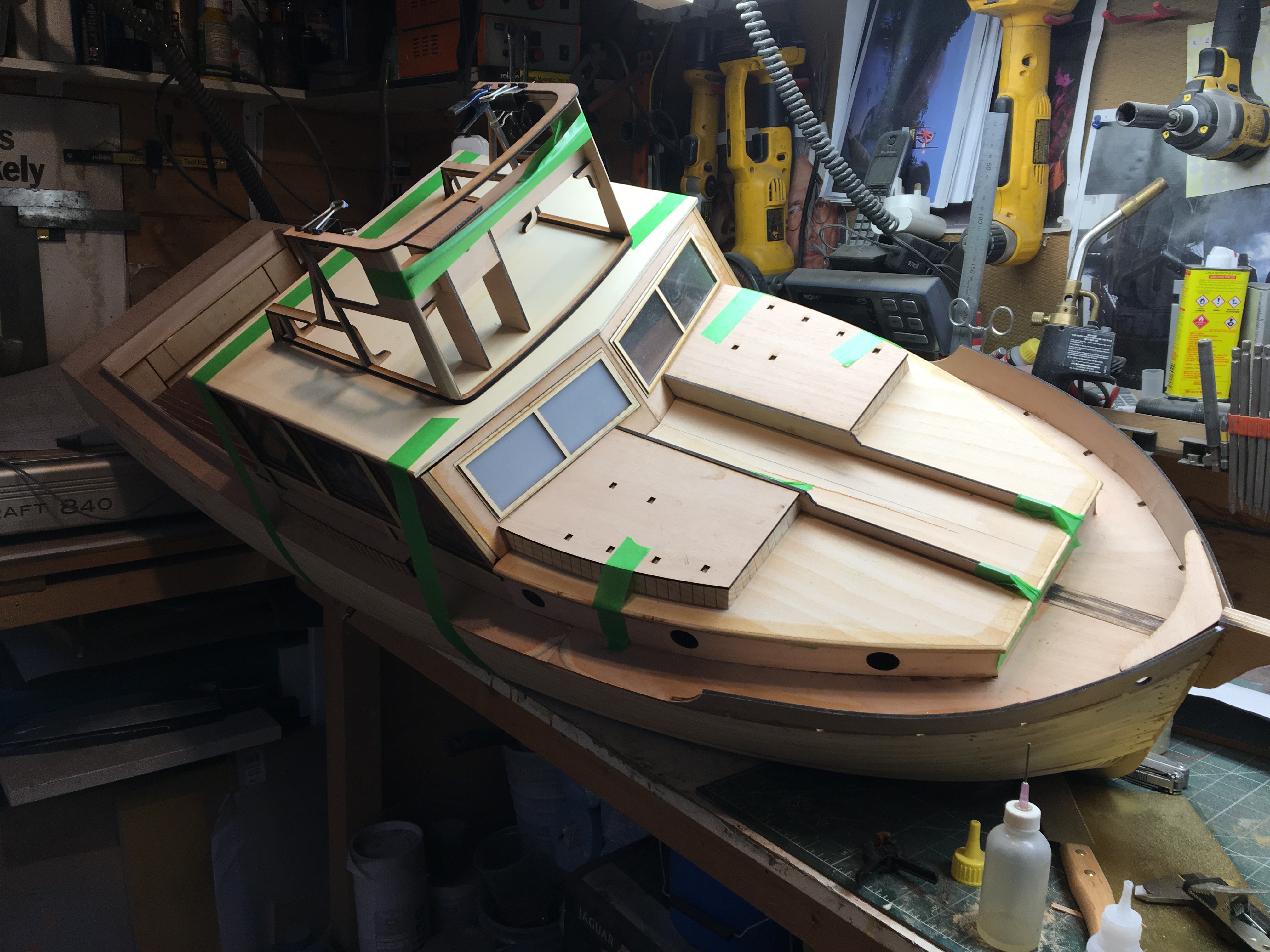

Hey Flimzy after building a few of these models your fly bridge seems to be slightly narrow and looks like it needs to be a little wider.



[flimzy]

Hey Flimzy after building a few of these models your fly bridge seems to be slightly narrow and looks like it needs to be a little wider.

I decided early on not to go with anyone else's models and start from scratch, hens the 3D model and rendered videos before starting the build
because there is no definitive set of drawings available, it is well known that ORCA 1 and 2 are very different in many ways and I have stuck to ORCA 1 where possible. lining up my model to screen grabs, to my eye I'm happy with the direction I'm going in. But that is not to say you are not right and your opinion isn't valid.



[flimzy]

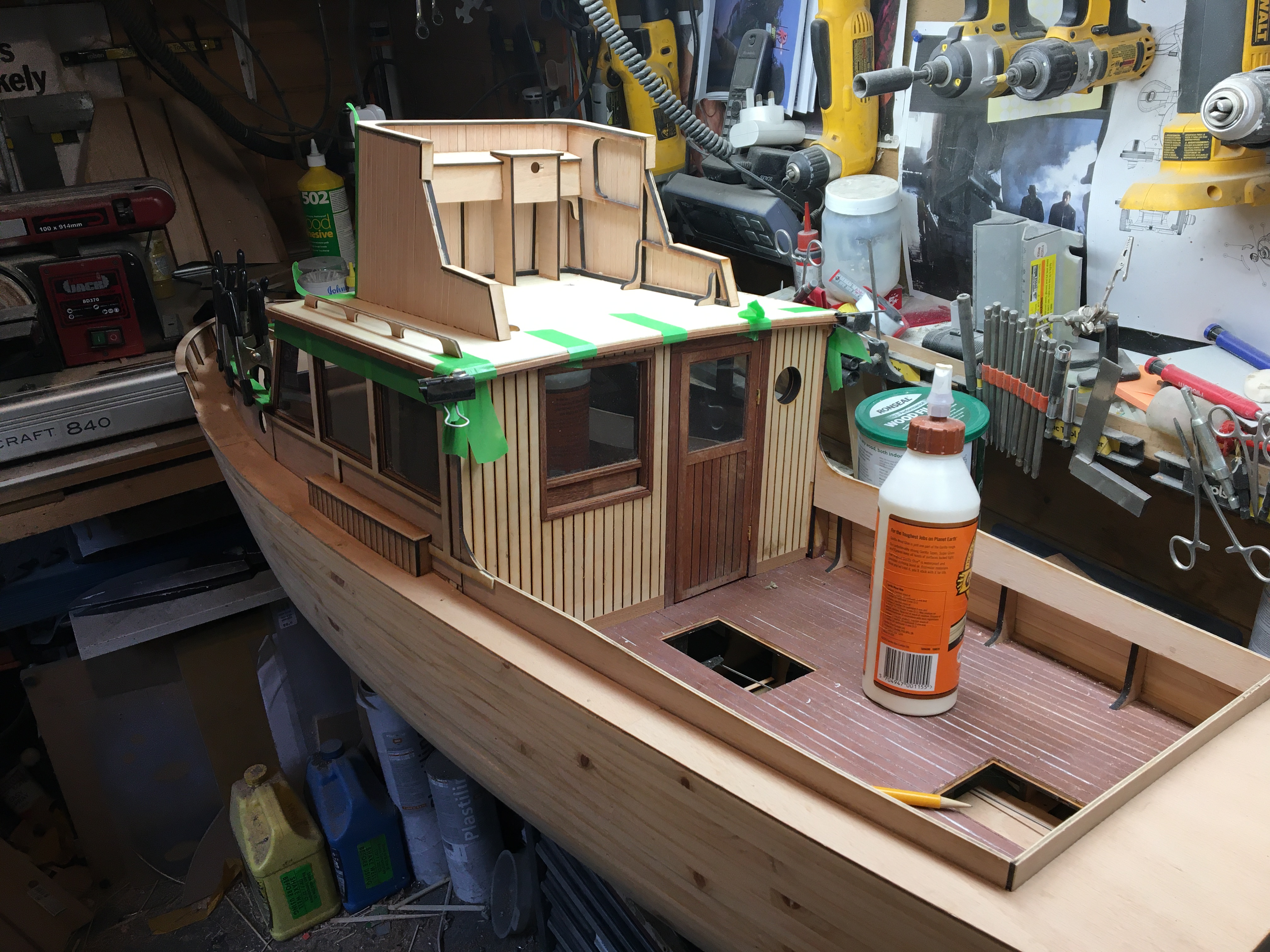

in my photo, it shows the inner frame without the timber cladding so it does look smaller than it will eventually be but my model fits these presumptions



[joberg]

Looking good, including the fly bridge You're right about its width; lots of Orca models have made this error: fly bridge is too wide
Eager to see your next update, of course!



[RayLuis]

in my photo, it shows the inner frame without the timber cladding so it does look smaller than it will eventually be but my model fits these presumptions
View attachment 1622641View attachment 1622642View attachment 1622643

You are correct in some shots it looks wide and some shots it looks narrow.



[joberg]

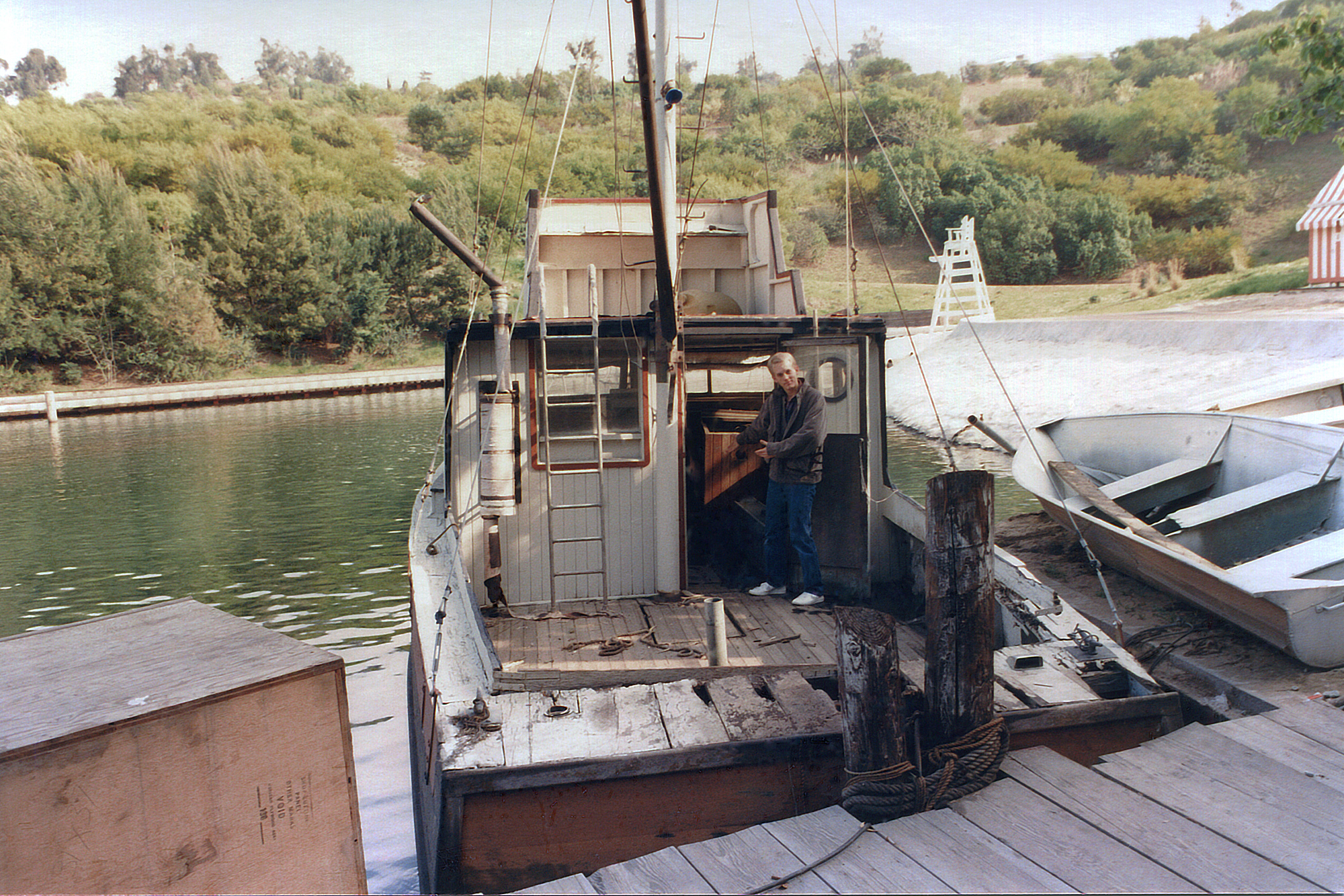

Here's another pic from Plasticfan's thread The fly bridge is narrow.



[flimzy]

thank you joberg I hadn't seen that photo before. I remember seeing it at universal back in the 90s from the tourist wagon/ cart.



[flimzy]

having the roof removable has added some problems. but I'm still having a lot of fun
