Orca from JAWS

Time to finish off the lower cabin.

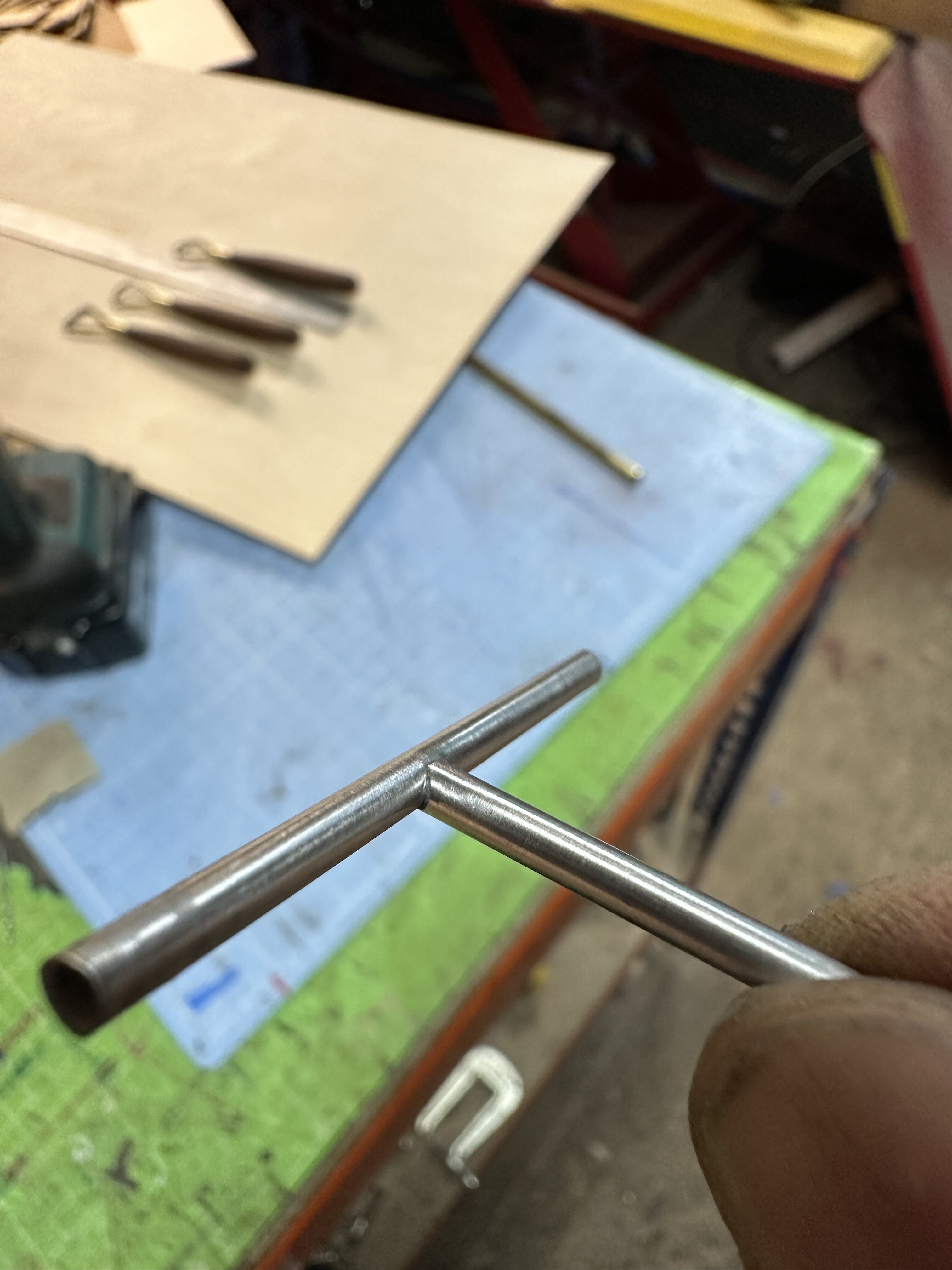

the aluminium tube arrived today to build the ladder. I can’t solder it but I think I’ve found a solid way to join it. I’ll have to make the “welds” look a lot messier to be screen accurate though


Attachments

  • IMG_8673.jpeg
    935.4 KB · Views: 45
  • IMG_8684.jpeg
    93.4 KB · Views: 43
Laminated the cambered foredeck with 3 layers of thin ply including some removable hatches where the foredeck storage plinths will be. I just have to cut the beams under the hatches and attach them to the hatch covers. Planks for the hull cut and ready to go.

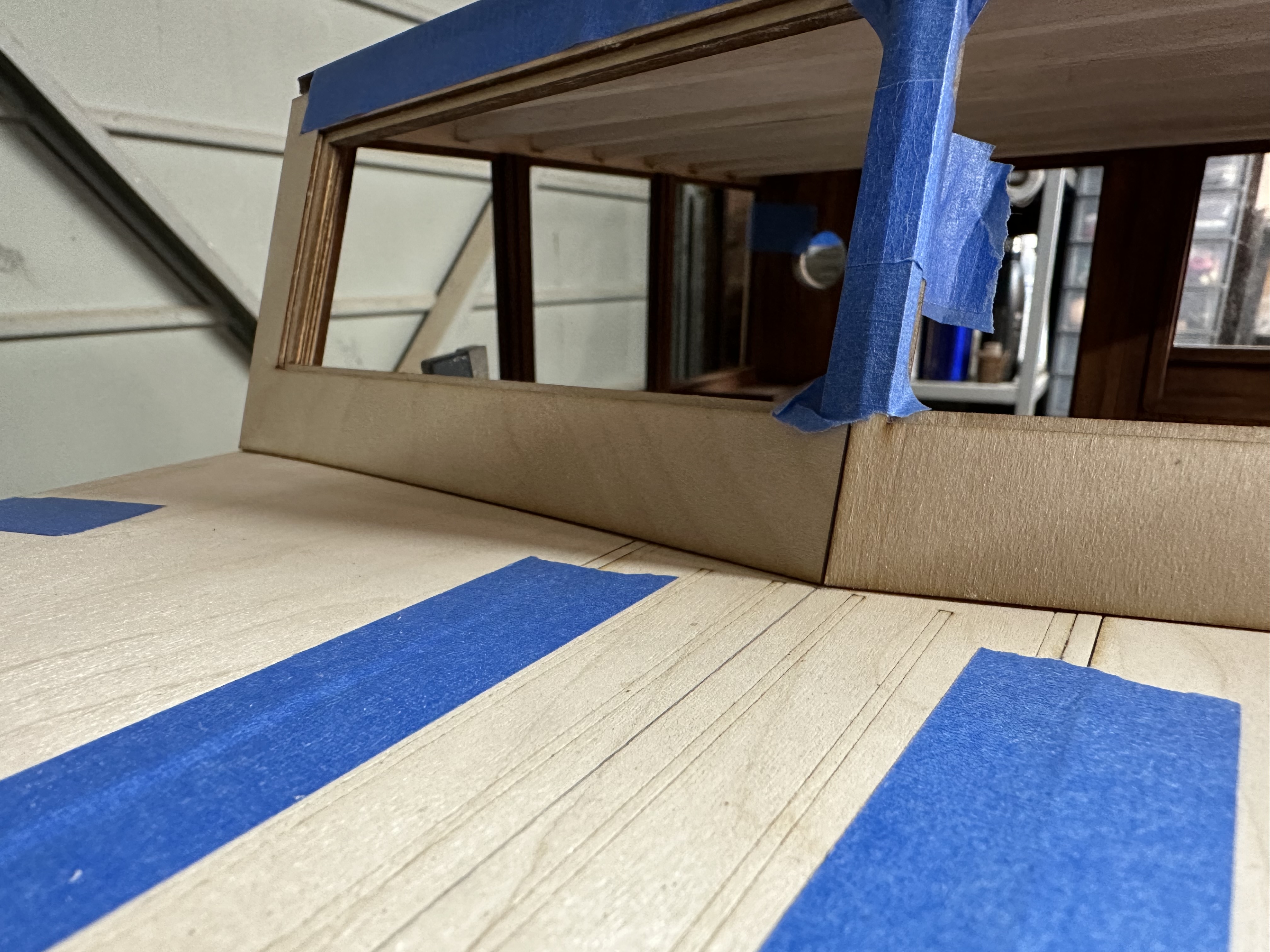

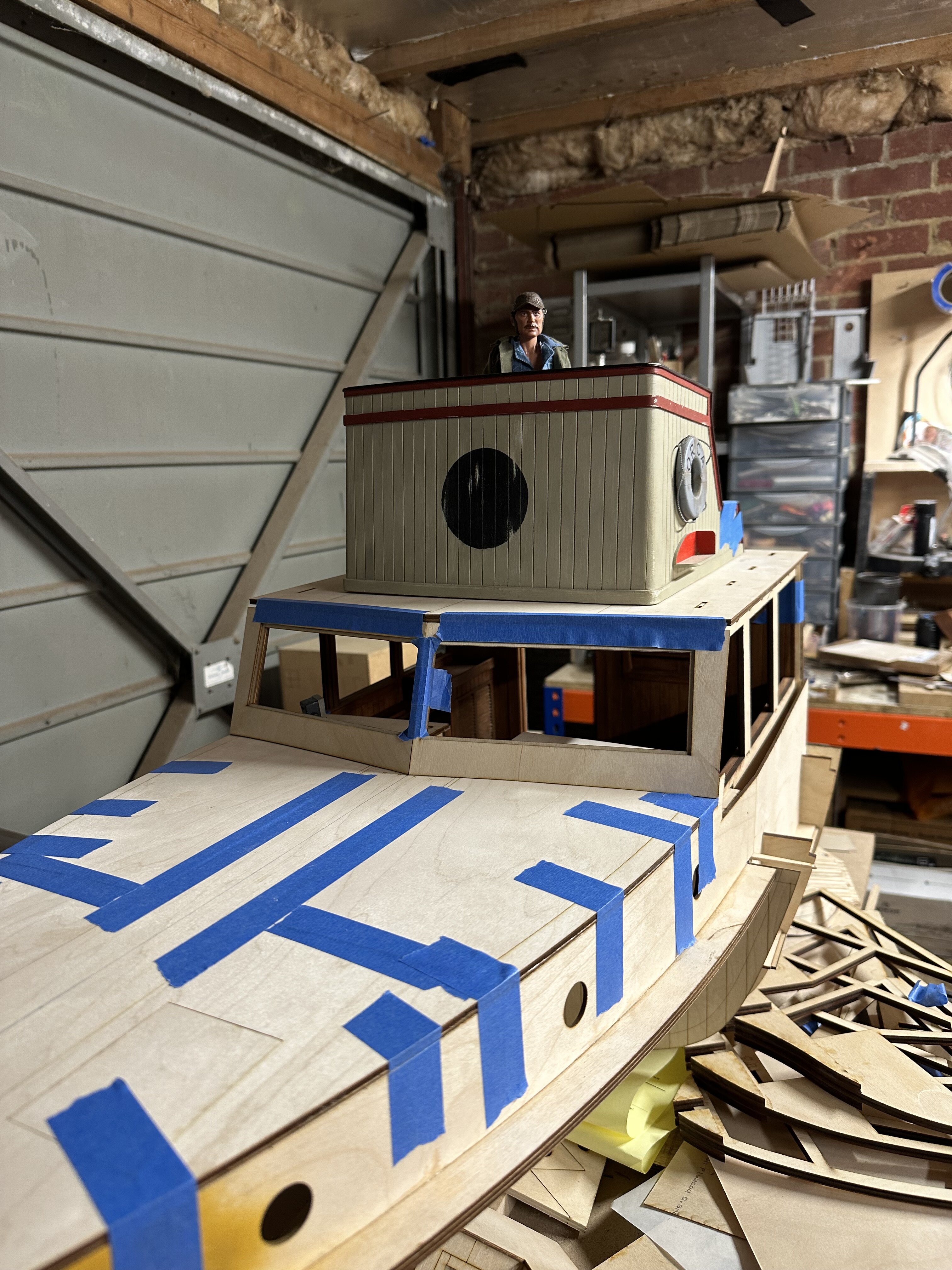

front windows temporarily in place before I shave down the laminated edges to the angle of the roof. Bottom, joining and outer edges already contoured to fit the cambered foredeck. Not having to fill and gaps is oddly satisfying. Lowrance in place to check I got the geometry correct, accounting for contouring the squared off edges. Really, really happy that I spent 20 plus years perfecting the plans so things are disconcertingly falling into place with no problem


Attachments

  • IMG_8752.jpeg
    1.4 MB · Views: 56
  • IMG_8751.jpeg
    2.2 MB · Views: 60
  • IMG_8750.jpeg
    1.8 MB · Views: 58

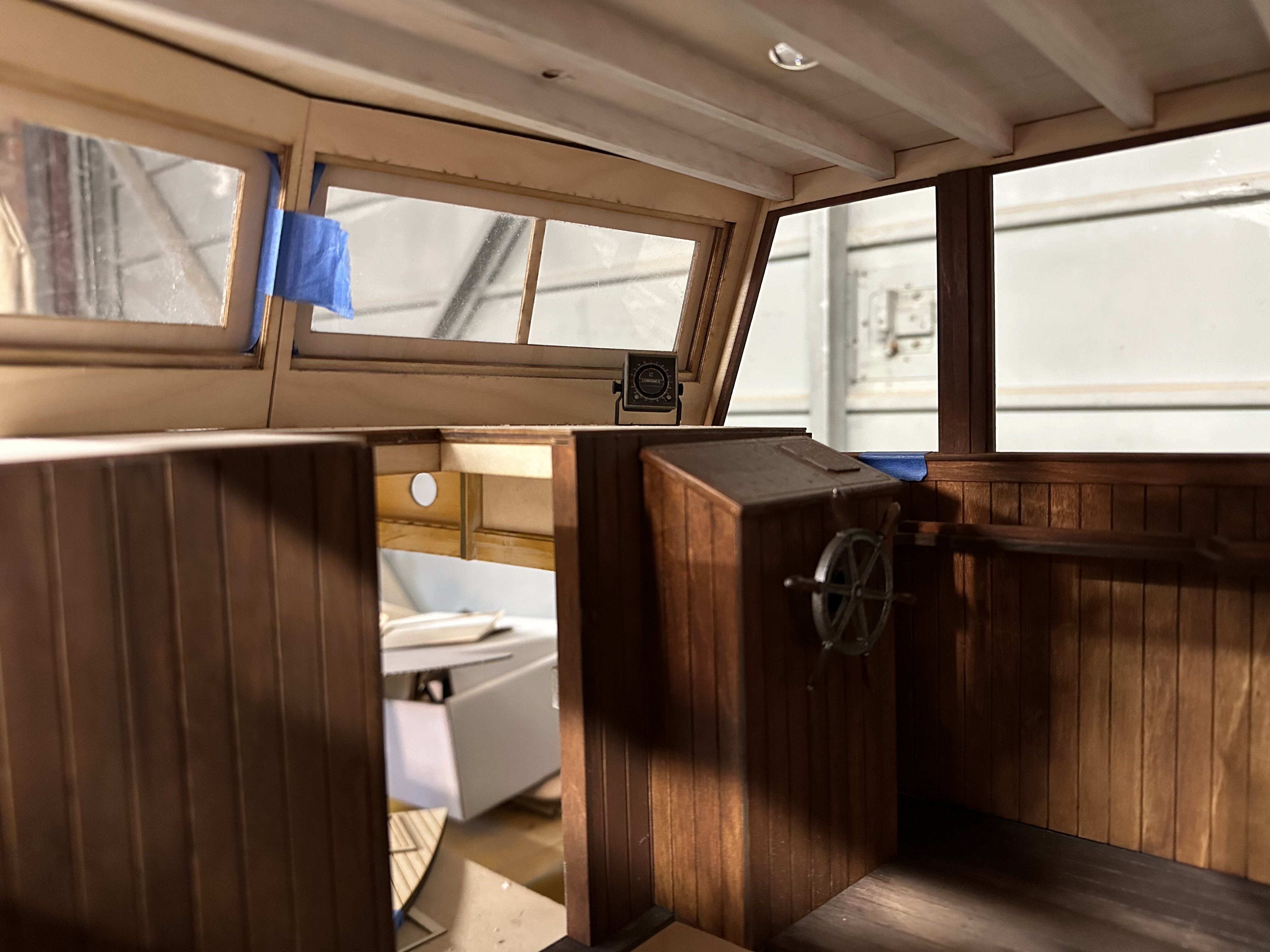

I got up early this morning as I had a nagging compulsion to get the forward windows built and installed. The acrylic is pretty scratched up but I can always replace it later


Attachments

  • IMG_8755.jpeg
    1.1 MB · Views: 47
  • IMG_8756.jpeg
    1.7 MB · Views: 50

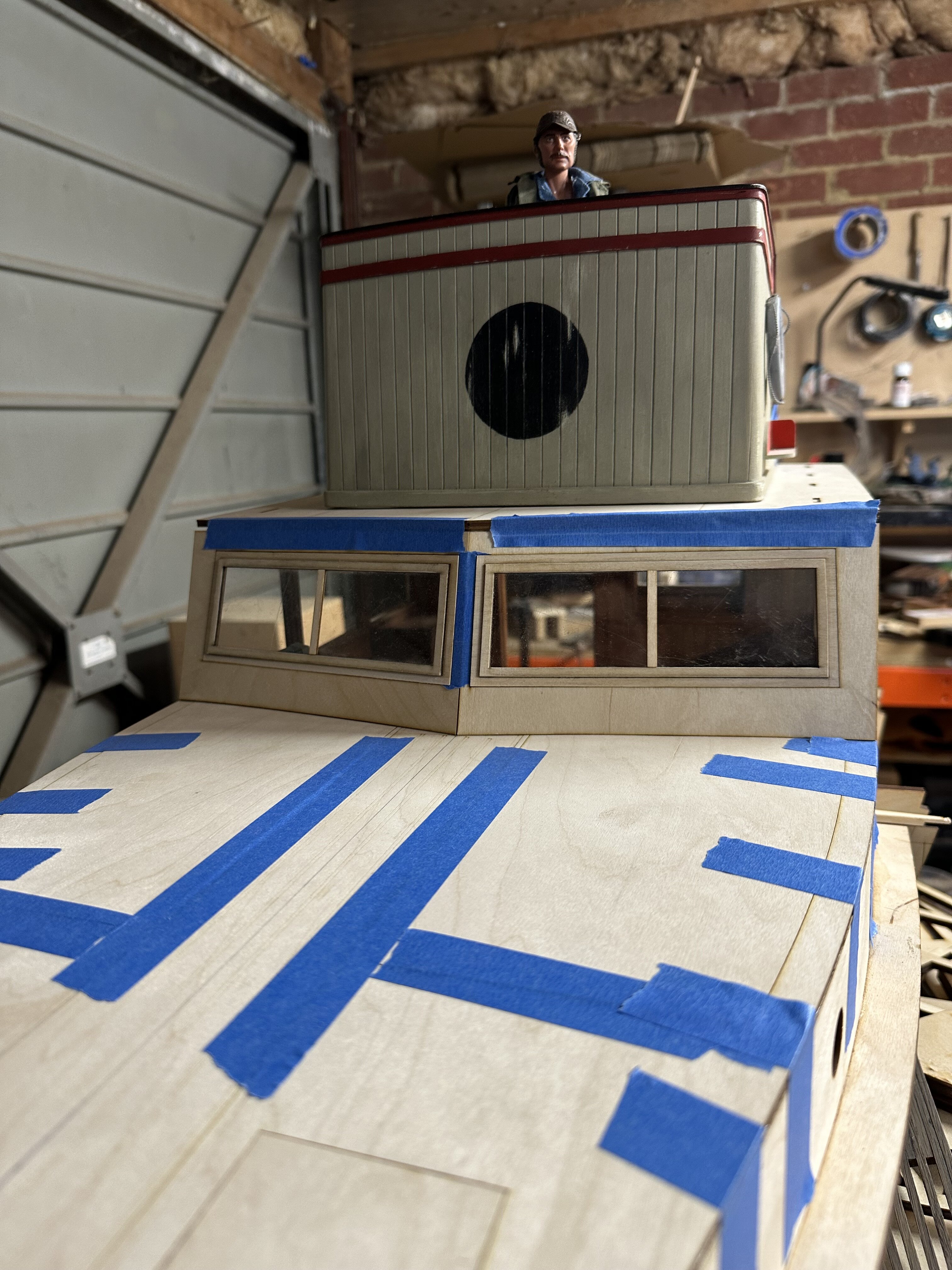

This is what it’s all about for me. I’m really looking forward to recreating the shot set ups aboard the Orca, junk et al. The forward windows are in the correct position now after some tweaking. Next job, routing out the propshaft channel, greasing it and fitting before I can plank the hull.


Attachments

  • IMG_8786.jpeg
    630.5 KB · Views: 60
  • IMG_8788.jpeg
    582.5 KB · Views: 57

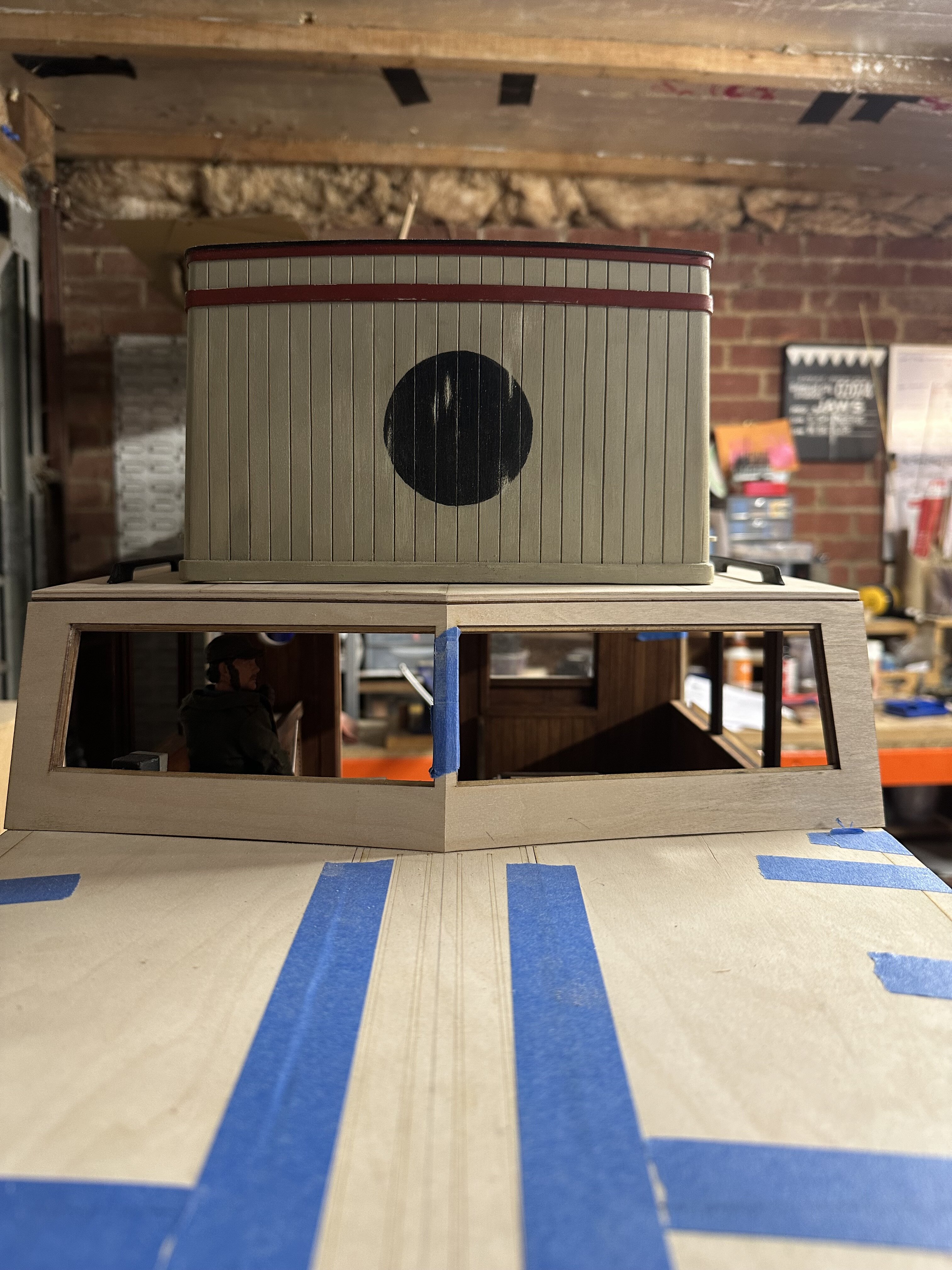

An interesting little nuance and one to document for posterity. The black circle where the tiger shark jaws hang wasn’t in the centre of the flybridge. I guess they didn’t count the boards and centred it on a join and not the central board.


Attachments

  • IMG_8797.jpeg
    1.7 MB · Views: 42

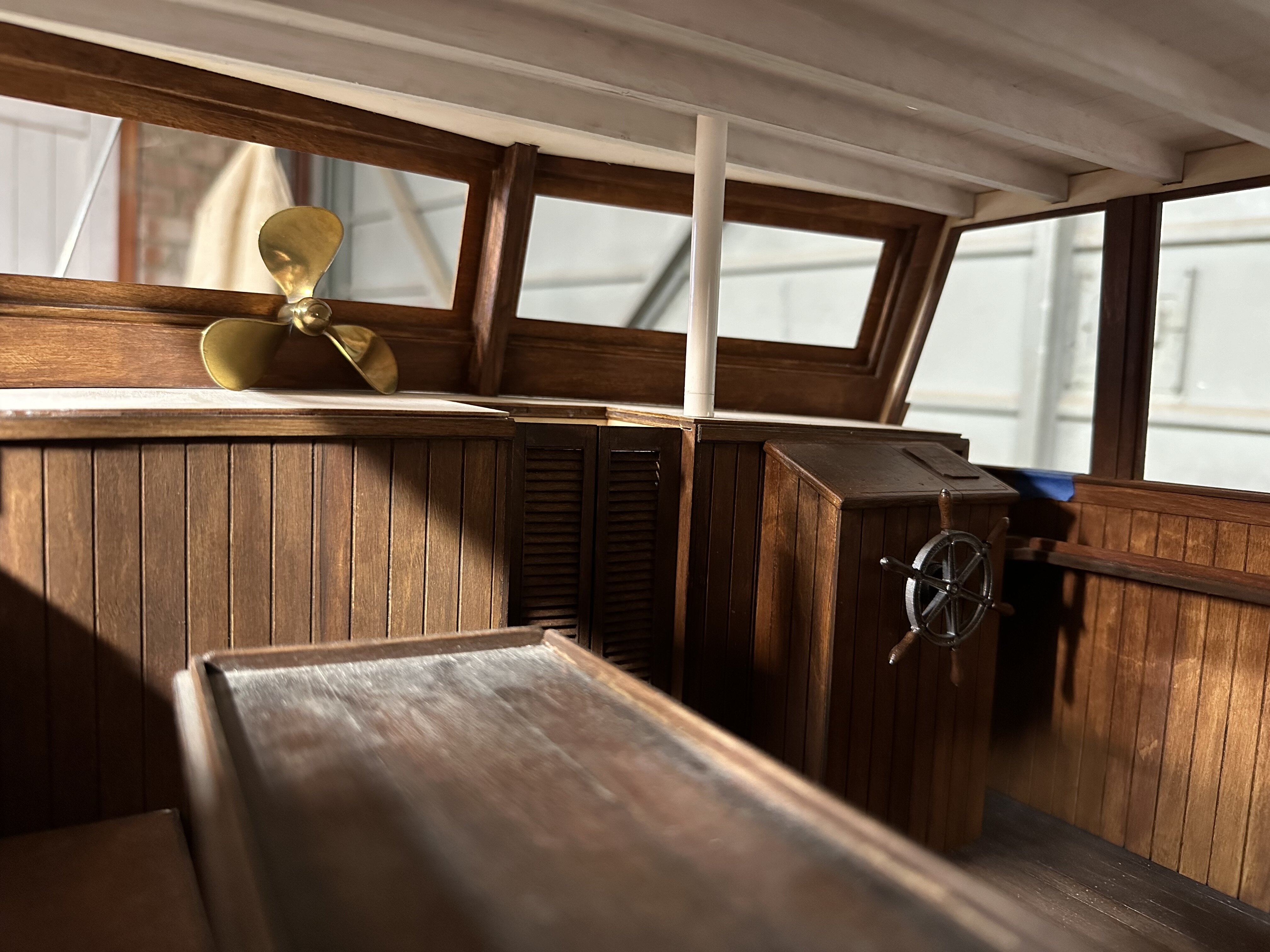

Not much to share other than a splash of colour on the interior of the forward windows and the trim around the top of the bulkhead. The prop arrived. Left handed triple blade. The edges need sharpening. I also test fitted a tube of Butrate at the steering column for the fly bridge. Everything lines up great so far!


Attachments

  • IMG_8838.jpeg
    1.3 MB · Views: 39

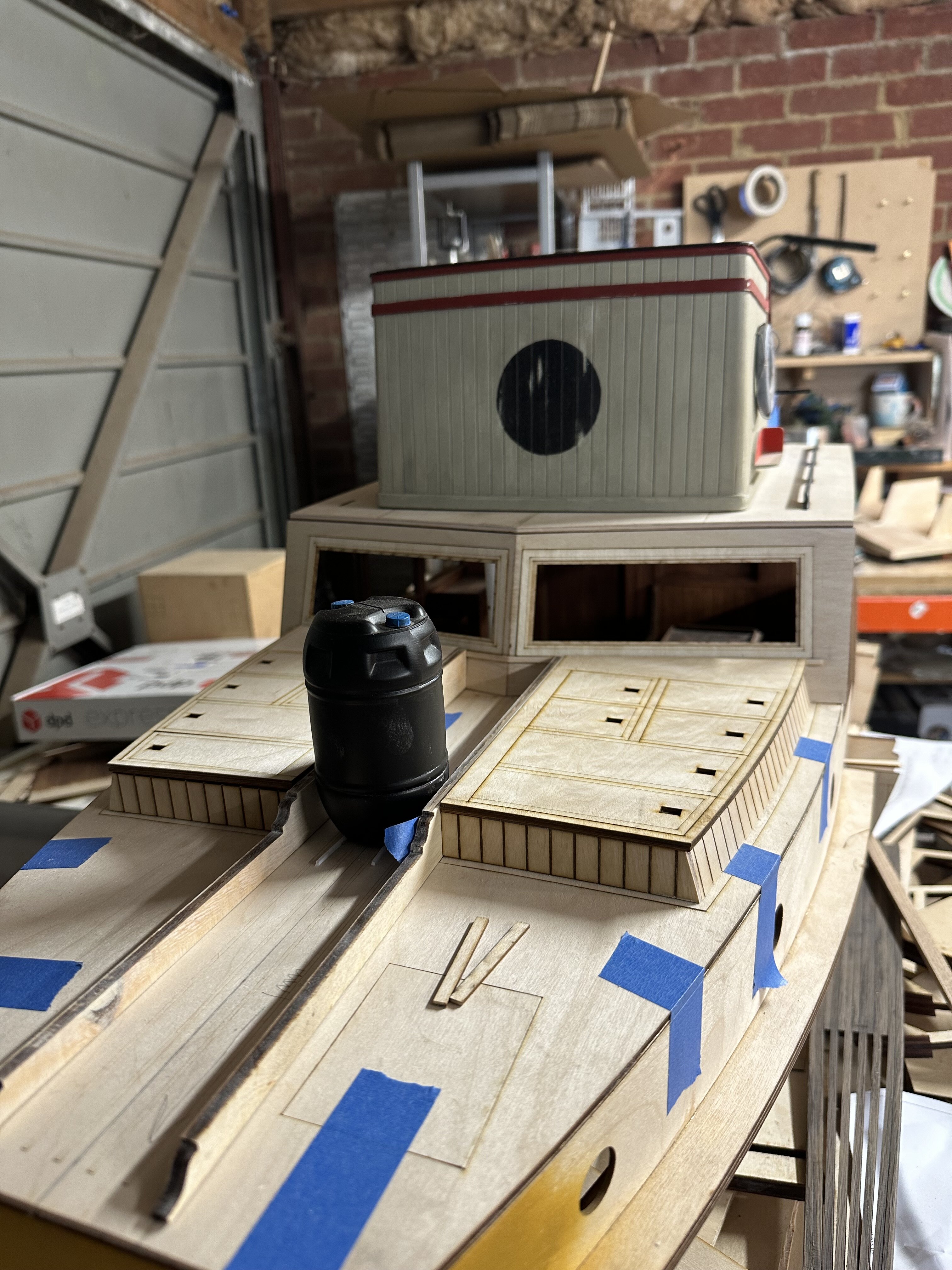

Foredeck storage compartments on. I’m undecided whether or not to hinge them as they were never used in the movie and scale hinges aka dolls house hinges are cheap and nasty and not to scale. I could fabricate my own in the future perhaps.


Attachments

  • IMG_8842.jpeg
    1.7 MB · Views: 37
