Back again on an other foam armor project. 3rd one this year, I know I'm on the slow side :p

so starting up with all the reference picture I got to help me out (and might help other out). I also manage to get my hand on a 18 inch figurine pep file. It won't help a much on the build itself but more for details picture angle don't show. I'm still looking for the source for it before sharing it so be patience.
metroid-samus-light-suit-statue-by-first-4-figures-2.jpgmetroid-samus-light-suit-statue-by-first-4-figures-3.jpgmetroid-samus-light-suit-statue-by-first-4-figures-4.jpgmetroid-samus-light-suit-statue-by-first-4-figures-5.jpgmetroid-samus-light-suit-statue-by-first-4-figures-6.jpgmetroid-samus-light-suit-statue-by-first-4-figures-7.jpgmetroid-samus-light-suit-statue-by-first-4-figures-8.jpgmetroid-samus-light-suit-statue-by-first-4-figures-9.jpg

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

Work have now begin since I have until October to complete the suit itself

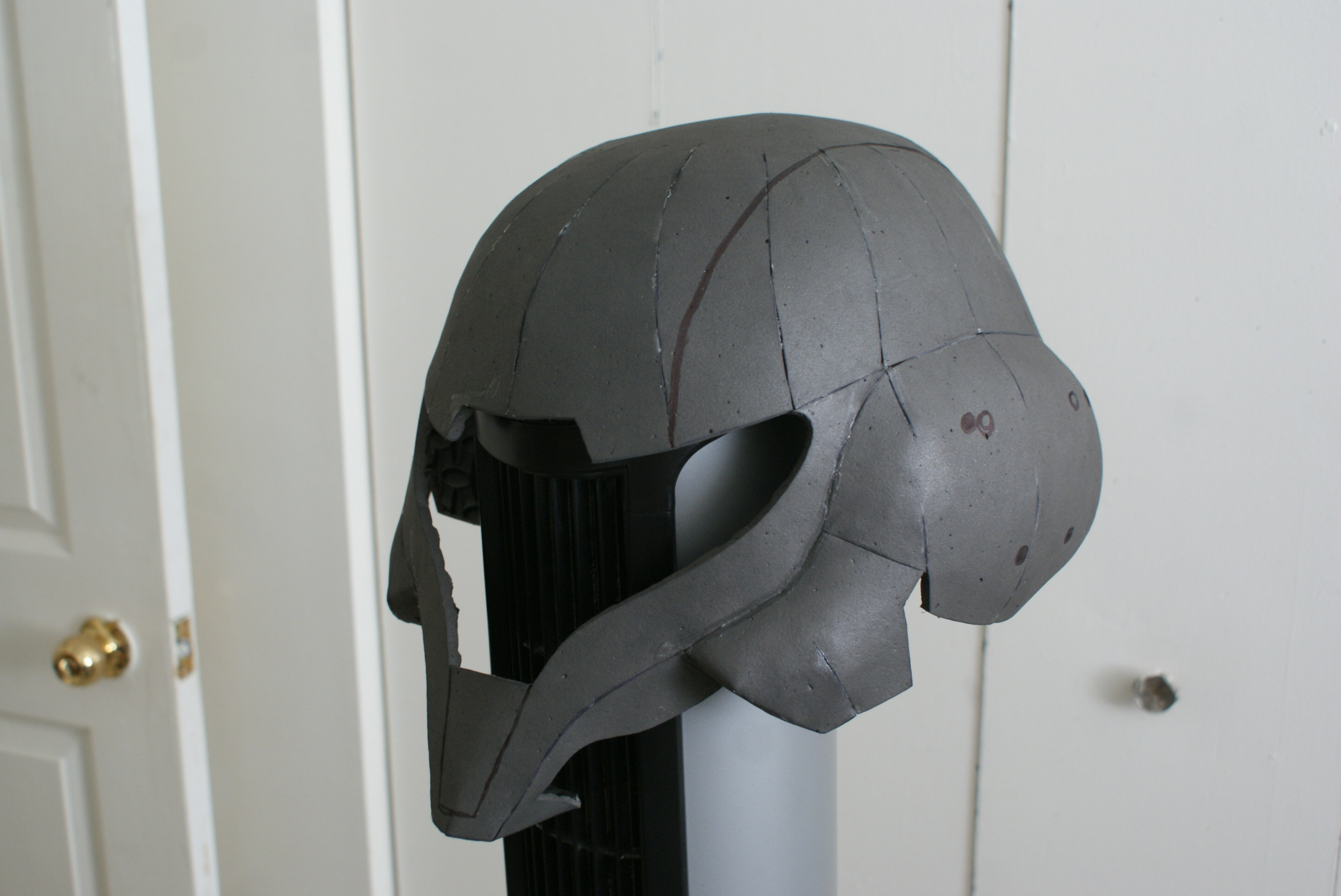

Helmet is glued but still have some work to do (sanding shaping and gap filling)

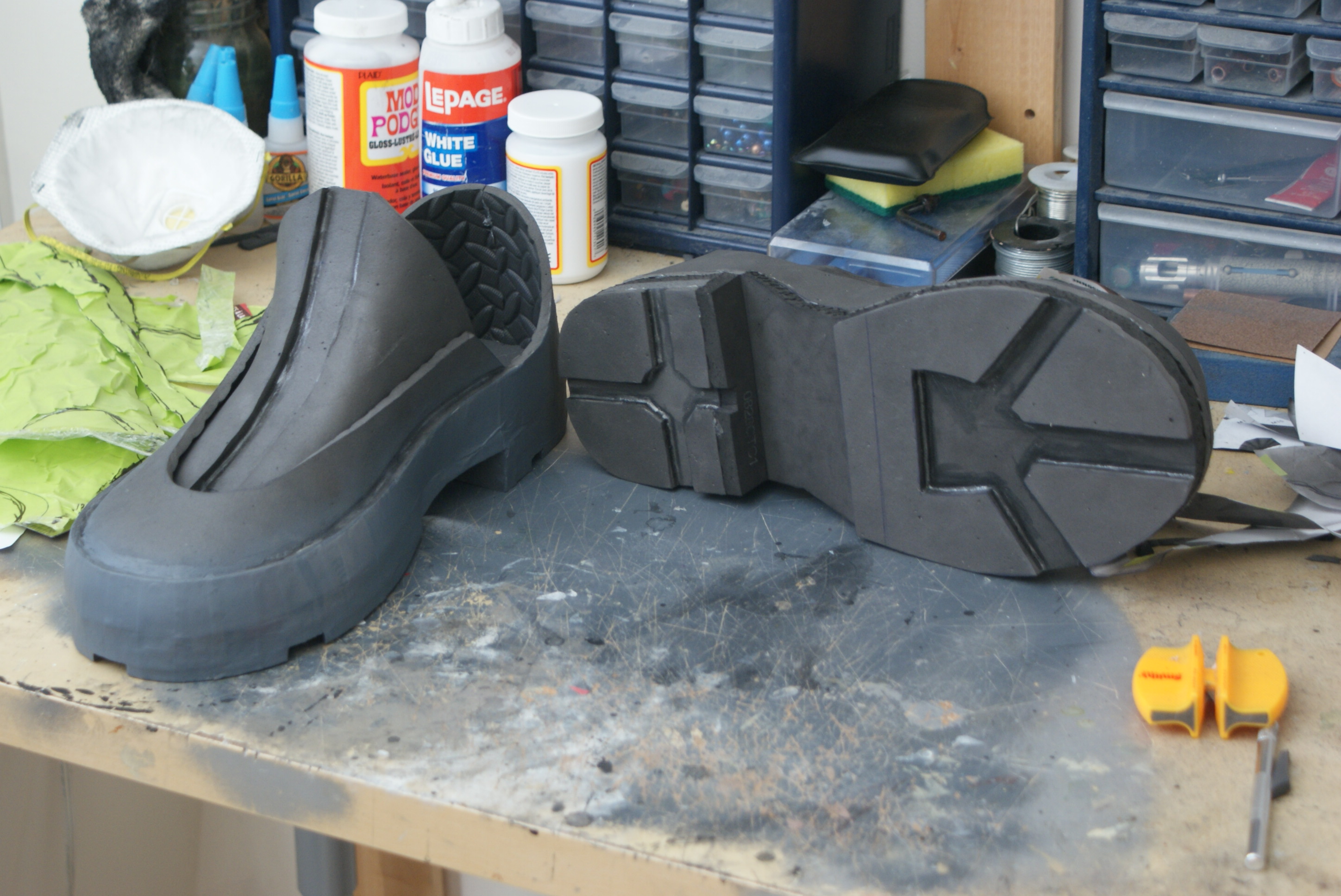

I took a different approach from previous project in term of shoes/boots. I always I make a cover for real shoes but not this time. After my little experience with Garrus I found out that Foam is heavenly comfy for foot. So I decided to make some 100% foam shoes/boots and they are damn comfy. the soil is 1 inch tick plus an extra 1/4 inch for the details...... which I'm still wondering why I did them XD

Next step legs


Balmung

Well-Known Member
Re: Metroid Prime 2: Echoes / Samus Light suit

That shoes looks fantastic... one of my dreams is to make this suit for my GF, but she give up of cosplaying ç.ç

Following this tread!


Talaaya

Well-Known Member
Re: Metroid Prime 2: Echoes / Samus Light suit

Wow, yeah those shoes look great! The helmet looks well on its way as well. I'm excited to see how this turns out!
Are you familiar with 3D modeling programs? I have the 3D model of the light suit from the actual game if you'd like it for reference.


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

Wow, yeah those shoes look great! The helmet looks well on its way as well. I'm excited to see how this turns out!
Are you familiar with 3D modeling programs? I have the 3D model of the light suit from the actual game if you'd like it for reference.
yes I'm used to work in 3d modeling but I haven't got any program install since 3d max 2008 XD. I would love to get my hand on that file, If you could import it as a .PDO or .OBJ I may be able to open it in pepakura to view it

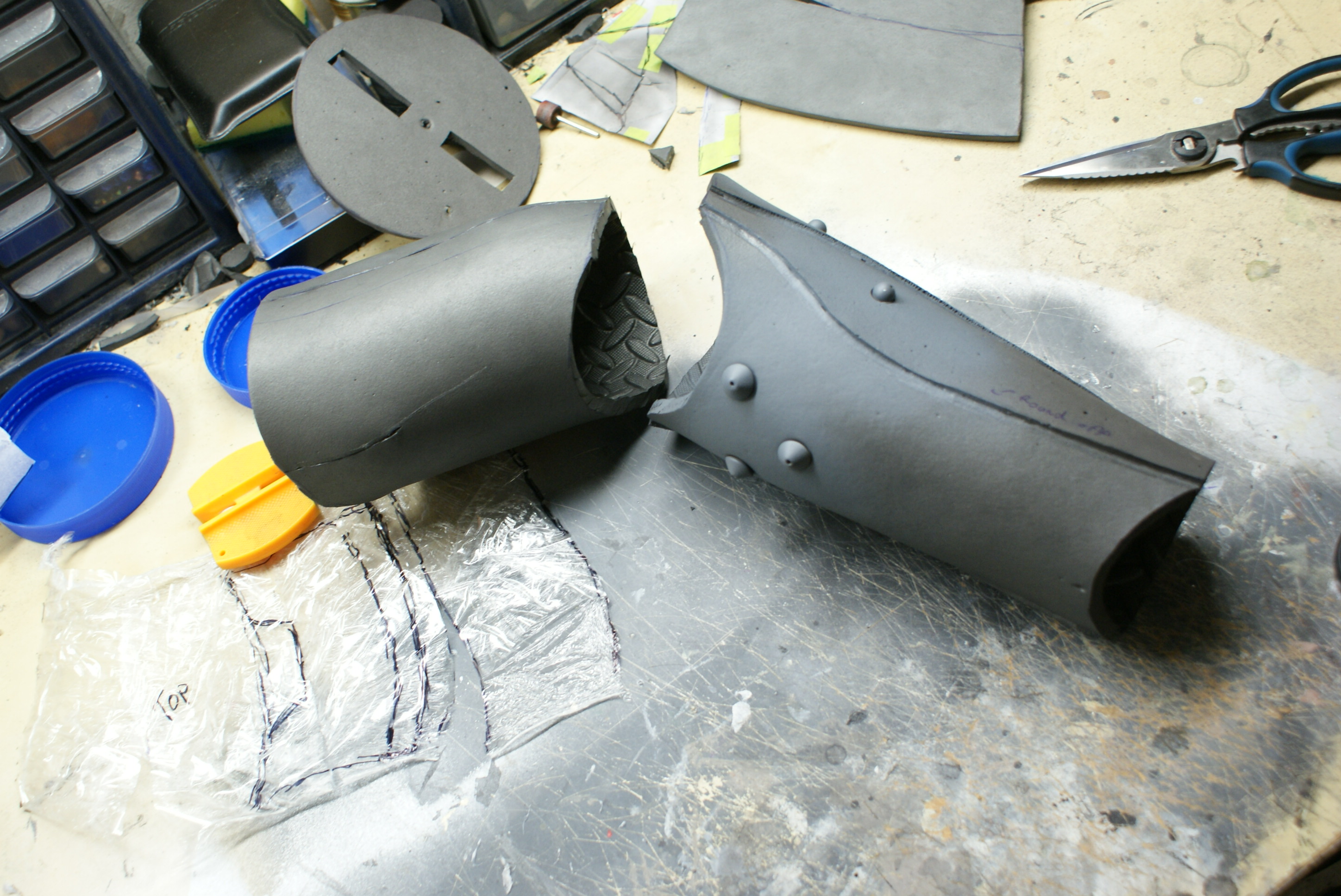

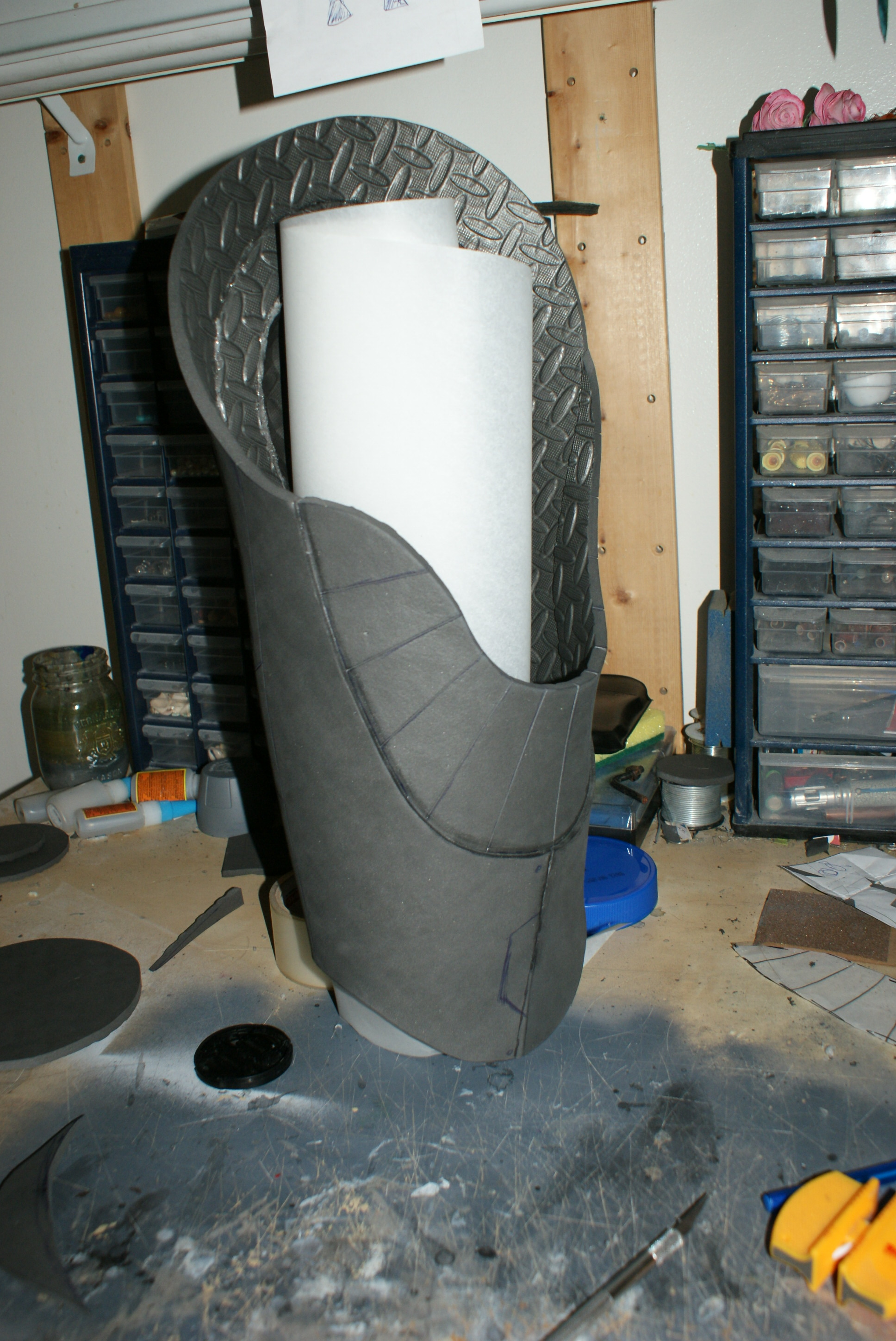

in any case got a new update :p. I've finish the lower leg part. Can't say enough how happy I am to see that my partner did the trick to reduce seam to a minimum. Dishing the foam was the best way to reduce the seam to zero for the half sphere part. As for the cone shape, I've struggle a bit to make it fit because of some warping cause by the heat gun.

Next Step Upper leg, maybe more

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

New update I found new reference picture from different angle and saw details I couldn't see, mainly on the arms
section. Again I'll share those images for people who might need it
MF-PP0063-metroid-samus-light -suit-statue-007-800x800.jpgMF-PP0063-metroid-samus-light -suit-statue-005-800x800.jpgMF-PP0063-metroid-samus-light -suit-statue-004-800x800.jpgMF-PP0063-metroid-samus-light -suit-statue-002-800x800.jpgMF-PP0063-metroid-samus-light -suit-statue-006-800x800.jpg

which lead me to those weird half sphere that only appear on the forearm's suit. I also lay down the bicep shape and will add all the details tomorrow

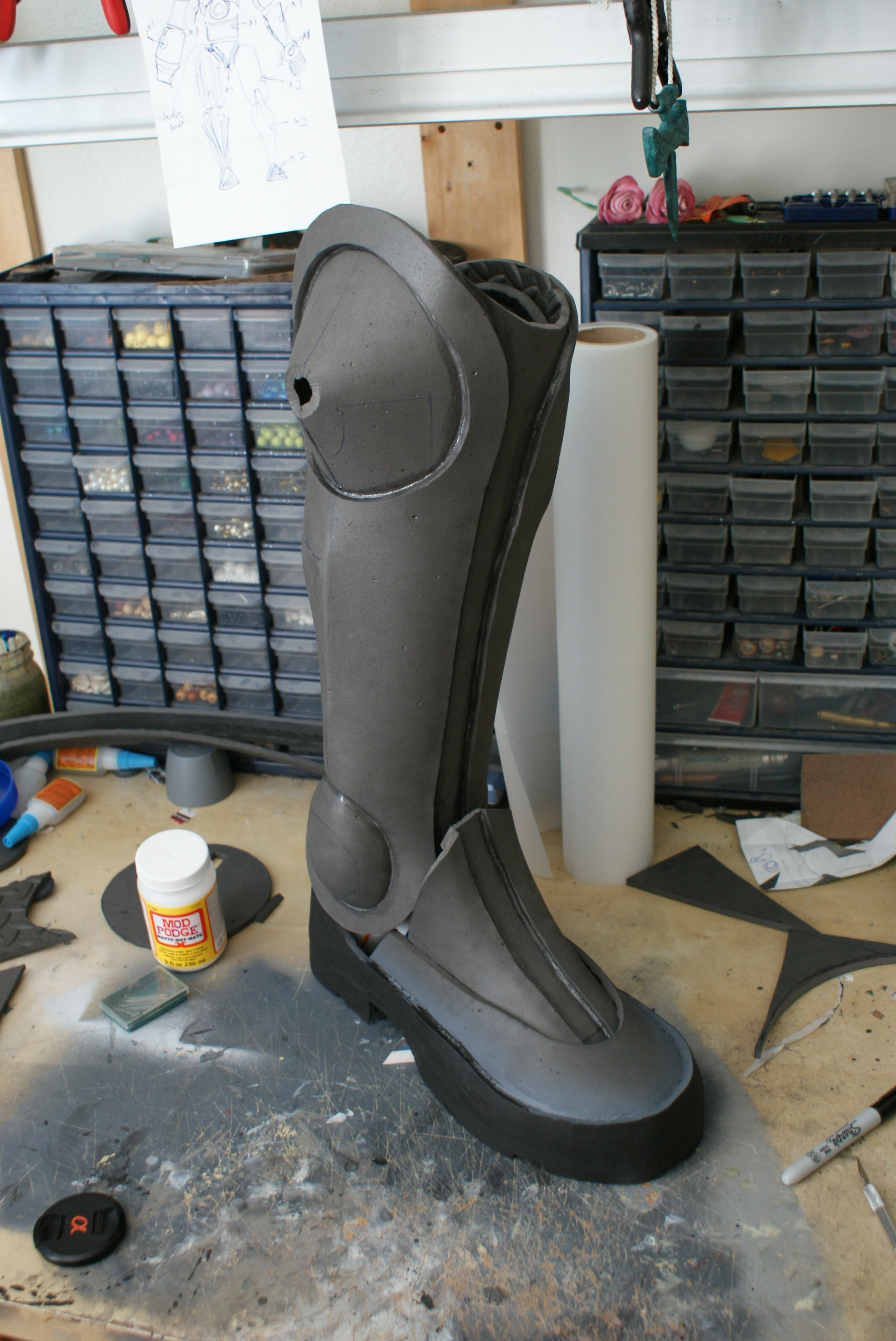

upper leg are done and are only missing zippers

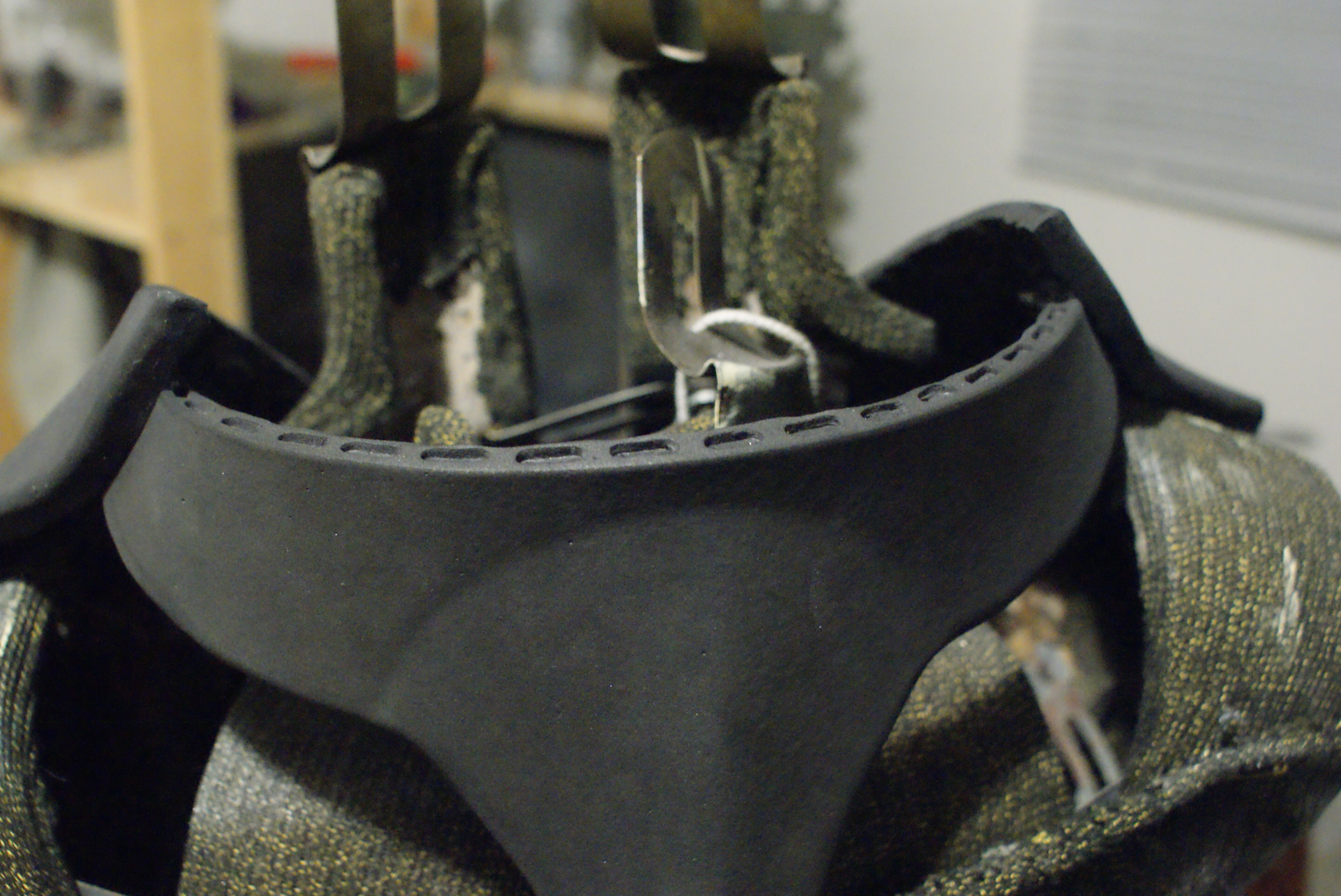

all of this is leaving me with only the arm cannon, cod piece and abs before diving into the chest piece. As for the shoulder, since they are attach to the chest I'll need to wait at the very end.

for those of you who sent me message about what do I do to get clean line. I shared my secret here on that vid.
https://www.youtube.com/watch?v=XQXKs49CXxs


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

let the nightmare begin..... Green light on the chest piece, bare with me I will put my own artistic interpretation on those curve. just enough to make the chest a little bit enjoyable while building it

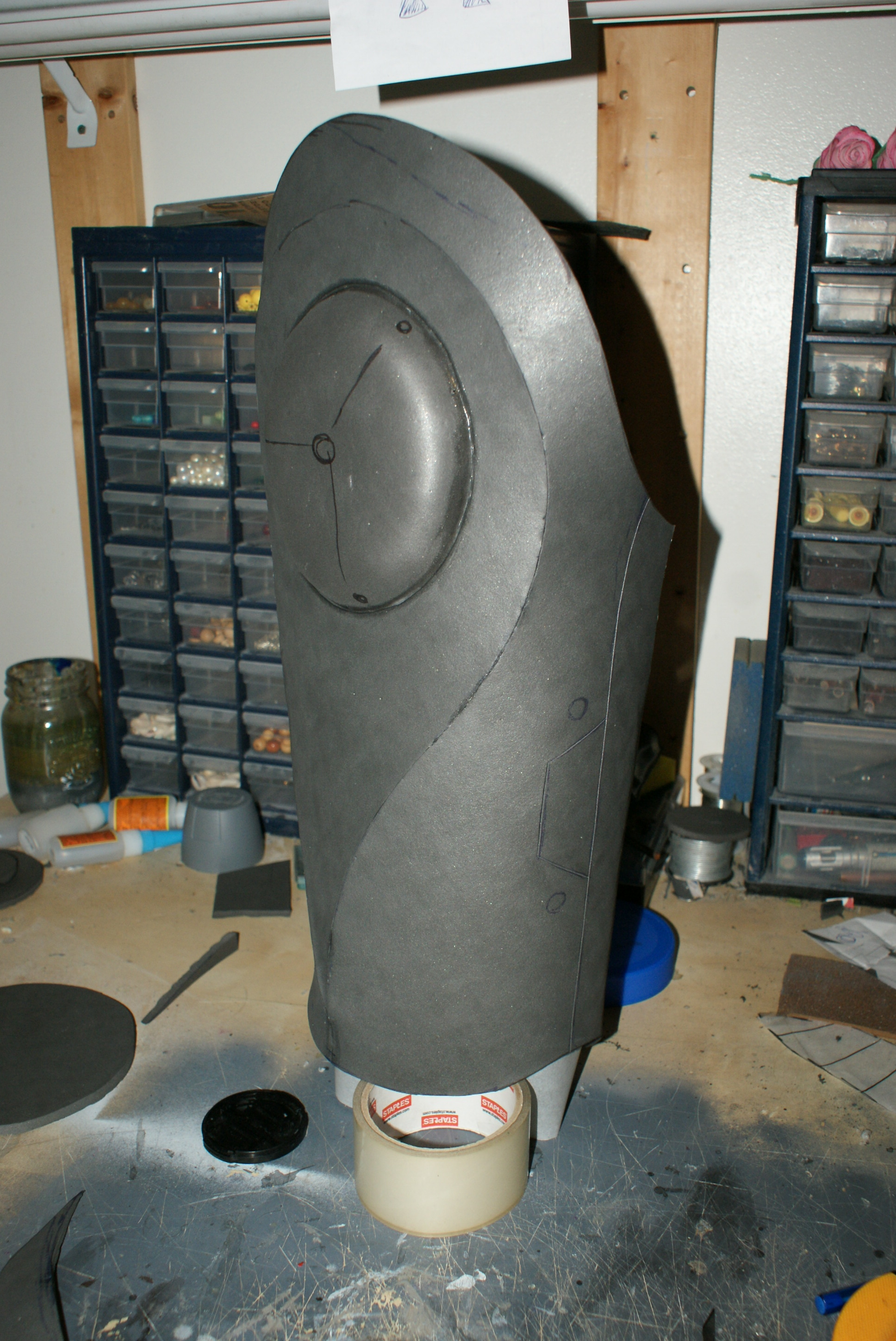

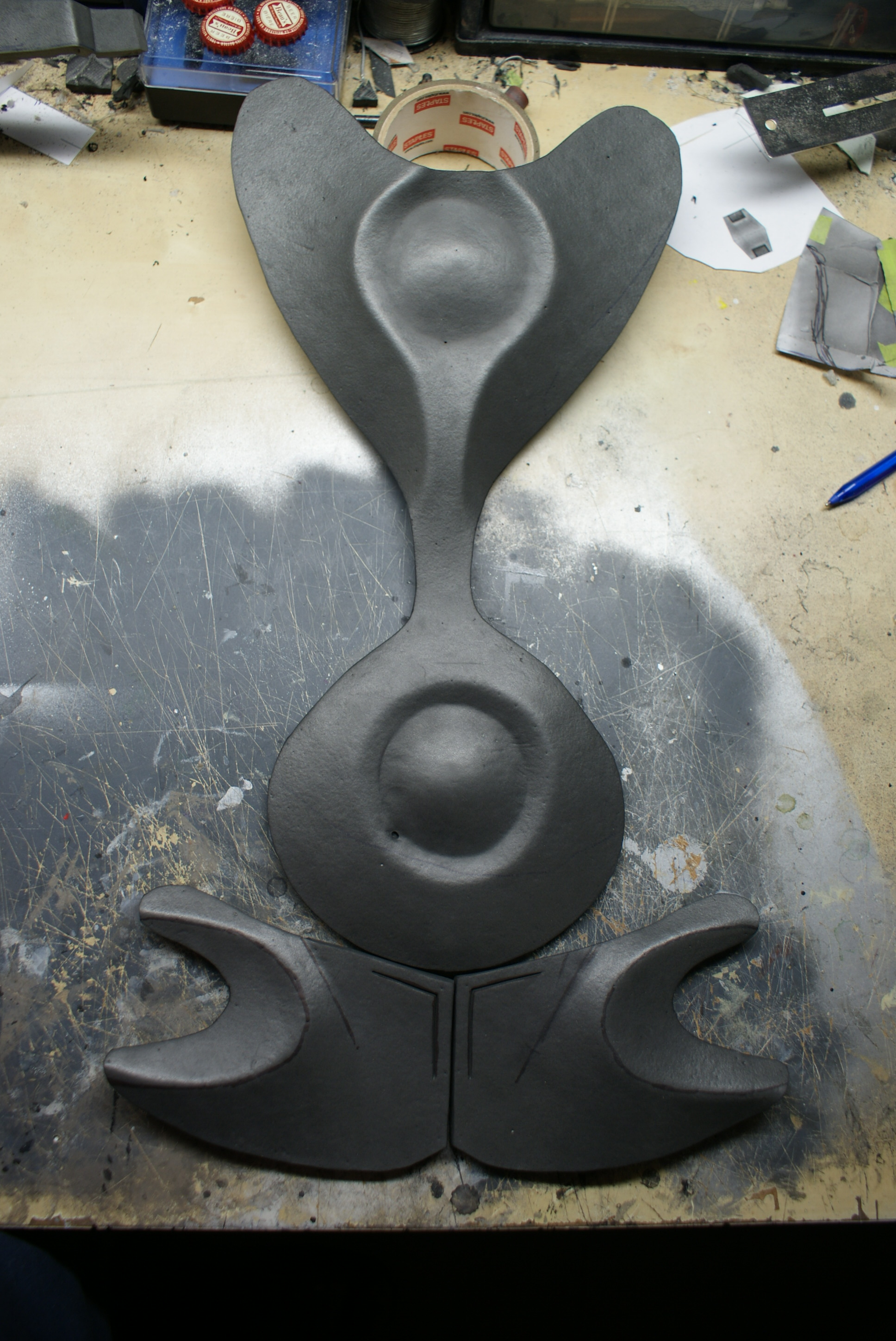

lower front layer including part of the abs plate done with under cut. I will replace the half sphere with plastic one but for now it make it easier to shape the rest around them.

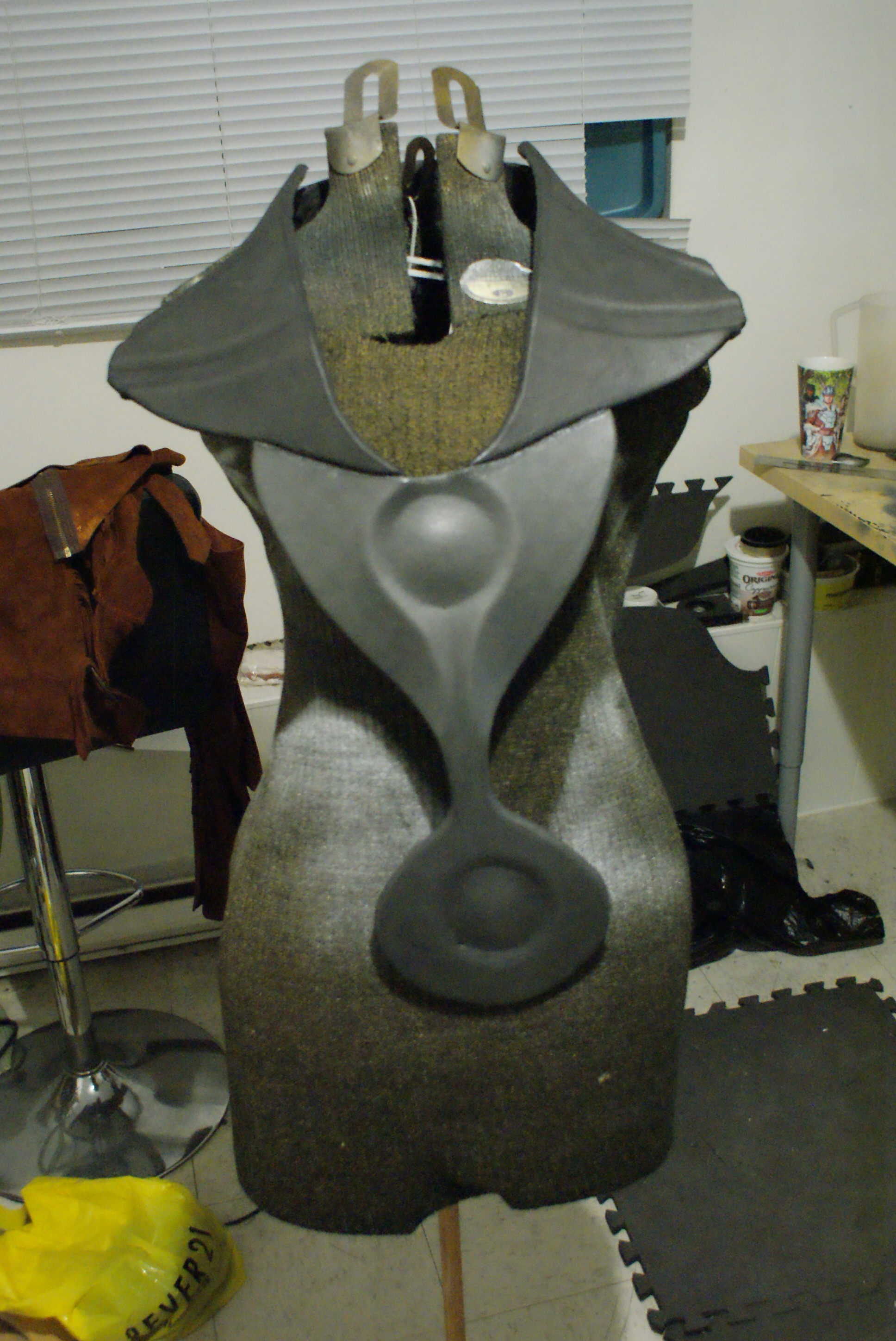

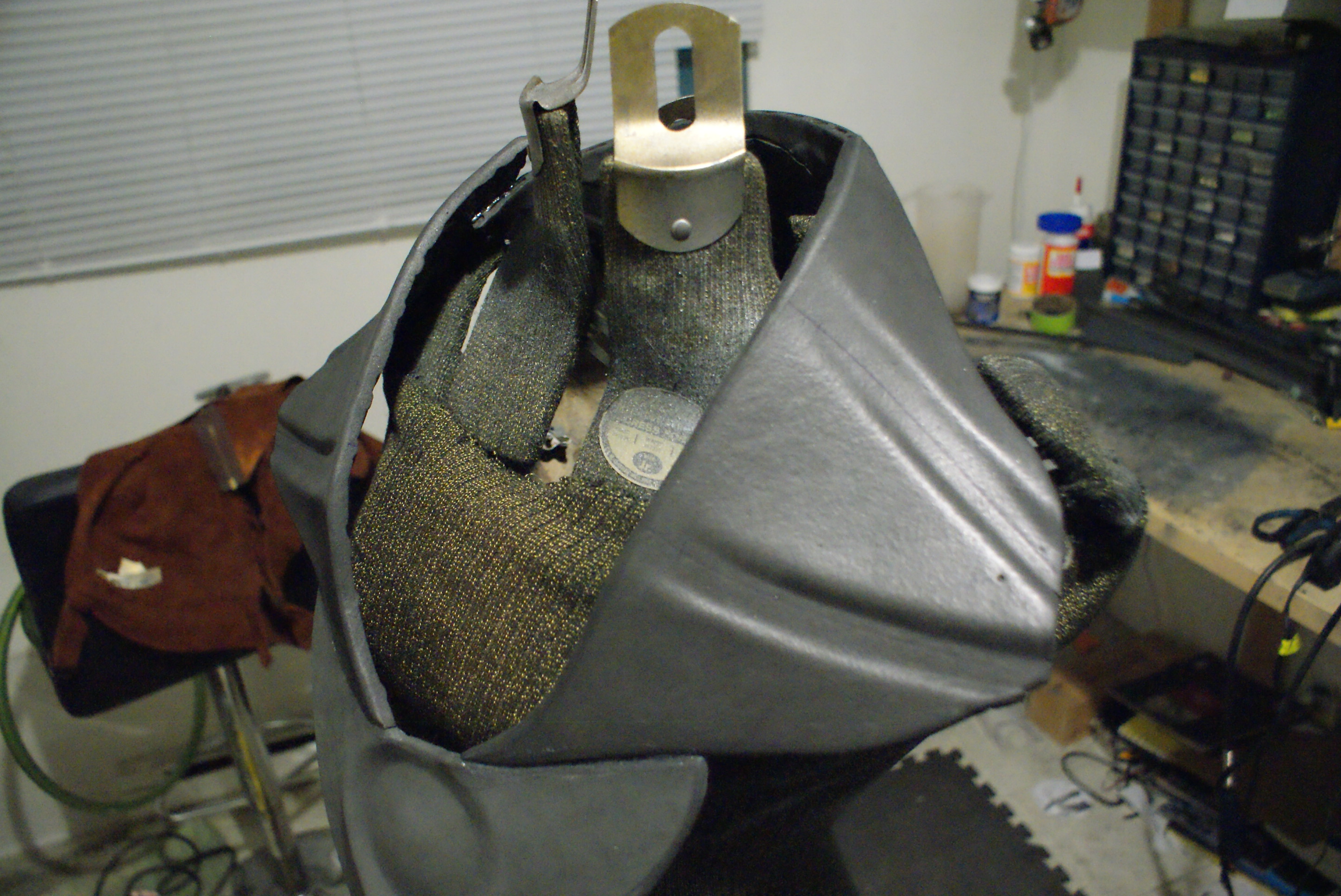

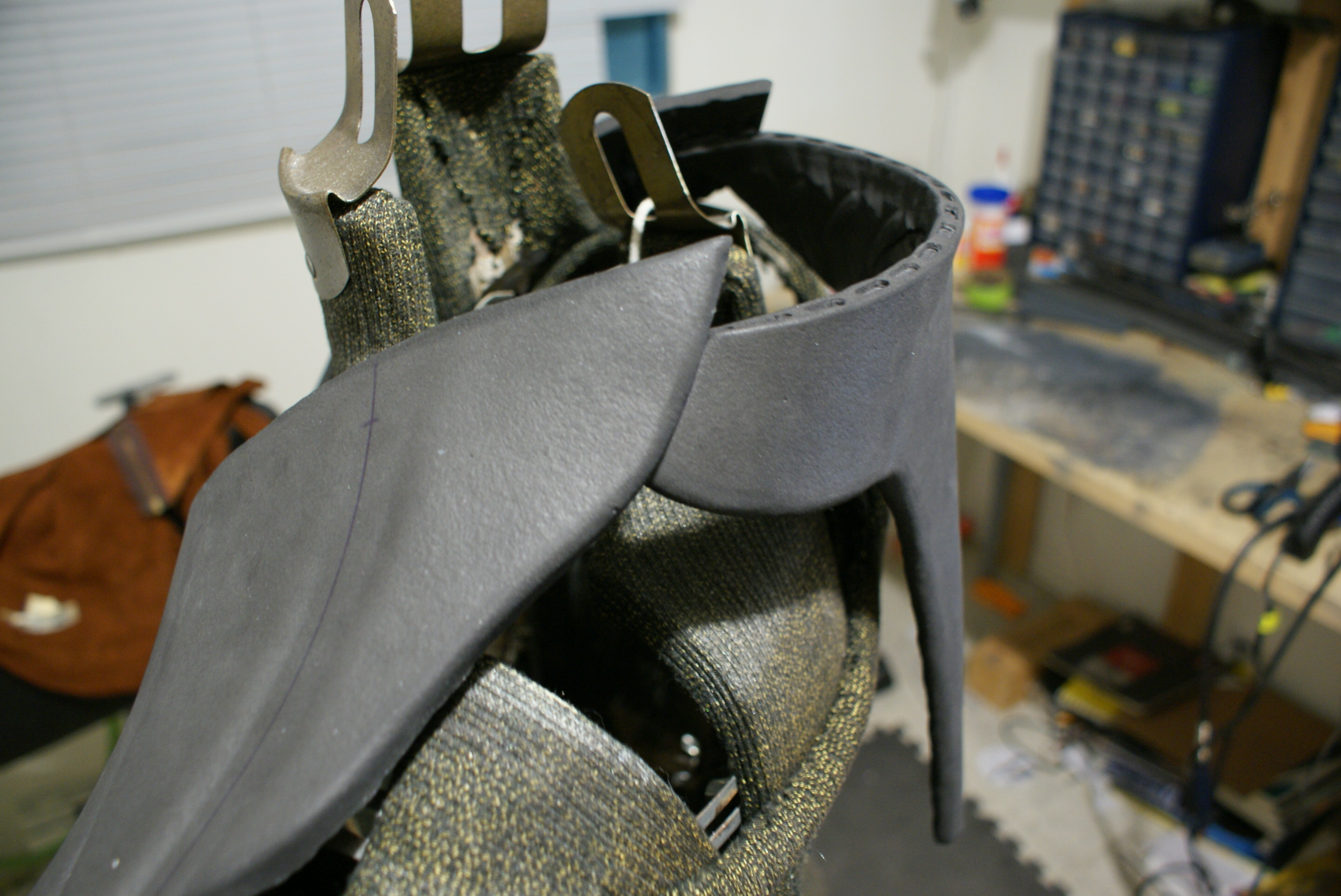

collar and lower shoulder/neck piece done

for now it look weird I know but the rest will come soon this week


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

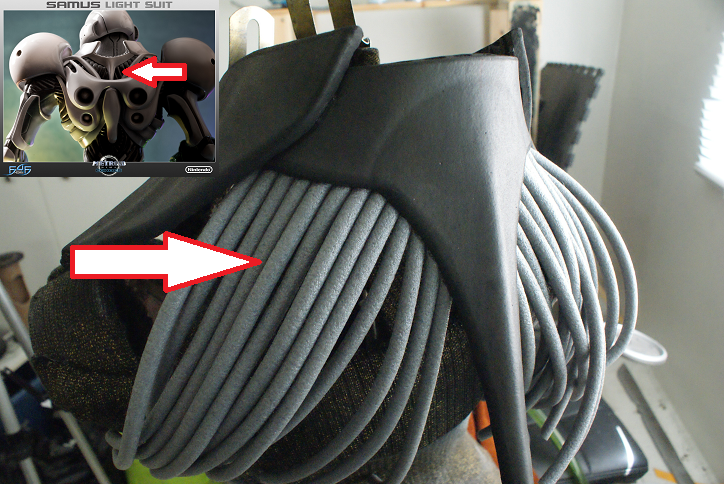

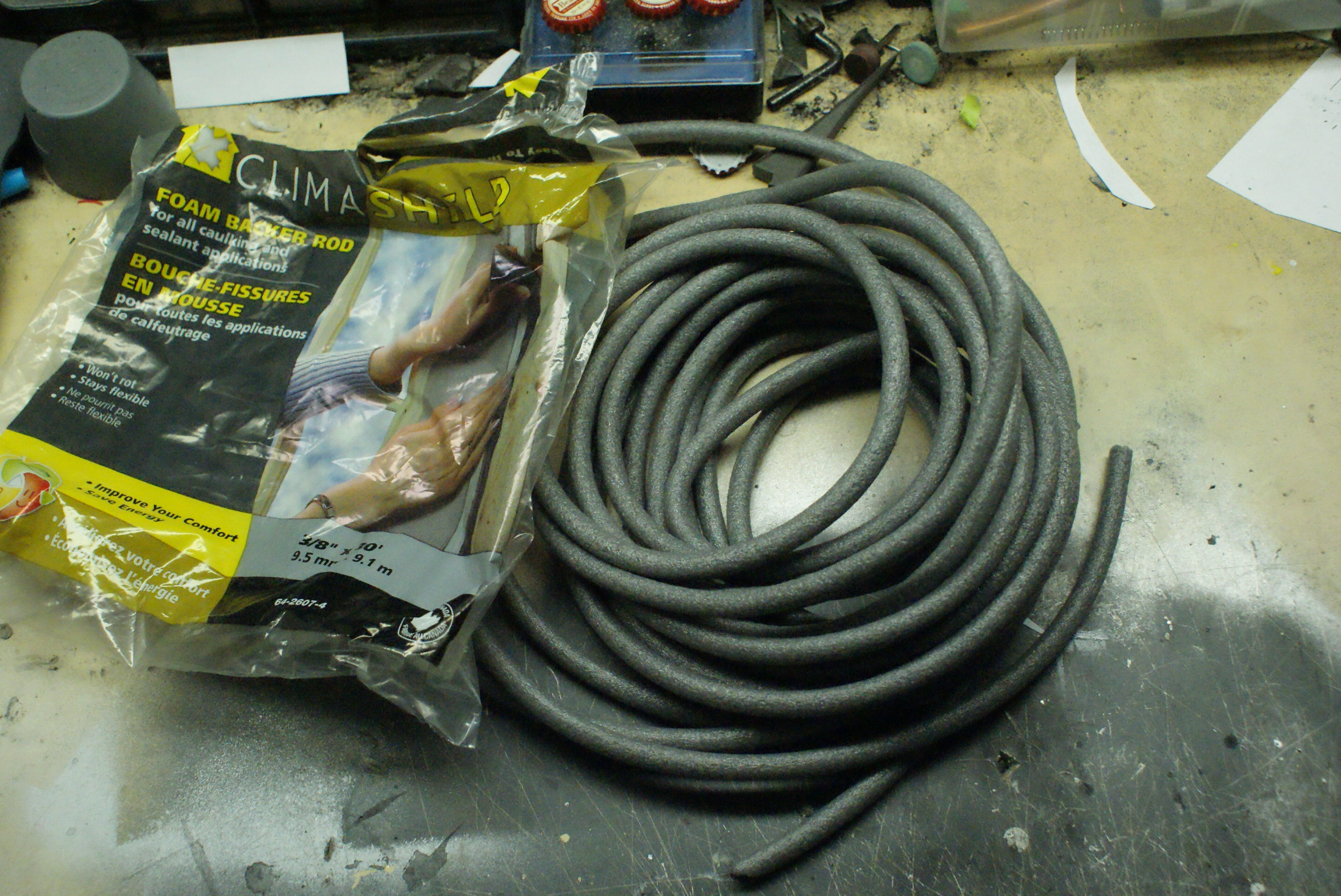

not much update for now. Life have been eating away most of my building time. but I did started on the under armor part. While shopping for supply with my father (he wanna start a suit of his own) , we've brainstorm on my undersuit tubing and finally hit the jackpot. Foam backer rod same size as I need, come in 30 ft pack, 6$
undersuit webbing.png


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

arthos

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

I cannot wrap my head around how you formed the groves in the shoulder piece! I don't see a seam so it must have been with undercuts but...how! I wish I could see the under side of it o.o Looks very nice!


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

I cannot wrap my head around how you formed the groves in the shoulder piece! I don't see a seam so it must have been with undercuts but...how!

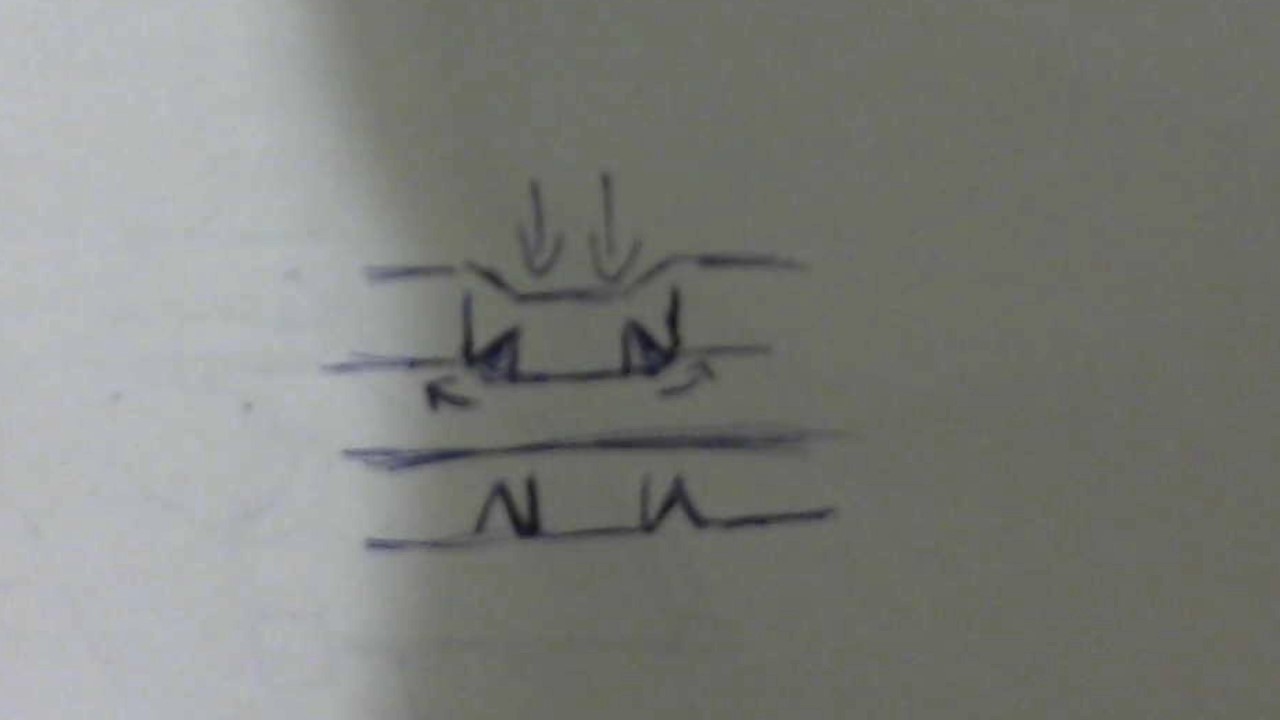

yes it is undercut. I can't show the other side anymore since it cover with other piece but I can try to explain it. The lower part is made by scoring 2 parallel lines, next to those lines you cut a V shape and glue them. by pushing the central part the two scored line are gonna open. just fill that opening with glue and hold it until it dry.


arthos

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

yes it is undercut. I can't show the other side anymore since it cover with other piece but I can try to explain it. The lower part is made by scoring 2 parallel lines, next to those lines you cut a V shape and glue them. by pushing the central part the two scored line are gonna open. just fill that opening with glue and hold it until it dry.
View attachment 524266
Wow thanks, that's a very nice and powerful technique. Thanks for explaining it!


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

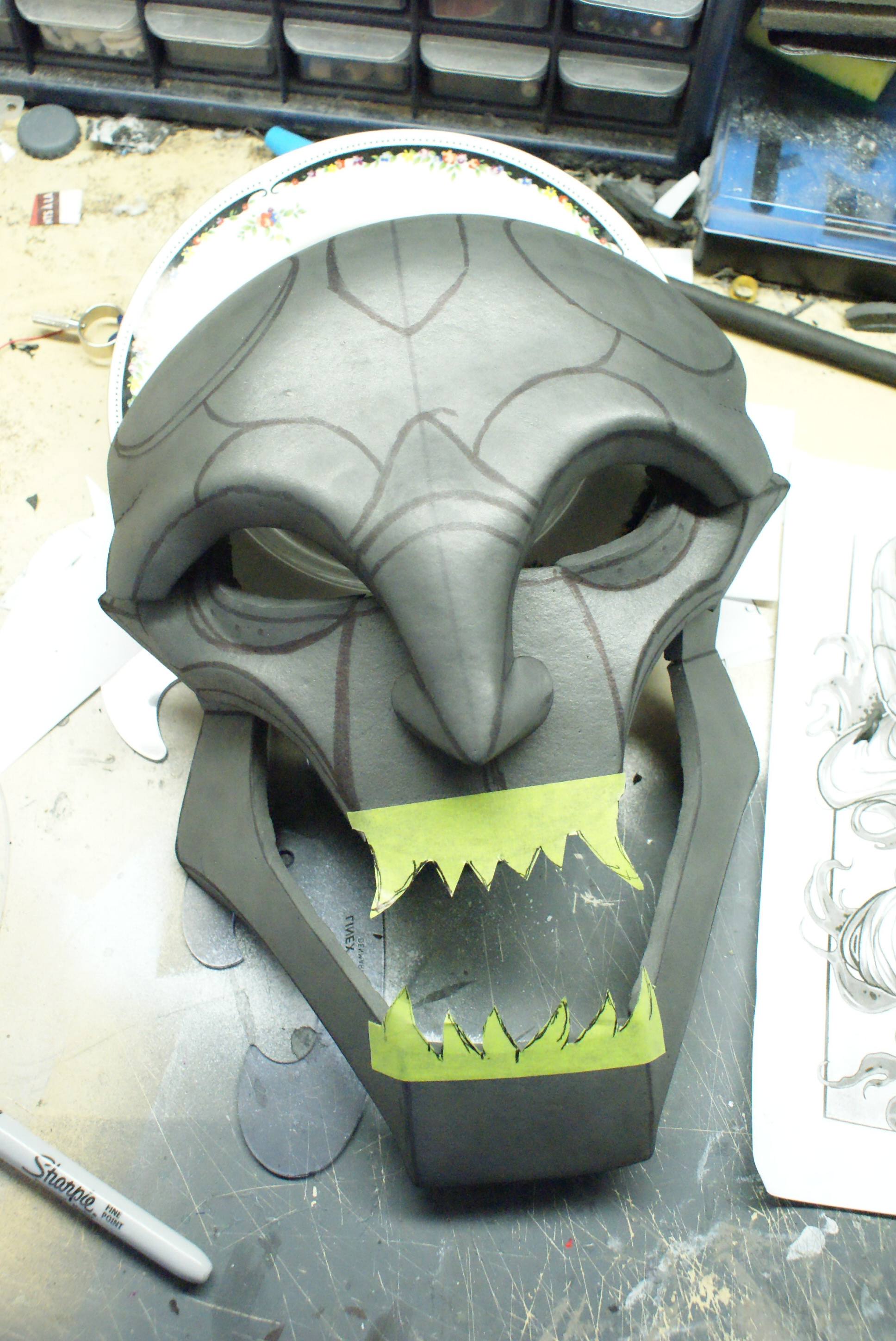

experimenting is the key specially with undercut. As soon as you get the hang of it, you can do everything. That mask is probably the best example I can give you in term of undercut.


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

I've stared to paint all the parts that are finish since I'm using 2 color so I won't have any problem getting them right

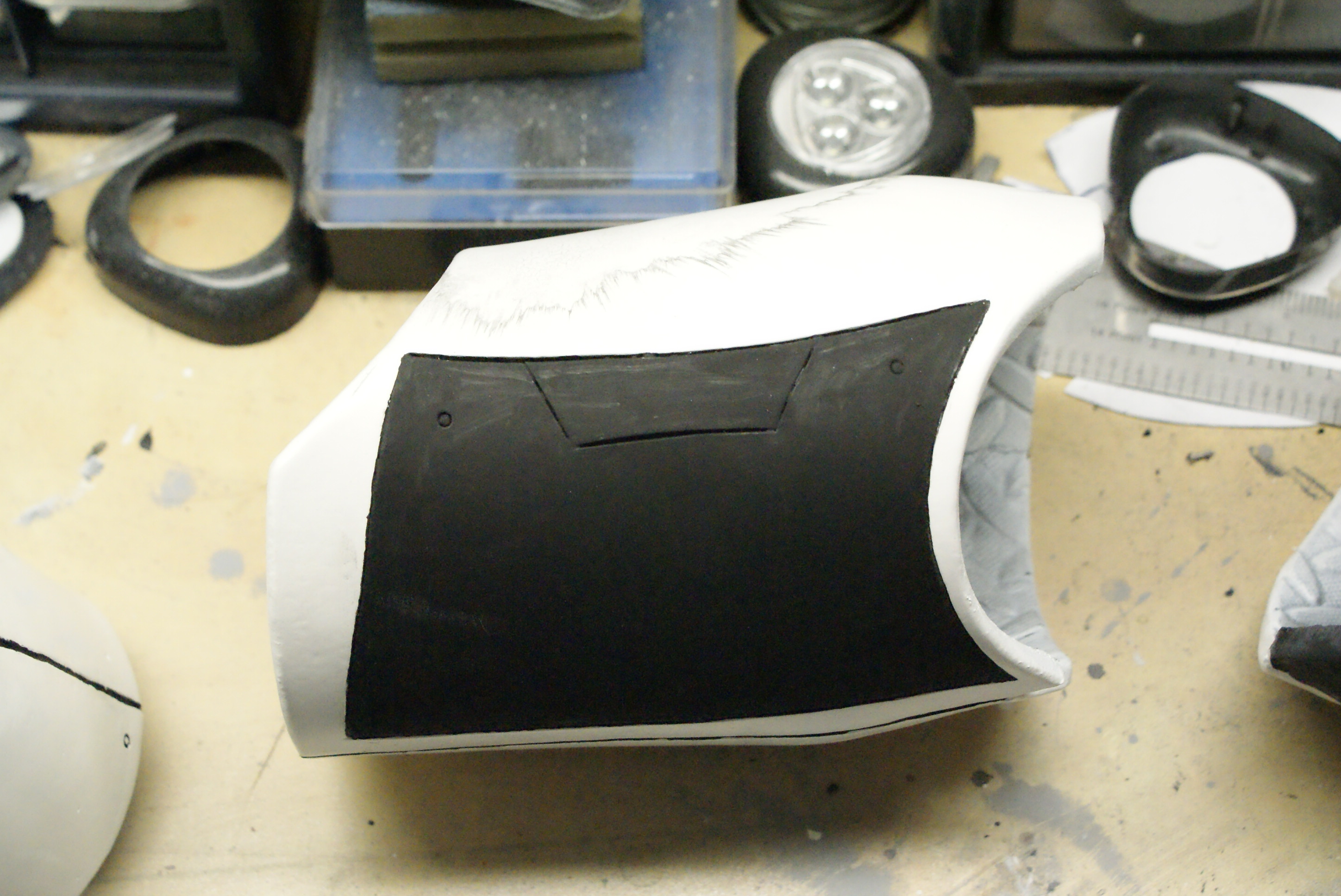

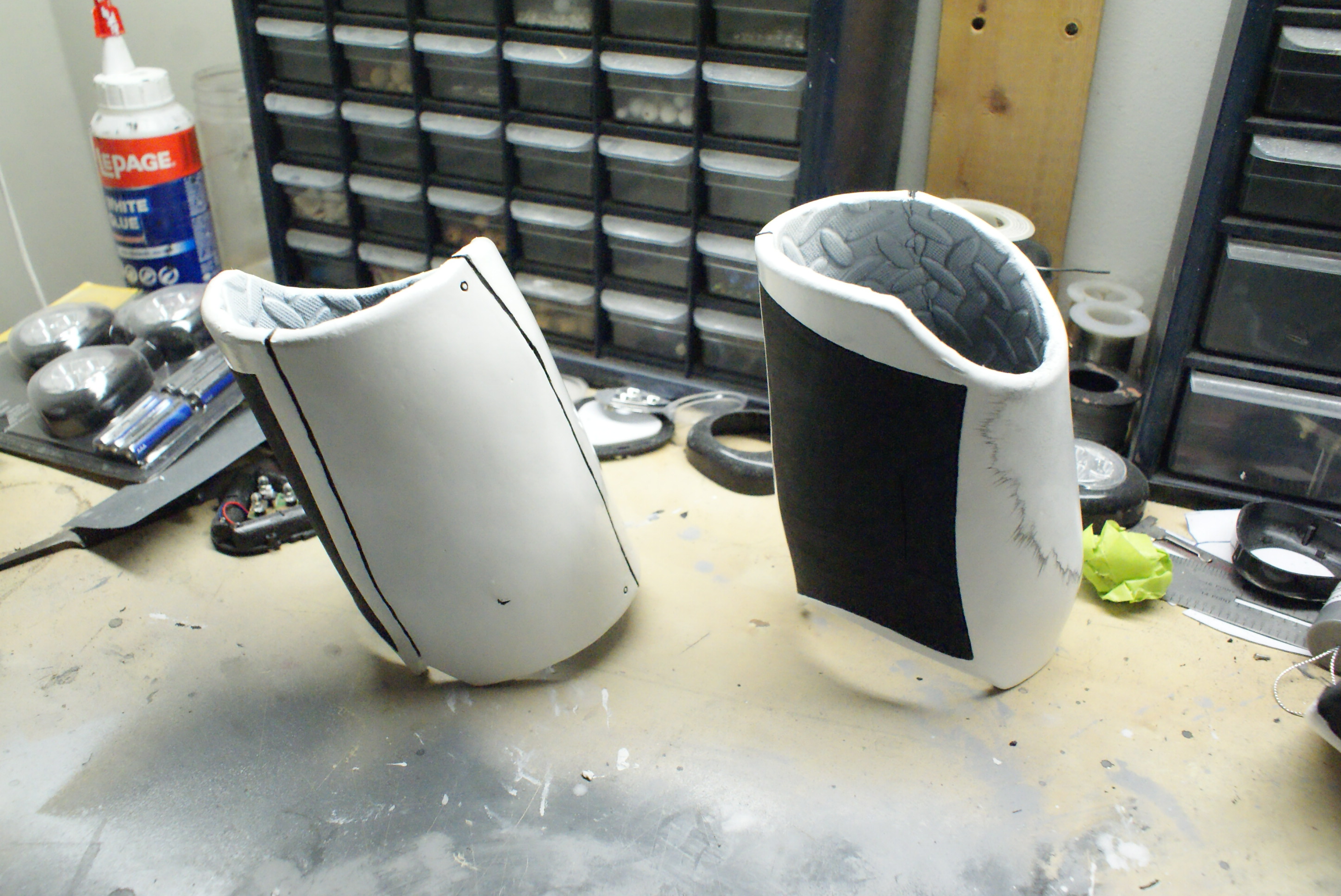

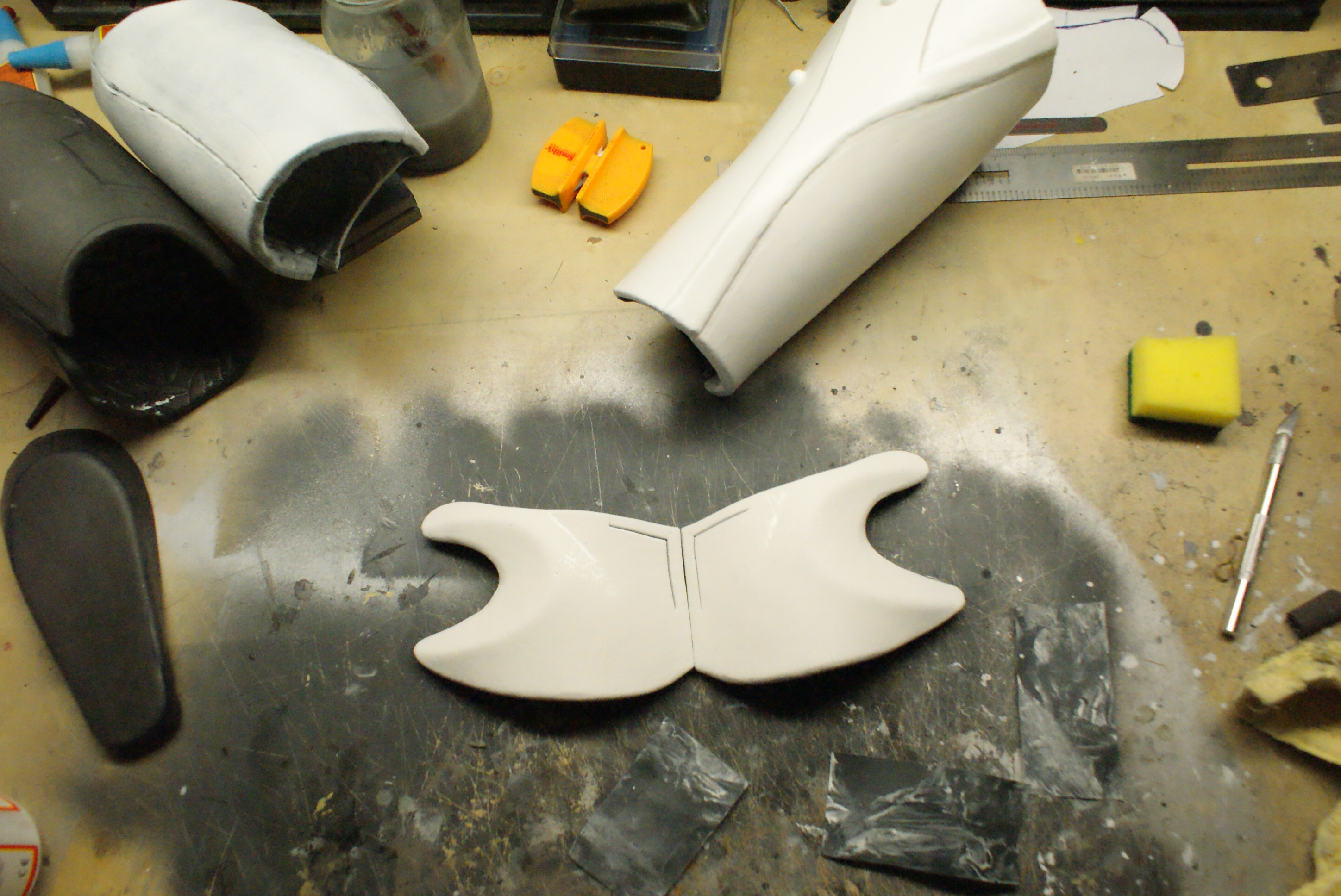

abs, forearm and bicep armor are in the way

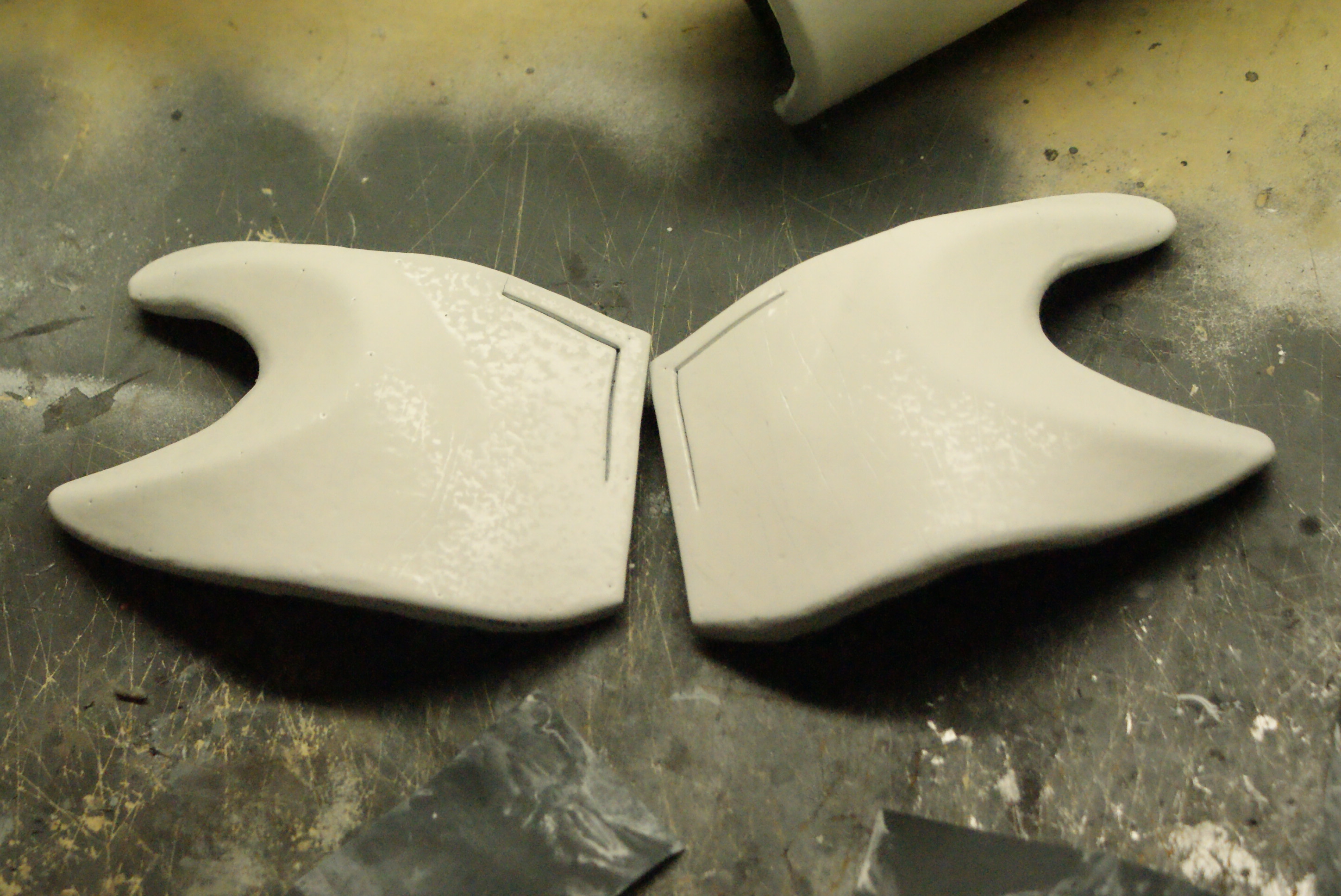

the abs are almost done just need a bit more sanding as you can see on that picture

biceps on the other hand just got started

that it for the progress update :p


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

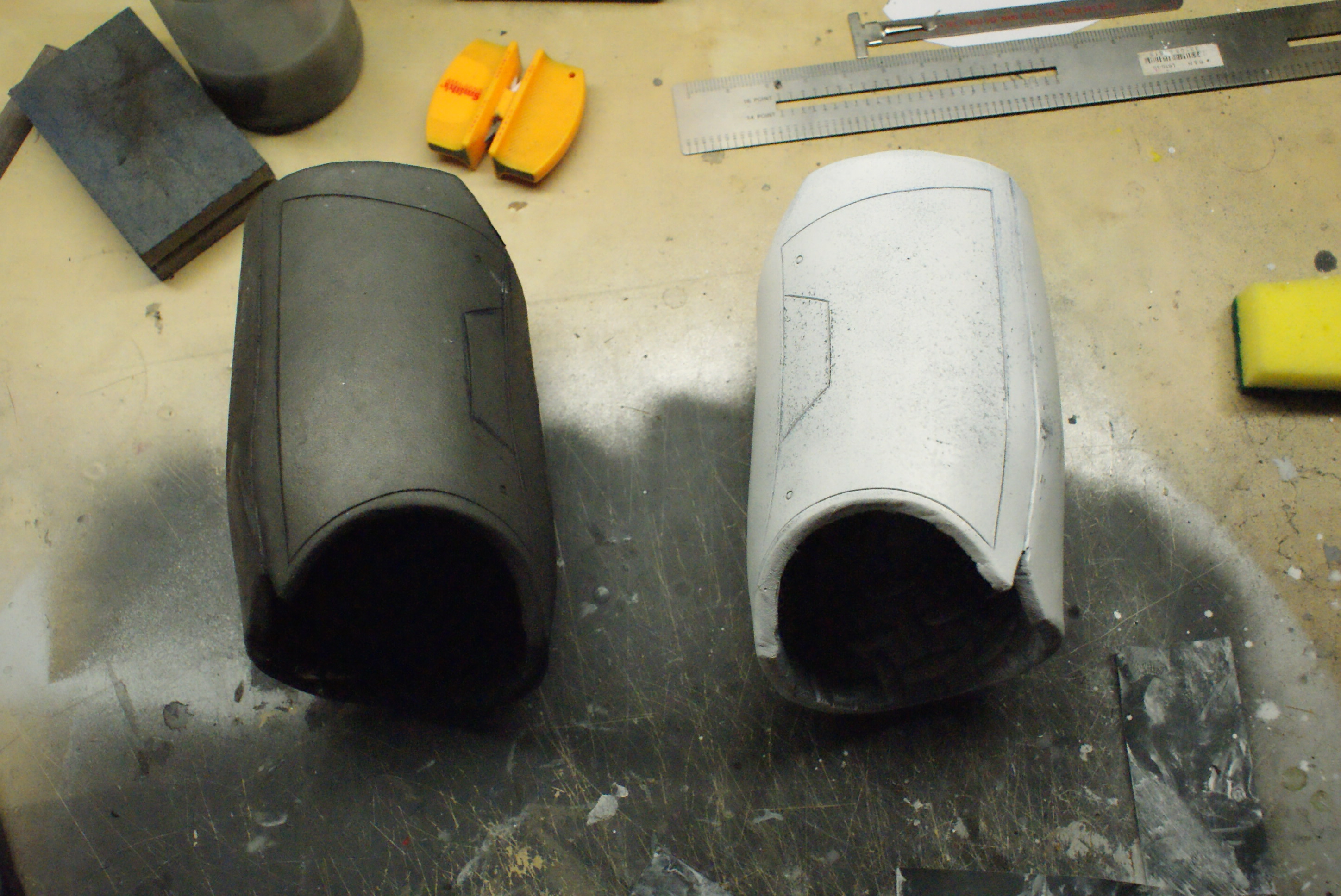

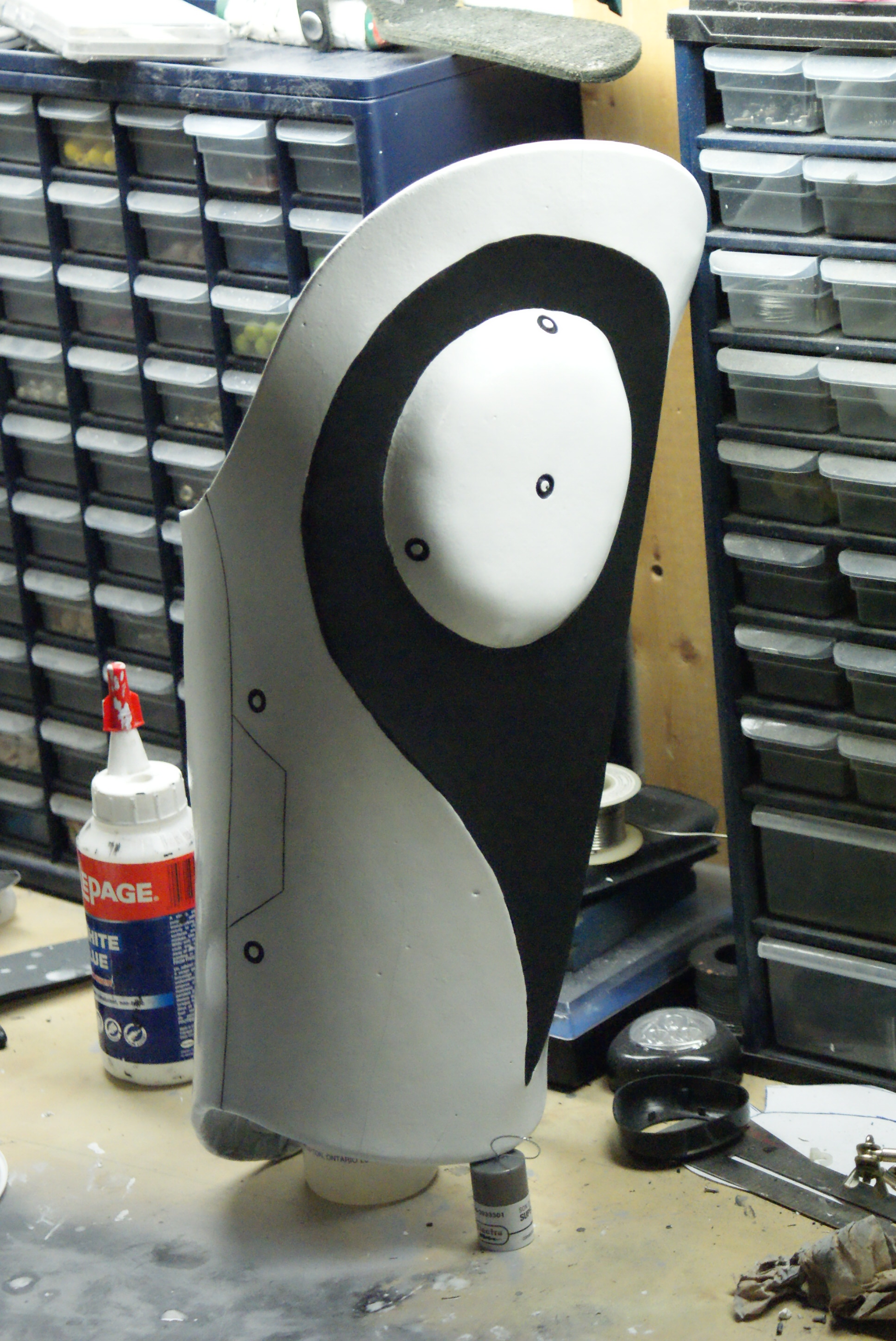

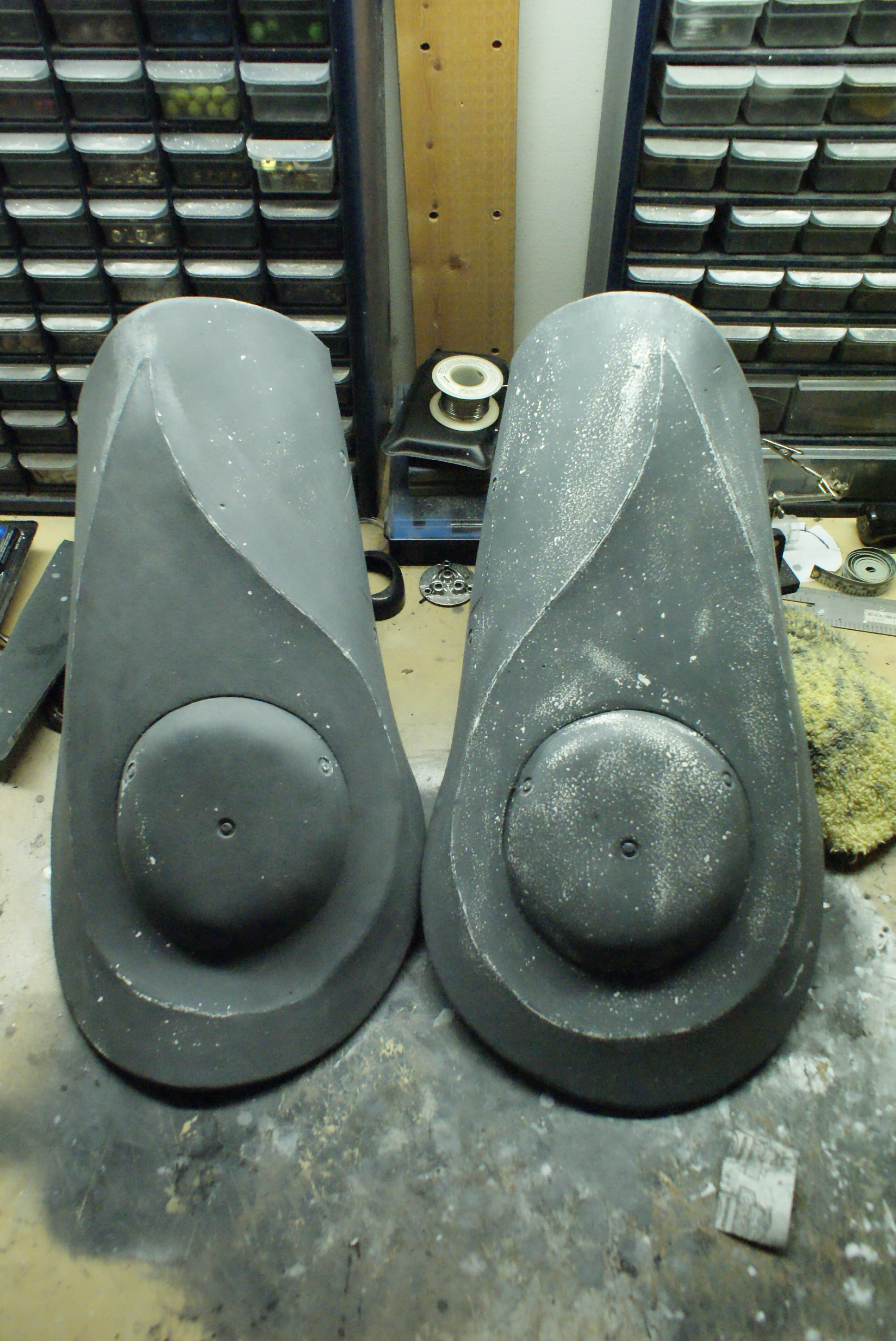

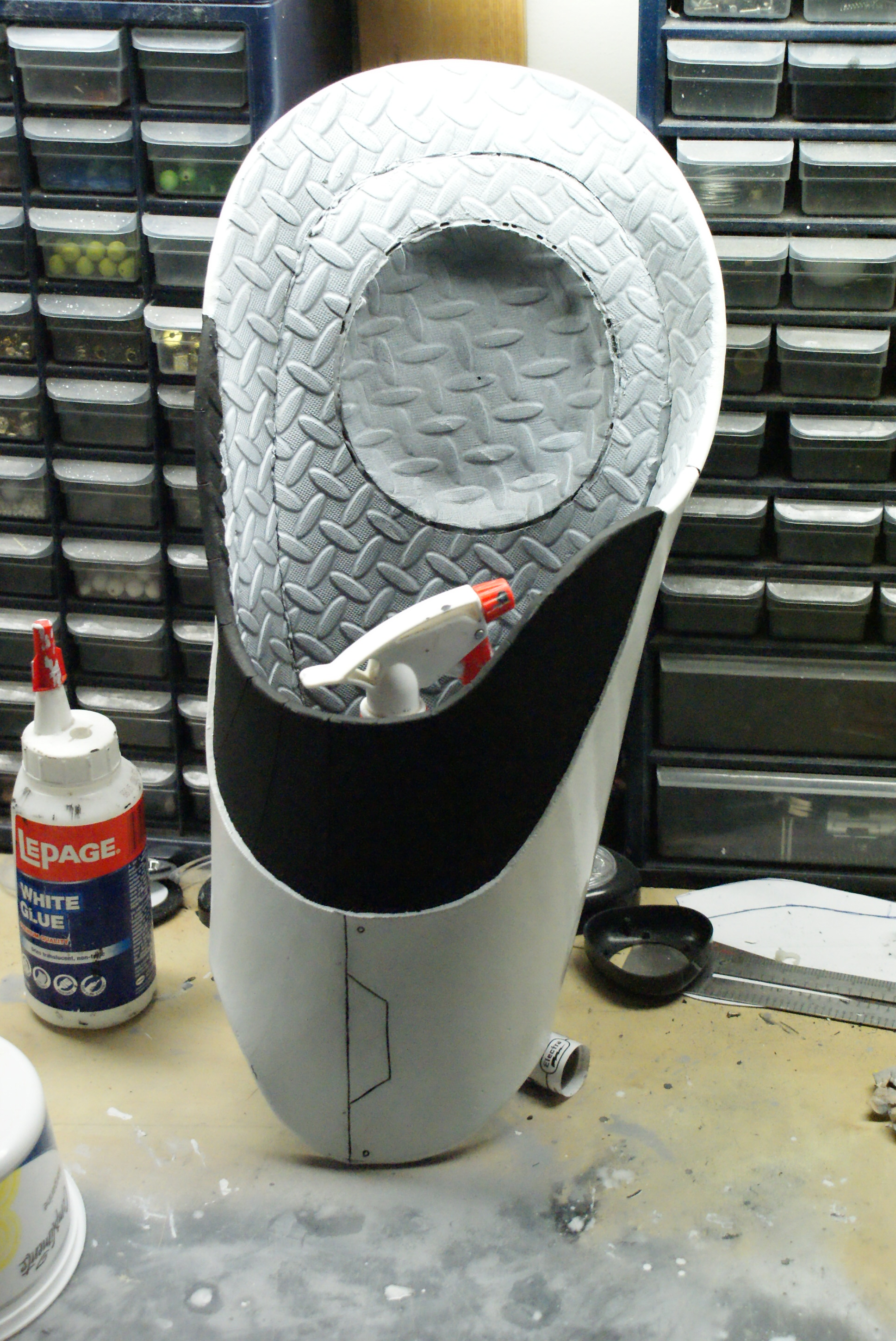

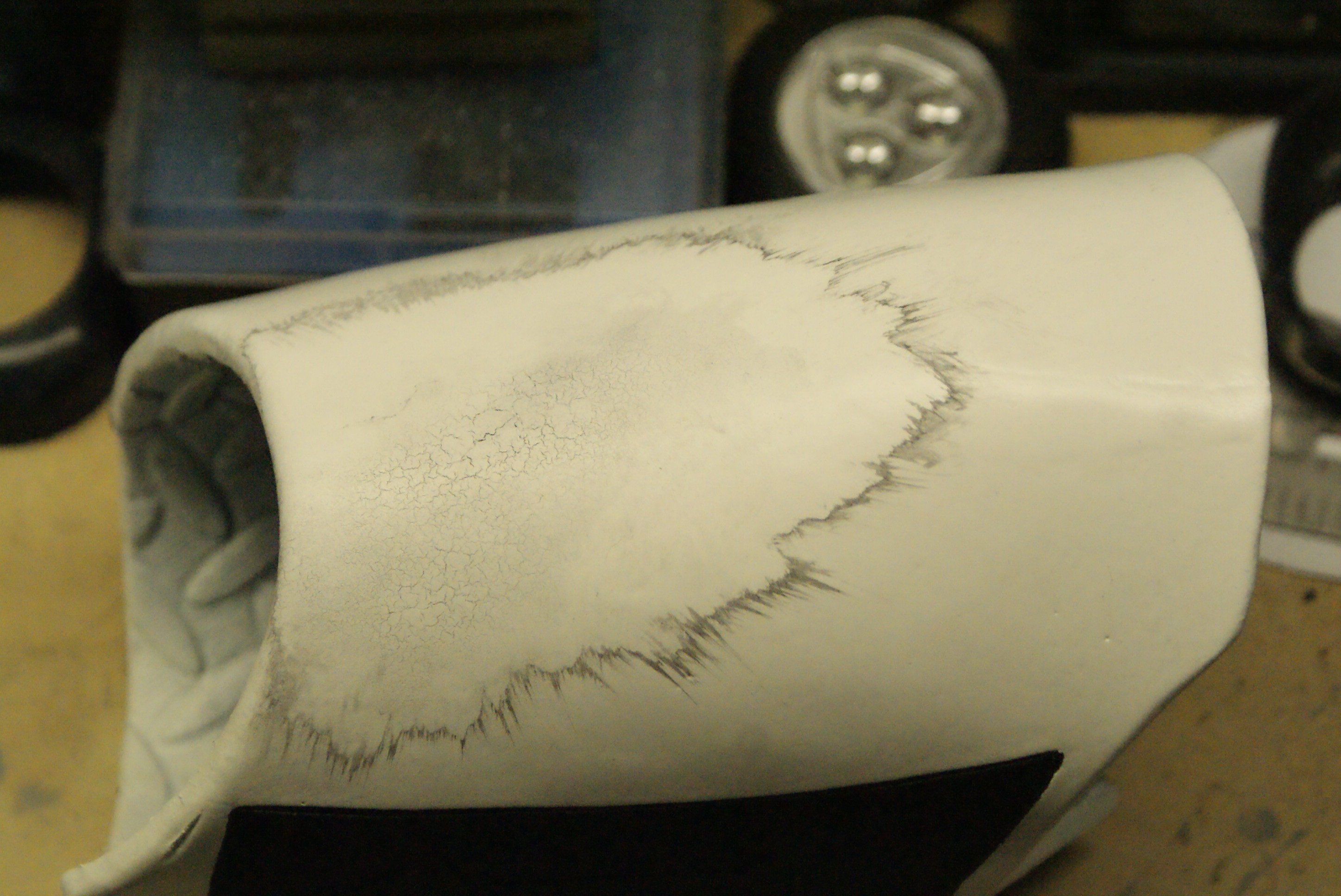

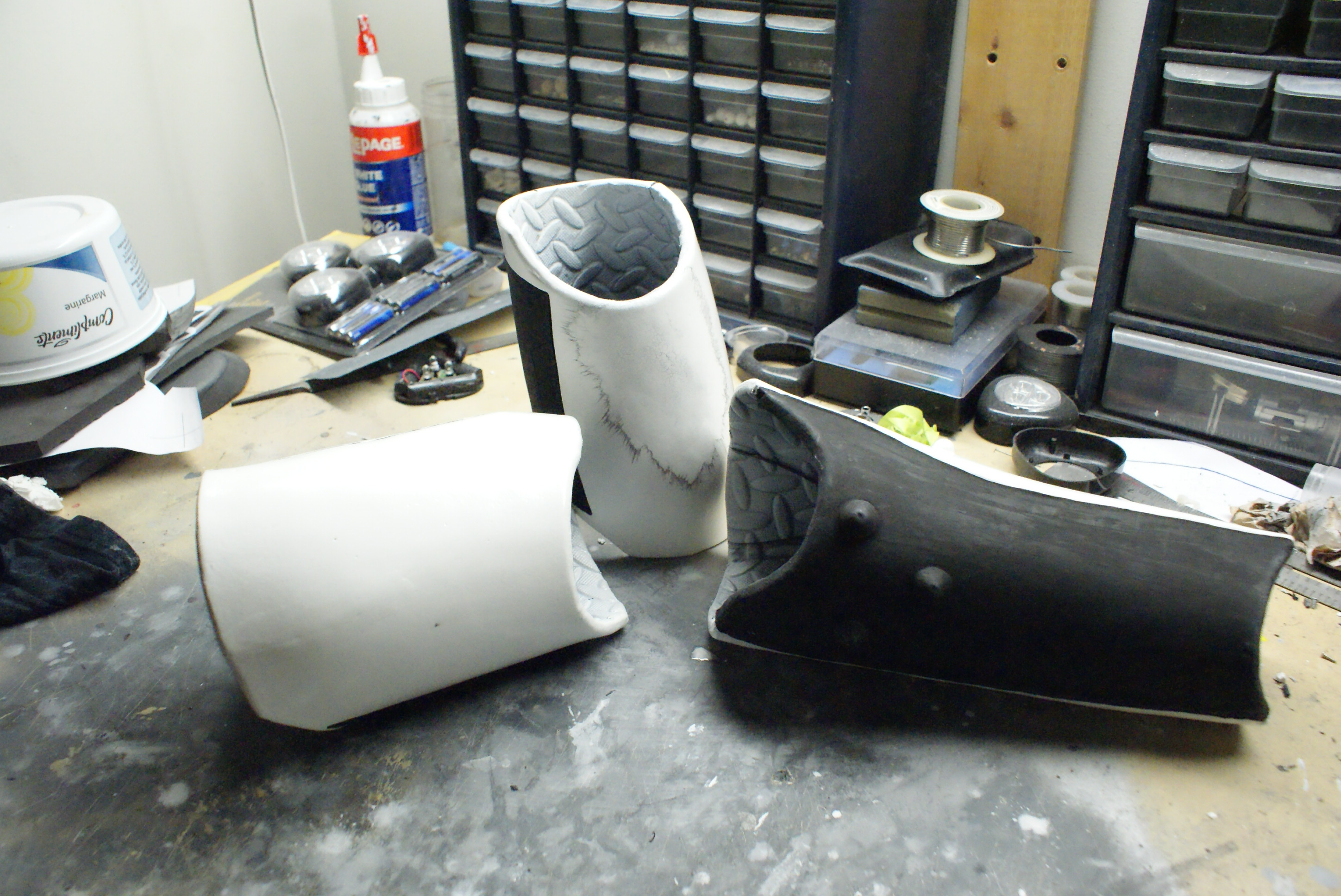

The thigh are getting wet sanded and you can clearly see that one is smoother then the other. the right one have enough crater to make the moon jealous


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

can't think of anything better then seeing finish painted pieces

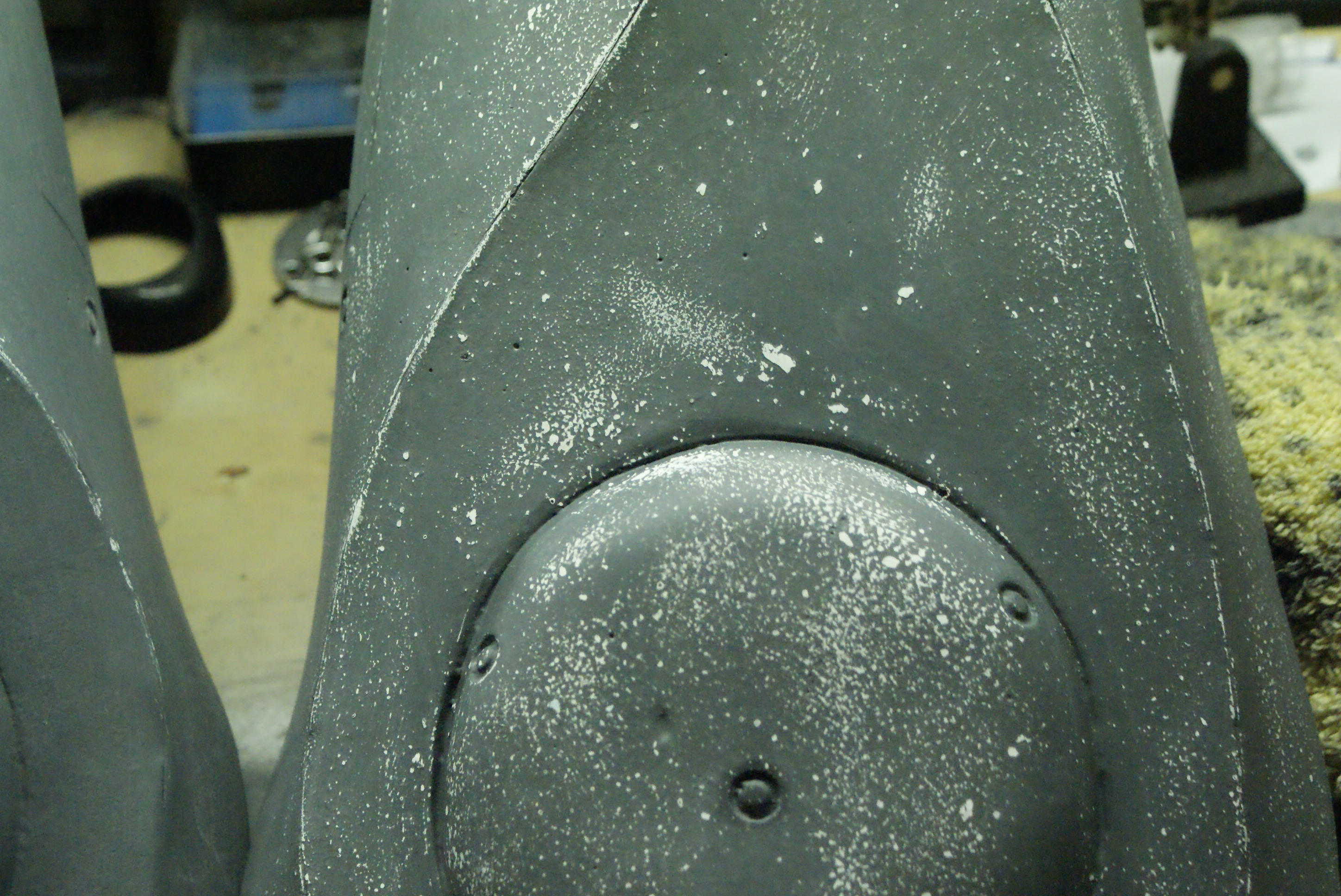

starting to feel the pressure and going maybe too fast on some part for my own good. I didn't give enough time for that bicep to properly dry after wet sanding. After applying the last coat of paint... crack form on the front part. I decided to roll with it and made a blast hit on top of everything.


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

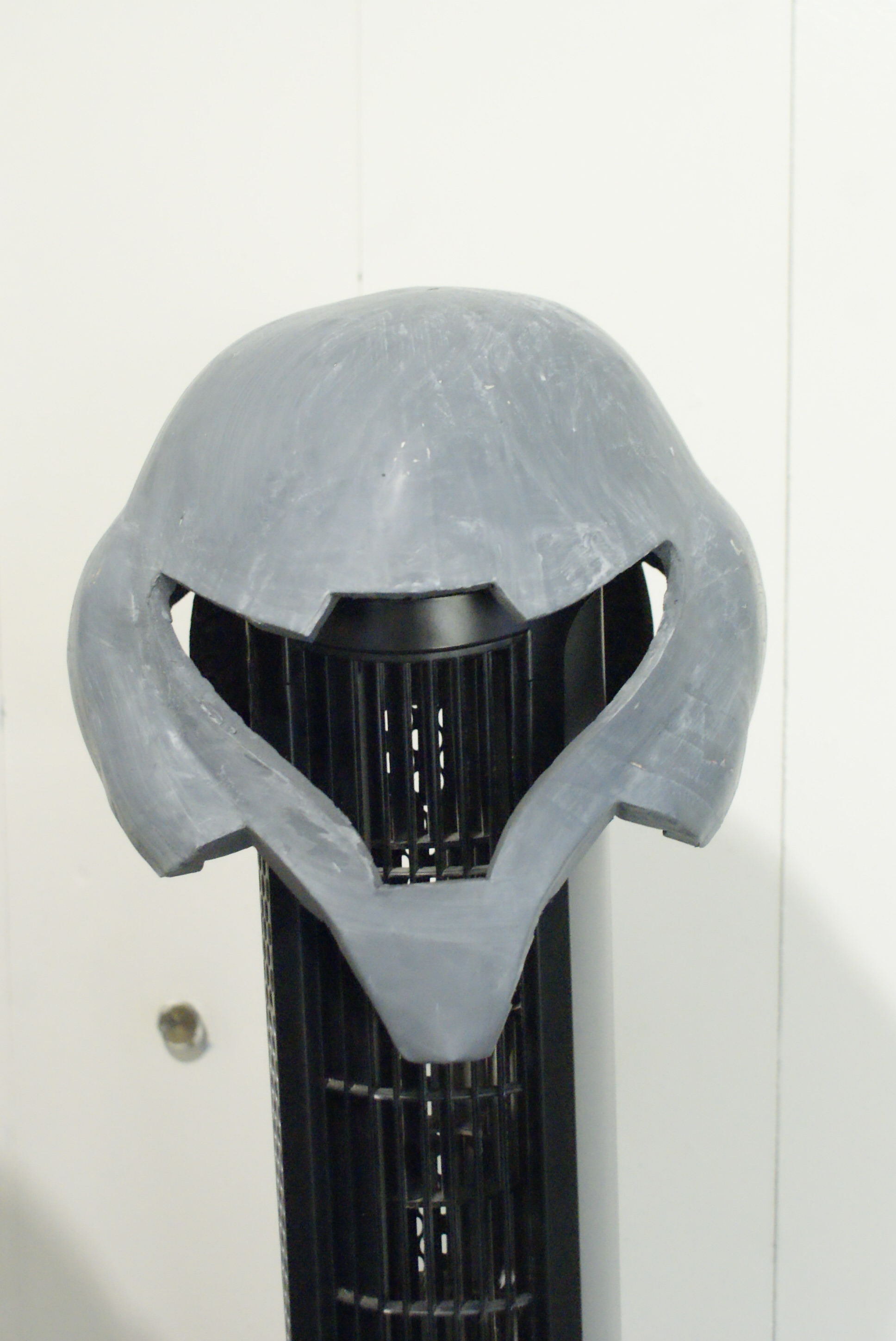

it appear I've never showed a single picture of the helmet progress let me fix that :p
there a couple of hours of wet sanding on that helmet but I can assure you it made out of foam

that helmet is driving me crazy..... I'm really close to start cutting corner and just make the neck seal out of fabric instead of a armor neck piece. we'll see, 7 day left before the con


MNCProps

New Member
Re: Metroid Prime 2: Echoes / Samus Light suit

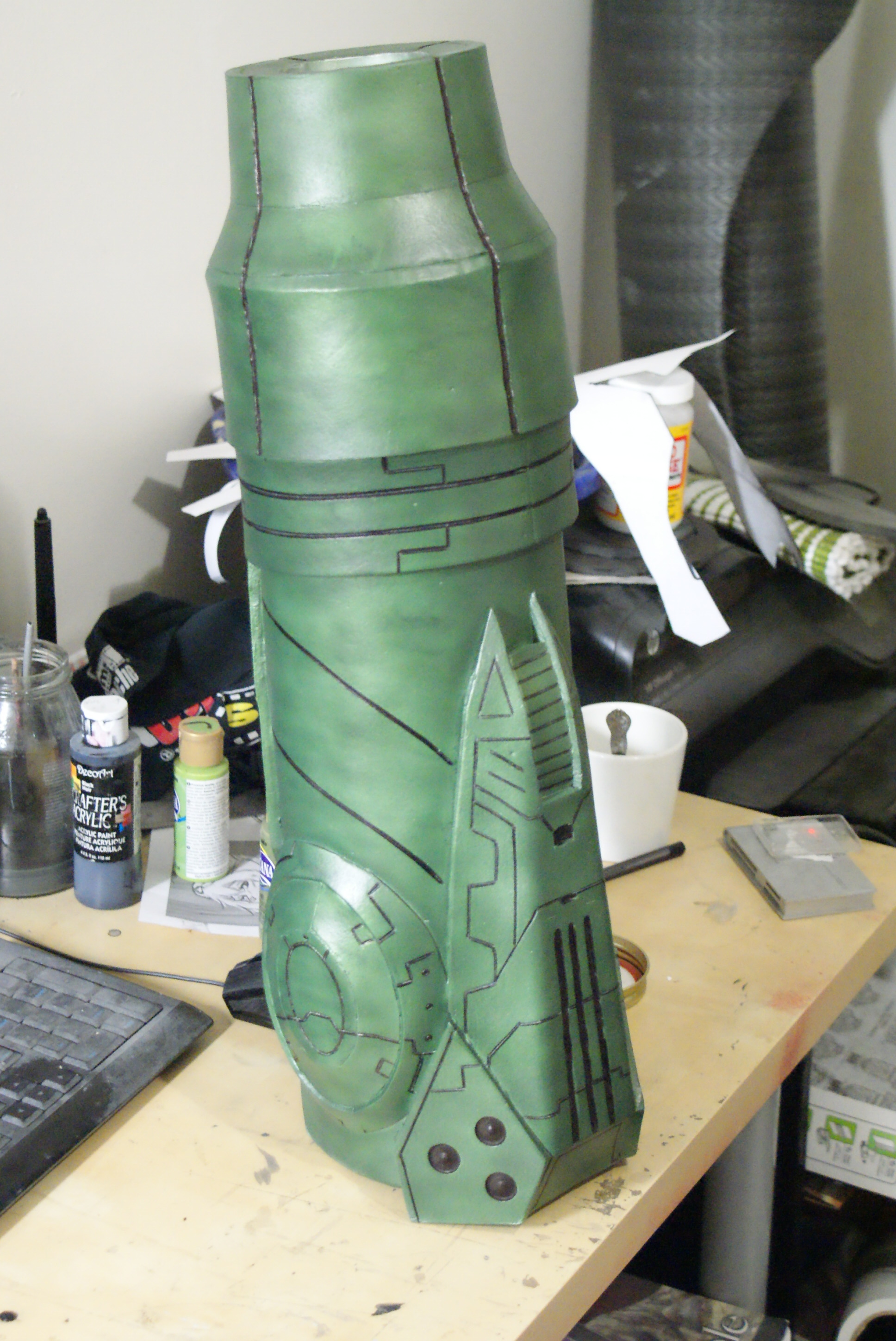

The arm cannon is finish after an evening work on it

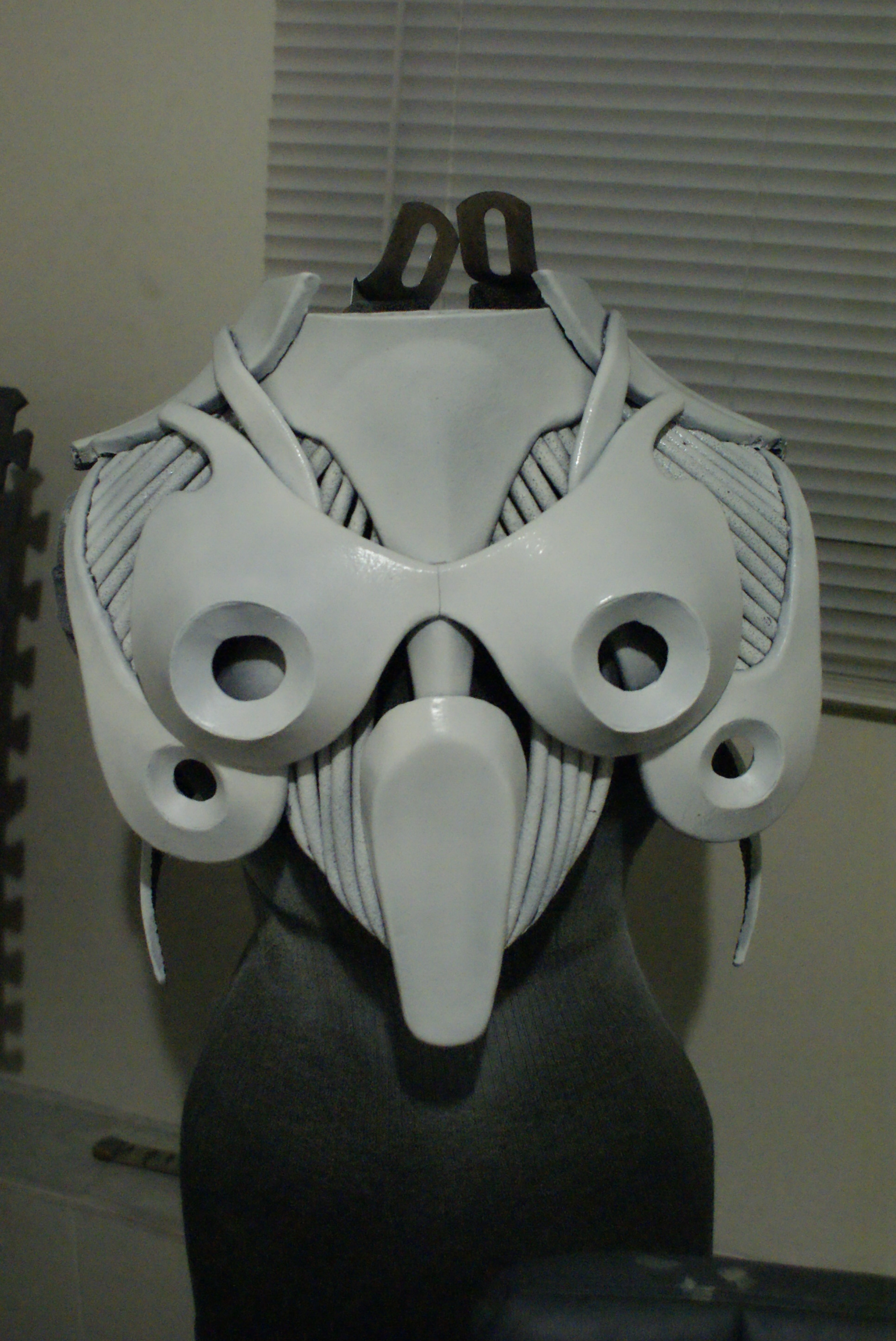

all of the undersuit "tubing" were glued and the suit itself got it first coat. Here a back shot where all the "tubing were the most painful to assemble and glued
