Hello RPF - I was just hired for my first commissioned prop: The Metroid containment capsule from super Metroid!!
Containment Unit - Compare.png
The client and I have agreed upon the below design that I laid out in tinkercad

(if anyone can recommend a free modeling software with a similar learning curve to tinkercad I would greatly appreciate it)

A sourced acrylic tube was measured to be a 9" outer diameter. Everything else was built around that 1 piece for accuracy and scale. - In the end this piece should measure 16-18 inches tall with lights.

Screen Shot 2019-01-30 at 6.18.52 AM.png Screen Shot 2019-01-30 at 6.18.29 AM.png Screen Shot 2019-01-30 at 6.17.03 AM.png

After design was done I converted the model into hollow pieces to allow for future electronics. I also tried to consider the 3D printers time and filament intake. I don’t want to waste filament and want to be able to churn out the pieces so I can start cleaning for paint.

Screen Shot 2019-02-03 at 7.30.15 AM.png

I printed all pieces on the Tevo Tornado (new gold version) - this printer has been printing like a dream! Very nice and smooth - I would highly recommend it if you are a maker on a budget. I got mine from Amazon:

Using Hatchbox wood filament I printed the upper and lower casing pieces. My first print had the tolerances way too tight so I needed to reprint. Second print fit like a smooth glove.

All the black pieces were printed using Amazon Basics PLA 1.75mm - Again, worked like a charm. Nice and smooth prints.

Wood pieces printed at .4mm layer heights
Black pieces printed at .1mm layer heights.

Screen Shot 2019-02-03 at 7.39.47 AM.png

Side note about wood filament: if you are going to print large smooth areas like these top and bottom casings then I would highly consider wood filament. It sands so smooth to be prepped for primer and paint. - Regular 100% PLA tends to have a little more bite on the sand paper IMO

Screen Shot 2019-02-03 at 7.41.57 AM.png Screen Shot 2019-02-03 at 7.42.09 AM.png

Since I only have 1 set of the top and bottom casing done I have to use same pieces to try a test fit.

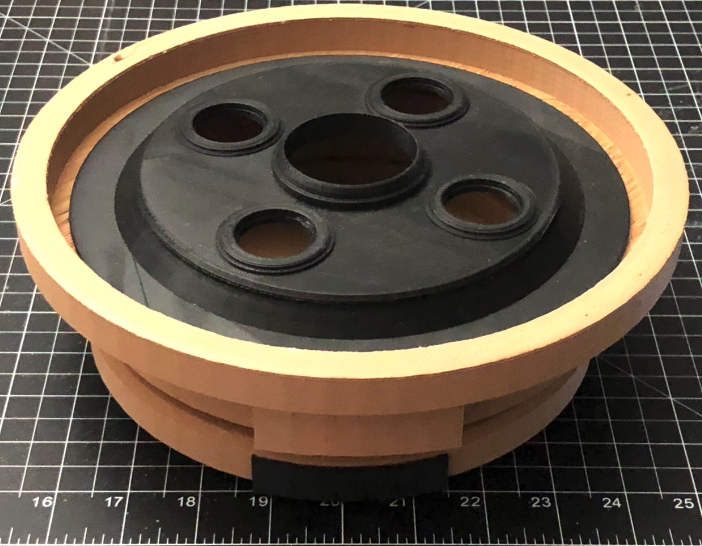

See top and bottom rough assembly:
Screen Shot 2019-02-03 at 7.46.37 AM.png Screen Shot 2019-02-03 at 7.46.50 AM.png

And since these have been designed to be hollow there will be plenty of play room for lighting from a neo-pixel or LED lights from an arduino. I will leave that fun stuff to my wife.

Unfortunately - the many failed prints plus these 2 successful wood prints have depleted one spool of Hatchbox. I ordered another but since their is some major weather right now it is being delayed. Once it arrives and I print duplicates of casings - I will show a fully assembled unpainted prop.


This containment unit is intended to house a replica Metroid creature created by Jakks Pacific

Its a pretty sweet 1:1 scale replica toy - but it is very much just that "a toy". You can tell this from the bottom teeth joints, plastic finish and minimal, simplistic paint job.

Lets fix that.

IMG_9816.jpeg IMG_9818.jpeg IMG_9819.jpeg

The top membrane of the Metroid is a molded piece of vinyl - you can tell because it holds its' molded shape very well and does not inflate. Very similar feel to a childs' bouncy ball. The cheap kind that are usually stacked in towers at Wal Mart.

Now that I was sure I wanted to gut this guy - I needed to remove the membrane to see inside the 2 red pieces construction.
IMG_9820.jpeg IMG_9824.jpeg
Using a dry erase marker I traced the outline of the Membrane. This showed me what was visible after I disassembled the piece.
IMG_9826.jpeg IMG_9827.jpeg IMG_9830.jpeg
Using generic scissors I cut the extra vinyl around the rim I just traced giving my self a little room so the membrane can lock back onto the piece when re-assembling.
With the membrane removed I was able to see inside and see the small plastic nubs on each tooth that was locking them in. (impossible to remove from outside without damaging teeth sculpt - the pegs mushroom out once inserted - a common toy design tactic to make sure parts aren't easily removed after factory assembly... Lets remove them with a dremel.
IMG_9842.jpeg IMG_9841.jpeg IMG_9840.jpeg IMG_9839.jpeg IMG_9844.jpeg
Full piece breakdown of this toy:
I then took each tooth and I trimmed their locking nubs so that I can permanently hot glue them into a fixed position.
Before gluing however - i need to remove the factory shine on the base and top piece of metroid - using a 220 grit sand paper I lightly go over all areas until all is dull. - I take extra care on legal line so I can remove completely. Sorry Jakks!
IMG_9850.jpeg IMG_9851.jpeg
Now glue:
IMG_9854.jpeg IMG_9857.jpeg IMG_9858.jpeg IMG_9860.jpeg IMG_9861.jpeg

With all the teeth positioned I will leave this here - Next steps is to start using Apoxie clay to fill all these hinge gaps and get ready for an official repaint.

I will be updating this thread as I progress in this project. I hope you all dig it. If you have any questions, suggestions or complaints please lemme know.

I am on instagram @25thpixel I will be posting often there if you want to follow along.

Thanks guys! Hope you enjoyed my first post hahah


  • image.png
    5.9 KB · Views: 112
  • IMG_9821.jpeg
    5.4 MB · Views: 108
  • IMG_9822.jpeg
    6 MB · Views: 90
  • IMG_9823.jpeg
    4.4 MB · Views: 99
  • IMG_9828.jpeg
    5.2 MB · Views: 95
  • IMG_9829.jpeg
    4.7 MB · Views: 94
  • IMG_9845.jpeg
    5.2 MB · Views: 89
  • IMG_9846.jpeg
    4.1 MB · Views: 86
  • IMG_9847.jpeg
    4.2 MB · Views: 89
  • IMG_9848.jpeg
    4.6 MB · Views: 105
  • IMG_9852.jpeg
    6.9 MB · Views: 90
  • IMG_9859.jpeg
    5.9 MB · Views: 89
  • IMG_9862.jpeg
    7 MB · Views: 115
  • IMG_9863.jpeg
    6.2 MB · Views: 89
  • IMG_9864.jpeg
    5.9 MB · Views: 93
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


New Member
All legs hot glued in desired position and now using Apoxie I have smoothed the transition to make less toy like.

Once dried up it'll be Prime Time!!

Waiting on my hatchbox filament to be delivered today to finish up the containment unit prints. Should be done with all kit pieces by end of week.

Stay tuned!

IMG_9867.jpeg IMG_9868.jpeg IMG_9869.jpeg IMG_9870.jpeg IMG_9871.jpeg

E Williams

Sr Member
This is an excellent concept for a replica! Great work on designing the containment capsule so far. The toy is nice (for a toy) but I'm looking forward to seeing what you come up with following the resculpting and paint :) How are you planning to suspend the metroid within the tube?

You mentioned you were looking for a 3D modeling software. I would recommend Autodesk Fusion 360. It is free for hobbyists and is a full-featured professional solid modeling package. If you've used any solid modeling software before, the learning curve will be small. One advantage is that curved features are stored as curves, and the approximation only happens when the file is output to STL (which itself has refinement controls). If your containment caps were drawn in Fusion, they wouldn't have that faceting on their curved surfaces, for example.
