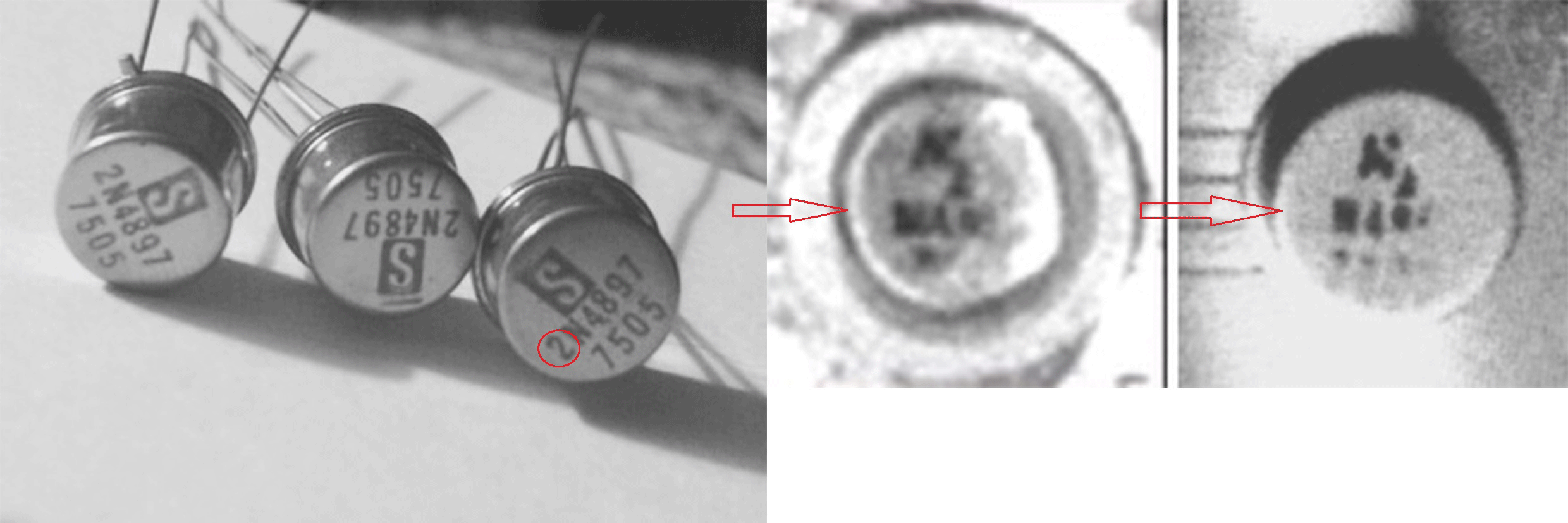

Of the pics I have gathered (if any of these belong to anyone, let me know and I will give credit or remove the photo) this shows the deformation the best...

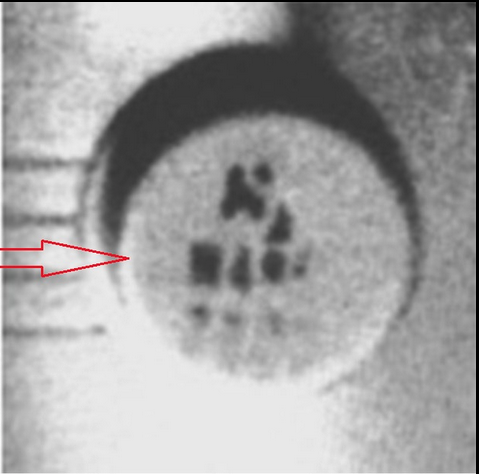

I have blown this up to the extreme:
The can has the shape of a can forced through a washer that it is too big to be pushed through.
But how do we know it was pushed through?

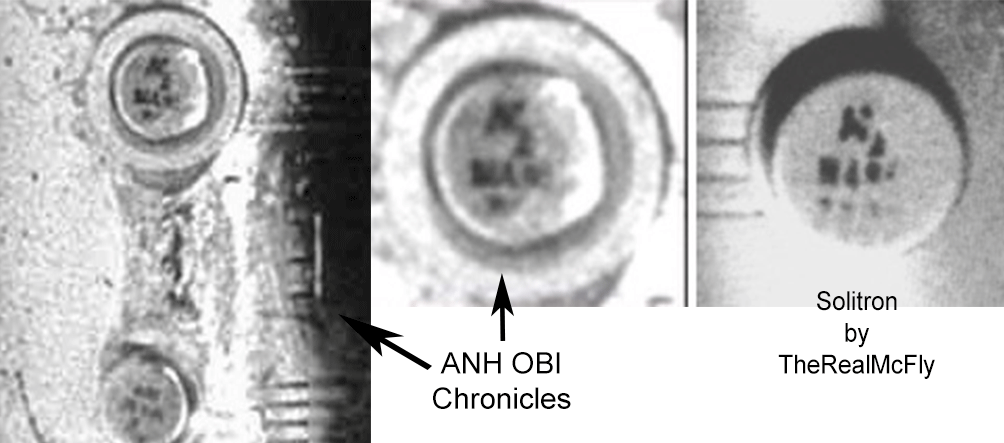

(Op Amp enlargement taken from this photo):

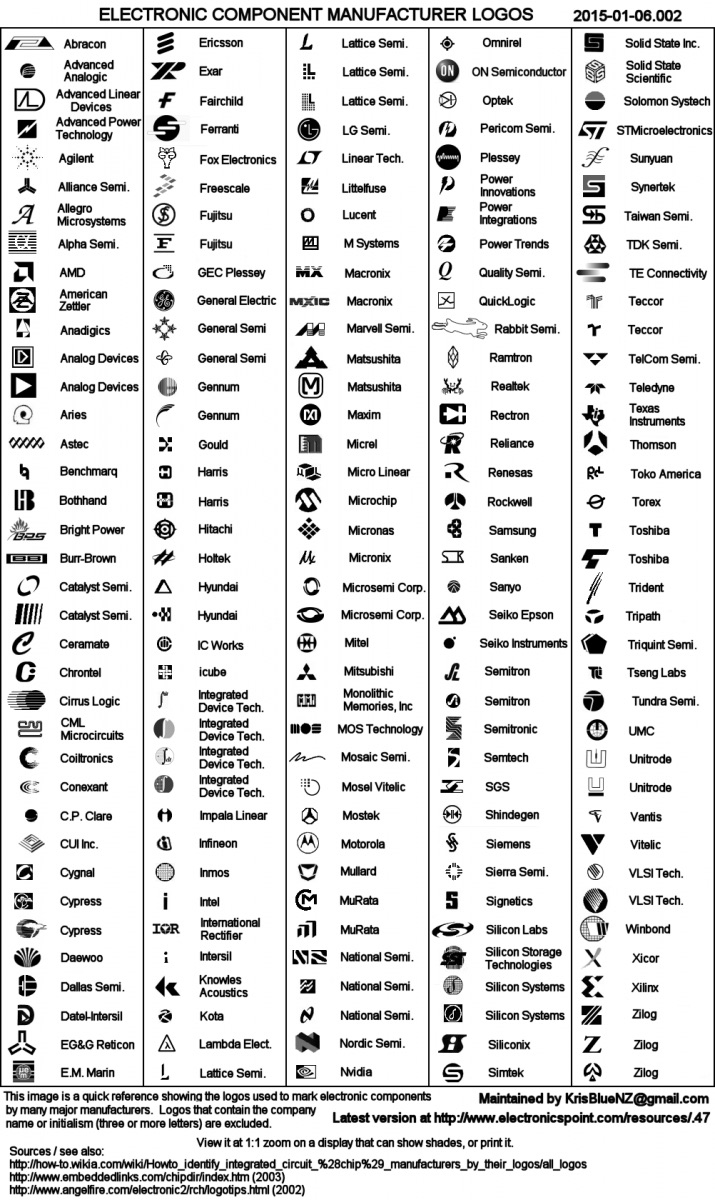

Here is a reference showing some of the various logo stamps of different manufacturers. Some of these manufacturers also have used different logos at different points:

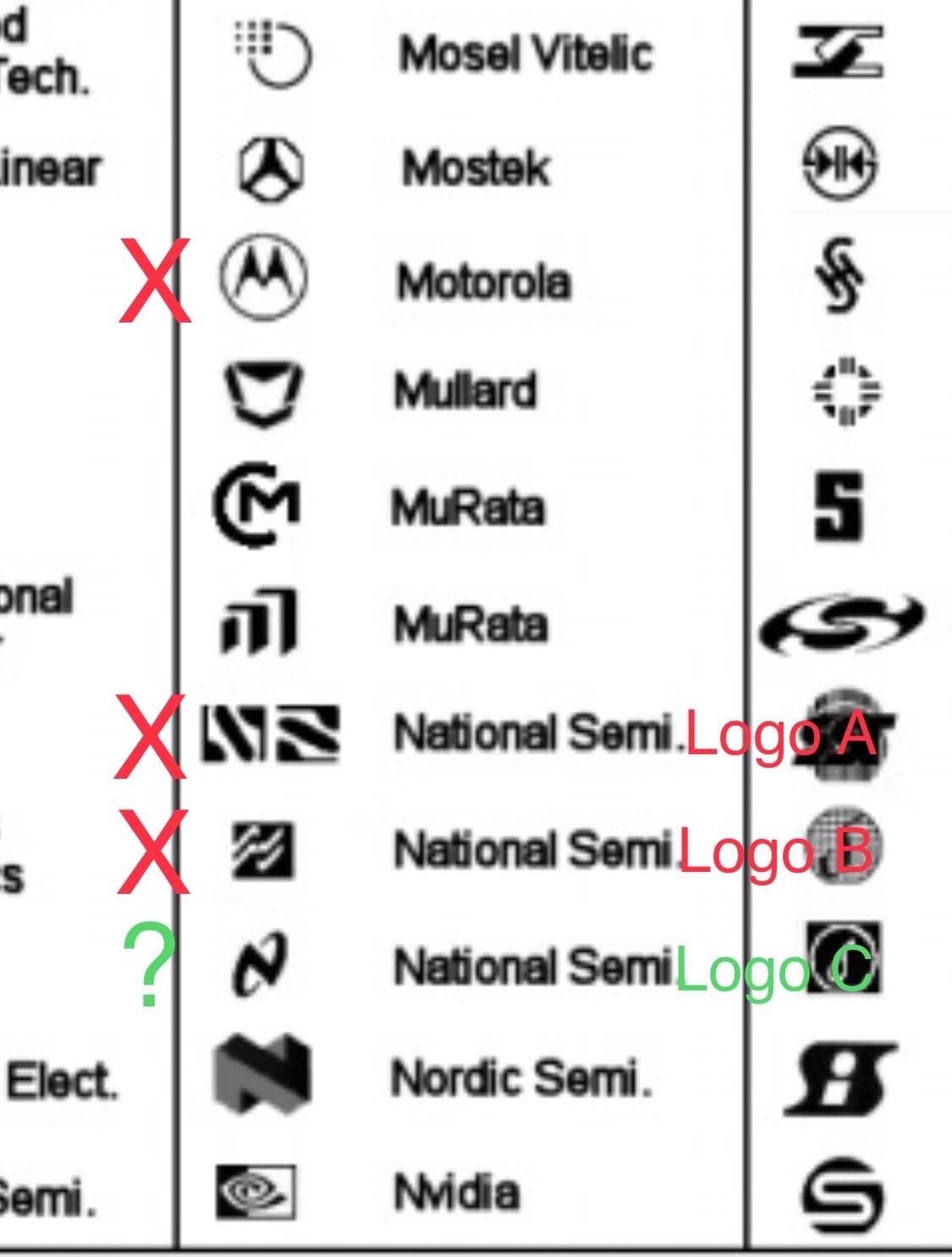

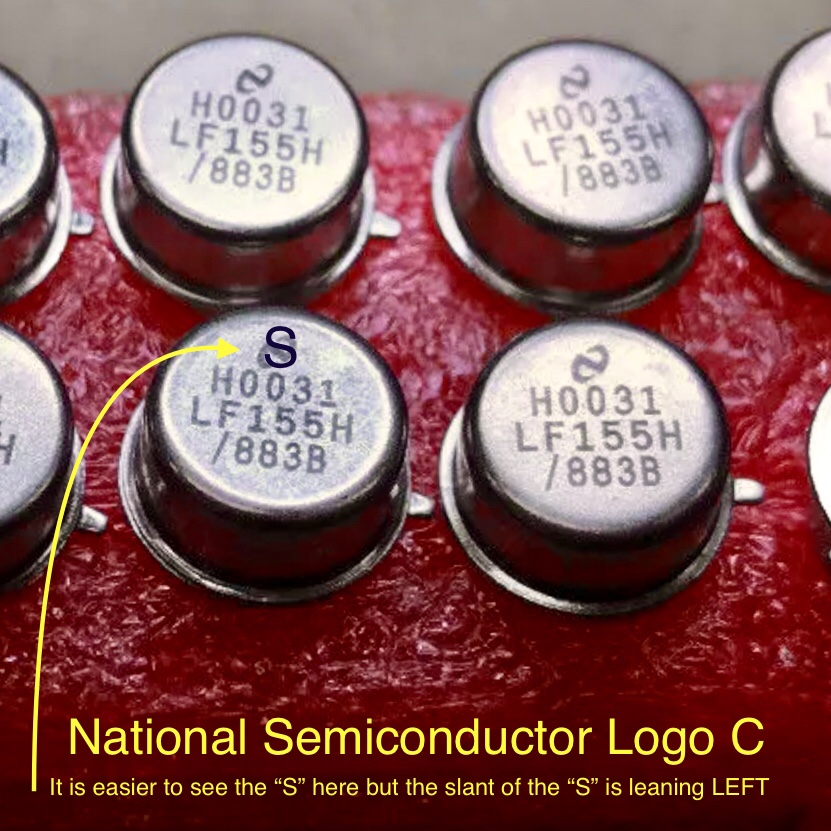

Here is National Semiconductor’s C Logo:
(*the following two photographs and some of the following text has been edited/added 10-24-2019 for ease of research and informational continuity purposes. Special thanks to member corliss1 for clarifying what should have been obvious in the following comments)

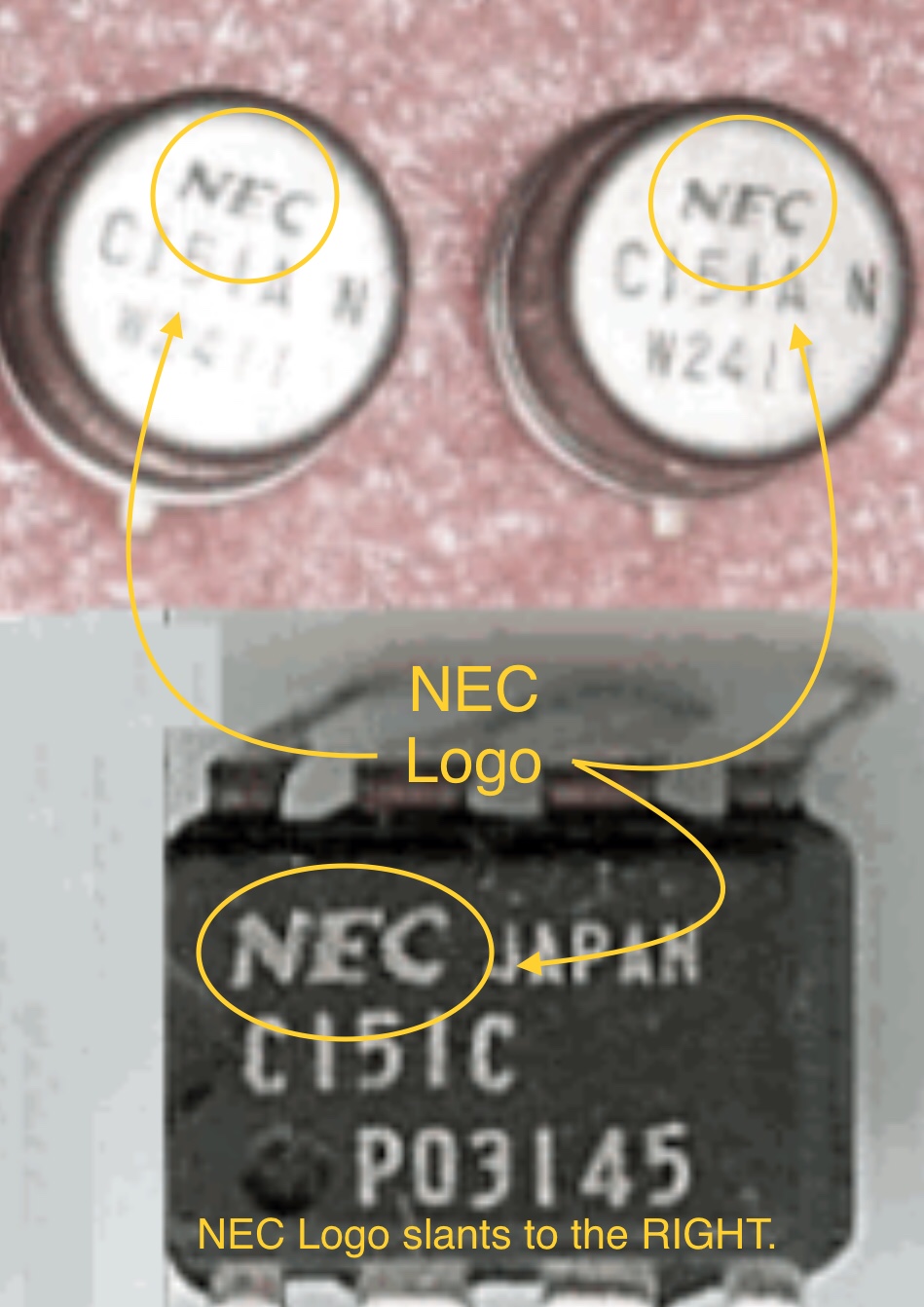

Here is the logo of another period manufacturer that looks much like the National Semiconductor Logo C, and this is Nippon Electric Company stamping as “NEC”:
Not only do the letters in the NEC logo slant toward the correct direction, but the “N” (or the white negative space “S”, depending on which you see) in “NEC” is very off-center on the component’s top, unlike the Motorola “M” or the Solitron “S” or National semiconductor’s “N”... and which would be unusual for a single letter logo anyway, but makes perfect sense for a three-letter logo. Or at least for a single letter logo, everything else that is stamped with that letter should also be way off-center.
But where is the “EC” then?
Is there a possibility of an arc showing where stamping was accidentally rubbed off or even purposefully removed by the art dept. to obscure recognizability?
I really don’t want to speculate too much but I do want to cross off any incorrect possibilities from the list if we can.

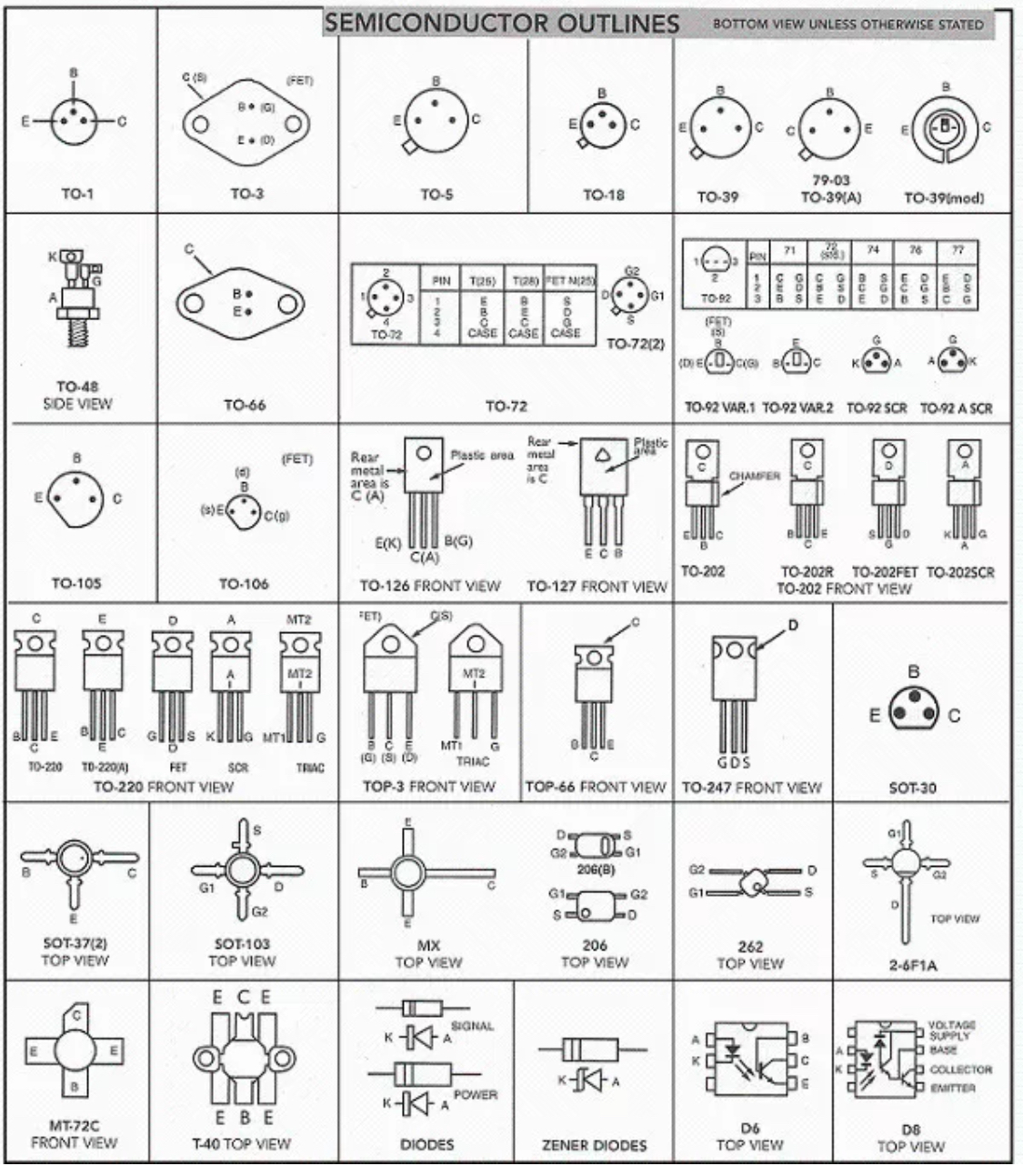

And here are some reference sheets I picked up over the last few years of looking:
