Where is the thread,Tom?Did not find it.
search for: INT: === G R A F L E X === flashgun...anyone?
Where is the thread,Tom?Did not find it.
Where is the thread,Tom?Did not find it.
Sorry would have posted the link but last time I did post a link to INT-thread I was told this were posting a link to selling thread......or click this handy link to the post where Roman talks about some of the specifics.
http://www.therpf.com/showthread.php?t=238355&page=4&p=3727904&viewfull=1#post3727904
@Kroenen77
I figured I'd show off my Anakin Starkiller build and share some of my solutions for securing the rod inside the hilt as well as my "mystery chunk".
First, some photos:
http://i66.photobucket.com/albums/h...Anakin Starkiller V2/_DSC3843_zpsueqn04td.jpg
Here is my 5/16" bore shaft collar. I wanted to use this because then it holds my saber together mechanically a la a set screw.
Mystery Chunk!
http://i66.photobucket.com/albums/h...Anakin Starkiller V2/_DSC3846_zpsvfl30y4h.jpg
This is a 1/4-20 Square Head Set Screw.
Now for the saber all together!
http://i66.photobucket.com/albums/h...Anakin Starkiller V2/_DSC3844_zpseun3ddhx.jpg
http://i66.photobucket.com/albums/h...Anakin Starkiller V2/_DSC3845_zpsvrrmy8wf.jpg
http://i66.photobucket.com/albums/h...Anakin Starkiller V2/_DSC3847_zpstk8uo6hj.jpg
I painted the saber with Krylon Satin Black and then spent about 3 hours sitting at my computer, looking at photo reference with sand paper and my exacto blade. I tried to match as much of the paint job as seen in the Star Wars Celebration. It should also be noted that I put an 1" D-Ring on my saber as well, because I felt the one that came with it was a little too small.
In case anyone was interested, here are the links to the Shaft Collar and set screw I ordered from McMasterCarr.
Shaft Collar with a 5/16" bore.
http://www.mcmaster.com/#6432k13/=yjikls
And here's the link for the Square Head set screw I used. Its threaded for 1/4-20.
http://www.mcmaster.com/#94087a114/=yjikm2
I hope this helps some of you guys!
I love what you've done! diid you use the bearing too?

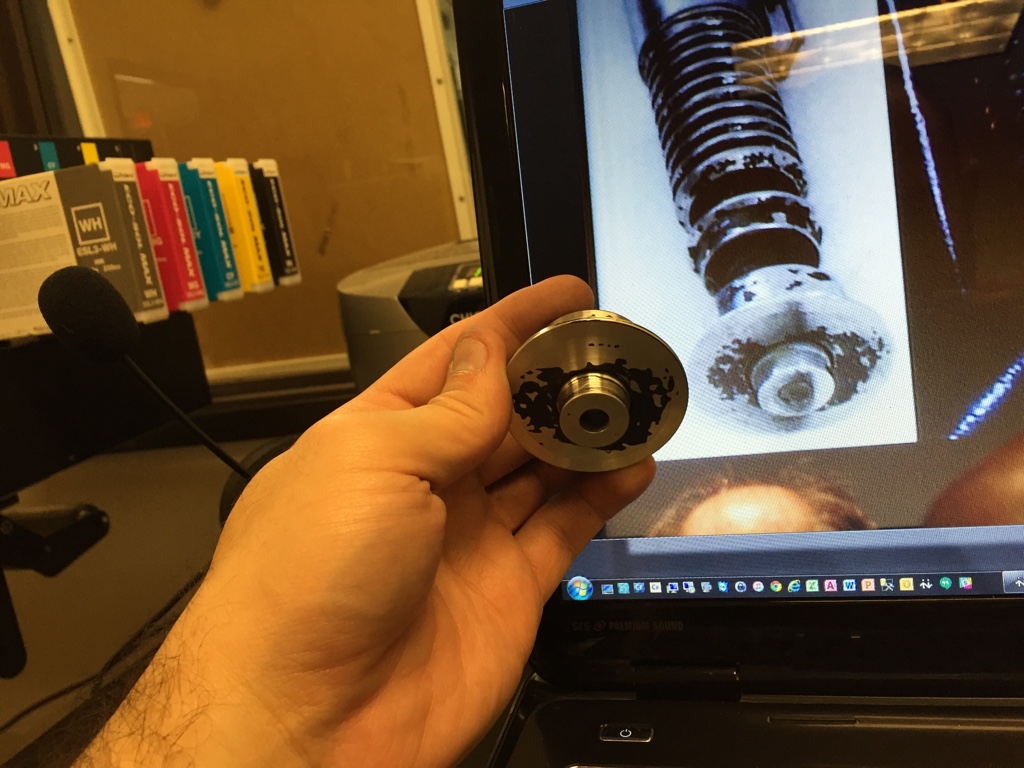

Getting itchy on those stencils... may just do it myself... great work above!
http://www.laout.org/wp-content/uploads/fydry.gif

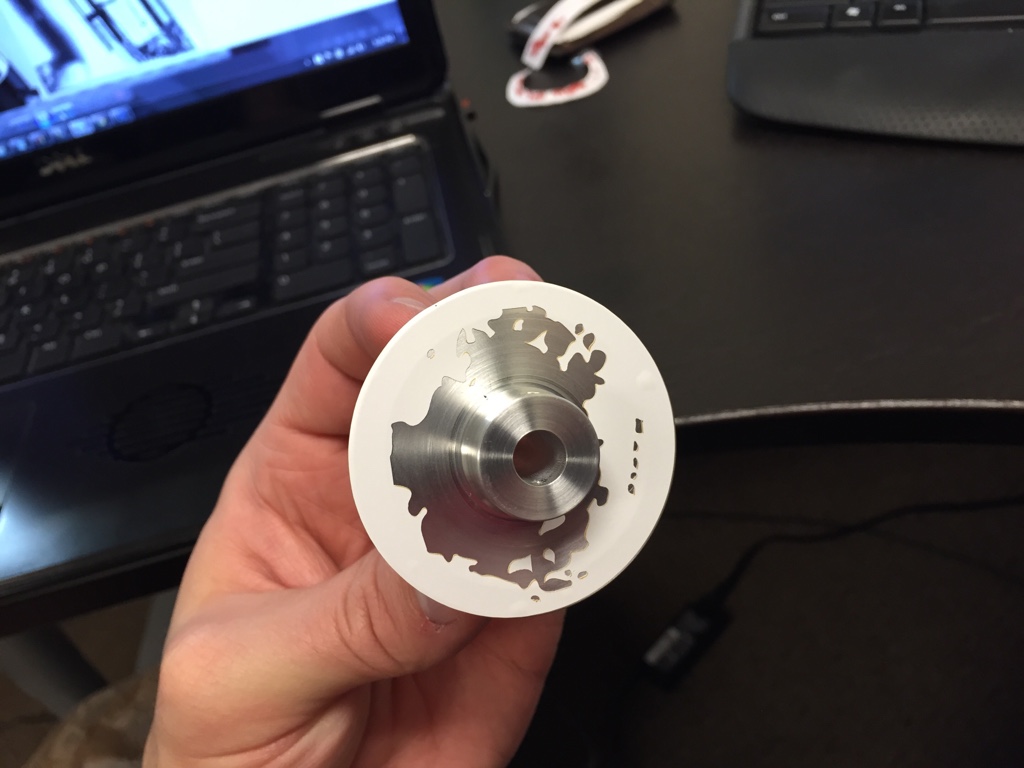

I should be posting a for sale thread for the stencils in the next few days.
Got the clamp in from Trooper_Trent in today and slapped the card in and fastened it to the saber. My lever's yet to arrive so no photos of it until it's complete. However, from the experience of putting this together, I have come to realize how much I love gaffer tape; it's been my solution to all my problems for this saber. To keep the emitter head from falling off: gaffer tape. To keep the emitter from spinning: gaffer tape. To keep the clamp from budging so much: gaffer tape. To keep the card in place: gaffer tape.
I wouldn't say it's as handy in all situations as something like duct tape is but it is damn close.
Just a suggestion (to anyone with a similar issue), but if you would like to have your clamp stay on snugly without gaffer tape, it is totally possible. Once you get your lever, test tightening it (without the card in) as much as you can while allowing it to still slide over the saber into position with the lever open. If you close the lever and the clamp still moves, open it back up, slide it back off, and tighen it one more turn. If you can still slide it back on, try it again.To keep the clamp from budging so much: gaffer tape.
Stencil Run is open BTW.
