Iron Man Mark 39 Gemini MK-39 Custom Build PVC Foam

Discussion in 'Marvel Costumes and Props' started by Arena51, Apr 7, 2015.

Tags:
  1. Arena51

    Arena51 New Member

    Trophy Points:
    3
    Hi everyone.

    I guess I was overdue to start a progress thread (also to help my memory in my old days). Since I am in good shape, I should be able to provide fairly quick updates on my current status. I might ask for tips on electronics (servos, programmable LEDs, jet exhaust, etc.) since I never did my own before (except basic soldering).

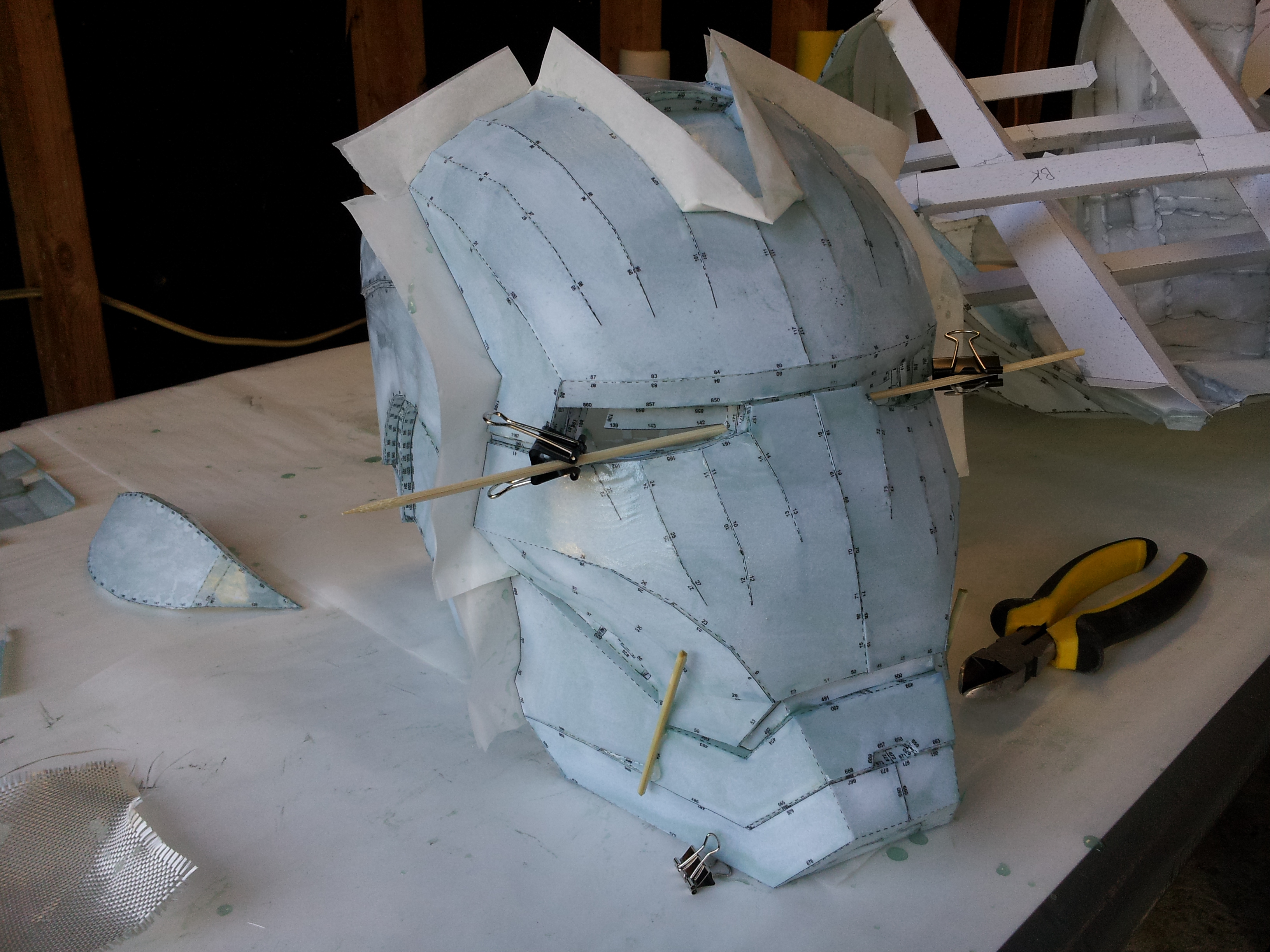

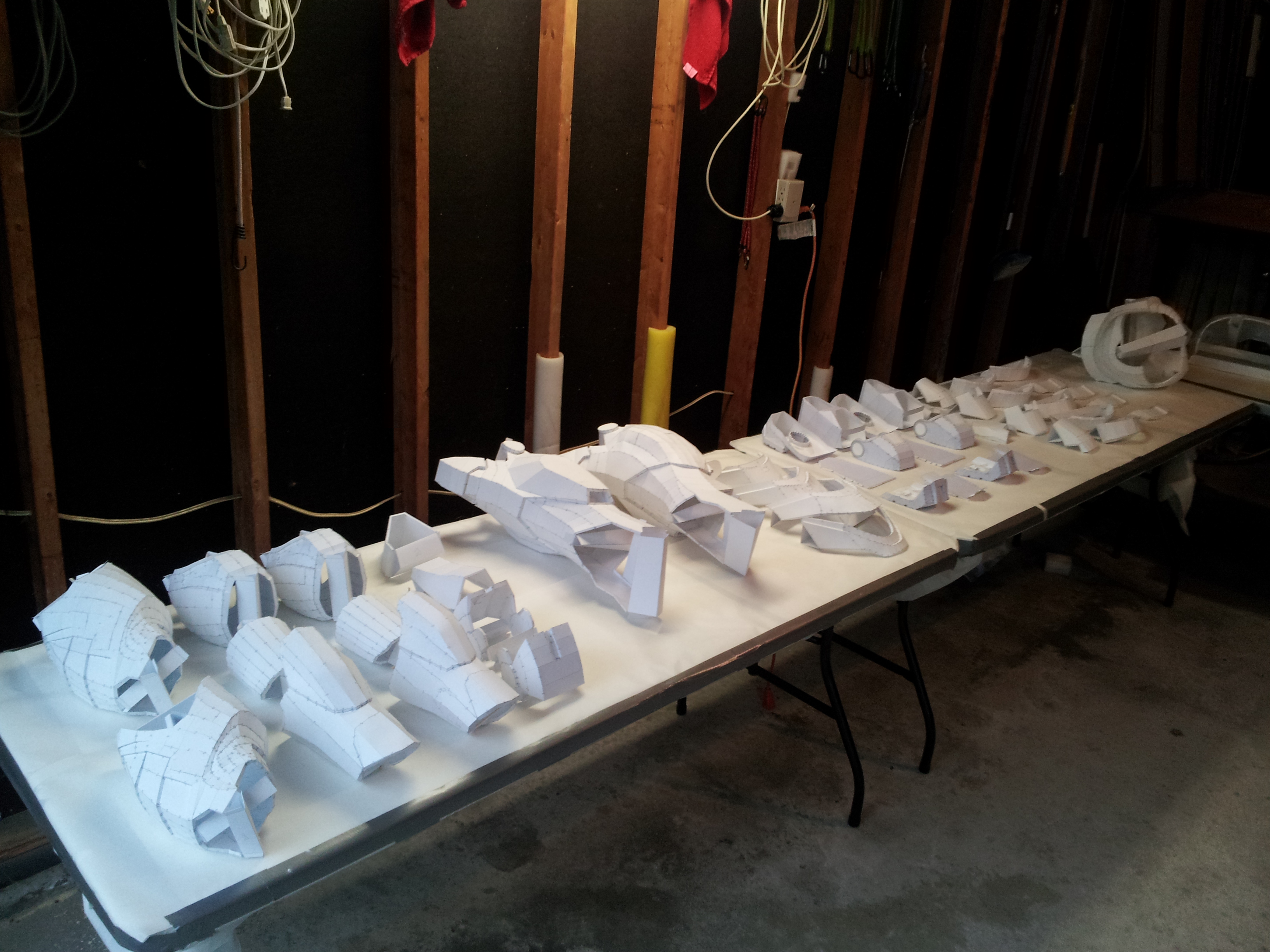

    The story started when I was doing a Mark 4/6 and wanted to have a different paint scheme. Then came the promo pics for IM3 and I found my target with Mark 39. I was midway in my fiberglassing the pep for my MK 4/6 which mean only one thing: re-start from scratch.

    20130922_190731.jpg 20131012_153109.jpg

    Since winter was coming (thanks John Snow...), working in my garage was no longer an option up here in Canada so I had to move shop to the basement. This meant that fiberglass was no longer an option since it is too toxic to work indoors.

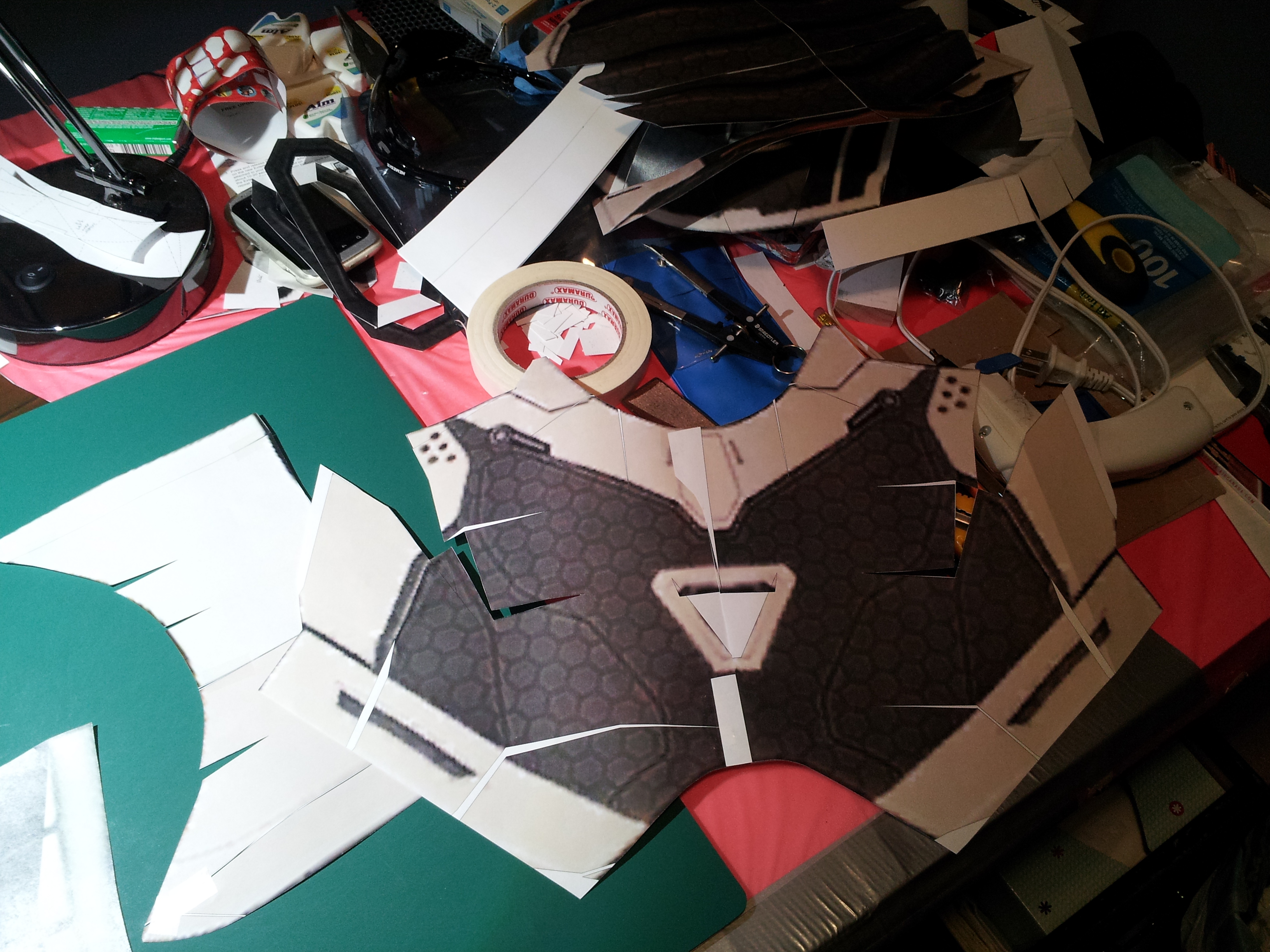

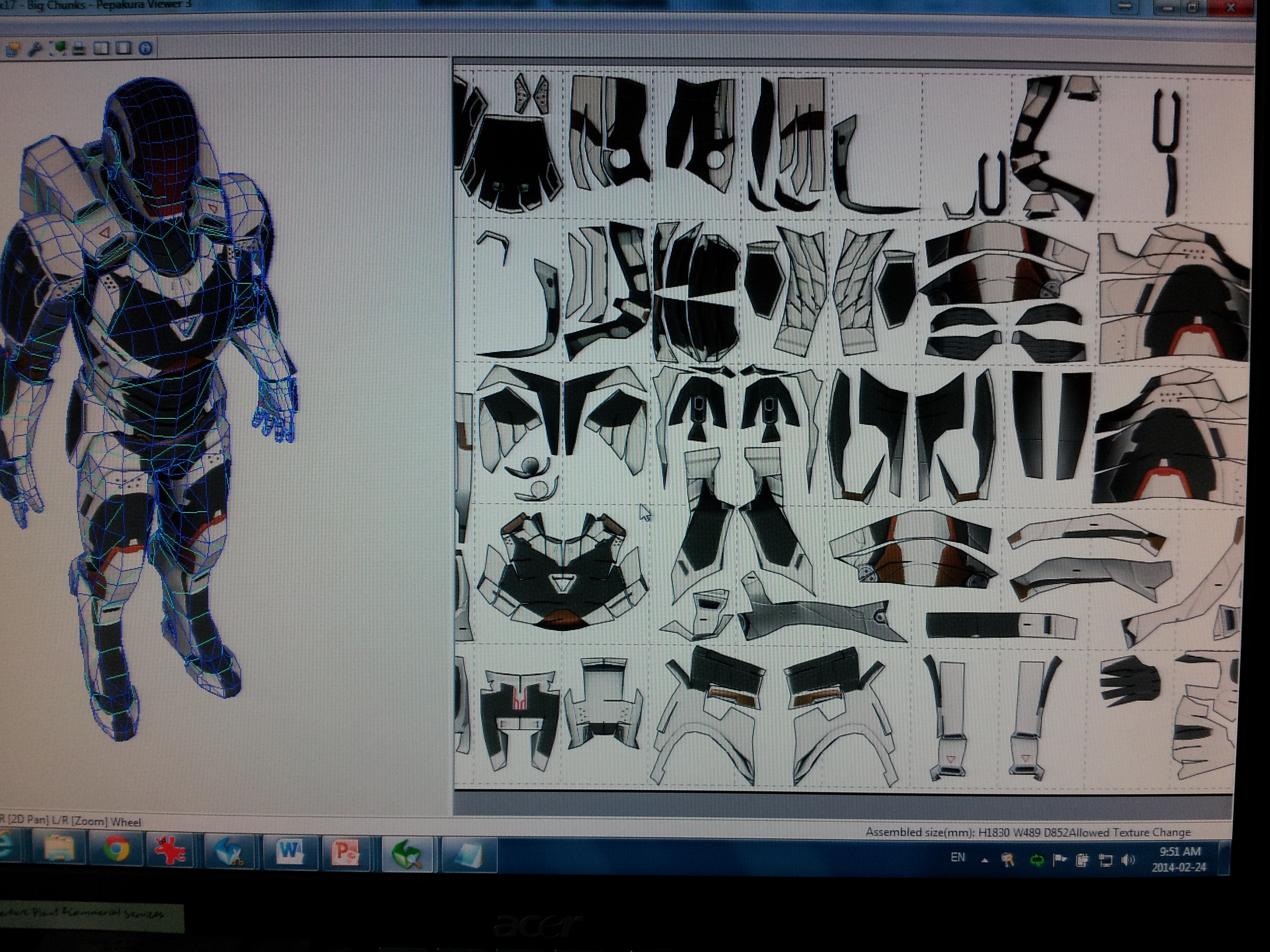

    The other constraint was that I did not find accurate Pep files out there at the time (Pepcowboy did very good files when I was 6 months in), so I decided to get a 3D model extracted from a game (I found someone in Europe who did it, a few months later, a generous soul posted a bunch of them on the RPF) and used Pepakura to scale and unfolded them for my size. I did the unfold on 11 x 17 Ledger pages, color printed at Staples, then cut the patterns in PVC foam (Sintra).

    20140224_095148.jpg 20140203_205346.jpg

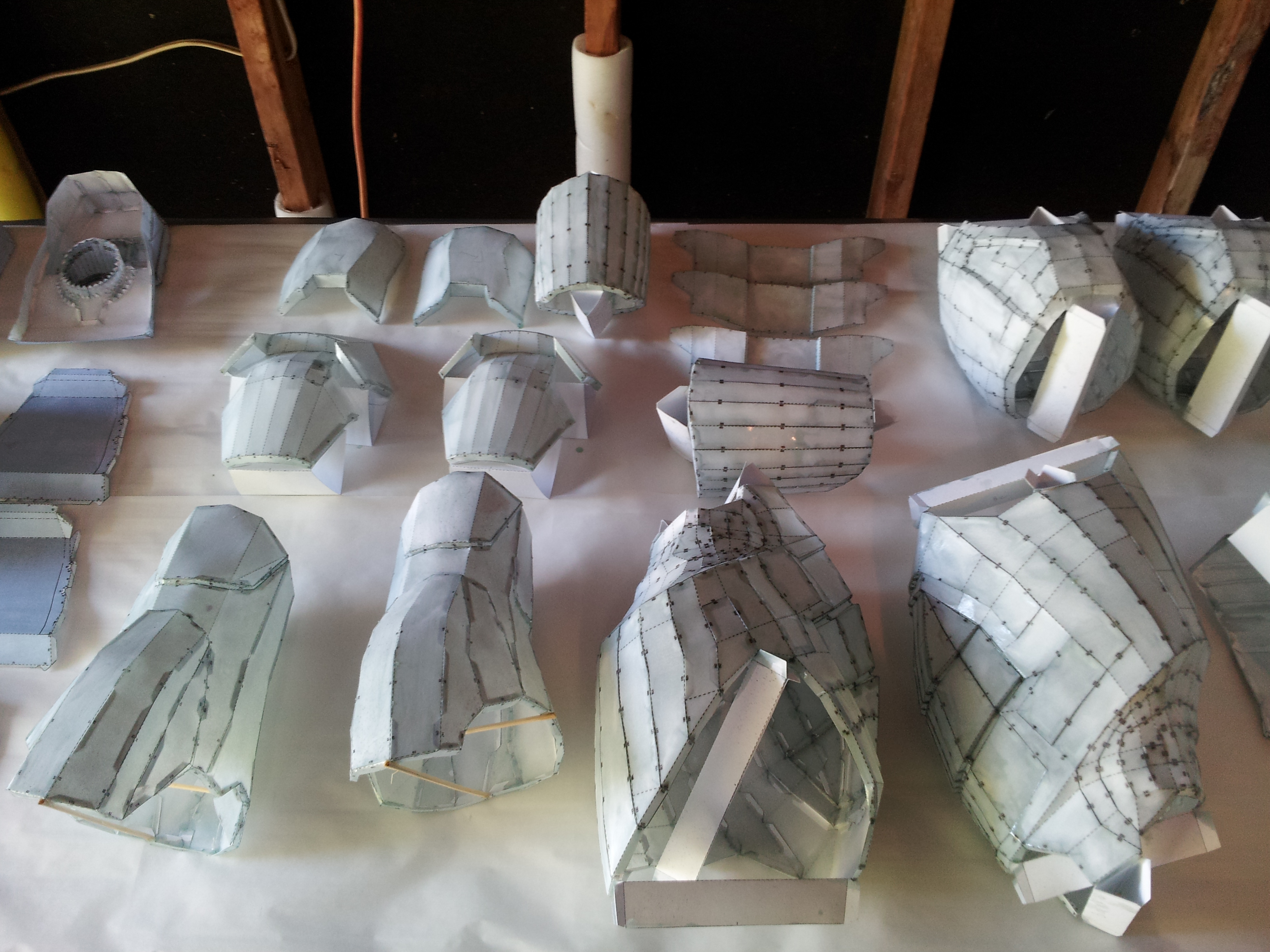

    The main advantage for me is that I worked with PVC foam before, and this lower density version I got (which seems to be standard nowadays) is much lighter and easier to cut and shape. After a few weeks, I had basic components in progress.

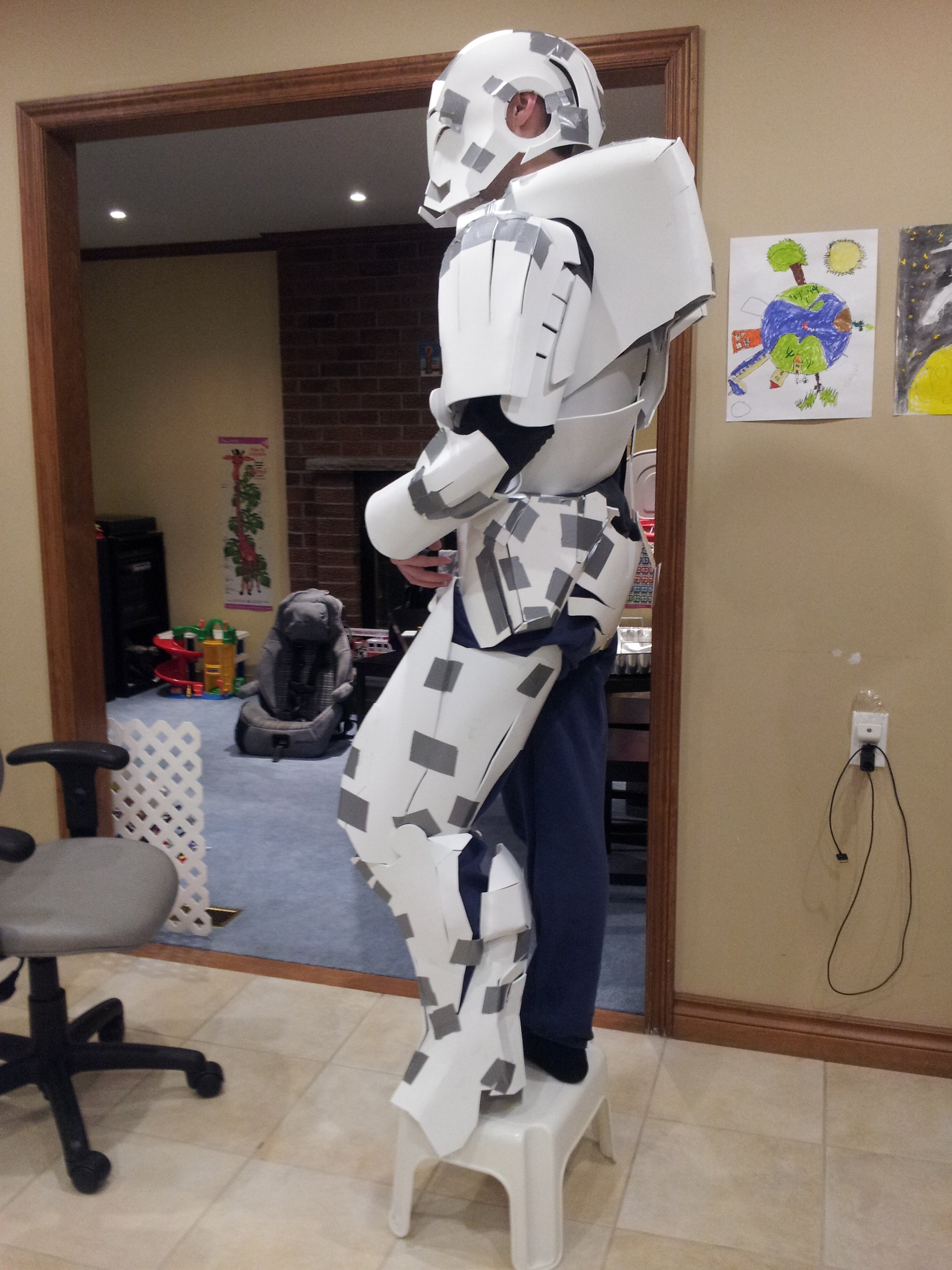

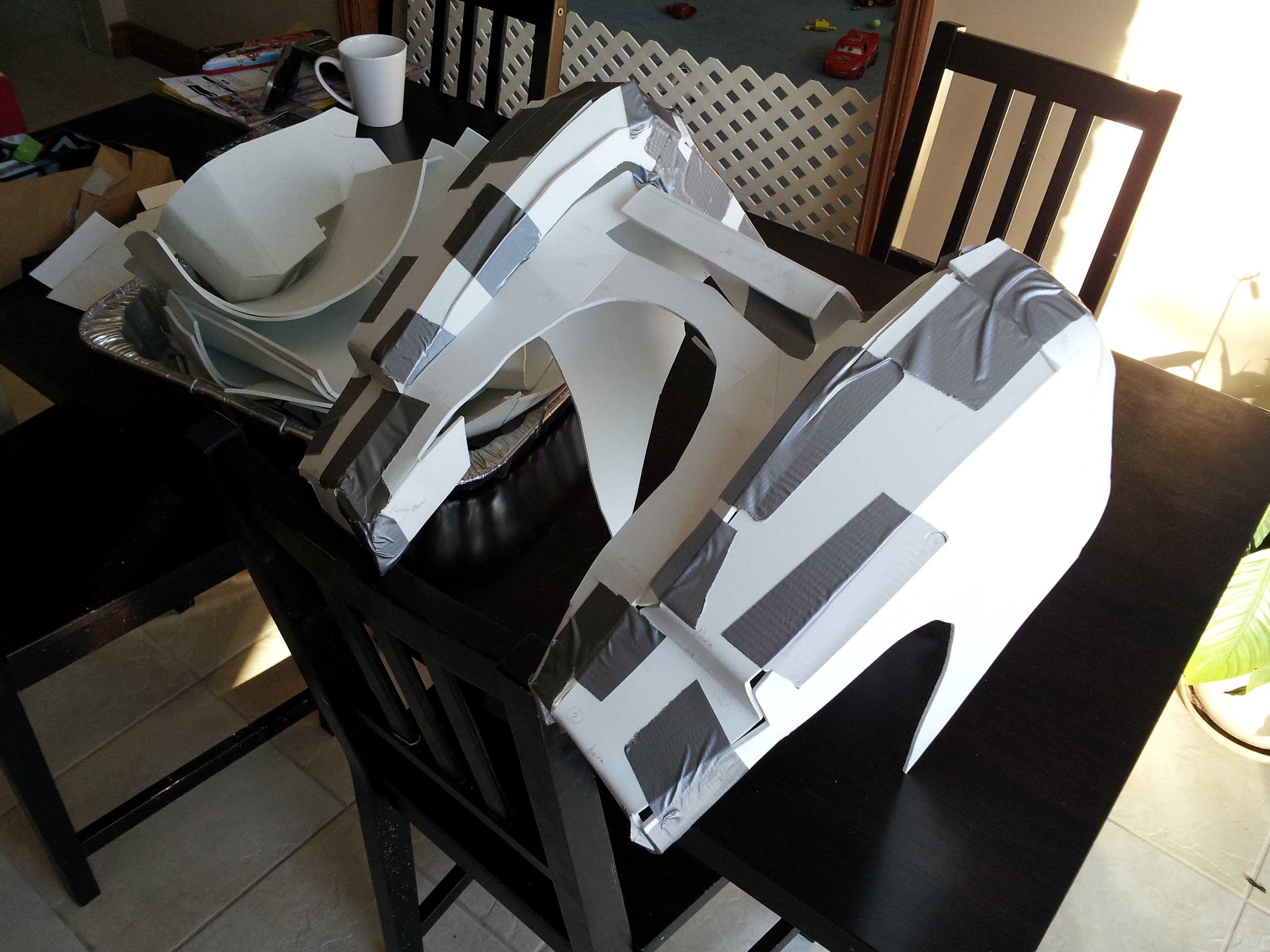

    and ready for a duct tape dry fit to see how the pieces were fitting together:


    More on my next post...


    Attached Files:

    Last edited: Apr 7, 2015
    George likes this.
  2. Arena51

    Arena51 New Member

    Trophy Points:
    3

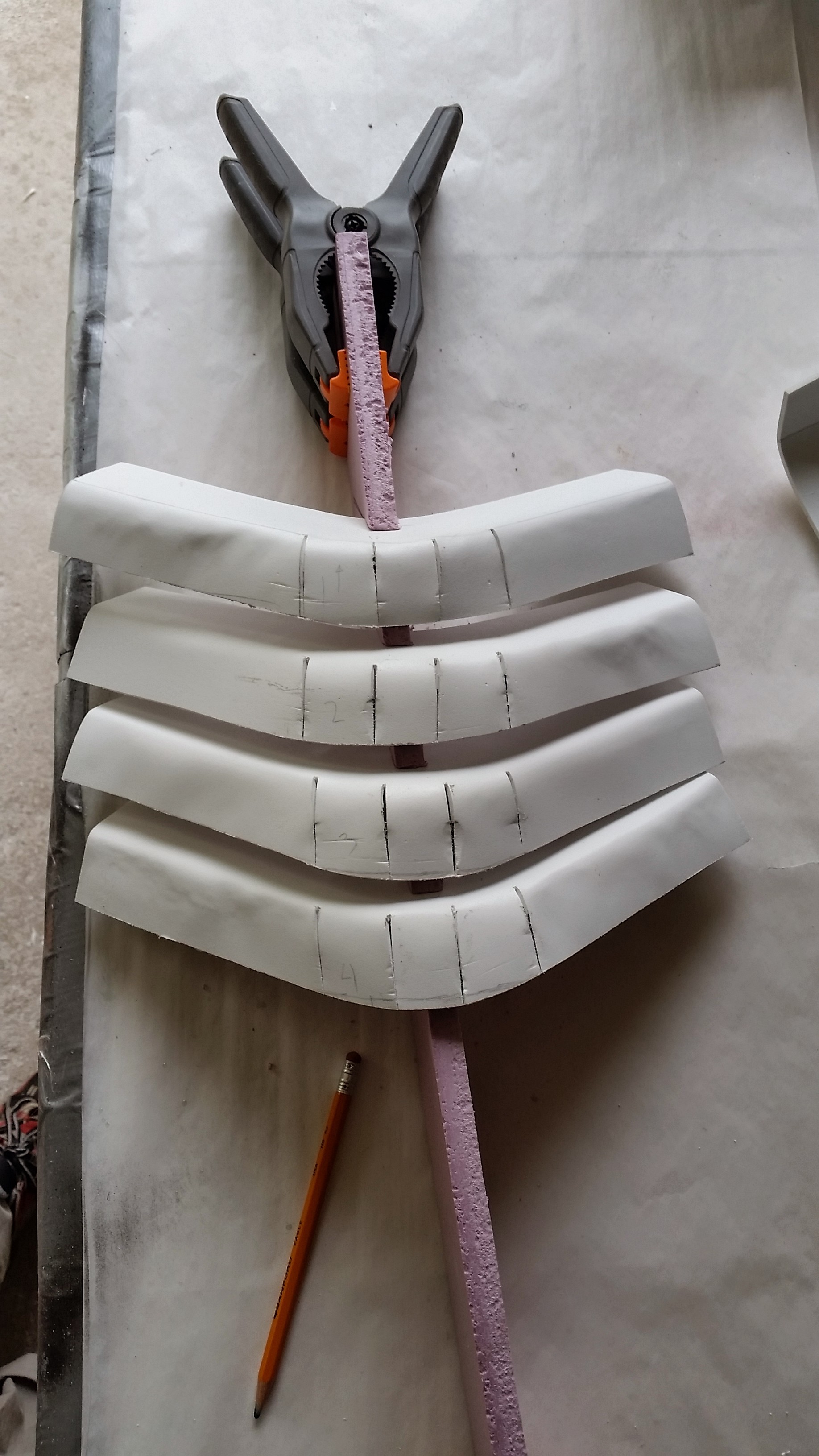

    The Abs were a bit of a challenge as they are truly "architectural" with big gaps in between. After spending a few evenings pondering about the best way to go, I freehanded a design with cardboard using the measures from the printed file. After playing with some angles, I settled for something resembling this:

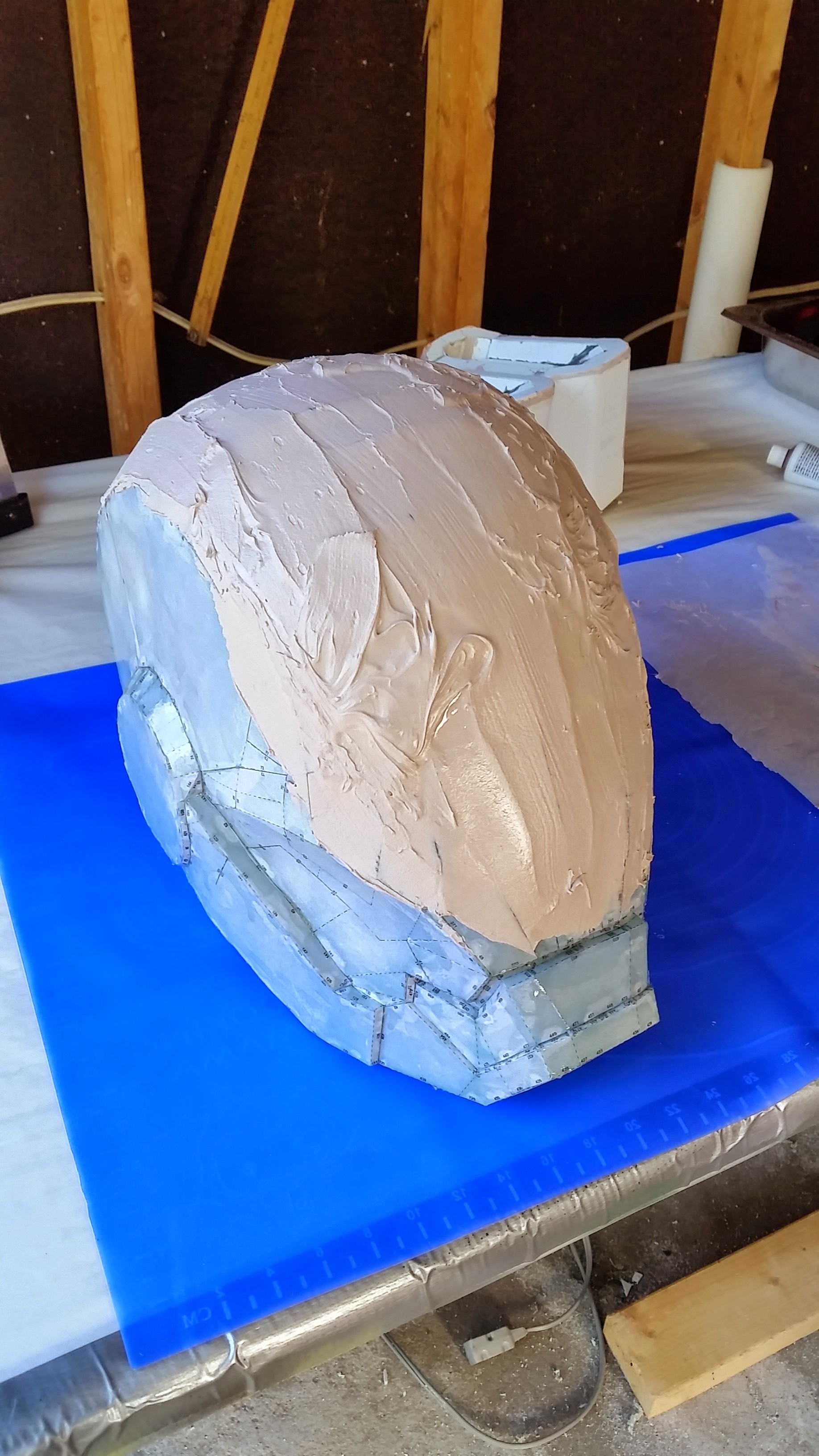

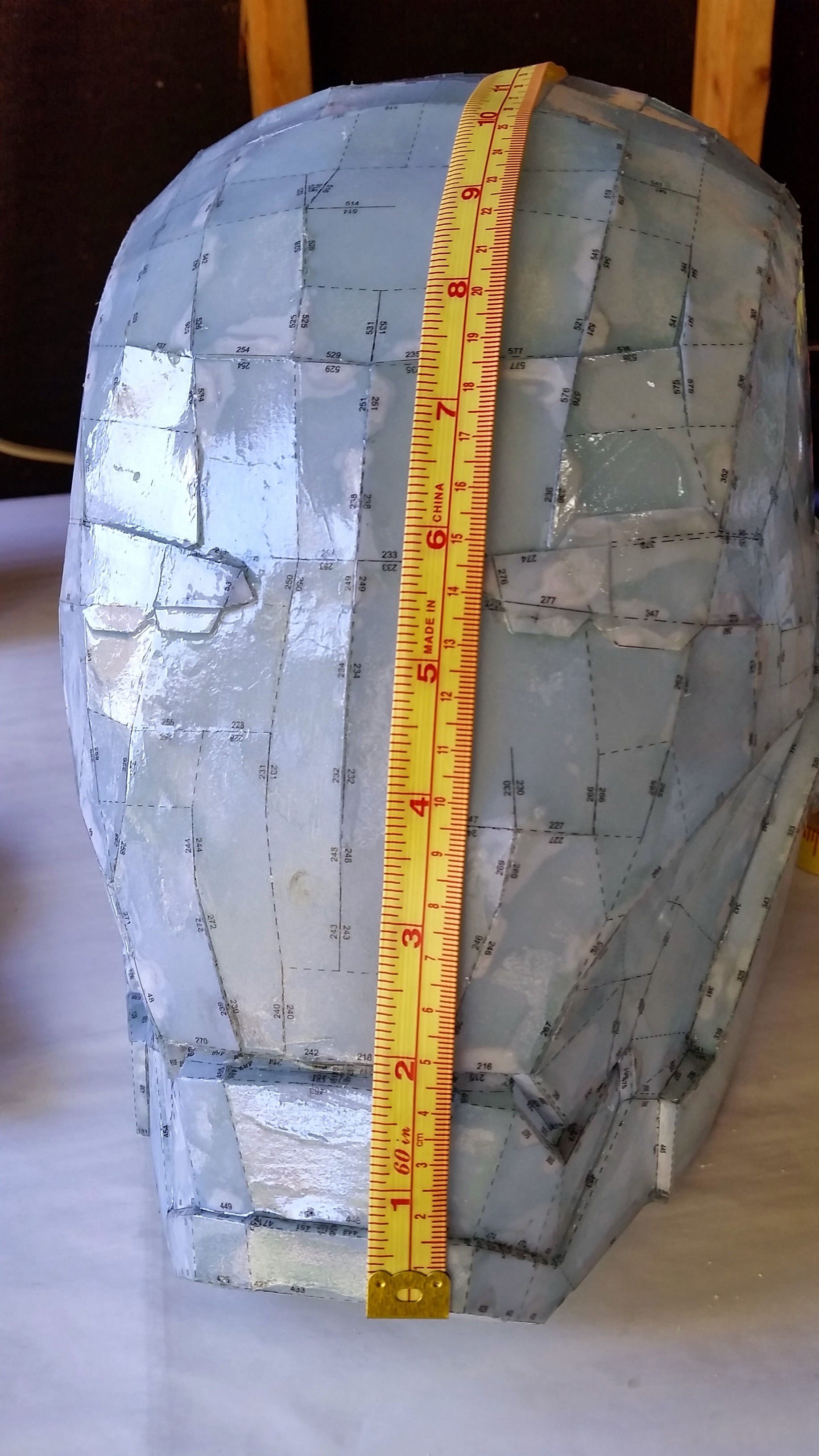

    The helmet was also an issue as the game version was too rough for my taste to be usable. Fortunately, when I was initially doing research, I came across a non-unfolded PDO which I liked (I later found it was from JTM, thanks man) and did a fiberglass job on pep (it was end of summer by then):

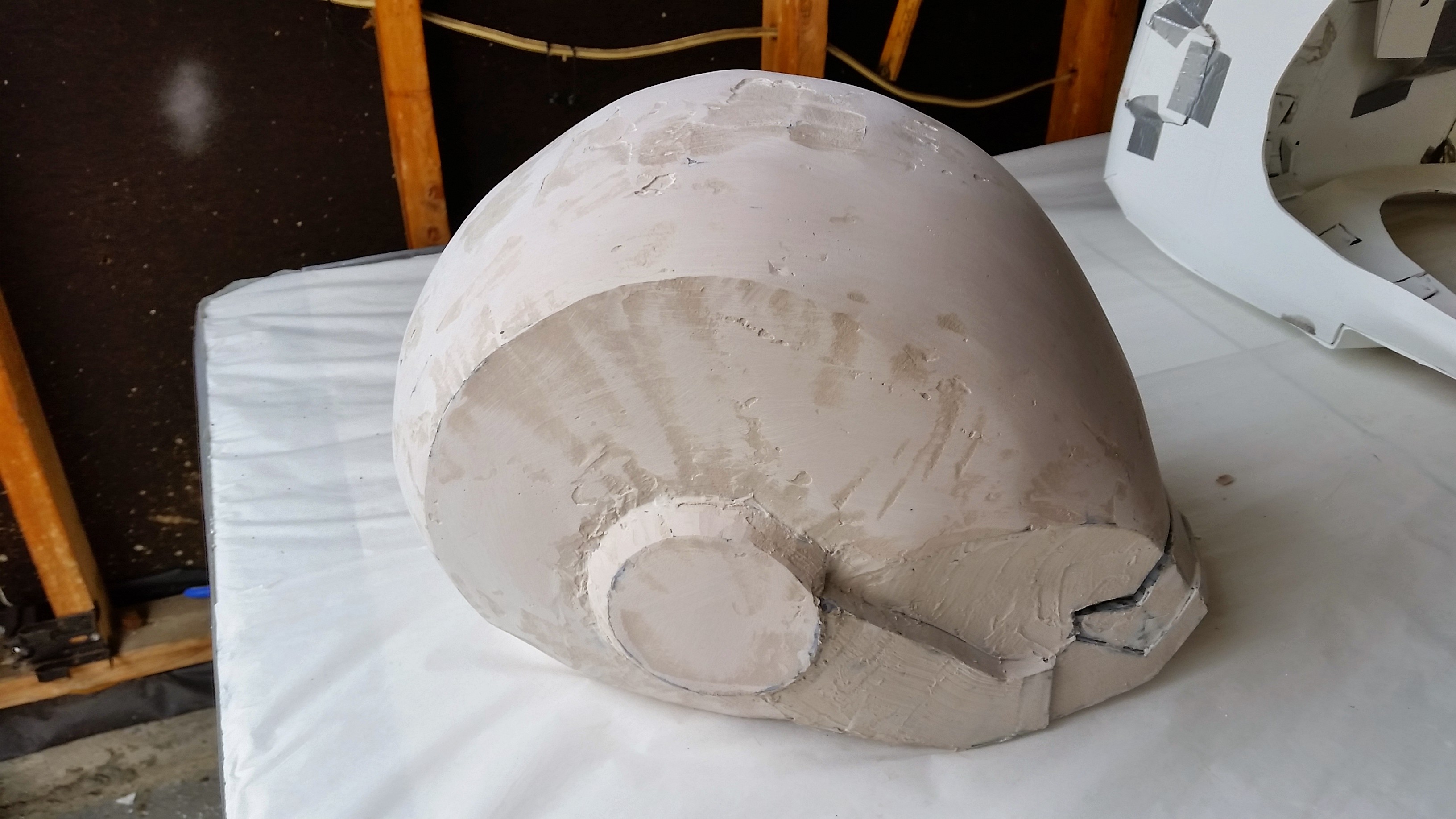

    20140927_144644.jpg 20140927_160153.jpg 20141016_114101.jpg

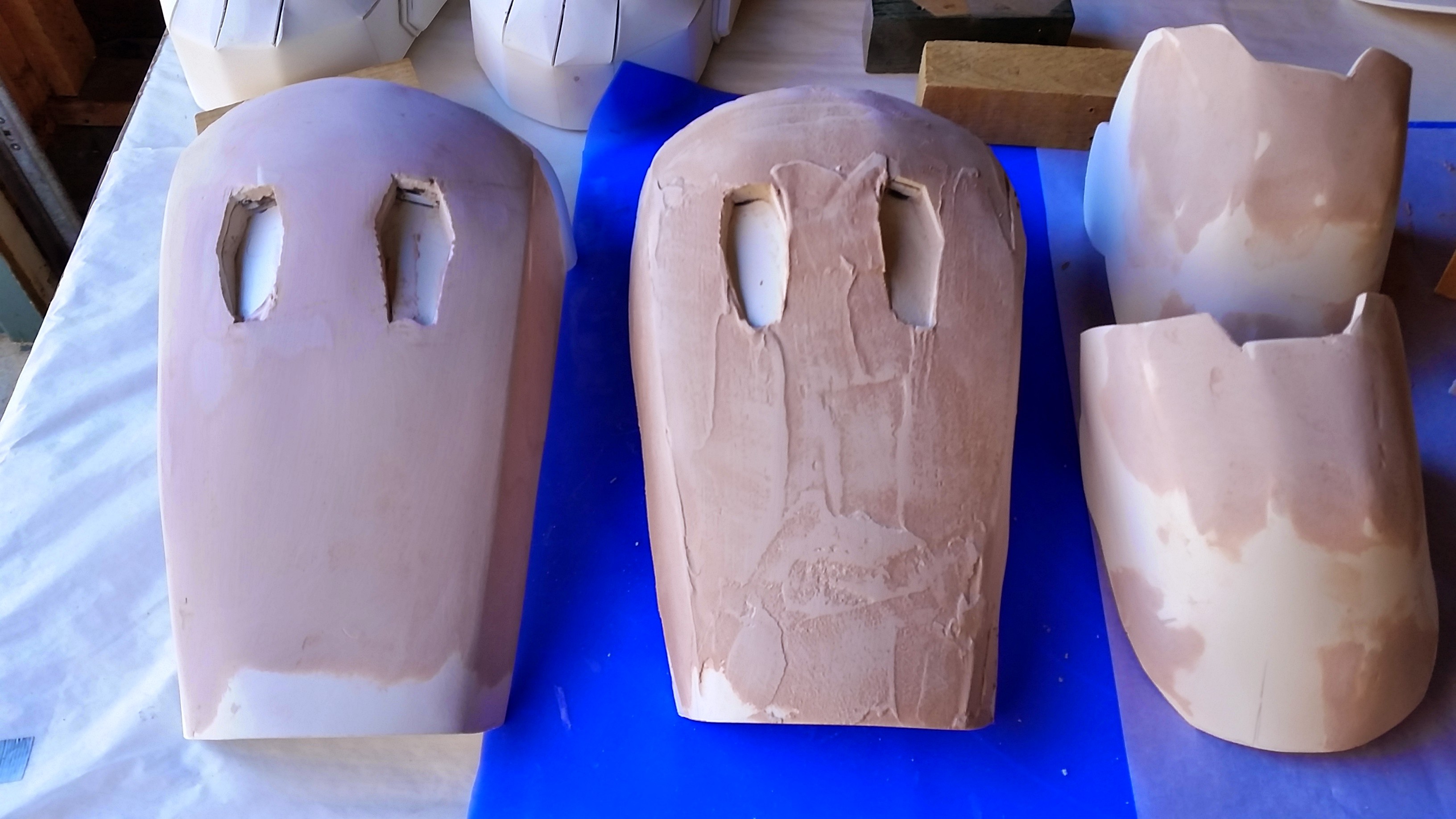

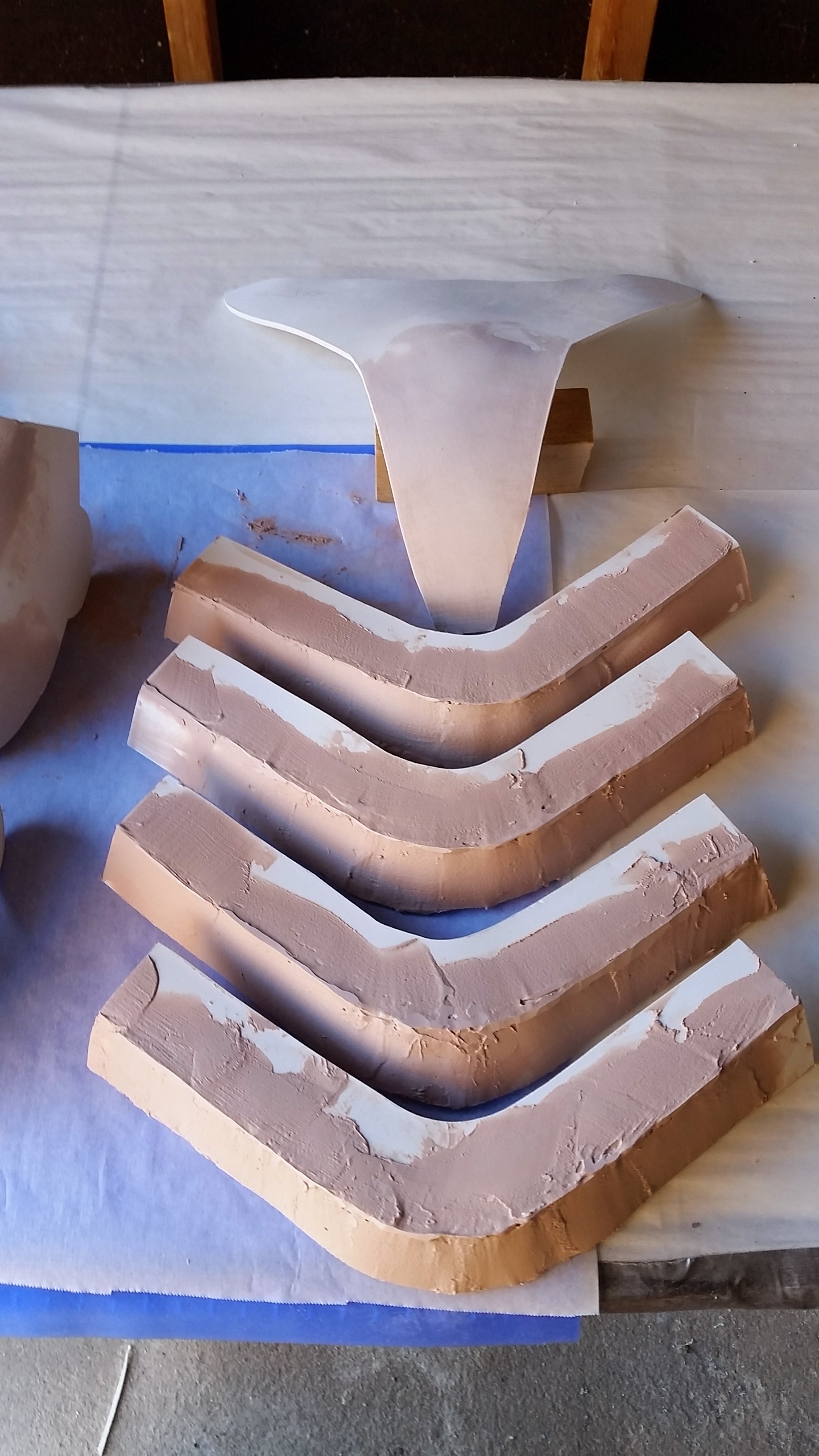

    Then came time to Bondo other parts as well:

    20141023_142555.jpg 20141023_142602.jpg

    Second winter was coming soon...

    Last edited: Apr 7, 2015
    George likes this.
  3. Arena51

    Arena51 New Member

    Trophy Points:
    3
    ... and it was time to think about what the final product should look like. From previous experience, the combination of "texture" and "reality" is what gives the final product an edge. I decided to go for "texture" on the side/ribs section by cutting individual pieces according to the pattern from the 3D model from the game.

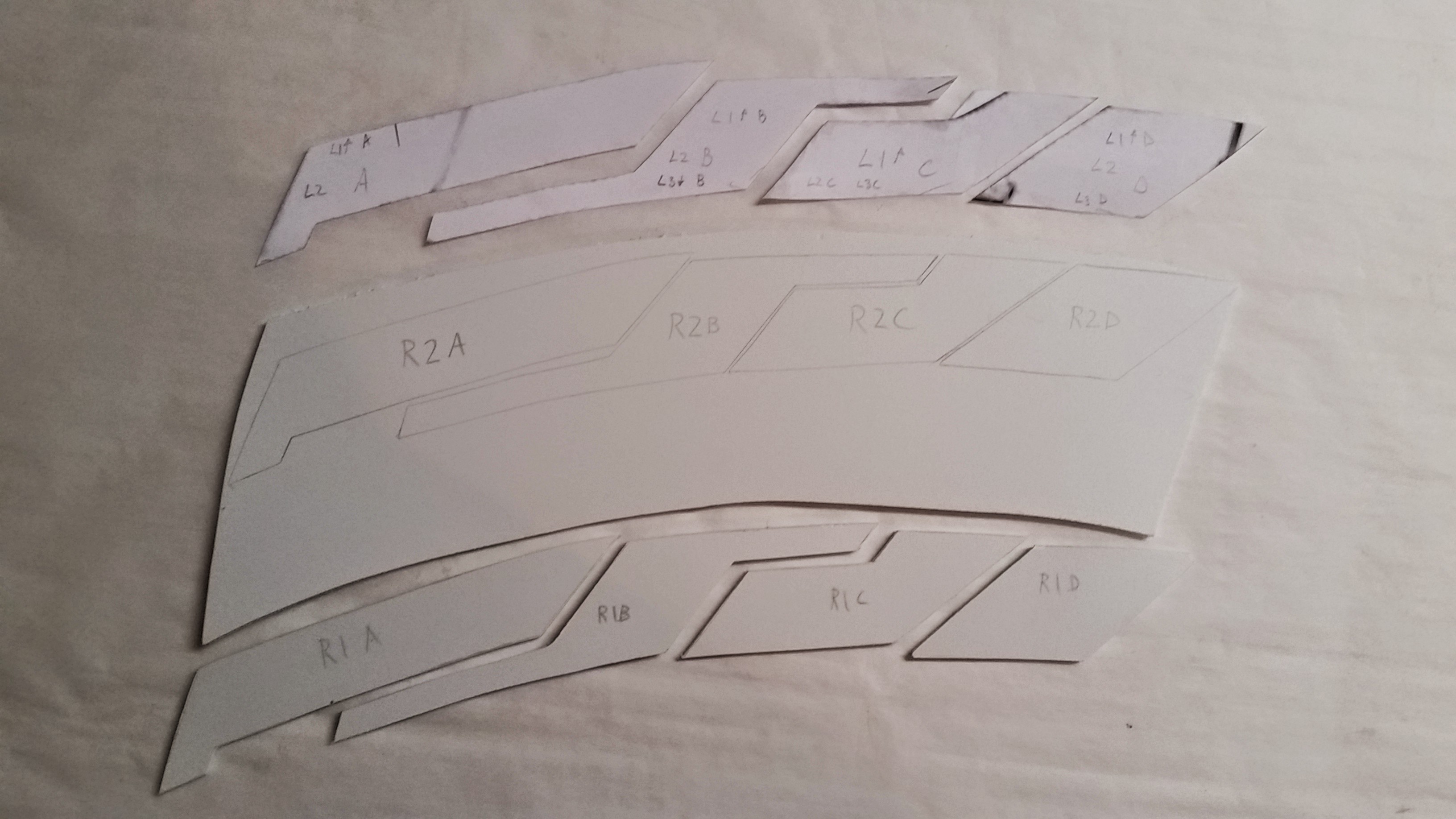

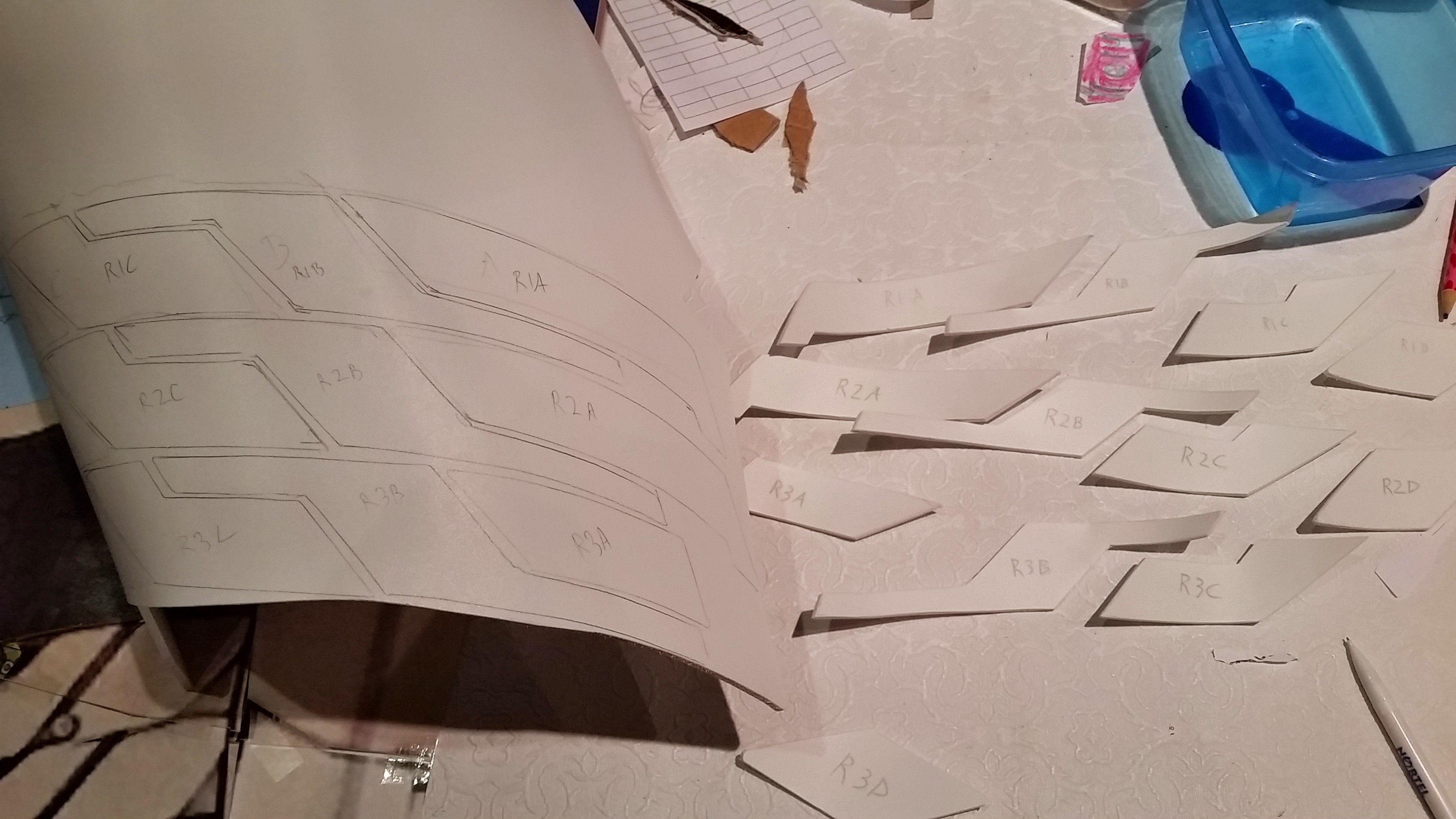

    Here are the cut pieces (R stands for Right, L is ...), curved (I use boiling water for this, makes it so easy. Used nitrile gloves to avoid accidental burns), and glue (I use PVC cement).

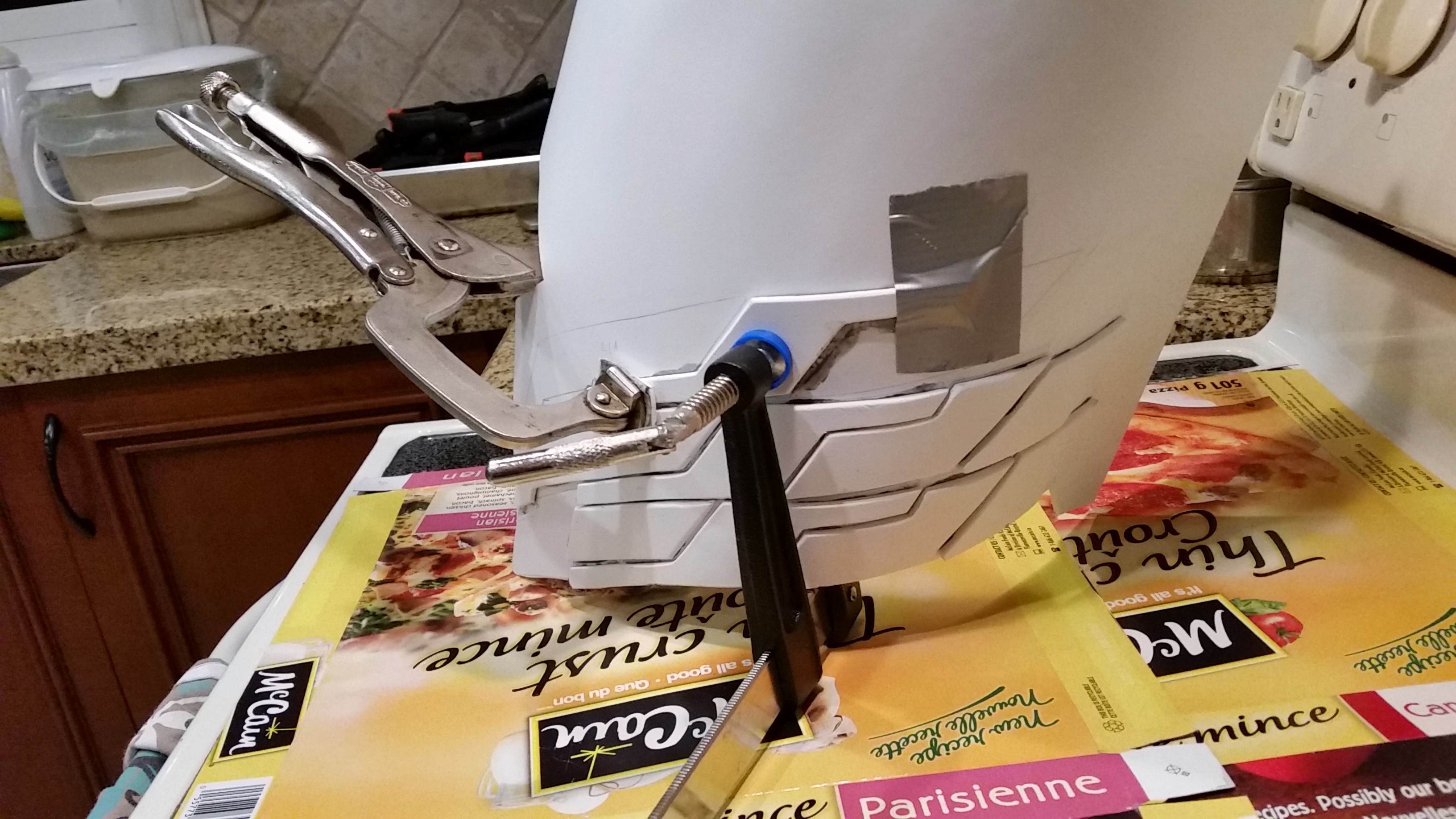

    20141006_220601.jpg 20141007_163207.jpg 20141023_203153.jpg 20141024_214209.jpg

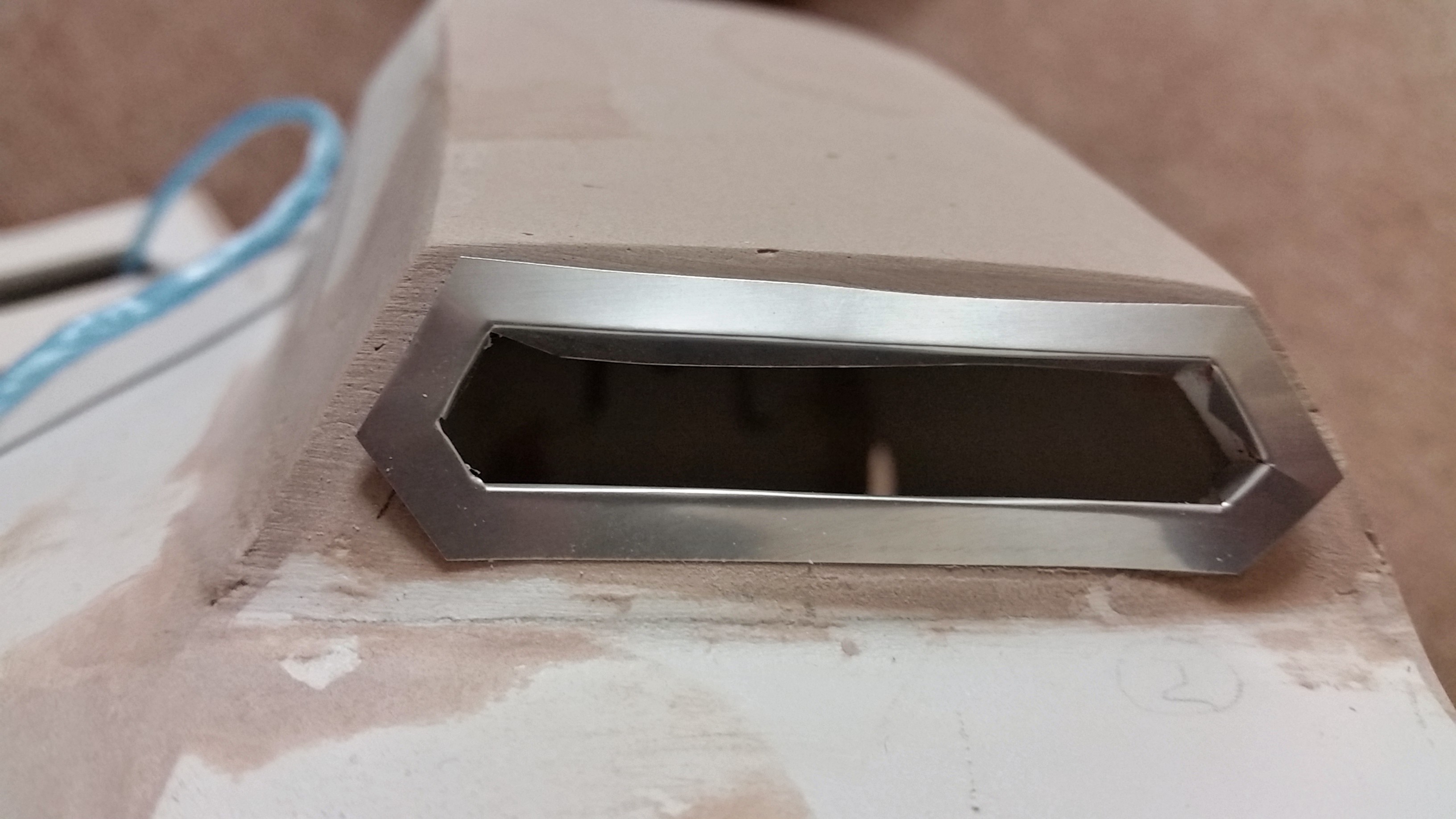

    For the "reality" part, I looked for ways to have metal pieces here and there to get a real metallic feeling. I then had an idea to use one of my fuel source as raw material. Bonus: lightweight and free...

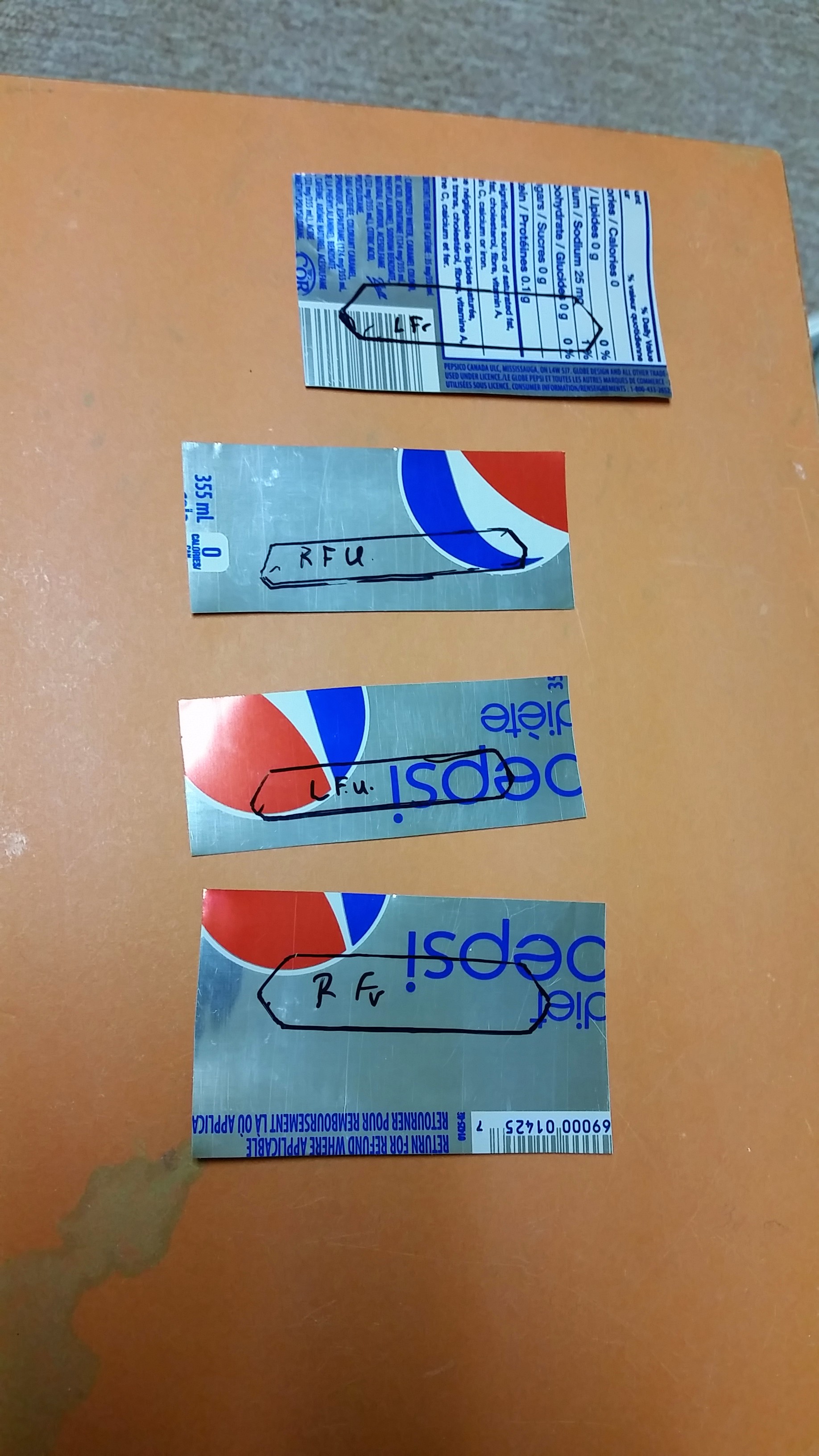

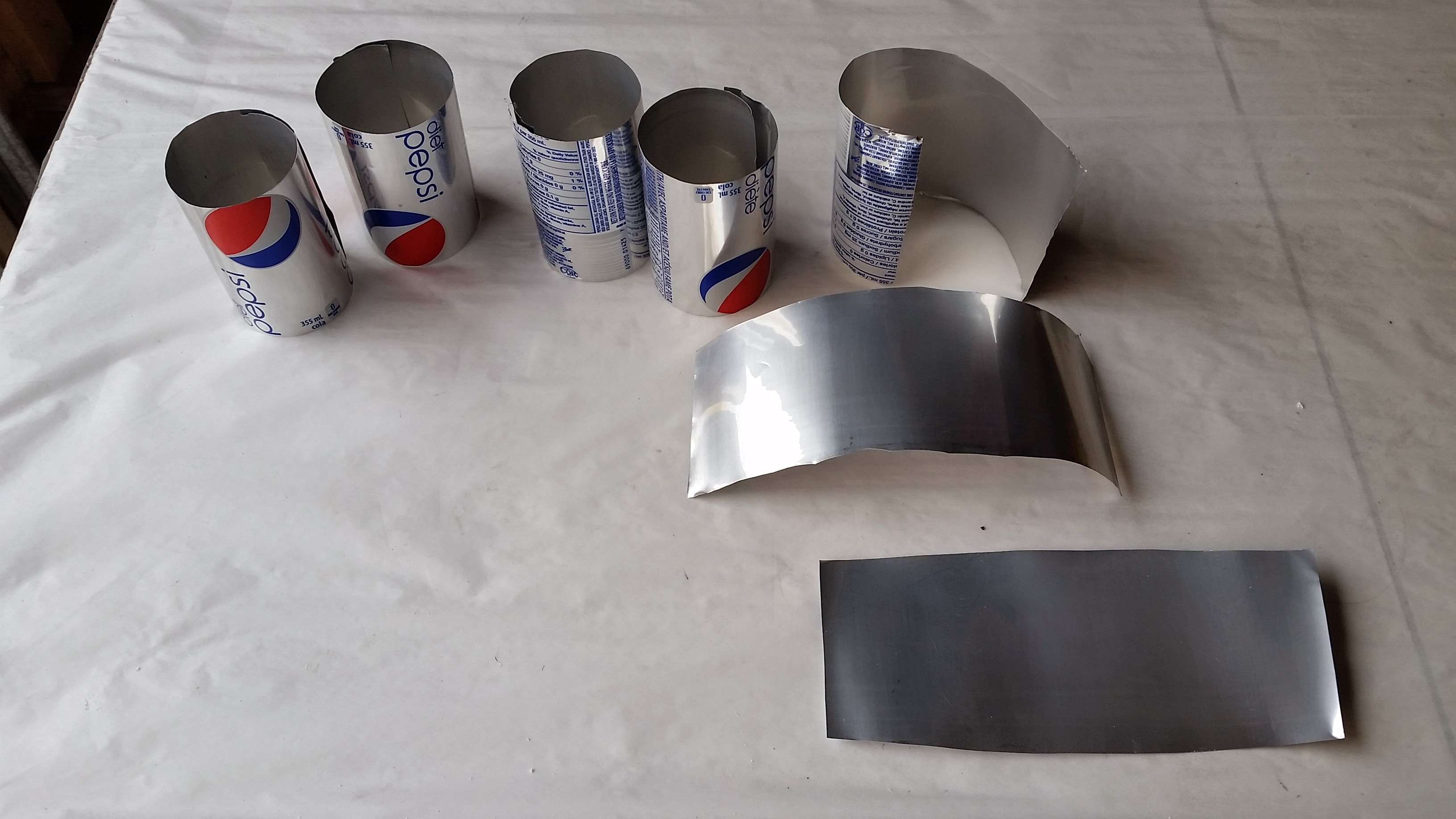

    20141028_112312.jpg 20150125_183713.jpg 20150125_185156.jpg

    That's it for this week, hopefully I can make these updates a weekly thing.

    Last edited: Apr 8, 2015
    George likes this.
  4. iamoris

    iamoris New Member

    Trophy Points:
    2
    Hey man, where did you get the pepakura files for this? Been looking every where :/

  5. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    Any updates on your build,Arena51? :popcorn

  6. Arena51

    Arena51 New Member

    Trophy Points:
    3
    iamoris: you have 2 options.

    Option 1: If you want to do fiberglass Pepakura, you can use Pepcowboy files located at http://www.therpf.com/showthread.php?t=196988. When I started on my Mk39 project, these were not available yet so it is not what I used. However, they seem to be fairly accurate. You might need to tweak them here and there (e.g. if you want to have a joint between the shin and thigh) depending on your preferences but they look pretty much on the spot from the get go.

    Option 2: What I did was to use the 3D model that was extracted form the game (the .obj file) and import it in Pepakura Designer, scale it to your height (I am 5'10", I scaled for 6' tall) and unfold. As I mentioned, I got my file from a guy in Europe but Balmung has released a bunch of them so you can get it from him at http://www.therpf.com/showthread.php?t=183705

    George: I will post an update today.

    George likes this.
  7. Arena51

    Arena51 New Member

    Trophy Points:
    3

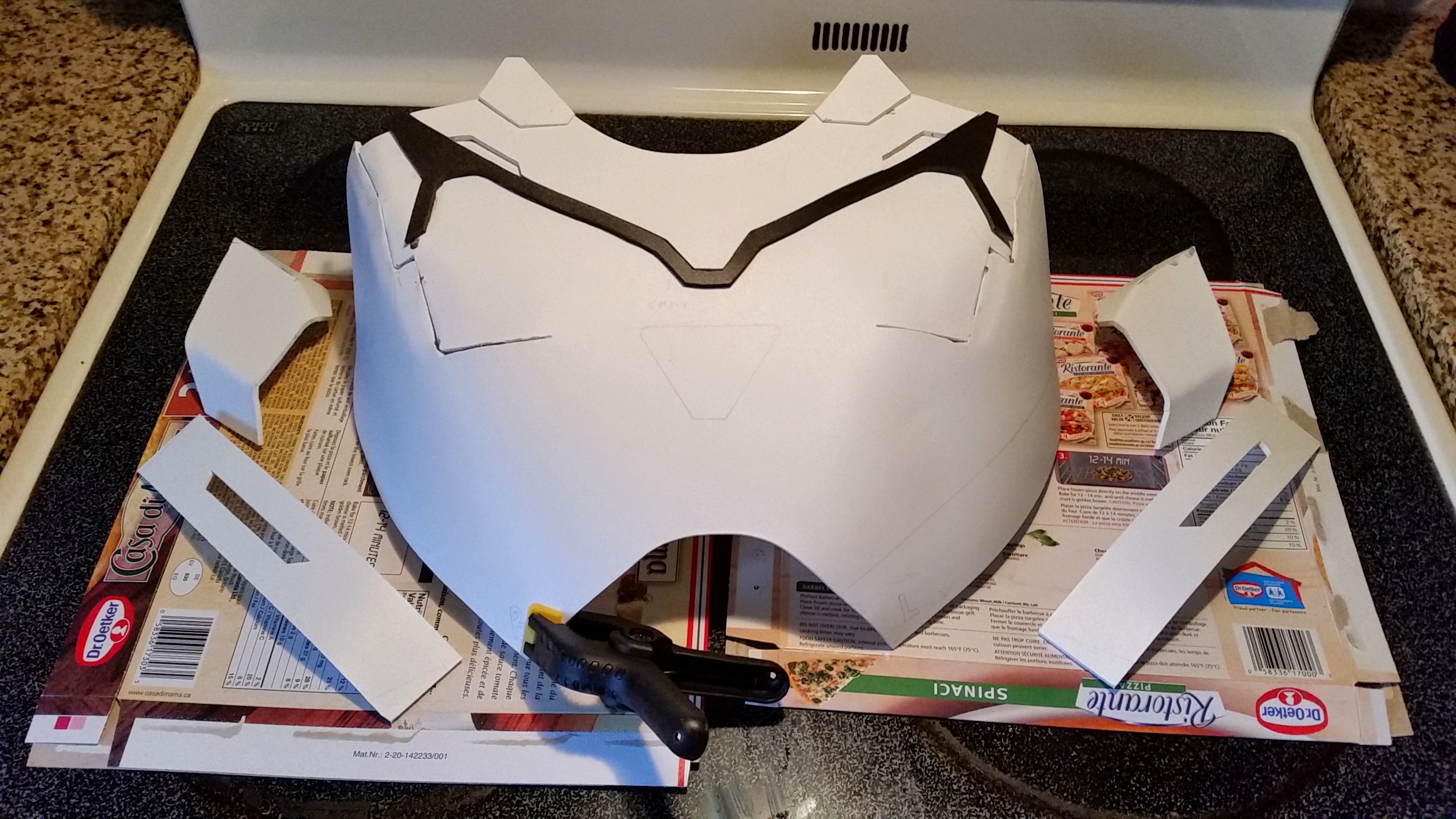

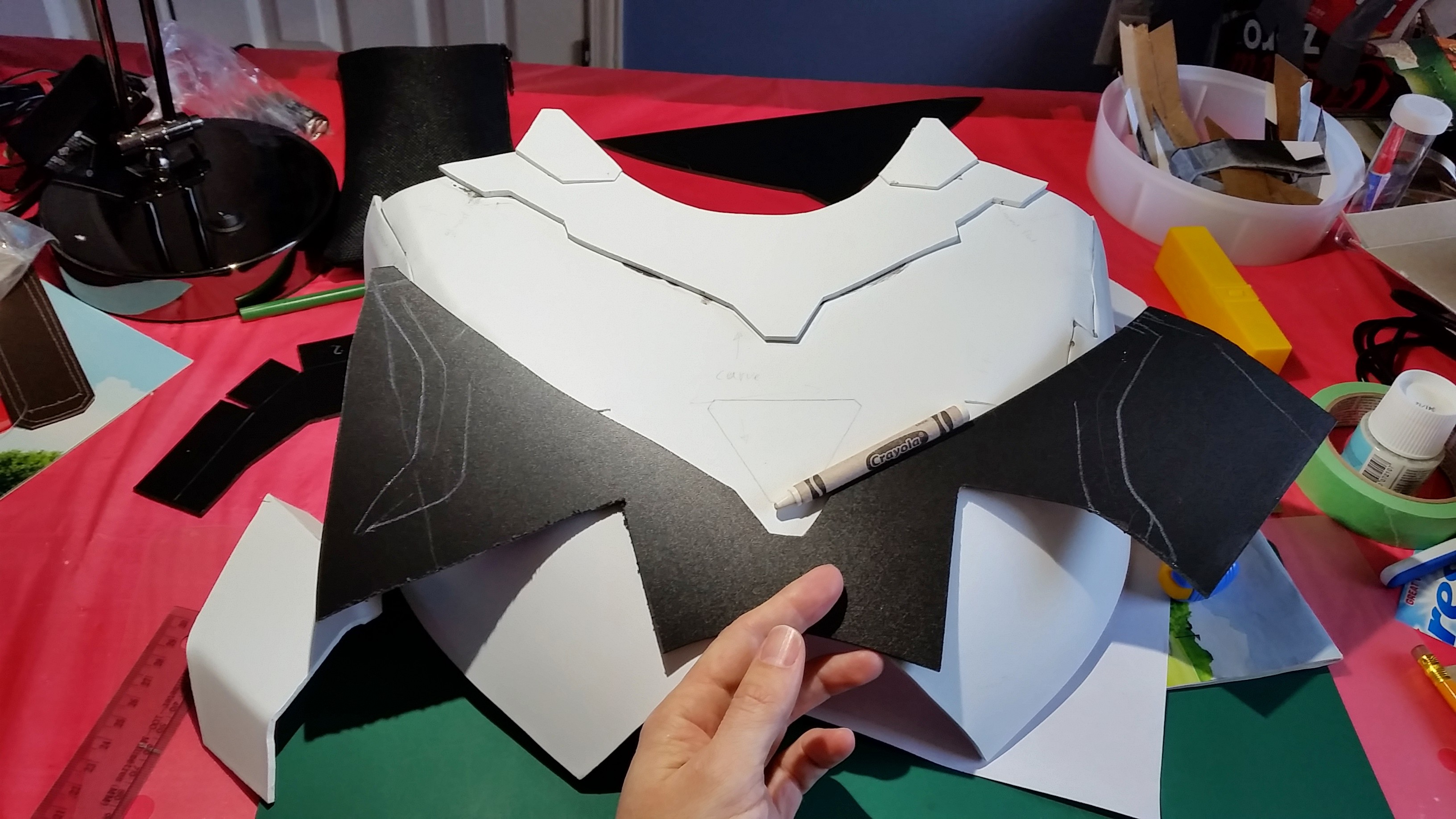

    Following up on the "texture" conversation, I added some layers to the chest using both white and black PVC foam, followed-up by some good old PVC cement.

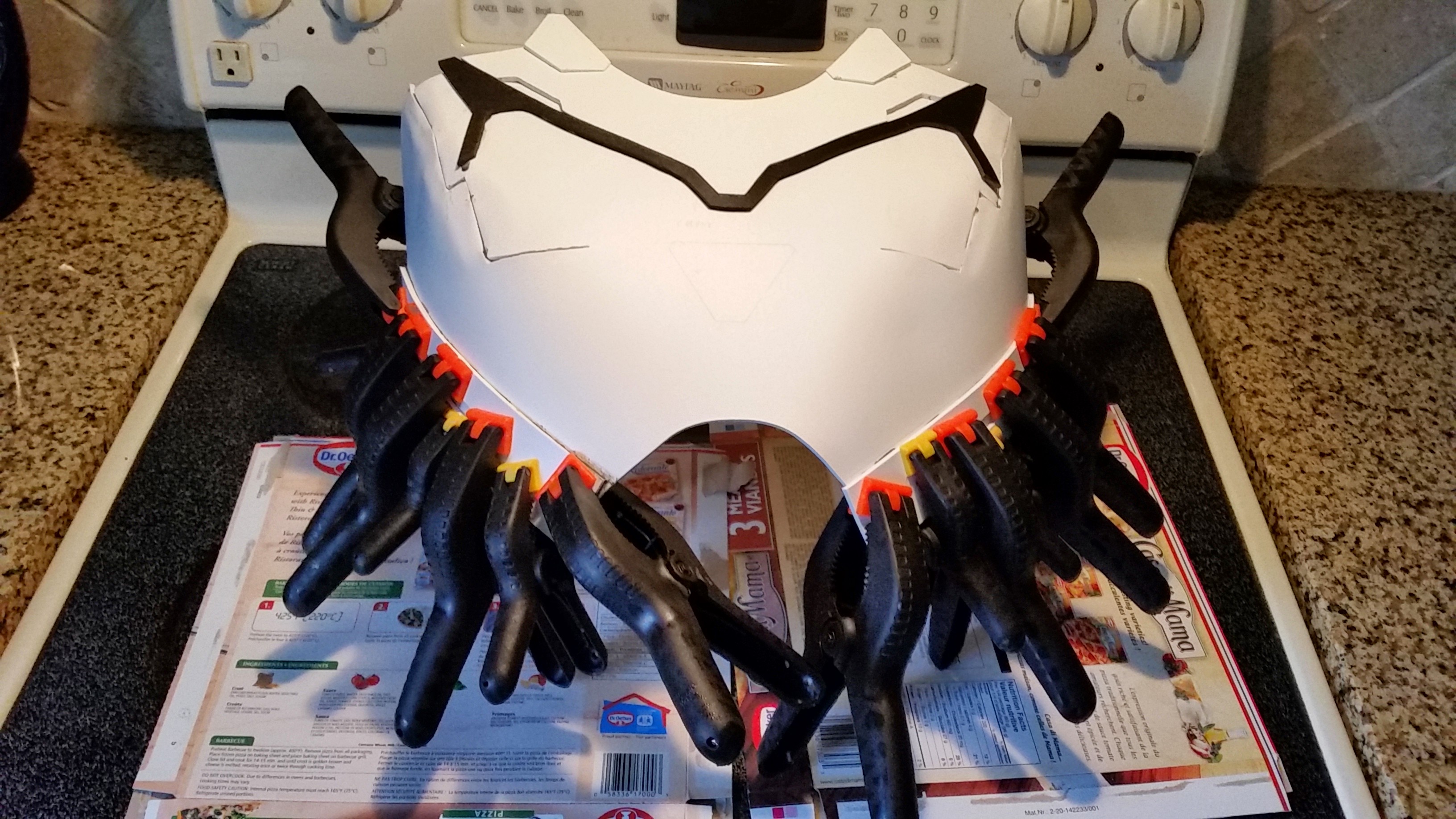

    20141012_103046.jpg 20141013_095756.jpg 20141013_153754.jpg

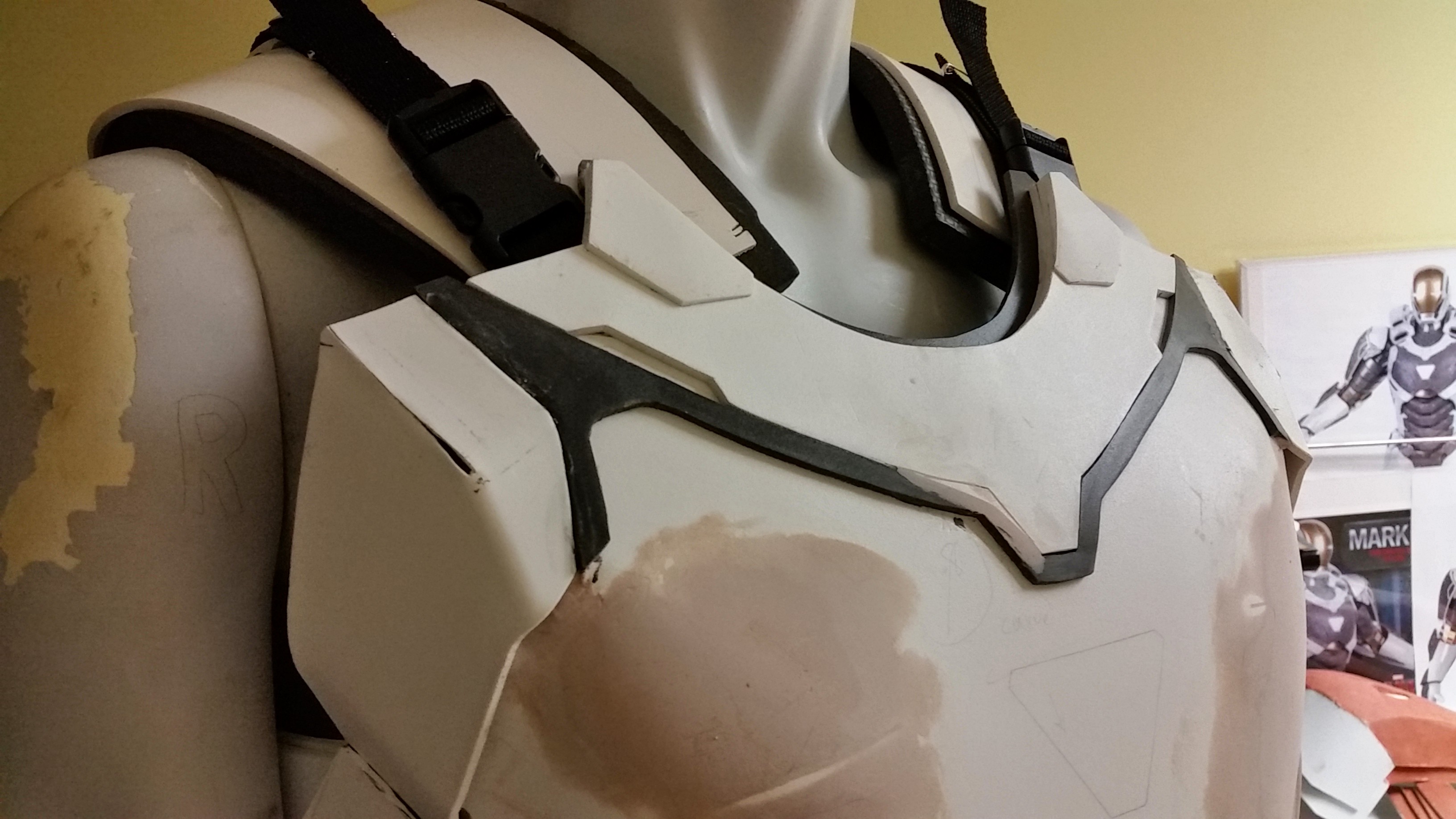

    This was followed by some putty, sanding, repeat, then I glued the intakes on each sides:

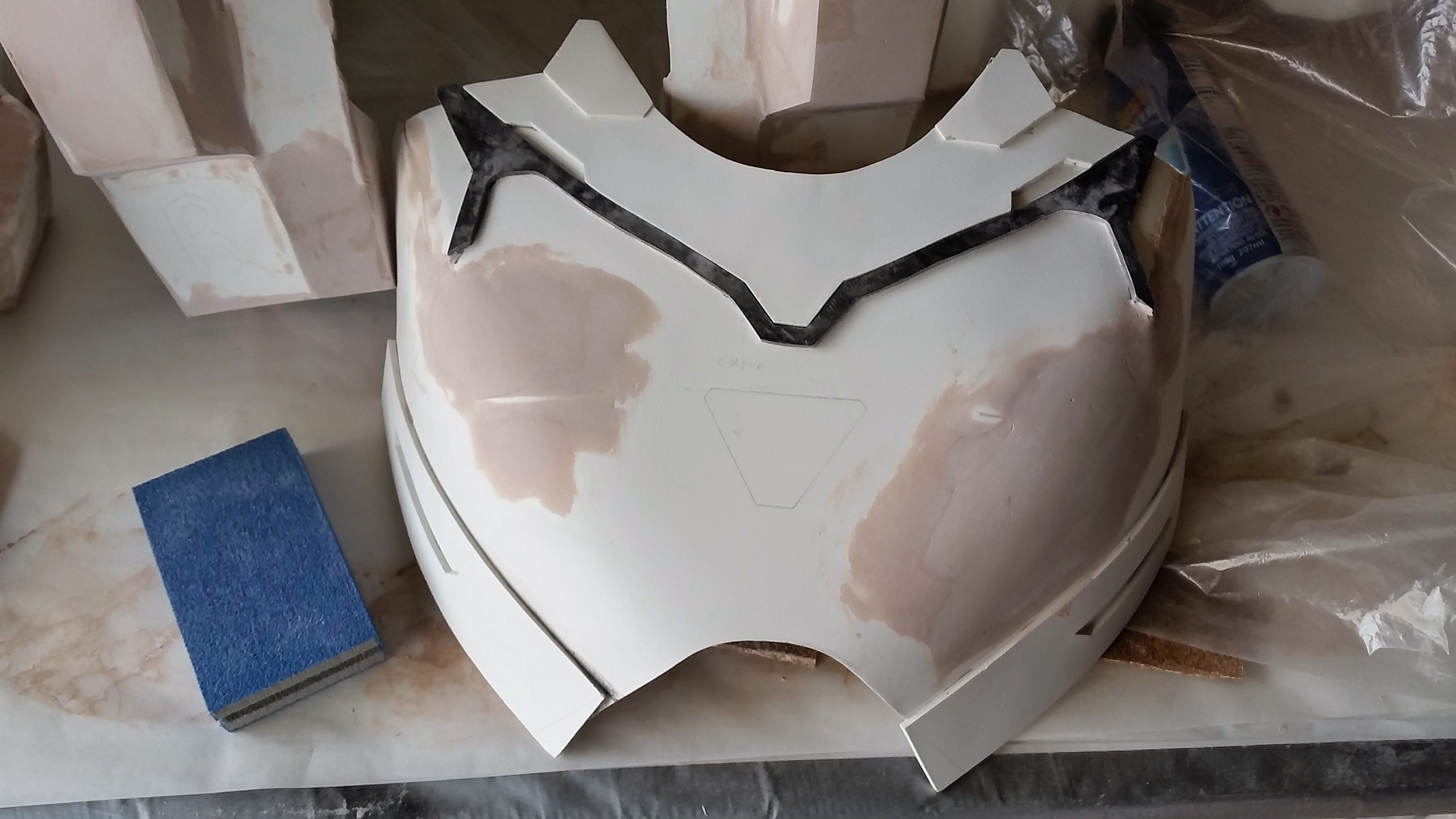

    20141115_112511.jpg 20150207_211340.jpg

    As you can see on that last pic, I do have a belt system. That was the hardest thing to do as there is little to no reference material out there. My take on it was to make to shoulder pieces that are padded with EVA foam for comfort. The shapes are somewhat similar to James from Xrobot but unlike him I did not make a chest and back underpiece, and I am not using any hinges, only nylon straps that I attached with snaps/press studs in a similar fashion as TK300 did for a stormtrooper (adjusted for the fact I am using PVC instead of ABS). His instruction are here: http://www.tonybarnett.plus.com/snaps.html

    So the nylon straps cross in the front and in the back. In front I attach the chest, the abs, and the cod piece. On the back, I attach the ribs and the back of the cod piece.

    More to come...

    Last edited: May 12, 2015
    George likes this.
  8. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    Thank you for sharing your photos and instructions !

  9. neo riders

    neo riders New Member

    Trophy Points:
    2
    is that a pepcoboy files...? :$
    exellent work buddy..:thumbsup

  10. Arena51

    Arena51 New Member

    Trophy Points:
    3
    Crazy busy with buying new house, selling old house, packing and moving soon. Will post an update soon after unpacking...

    George likes this.
  11. stigmorgan

    stigmorgan Sr Member

    Trophy Points:
    1,256
    Did this ever progress any further?
