I need help with Barber Chair Modification for a set piece

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


ProfCoppersmith

New Member
(I hope this is in the right forum, if its not: I'm sorry. Mods please correct me if I'm posting this in the wrong place. Thanks)

I'm working on a set piece for work that is based on a 1950's Takara Belmont Barber Chair. The problem is that it's leaking hydraulic fluid. It doesn't need to be functional, so I want to just drain it fully so I can get it cleaned up (preferably without making an even bigger mess in the prosses) and start turning it into a miniature navigation bridge for the set it goes on.

Any help would be awesome here. I've been trying to find info on this chair and have yet to find anything useful. No manuals or maintenance instructions. It may just be too old and obscure.

Thanks in advance! ^_^


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

udog

Active Member
(I hope this is in the right forum, if its not: I'm sorry. Mods please correct me if I'm posting this in the wrong place. Thanks)

I'm working on a set piece for work that is based on a 1950's Takara Belmont Barber Chair. The problem is that it's leaking hydraulic fluid. It doesn't need to be functional, so I want to just drain it fully so I can get it cleaned up (preferably without making an even bigger mess in the prosses) and start turning it into a miniature navigation bridge for the set it goes on.

Any help would be awesome here. I've been trying to find info on this chair and have yet to find anything useful. No manuals or maintenance instructions. It may just be too old and obscure.

Thanks in advance! ^_^
Difficult without seeing it. There should be a drain plug somewhere. Where is the leak?


ProfCoppersmith

New Member
Difficult without seeing it. There should be a drain plug somewhere. Where is the leak?
Leak seems to be towards the top of the pedestal/base of the seat. I can't see where it is directly. It leaks the most when I set it on it's side, from the assembly just beneath the seat platform. I did take a look under the pedestals skirt, as much as I could at least, and there's a large base cap, but no plug that I could see.

(I may end up just drilling a hole in the bottom end of the piston and letting it drain into a bucket. I have to have the whole set finished in about 3 weeks to stay on schedule. So I might have to do this quick and dirty. I'll update if I had to do so later tonight.)

Here's a picture of what it looked like before I stripped it down to the metal. (though it was in much worse condition from this image) again, it's a 1950's era Takara Belmont barbers chair.


Attachments

  • vintage-takara-belmont-barber-chair_1_cb640a1fdecce7c9a313e1f509254d0c.jpg
    179.3 KB · Views: 29

ProfCoppersmith

New Member
Ok, ended up drilling a hole in the botom of the piston. I couldn't find any valves or drain plugs, just one big cap on the bottom that wouldn't budge.
So it is now sitting atop three buckets, draining into a third for the weekend.

Thanks for the help anyway!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ProfCoppersmith

New Member
Bit of an update.
After I drilled the hole in the bottom... I realized that the round plate in the middle of the seat base was the cap to the piston. I feel rather silly now...


Otherwise, I have the whole thing stripped now, I get to start welding stuff to it now. ^_^


ProfCoppersmith

New Member
Sorry for the delay all. Things have been busy, since I’ve had to start taking hours at one of the stores we operate here too.
Anyway, here’s an updated picture, it’s in place and growing new additions still:



I'll try to post some more recent pictures Tuesday or Wednesday. ^_^


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ProfCoppersmith

New Member
Once again, I'm late with the promised update...
Things have been busy lately.

Anyway here's the update photos:

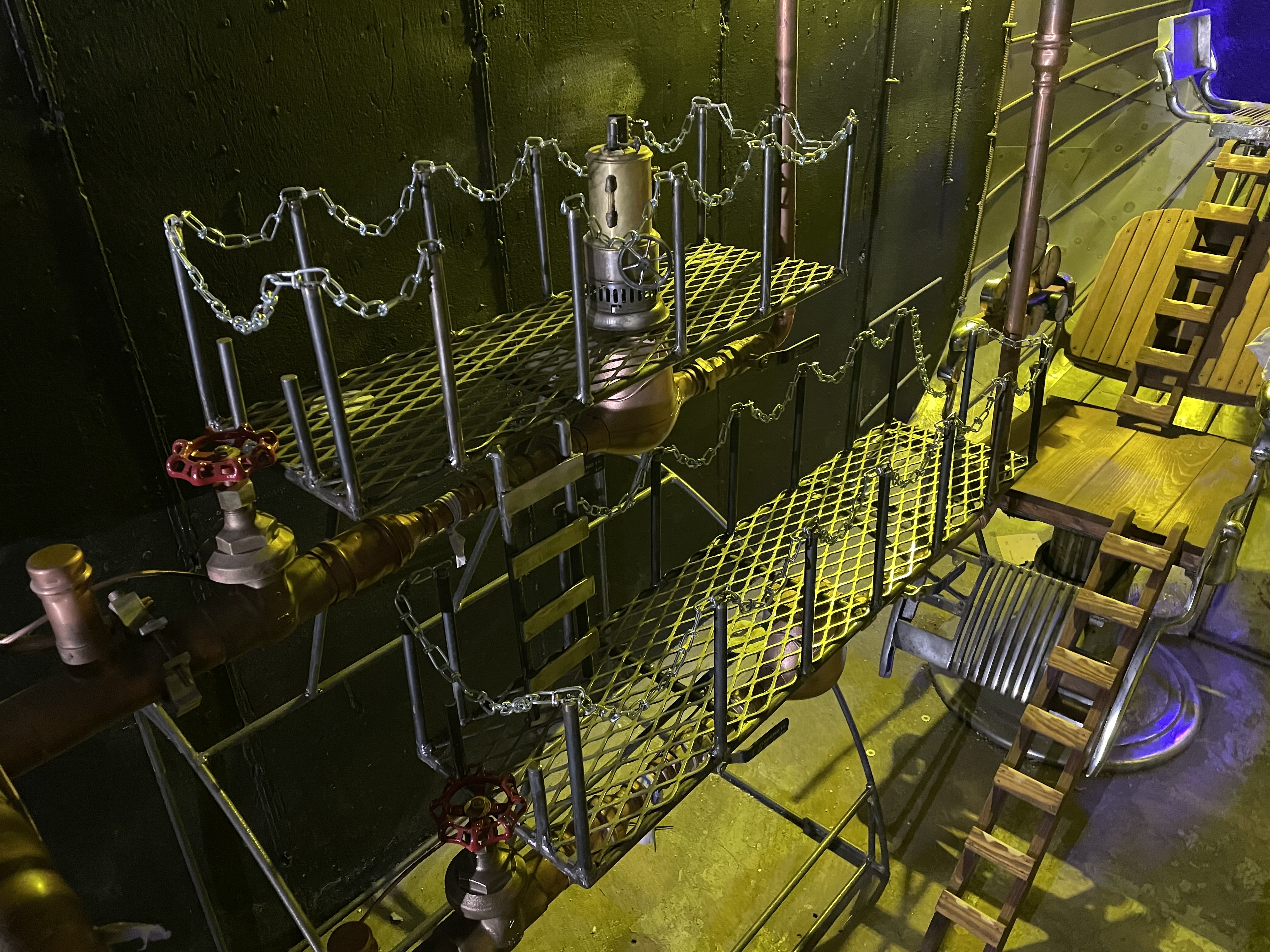

These are supposed to be catwalks. The wood ones are for general observation, the metal ones are maintenance. This whole set is covering some of the plumbing for the building (you can see some of it in the backgrounds of a few of the photos, and under the metal catwalks.) So parts of this are to disguise it as part of this submarine.




This is all still very much a work in progress, but I only have about 2 months left to finish, before we open the attraction.

I may have mentioned this already, but this is all so oddly sized because it's supposed to be owned/used by a gnome. Though the sub was made for human sized people, he modified it to work for him. So the original pilots chair was converted into his bridge, thus the use of the barbers chair. ^_^


ProfCoppersmith

New Member
Another update on the set ^_^

Some detail weathering I'm rather happy with, It's the mounting for some gauges I made:


On to the set itself, so far:




Some wear on the metal ladder.




The faom craft guages in place. Yes the depth gauge reads just under 20000 leagues :p




I'm working on the last bits now, doing some painting on the walls and some background details. I'll post some pictures once it's finished.
