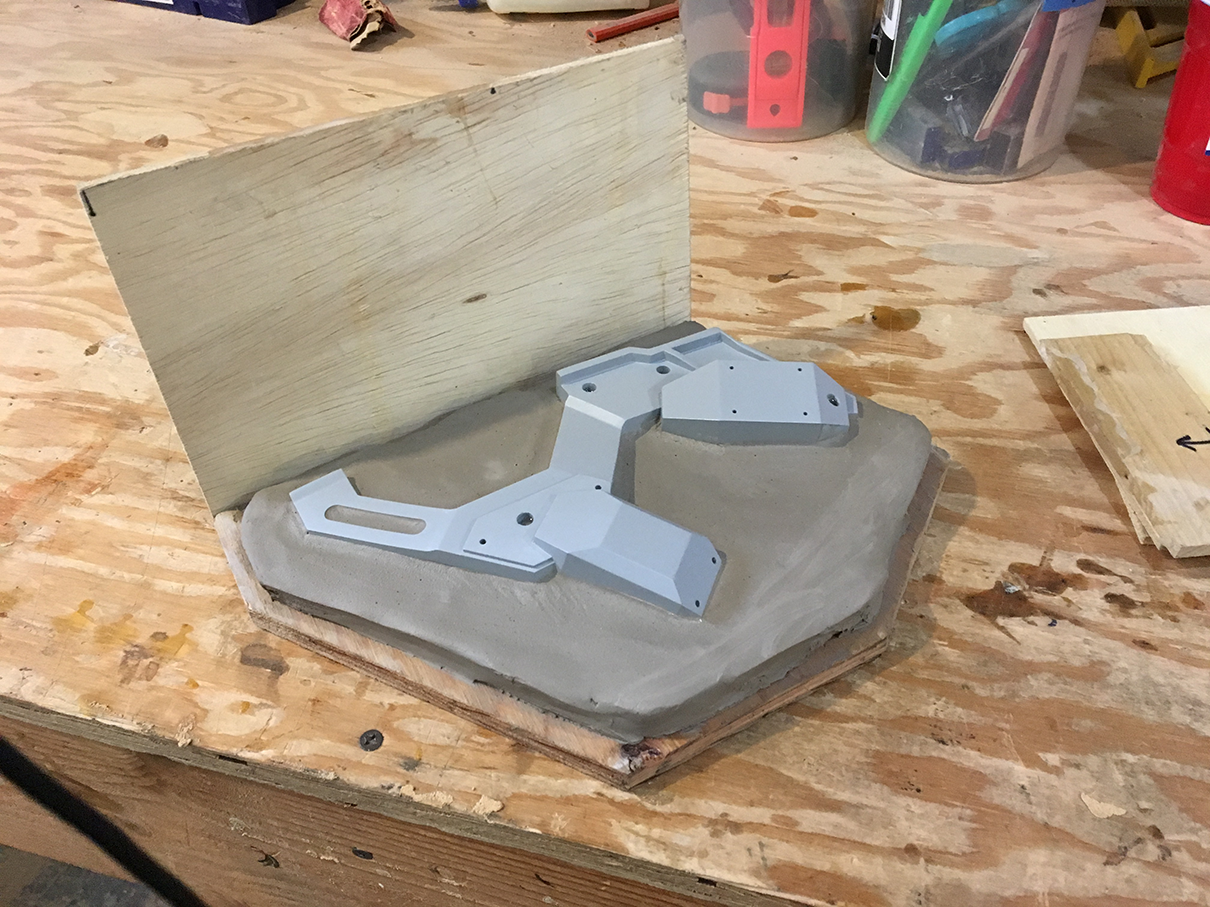

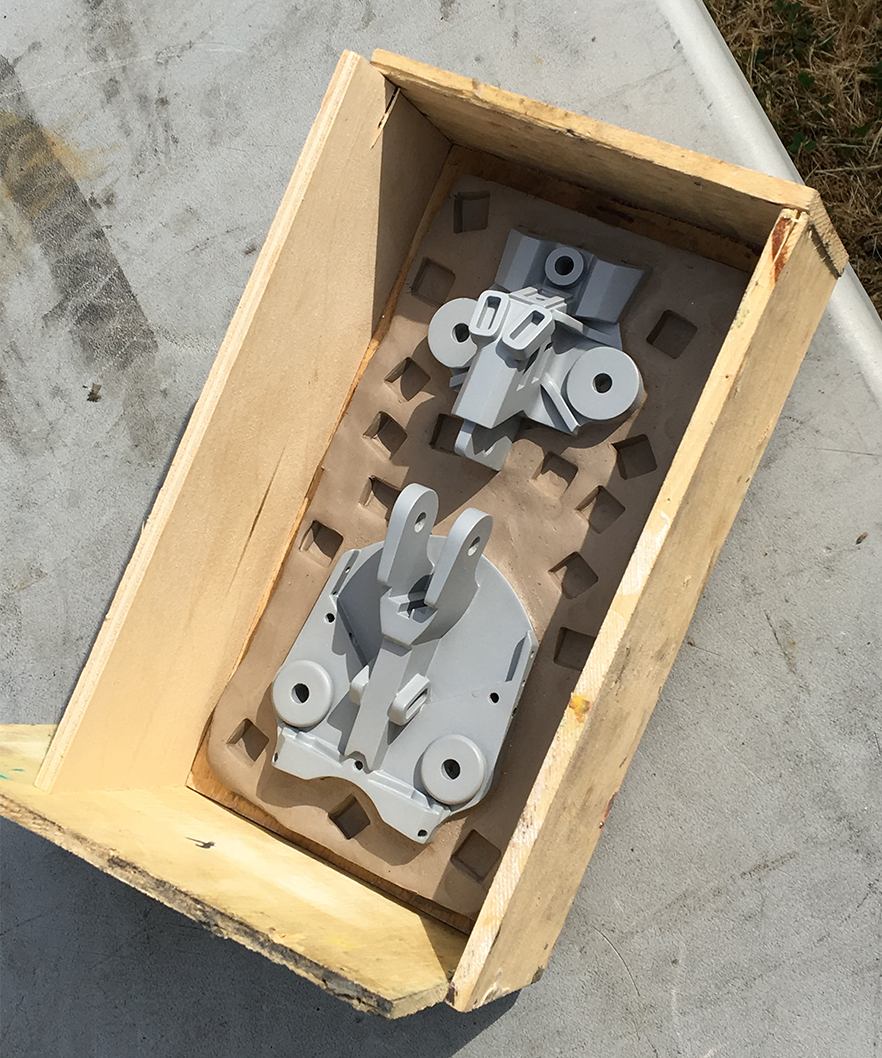

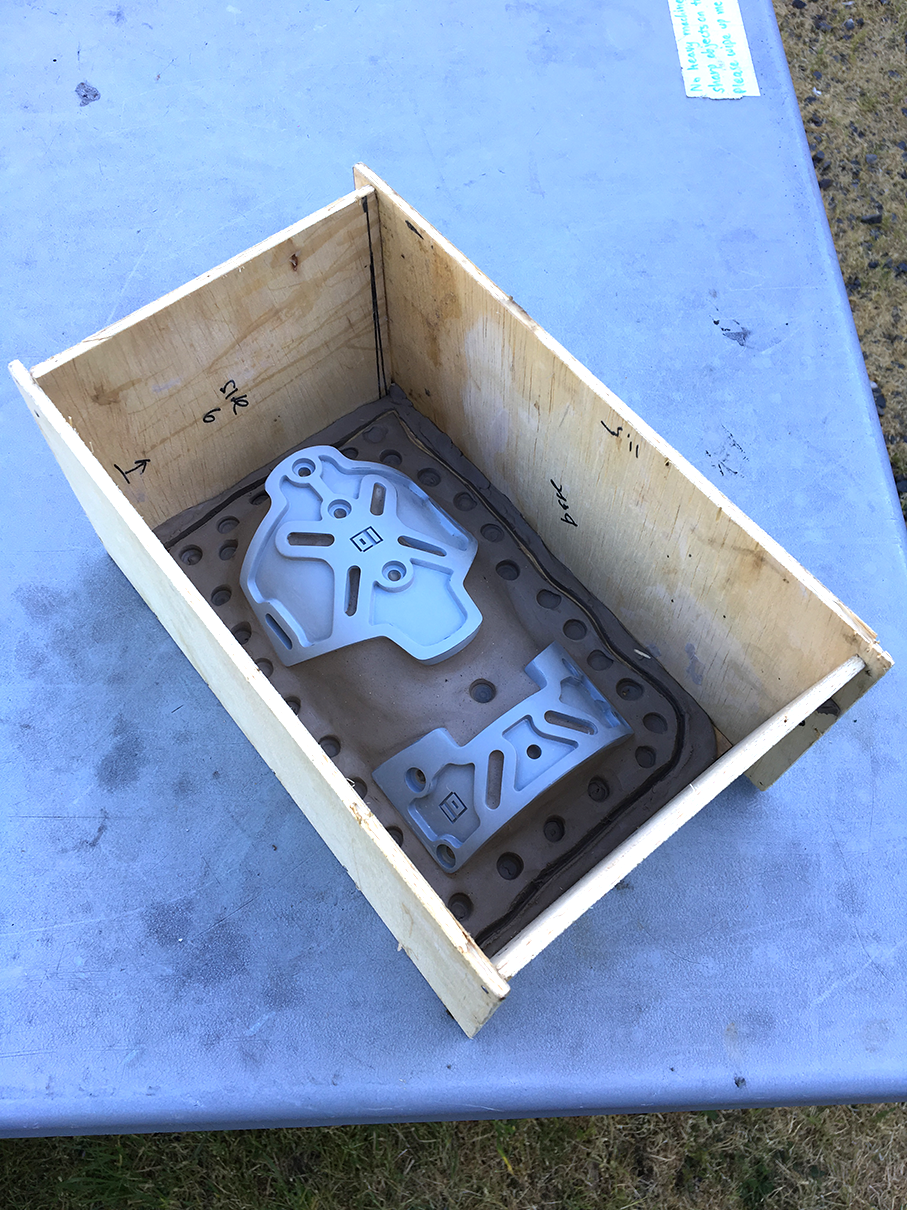

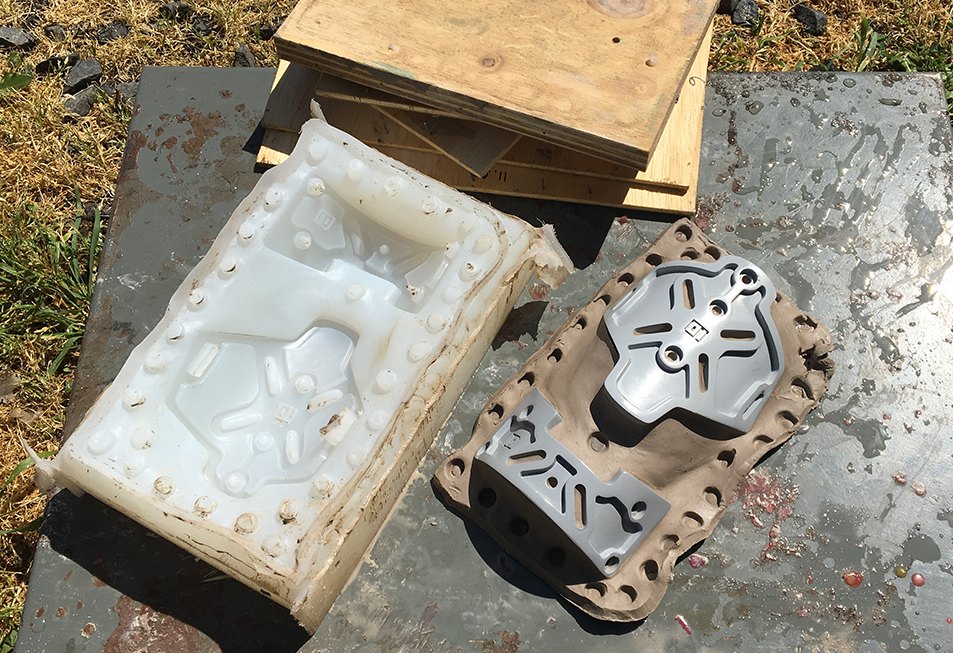

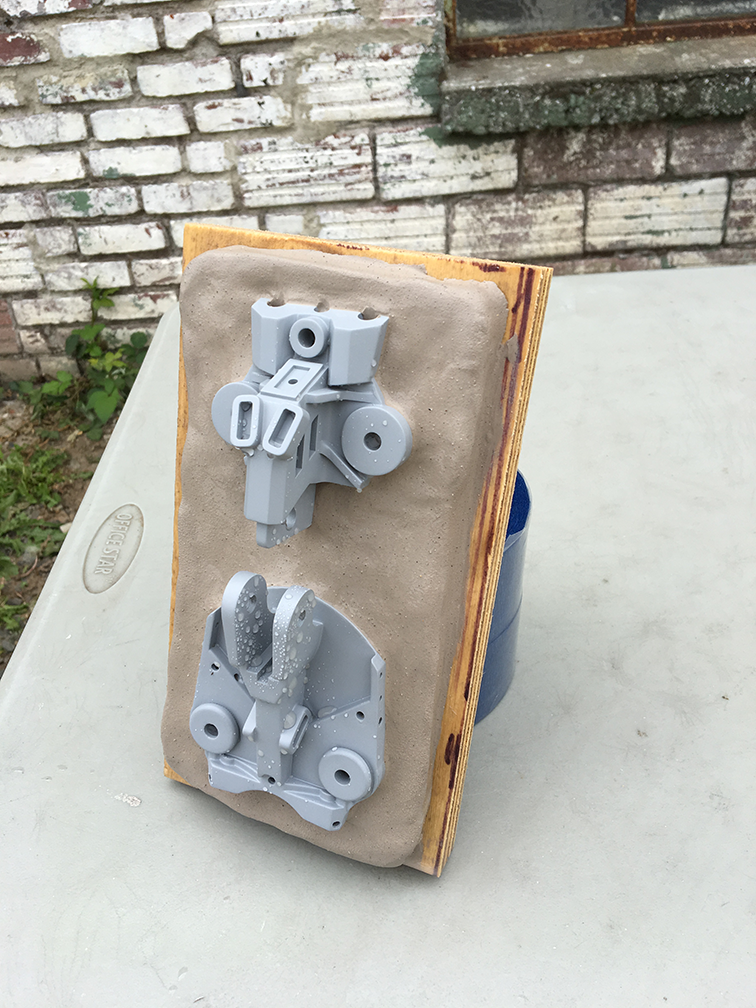

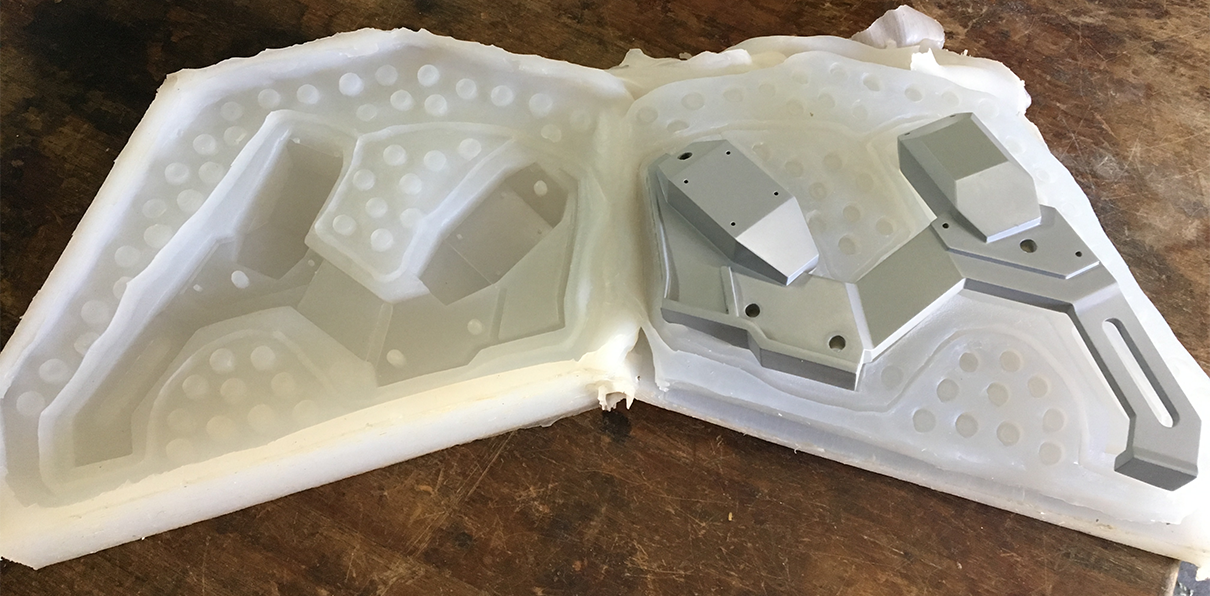

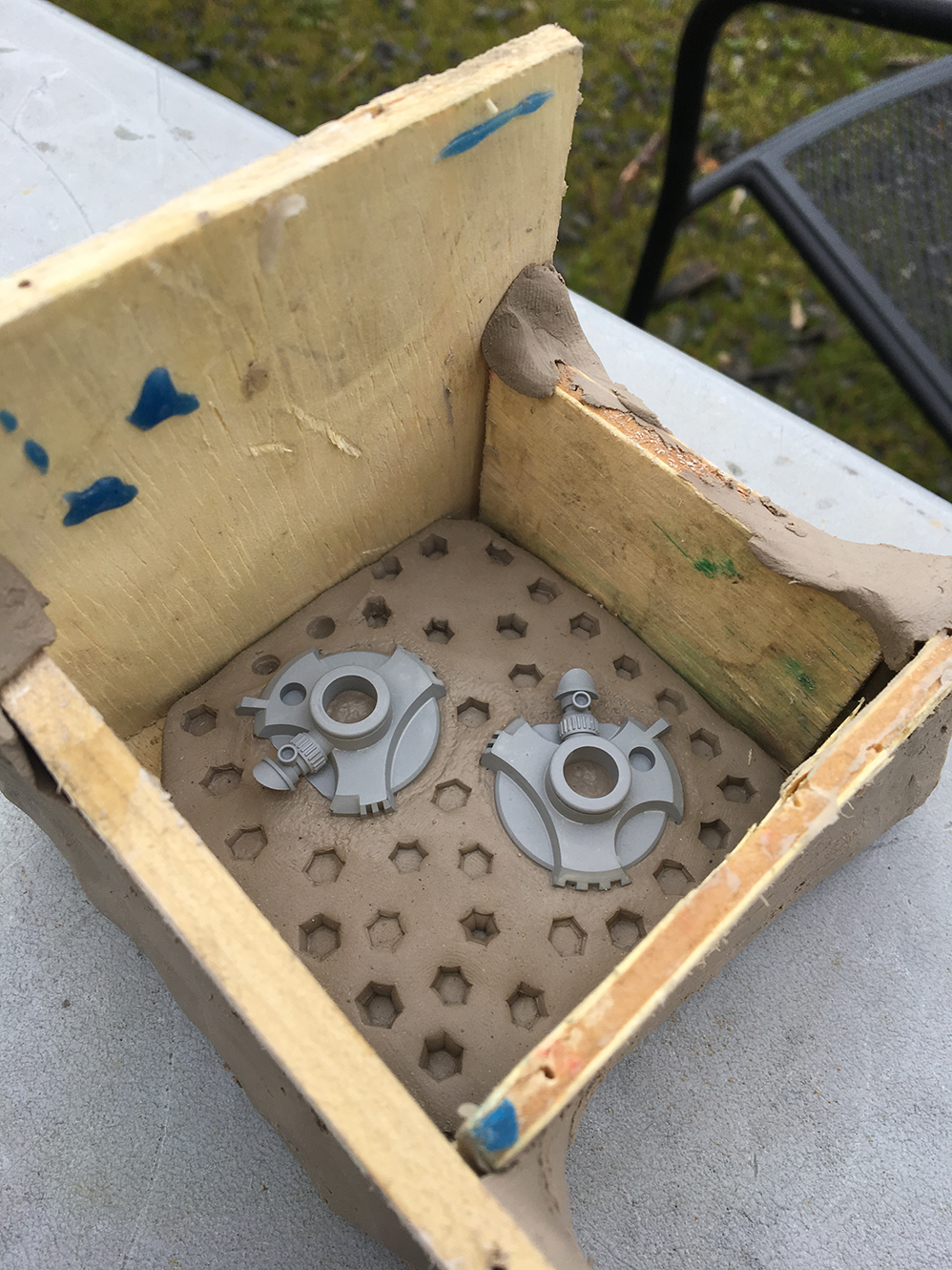

Started a new two-part mold for shoulder connector heads:

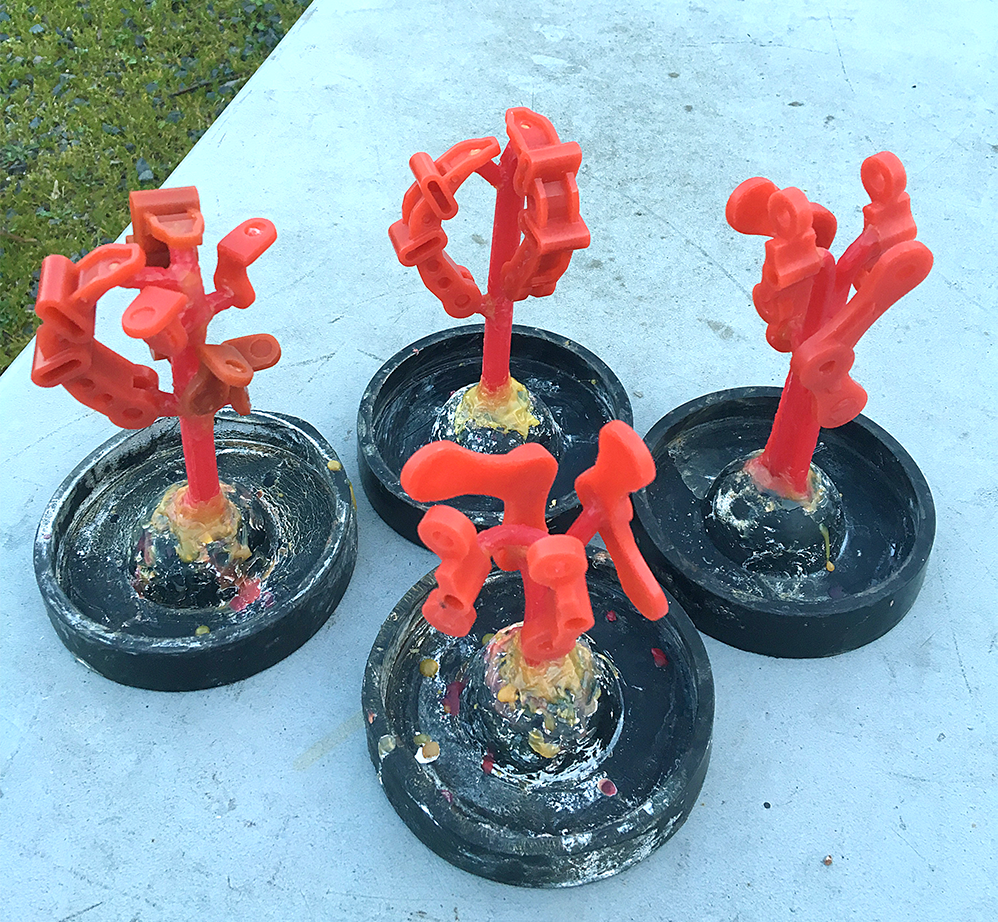

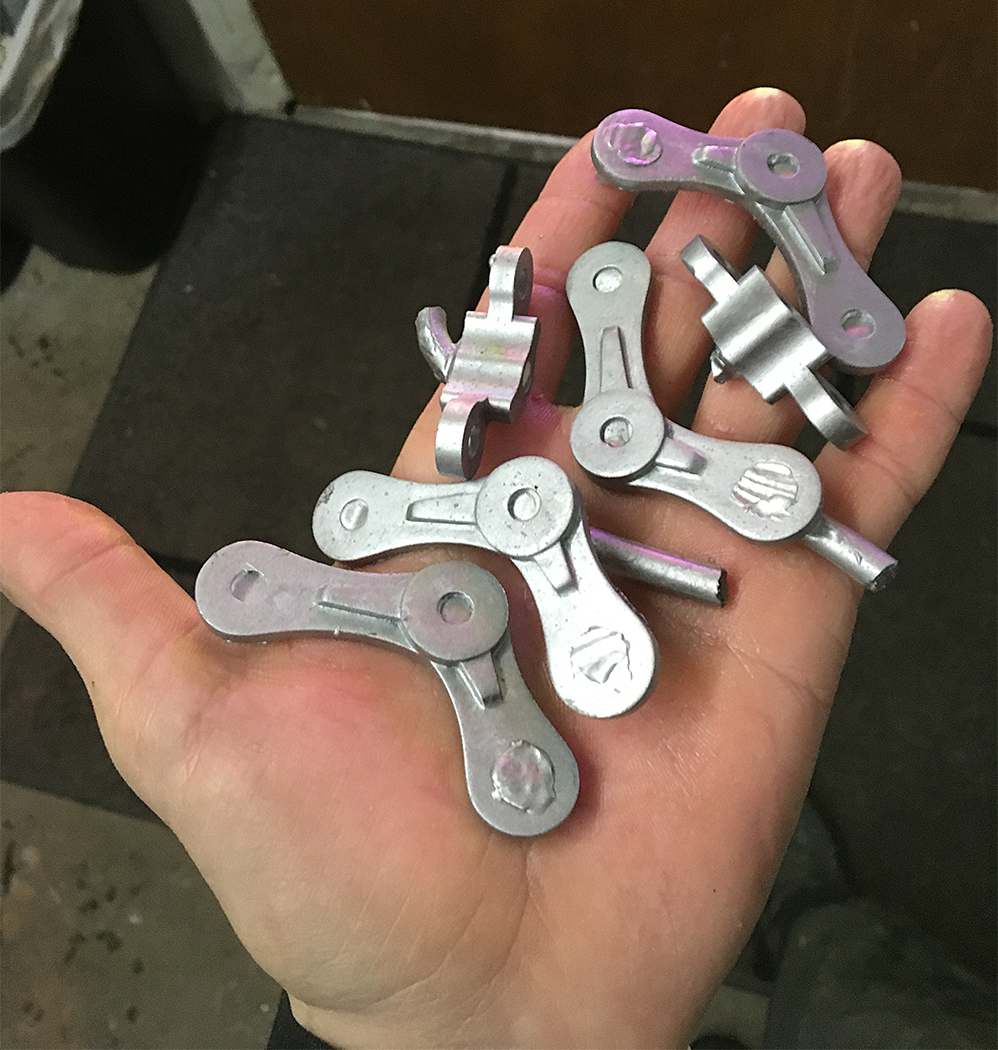

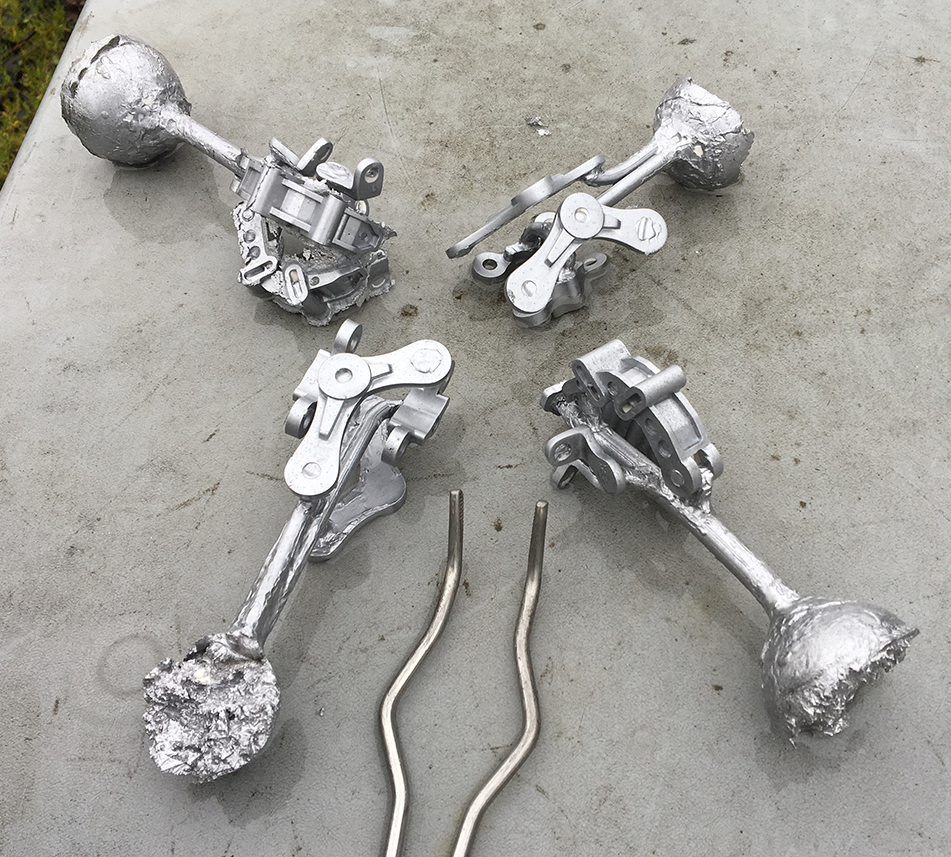

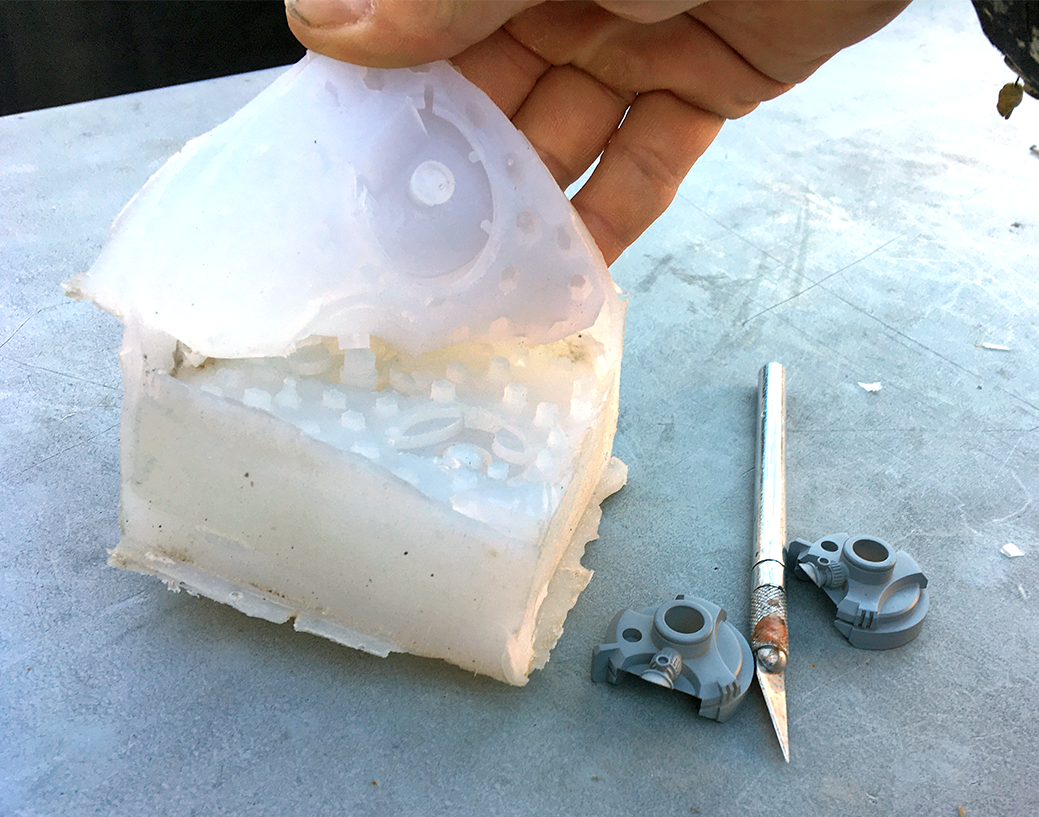

A batch of connectors. I do 4 at a time because that's how many fit in my pressure cooker for autoclaving.


New vacuum setup with fixtures still working well:


Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

01binary

Member

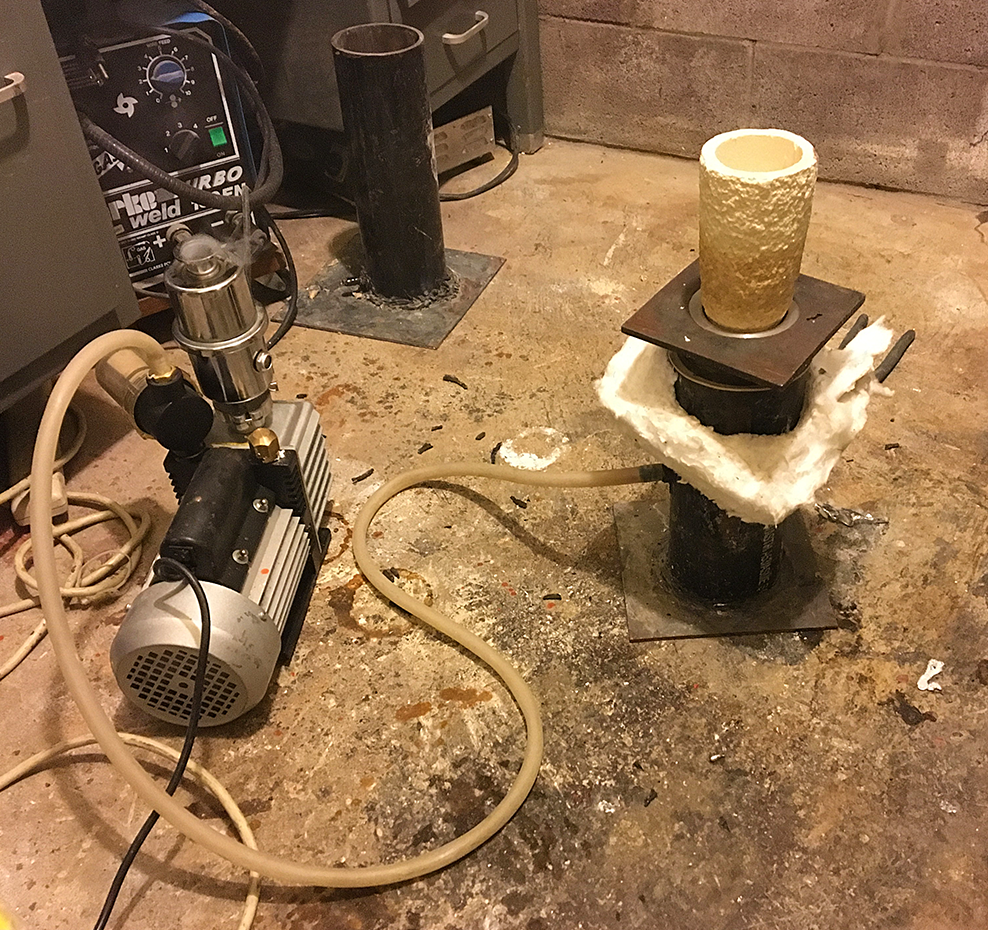

I've been working on a custom vacuum assist chamber for casting large parts:



I also got a 360 camera so now I can video blog & live stream the work on this project in VR. The editing should also be fun.

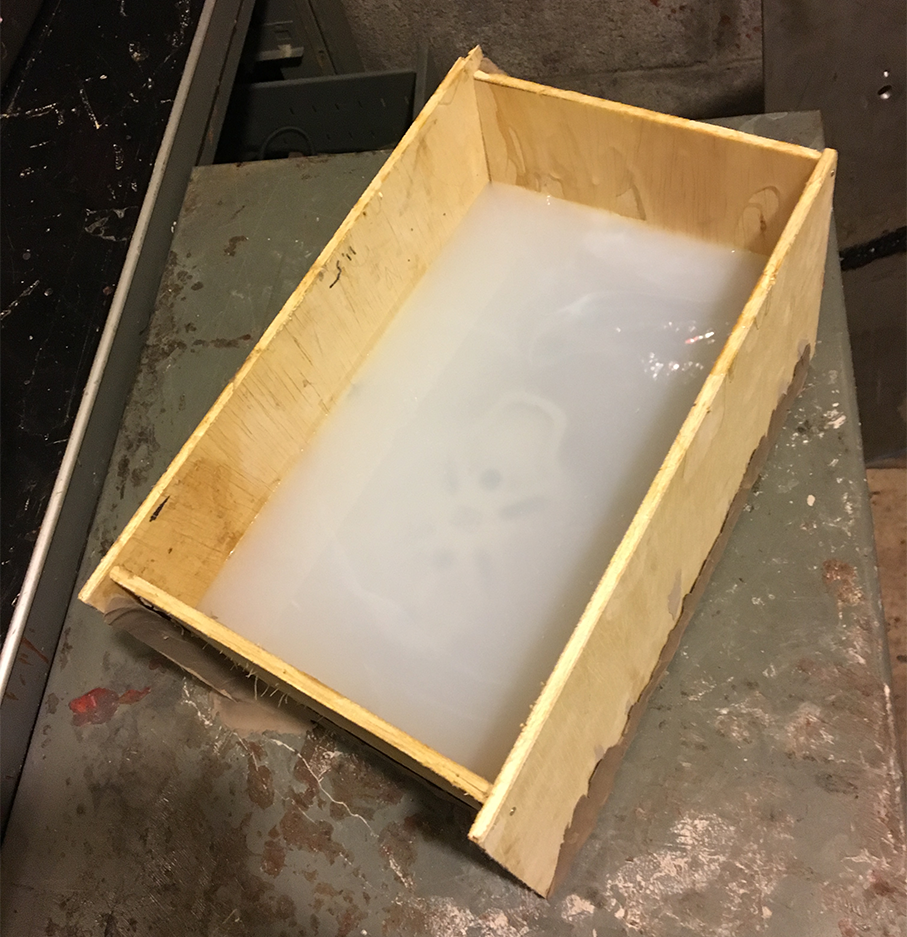

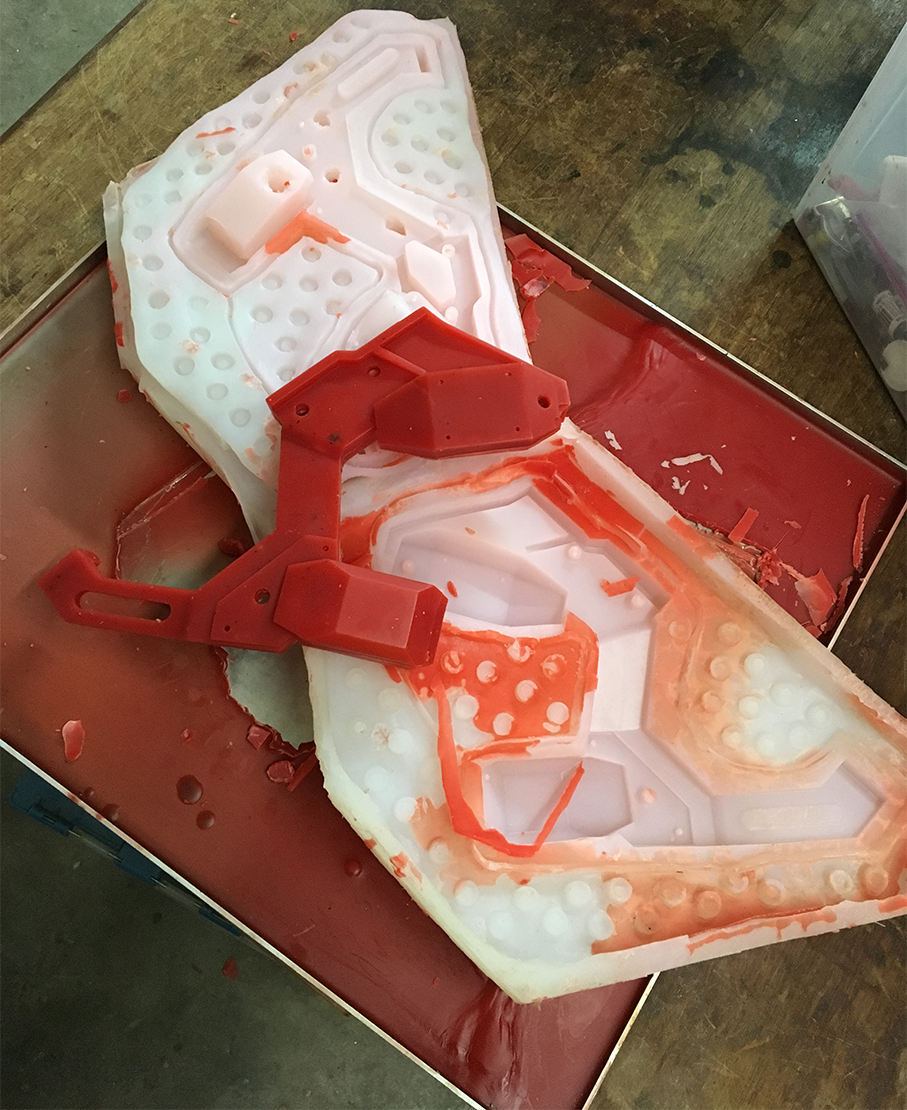

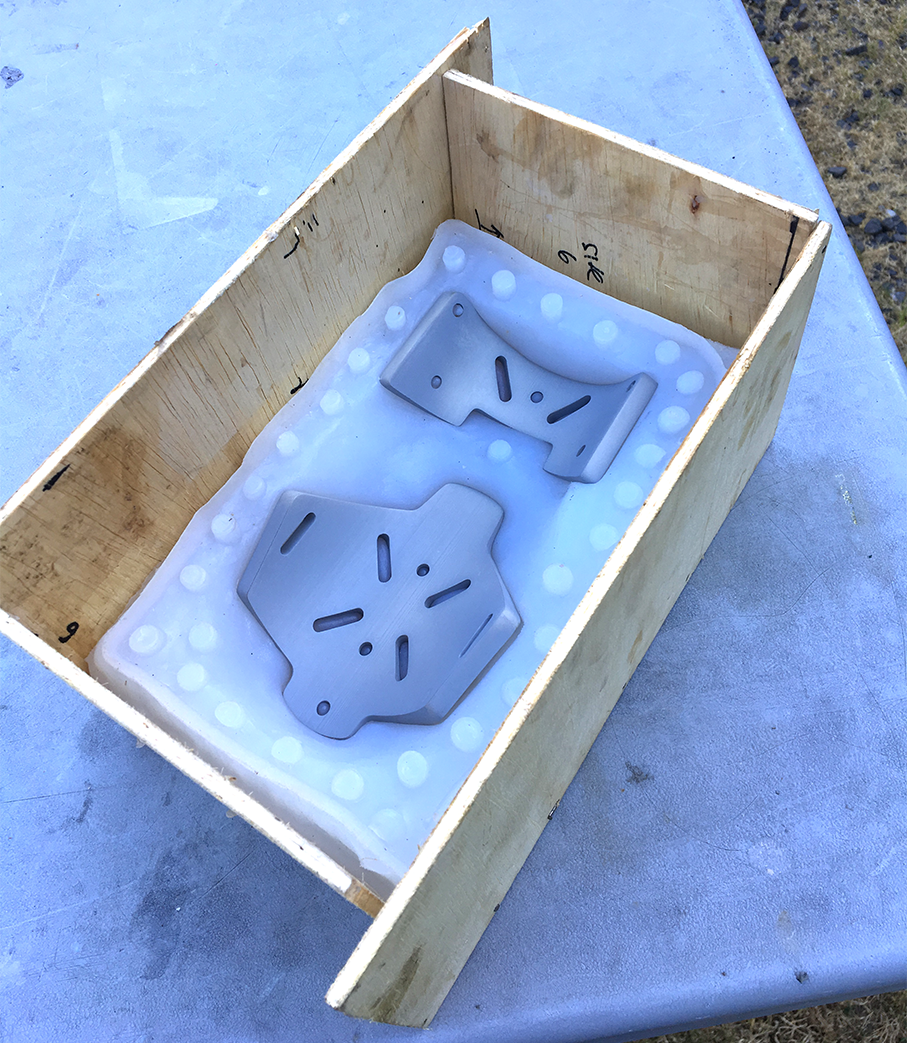

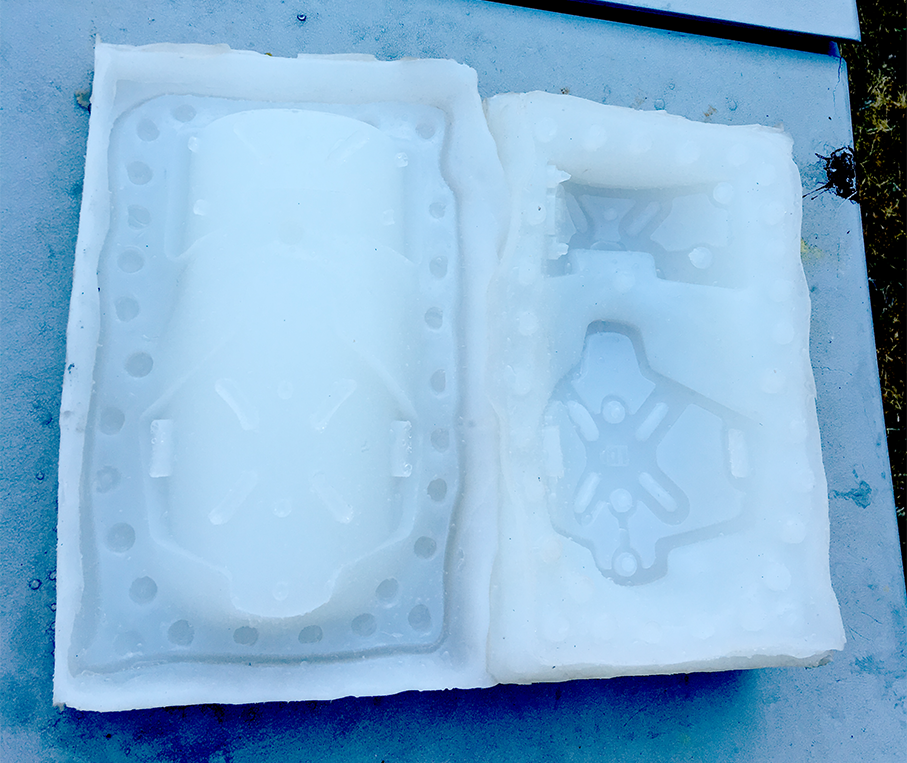

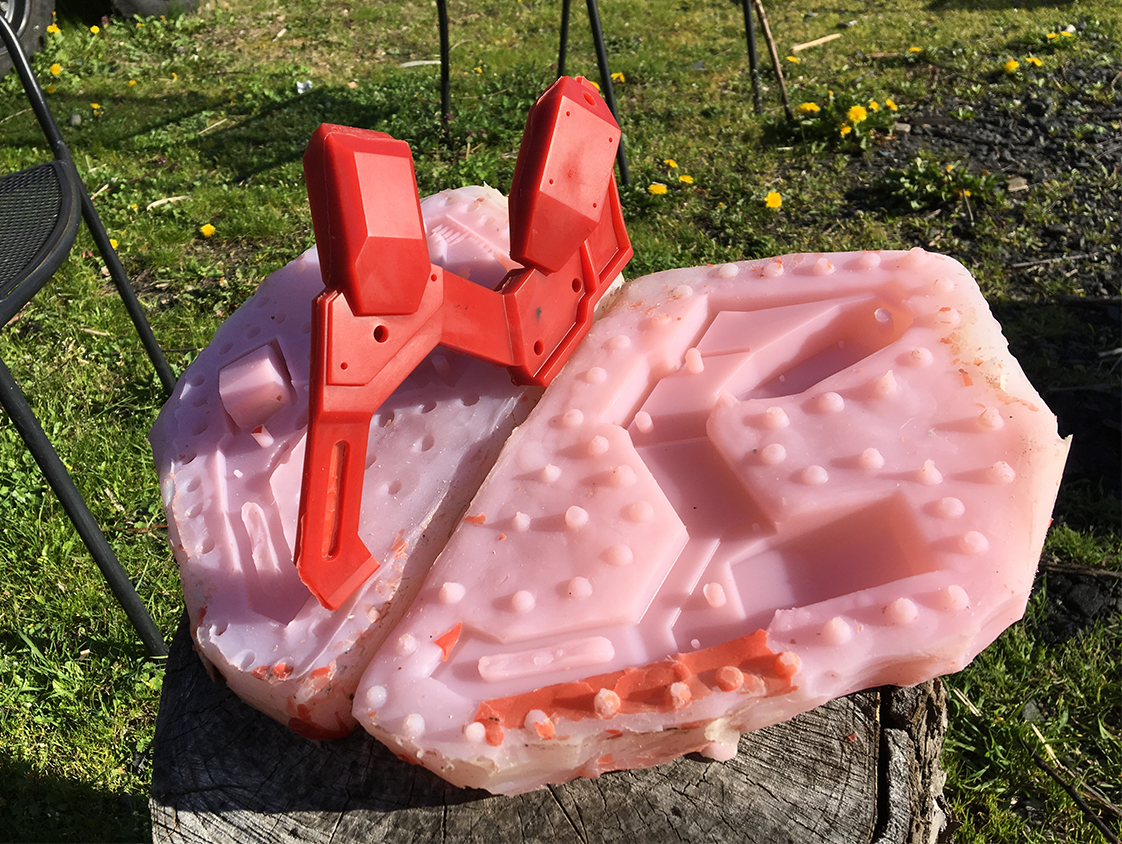

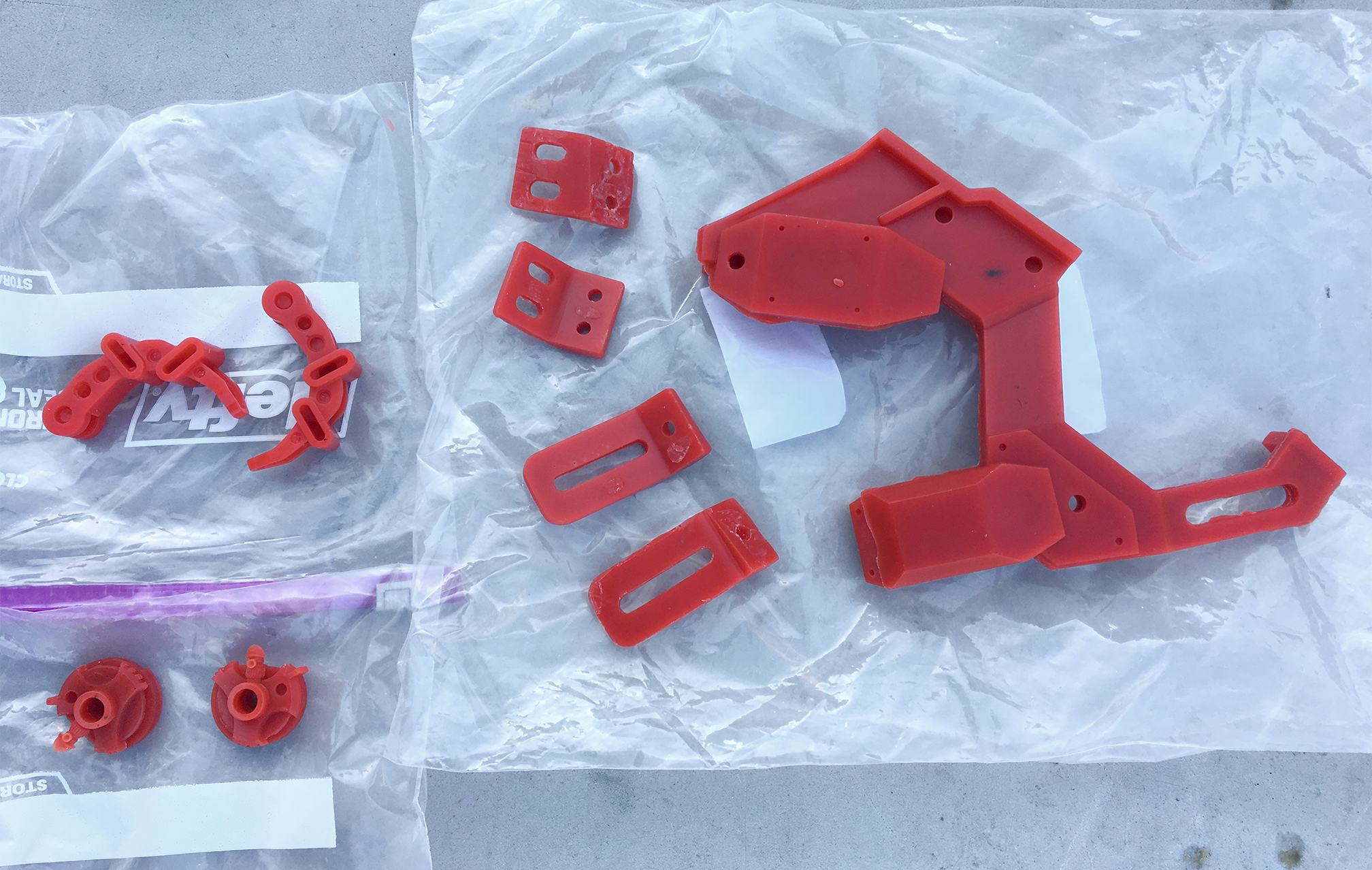

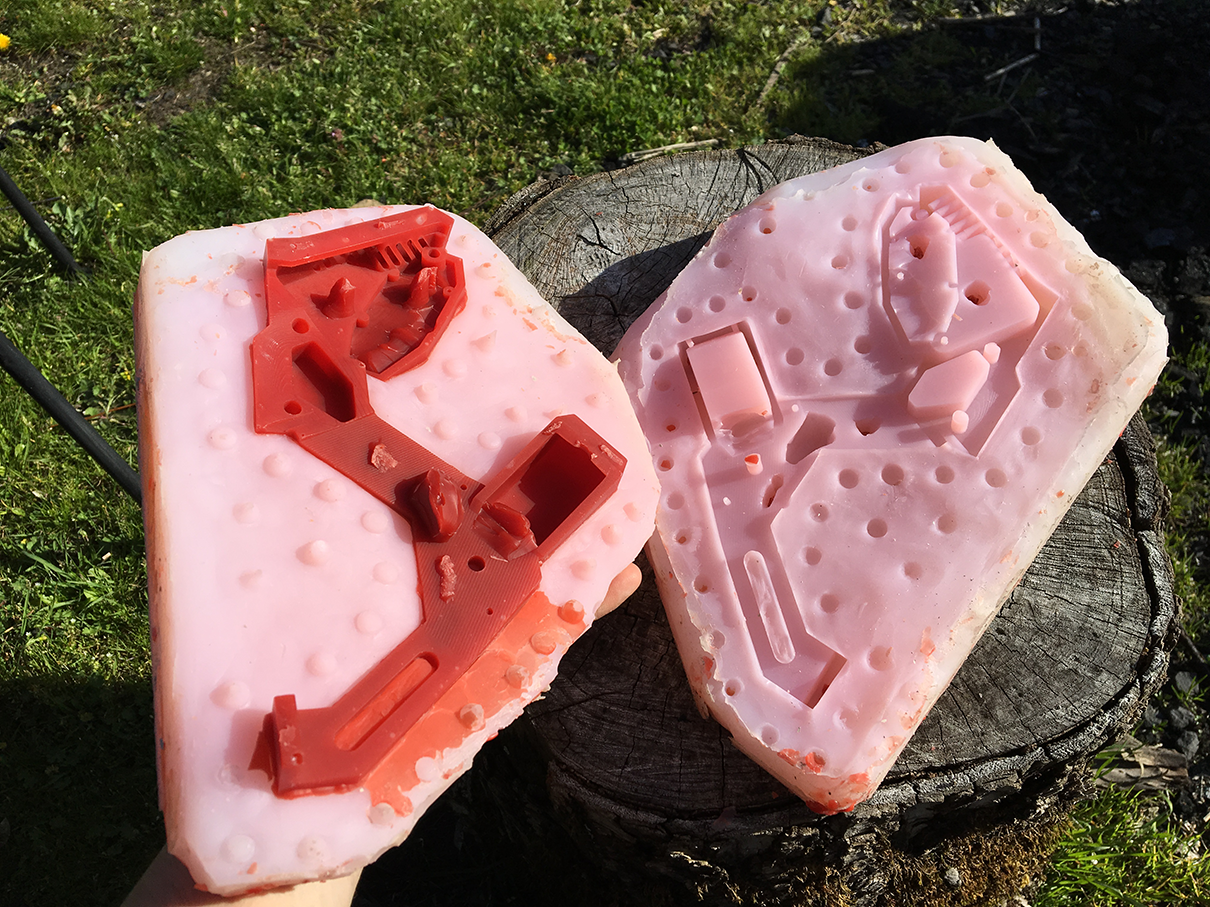

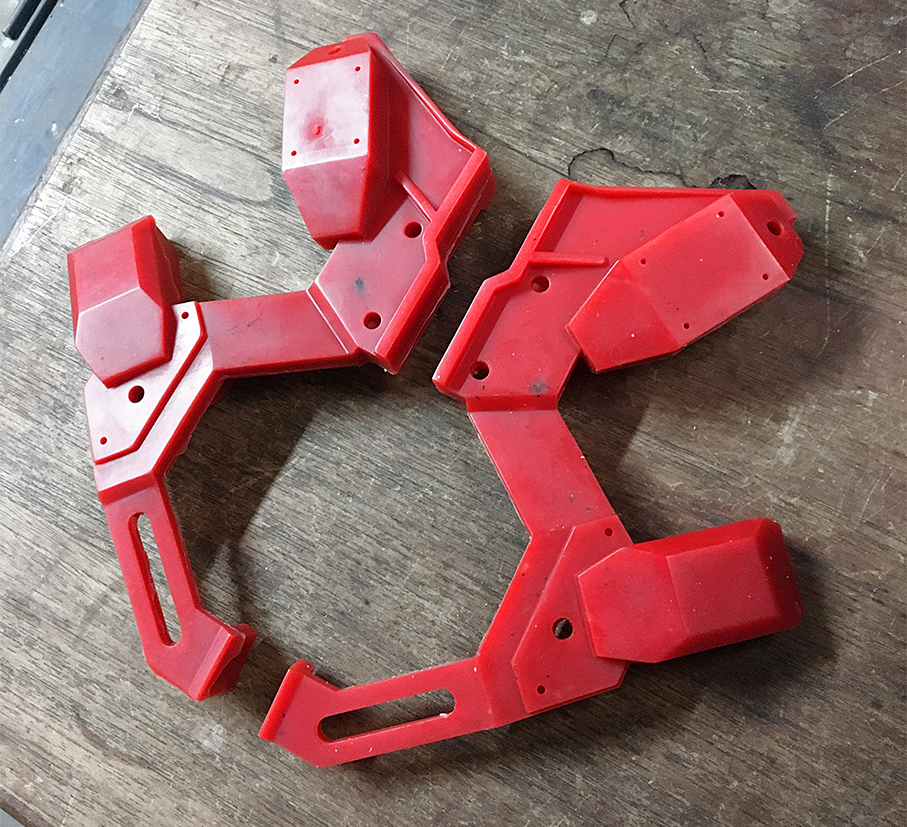

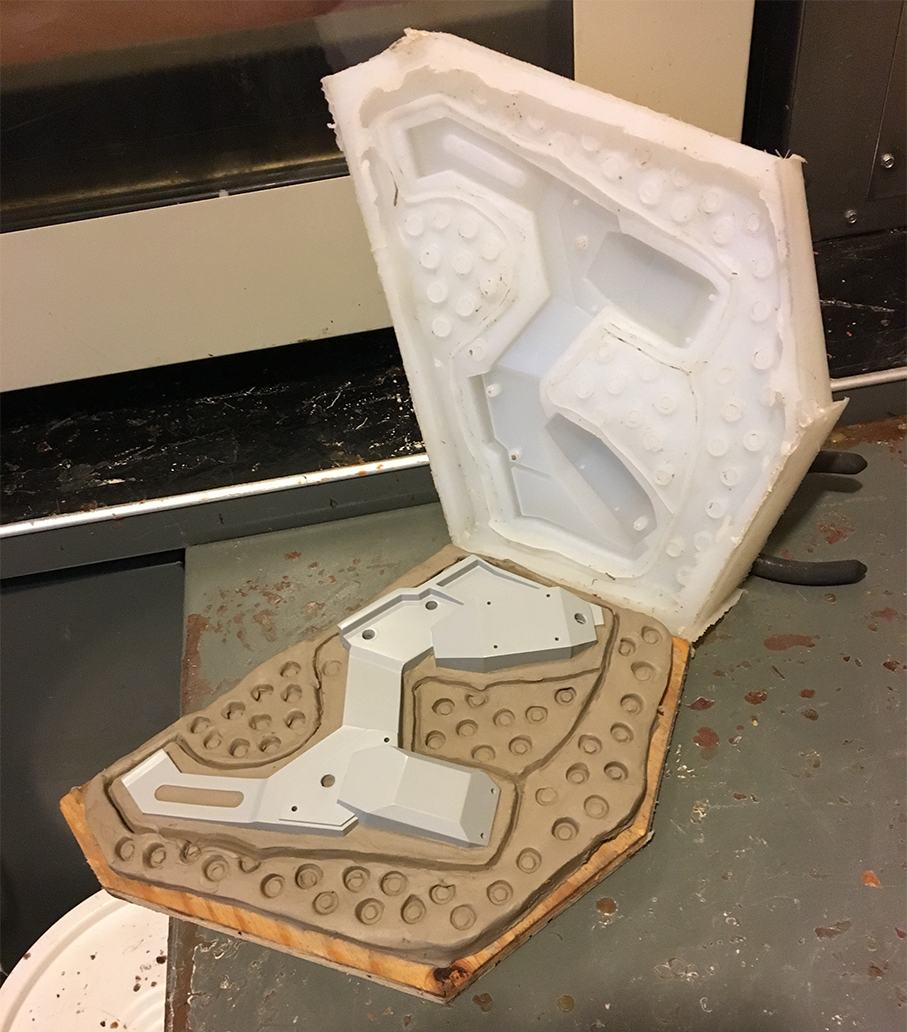

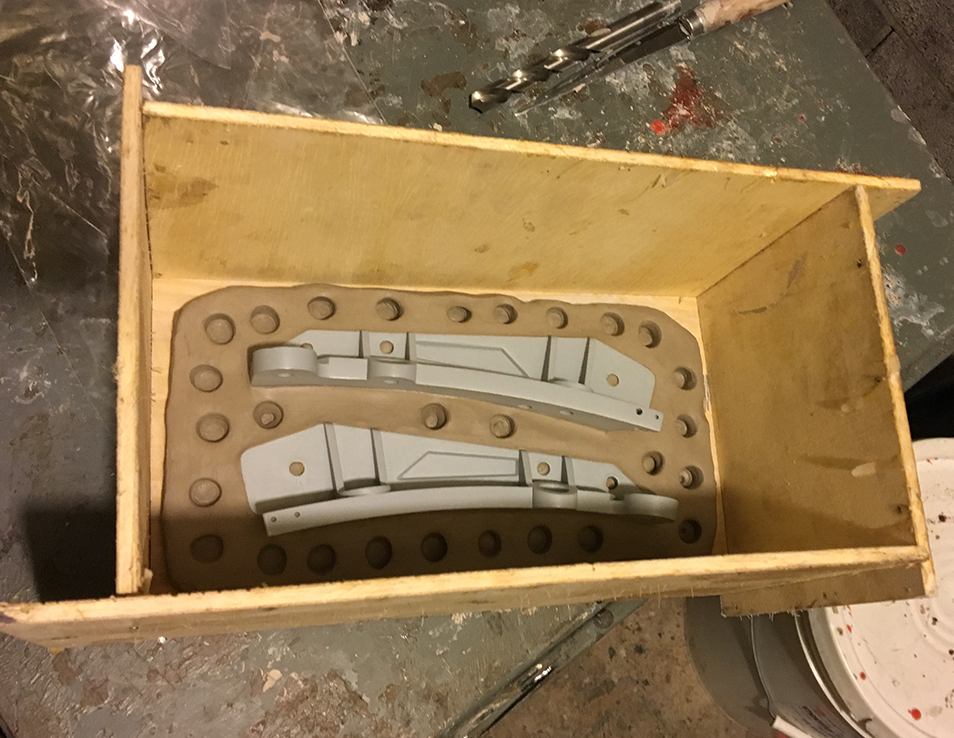

Lastly, I am continuing to make rubber molds for the remaining parts:









Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
Very sharp work, as always...and the addition of a vacuum assist chamber will certainly be a +:) Keep up the good work!


AndoShinobi

Member
There is amazing work and dedication on display here. Bravo to you Sir! Having been a guest at Weta for a short time, I can assure you that the quality of your work certainly matches and in some cases, exceeds what they did on the original suit.
Well done, thank you so much for sharing all of your hard work and please keep it up! I’m sure that the finished product will be outstanding.

Last edited:

01binary

Member
Thanks guys! Another 360 video of trying out my new vacuum chamber:


I keep having to manage "denial" - someone just told me again that casting the bigger parts using Ultravest molds is a waste of time and I should go back to shell casting. I wouldn't need a new vacuum chamber and custom flasks that I'm spending so much work on. But my previous experience with shell casting was such a nightmare that I can't bring myself to spend another $1000 on three bags of silica sand, a drum of suspenda-slurry, and then spend two weeks building a shell, without knowing if all that time is a complete waste until the last moment. At least with Ultravest I don't spend 100 hours and possibly end up with nothing. I guess I will schedule some shell casting classes and see if I can use their foundry to cast my last 7 large parts.

Last edited by a moderator:

joberg

Master Member
Epic is not even the word;) I admire your dedication to the project and the process:thumbsup Pro-Job all the way!!!!!!!!!!!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
This crazy work:eek Just the molds and now shell casting: complicated for sure! Keep up the excellent job; you are a machine, since the bar you've set up with this project is unattainable for most of us:cool


Demetrius

Well-Known Member
RPF PREMIUM MEMBER
Cannot believe I missed this thread. Great work, truly awe inspiring. I really love the movie and am in the process of making the AK bullet encoder, I have an actual AKM deactivated to put it on. You plan to have a prop like that also?


01binary

Member
Hey, thanks! The suit is largely a stage prop for playing guitar, so I probably won't combine it with the augmented AK.

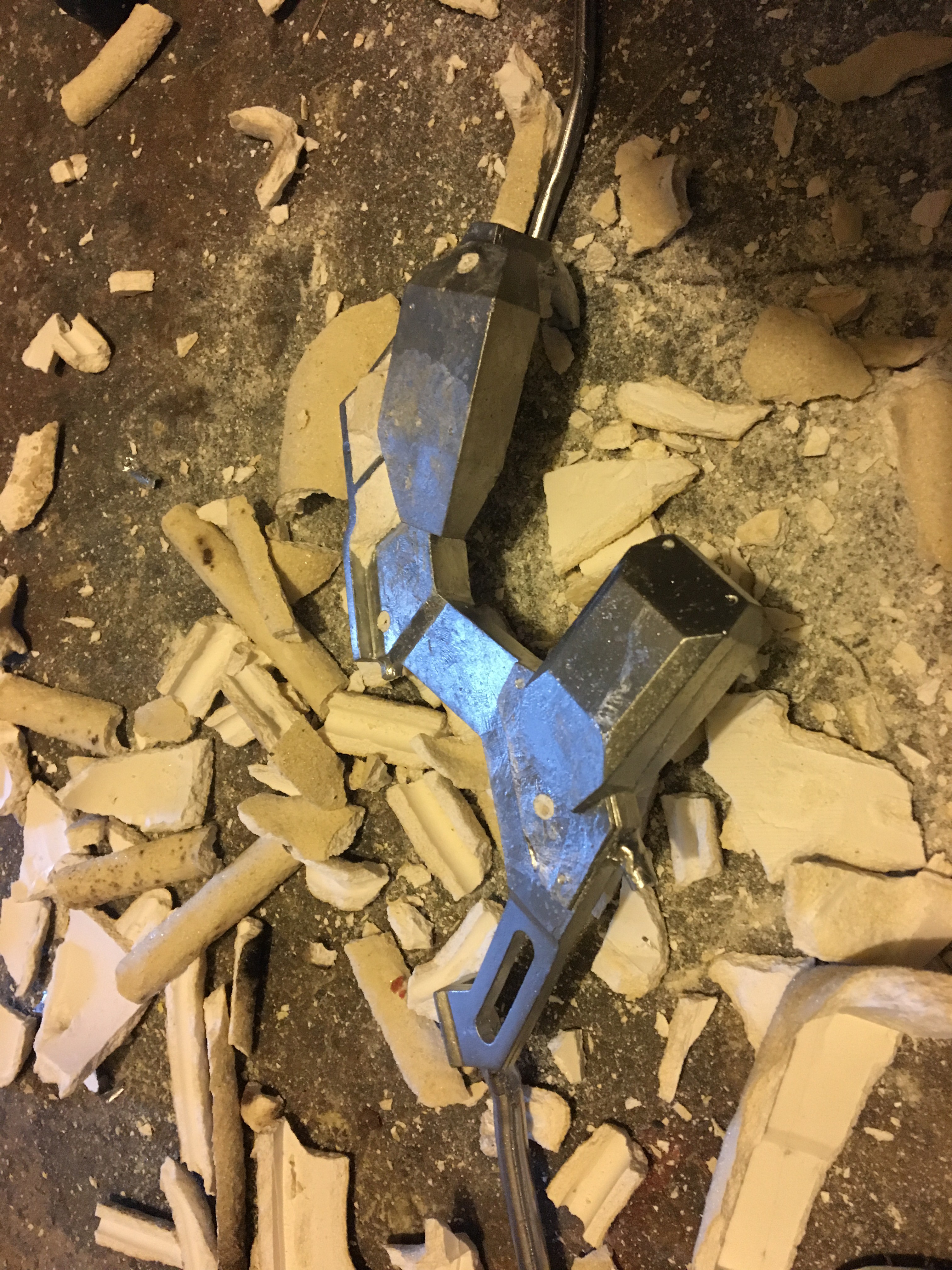

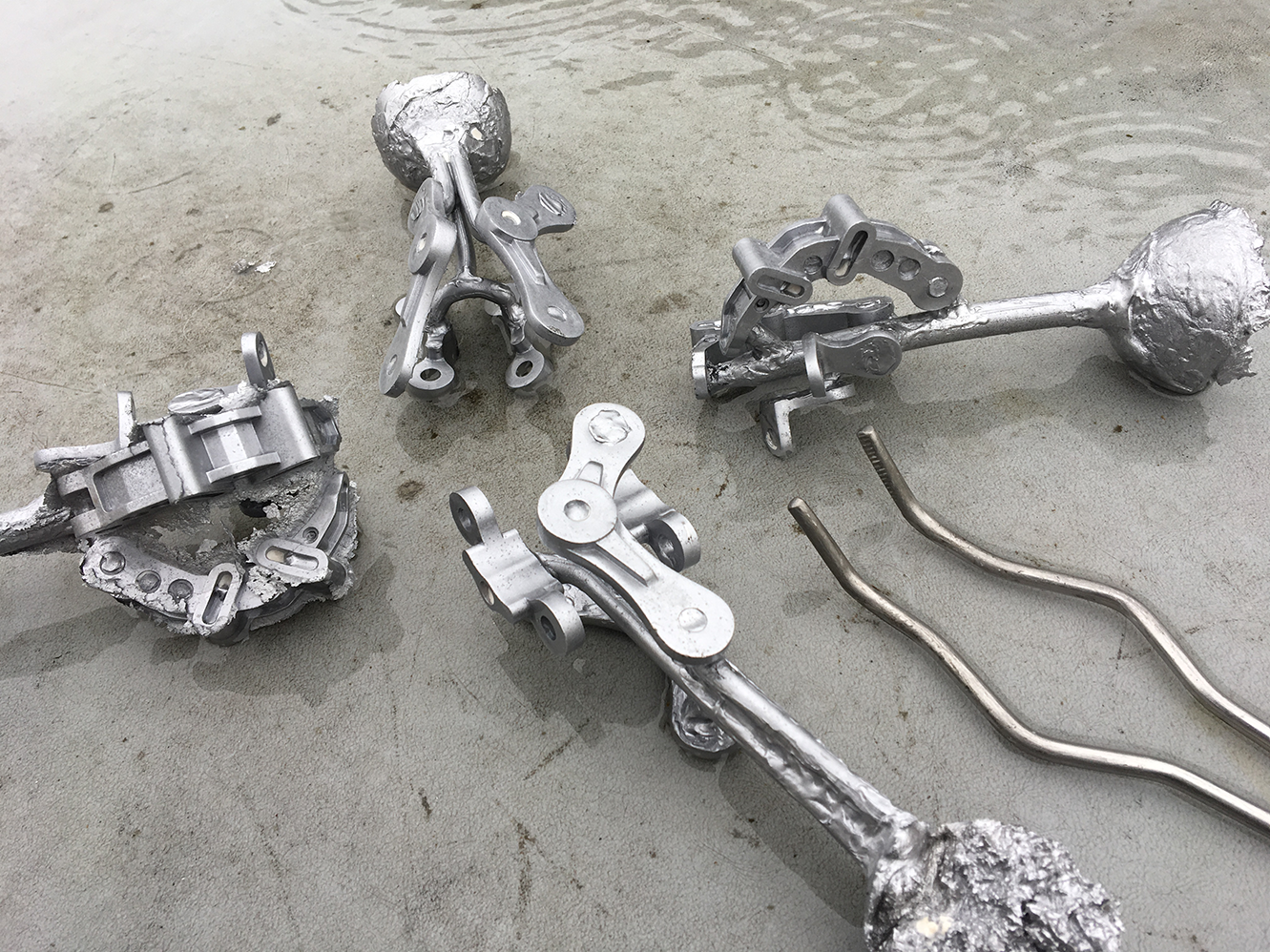

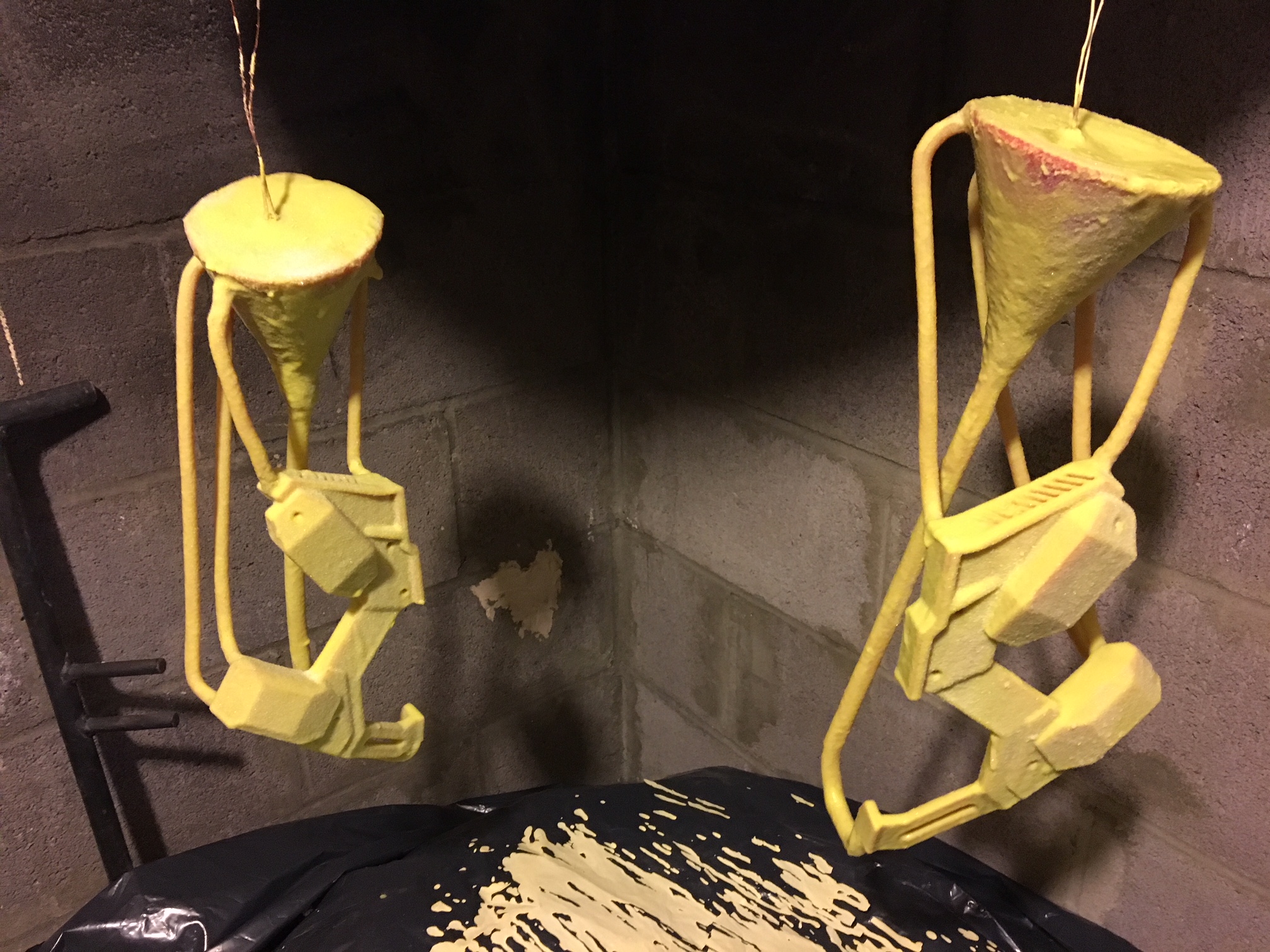

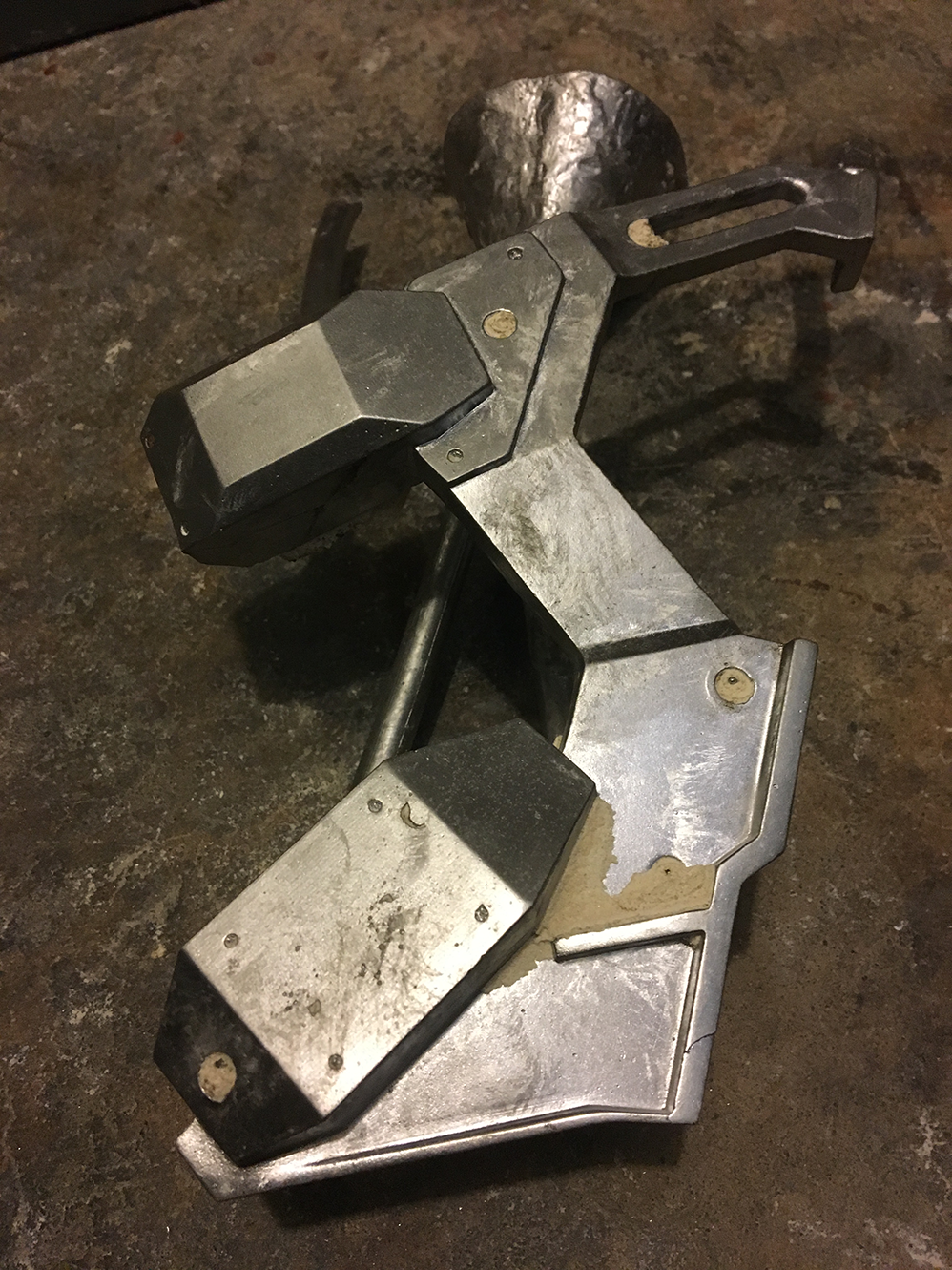

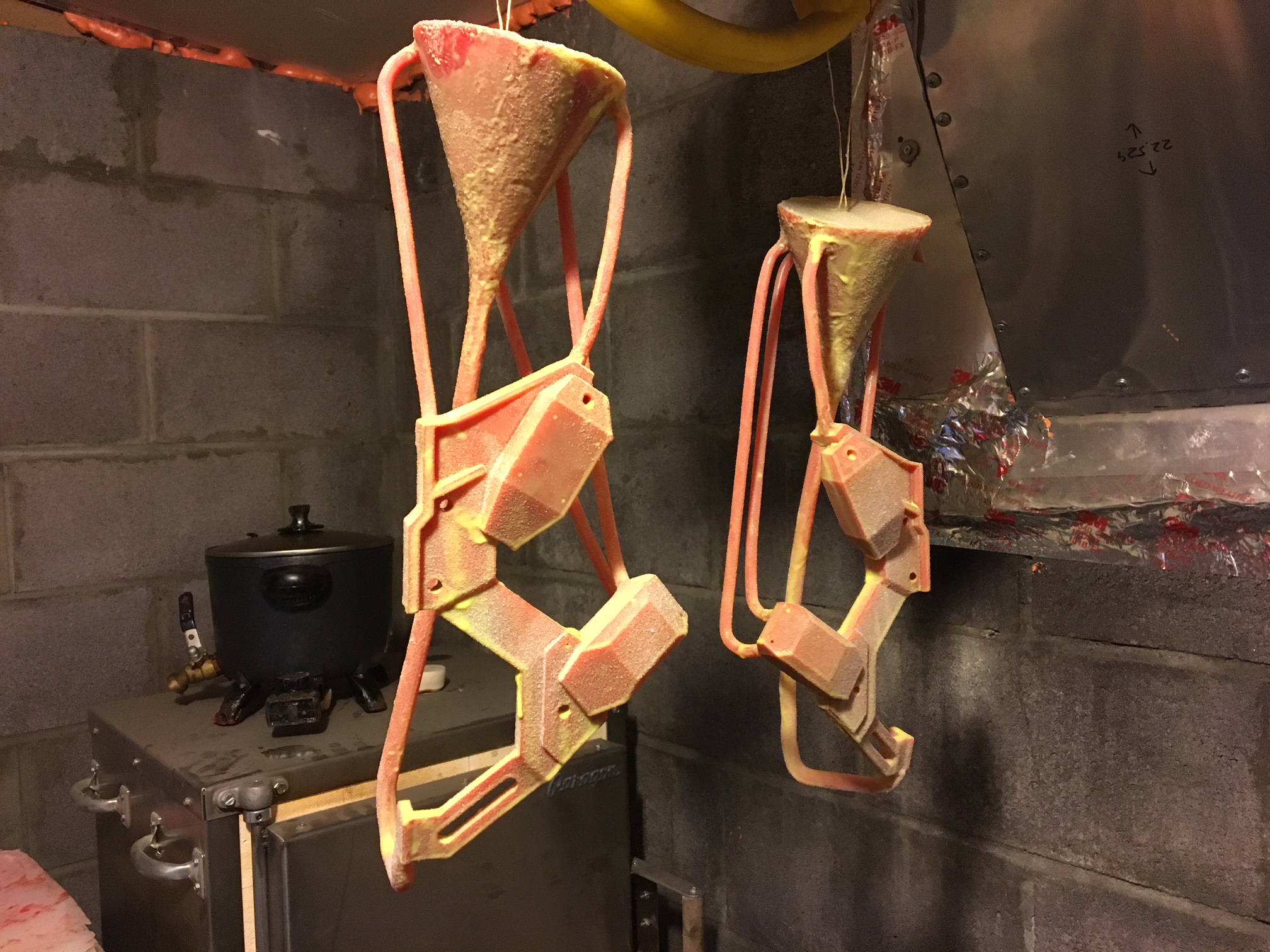

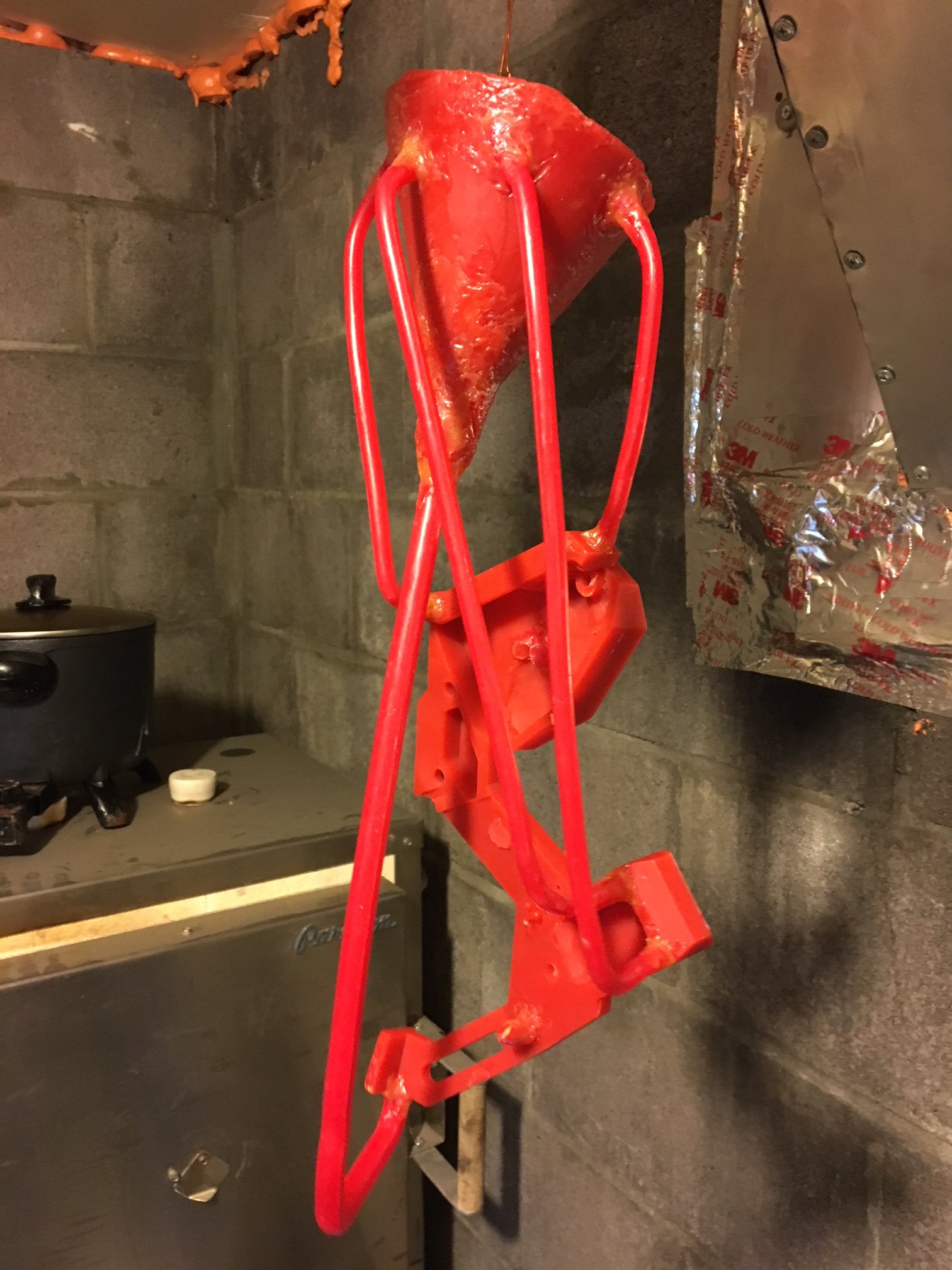

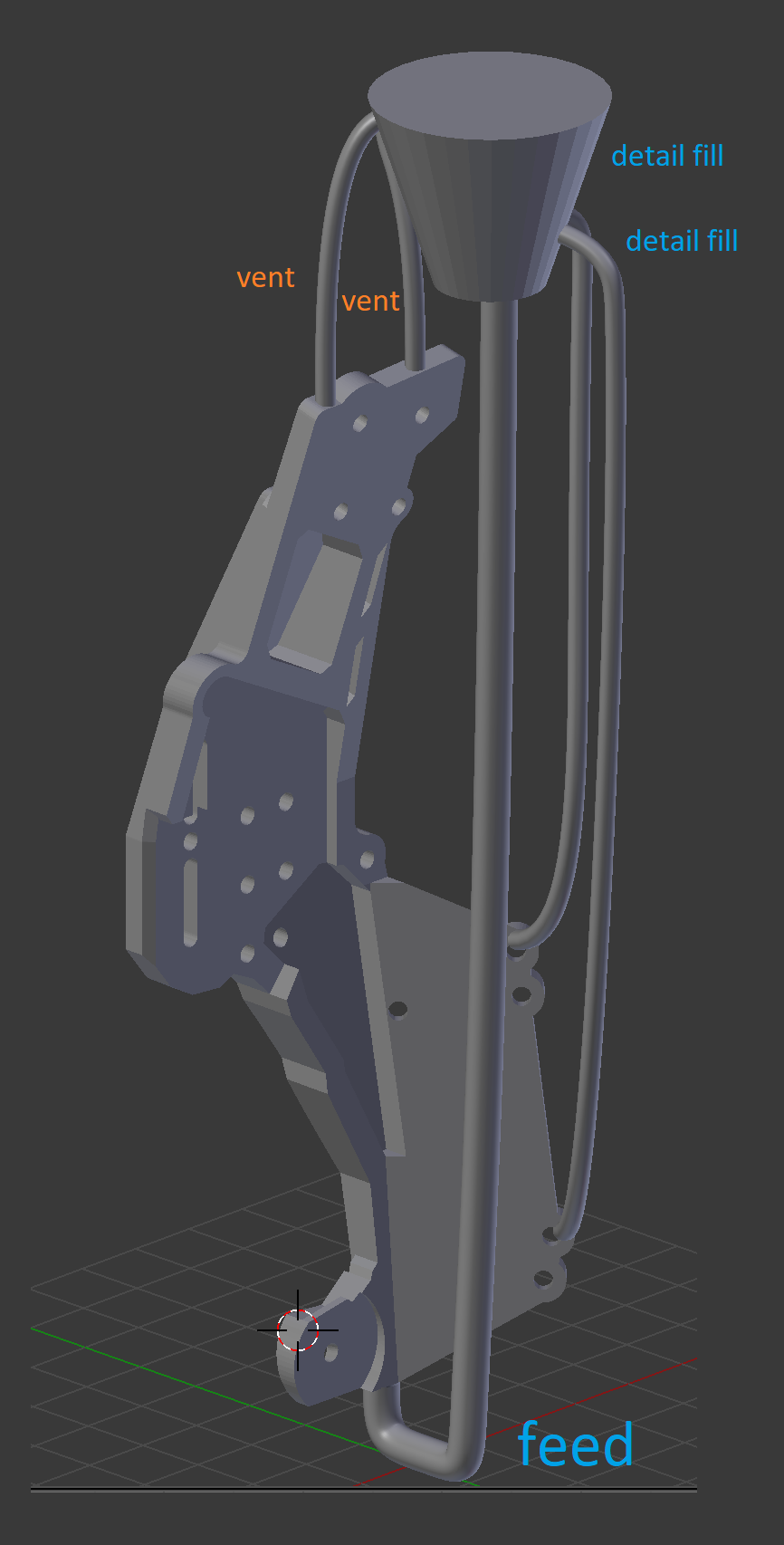

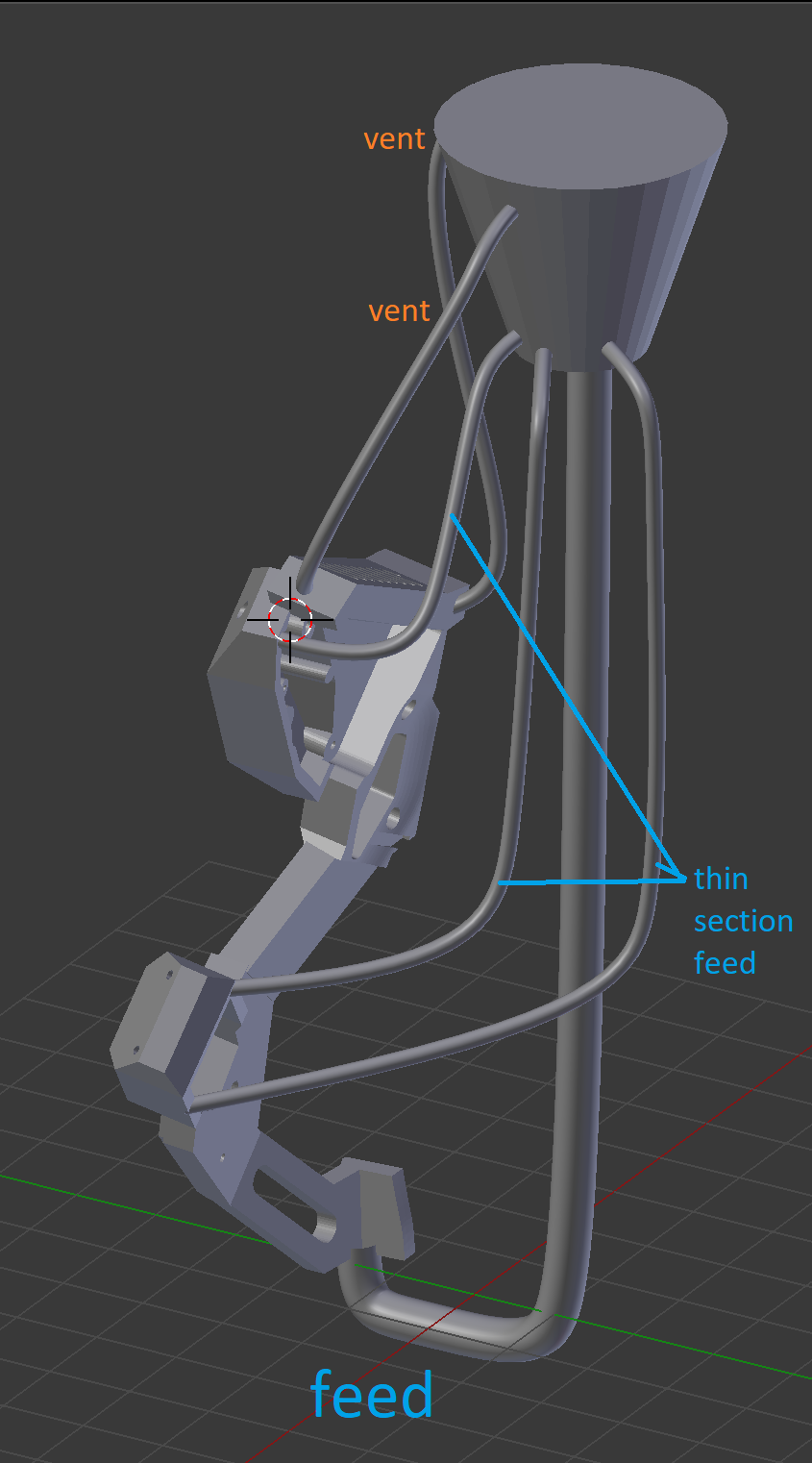

I followed advice on building more shell layers, pre-steaming the pressure cooker before putting in the shell, steaming for a short time (30 mins instead of 2 hours) and repairing cracks /adding another shell layer after vitrification. I have one final problem with a frozen surface in parts of the cast. Here's the video of this attempt:

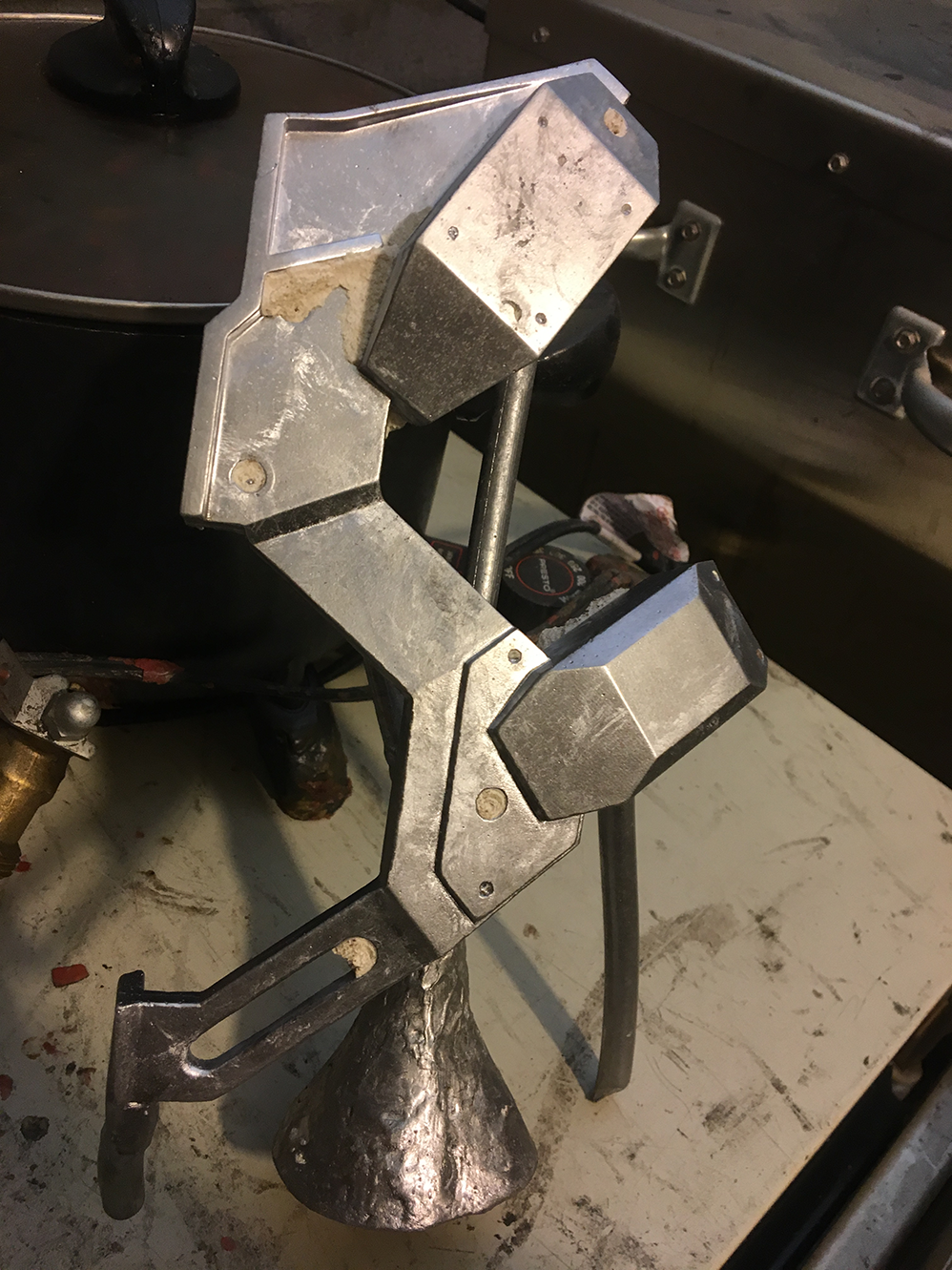

Here's the frozen effect. I poured at 950-970 and I skimmed a film of metal off the top, but it filmed over just as I was pouring.



Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
This is waaayyy pass amateur...you've turned Pro in front of our eyes with that project(y)thumbsup


01binary

Member

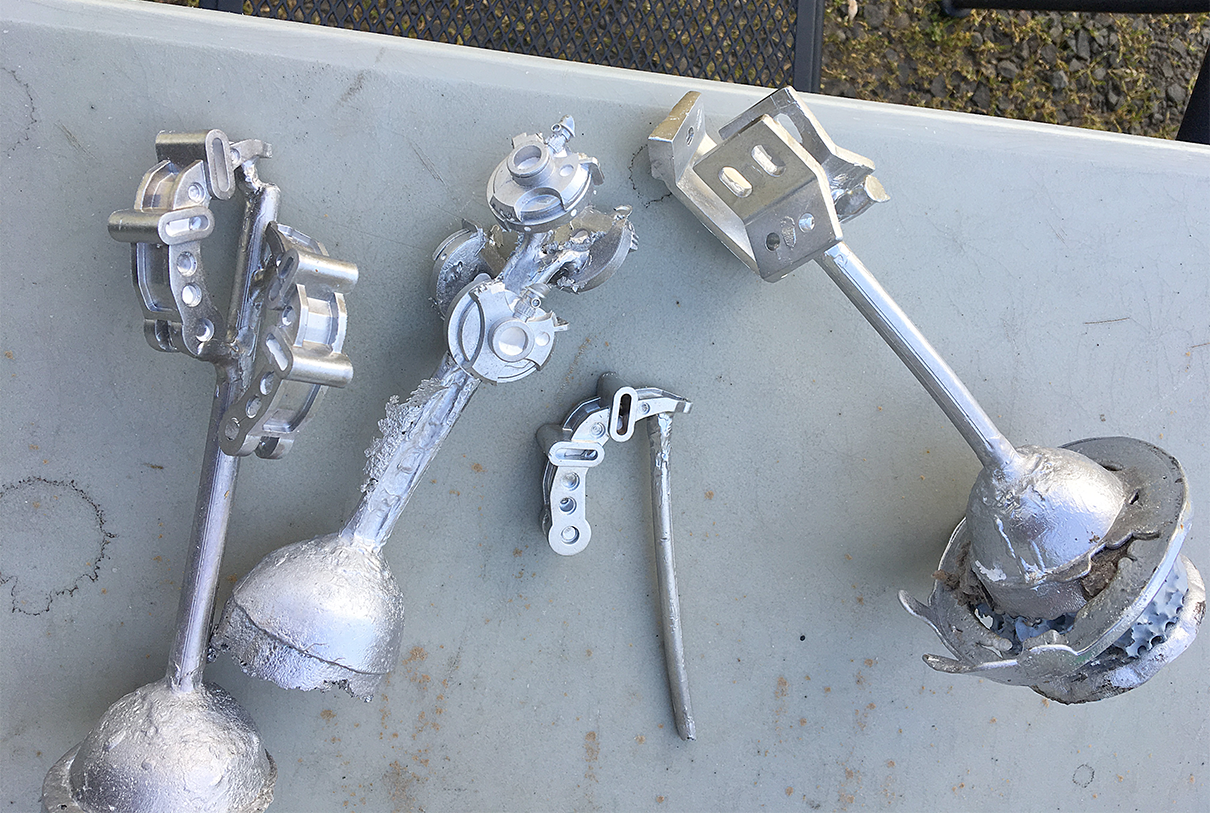

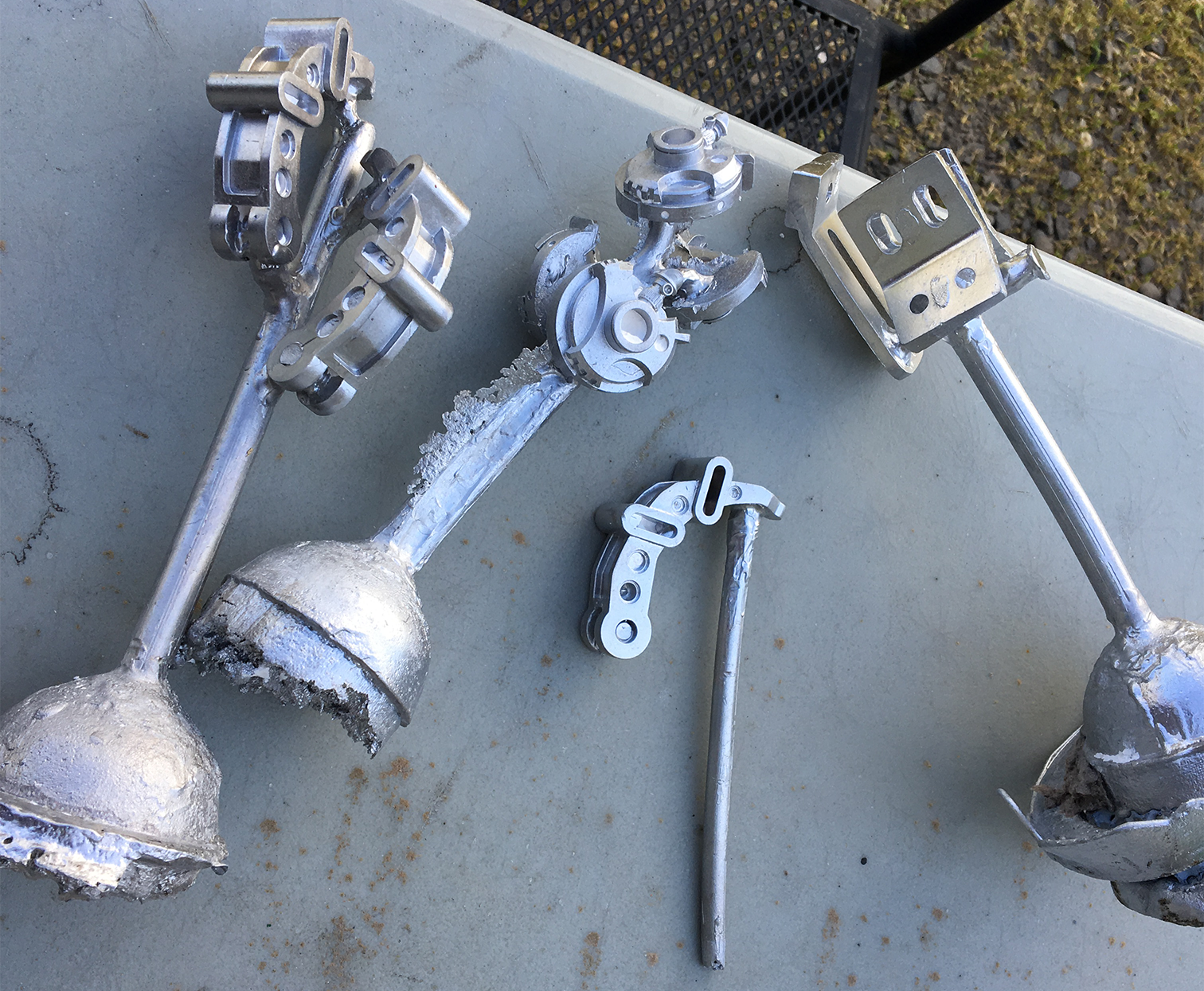

Today I got shell casting to work, with continued (incredibly strong) support from The Home Foundry forum.



Things are looking up! I might be able to finish next year.

Last edited by a moderator:

01binary

Member

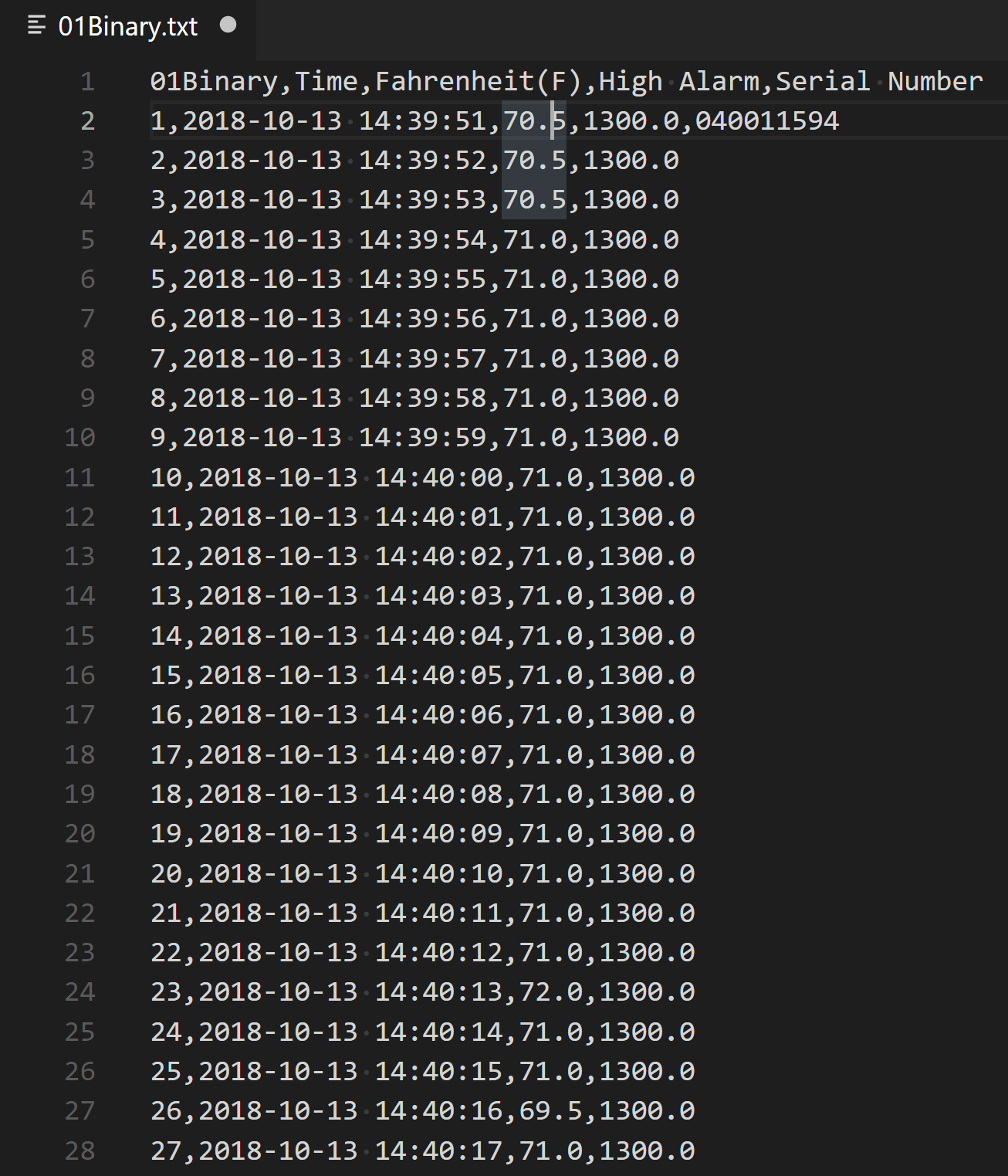

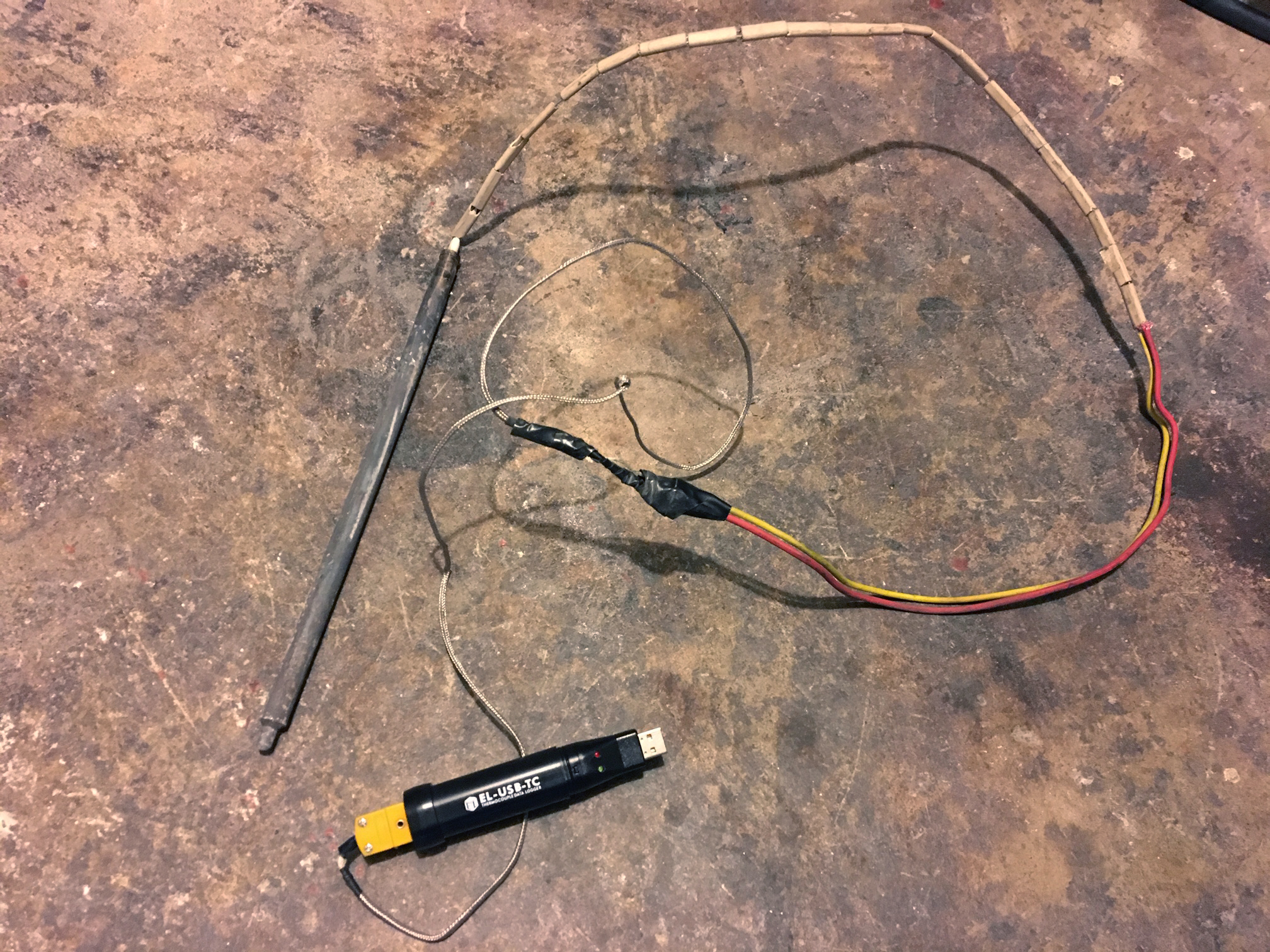

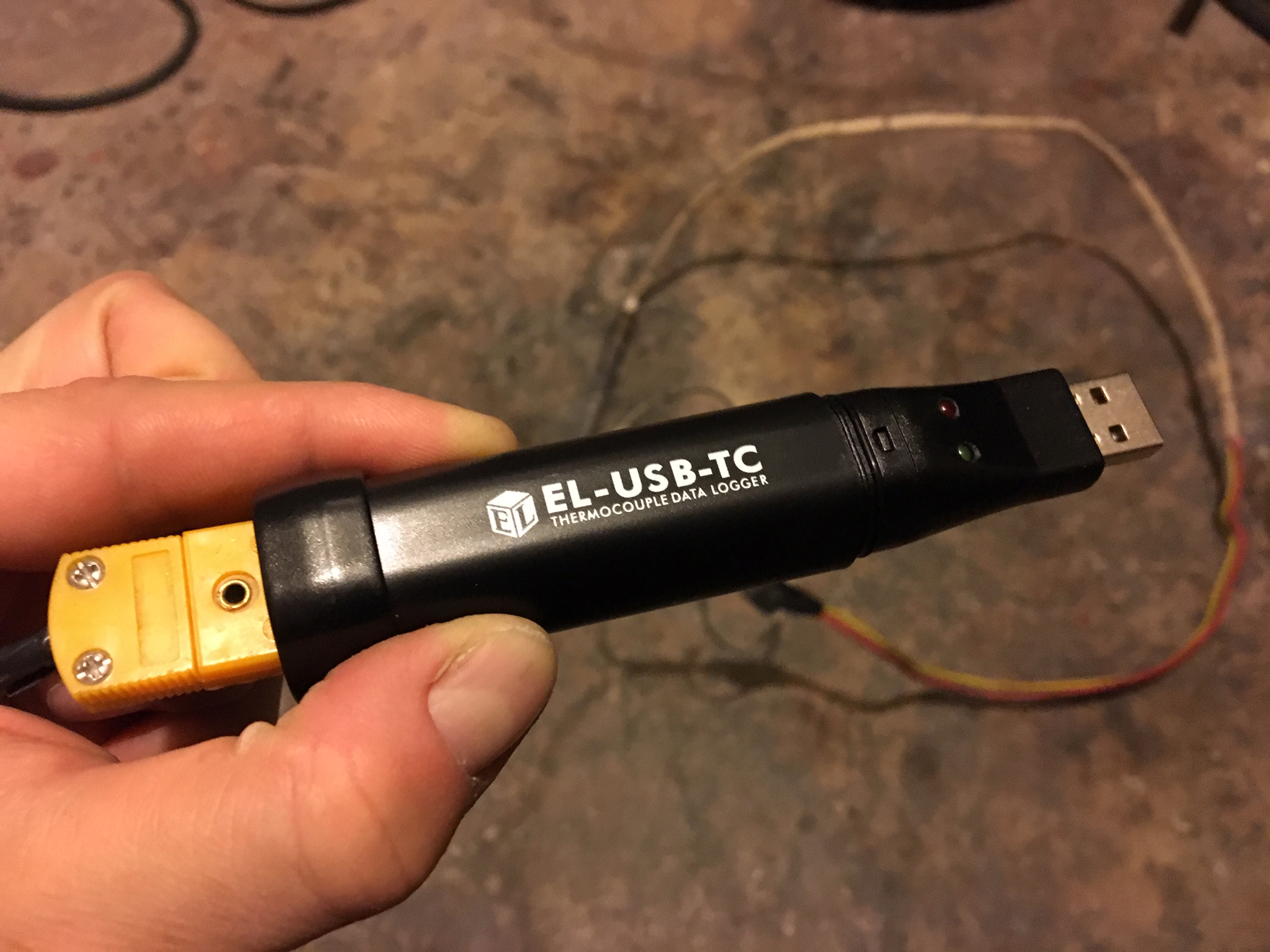

I got a USB temperature logger that works with my K-type thermocouple, so I can overlay a live temperature feed on my next metal casting video.
