E11 doopy doo with blaster core v4 build

[crafty]

So finally got some time to start doing this!

All sound, lights & switches work at the mo. Going to move on to the satellite board for the propagation rays LEDs then work out how to fit it all in!



[crafty]

more pics

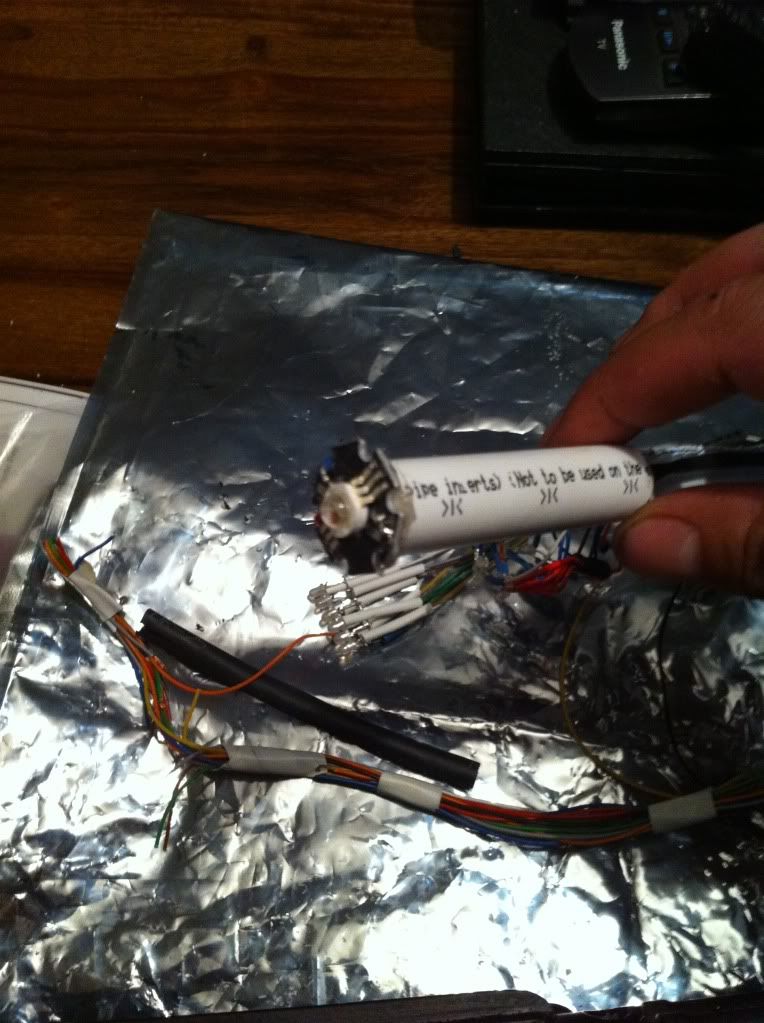

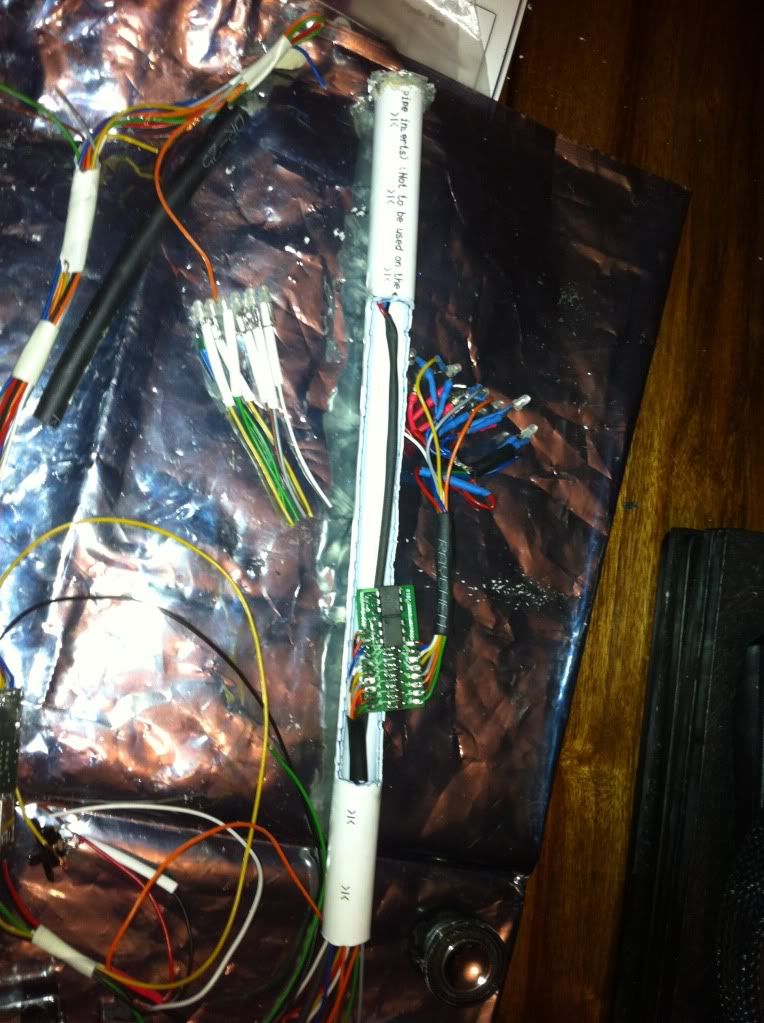

for the barrel lights

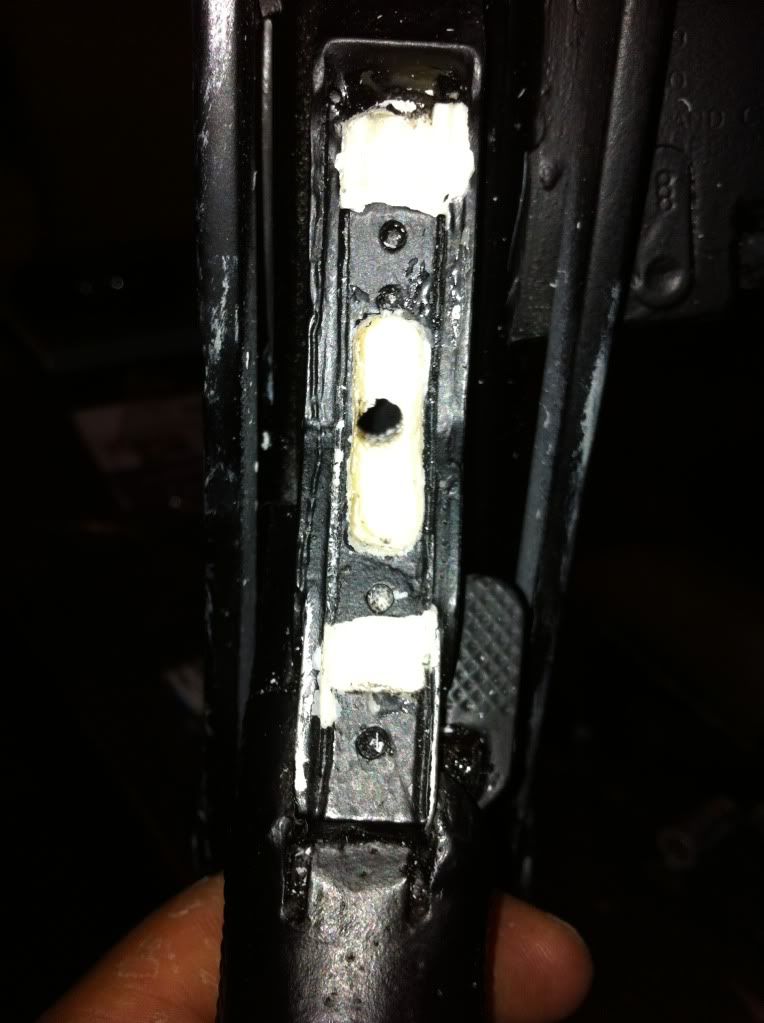

LED for main flash



[crafty]

More pics my real counter with single/auto switch plus led counter bar.

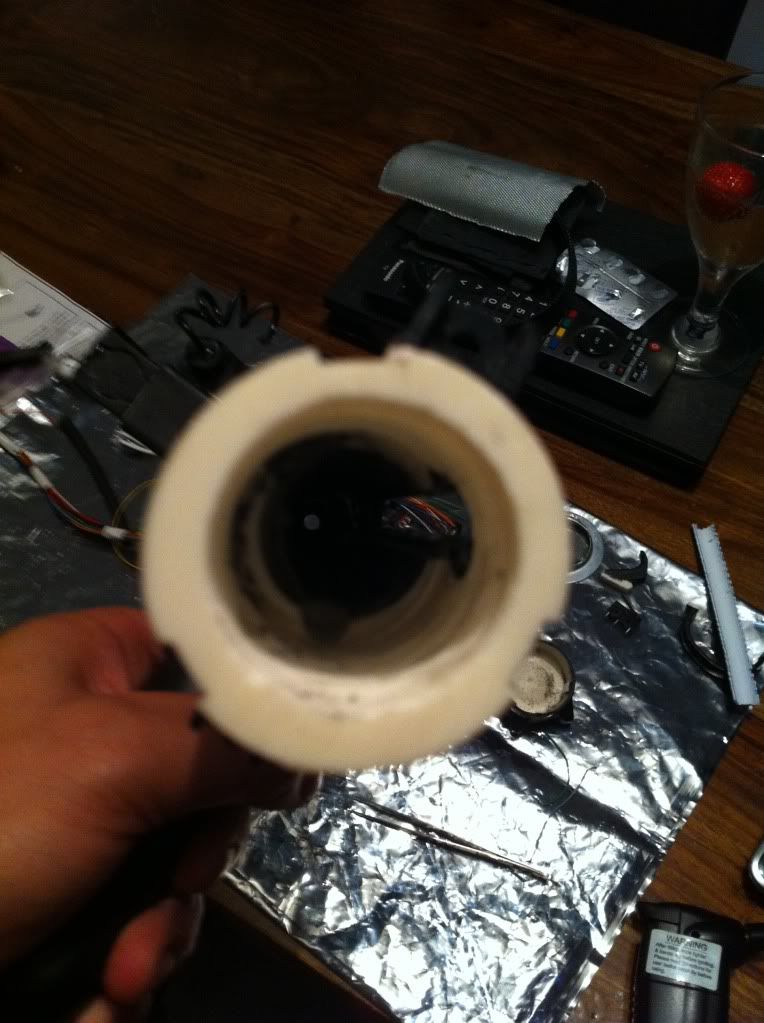

barrel all finished

recharge point gonna use it as a kill key aswell



[Caveneau]

I'm anxious to see how this turns out.
How's the DoopyDoos kit? Was it a conversion kit?



[crafty]

Full Doopydoo kit, but it a right pain trying to fit everything in!!



[crafty]

Ok Prototype E11 DD is done!

LEDS for the barrel ray
Real eagle Counter with bar graph and function /auto/single switch

KILL on/off switch

AND THE VIDEO *JUST CLICK*


OK this is just the prototype a few things to tidy up/redo but you get the idea.

This was a nightmare!!! now i know why no one else (i think) has done this in a doopy doo!!!



[jango trooper]

Any updates with this build?



[HermesBlackstar]

Darn--hate Photobucket video. Never works on mobile.



[Tolo]

Wow! Nice job buddy!
