Denix Colt Dragoon; I need some advice!!!

Discussion in 'Replica Props' started by darkev2, Mar 16, 2015.

  1. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    Hello Folks

    I'm thinking of getting the Denix replica of the Colt Dragoon for a conversion project but one thing is turning me away, the scene inscribed on the cylinder. Does anyone know how one could "fill in" or other wise "minimize" this inscription??? Below is a picture for reference.

    denix dragoon.png


    Thanks

    darkev2

  2. Noeland

    Noeland Sr Member

    Trophy Points:
    2,366
    Unless you're really familiar with the denix guns, I would not take one apart. The "screws" holding the grips on are not screws and need to be drilled out. The cylinder, to remove it and work on it, will probably need you to take the gun entirely apart, so if you go that far just remember to keep track of how the internals are set up, because it won't be anything like a real pistol.

    I would have to imagine you could fill the scene with solder, and then sand it smooth. Maybe you can just sand it smooth as is. If you're going to paint the finished piece, you might be able to fill it with bondo, or miliput, or a metal putty, and once again, sand it smooth. :)

  3. gunnerk19

    gunnerk19 Master Member

    Trophy Points:
    2,560
    Captain Harlock conversion?

  4. Xtafa

    Xtafa Active Member

    Trophy Points:
    361
    Is the conversion for something specific? If not, Denix also has an m1860 which is similar with a smooth cylinder.

  5. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    How did you know!!! ;)

    darkev2


  6. Noeland

    Noeland Sr Member

    Trophy Points:
    2,366
    I'd go with bondo then.

  7. paddyfritz

    paddyfritz New Member

    Trophy Points:
    17
    I would fill it or sand it.
    Denix guns are crap by the way. There is youtube vids on taking them apart.

  8. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566
    I agree with paddyfritz, the Denix pistol is meant to put on a wall and look pretty. Are you familiar with automotive bondo? Might be your best best to adhere to the pigmetal cylinder. Of course you'd have to repaint it anyway.
    Seeing as you have to remove the hammer, the cylinder won't be able to spin, did you want to use the Denix for it's weight or would you consider one of the resin kits available out there?

  9. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    Hello 19narvik40

    Well I was thinking about using the Denix as a more accurate source of the core parts (weight is just the icing on the cake) of the Cosmo Dragoon namely the trigger housing, main body, barrel and the cylinder. Now in addition I have also found a source for the trigger guard, cylinder and trigger which would cause me to scratch build the rest over time. Not a deal breaker in itself given the overall flat box like body of the base weapon. Heck I am even considering losing a bit on a one to one match and using an old pyro plastic pistol kit I picked up for next to nothing a few days ago. In any event I either secure the denix or enough real / accurate or "near" as I can get parts to have a decent shot at a good replica. Mine you if I could get a good adult sized resin kit of the Cosmo Dragoon which was in more then 2 to 3 parts and had a rotating cylinder and a working trigger I would buy it in a microsecond.!!!

    Darkev2


  10. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566
    Darkev2, The problem I see is that when you remove the hammer you remove your ability to have the cylinder spin. The spur that causes the cylinder to move is attached to the hammer. Unless you can find a way to cut down the hammer so it fits under the new part, the cylinder will only move if you physically move it with your hand. The problem with cutting down the hammer is the fact that the Denix is made of pig metal or white metal and isn't very strong. Something to think about.

  11. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    Hello 19narvik40

    Well now that is something to mull over. Lose the hammer to fit the Cosmo Dragoon back piece and you lose the cylinder movement when the gun is cocked. Okay anyone out there have that 14inch taito $150.00 version of the Cosmo Dragoon??? If so what the frell does that back piece on the pistol do??? I mean the piece replaces the "hammer" so to speak does it do anything like rotate the cylinder perhaps??? In any event to modify the denix you have to lose most if not all of the hammer and with a dremel and a good set of cutting and shaping bits that does not seem to be that difficult. Note if I'm wrong, someone please chime in!!!

    Darkev2


  12. paddyfritz

    paddyfritz New Member

    Trophy Points:
    17
    It would be easy to cut the metal as it is so soft. Zinc airguns are much harder. They seem to make the Denix stuff out of the softest potmetal they can get.

  13. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566
    Paddyfritz, the issue isn't that it can be cut but that what is left is considerably weaker to work with.

    Darkev2, I took a look at my Off World PKD and the part is cut down somewhat so it might be possible to cut the hammer down to the semi-circular hub. That might allow you to retain the cylinder spur which rotates the cylinder.I am trying to find a schematic of the interior on the Dragoon to see where the spur sits on the hammer assembly to be sure.

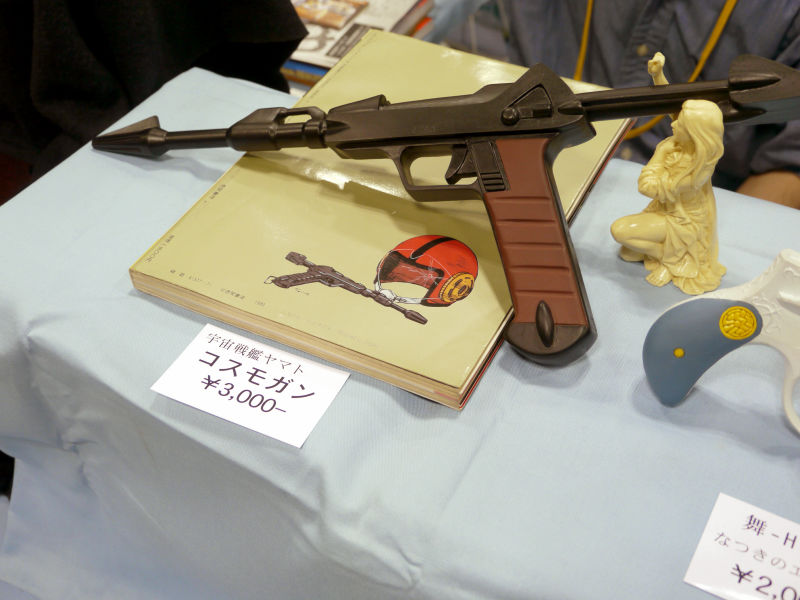

    As for what the piece in place of the hammer, I would imagine it is there to make the pistol more interesting. Harlock's pistol looks quite similar to the sidearm on Space Cruiser Yamato. gun20.jpg

  14. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    Hello Folks

    After a bit of looking around the net I found one version of the pistol (a real chunky and shiny one) where the thing on the back moves the cylinder. Check out this video;

    http://www.youtube.com/watch?v=1C8K8FQahO4

    Now I wonder how difficult would it be to duplicate such an action???

    Darkev2

  15. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566

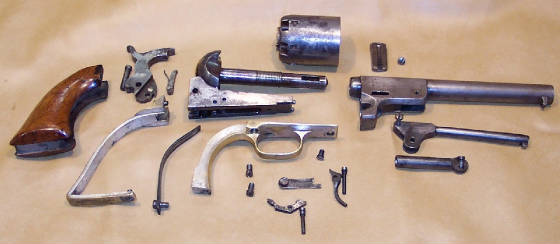

    Darkev2, It would seem that you are going to need to keep most of your hammer. as the Dragoon is a single action revolver. My idea is that the extra piece is attached to the cut down hammer using a pin to allow it to swivel as you pull it back and * the pistol. The problem with that is now the hammer and extension will be left in the cocked position until you pull the trigger. You could cut down the sear that holds the hammer back which would allow the hammer to return without pulling the trigger. Another option is to pull the trigger back before and hold it as you * the hammer which will allow the cylinder to turn and the hammer to return to the closed position. I am including a photo of a real Dragoon broken down to the main components
    . ColtDragoon2.JPG.w560h244.jpg
    I hope this was of some help to you. I know of a few online and eBay stores that sell a resin replica, would they be of interest to you?

  16. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    Hello 19narvik40

    Thanks for the ideas and comments. I clearly have a set of possible options to consider and the mechanics of each option to scope out. Yes if it wouldn't be too trouble I would like to see the sources for a resin dragoon pistol.

    Thanks Again

    Darkev2



  17. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566
  18. Broilermaker

    Broilermaker Sr Member

    Trophy Points:
    1,085
    I have on hand a gunnison/griswald by denix, which is basically a colt dragoon with a different cylinder, there are minor differences but it was a confederate colt copy, they are heavy by today's standards, but who cares, I am planning on taking mine completely apart, my grips are actually wood which surprised me, if money and location are not an issue you could spend $274 mas or Minos at Dixie gun works and have one that would shoot. For what I am planning my denix is a good starting point. Dragoons are big guns, sure you can buy a resin kit off of ebay or amazon but what fun is that?

  19. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566
    Hello Broilermaker

    Getting a static resin kit is an option but not at all my first one. Right now I am trying to find a good "side" view of the inner workings of a single action pistol, preferably the colt dragoon or similar to see how the exact mechanism works and then from that I can begin to see how it may be modified to the cocking action of the Cosmo Dragoon. Failing the diagram I will fall back on the pyro plastic model kits I just purchased as a guide to the real thing. The video of the alternative version of the dragoon showed that such a cocking mechanism is possible so I know such can be done. In the above 19narvik40 provided a MAJOR clue which is I think pointing me in the right "general" direction but time will tell if I can pull it off. Oh by the way what are you planning for the gunnison & griswald, perhaps the same thing I am???

    darkev2

    Last edited: Mar 19, 2015
  20. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566
  21. darkev2

    darkev2 Well-Known Member

    Trophy Points:
    566

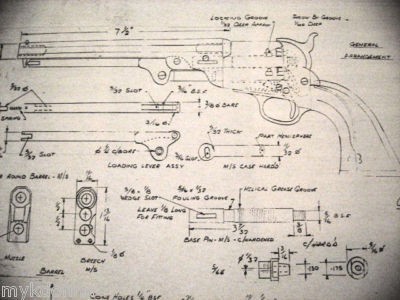

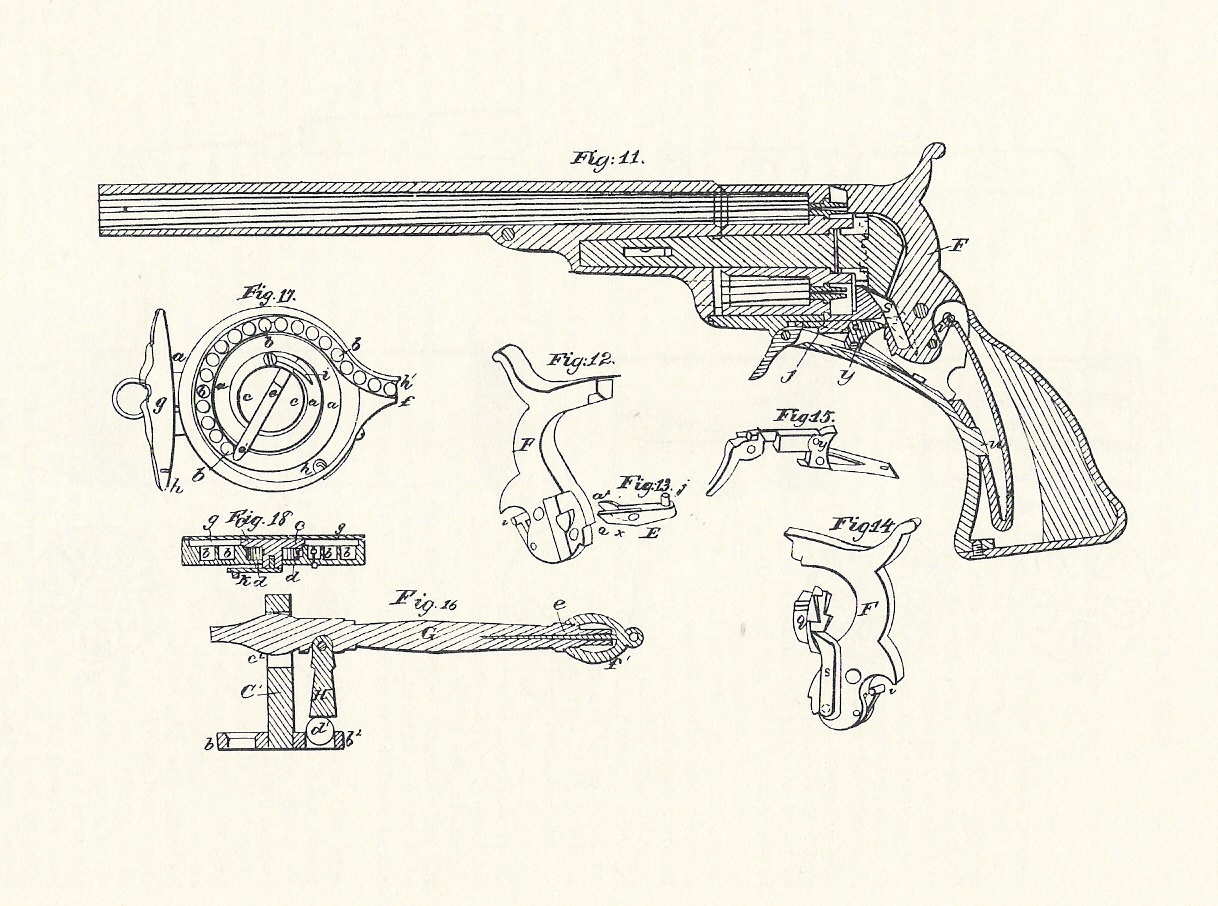

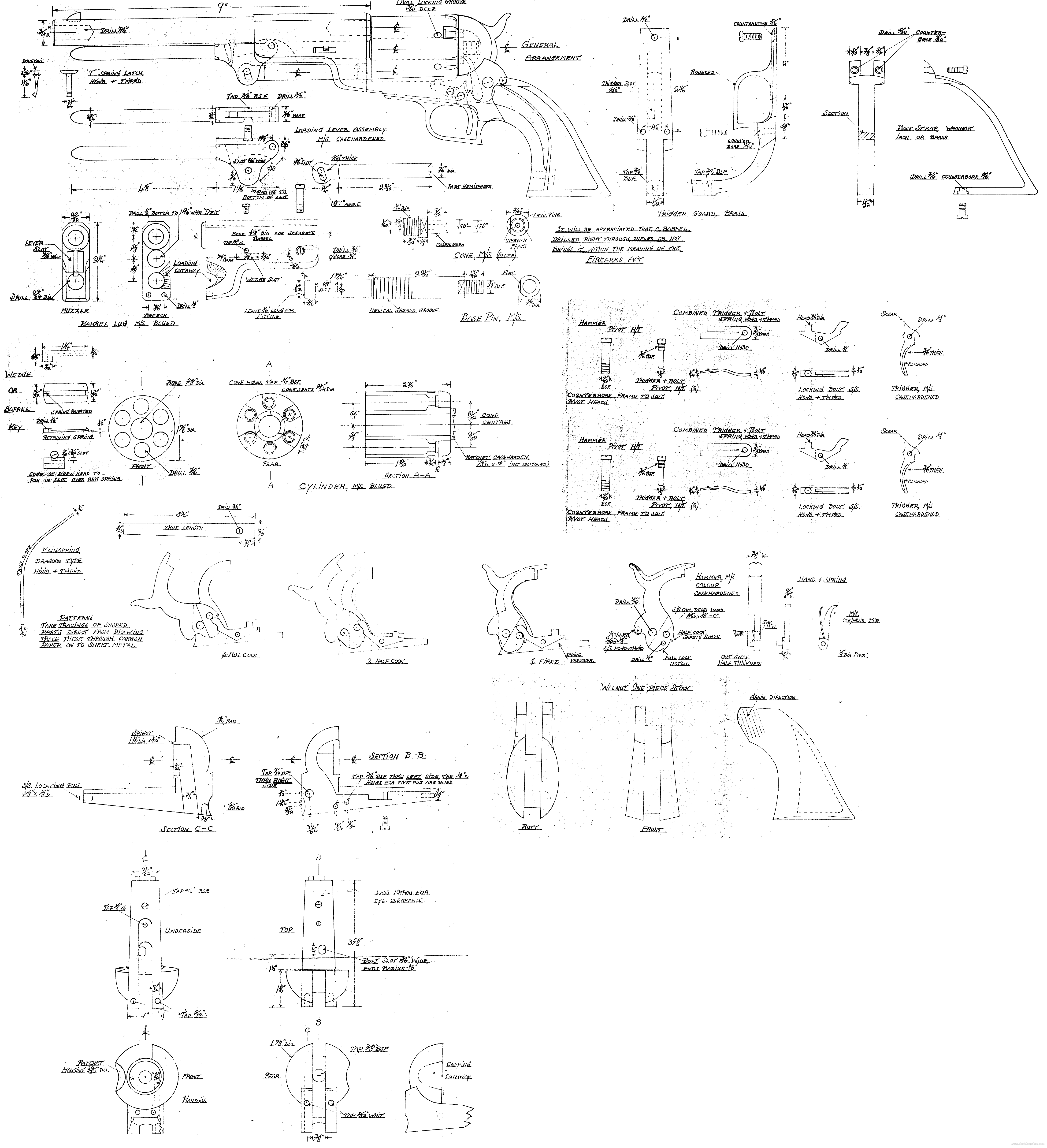

    Hello 19narvik40

    Thanks for the photos, greatly appreciated!! Now to see if I can come up with something that is feasible.

    Darkev2

  22. 19narvik40

    19narvik40 Well-Known Member

    Trophy Points:
    566
    Darkev2,

    I found this in the Project run pages;

    http://www.therpf.com/showthread.php?t=232637

    I'd have to say it looks pretty nice and I do believe he has them for 25% off right now. I hope you find this interesting.

    Best regards,

  23. Broilermaker

    Broilermaker Sr Member

    Trophy Points:
    1,085
    While I do like the main elements of harlocks pistol the cocking hammer does not appeal to me, it would tear up the web of your hand, unfortunately for me I have to think about realities while making fantasies, no I have a much different plan
