Limited Run CLOSED: Kylo Ren CNC aluminium ultra accurate Saber
- Thread starter dday
- Start date

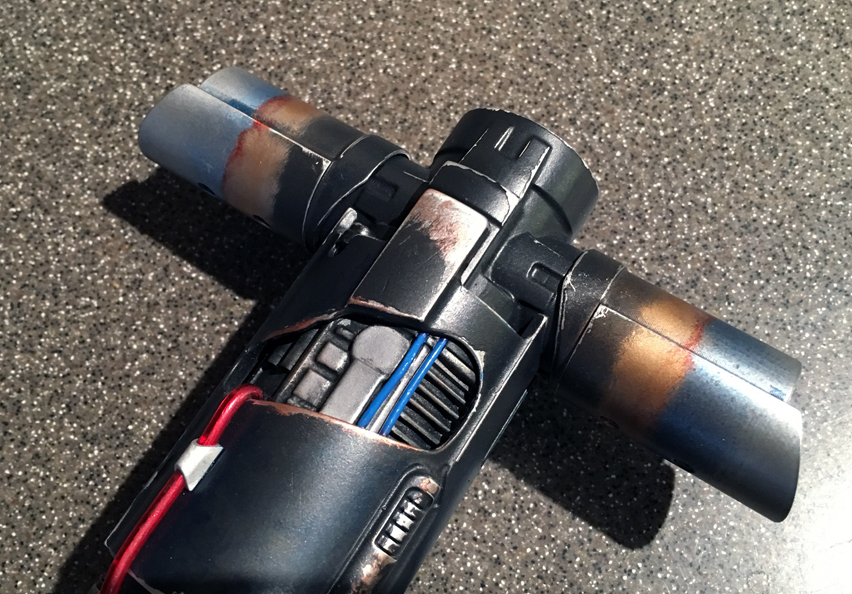

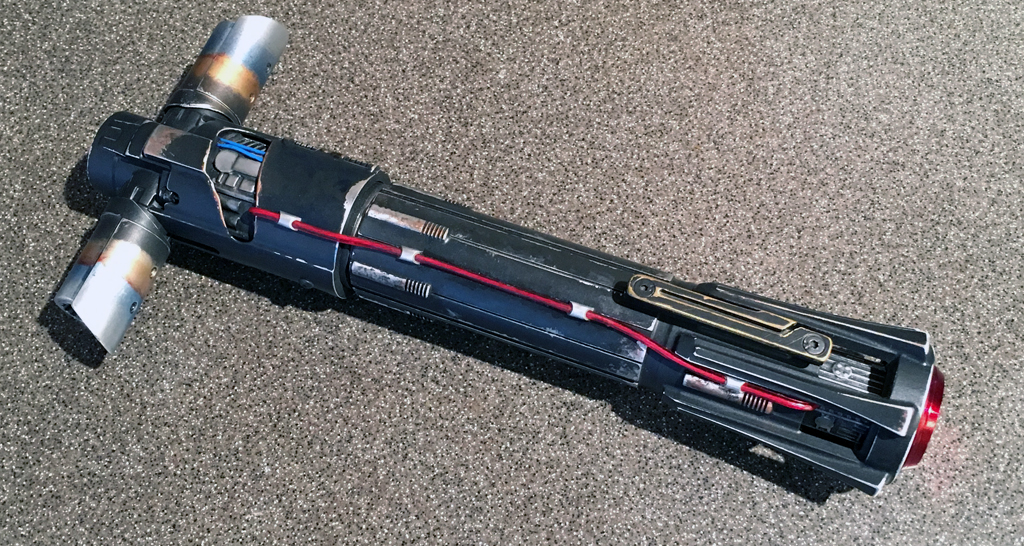

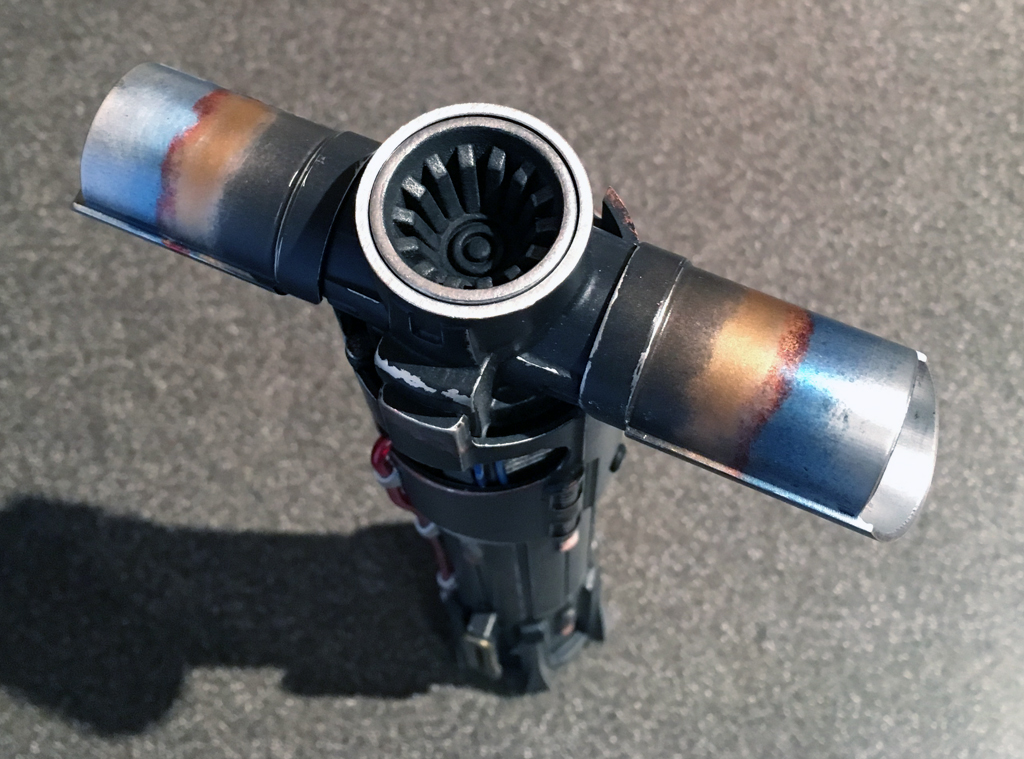

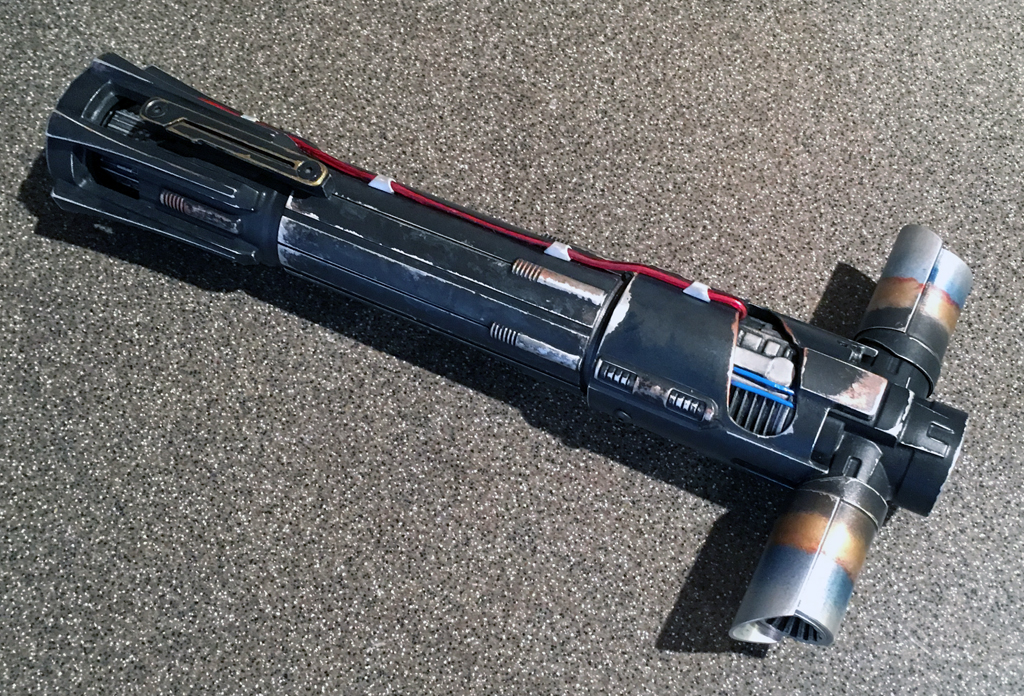

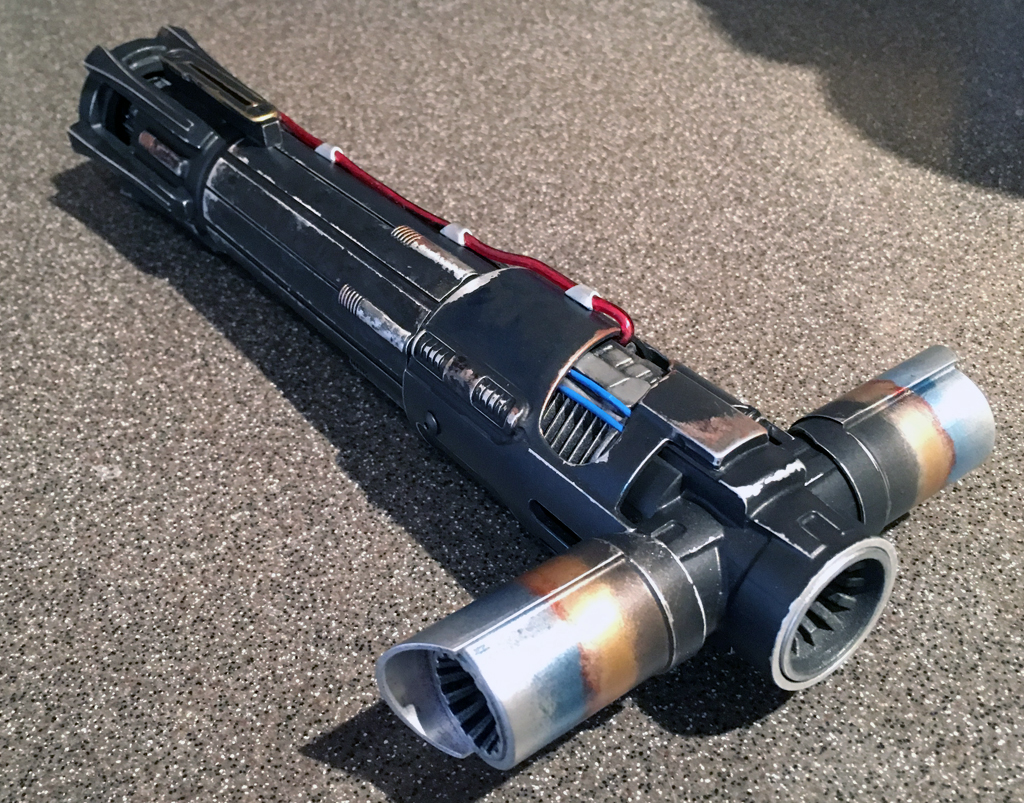

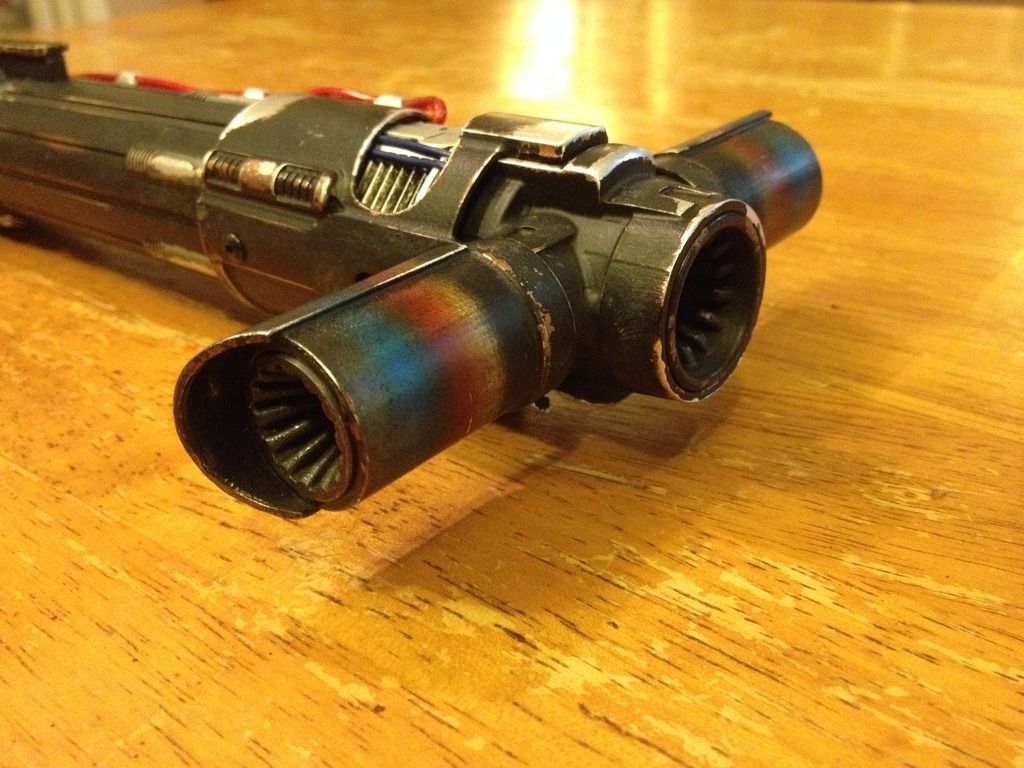

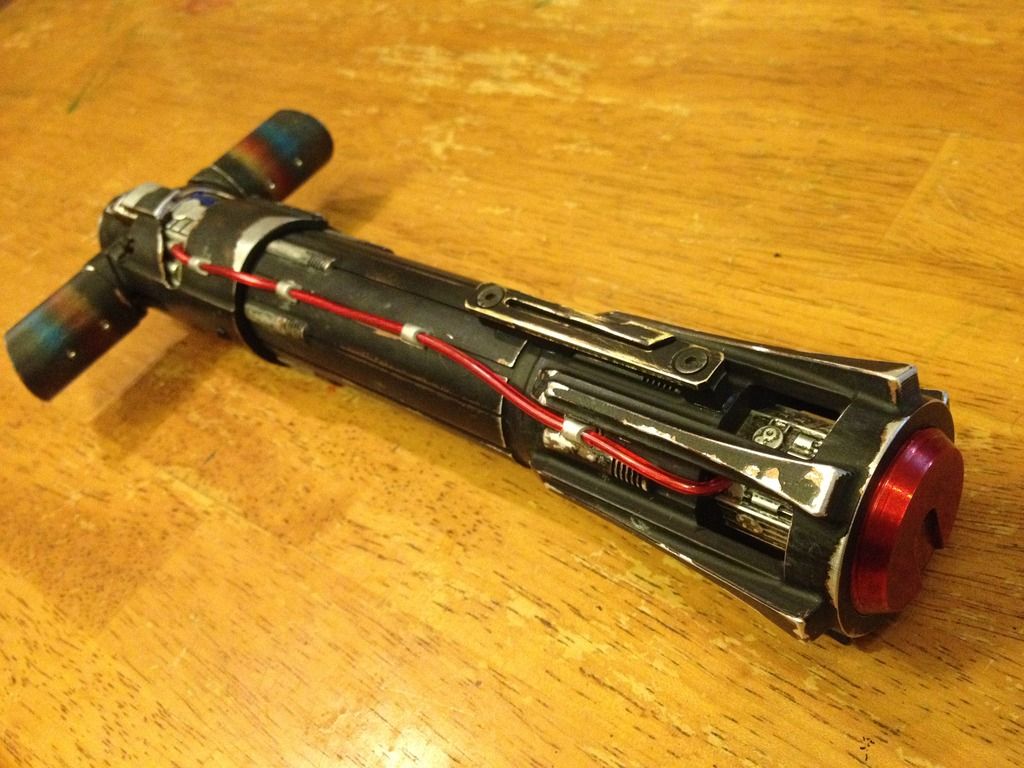

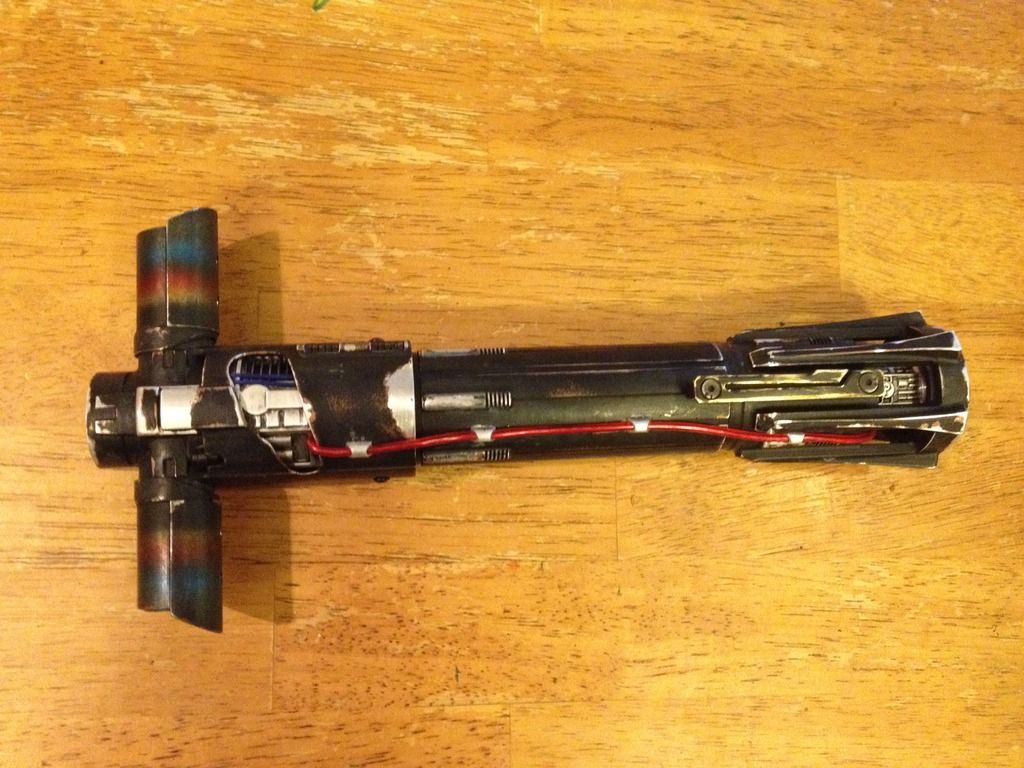

OK Pretty close to finished still need to add the Blue wires, I did get a cheap air brush to do the emitters. Never used an air brush before , totally understand getting a good one, because the cheap one was a pain, hardly no adjustments, Hope you guys like it.
AL
AL
I would be willing to go as far down the rabbit hole you are willing to take us GeneralFROSTY! You have my vote for copper plating.
Lutts
Active Member

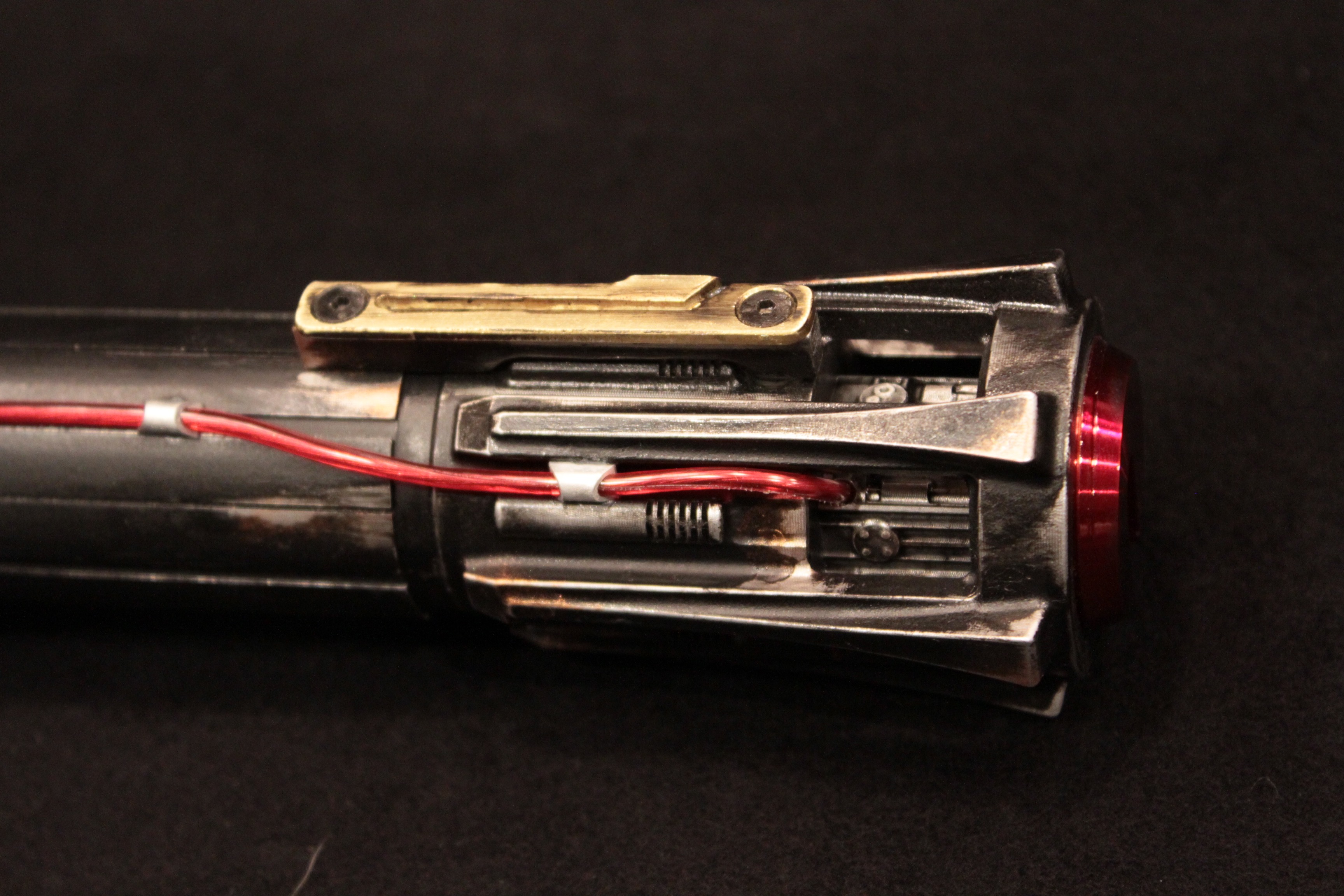

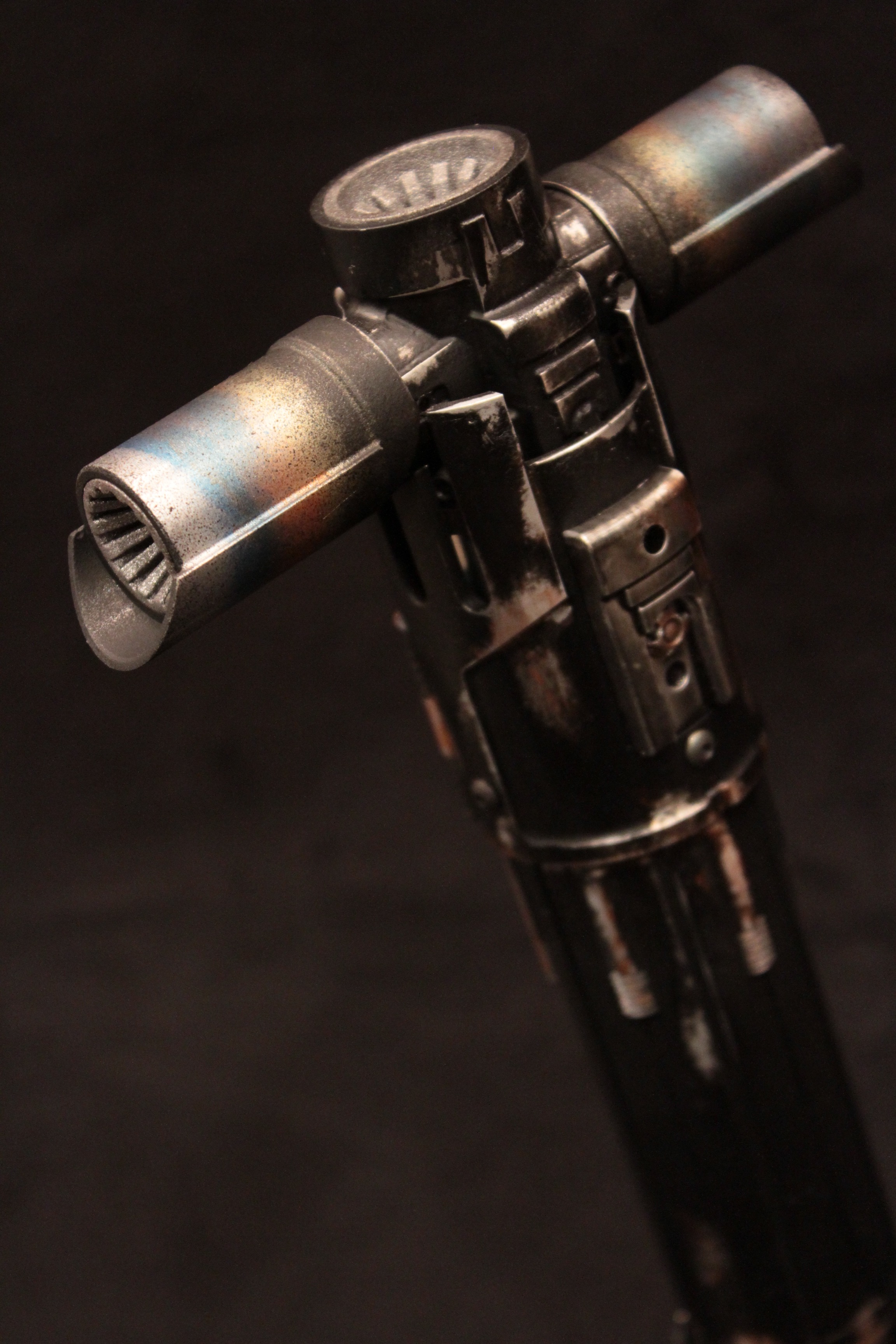

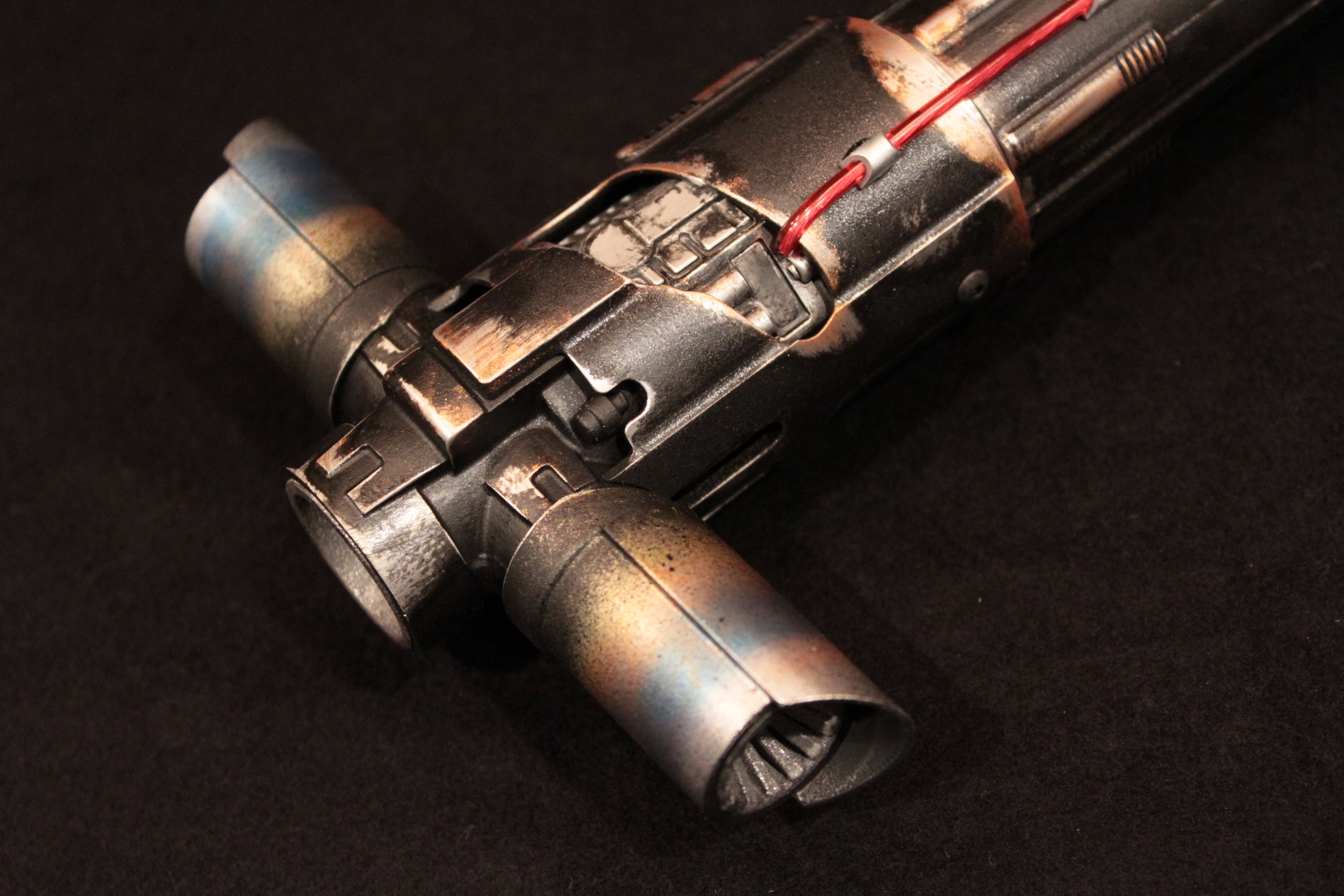

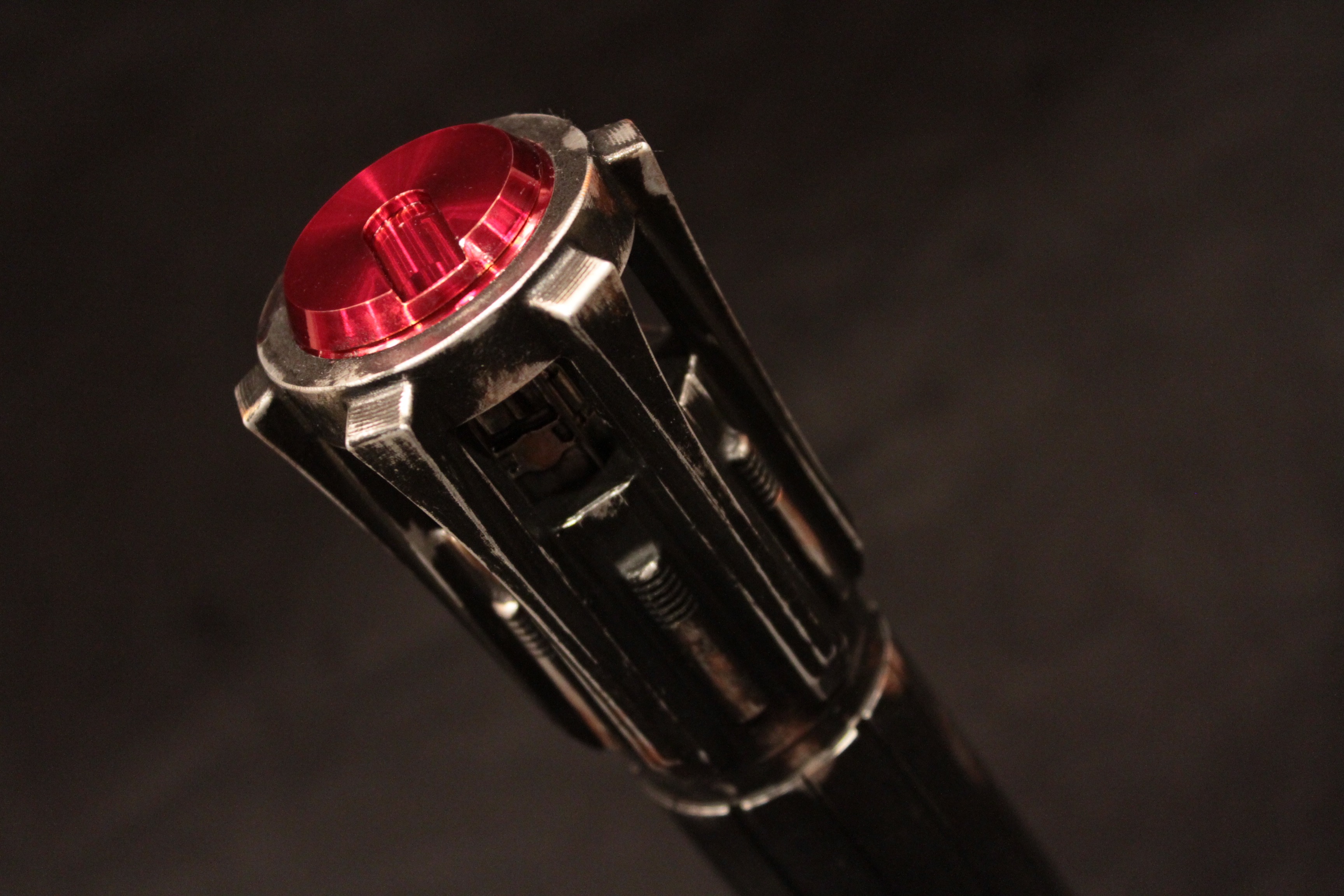

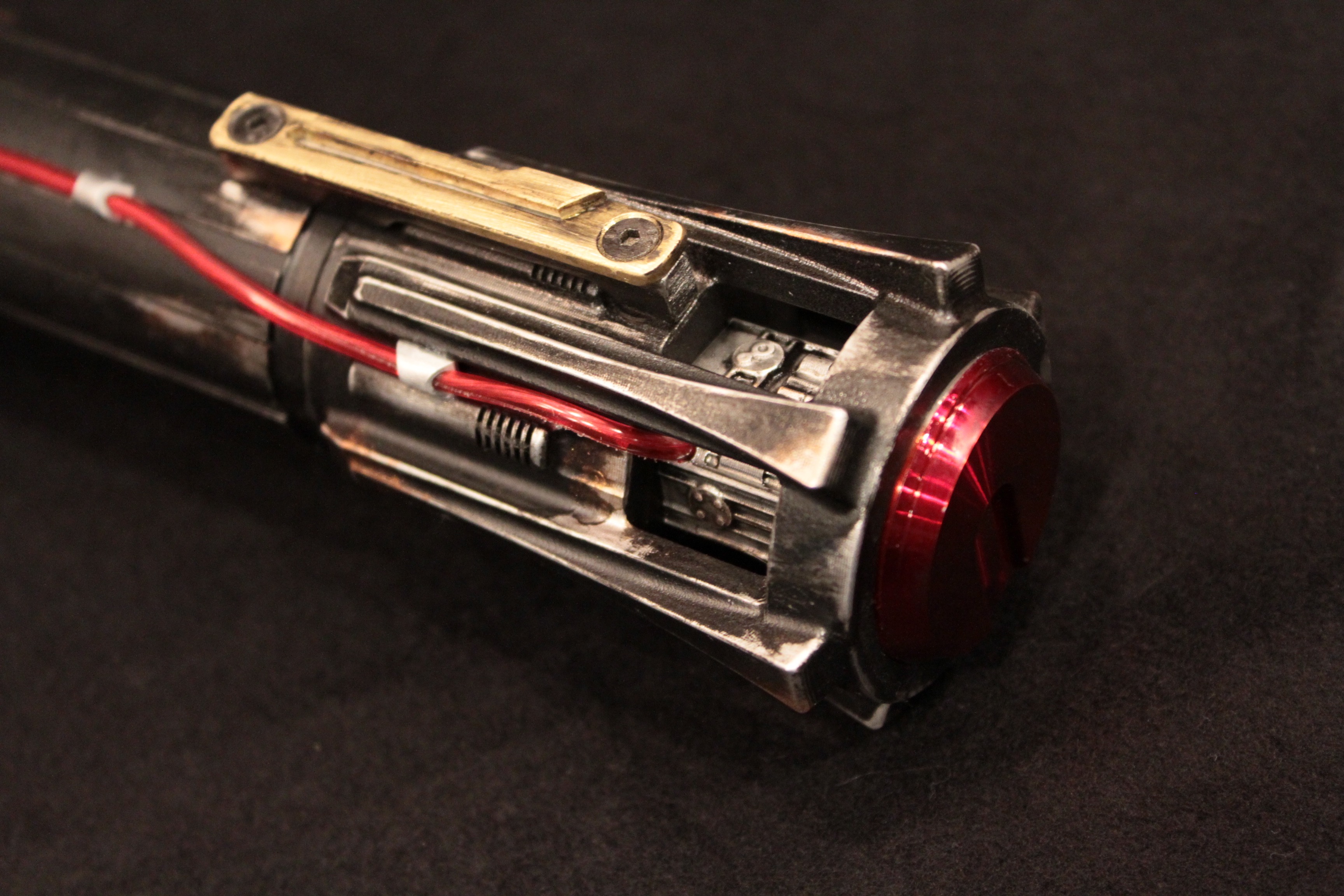

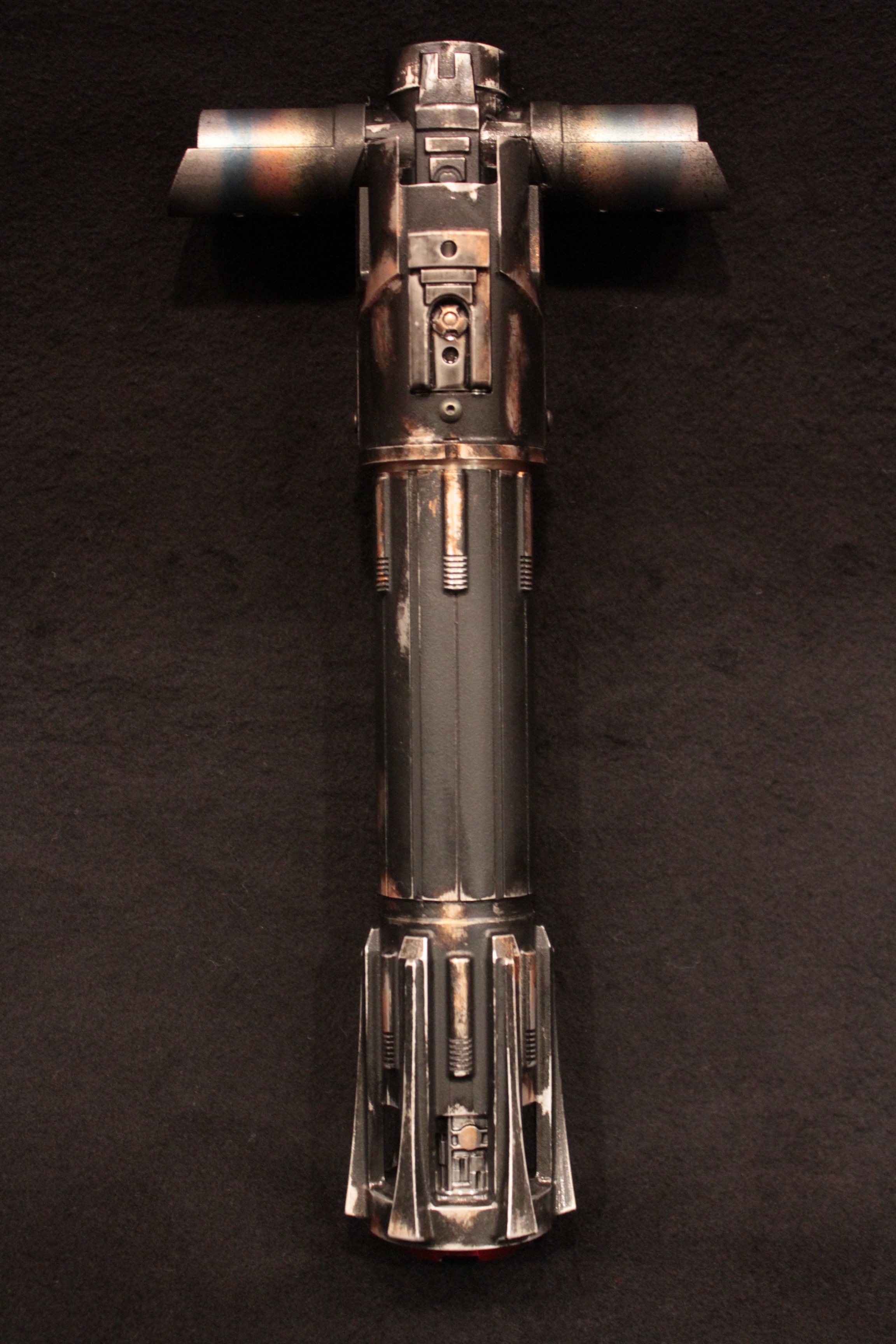

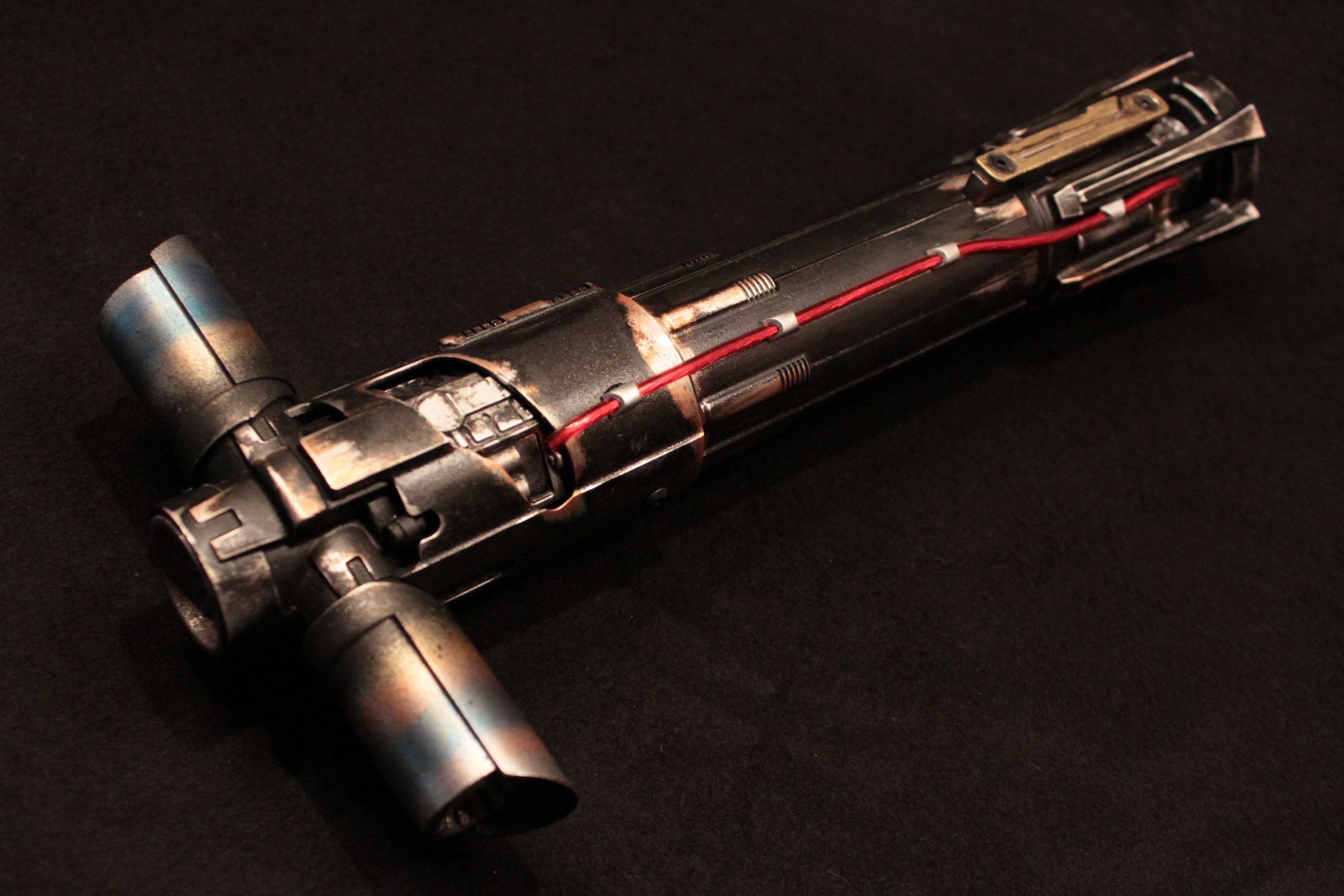

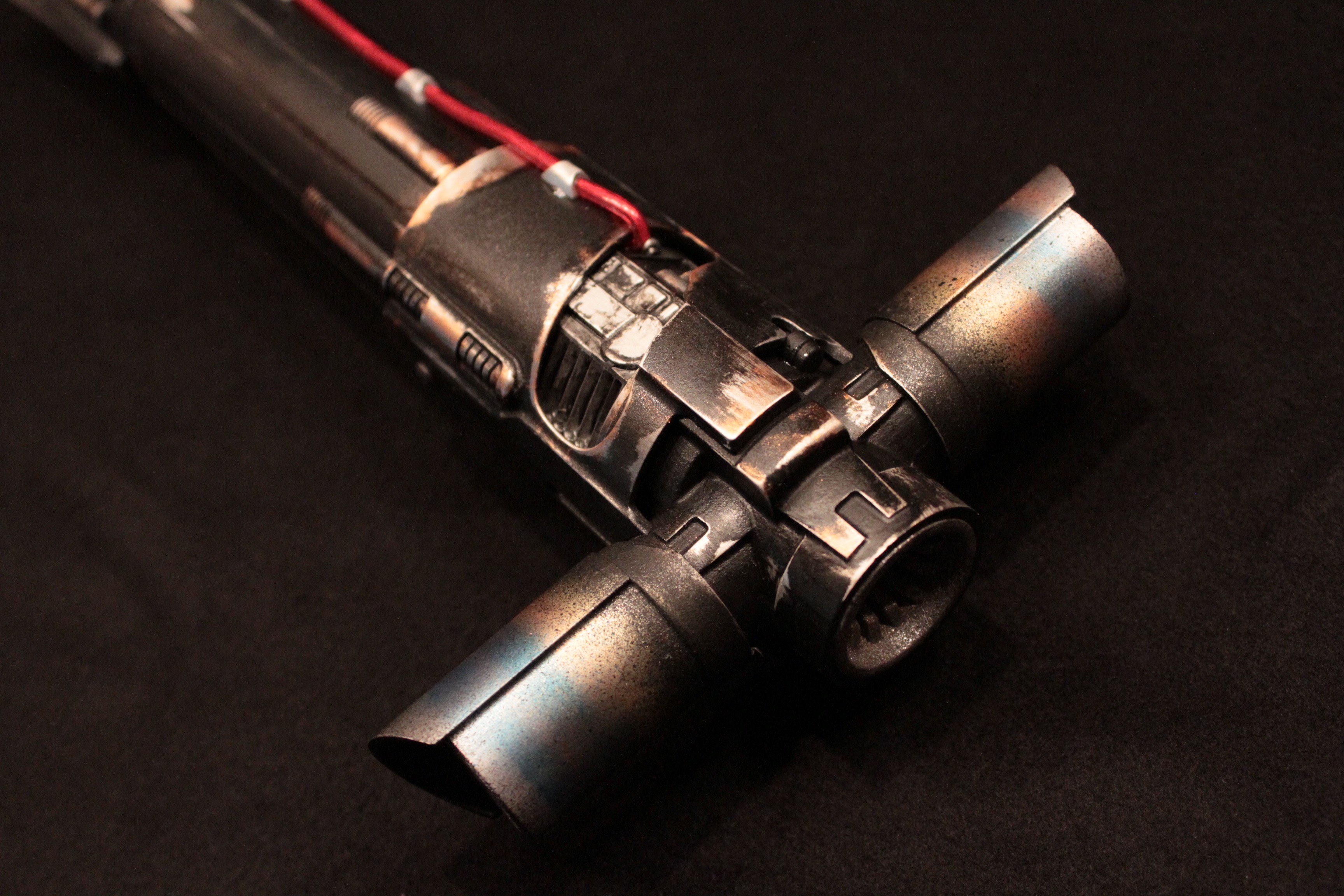

It's all enamel spray paint. I primed it, hit it with a few coats of metallic copper and then a few coats of matt black. I then rubbed down the areas I wanted with wire wool to expose the copper and bare metal. I weathered all the exposed metal with aluminium black, and then lightly polished the entire thing with some turtle wax to give it more of a satin look, sounds pointless but I think polishing the matt paint gives it more depth, it looks like its been buffed by being in someones hand and the deep areas that wouldn't come into contact with you are still slightly more dull.
ggriffaw
Sr Member
What kind of primer did you use? Does rubbing a little expose the copper and rubbing more expose the primer?
Was the aluminum black done after all the paint layers and rubbing?
Sent from my Nexus 10 using Tapatalk
Lutts
Active Member
Just a grey enamel primer, same as the paint. Yeah, rubbing with wire wool exposes the copper, and if you keep going you'll go through to the primer. I tried to keep the primer coat as thin as possible though as I just wanted to go down to the metal. The copper coat was the thickest so that I wouldn't rub straight through it and then I just gave it good coverage with the black.
The aluminum black was done after the rubbing (doesn't effect the paint luckily)
I used it on all of the exposed metal to make it look more like steel rather than bright aluminum and then I polished over everything including the aluminum black.
ggriffaw
Sr Member
There is a video on YouTube showing a similar look. Search for "paint burnt iron".
Sent from my Nexus 10 using Tapatalk
dday
Sr Member
Yes, now that we know the prop shop and it's sizing, a lot is becoming clear.
The goal with V2 is to get a close as humanly possible to this one. It's a bit far fetched to think at this point that the actual prop was different vs the prop shop saber. some screen captures comparing Adam holding the film prop as well as the black series in his SNL skit you can see how far his hand wraps around them and it is a very similar coverage on the saber. Meaning the prop shop saber is accurately sized being slightly larger. The PS saber is bigger vs the BS saber, but the BS just looks bigger because of the scale of the parts to each other. The BS has the upper and lower sections a very similar diameter, plus that huge ring at the top. The PS/prop is much better proportioned, streamlined and shapely. So even though it's bigger it still looks awesome, and not just a fat sausage that the BS series is.
If you compare some of the sized of the grip itself from V1 CNC and the PS saber, the CNC V1 is very close to the same OD, and only needed a slight increase in length. The upper shroud of the CNCV1 needed to be increased in length and girth. This includes the side emitters as well. They are more to a 7/8th blade and not a 1 inch like the BS or a 3/4 like CNCv1.
A lot of things will change in the CNCV2, with the references we now have, it will be the ultimate representation, in a fully duelable and installable format that will never degrade or have problems with sun/weather. Weather will just make it look more authentic!
Gus is a wizard with this, you guys aren't going to believe the saber that comes out of the machines now that we know what we do.

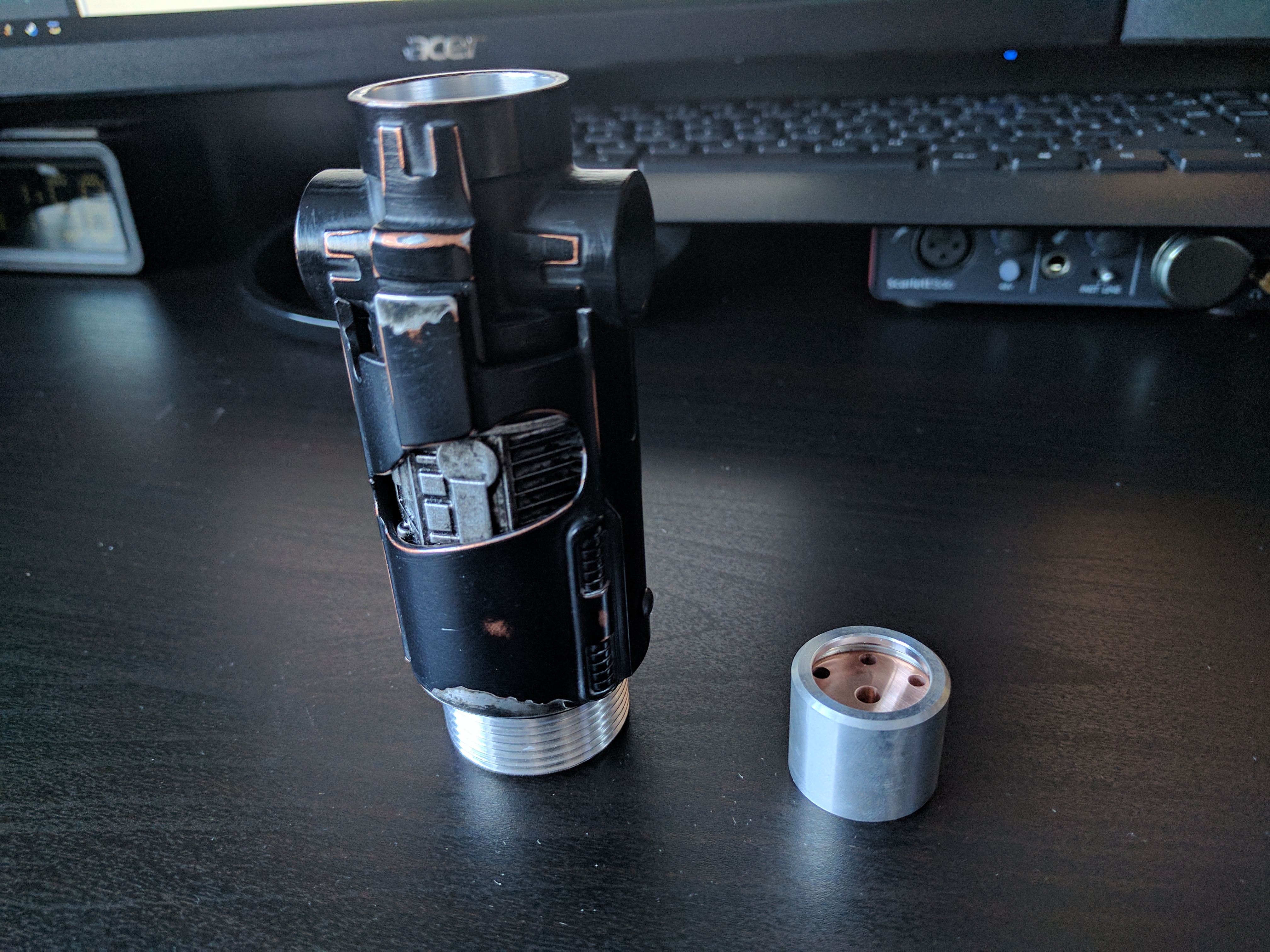

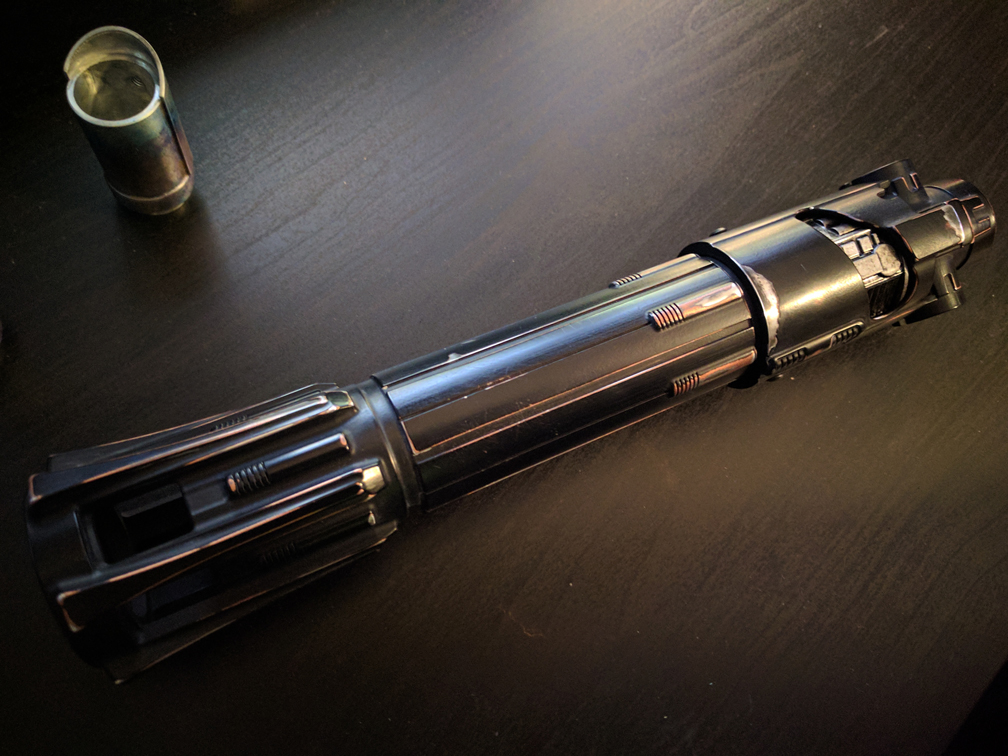

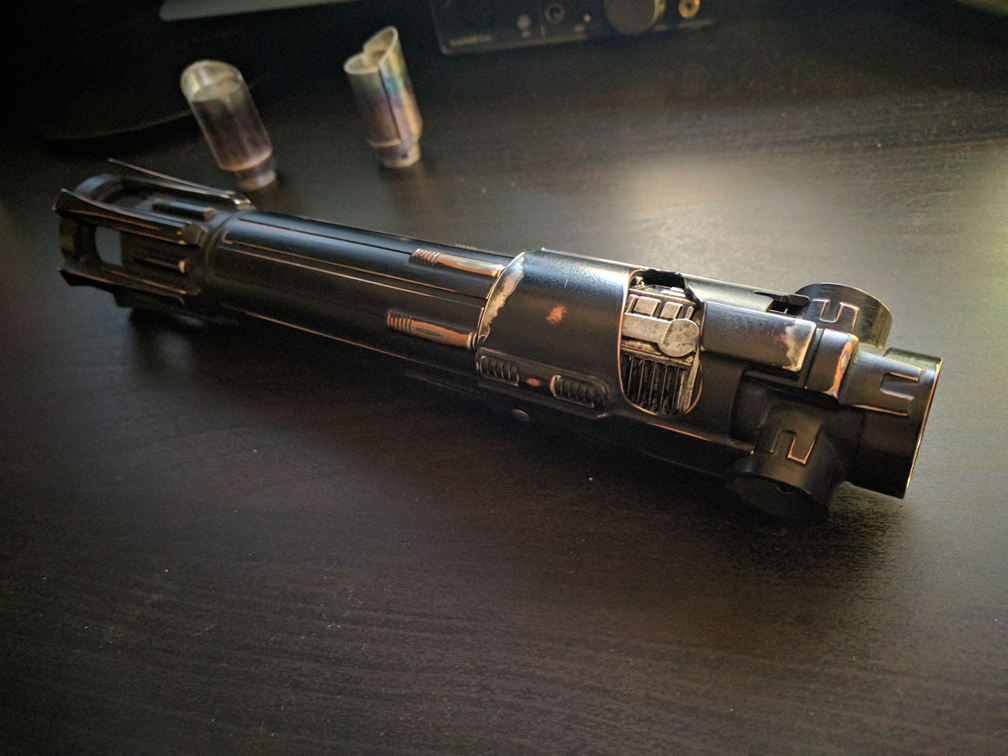

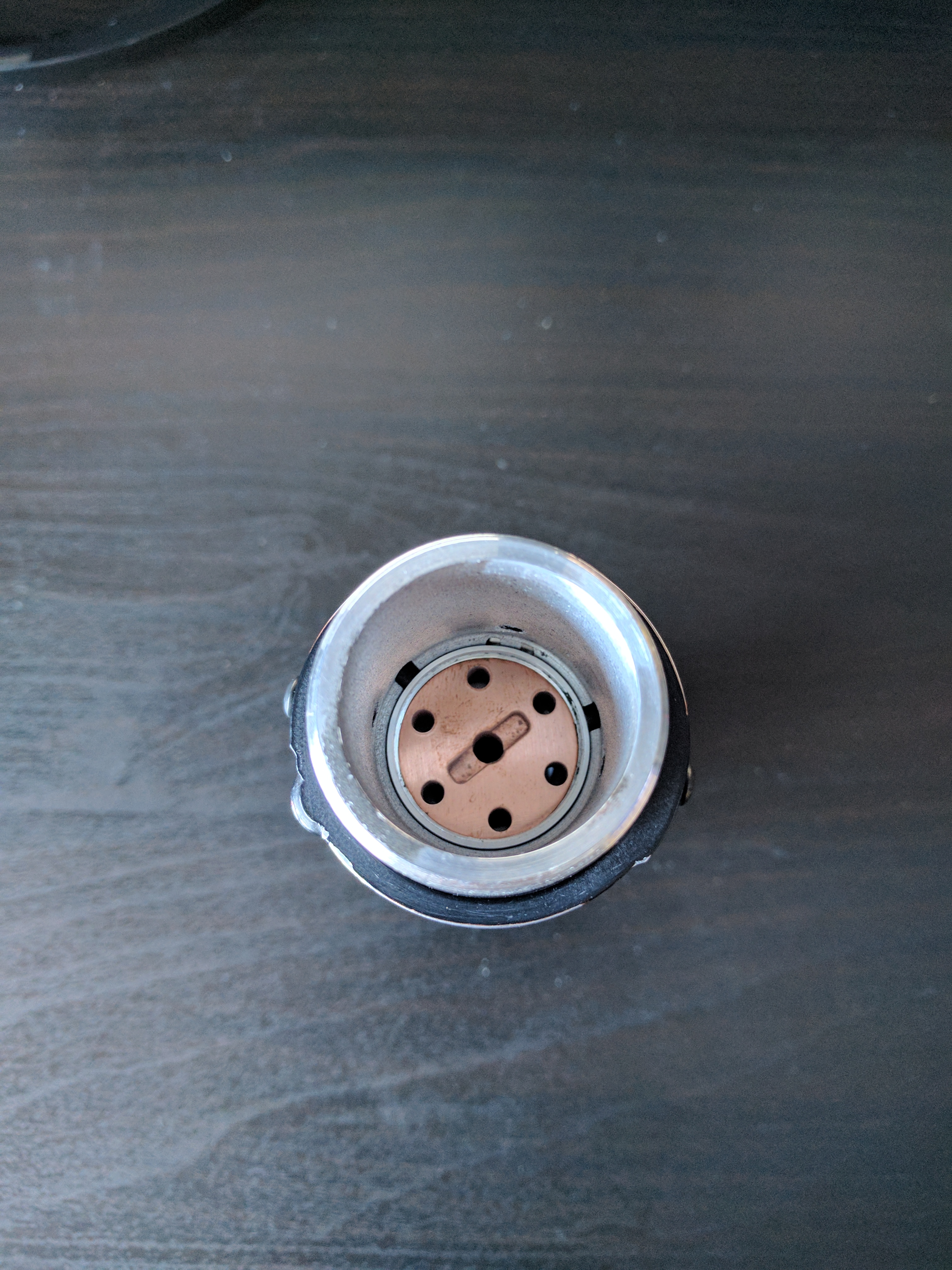

Got my blade plugs installed. Here's a few more pics:
propfactory
Active Member
My V1 is not yet shipped.
I can not wait to receive the product.
I can not wait to receive the product.
dday
Sr Member
I have been waiting for your replacement parts to arrive but haven't gotten anything yet.
I'm double checking the tracking every day.
So everyone else knows, Propfactory ordered 2 of these and one of them unfortunately had some problem with the machining quality and I wasn't going to ship it to them like that, I needed to get replacement parts from the machinist due to manufacturing defects.
I'm double checking the tracking every day.
So everyone else knows, Propfactory ordered 2 of these and one of them unfortunately had some problem with the machining quality and I wasn't going to ship it to them like that, I needed to get replacement parts from the machinist due to manufacturing defects.

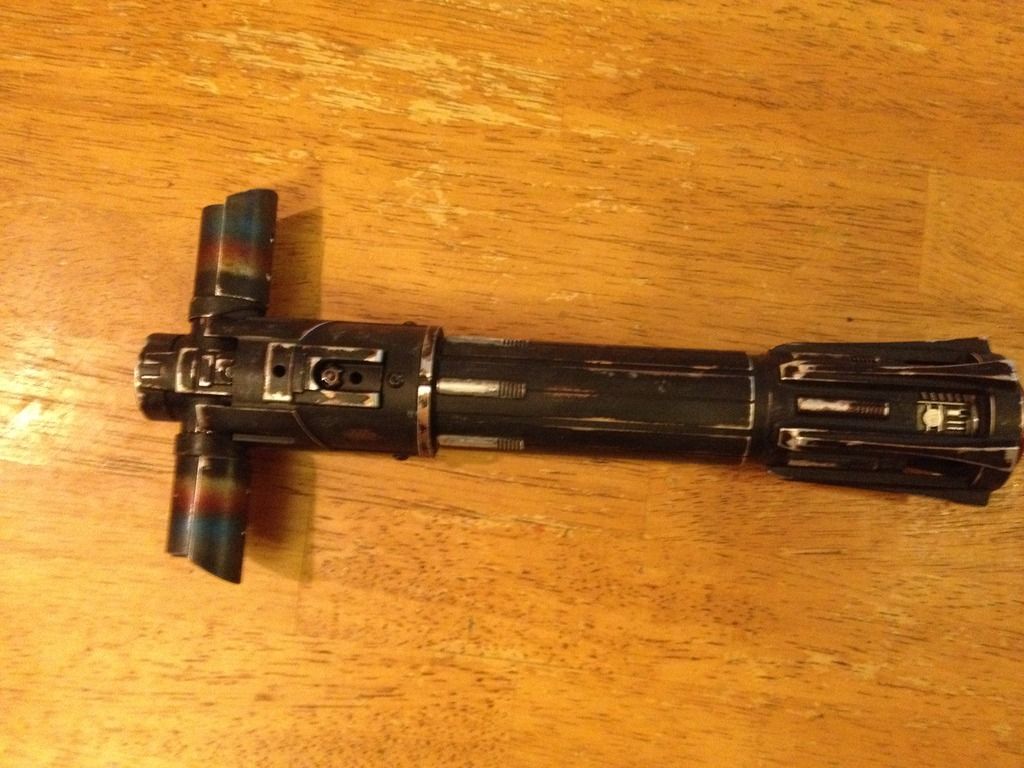

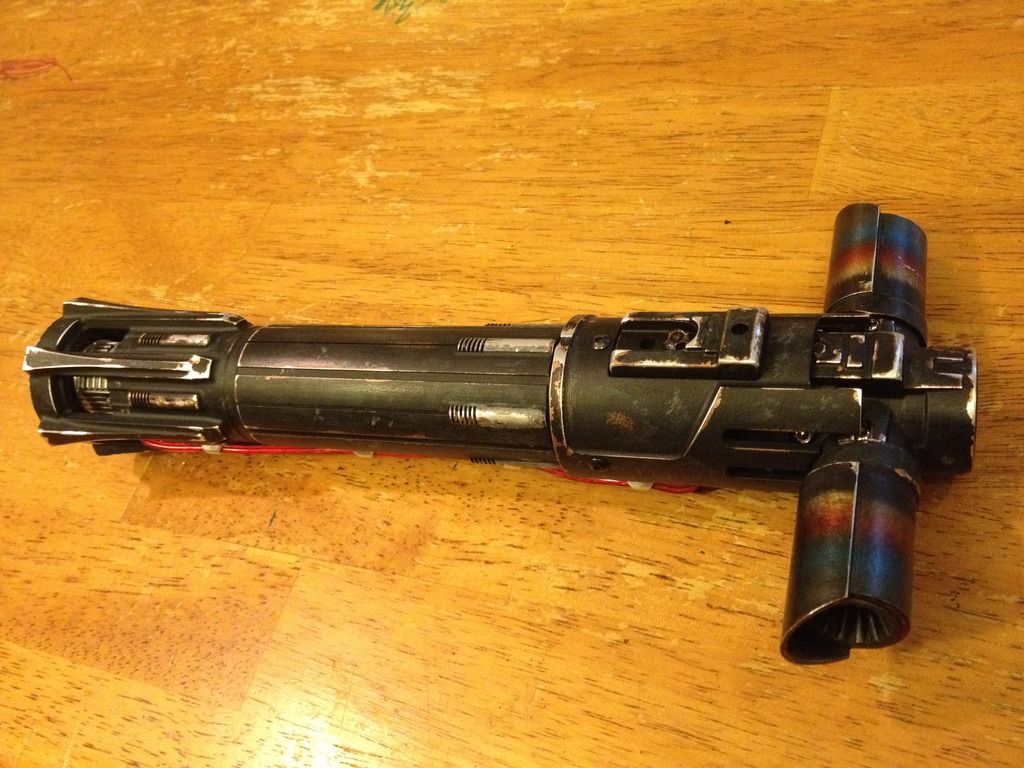

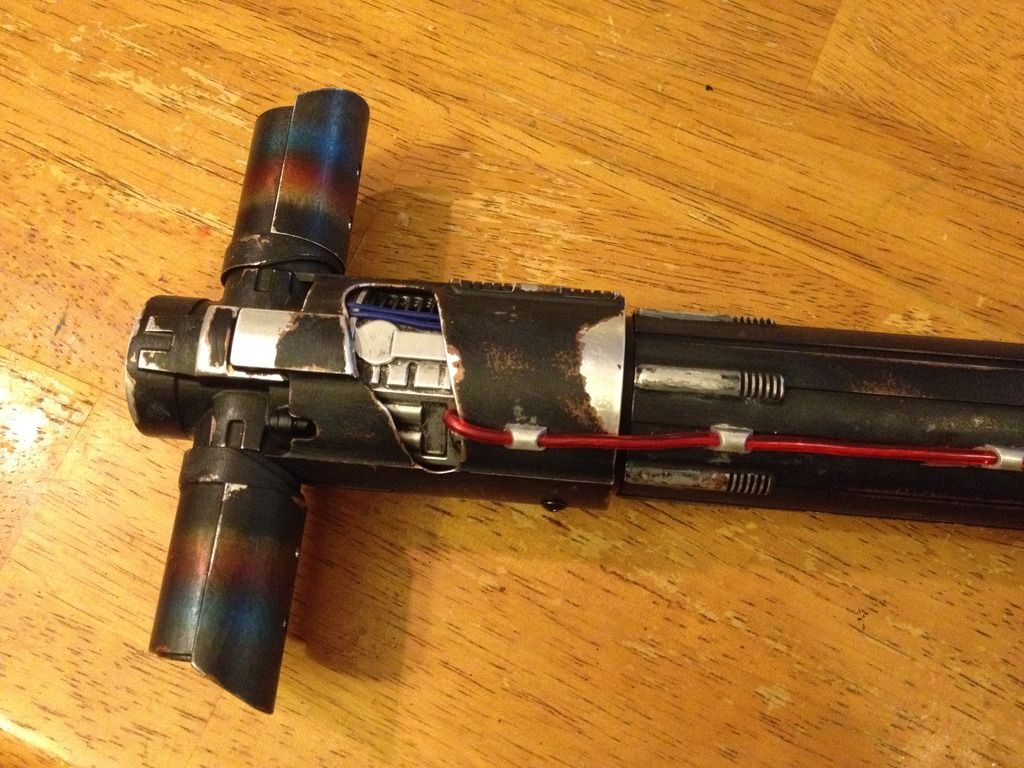

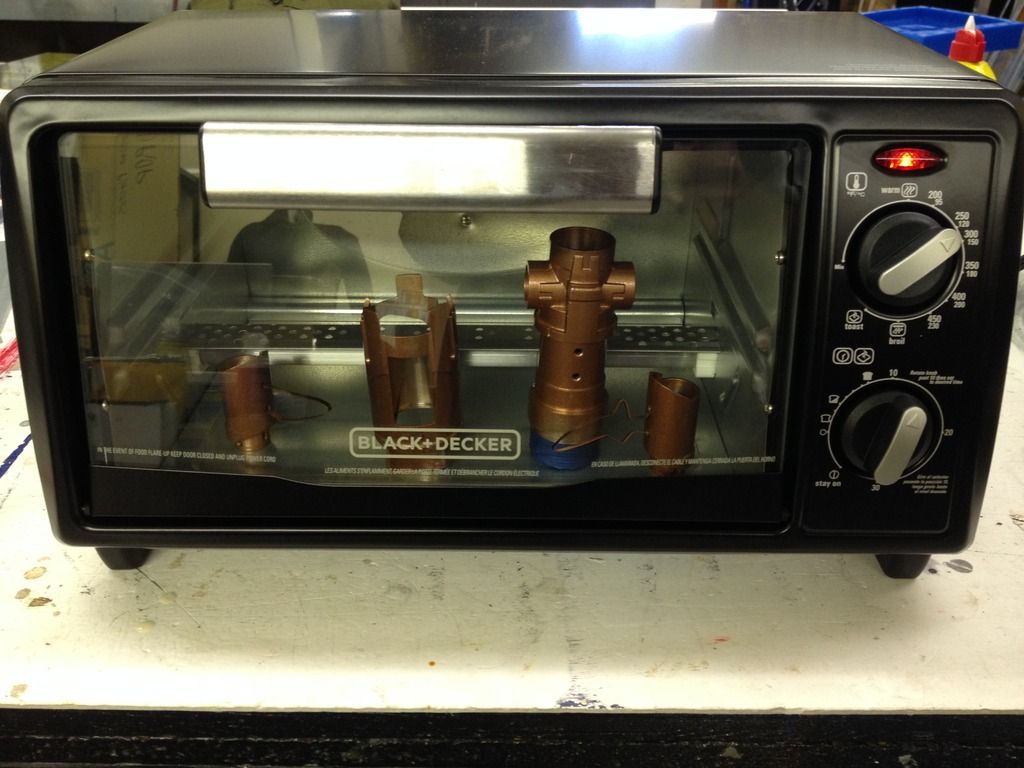

I finally got around to finishing mine. I used copper and black enamel paint, and used a toaster oven to bake each layer to make it dry faster, and adhere better.
I used toothpaste to mask off certain scratch marks, and after all of that painting was done, I did some extra weathering with some fine grit sand paper. I think it turned out pretty good.
I used toothpaste to mask off certain scratch marks, and after all of that painting was done, I did some extra weathering with some fine grit sand paper. I think it turned out pretty good.
