B9 Robot from Lost In Space

[animator]

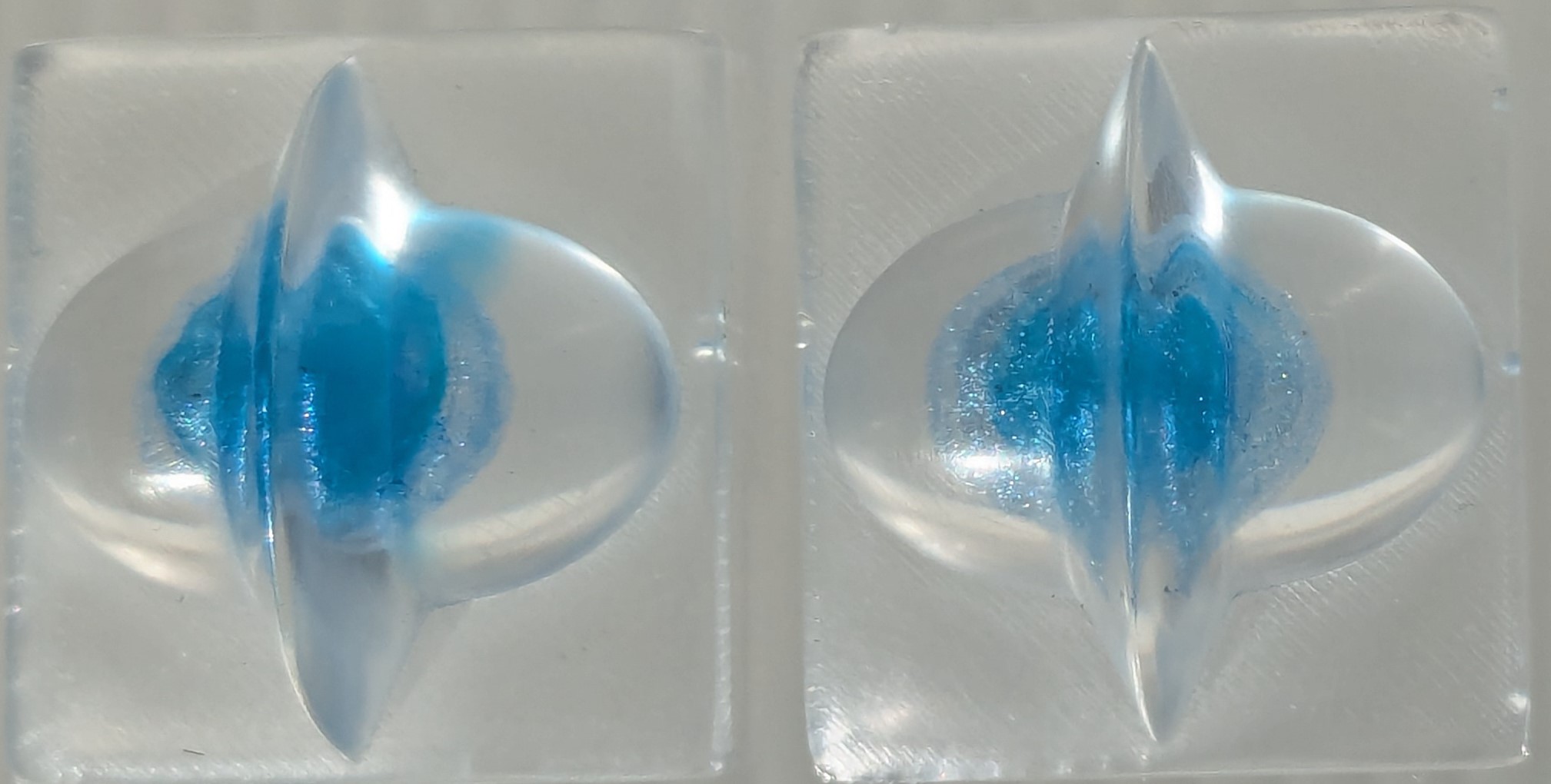

I cast clear resin eyes for my robot using drops of colored mica powder and resin color to create the idea of an iris and pupil.



[animator]

Here is a small test of my arm bellows. Next, I will make the full arm mold.



[animator]

My arm master is being prepped for an epoxy silicone mold. Hoping to do it next week if the weather allows.

And I printed another shirt



[animator]

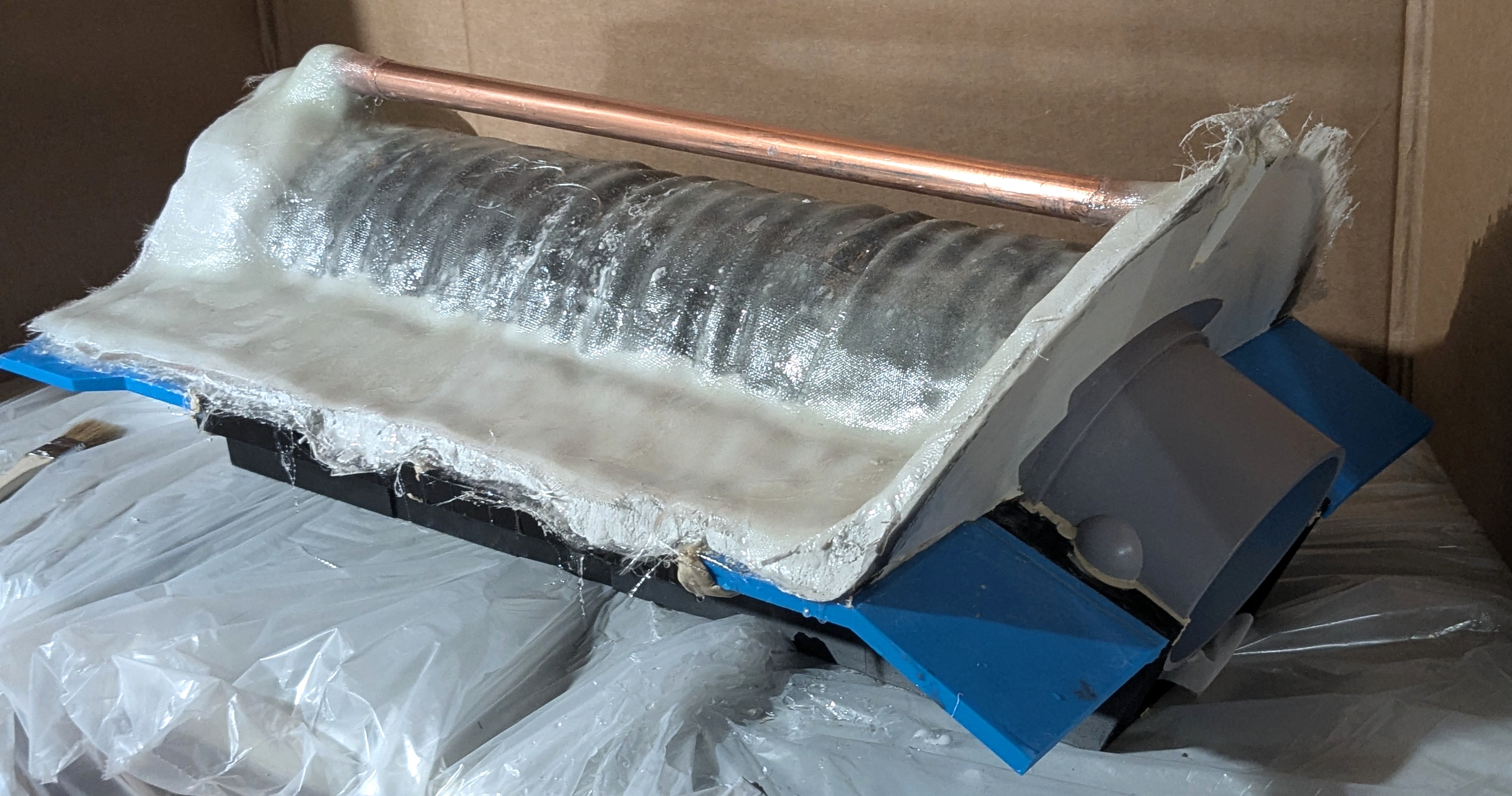

First part of a 3-part mold in.

I am bad at epoxy/fiberglass and had to toss my first try. As my son said, it's not waisted because I learned from it. I learned I suck at epoxy/fiberglass.



[animator]

3-part mold finally!

There are a few areas I need to patch, but pretty happy overall. I hope to run a silicone test next week.



[rocketeer25]

Great job! I saw your post on the B9 Builder's FB group today, and happy to see you posting here as well. I've always thought that the B9 builders would benefit from a forum like the RPF to share their knowledge and showcase their work. Glad to see you here!



[animator]

Great job! I saw your post on the B9 Builder's FB group today, and happy to see you posting here as well. I've always thought that the B9 builders would benefit from a forum like the RPF to share their knowledge and showcase their work. Glad to see you here!

Nice to see you here as well! I think the RPF is a better way to archive a build. The Facebook group is amazing, but hard to search for details.



[animator]

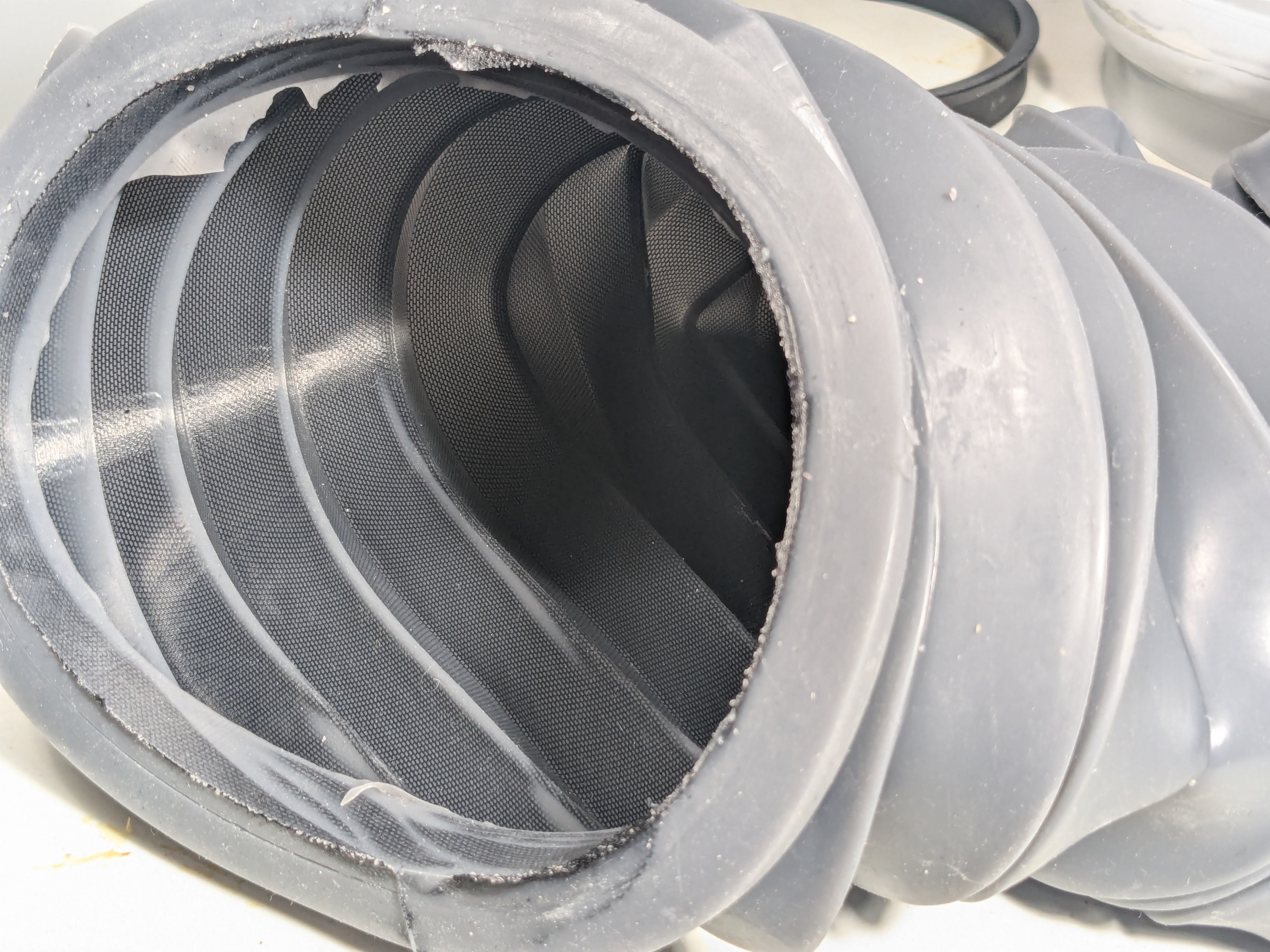

First test cast from my arm mold. There was one small bubble I needed to patch and a little power mesh floating around the tip, but great casting overall. Ecoflex silicone with embedded power mesh for strength and tear protection. I'm going to make a few changes to my core design before casting more and I might try Dragon Skin 10 silicone just for comparison. I love the Ecoflex, but it is REALLY soft! Perfect for the neck bellows, but I might want a bit more structure for the arm.
