Arkham Knight Utility Belt _ FINISHED!!

Discussion in 'DC Costumes and Props' started by Valor, Apr 25, 2015.

  1. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881

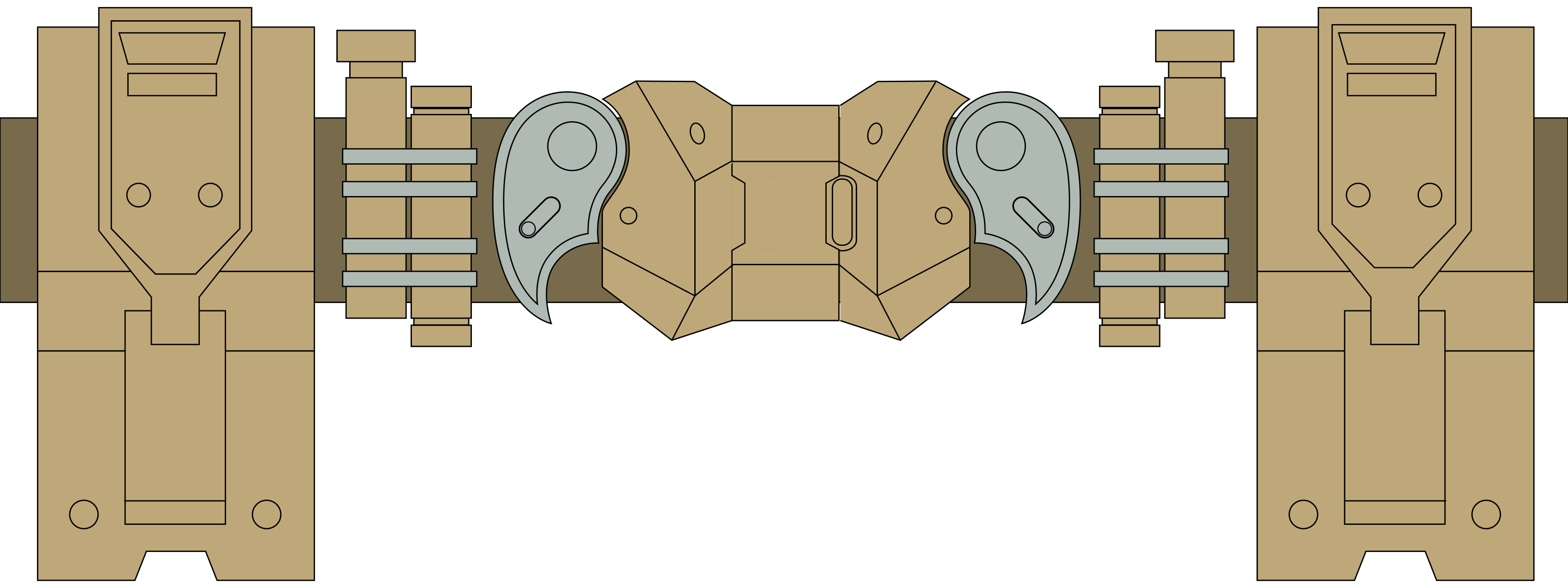

    I've been asked to build a replica of the Batman utility belt from the upcoming Arkham Knight. He's looking for something a bit higher-fidelity than the leather version that is for sale. I've done as much research as I can with screen grabs, etc. This is also technically my first video game inspired build

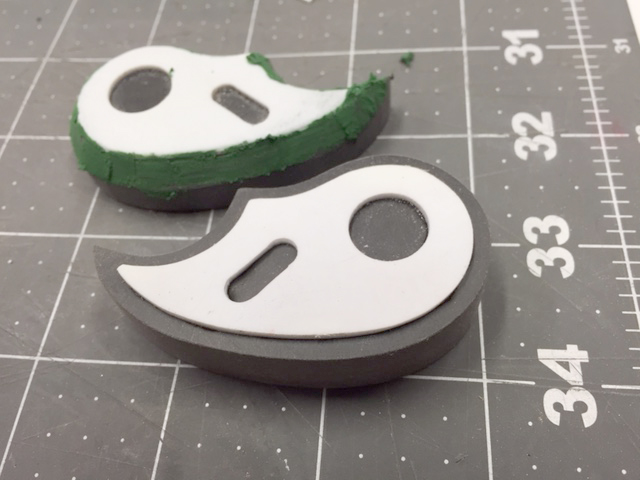

    Beginning this build. Should be able to build everything up with layers of Sintra and styrene. Started with the little winged clips around the buckle.


    Attached Files:

    Last edited: May 6, 2015
  2. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

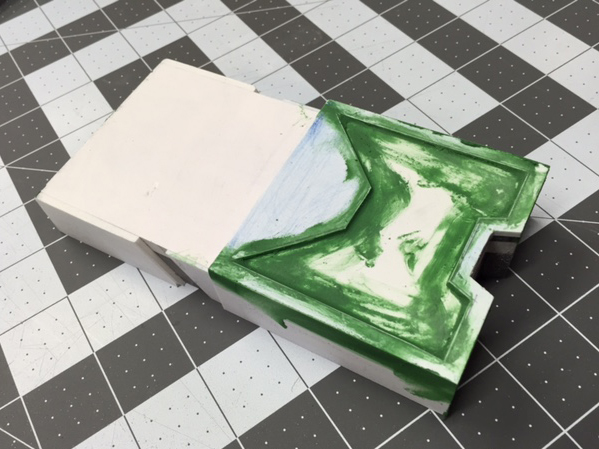

    Okay, that's it for tonight. Good progress on the buckle.


    Attached Files:

    Last edited: Apr 25, 2015
  3. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    Re: Arkham Knight Utility Belt

    Seems like a great build! Can't wait to see what you do with it!

  4. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

    Thanks! Yeah, there will be casts sold eventually. Keep and eye on this build :)

  5. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Arkham Knight Utility Belt

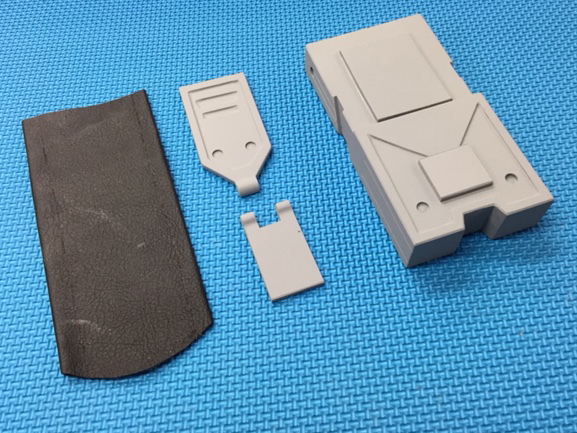

    I built out the components of the main pouches. I am bit bit torn. My plan was to build this as a hero prop and cast all the pieces you see here and assemble them with a real leather flap. My only concern is how sturdy some of the small pieces will be for folks who (unlike me) actually wear the belt.

    One thought is to assemble the whole pouch and mold the entire thing assembled ... then cast it in Smooth-on's FlexiFoam ... which I have zero experience with.

    Any experiences with FlexiFoam anyone could share?


    Attached Files:

    Last edited: Apr 27, 2015
  6. BlackKaos

    BlackKaos Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    966
    Re: Arkham Knight Utility Belt

    Nice build

  7. coofunkcurly

    coofunkcurly Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,785
    Re: Arkham Knight Utility Belt

    This looks fantastic!

    I do have experience with Flex-Foam IT. I cast my Origins belt in their 17. 17 and 25 are very dense and self skinning.
    You'll need a mold with a fibreglass jacket. A full silicone mold won't hold the pressure of the foam expanding. And you need a backer board for your mold. Like mdf with a smooth side. Put a few holes in the backer board so the foam has somewhere to go and relieve pressure. Mold and backer will need release. The stuff sticks to everything. Basically pour in the foam, slap on the backer, and clamp the heck out of it.

    Foam will end up with bubbles here and there on a piece this detailed. So I'd recommend skinning the mold with urethane rubber to catch all that detail before doing the foam. That's how I'd do it at least based on my experiences.

    Good luck!

  8. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

    Moving on to the twin capsules on each side of the buckle. I want to cast these as a single piece so I needed a way to build the assembly that would take to casting. It looks like the two capsules are meant to be bound by four thin metal bands. This would create a challenging cast. So I decided to build the whole thing another way. I'll be layering a number of nylon spacers I found at Ace. Instead of thin bands, I made an oblong spacer with two holes that, then everything is stacked together, will look like the capsule system on the belt, but made an strong, simple cast for the belt. I need to tweak the length of some of the spacers to get closer to the look from the game. But I'm pleased with this solution.

    Crappy pictures. Sorry. I'll post better ones once this is all glued up.


    Attached Files:

  9. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

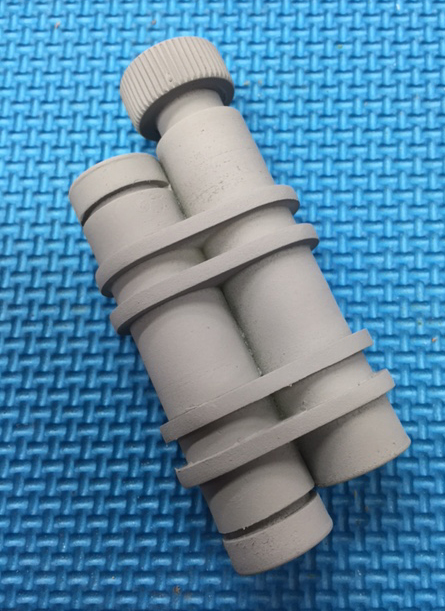

    Finished the twin capsule assembly. Again, I'm thinking ahead about making mold making a simple process so I'm trying to eliminate cracks and voids that won't mold well.

    With that I have all the masters done for the various components to make a full belt. I do still need to source some black leather for the flaps. Or maybe pleather. The web belt material and functional buckle is on its way. As is more Oomoo silicon. Stay tuned.


    Attached Files:

  10. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

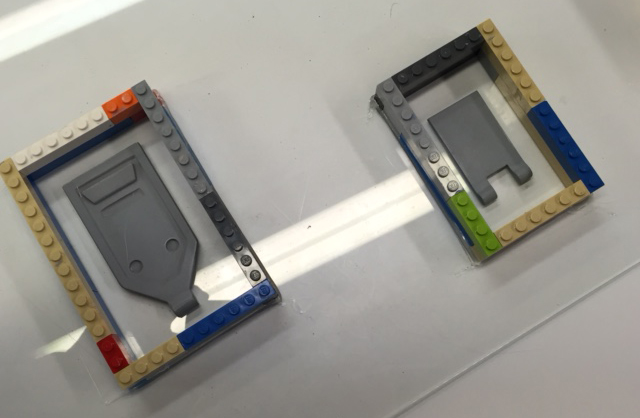

    Poured the molds today. This is actually my first two-part mold, so that was cool to get some experience with. I love the sight of happy little molds drying.


    Attached Files:

  11. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

    Casting multiples today. Plus I'm running some paint tests. Two options here. One is my favorite Rustoleum Classic Bronze. The other is Antique Gold Run N' Buff over black primer. The rub and buff is probably closer to the weathered look of the game design.

    Onward.


    Attached Files:

    Last edited: May 4, 2015
  12. Athanasius

    Athanasius Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Re: Arkham Knight Utility Belt

    LOVING this build, can't wait to see more! Keep it up Valor, you're knocking it out of the park!

    When you start selling, I'll be buying!

  13. Rusty85

    Rusty85 Sr Member

    Trophy Points:
    1,535
    Re: Arkham Knight Utility Belt

    Man the work you're doing on this build is stellar! (y)thumbsup:thumbsup

  14. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: Arkham Knight Utility Belt

    Alright, finished with my replica of the Arkham Knight Belt. The pieces are glued and screwed to a black web belt. The paint was actually a combination of the Rustoleum and a base with a gold Rub N' Buff layer on top. Looks like beat up brass. Considering the size of the pouches, it's actually lighter than my previous Utility belt.

    I plan on a small run of these kits. Check the junkyard if you're interested.


    Attached Files:

    HyruleInfantry likes this.
  15. jjones

    jjones Active Member

    Trophy Points:
    362
    Re: Arkham Knight Utility Belt

    Another great belt!! Looks amazing.

  16. Reznor9

    Reznor9 Sr Member

    Trophy Points:
    1,037
    Looks fantastic. I need to learn to do this. Wow

  17. Athanasius

    Athanasius Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    Holy balls, Valor!

    I didn't think you'd actually be finished so quickly, I am not at all prepared for this!

    My wallet may hate me forever, but I kinda just need to own this belt man, it's beautiful!

    I'll send you a pm very soon!

  18. Fawbish

    Fawbish Sr Member

    Trophy Points:
    1,525
    Looks stunning mate

  19. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Couple of new pic of the base belt. I splurged and bought a police tactical belt base for this one. It gives the whole thing some needed structure and weight. It's intoxicating to wear :)


    Attached Files:

    Last edited: May 12, 2015
    Fawbish likes this.
  20. teragon

    teragon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    It looks gorgeous. Only thing I'd suggest is to use a tan belt belt instead of a black one.

  21. bobdatrainer

    bobdatrainer New Member

    Trophy Points:
    3
    Do u have one complete ready to ship out?
    I'm gonna try to cancel my ud replica belt if they let me.

  22. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    I have a raw kit. But I can paint and assemble it.

  23. bobdatrainer

    bobdatrainer New Member

    Trophy Points:
    3
    Ok i'll prob order it in like
    3 weeks. How long would it take to paint and assemble it?

  24. bobdatrainer

    bobdatrainer New Member

    Trophy Points:
    3
    Ok i'll prob order it in like
    3 weeks. How long would it take to paint and assemble it?
    Is it $350 with the police tactical base and is it adjustable?

  25. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
  26. redhood 00

    redhood 00 New Member

    Trophy Points:
    3
    Amazing belt! Love this!

    Valor likes this.
  27. Fawbish

    Fawbish Sr Member

    Trophy Points:
    1,525
    Absolutely stunning work. I was going to start a 3D print version of the belt. And now...no. Won't even get close to this quality. Great work, chief.

  28. D3ad1ywu1f

    D3ad1ywu1f New Member

    Trophy Points:
    2
    Re: Arkham Knight Utility Belt

    I'm a little late but I'm in dire need of one of these masterpieces. Is there anyway I can still buy one? Plz reply ASAP

  29. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
  30. RINZLERTRON

    RINZLERTRON Sr Member

    Trophy Points:
    1,307
    Finished mine up.... It' a really amazing piece of art you've done.... I thought it was 3D printed when I first opened the box....

    Painted mine a little bit different than the traditional colors... went for a more "darker" and "older" brass look, and put patina on it as well.
    [​IMG]
    [​IMG]
    [​IMG]

    Valor likes this.
  31. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Wow. Great job with the paint.

  32. D3ad1ywu1f

    D3ad1ywu1f New Member

    Trophy Points:
    2
    I would really love to buy one of your belts but with my current membership, the website will not allow me to. I also refuse to buy a $36 membership just so I can buy this 1 item. For some reason they are not offering monthly membership. If you can, I would like to find a way to work out a payment option.

  33. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
  34. RINZLERTRON

    RINZLERTRON Sr Member

    Trophy Points:
    1,307
    Thanks pal, I really appreciate it! I thought about doing it the way you did yours, but I couldn't find any Rub n Buff anywhere, so I decided to kinda go my own way with it :)

  35. 1badevo9

    1badevo9 Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Received my belt today. Amazing belt and top notch quality! Thanks Steve!

    Valor likes this.
  36. Valor

    Valor Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    I built one and did an "as issued" paint job. Little cleaner.

    arkham_clean.jpg arkham_weathered.jpg

  37. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    Love this! Looks so good! Great work, you did an amazing job!
