A few progress.

Last week I popped and burnt a whole LED wiring. Wasted a whole days. It's OK with me.
So, build something I can do for now.

That was supposed to be a simple build of flaps but it took a little longer than I expected.
It was a bit difficult to have an appropriate friction of the movement of flap.
The answer was simple. Use a thick shaft.

This is technically a flaperon - A moving blade with bi-directional functions of flaps and ailerons - Ah..... Something like that.

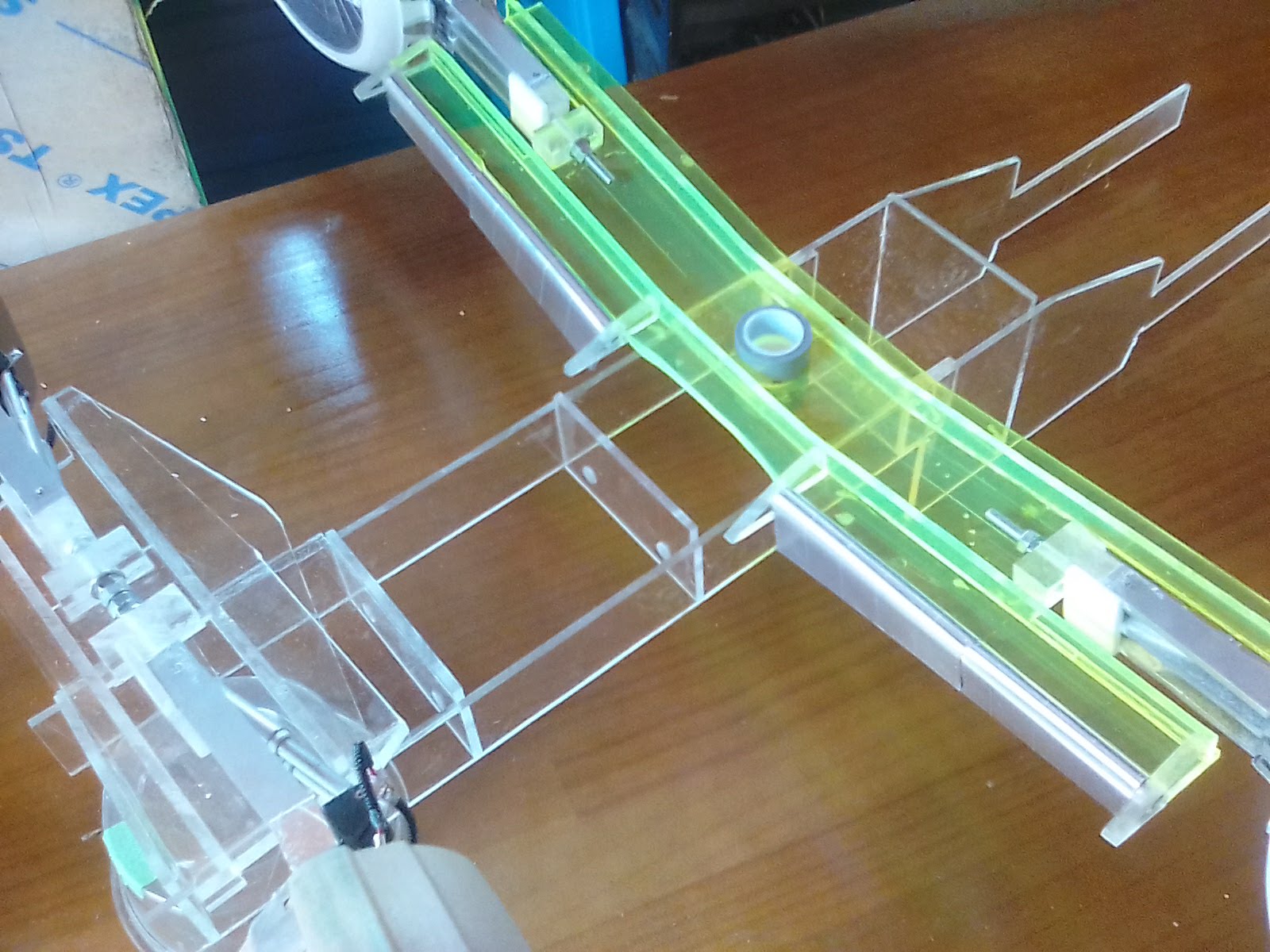

Cruising position



For conventional take off/landing position.
Yeah, conventional takeoff/landing! Unlike the V-22 Osprey, this craft can take off with running on usual runway to earn more payload.

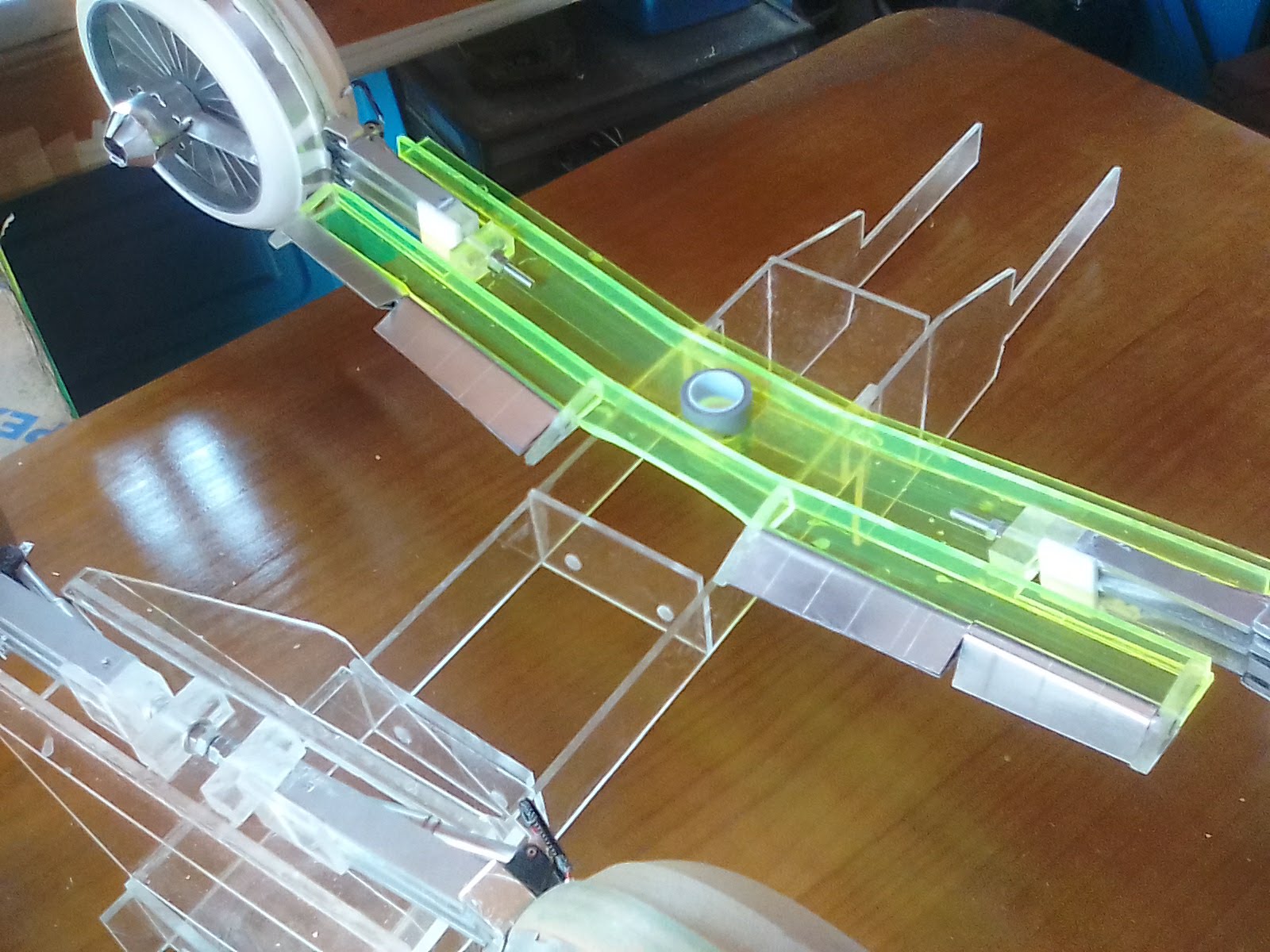

For vertical take off and landing position. Full down.
It may hold the jet wash beneath the wing and reduce vertical air resistance.



Turning with aileron.



Strut position for air braking.



The wing was mounted with a pivot so that the wing can rotate to be handy for storing in a hanger deck.



Well I will try the wiring again and then start to build the extra body plates.

Thanks for looking.

katsu


gedmac66

Sr Member
Woah !..., Real-world - Functionality & Form ! - Hail to a Master Builder !
I’m starting to think joberg maybe right re; taking out a patent Katsu - san !:p

Ged


yuumi2891103

Sr Member
View attachment 1030444
Woah !..., Real-world - Functionality & Form ! - Hail to a Master Builder !
I’m starting to think joberg maybe right re; taking out a patent Katsu - san !:p

Ged
Thank you so much!

Very clever!
Thank you!, Analyzer-san

Katsu-San, I deeply bow in front of your ingenuity and thinking process:notworthy::notworthy::notworthy::notworthy:
Thank you very much for all the kind words, joberg-san and my friends.
There are many real ingenuity I've ever saw in your side.
In the aerospace world, British AV-8 Harrier, American F-16 Falcon, F/A-18 Hornet and the amazing aircraft of V-22 Osprey which I inspired so much. More I study about this aircraft, more I found the great ingenuity. Also in a weapon system, that Chain Gun system, the main gun that AH-64 Apache has. I was so impressed that industrial chain drive mechanical firing system. :love:
I don't think they were invented easily. Those engineers may had to struggled to squeeze out those brilliant ideas. I deeply bow to those great engineers and respect to your country's great fundamental power of research and developments.

Oh, there's one more thing that I have to say.
Today, I received a spare parts of my kitchen blender. The blender is Hamilton Beaches's product I bought for more than 25 years ago. This blender is so simple and reliable and I am so impressed that the spare parts for this is still available. I think this is the conscience of America. Here in Japan, If we had a mechanical trouble of any house electrical appliances, all we can do is buy new one even if it was the last year's model. Is this eco?

Katsu


gedmac66

Sr Member
Unfortunately a majority of today’s consumables are made to be replaced , rather than ‘made to last’ Katsu-san. It’s a shame manufacturers don’t/can’t hold to the values that was once considered an ideal to be ‘proud’ of..., so, eco ? Nope !
Saying that, the Sony clock radio my father purchased for me just after starting my 1st job (@15 yrs old), 38 yrs ago - is still going strong and working fine !;)


SmilingOtter

Master Member
Your design gets more and more impressive. I can only imagine an insane test pilot trying to make the configuration in your last photo work while still in flight.


yuumi2891103

Sr Member
Thank you Tom san.
While Im waiting for the replacement LEDs, Im fixing some small flaws here and there and some rough parts.
It is very frustrating work but it is also very important things to be done at this moment before covering the base structure.

Oh, Im texting this in a train now. My daughter invited me and my wife to a ballet in Shinjuku New National Theater in Tokyo. It is Aladdin. So, I am wearing a suits and tie which is very rare.

katsu


yuumi2891103

Sr Member
A few pics of work today.

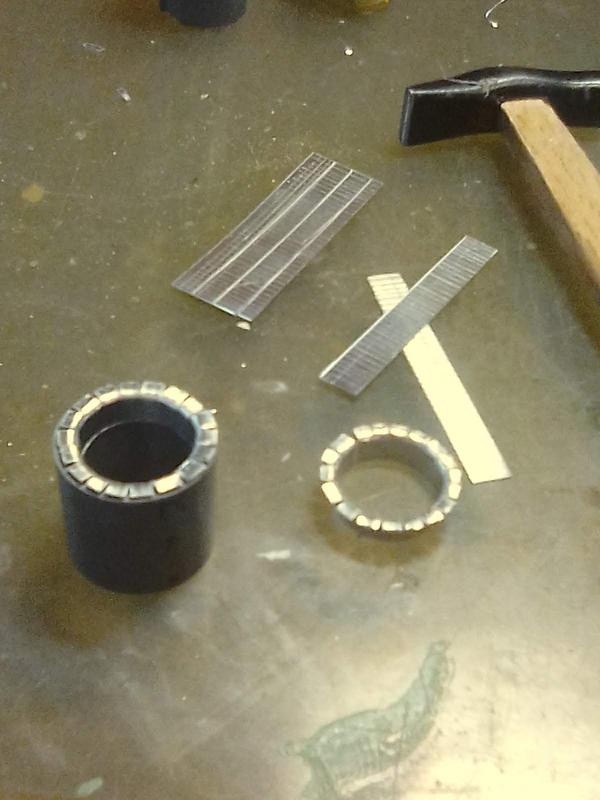

I'd made a detailing for the engine nozzles.
I know it's a little different with a real one but please think of it a future High bypass turbo fan.

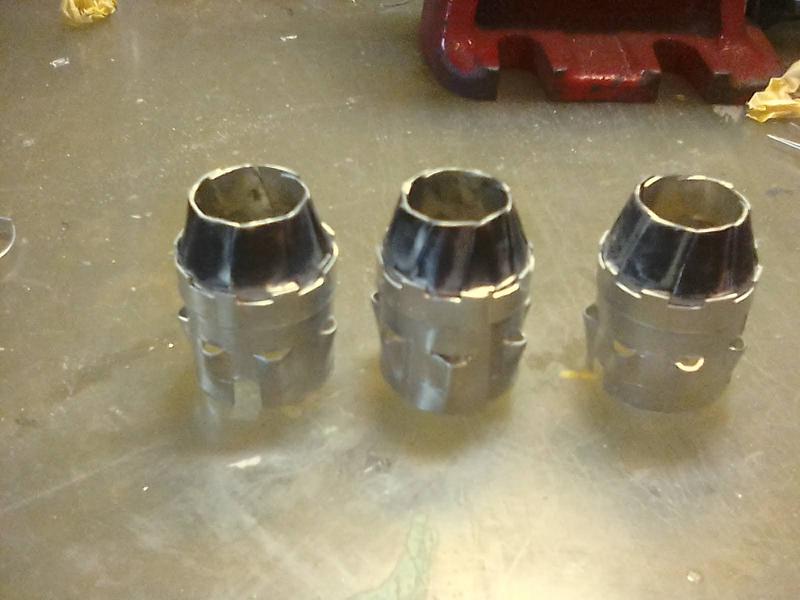

I Added a collar around the nozzle. And stained the nozzle as it looks burnt.
