AAV Drop Ship

Analyzer · May 10, 2019

Very convincing effect!

yuumi2891103 · May 10, 2019

Thanls!

yuumi2891103 · May 11, 2019

The first fan section was finished.

https://photos.app.goo.gl/QrCesaq7AeXFZddy6

Rotating test was almost OK. Less vibration than I thought.

Thank for looking.

katsu

JediMichael · May 11, 2019

Chop a finger off with that thing. This model is ready to fly.

yuumi2891103 · May 11, 2019

Thanks!
Three more to go.

korben44 · May 12, 2019

Impressive! Most impressive!

Analyzer · May 13, 2019

That thing might actually wind up flying away!

yuumi2891103 · May 13, 2019

Thanks for the comment, my friends.
Yesterday, I made the second one.
Half way over now - only for this section though - but this is one of the part needs a work of labor.
Then I can go for wings, fuselage, landing gears ..... And then, vehicles..... Wheels and tracks......
Long way to go.

Korben44-san, Analyzer-san, again thanks for the comments and many 'likes', my friends.
I really appreciate your constant support.

katsu

yuumi2891103 · May 15, 2019

Here's a little progress.

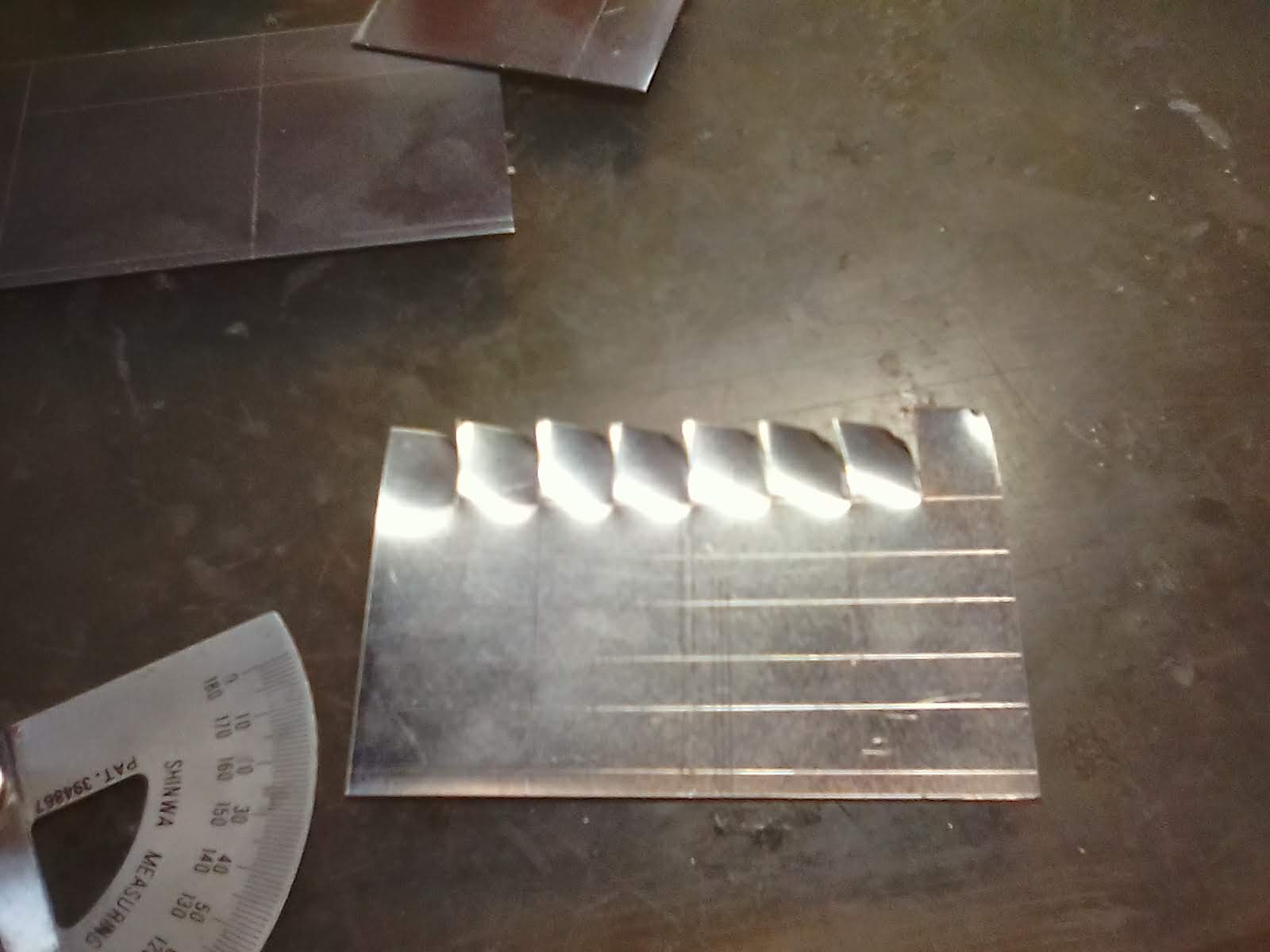

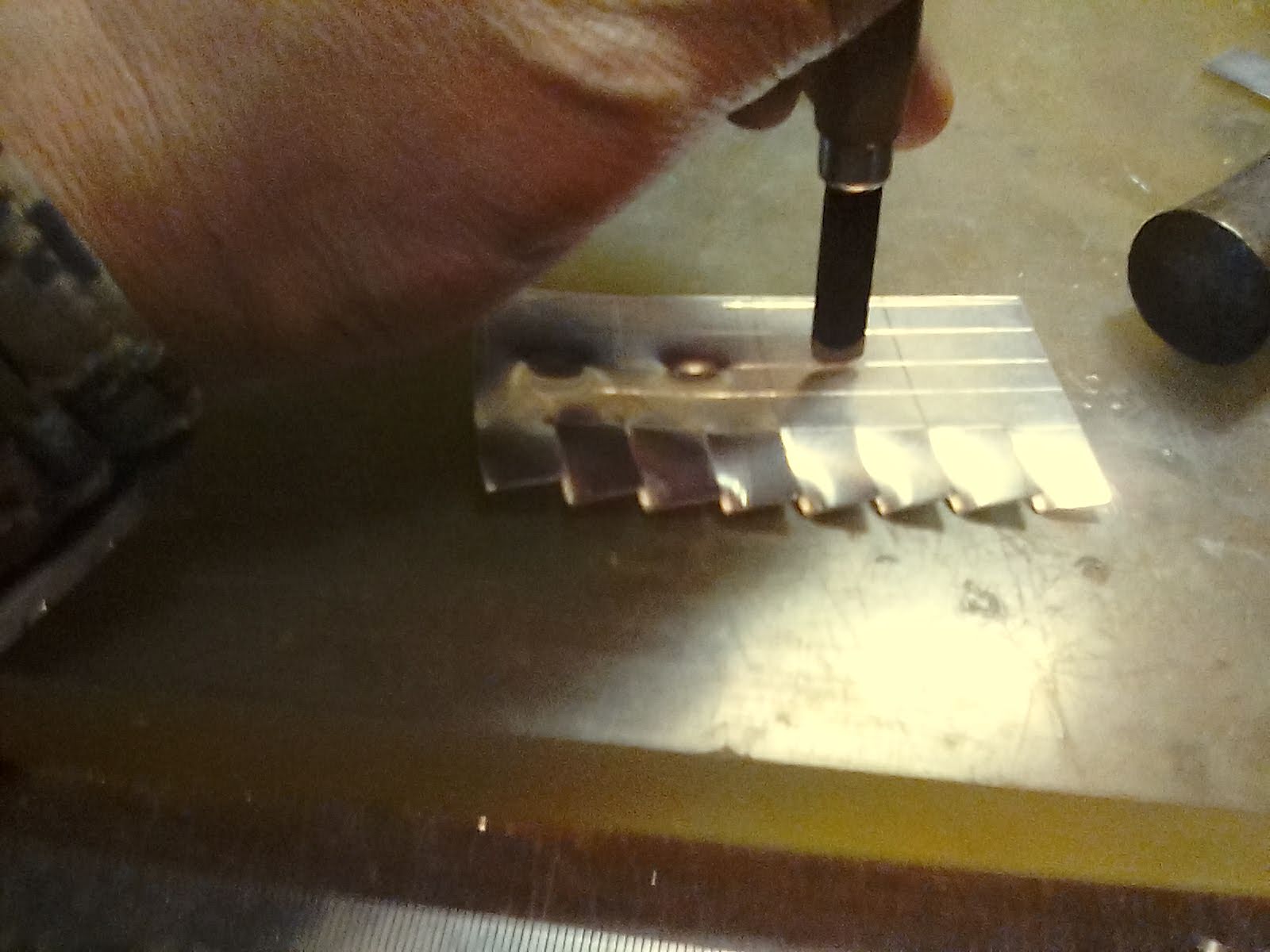

All four fan section have been done and I made aft vanes section and test fitting.

Test fitted fan section. The view from front.

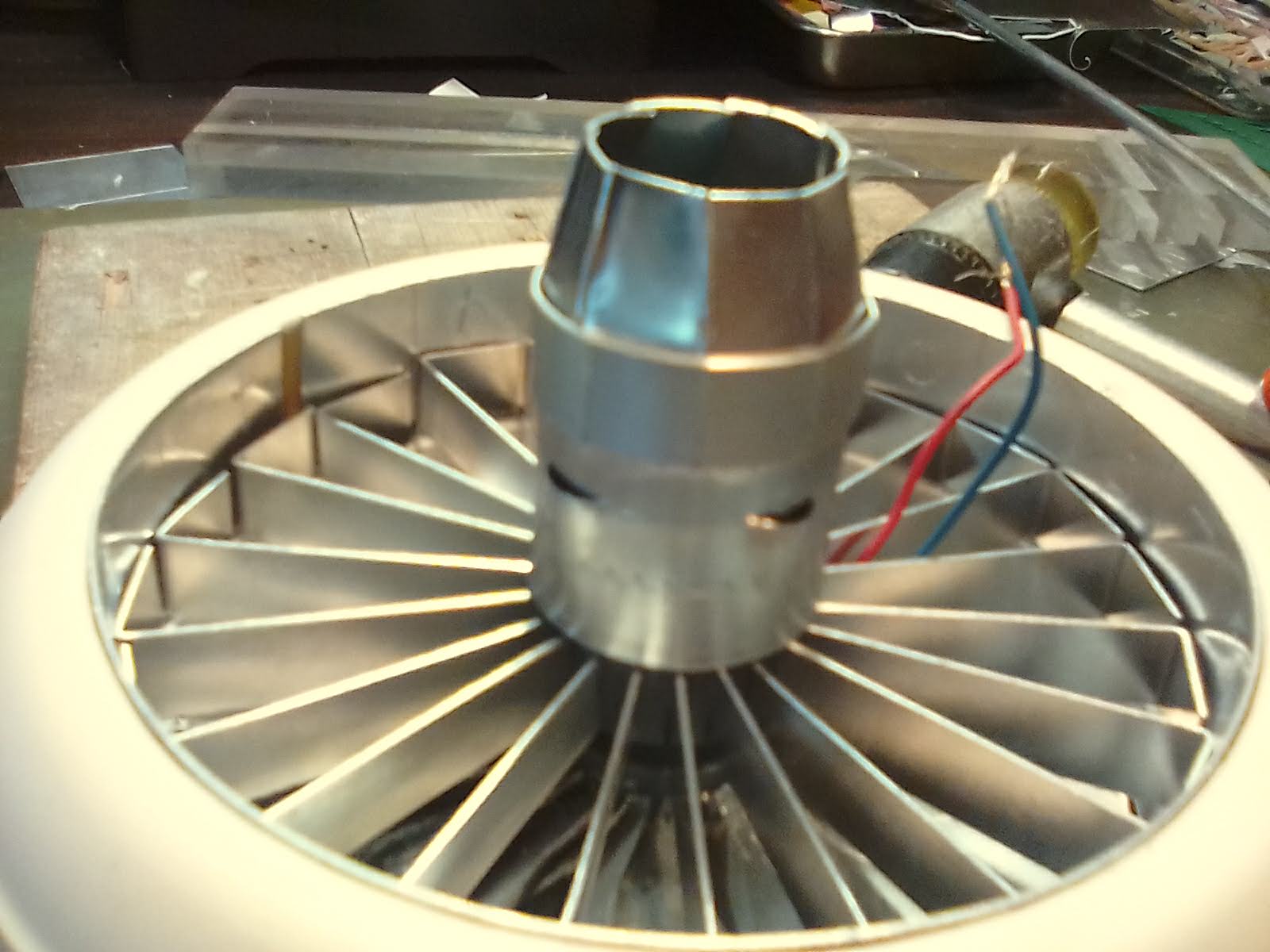

And the view from back side.

The engine core sections will be decorated later.

Fan rotating test.

I don't know for sure, but the interference effect of the rotating fan section and the fixed vanes section right behind make a nice humming sound even in this low speed rotation.

I'm thinking that those both red and blue wires should be connected to the two inner vanes, so that I'm not gonna be bothered with the arrangement of the wiring. Also, I have to think about the wiring at the connecting point of wings and engine nacelles. Because the engine nacelles have to rotate itself for angle setting of take off/landing and cruise.

Thank you very much for looking.

Katsu

JediMichael · May 15, 2019

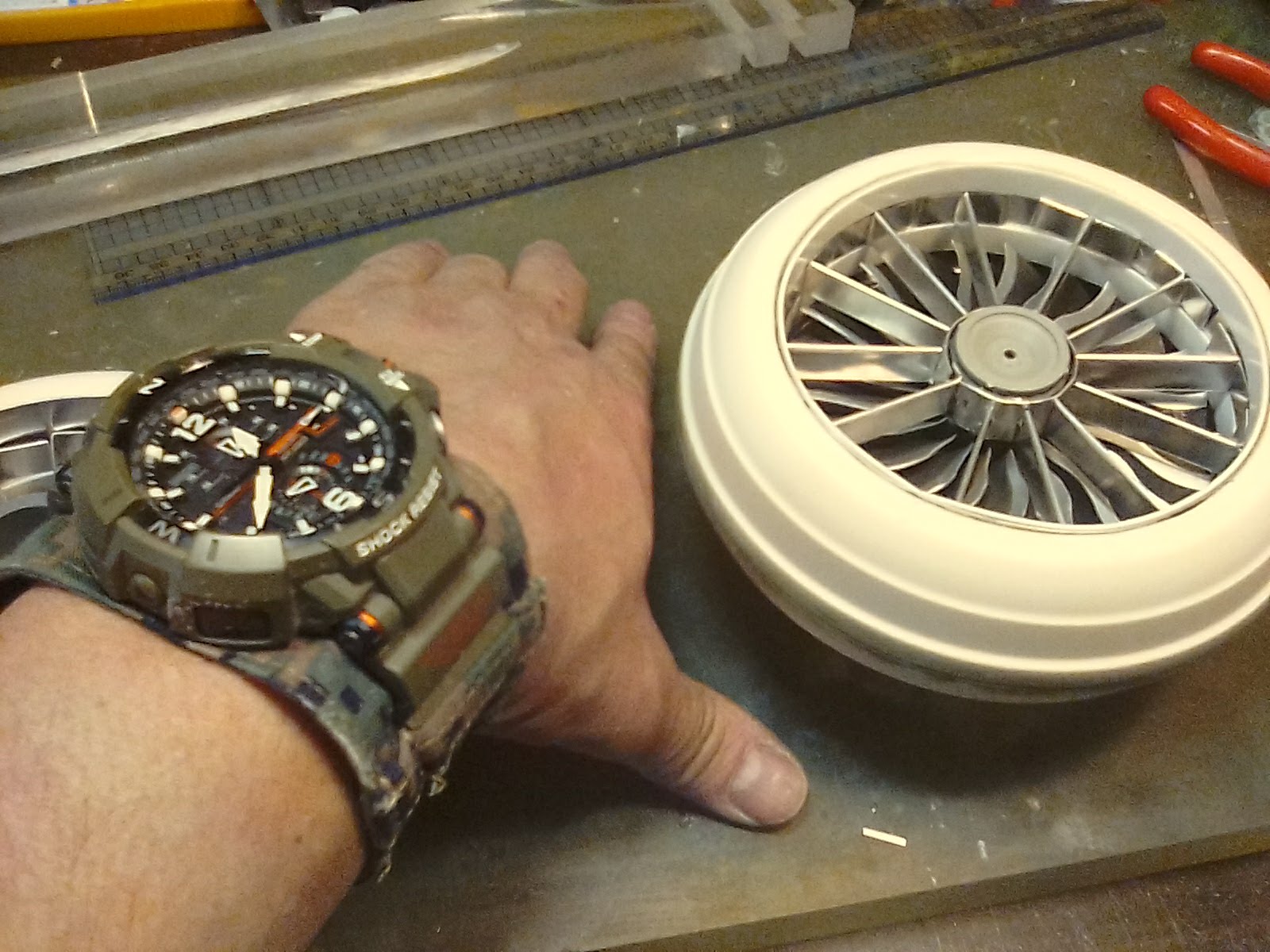

As always, looking good. And that watch, that things big as the engines almost....ha.

yuumi2891103 · May 15, 2019

Hi, Thanks

JediMichael said:
As always, looking good. And that watch, that things big as the engines almost....ha.

Yup, you hardly be able to raise your left hand at the day's end.

JediMichael · May 15, 2019

I actually wouldn't be surprised if you built the watch yourself and that it had time travel as a feature.

yuumi2891103 · May 15, 2019

no way!

Analyzer · May 16, 2019

So is that thing going to actually fly

g0rb · May 16, 2019

This is a fascinating thread, I love all the stories you tell in between the amazing scratchbuilding!

yuumi2891103 · May 16, 2019

Analyzer said:
So is that thing going to actually fly

Naaa, but I'm thinking it's so practical to use this as a quad cool fan for coming summer.

g0rb said:
This is a fascinating thread, I love all the stories you tell in between the amazing scratchbuilding!

Thank you very much, g0rb-san. An old man often speak too much.

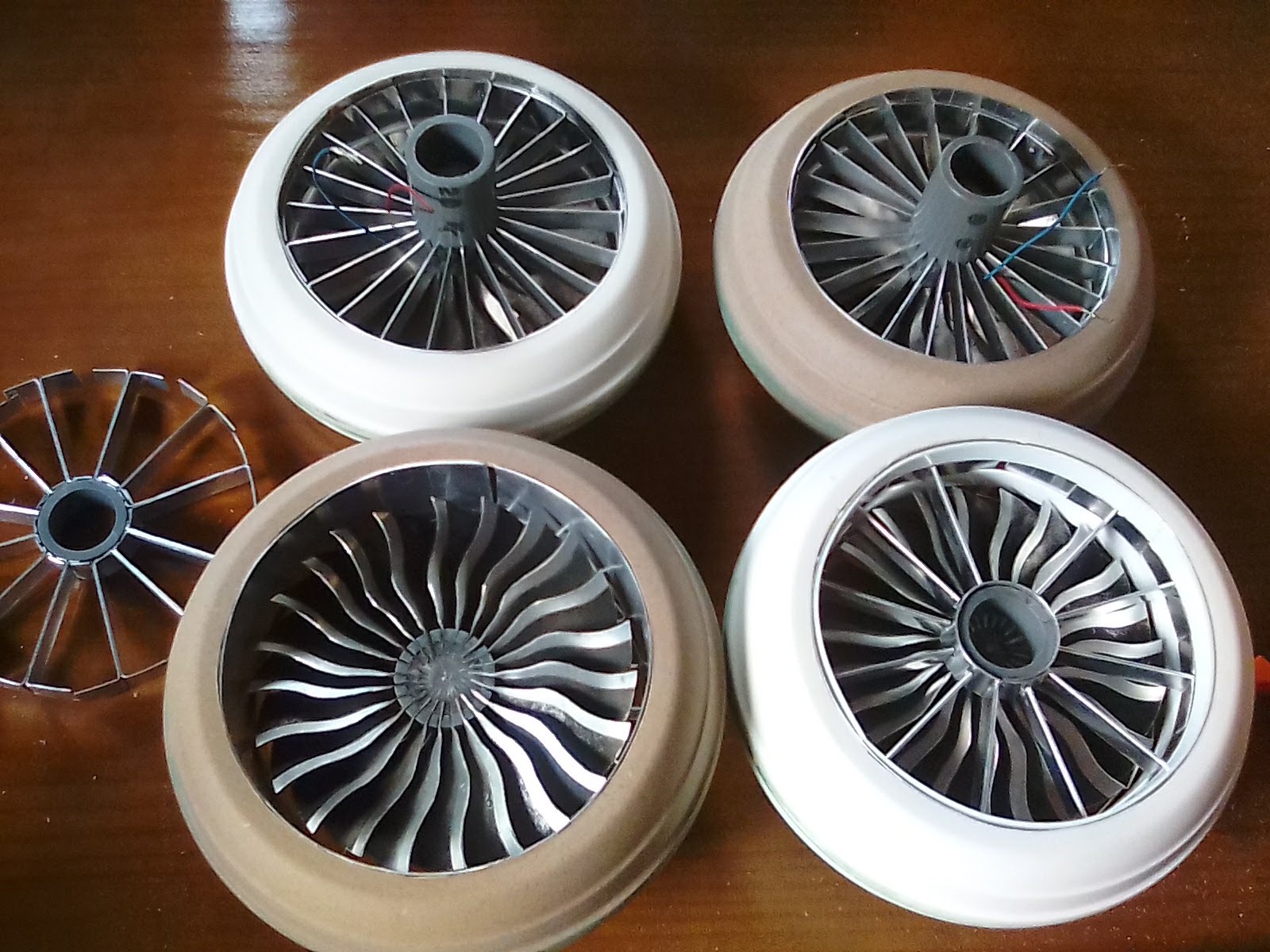

OK, I got four nacelles here. Oh, I haven't thought that how do I attach these to the wing tip....
'Ask and it shall be given you' Think, think, think..... that's definitely one of the core fun of scratch building.
