Here is a few pics of progress.
I'm working on a engine nacelle and I don't know how to say but something like rectifying vanes before the turbine fan blades.

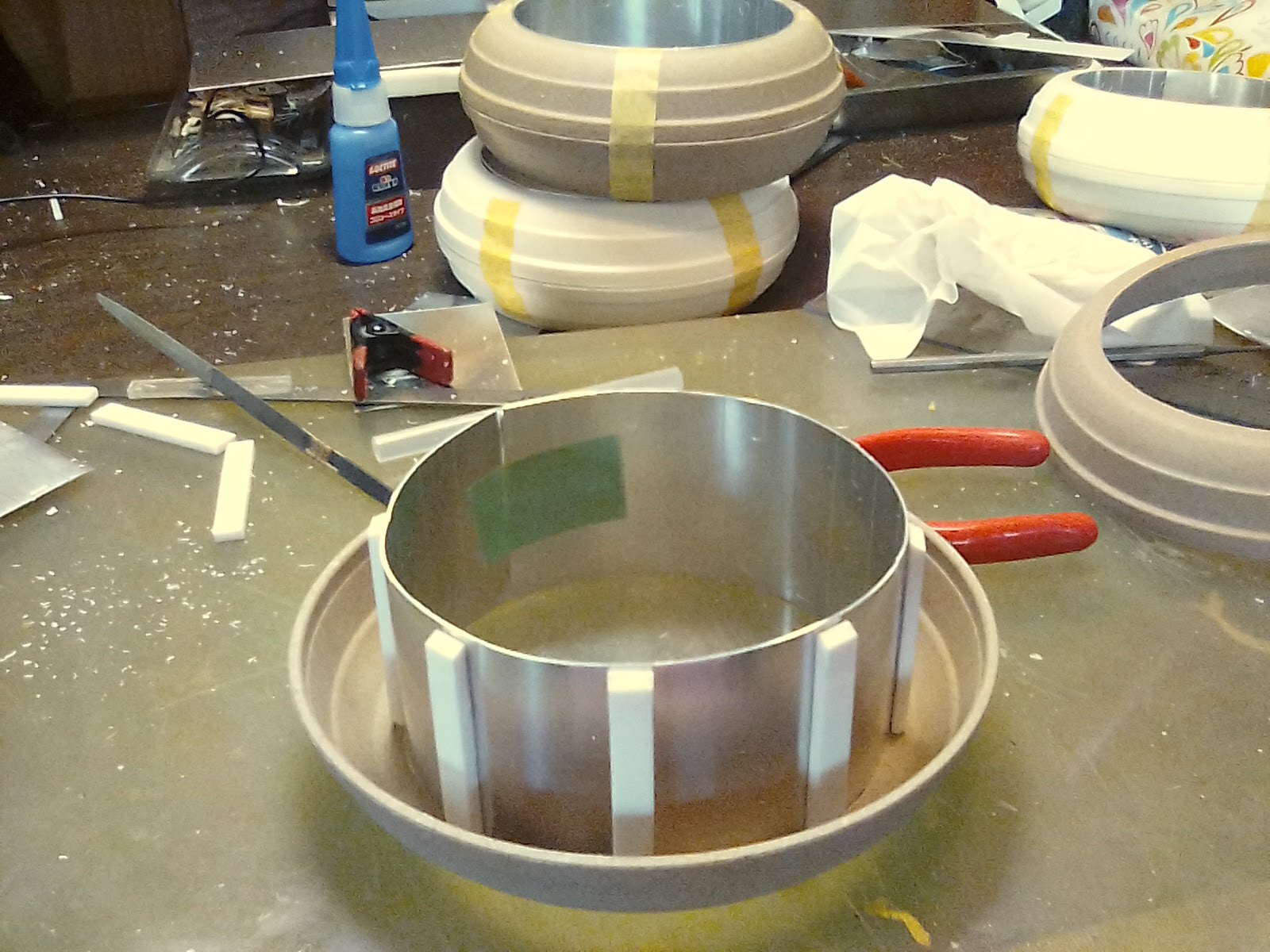

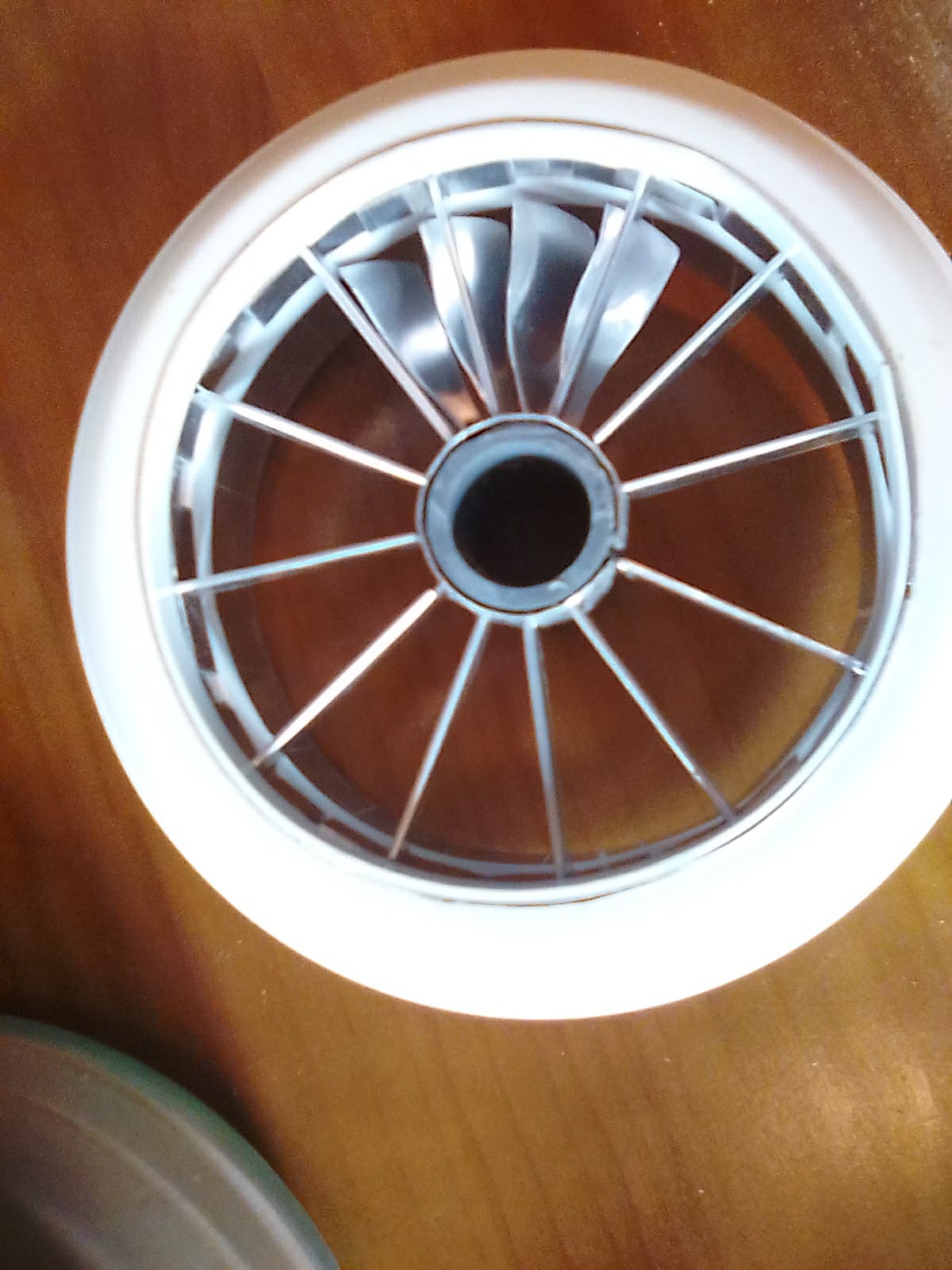

The pic below is showing the making of engine nacelle.
I was gonna use vacuum forming to make housings.
But I found the good looking plastic dish of plant pot at a garden things section in a DIY store.
I've cut out the 5 inches diameter circle.
Also attached 0.5 mm aluminum sheet for inside wall. And glued pair of dishes.

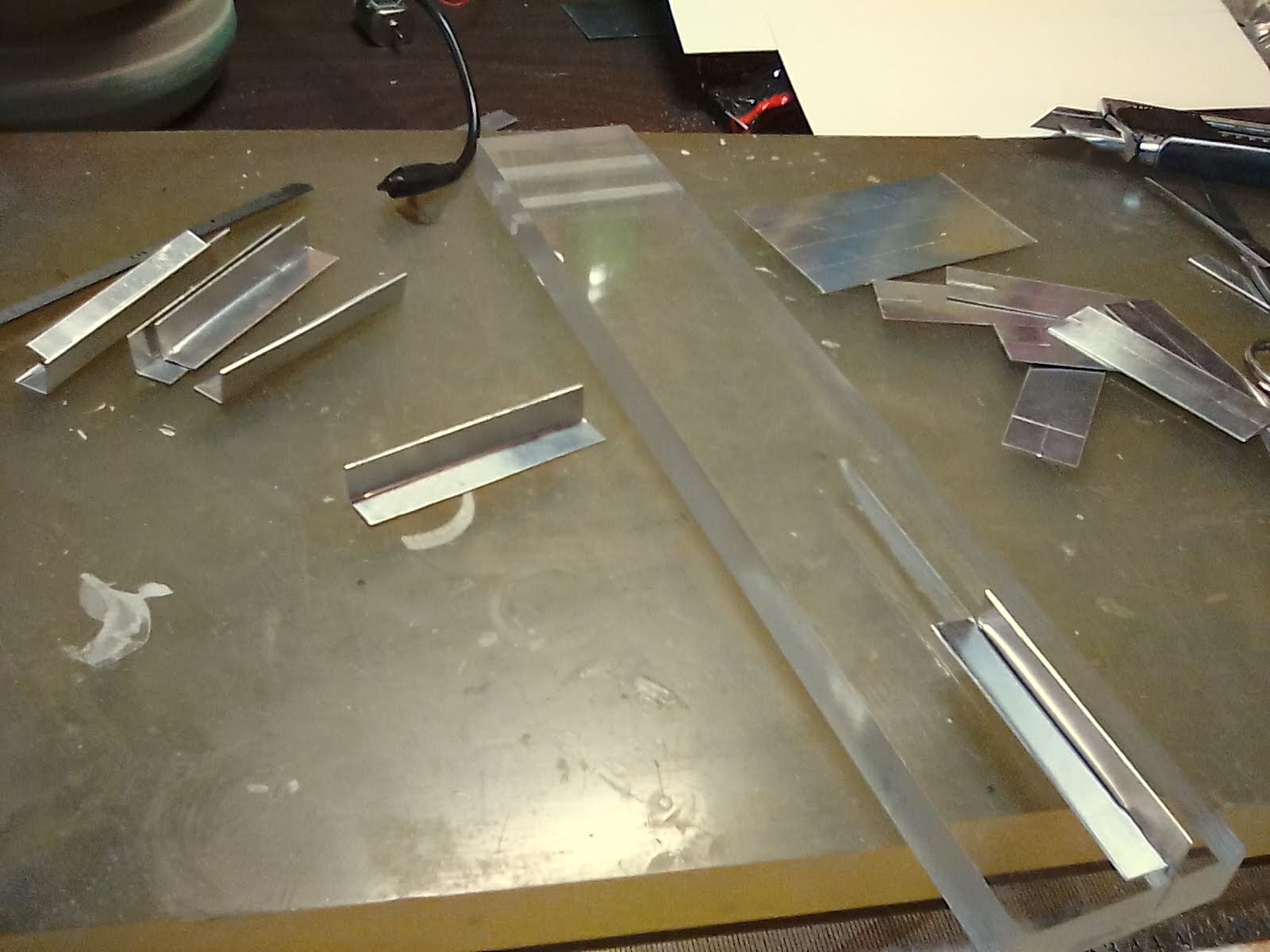

And making vanes.

Almost there.

I will build totally 8 rectifying vanes assemblies.
And a pair of vane assembly will sandwich the main turbine blade.

Thanks for looking,

katsu.

Belugawrx · May 4, 2019

.... ya kno,... this kinda scratch building , always leads me to believe,.. that I am in the right place...
to learn...

yuumi2891103 · May 4, 2019

Thanks!

Analyzer · May 6, 2019

Wow! Looks great!

Is that a motor in there? Are the turbines actually going to be motorized?

SmilingOtter · May 6, 2019

If I was going to make an engine assembly like that, I don't know how I would have attached the vanes to the hub, but I can promise you it wouldn't have been nearly as creative or elegant as the way you did it. The "T" shapes and slots are a beautiful idea.

yuumi2891103 · May 6, 2019

Analyzer said:
Wow! Looks great!

Is that a motor in there? Are the turbines actually going to be motorized?

Thank you for looking, Analyzer-san.
Yes, I'm try to rotate those 4 turbine blades with a small motor.
I bought a boxfull of motor for about 10 dollar.

This motor fits the inner diameter of the engine nacelle tube.

I remember when I was a kid. Every kit model of tanks, sports cars and subs used had these small motor inside the box. ' Battery not included'

I started to build the kit model at age 5. Of course, my father used to build for me. I was on his knees and looking him build. When it's finished- that was a US Nuclear sub Nautilus. He told me, 'You can't play with this until the glue would dried.'　Of course, quickly I took it to the public bath near by and dip it into the hot water. It was instantly disintegrated and I cried. Very later on, I knew that was a very first plastic model manufactured in japan.

SmilingOtter said:
If I was going to make an engine assembly like that, I don't know how I would have attached the vanes to the hub, but I can promise you it wouldn't have been nearly as creative or elegant as the way you did it. The "T" shapes and slots are a beautiful idea.

Thank you very much, Tom-san.
I had been thinking the way to build those vanes. I took this way because it may has a tolerance to adjust when I set them to the nacelles and fix it.
As you understand, there's always a big difference in between drawing a plans and make it with a real materials.

As you see the second one (brown one) is a bit better than the first white one.

Thanks for looking,

katsu

korben44 · May 7, 2019

Beautiful work and amazing ingenuity!

Analyzer · May 7, 2019

Batteries are never included

As a kid there was nothing worse than getting a toy for a present only find out you need batteries and then you can't find any batteries around the house

I always make sure when giving presents to include the batteries if they are needed

When I was younger I helped build a few motorized ship model kits with my Grandfather (ok, I watched it being built more than actually built it). After a few days we would stick them in one of those kiddie pools to watch them go. Sometimes they would just flop over and sink though

Also those plant pots make perfect housings!

yuumi2891103 · May 7, 2019

korben44 said:
Beautiful work and amazing ingenuity!

Thank you !

Analyzer said:
Batteries are never included

As a kid there was nothing worse than getting a toy for a present only find out you need batteries and then you can't find any batteries around the house

I always make sure when giving presents to include the batteries if they are needed

When I was younger I helped build a few motorized ship model kits with my Grandfather (ok, I watched it being built more than actually built it). After a few days we would stick them in one of those kiddie pools to watch them go. Sometimes they would just flop over and sink though

Also those plant pots make perfect housings!

Thanks!

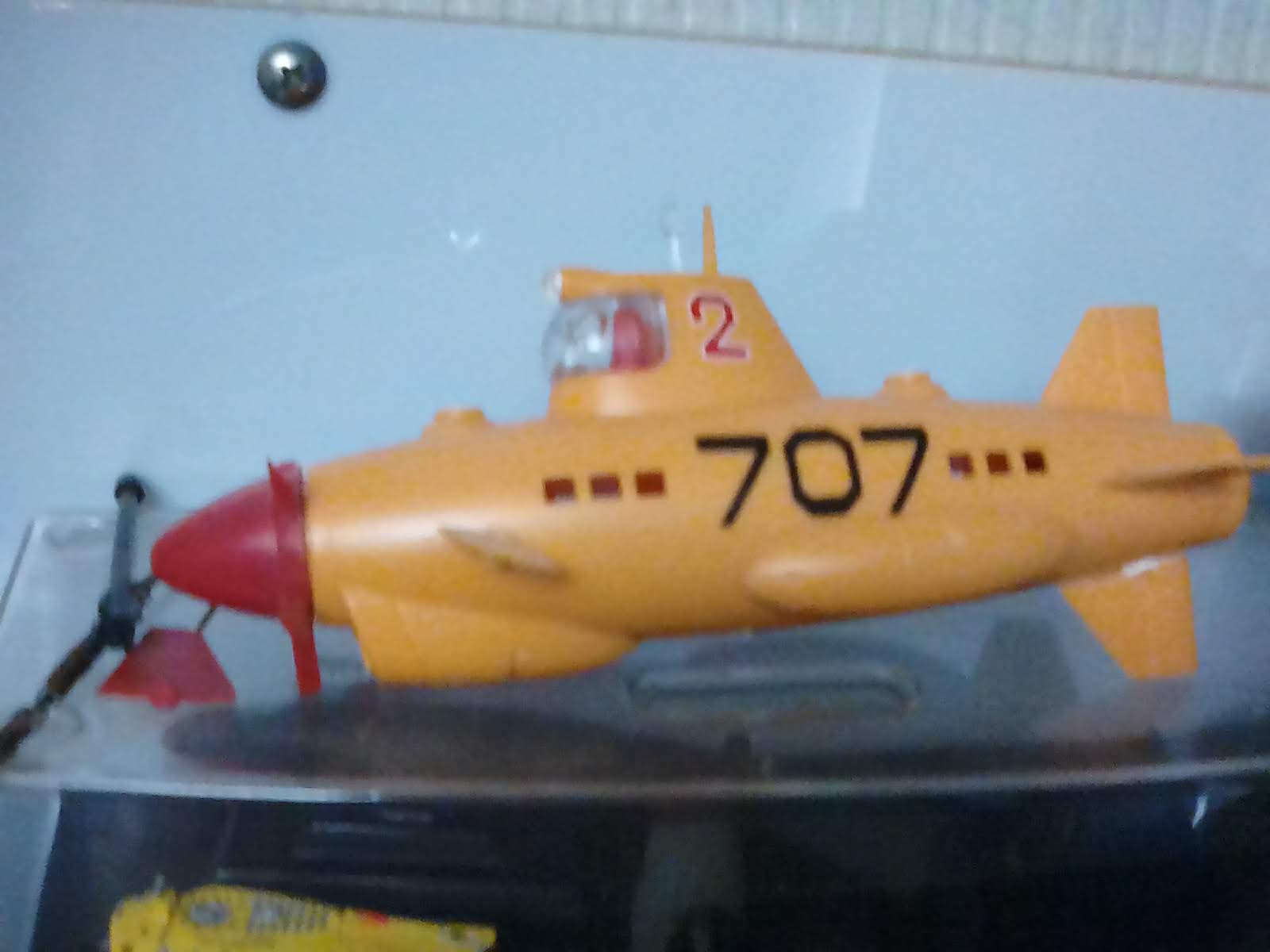

For more than 50 years ago, the main event for the boys in a Summer vacation was let this mini sub sinking in a kids pool, any streams or ponds. I guess there still a lot of this mini subs are remain in the bottom of those water place. This sub was running by rubber band propulsion. I remember this was 100 yen. That was a time when 1 dollar = 360 yen.

About 10 years ago, I bought this revival version kit. That was 2000 yen.

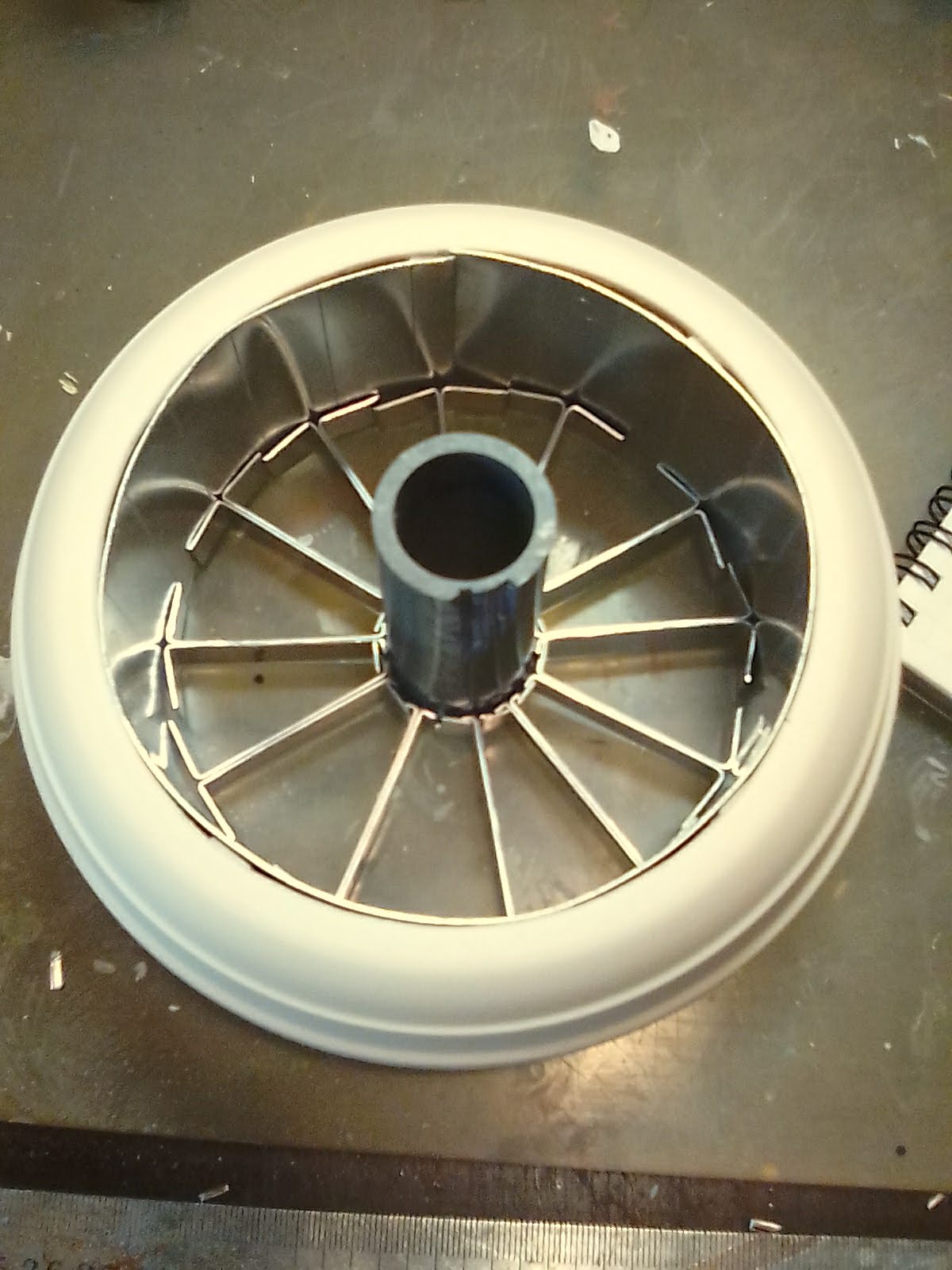

When I finished these vanes section, I have to think about making a fan blade section.
I think it may needs at least 20 fan blades in a disk.

The pic shows a pair of fan sections but I will build only 1.

Thank you very much,

katsu

yuumi2891103 · May 8, 2019

Here's a little progress.

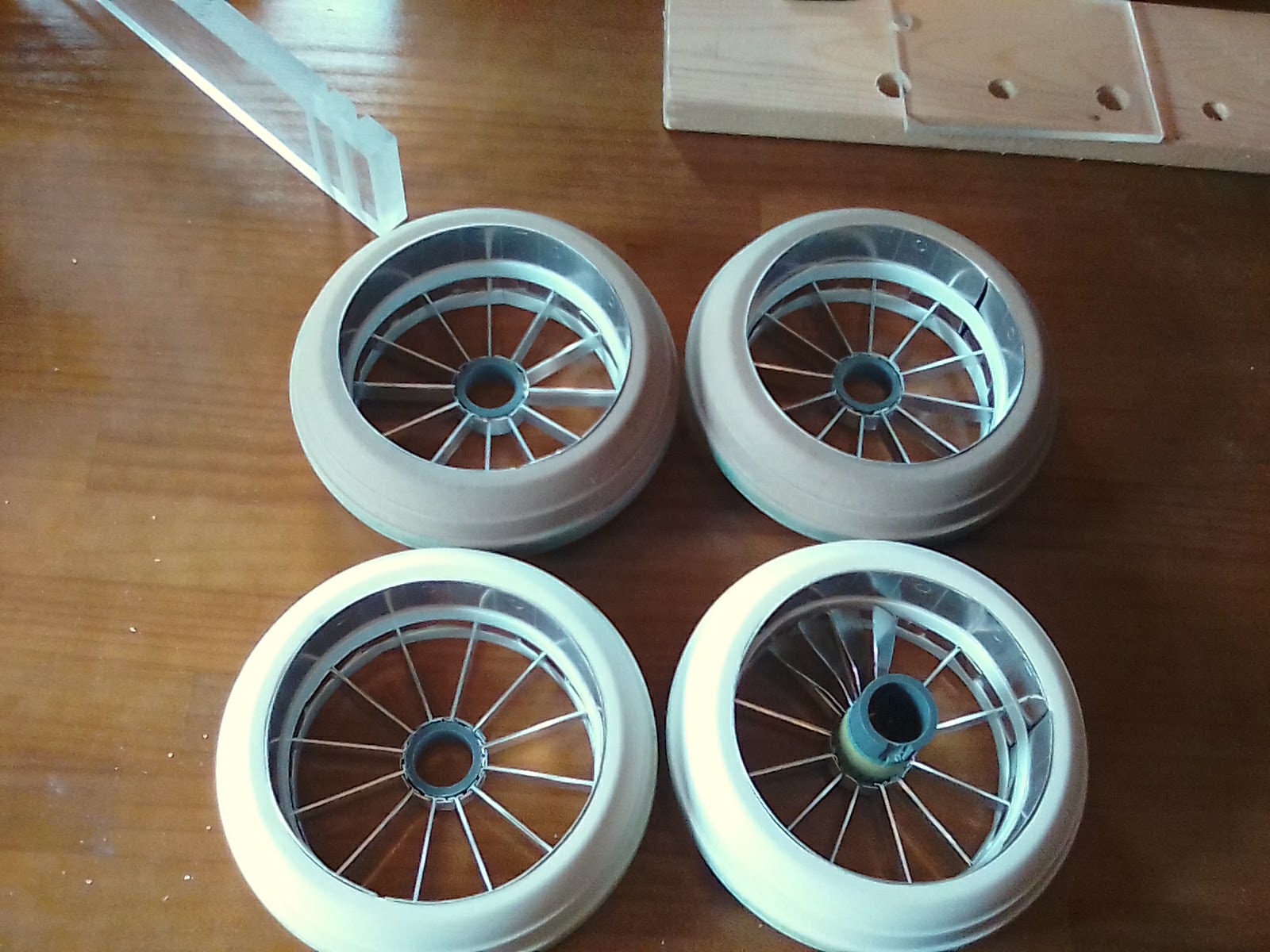

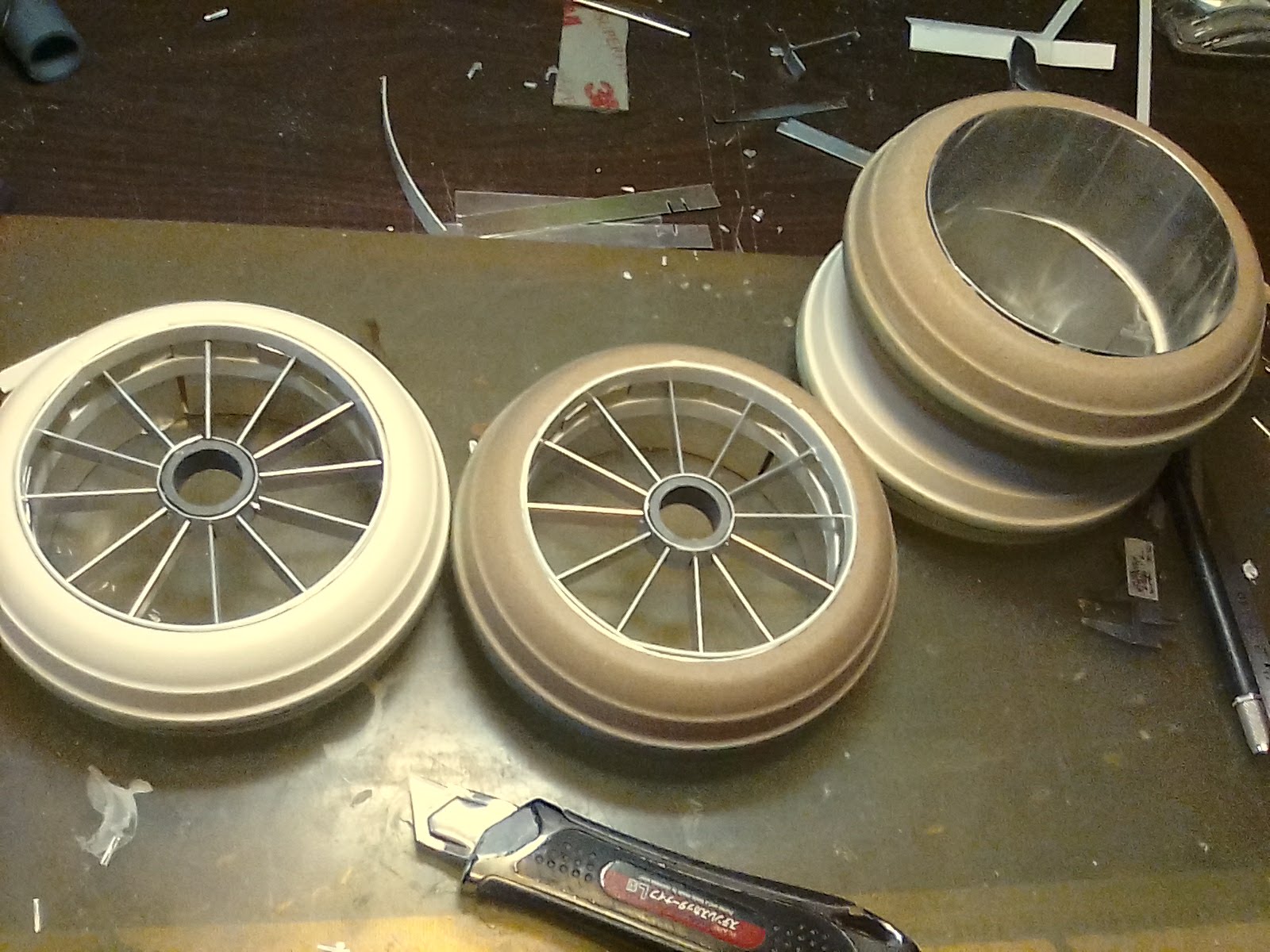

I've finish to build the upper side vane section of each four engines..
Then I started to thinking about the fan section.
As I have to plant so many fan blade on a axis, this build might need a little more precise work.

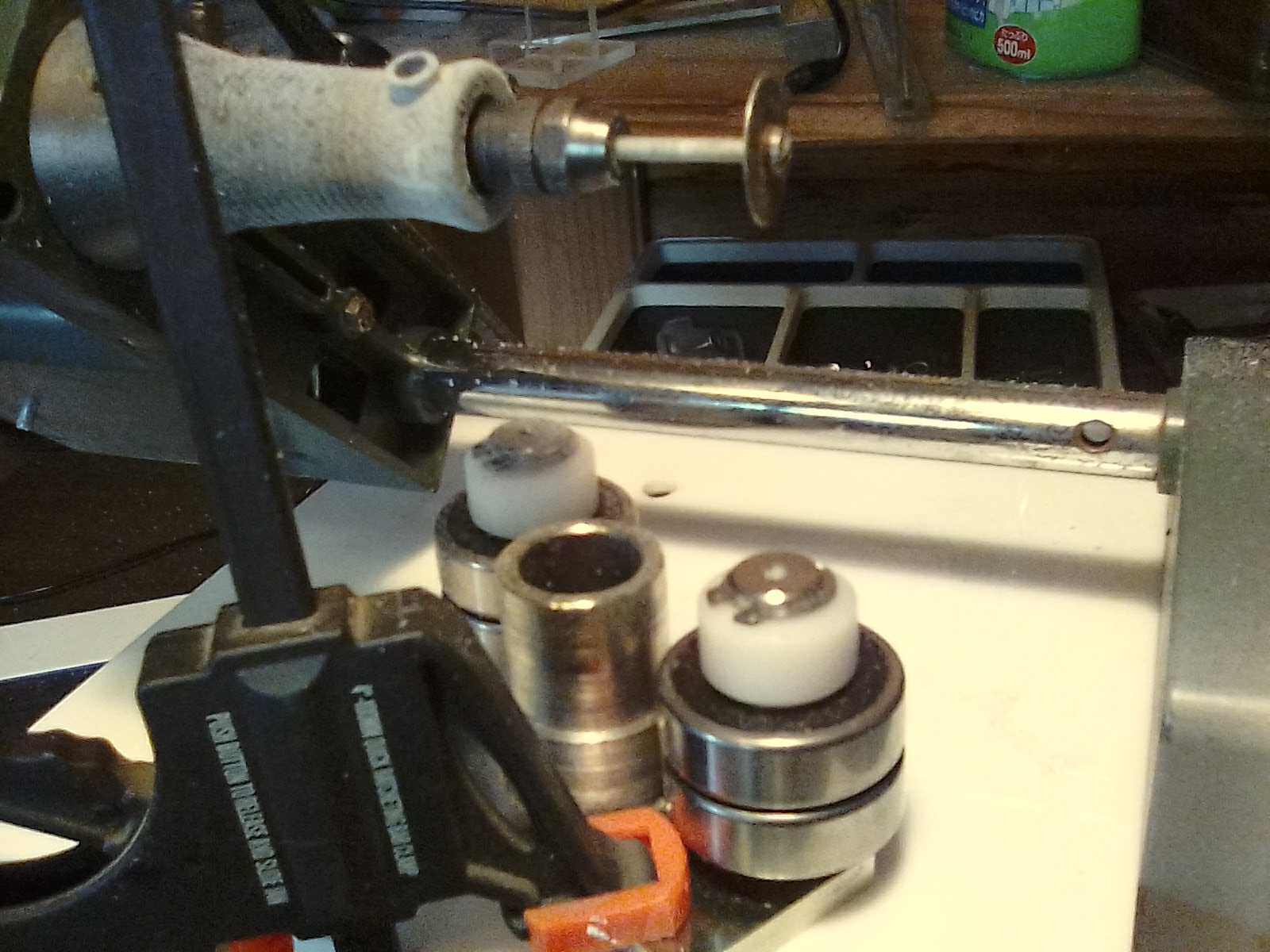

So, I made up a very simple jig to chop many slot to plant fan blade.

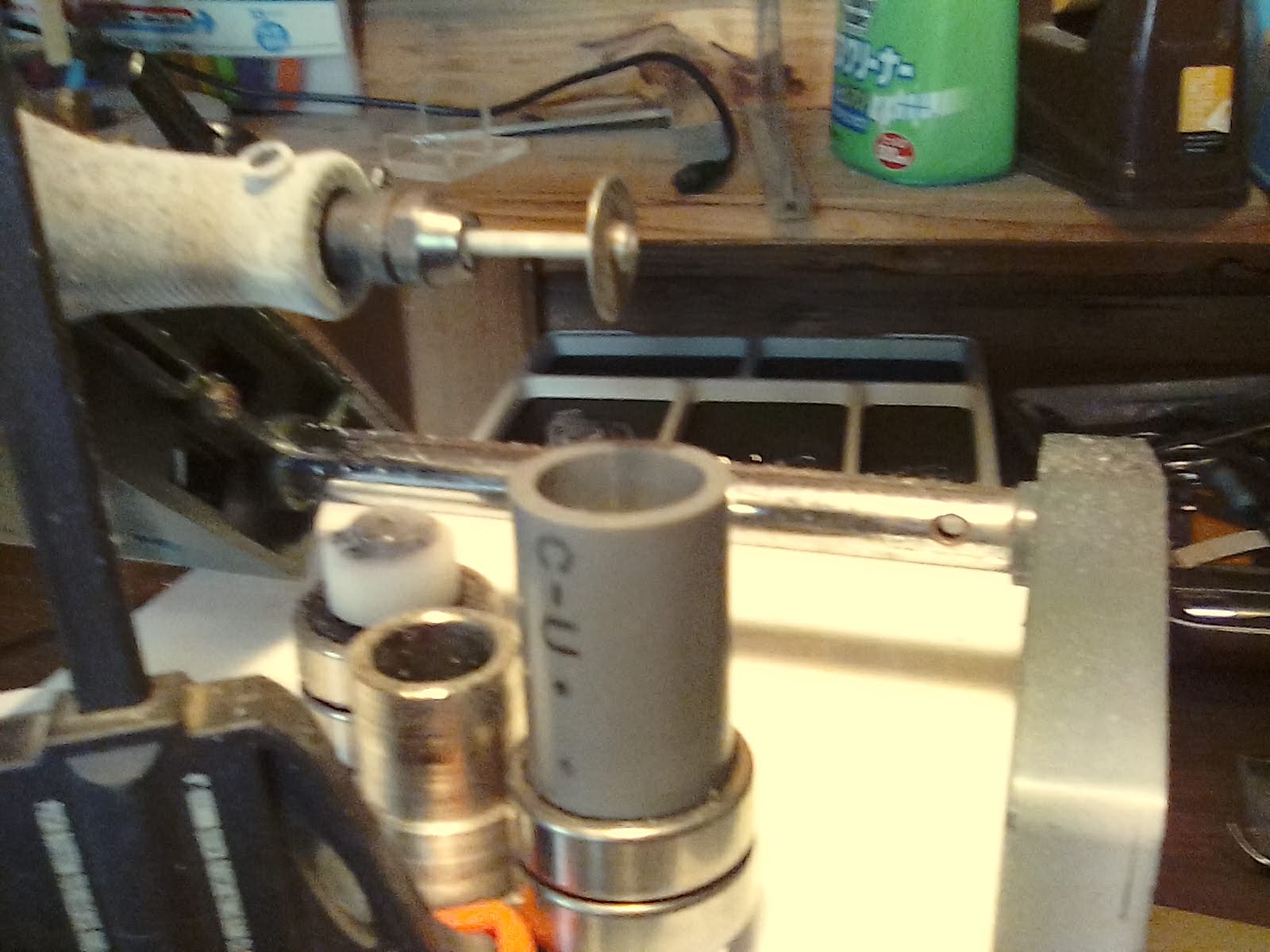

This is a cheap drill stand. I set this strut horizontally to use this as a circle saw arm.

I put the rotating pedestal. I don't know what this mechanical parts were. My wife snatched it from the junk yard of her company and brought to me years ago.

Looking good.

And planted fan blades directly.

This is just a test build. Maybe I should think about the appropriate procedure for better result.

Thanks for watching.

katsu

Duncanator · May 8, 2019

Beautiful work as usual! You never fail to impress with your details.

Analyzer · May 9, 2019

That's going to be a lot of tedious work twisting those fan blades, but it will be worth it!

JediMichael · May 9, 2019

Keep forgetting to check in here. As always, fantastic work. When we think you've done your best, you come and do it even better.

yuumi2891103 · May 9, 2019

Duncanator said:
Beautiful work as usual! You never fail to impress with your details.

Thank you so much for your support, Duncanator-san.

Analyzer said:
That's going to be a lot of tedious work twisting those fan blades, but it will be worth it!

Thank you Analyzer-san, Compare to the build of links of long track I made before, this is happier by far.

JediMichael said:
Keep forgetting to check in here. As always, fantastic work. When we think you've done your best, you come and do it even better.

Hi! Michael-san, thank you so much.

There is the series of work for the first bunch of fan blade.

I made a cutting pattern template for the fan blade.
