I wanted to share my current mission to sculpt a faithful (within my ability) rendition of the original T-800 endoskeleton from the first Terminator film.







I'm currently using reference that's freely available on the web as well as the Argonauts vinyl kit (which is based on the T2 revision, but still shares a lot of similarities to T1). Unfortunately this means it won't be 100% accurate, but I'm hoping to surpass what's available in the consumer market.

I'll try to update this page as I make progress.

Thanks for looking!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Too Much Garlic

Master Member
Looks really great. I think you should remove the beveling near all the grooves (lines) in the skull. The angles are pretty sharp on the original skulls.

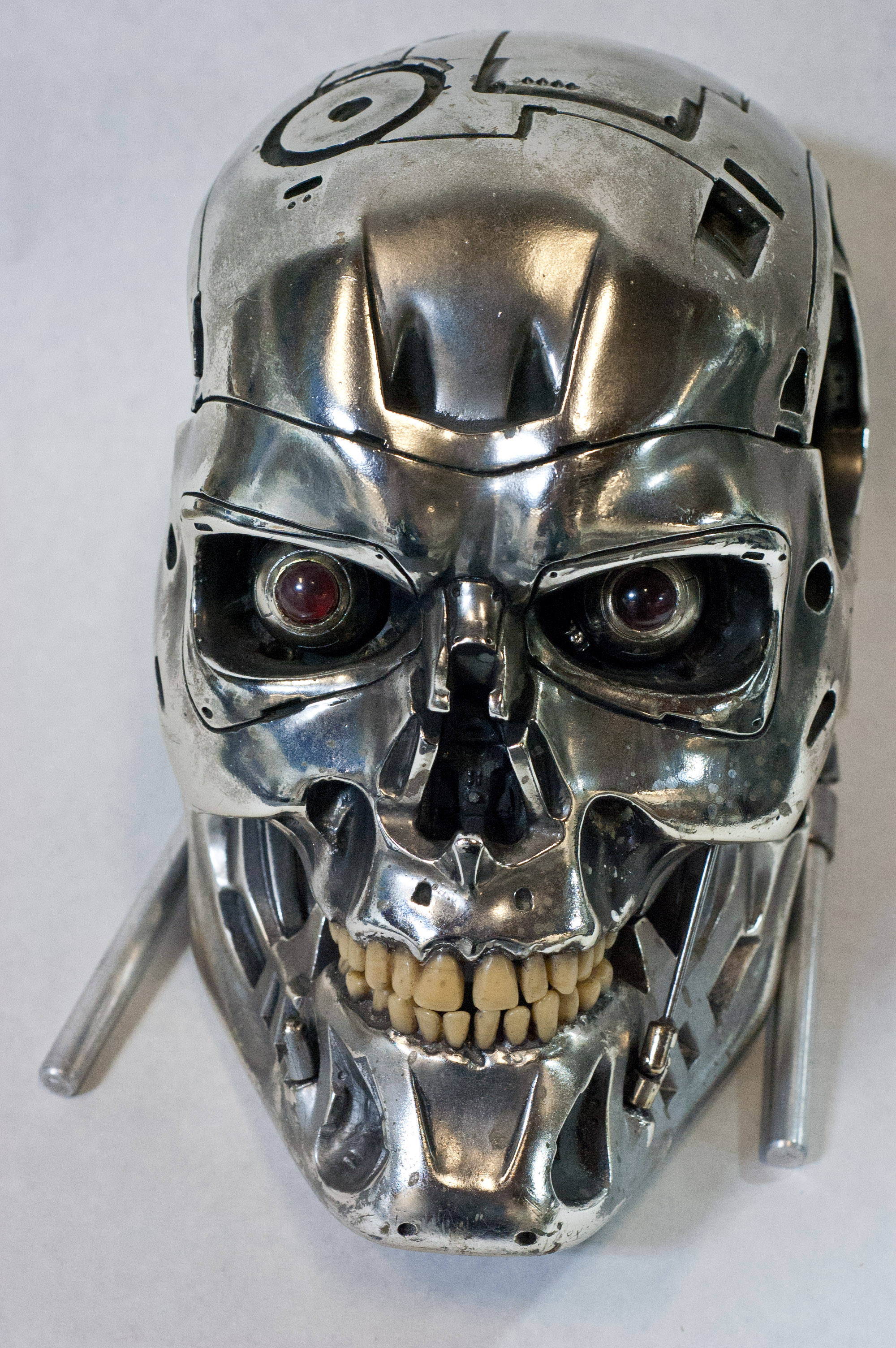

Endoskeleton - IconsofSciFi - EMPmuseum - 002.jpg

Last edited:

RoboForceGo

Jr Member
Looks really great. I think you should remove the beveling near all the grooves (lines) in the skull. The angles are pretty sharp on the original skulls.

Agreed, I appreciate the feedback. I rescribed some of the panel lines to be sharper and without a bevel.

I've made some progess on the lower body. The pelvis was quite the challenge to sculpt.




clonesix

Sr Member
RPF PREMIUM MEMBER
This is looking nice. Those resin prints look very smooth! What type of printer are you using? I have printed a T-800 in PLA and all required LOTS of sanding/filling/sanding!

Can't wait to see more!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

RoboForceGo

Jr Member
This is looking nice. Those resin prints look very smooth! What type of printer are you using? I have printed a T-800 in PLA and all required LOTS of sanding/filling/sanding!

Can't wait to see more!

I'm using a Form 2 SLA resin printer and printing somewhat small at 1/4 scale, so cleanup is mostly just removing touch point marks. I saw your build, very impressive!

RoboForceGo You're doing a serious job with these, man. I'm following this!

Thank you!


Jakelope

New Member
This looks great! I printed some T800 heads from a Thingiverse model at 1:4 scale. Prints look great, unfortunately they missed the mark on likeness. Looking forward to your progress!


RoboForceGo

Jr Member
I'm nearly there sculpt wise! Just need to finish the hands and some panel lines, then it's time to pick a static pose and key the parts for print.



I'm having some trouble finding clear reference images for the panel lining on the knees and shin rotator parts. I might just have to make an educated guess based on T2 parts, though I'd really prefer not to.



Jakelope

New Member
This is looking great! Any thoughts on broadening the shoulder girdle and/or shrinking the pelvic area? Referencing the screen used T-800 from T2, the circular portions of the shoulders seem to protrude farther than the ribs/chest section. After all, it's Arnold, his V-shape was iconic. Looks incredible, keep it up!


Attachments

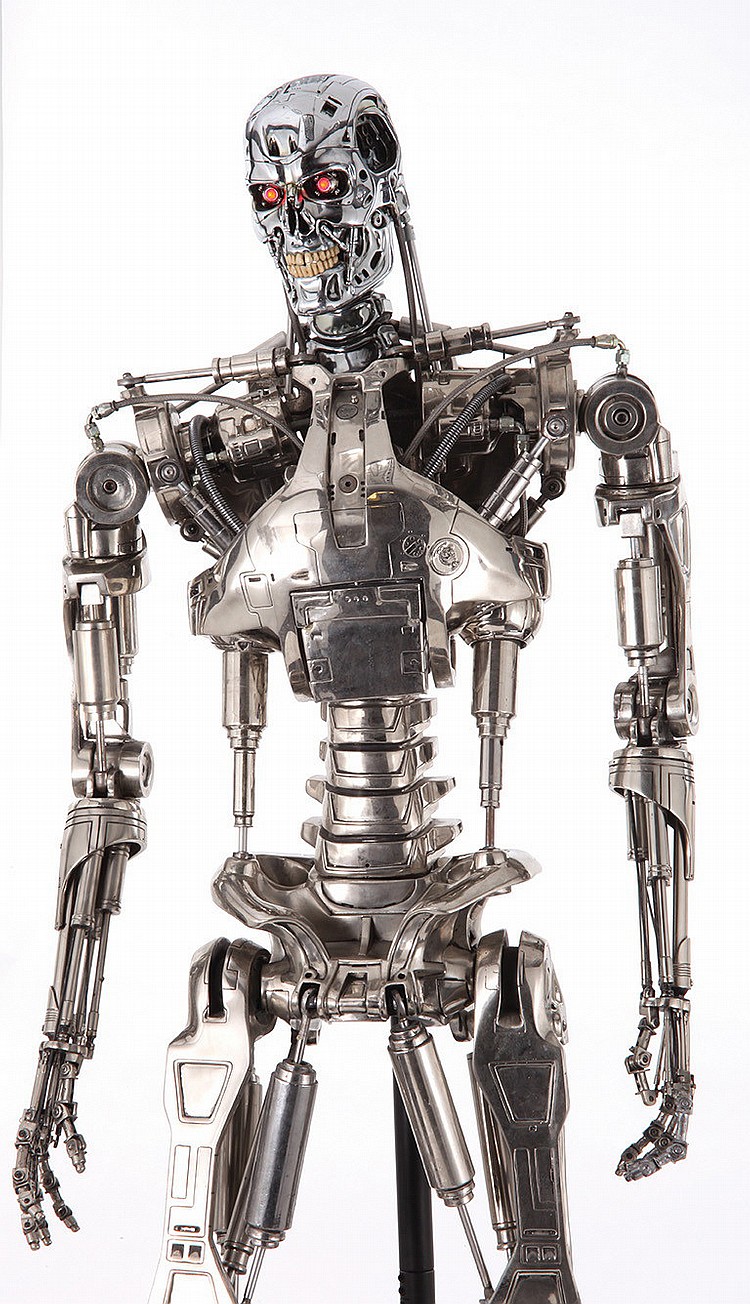

  • H3257-L40395582.jpg
    292.3 KB · Views: 97
  • 7347fbd5ff0233d73564b78de015de9e.jpg
    121 KB · Views: 90

RoboForceGo

Jr Member
This is looking great! Any thoughts on broadening the shoulder girdle and/or shrinking the pelvic area? Referencing the screen used T-800 from T2, the circular portions of the shoulders seem to protrude farther than the ribs/chest section. After all, it's Arnold, his V-shape was iconic. Looks incredible, keep it up!

Thanks Jakelope! Since it's being modeled in a stiff/default pose, articulated areas like the shoulders and waist area will shrink and expand depending on the chosen pose. So the shoulders for example can pull outwards and rotate in a limited circular motion.

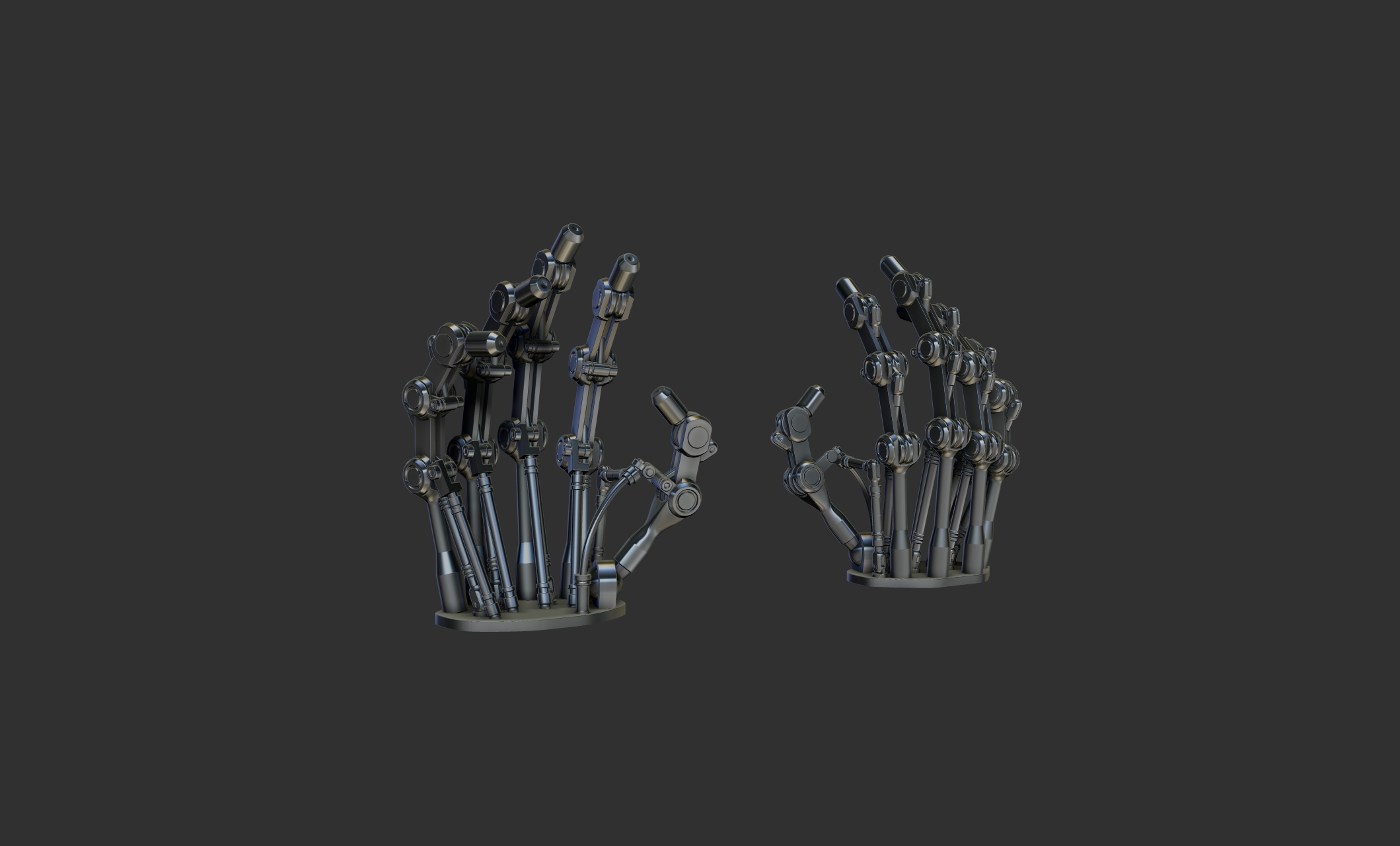

Hands are mostly finished! Some minor details were fudged a tad for practical purposes of printing and assembly:



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Too Much Garlic

Master Member
Looking awesome, and man, you are really working fast.

Don't know if these show what you were asking about.

Endoskeleton - Tomenosuke Shoten shop - Japan - 007.jpg
Endoskeleton - Tomenosuke Shoten shop - Japan - 012.jpg
Endoskeleton - Tomenosuke Shoten shop - Japan - 007.jpg

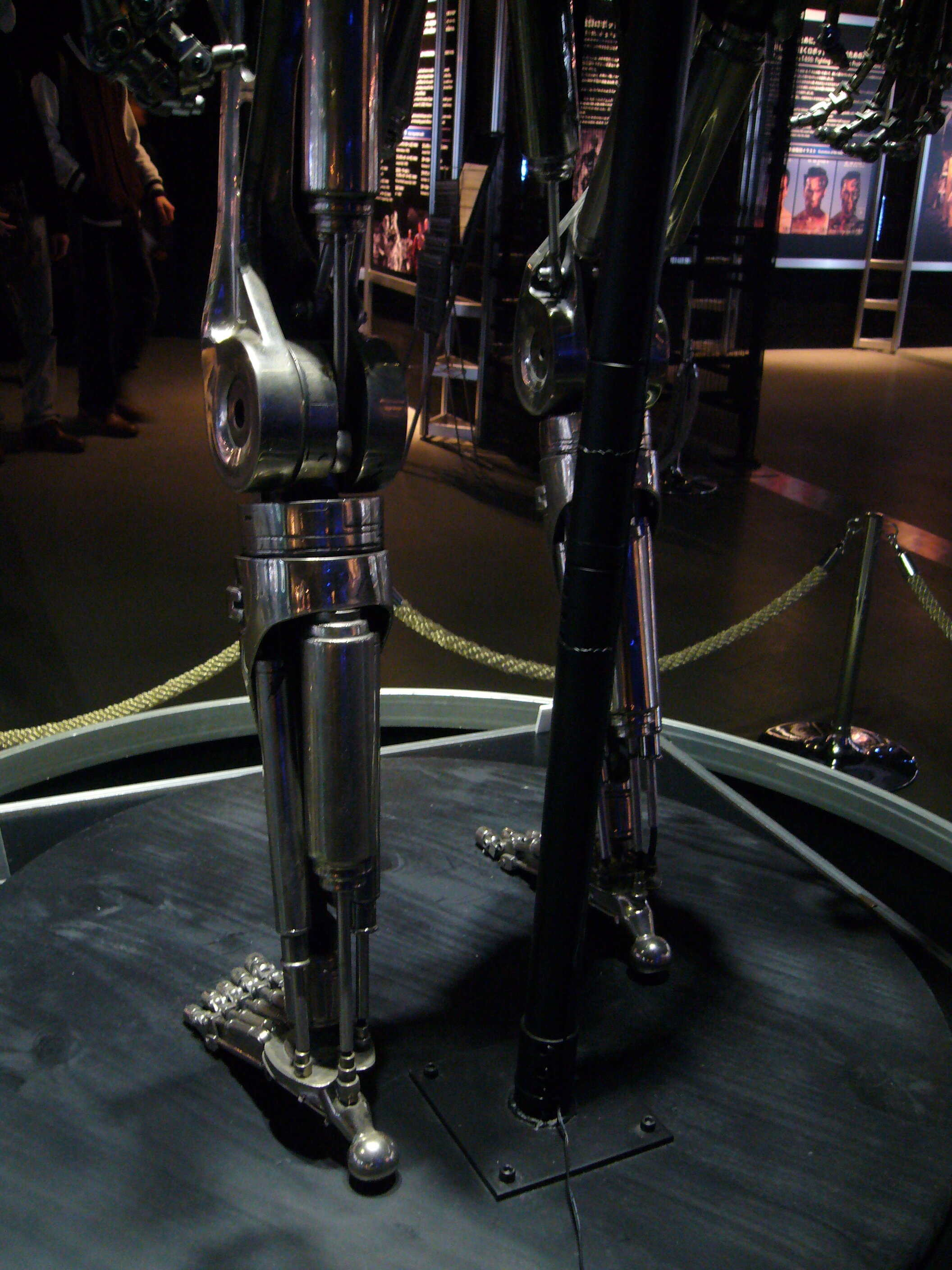

Endoskeleton - Tokyo Japan Museum Robot Science - 02 - 007.jpg


There were large pictures posted of the recent full endoskeleton sale through PropStore that shows the grooving around the bottom ring edge of that knee insert. If you pm me your e-mail address I can send the pictures showing that to you.

Last edited:

Too Much Garlic

Master Member
Just noticed. Shins are very Hot Toys like. Too wide at the bottom. You should think of the shape more like a triangle shape, and not rectangular. They also don't seem as curved as they need to be up near the top with the cross mark on the front.

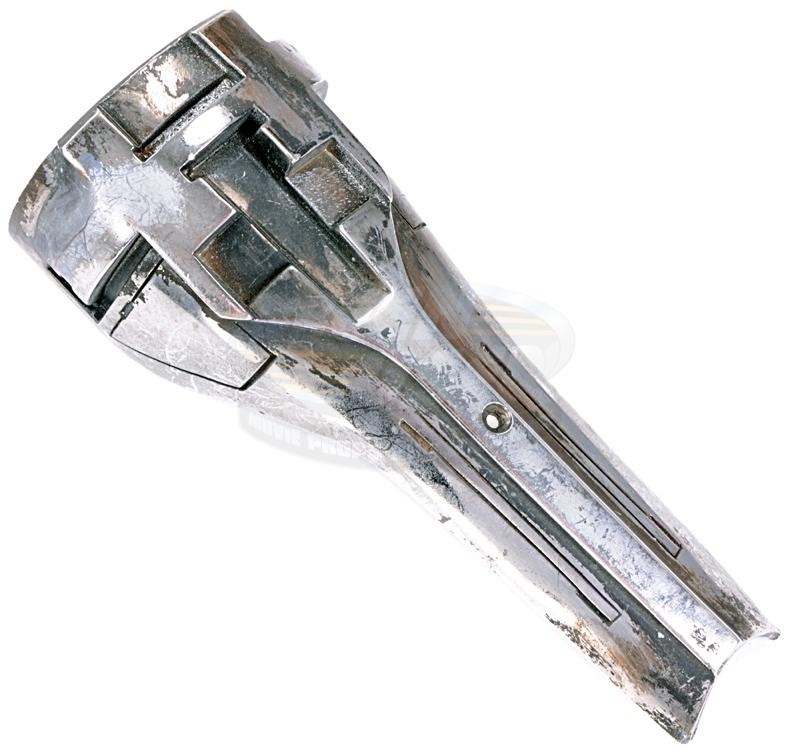

T2 - Endoskeleton - shin - 01 - 01.jpg

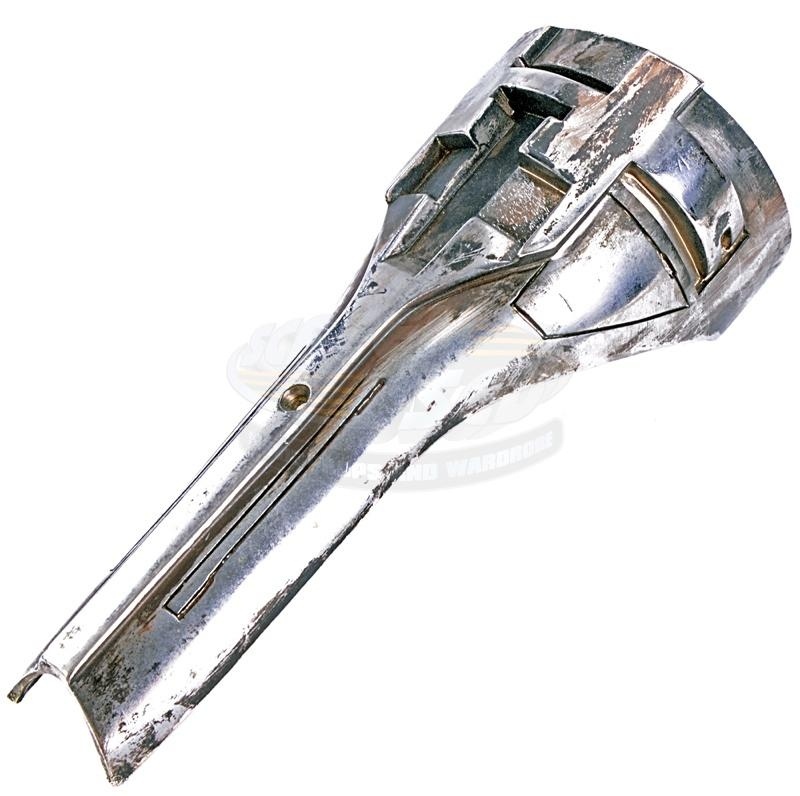

T2 - Endoskeleton - shin - 01 - 02.jpg
T2 - Endoskeleton - shin - 01 - 03.jpg


You can see how slim the shins are supposed to be down towards the foot.

T1 - Endoskeleton - Stan Winston Studios - 007.jpg

Last edited:

RoboForceGo

Jr Member

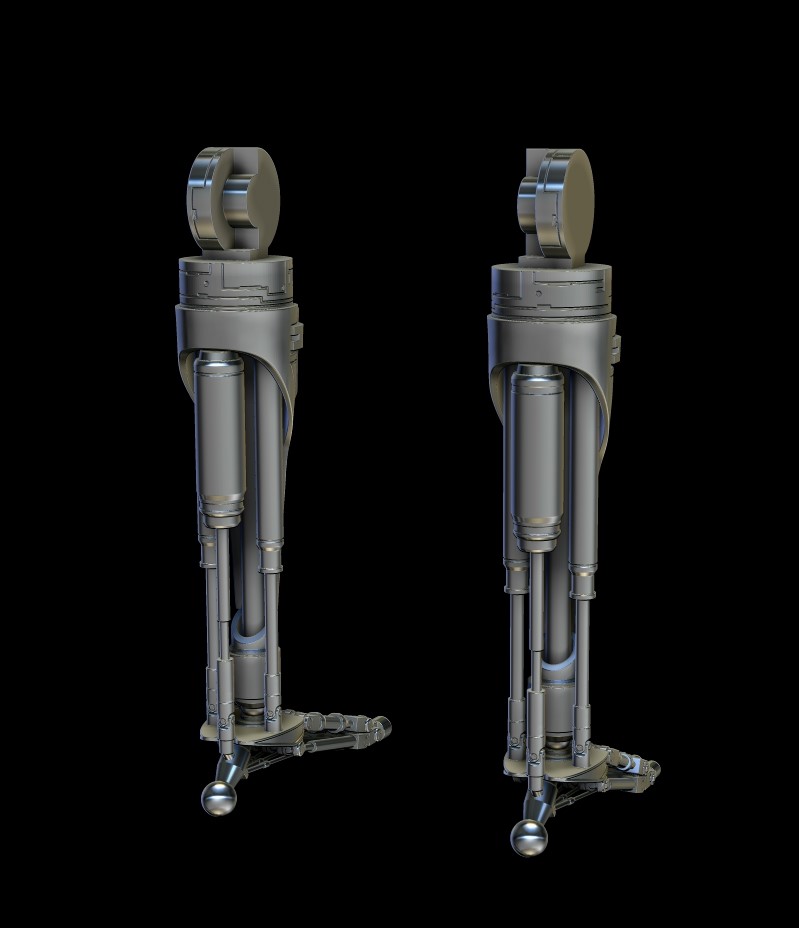

Reworked the shin guards and figured out the panel lining on the knee parts thanks to Too Much Garlic.





Starting to break the model to get a rough idea of the pose... Not sure how I'd like it just yet.
(Note: pin holes, pistons, hoses/connectors are all broken or missing here.)

test pose.jpg

Last edited:

gizmo

Sr Member
RPF PREMIUM MEMBER
Really impressed by what you've doing and the speed you're doing it at. Can't wait to see one all printed up. :)


Ben


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Too Much Garlic

Master Member
Glad I could help with the right reference. :)

For T1 there is no more iconic pose than when he steps out of the fire. It looks so intimidating. Though, if you are doing a diorama style, then the pose when it's bending down to finish Reese before he blows it up.

T1 - Endoskeleton - 01.jpg
T1 - Endoskeleton - 03.jpg


Too Much Garlic

Master Member

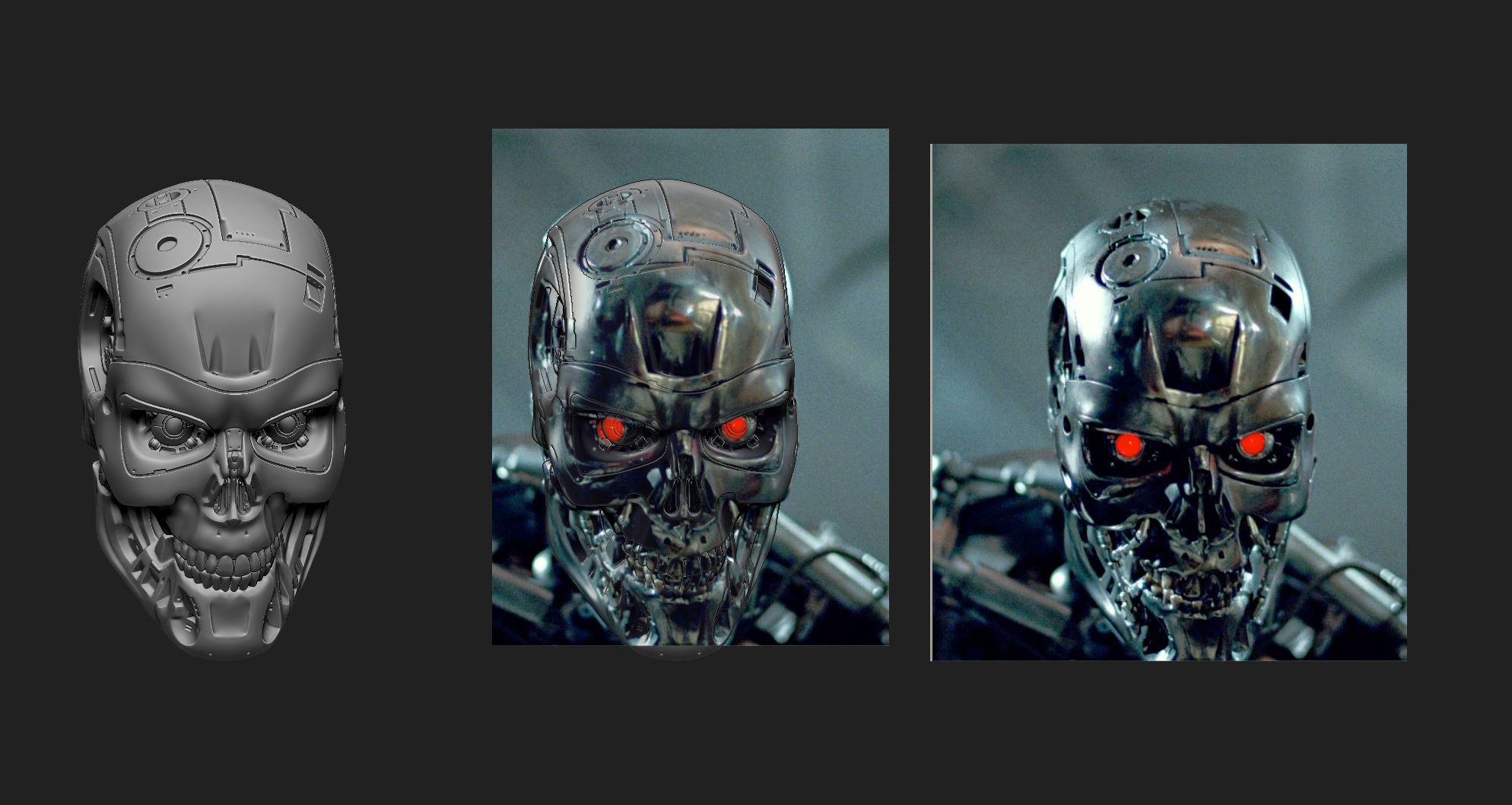

That overlay is pretty good. Shows where you need to widen the sculpt towards the front of the brow at the sides down towards the open temple hole. Widening that area may make the front cover appear smaller.

And you probably need to pull the lower jaw back just a few mm.

I don't think the T2 front cover is bigger than the T1, though, maybe they did groove it a bit bigger when they made the changes. If you are going for T1, there are a few clear shots of that front cover in several of the pictures I sent you.

Last edited:
