War Machine 3d print build - yep another one ;)

Discussion in 'Marvel Costumes and Props' started by smilerbaker, Jul 20, 2017.

  1. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    A friend is printing/building and ironman

    https://www.therpf.com/showthread.php?t=270301


    he was badgering me for months to build a war machine as he'd already bought the files, To wet my appetite he gave me all his discarded prints to practice with, sanding, gluing, painting, I just couldn't take it anymore so to shut him up I had to buy a 3d printer (the creality cr-10) ;)

    for the past few weeks its been running 24/7 printing, failing, reprinting etc. this thread is I suppose going to be pic heavy

    OBI WAN KEN0B1 likes this.
  2. markseven

    markseven Well-Known Member

    Trophy Points:
    586
    If you have issues with the cr-10 maybe I can help. Ive had it running almost every day without issues.

    FB: facebook.com/ironmarkprops1
    IG: instagram.com/ironmarkprops

  3. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    First off the iron man helmet

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    after lots of sanding and filling

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    AlexStark likes this.
  4. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    so I started war machine with the face plate, first thing I printed well, ever!

    printer wasn't quite setup properly so a bit of work to do fixing the error in it

    [​IMG]

    now the rest of the helmet

    [​IMG]

    again, printer wasn't quite dialed in

    [​IMG]

    but fitted together ok all things considered

    [​IMG]

    [​IMG]

    now the arms, first time I've had to swap out the filament mid print

    [​IMG]

    while they are printing some time to sand and fill

    [​IMG]

    pics got messed up here, next is the top of the helmet

    [​IMG]

    and onto the shoulders

    [​IMG]

    this is when I had to stop printing and fix the issues with the printer, tighten everything, realign and just make sure everything was ok

    that made the print quality light years better

    [​IMG]

    couldn't resist a little test fit

    [​IMG]

    Last edited: Jul 20, 2017
  5. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    Joel bought the bigger cr10 50*50*50 rather then my 30*30*40 so has printed me the chest piece, currently mine is printing the shoulder ammo packs

    * it takes a long time!

    [​IMG]

    [​IMG]

    AlexStark and markseven like this.
  6. smilerbaker

    smilerbaker Member

    Trophy Points:
    138

    thanks, I think I have found a sweet spot with it now, messing around with the print speeds now to see just how fast I can get it before it messes up, had a spectacular fail this afternoon lol

  7. wannabe

    wannabe Active Member

    Trophy Points:
    460
    My pleasure bru :D its looking awesome so far and your IM lid is smoother than mine, that's for sure.
    markseven I'm currently using a modified version of the S3D profile from The Hot End. I found the Uncle Jessy settings didn't quite work for me. If you have a profile you'd care to share I'd love to try it out.

    Last edited by a moderator: Nov 8, 2018
  8. markseven

    markseven Well-Known Member

    Trophy Points:
    586
    wannabe I'm using uncle Jessy's but I change the temp depending which filament brand I use.

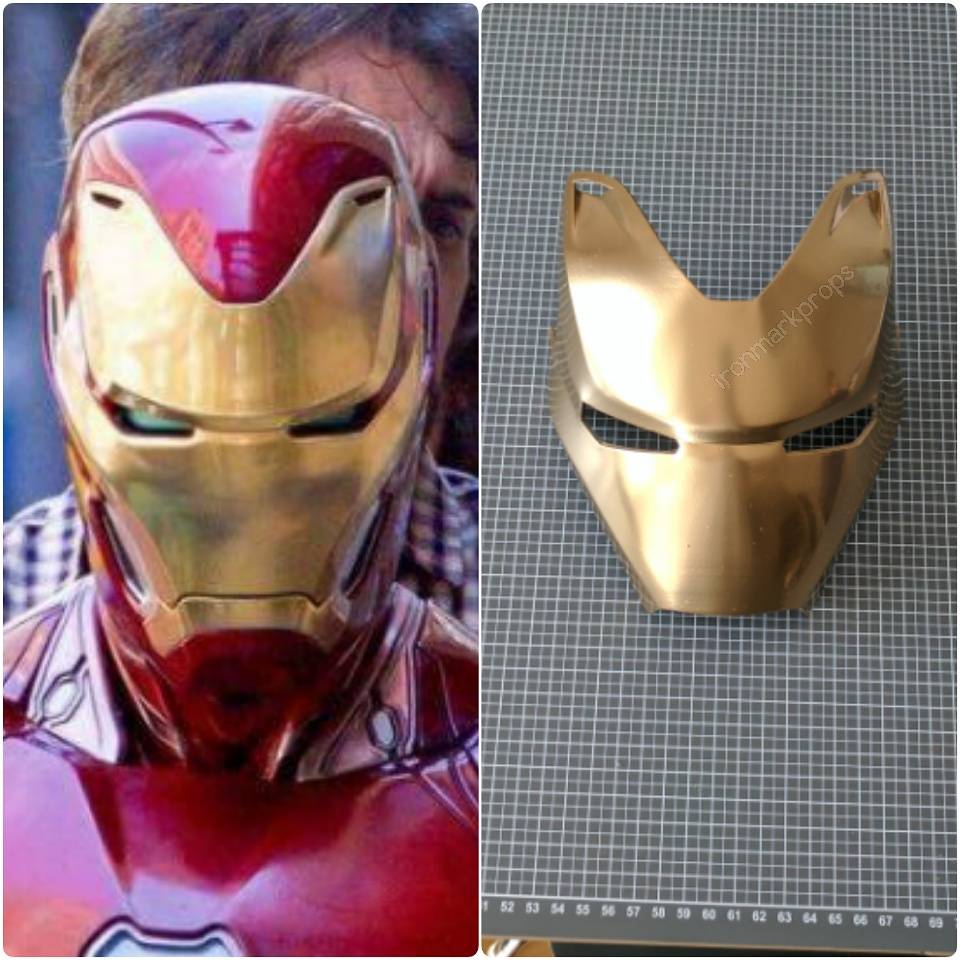

    This is a sample. Hope to start printing the mk46 soon



    Attached Files:

    Last edited by a moderator: Nov 8, 2018
  9. wannabe

    wannabe Active Member

    Trophy Points:
    460
    markseven nice. I'm planning on a mk48 next also.

    Last edited by a moderator: Nov 8, 2018
  10. tijojo98

    tijojo98 Active Member

    Trophy Points:
    467
    Wow what is the paint ? :)

    Envoyé de mon SM-G530W en utilisant Tapatalk

  11. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    another busy weekend printing, had a near disaster 16 hours into a print the supports failed

    [​IMG]

    saved it :)

    upper back printed - filament change half way through and had to print in 2 pieces to get it to fit on the bed

    [​IMG]

    quick tape it all together

    [​IMG]

    [​IMG]

    AlexStark and ArmoredAmir like this.
  12. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    some more progress this week

    [​IMG]

    [​IMG]

    [​IMG]

    printing a few pan and tilt servo brackets at the moment to test with the gun

  13. JSGestalt

    JSGestalt New Member

    Trophy Points:
    3
    This is spectacular. I'm looking for some Mk 1 WM files to experiment with 3D printing.

    Been doing it Pepakura but it'd be fun to try something sturdier.

  14. AlexStark

    AlexStark New Member

    Trophy Points:
    17
    Wow very impressive you're 3d printer runs all the time ? ^^

    I've Anet A8, for the print you're infill is 100% ? and how do you cut the file ?

  15. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    yep its been running more or less non stop since I got it, cut it with 3d builder, infill depends on what I'm printing, anywhere from 15% to 40% so far, my cr10 has a 30x30x40cm print area so don't have to do a great deal of cutting

  16. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    still busy busy busy printing parts, while waiting I stuck together all wannbe's old ironman parts for a display bust
    [​IMG]

    wannabe and Jmen like this.
  17. wannabe

    wannabe Active Member

    Trophy Points:
    460
    All the parts I couldn't be bothered to make into a display bust for myself [emoji16]

    Sent from my SM-G935F using Tapatalk

  18. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    Printer still working 24/7, had a weeks holiday which is why there have been no updates recently

    mid section is all glued / welded together, as much as I can while still being able to get it on, will need to use straps / fasteners / magnets for the other side

    [​IMG]

    Thighs are done, reduced the size after cutting it which has caused one of the lines to mess up, so lots of sanding and filling to fix that :( you live and learn, reduced before cutting !

    [​IMG]

    Managed to get some undercoat on, shows up where needs more work nicely

    [​IMG]

    The thighs where the tallest print I've done so far

    [​IMG]

    Had to support the supports :) didn't want them breaking so far into the print, this black plastic I'm using isn't the best, for some reason goes down a lot thicker and more lines then the silver I've been using - 3d printing is a dark art

    [​IMG]

    RacerMachX likes this.
  19. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    60 hours later one of the shins is also done

    [​IMG]

    Jmen likes this.
  20. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    progress has slowed recently :( had a few failed prints on the more intricate parts, plus commitments with the 501st, but on the plus side war machine has a nice new pair of shoes

    [​IMG]

    Jmen likes this.
  21. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    another week down :) still printing, and doing lots, LOTS of sanding, so it looks like not a lot of progress but just getting ready to paint. Here's some pics of everything together

    He's a bit on the ****, trying the lay everything out with 2 excitable hounds wanting to play wasn't easy lol

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    - - - Updated - - -

    I also bought the larger CR10 50x50x50cm so the next project should be quite a bit faster, tank trooper, K2SO, boushh or force awakens TK :)

    Jmen likes this.
  22. Jmen

    Jmen Well-Known Member

    Trophy Points:
    935
    Awesome))):thumbsup

  23. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    its been a while since I updated this thread, been working on other things for an upcoming event

    [​IMG]

    So anyway now back to war machine, everything is printed and sanding / filling / painting / sanding / filling painting etc etc has started

    top half painted

    [​IMG]


    I know the graphics aren't quite correct, but its been scaled to me, and I'm about a foot too short ;)

    [​IMG]


    [​IMG]

    some sexy boots

    [​IMG]

    our old world central heating is excellent for drying paint

    [​IMG]

    all done, well, top half

    [​IMG]


    still got a huge to do list, bracket for the gun, hands, electronics, strapping it together, the 'soft' parts - will it ever end?

    jamesheneghan likes this.
  24. jamesheneghan

    jamesheneghan Active Member

    Trophy Points:
    411
    Sweet work dude subbed

    Sent from my SM-G935F using Tapatalk

  25. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    and of course the most important bit

    [​IMG]

    I've printed a 2nd helmet which will have all the whistles and bells, this one i've glued the face plate down, reason being getting everything lined up when opening / closing etc with the servos had been a right pain with my iron man helmet, not to mention getting it to sit flush again, plus it makes it heavy and uncomfortable (and no one wants to see my ugly mug anyway)

    IMALIVENOW and Murdoch like this.
  26. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    some more painting etc done

    [​IMG]

    [​IMG]

    [​IMG]

    jamesheneghan and wannabe like this.
  27. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    Spent the last couple of days strapping it together, this is the first test fit, as I'm such a short * its clear the helmet is out of scale, printing a smaller one now, also re-printing the abs section slightly taller so it stops popping out when I walk (or move in general)



    not sure why it looks like i'm wearing a corset :) think thats just a trick of the light, my waste isn't that small lol

    [​IMG]

    Last edited by a moderator: Nov 8, 2018
    wannabe likes this.
  28. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    Been a while :)

    after the first fit it was obvious I had some work to do, reduce the size of the helmet and increase the abs section, so after a lot of printing, sanding, filling, sanding, filling, sanding, painting etc I did a 2nd fitting

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    still experimenting with the strapping, might increase the size of the shoulder bells if I get time :)

    Ackbar16, wannabe and jamesheneghan like this.
  29. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    some more pics of the 3rd test fitting, had to mod the chest as the arm holes where digging in, the shoulder bells cover it nicely tho, and add some padding, the gun had servos, need to program an arduino, but apart from that its all ready for fantasy basel, onto the next project - First order stormtrooper

    [​IMG]

    [​IMG]

    [​IMG]

    The14thDr and wannabe like this.
  30. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Angela Merkel is staring at your * ... :p

    - - - Updated - - -

    Otherwise ... we are gonna look so awesome together at Fantasy Basel next week :cheers

  31. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    thought that was your leader, Jimmy Krankie, erm sorry nicola sturgeon

    Last edited by a moderator: Nov 9, 2018
  32. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    War Machine and Iron Mans first outing

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  33. wannabe

    wannabe Active Member

    Trophy Points:
    460
  34. smilerbaker

    smilerbaker Member

    Trophy Points:
    138
    at the zurich games show a couple of weeks ago






    RacerMachX, The14thDr and Murdoch like this.
