TOS Type II Phaser Replica (my final attempt (no, really))

[finalfrontier]

Looks like a good fit, what holds it in place?



[AdmiralBaxter]

Looks like a good fit, what holds it in place?

Superglue for the 3D printed parts



[Chrisisall]

Looks like a good fit, what holds it in place?

It's just sitting in there for now. Like the Admiral said, superglue when I'm ready to finalize it.



[Chrisisall]

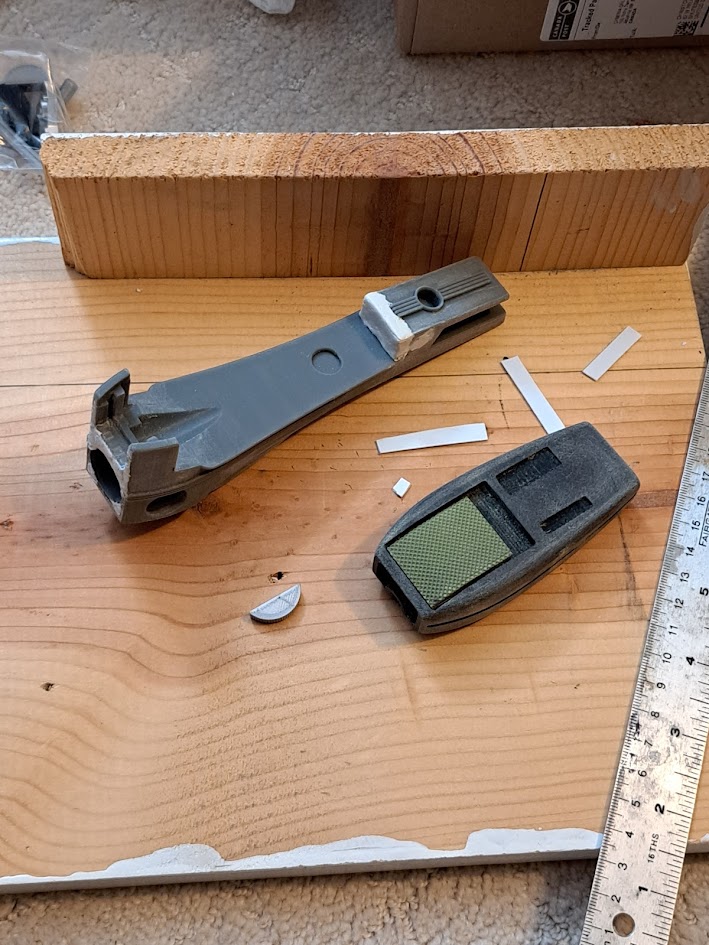

More work today, sanding, fitting, re-shaping.... had to run out to buy sheet styrene at 1mm thickness for shims all over the top of the P1... gotta make it look just right!



[finalfrontier]

Does anyone make metal rails for the p1?



[Chrisisall]

Does anyone make metal rails for the p1?

Yes.



[finalfrontier]

Yes.

I'm more curious about if the radius of them would fit these shells.



[AdmiralBaxter]

Does anyone make metal rails for the p1?

JPL sells them on eBay......



[finalfrontier]

JPL sells them on eBay......

I have some so hopefully they fit.



[Chrisisall]

I'm more curious about if the radius of them would fit these shells.

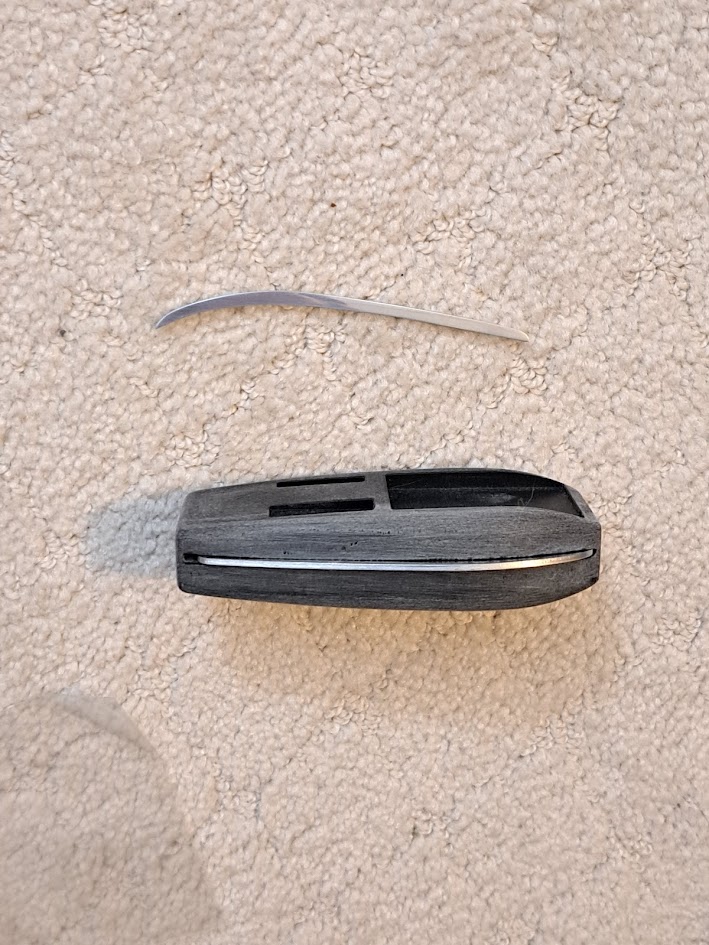

I changed the shape of this P1 a little, so I'll have to straighten the rails just a tiny bit (it's quite easy if you know how), but even as is the fit's pretty good.



[finalfrontier]

That looks like a good fit to me, and modifying them a bit is no biggie. I just didn't want to make new ones from scratch because without the proper tools it's a lot of work.



[Chrisisall]

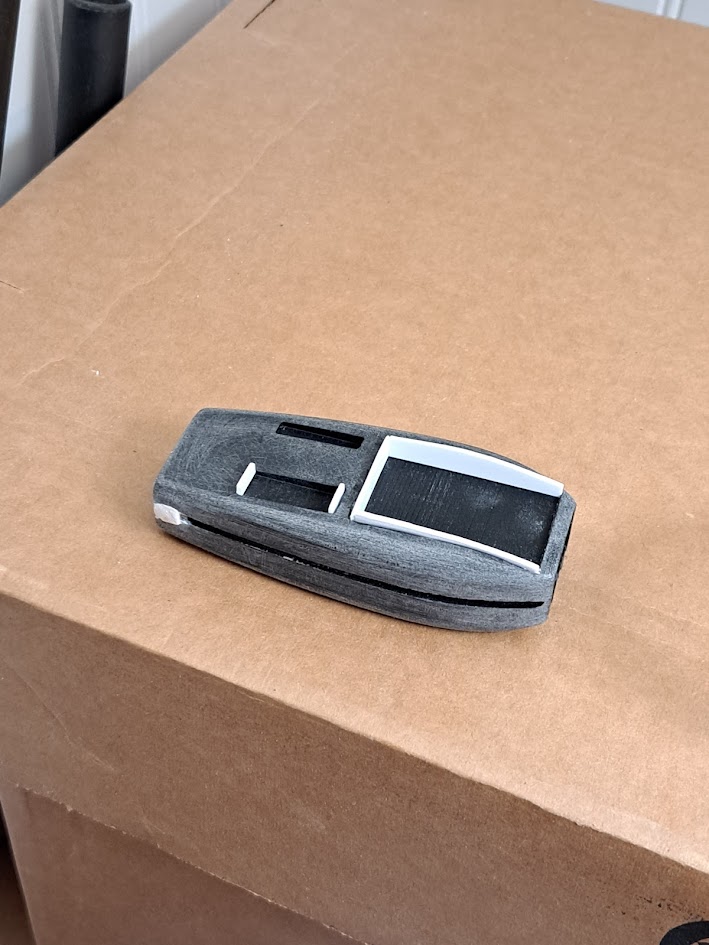

More on the P1.



[AdmiralBaxter]

More on the P1.

You know the fins gonna be too short lol



[Leinads]

A compromise: slide the rail back from the front a mil or so+- splitting the difference slightly. It’s looking great btw!



[Chrisisall]

"You know the fins gonna be too short lol"
Partly, but also the rails (fins as you call them) do not go all the way to the end of the P1 anyway.



[AdmiralBaxter]

"You know the fins gonna be too short lol"
Partly, but also the rails (fins as you call them) do not go all the way to the end of the P1 anyway.

Maybe hehehehe



[Chrisisall]

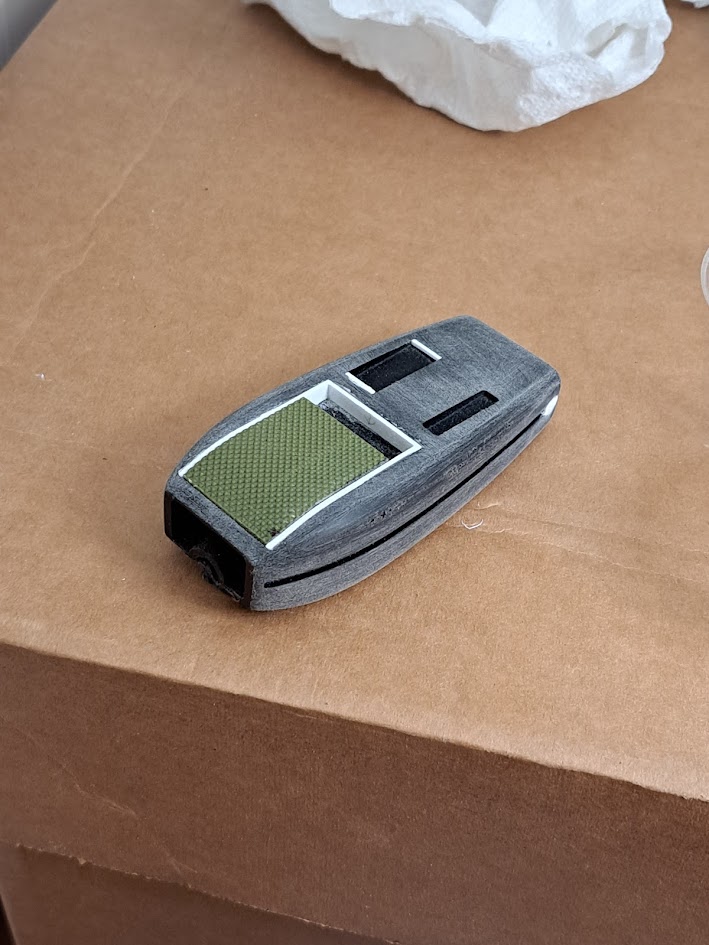

Sanding on the spacers done. Last bit for today.



[finalfrontier]

Sanding on the spacers done. Last bit for today. View attachment 1748899

Looking very good.



[publiusr]

A TOS era assault phaser might be had if you replaced the phaser I with one of these:

Red Dot Sights & Holographic Sights for Sale | GunMag Warehouse

Shop our red dot sights, holographic sights, and red dot scopes collection. Free shipping on your favorite brands like Holosun, Sig Sauer, Bushnell, and many more. Only at GunMag Warehouse.

gunmagwarehouse.com



[Chrisisall]

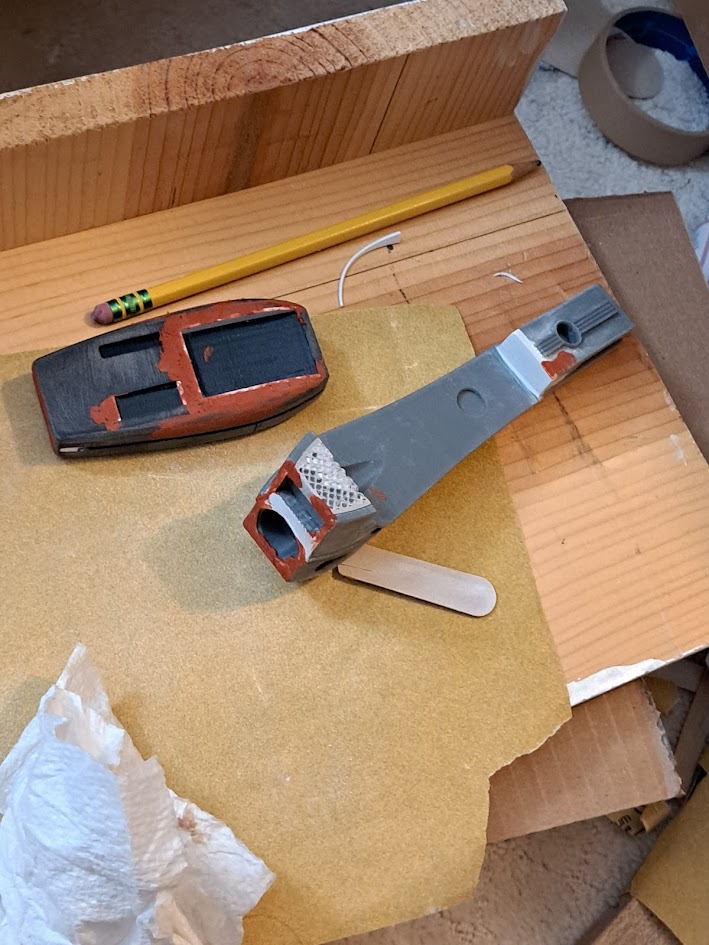

The body work never ends.
