Rockhopper2

New Member
OK guys I have uploaded all the files to my Etsy shop for those that want to have a go at this; A hub for 3D printable STAR WARS files by IMPERIALPRINTHUB

I don't think u will get the wings on a Mars...even a Saturn is gonna be tough. I'm aiming to print everything on my prusa i3
Thought the Mars was optimistic! I had forgotten just how big a studio scale tie is! As long as i can do the detail parts in resin i'll be happy!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

nivektunk

Well-Known Member
RPF PREMIUM MEMBER
Good morning,
Files look great. I've checked and all will easily fit on my Phrozen Mighty 8K when it arrives. You can still print many of the files on the Saturn. Wings are a bit big for the Saturn, but seem okay on the Phrozen Mighty 4K. I did a quick slice and support. I'll wait and do them on the 8K, but I can do all the other parts on my Saturn and 4k. Can't wait to get started.
Cheers,
Kevin


GEEK1138

Sr Member
RPF PREMIUM MEMBER
Thanks Rockhopper...that's a very useful question - no, there are many parts. All of which do fit on a Prusa 13 mk3 but some parts can be resin printed.

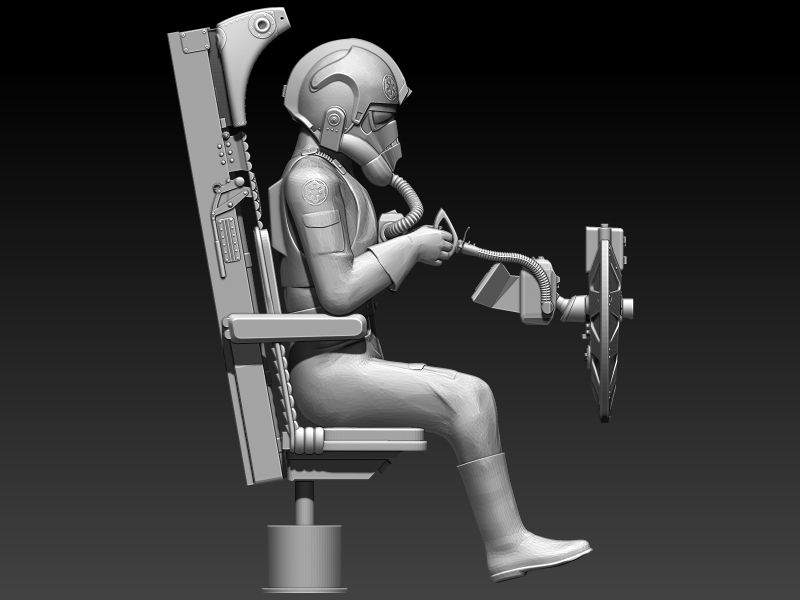

So, inside are; Chair/Pilot/Steering yoke/Steering hub

TIE 20.jpg

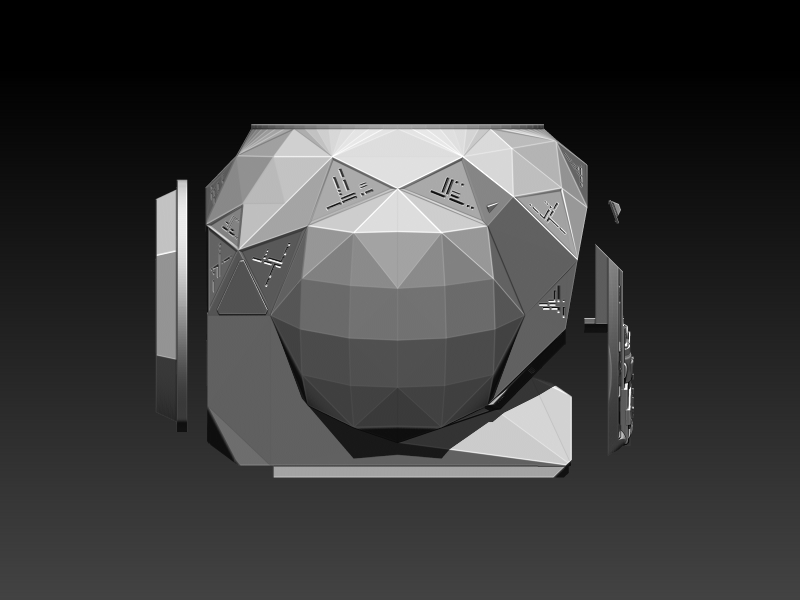

Interior shell/Back door/Dashboard/HUD

TIE 21.jpg

Then the shell itself; Pylons/Shell front/Shell back/Lid/Base Plug/Window
TIE 22.jpg

TIE 23.jpg

Or u can print the whole shell but not have the interior shell;
TIE 26.jpg

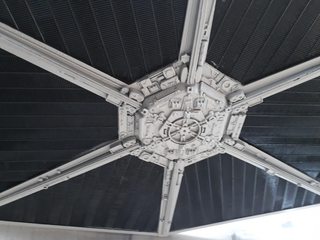

Then the wings are 6 parts split along the ribs with an inner and outer Wingstar
TIE 24.jpg
TIE 25.jpg

I have everything printed now so I will show my build process as I go


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER
Hmmm...I'm not sure printing the main sphere in 2 halves in resin is a good idea...resin tends to warp a bit and deform when it cures from soft to hard. Probably be fine printing the whole ball in one piece though. For me it will be just the greeblies.

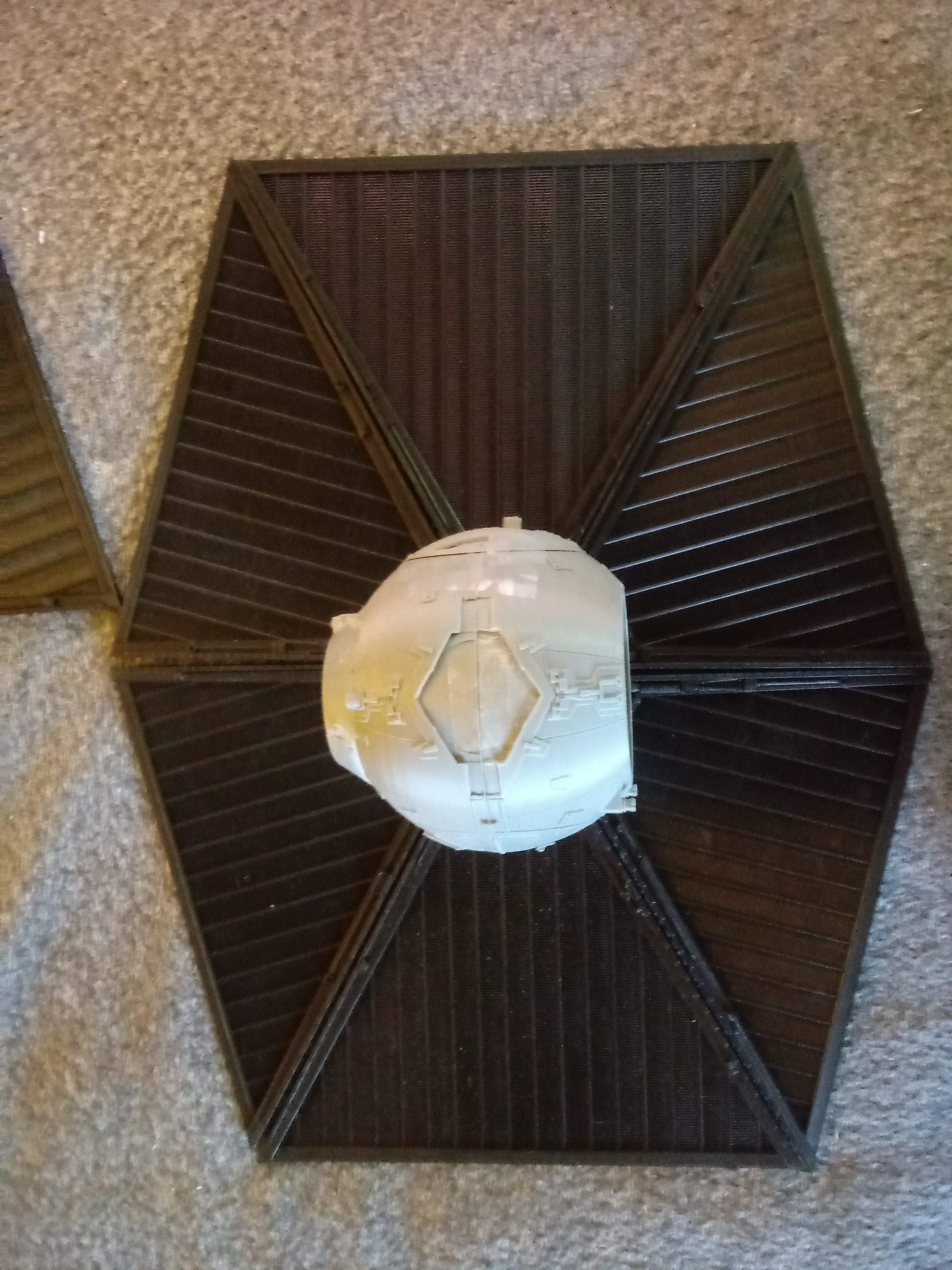

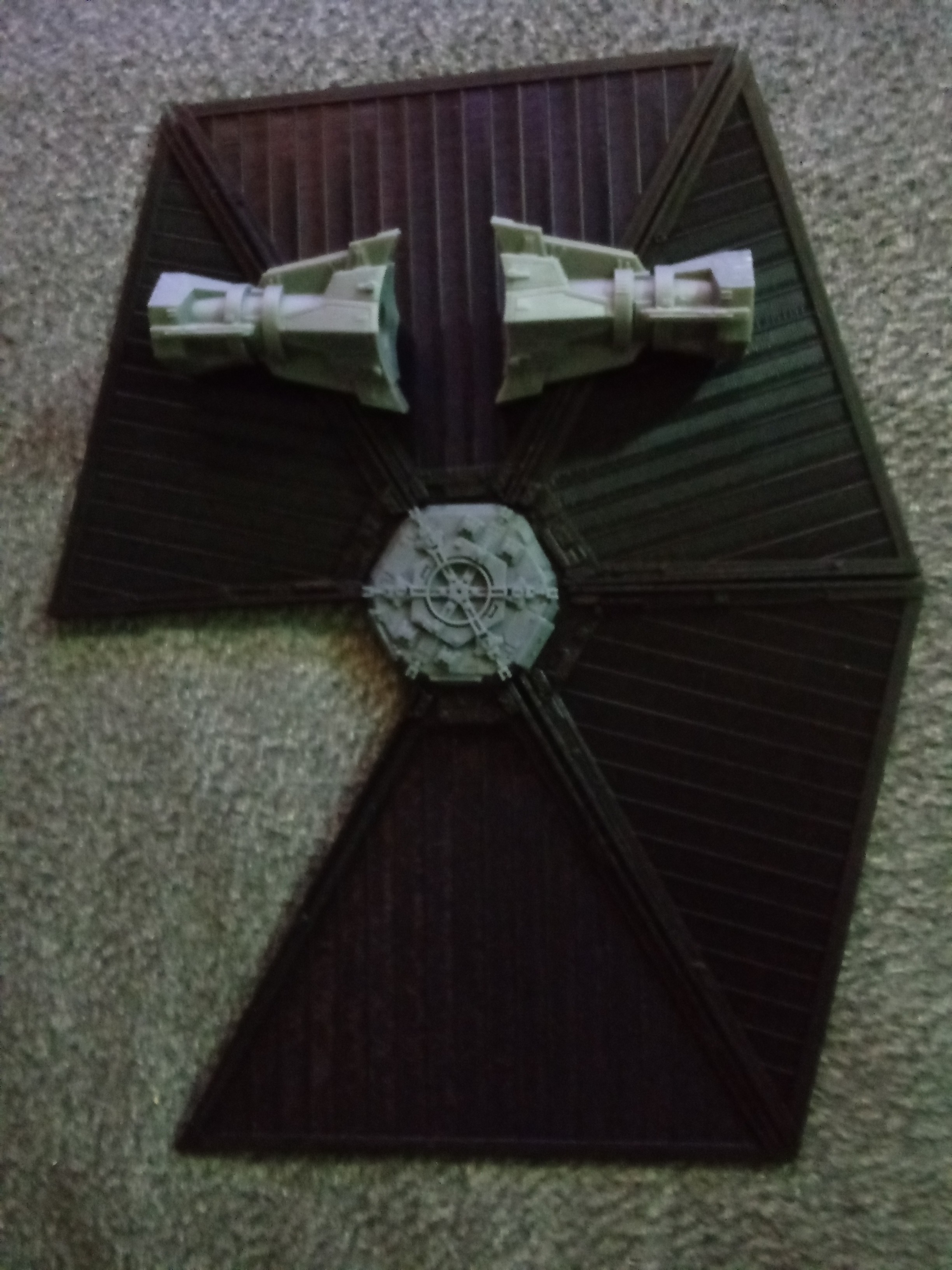

Here's most of the parts printed;


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER

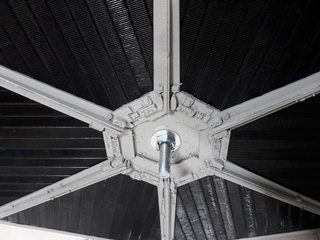

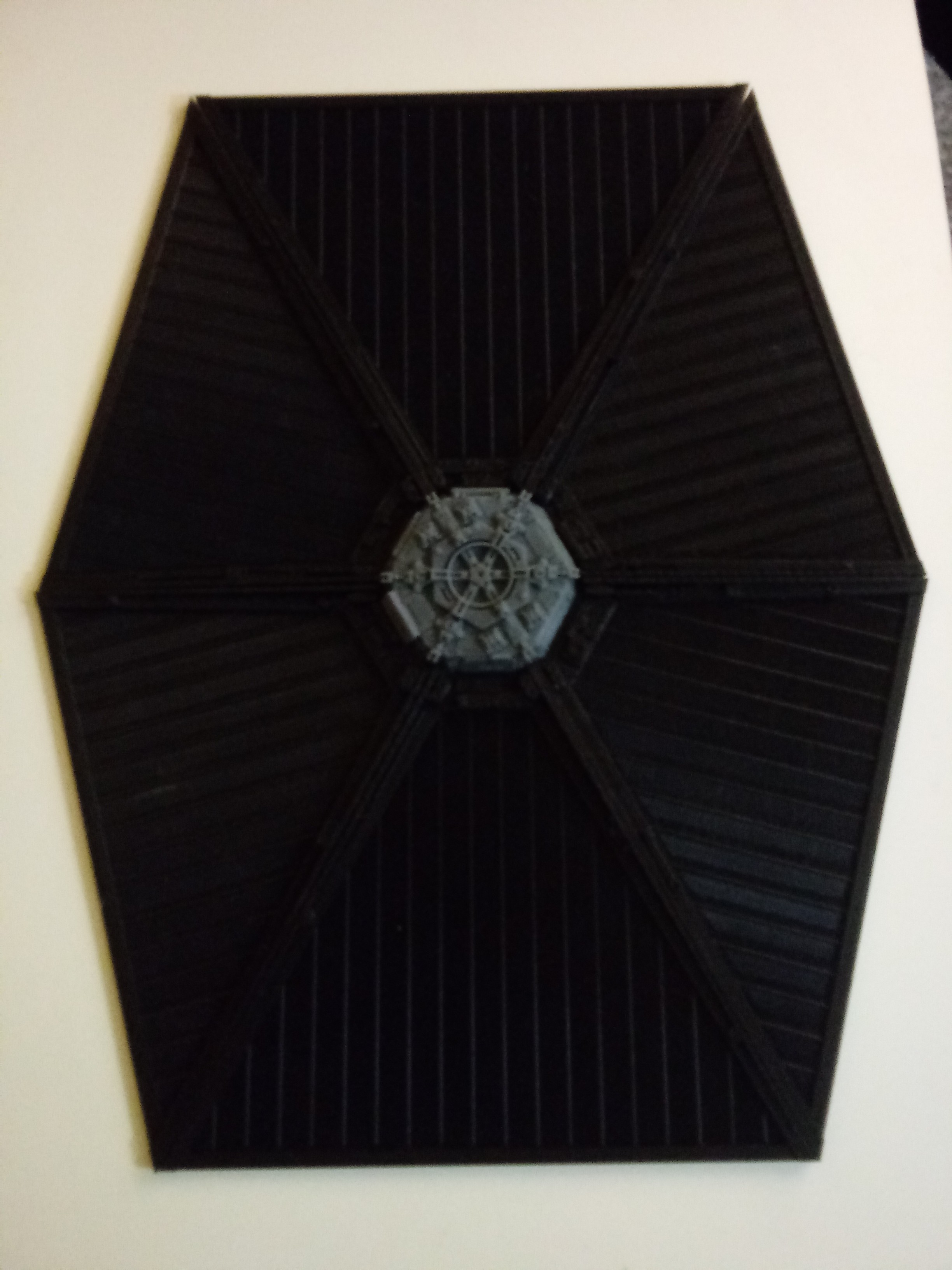

So, got the main components assembled. My approach for attaching the wings was to have 2 bolts to fix the wings thru the pylons into the shell. The bolts can be cut to length and the washer and nut tightened to brace the whole thing together and then fit the outer wingstar

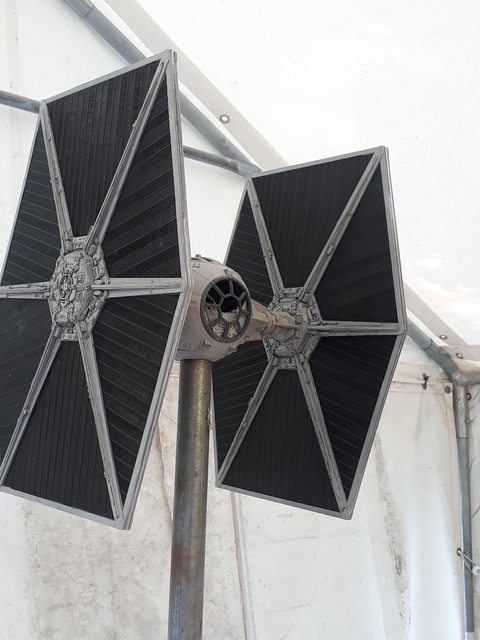

All feels pretty solid;

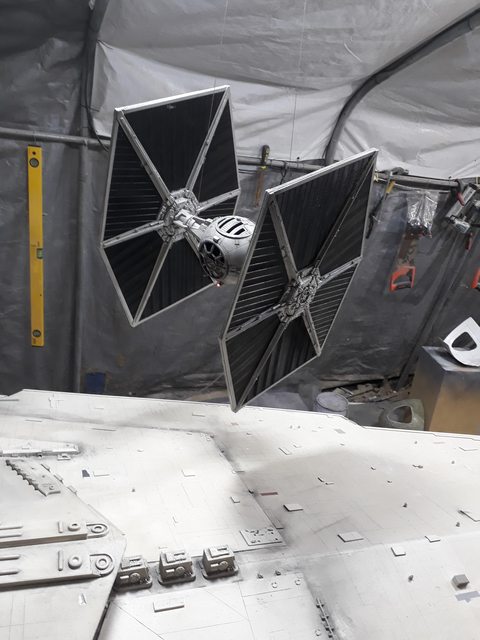

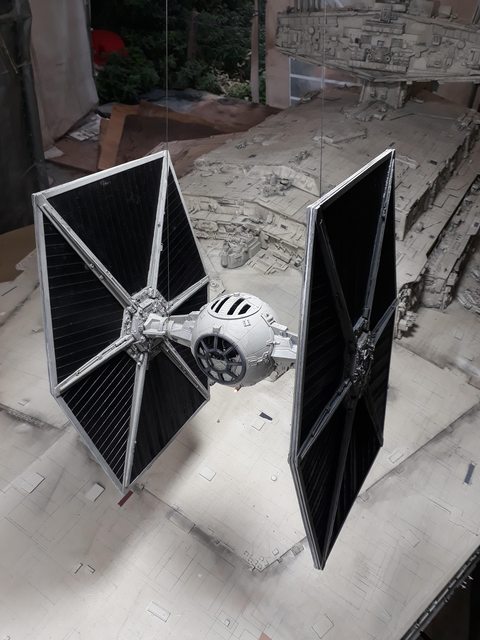

I'm gonna hang it to display, once I've added the lights
