For those interested there is a great deal of information online about the available hardware, software, and how to use SWD to download memory from an ARM processor. This would be my first approach to hack the programming.

At this point….it’s beyond me…

Reading and Writing Firmware on an STM32 using SWD

And/or

STM32 ST-LINK utility


I’m still interested in being able to tap into the display from strictly a hardware perspective, if possible.



[Leinads]

All hope’s not lost. I’m still rooting for someone to get back with 2vix on the forum posting of this. We’ll see ~

Patience Grasshopper



[Leinads]

RPF is still buggy - they didn’t fix everything



[FANATICO]

All hope’s not lost. I’m still rooting for someone to get back with 2vix on the forum posting of this. We’ll see ~

Patience Grasshopper

In a previous post….I mentioned to 2vix another way (link) to try a get a hold of him as a backup message. She hasn’t acknowledged my post…



[CessnaDriver]

A screen flip option would be cool if anyone ever gets in there then you can scan properly like Spock.



[Simonized]

For those interested there is a great deal of information online about the available hardware, software, and how to use SWD to download memory from an ARM processor. This would be my first approach to hack the programming.

A what goes where when it's when



[Leinads]

A what goes where when it's when

what he said



[2vix]

I managed to get into the tricorder and i now have a copy of the firmware that i can view. I dont know what good it is yet, but im currently perusing thru it... wish i knew more about this stuff

here it is if anyone wants to check it out:
*EDIT - I removed it because i suddenly realized it might be illegal to share?
This is the freeware im using to view it:

HxD - Freeware Hex Editor and Disk Editor | mh-nexus

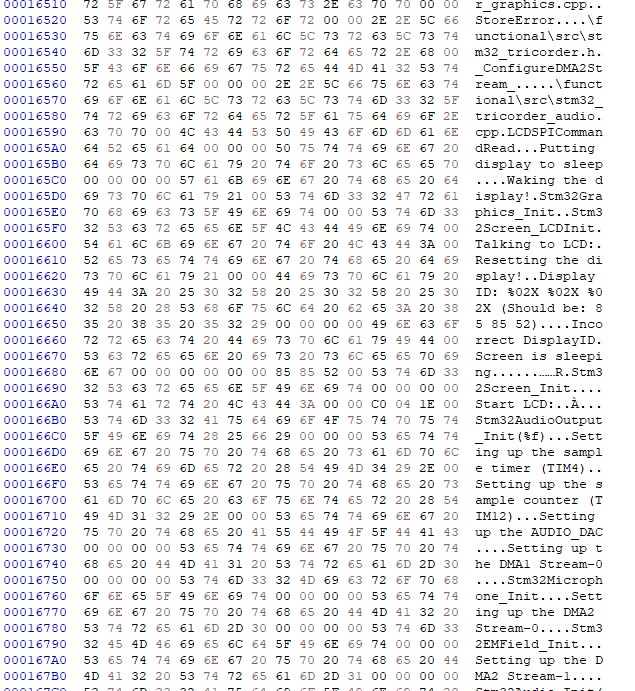

pretty boring stuff. looks like this:



[Leinads]

I managed to get into the tricorder and i now have a copy of the firmware that i can view. I dont know what good it is yet, but im currently perusing thru it... wish i knew more about this stuff

here it is if anyone wants to check it out:

Filebin | ialccjj9ofg5kynt

Convenient file sharing. Registration is not required. Large files are supported.

filebin.net

This is the freeware im using to view it:

HxD - Freeware Hex Editor and Disk Editor | mh-nexus

pretty boring stuff. looks like this:
View attachment 1955737

Nice work! It’s incredible that you have this in your hands to go through now.



[Leinads]

Is there a emulator available such that you could run parts of the code and or test modifications?



[Leinads]

From OpenAI:
embedded C/C++ programming, specifically for STM32 microcontrollers using STMicroelectronics’ development environment.



[2vix]

I removed the link to the firmware copy. Not sure about the legalities of sharing it, so im going to play it safe for now and keep it offline.
If someone wants to do what i did and make a copy of theirs, the method i used is detailed on my XDA post HERE (it wasnt easy)

Side note: If you ever have to reset your tricorder like I did, don't press in too hard on the pin when you insert it. i gave my screen some colorful little lines all down the left side. The got fainter and fainter over the next few minutes and were totally gone after half an hour, but still... Freaked me out for a bit.



[2vix]

Is there a emulator available such that you could run parts of the code and or test modifications?

I played around with a program called QEMU for a few minutes and tried to get it working, but it looks like theres a lot more to it than just trying to "mount" the bin file. Ill keep researching it.



[Leinads]

This is all pretty ‘wild west’ exciting and I’m loving it!



[drusselmeyer]

This is all pretty ‘wild west’ exciting and I’m loving it!
View attachment 1955745

The fact that these actors were in westerns is very ironic.



[FANATICO]

I removed the link to the firmware copy. Not sure about the legalities of sharing it, so im going to play it safe for now and keep it offline.
If someone wants to do what i did and make a copy of theirs, the method i used is detailed on my XDA post HERE (it wasnt easy)

Side note: If you ever have to reset your tricorder like I did, don't press in too hard on the pin when you insert it. i gave my screen some colorful little lines all down the left side. The got fainter and fainter over the next few minutes and were totally gone after half an hour, but still... Freaked me out for a bit.

Apparently there’s 2 ways?? to reset the tricorder from Chris B……

“Chris Barnardo July 15, 2025 at 12:36 pm
sometimes the software gets its knickers in a twist and then a reset either by the reset pin on the side of the hood or the long button press sorts it out”

He doesn’t say which button……I vaguely remember on a YouTube video the very Right button? Might be worth a try if you like experimenting…



[2vix]

He doesn’t say which button……I vaguely remember on a YouTube video the very Right button? Might be worth a try if you like experimenting…

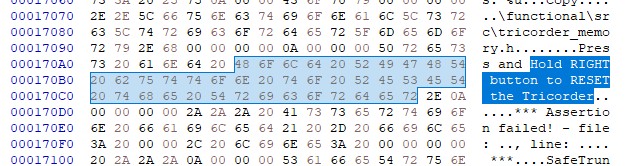

Must be true because I found it in the code



[FANATICO]

Must be true because I found it in the code
View attachment 1955756

PM’d ya….



[Leinads]

PM’d ya….

You two scoundrels figure this out for us, the ‘unwashed masses’



[FANATICO]

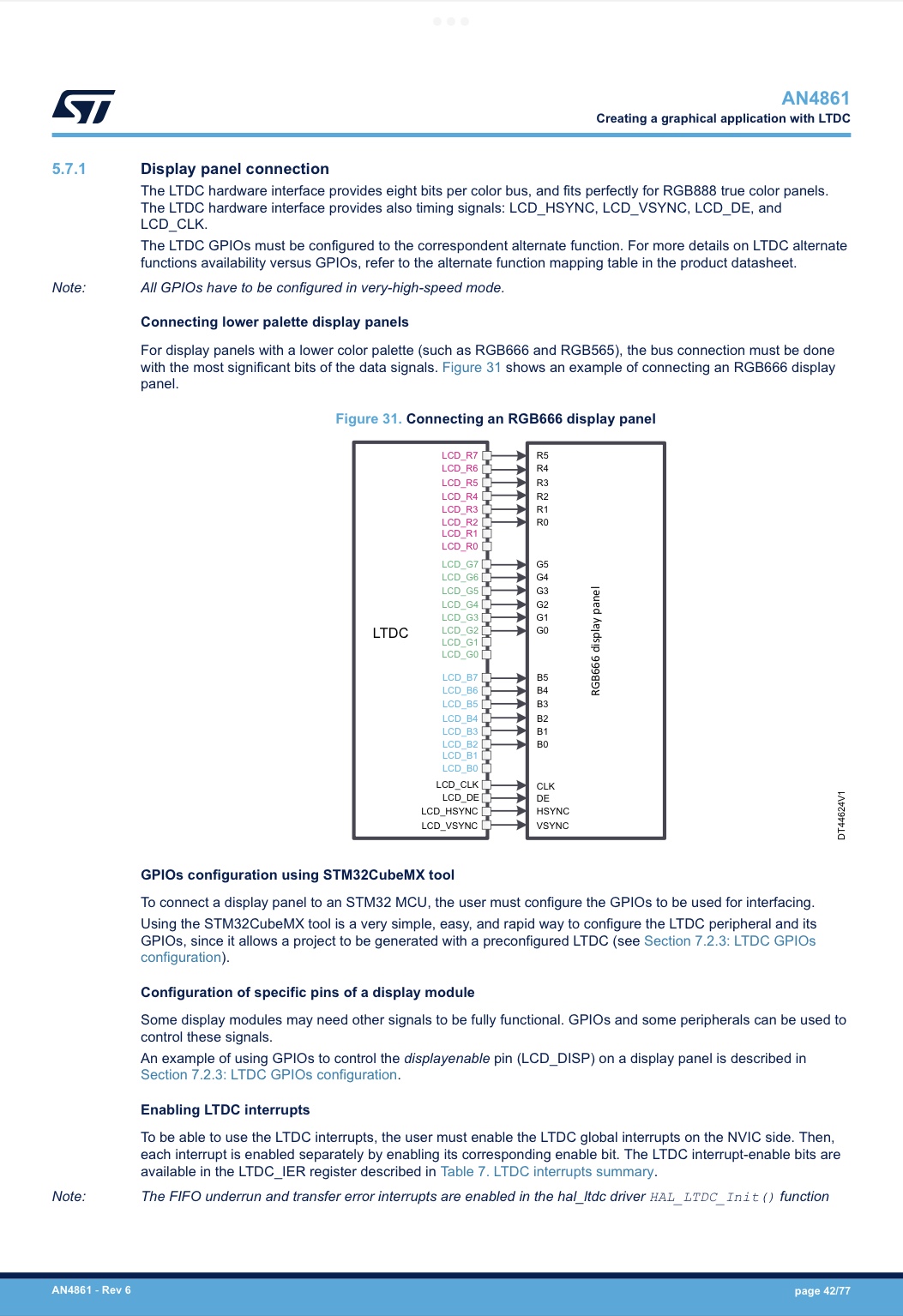

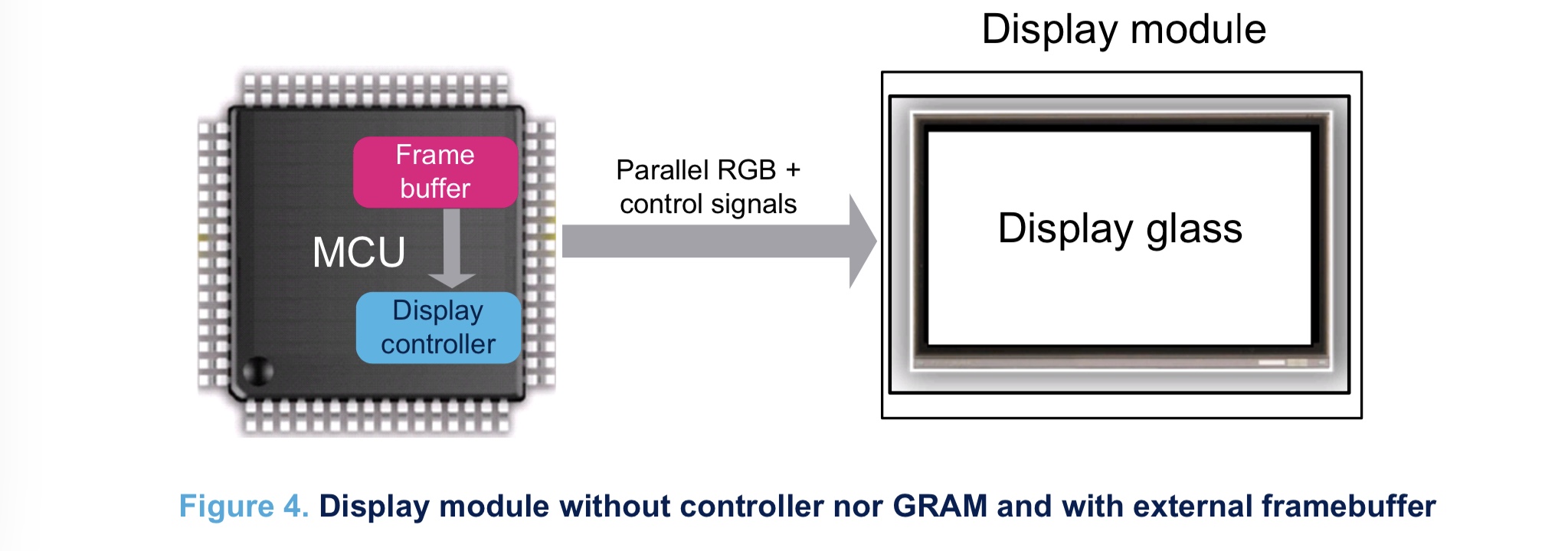

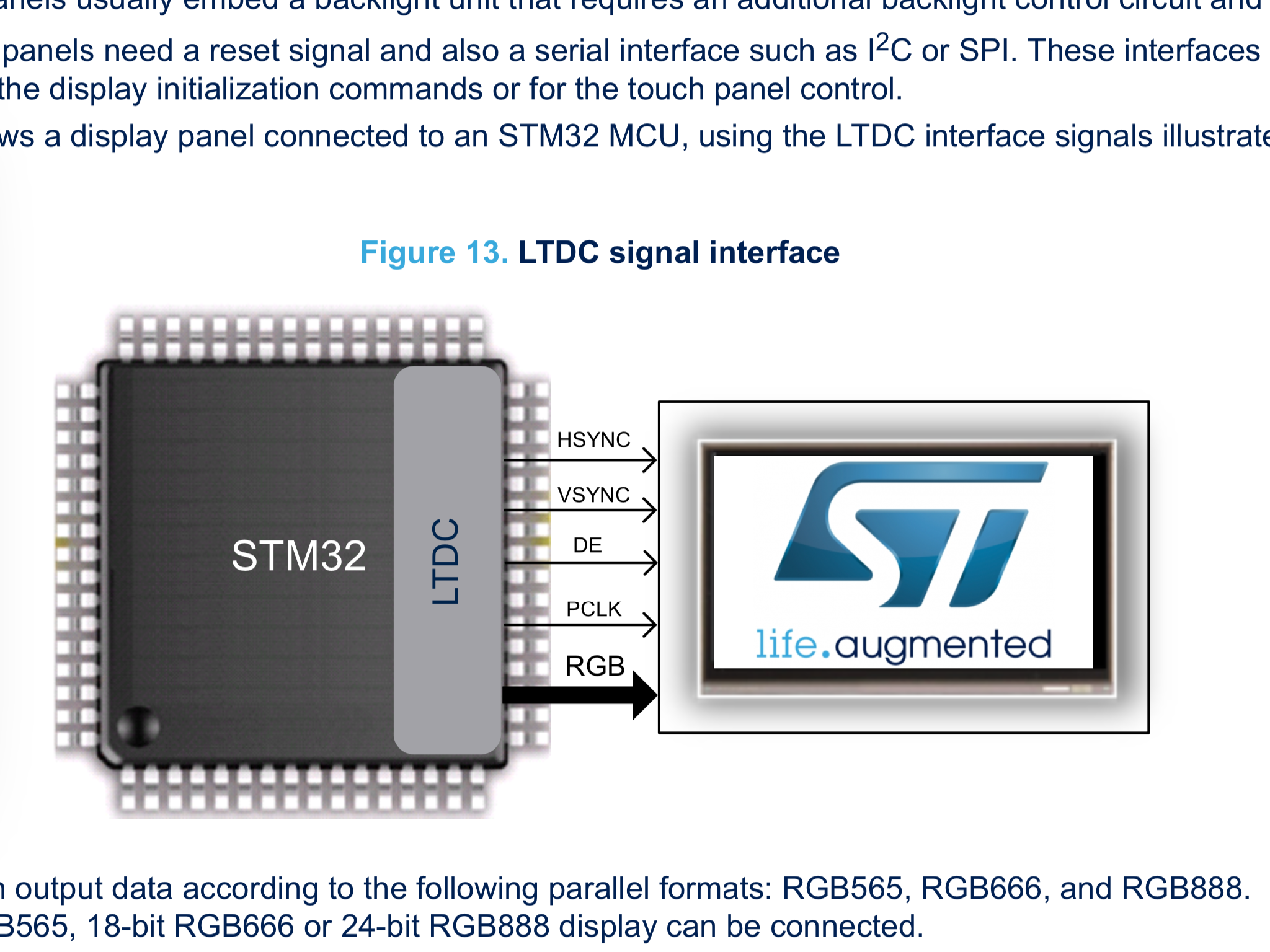

Some stuff…..from the Application Notes….below RGB666 display panel is used as an example amongst other configurations…..

A 24pin ribbon doesn’t mean all 24 lines are used…
