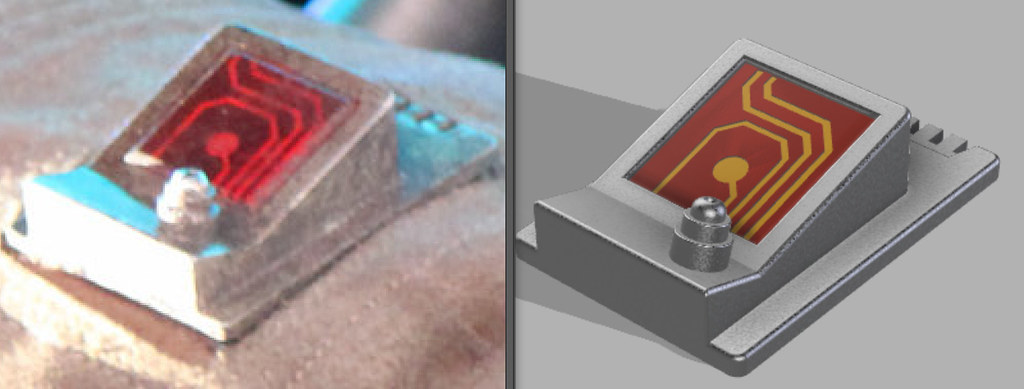

Hey, no problem. Here you have a side by side comparison:

View attachment 1606404

Hope this helps, and again, I really appreciate your input.
To my eyes, that is not exactly the same perspective and that difference would hide that the sloping angle in the 3D model is a little bit too high.
Look at the button, which is pointing more upwards in the photo.
The border around the circuit board should also be a little bit thicker, I think.
But yeah, it is difficult to judge things by eye...


the.rebel.agent

Sr Member
To my eyes, that is not exactly the same perspective and that difference would hide that the sloping angle in the 3D model is a little bit too high.
Look at the button, which is pointing more upwards in the photo.
The border around the circuit board should also be a little bit thicker, I think.
But yeah, it is difficult to judge things by eye...
I Forgot to add the transparent tile on that render. If you check my previous photos, you will see the tile is about 1mm above. Imposible to set the same perspective on Fusion360. I am sorry for that. Even thought, I think my model is much better than the stuff offered right now as good


the.rebel.agent

Sr Member

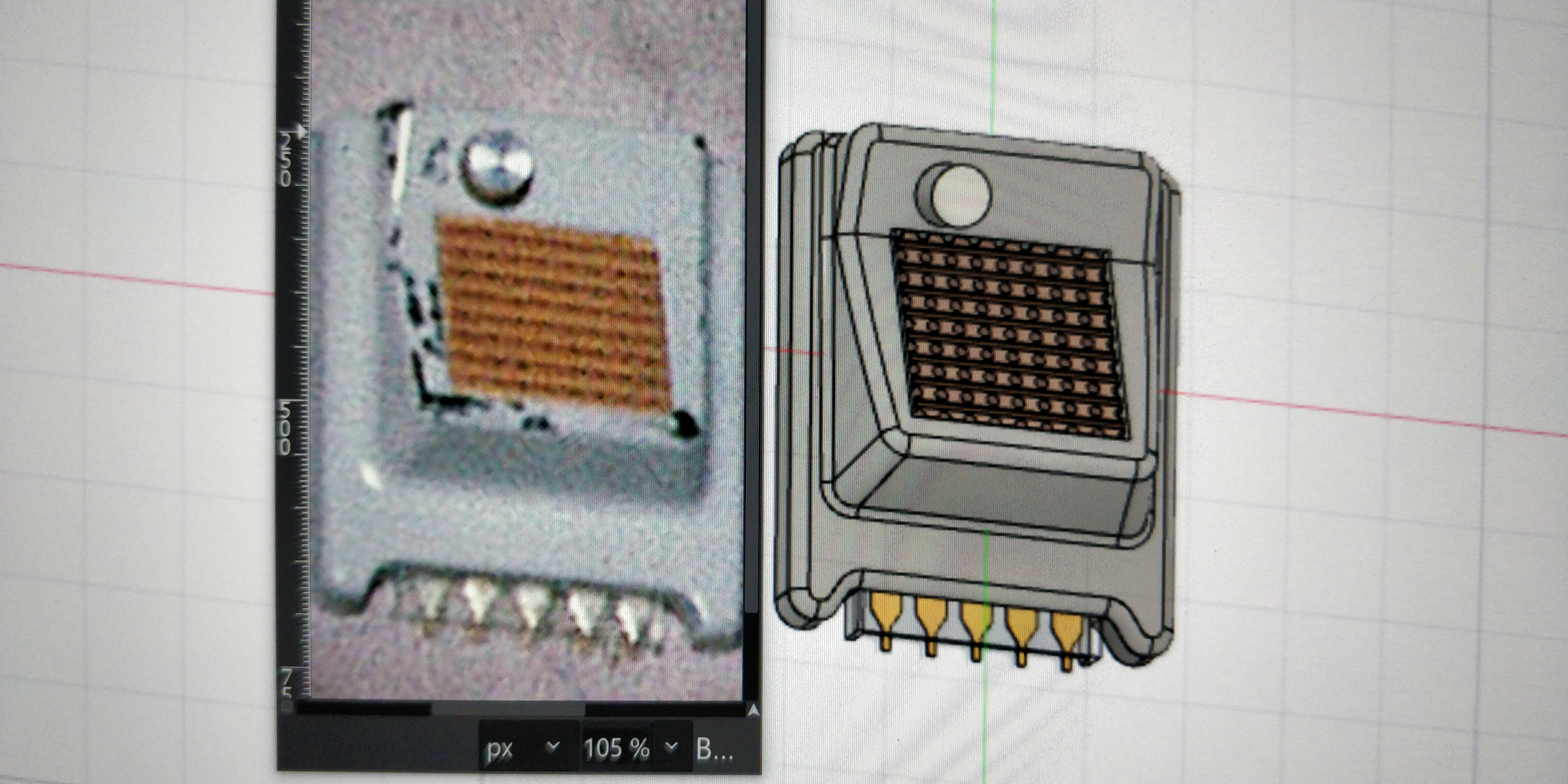

Apologies because I'm not very good with graphics. Maybe if you can position the 3D render at the same angle as the photo it may help to compare it? I tried blending the two images but they're a bit off. I traced the edges of the photo so it would stand out more.

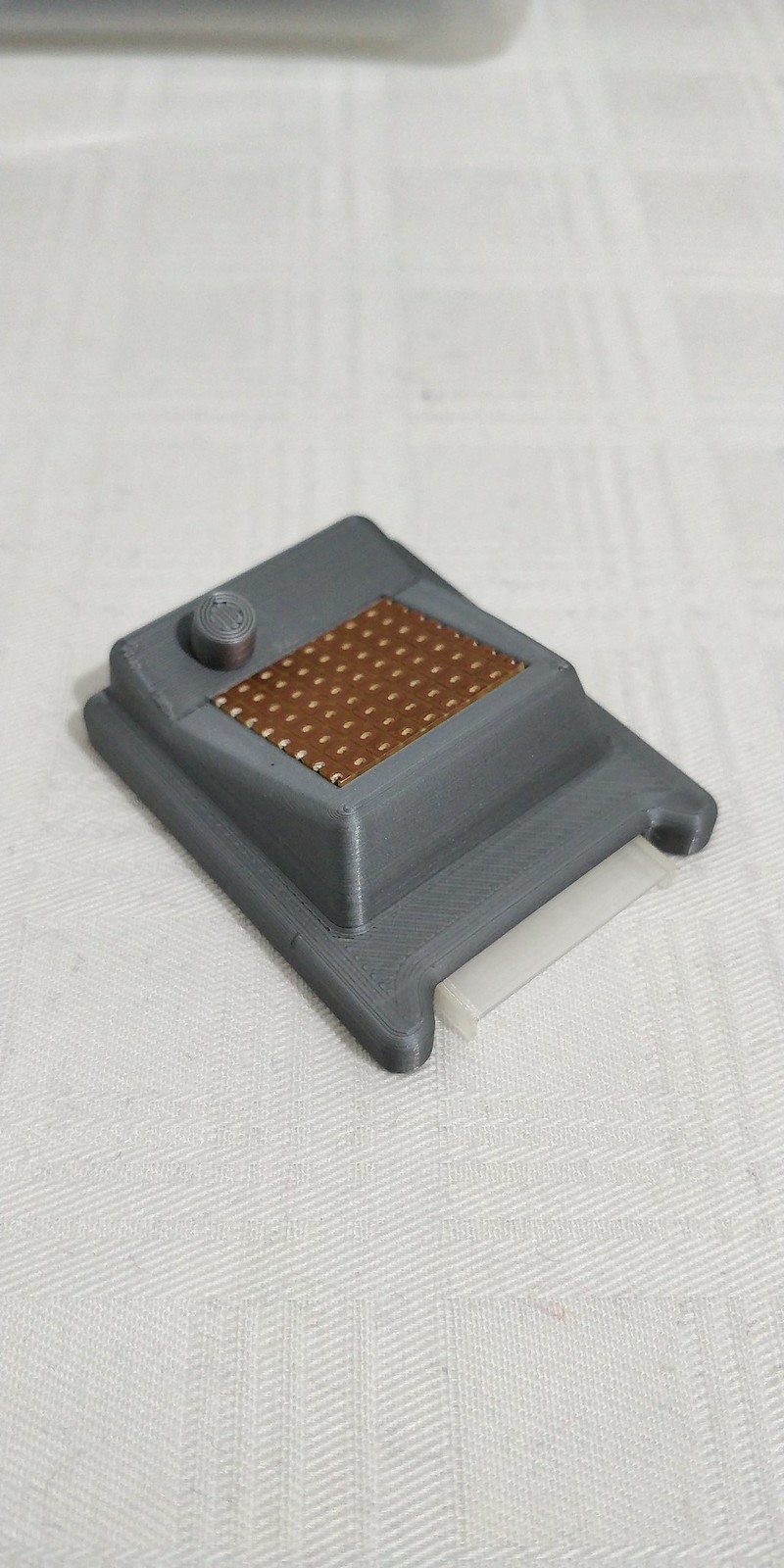

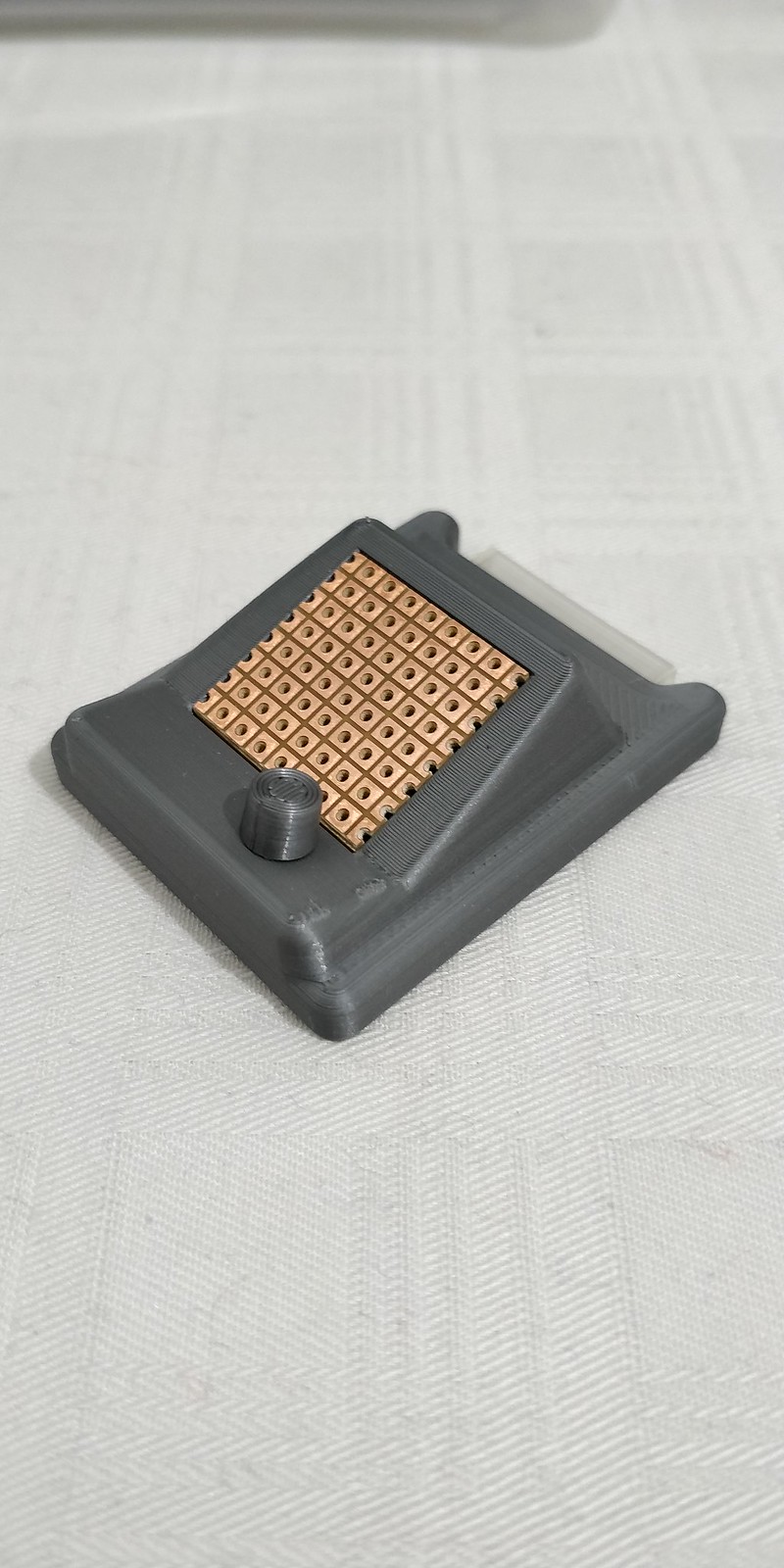

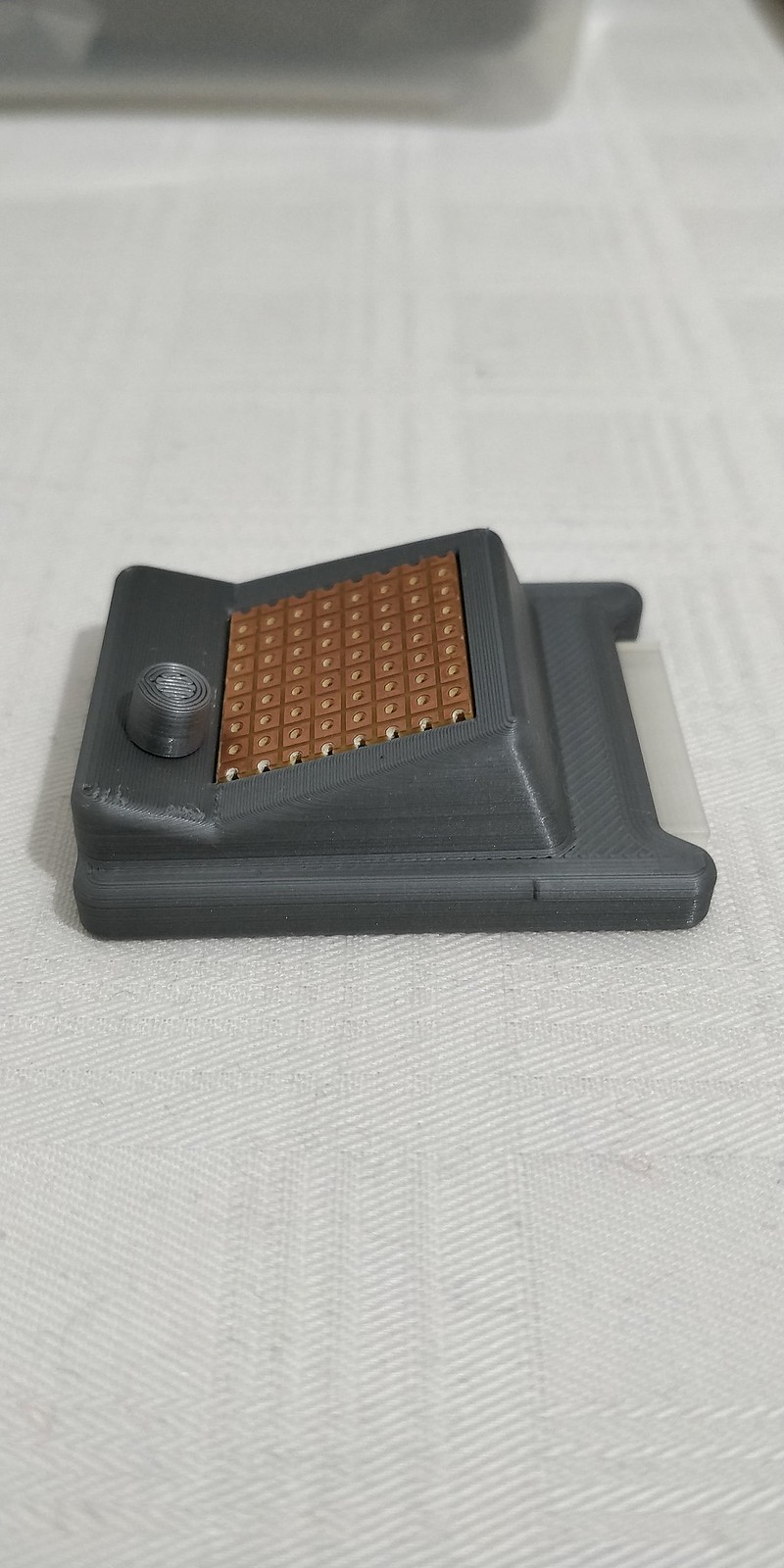

You can see here, how they look printed. As I told you, angles could deceive.





More photos here:


the.rebel.agent

Sr Member
And stay tuned, cause I am already working on the legacy one. Gathered 3 different references to create this model. Kinda stuck with the pins. Which I believe given the measurement, could not be the ones used by AT-AT drivers glove. Have to confirm that. Don't have a physical one at hand yet. There are a lot of Molex connectors to compare with.



As usual, any feedback will be welcome


Jediwannabe

Sr Member
RPF PREMIUM MEMBER
And stay tuned, cause I am already working on the legacy one. Gathered 3 different references to create this model. Kinda stuck with the pins. Which I believe given the measurement, could not be the ones used by AT-AT drivers glove. Have to confirm that. Don't have a physical one at hand yet. There are a lot of Molex connectors to compare with.

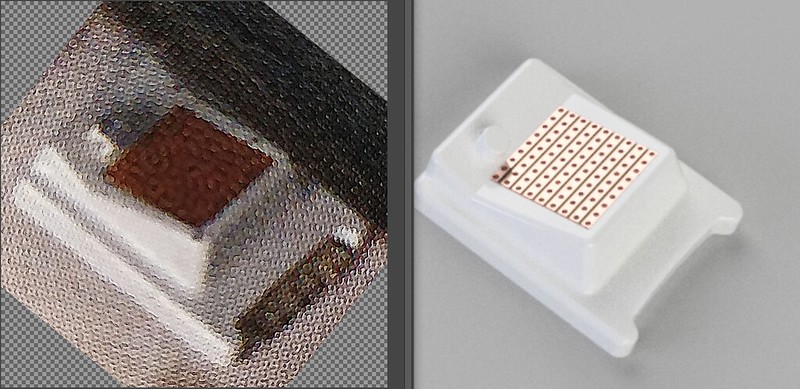

View attachment 1607321

As usual, any feedback will be welcome
You’re on the right track! Looking great!


the.rebel.agent

Sr Member
Still looking for better image references to recreate the front connector/pins arrangement. does anybody have that Official Pix image in a better resolution?


Attachments

  • IMG_20220820_091615.jpg
    5.6 MB · Views: 31

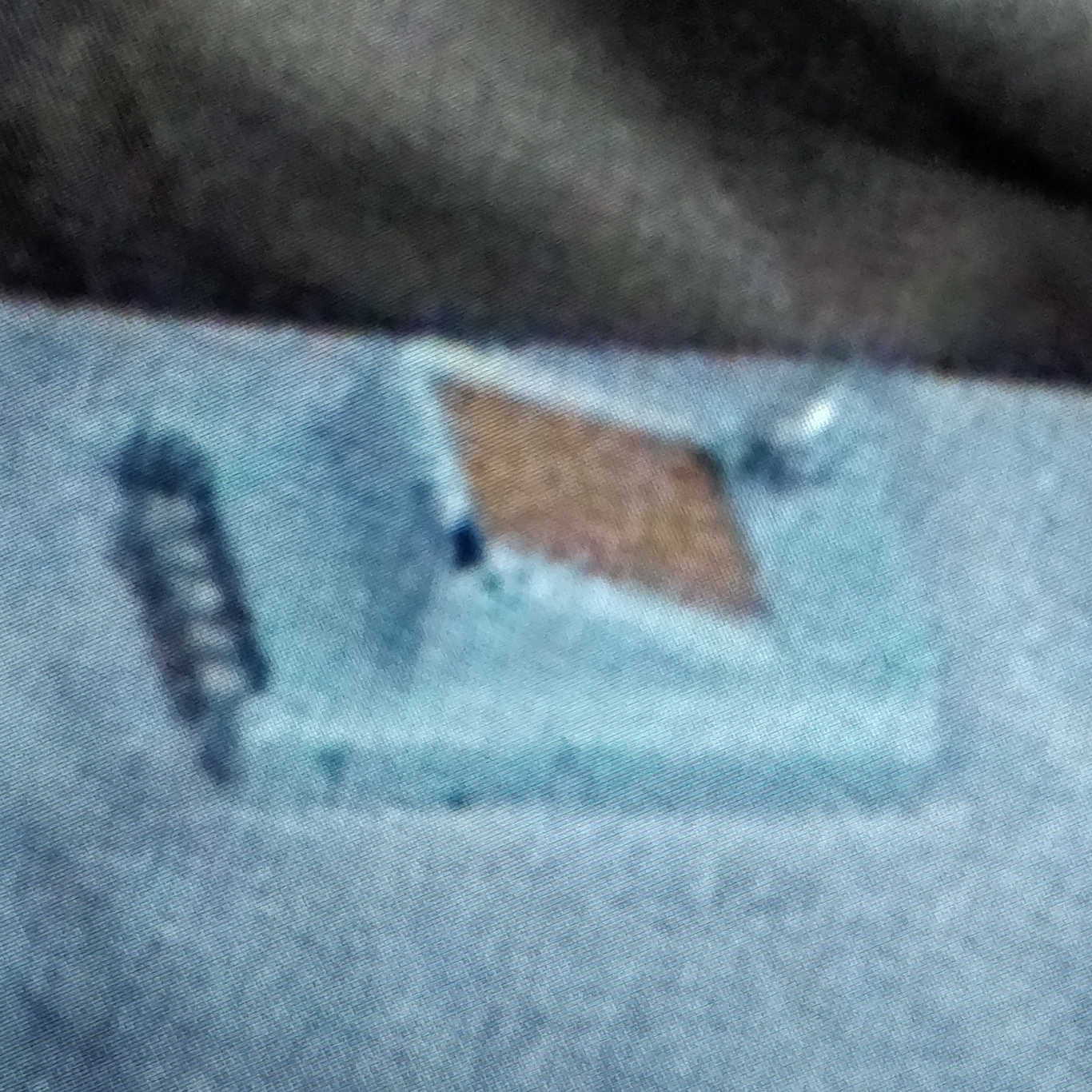

  • Luke.Skywalker.Top.View.jpg
    1.6 MB · Views: 31
  • 0d3547b56b533efe42893e4c675418a6.jpg
    190.6 KB · Views: 32

the.rebel.agent

Sr Member

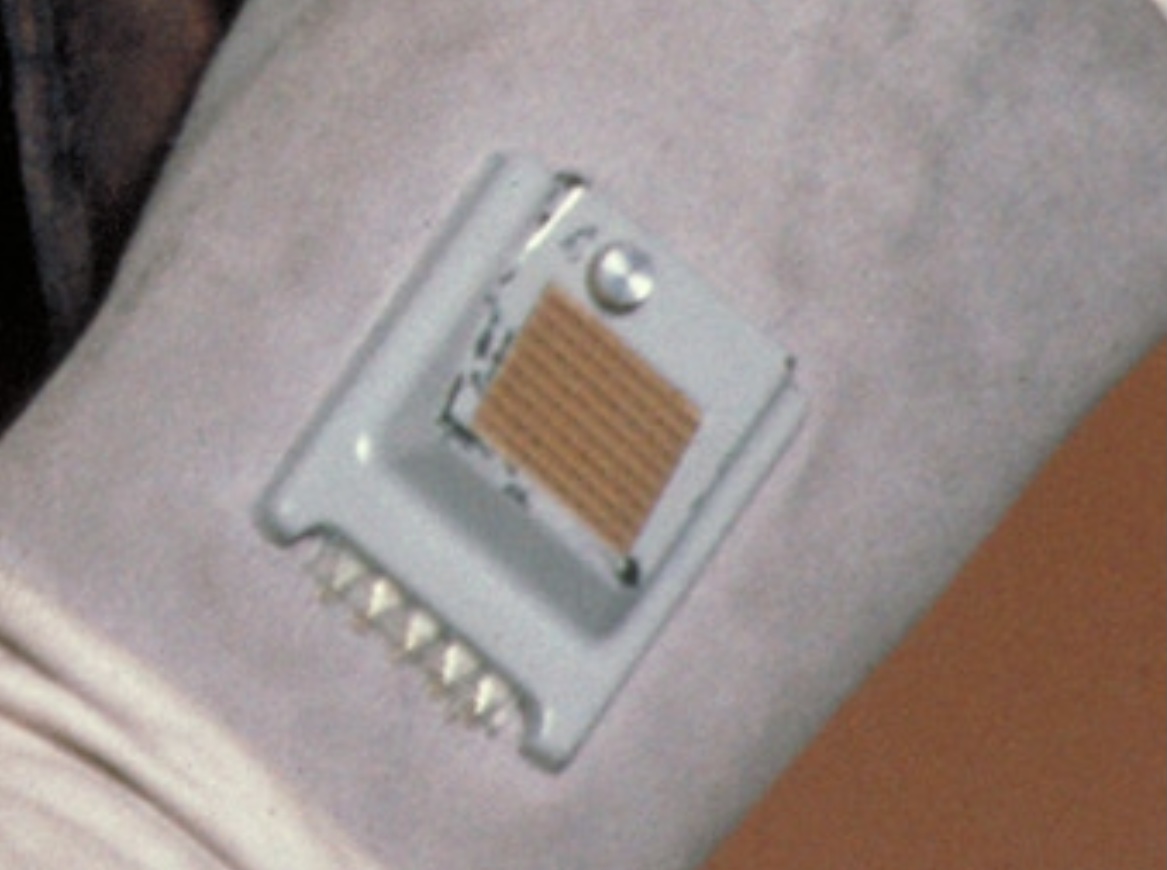

This is what I did so far, using the images I have as references. Still not sure about the 5 pins. Stripboard is not the correct one, It is only one I had at home. Will be buying a better one next week. Any feedback will be welcome







the.rebel.agent

Sr Member
Superb! I really appreciate those references. The missing link to my research! May I ask where did you get them? They seem from the book, but in a higher resolution. Or they were from Autographs?


the.rebel.agent

Sr Member

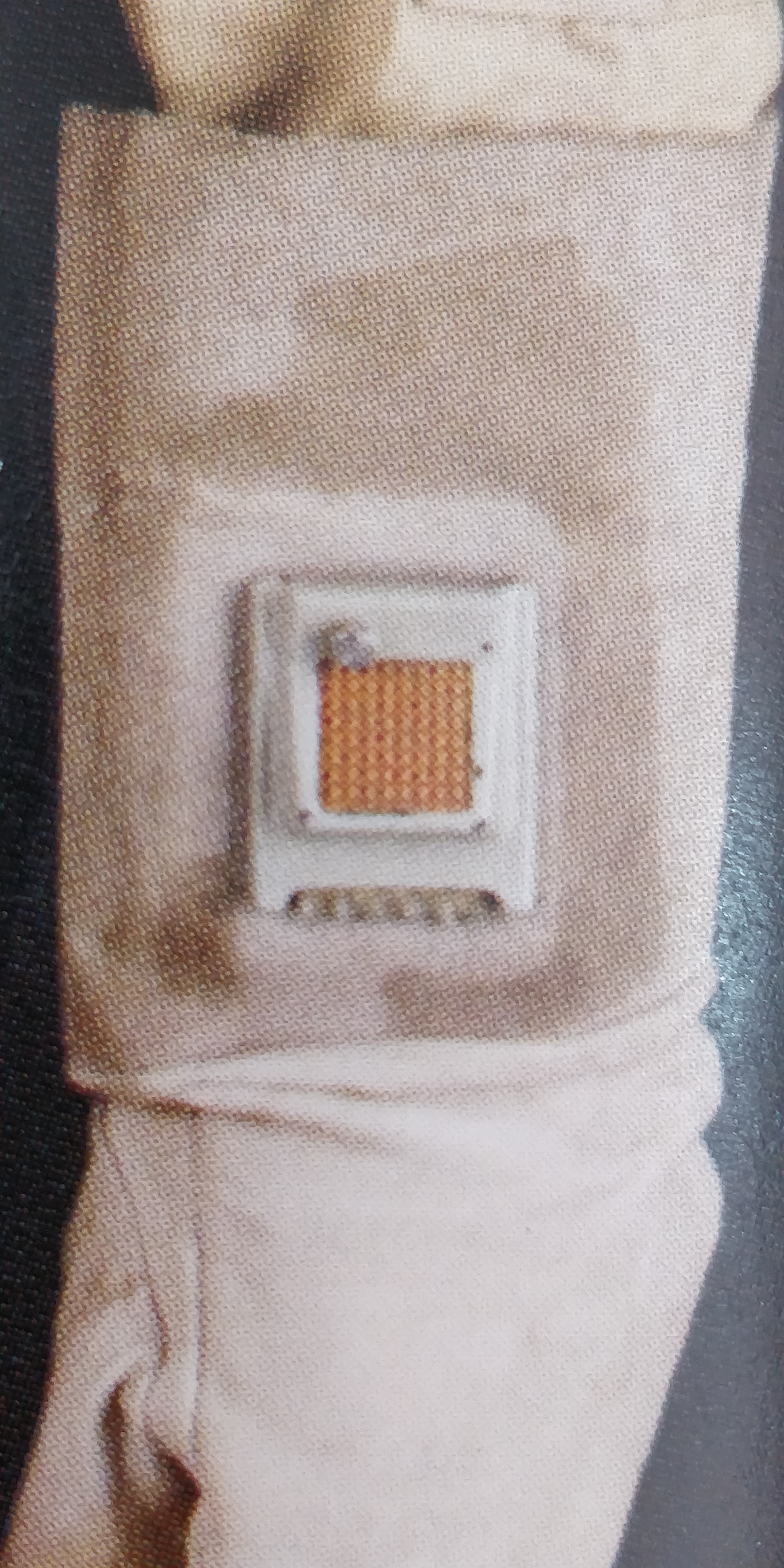

So they did use stripboard! I've seen a replica use stripboard before but I've never before seen a reference picture that was detailed enough that you could see that it was correct. I used to assume that they had used a similar mesh to that of the Cloud City comm link.
From SW Costumes, 2014.


Attachments

  • IMG_20220810_114152__01.jpg
    2.5 MB · Views: 27
