TFA Stormtrooper/Captain Phasma - Build Thread

Discussion in 'Star Wars Costumes and Props' started by Mitcheg1, May 26, 2015.

  1. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    So I've decided to tackle two costumes in one. My plan is to build an Episode 7 stormtooper first, then through modifications, turn it into Captain Phasma. I began by downloading the pep files for the Trooper from www.alientechstudio.com. I began with the helmet. The files appear to be very accurate, though lacking some of the fine details. I'll handle that later.

    A couple of things I've learned in this process so far; I prefer working in cardstock over foam and I love Loctite superglue. Couple of details, loctite siperglue comes in two variants; Gel Control and Super Gel Control. Gel control sets in 5-10sec and is awesome for short connections that you want to bond quickly. Ultra Gel control sets in 20-25 sec and is better for longer runs that may require a bit of alignment.

    In all the build is progressing well.

    oojammyflip and Metalman0711 like this.
  2. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412

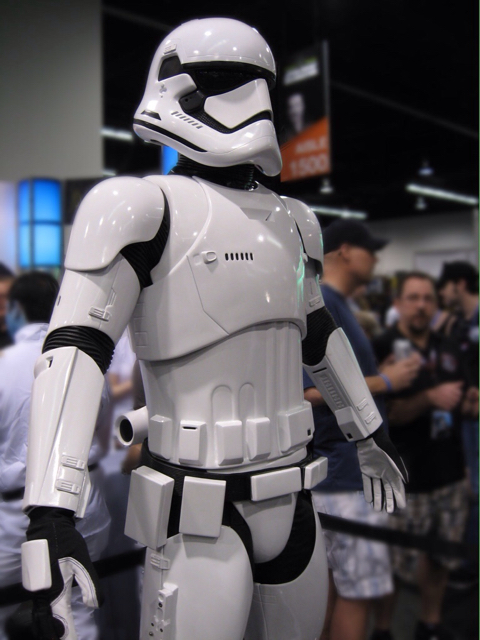

    I'm working from a number of high res photos that were posted around the time of Celebration, as well as the Vanity Fair shot of Phasma.
    There are some details I'm struggling to make out. There appears to be a feature on the outside of the upper arm but I can't find any shots that show this detail.

  3. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Finished the resin coat on the exterior of the helmet and applied a Rondo coat on the inside. I've now begun applying bondo to begin building out the shape. This is still a Work in Progress so alot more shaping and sanding to go, but I'm pretty pleased so far!

  4. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Spent a lot of time getting the form right! Pretty pleased so far!

    virateck likes this.
  5. virateck

    virateck Active Member

    Trophy Points:
    460
    Woh ! The shape is really good :)

  6. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I think I've hot the basic structure as good as I'm gonna get it

    virateck likes this.
  7. unforsaken

    unforsaken New Member

    Trophy Points:
    4
    Excellent work so far!

  8. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Probably owe an update on this. So I've spent quite a bit of time working the structure to get the proportions accurate (I'm going for 501st approval on this and they are quite stringent on accuracy). I was fortunate enough to get some key dimensions of the official First Order Stormtrooper Hemet and have found that the pep file I've been working from is close but no cigar! The real helmet is much wider than the pep file I purchased (but it wasn't a bad starting point). I've put close to a gallon of bondo on this hemet to get it to the current point (probably sanded off a good portion as well). So here's where I'm at. I'm still trying to get this "perfect", but I'm looking for tips on how best to do that from the photo references I have. Any thoughts?

  9. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I've made some good progress in the last couple of days (may not look like it, but the proportions are getting where they need to be)!

    I've decided to take a tip from the guys at Impact Props and use adhesive backed foam to build up details.

    Here's a link to IP's original youtube video
    http://youtu.be/jXYBjvzztrY

    unforsaken likes this.
  10. BlueSteel

    BlueSteel Guest

    Awesome work. Can these files work with foam?

  11. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I doubt it. I'm not terribly savvy with modifying pep files digitally, plus this is a locked file. There are others out now that also have the First Order TK Bucket. None are terribly accurate, but with a bit of time and alot of Bondo, you can get it there.

    oojammyflip likes this.
  12. virateck

    virateck Active Member

    Trophy Points:
    460
    Really good job !!!! :)

  13. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Progress.

    unforsaken, CT7567 and virateck like this.
  14. Minniefaith24

    Minniefaith24 New Member

    Trophy Points:
    3
    What brand did you use for the resin coat and the bondo?

  15. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Despite working ALL weekend on my bucket, I didn't make as much progress as I had hoped. I did however get the beak removed and the base helmet ready for the hex mesh. I had a coworker 3D print the mesh for me and it came out great! Now I've got to get it placed just right. There are a lot of gaps at the bottom that I'm not happy with.

    I had hoped to finish the goggles and tear drops, but that will have to wait. I am very pleased with the state of this bucket. A lot of detailing to do and a ton of smoothing and sanding.

    This is just a rough placement of the beak to show what the mesh will look like.

  16. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I use Bondo brand Resin and Body Filler. Can pick it up pretty much anywhere.

  17. garymorris

    garymorris New Member

    Trophy Points:
    3
    :)Increadible!! what an awsome build

  18. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412

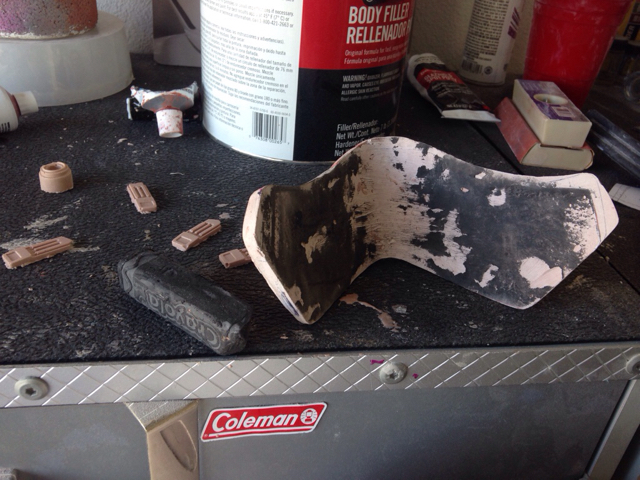

    In order to add the hex mesh under the nose piece, I decided to cut the nose out and bondo the hole to create a base for the mesh.


    This created a challenge when I went to put the nose back in place as the curvatures didn't match. I decided to use chalk on the back of the nose piece to find the interferences.

    This required a lot of check, sand, re-check, re-sand... In the end, I was very pleased how it worked out!

  19. Al May

    Al May Well-Known Member

    Trophy Points:
    746
    Looks like you really captured the shape of this , great work, look forward to seeing your progress

  20. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Thanks! This has definitely been an exercise testing my patience (not a virtue of mine).

  21. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Quick progress photo. I'm using carving tools to shape the visor. Still need to fine tune some things, but it's getting there.

  22. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
  23. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Still more sanding to go

  24. Al May

    Al May Well-Known Member

    Trophy Points:
    746
    Keep up the good work man, it looks better and better in every post you make, great job :)

  25. jimmiroquai

    jimmiroquai Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    That is a vast improvement from the pep! I know how hard it is to get the shape right. I had to turn the thing around in my hands all the time to see where i went wrong. I admire your patience working with bondo. I did learn a trick from my sculptor friend though: Instead of bondo, he uses plaster of paris. Much easier to sand and get smooth. May be useful for when you convert this to Phasma.

  26. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Awesome! Thanks for the tip!

  27. Minniefaith24

    Minniefaith24 New Member

    Trophy Points:
    3
    Are you going to build the body armor as well? If so are you using a pepakura file

  28. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I have the armor all pep'd out already, but the bucket has consumed my time. So, yes, eventually!

  29. Minniefaith24

    Minniefaith24 New Member

    Trophy Points:
    3
    Awesome! The bucket looks really good so far.
    Is AlienTechStudio the only place that has the armor files? I want to make the Captain Phasma armor

  30. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I believe there are. You can check out the forums here or over on the 405th

  31. NachyoChez

    NachyoChez New Member

    Trophy Points:
    3
    I'm looking at building a few sets of armor for some friends for Force Awakens premier (cutting it so very close on time!) and am probably going to go with the Alien Tech peps.
    If you've got a sec, mind if I ask a few questions?
    Just wondering if the site it trustworthy with payment info, and how well the body armor worked out?

    Thanks, and the build looks great so far!

    Minniefaith24 likes this.
  32. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I've had no issues with AlienTech. In fact when I had an issue with a detail I want added to the pep output, they accomodated. The file is not perfect and lacks a lot of detail, but not a bad place to start. Given your timeline, you'll need plenty of time and skill to pull it together! Good luck!

  33. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Tonight's progress
    [​IMG]

    dejordzta likes this.
  34. jimmiroquai

    jimmiroquai Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    Awesome! If i may make one tiny suggestion: Screen used helmets had the brow sticking out some ( at least on those on display at celebration). Anovos helmets had them flush.

  35. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Great feedback! I'll consider adding that! I really want to capture the details of the screen used bucket. Please keep feedback coming! That's why I've posted this here.

  36. NachyoChez

    NachyoChez New Member

    Trophy Points:
    3
    Thanks for the feedback on alien tech. Ordered and received my pdo for the helmet, and it looks like a good take.

    Of course, hours later I found the full armor and helmet free from another forum member; weird that it wasn't coming up on any searches.

    http://www.therpf.com/showthread.p...rmour COMPLETE (Force Awakening) by Fisherk2

    I'll be following your work closely, and possibly starting up my own thread so as not to hijack yours when I get started.

    Have you started looking at boots and gloves? I'm thinking the older extreme racing gloves still work with a bit of bleach and dye, but it looks like boots will be covered by the new suit entirely?

    Sent from my SM-N910T using Tapatalk

  37. kev1969

    kev1969 Well-Known Member

    Trophy Points:
    521
    What a great build :thumbsup, youve realy done a fab job on this cant wait to see this finished, subscribed :)

    Mitcheg1 likes this.
  38. RedForty

    RedForty New Member

    Trophy Points:
    2
    Mitcheg1

    That's awesome! I have one question: What are you using for the mesh inside the mouth section? It looks rigid enough to withstand some abuse.

    Last edited by a moderator: Nov 8, 2018
  39. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    It was 3D printed in PLA, and I am putting a light coat of resin over the top. This should help round out the sharp corners and fill gaps to facilitate casting.

    Last edited by a moderator: Nov 8, 2018
    Dtrasler likes this.
  40. 5xxicemanxx5

    5xxicemanxx5 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    511
    Yea man that's coming out real sharp awesome work

  41. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Will the sanding ever end?!?! Still cleaning up the mesh, but I think it's looking much better!
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  42. Sewbacca

    Sewbacca Well-Known Member

    Trophy Points:
    541
    Crazy skill! Looks awesome and Thanks for sharing.

  43. RedForty

    RedForty New Member

    Trophy Points:
    2
    Looking great, dude! Another quick question: What grit sandpaper are you using to get your lid that shiny? Just curious as I'm going through the same process.

  44. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    400/600/1500 i applied primer and then wet sanded once is was dry to touch.

  45. virateck

    virateck Active Member

    Trophy Points:
    460
    Awesome work !!! :)

  46. Zanderonline

    Zanderonline New Member

    Trophy Points:
    3
    Watching with much interest. Great work.

  47. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    I think this might be my last primer coat!!! Fine sanding tomorrow and I should be ready for casting!!!!
    [​IMG]
    [​IMG]
    [​IMG]

    dejordzta, Yrien and virateck like this.
  48. bobafettroxx

    bobafettroxx New Member

    Trophy Points:
    17
    Who's is doing your Chroming Process? I am looking for someone to chrome all parts when I have it done/sanded.

    Could you provide any info for that and cost involved also? Thanks again.

  49. Mitcheg1

    Mitcheg1 Active Member

    Trophy Points:
    412
    Haven't begun to contemplate Phasma just yet. Still focused on getting my First Order TK done first. I'll post more as I move on though! Keep watching!

    JJ Griffin likes this.
  50. JJ Griffin

    JJ Griffin Sr Member

    Trophy Points:
    1,135
    Will you be molding/casting these, mate~?
