Starship Troopers - M3 Tactical Helmet Replica

[626AM]

Starting down the road of a new project and wanted to share it here.

I have always loved Starship Troopers but wanted an idealized helmet. Today I 3D scanned a screen-used helmet and plan to use that for reference to model a new helmet that is "perfect." It is going to be a bit tough because a lot of the beauty of the originals is their asymmetry and irregular surfaces (from the days before everything was 3D printed). I hope to find a happy in-between that isn't too cold and heartless, but that is more precise as if they were made by a manufacturer. We will see how it goes.

Here are pics of the base scan I will be using as a guide.



[eethan]

nice project! looking forward to see more.



[Hatefrost]

Love this. Can’t wait for more progress!



[prev]

Outstanding!!!!!

Have always wanted one of those lids.



[Topgun1984]

Nice



[Topgun1984]

Any Progress?



[626AM]

Any Progress?

Not much to report on the digital side yet. The scan is in the hands of a very good modeler and he is hard at work on it. In the meantime, I have been tracking down the various found items. Those ears vents are tough! Hope to have something to report near the end of next month.



[626AM]

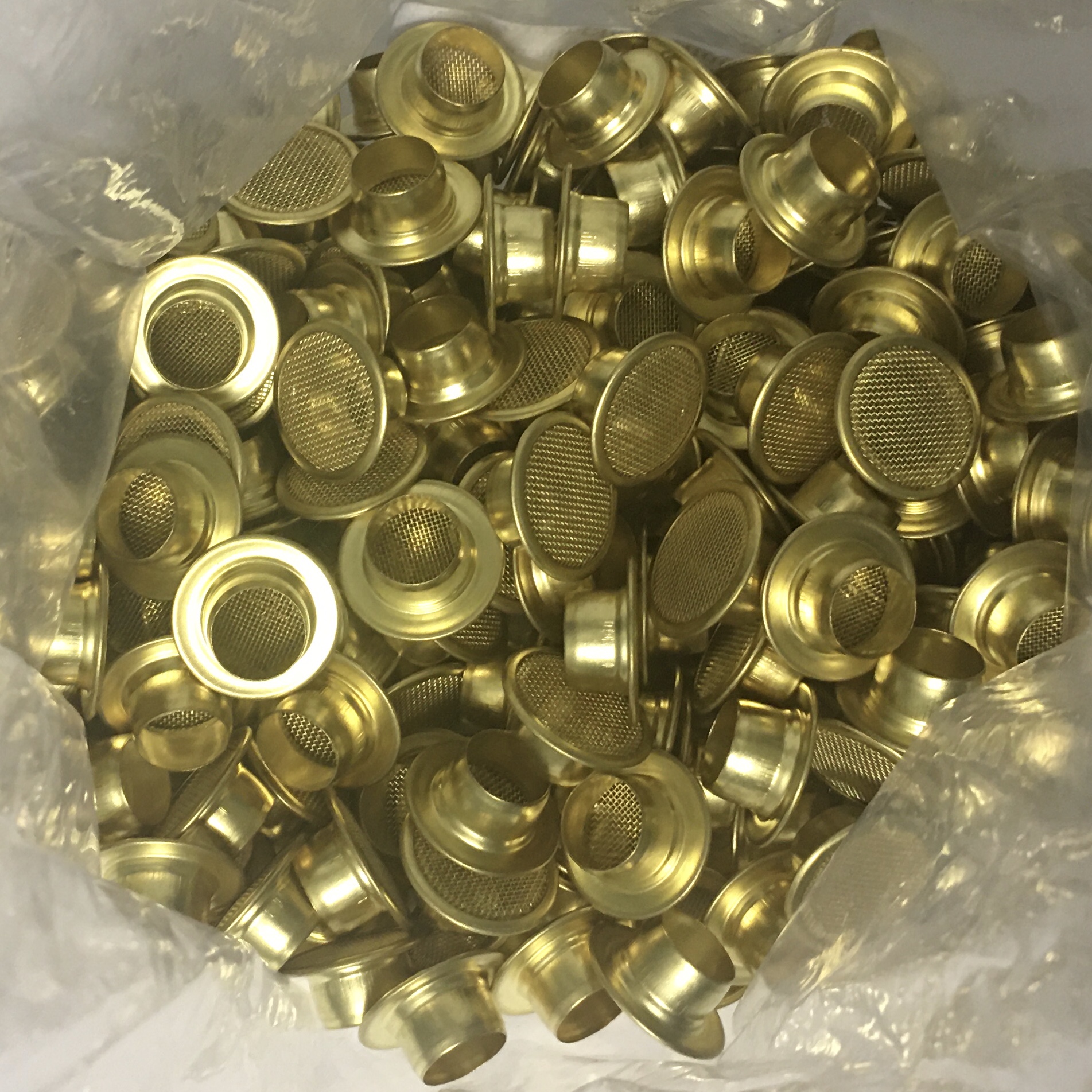

The original found part used for the ear inserts is tough to get and the manufacturer wants to sell with an MOQ of 1000, and only through a distributor. It took me a while, but I finally found a part that is extremely close and I was able to order in a more reasonable quantity!



[Topgun1984]

Do you sell sone i would take 6 of them



[626AM]

Do you sell sone i would take 6 of them

I think we could do that. Let me put them on the site, and I'll send you a link!



[Craftynathan]

I think we could do that. Let me put them on the site, and I'll send you a link!

Any chance you could make that 3D scan freely available ?



[626AM]

Any chance you could make that 3D scan freely available ?

We do not plan to make the scan publicly available at this time.



[wtyler3]

Can I get some too? Would love to get a finished helmet



[626AM]

Digital progress is being made! Still some cleanup left, but the sculpt is coming along nicely.



[wtyler3]

Digital progress is being made! Still some cleanup left, but the sculpt is coming along nicely.

View attachment 1093167

Wow very nice!!



[626AM]

Found part info:

The screw and nut that hold the cheek to the helmet is a black oxide buttonhead screw that is 8-32 x 3/4"long and a low-profile binding barrel that is 8-32 x 1" long.

The snap on the chin strap is a 3/4" socket buckle (usually associate with football helmets). The snap that this connects to is found two ways on the helmet; one way the back of the snap is cast into the cheek, the other way uses a black anodized low-profile binding barrel that is 8-32 x 1/4" long. It goes all the way through the cheek. The male snap with a screw in it (also 8-32) can also be found with football helmet supplies.



[626AM]

Do you sell sone i would take 6 of them

Can I get some too? Would love to get a finished helmet

Per your request, we now have ear covers available for sale:

Mobile Infantry M-3 Tactical Helmet - Ear Covers

Upgrade your Mobile Infantry M-3 Tactical Helmet from "B" grade to "A" grade with our brass ear covers. Note 1: Price is per pair of ear covers (enough for one helmet). Note 2: Ear covers are shipped unpainted. Learn more about the original helmets used in Starship Troopers and how you can use...

shop626am.com



[626AM]

ALMOST down to the final digitals for the M-3 Tactical Helmet. Just need to rework the cheek mounts a bit.



[626AM]

Cheek mounts have been corrected. Off to print!



[TrooperKast]

Nice work!
