armamentfactory

Active Member
I started this a couple of years ago, got put on the back burner, and then decided to pick it back up.
The reference material's been pretty difficult to source, so I'm making a hybrid from the available artwork.

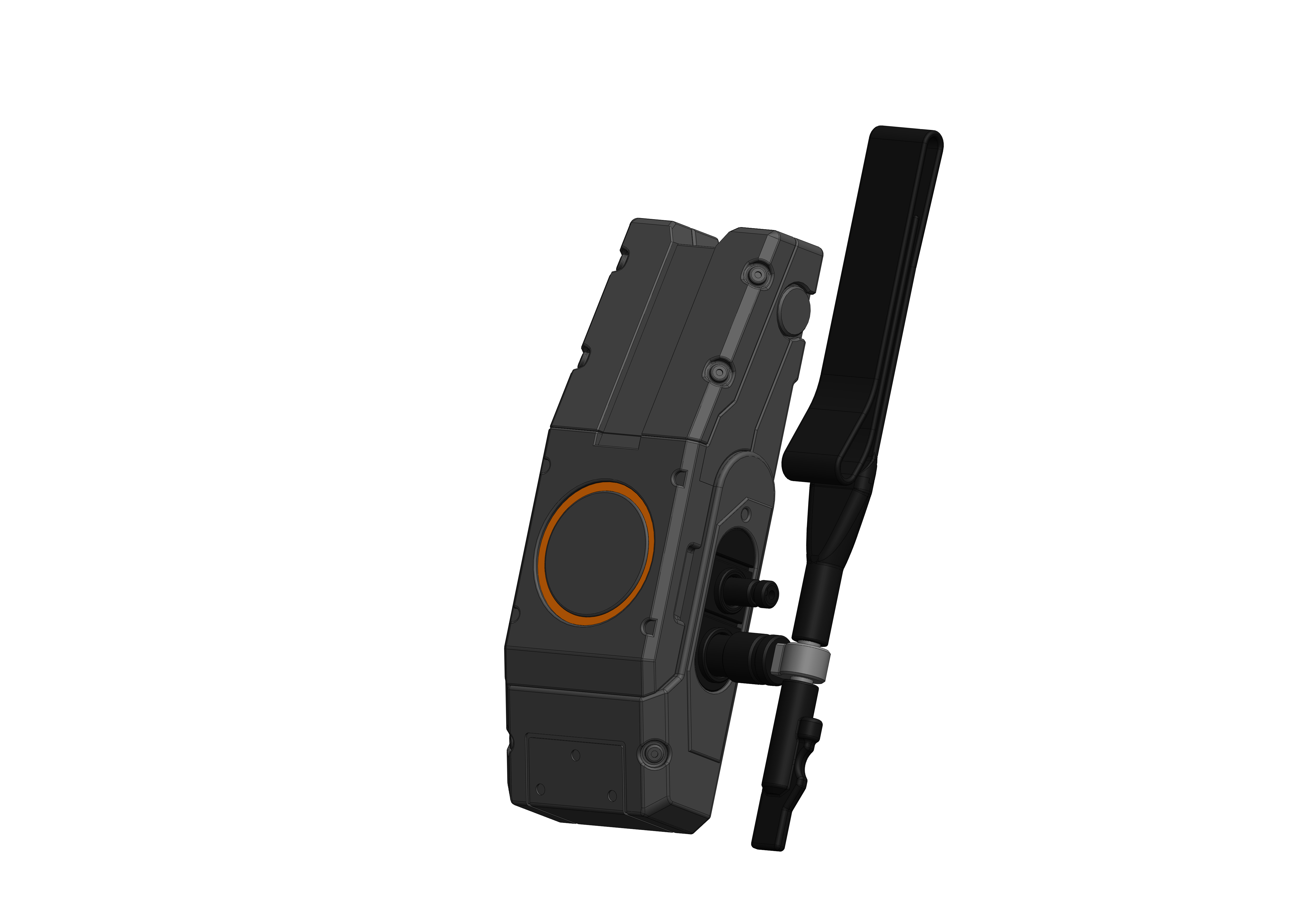

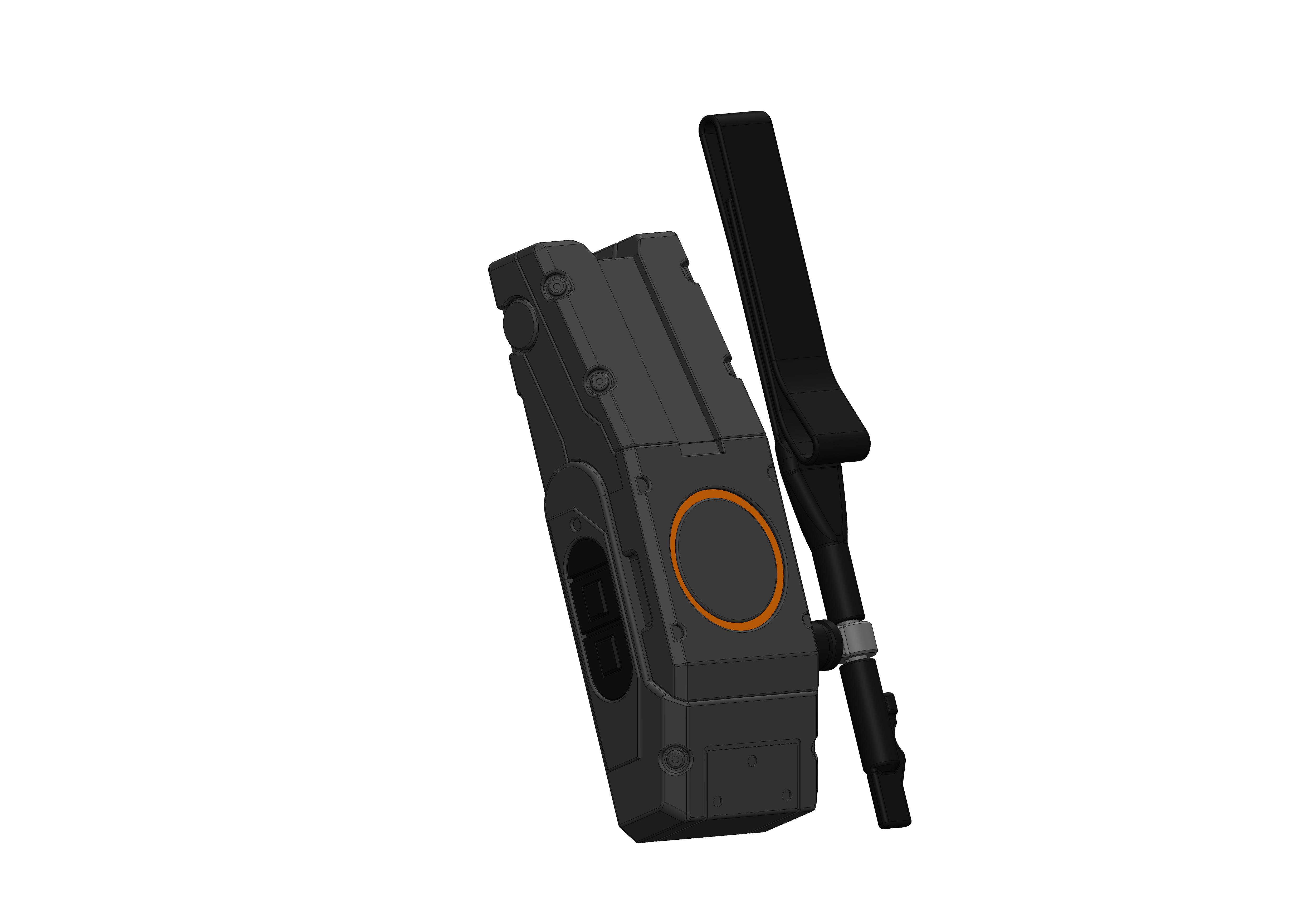

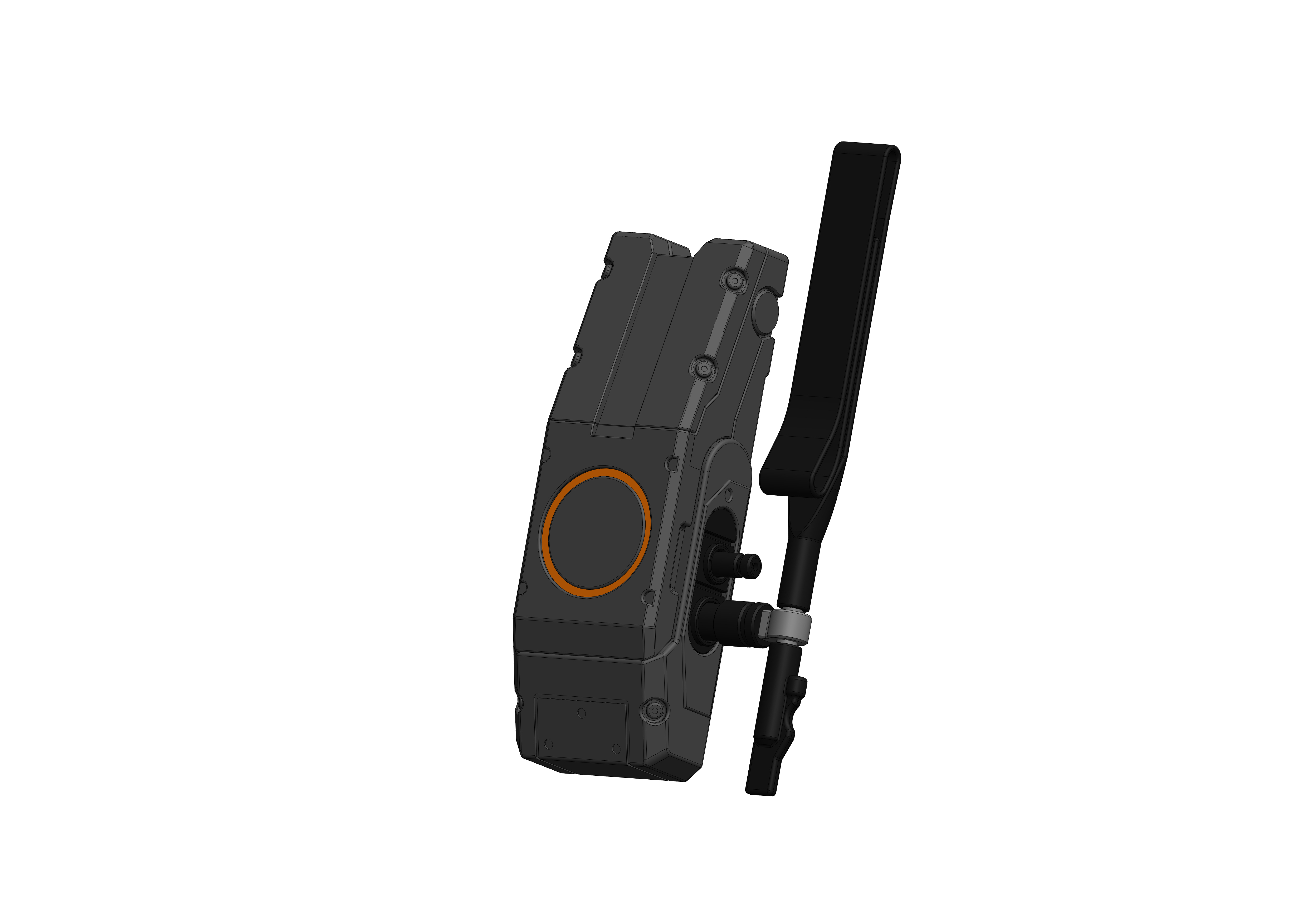

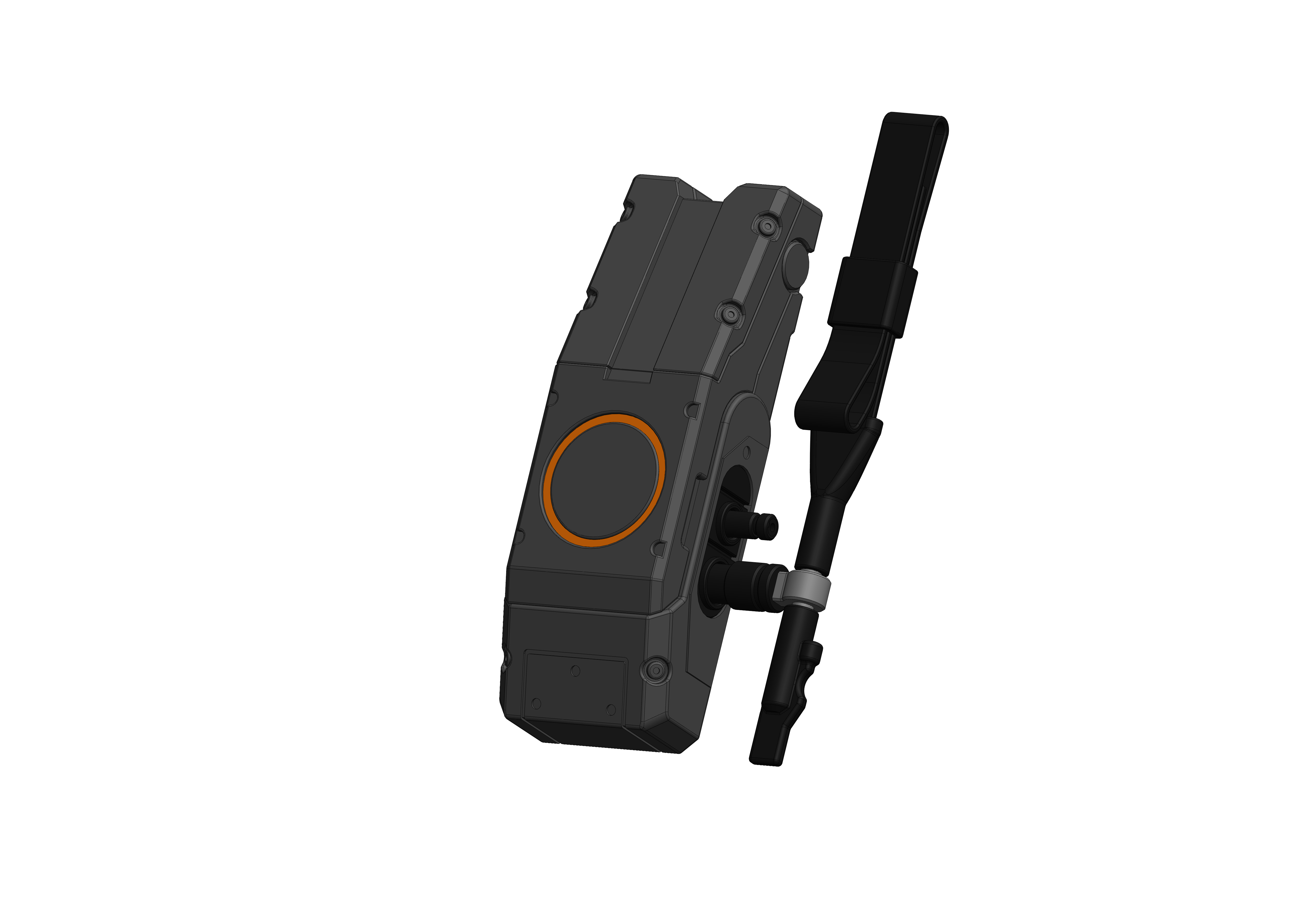

Here's the current model. It still needs a few parts for mounting on the pack strap & provisions for a light kit.
Once the model is complete, I'll start partitioning it for 3D printing.


Cheers!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

armamentfactory

Active Member

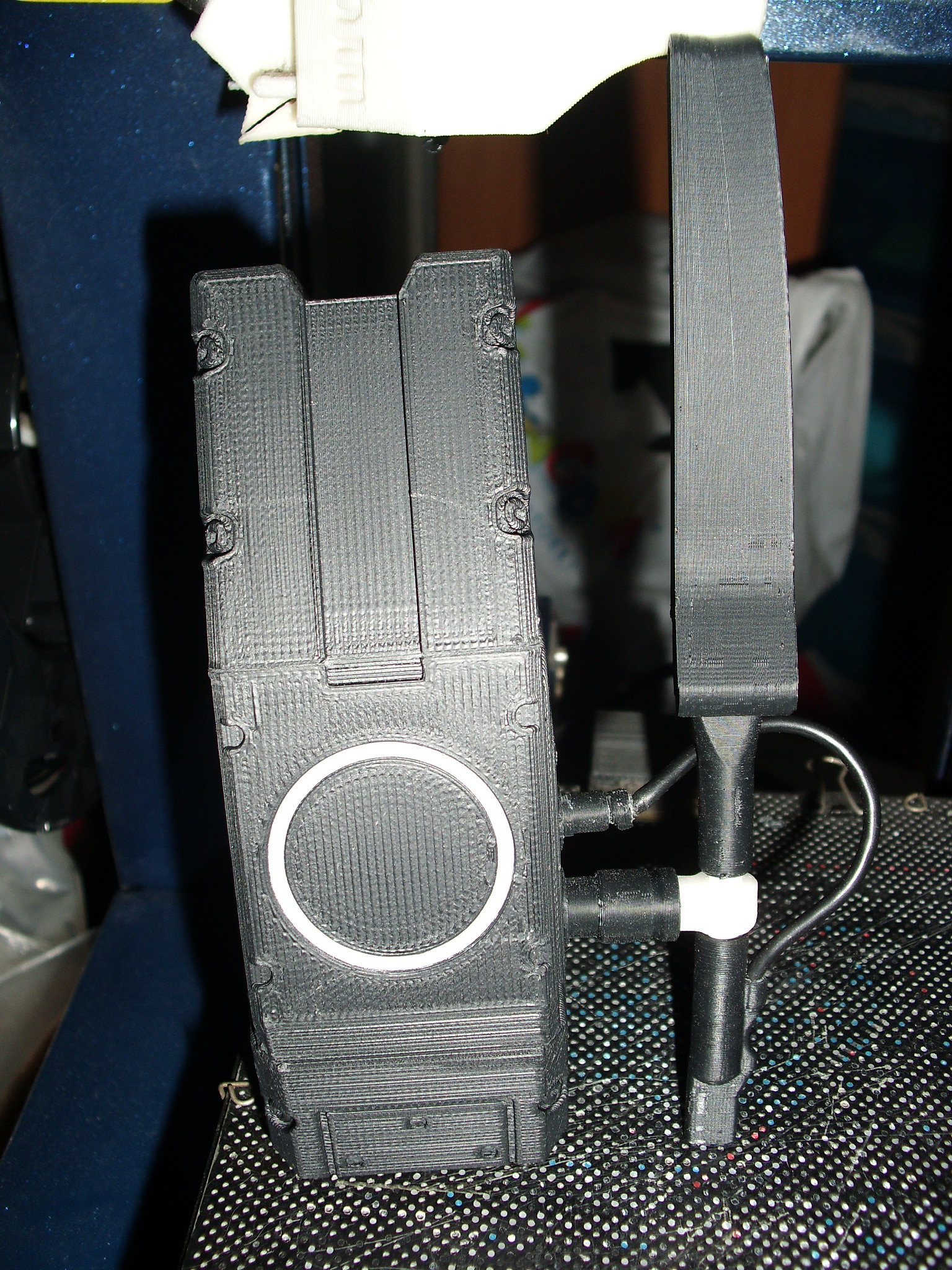

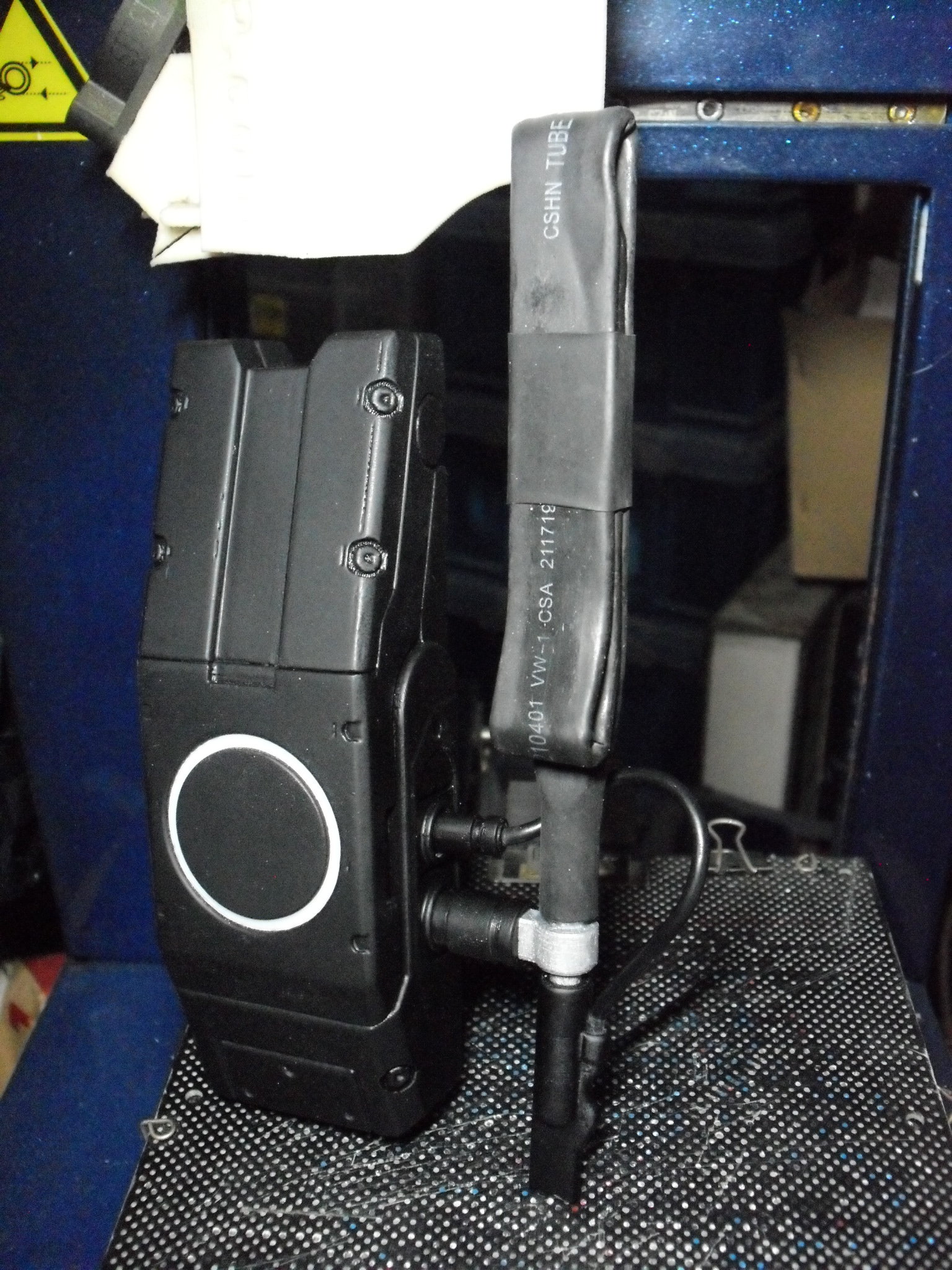

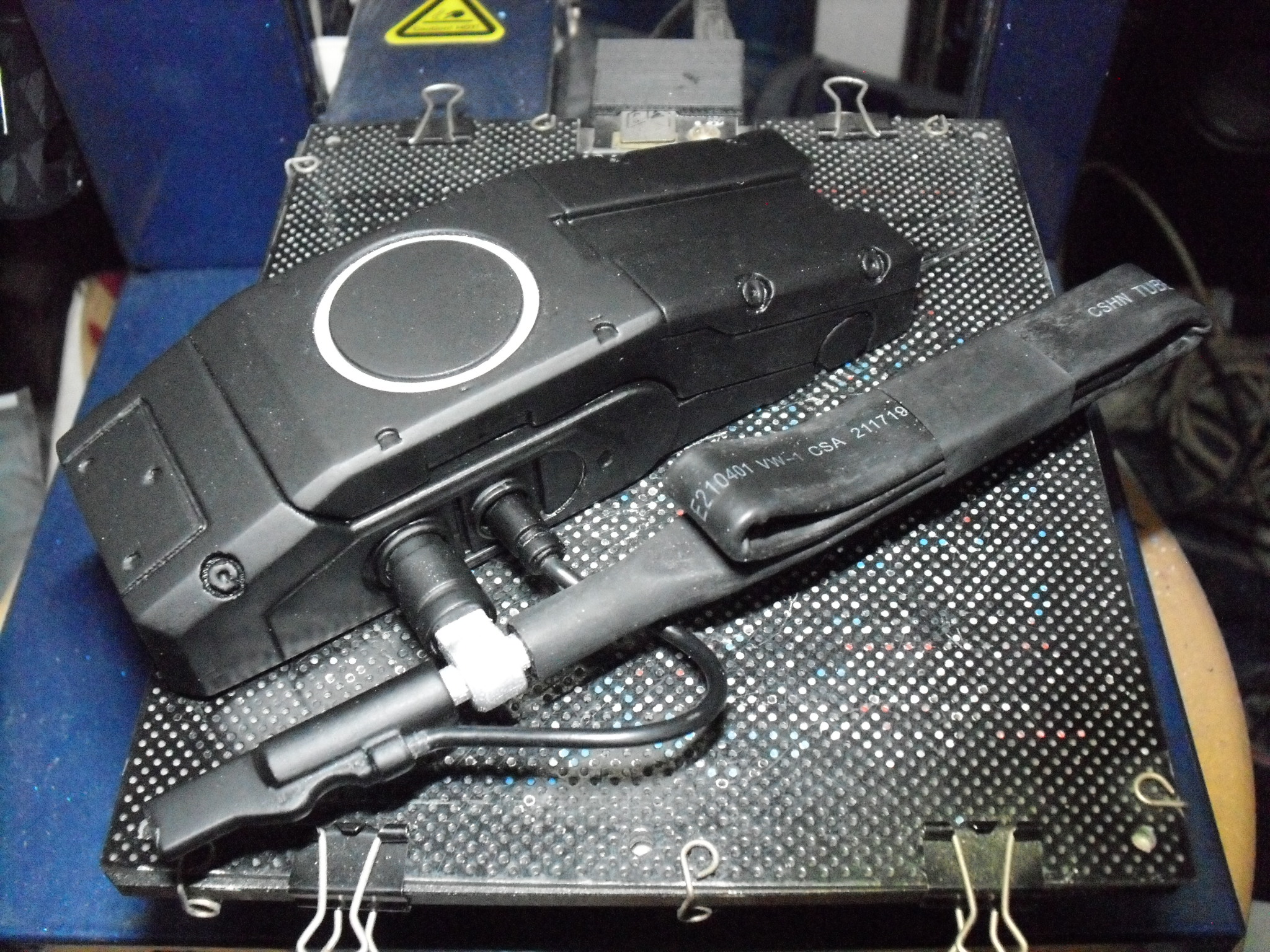

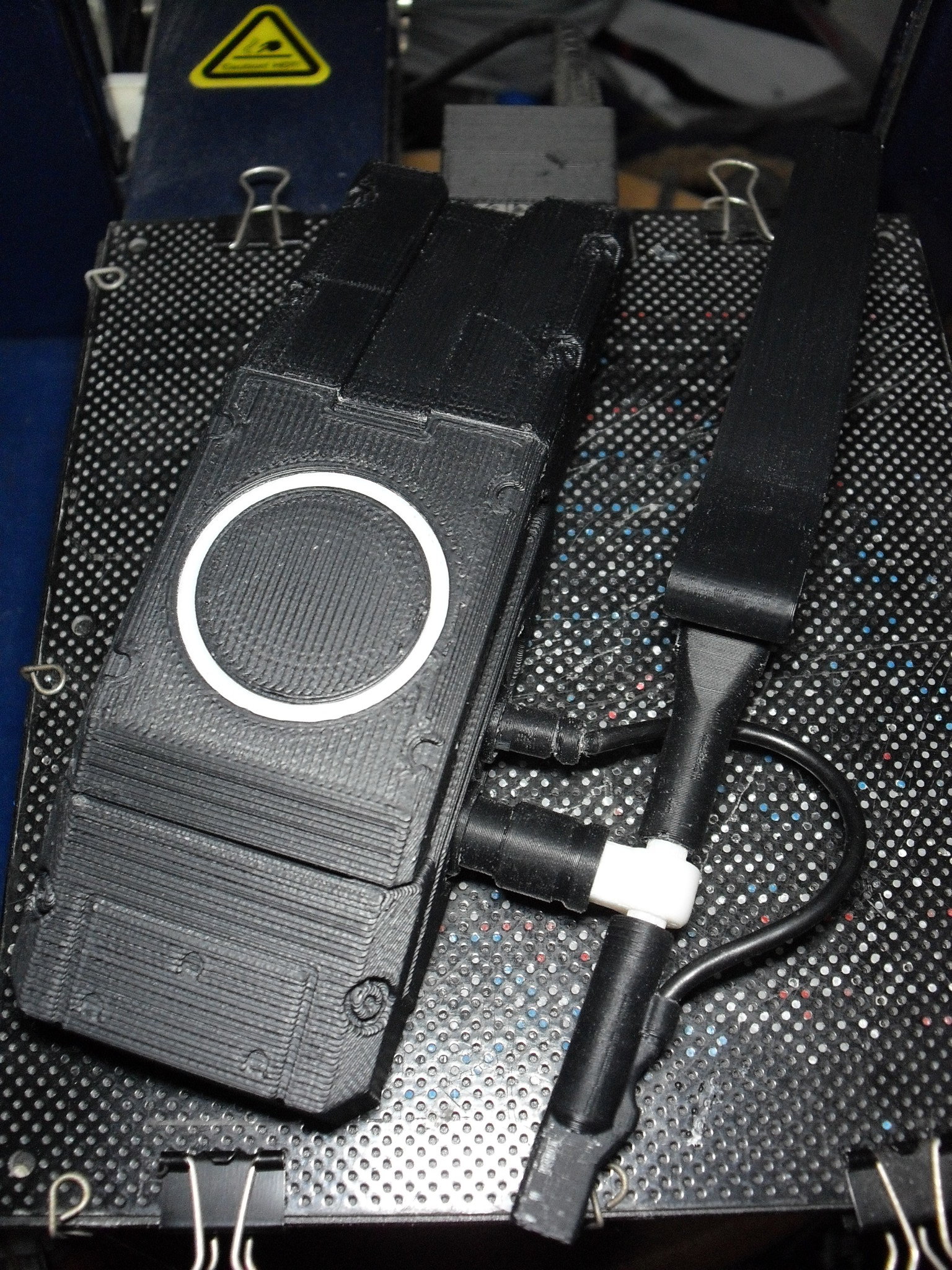

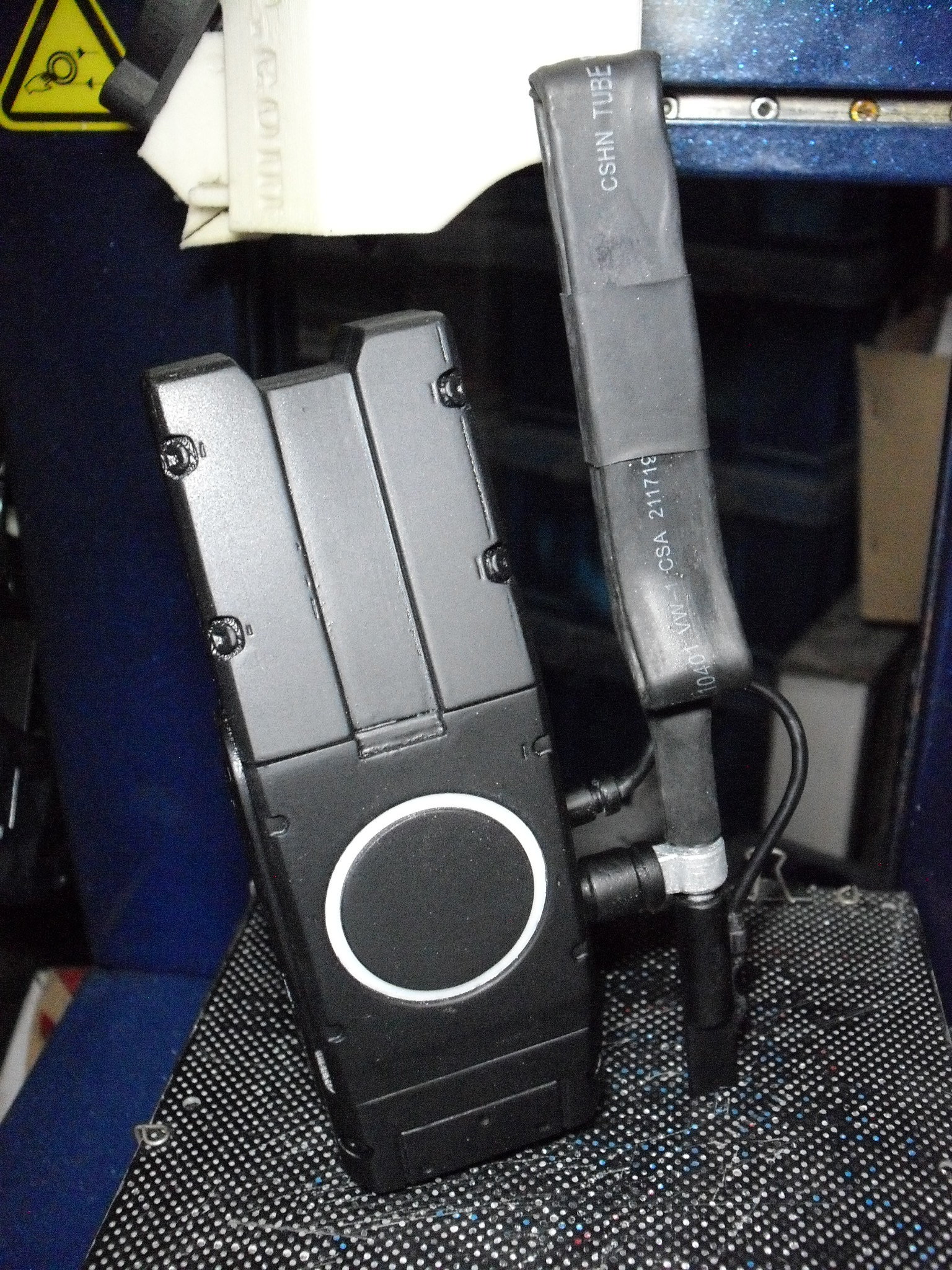

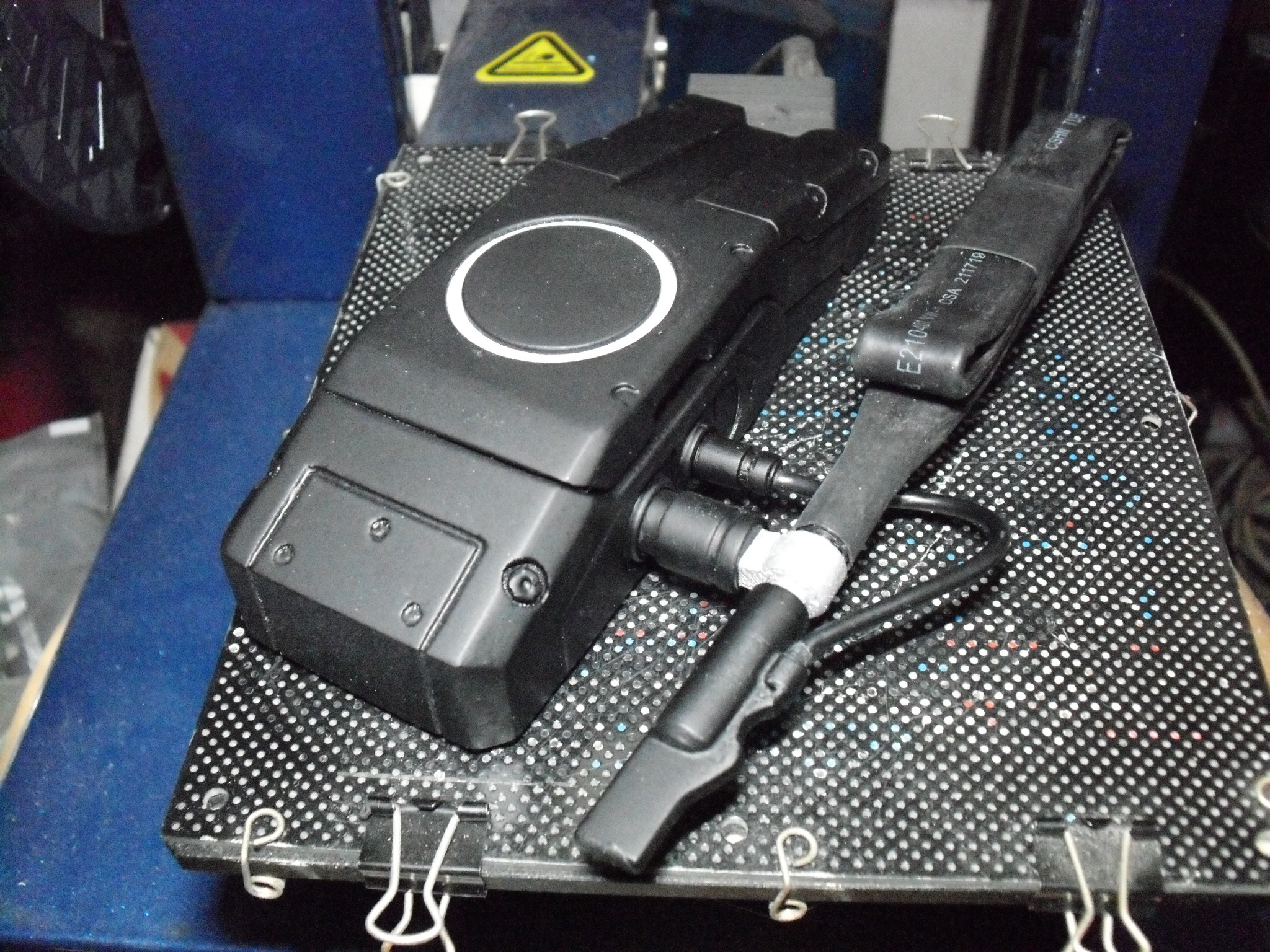

The test print looks pretty good.
Got some serious warping on the antenna loop - I'll have to reorient the part for the next print.

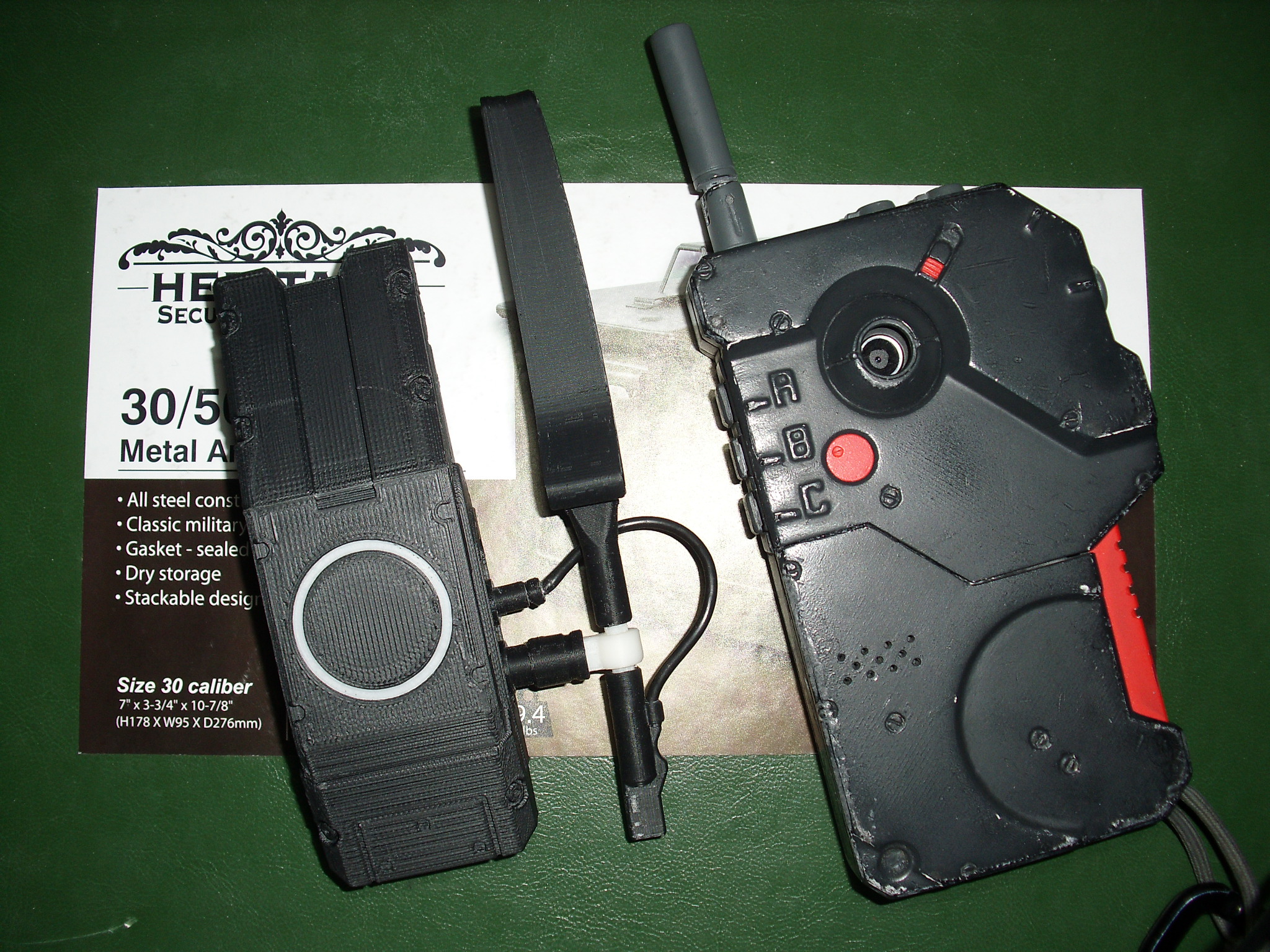

iDroid phone case for scale.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

armamentfactory

Active Member

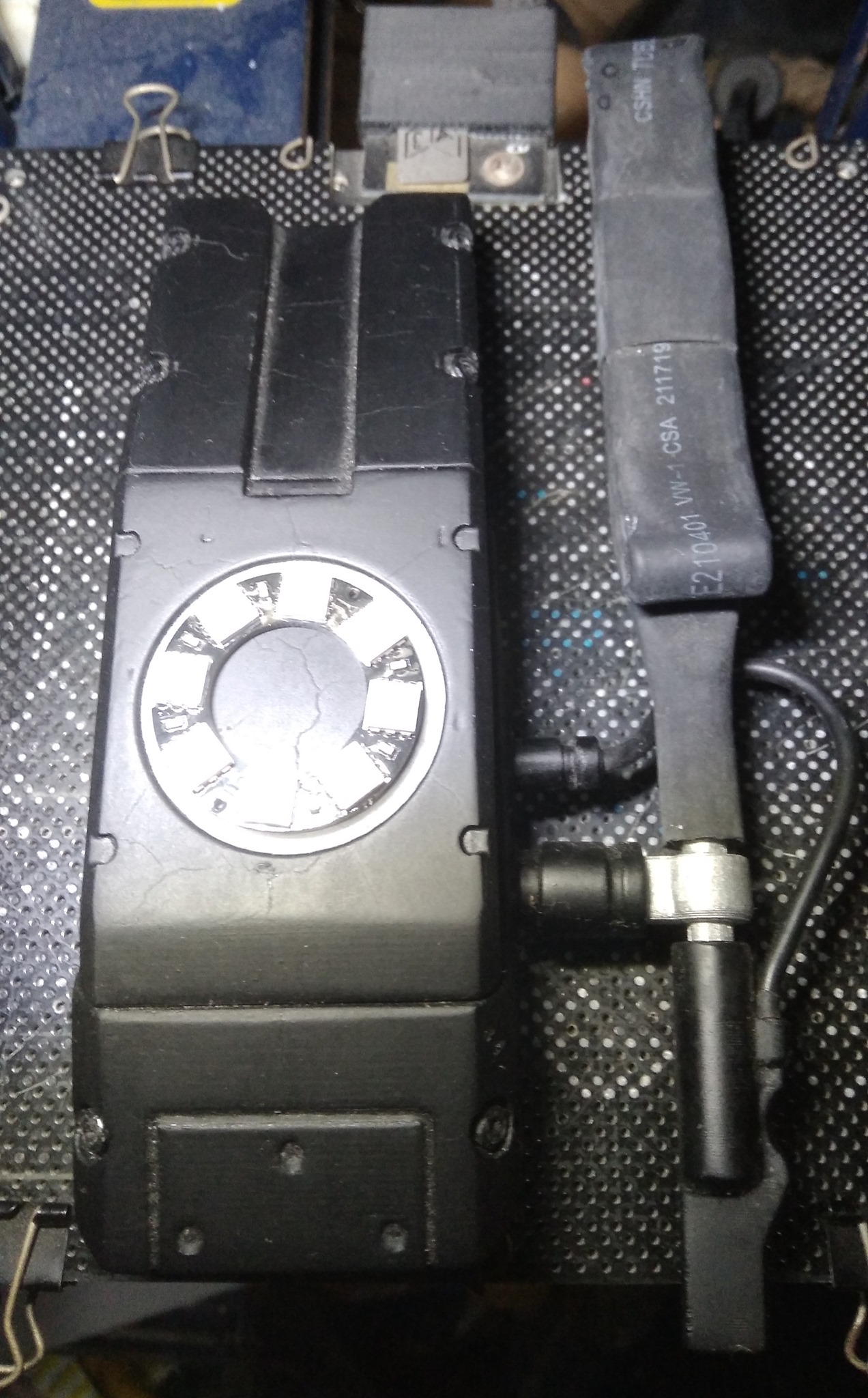

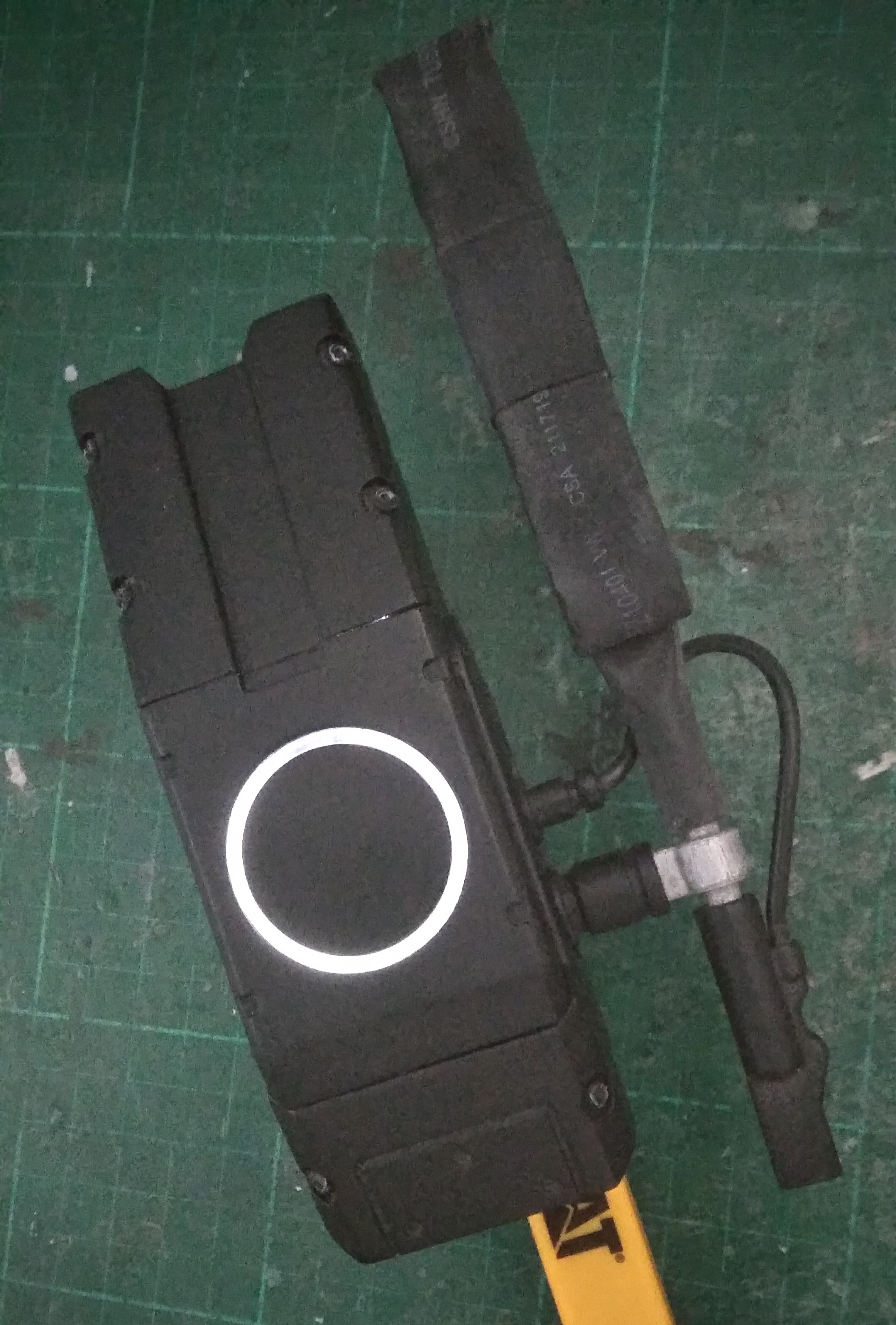

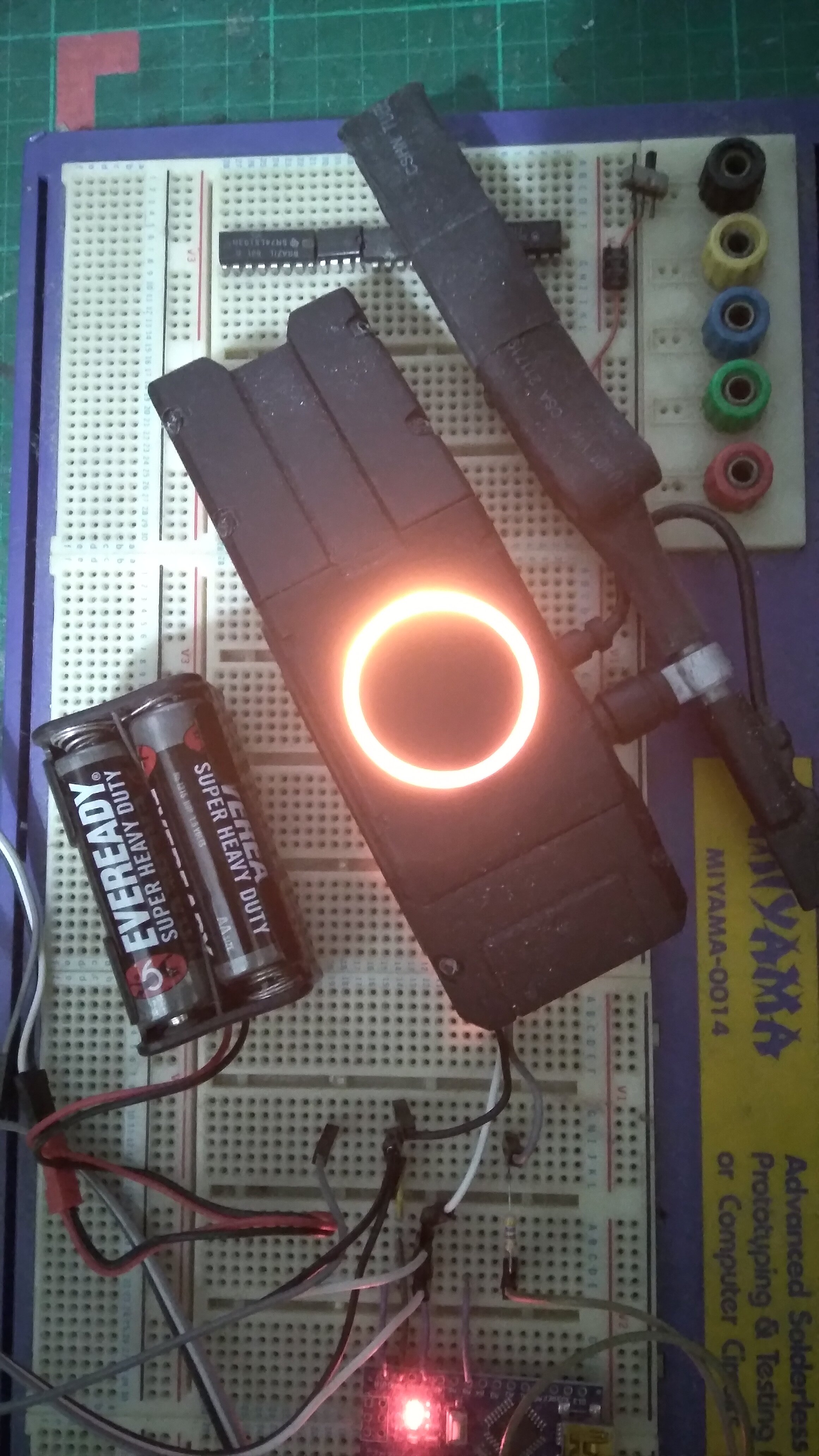

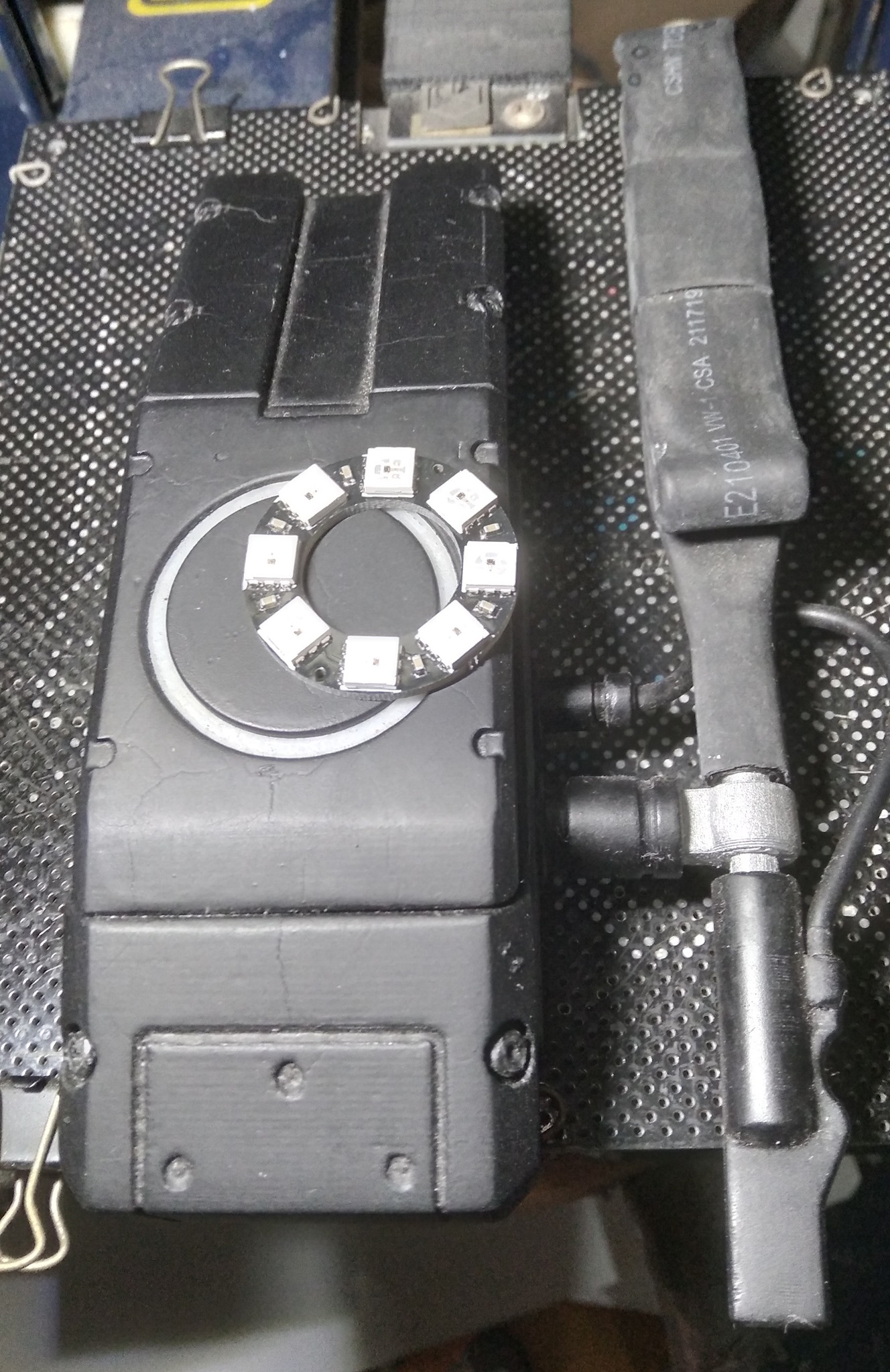

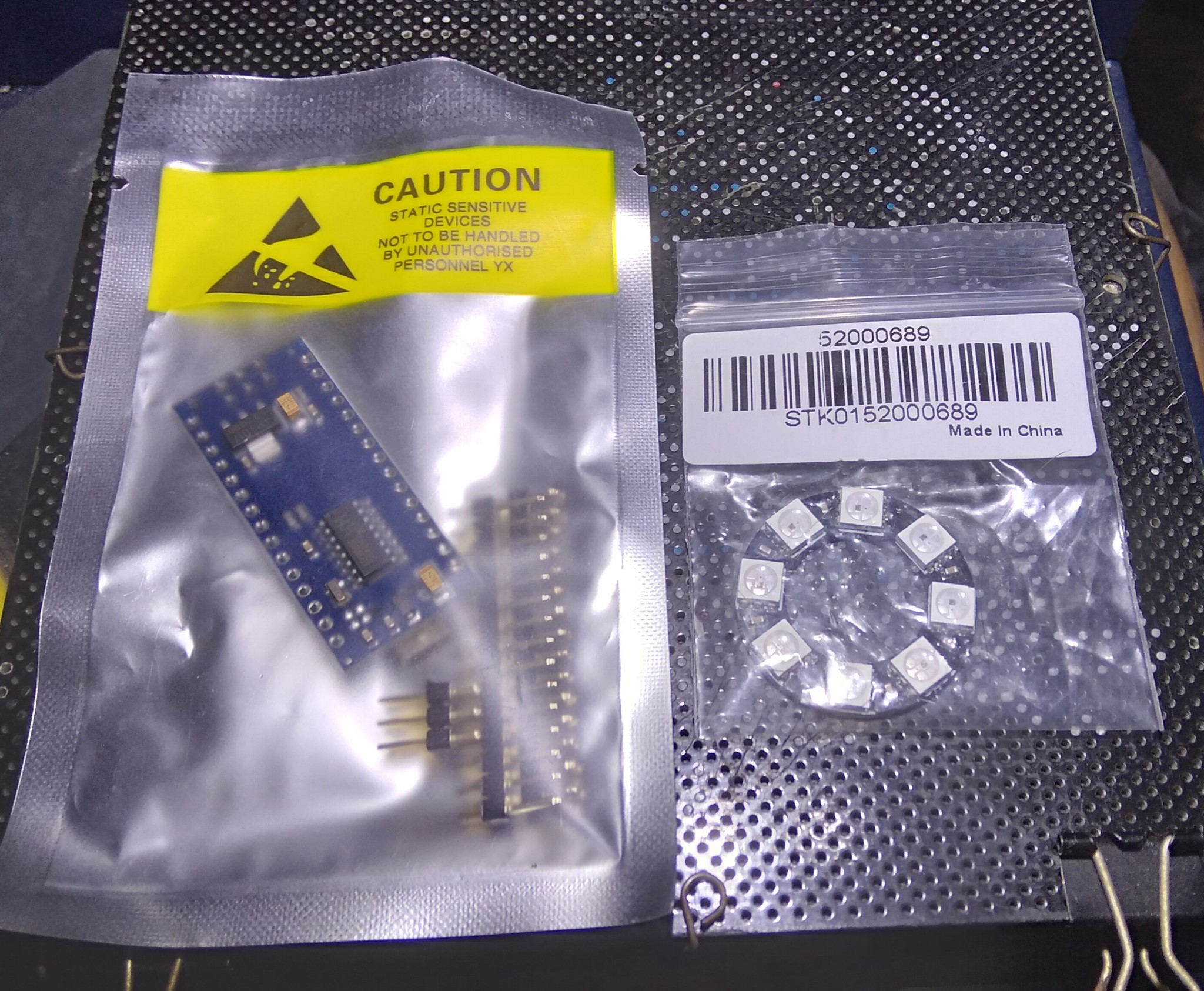

I finally sourced an LED ring that'll fit! The next thing to do, is figure out the micro controller.
...Then a ton of remodeling/printing to fit/integrate everything.


Attachments

  • 172371145_2329582100519457_2933788882297986078_n.jpg
    497.3 KB · Views: 3
  • 173684503_2329582120519455_8124354090875288956_n.jpg
    582.8 KB · Views: 3
  • 173788514_2329582083852792_730963512056353724_n.jpg
    699 KB · Views: 3
