SE-16 Blaster variant

AnubisGuard

Sr Member
Can you not add a shim under the scope, just before it reaches the compensator?

Like, between your printed part and the underside of the scope...
Part of the problem is that the barrel of the compensator doesn't form a straight line with the body of the scope. Even removed from the chassis, there's a noticable "kink" in it. It's subtle but it's one of those things your eye immediately goes to because no real gun – at least, not one that isn't damaged – has a bent barrel like that.

I should have paid more attention during assembly, but since I was gluing it to a painted scope, I was more worried about not getting epoxy all over the paint job.

I was going to let it go, but I showed it to my girlfriend last night (without saying anything about what was wrong) and she immediately caught that the barrel was crooked. So I soaked it in acetone overnight and was able to pull most of it apart this morning. I did some damge to the front part of the scope in the process and I've DMed Field Marshal about buying a replacement for that part. I don't fancy buying am entire m38 kit over again just to replace one part.


Dann

Master Member
RPF PREMIUM MEMBER
So are you saying the cut on the Cutts isn't straight?

Or the rear of the scope isn't?


AnubisGuard

Sr Member
So are you saying the cut on the Cutts isn't straight?

Or the rear of the scope isn't?
The Cutts didn't sit in the scope straight. Basically, there's a metal coupler that joins the Cutts to the front of the scope, where the lens would go, but the coupler has a bit of play to it on the scope side of things. (It's a dual male threaded coupler made for the Cutts compensators, so it fits the Cutts tightly but the scope is a little too large for it) I wasn't paying enough attention to alignment and the glue set with the entire Cutts assembly slightly crooked. I double checked the cut-down Cutts with a straight edge and it's fine. It's just the joint with the scope that was the problem.

Hope that make sense.


Dann

Master Member
RPF PREMIUM MEMBER

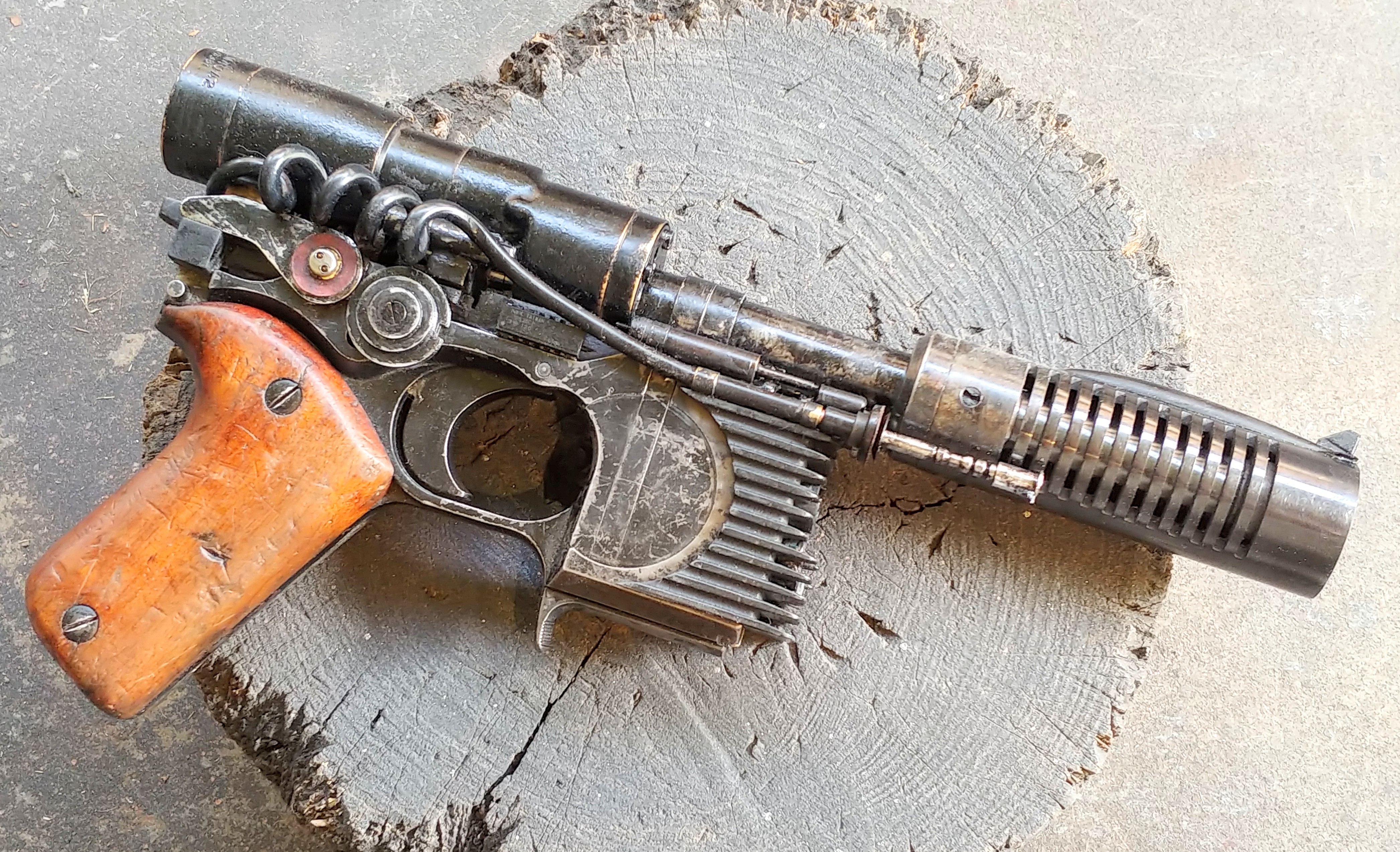

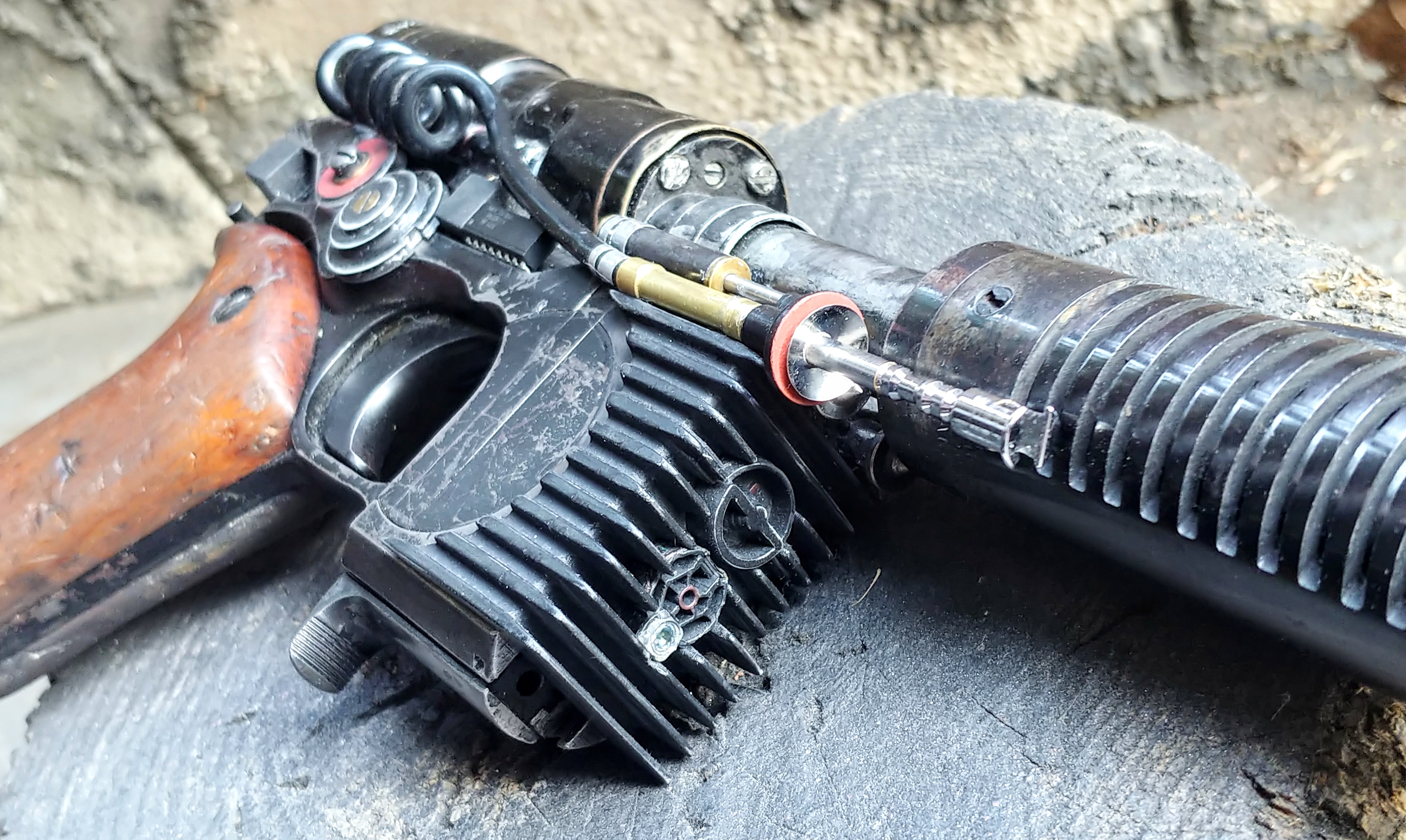

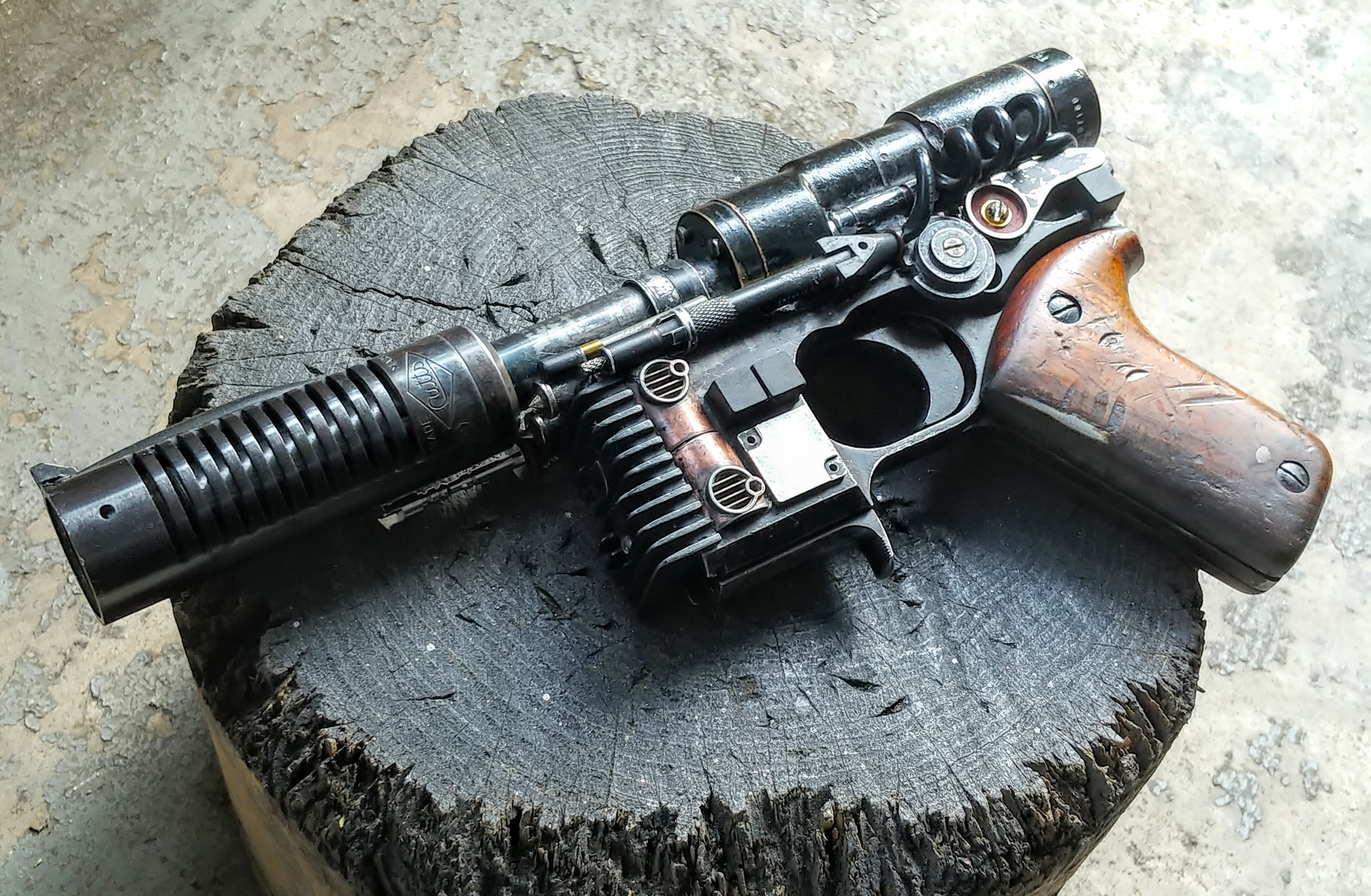

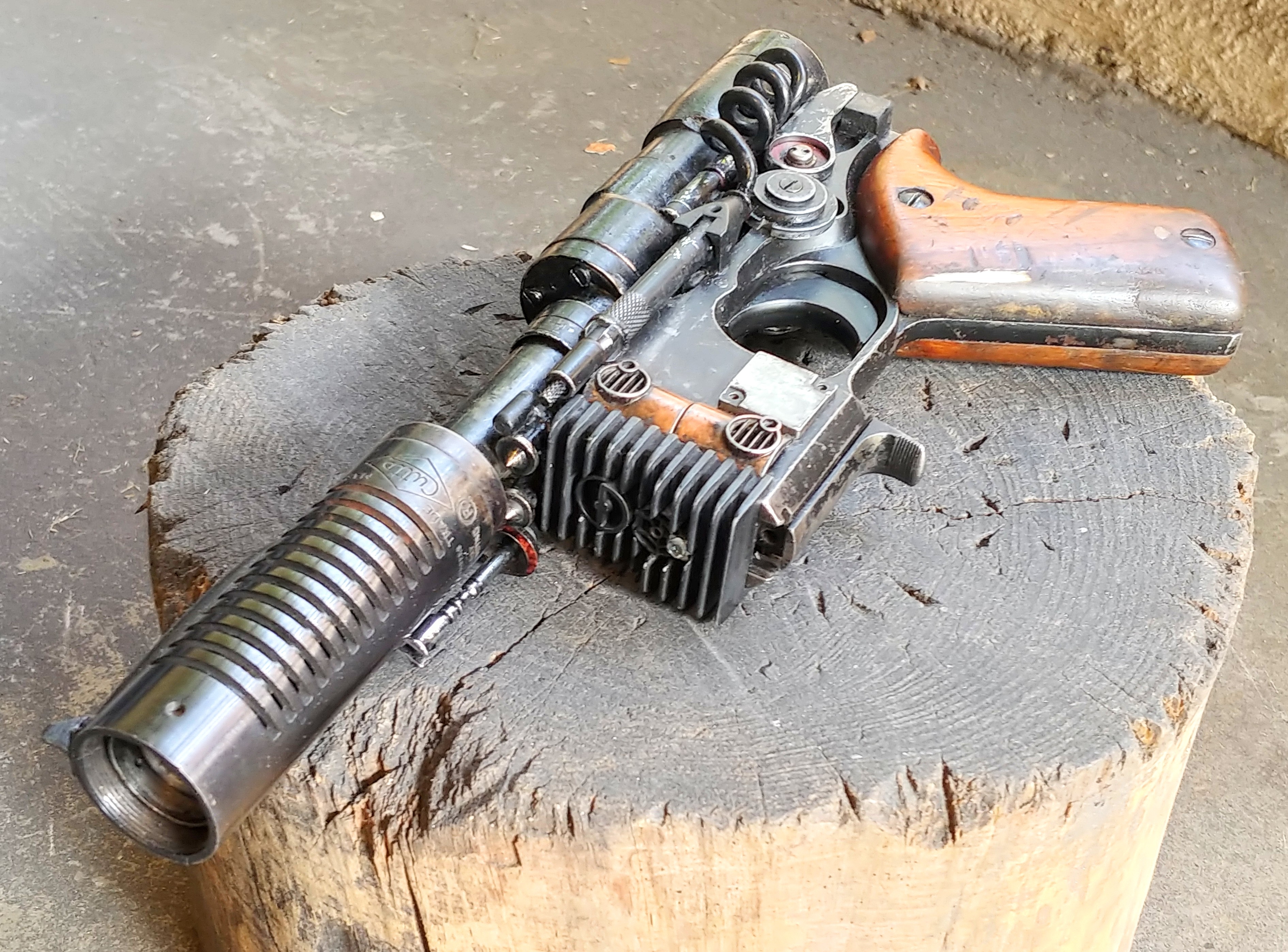

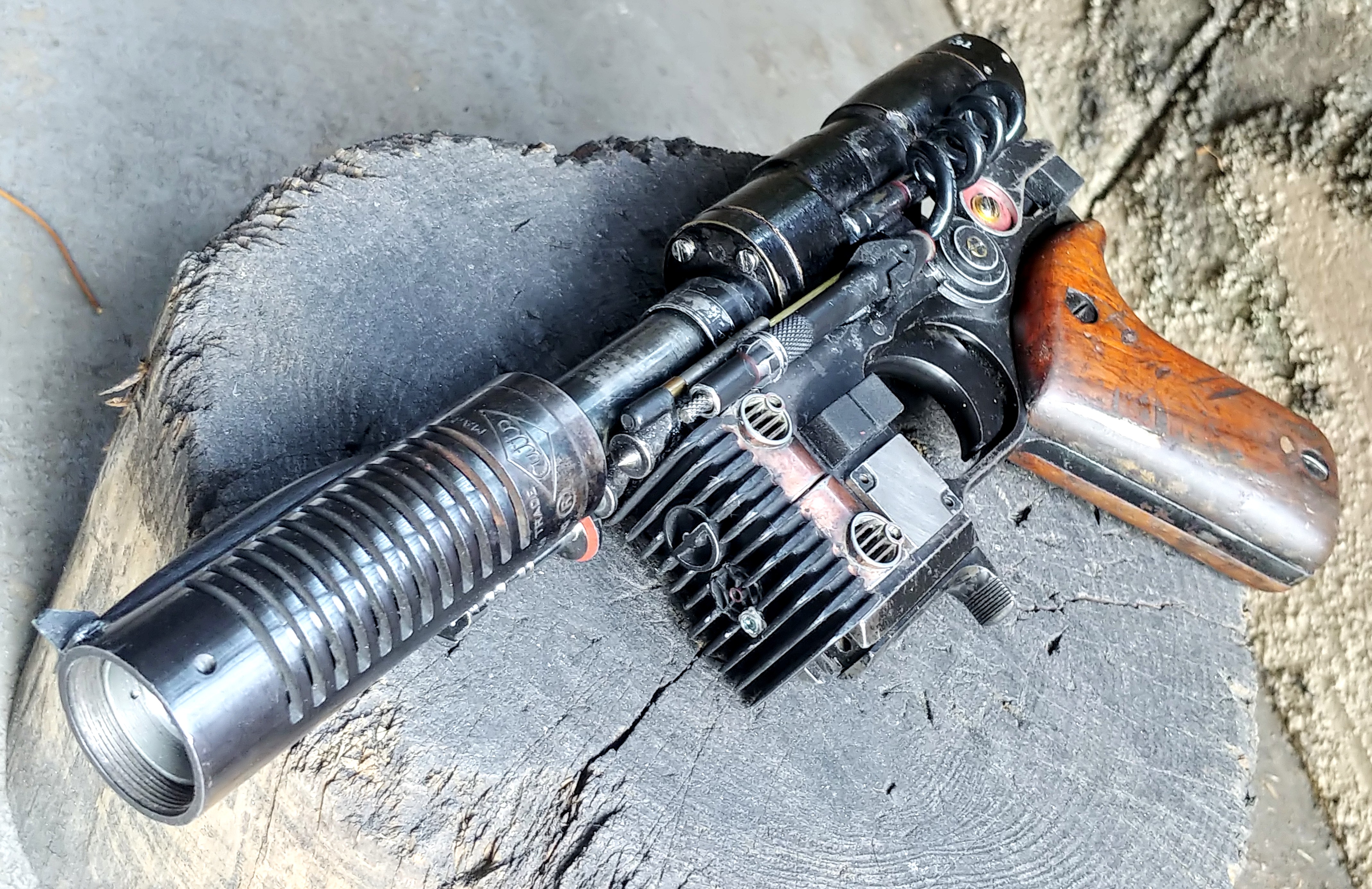

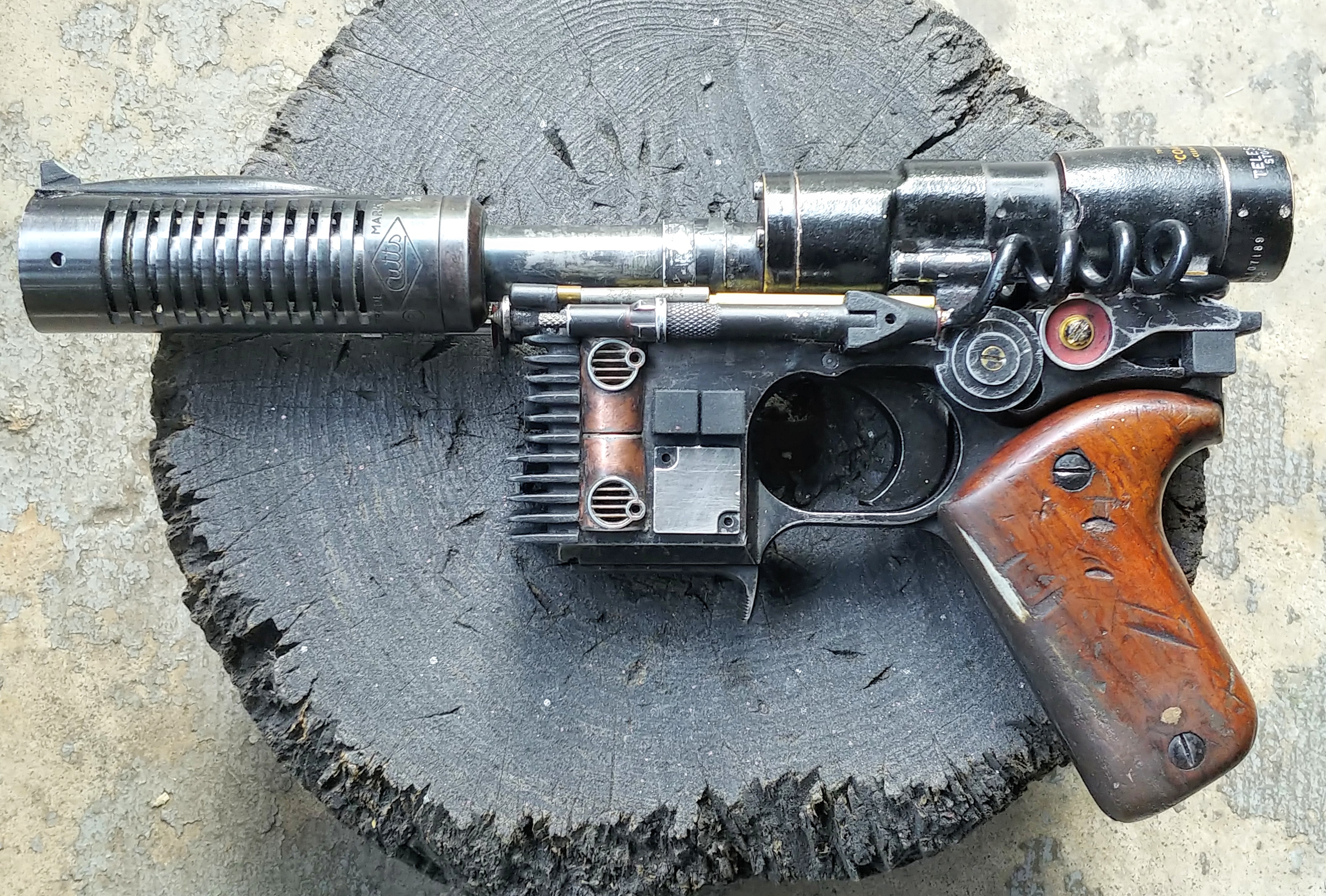

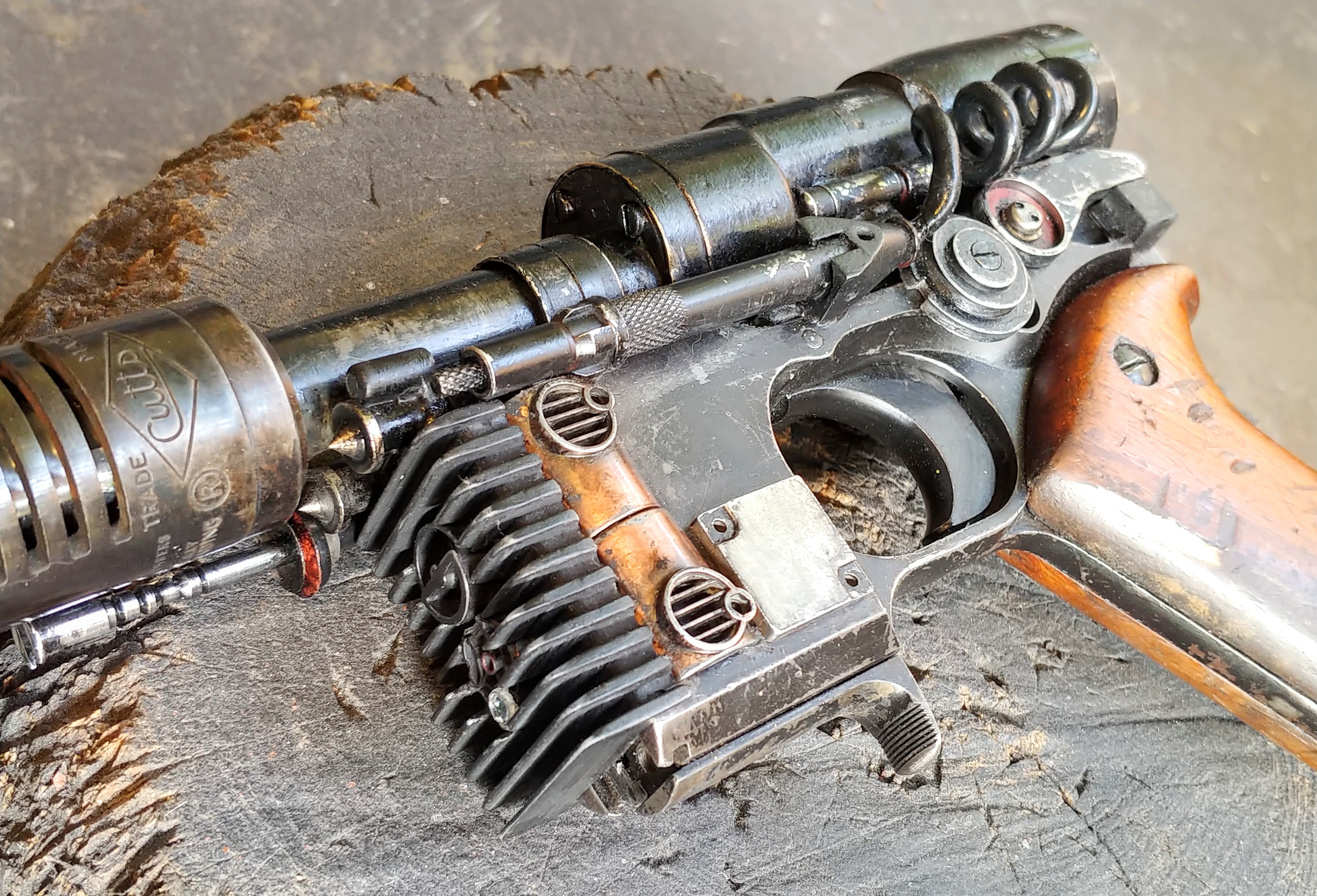

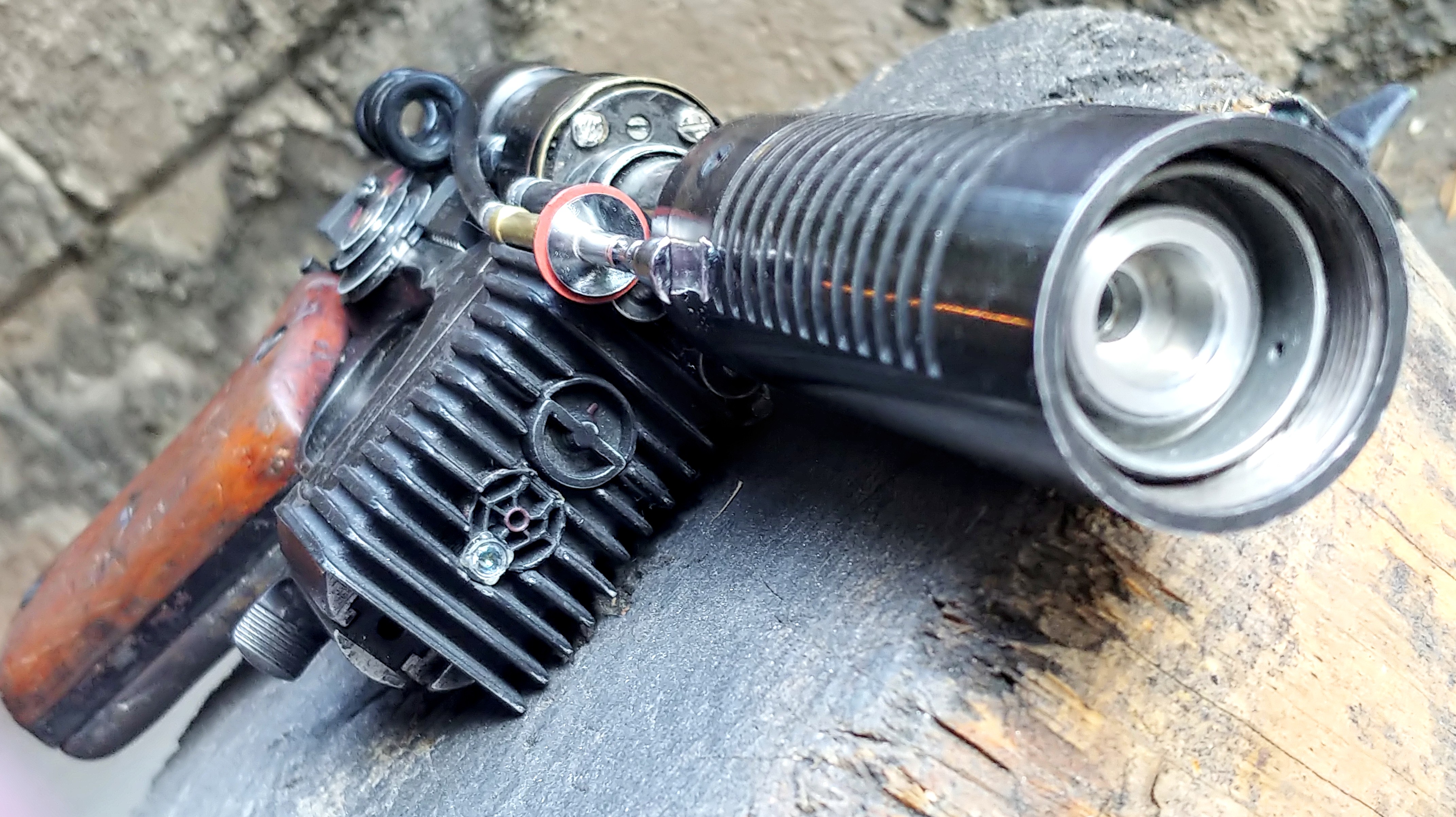

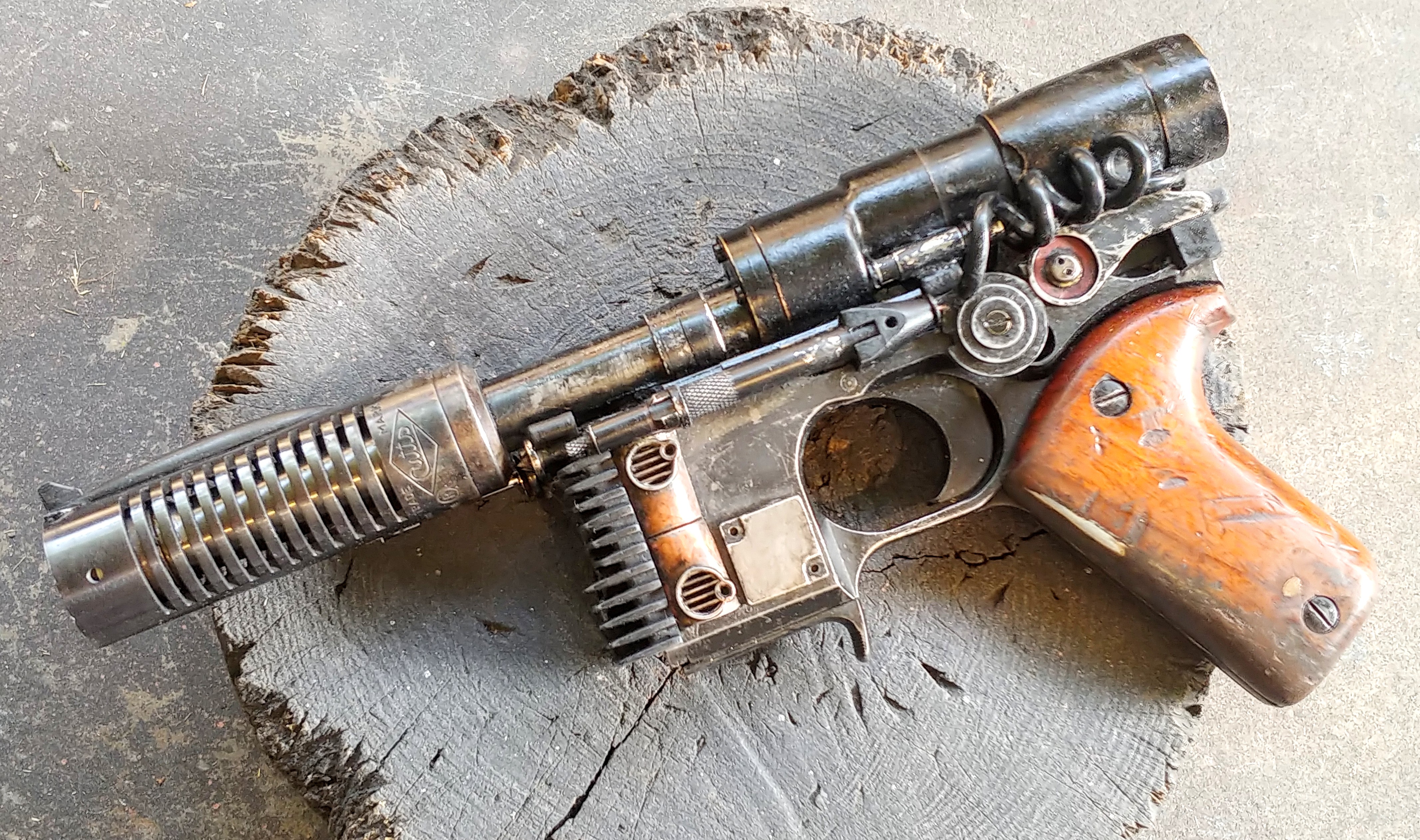

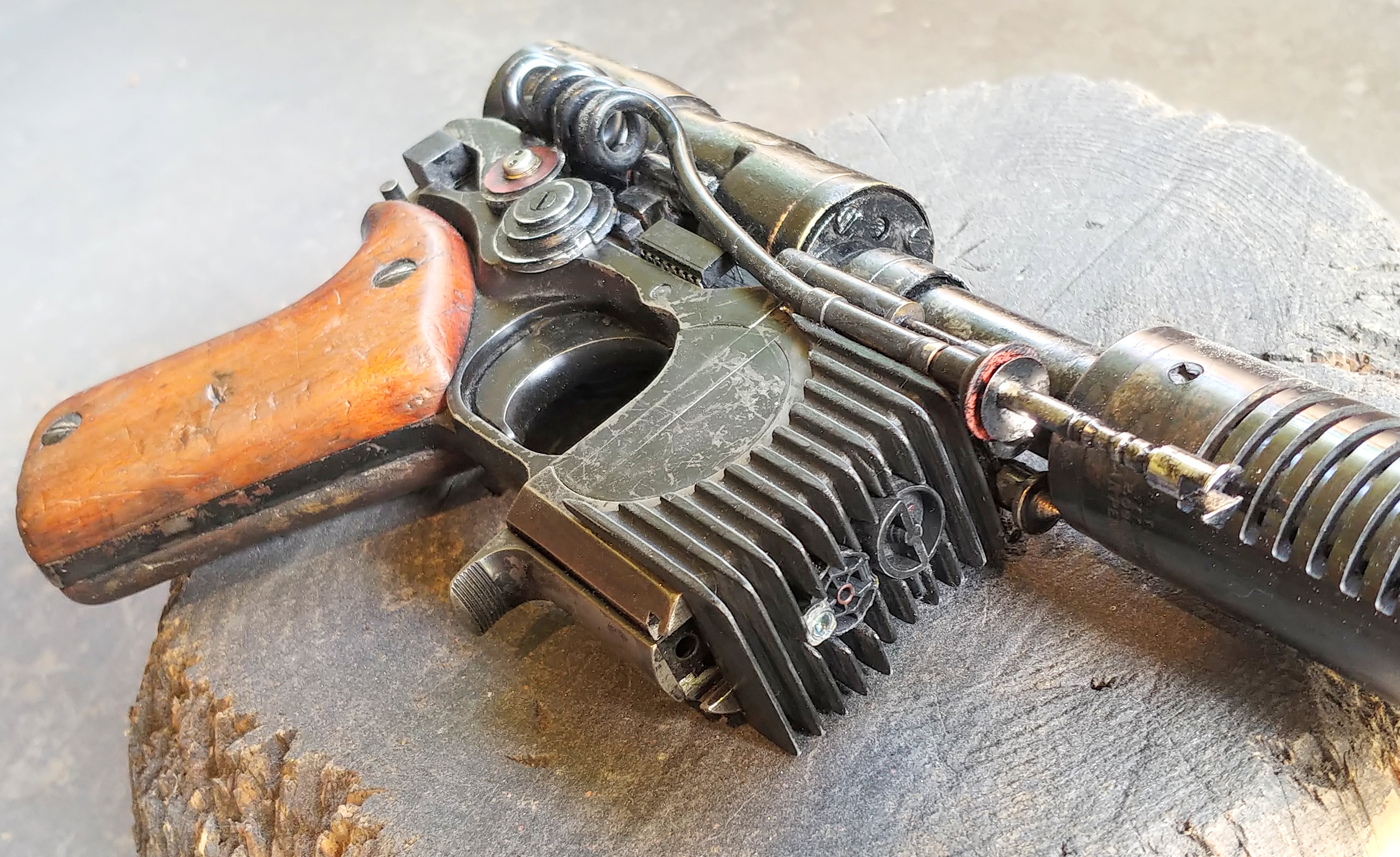

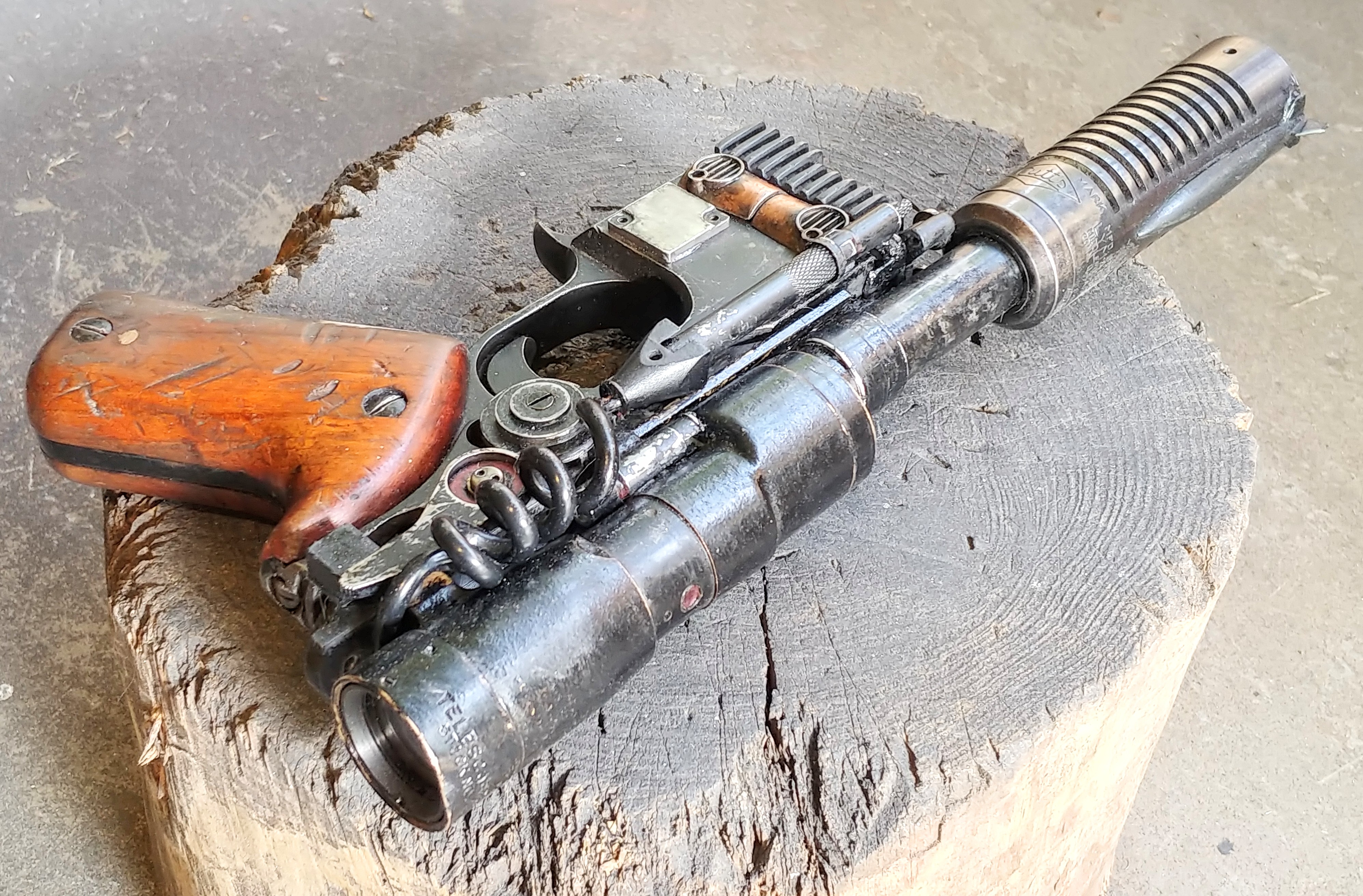

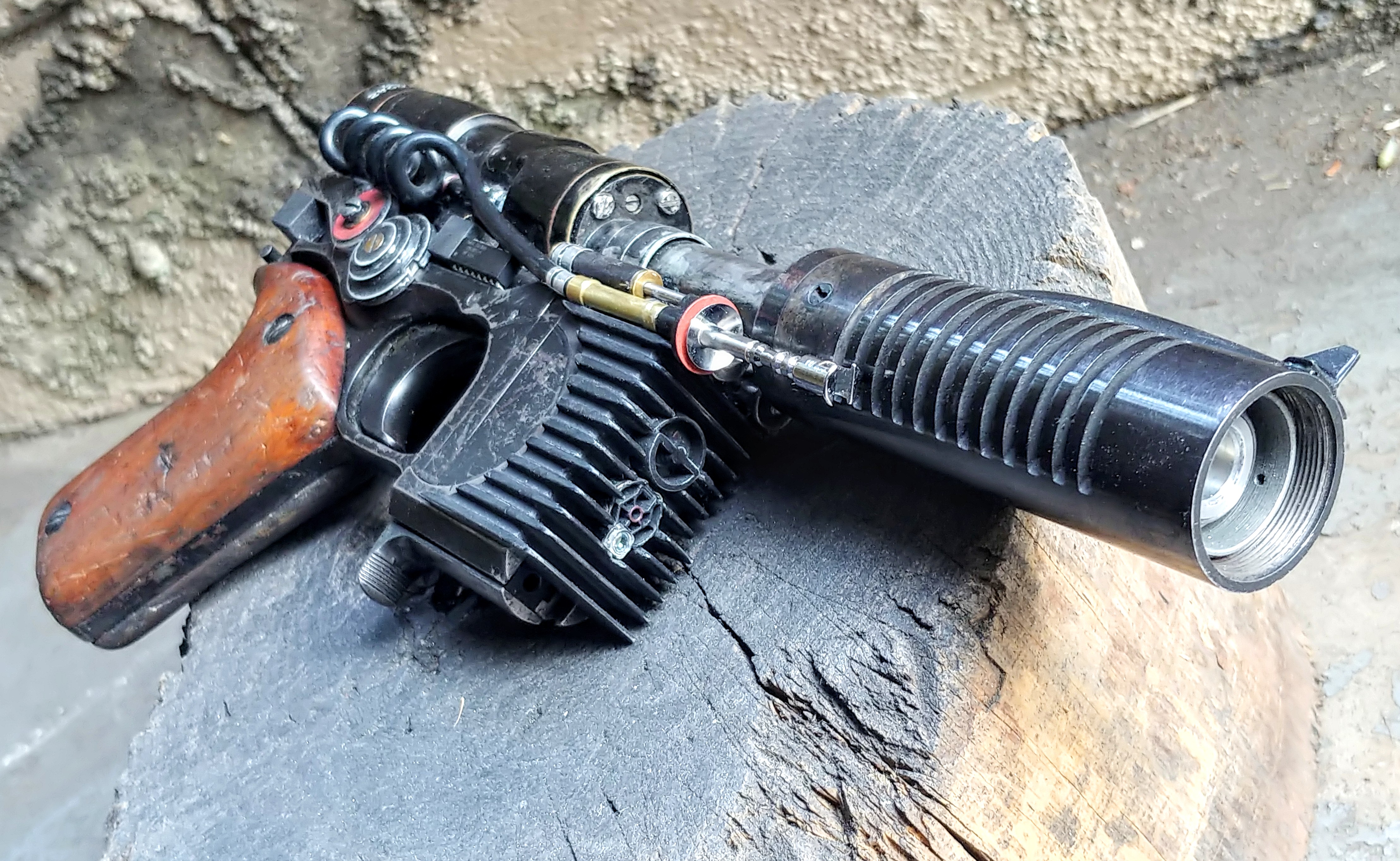

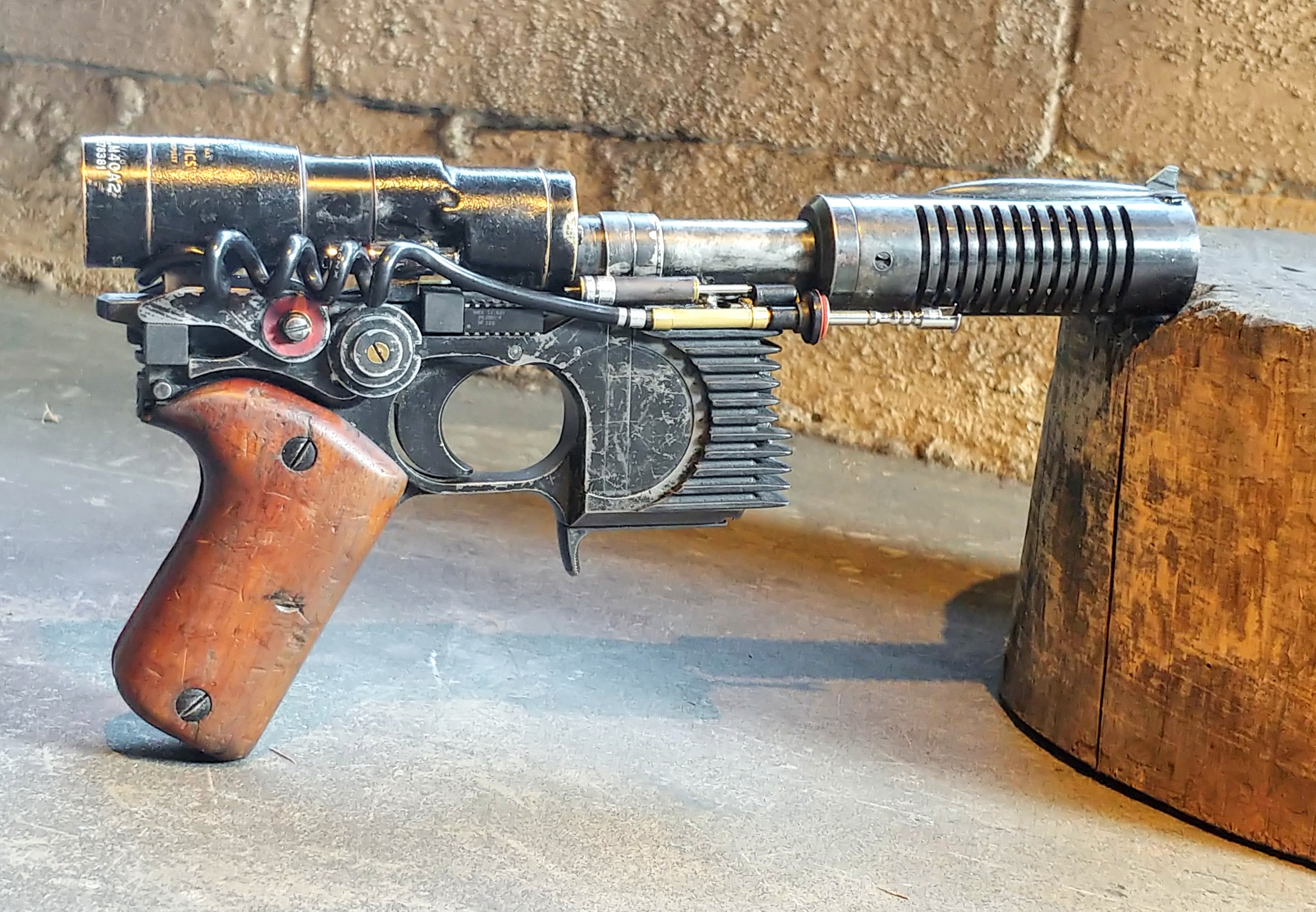

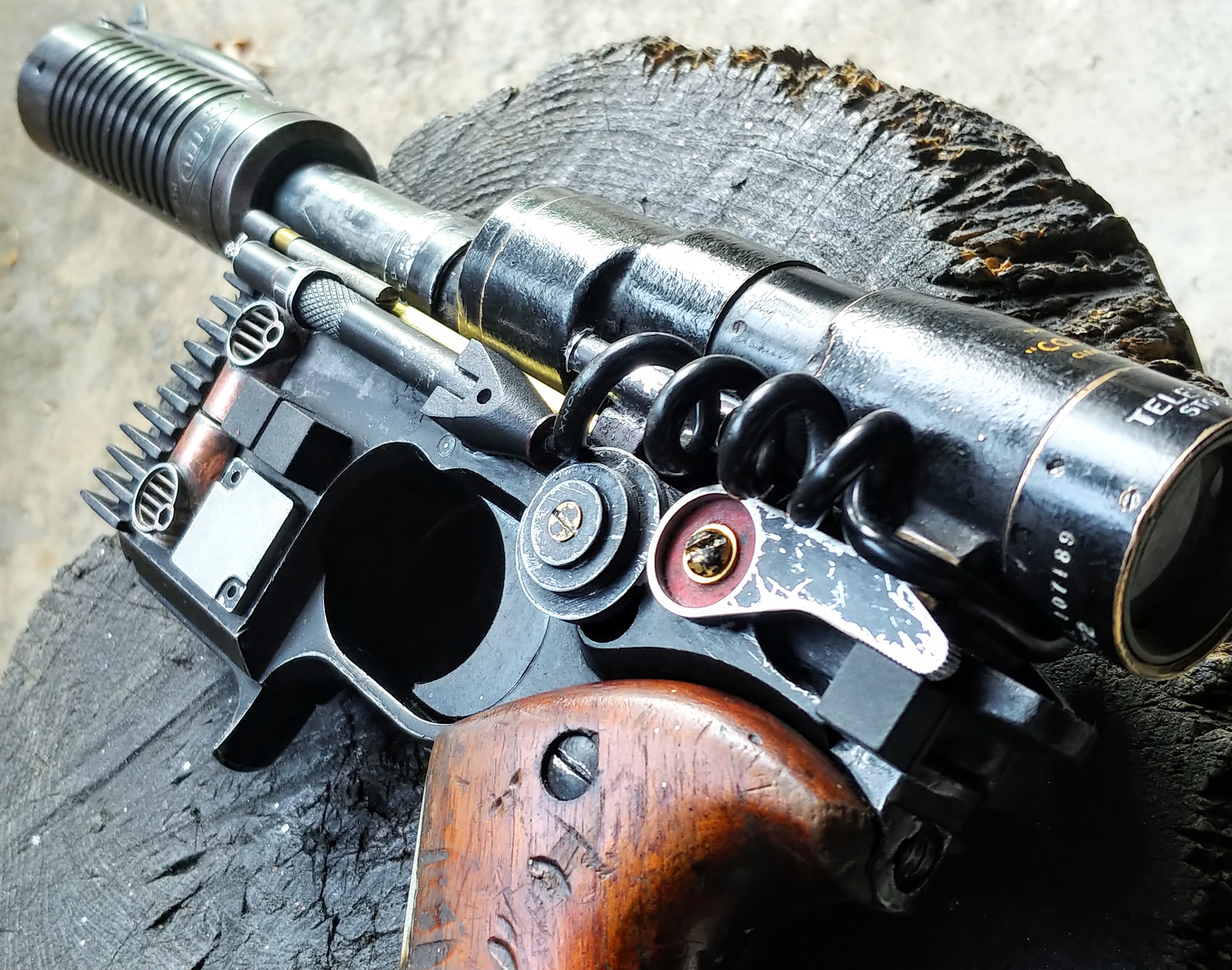

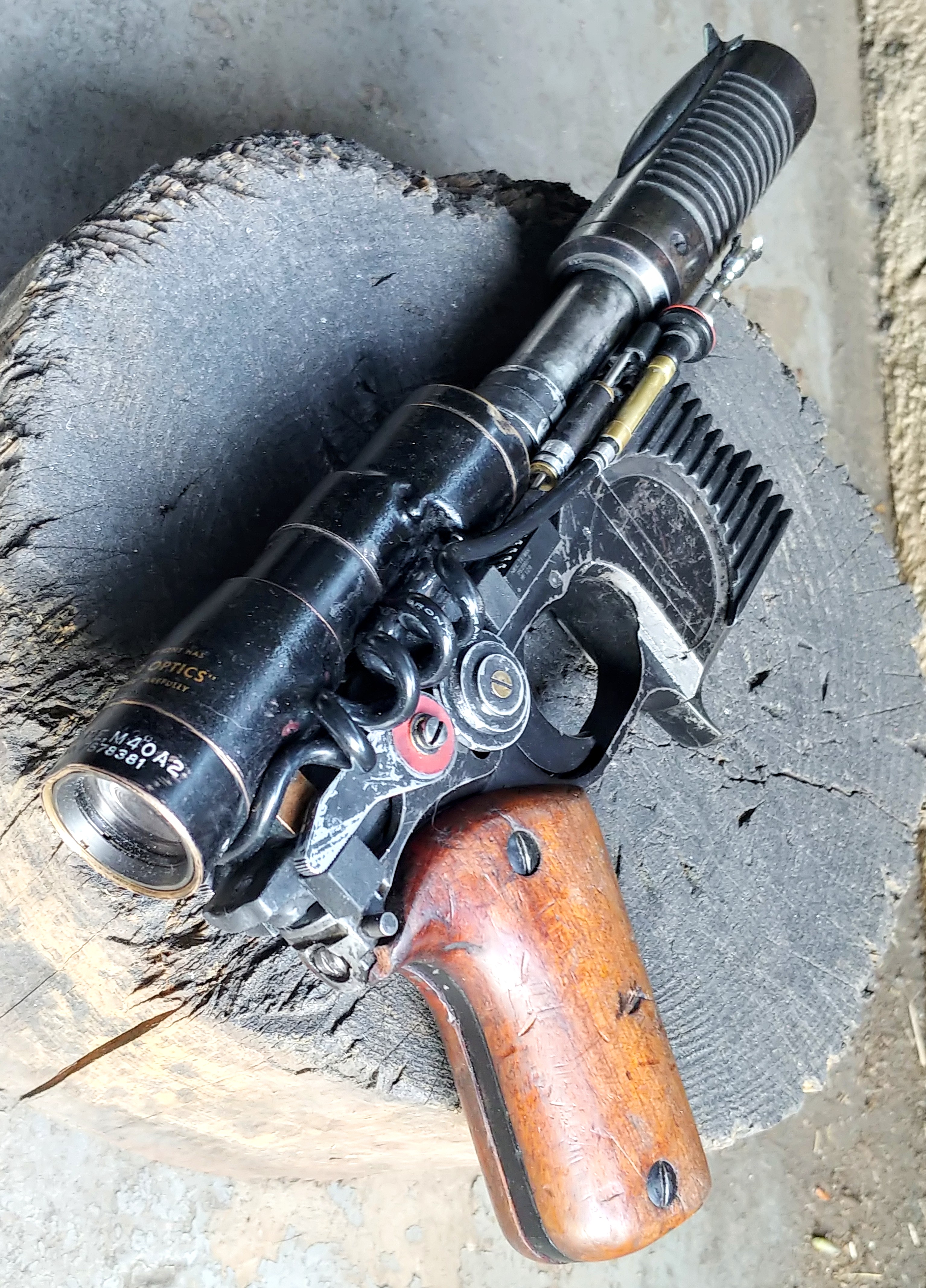

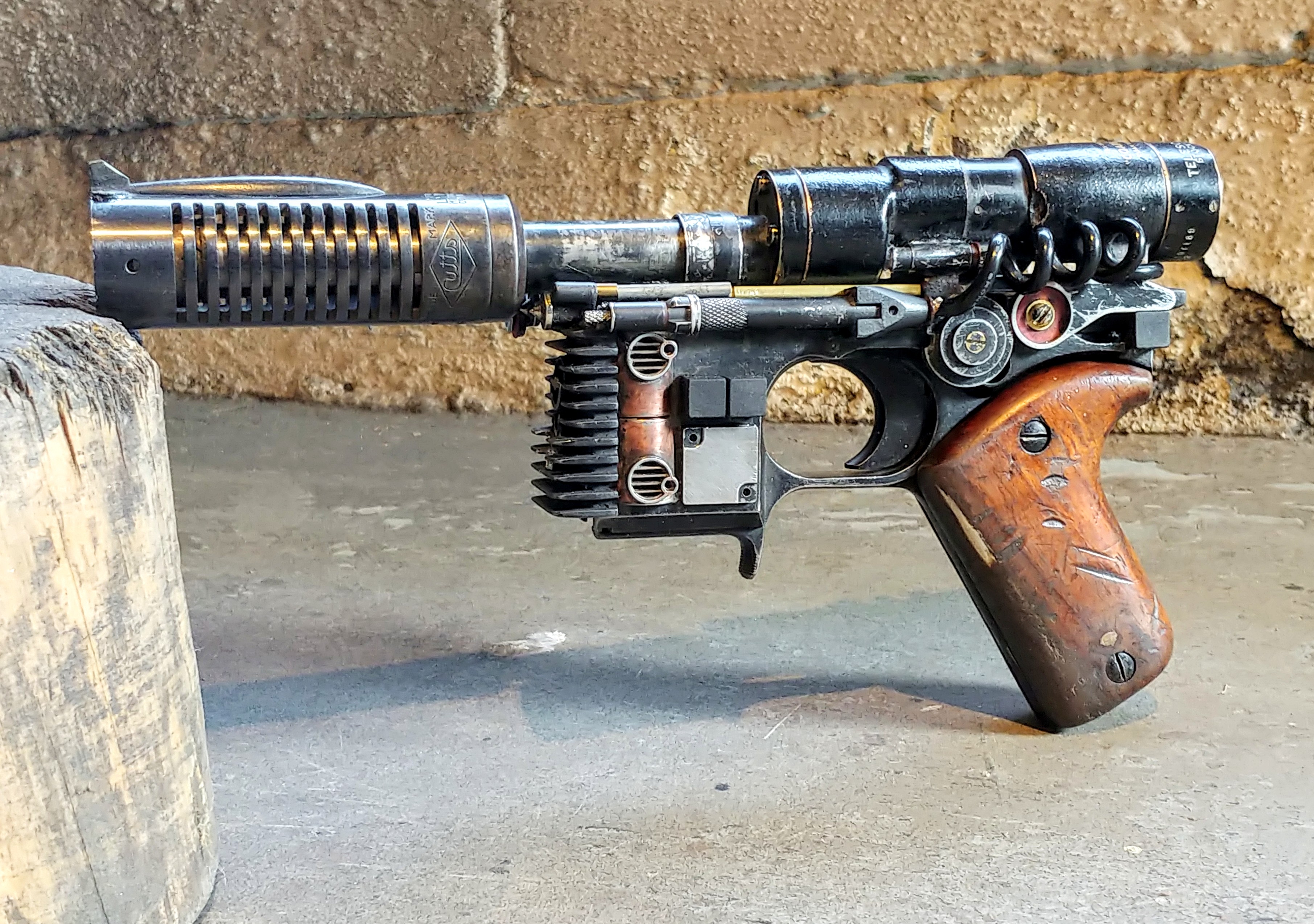

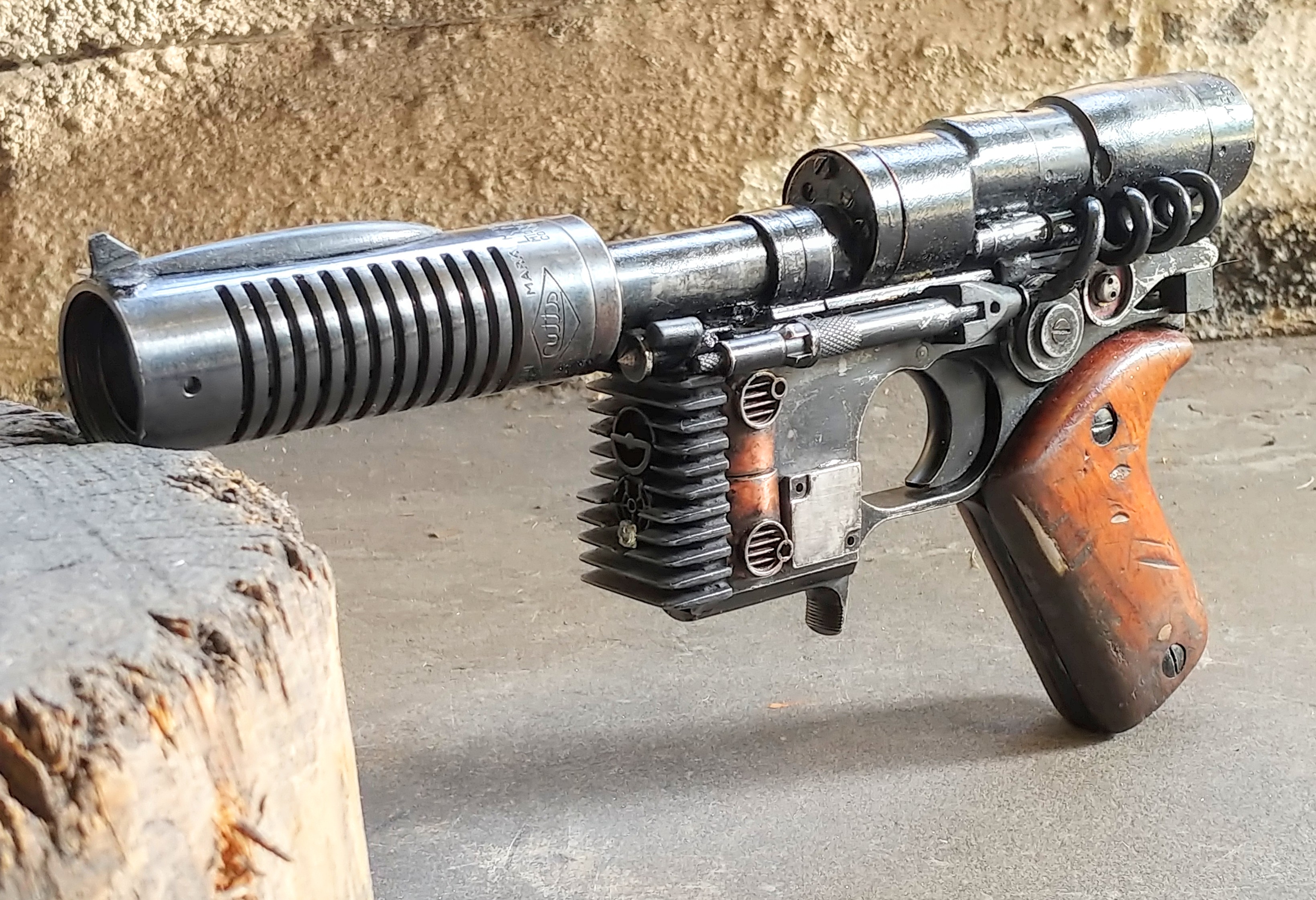

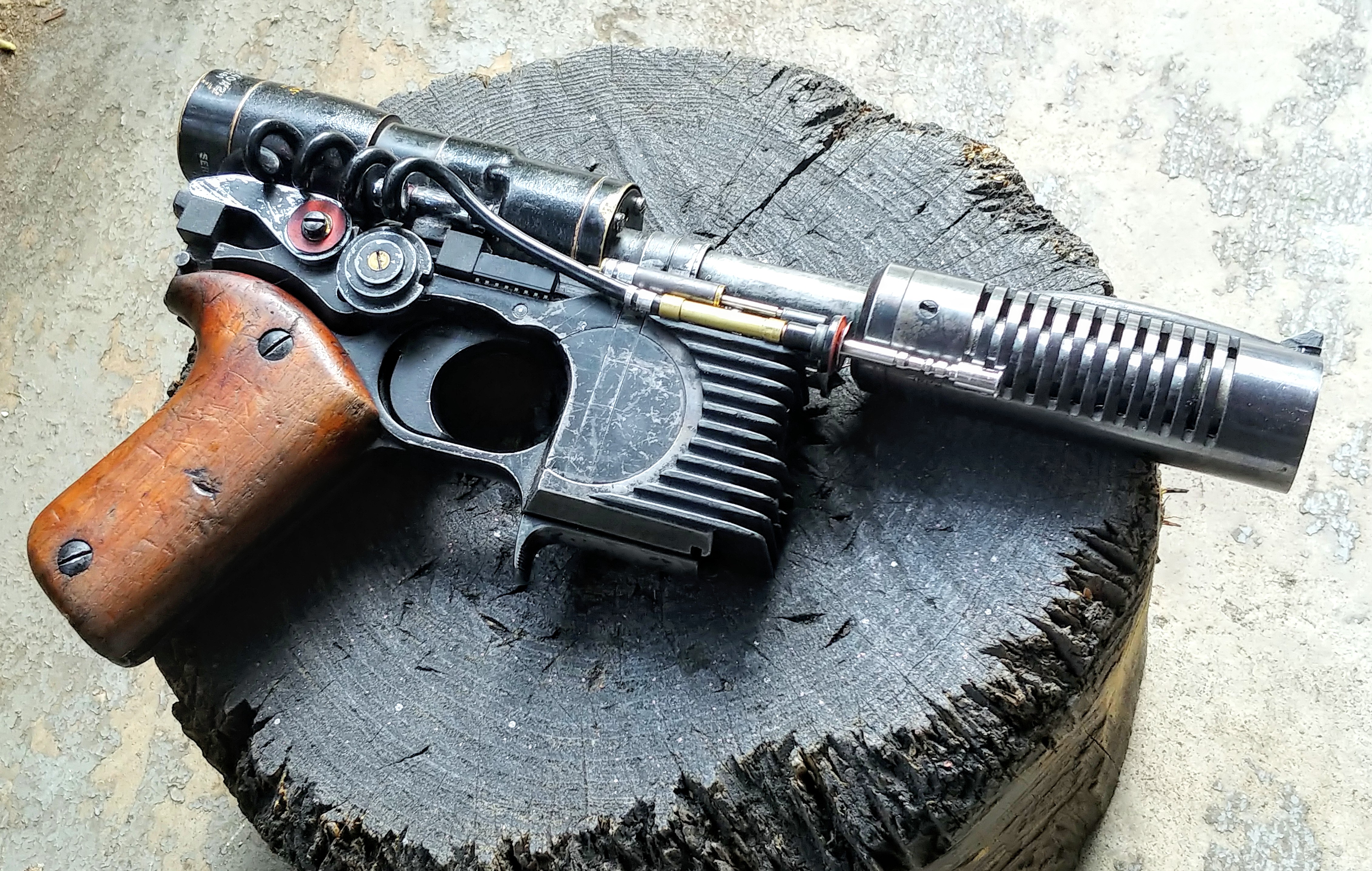

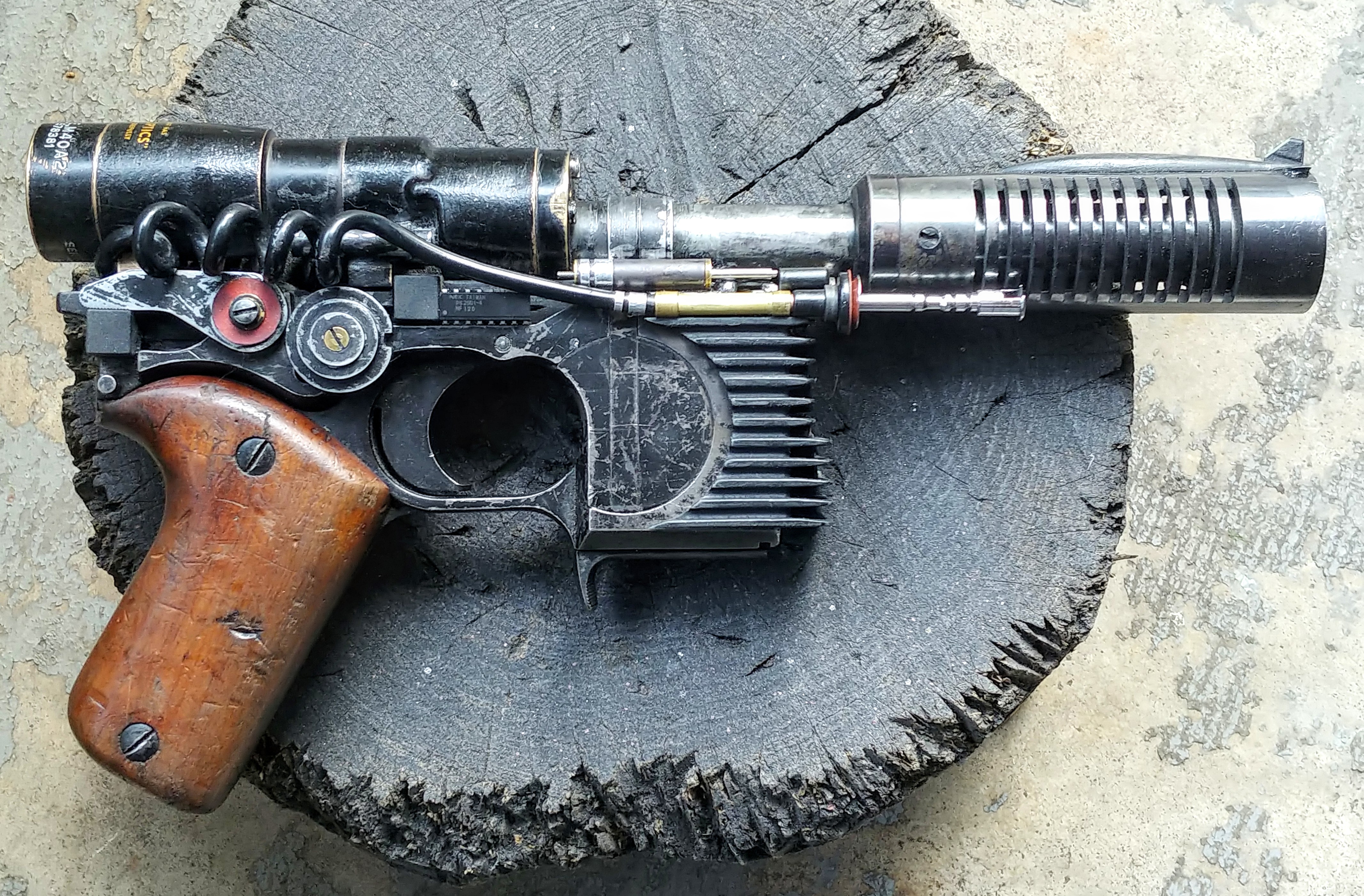

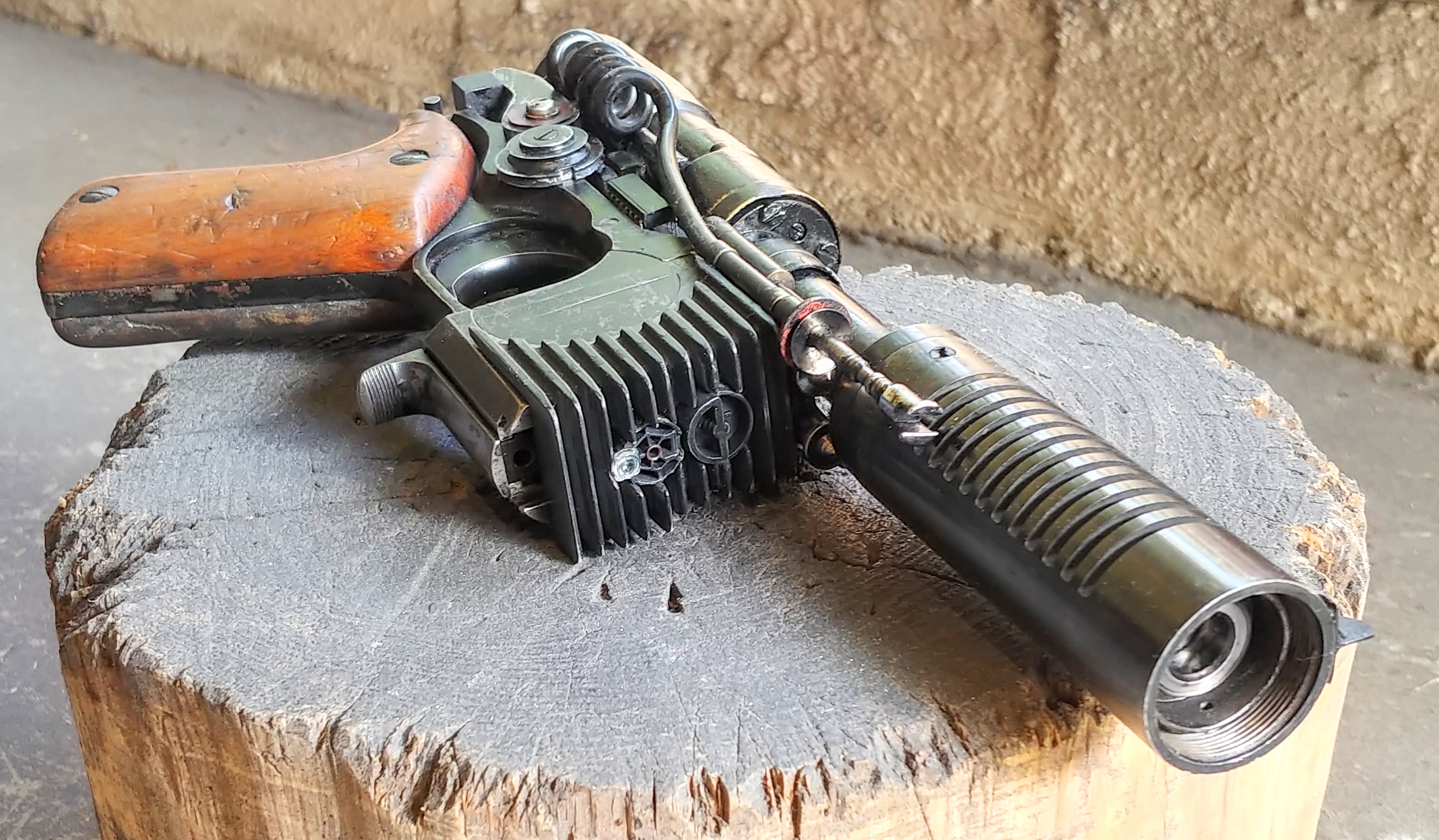

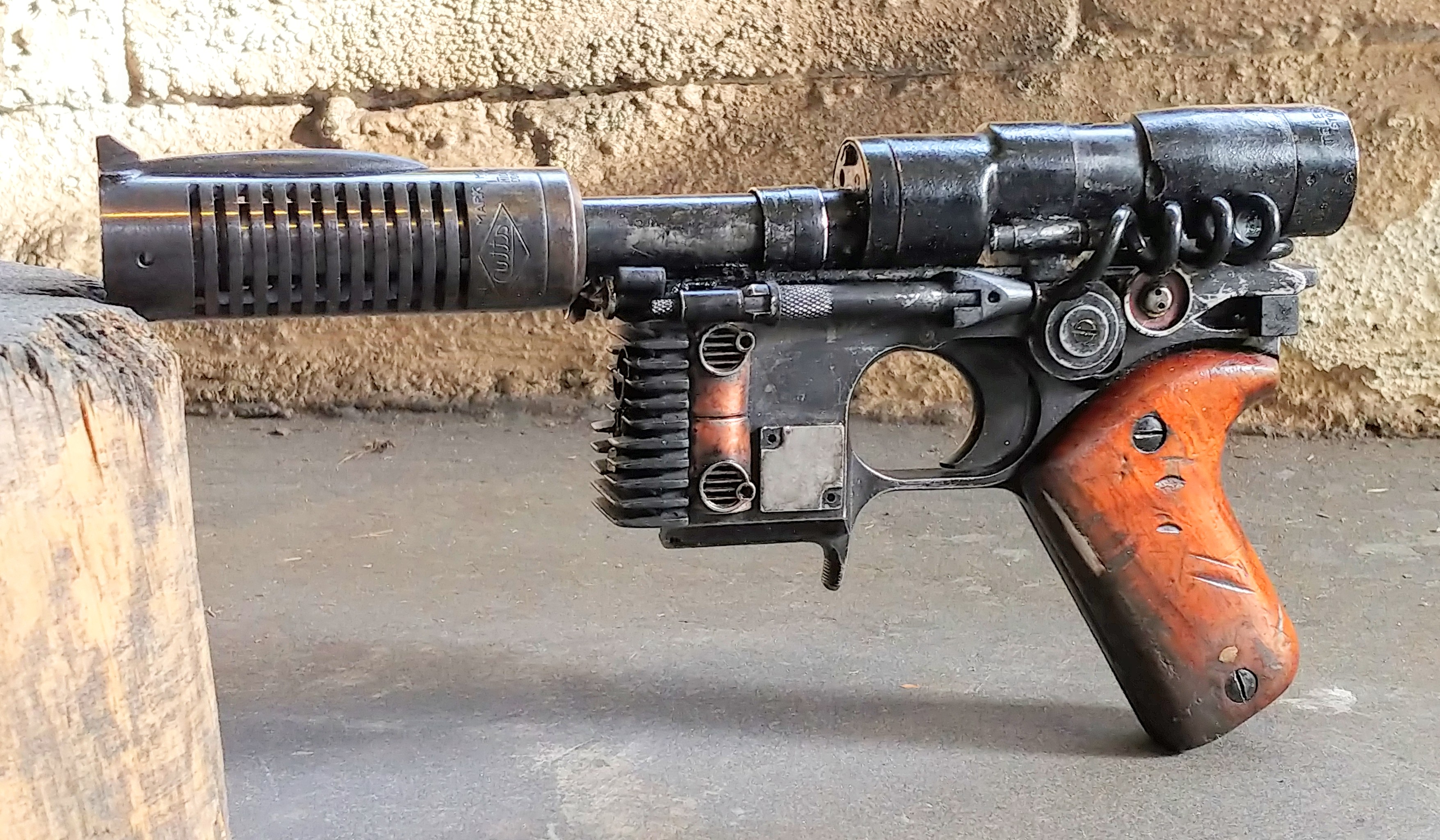

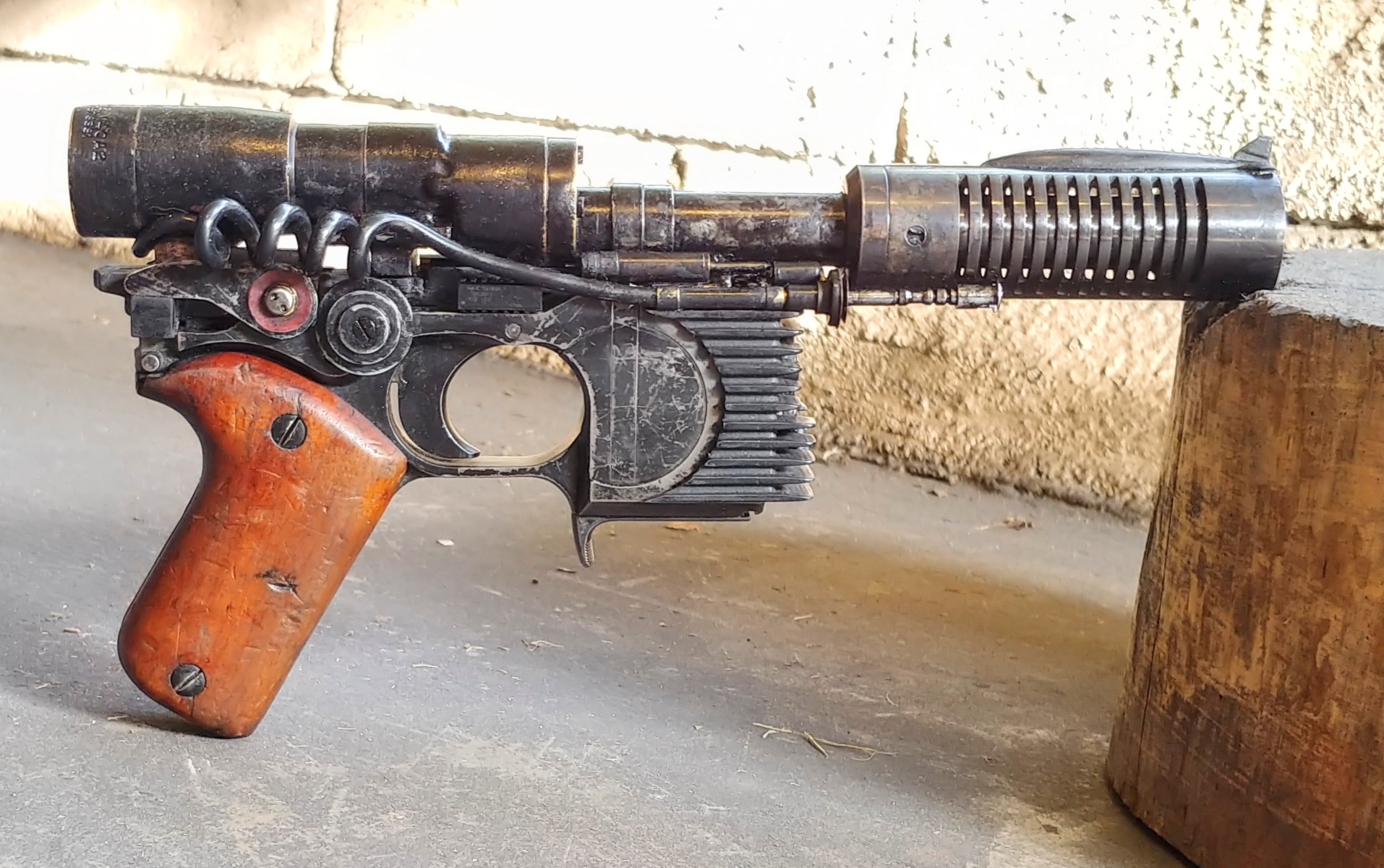

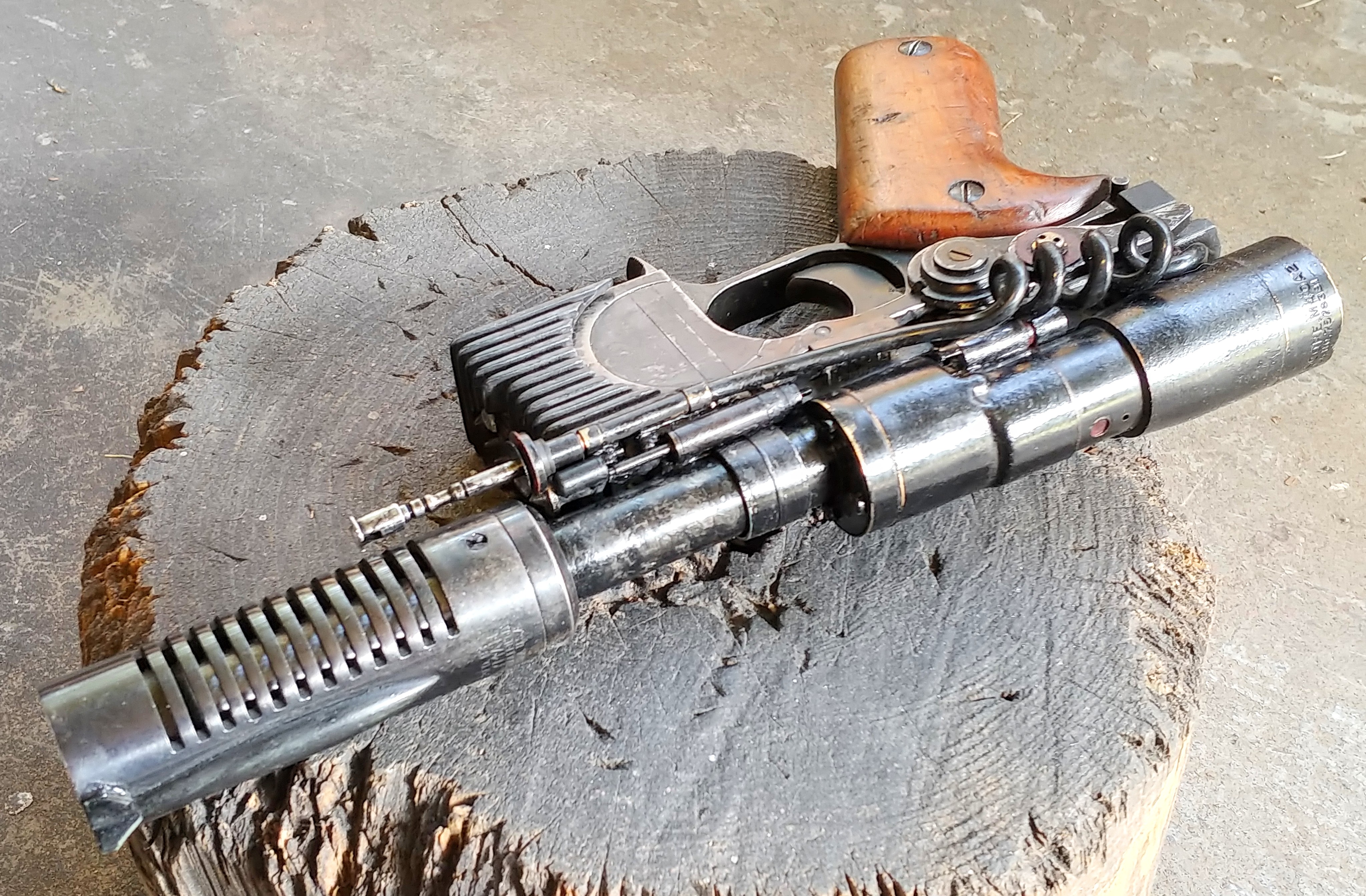

I should probably put these here, as well. Like Markus (Odiwan72) said, I may have gone over the top a bit with the greeblies, but, like Anubis guard said, it's better to go too far and explore more possibilities, and dial it back as needed, than to be too conservative and leave options undiscovered!

I definitely plan to paint some of the brass parts to tone it down a bit.


AnubisGuard

Sr Member

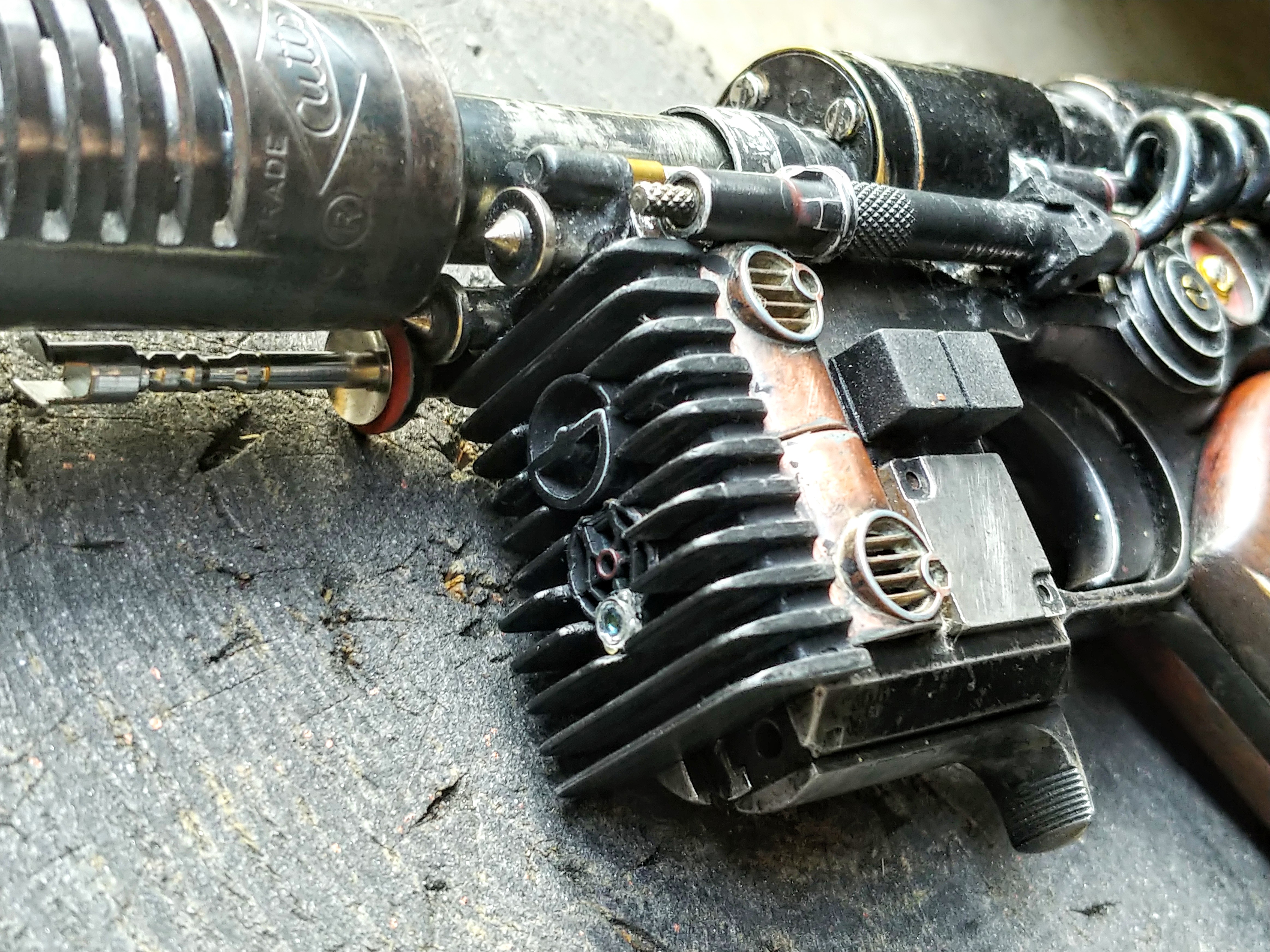

Personally, I'd pull off the rubber furniture bumpers and the metal disks covering where the safety used to be.

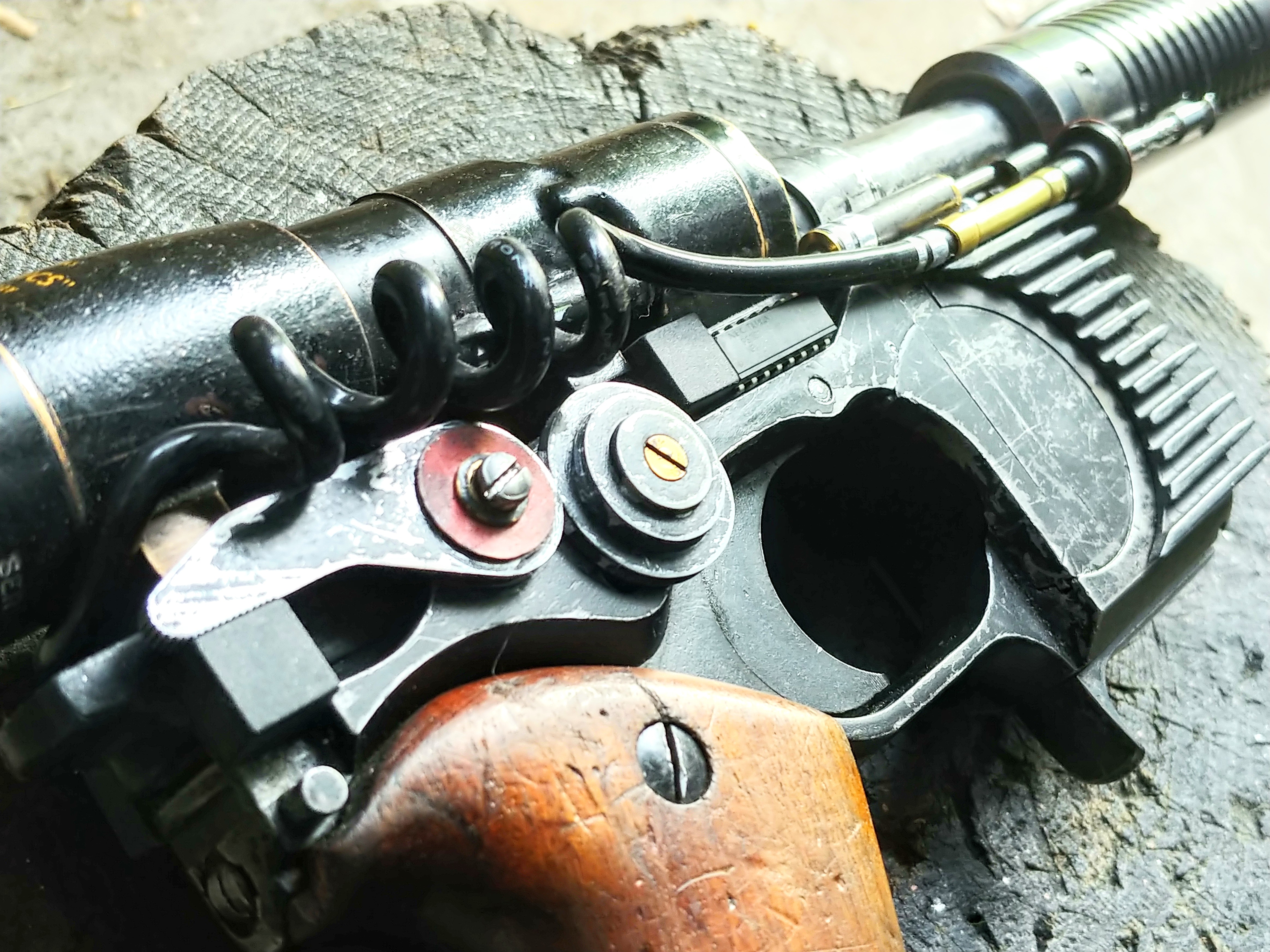

The cable is an unusual choice that really works. Whatever you do, keep that and pull the rest of it back until the whole thing works.


Dann

Master Member
RPF PREMIUM MEMBER
Yes, the bumpers will be the first thing to go.

Not sure about the pulleys, just yet. We'll see what happens!

I do appreciate the feedback and the suggestions!!


OdiWan72

Master Member
RPF PREMIUM MEMBER
I really like the pulley discs, The grill is excellent!!!

It‘s just all these small rods and stuff below the barrel, that‘s a tad too much imho.
Those square bumpers are an ode to the Rexim based Stormtrooper blaster...very nice thought, but these don‘t fit there somehow.

You really motivated me to proceed with my own custom blaster, that I had in a drawer for years. It‘s a DL variant, but I want it to look very old/ worn and oldschool. Haven‘t found the right scope setup for it yet. As a matter of fact, I am unsure, if I want to add a scope at all


AnubisGuard

Sr Member

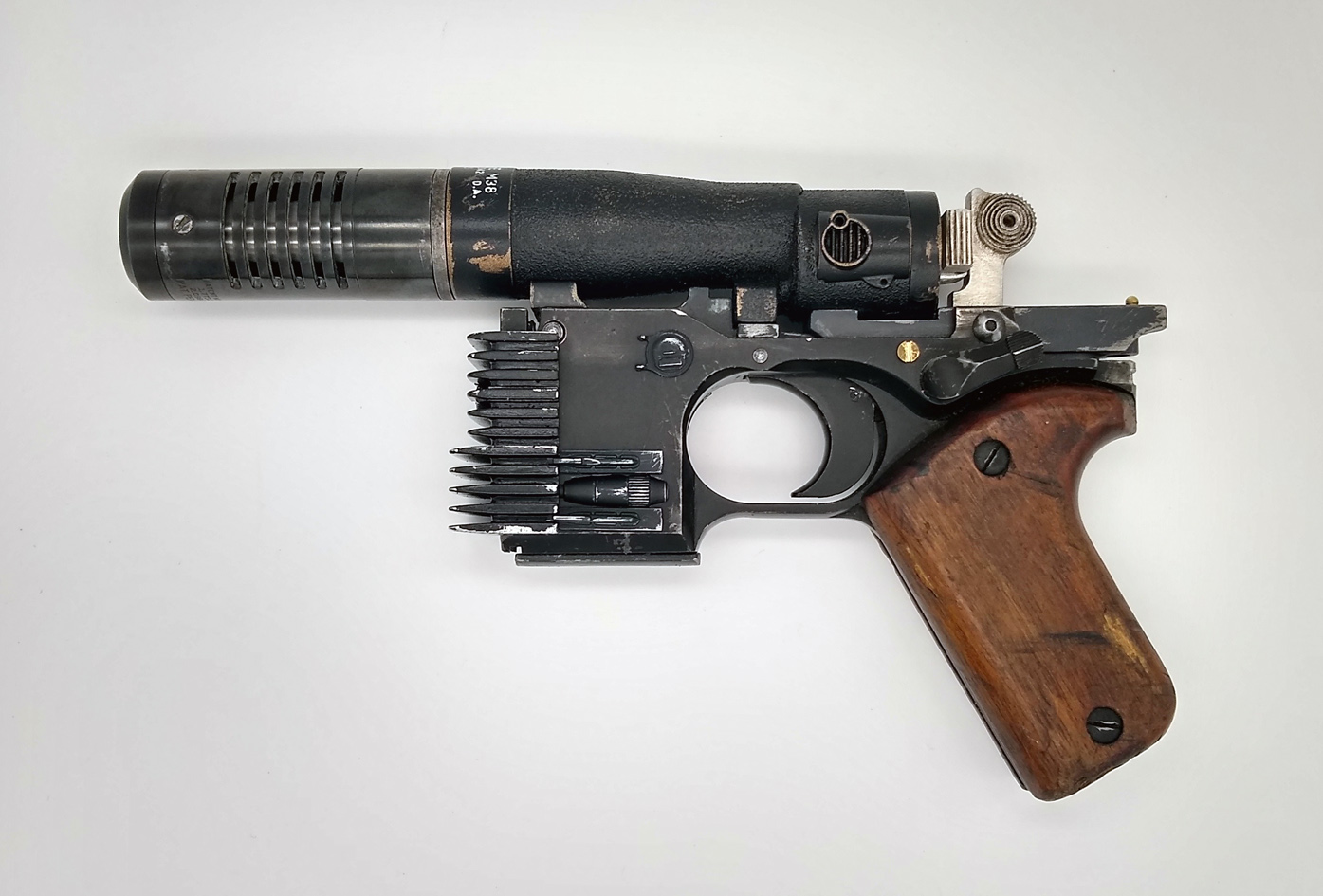

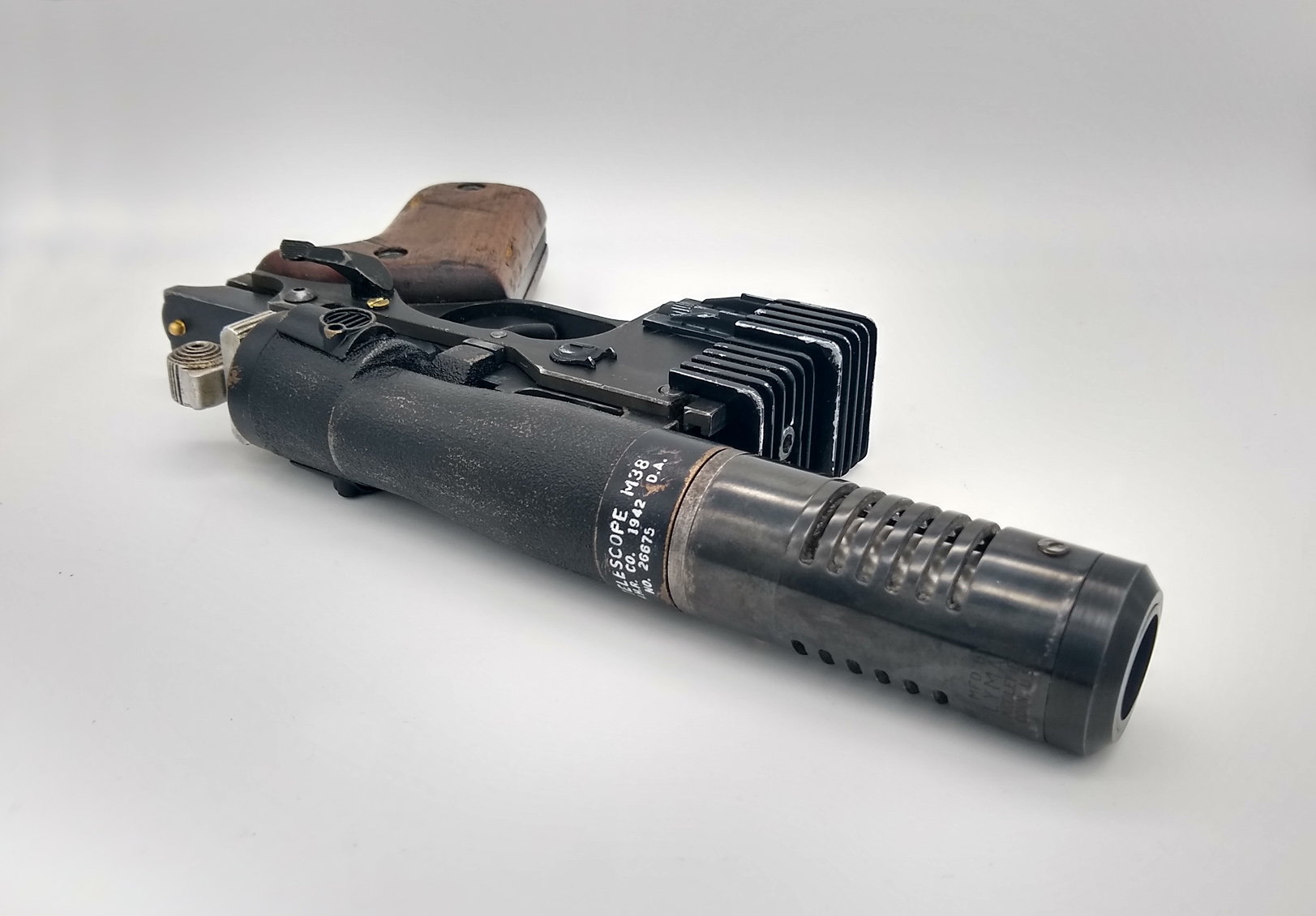

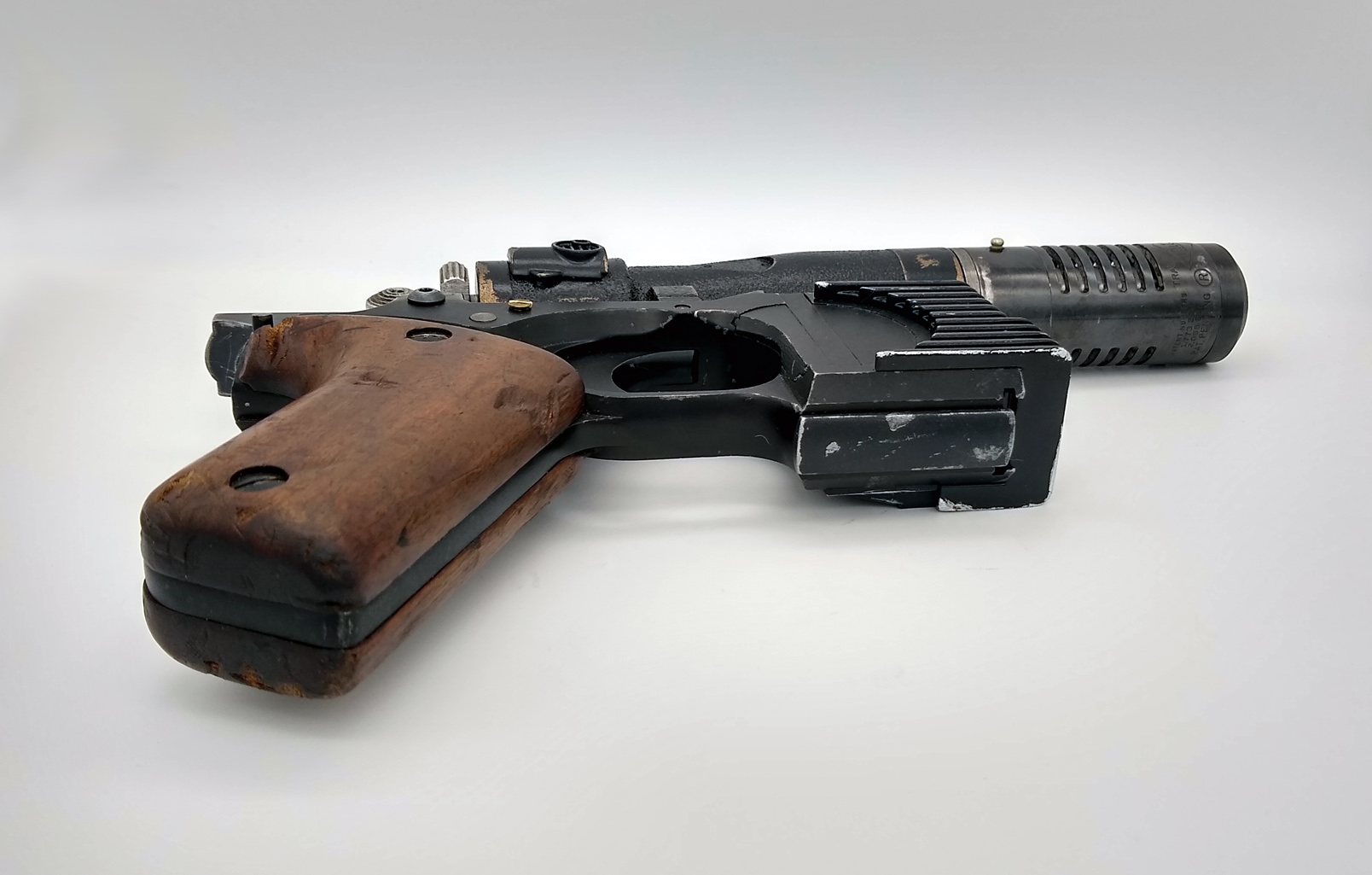

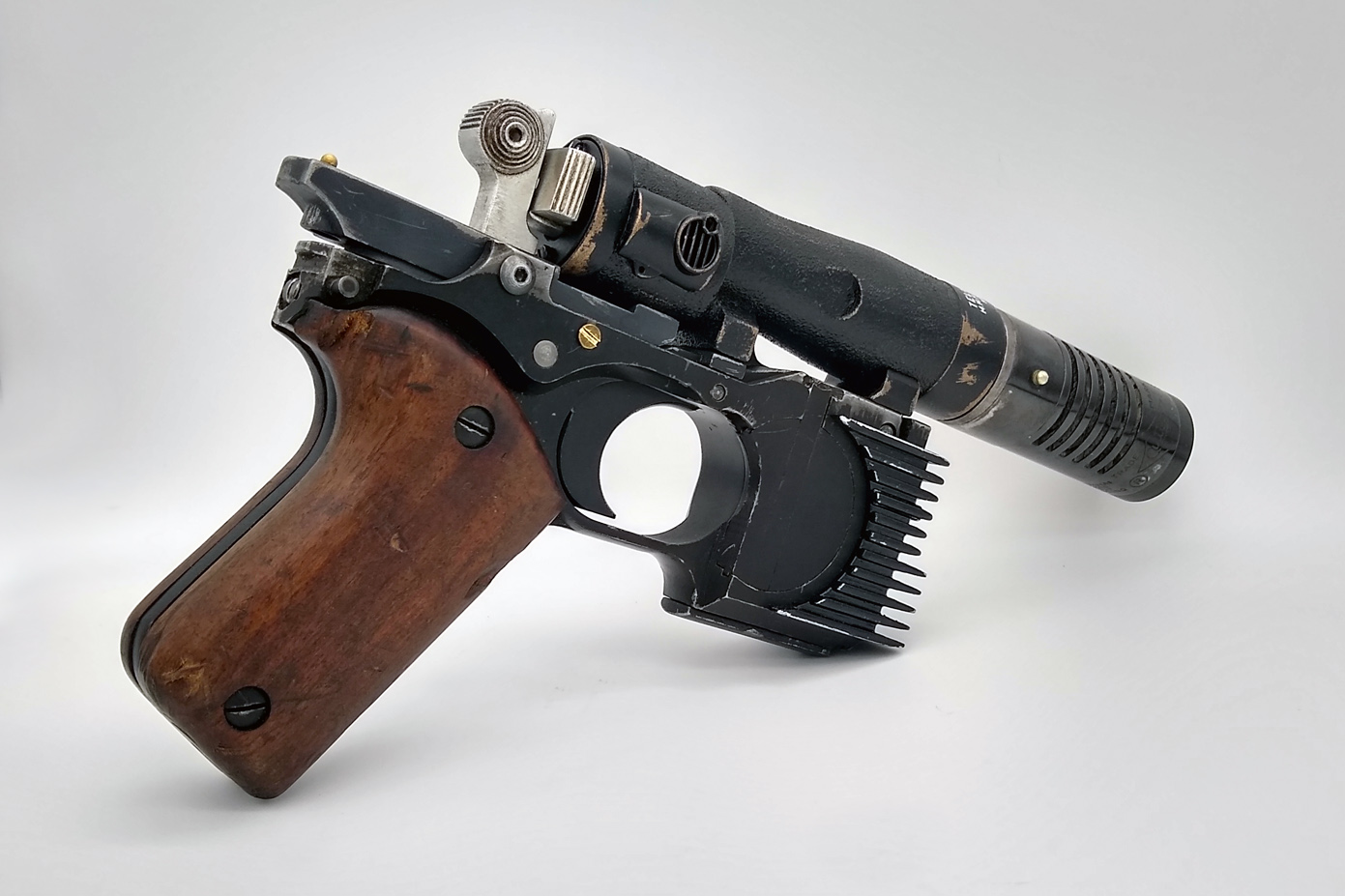

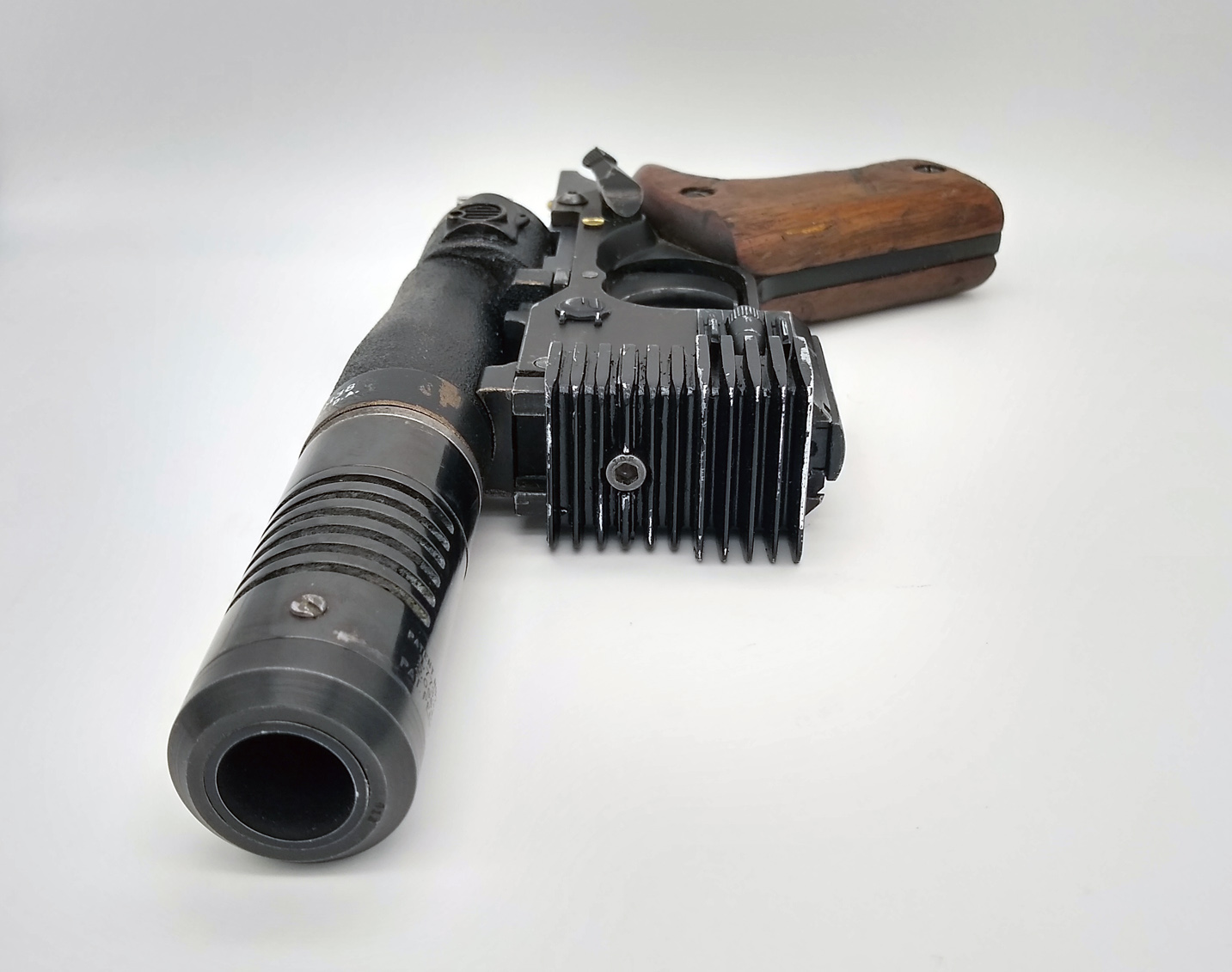

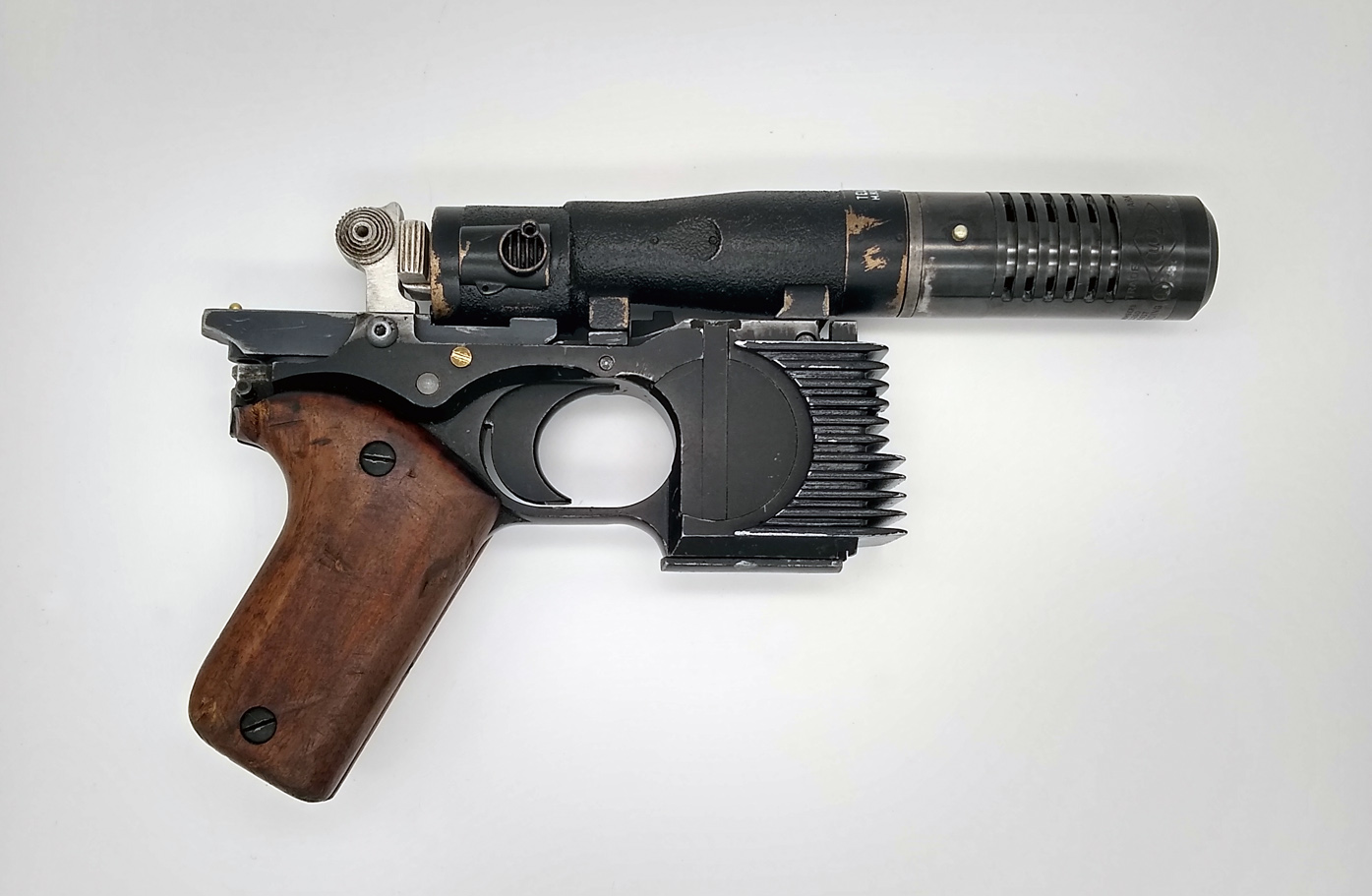

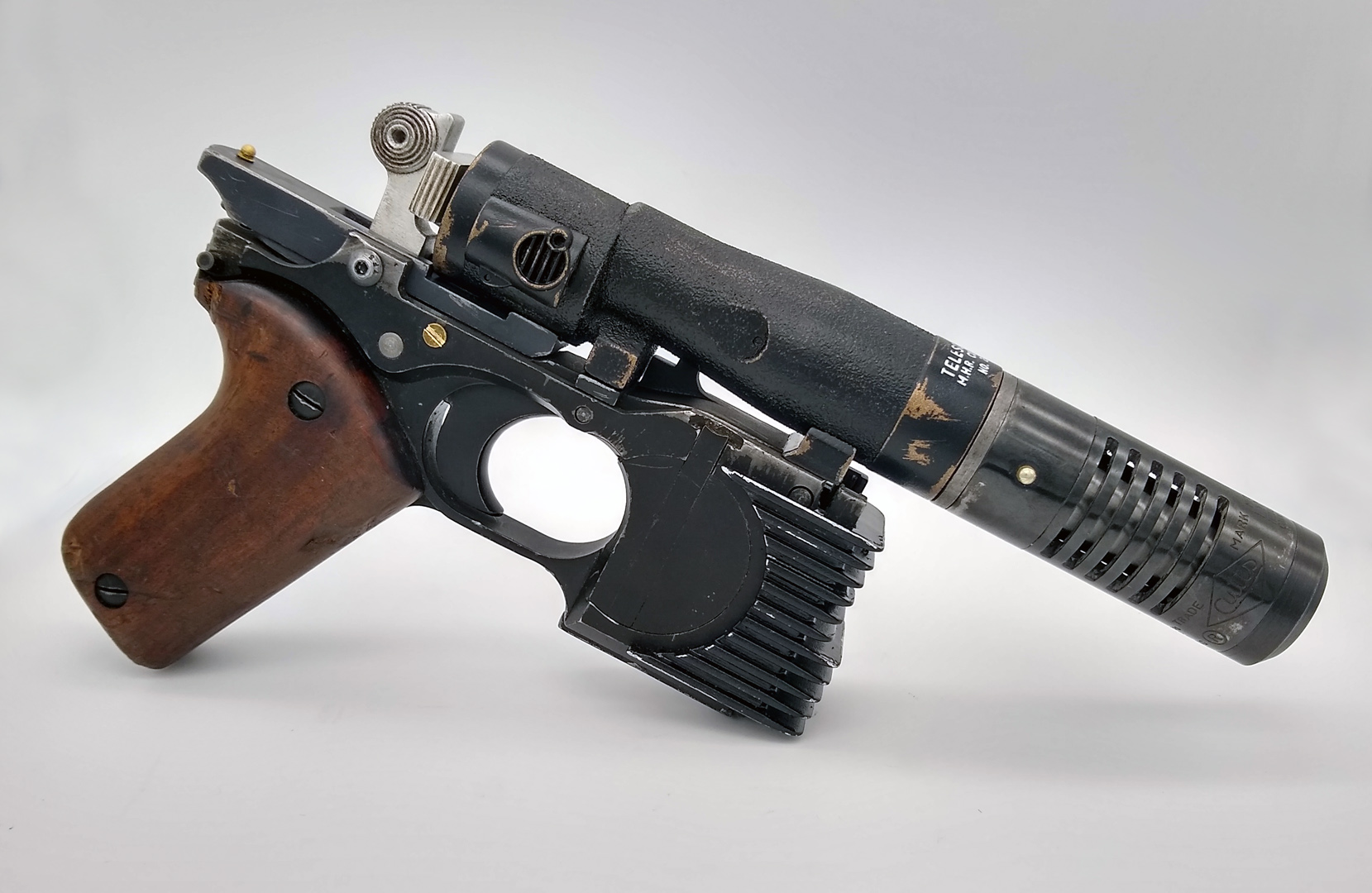

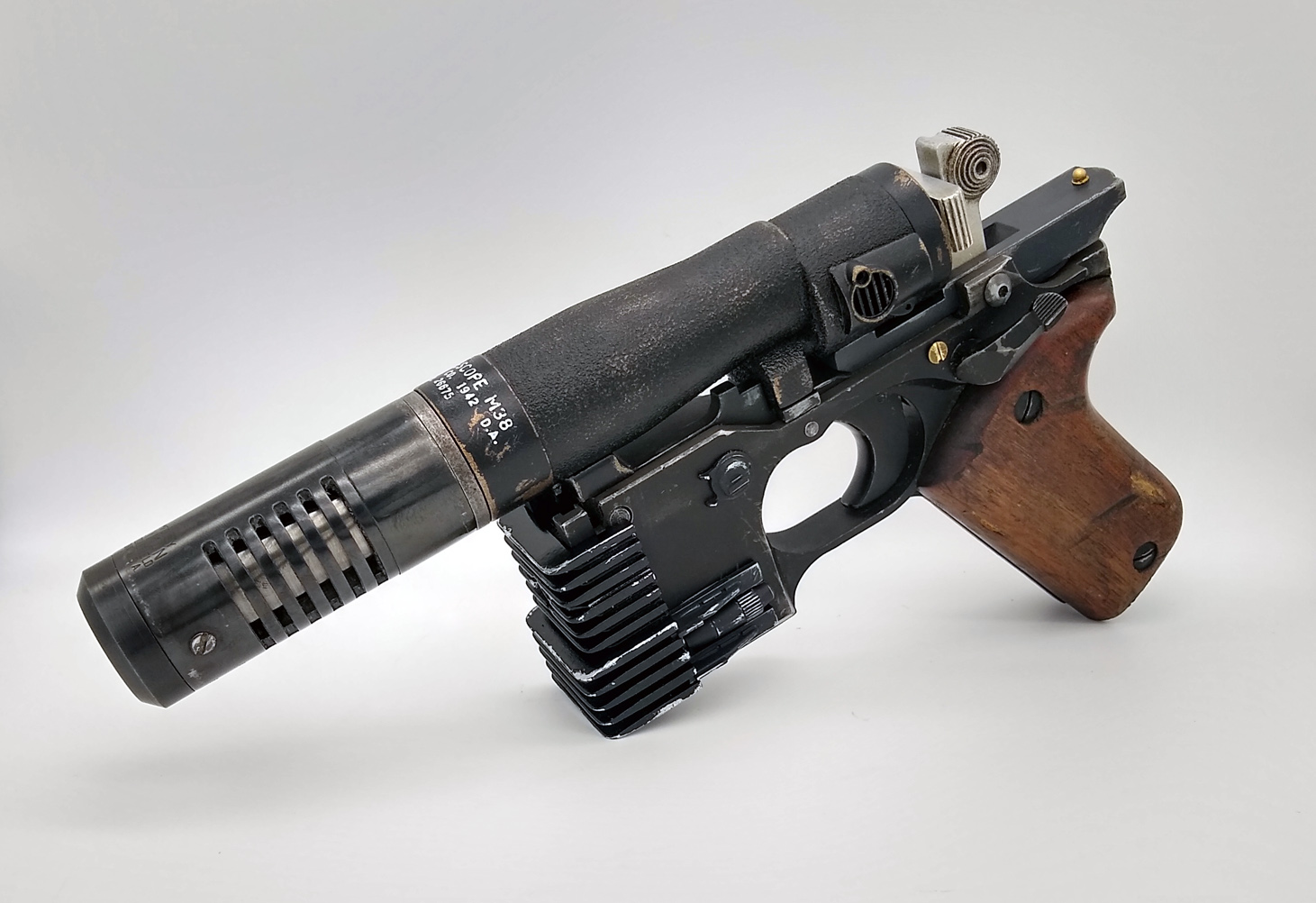

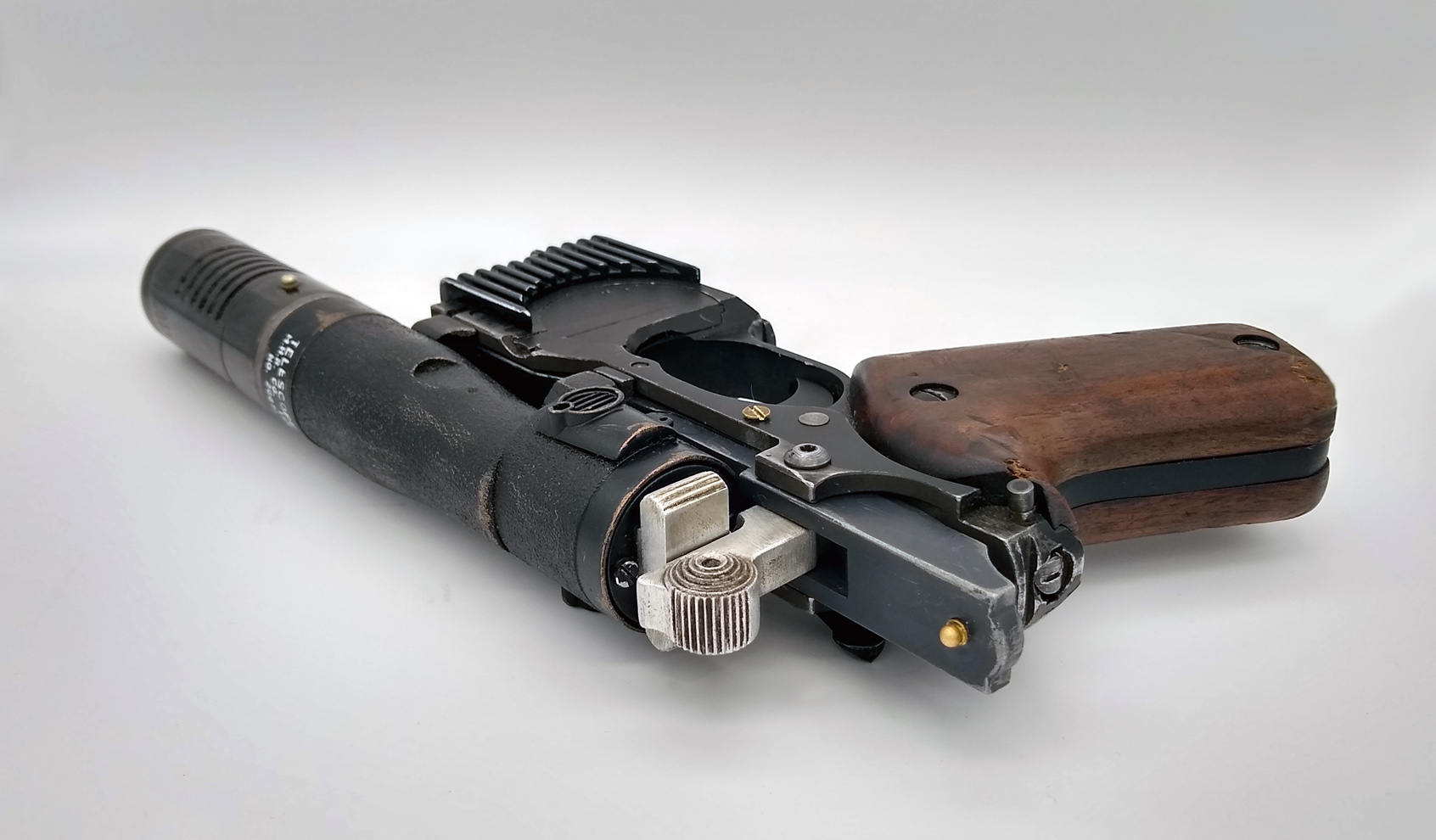

Happy belated Fourth everybody! I took some time off from fried chicken and movies yesterday to finish this guy up. This was my first time doing weathering by chipping away a top coat to reveal a metallic undercoat. There's some problems here and there, but for the most part I'm pleased with how it turned out. It's definitely a technique I'll be using in the future.

I recently bought a 16x16x16 photo studio, and this seemed like a good project to break it in.



















eethan

Sr Member
RPF PREMIUM MEMBER
Dann, I cannot get over this blaster, I really think this is the most beautifull, most star wars like custom blaster I ever saw. Congrats again for the great job you did. (y)


AnubisGuard

Sr Member
Any chance to get my hands on a grip-frame?

I love your builds gentlemen!!!
Search for FN-D BAR grip, FN-D trigger, FN model D grip, FN-D parts kit, or some variations thereupon. That's how I found mine.

I've been trying unsuccessfully to nab a second one though, so your best bet may be at a gun show.


Dann

Master Member
RPF PREMIUM MEMBER
They are seriously rare, but they can be found. Luckily I scored mine years ago for really cheap!

I hope everyone who is looking finds one!


OdiWan72

Master Member
RPF PREMIUM MEMBER
Search for FN-D BAR grip, FN-D trigger, FN model D grip, FN-D parts kit, or some variations thereupon. That's how I found mine.

I've been trying unsuccessfully to nab a second one though, so your best bet may be at a gun show.
... nothing here in Germany :(
