Rocketeer jetpack dimensions

[gnolivos]

MOVED TO ITS OWN THREAD:

Rocketeer “Veepy” Jetpack 3D printable kit project.

Hello All. My project got to the point where I think it's time for its own thread. This will be known as the “Veepy Jetpack model” from now on.... ***PROJECT COMPLETED*** Objective: Create a highly detailed and accurate 3D printable file for The Cirrus X3 Jetpack. Requirements I set...

www.therpf.com

-----------------


Hi all,

As some of you know I have a thread going on with my rocketeer jetpack
Build.

Parallel project, I am putting together a highly detailed and precise 3D model of the jetpack.

I am looking for anyone who has an original mold prop (such as the MIM / Acme kit) and wants to help out providing several key dimensions, so I can produce an accurate model

IF YOU CAN HELP ME please get in touch with me. I have a diagram with key dimensions ready to be filled in!

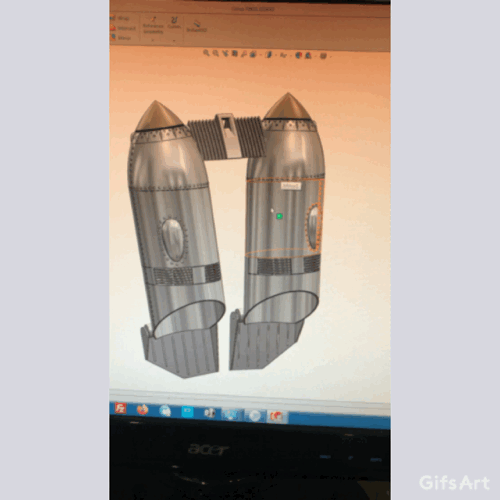

Here is some progress of the 3D model in my 3D Design environment...



[QCWolf]

This is great! Thanks for taking this on!



[joberg]

I think that some accurate measurements were already here on the RPF



[gnolivos]

Ive seen both versions out there. They are unfortunately not complete (or accurate )



[gnolivos]

No one? [emoji20]
EvilRocketeer ?



[BingoMaru]

Bump for measurements?



[gnolivos]

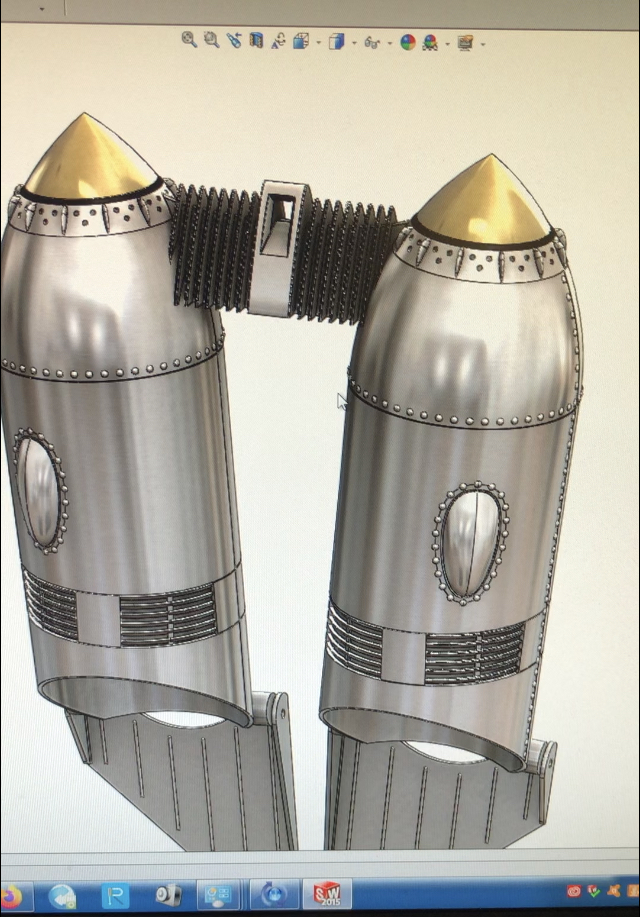

Tanks completed with every detail. Also radiator.

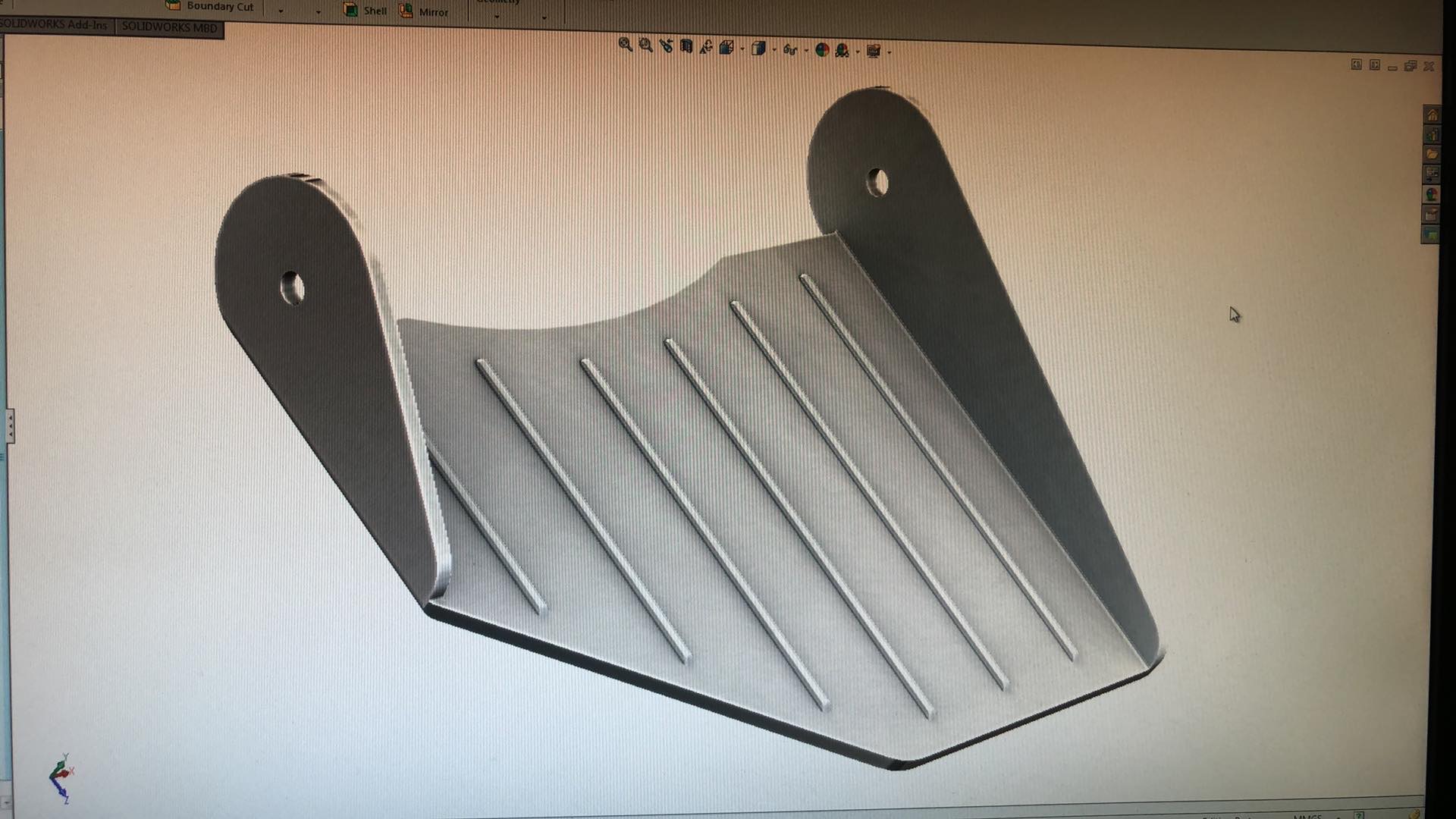

Proper angle on the rivets. Rear accurate as well.

As soon as I get measurements I will proceed with the center hull. Until then I’m afraid this effort will remain on permanent hold.



[QCWolf]

Beautiful!



[gnolivos]

Update: a couple of VERY kind people pulled through and gave me all the dimensions needed. The tanks are updated and completed! They look slick. I will post pics soon. Next is the center hull using this CAD technique:



[joberg]

Great news and beautiful renderings!



[gnolivos]

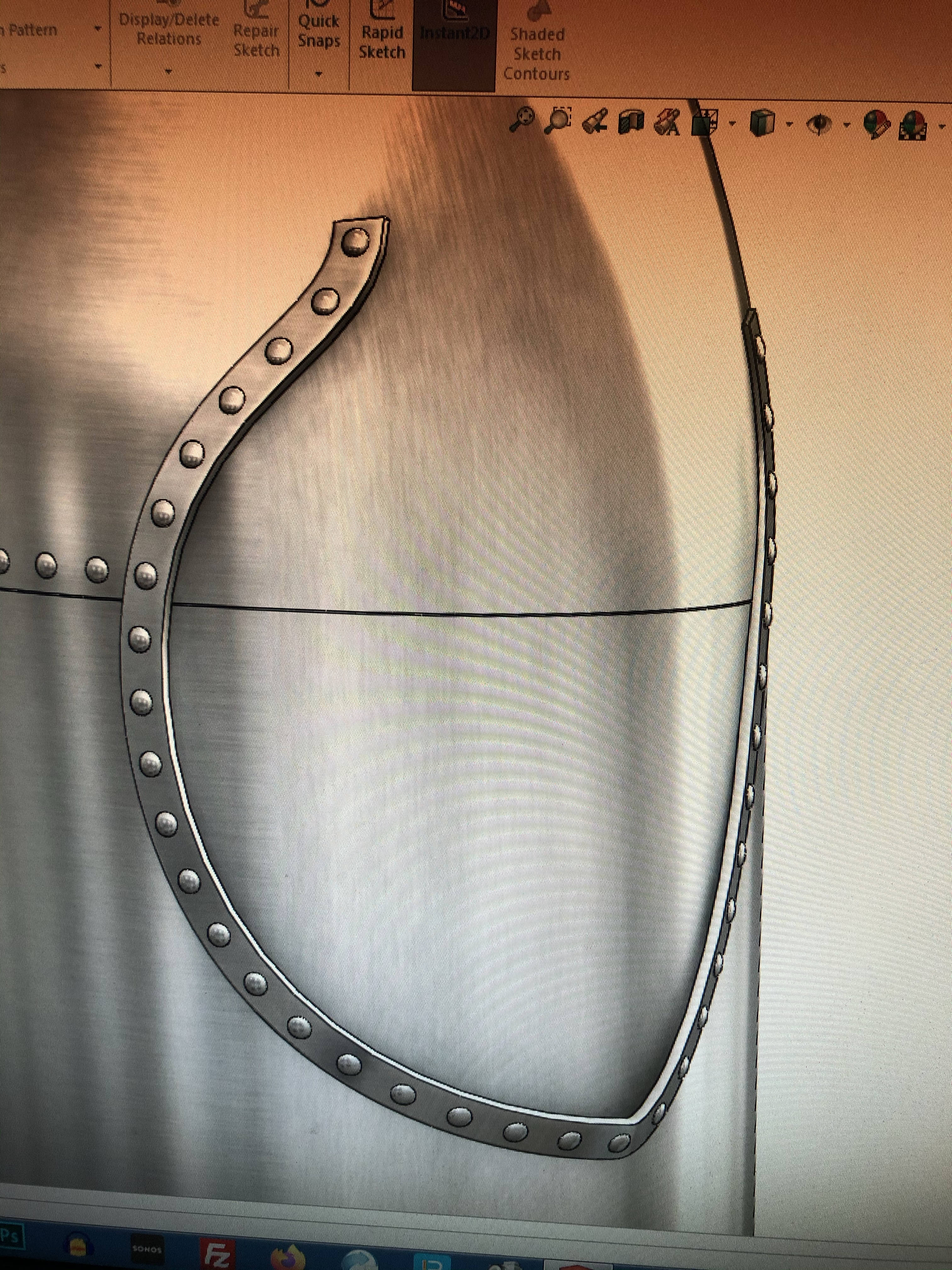

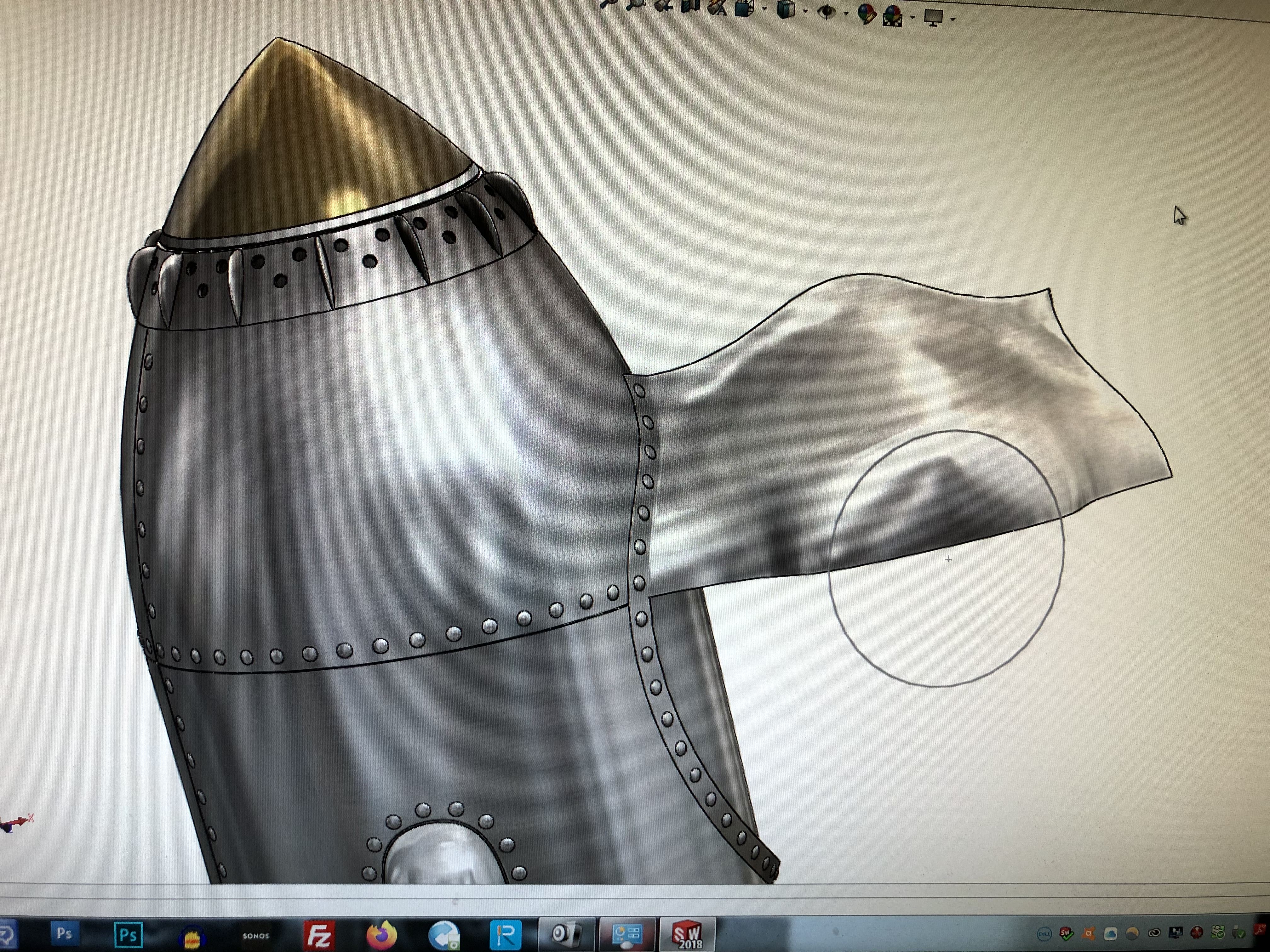

Hull in progress now!

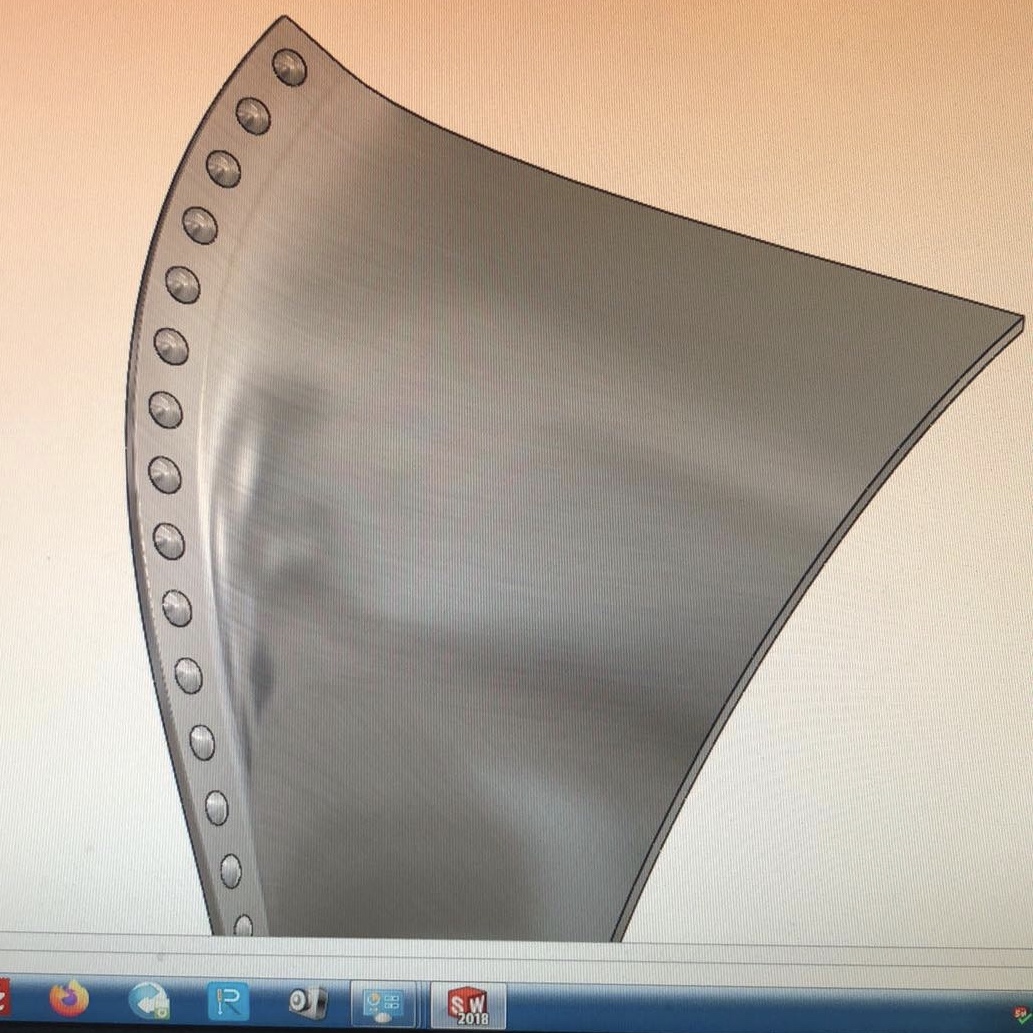

This flange was a bitch to complete!!!



[QCWolf]

This looks fantastic!



[gnolivos]

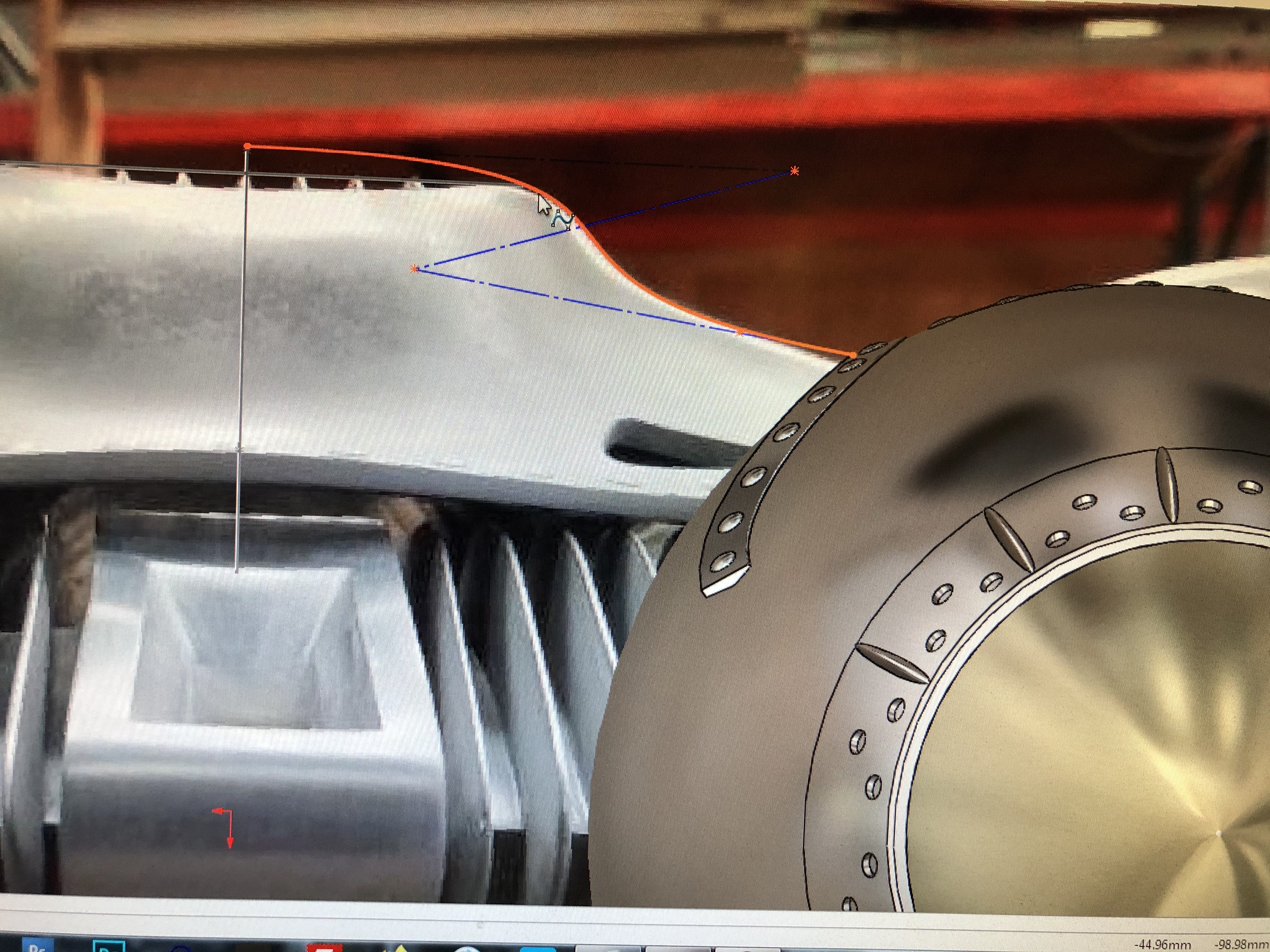

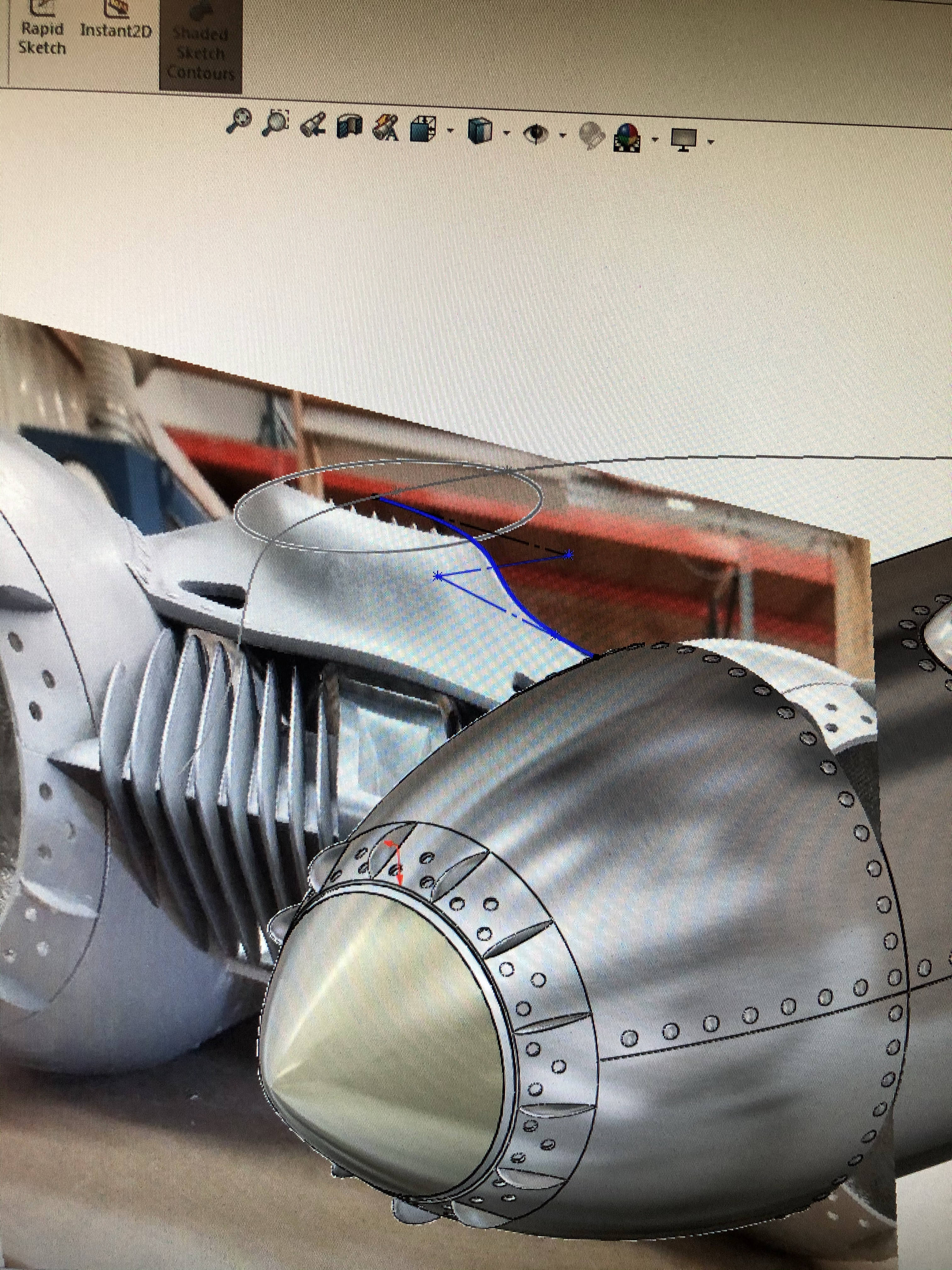

Started 3D tracing the hull.
If anyone has more profile pictures l, or can obtain them contact me.

A side view is needed.
And a bottom up.



[gnolivos]



[circa1964]

Did you have good reference for the half moon notch outs in the flaps?



[gnolivos]

Hi Circa!

I got the dimensions. Do you know if the little notch pictured is intentional and accurate? Or was that just the MIM kit?

Also I am in need of some more reference pics if you are willing to help. Thanks!!



[gnolivos]

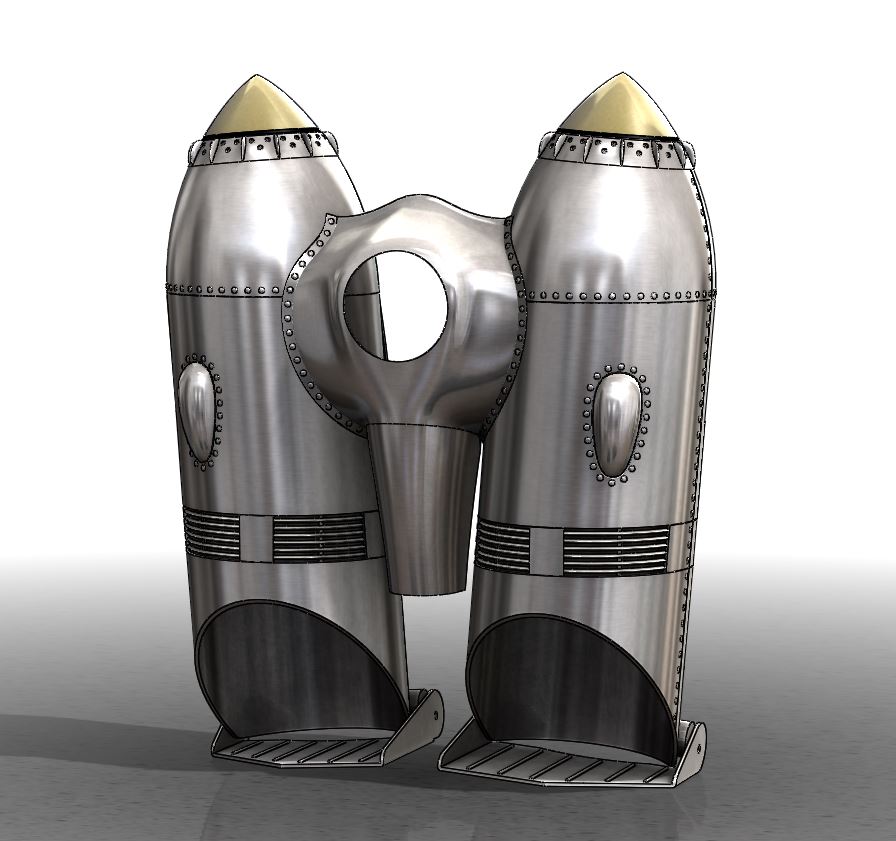

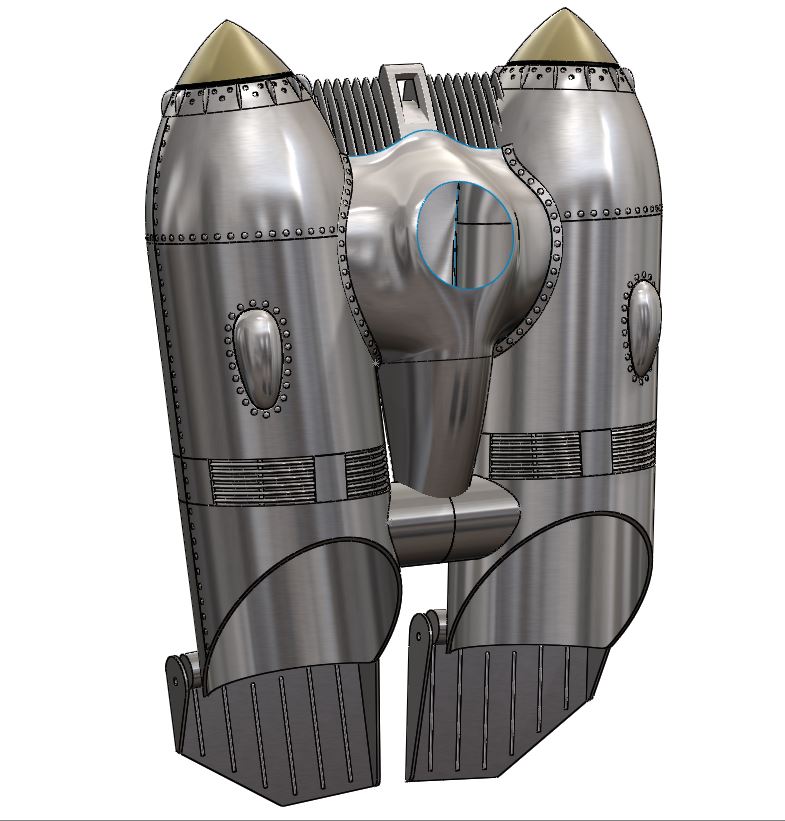

Getting close now. Still lots of work ahead to shape it all perfectly...



[gnolivos]

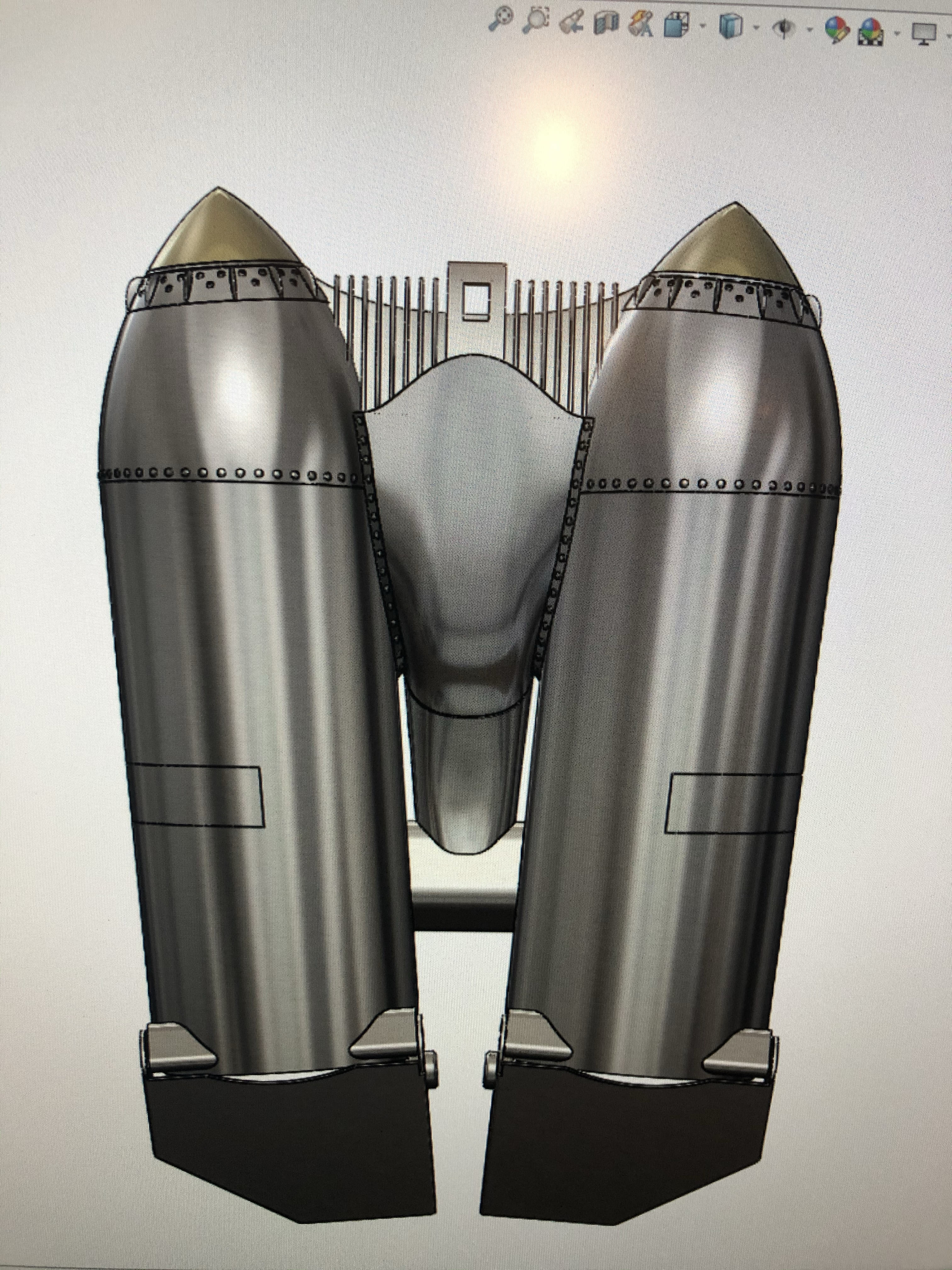

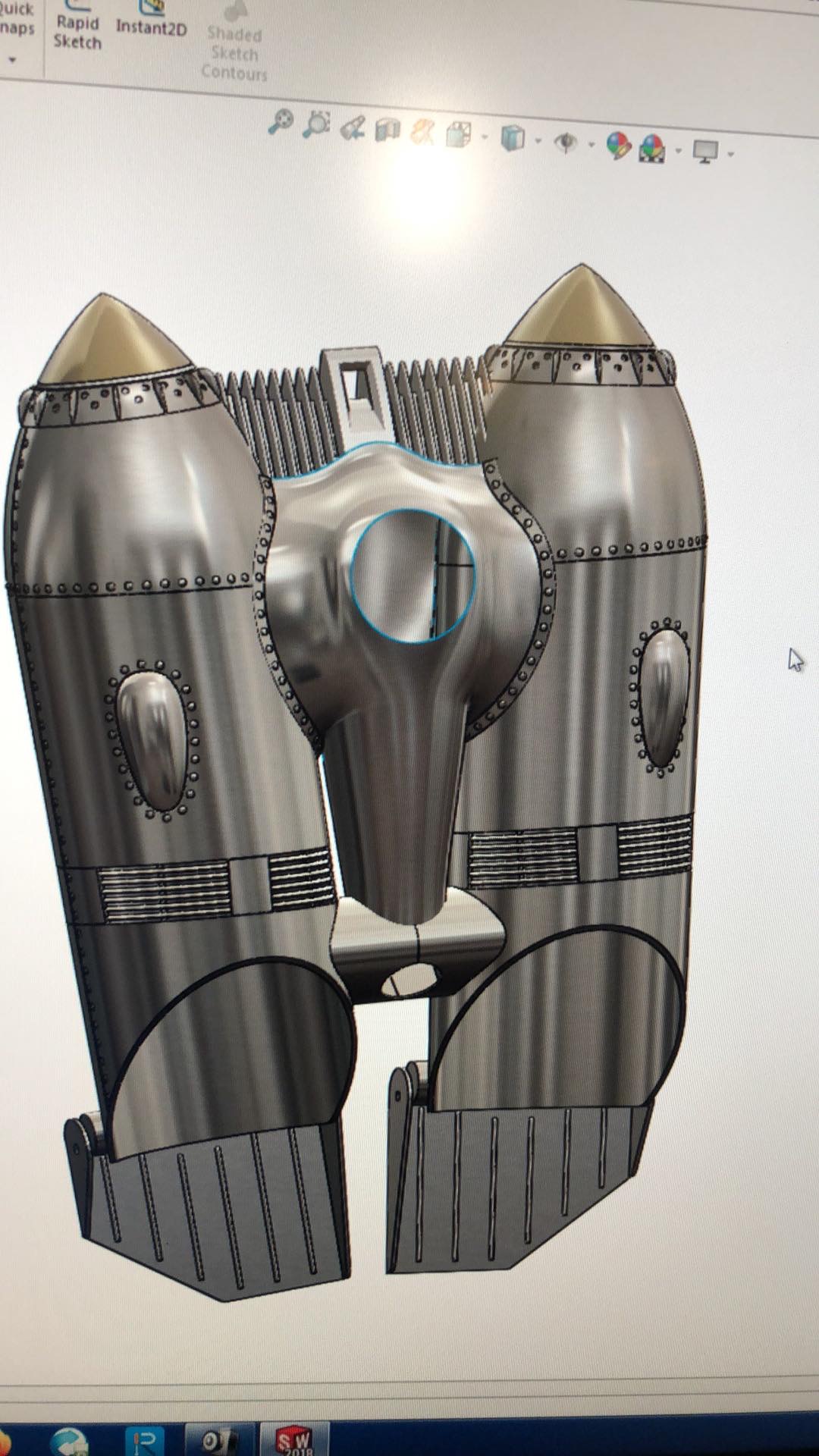

Proportioned correctly now. Only some surfacing challenges to be resolved and it will be done.



[King of Hell]

That looks amazing!



[gnolivos]

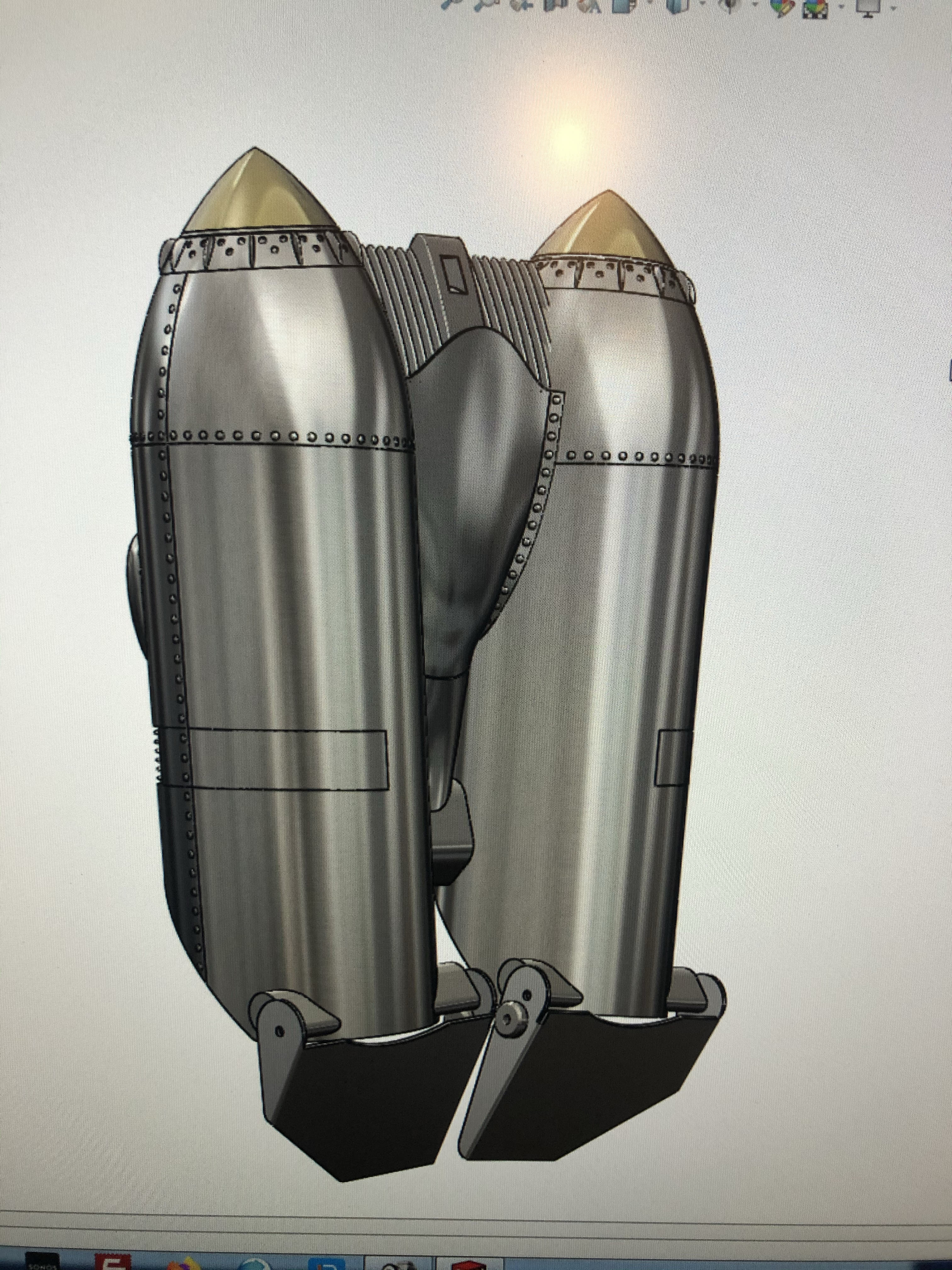

Worked on the rear quite a bit. Looking promising ...
