The dimensions I used are from scratch based off of the reference photos I had available. The overall length I arrived at was 305mm (or approx 12").
Rey's Gun TFA
- Thread starter newmagrathea
- Start date
The dimensions I used are from scratch based off of the reference photos I had available. The overall length I arrived at was 305mm (or approx 12").
puma1824
New Member

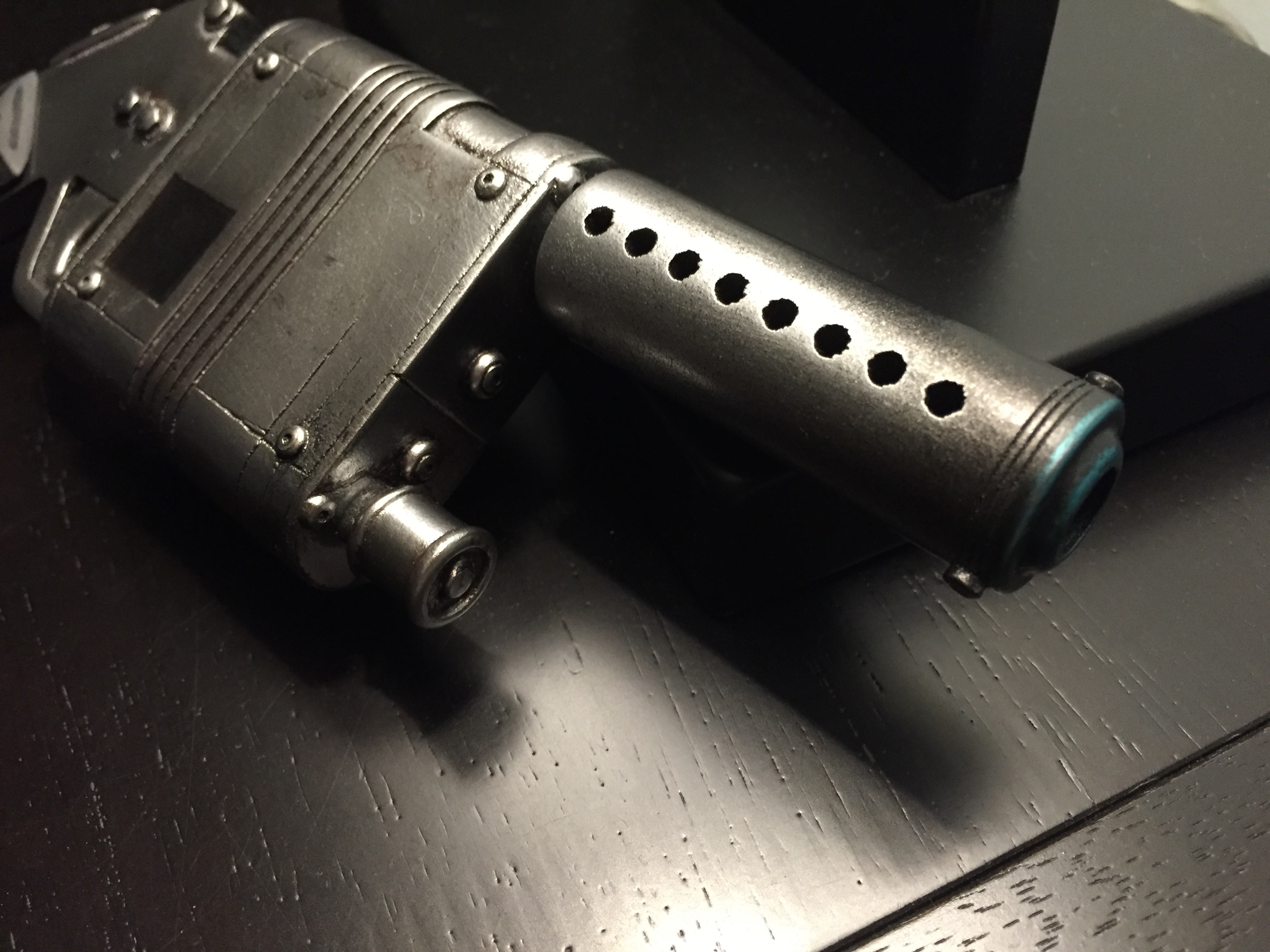

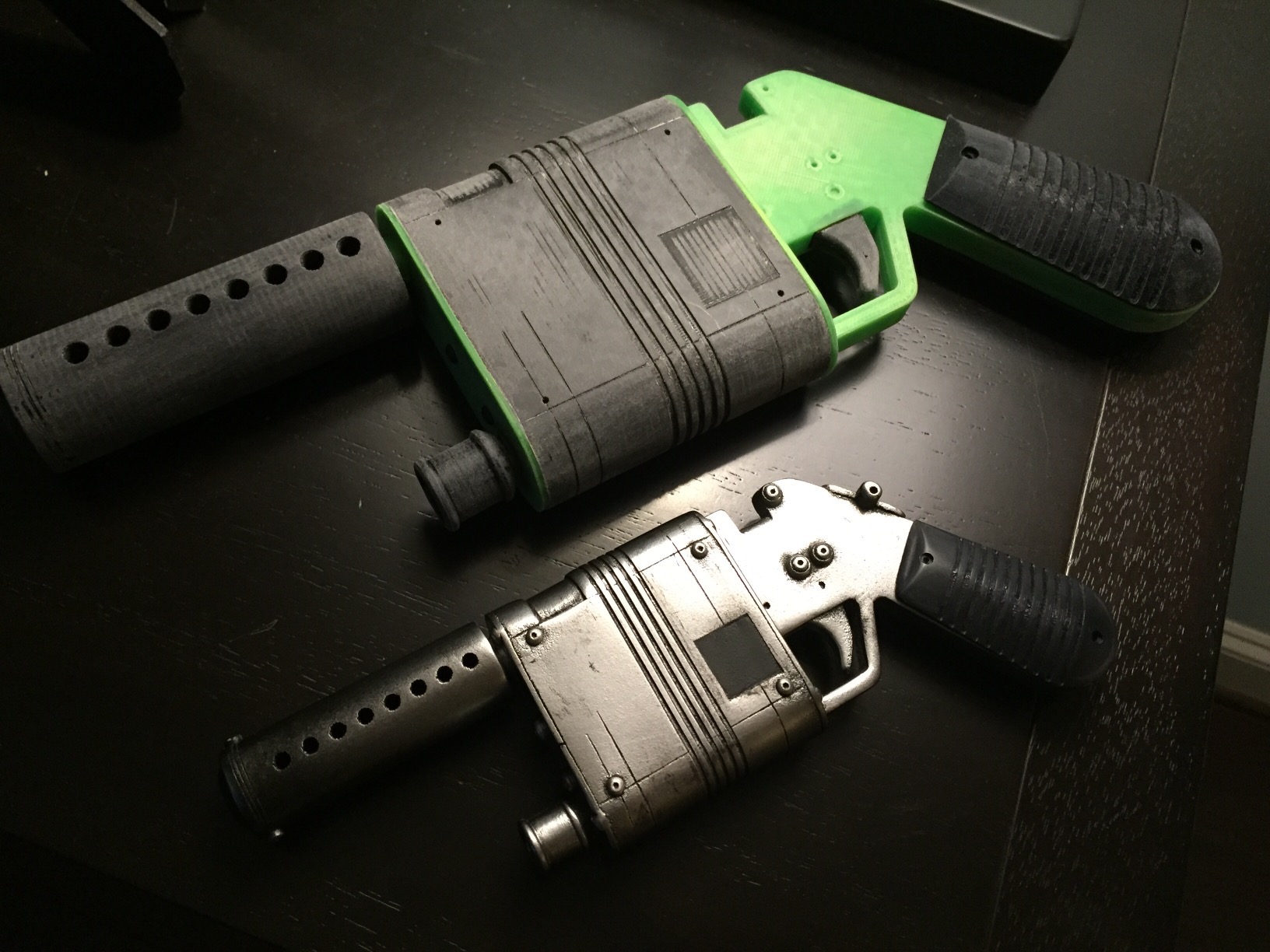

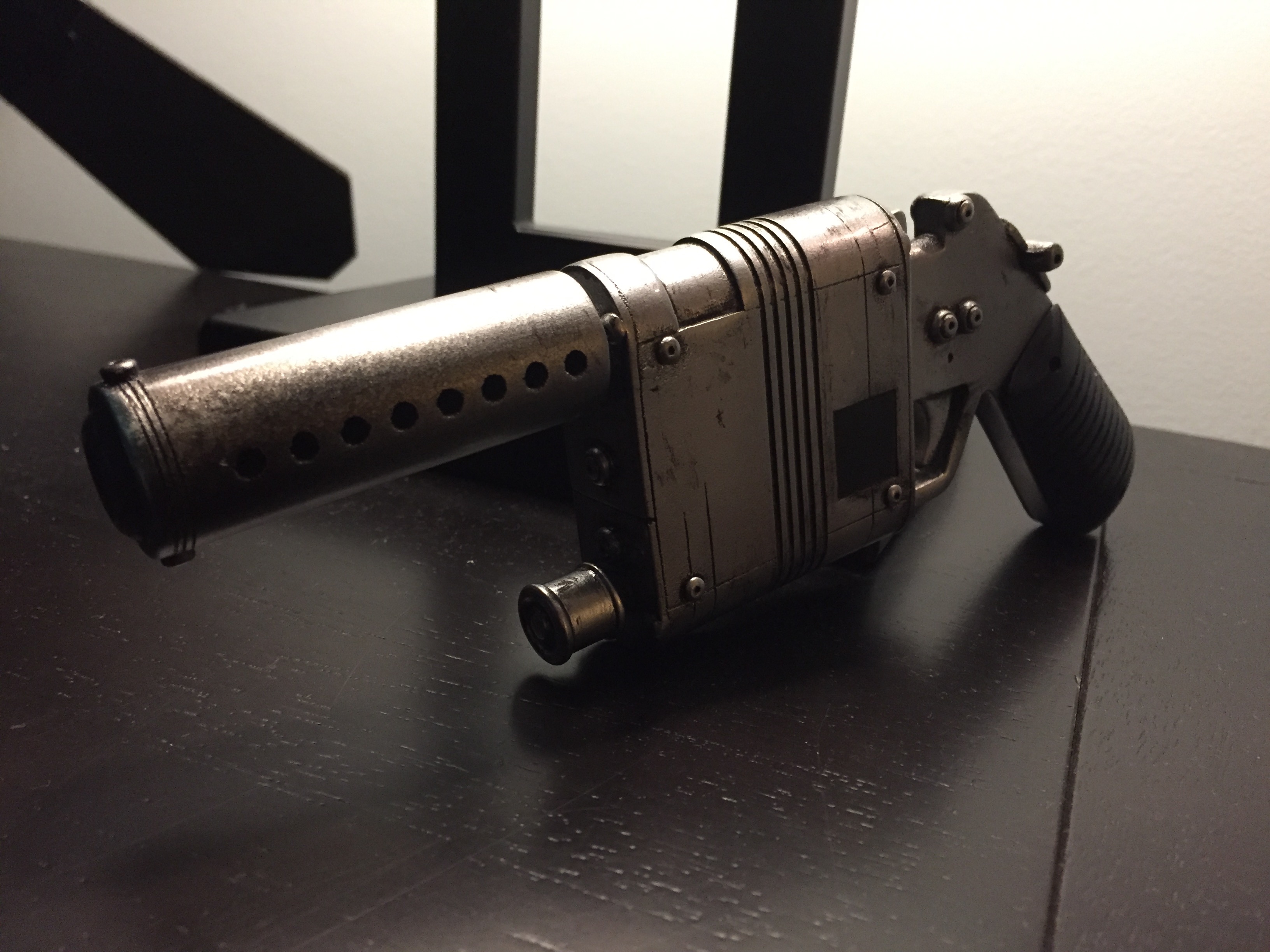

Just finished my daughters 3d printed 3/4 sized NN-14 (see pic for comparison). This was my first real attempt of airbrushing and weather anything. Couldn't of done it without Punished Props (Bill Doran) Rey Blaster videos and articles as well as the person who posted the 3D files on Thingiverse. Still need to work on my airbrushing and weathering technique.
Not sure if I'll get to the full sized version anytime soon as I need to finish 3/4 sized Rey staff and 3/4 size DL-44 for my kids before Halloween lol.
Not sure if I'll get to the full sized version anytime soon as I need to finish 3/4 sized Rey staff and 3/4 size DL-44 for my kids before Halloween lol.
Hey everyone, I've posted my 3d model on shapeways and sellfy. Here's the SW link: https://www.shapeways.com/shops/kgdesigns
If you want to the model to print yourself, message me and I'll send you three sellfy link
If you want to the model to print yourself, message me and I'll send you three sellfy link
puma1824
New Member
Great thanks! Sent your a PM for the sellfy link
Hey Gang, has there been a DEFINITIVE length of this gun that is agreed upon? I printed out the Greggo files and it seems pretty small ... now, I know it was in the hands of a young girl, so maybe that's how it's supposed to be.
I'm printing a second one at about 105% scale to have it feel more full-size to me.
Just curious if a definitive measurement has been found.
I'm printing a second one at about 105% scale to have it feel more full-size to me.
Just curious if a definitive measurement has been found.
Last edited:
Volatilesky
New Member

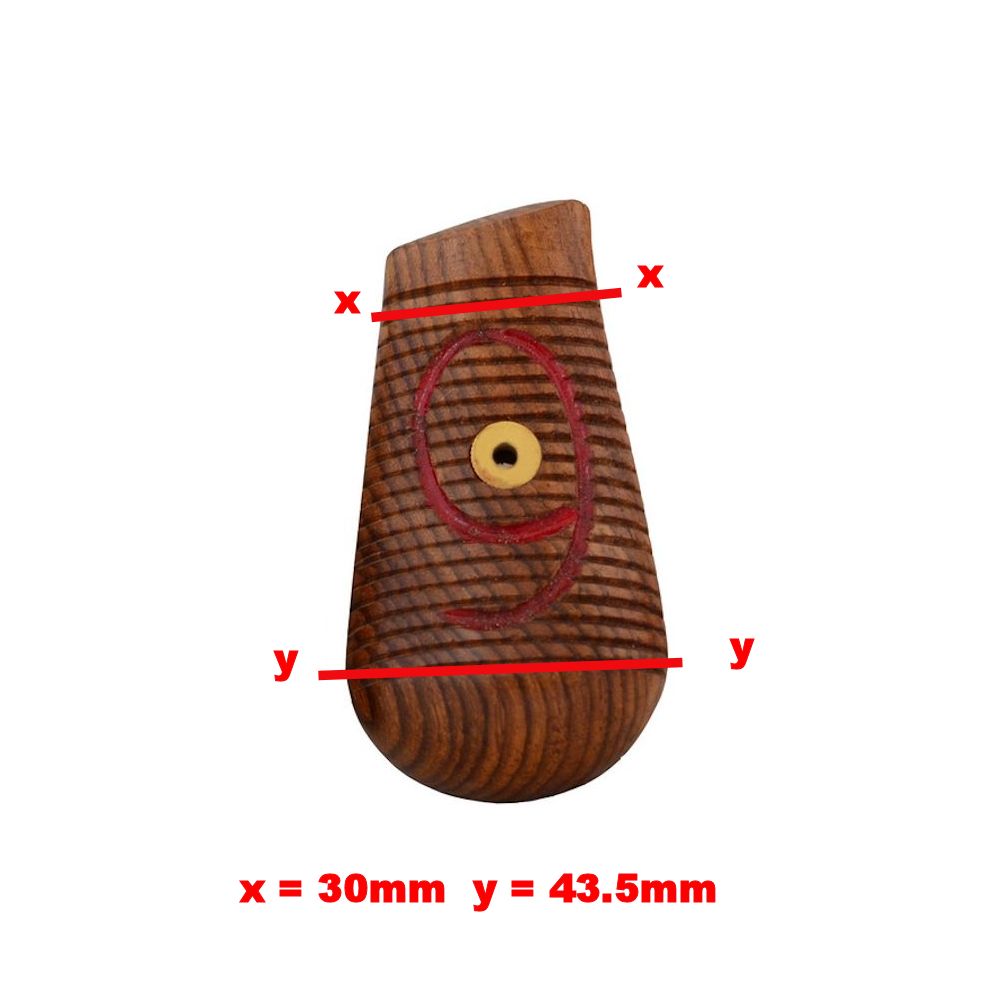

Oh man thank you for posting this, I've been searching all day for the exact dimensions for the Mauser grips, and found nothing. I'm going to build mine out of 1mm-2mm sheet styrene, and carve the grips myself. With no consensus on the overall length, after doing a few paper mock-ups I've settled on an 11" or 11-1/4" length gun to be what I'll aim for.
In my very scientific study, at 6'2" I figured I'm roughly the size of HF, and the smaller sizes look noticeably undersize, and the 13"+ ones are cartoonish. Around 11" is about the smallest overall length/size where I can get my finger onto the trigger (and I'm not exactly ham fisted), and then giving it to a Rey sized girl, they could comfortably get their finger on the trigger.
With the dimension on that grip above at y=43.5mm, my 11-1/4" mockups grip is 45mm, with a match at y coming from an 11" long gun. I've been using claymans post for the mockups at differnt scales.
bklyndodgers42
New Member
Anyone know what the safety/hammer could be? I looked around a bit at actual safeties and vintage flashlight switches but with no luck. Could be a custom machined part, but what's the fun in accepting that?
royalnewjersey
Active Member
Hopefully not bringing this thread back from the dead too much. I'm just getting into building my own. I found this thread super useful so far.
Has anyone tried Rub-N-Buff to get the metallic texture? Bill's airbrush aluminum looks great, but I feel like the metallic particles in Rub-N-Buff might look similar to a cold cast. Almost a rub on cold cast method. Maybe after a nice smooth layer of black primer? Thoughts?
Has anyone tried Rub-N-Buff to get the metallic texture? Bill's airbrush aluminum looks great, but I feel like the metallic particles in Rub-N-Buff might look similar to a cold cast. Almost a rub on cold cast method. Maybe after a nice smooth layer of black primer? Thoughts?
