Post pics of your own 3D creations (not purchased)

[TazMan2000]

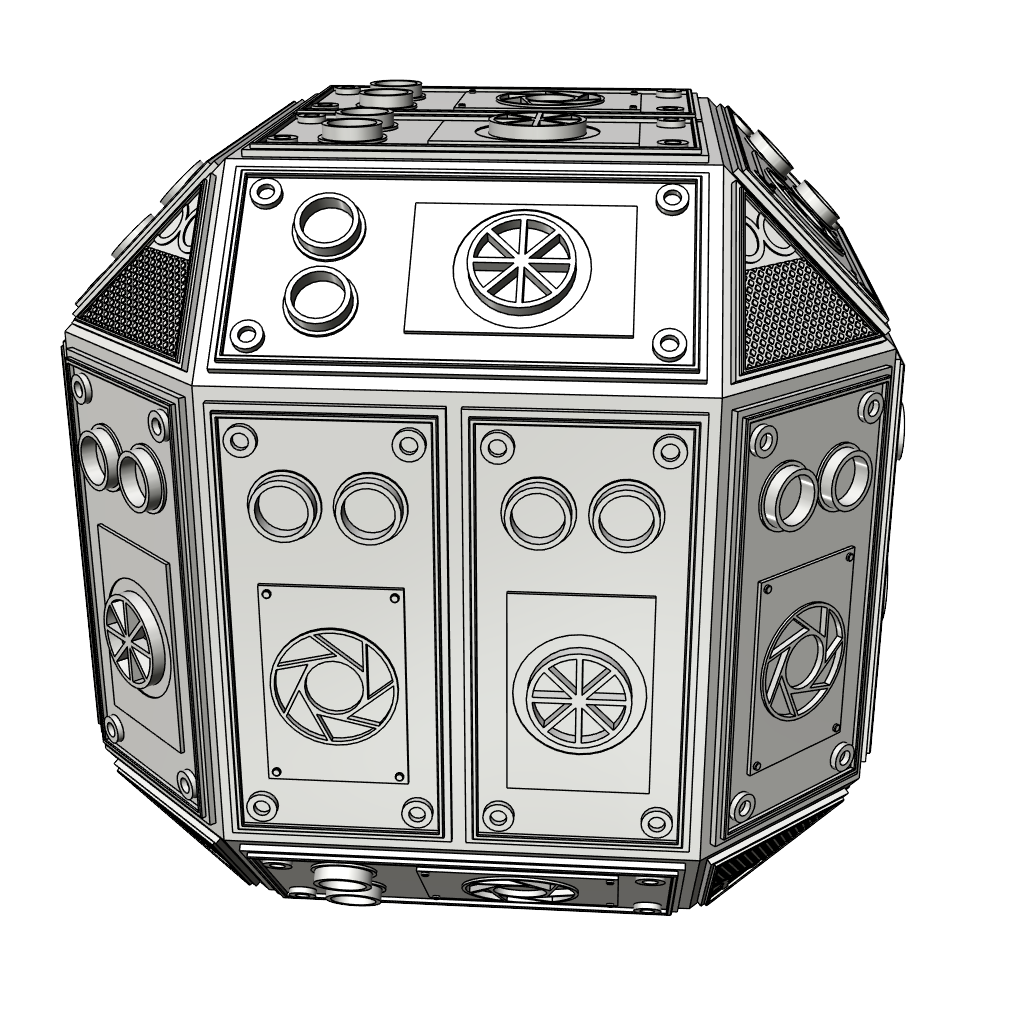

My close approximation of the Hollywood Studios Galaxy's Edge Fusion Generator Storage Tank. The ones on Tatooine are about 3 feet cubed, in my estimation, and while I neglected to take a measuring tape into the park (would that even be allowed?) when my family and I visited last year, I'm thinking this is about 24 inches squared. For ease, I designed the polyhedron base at 600mm cubed. Basically alternating arrangement of two different rectangular panels and a triangular on for the 'corners".

Online I have seen another version but I'm not sure which park it was from. If someone has info of a different one from the Disney Parks, please post it here.

TazMan2000



[Fett_Ish]

Made a few 3d models for print over the last years.
The Klingon 5D Tanker at 1/350 was my latest.
3d model created wirh Maxon Cinema4D and printed on a Mono X.
View attachment 1760109
View attachment 1760110
View attachment 1760113

View attachment 1760111View attachment 1760112

Nice work! I have been trying to decide if I want to do some space stuff next and this is nice inspiratio!



[Fett_Ish]

This is what the AMT Batmobile should have been.

TazMan2000

Thanks Taz, I wish that model had been larger. I was excited for Bandais version but they went smaller lol



[publiusr]

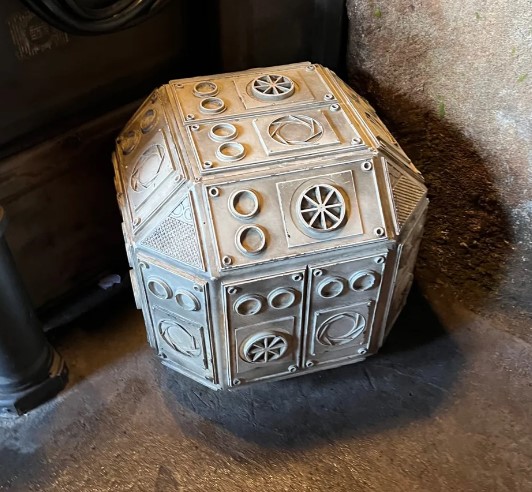

My close approximation of the Hollywood Studios Galaxy's Edge Fusion Generator Storage Tank. The ones on Tatooine are about 3 feet cubed, in my estimation, and while I neglected to take a measuring tape into the park (would that even be allowed?) when my family and I visited last year, I'm thinking this is about 24 inches squared. For ease, I designed the polyhedron base at 600mm cubed. Basically alternating arrangement of two different rectangular panels and a triangular on for the 'corners".

View attachment 1760262

View attachment 1760264


Online I have seen another version but I'm not sure which park it was from. If someone has info of a different one from the Disney Parks, please post it here.

TazMan2000

Looks like it came from an Eagle



[TazMan2000]

Looks like it came from an Eagle

That's what I thought when I saw it first in A New Hope.

TazMan2000



[frostrubin]

Nice work! I have been trying to decide if I want to do some space stuff next and this is nice inspiratio!

Thanks.



[joberg]

Great work Taz, great work



[TazMan2000]

My close approximation of the Hollywood Studios Galaxy's Edge Fusion Generator Storage Tank. The ones on Tatooine are about 3 feet cubed, in my estimation, and while I neglected to take a measuring tape into the park (would that even be allowed?) when my family and I visited last year, I'm thinking this is about 24 inches squared. For ease, I designed the polyhedron base at 600mm cubed. Basically alternating arrangement of two different rectangular panels and a triangular on for the 'corners".

View attachment 1760262

View attachment 1760264


Online I have seen another version but I'm not sure which park it was from. If someone has info of a different one from the Disney Parks, please post it here.

TazMan2000

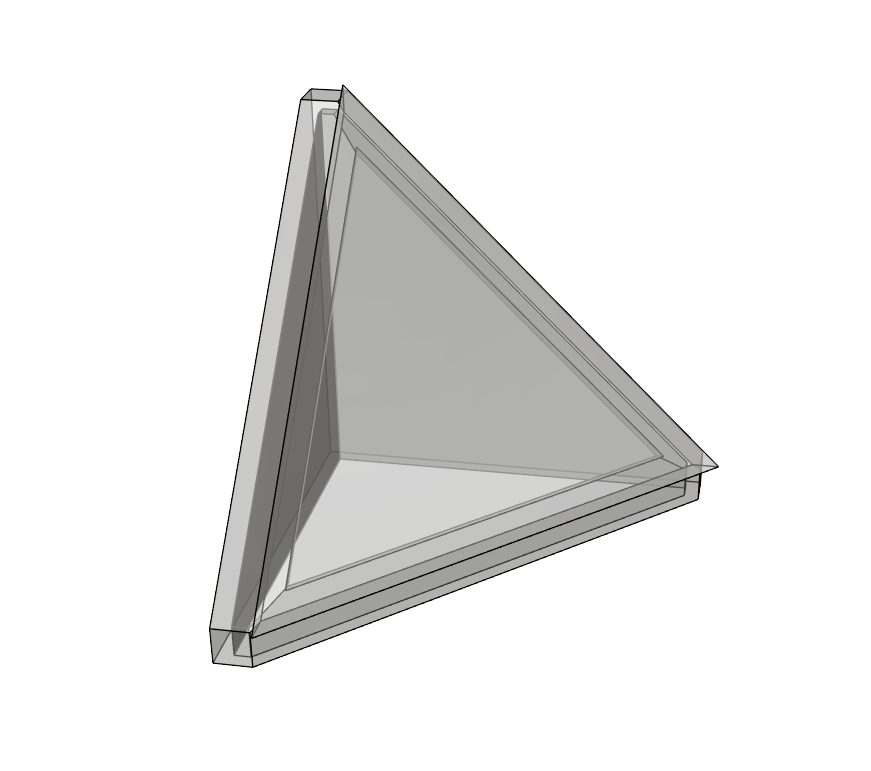

This morning, I designed a little doohickey that would fast track making the base polyhedron. Printable premade corners. This way someone would only have to cut out squares for the sides. Chamfering some panels would be necessary but it would be much easier than trying to construct the entire box and making it square....well 'polyhedronally' square. Very little support would be needed as the major angle is 45 degrees.

TazMan2000



[frostrubin]

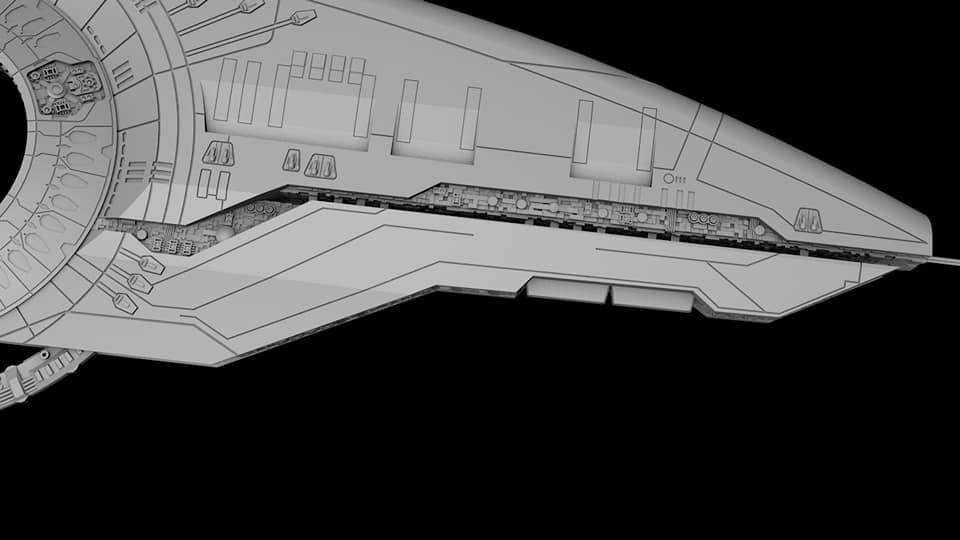

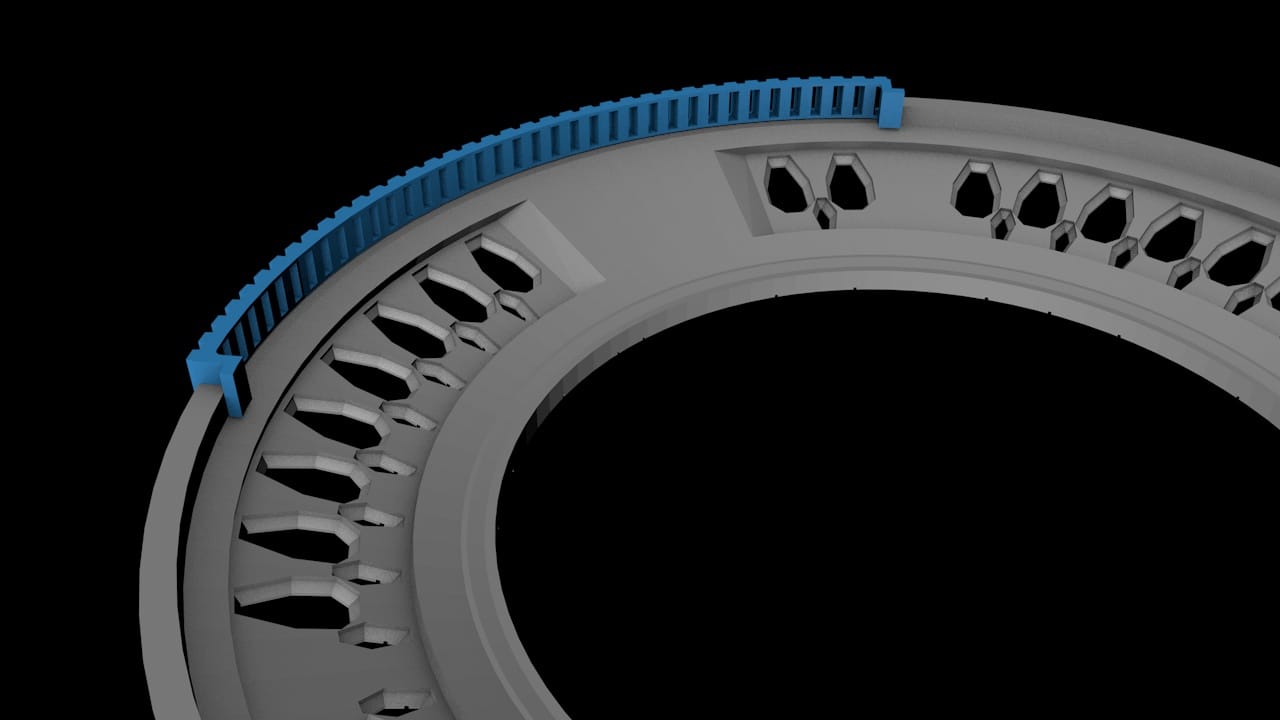

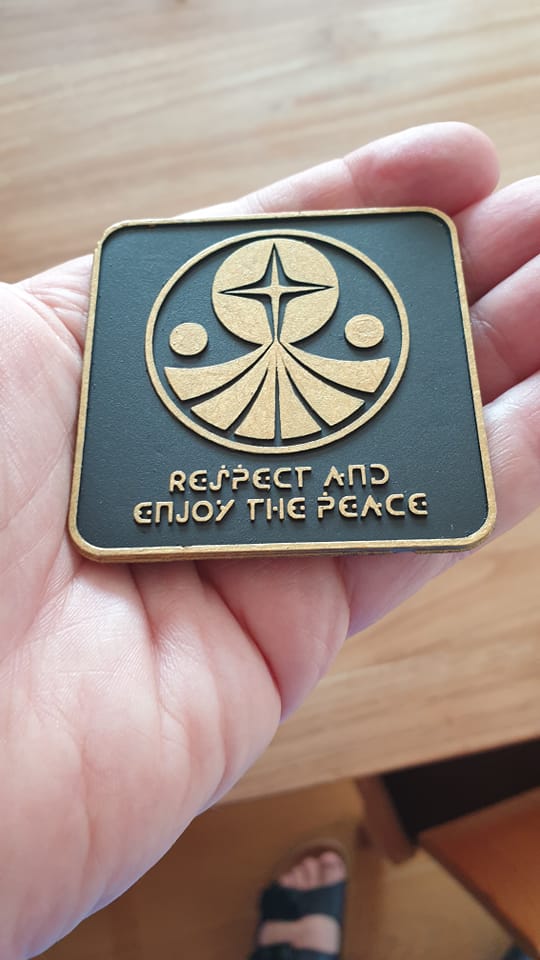

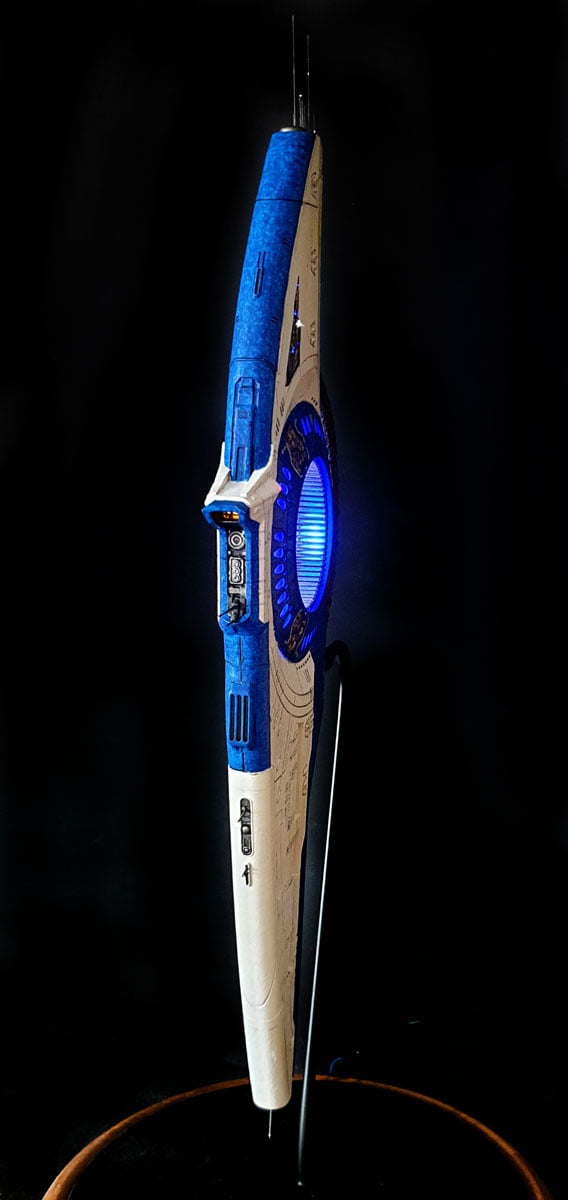

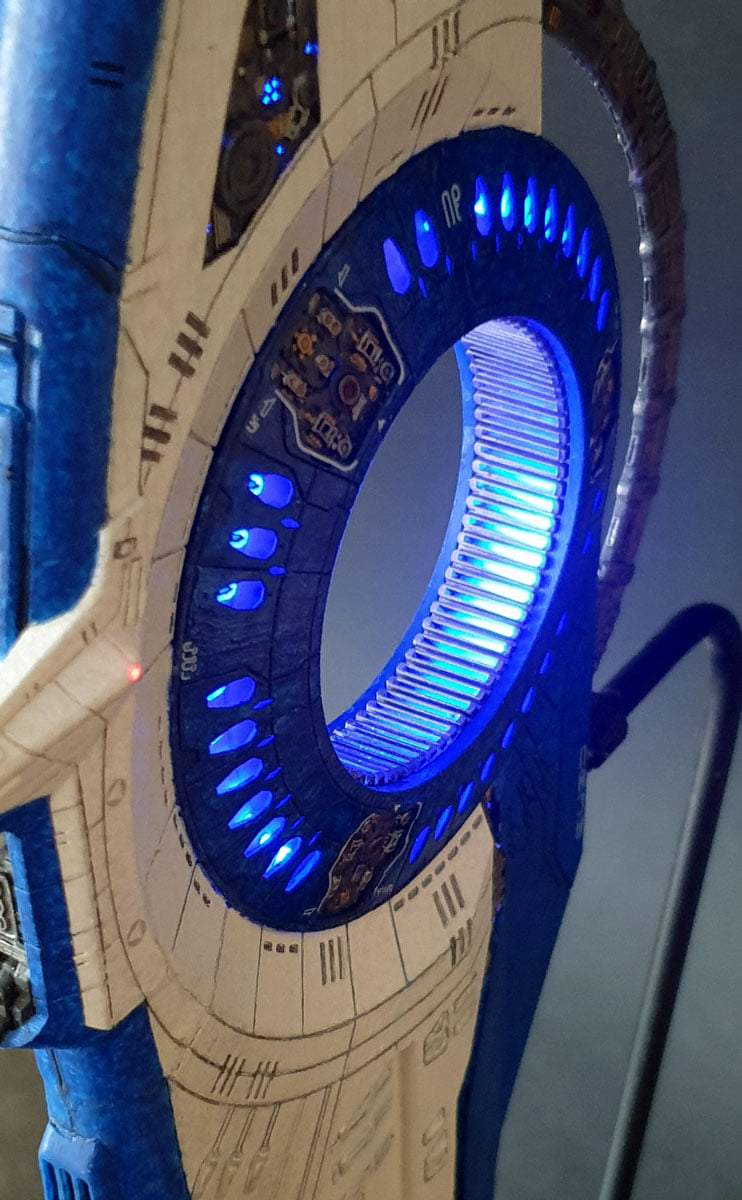

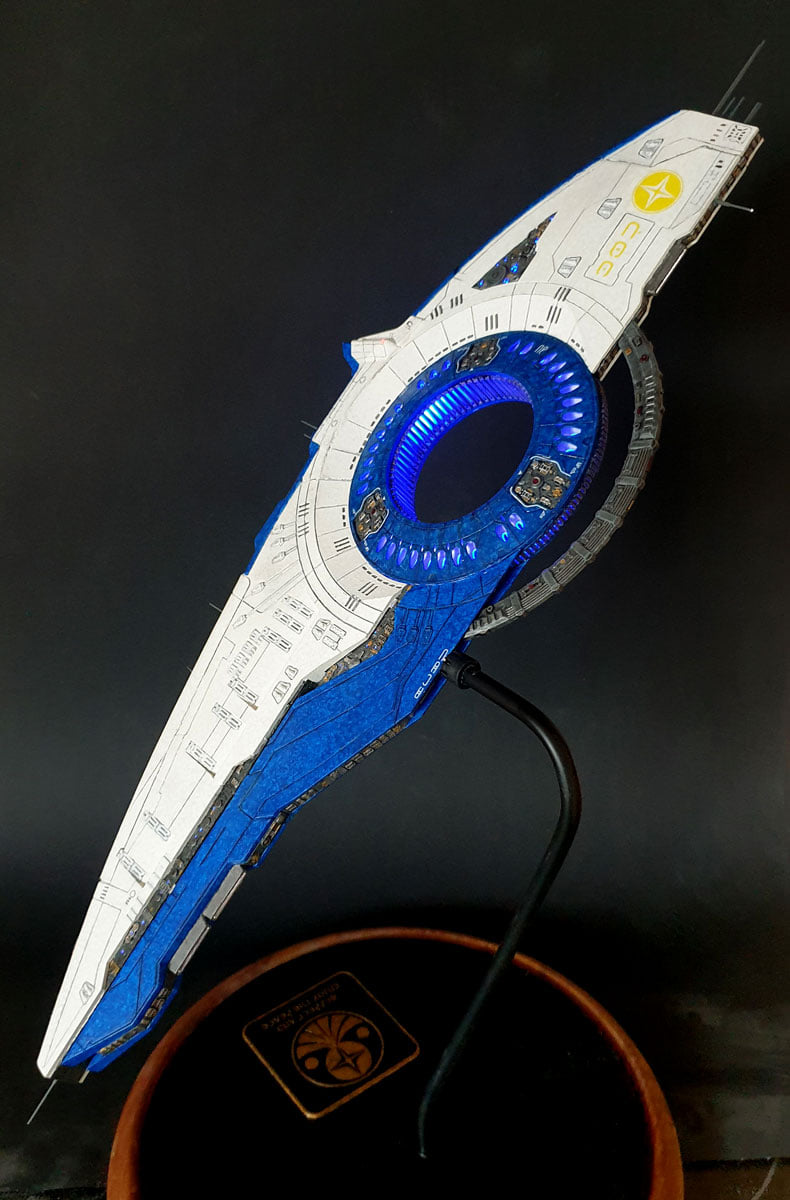

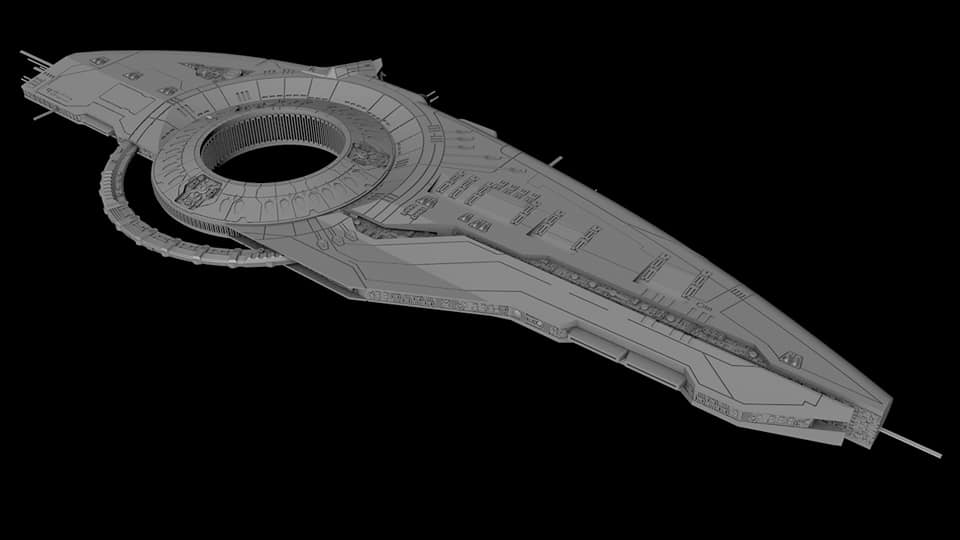

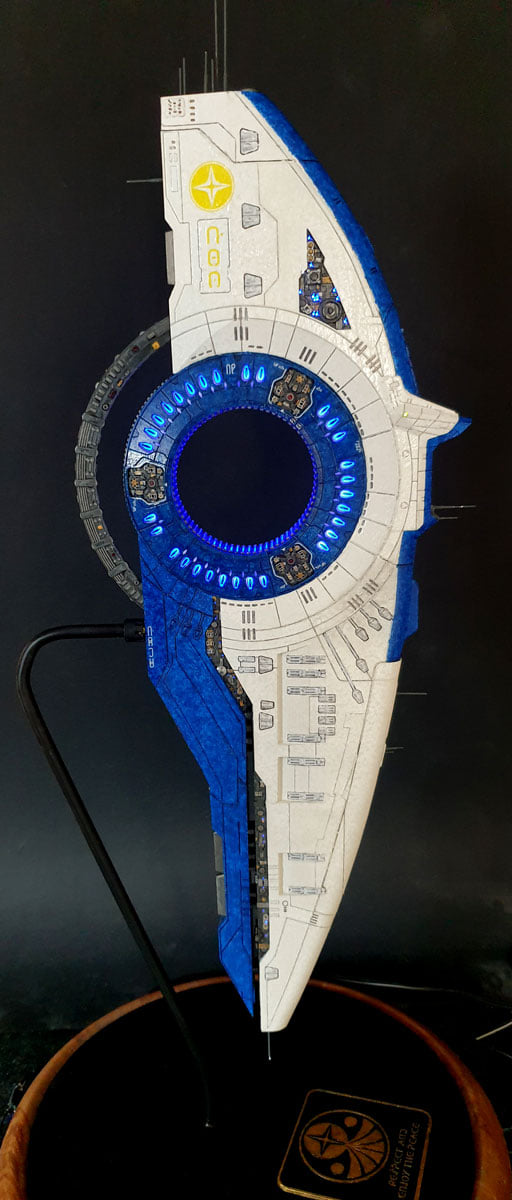

After I've seen Apple's Foundation series I made this last year:

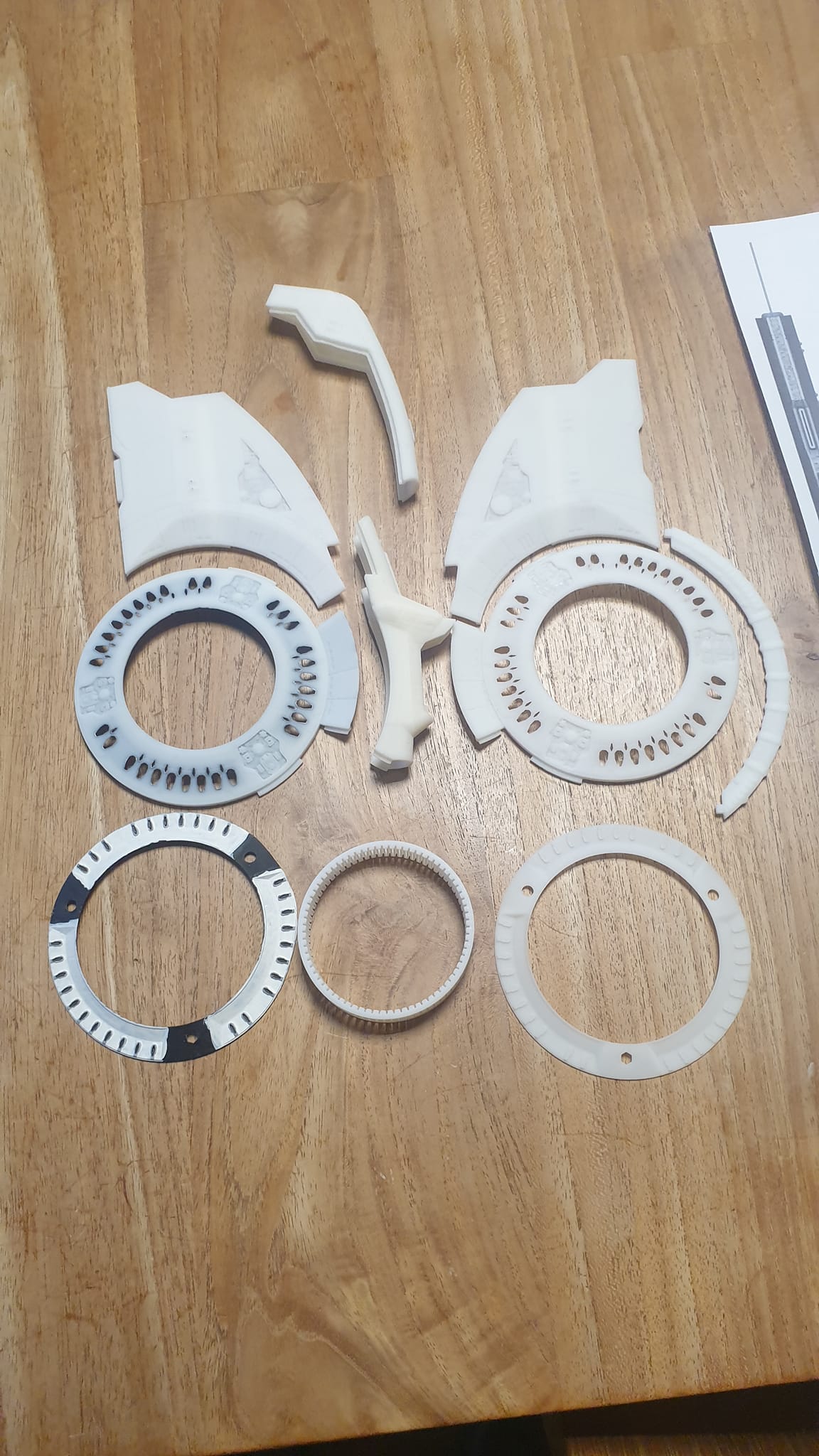

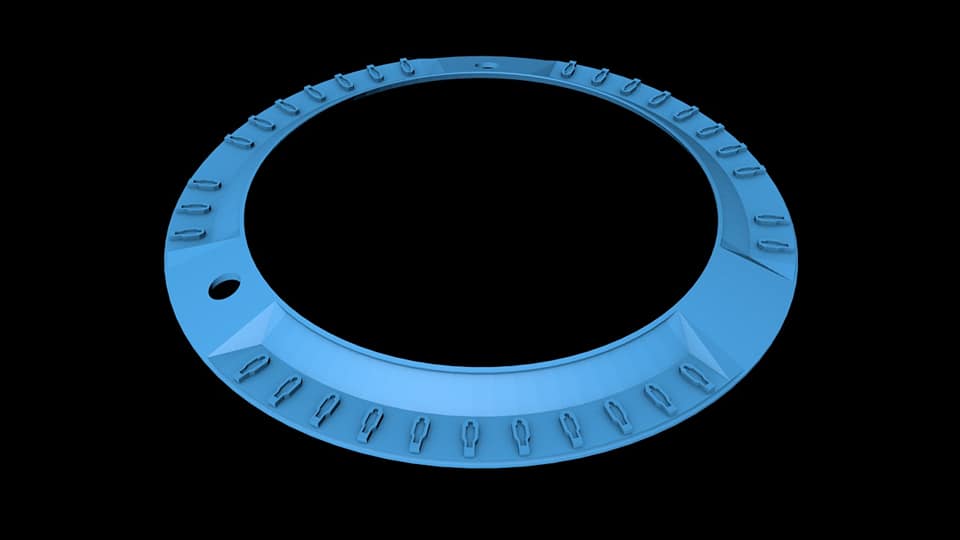

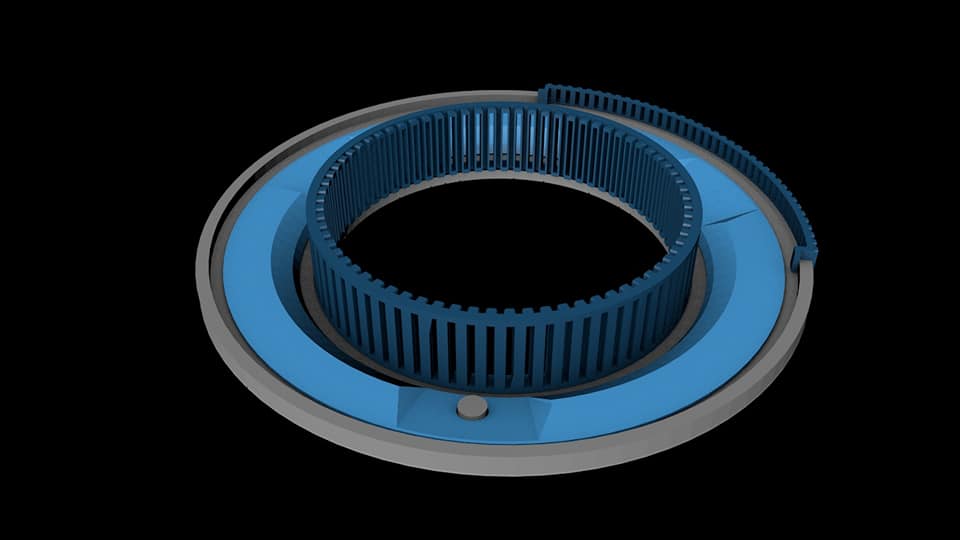

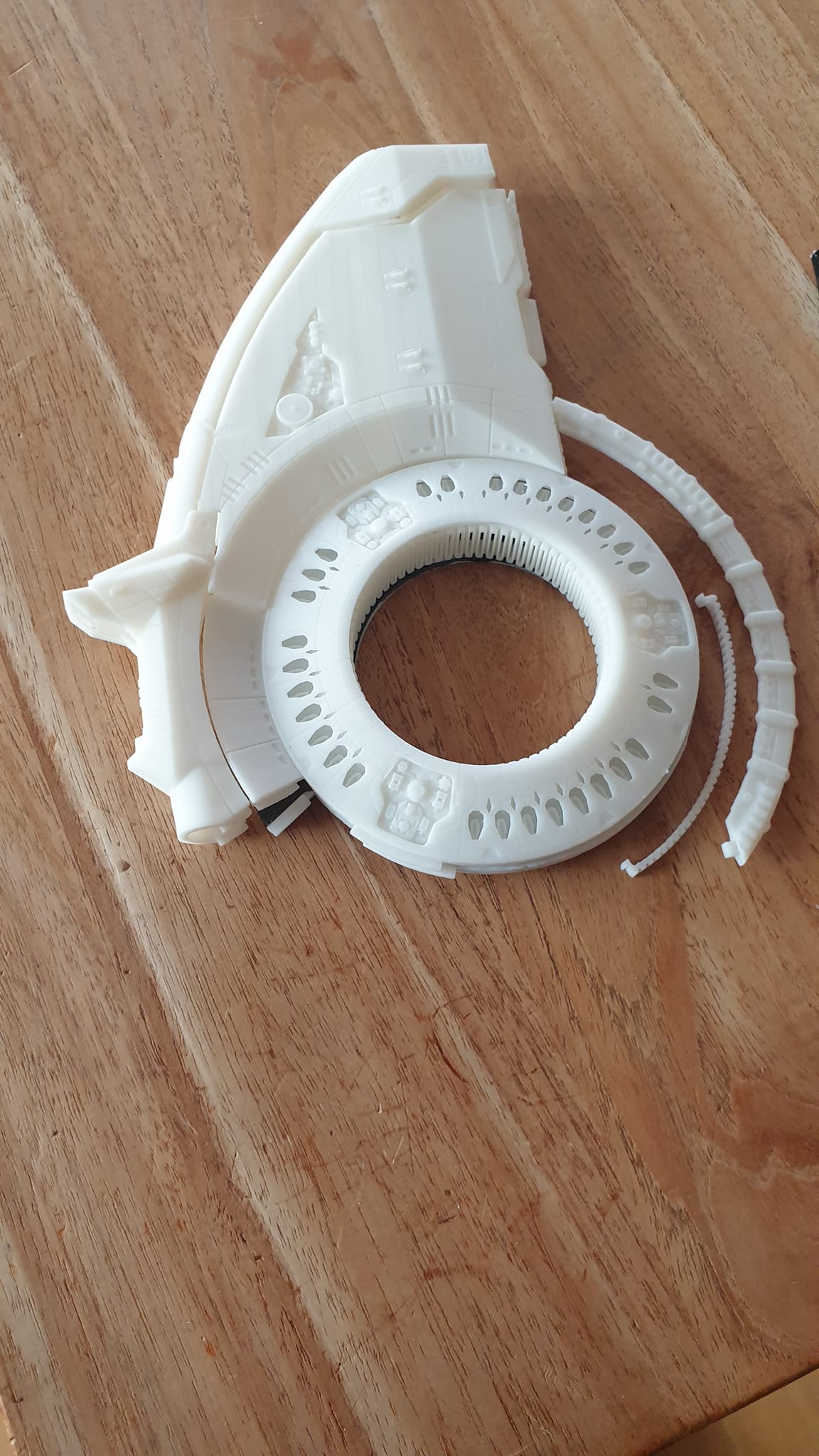

some wip pix:



[Fett_Ish]

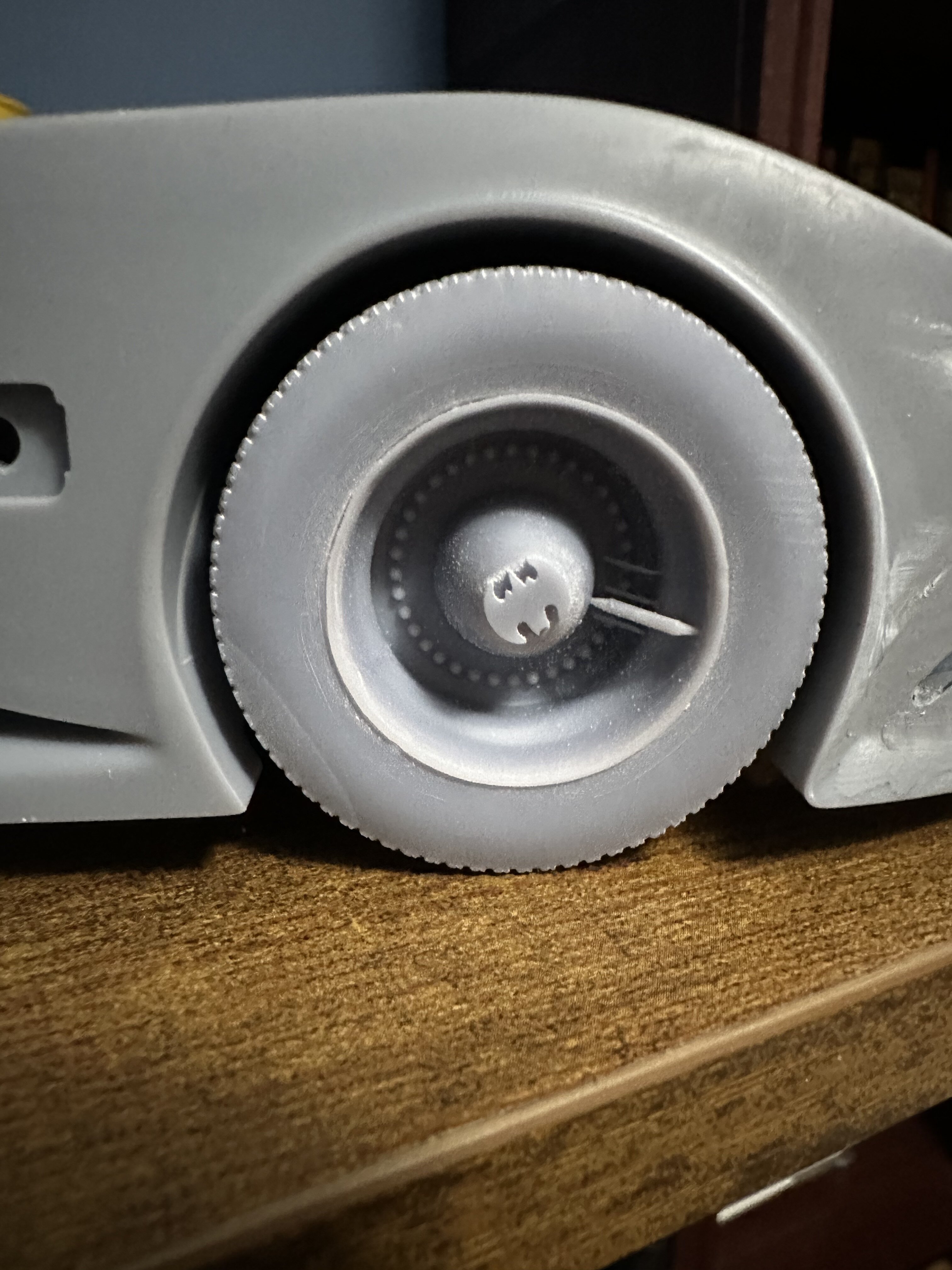

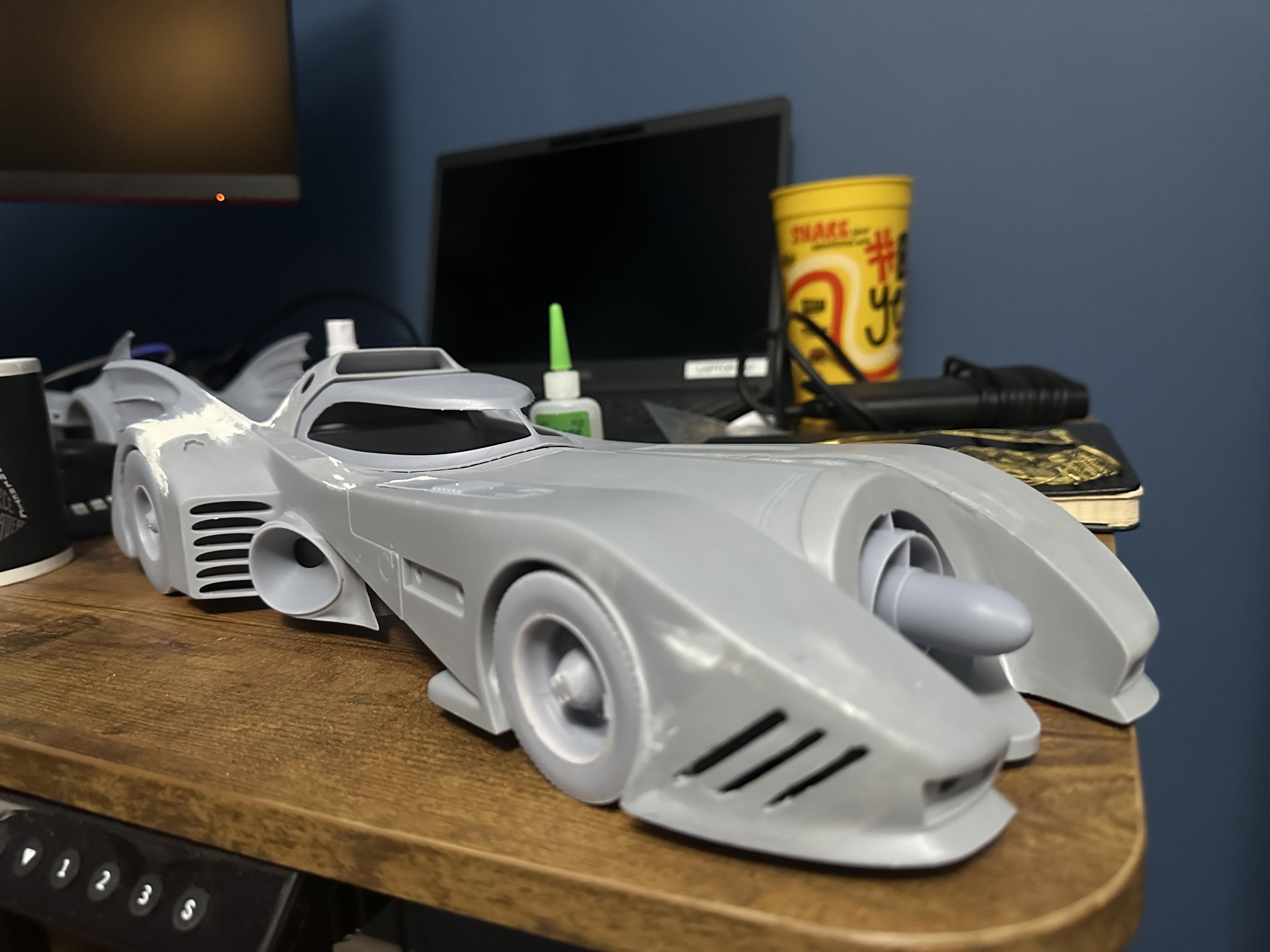

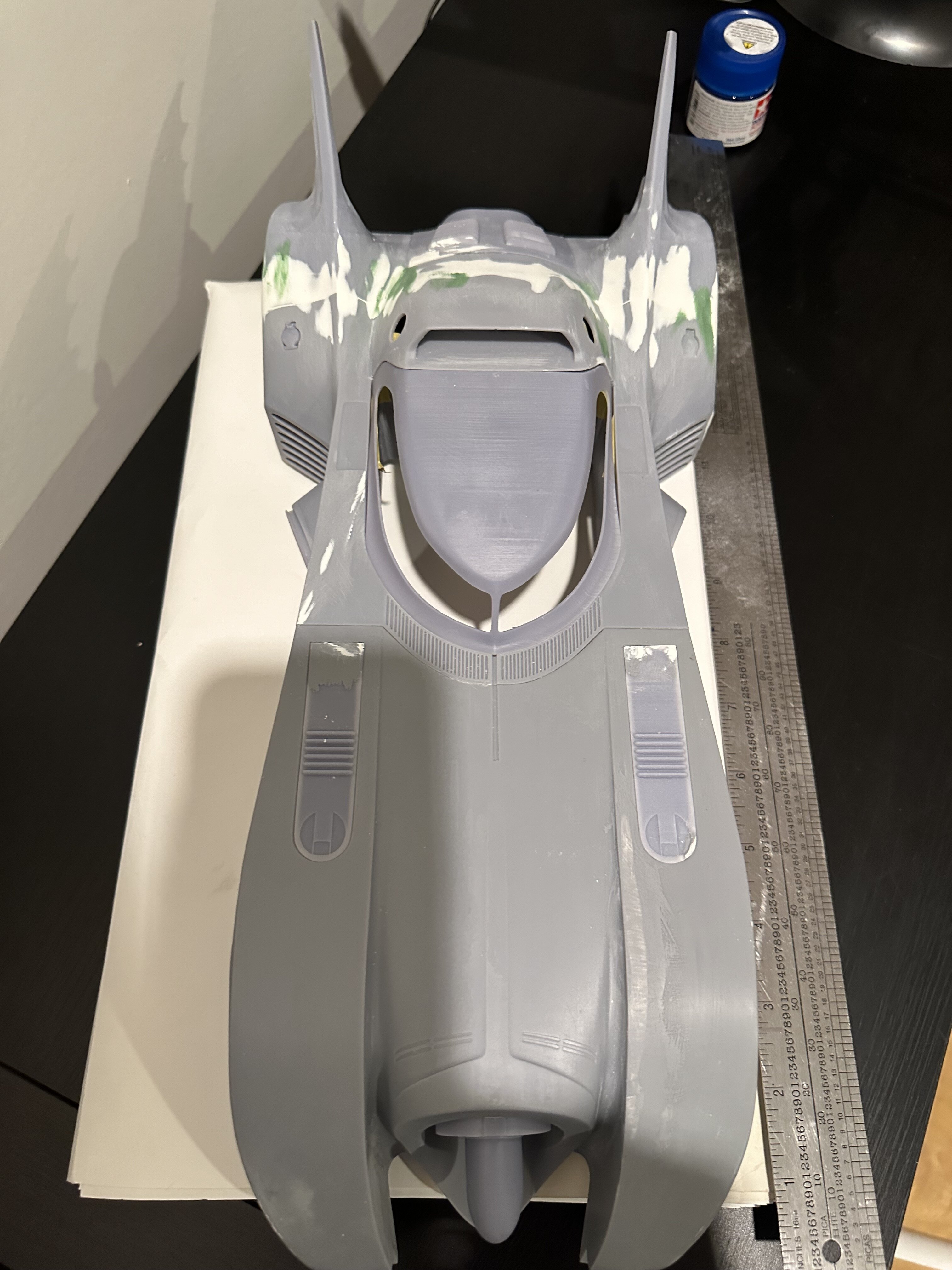

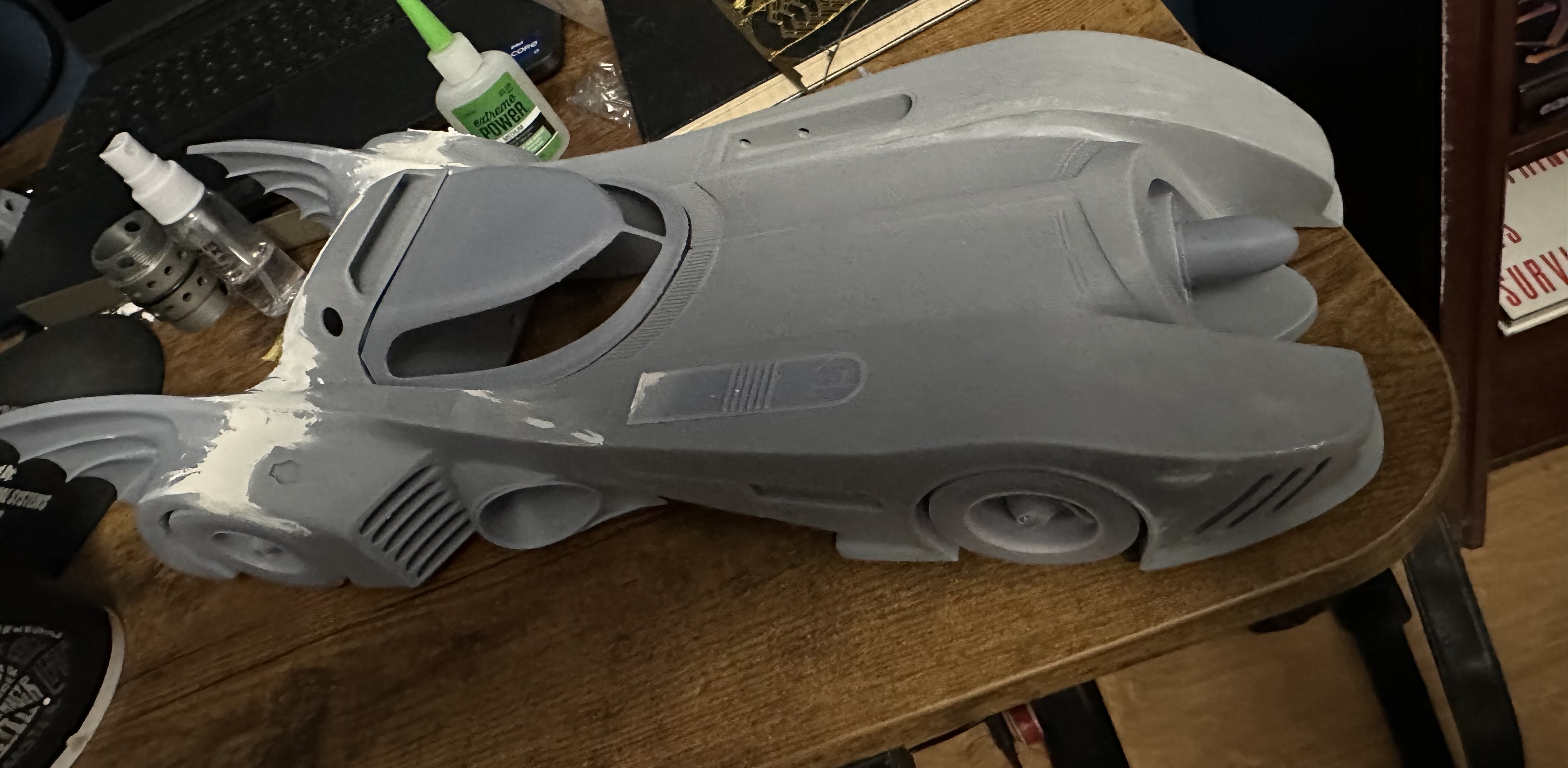

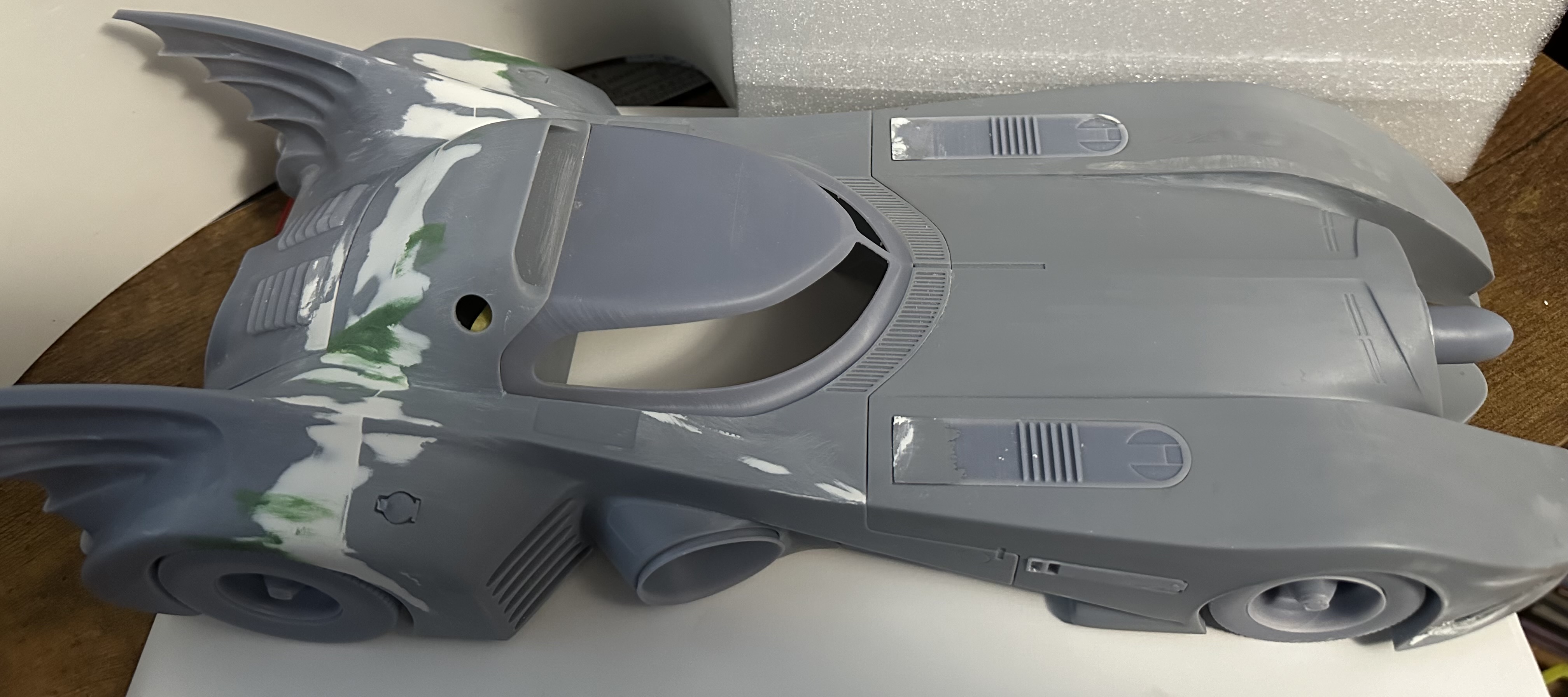

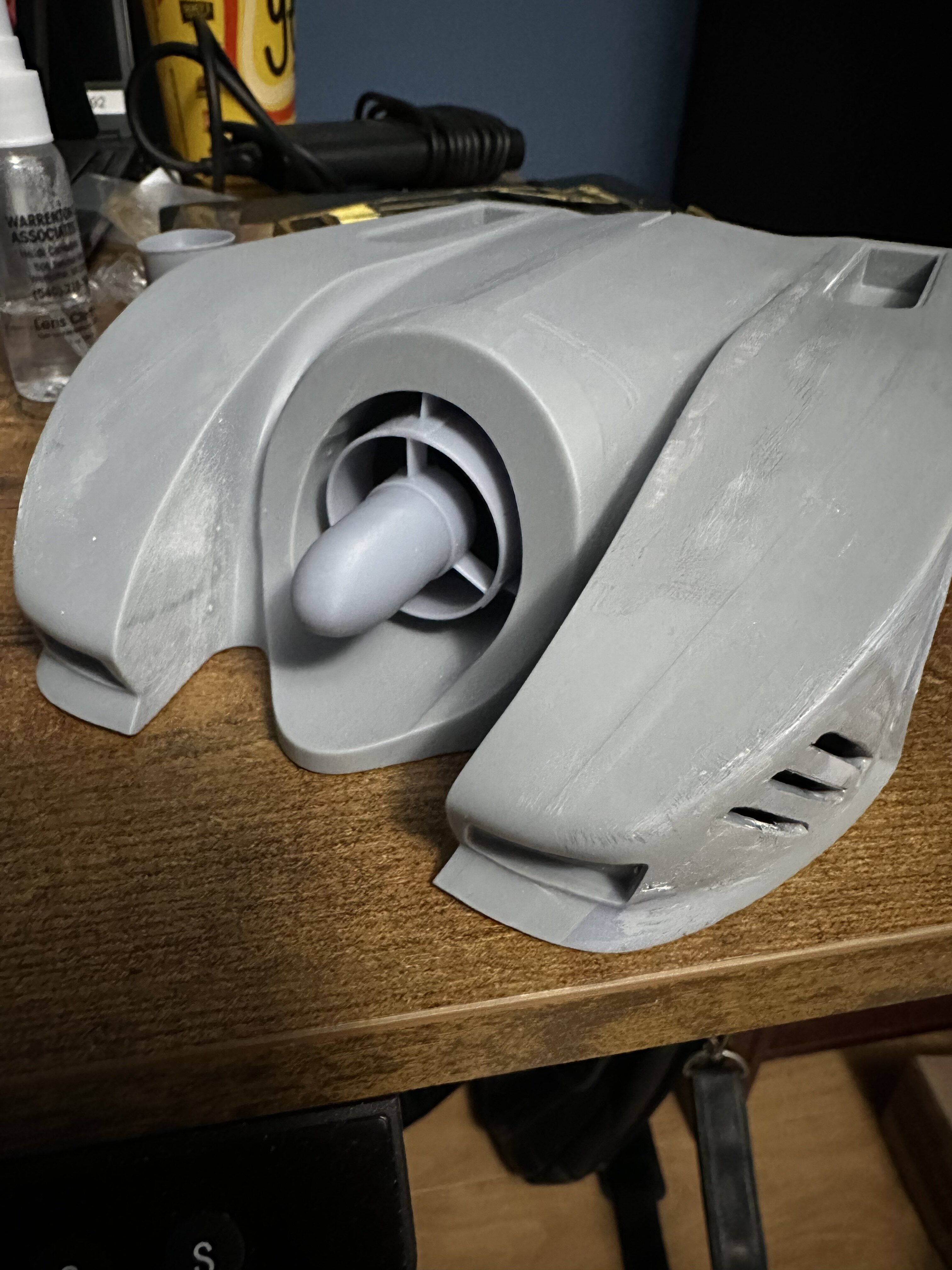

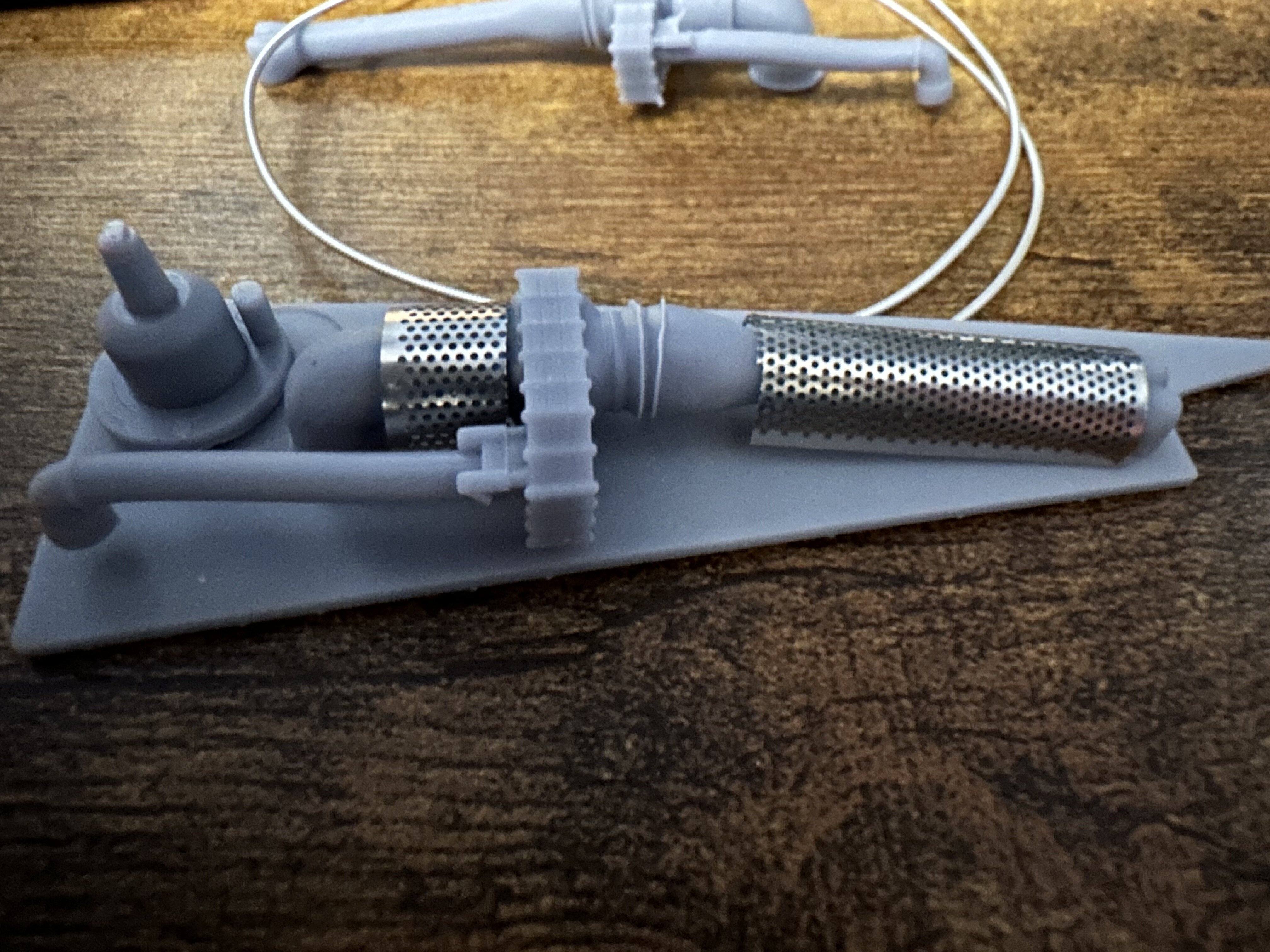

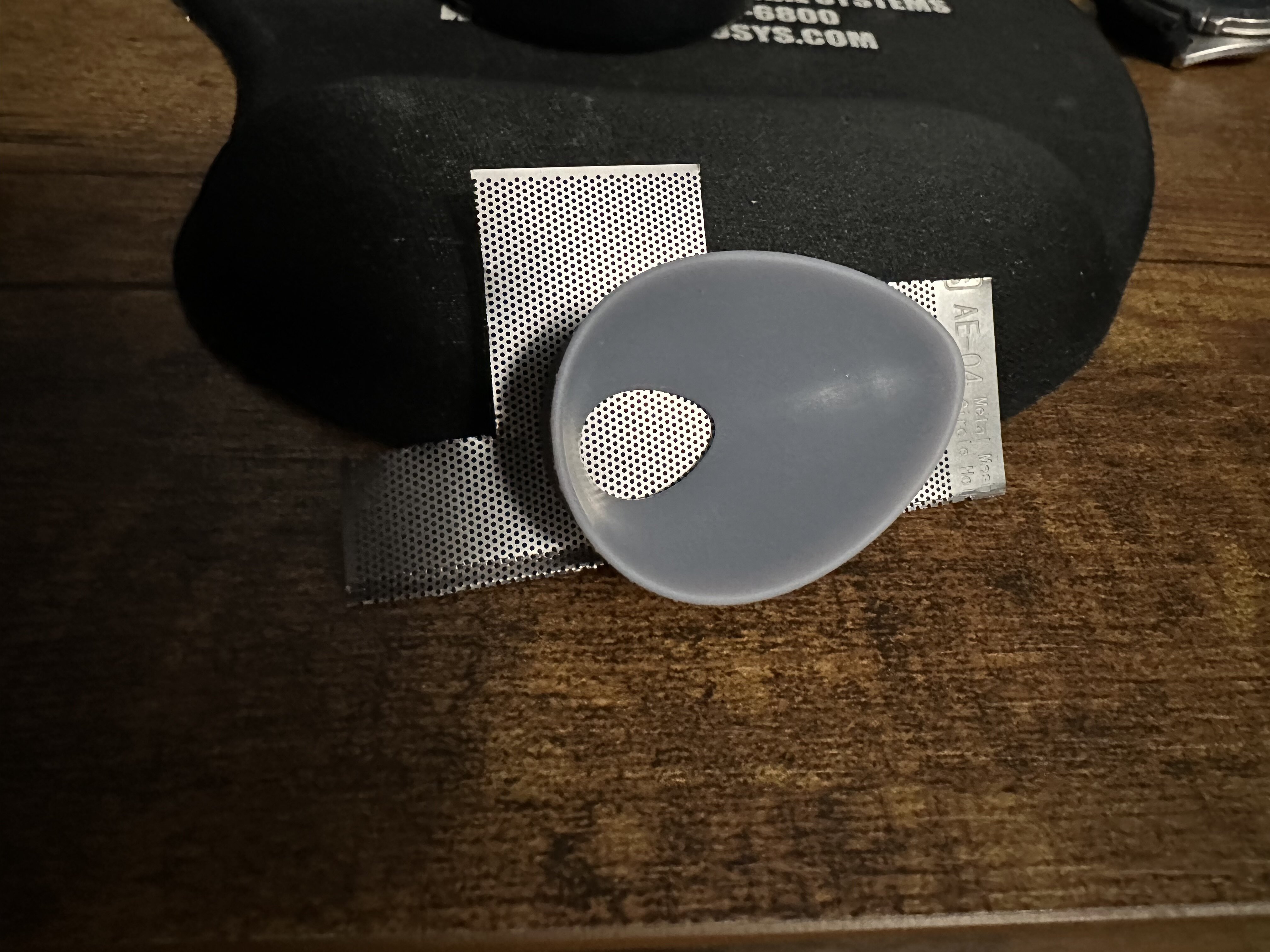

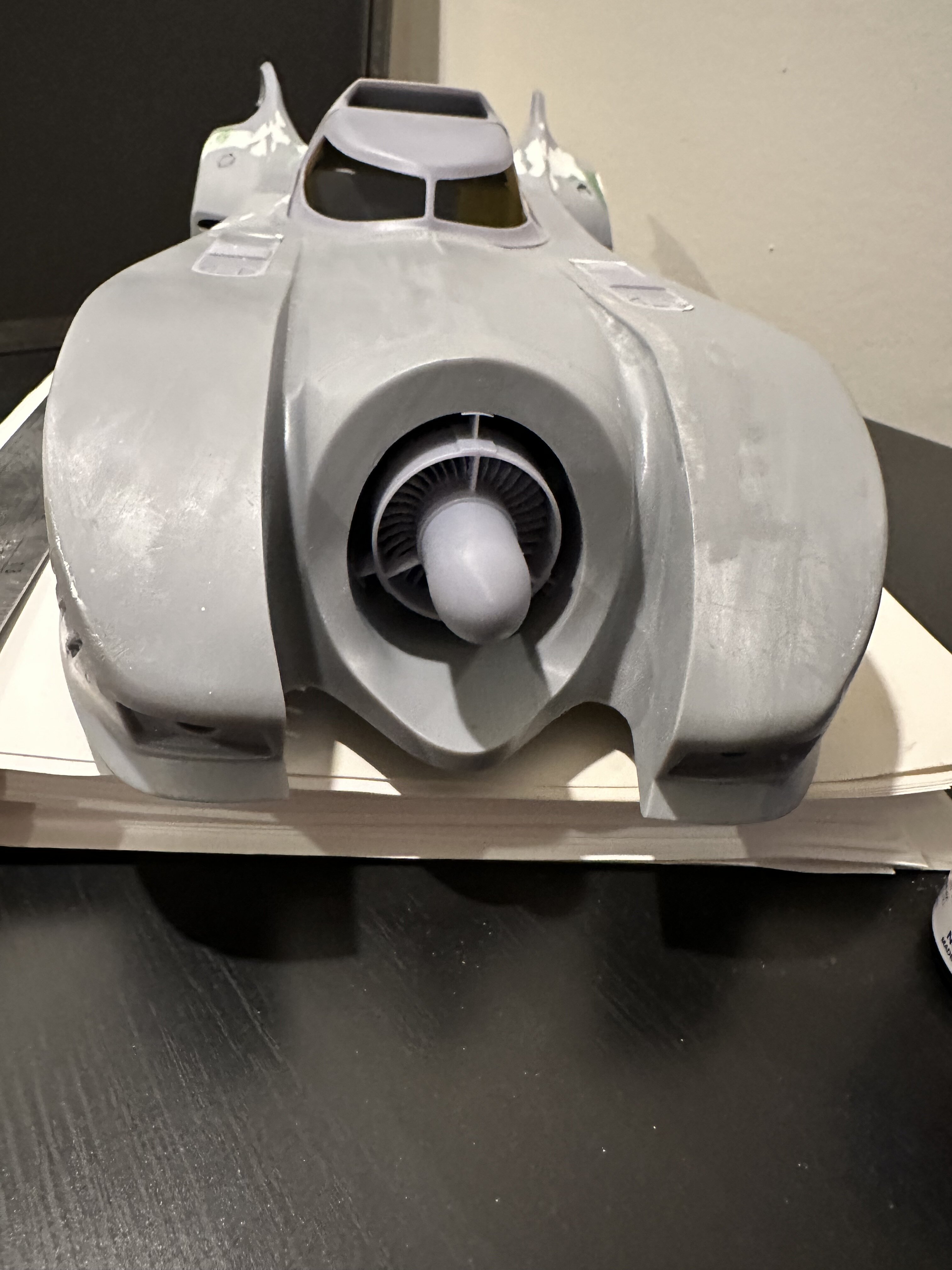

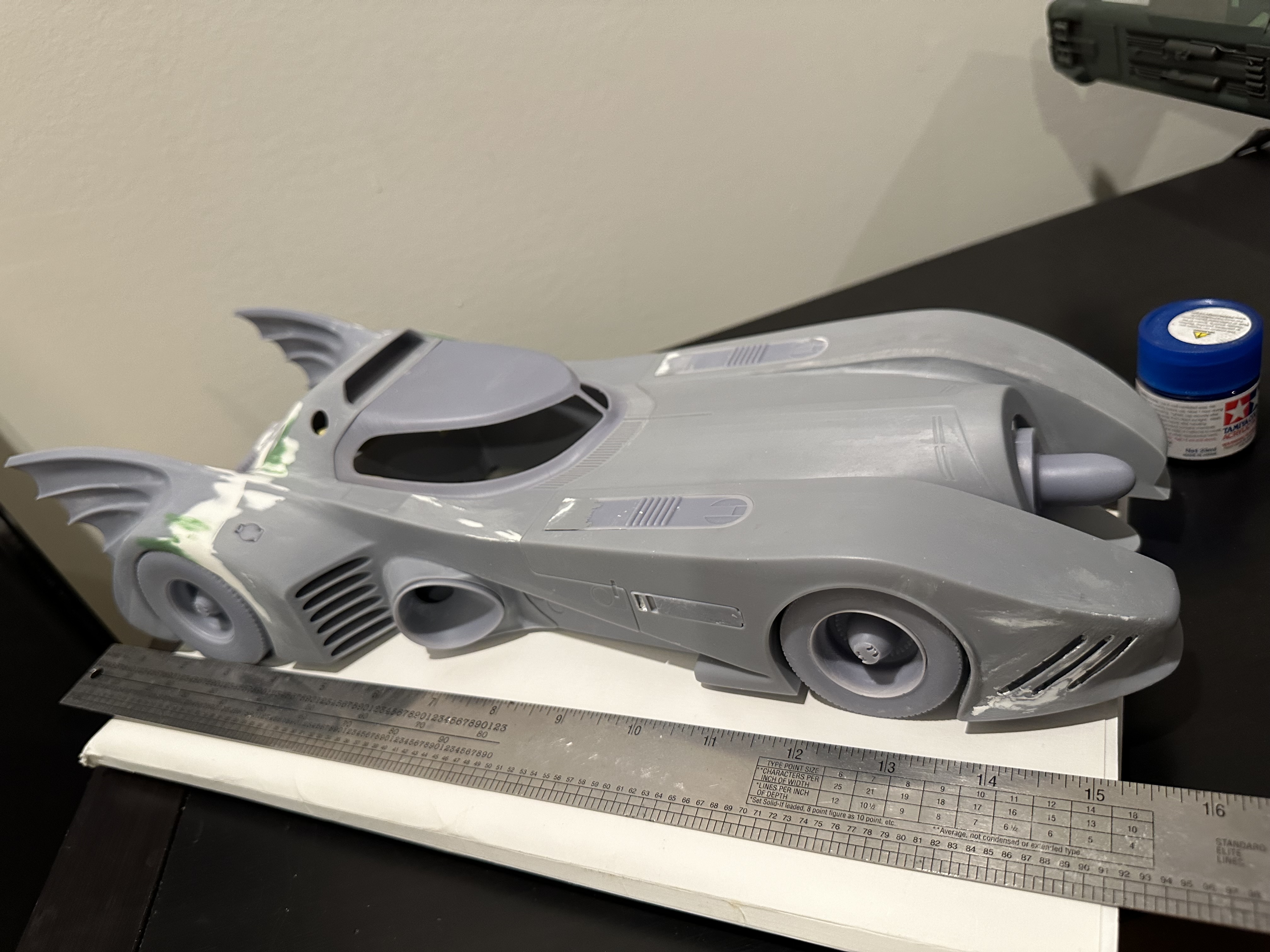

I was hoping to show it done today, but I replaced my nFEP in my printer and did it incorrectly causing a whole vat of resin to flow outside the vat. Won’t be able to use it until things arrive Wednesday. Until then here are some progress pics. Rims and tires are separate for painting. I found some old photoetch by Fine Molds as the model was too small to print, though I tried. I got the first portion of the turbine printed and I did glue the 3 body portions together. The canopy in the pic is still the wrong one and while I didn’t get them in the pics I do have the side panel covers and gas caps printed.



[joberg]

It's really looking good



[Fett_Ish]

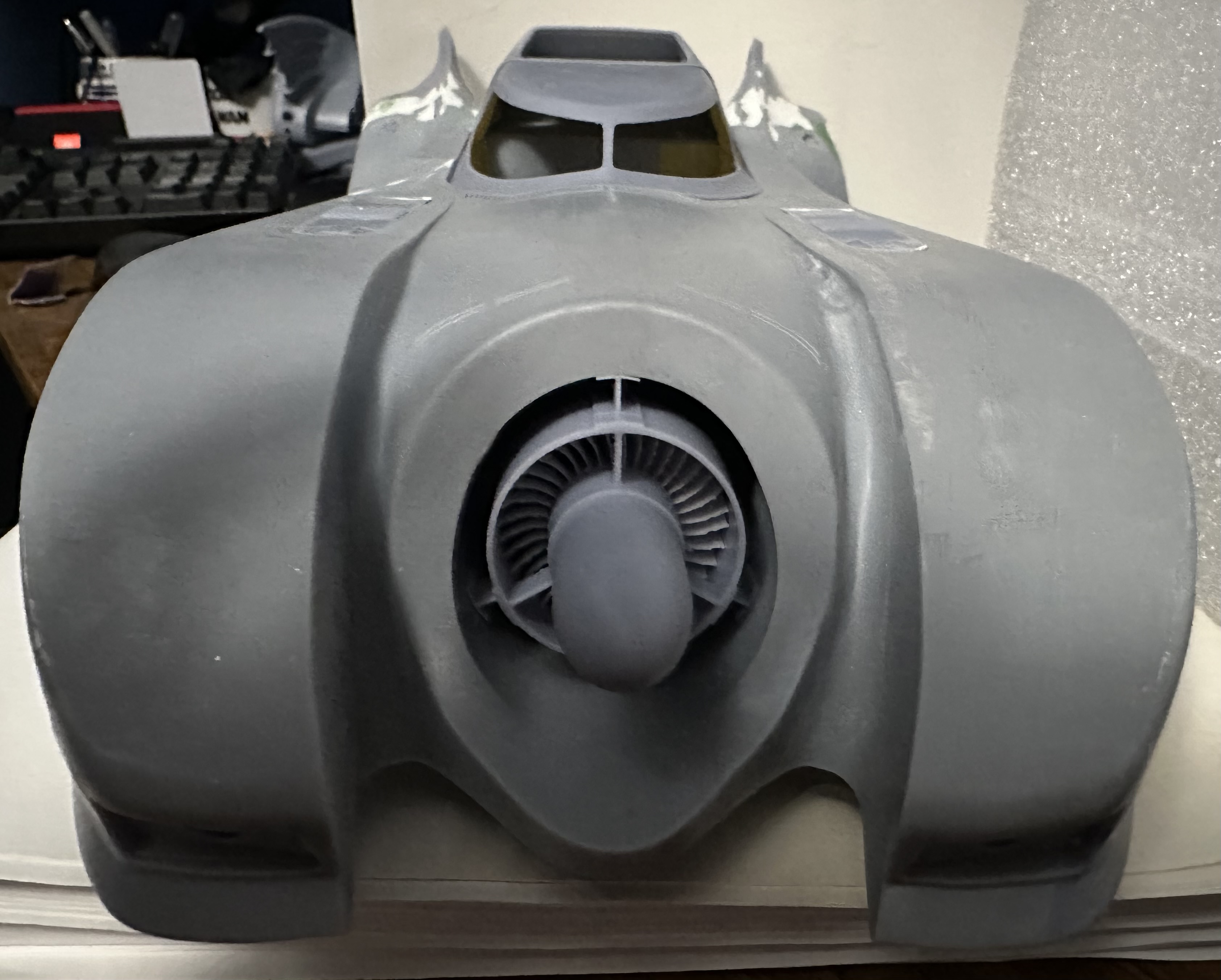

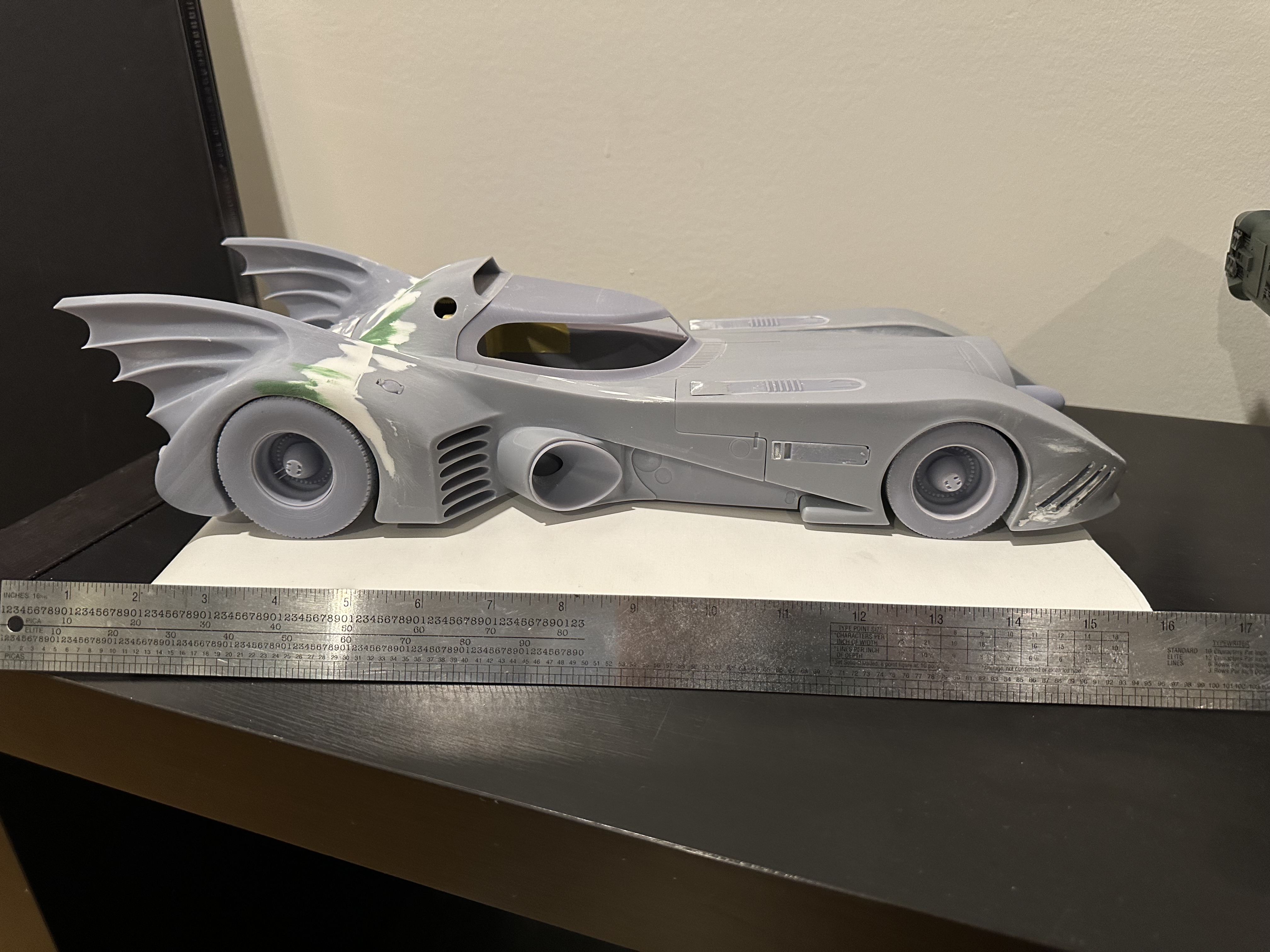

So with the exception of an interior,which I haven’t decided I want to do yet, the rear thruster and bumpers are all I have left to model and print. After getting my printer a new nFEP and screen protector I immediately ran the correct canopy turbine fan blades and wheel parts. The printer is amazing and did them all perfect. since I am generally into the building and painting phase I will probably start a thread in general modeling to stop spamming this thread. Thanks for the encouragement and I am open to suggestions of what to model next!



[joberg]

Eager to see the whole build



[TazMan2000]

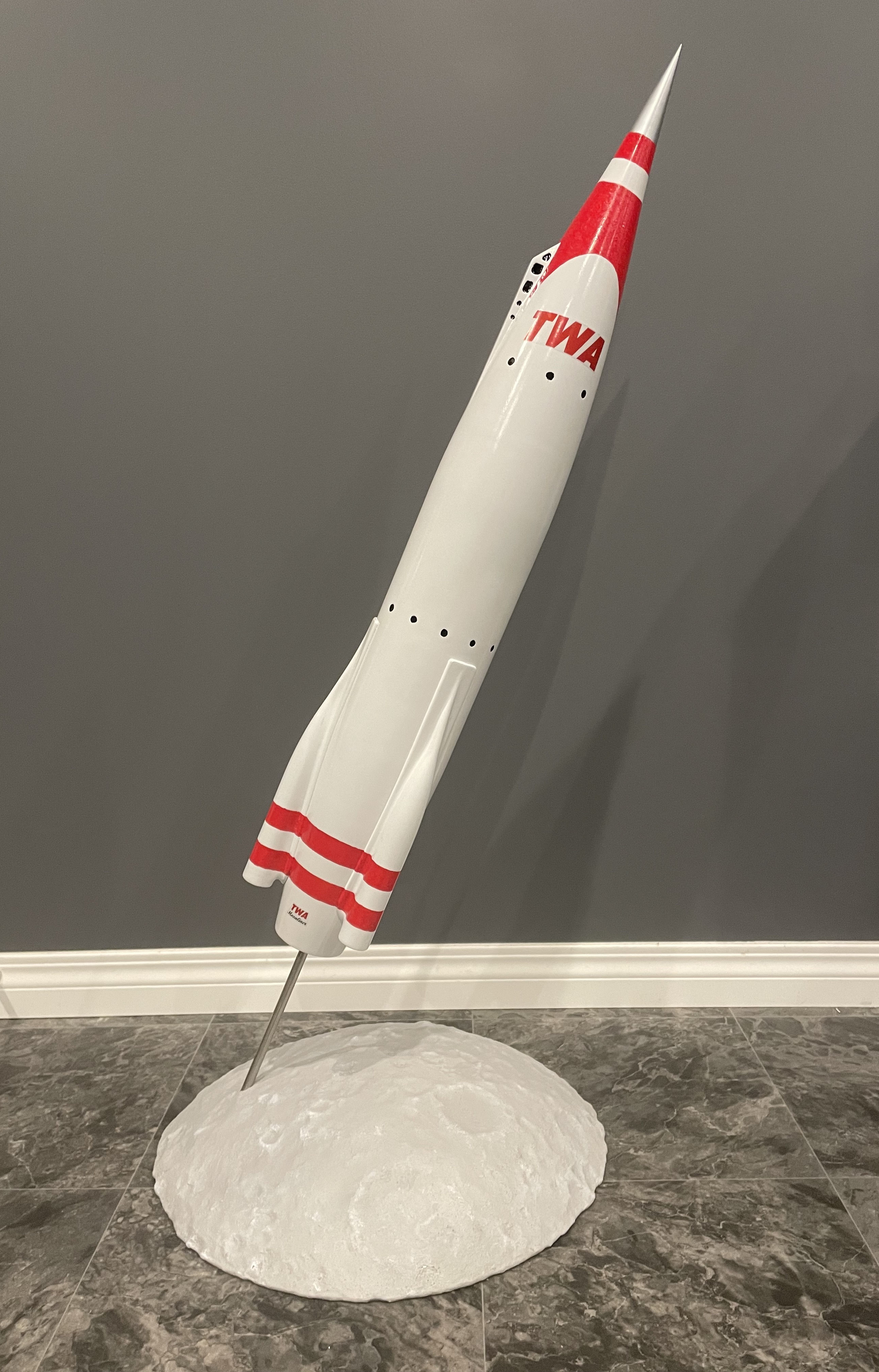

Almost finished the 1955 TWA Moonliner. I still have to print the landing pads and engine vector plates.

TazMan2000



[joberg]

Fantastic workmanship Taz.



[anamorphicWayne]

WoW!! Top notch work Taz!! Nicely done.



[TazMan2000]

Thanks joberg & anamorphicWayne .

TazMan2000



[Iskelderon]

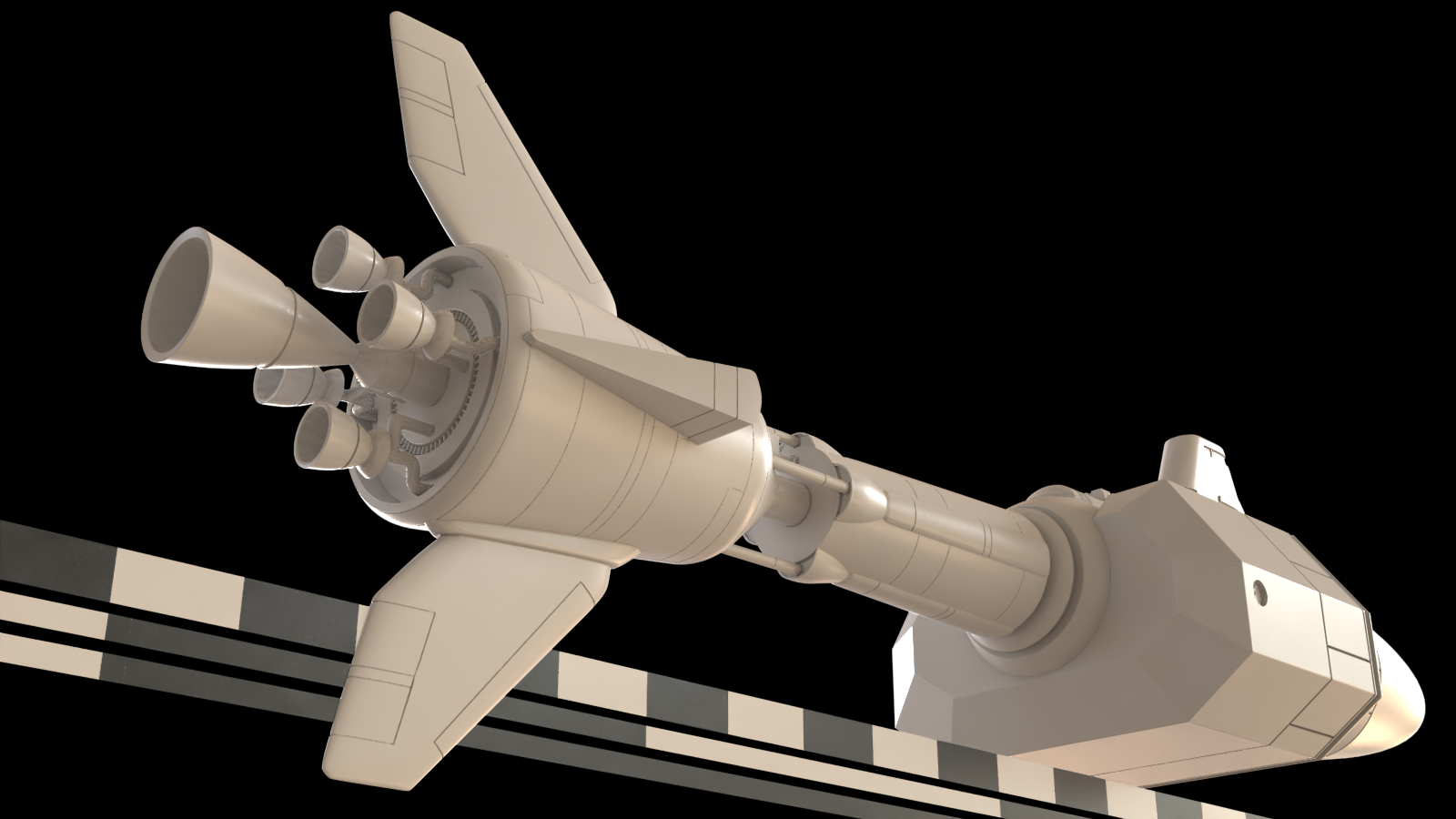

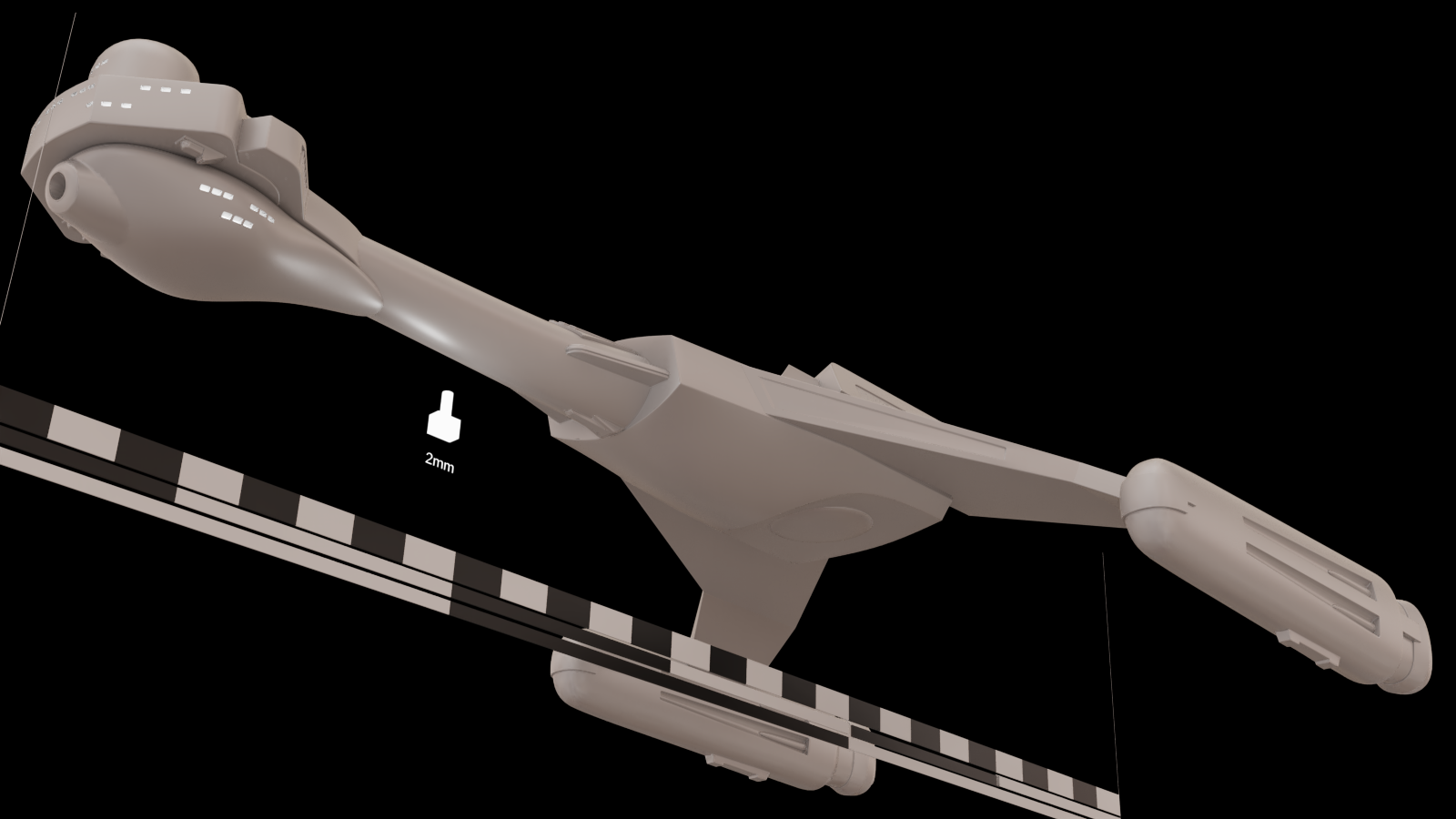

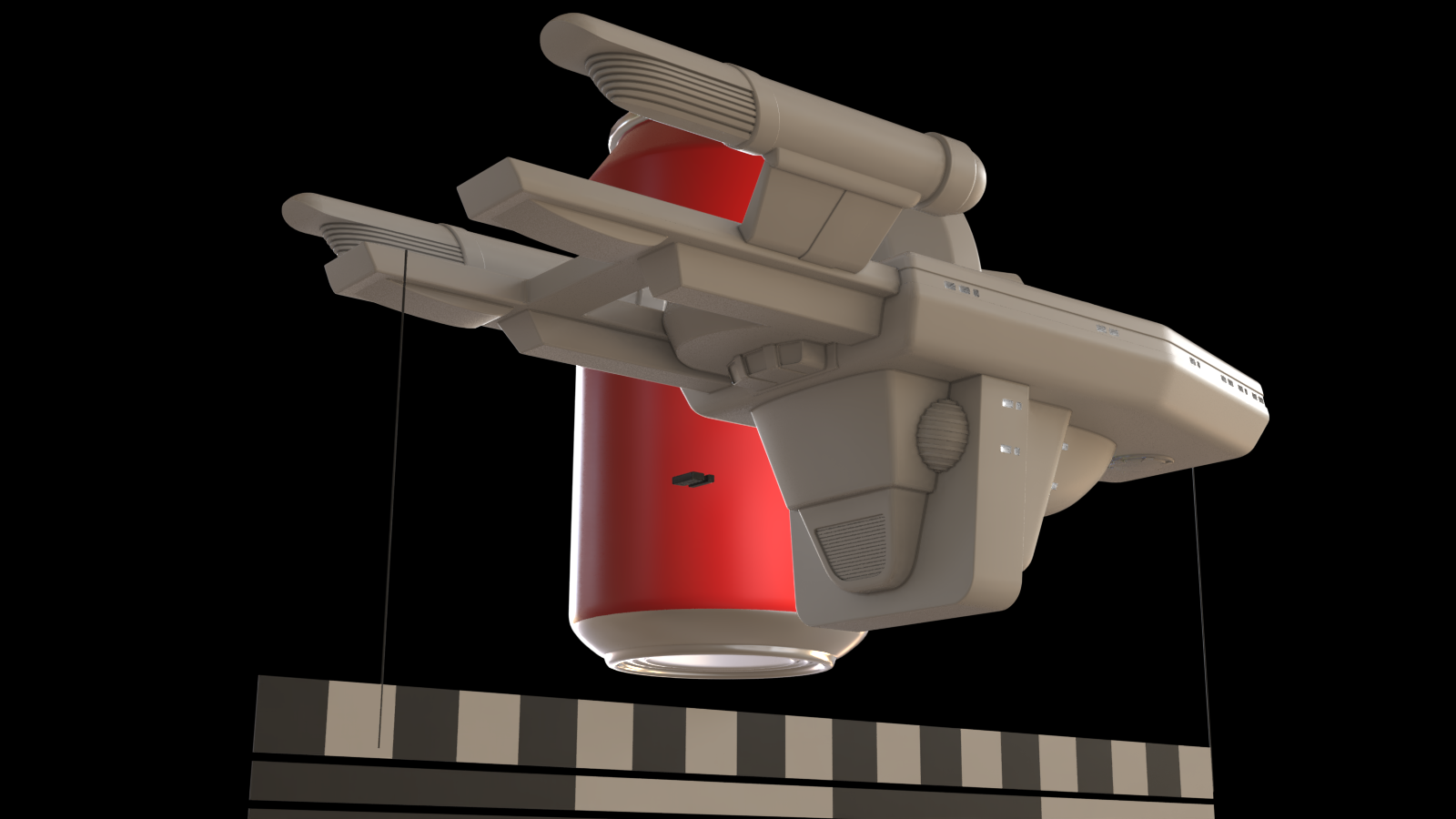

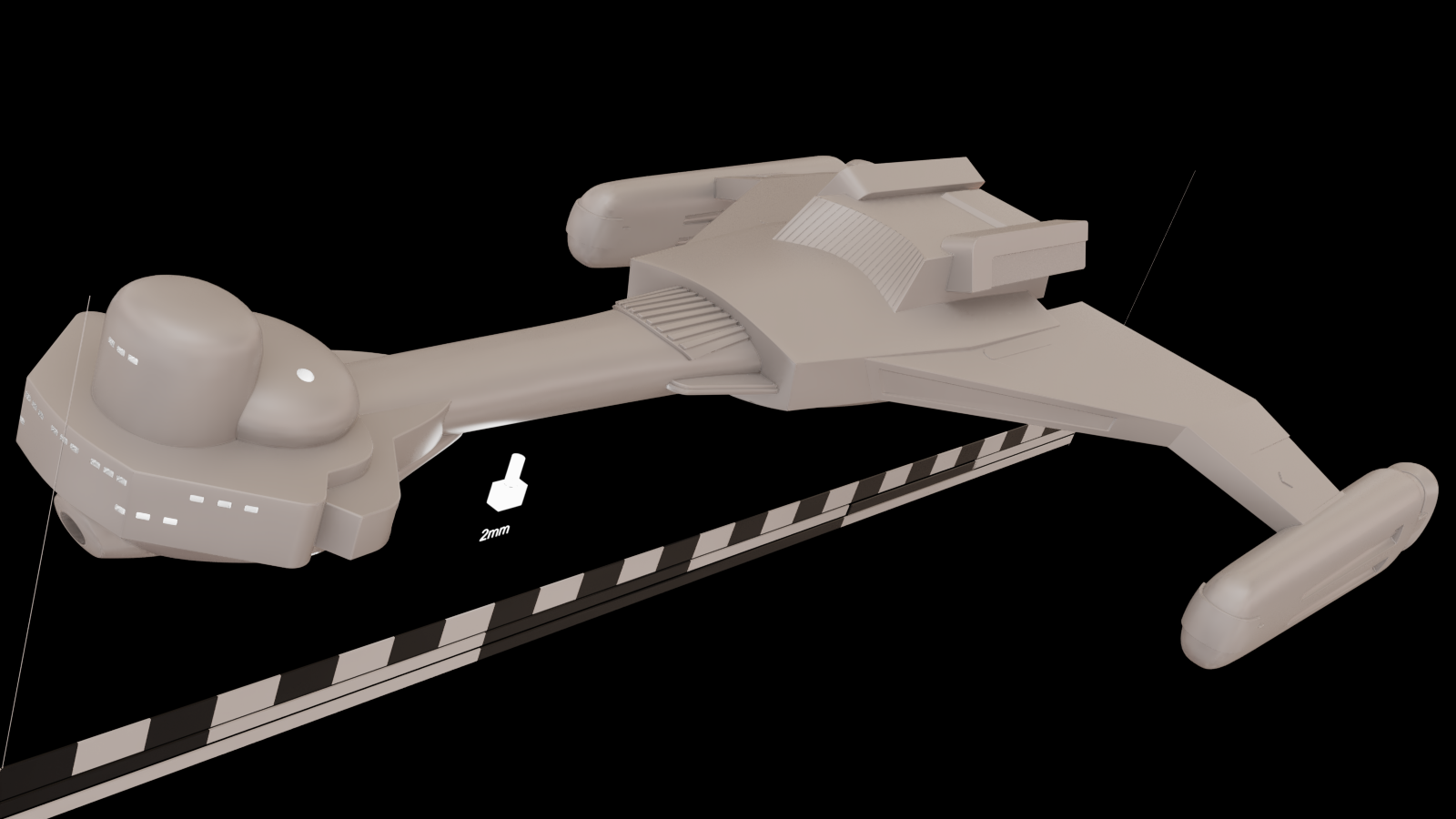

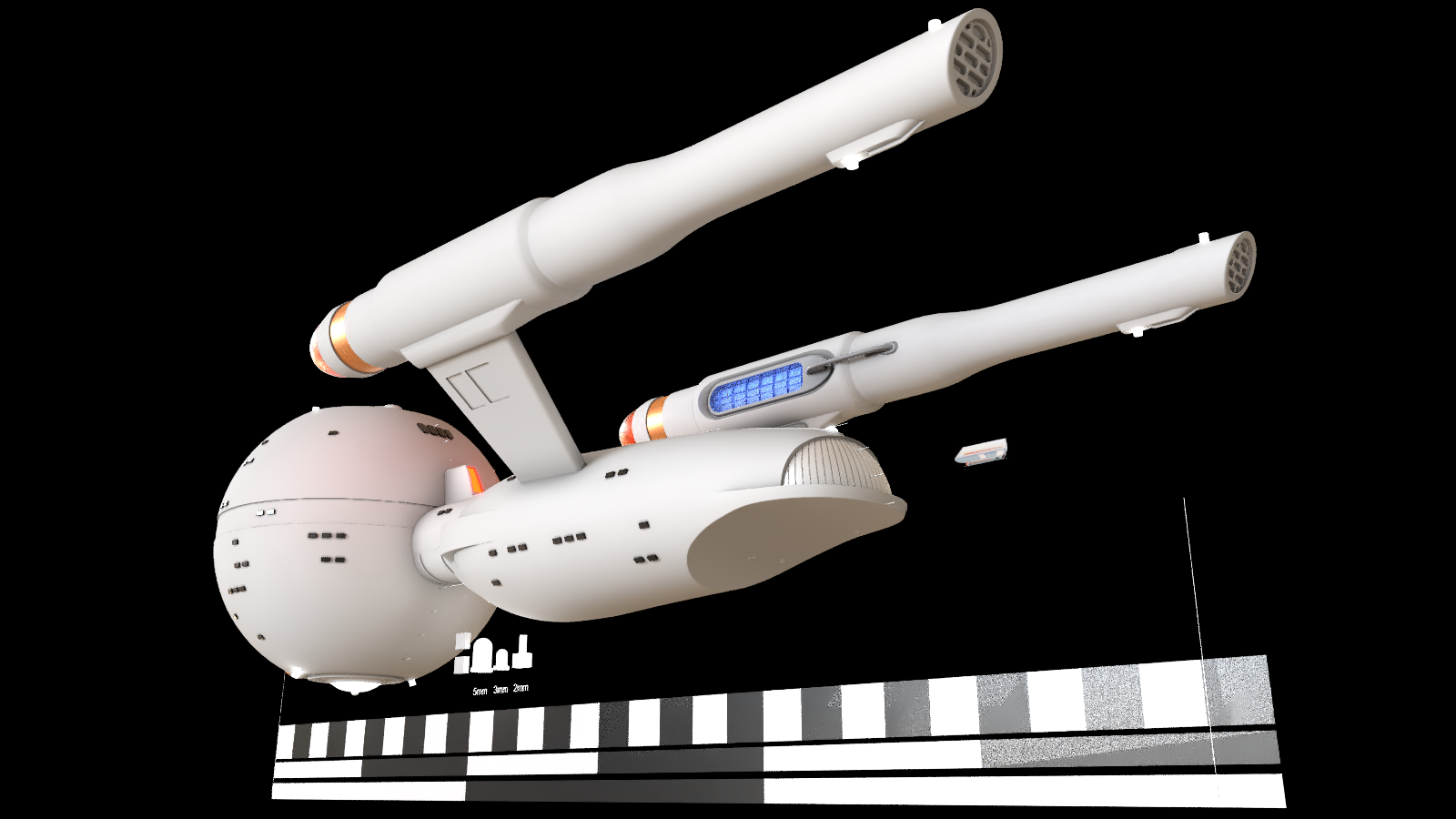

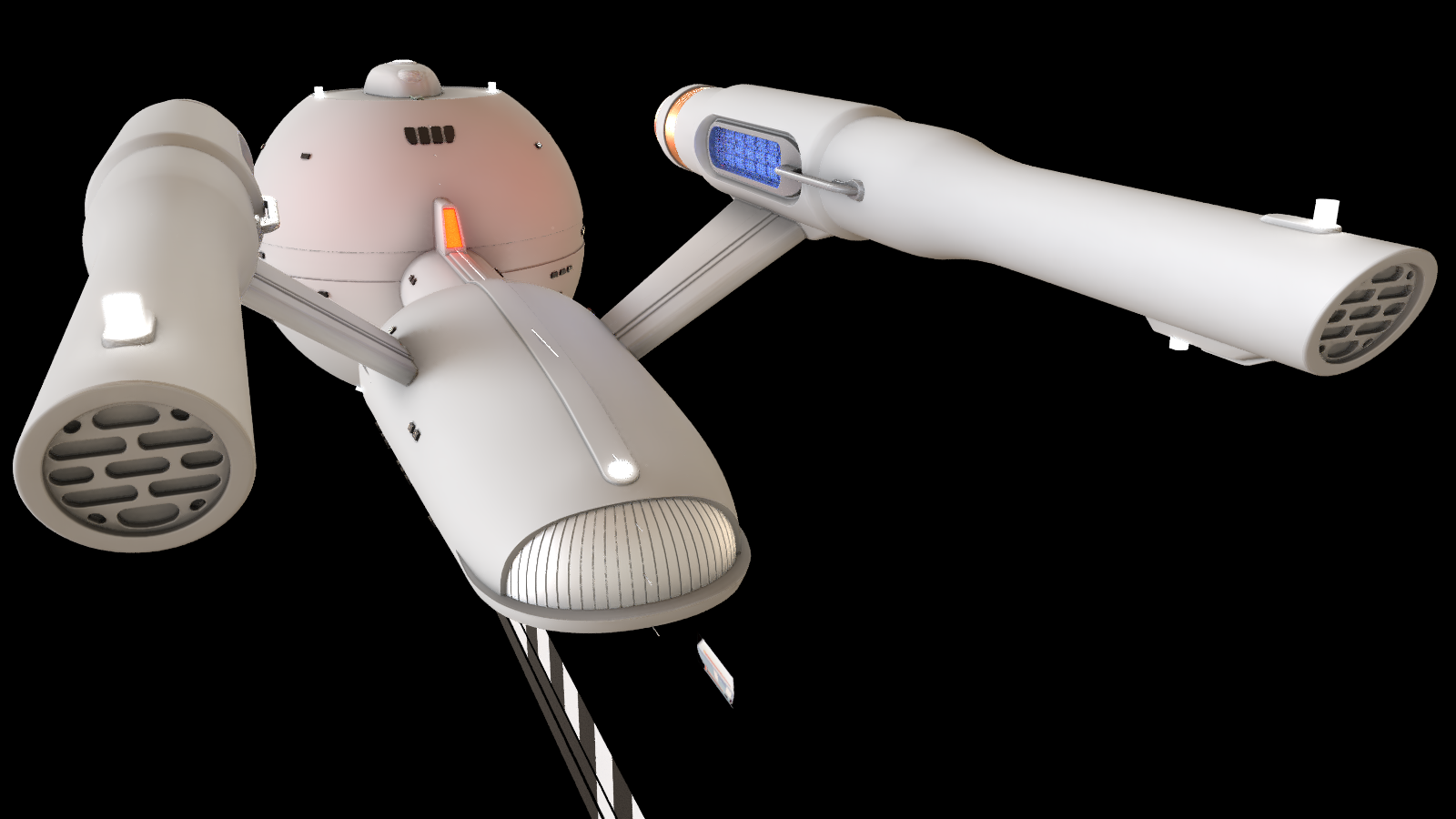

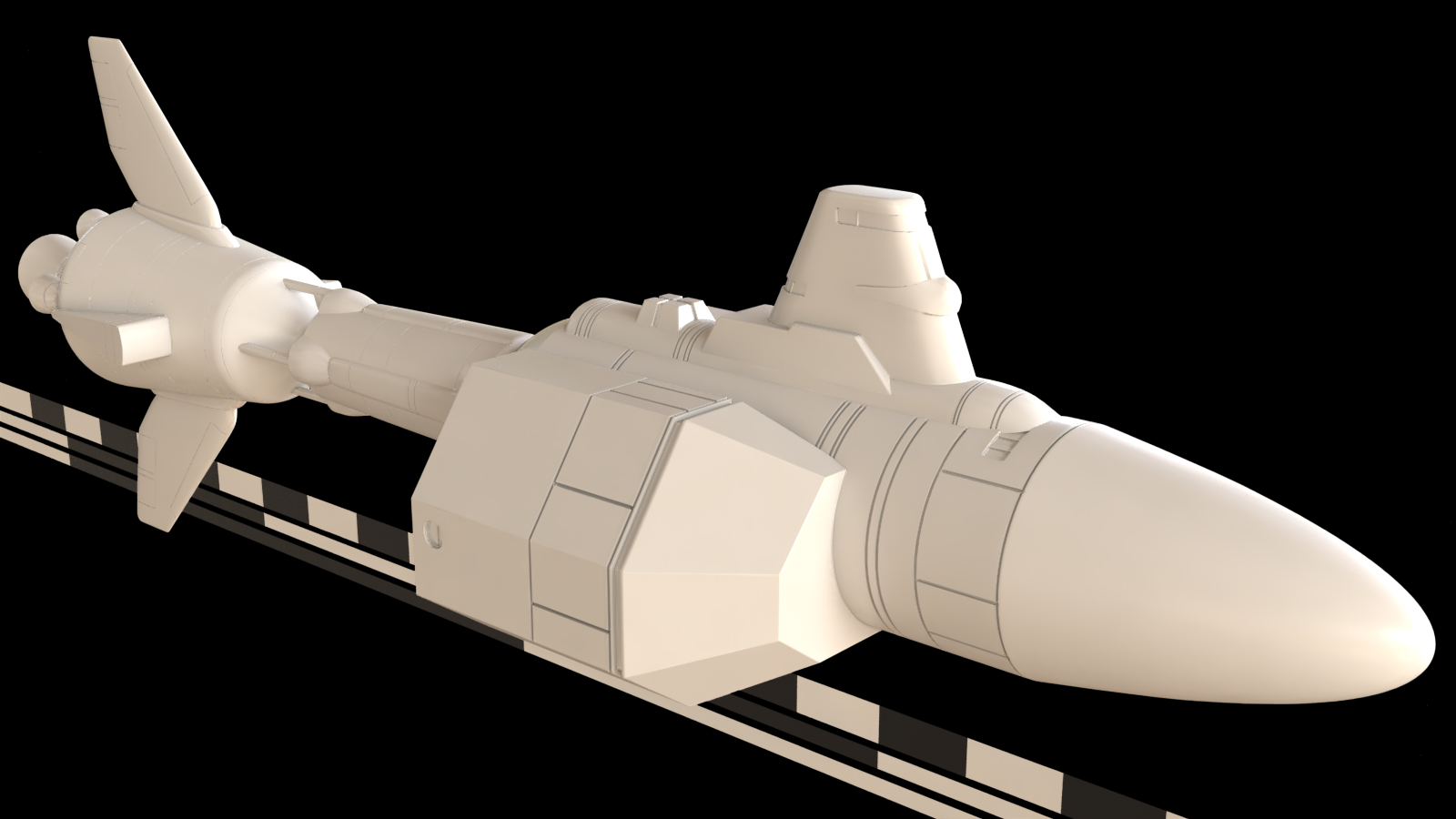

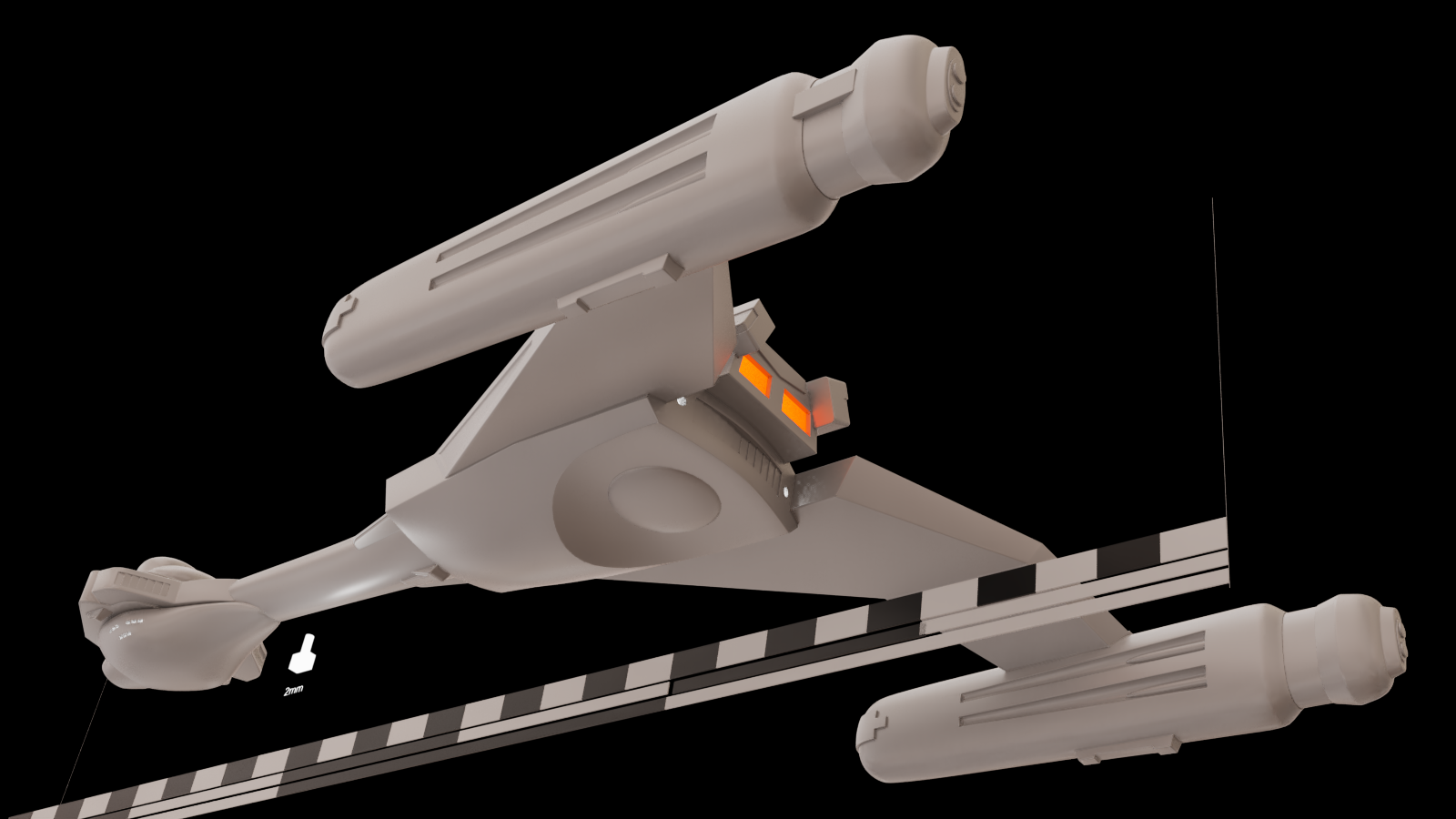

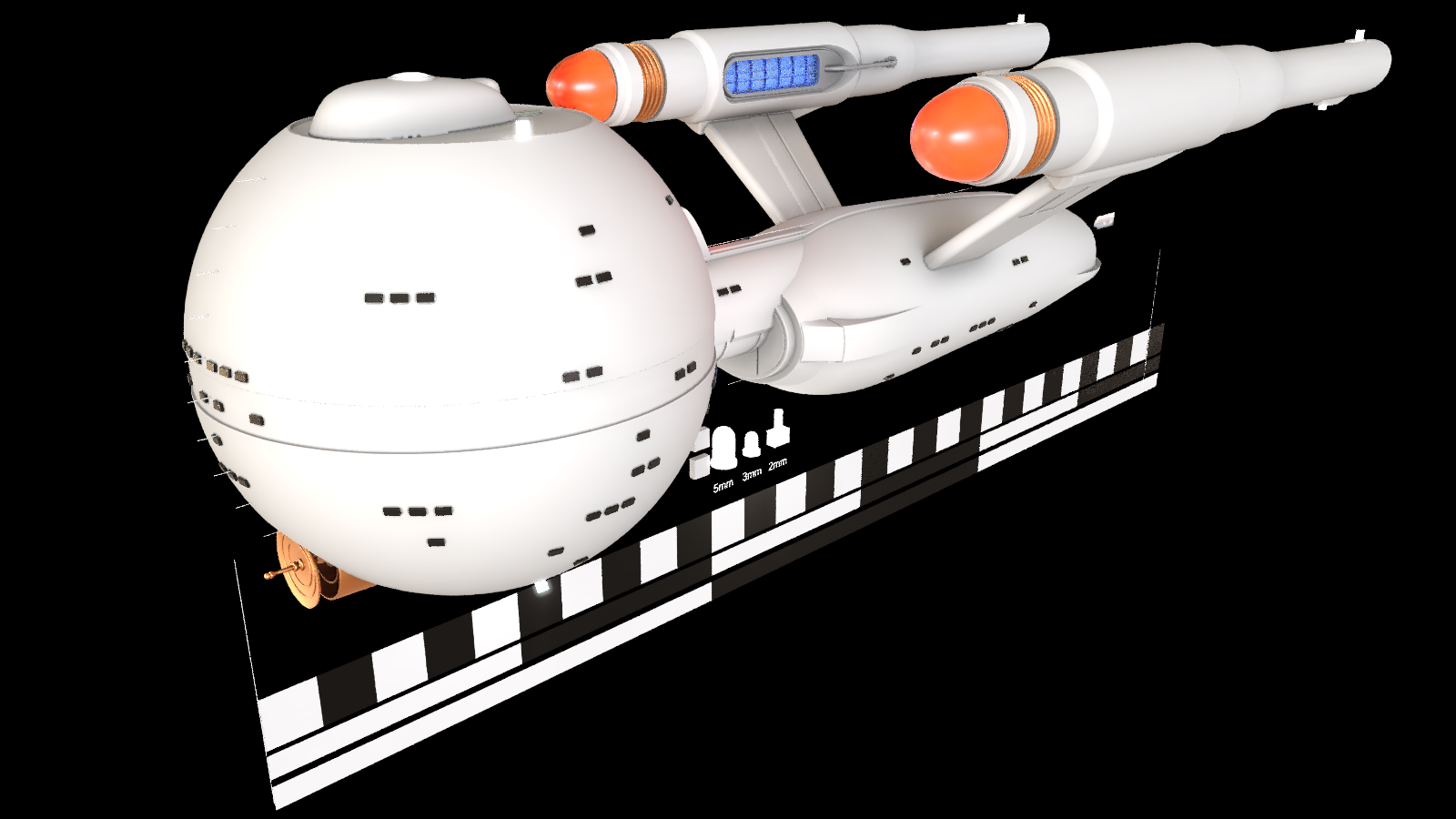

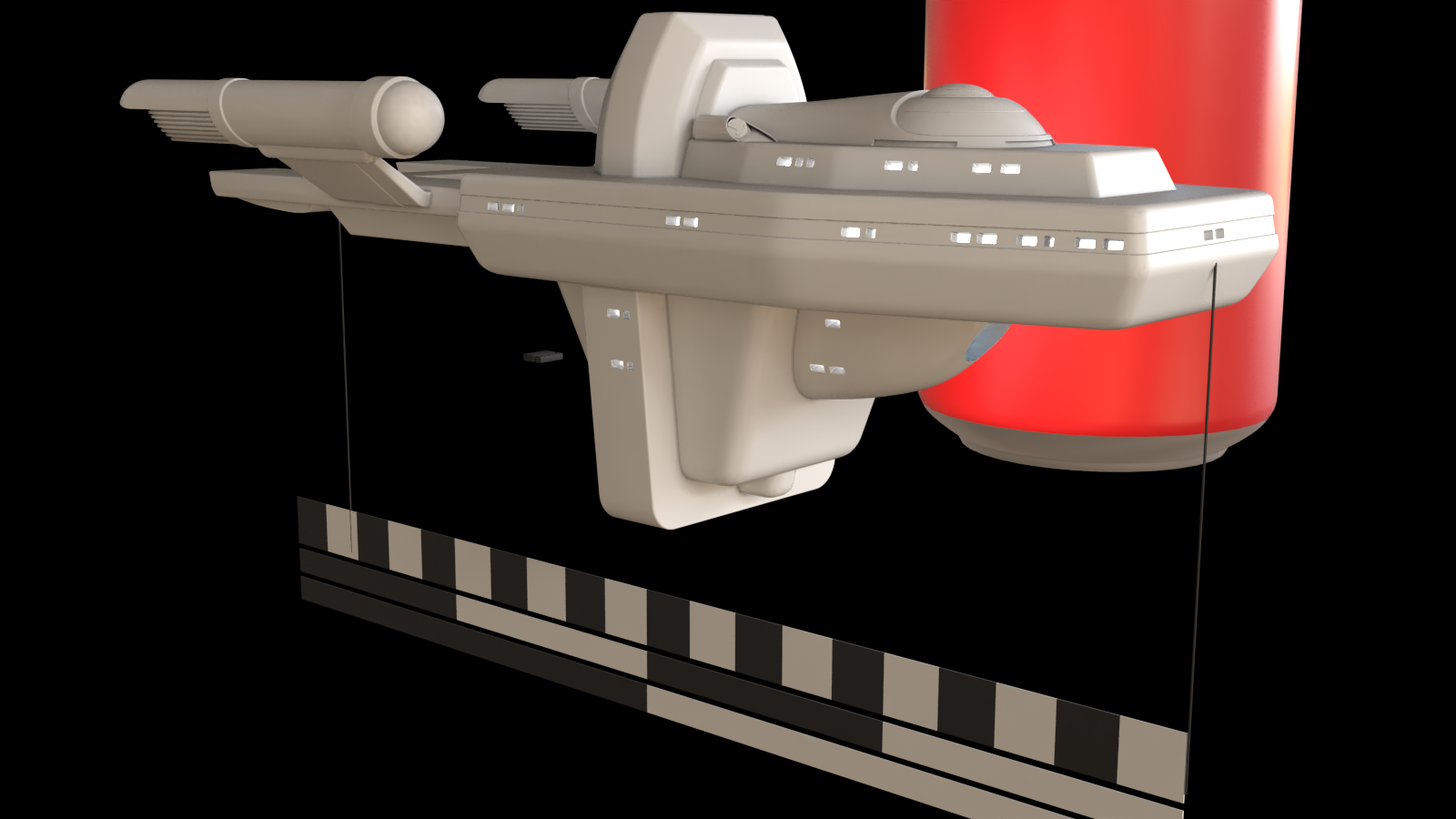

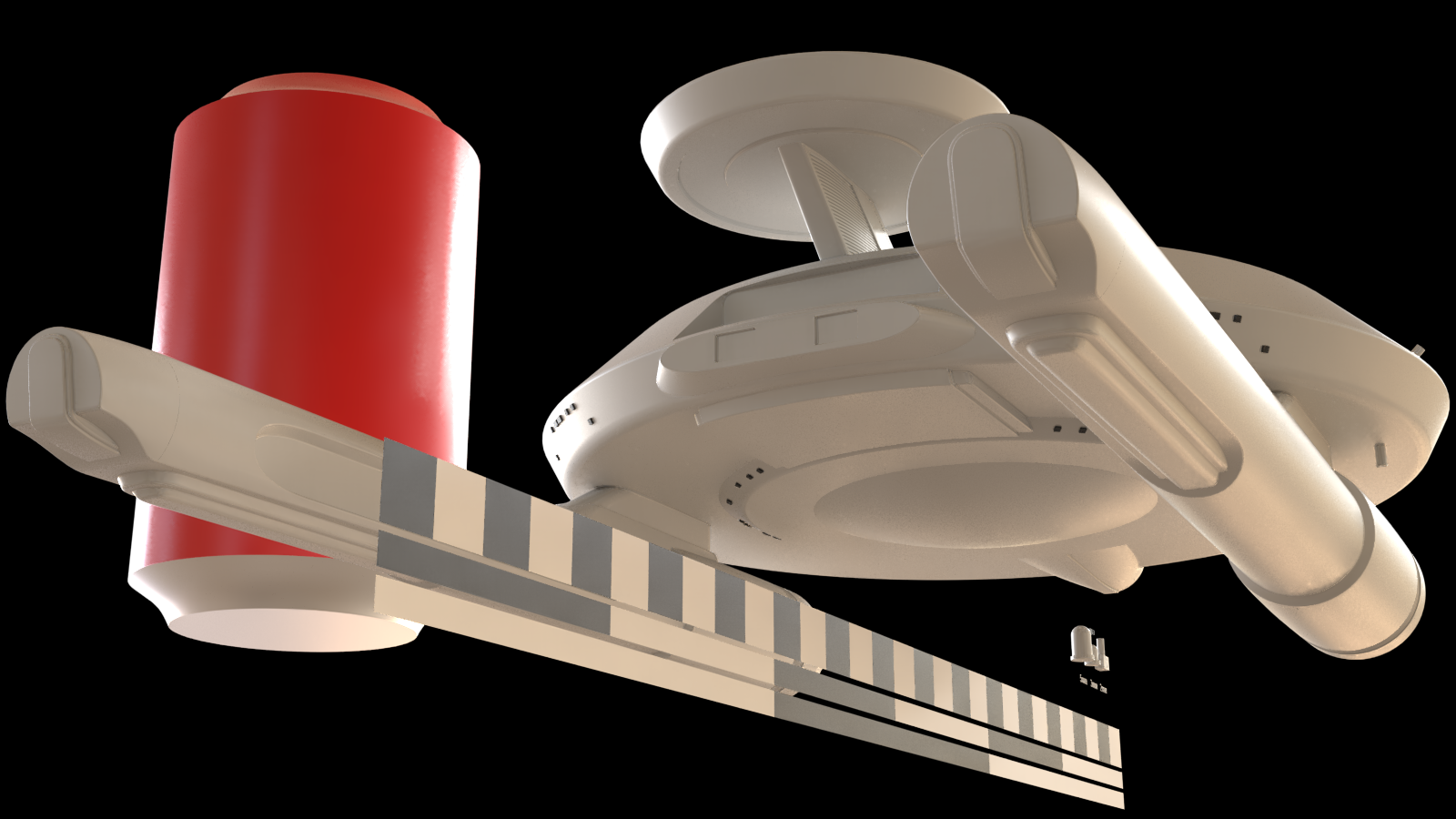

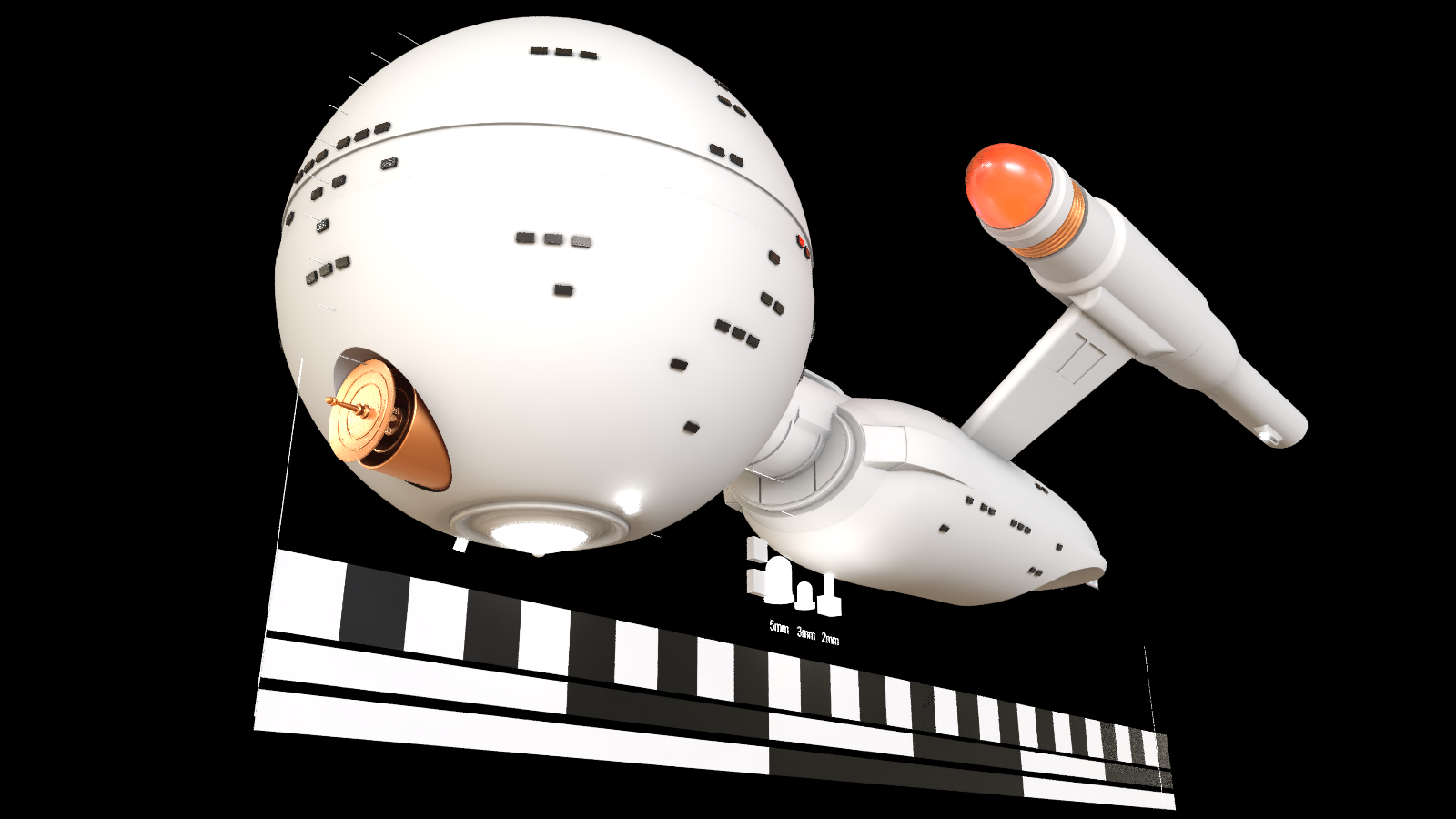

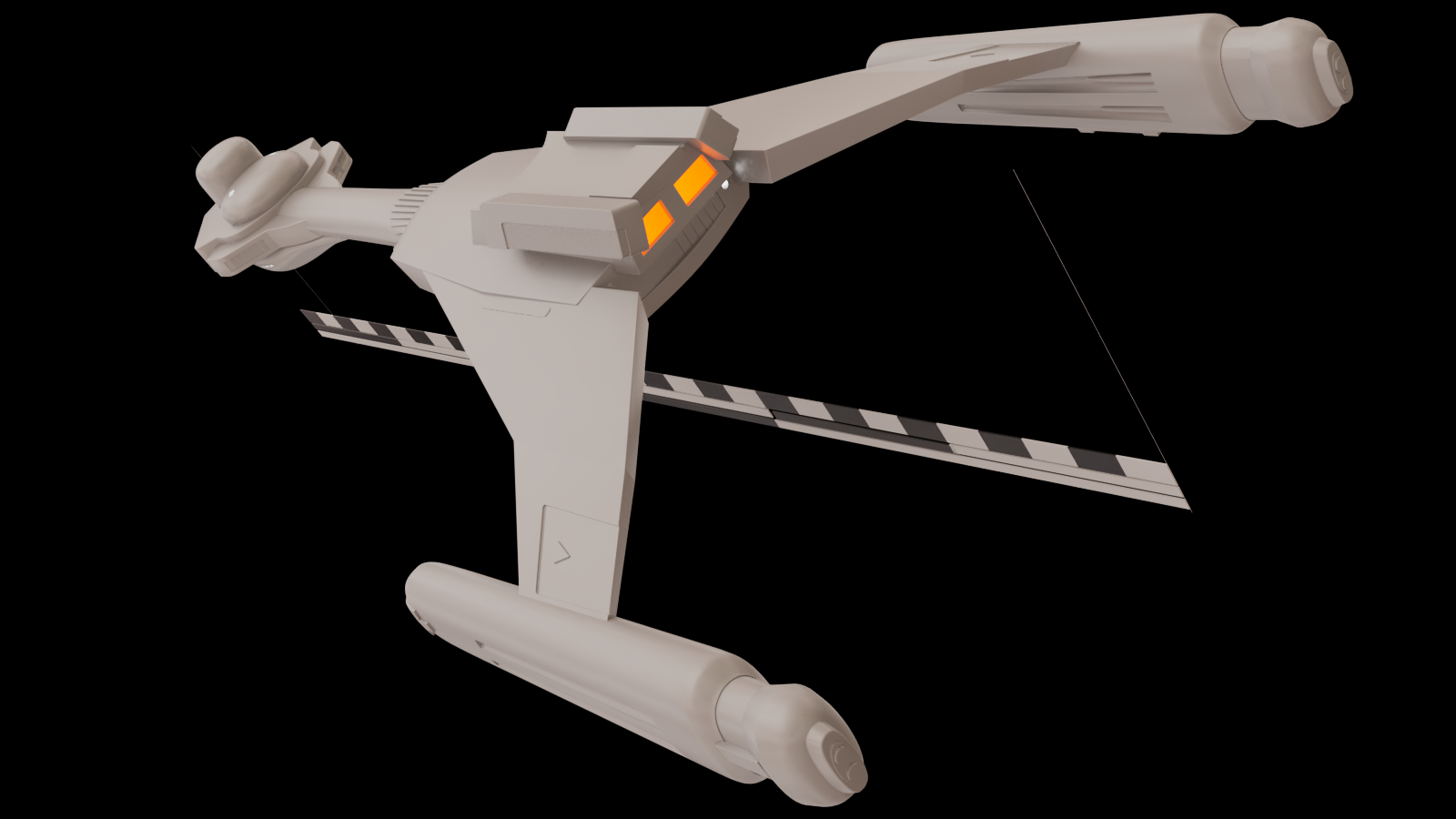

Working on several Star Trek models to be 3D printed next year to accompany a Revell TOS Enterprise earmarked for a kitbash project.

Spoiler: Ton of pictures



[joberg]

^^
Looking sharp



[Antsnest]

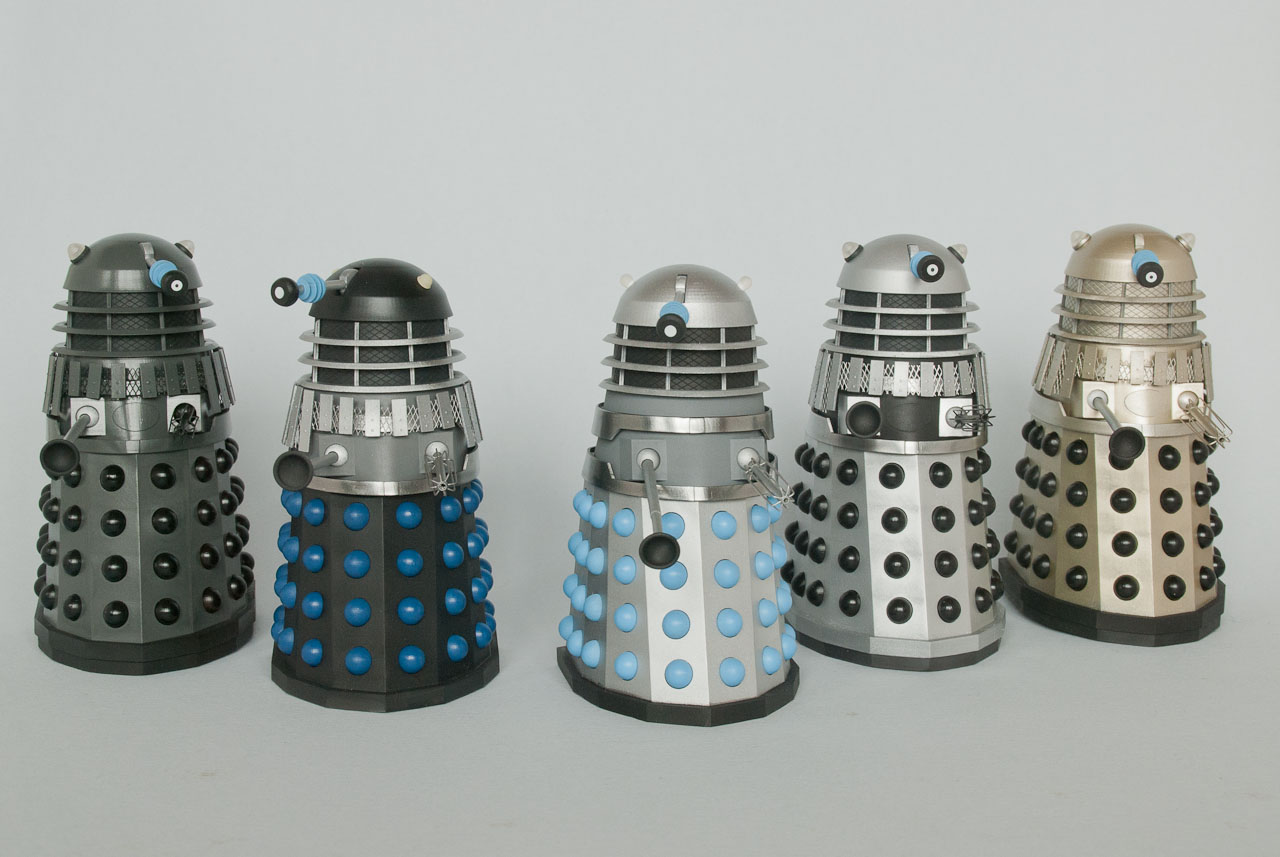

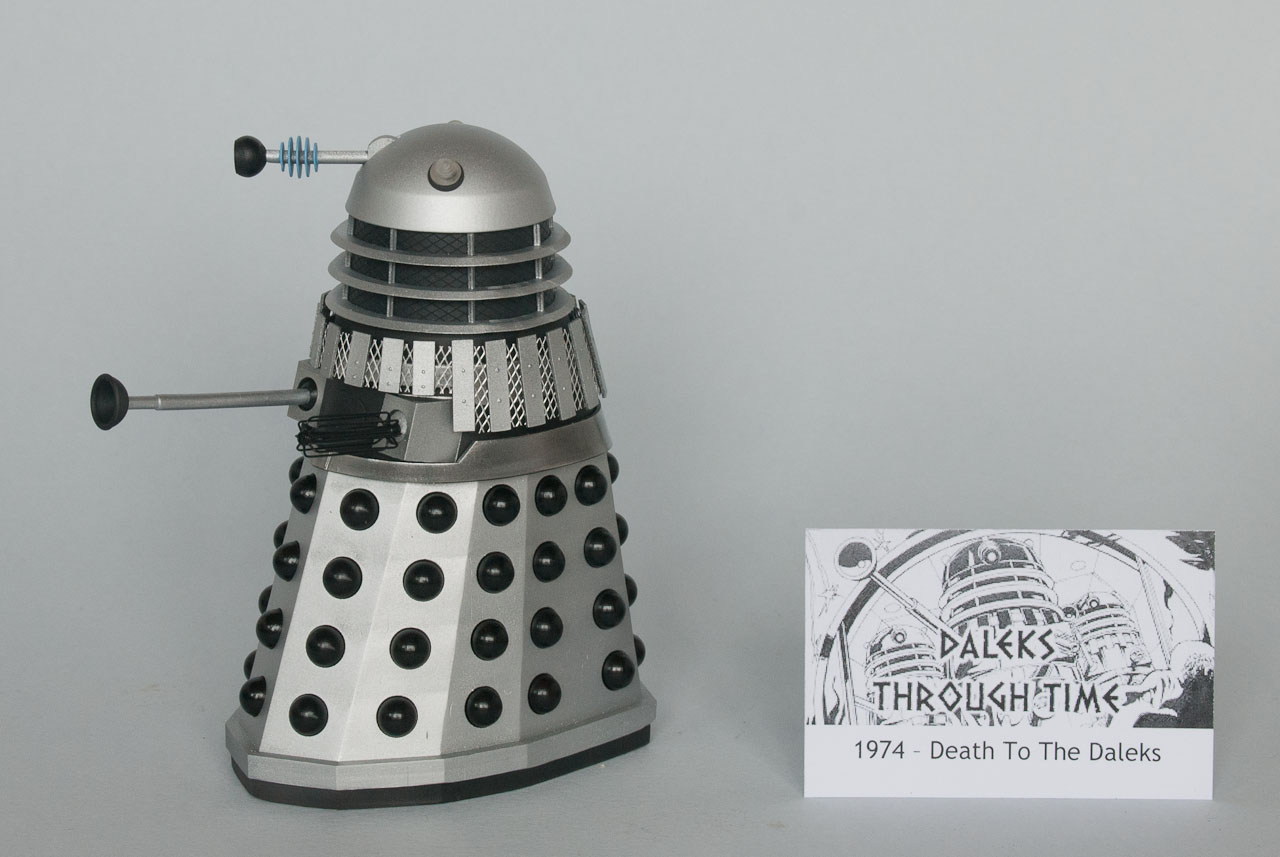

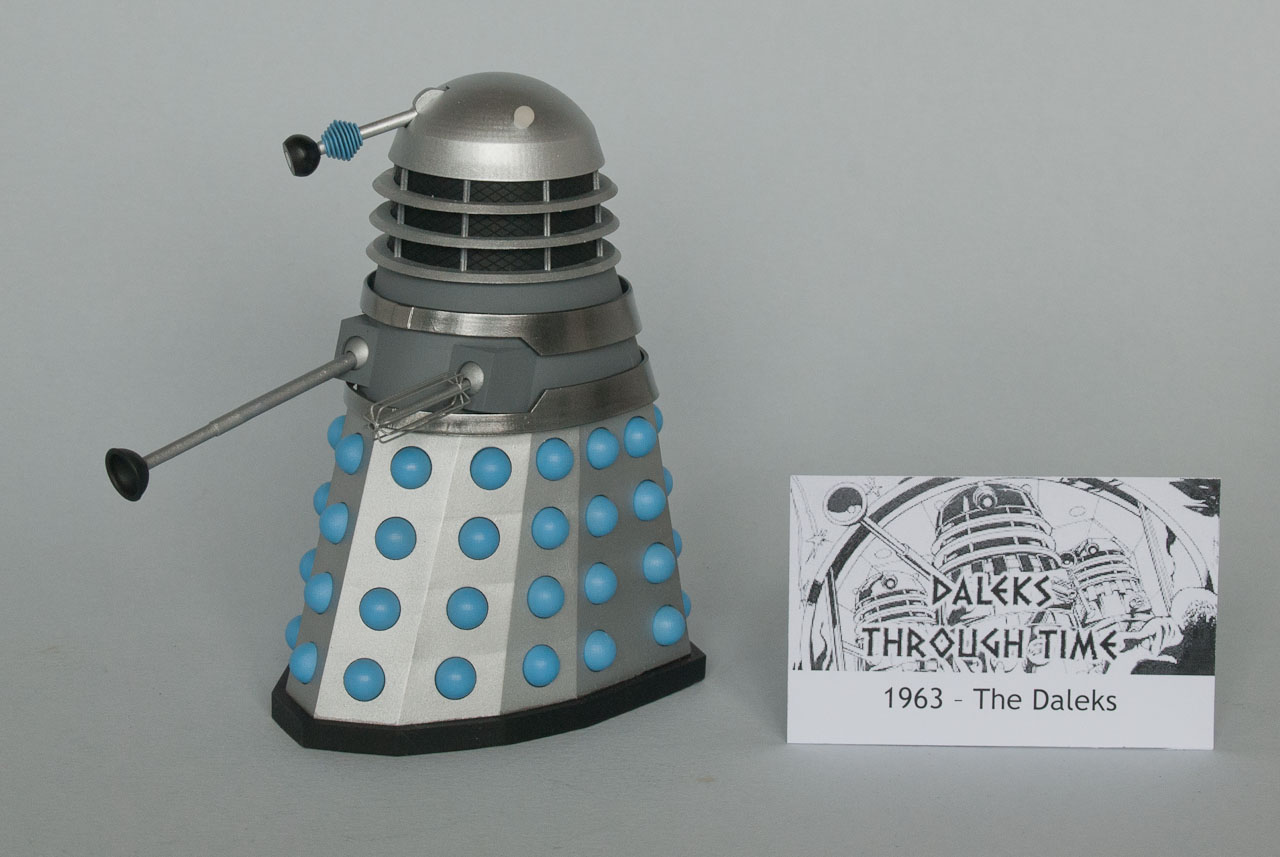

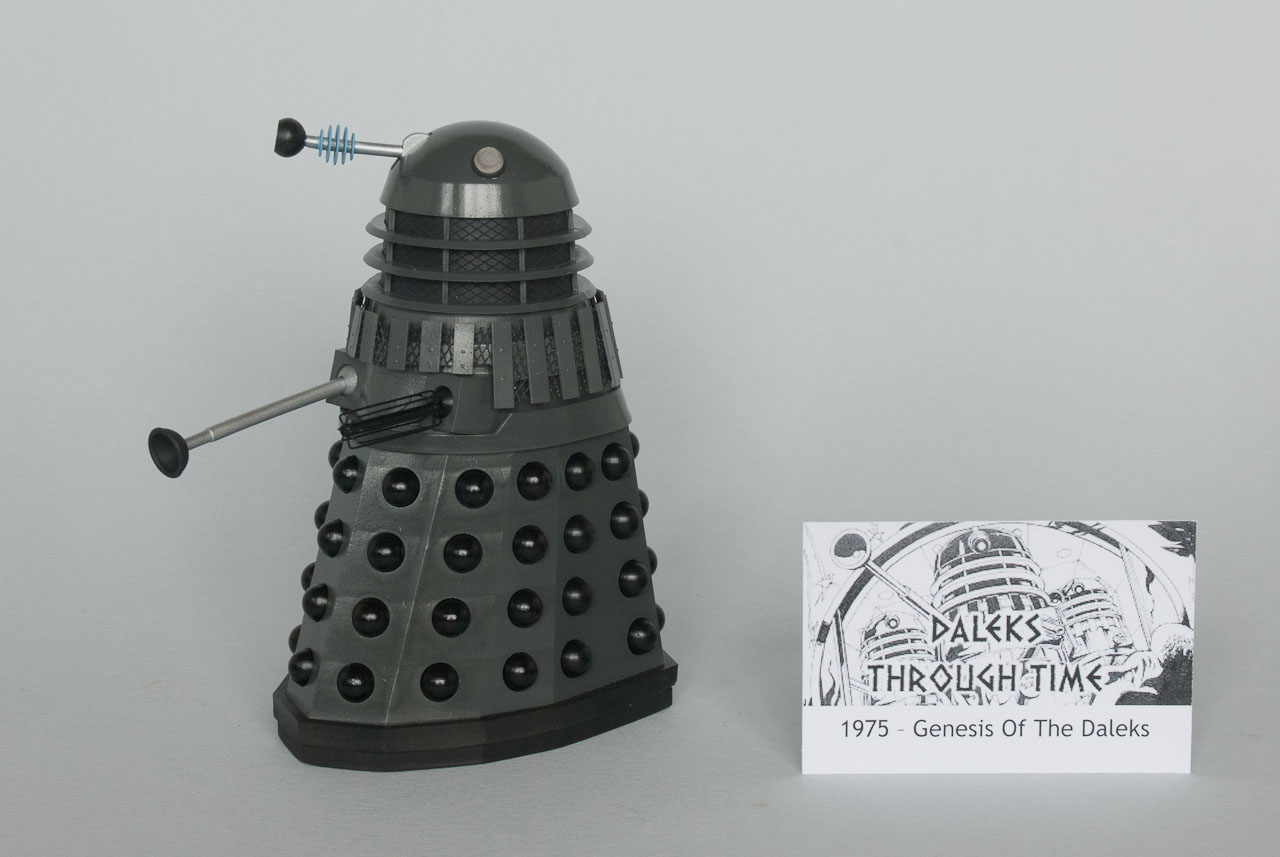

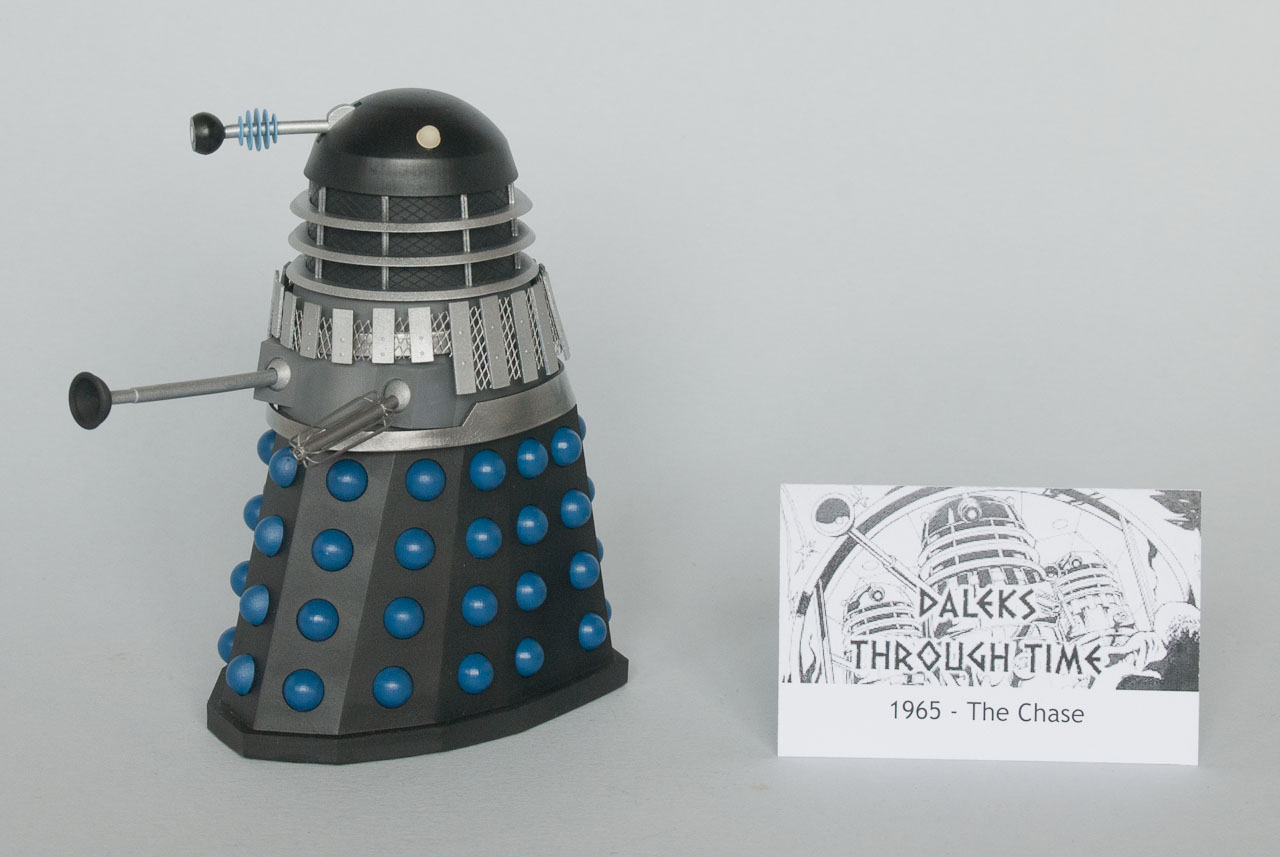

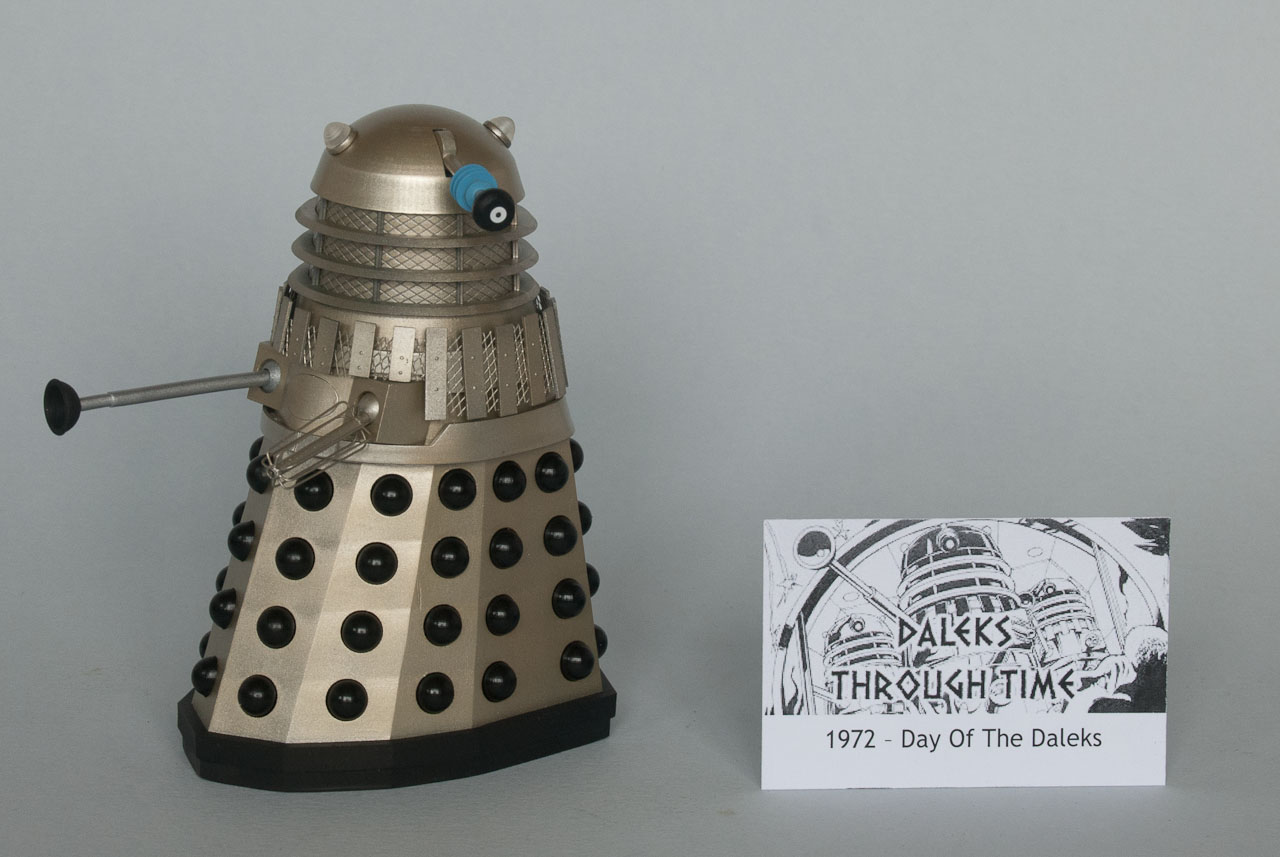

I recently completed these for a Dr Who 60th display by our model group. I CADded up the model from the original Shawcraft dimensions and then printed out at 1/12th scale. The 3D model was designed specifically to expedite building & painting since I had a lot to do and not enough time to do it! For example, the skirt was all one piece except for the balls, which were done as strips pushed in from the inside. Easy to spray, _no_ tedious masking
