Overwatch - Reaper Dracula Skin [Done]
- Thread starter pazscall
- Start date
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
McCarthy83
Active Member
Looks mint so far
.... look forward to seeing more.... I love the style and art in Overwatch....
.... look forward to seeing more.... I love the style and art in Overwatch....
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
RINZLERTRON
Sr Member
The helmet looks AWESOME so far! Same with the other little pieces and guns. I've been thinking of doing this one myself for a while, really excited to see what you achieve.
pazscall
Member
Thank you!
pazscall
Member

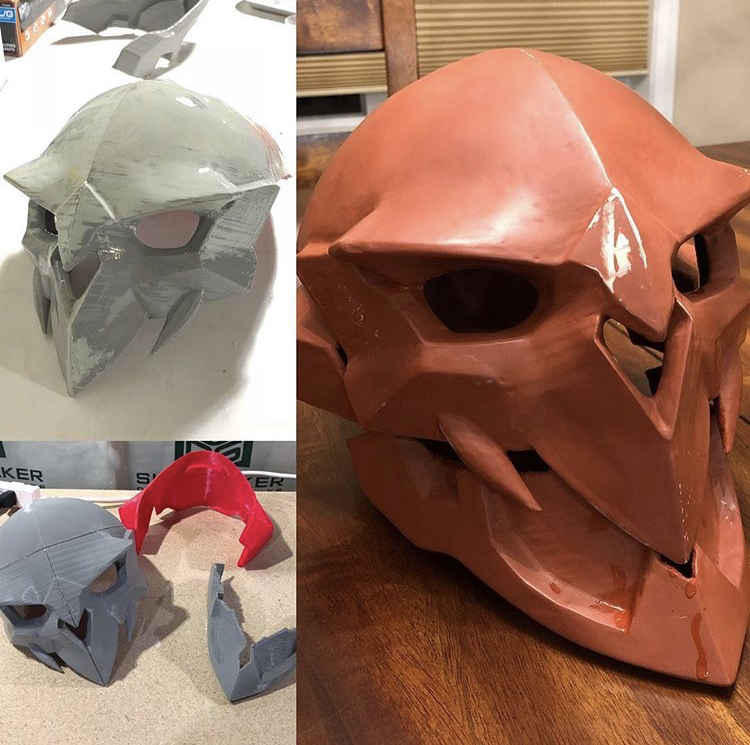

First and Second cast!

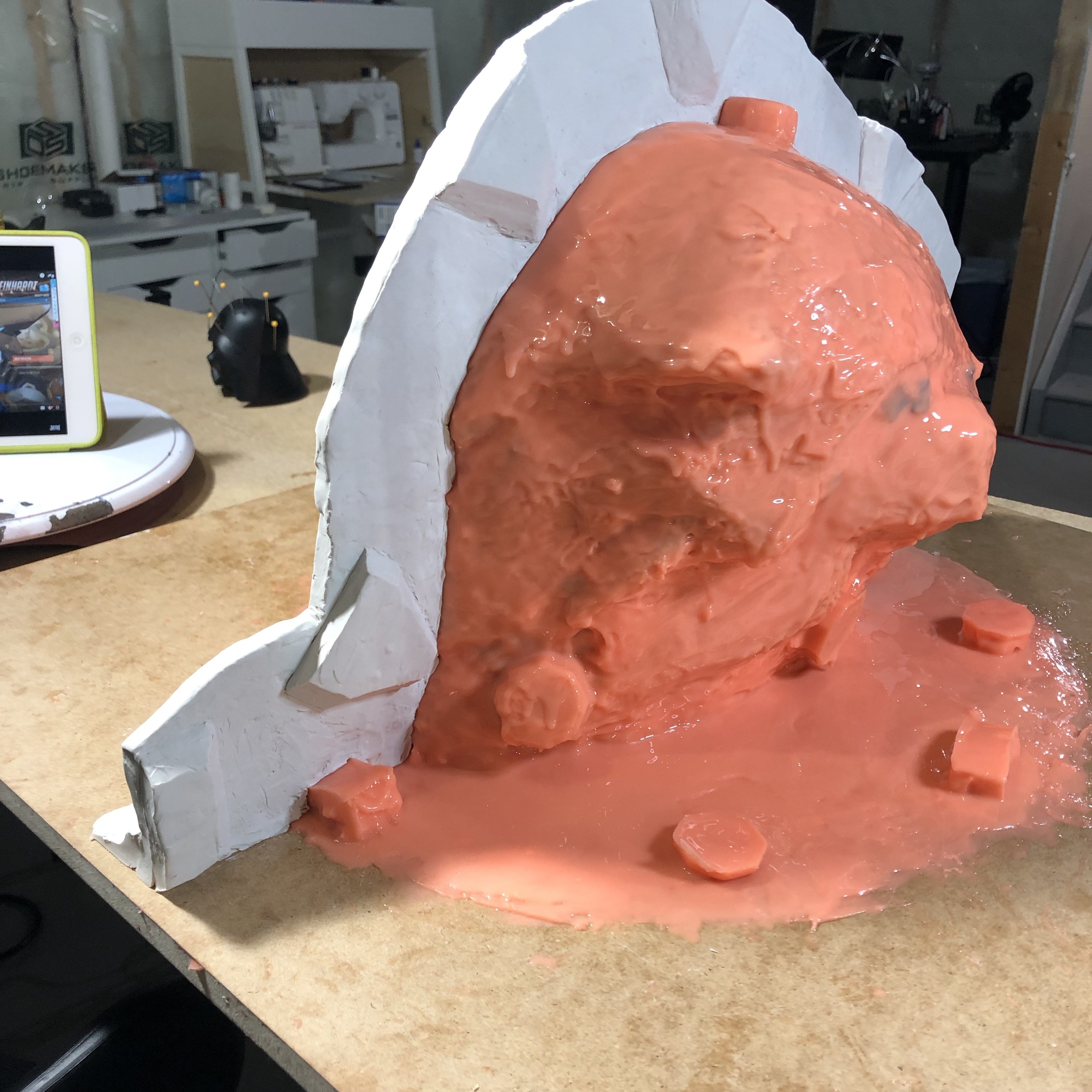

First one was with Smooth-on 65D
Had a few issues and weak spots
But It fit nicely

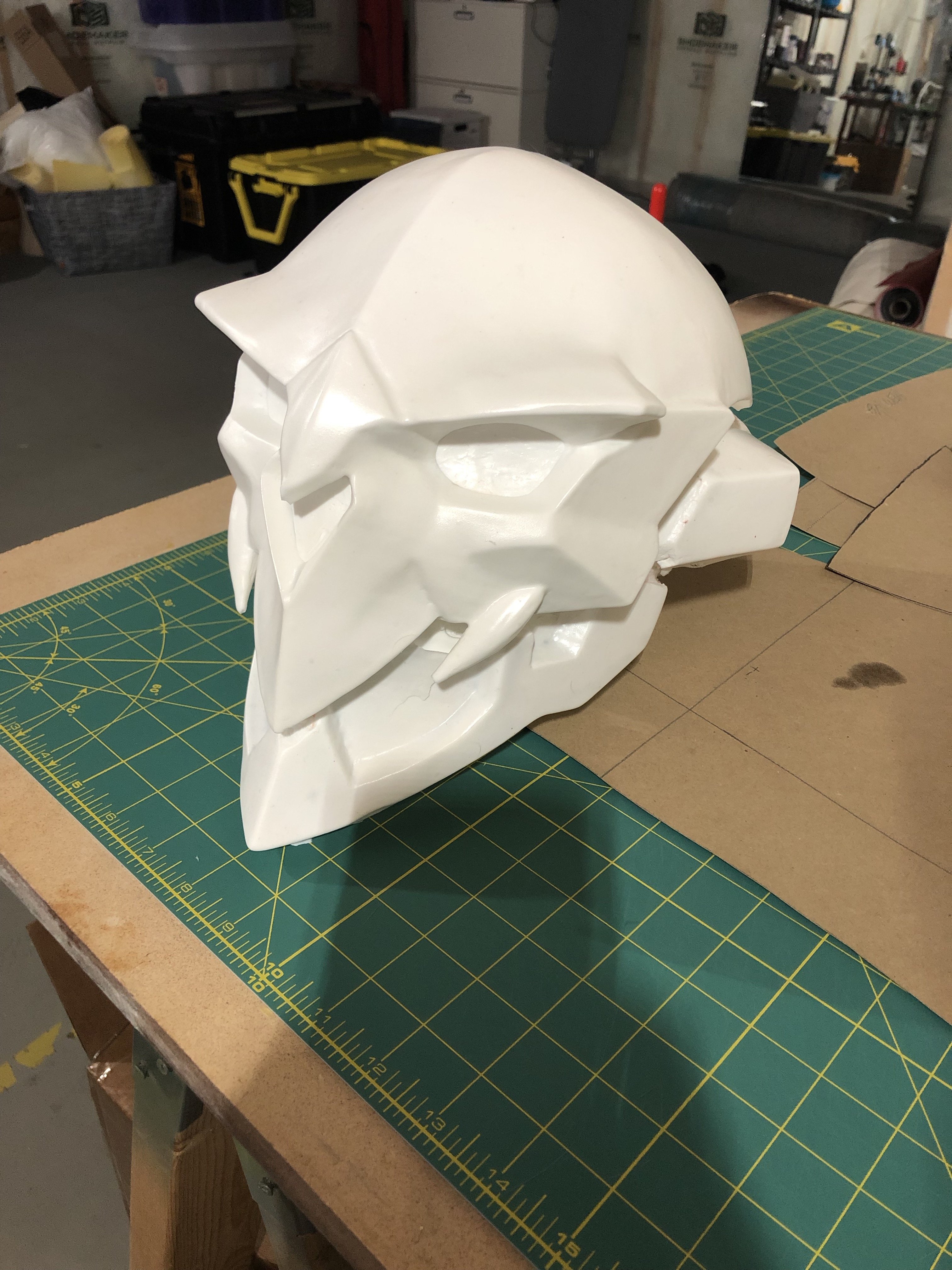

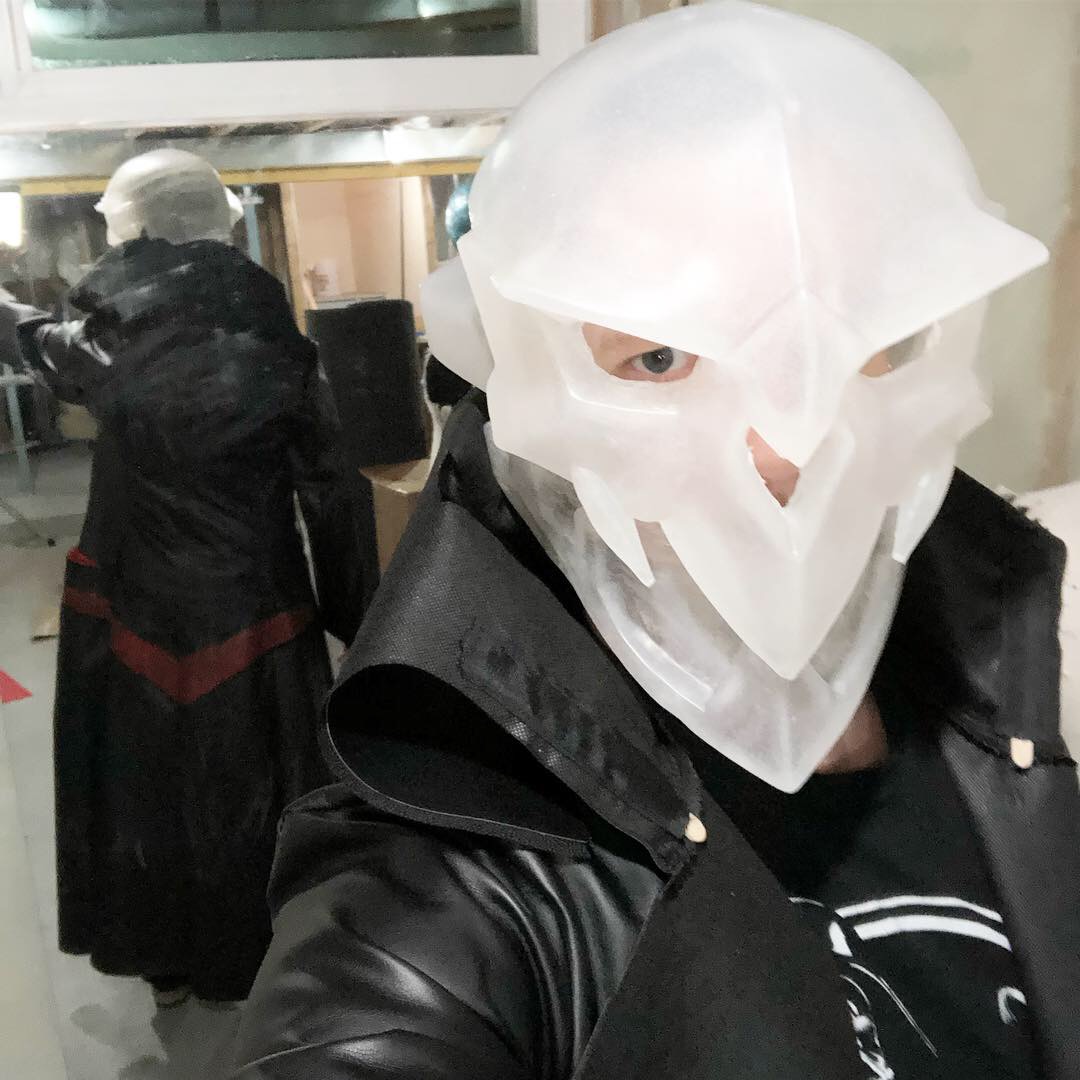

Rotocasted the helmet using Smooth-on 57D. Loving how translucent it looks, would be great for LED.
Started working on the Coat.
Building Muslin first since the material is expensive and I don't want to screw up (too much).
First one was with Smooth-on 65D
Had a few issues and weak spots
Rotocasted the helmet using Smooth-on 57D. Loving how translucent it looks, would be great for LED.
Started working on the Coat.
Building Muslin first since the material is expensive and I don't want to screw up (too much).
LeClubNerd
Well-Known Member
Looking good

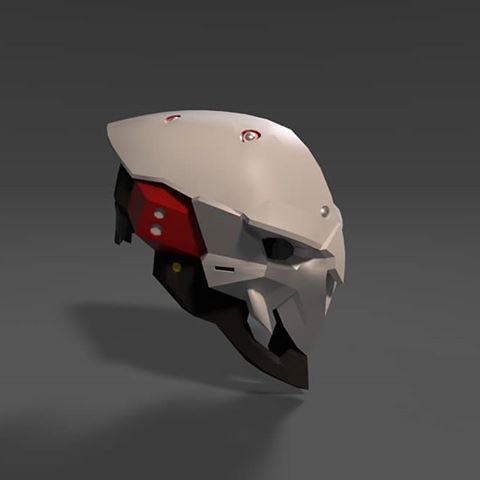

You've probably got all the files you need by this point but just in case here's the extracted and converted game models
Dave Barnes on Instagram: “McCree Van Helsing https://files.fm/u/8g5axvgp Reaper Dracula https://files.fm/u/mfdcpvuf Symmetra Dragon https://files.fm/u/uk59uwpt…”
You've probably got all the files you need by this point but just in case here's the extracted and converted game models
Dave Barnes on Instagram: “McCree Van Helsing https://files.fm/u/8g5axvgp Reaper Dracula https://files.fm/u/mfdcpvuf Symmetra Dragon https://files.fm/u/uk59uwpt…”
pazscall
Member
Looking good
You've probably got all the files you need by this point but just in case here's the extracted and converted game models
Dave Barnes on Instagram: “McCree Van Helsing https://files.fm/u/8g5axvgp Reaper Dracula https://files.fm/u/mfdcpvuf Symmetra Dragon https://files.fm/u/uk59uwpt…”
Thanks Dave! I actually originally got the file from you through your facebook page
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
pazscall
Member

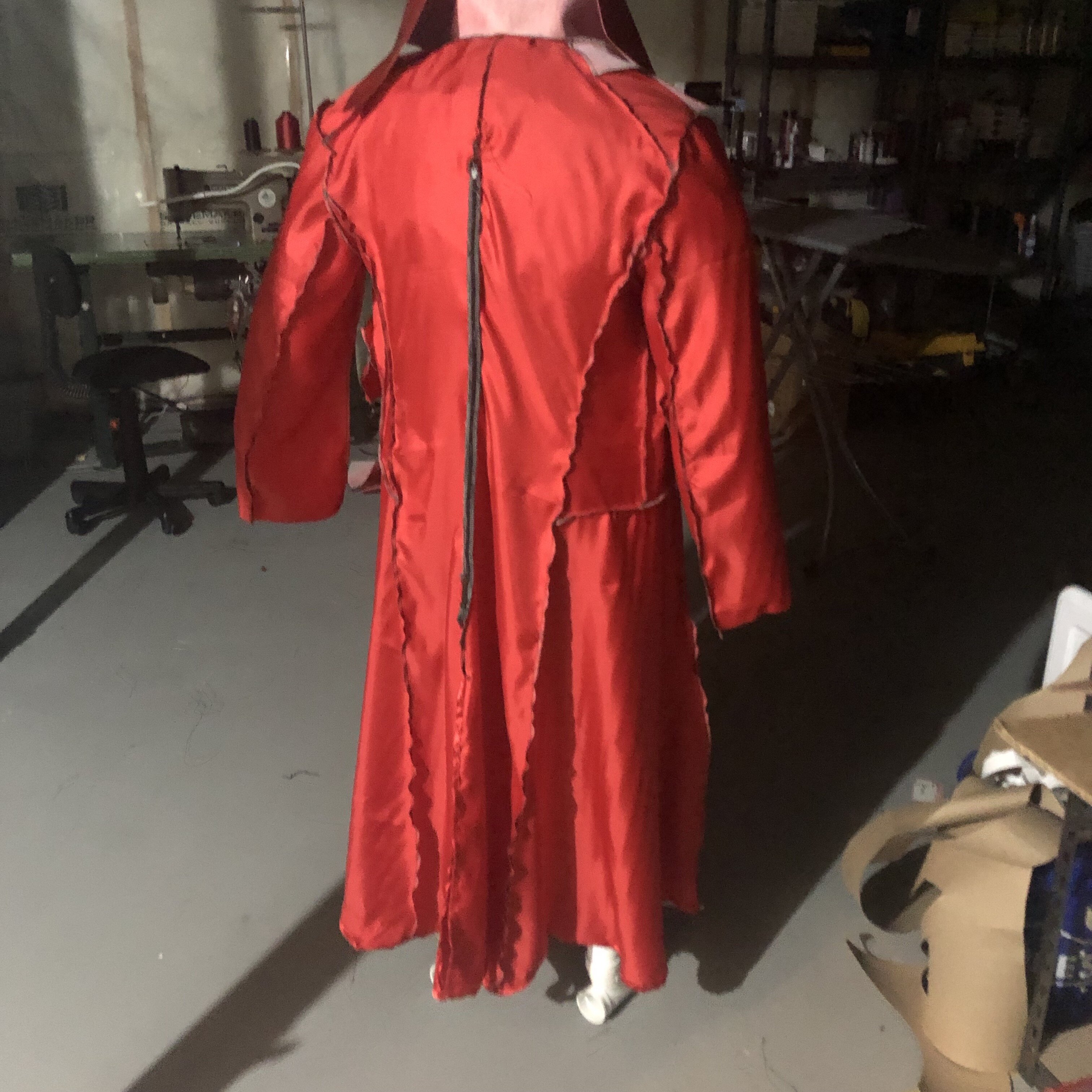

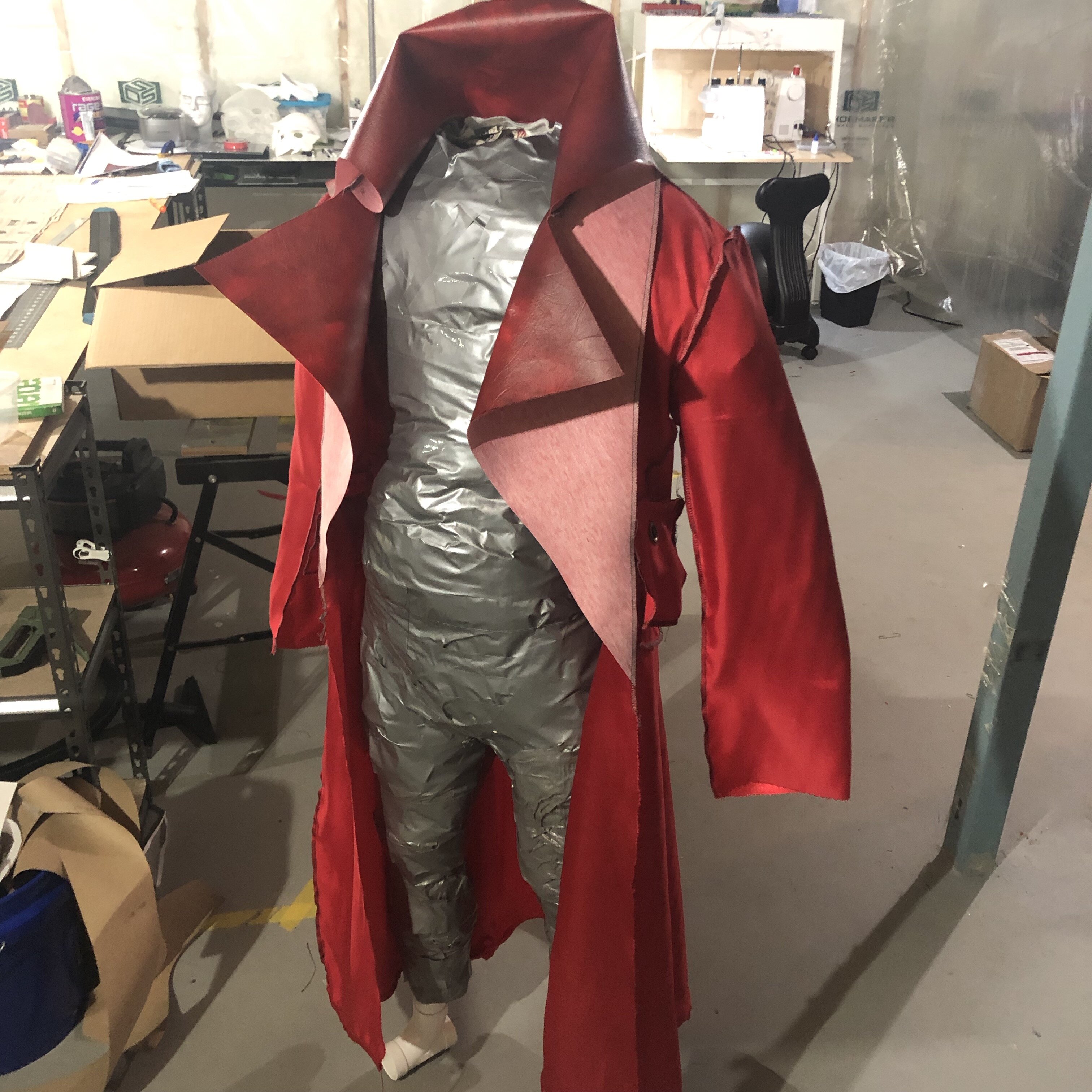

Completed the test muslin and made some adjustments to the pattern to match the character design.
Time to cut the real fabric

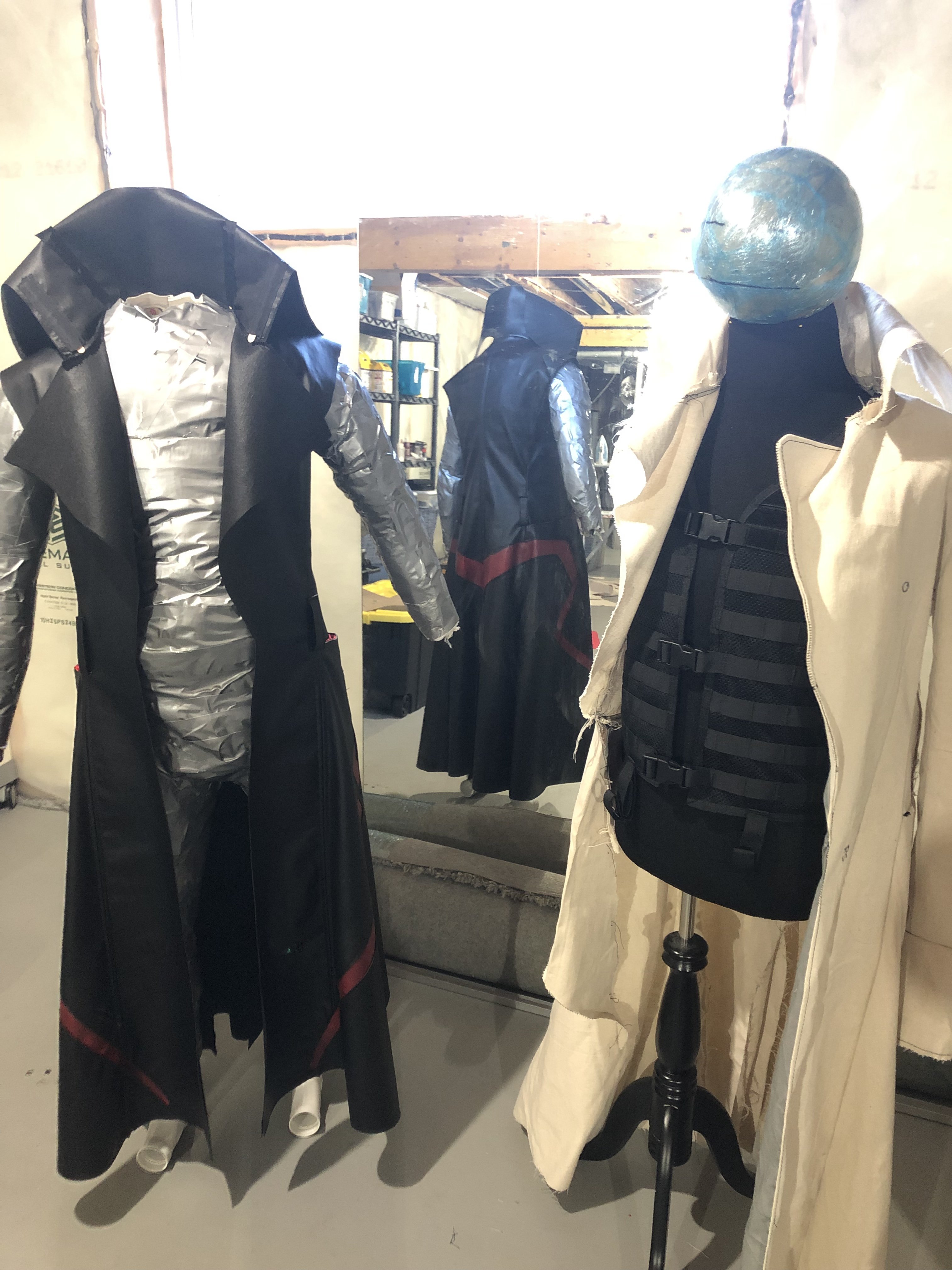

Current WIP next to test muslin
Side by Side of the back details... That one was tricky but I like how it turned out
Next step sleeves and waiting on LED!
Time to cut the real fabric
Current WIP next to test muslin
Side by Side of the back details... That one was tricky but I like how it turned out
Next step sleeves and waiting on LED!
LeClubNerd
Well-Known Member
Oh wow, well that's awesomeThanks Dave! I actually originally got the file from you through your facebook page
i can't tell you how cool that is. I haven't visited RPF for ages i saw your build and went wow. I need to comment.I went and checked the downloads ... 3 people have downloaded that Reaper, doesn't mean they're building it though. The popularity list is not surprising... in order of downloads
If i add them all up Genji, Mercy & Brigitte are getting the most love <3
Baiju Genji
Moira Blackwatch
Reinhardt Classic
Ana Snow Owl
Brigette Shield Maiden
Brigette Classic
Genji Classic
Soldier 76 Venom
Blackwatch Genji
Hanzo Cyber Ninja
Hanzo Scion
Greifhardt
Combat Medic Mercy
Junkenstein
Mercy Winged Victory
Pink Mercy
Mercy Devil Imp
Sombra
...the rest
Anyway, carry on, your build looks fantastic i'm so glad the files were some use for you. I look forward to seeing how it progresses.
pazscall
Member
More Sewing!
Worked on the sleeves and the Cuffs. Creating the ruffles on the cuff was a challenge, had to double the cuff size to account for the ruffles and after many trial and error, decided to get a ruffling foot for the sewing machine. The foot made a big difference and the ruffles look uniform and professional(ish)
Made the belt out of EVA foam, going to give it that leather look later
Trying out a smoke machine that I got from Wayne's workshop planning to install it in the lining with the tube sticking out. Luckelly it will give it that smoke effect used for his wraith form, shadow step and death blossom
Will be using these LEDs in the guns... eventually
liking the look so far!
Worked on the sleeves and the Cuffs. Creating the ruffles on the cuff was a challenge, had to double the cuff size to account for the ruffles and after many trial and error, decided to get a ruffling foot for the sewing machine. The foot made a big difference and the ruffles look uniform and professional(ish)
Made the belt out of EVA foam, going to give it that leather look later
Trying out a smoke machine that I got from Wayne's workshop planning to install it in the lining with the tube sticking out. Luckelly it will give it that smoke effect used for his wraith form, shadow step and death blossom
Will be using these LEDs in the guns... eventually
liking the look so far!
pazscall
Member

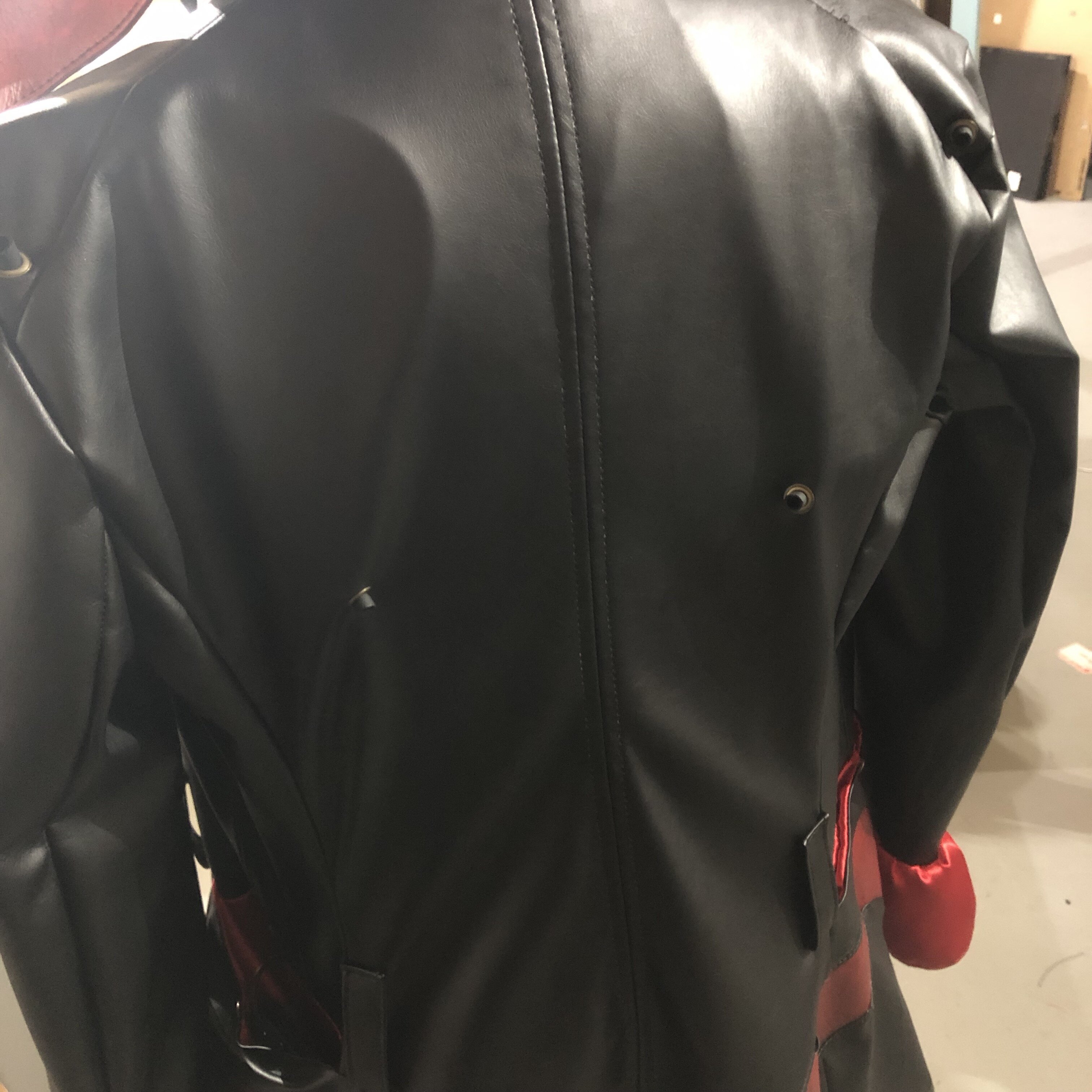

Worked on the lining.

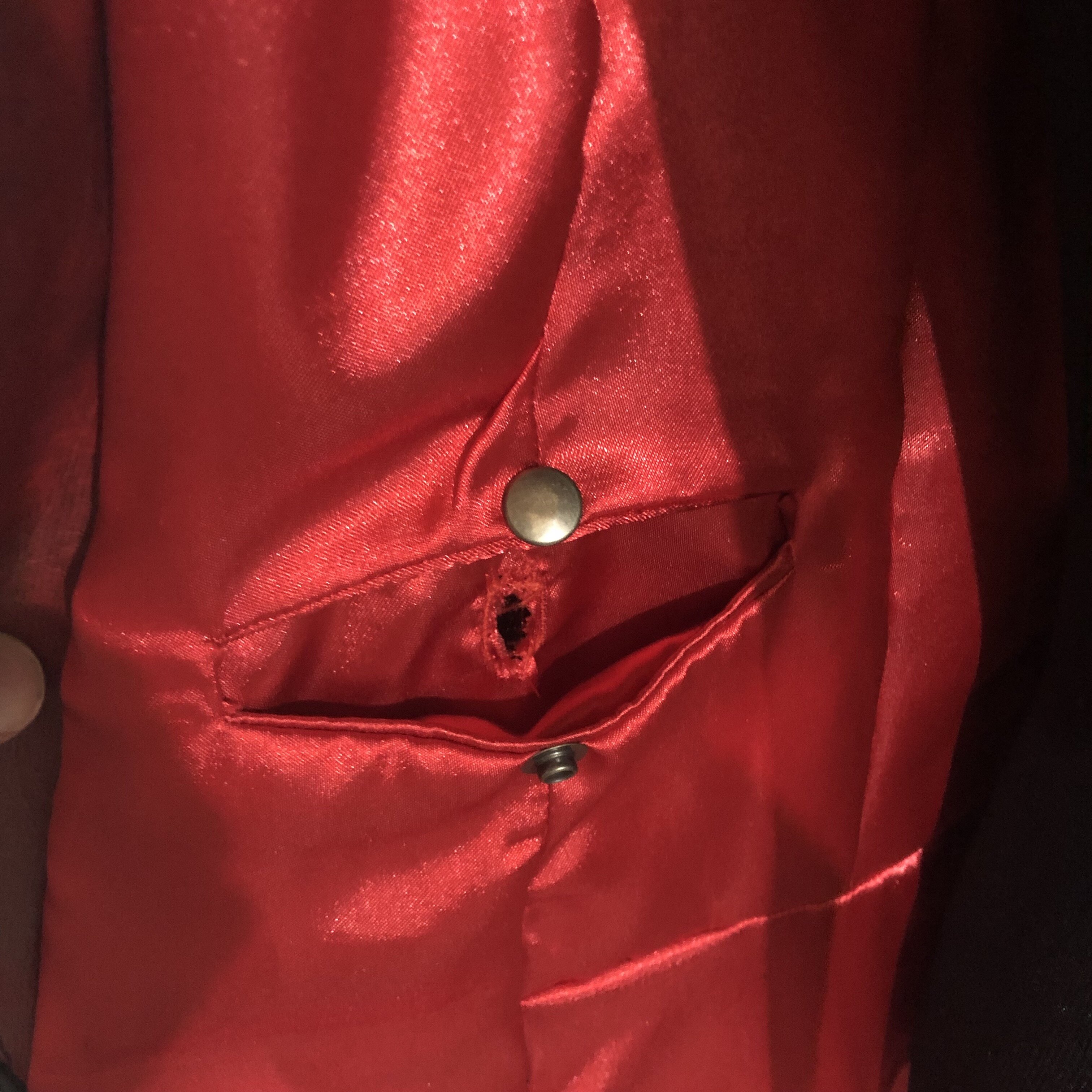

Added some inner welt pockets to hold some electronics.
Added a hidden zipper to gain access to the wires/EL/LED that will be installed behind the lining.
Started adding details before installing the lining
Next will be testing the smoke machine and installing EL wires also started to export the game textures so that I can convert them to SVG and send them to the Cricut to cut out the more intricate curves and design
Added some inner welt pockets to hold some electronics.
Added a hidden zipper to gain access to the wires/EL/LED that will be installed behind the lining.
Started adding details before installing the lining
Next will be testing the smoke machine and installing EL wires also started to export the game textures so that I can convert them to SVG and send them to the Cricut to cut out the more intricate curves and design
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
pazscall
Member
Thank you so much!
pazscall
Member

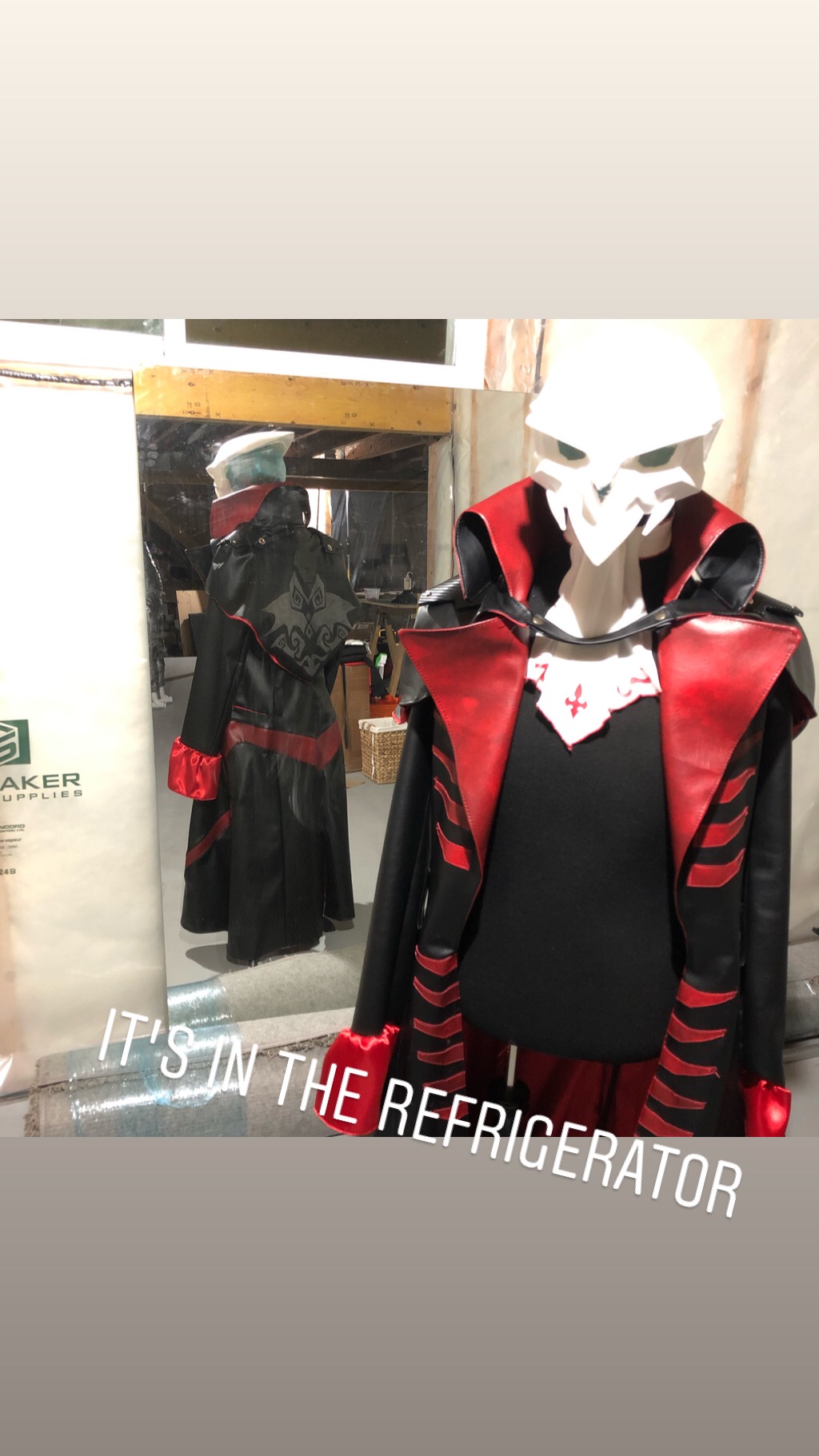

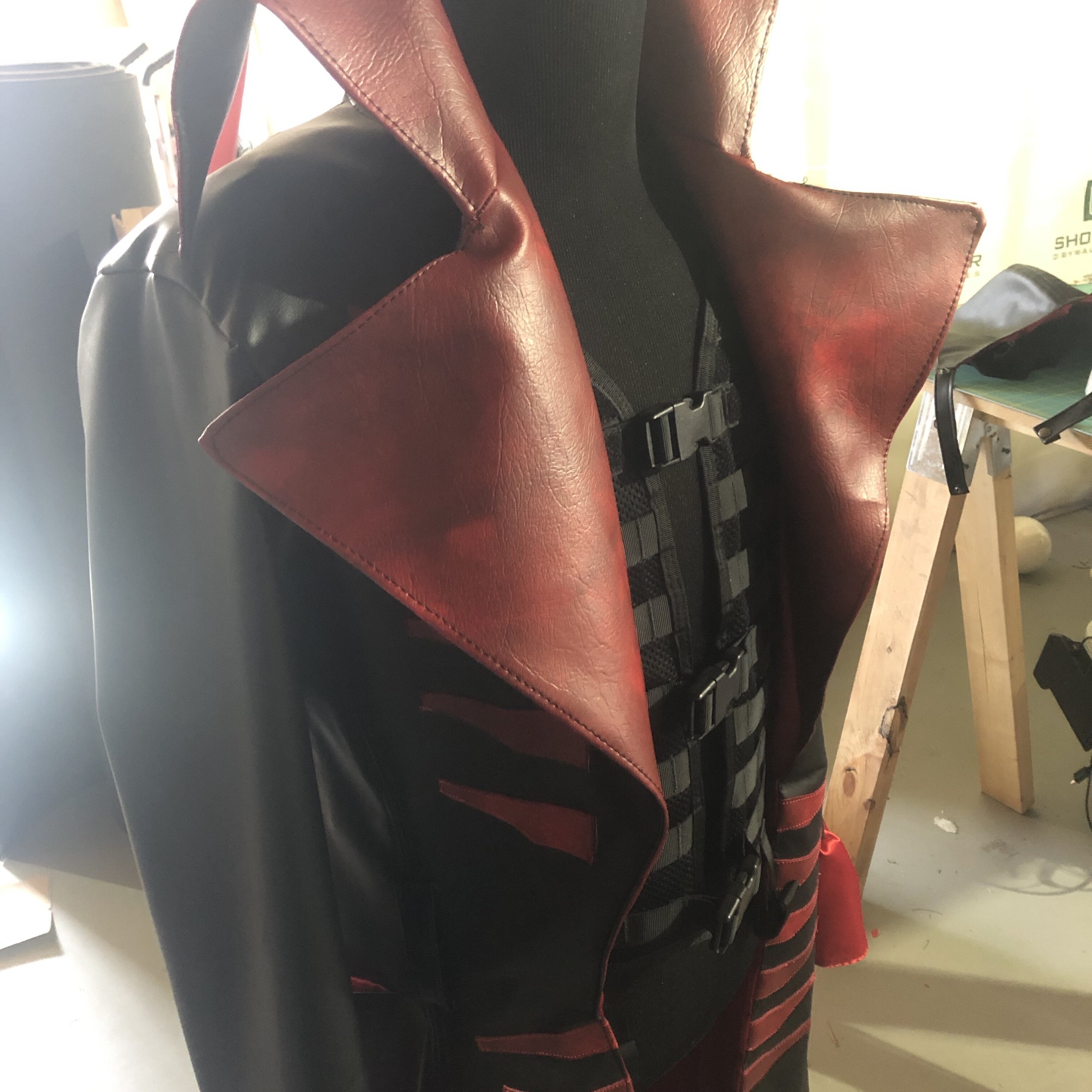

The Coat is DONE!!!!!

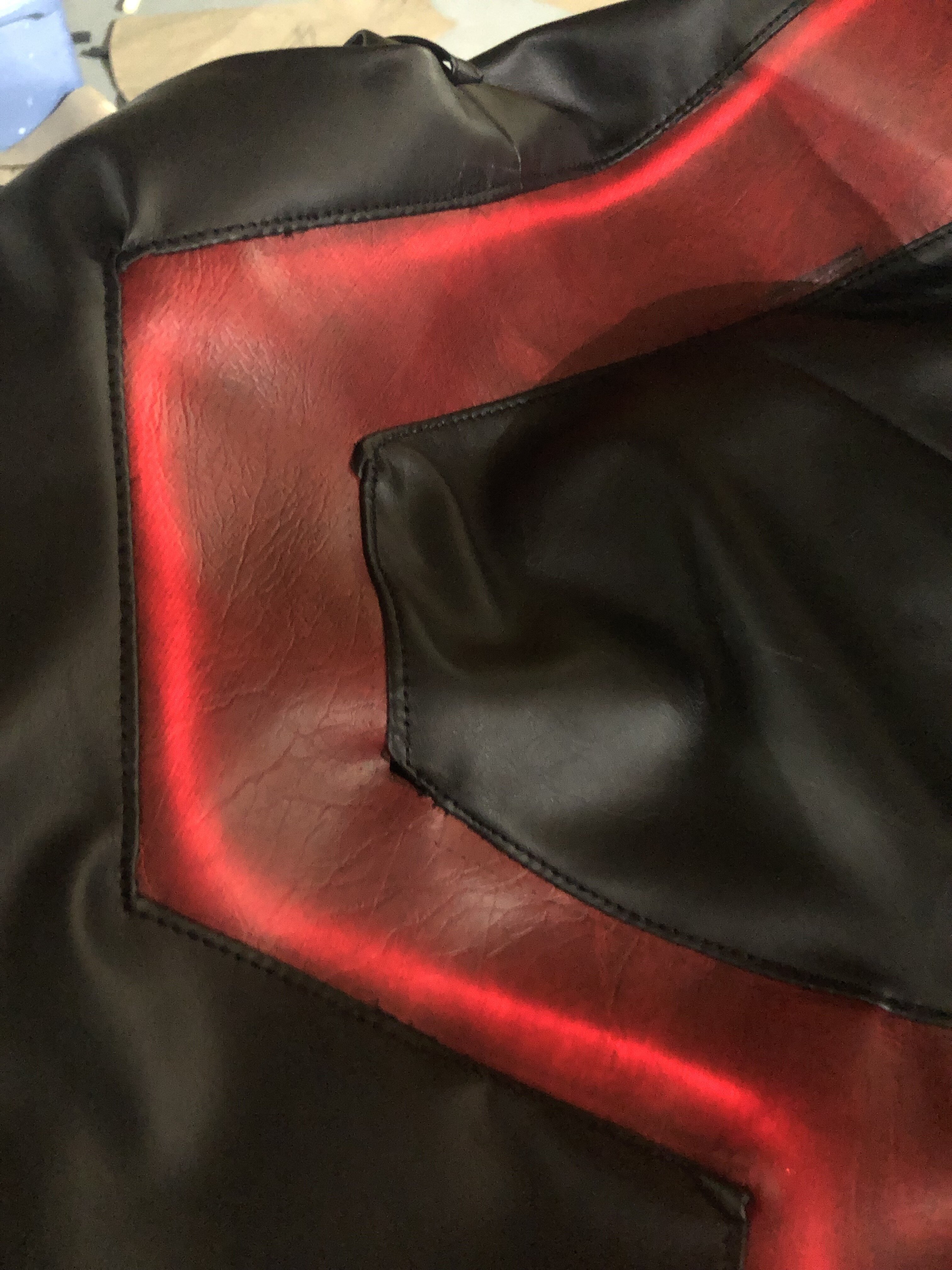

Lining is attached, added EL lighting,

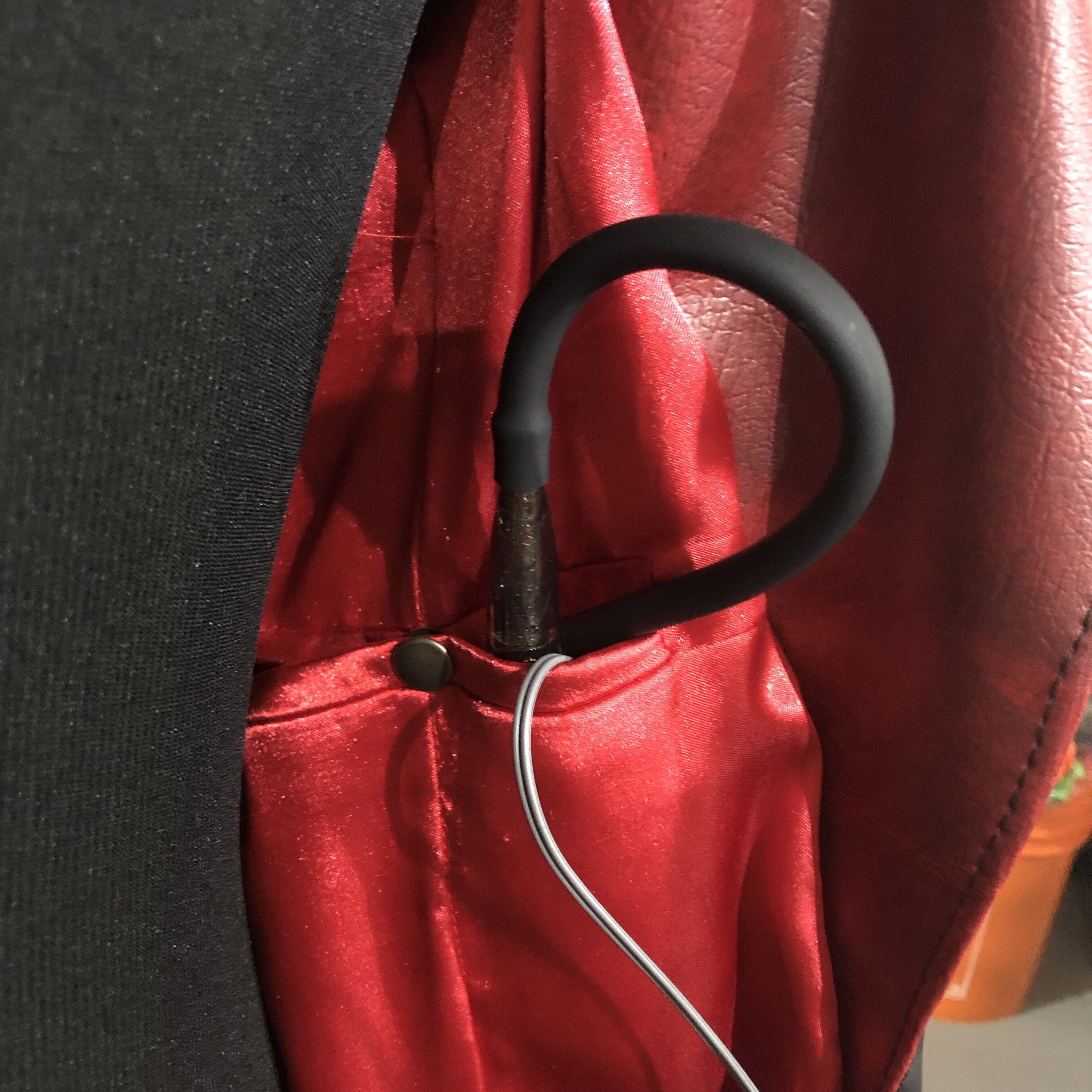

Hooked up the Rubber hose to 1/4 Tee bard used for irrigation system
I installed a few button straps and button holes in the lining to allow passing wires and tubes in and out of pockets. That allows me the ability to connect the smoke machine to the USB battery pack without any visible wires.

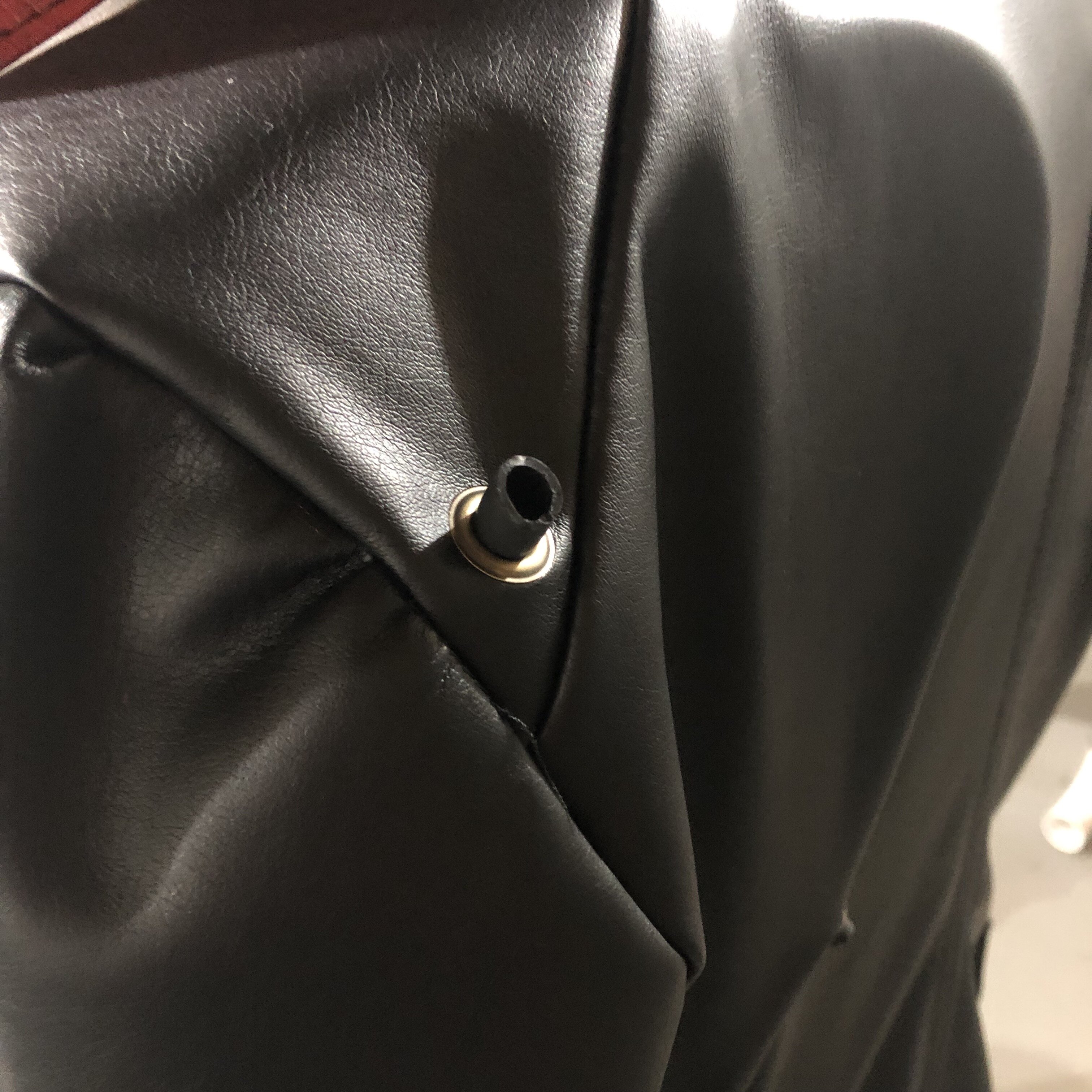

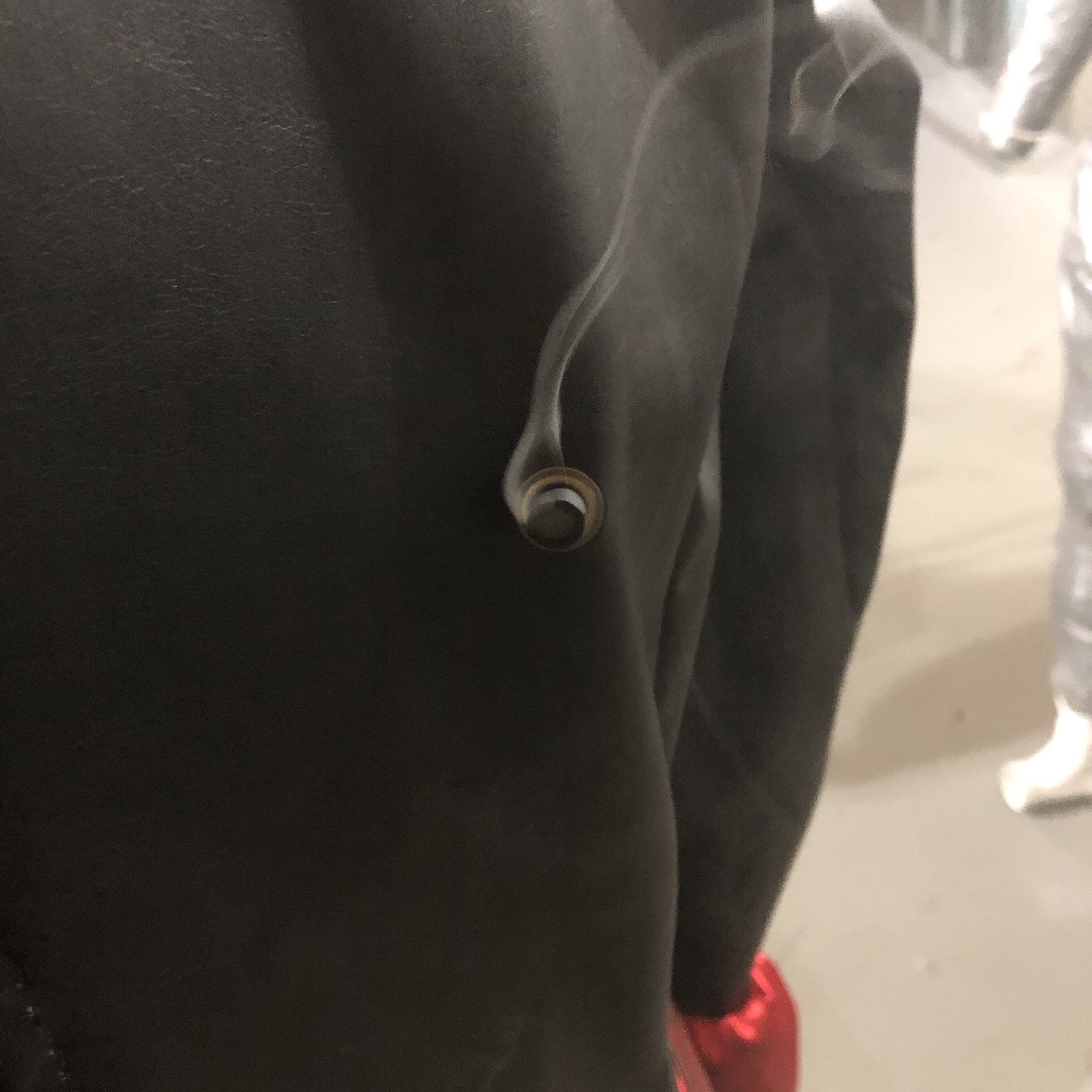

I put in a few grommets at the shoulder and serve as exhaust ports for the smoke
Working on the capelet know
Lining is attached, added EL lighting,
Hooked up the Rubber hose to 1/4 Tee bard used for irrigation system
I installed a few button straps and button holes in the lining to allow passing wires and tubes in and out of pockets. That allows me the ability to connect the smoke machine to the USB battery pack without any visible wires.
I put in a few grommets at the shoulder and serve as exhaust ports for the smoke
Working on the capelet know
pazscall
Member
Had this Idea for the Smoke machine on/off button.
Made a small toggle button
Was able to sew it into the glove
Really happy with the results

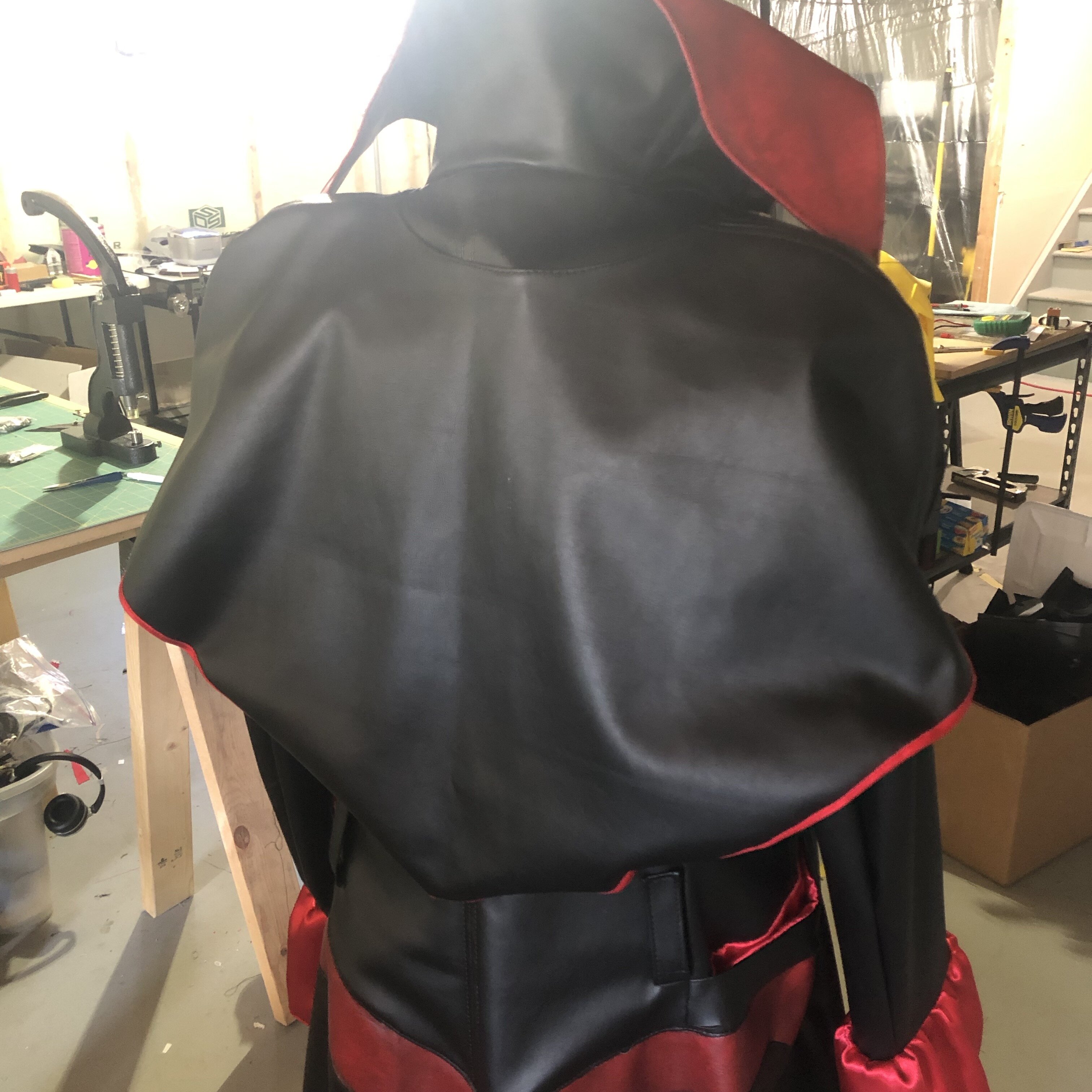

Was also able to finish the capelet
Made the shoulder pads out of Sintra
Wrapped them in Carbon Fiber
The back design was cut using Cricut Explore air 2 from the extracted Texture files

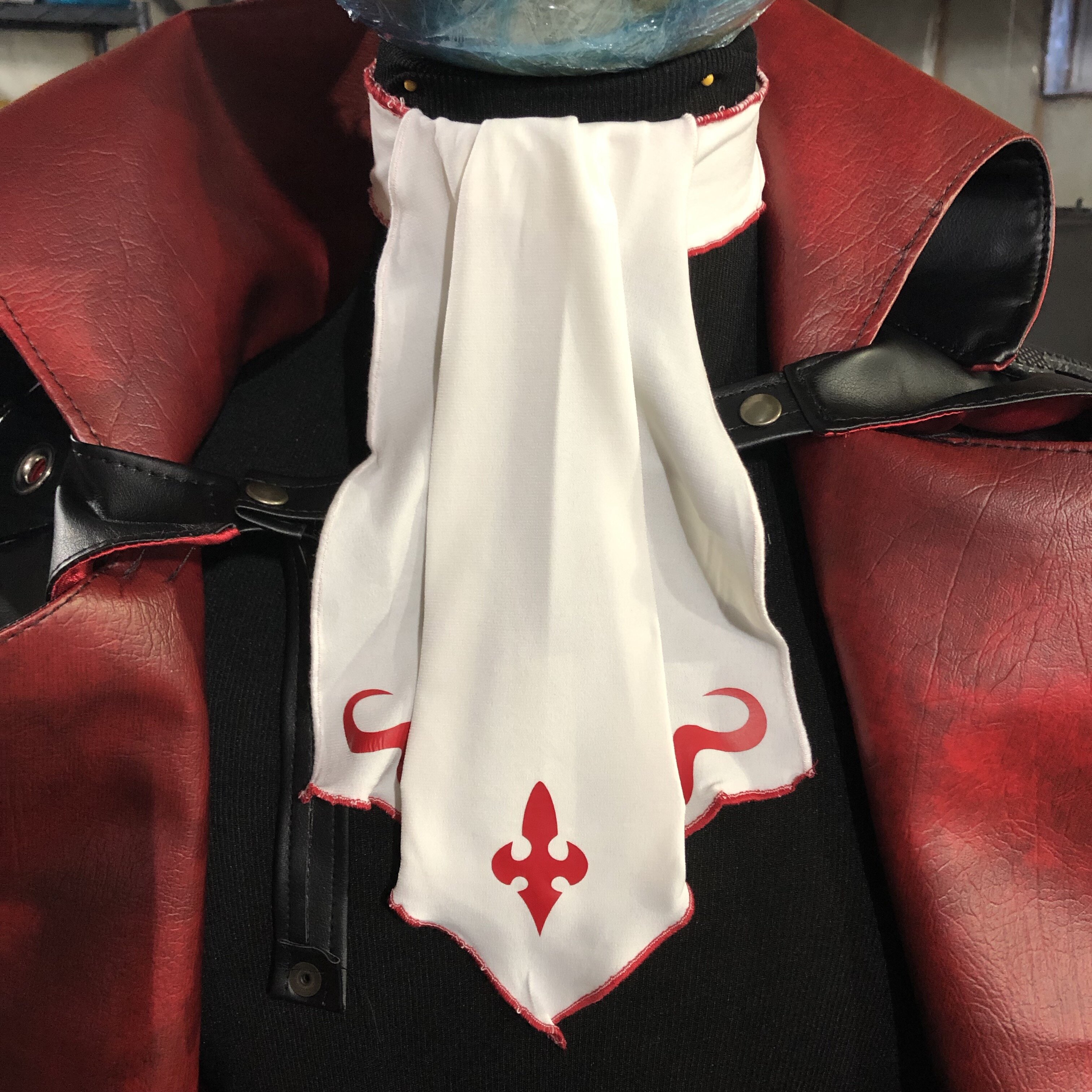

Working on the ascot now
Made a small toggle button
Was able to sew it into the glove
Really happy with the results
Was also able to finish the capelet
Made the shoulder pads out of Sintra
Wrapped them in Carbon Fiber
The back design was cut using Cricut Explore air 2 from the extracted Texture files
Working on the ascot now
pazscall
Member

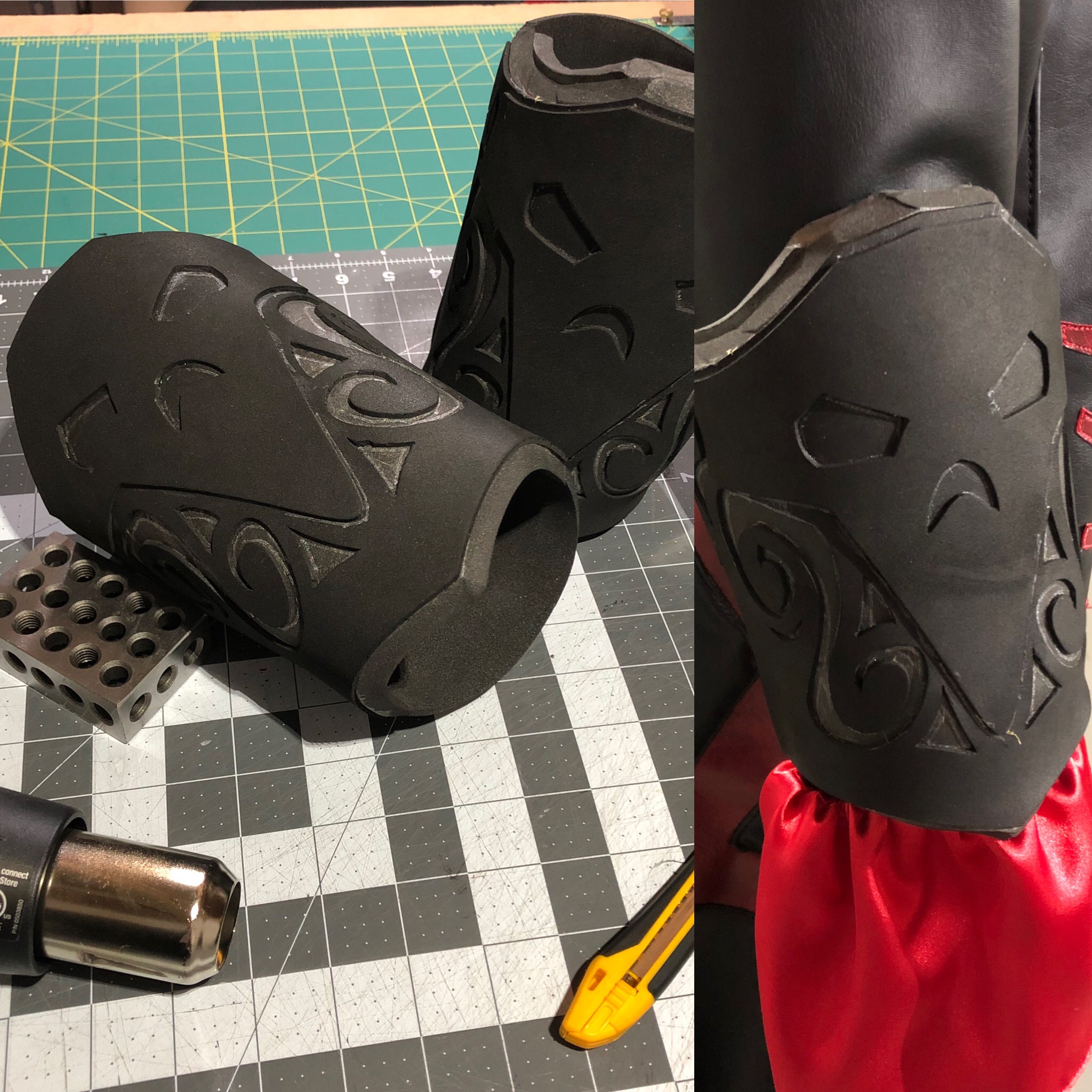

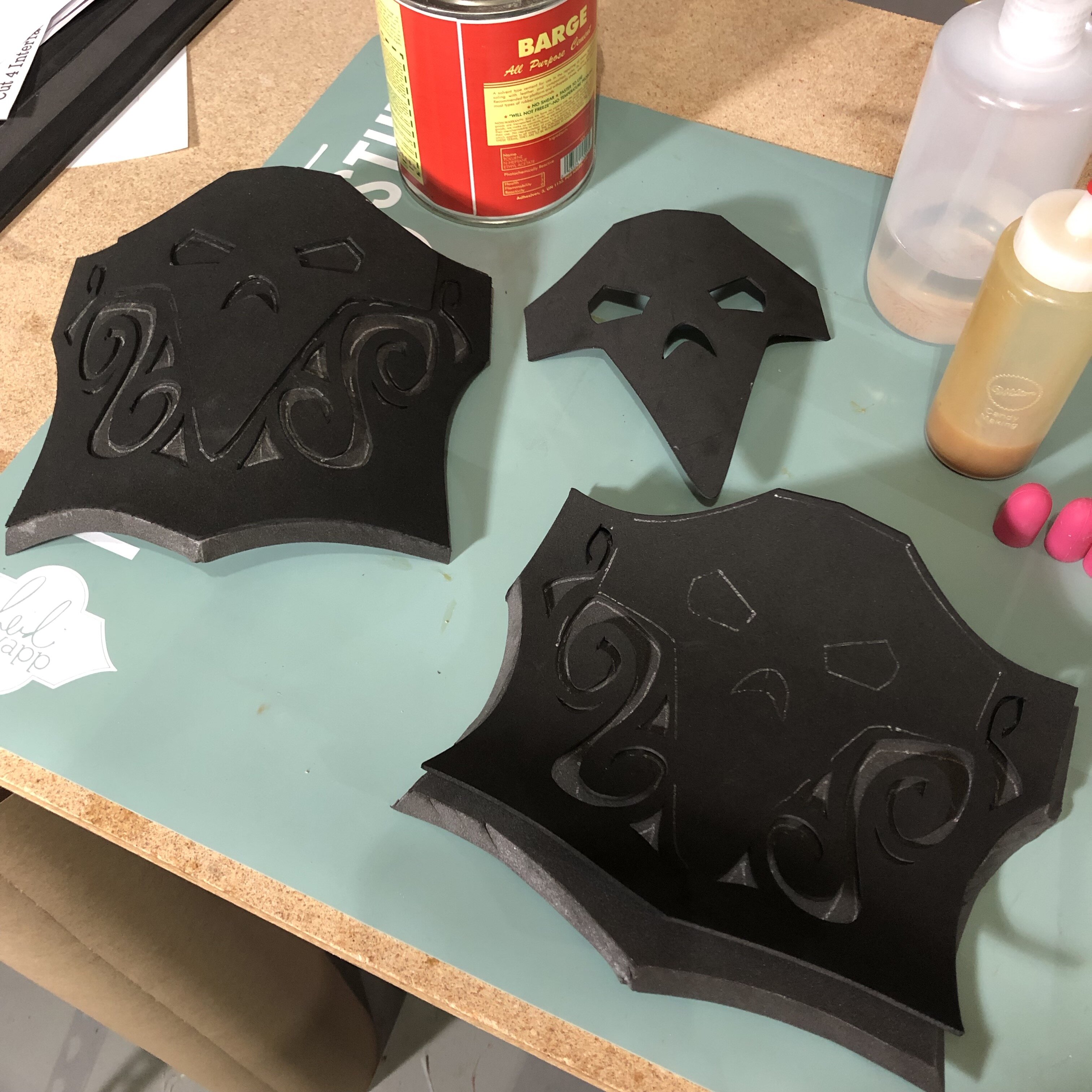

Had a chance to finish up the greaves and boots

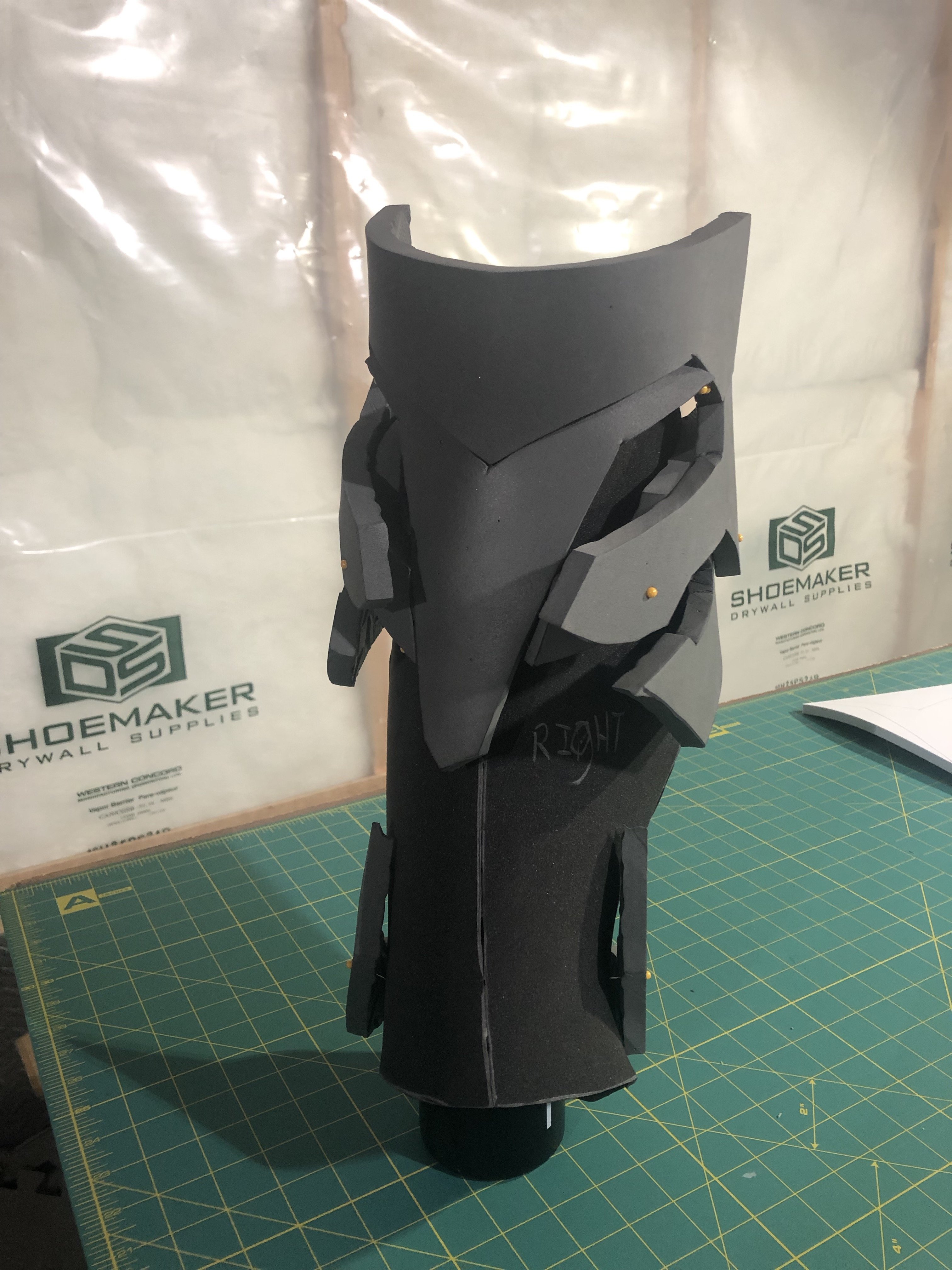

Started with a test to make sure all the different pieces fit together nicely
Completed the greaves with so very nice HD Foam from TNTCosplay and redmoon cosplay
Got myself some comfy cheap shoes, wrapped and duct taped them to draw the boot pattern.
Cut it up and transferred it to foam and was able to glue it onto the shoes
Now that the weather is nicer in Calgary, I'll be able to get back in the garage to sand and dremel the details in.

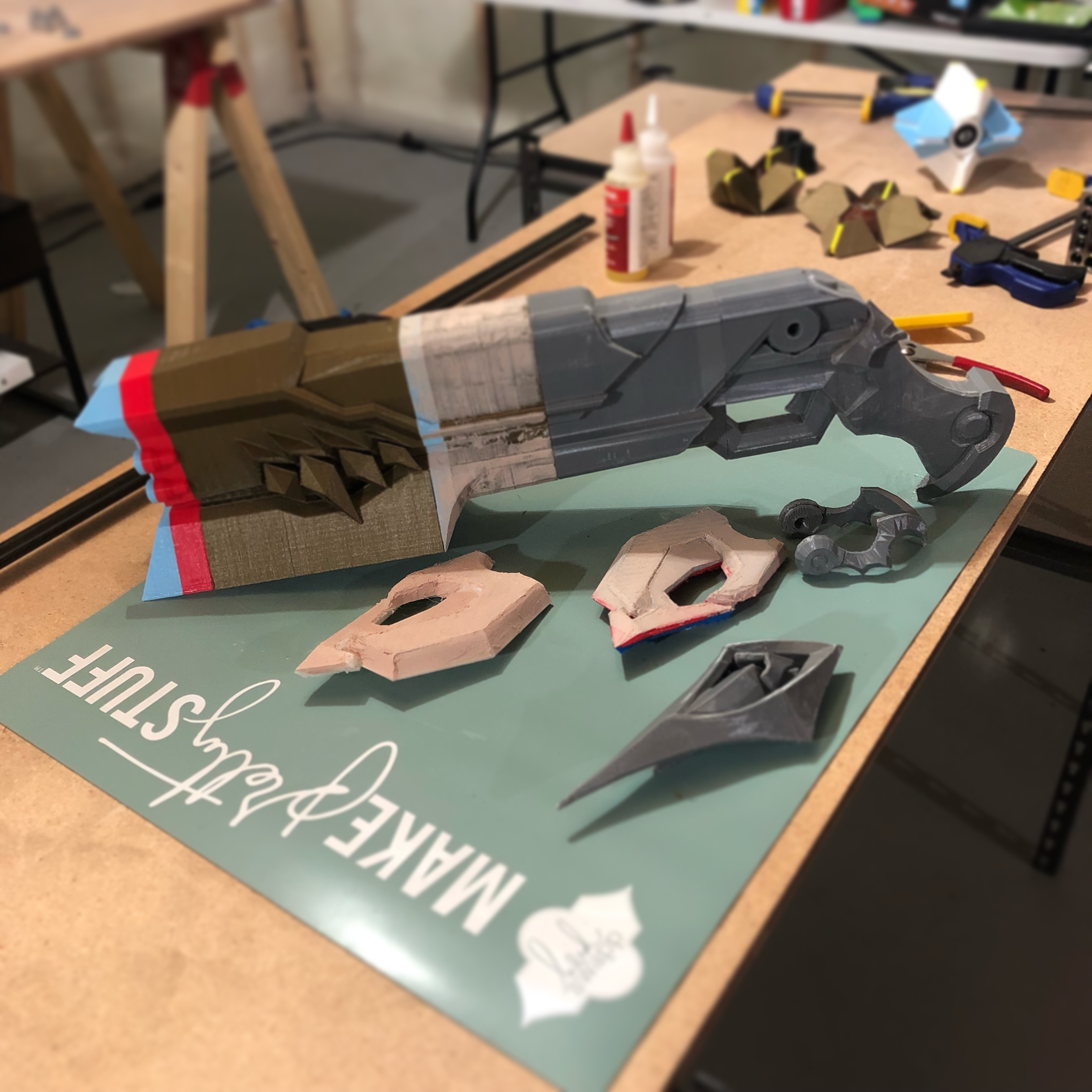

I'll also get to finish the guns...
25 days till CCEE... con crunch is real
Started with a test to make sure all the different pieces fit together nicely
Completed the greaves with so very nice HD Foam from TNTCosplay and redmoon cosplay
Got myself some comfy cheap shoes, wrapped and duct taped them to draw the boot pattern.
Cut it up and transferred it to foam and was able to glue it onto the shoes
Now that the weather is nicer in Calgary, I'll be able to get back in the garage to sand and dremel the details in.
I'll also get to finish the guns...
25 days till CCEE... con crunch is real
