AlphaTech686
Active Member
This whole build is just beautiful. Every aspect.
New Wolf Bio Mask (From 3D To Resin)
- Thread starter NeXXt
- Start date
predator666
New Member
love the inner details
Origami Unicorn
Sr Member
This is so Awesome! Can't Wait to see more bios from you!
NeXXt
Well-Known Member
Looks excellent!
Thank you! That's my best detailed project at this moment.
Thank you! Soon (in march) i'll post WIP-photos of the Boar bio in new thread.
Last edited by a moderator:
Origami Unicorn
Sr Member
Any plans on doing other bios than the Boar bio? I would kill to see Neca's Lava Planet bio to become a real 1:1 scale bio!
NeXXt
Well-Known Member
Only movie masks
Think about other mask from Predator II (Brother Boar, City Hunter). Maybe some mask concepts from AvP:R by Steve Wang.
Shadowcast
New Member
Hi, I converted this file to PDF do you know what percentage to print the pages out?Hello, folks! That's my first prop in AvP universe — movie mask of Wolf (bio). Started to design in 3D from planar mesh. Right now it's on unfolding stage.
1st stage. Preliminary forms (symmetric halfs) and wrong proportions.
View attachment 28216
2nd stage. A bit closer to movie model has better shapes but not so good.
View attachment 28217
3rd stage. Almost done.
View attachment 28218
Added horns and laser targeting module for correct appearance.
View attachment 28219
Exported as .3ds and ready to unfold in PD.
View attachment 28220
View attachment 28221
Sorry for my English
NeXXt
Well-Known Member
I prefer to convert to PDF too. I printed it on A3 paper sheets (420 x 297mm).
As far as I know, in this process the scale of the model still the same as in PDO file. So you can use any paper formats as you want. All you need is recombine elements on sheets for economy.
NeXXt
Well-Known Member

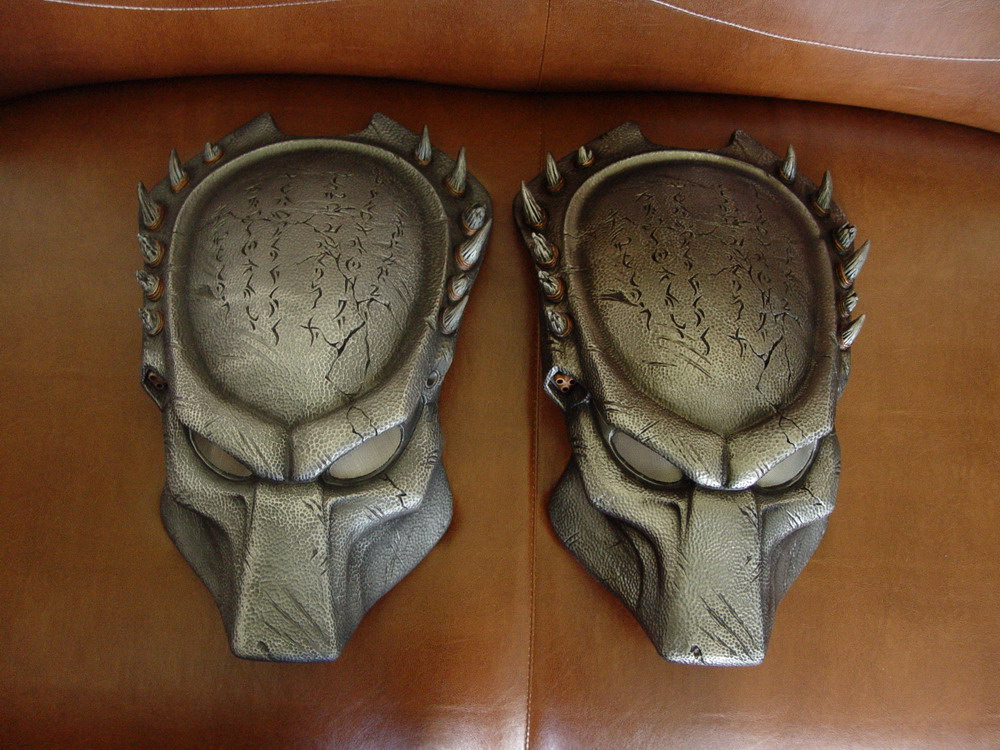

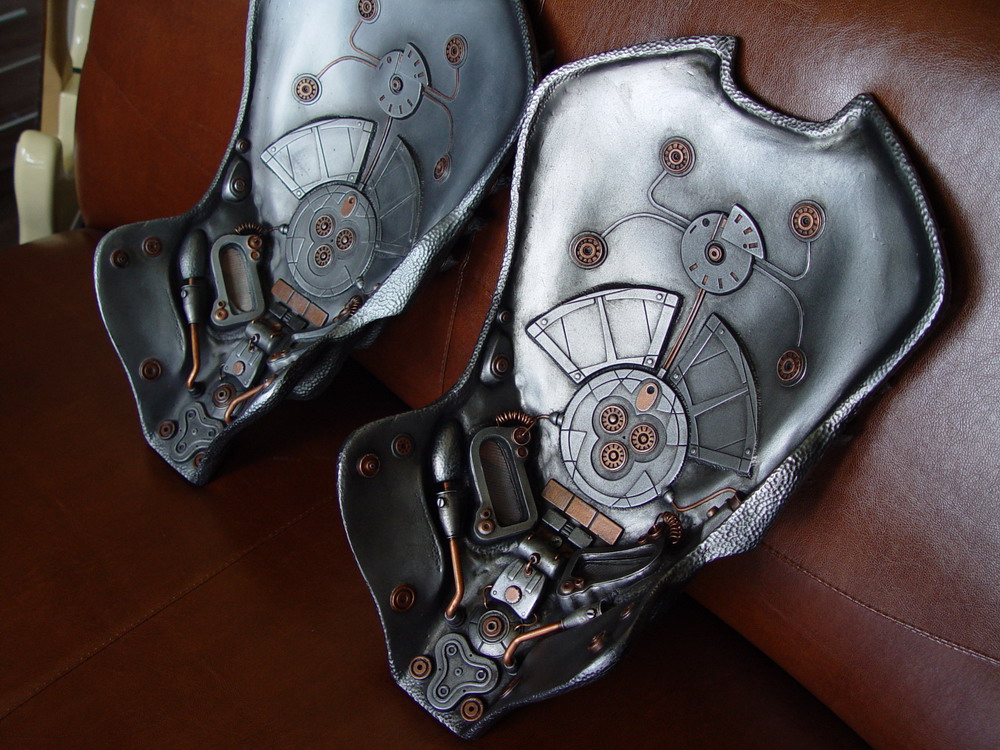

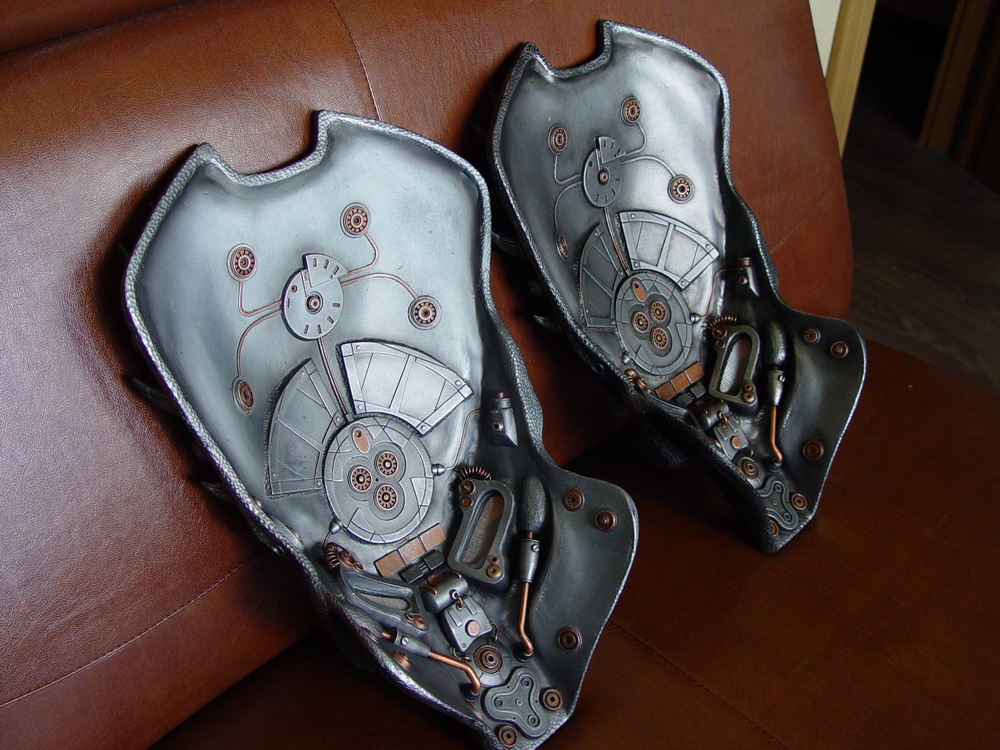

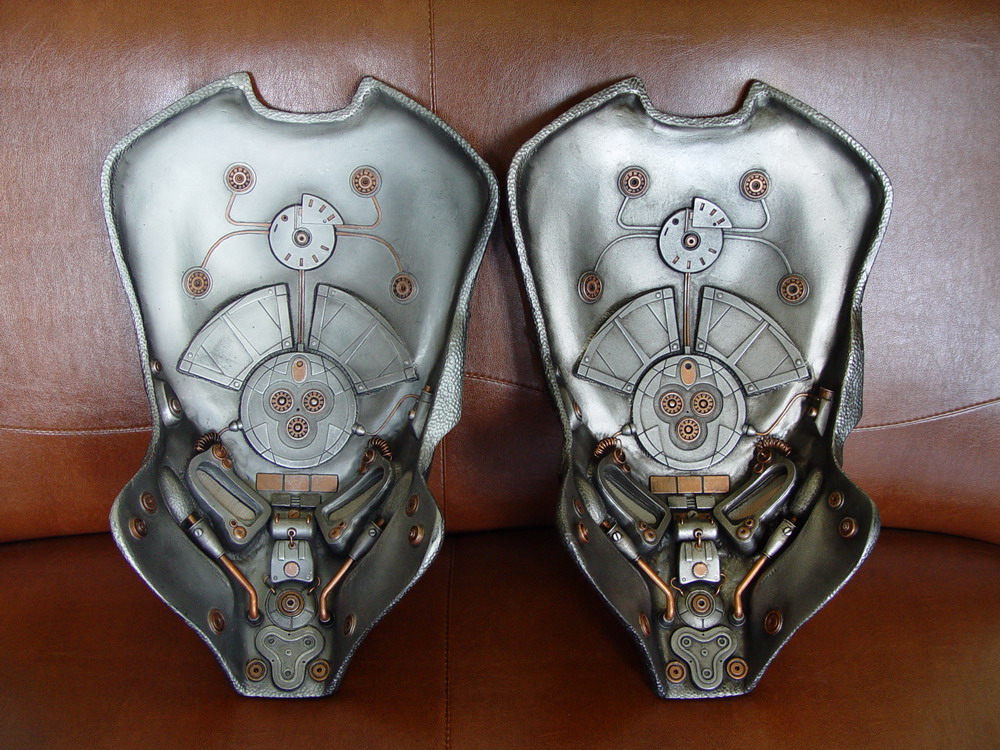

Two copies with different paint methods — old (left) and new (right).
It's for second mask:
1. black primer (acrylic, spray);
2. basic layer (alkyd metallic, spray);
3. copper elements (acrylic copper metallic, brush);
4. 1-2 layers of shade/wash (black oil paint with solvent) and drying/cleaning with toilet paper;
5. highlighting (chrome silver, dry brush);
5. 1-2 layers of matte varnish.
It's for second mask:
1. black primer (acrylic, spray);
2. basic layer (alkyd metallic, spray);
3. copper elements (acrylic copper metallic, brush);
4. 1-2 layers of shade/wash (black oil paint with solvent) and drying/cleaning with toilet paper;
5. highlighting (chrome silver, dry brush);
5. 1-2 layers of matte varnish.
NeXXt
Well-Known Member
Thank you! It's my biggest project at this time. I'm lazy man
About the process step by step:
1. Epoxy resin + filler (fumed silica for thickening effect) inside of the paper model.
2. Around 2-3 layers of fiberglass (250 g/m2 glass fabric + epoxy resin) on previous layer of resin.
3. One finishing layer of epoxy resin with the same fumed silica for smoothing surface.
4. Smoothing and sanding.
5. Work with epoxy putty.
NeXXt
Well-Known Member
Thank you! Maybe later i'll do some new mask.
Brandon88MHS
New Member
Hi .I just started my account and I don't know how to download the templatescan someone plz help me .
It looks really awesome
It looks really awesome
