Nerf Scout Trooper Blaster Repaint

[Mara Jade's Father]

Oh that's perfect.

I appreciate you being my guinea pig.

No problem.



[Hecubus114]

I’d total buy a set of 3D printed upgrade parts if anyone offered them for this.



[Mara Jade's Father]

I can’t get the ridges to print. I think I need a finer nozzle.



[AnubisGuard]

I’d total buy a set of 3D printed upgrade parts if anyone offered them for this.

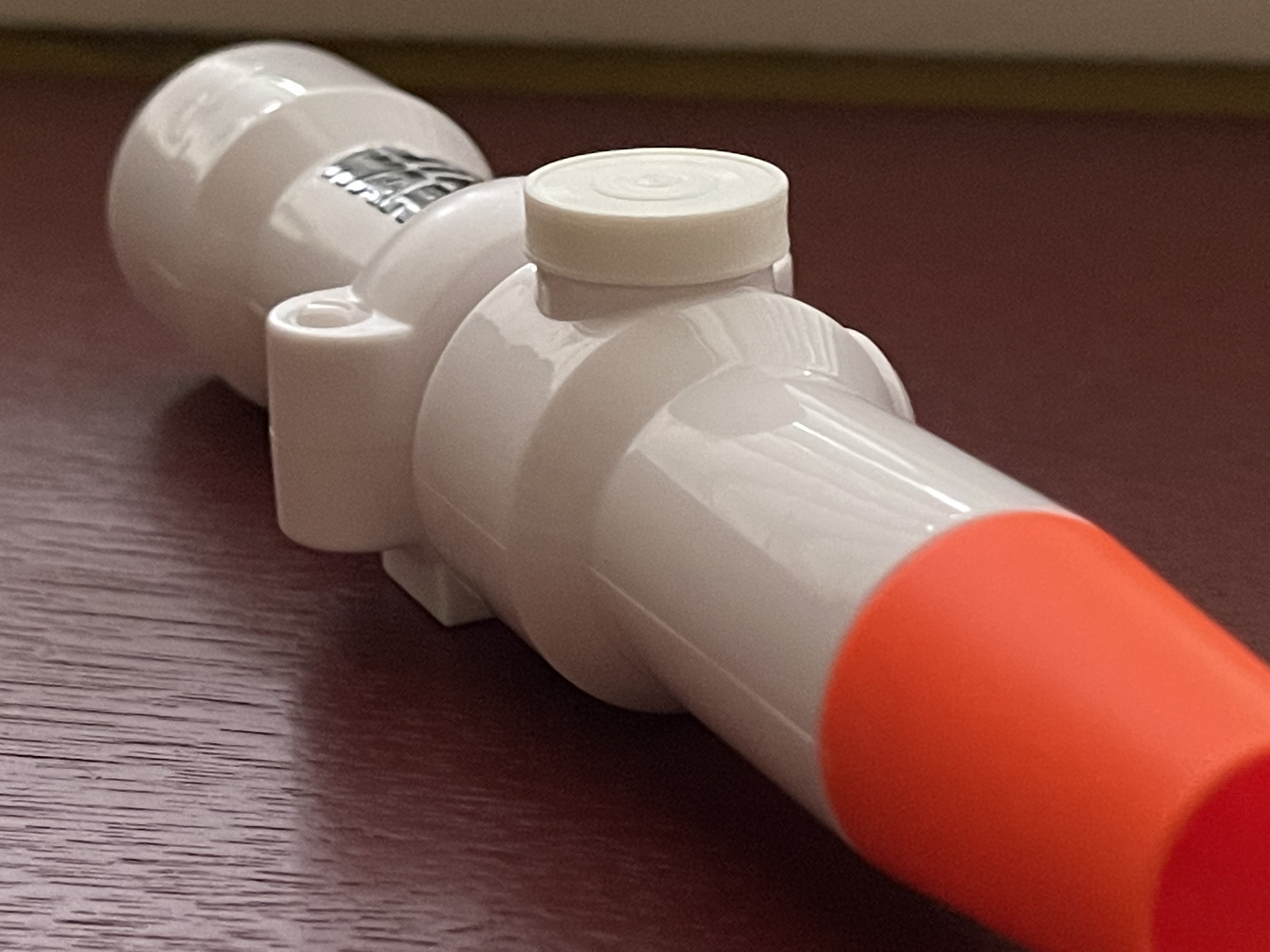

It's very early stages, but I'm talking with a friend of mine who has a resin printer about possibly doing a run in high-detail, impact resistant resin. I'll say more when I know more.

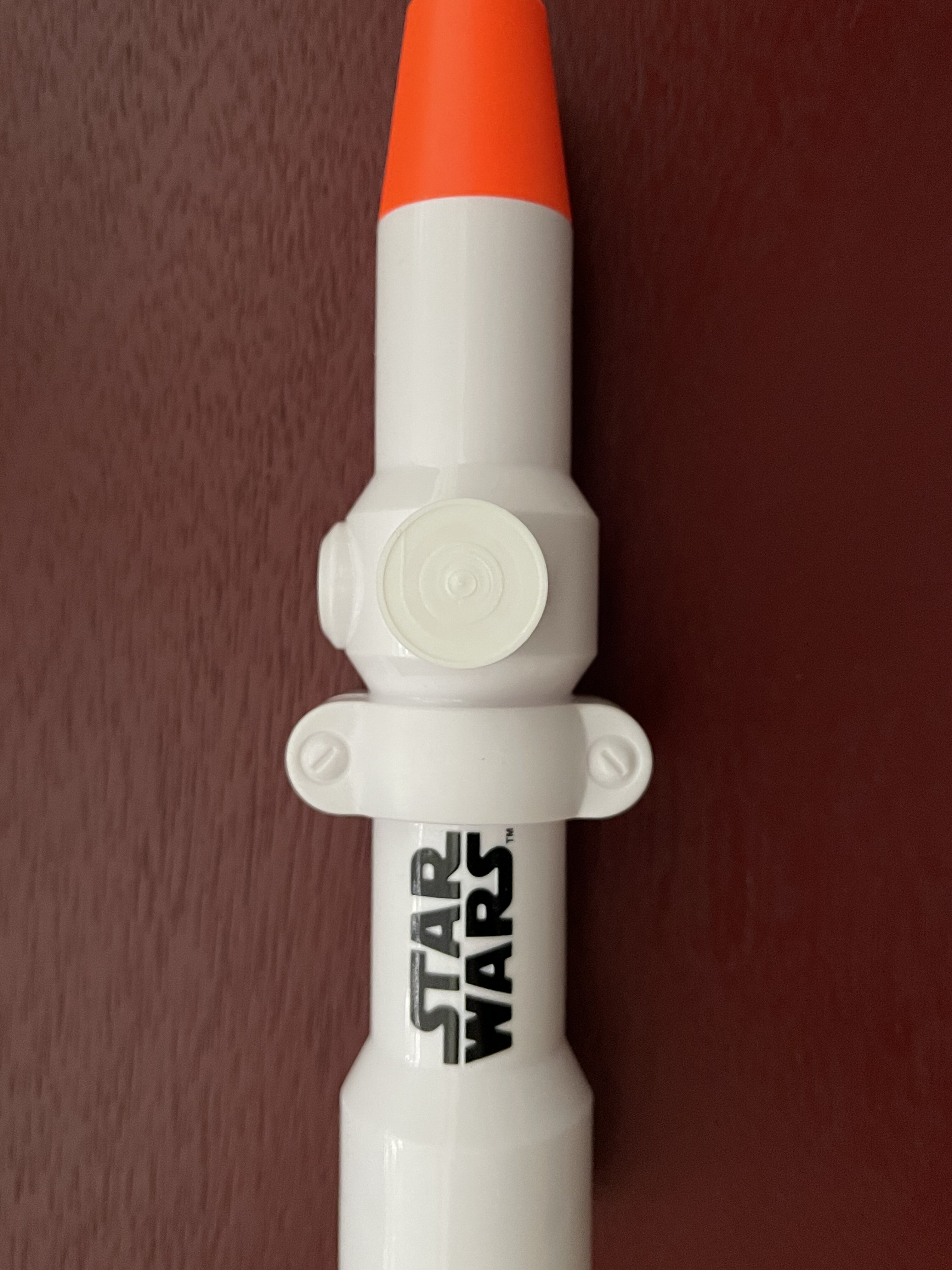

View attachment 1536661
View attachment 1536663

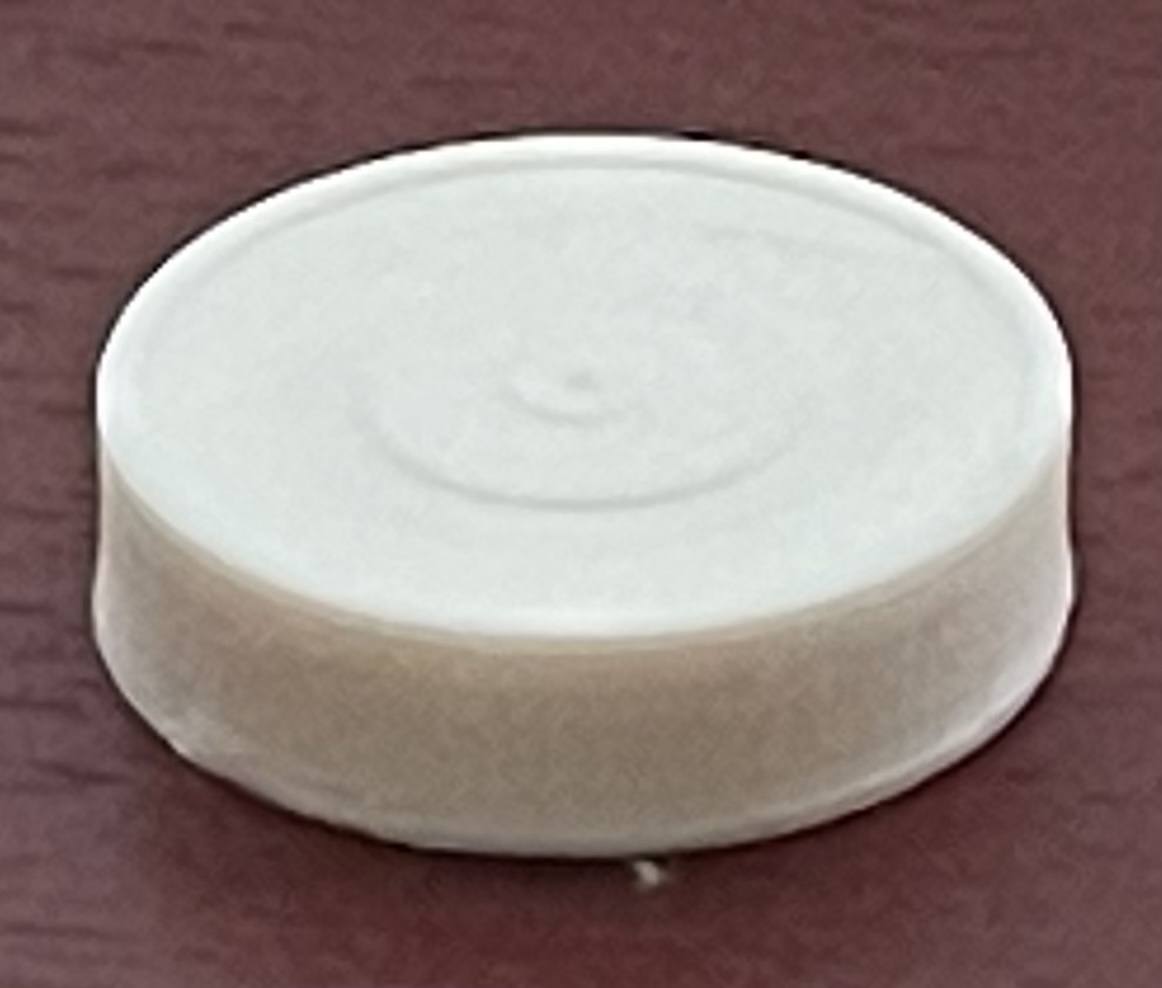

View attachment 1536664

I can’t get the ridges to print. I think I need a finer nozzle.

I'm fairly sure that one would need to be resin printed, unfortunately. It's just too small a set of details.



[The Goon]

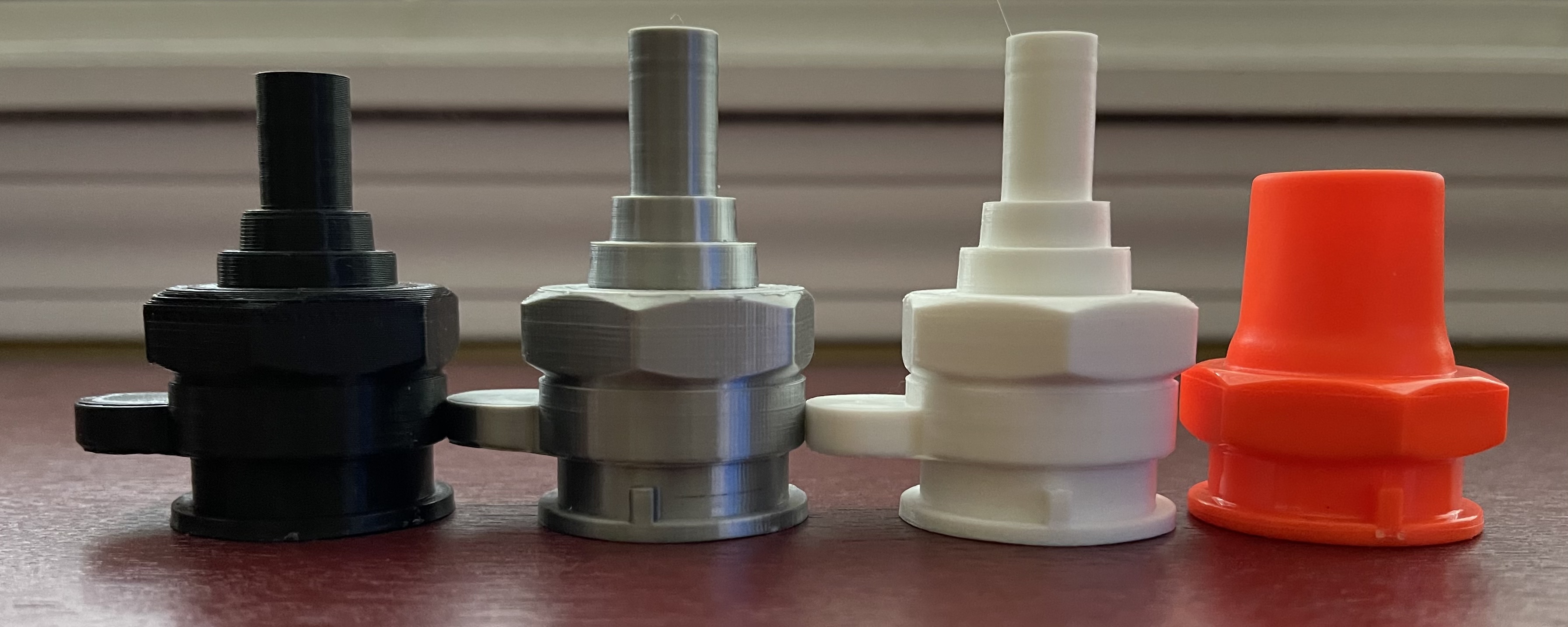

View attachment 1536654

The silver or the white one, doesn't matter. My address is...



[Mara Jade's Father]

This piece is awesome. Great design AnubisGuard.



[Mara Jade's Father]

Btw: To be clear, I’m not selling any parts. I don’t want to get into that as I do not want to discourage the open collaboration in this thread. As AnubisGuard stated, he is planning to get some resin parts made up. I would encourage anyone that cannot print their own to wait for such a kit. In the mean time, if he wants to continue posting parts, I would be more than happy to test them out.



[JoeG]

So,

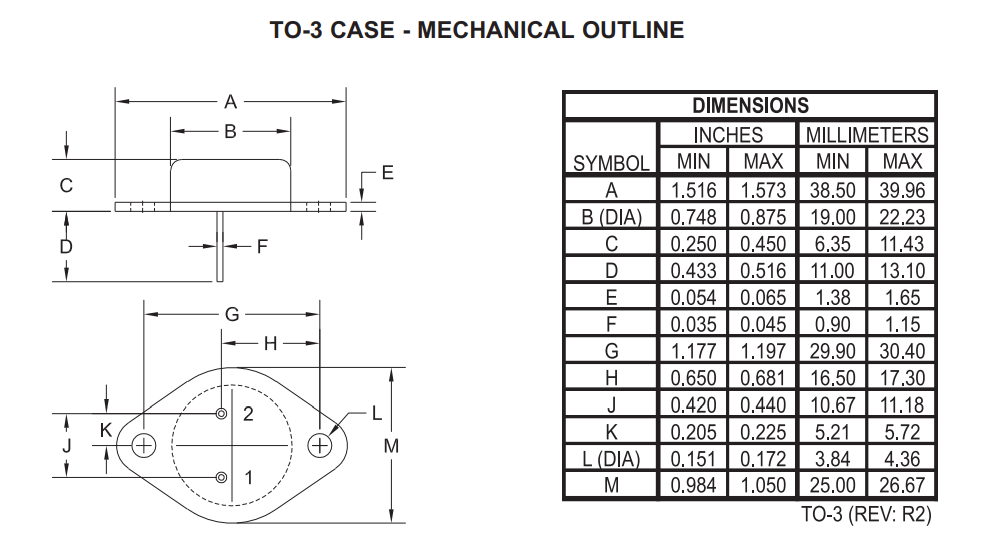

Not to be the bearer of bad news but the transistor on the nerf handle is oversized, so you'll have to sand it off (since the handle is oversized, the transistor was scaled up too). The TO-3 package is just over 1.5" long by about 1" wide. Depending on how crazy y'all want to get, you could always model one to scale up and print:

View attachment 1536315

Confirmed the real transistors are too small for the Nerf blaster. Disappointing, but, oh well. One less thing for me to do on this conversion.



[Mara Jade's Father]

So,


Confirmed the real transistors are too small for the Nerf blaster. Disappointing, but, oh well. One less thing for me to do on this conversion.

View attachment 1536736

It may not be the same size but…

…if you sand the existing one off and place the new one upward more and angled more so the left tip is more at 10 o’clock rather than 11 o’clock, it might work well.



[Halliwax]

So,


Confirmed the real transistors are too small for the Nerf blaster. Disappointing, but, oh well. One less thing for me to do on this conversion.

View attachment 1536736

thanks for sharing, and taking the chance for us



[Halliwax]

This piece is awesome. Great design AnubisGuard.

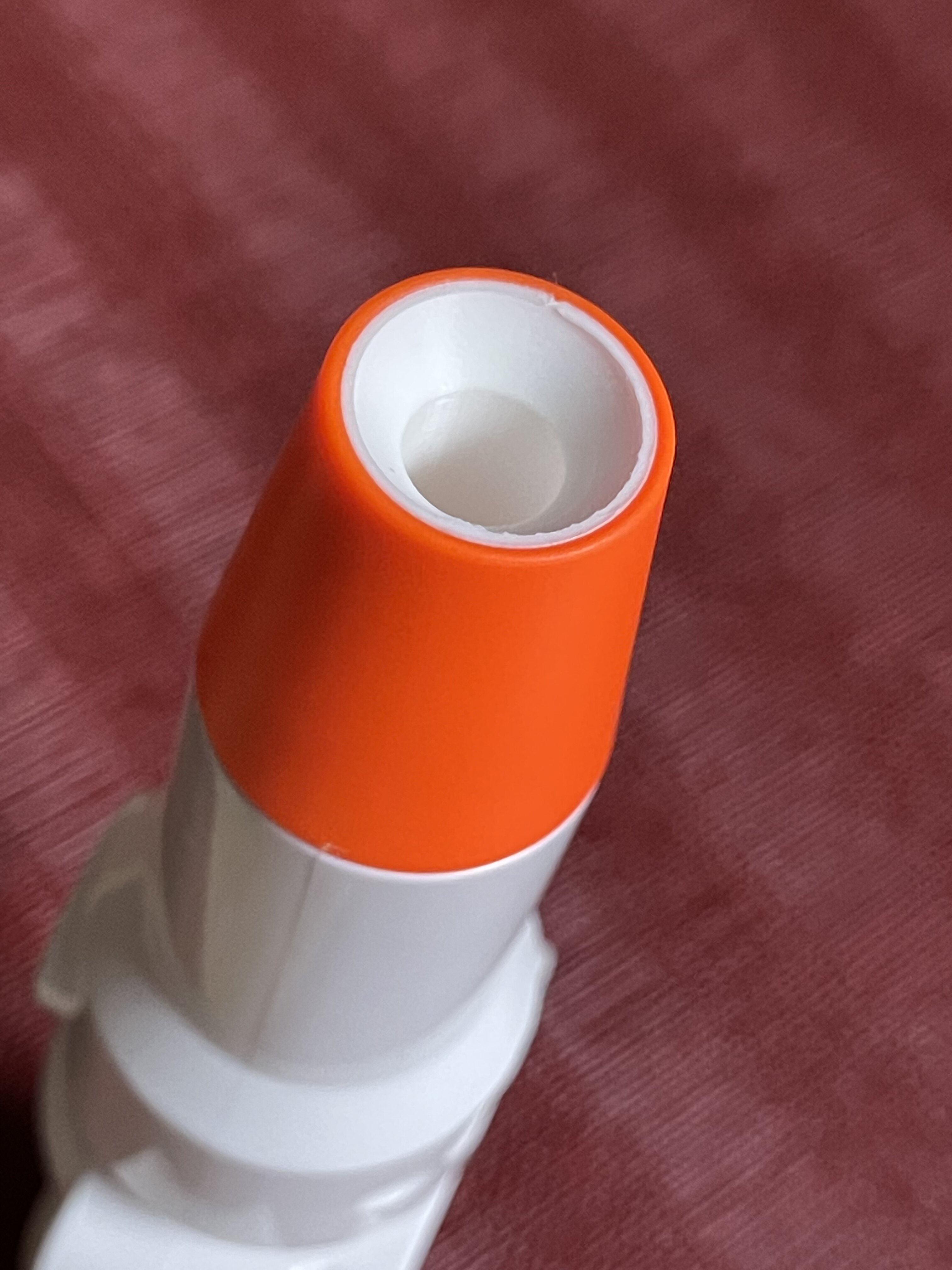

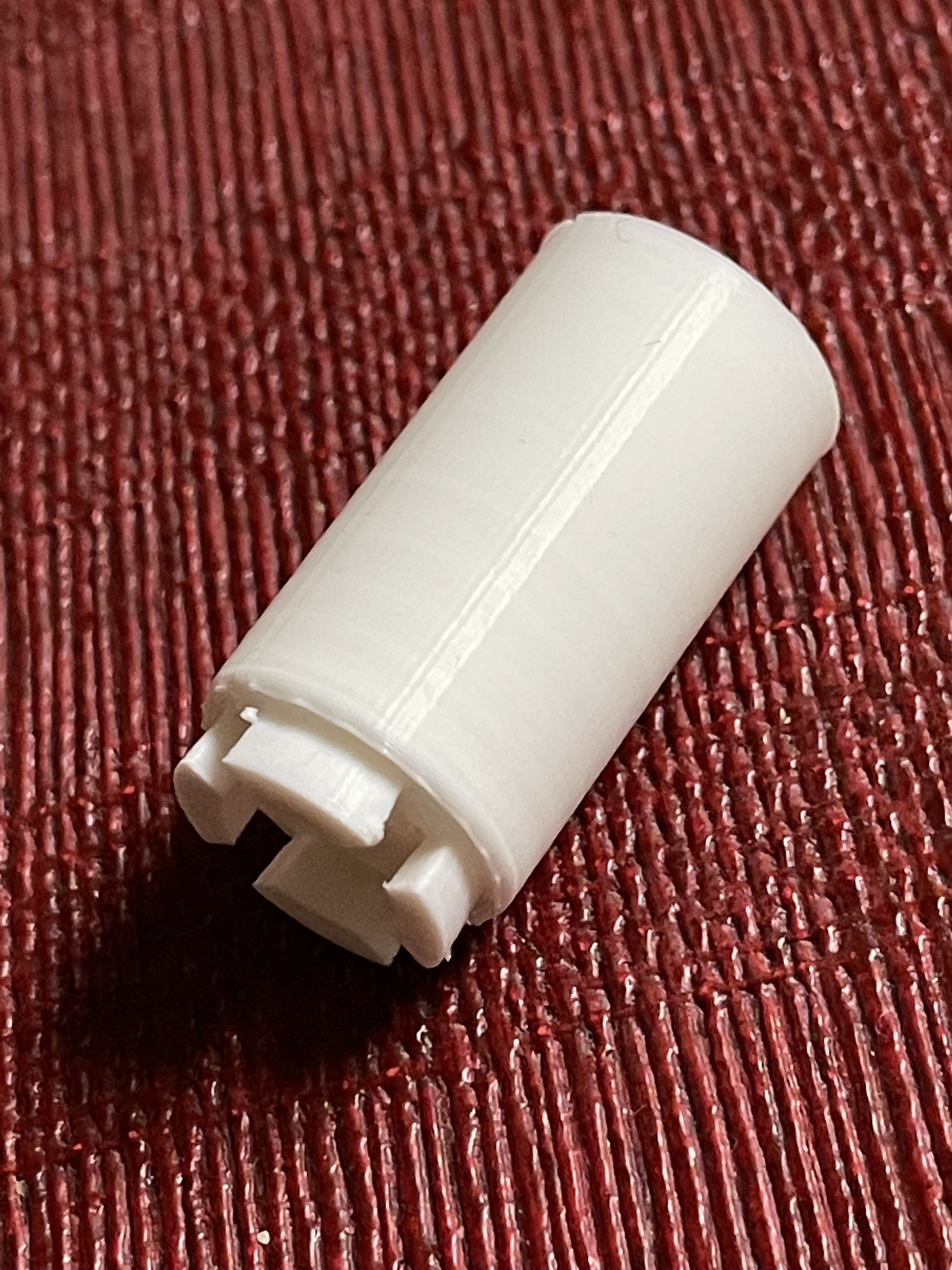

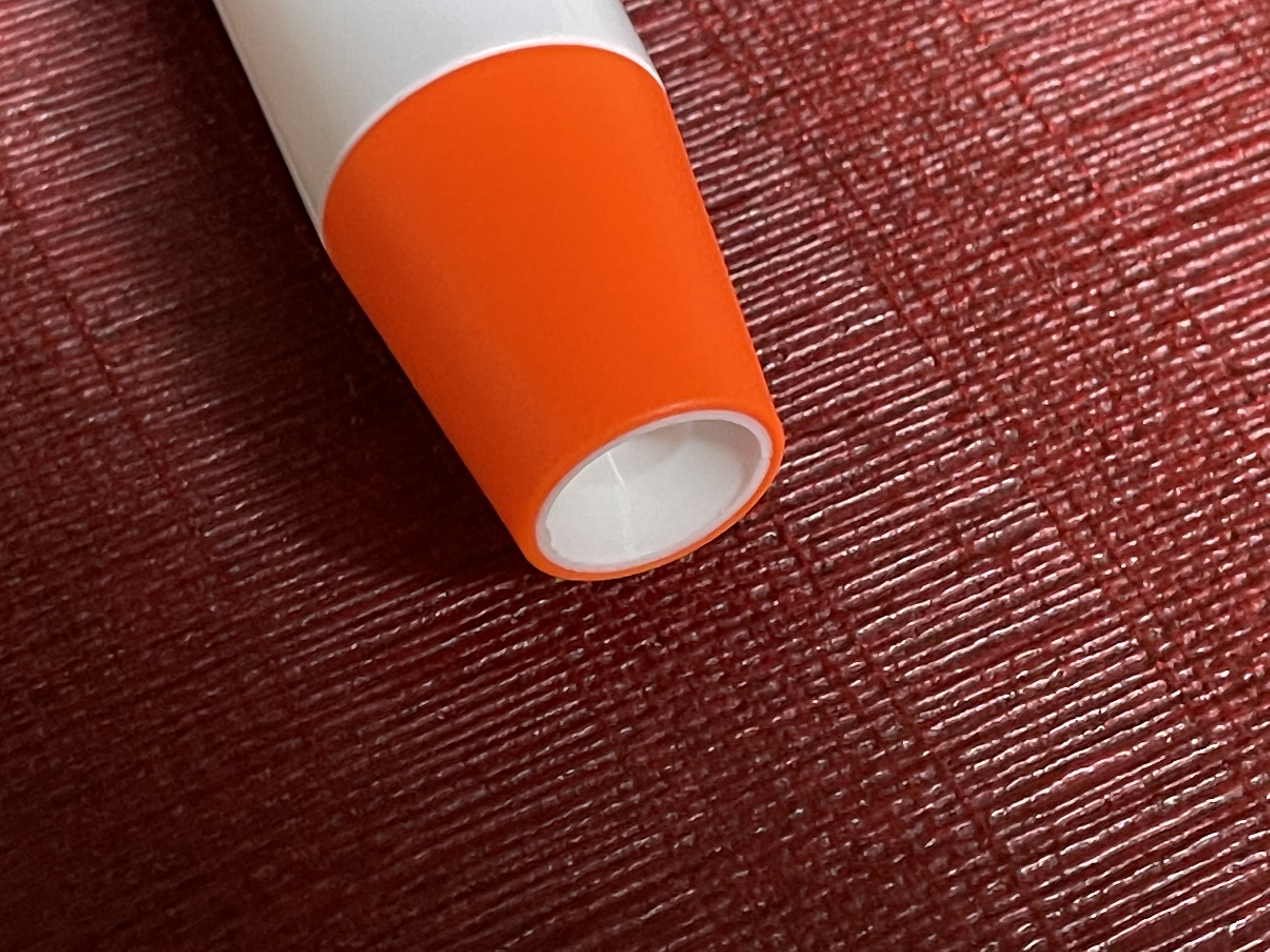

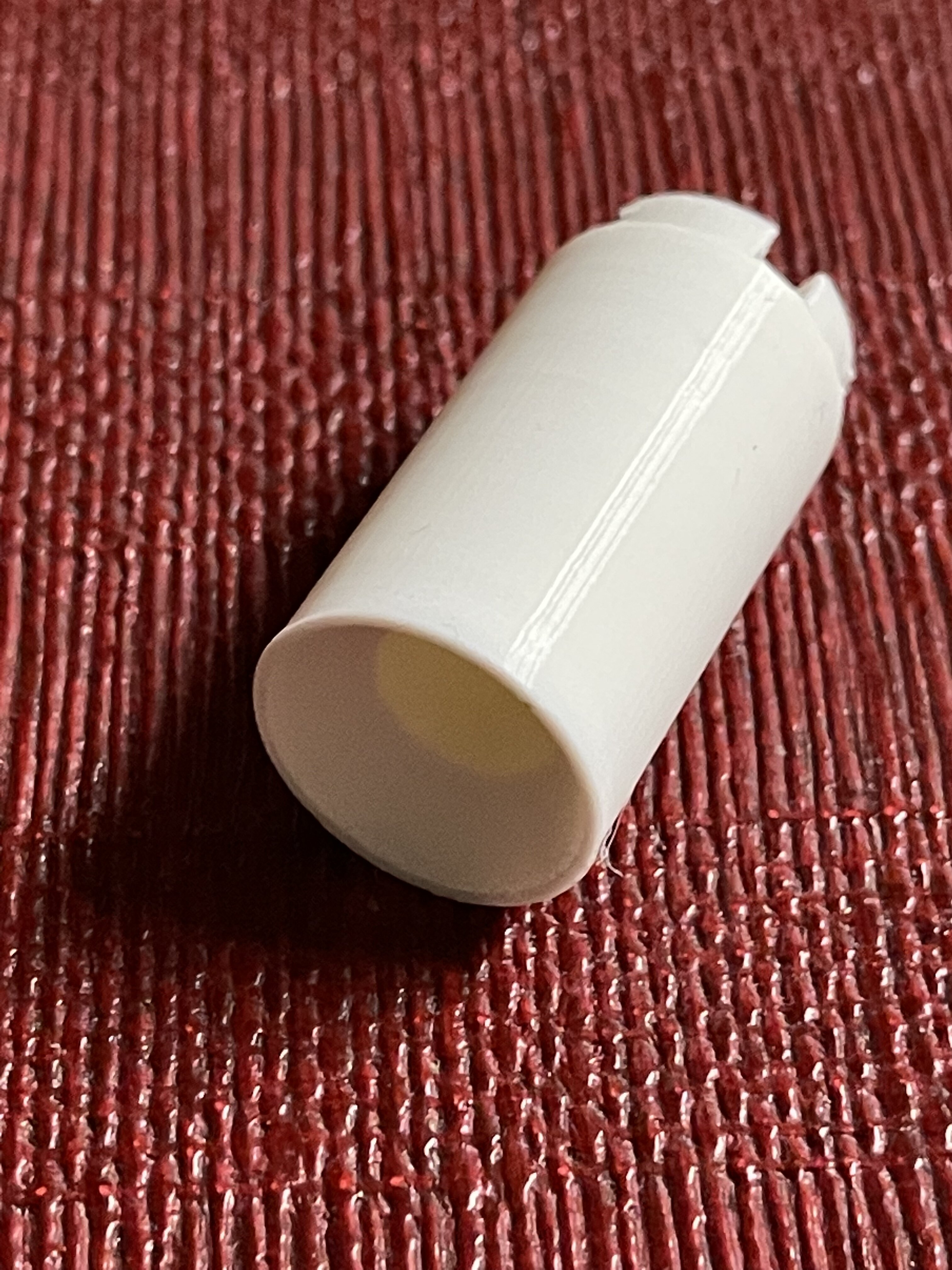

View attachment 1536719View attachment 1536720View attachment 1536721View attachment 1536722

these upgrades look killer!!



[Mara Jade's Father]

AnubisGuard, I was thinking it might be helpful if you made and intention underneath that helped fit over the existing circle just to aid in placing. In short, make it more cap-like.



[Halliwax]

i need to print these this weekend..



[AnubisGuard]

AnubisGuard, I was thinking it might be helpful if you made and intention underneath that helped fit over the existing circle just to aid in placing. In short, make it more cap-like.

Your suggestion has given me a brainwave.

BRB, rebuilding the knob from scratch.



[AnubisGuard]

New knob is two parts, a base and a cap. The base has the requested indent for centering, but also has a 4mm hole for driving a screw through. The cap then slips over the base to complete the knob.



[The Goon]

Btw: To be clear, I’m not selling any parts. I don’t want to get into that as I do not want to discourage the open collaboration in this thread. As AnubisGuard stated, he is planning to get some resin parts made up. I would encourage anyone that cannot print their own to wait for such a kit. In the mean time, if he wants to continue posting parts, I would be more than happy to test them out.

Also to be clear, my previous "Shut up and take my money!" post was intended to be humorous and to express my thoughts that AnubisGuard's efforts weren't wasted. And I'm currently enjoying the collaboration as Mara Jade's Father mentioned, and I'd hate to see that come to an end so I'll lay off the corny jokes.



[AnubisGuard]

Side rail veneer. I have low confidence in this version -- it's a lot of overlapping measurements and I couldn't get it all to line up, so I just took a photo of the NERF and tried to line it up to the picture. There's no corner chamfering or other niceties; for this version it's just the basic geo.



[Halliwax]

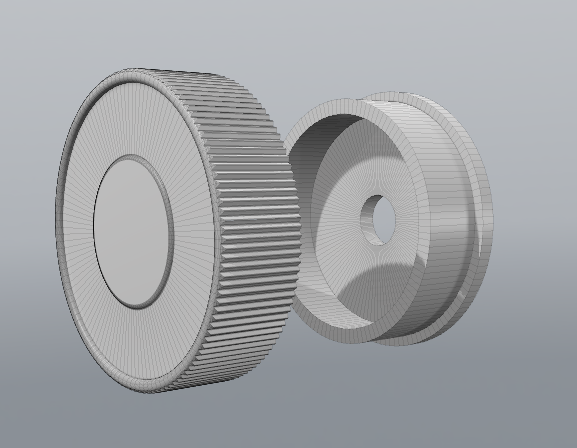

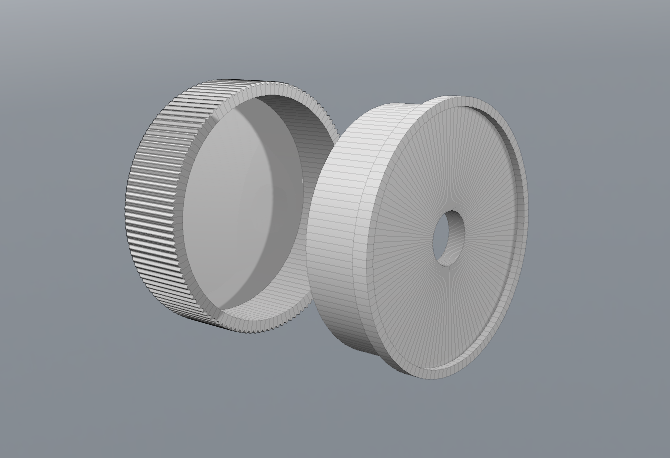

New knob is two parts, a base and a cap. The base has the requested indent for centering, but also has a 4mm hole for driving a screw through. The cap then slips over the base to complete the knob.


View attachment 1536791

View attachment 1536790

Excellent thinking



[Mara Jade's Father]

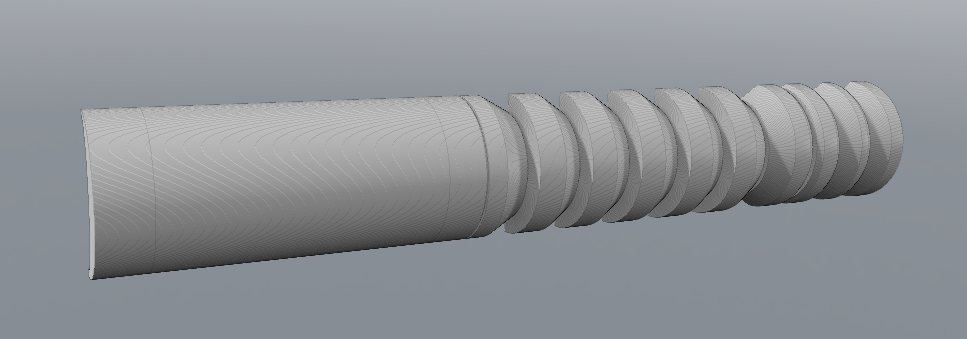

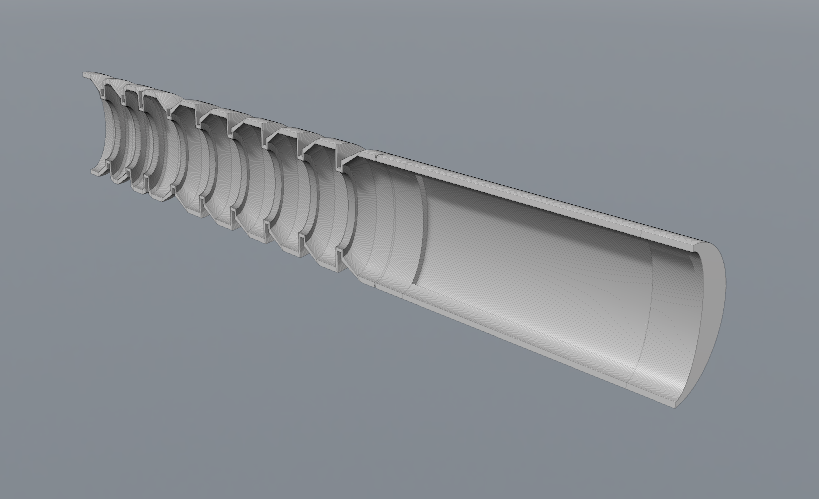

Side rail veneer. I have low confidence in this version -- it's a lot of overlapping measurements and I couldn't get it all to line up, so I just took a photo of the NERF and tried to line it up to the picture. There's no corner chamfering or other niceties; for this version it's just the basic geo.

View attachment 1536807

View attachment 1536808

I’m curious why you felt the need for this part. Is it to cover the Nerf logo without sanding?



[AnubisGuard]

I’m curious why you felt the need for this part. Is it to cover the Nerf logo without sanding?

It raises the rail out to the correct height; the Nerf rail is much too flat.
