Modifying an AA Star Trek: III Phaser (Mostly done!)

Discussion in 'Replica Props' started by Felgacarb, Jul 9, 2015.

  1. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    So, I finally got my Diamond Select ST:III Phaser that I had pre-ordered, so, so long ago.

    Overall, I rather like it. Here it is, next to my own 3D printed version:



    [​IMG]



    It looks like the overall dimensions are more accurate than mine. They have an odd contour on the grip that I haven't been able to match in any screen caps- and they clearly left out the groove on the sides of the P1. And, of course, the colors could be slight better-

    But that all makes this a great, not-so-expensive replica to modify!



    [​IMG]


    My plan:

    Take the dang thing apart. I'll probably have to drill out the screw covers...

    Make a pop-out clip, so that I can wear it without a holster. (Heck, If I can make it work well, I may be able to offer that as a clip kit...)



    Fill the seam lines and sand- and paint it up properly.


    So, more to come...

    Last edited: Sep 7, 2015
  2. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    So, for just a repaint, this probably isn't needed. But, since I intend to add a retractable clip, I needed to take it apart.

    As I feared, I was not able to just pop out the screw covers.

    So, I had to drill them and then pry them out...

    [​IMG]

    [​IMG]

    Here is what they look like inside:

    [​IMG]


    [​IMG]

    Almost entirely empty space. Great for modding! Great for lightweight costume use!

    The next steps will take a lot more time....

    robn1, Sean and Chris2082 like this.
  3. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    So, on to the P1...

    Two goals here: Add the correct groove to the side, and paint it a bit darker.

    Here is the disassembly:


    [​IMG]

    [​IMG]

    [​IMG]

    To cut a nice, straight groove into the lower shell, what you really need is a tiny router table. I think such things exist for the Dremel. I quickly scratch built one for my rotary tool:


    [​IMG]

    It worked- but I would modify it a bit before I used it again...

    The bigger issue is that the shells are darn thin. Cutting the groove kills the edge interfaces.


    [​IMG]


    [​IMG]

    My first try at a fix for this is to cover the gaps with aluminum tape, and then paint the whole thing:



    [​IMG]


    It might just work.


    [​IMG]




    More to come....

  4. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Greetings, Phaser phans!

    Work continues, and the news is mostly good.

    First off, the P1 still functions after reassembly:

    [​IMG]

    On to the P2 body- my main goal is to add a self-retracting clip, so that no holster will be required when worn with a monster maroon or pretty much any other Trek outfit.

    It can be done, and is in fact my favorite feature of my 3D printed version:

    [​IMG]

    So as a starting point, I disassembled my phaser (much easier than the AA one! Of course, it wasn't designed for mass production, that makes it easier...)

    Then I used the pop-out clip as a template to guide the cutting of the toy.


    [​IMG]



    I really hacked it up...

    [​IMG]



    [​IMG]


    However, it looks like my plan will indeed work-


    [​IMG]


    [​IMG]

    I'll have to make 3 minor adjustments to the CAD model of my clip, and then have ShapeWays print it for me. (Probably will take more than 2 weeks...) But it is looking good.


    One change will allow it to lay flat:

    [​IMG]


    [​IMG]

    With this toy being so light, it should be perfect for wearing when costuming. Heck, you might even consider cosplaying with it!

    USS Spaniard, robn1 and Sean like this.
  5. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    Re: WIP: Modifying an AA Star Trek: III Phaser

    I like It. very nice work. and especially the rotary router improvisation...:thumbsup

  6. Mechamaniac

    Mechamaniac Sr Member

    Trophy Points:
    1,586
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Are you going to mod the P2 body at all to decrease the inevitable paint rub from inserting/removing the P1? It's a very tight fit on mine and I suspect that one removal/insertion will scrape off a good deal of paint.

  7. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    My plan right now is to mask of and just not paint the part of the P2 that rubs against the P1...

    So, here is my 3D print belt clip:

    [​IMG]


    And here is my slightly modified version for use with the AA Phaser- I made it a bit narrower to fit in the body, adjusted the spring cavity to match, and extended the slide button a tad:


    [​IMG]


    And then I ordered the new part!

    [​IMG]


    Now I just have to wait for it to arrive.

    (Man, I hate waiting....)

    In the mean time, I can buy another spring to go with it...

  8. Ruddigger

    Ruddigger Sr Member

    Trophy Points:
    1,355
    Re: WIP: Modifying an AA Star Trek: III Phaser

    You need your own 3D printer. I didn't realize these had actually come out, I gotta pick one up.

  9. jasonisle

    jasonisle New Member

    Trophy Points:
    3
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Sir, you are my hero.

  10. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Thanks!

    Ruddigger-

    The problem is the current 3D printers are still a bit expensive, and are not quite as good as what you get from Shapeways- especially in this case, where I need a metal part- I don't know of any home/hobbyist powdered stainless steel printers....

    But perhaps, soon!

    brandomack likes this.
  11. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Next up- the correct spring:

    [​IMG]

    I should still have some of these around....

    brandomack likes this.
  12. Gamera68

    Gamera68 Active Member

    Trophy Points:
    341
    Re: WIP: Modifying an AA Star Trek: III Phaser

    I love this overall mod! What color will you paint the P2?

    And I assume the P1 is now flat black w/ light blue highlights on the front over the beam emitter, right?

  13. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Thanks, Gamera- you are so right- flat black with light blue:

    [​IMG]

    For the P2, I really like this color: Tamiya Spray on Gunmetal; TS-38. You get it in tiny cans at the hobby store. I have some set aside for this build.

    By looking at my older photos, I reconstructed exactly how I did the spring last time. Instead of ordering the spring above (which should work) I picked up a generic spring that was close from the local hardware store (OSH)

    [​IMG]

    [​IMG]

    And then I shortened it by hand to the correct length:

    [​IMG]

    And it looks like my assembly plan will work-

    [​IMG]

    [​IMG]

    Now, just more waiting for my 3D printed clip to arrive!

    Chris2082 likes this.
  14. Gamera68

    Gamera68 Active Member

    Trophy Points:
    341
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Any time and thanks for the info. I'd also like to change the white LED under the P1's blue button but not sure how to w/out soldering.
    Maybe I could just tint the white LEDs with a yellow and red Sharpie since there are two of them. Keep up the good work!! :)

  15. asalaw

    asalaw Sr Member

    Trophy Points:
    1,681
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Very impressive! And I just added WB Jones Spring Co. to my list of bookmarks. I love this place. :)

  16. jasonisle

    jasonisle New Member

    Trophy Points:
    3
    Re: WIP: Modifying an AA Star Trek: III Phaser

    I love seeing this get closer to "real." I bought Mr. Scott's Guide to the Enterprise in '86, Xeroxed the phaser page(s?) and made one cardboard model after another until I could save for a resin kit. Never had the time or money to get one, life intervened, and I figured that was that. I'm so glad it wasn't!

    USS Spaniard likes this.
  17. Gamera68

    Gamera68 Active Member

    Trophy Points:
    341
    Re: WIP: Modifying an AA Star Trek: III Phaser

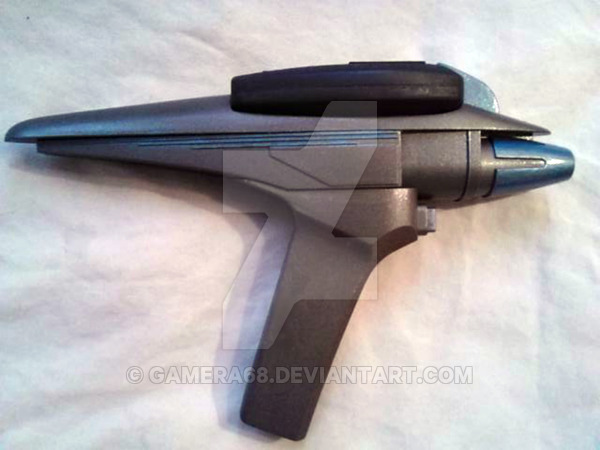

    Here is my Diamond Select 'Star Trek III: The Search for Spock' Movie Phaser.

    It was primed and repainted by myself. The P1 was repainted flat black. (3 coats)
    The main body (Phaser 2) was painted dark metallic copper. (3 coats)

    The beam emitter, curved top plate, and trim was painted a custom, dark, metallic blue.
    (Testor's gloss medium dark blue, flat black, and bright silver; about 3 drops of each color, mixed thoroughly and applied by hand w/ a small brush)

    I need to repaint the pinstripes on each side though...


    Last edited by a moderator: Nov 9, 2018
  18. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    That metallic copper color looks great! I wouldn't have expected that.

    I'm not in love with the blue on the emitter or top, but that is one of the great things about having this toy available- you can customize as you like.

    Nice work!

  19. jasonisle

    jasonisle New Member

    Trophy Points:
    3
    Re: WIP: Modifying an AA Star Trek: III Phaser

    How is it possible to even DO the pinstripes? "A careful brush" wouldn't seem to cut it.

  20. Chris2082

    Chris2082 New Member

    Trophy Points:
    17
  21. Gamera68

    Gamera68 Active Member

    Trophy Points:
    341
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Thanks. The dark metallic copper looks great in person and gives it a heavier look, LOL.

    I wanted to do something different with the emitter and top plate since I've seen some repaints w/ silver instead.

    Thanks! It only took a few hours due to the drying time of the dark copper paint. :)

  22. Gamera68

    Gamera68 Active Member

    Trophy Points:
    341
    Re: WIP: Modifying an AA Star Trek: III Phaser

    I repainted the emitter and curved top plate with a light coat of silver, as I didn't like it after-all, LOL.

    Has anyone else done a repaint or mod to theirs yet? I'd like to see what others have done, myself. :)

  23. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    So, my custom clip arrived this Saturday- back at it!

    [​IMG]

    [​IMG]

    This fits much better than the one designed for the 3D print phaser...


    [​IMG]


    [​IMG]


    I reinforced the insides a bit, since I plan to never disassemble this again....

    [​IMG]


    Then I started the filling and sanding...

    [​IMG]


    [​IMG]



    More to come!

  24. gyoung2993

    gyoung2993 Sr Member

    Trophy Points:
    2,030
    Re: WIP: Modifying an AA Star Trek: III Phaser

    All I can say are 2 things sir....Nicely done , and secondly , THE NEEDS OF THE MANY , OUTWEIGH THE NEEDS OF THE FEW , OR THE ONE !!!....THANKS FOR SHOWING

  25. asalaw

    asalaw Sr Member

    Trophy Points:
    1,681
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Looking great!

  26. antigravity

    antigravity Active Member

    Trophy Points:
    341
    Re: WIP: Modifying an AA Star Trek: III Phaser

    May I ask what product you're using to fill the screw holes and seams? I'd like to start my own repaint this week and was going to go with some milliput.

  27. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    I used standard model putty, in this case "Squadron Products" White Putty from the hobby store. It seems to work pretty well...

    (Just a re-paint? No belt clip?)

  28. jasonisle

    jasonisle New Member

    Trophy Points:
    3
    Re: WIP: Modifying an AA Star Trek: III Phaser

    We can't have everything!

    Are the screw plugs pulling out easily, or are they glued in?

  29. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Re: WIP: Modifying an AA Star Trek: III Phaser

    They are very glued in... they used superglue, or something similar. I had to drill holes into them and pry them out....

  30. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Been a long time I've procrastinated finishing this thread!

    Right!

    Here we go- pretty much this sucker is done, and ready for costume use:

    [​IMG]

    Here, the phaser can be seen being worn with the standard issue Starfleet (Wrath of Khan era) phaser belt, that appears in no films whatsoever. The clip also works well with the belt on the Monster Maroon jacket (and if I had one, I'd put up a photo of that, too!) or with a pants pocket or waistband.

    [​IMG]



    [​IMG]



    [​IMG]



    Overall, I'm very happy with how this came out. I still prefer the phaser appearing to magically stick to the pants or belt rather than using a holster....


    Thanks for reading!

    USS Spaniard and AJK001 like this.
  31. JiminSTLouis

    JiminSTLouis Sr Member

    Trophy Points:
    1,355
    Awesome uniform!

  32. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Thanks, Jim!

    (of course, this is in the prop forum...)

    I say, always be yourself- unless you can be Scotty...

  33. ivanj05

    ivanj05 New Member

    Trophy Points:
    17
    Nice job on the phaser, and that's an interesting belt. Did you make it?

  34. Felgacarb

    Felgacarb Well-Known Member

    Trophy Points:
    936
    Thanks, I did!

    It is basically patterned off the early season 1 TOS phaser belt, just done in black vinyl (with a microsuede back) for that TWOK uniform feel. It also has a magnet sewn into the back, so my communicator will stick to it as well.

    It is not at all cannon, but it works pretty well.

  35. swalker1974

    swalker1974 New Member

    Trophy Points:
    2
    Re: WIP: Modifying an AA Star Trek: III Phaser

    Felgacarb,

    How much did the custom part cost? Would you share type 3d/cad file so I can order one too?

    - Shannon

  36. Eyes Only

    Eyes Only Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,041
  37. swalker1974

    swalker1974 New Member

    Trophy Points:
    2
  38. E Williams

    E Williams Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,000
    Ran into Felgacarb and got to see this phaser first-hand at the Vegas con last weekend - still think it's the most clever STIII phaser mod ever! Have a phaser clip added to my cart at Shapeways just waiting for my next order. :D
