M79 Grenade Launcher -Scratchbuilt **NEW 40mm Grenade Pics **

You did a really great job man! Thank you for posting this. I am planning on making some short films and I might just make a few of these.

This is amazing! You did a great job. I might have to make this my next project...

You did a really great job man! Thank you for posting this. I am planning on making some short films and I might just make a few of these.

Thanks guys. Yeh, this is a relatively easy build. Not a lot of tiny detail to deal with. And if it didn't need to break down, it would have been even easier

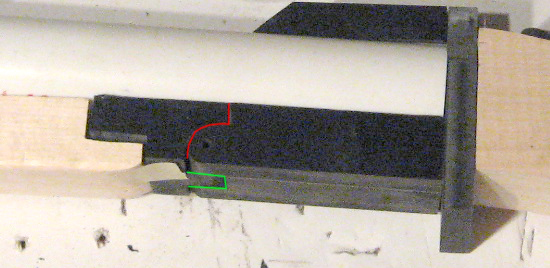

Well, the best I can do is show this image. Often, I have to figure out things as I'm working, and therefore there will be no part drawn out beforehand. This part was cut from 3 layers 3/8" thick sintra. They were taped together then cut to the overall shape on a scroll saw. I then pulled them apart and cut just the outer layers, leaving the inner piece to act as the pivot point. On the other side, I did the opposite, so the inner pieces would inset into each other. Then, I glued the layers together, fit the hinge part together and drilled a hole through both for a wooden dowel pin. Hope this helps
Barrel hinge.jpg

Re: M79 Grenade Launcher - Scratchbuilt WIP

http://www.freewebs.com/grog/Dummy rounds_files/image028.jpg
Bottom left is the M397. Top row 5th in is a M406
http://www.freewebs.com/grog/Assorted_Resin2.jpg
Middle row, 5th one in is a M397A1
http://www.freewebs.com/grog/Dummy rounds_files/image014.jpg
Far right is the M406
http://www.freewebs.com/grog/Dummy rounds_files/image038.jpg
Third one in is the M676. The top of the round is the color.

That last one really threw me off. I had to look it up!
Just a short post to let all know that, I made every grenade in the pictures in the above post. You can visit my homesite here: Replica Sales if you want to check out some other work. I also made the 40MM replicas being used in the new T5 movie. GROG
