Lightsaber Edge Cards - straight ESB style leads

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER

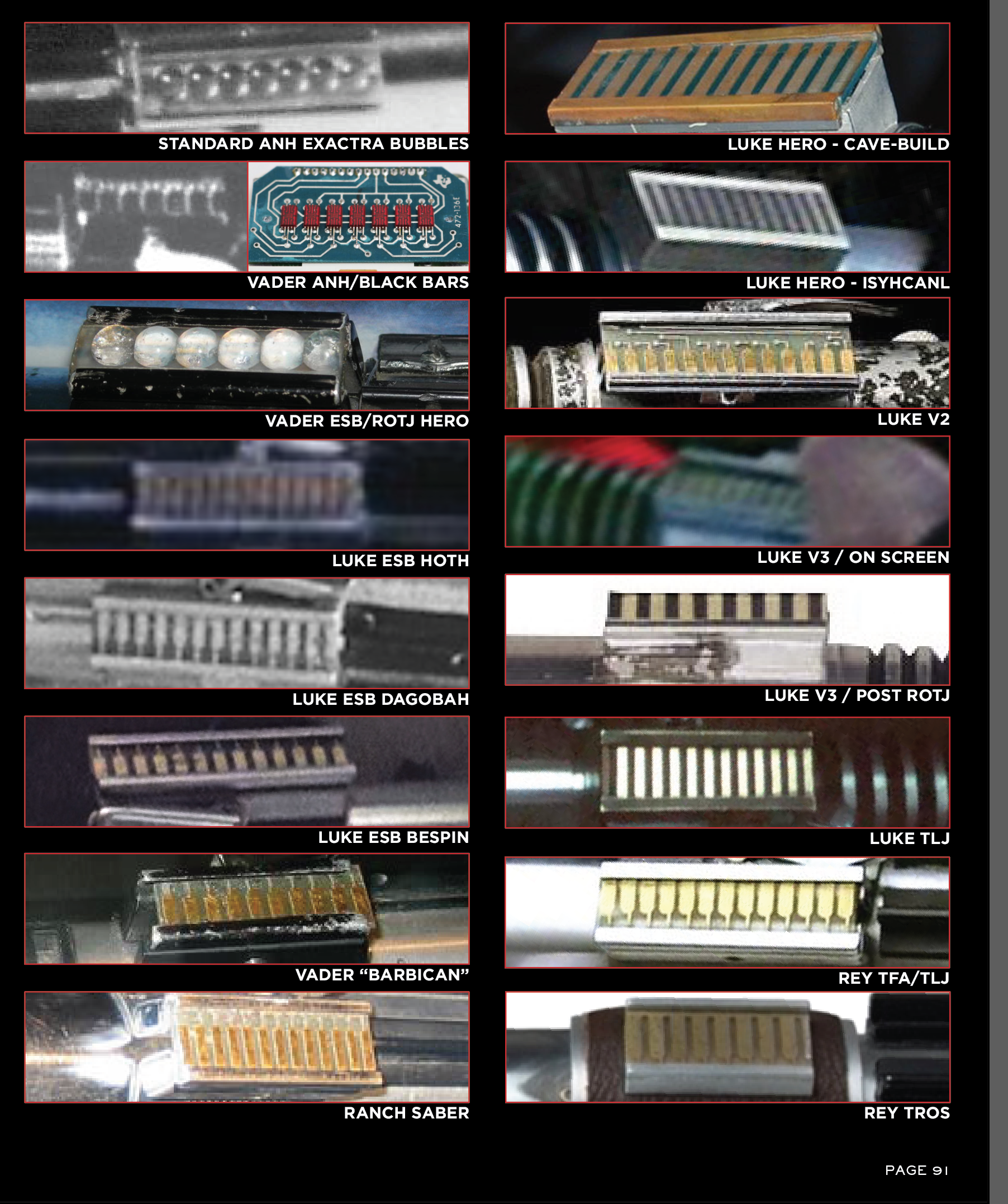

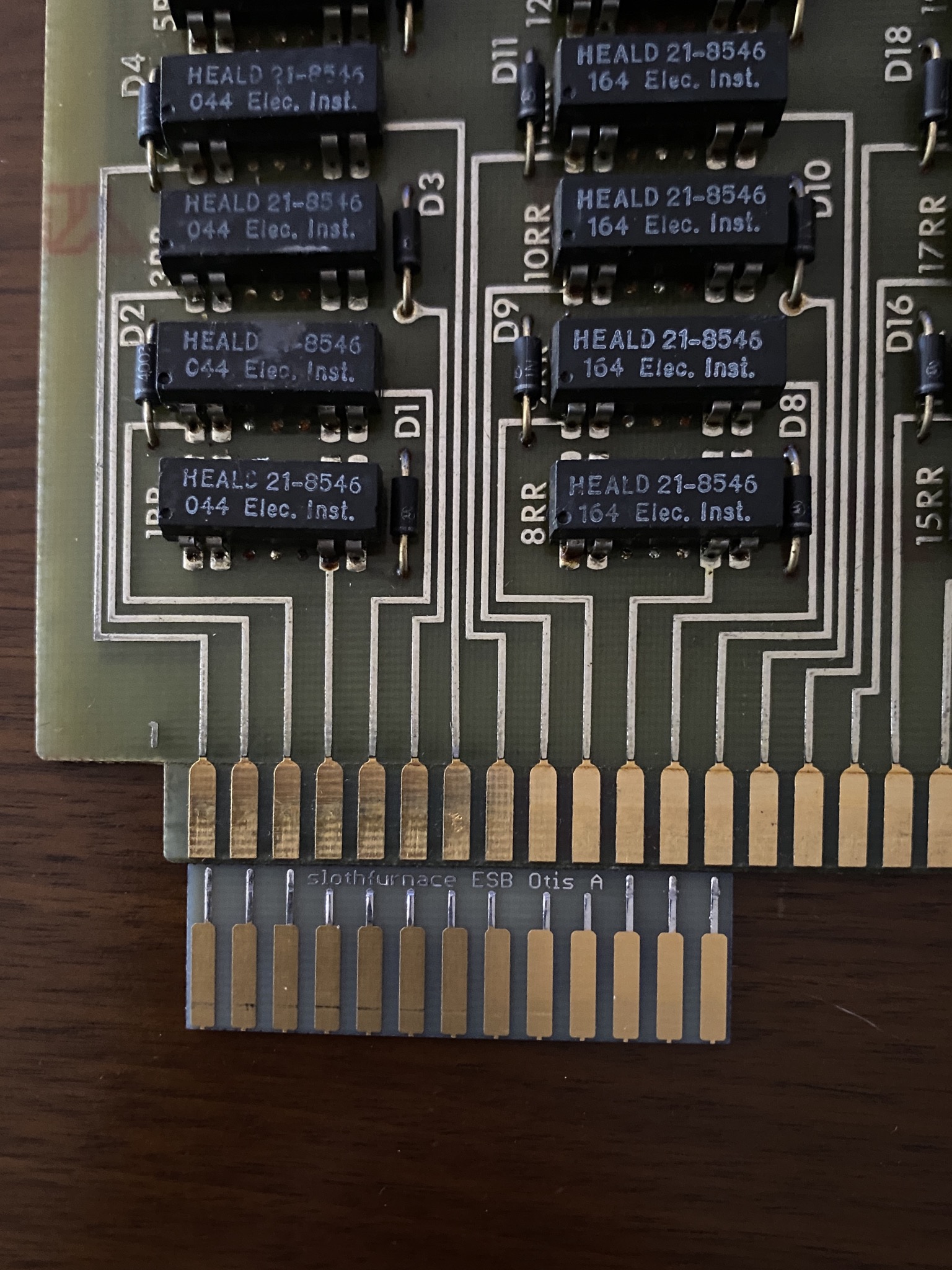

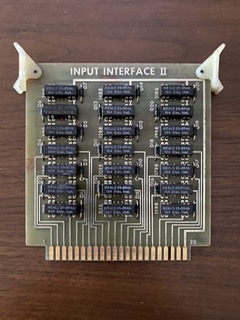

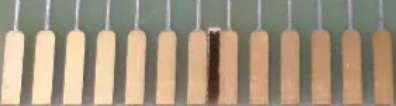

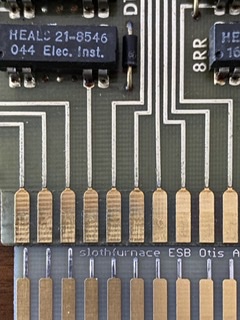

For the record Those traces are too thick in the first photo. I have a board from them with the normal sized leads, see above. Ive seen a couple here and dont want them categorized as the same lol


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

2Cell

Well-Known Member
RPF PREMIUM MEMBER
Any more follow-up on this or is the edge card search dead? I saw Parts of Star Wars that they had a definitive source for it but I guess that's been abandoned and the Otis boards are the go-to currently?


Dann

Master Member
RPF PREMIUM MEMBER
Ahem! My Barbican has the fat trace at the end. Just sayin'!!

I'm surprised nobody noticed, and a little bummed!

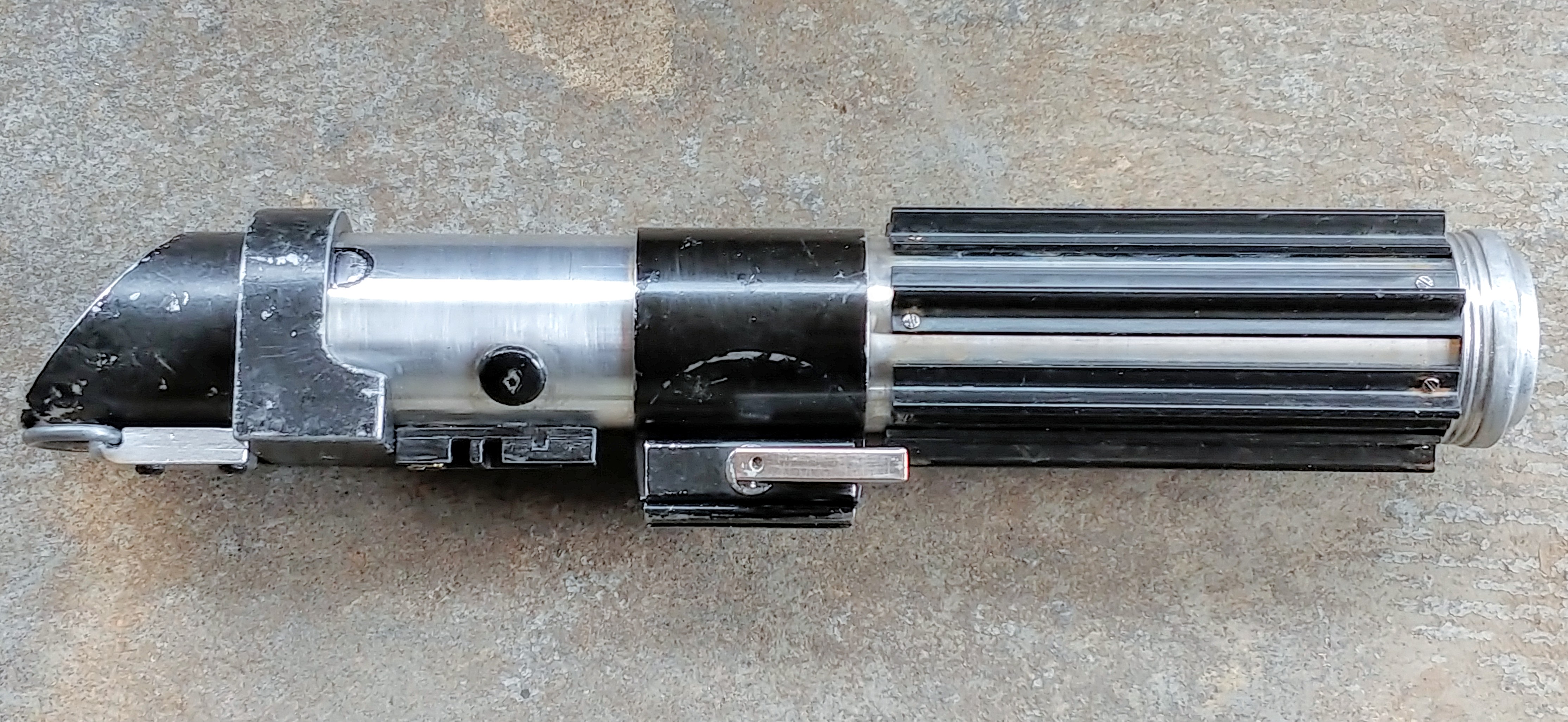

Though I do realize the traces aren't one hundred percent correct. Still, I thought it was cool that there's genuinely a fat trace at the front!

Last edited:

2Cell

Well-Known Member
RPF PREMIUM MEMBER
Here’s mine.



Though I have a few other ones coming in as well. Not sure of the exact vintage on this one and the lines are probably too thick to be the real one. I dig it’s aged effect though.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER
Ahem! My Barbican has the fat trace at the end. Just sayin'!!

I'm surprised nobody noticed, and a little bummed!

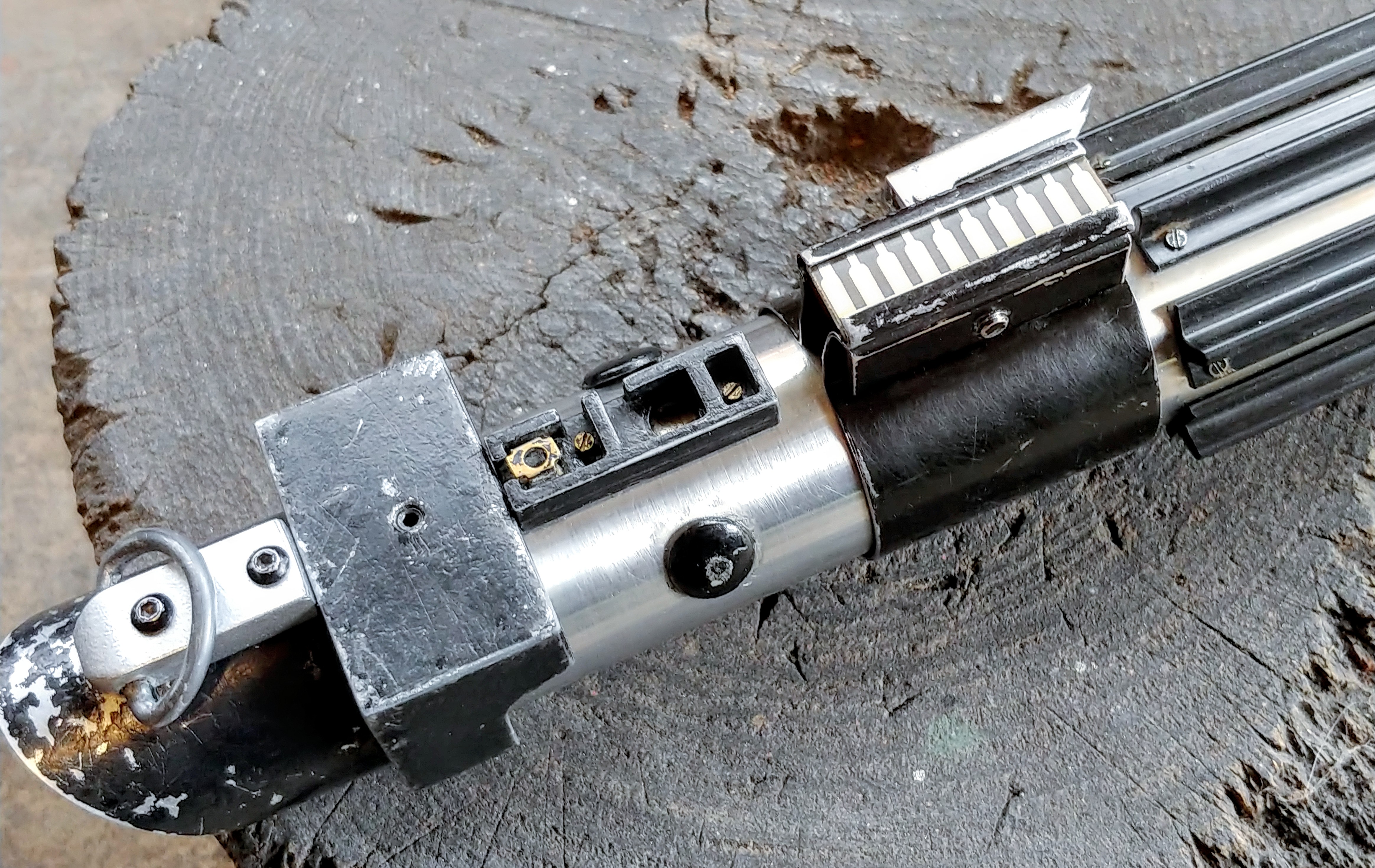

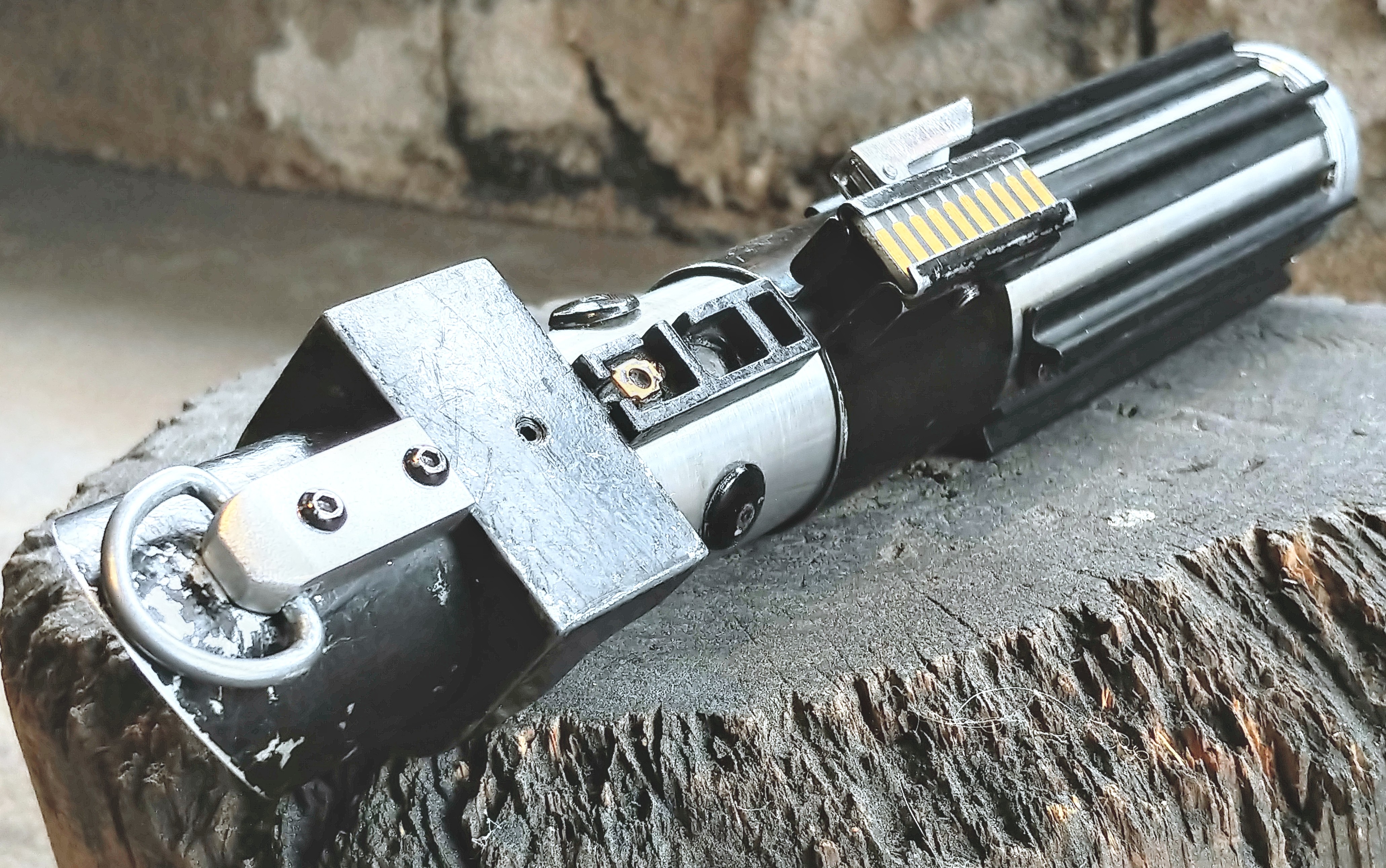

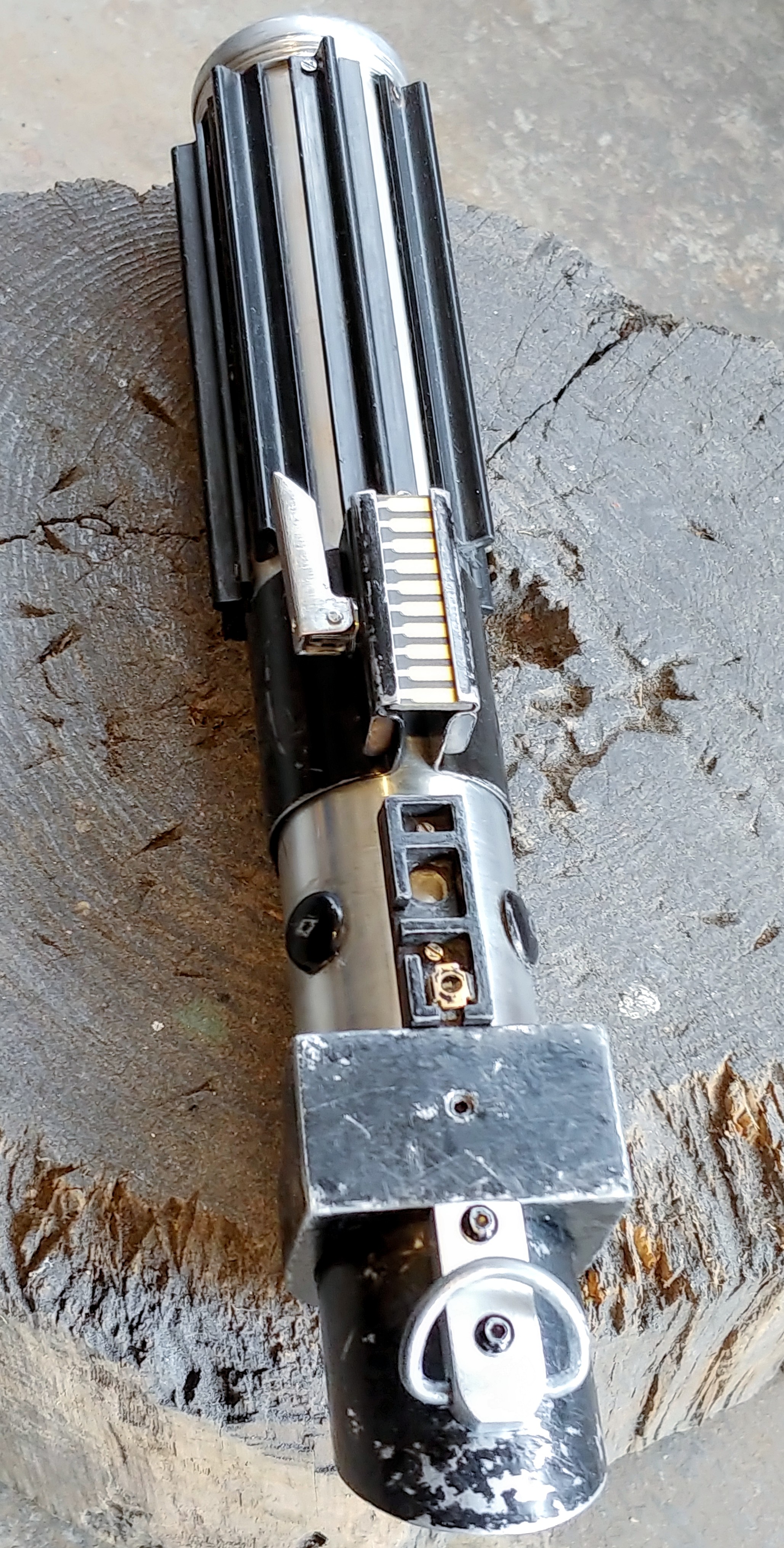

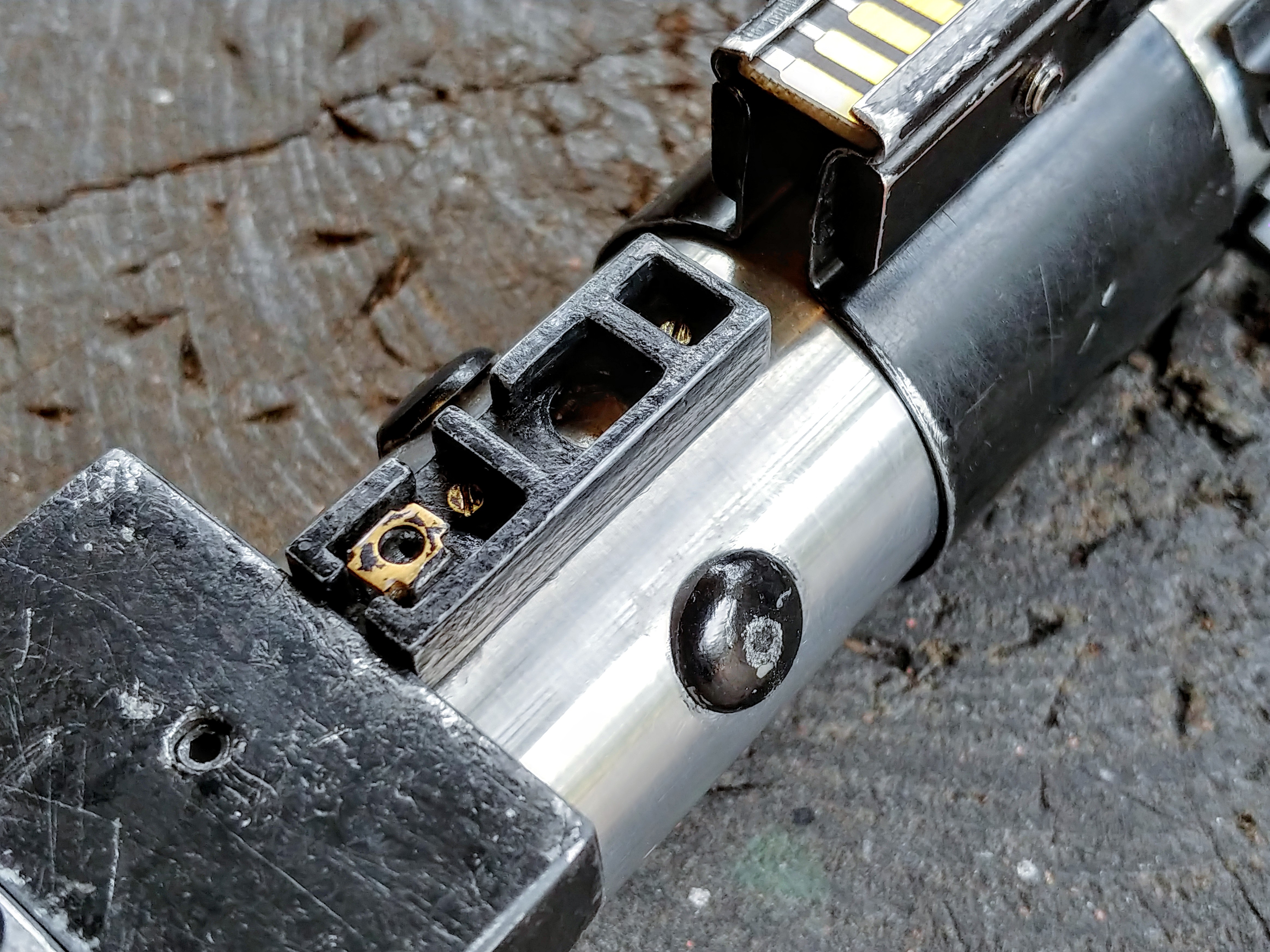

View attachment 1312136 View attachment 1312137 View attachment 1312138 View attachment 1312139 View attachment 1312142

Though I do realize the traces aren't one hundred percent correct. Still, I thought it was cool that there's genuinely a fat trace at the front!
I'm sorry I missed this. are you sure you didn't just steal the real prop? Hell your clamp even has the arc scrape on it. Is that a heald also?

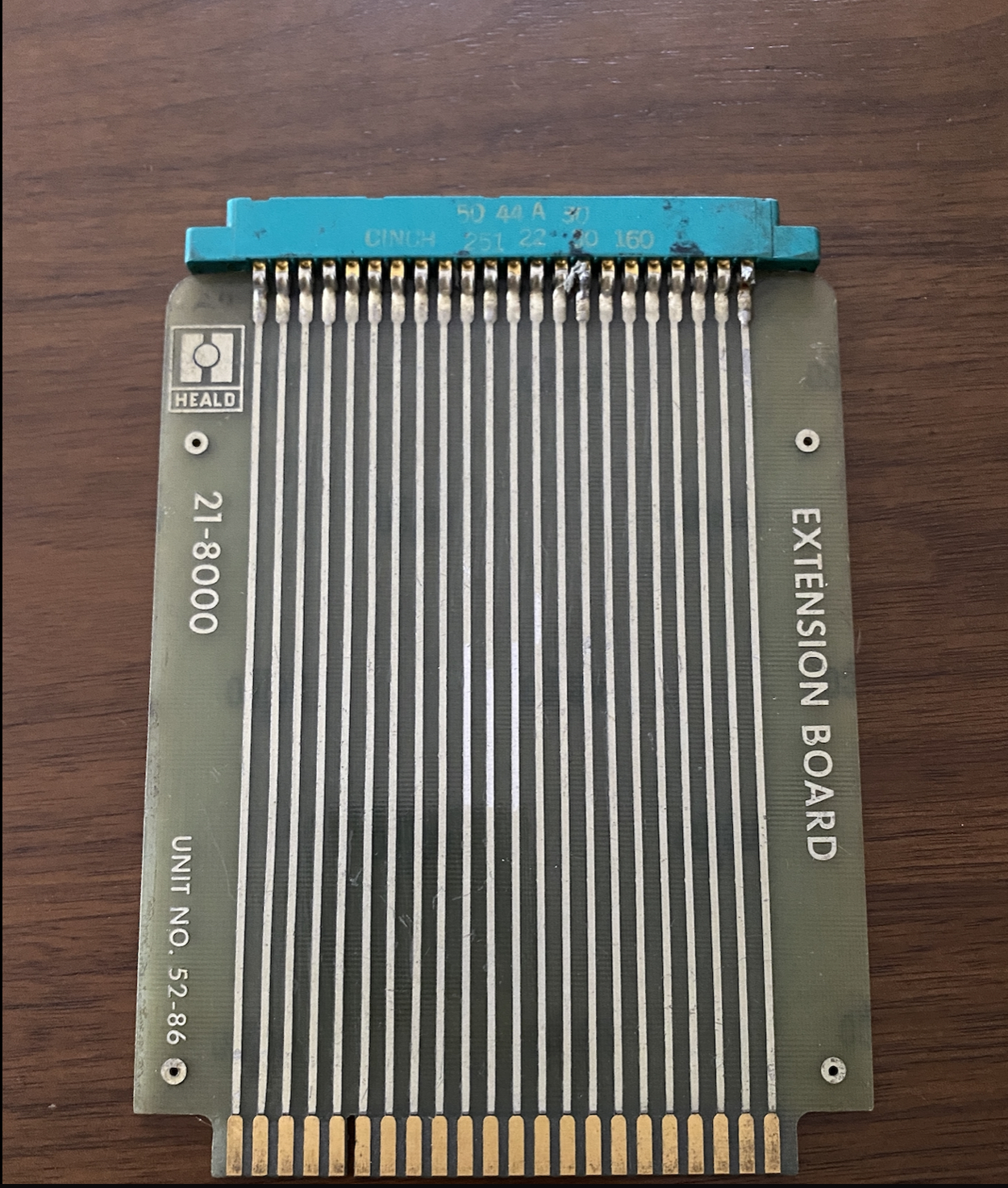

Here’s mine.

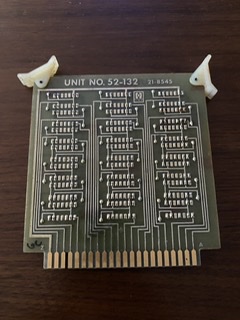

View attachment 1316832

Though I have a few other ones coming in as well. Not sure of the exact vintage on this one and the lines are probably too thick to be the real one. I dig it’s aged effect though.
Looks great! You are right, the silver leads are a bit too thick, but this is a REALLY close board. Aged look really takes the cake, congrats!


2Cell

Well-Known Member
RPF PREMIUM MEMBER
I'm sorry I missed this. are you sure you didn't just steal the real prop? Hell your clamp even has the arc scrape on it. Is that a heald also?




Looks great! You are right, the silver leads are a bit too thick, but this is a REALLY close board. Aged look really takes the cake, congrats!

Thanks thd! I actually was just reading your older threads about your board discoveries. Really great info in there. It'd be so nice to have a directory of boards where we could figure out manufacture date so we could get the correct vintage. Oh well. Any 'vintage' is pretty good at this point. I have a couple more boards coming in that I'll post here as well. Circuit board hunting is my new hobby, lol.


Dann

Master Member
RPF PREMIUM MEMBER
I'm sorry I missed this. are you sure you didn't just steal the real prop? Hell your clamp even has the arc scrape on it. Is that a heald also?




Looks great! You are right, the silver leads are a bit too thick, but this is a REALLY close board. Aged look really takes the cake, congrats!
Tom, I honestly don't recall what the donor board was for this one, I've had it so long. Pretty sure it was NOT a Heald, though. It was some little card I got from working on Infinity War, I think. We had a lot of old electronics and stuff for set dressing.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER
HAH! very good!!!

I like the look of the more rounded leads on sabers. I think the originals technically had rectangles with rounded corners, making them look like they had a radius from far away.

You nailed some of the most important parts - heavy soldered, thin, straight, industrial style leads, dark green board, the right style of gold plating, size and spacing. I would cherish this board (or snap it a part and cherish the SABER you make with it ;) )


2Cell

Well-Known Member
RPF PREMIUM MEMBER
HAH! very good!!!

I like the look of the more rounded leads on sabers. I think the originals technically had rectangles with rounded corners, making them look like they had a radius from far away.

You nailed some of the most important parts - heavy soldered, thin, straight, industrial style leads, dark green board, the right style of gold plating, size and spacing. I would cherish this board (or snap it a part and cherish the SABER you make with it ;) )

Where did the squared off corners theory come from? It's so hard to tell in the photos.

There's one more left from the seller as well if anyone wnats the link.

Like I said, I have one more coming in and I'll contact you seperately thd9791 once I get it. I have a theory on it and want to discuss it with someone more knowledgeable and see if we can break this code.


coolhanluked

Sr Member
RPF PREMIUM MEMBER
Where did the squared off corners theory come from? It's so hard to tell in the photos.

There's one more left from the seller as well if anyone wnats the link.

Like I said, I have one more coming in and I'll contact you seperately thd9791 once I get it. I have a theory on it and want to discuss it with someone more knowledgeable and see if we can break this code.
Lol! No its gone. I told you i was lookin at it. I found 1 more but its like $130.

I have some other boards im looking at too. You tom and i should pow wow.


2Cell

Well-Known Member
RPF PREMIUM MEMBER
Lol! No its gone. I told you i was lookin at it. I found 1 more but its like $130.

I have some other boards im looking at too. You tom and i should pow wow.

Ha! Yeah it was there then gone. And definitely on the pow-wow. I'm in.
